Networking Reaches a
Crossroad – 10/25G Ethernet
July 2018
© 2018 Mellanox Technologies 1
4X
IP traffic will nearly
quadruple over the
next five years
© 2018 Mellanox Technologies 2

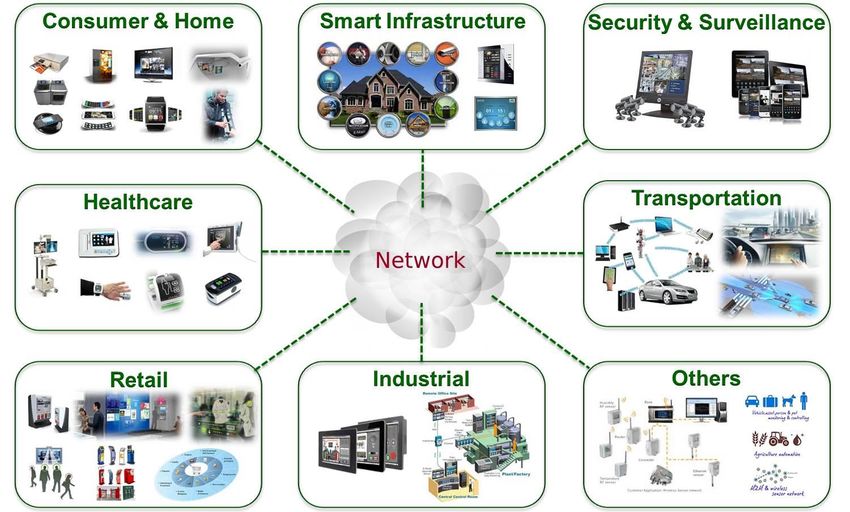

34B
Billion devices will be
connected to the internet
by 2020
© 2018 Mellanox Technologies 3
Of all digital data has
90% been created in the
last
two years
© 2018 Mellanox Technologies 4
In the Midst of a Technology Evolution

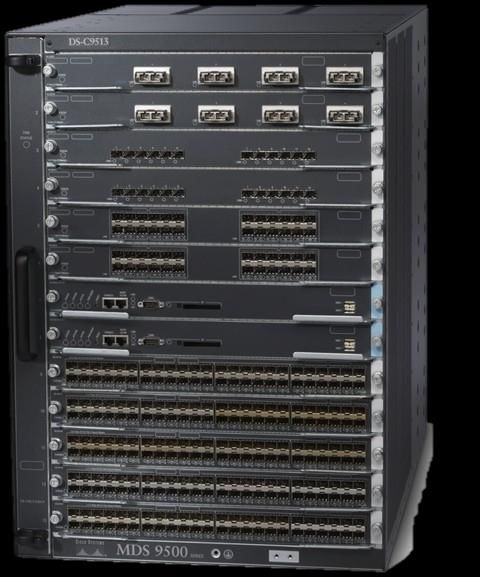

Cellular Phones Enterprise Switching
From brick… From large to
to SLICK! MONOLITHIC…
10/100 Mbps
Verbal communication Mobile multimedia tool 10/40/100GE
IT Is Changing Shape
Virtualization Utilization
Software
Efficiency
Defined
Open Lower Costs
© 2018 Mellanox Technologies 5
10GE Is Not Adequate Bandwidth For Today’s Networks
Increasing Bandwidth Requirements
Virtualization Flash and NVMe Storage Applications
A single virtualized server can drive SSDs can support 24Gb/s of Modern applications require
20Gb/s of network throughput sequential read throughput increased IO and network bandwidth
© 2018 Mellanox Technologies 6
25G Economics – it just makes sense!
10G Technology 25G Technology
64 half-width servers 64 half-width servers
128 x 10G server ports 64 x 25G server ports
128 x 10G ToR switch ports 64 x 25G ToR switch ports
1.2Tb available bandwidth 1.6Tb available bandwidth
50% Fewer 50% Less 25G 33% More
server ports ToR switch ports bandwidth
© 2018 Mellanox Technologies 7
Ultra-high Performance and Economical Connectivity
25GE 100GE
2.5x
More Network Bandwidth
Means fewer switches, adapters and cables
Additional Advantages:
50% fewer server ports
50% less ToR switch port
Forecasted to reach two million Reduces density of 40GE
ports, 2.5 times faster than 10GE from four lanes to one
The need for higher speeds has arrived and the benefits are HUGE!
© 2018 Mellanox Technologies 8
25Gb/s Ethernet Improves Data Center ROI
More VM’s Need More Network Bandwidth Faster Storage Needs Faster Networks
Number of VMs per Server
50
40
VMs per Server
30
20
10
0
2010 2011 2012 2013 2014 2015 2016 2017 2018 2019
• NVMe outperforms SATA HDD/SATA SSDs
- 10x more IOPS, 10x more bandwidth and up to 40-
50% lower latency
• A single NVMe Flash needs 3X10G links or a single
25G NIC
Higher Performance at a Lower Cost
© 2018 Mellanox Technologies 9
25GE Improves Data Center Efficiency
© 2018 Mellanox Technologies 10Do the Math… 25, 50 and 100G Ethernet Makes Sense
Zero Increase in Networking Form Factor Complexity
Compute Storage Fabric
1/10GE 25GE 10GE/32GFC 50GE 10/40GE 100GE
• 25GE uses single lane cable • Reduce cabling and ports
• Utilize the same copper/fiber cable • Greater storage node connectivity
• Diminish need for director switches
• Fan-in cables at the switch • Remove network bottlenecks for flash
• Remove network bottlenecks
• NVMe over Fabric ready
Higher bandwidth utilizing Better load distribution
Up to 25% more bandwidth Lower latencies
familiar cabling
2.5X >50% 15X
Higher Bandwidth Efficiency Reduction In Cabling Greater Switching Bandwidth
© 2018 Mellanox Technologies 11Future Proof With Backwards Compatibility
ADAPTERS SWITCHES
Deploy today in 1, 10 and 40G Ethernet environments and migrate to 25, 50, and 100G to:
• Improve server connectivity by 2.5X
• Increase efficiency and reduce cost associated with data center cable plant
• Reduce overall adapter and switch infrastructure costs
• Extract better storage/server resource utilization
© 2018 Mellanox Technologies 12Networking Requirements to Meet Data Center Demands
Non-Blocking, Full Line Rate, All Block Sizes
Throughput - Eliminate congestion with larger lanes
- Efficiently manage buffers and minimize packet loss
Boost Compute Efficiency to Improve Bottom Line
Efficiency - Deploy intelligence into the fabric to improve network performance
- Offloads and overlays for efficient packet processing
Sufficient Performance to Scale
Bandwidth - Remove bottlenecks and support more data streams
- Future proof with 25, 50 and 100G Ethernet speeds
Minimize Transfer Times and Delays
Latency - Remove OS and CPU to reduce delivery times
- Complete application workloads quicker and improve productivity
© 2018 Mellanox Technologies 13NICs Must Provide Efficient Data Movement
VM VM VM VM VM VM NVGRE, VXLAN, GENEVE
CPU CPU CPU CPU
Embedded Switch Virtual Overlay Network Efficient Data Movement
Hardware OVS Switch Acceleration With RDMA
Efficient Data Movement
• Multi-Host & eSwitch: Embedded hardware OVS switch – Advance Flow Steering Engine
• Virtual network acceleration (VXLAN, NVGRE, GENEVE)
• RDMA – Efficient Data Exchange - Low Latency, Low CPU Overhead

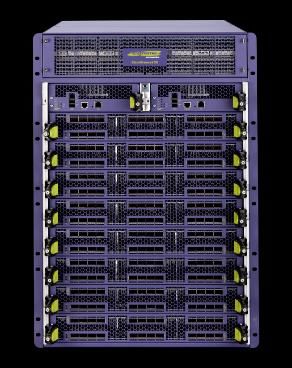

© 2018 Mellanox Technologies 14Switching - From Legacy Chassis to Scale-out Leaf & Spine
Legacy Spanning Tree Scale-out Leaf and Spine
Core/Distribution
Core 40GE
2.5x fewer optics/cables
2.5x fewer spine switches
100GE
2.5x fewer ports
40GE
Distribution
Access
10GE 10GE
25GE 50GE
Access
1GE 1GE
Compute Compute Storage
Storage • Same Connectors
Nodes Nodes Nodes
Nodes • Similar Infrastructure
• Half the Cost / Power
• More speed options
© 2018 Mellanox Technologies 15Ethernet Networking Done Right
Total Infrastructure Efficiency Operational Simplicity Deployment Flexibility
Achieve improved business Provide deterministic data delivery, Achieve architectural freedom to
productivity and boost application simplified scale-out and integration make your business more agile,
workloads by increasing utilization with reduced complexity responsive and competitive
levels
Reduce complexity and costs Improve business agility with
Increase productivity by optimizing
freedom of choice
application performance Advanced automation and
centralize management Provides architectural freedom
Improve bottom line by getting
and avoid vendor lock in
more out of your infrastructure Simplifies provisioning and capacity
planning Rapidly introduce new products
Industries lowest latency
and services
networking solutions
Increase application Simplify operations at With flexibility
performance scale comes freedom
© 2018 Mellanox Technologies 16Comprehensive End-to-End Ethernet Portfolio
32 100GE Ports, 64 25/50GE Ports
10 / 25 / 40 / 50 / 56 / 100GE
Throughput of 6.4Tb/s
100GE Adapter
150 million messages per second
10 / 25 / 40 / 50 / 56 / 100GE
Transceivers
Active Optical and Copper Cables
10 / 25 / 40 / 50 / 56 / 100GE
VCSELs, Silicon Photonics and Copper
© 2018 Mellanox Technologies 17Intelligent Interconnect Enables Next Generation Data Centers
Future Proof: ConnectX Ethernet Adapters
• Today – 1/10/25/40GE
• Tomorrow – 50/100GE
OS Support:
RHEL, CentOS, Citrix, Fedora, 25/50/100GE
SLES, OEL, Windows, Gen3 or 4 x16
ESX/vSphere, Ubuntu
10/25/40/50/100GE 200Mpps
Gen3 x8 or x16 0.6us
150Mpps 10.6W
Features 10/25/40/50GE RDMA, SR-IOV, HDS, RSS,
Speed Gen3 x8 0.63us TSS, LRO, LSOv2
1/10/40/56GE 13.8W VXLAN, OVS Offload,
Bus 75Mpps (40GE) NVGRE, MPLS, GENEVE,
RDMA, SR-IOV, HDS, RSS, and NSH
Message rate Gen3 x8 0.71us TSS, LRO, LSOv2,
Machine Learning, Artificial
Latency 36Mpps 7.4W NVGRE, VXLAN, GENEVE, Intelligence, Data Analytics ,
MPLS High-Performance
Max Power (2 ports) 0.64us RDMA, SR-IOV, HDS, RSS, Computing, Web2.0, Cloud,
TSS, LRO, LSOv2 Hyperconverged, Machine
and NVMe Storage platforms
Ethernet Offloads 6.2W Learning, Data Analytics ,
NVGRE, VXLAN and High-Performance
Overlay Networks RDMA, SR-IOV, TSO GENEVE Computing, Web2.0, Cloud
and NVMe Storage
NVGRE, VXLAN Enterprise Networks,
Use Cases
Hyperconverged, Storage,
Enterprise Networks, Cloud
Cloud Connectivity
connectivity
© 2018 Mellanox Technologies 18Open Ethernet Switching
• High performance up to 100G • Predictable Performance
• Low latency and energy-efficient • Fair Traffic Distribution for Cloud
SN Series • Optimized high-density design • Best-in-Class Throughput, Latency, Power Consumption
• Open Ethernet with OS choice • Zero Packet Loss
10/25/40/50/100G 10/40/100G
SN2700 32x100GE ports (64x50GE) 32x40GE SN2700B
Ideal for 100GE ToR or Ideal 40GE ToR or
aggregation aggregation
SN2410 8x100GE + 48x25GE 8x100GE + 48x10GE SN2410B
25GE 100GE ToR 10GE 100GE ToR
33% Higher uplink capacity 33% Higher uplink capacity
SN2100 16x100GE ports 16x40GE ports SN2100B
Ideal for storage and DB applications Ideal for storage or DB applications
Highest 25G RU density Highest 10G RU density
SN2010 18x10/25GE + 4x40/100GE 18x10 + 4x40/100GE SN2010
Ideal for storage and HCI Ideal for storage and HCI
applications applications
© 2018 Mellanox Technologies 19LinkX Ethernet Cables and Transceivers

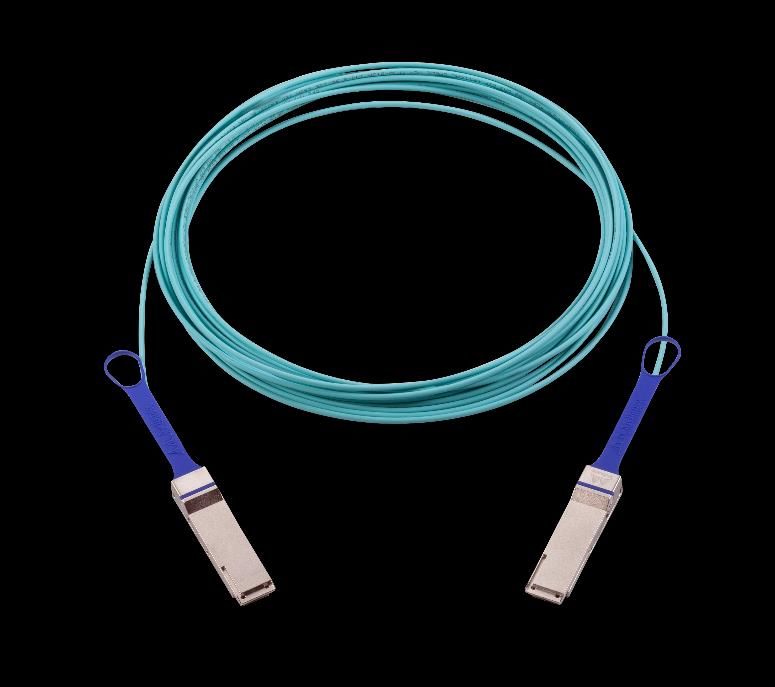

Direct Attach Cables (DAC) Active Optical Cables Optical Transceivers
Copper Wires 2 Transceivers w/optical fiber bonded inside Converts electrical signals to optical
Directly Attaches one system to another Key feature = Lowest Priced Optical Link Transmits blinking laser light over optical fibers
Key feature = Lowest Priced Link 100m/200m Reaches Key features = Connectors & Long Reaches
EN & IB: up to 5m reaches “Transceiver”
4-channels Transmiter
4-channels Receiver
Transceivers with Transceivers with Detachable
Copper Cables
Integrated Fibers MPO or LC Connectors
© 2018 Mellanox Technologies 20Mellanox – Unique Differentiated Hardware
Our Hardware works HARDER
Why Mellanox
• Established technology leader
• Dominant in High Speed Ethernet
• First to market with 25, 50, and 100GE
• Fastest growing Ethernet switch vendor
• Only End to End Ethernet Solution
• Trusted supplier to all major OEMS
Mellanox Ethernet Switches Source: Crehan Research. March 2016
• Twice the performance at half the price Switch Throughput Comparison
• Unique form factors
- Ideal for hyper-converged networking
• Best in-class performance
- Throughput
- Latency
- Power consumption
- Highest Value/$
Source: 3rd patty testing from The Tolly Group
© 2018 Mellanox Technologies 21Similar Infrastructure, A World Of Options
Network Network
150% Higher
40GE Bandwidth 100GE
Similar Connectors
Similar Infrastructure
10GE 40GE 25GE 50GE
Similar Cost / Power
Compute Storage Compute Storage
Nodes Nodes Nodes Nodes
150% Higher 25% Higher
Bandwidth Bandwidth
© 2018 Mellanox Technologies 22Can 25G Ethernet Help Your Organization?
6 Questions to ask yourself…
Are you running tier 1 or 2 applications on Do you have compliance requirements for Data
virtual machines? How has VM density Retention? (Medical, Legal, Finance, TeleCo)
changed in the last three years? • Regulations apply to a wide range of companies and there
• 25G delivers better bottom line benefits and helps to are growing requirements for access of the data at
lower overhead and increase application desktops. Moving these large file will require more
performance through better efficiencies than 10G. bandwidth.
Are you embracing unified communications (IP Video streaming, production and post-production
telephone) and collaboration applications? moving to 4K or greater
• If so, higher bandwidth is required to ensure quality • Uncompressed 4K video needs 12 to 26 Gb/s of
audio and to optimize collaboration tools bandwidth per stream, 10G can’t keep pace.
Do you have tight budgets that require IT to do Are you implementing Flash and NVMe storage?
more with less? • High-speed connection to solid-state drives are being
pushed to their limit and NVMe will offer 5X the
• Many SMBs are seeing the value of implementing
performance. If you’re spending money on the high cost
25G as a way to get more value and life out of
of solid-state drives, you want to receive the maximum
networking equipment.
benefits.
© 2018 Mellanox Technologies 23Thank You
© 2018 Mellanox Technologies 24You can also read
