NEW PRODUCT ANNOUNCEMENT FROM SHIMANO For release April 1, 2am AEDST SHIMANO 105 COMPONENTS – “RIDE INSPIRED” New 11-speed 105 brings top level performance to the widest range of riders. 105 will give every rider the advanced functions, smooth operations and comfortable ergonomics to enjoy every ride. Overview DRIVETRAIN - Front drivetrain: the lightest and easiest shifting we have ever made. It delivers on the promise of “no hassle” front shifting. - Rear Drivetrain . Precise shifts with our “rider tuned” wide gear range lets riders focus on the enjoyment of riding. BRAKE SYSTEM - New lever Ergonomics and revised brake caliper design give a new level of rider control. HUBS / PEDAL SYSTEM - New updated reliable and dependable bearing systems. Components ST-5800 OUR MOST COMFORTABLE LEVER DESIGN • Follows Slim and compact bracket shape of Dura Ace and Ultegra for firm gripping and better rider comfort and control • Smooth surface with enclosed mechanism LESS SHIFTING EFFORT WITH A SHORTER LEVER STROKE • Total system is redesigned. Lever shape, FD/RD spring balance and cable pitch, as well as adding the polymer coated cables to reduce friction CUSTOM FIT TO DIFFERENT HAND SIZES • 10mm of reach adjustment. No shims needed! DIFFERENCE FROM ULTEGRA • Aluminum lever blade. Ultegra has carbon composite • Hood cover colour options: Black or white RD-5800-SS & SGS REDESIGNED IN COMBINATION WITH THE NEW ERGONOMIC LEVER SHAPE TO CREATE A TOTAL REAR SHIFTING SYSTEM. • Lighter shifting operation with new spring balance and new cable pitch • Robust adjustability • Stays in adjustment longer 11-SPEED WIDE GEAR RANGE • 28T compatible (SS) • 32T compatible (GS) April 1, 2014 1

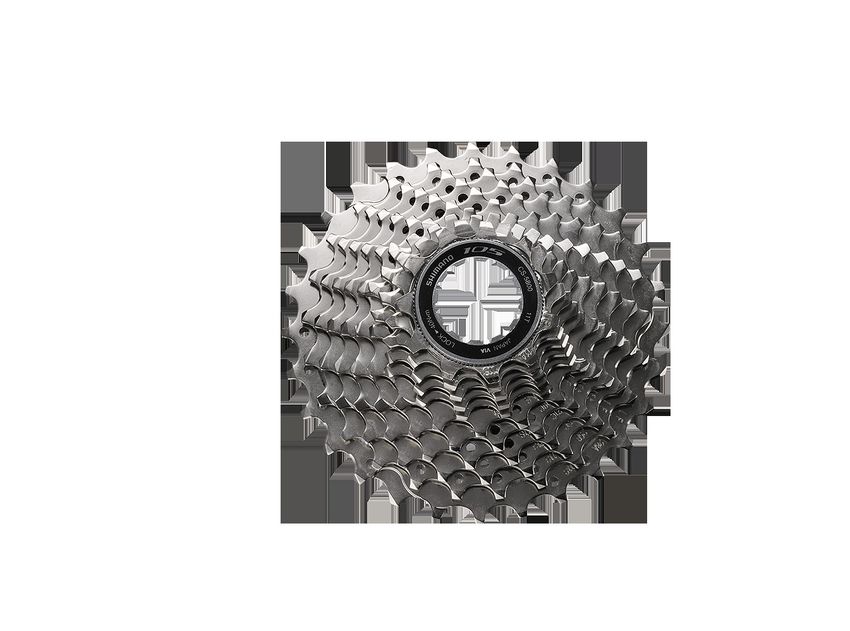

CS-5800 EFFICIENT HG-EV 11-SPEED CASSETTE SPROCKET • Redesigned teeth shape for 11-speed dimension RIDER TUNED WIDE RANGE GEARING • 12-25T / 11-28T / 11-32T STAY IN RHYTHM WITH THE CADENCE CONTROL OF 11-SPEED • Comfortable gear steps allow riders to always be in the perfect gear LONG DURABILITY • Same gear thickness as 10-speed DIFFERENCE FROM ULTEGRA • 105 has all aluminum carrier. Ultegra has carbon and aluminum FD-5800 BRAZE ON / CLAMP CONFIDENT FRONT SHIFTING • Redesigned long link arm combined with new spring mechanism gives you the lightest most accurate front shifting • Less chain drop with new low trim position when shifting from the big chainring to the small chainring STABLE SHIFTING PERFORMANCE WITH NEW SUPPORT BOLT • New braze-on support bolt creates a more stable platform for front shifting (brazed-on boss frame) FC-5800 / SM-BBR60 / SM-BB72-41B OPTIMUM POWER TRANSFER • Dura-Ace & Ultegra proven 4-arm design that realises the best balance between stiffness and light weight • Works with new front derailleur chain guide design to reduce chain drop • New reinforced chainring construction to keep balance between weight and rigidity RIDER TUNED WIDE RANGE GEARING • 53-39T, 52-36T, 50-34T CN-HG600-11 SYSTEM ENGINEERED DRIVETRAIN • SHIMANO new ultra-low friction surface treatment “SIL-TEC” equipped • Durability is same level as CN-5700 SMOOTH AND PRECISE FRONT AND REAR SHIFTING DIFFERENCE FROM ULTEGRA • Only inner plate is SIL-TEC plated, Ultegra – both plates are plated April 1, 2014 2
BR-5800 / 5810 SMOOTH, LIGHT OPERATION WITH EXCELLENT BRAKE POWER MODULATION • 10% brake increase in power (vs.5700) • SLR-EV with 2 axles new symmetrical dual-pivot design provides high level of controllability • Twin bearings reduces pivot friction • Compatible with 28c tires DIRECT MOUNT VERSION WITH 10% BRAKING POWER INCREASE WITH STANDARD ROAD BIKE FRAMES (BR-5810 is a facelift from BR-5710) • Integrated design that low profile caliper • In-line cable adjuster with QR (SM-CB90) • Spring tension adjuster RIDER CONTROL - MORE BRAKING POWER FROM THE HOOD POSITION • New ergonomic shape positions the brake lever pivot further out on the hood to give you more leverage when braking from the tops of the hoods • Shimano recommends use with current brake cable BC-1051 HB/FH-5800 HIGH DURABILITY, SMOOTH ROLLING FOR BEST PERFORMANCE • High quality sealing Cup & Cone bearing • Internal grease sleeve SUPERIOR COMBINATION WITH NEW 105 COMPONENTS • Low maintenance and original performance maintained in any environment 11-SPEED FHB • Compatible with 9/10-speed cassette April 1, 2014 3
Shimano On-Road & Cyclocross Hydraulic Disc Brake ST-RS685 COMFORTABLE AND NATURAL HAND POSITION FOR ALL DAY RIDING COMFORT • New ergonomic shape follows proven mechanical shift lever design • Reliable Shimano 11-speed mechanical shifting system • More stopping power with less effort especially from the hood position • Features 10mm of lever reach adjustment • 10mm free stroke adjustment (ST) • Easy and clean bleeding system EASY HOSE JOINT SYSTEM (PRE-BLED BRAKE LEVER AND BRAKE AND HOSE) • J-kit specification available for OEM BR-RS785 / SM-RT99 CONSISTENT BRAKING PERFORMANCE IN ALL WEATHER CONDITIONS • ICE TECHNOLOGIES rotors and pads dissipates heat to maintain braking performance CUSTOMIZABLE FOR RIDING CONDITIONS, TERRAIN, RIDER SIZE AND EXPERIENCE LEVEL - RIDER TUNED • Rotor size: SM-RT99 140mm standard, 160mm option • ICE TECHNOLOGIES Pad material options – resin Standard, metal option • Low profile caliper for small disc rotor IMPROVED HOSE ROUTING TO AVOID ANY INTERFERENCE CLEAN AND SIMPLE CENTER LOCK DISC MOUNT EASY HOSE JOINT SYSTEM (PRE-BLED BRAKE LEVER , BRAKE AND HOSE) • J-kit specification available for OEM April 1, 2014 4
WH-RX830 ACCELERATION CONCEPT, CARBON LAMINATED WIDE RIM PROFILE 17C TUBELESS • To improve the driving rigidity for better acceleration feeling • To do less inertia within stiff construction SUPERIOR COMBINATION WITH ROAD HYDRAULIC DISC BRAKE SYSTEM • 140mm disc rotor compatible • CENTER LOCK Rotor Mount • 135mm OLD 11-SPEED FREEHUB • Compatible with 11-speed CS and 10-speed CS HIGH QUALITY SEALING CUP & CONE BEARING April 1, 2014 5
