TE Connectivity’s (TE) market-defining technologies and engineering expertise are setting the pace for the future of connectivity. This guide provides a quick view of how TE’s newest products provide solutions across a range of market- leading applications. NEW PRODUCT Application Guide April 2021 HANDHELD & PORTABLE DEVICES CONNECTED HOME SOLID STATE LIGHTING INTELLIGENT BUILDINGS VALUE ADD ASSEMBLIES FACTORY AUTOMATION DATA COMMUNICATION ARCHITECTURE HARSH ENVIRONMENTS ACCELERATING THE NEXT INDUSTRIAL REVOLUTION
HANDHELD & PORTABLE
DEVICES
The rapidly growing needs of the electronics industry are trending toward
smaller, lighter and thinner devices with improved portability. TE is at the
forefront of this trend with the latest technology advancements and a broad
portfolio of new compact interconnects that keep engineers in all markets
ahead of changing industry needs.
a b c d
a. SM9000 Ultra-low Digital Pressure d. TE Antennas for Wi-Fi 6E
Sensor Can support triple bands, including the
Enables ultra-low pressure sensing new 6 GHz band, with quick time-to-
offering pressure ranges as low as 125 market. Enables new applications and
Pa with a 16-bit I2C digital interface. services, greater network flexibility, and
The sensors are available in gage and faster speeds with reduced latency in
differential configuration in JEDEC end devices and applications.
standard SOIC-16 package with dual
vertical or horizontal porting options. e. TE Antennas for 5G, NB-IoT and
LTE-M
e
b. 830M1 Triaxial Accelerometer Provide a variety of band solutions
Offers advanced acceleration sensing ranging from 600 MHz to 6 GHz. They
for machine health monitoring where can address wide frequency band
wide bandwidth, small size, low and various bandwidth demands from
power, and robust performance are cellular Internet of Things (IoT) devices,
essential. Optimized for critical helping to enable lower latency and
machine health monitoring the 830M1 higher peak data rate connection of 5G
offers an outstanding measurement network communication.
bandwidth (up to 15 kHz), superior
resolution and is designed with highly
stable Piezoelectric (PE) sensing
technology.
c. 1.0mm Locking Wire-to-Board
Connectors
Addresses the needs of low-profile
applications that require a reliable,
secure wire-to-board signal or low-
power connection. A locking feature
strengthens the mating connection
between the plug assembly and the
receptacle and provides an audible
and tactile click feedback when
mating.
1 TE Connectivity | New Product Application Guide
CONNECTED
HOME
With our global network of engineers, TE can help turn your vision for connected
home applications into a reality. With a broad range of connectivity and sensor
solutions for home appliances and devices, lighting, HVAC, security, and more, TE is
the ideal partner to help you bring your products to market fast.
a b c d
a. SM9000 Ultra-low Digital d. TE Antennas for Wi-Fi 6E
Pressure Sensor Can support triple bands,
Enables ultra-low pressure including the new 6 GHz band,
sensing offering pressure ranges with quick time-to-market.
as low as 125 Pa with a 16-bit I2C Enables new applications
digital interface. The sensors are and services, greater network
available in gage and differential flexibility, and faster speeds with
e
configuration in JEDEC standard reduced latency in end devices
SOIC-16 package with dual and applications.
vertical or horizontal porting
options. e. TE Antennas for 5G, NB-IoT and
LTE-M
b. HTU31 Humidity and Provide a variety of band
Temperature Combination solutions ranging from 600 MHz
Sensor to 6 GHz. They can address wide
frequency band and various
One of the smallest and most
bandwidth demands from
accurate humidity sensors
cellular Internet of Things (IoT)
on the market that combines
devices, helping to enable lower
multiple functions and various
latency and higher peak data
interfaces (I²C , analog, voltage
rate connection of 5G network
output) with an application-
communication.
friendly operating voltage range
(3.3-5.5V with 5V typical).
c. 1.0mm Locking Wire-to-Board
Connectors
Addresses the needs of low-
profile applications that require
a reliable, secure wire-to-board
signal or low-power connection.
A locking feature strengthens
the mating connection between
the plug assembly and the
receptacle and provides
an audible and tactile click
feedback when mating.
2
SOLID STATE
LIGHTING
TE is a leader in the development of next generation Solid State Lighting
(SSL) solutions. From outdoor luminaires to commercial refrigeration,
new technologies drive lighting innovation. Whether you are creating a
new system or enhancing an existing design, TE provides a wide range of
new energy-saving solutions.
a b c d
a. NECTOR T Splice Connector faster speeds with reduced latency in
Offers a new solution to high humidity end devices and applications.
and harsh environment installations
like horticultural and outdoor lighting. e. TE Antennas for 5G, NB-IoT and LTE-M
It is an easy-to install and time saving Provide a variety of band solutions
alternative to traditional hard-wired ranging from 600 MHz to 6 GHz. They
electrical connections. can address wide frequency band
and various bandwidth demands from
b. LUMAWISE Endurance N Tool-less cellular Internet of Things (IoT) devices, e
Rotatable Dimming Receptacle helping to enable lower latency and
Assembly higher peak data rate connection of 5G
ANSI C136.41 compliant rotatable and network communication.
hand rotatable up to 355° degrees for
outdoor luminaires that require a NEMA
based socket. Prevents wire tangling
and/or stress inside the lighting fixture.
c. LUMAWISE Endurance N Enhanced
Base
A network lighting control (NLC) base
assembly which provides AC power
switching and DC power supplies
necessary for complex network lighting
control solutions, creating a platform
to de-risk project schedules and cost of
design changes of NEMA/ANSI street
and outdoor network lighting control
solutions.
d. TE Antennas for Wi-Fi 6E
Can support triple bands, including the
new 6 GHz band, with quick time-to-
market. Enables new applications and
services, greater network flexibility, and
3 TE Connectivity | New Product Application Guide
INTELLIGENT
BUILDINGS
As today’s buildings become increasingly efficient and connected, TE offers many
solutions to solve complex connectivity challenges. Our new products seamlessly
integrate controls and transmit power and data across multiple building systems,
from environmental and illumination controls to people flow, convenience and
service equipment, delivering safer and more secure living and working spaces.
a b c d
a. Potter & Brumfield Power Relay T92 50A
cost savings. The design of the PCB
Connectors in 3.5 mm and 5.0 mm pitch
Primarily designed for HVAC, industrial consists of two-piece plug connectors
controls, power supply, charging, lighting with mating straight and right angle
and inverter applications. The improvement shrouded headers.
on the key components’ conductivity and
heat dissipation capability of this relay
provides improved ratings (T92H type, 50A) e. BUCHANAN WireMate ITB Modular
and enables usage in higher power and Poke-in
temperature environments such as charging Easy-to-use poke-in and wire release
applications. features help shorten installation time
and provide extra flexibility for reuse
and wire replacement. The reduced e
b. TE Antennas for Wi-Fi 6E
profile of the connector takes only
Can support triple bands, including the new 2mm in height above the PCB top
6 GHz band, with quick time-to-market. surface while horizontal wire insertion
Enables new applications and services, minimizes space usage beneath the
greater network flexibility, and faster speeds PCB.
with reduced latency in end devices and
applications.
c. TE Antennas for 5G, NB-IoT and LTE-M
Provide a variety of band solutions
ranging from 600 MHz to 6 GHz. They can
address wide frequency band and various
bandwidth demands from cellular Internet
of Things (IoT) devices, helping to enable
lower latency and higher peak data rate
connection of 5G network communication.
d. BUCHANAN Push-In Clamp PCB
Connectors
Enable tool-less wire insertion of ferruled
and unferruled wires. This saves up to 80%
installation labor time vs. traditional screw-
clamp termination, leading to important
4
VALUE ADD
ASSEMBLIES
Critical to the performance of system to system connection, TE’s design
experience supports complete performance, efficiency and applied cost
savings. For essentially any subsystem including control boards, power
systems, cable assemblies, controllers, timers or sensors, TE products enable
a broad range of solutions.
a b c d
a. TE RBK-X1 Processor for Raychem Heat d. Economy Power 2.5 Connectors
Shrink Products The Economy Power 2.5 (EP 2.5)
A semi-automatic unit designed connector is a single row or dual row
specifically for sealing wire bundles, crimp connector system. Based on
splice, and ring terminals. It includes a 2.5mm (0.098”) centerline pitch,
long-life heating elements, operator it is a very compact solution. EP 2.5
key lock/password protection levels, connectors provide a comprehensive
individual selections for installation connectivity solution with vertical
times, temperature and product size and right angle headers, optional TPA
information. retainers, wire-to-wire and wire-to-
board options.
e
b. TE Antennas for 5G, NB-IoT and
e. RZF Power Relays
LTE-M
This compact relay offers through-
Provide a variety of band solutions hole technology (THT) printed circuit
ranging from 600 MHz to 6 GHz. They board (PCB) terminals plus top-
can address wide frequency band mounted 0.187 x 0.020 in (4.8 x 0.5
and various bandwidth demands mm) quick connect tab terminals for
from cellular Internet of Things load connections. Its lowprofile design
(IoT) devices, helping to enable results in a mounted height about
lower latency and higher peak data 19 percent less than that of some
rate connection of 5G network previous generation PCB relays with
communication. similar features and top mounted tabs.
c. BATTU Dual Wall Heat Shrink Tubing
Flame-retardant, adhesive-lined tubing
product specifically designed for
power cable to terminal applications
in harsh environments. Made from a
polyolefin jacket with a thermoplastic
adhesive inner wall and provides
excellent electrical isolation, mechanical
protection and moisture-resistance.
5 TE Connectivity | New Product Application Guide

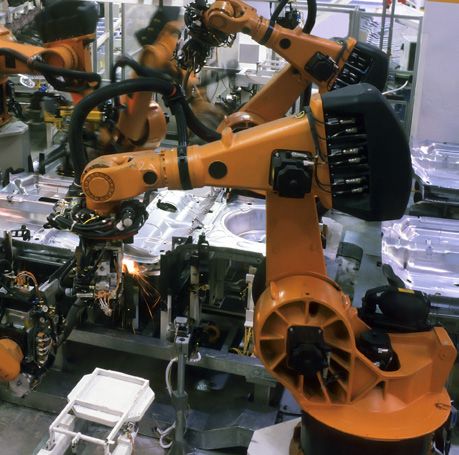

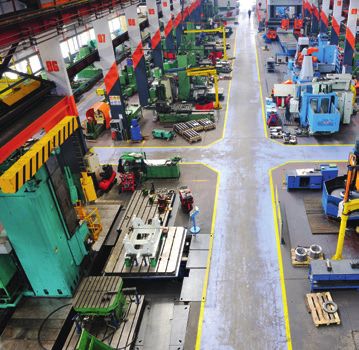

FACTORY
AUTOMATION
As production environments become increasingly automated and
decentralized, even the smallest connections are mission critical. TE delivers
new innovative solutions to connect, power and control every aspect of
production-from machinery to process optimization on the circuit board to
the most unforgiving factory floor.
a b c d

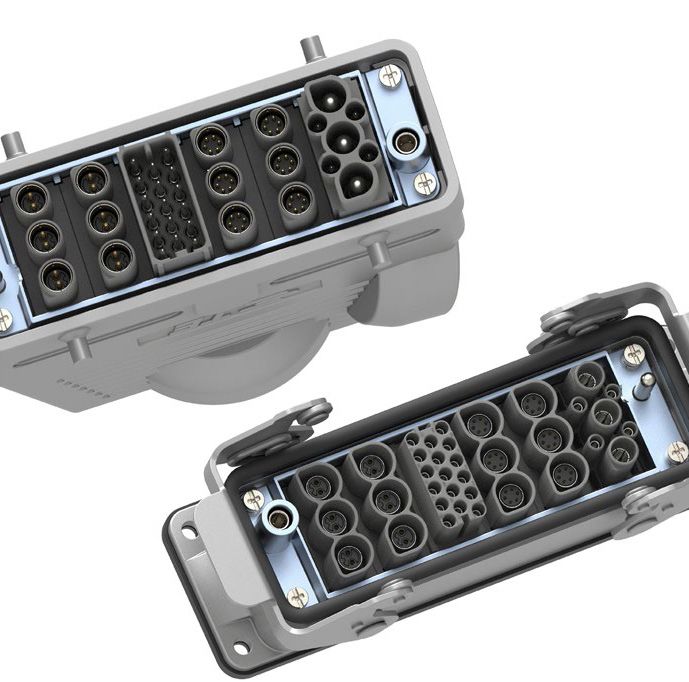

a. HMN Data and Power/Signal High d. 16G 0.5mm free height stacking COM
Density Modules connectors
HDC HMN modular system, designed Compliant with the COM Express
for harsh environment and industrial Type 7 specification and offer data
applications, already offers various transmission up to 16 GT/s. They serve
options for power, signal and data as the connection between next-gen
connections. The new addition will CPUs and carrier boards and are an
enable HDC HMN system to serve economic solution with high speed
robotics and automation applications. and excellent SI performance to
HMN D3-2/6 shielded data modules address the need for upgrading COM
support high speed data transfers Express applications.
(Cat5e) and provide high signal integrity e
thanks to the individual shielding of each e. Dynamic D8000 Series
ethernet pair. A new high current product series
which inherit the normal Dynamic
features like the audible lock design
b. Aluminum Housed Braking Resistors
and crimping contacts. It carries high
HCH Series
current (up to 100A) as power supply
Wire wound power resistors designed for industries like BTE, BMS, factory
and tested to absorb high power
automation, robotics, etc. Wire-to-wire
overloads. They are suited for energy and Wire-to-board options are both
braking, power supply, robotics and available in the new series.
automation control applications and
were tested by applying the specified
overload power for 1 or 5 or 40 f. HDC HMN with Dynamic inserts
seconds within a 120 second cycle Designed specifically for harsh f
comprising of both on and off periods. environments for industrial
applications, the new HDC Dynamic
series makes it possible to reduce
c. 830M1 Triaxial Accelerometer cable assembly costs by using semi-
Offers advanced acceleration sensing automatic or fully-automatic crimping
for machine health monitoring where of dynamic contacts. Their compact
wide bandwidth, small size, low power, design offers users more design
and robust performance are essential. flexibility with high density up to 48
Optimized for critical machine health contacts and handling over-voltage
monitoring the 830M1 offers an requirement to 300V in a single
outstanding measurement bandwidth module.
(up to 15 kHz), superior resolution and is
designed with highly stable Piezoelectric
(PE) sensing technology.
6
DATA COMMUNICATION
ARCHITECTURE
The dramatic increase of information flow around the globe has driven the need for
communication equipment and architectures that support higher density and faster
speeds. As a leader in the industry, TE supports these trends with connectors and cables
capable of 10- to 25- Gbps and beyond. TE drives standards and protocols, expertise in
signal integrity, and has a broad portfolio of connectivity solutions for every level of data
communication.
a b c d
a. SAS/PCIe Gen 4 Connectors d. 1.0mm Locking Wire-to-Board
68-position PCB connectors Connectors
which can offer good Addresses the needs of low-profile
performance on speed, interface applications that require a reliable,
compatibility and system secure wire-to-board signal or low-
flexibility to address the needs power connection. A locking feature
of customers’ next generation strengthens the mating connection e
platforms and facilitate optimal between the plug assembly and the
performance of NVMe (Non- receptacle and provides an audible
Volatile Memory Express) and tactile click feedback when
storage solutions. mating.
b. 16G 0.5mm free height stacking e. High Power Pin & Socket Connectors
COM connectors
Offers flexible design options for
Compliant with the COM applications up to 350A. Easy
Express Type 7 specification installation is enabled by an optional
and offer data transmission up floating feature on our ICCON Insert
to 16 GT/s. They serve as the products that allows for +/- 1mm
connection between next-gen radial misalignment when mating
CPUs and carrier boards and two printed circuit boards (PCBs) or
are an economic solution with busbars.
high speed and excellent SI
performance to address the
need for upgrading COM Express
applications.
c. Card Edge Power Connector
Portfolio
Offers safer, customizable,
Common Redundant Power
Supply (CRPS) compliant, high-
current and high-density power
connection to address varied
power supply unit (PSU) and
riser cards request from different
end applications.
7 TE Connectivity | New Product Application Guide
HARSH
ENVIRONMENTS
Electronic components are expected to work in more extreme conditions
than ever before. Withstand these rugged environments with TE’s new
products that provide protection against the most challenging situations your
application may experience including vibration, moisture, debris and sunlight.
a b c d
a. Raychem Single Pair Ethernet e. AMPSEAL 16 Mini Lever Connectors
Cables for Sealed Applications
Enables the transmission of data Offering 16 and 24 position hybrid
by ethernet using one twisted pair. connectors for sealed bulkhead
This product is currently capable of and pass-through applications. The
transmission rates ranging from 100 AMPSEAL 16 mini lever offers an
Mb/s to 1 Gb/s. ergonomic lever lock mating system
for easy assembly. With integrated
b. IHVA 150/200 High-Voltage DC Terminal Position Assurance (TPA)
Contactor Series and Connector Position Assurance
e
A non-gas filled contactor making (CPA), it ensures proper position
it safe and reliable with less worry and protects against accidental
about the environment. These unlocking.
contactors are non-polarized and
offer an optional auxiliary contact f. 38999 Series IV Metal Protective
that can be used to monitor the Connector Covers
power/main contact. A key accessory to our standard
38999 Series IV connectors, as
these covers are used to protect the
c. Printable Continuous Tubing (-CT)
connectors (as well as the harnesses
A heat-shrinkable high-performance and systems) in the field when they
tubing that can be used with any are not in the mated condition.
TE thermal transfer printer to
create identification sleeves for
wire and cable harnesses in harsh f
environments. Tubing supplied
diameter ranges from 2.4mm
(0.031inch) to 50.8mm (2.0inch)
depending on product type.
d. NTSEAL 20-Position Connector
Providing flexible and robust wire-
to-wire connectivity in a compact
format, TE’s innovative 20-position,
high-density hybrid sealed connector
– NTSEAL 20 position connector
utilizes the proven DEUTSCH
Common Contact System for
serviceable applications in harsh
environments.
8
Engineering Machine Intelligence
Machine manufacturers are integrating smarter, more connected components into
their unique design specifications. With the opportunity to increase productivity,
safety, and throughput, there is a need to implement autonomous machinery
across many industries. The need for safer, reliable, and more productive machinery
is creating design challenges for engineers such as the integration of data
connectivity, miniaturized components, as well as extreme levels of product quality
and reliability. TE Connectivity is addressing these challenges by providing design
recommendations, as well as a fully integrated product portfolio. Our connectors,
terminals, relays, and tubing have proven reliability that meets the challenges
engineers are facing when designing for smarter, more connected machinery.
Discover the Latest: Learn More:
Signal Double Lock
DESCRIPTION PART # Connectors
2.5mm Sealed Signal Double Lock Receptacle Terminal 2321921-1
Micro MATE-N-LOK Connector Assembly 5-794626-0
OEG Miniature PCB OJ/OJE Power Relay 6-1419128-2
FASTON 187 Receptacle 2238041-1
Surface-Marked Single Wall Heat Shrink Tubing EM6977-000 Micro MATE-N-LOK
BATTU Single Wall RNF-100 Reel Heat Shrink Tubing NB07066001 Connectors
OJ/OJE Miniature
PCB Relays
Engineer Safer, More Productive Machinery:
• Our broad portfolio of solutions is designed with extensive FASTON Terminals
engineering expertise to provide high-performing solutions
for machinery applications that need to withstand high
temperatures and extreme shock.
• Increase safety with our extra locking mechanisms and
terminal position assurance (TPAs)
• Seal and protect with our (IP) rated connectors
SWFR Single Wall
• Improve ergonomics and assembly productivity with our low Heat Shrink Tubing
insertion force offerings
• Save valuable space with our low pitch miniaturized product
offerings
• Simplify assembly processes and increase reliability with our
IDC technology product offerings
BATTU Heat Shrink
• Withstand high temperatures and extreme shock with Tubing
our select solutions for terminals, connectors and tubing
offerings
9 TE Connectivity | New Product Application GuideINNOVATIVE
INNOVATIVE SOLUTIONS
SOLUTIONS Whether you are designing a new system or enhancing an existing design, TE
is your solution provider for electromechanical and electronic components.
Terminals and Drones Relays Connected Home
Splices Develop cutting-edge Help increase reliability Turn your vision for
drone technology and enhance productivity connected home
Discover terminals and in your applications applications into a reality
splices that help reduce cost
and enhance productivity
Power Wearable I/O Motion & Drives
Drive design solutions Devices Communications Save power and reduce
with TE’s array of power applied cost while
End-to-end connectivity Satisfy needs of diverse
products increasing system
for your wearable devices markets and solve size and reliability
data rate challenges
Subsystem Industrial Building Material Portable &
Design Control Safety Handling Handheld
Support end Reliable, quick to and Security Save on system
Devices
products across install and industry- maintenance costs
Stay ahead of the Ease the transition
many industries proven components and down time
trend for increased to higher data rates,
building intelligence increased protection
and smaller packaging
10© 2021 TE Connectivity Ltd. family of companies. All Rights Reserved.
1-1773840-2 CM PL 04/2021
LUMAWISE, BUCHANAN, BUCHANAN WireMate, Raychem, Potter & Brumfield,
FASTON, MATE-N-LOK, AMSPEAL, NECTOR, TE Connectivity, TE connectivity
(logo), and TE are trademarks.
Other logos, product and company names mentioned herein may be
trademarks of their respective owners.
While TE has made every reasonable effort to ensure the accuracy of the information in this brochure, TE
does not guarantee that it is error-free, nor does TE make any other representation, warranty or guarantee
that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments
to the information contained herein at any time without notice. TE expressly disclaims all implied
warranties regarding the information contained herein, including, but not limited to, any implied warranties
of merchantability or fitness for a particular purpose. The dimensions in this brochure are for reference
purposes only and are subject to change without notice. Specifications are subject to change without
notice. Consult TE for the latest dimensions and design specifications.
11 TE Connectivity | New Product Application GuideYou can also read
