PHYSICAL REVIEW X 11, 021067 (2021) Ultrafast Control of Material Optical Properties via the Infrared Resonant Raman Effect * Guru Khalsa and Nicole A. Benedek Department of Materials Science and Engineering, Cornell University, Ithaca, New York, 14853, USA Jeffrey Moses School of Applied and Engineering Physics, Cornell University, Ithaca, New York 14853, USA (Received 24 November 2020; revised 6 May 2021; accepted 10 May 2021; published 30 June 2021) The Raman effect, inelastic scattering of light by lattice vibrations (phonons), produces an optical response closely tied to a material’s crystal structure. Here we show that resonant optical excitation of IR and Raman phonons gives rise to a Raman-scattering effect that can induce giant shifts to the refractive index and induce new optical constants that are forbidden in the equilibrium crystal structure. We complete the description of light-matter interactions mediated by coupled IR and Raman phonons in crystalline insulators—currently the focus of numerous experiments aiming to dynamically control material properties —by including a forgotten pathway through the nonlinear lattice polarizability. Our work expands the toolset for control and development of new optical technologies by revealing that the absorption of light within the terahertz gap can enable control of optical properties of materials over a broad frequency range. DOI: 10.1103/PhysRevX.11.021067 Subject Areas: Condensed Matter Physics, Materials Science, Optics I. INTRODUCTION an optics community perspective, also as a route to uncover new ways to control optical properties through the inter- The Raman effect arises from the inelastic scattering action of laser light with material structure. The recent of light by phonons in crystals or vibrations in molecules. development of bright midinfrared and THz sources The simplest theories describing the effect assume that the capable of resonantly exciting collective modes in crystals optical polarizability—that is, the general frequency- has created new opportunities for exploring such novel dependent polarizability of a crystalline material—is pre- optical phenomena [15–17]. dominantly electronic in origin [1,2], and that it is a In this work, we show that resonant optical excitation of function only of the displacements of so-called Raman- IR phonons strongly contributes to the optical polarizability active phonon modes. However, Herzberg [3] and Raman via a Raman-scattering mechanism mediated by the dis- [4] noted over 70 years ago that when infrared (IR)-active placements of IR phonons and that such excitations can vibrational modes are driven to large amplitudes, nonlinear be exploited to significantly modify a material’s optical coupling between infrared- and Raman-active modes alters properties, including inducing new optical constants that the optical polarizability. The relevant terms are complex are forbidden in the equilibrium crystal structure. This and were difficult or impossible to verify and explore using mechanism, which we refer to as infrared-resonant Raman the methods available at the time [5–14]. scattering (IRRS), differs from the conventional Raman The Raman effect has widespread scientific importance effect, in which typically only changes in the electronic because it produces a basic optical response that is closely polarizability due to displacements of Raman phonons are tied to a material’s crystal structure. Raman spectroscopy considered. In contrast, IRRS involves the inelastic scatter- exploits this tie and is an essential tool for understanding ing of light and subsequent changes in the optical polar- crystal symmetry, structure, and defects. For this reason, izability due to both changes in the electronic polarizability the effect predicted by Herzberg and Raman noted above— and ionic polarizability due to Raman and IR phonon changes to optical polarizability induced as a result of displacements. Additionally, IRRS is distinct from the ionic strongly driven IR vibrational modes—invites exploration Raman-scattering mechanism, which indirectly produces as a potential tool for materials probing or control and, from an optical response through the coupling of phonons by the anharmonic lattice potential, rather than directly through * guru.khalsa@cornell.edu the nonlinear lattice polarizability. IRRS has a broad and distinct frequency response, which we find is orders of Published by the American Physical Society under the terms of magnitude larger than ionic Raman scattering in an the Creative Commons Attribution 4.0 International license. Further distribution of this work must maintain attribution to archetypal perovskite due to its direct nature. the author(s) and the published article’s title, journal citation, Our work is significant in two general respects. First, and DOI. selective optical pumping of IR phonons by frequency and 2160-3308=21=11(2)=021067(16) 021067-1 Published by the American Physical Society
KHALSA, BENEDEK, and MOSES PHYS. REV. X 11, 021067 (2021) field polarization direction can lead to control of the tensor control of specific Raman modes. (3) We employ a components of the electric susceptibility, enabling control of perturbation method approach to derive a third-order effective linear and nonlinear optical responses of the polarization and a Raman-scattering susceptibility that material. This control of the linear and nonlinear optical capture the IRRS effect. These quantities may be used response can enable enhancement or suppression of funda- to explore the intensity-dependent modification of the mental optical properties such as absorption, birefringence, linear susceptibility tensor for a second laser as a result and electro-optic coefficient. Such control may aid the of resonant or near-resonant IR pumping by a first laser. development of ultrafast optical technologies including (4) We employ first-principles computational techniques optical switches, amplitude and phase modulators, and for the perovskite SrTiO3 to investigate the physical quantum optical logic gates. Second, we predict that the mechanism of IRRS and opportunities for ultrafast material IRRS mechanism contributes to unidirectional displacement optical property control. of Raman phonons and therefore changes of crystalline symmetry, giving rise to opportunities for ultrafast control of II. SYMMETRY CONSIDERATIONS functional properties of crystalline materials tied to sym- metry. Thus IRRS provides a pathway to ultrafast optical A. The lattice potential control of material symmetry and properties that is comple- We start by expanding the lattice energy for the simpler mentary to the so-called nonlinear phononics effect of case of a centrosymmetric crystal, in which IR and Raman phononic rectification, which has been the focus of much modes have different symmetry (in noncentrosymmetric recent work for its ability to tune superconducting properties crystals, some phonons are both IR and Raman active; this [18–21] and magnetic order [22–25] in perovskites by lack of distinction between IR and Raman phonons leads intense laser pumping of an IR phonon. to additional terms in the nonlinear polarizability and To illustrate IRRS, we develop a semiclassical perturba- anharmonic potential, which we do not consider here). tion method approach in order to derive two-laser fre- The lattice energy U for the process we consider is then quency contributions to the dielectric function from defined as nonlinear contributions to the optical polarizability due to IR phonon displacements and IR-Raman phonon cou- 1 1 U lattice ¼ K IR Q2IR þ K R Q2R pling. We further employ first-principles computational 2 2 techniques (density-functional theory) to investigate the 2 − BQIR QR − ΔP⃗ lattice · EðtÞ; ⃗ ð1Þ effect in SrTiO3 , an archetypal insulating perovskite [26] that has received recent attention in nonlinear phononics where K σ ¼ Mσ ω2σ ðσ ¼ IR; RÞ is the effective spring con- studies [27,28]. We find that the IRRS effect can be stant of the IR and Raman phonons, respectively. Qσ is the measured using a two-laser optical experiment where real-space eigendisplacement of the phonon mode found one laser is tuned to resonantly excite an IR-active phonon. by solving Mω2σ Qσ ¼ KQσ , where M is the mass matrix, K In addition to resonant enhancement of Stokes and anti- the force constant matrix at zero crystal momentum, and ωσ Stokes Raman peaks through IRRS, broad optical suscep- is the corresponding phonon frequency. In addition to the tibility changes are predicted that extend far above and harmonic energy associated with the IR and Raman below the IR phonon resonance. Furthermore, these phonons, we include an anharmonic potential term that changes are polarization direction dependent and can result has been the focus of recent works on nonlinear phononics in modification of the number of optical axes and their [16,29,30]. The last term contains the polarization change directions. Additionally, we find that the mechanism in the crystal ΔP ⃗ due to optical excitation (E). ⃗ responsible for IRRS induces unidirectional displacement ⃗ There are both lattice and electronic contributions to ΔP. of Raman-active phonons. IRRS therefore presents an The lattice contribution to the polarization typically takes alternative pathway to the nonlinear phononics mechanism for quasistatic optical control of crystalline structure and the form Z̃ QIR , where Z̃ is the mode-effective charge properties. induced by the displacement of the IR phonon [31]. In the following pages, we develop a theory of IRRS as Expanding ΔP ⃗ lattice to second order in phonon amplitude follows: (1) We define a potential for describing a cen- for a centrosymmetric crystal, we find trosymmetric crystalline lattice driven to large phonon mode displacements by IR light including the lowest-order ⃗ lattice ¼ Z̃ QIR þ bQR QIR : ΔP ð2Þ nonlinear term in the lattice polarizability, which gives rise to IRRS. (2) We summarize the dependence of the QIR induces a dipole to which an electric field can be linear electric susceptibility tensor on Raman phonon ⃗ coupled directly. To preserve the dipole character of ΔP, mode displacements and related symmetry considerations. QR must transform as either a monopole or a quadrupole. The purpose of this section is to understand how basic Since the product of a dipole (QIR ) and a monopole or optical properties and symmetries can be modified through quadrupole (QR ) includes a dipole component, it follows 021067-2

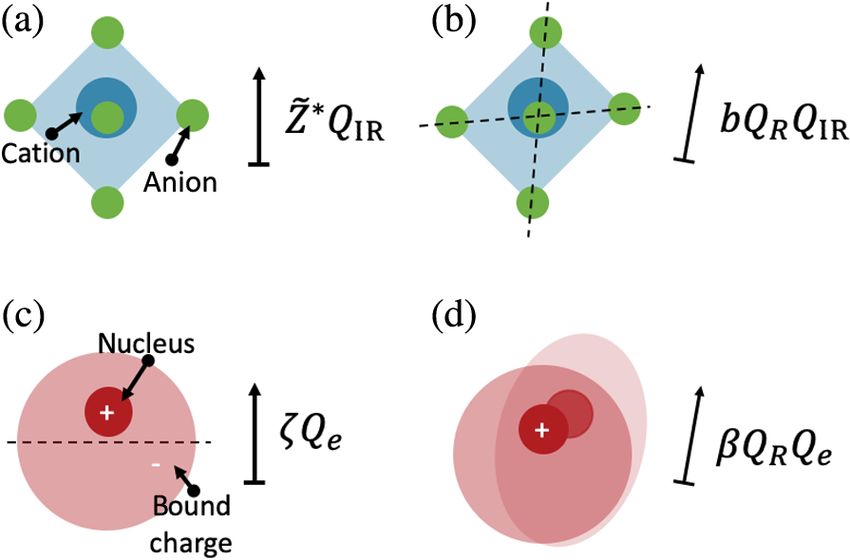

ULTRAFAST CONTROL OF MATERIAL OPTICAL PROPERTIES … PHYS. REV. X 11, 021067 (2021) optical response of a crystalline material in the mid- or far infrared when IR phonons are strongly excited. B. The optical susceptibility To lowest order in a perturbative expansion of the polarizability in the electric field amplitude, the response of a crystalline material to light is captured by its fre- quency- and wave-vector-dependent linear susceptibility χ ð1Þ ðω; kÞ, which connects the electric field of light to ð1Þ the induced polarization Pα ¼ χ αβ Eβ , where α and β are FIG. 1. Contributions to ΔP ⃗ in centrosymmetric crystals. (a) In Cartesian directions. For frequencies within the electronic an electric field, relative displacements of cations (blue) and gap of a centrosymmetric material, the susceptibility is anions (green) contribute to the lattice (ionic) polarizability. The dominated by the frequency-dependent electronic polar- ð1Þ lattice polarizability is responsible for the dominant features of izability. χ αβ ðωÞ is a second-rank polar tensor, which is a the low-frequency dielectric response in the mid- and far infrared. function of the amplitudes of particular lattice vibrations. In (b) Displacement of Raman phonons (shown, for example, as a ð1Þ distortion of the octahedral oxygen environment) alters the general, χ αβ ðωÞ can be decomposed into spherically strength, and possibly direction, of the lattice polarizability. irreducible components (we use the notation of Ref. [34]), (c) A cloud of electrons bound to a nucleus displaces in response to an electric field. This electronic polarizability is responsible for ð1Þ 1 ðDÞ ðQÞ the high-frequency dielectric response. (d) Displacement of χ αβ ðωÞ ¼ χ ðMÞ δαβ þ ϵαβγ χ γ þ χ αβ ; ð3Þ Raman phonons alters the electronic polarizability. This is the 3 conventional Raman effect. A single atom is shown, although collective motion of Raman phonons is necessary for this where δ is the Kronecker delta, ϵ is a Levi-Civita symbol, effect. ðDÞ and χ ðMÞ are the scalar (monopole), χ γ the vector (dipole), ðQÞ and χ αβ the deviator (quadrupole) contributions to the susceptibility: that bQR QIR is allowed in centrosymmetric crystals. Both ð1Þ terms of Eq. (2) are illustrated in Figs. 1(a) and 1(b). The χ ðMÞ ¼ χ αα ðωÞ; ð4Þ schematic shows that the first term Z̃ QIR is produced by relative displacements of nuclei through the IR phonon ðDÞ 1 ð1Þ [31]. Displacements of Raman phonons can change how χ γ0 ¼ ϵαβγ0 χ αβ ðωÞ; ð5Þ the lattice polarizes through QIR , and this is captured 2 through the nonlinear contribution bQR QIR . The math- ematical interpretation of this statement is that b can be ðQÞ 1 ð1Þ ð1Þ 1 χ αβ ¼ ½χ αβ ðωÞ þ χ βα ðωÞ − χ ðMÞ δαβ : ð6Þ understood as the change in the mode-effective charge (Z̃ ) 2 3 with respect to the Raman phonon. We note that the nonlinear lattice polarization bQR QIR is, in general, a Note, it is important to remember that while these irre- wave-vector-dependent quantity so that bQIR QR → ducible components will always have the symmetry of bð⃗q1 − q⃗ 2 ÞQ1 ð⃗q1 ÞQ2 ð−⃗q2 Þ, where we assume discrete the stated multipoles, the actual multipoles contributing to translational symmetry in a crystal [32]. Since light cannot each can and usually are of higher order in the reduced impart significant momentum on IR phonons, q⃗ 1 ≈ 0. ⃗ It (compared with free space) symmetry of a material’s crystal follows that q⃗ 2 ¼ 0. ⃗ field [35]. Previous experimental and theoretical works on the In this work, we are considering systems that have nonlinear phononics mechanism have focused on the ground states that are centrosymmetric and time-reversal anharmonic lattice potential (BQ2IR QR ) and not nonlinear invariant (that is, nonmagnetic and/or in zero-applied changes to the polarizability (bQR QIR ) [16,29,30]. In one magnetic field). In such cases, Onsager’s reciprocity ð1Þ ð1Þ recent exception, a nonlinear contribution to the polar- relation dictates that χ αβ ðωÞ ¼ χ βα ðωÞ. It follows that ðDÞ izability ΔP ⃗ NL ∝ Q3IR was included in order to describe the the antisymmetric tensor χ γ0 vanishes by symmetry. In ð1Þ optical changes in the reststrahlen band of SiC when IR that case, the susceptibility is totally symmetric χ αβ ðωÞ ¼ phonons were excited to large amplitude [33]. As we show ðQÞ below, including the lowest-order nonlinear contribution to χ ðMÞ 13 δαβ þ χ αβ , and the 1 þ 5 independent components of ð1Þ the polarizability [Eq. (2)] is critical to understanding the χ αβ ðωÞ are written explicitly as 021067-3
KHALSA, BENEDEK, and MOSES PHYS. REV. X 11, 021067 (2021) 0 1 1 ðMÞ ðQÞ ðQÞ ðQÞ Γ ¼ Γþ þ þ þ 1 ðA1g Þ þ Γ2 ðB1g Þ þ 2Γ4 ðB2g Þ þ 3Γ5 ðEg Þ B 3χ þ χ xx χ xy χ xz C B C þ 4Γ−3 ðA2u Þ þ 6Γ−5 ðEu Þ þ 2Γþ 3 ðA2g Þ B ðQÞ 1 ðMÞ ðQÞ ðQÞ C B χ xy 3χ þ χ yy χ yz C: B C þ Γ−1 ðA1u Þ þ Γ−2 ðB1u Þ; @ A ðQÞ ðQÞ 1 ðMÞ ðQÞ χ xz χ yz 3χ þ χ zz where the first two lines describe the symmetries of the ð7Þ Raman-active phonons, the third line shows the symmetries of the IR-active phonons (which include acoustic modes), The crystallographic symmetry of a particular material and the fourth and fifth lines are, respectively, even- and imposes additional constraints that dictate which elements odd-symmetry silent phonons. The Γþ 1 ðA1g Þ phonon is the ð1Þ only monopolar Raman phonon. Displacing this phonon are zero or nonzero and how many components of χ αβ ðωÞ preserves the crystal symmetry and the number of optical are independent. ð1Þ constants. However, the relative size of each term in χ 0 may change, as we explain above. The remaining Raman- C. The Raman tensor active phonons induce quadrupoles, and therefore, new Now considering the Raman effect, we express the optical constants. As an example, consider the two Γþ 4 ðB2g Þ polarizability as a function of the amplitude Qi of the Raman phonons, which transform like xy. Displacing either lattice displacements associated with a particular phonon one of these quadrupolar phonons introduces new optical mode, constants χ xy ¼ χ yx , which induces, for example, a crystal polarization field along the y direction when the crystal is ð1Þ ∂χ ð1Þ illuminated with light polarized along the x direction—a Pα ≈ χ 0;αβ ðωÞ þ Qi E; ð8Þ ∂Qi Qi →0 property that is forbidden in the equilibrium structure. ð1Þ where χ 0;αβ ðωÞ is the susceptibility of the undistorted III. THEORETICAL MODEL crystal, and the second term describes the Raman effect. Having discussed symmetry principles that govern the Note that Qi ð∂χ ð1Þ =∂Qi ÞjQi →0 is constrained by the same infrared-resonant Raman effect in crystals, we now present ð1Þ a theoretical model that can be used to describe it. While the symmetry as χ 0;αβ ðωÞ. This constraint results in two distinct infrared-resonant Raman effect is expected to be present in situations: (1) Qi transforms as a monopole, and therefore, small-band-gap materials and metals, we focus our dis- ð∂χ ð1Þ =∂Qi ÞjQi →0 has the same nonzero elements as cussion and modeling on wide-band-gap insulators in order ð1Þ χ 0;αβ ðωÞ. In this case, the modulation of the nonlinear to distill the physical implications of the infrared-resonant susceptibility can affect only the relative size of each term Raman effect. This approach avoids obfuscation of the ð1Þ infrared-resonant Raman effect from other considerations in χ 0 , but not induce new components. (2) Qi transforms in metals (e.g., free-charge screening) and semiconductors as a quadrupole, and therefore, ð∂χ ð1Þ =∂Qi ÞjQi →0 has new (e.g., Zener breakdown [37], avalanche ionization [38]). ð1Þ nonzero elements when compared to χ 0;αβ ðωÞ. In this case, new optical constants are induced by displacing Qi . A. Equations of motion In both of these cases, Qi is called a Raman-active In order to derive the IRRS susceptibility, we first derive phonon, and hence, we refer to the process described the equations of motion from Eqs. (1) and (2) in order to above as the infrared-resonant Raman effect. In terms of identify Raman-scattering pathways. To capture the high- Eq. (3), displacing a monopolar Raman phonon alters frequency response, we add the harmonic energy of an ðMÞ ðQÞ nonzero elements of χ αβ and χ αβ that already exist in effective electronic coordinate Qe (a phenomenological the equilibrium structure. A quadrupolar Raman phonon parameter that describes the high-frequency dielectric lowers the symmetry of the crystal when displaced. As a response) and its coupling to the electric field and define result, the new induced optical constants—constrained by a total potential U ¼ U e þ Ulattice , where ðQÞ symmetry to be zero at equilibrium—are described by χ αβ . 1 We use SrTiO3 as a test material in this study. At ⃗ e · E: Ue ¼ K e Q2e − ΔP ⃗ ð9Þ 2 temperatures below 105 K, SrTiO3 is a tetragonal crystal [36] with space-group symmetry I4=mcm (#140—D4h K e is an effective spring constant, and the electronic point group). SrTiO3 therefore has only two distinct non- polarizability includes coupling to the Raman phonon ð1Þ ð1Þ ð1Þ zero optical constants, χ 0;xx ¼ χ 0;yy ≠ χ 0;zz . The primitive through unit cell contains ten atoms and therefore has 30 phonons at ⃗ e ¼ ζQe þ βQR Qe : ΔP ð10Þ the Γ point that transform as 021067-4

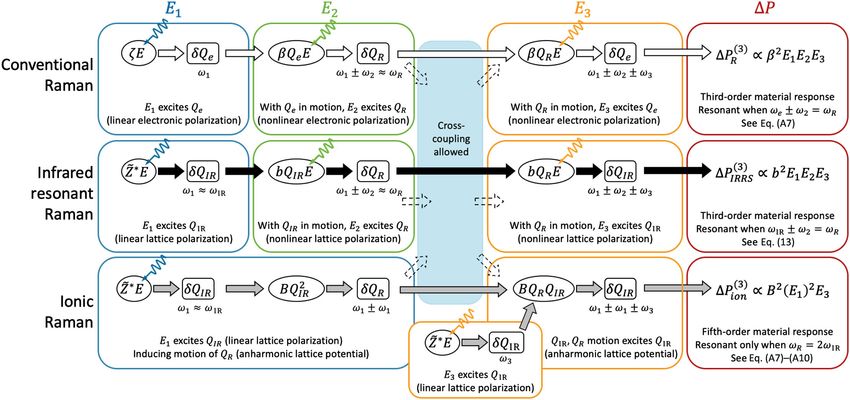

ULTRAFAST CONTROL OF MATERIAL OPTICAL PROPERTIES … PHYS. REV. X 11, 021067 (2021) Here, ζ is an effective charge that describes the high- the anharmonic lattice potential, and coupling through the frequency optical response of the crystal. The coefficient β nonlinear polarizability. describes the conventional electronically mediated Raman Numerous scattering pathways present themselves effect. Figures 1(c) and 1(d) show schematic representa- through Eq. (11) as illustrated in Fig. 2. tions of linear and nonlinear electronic polarizability terms (i) Conventional (electronic) Raman scattering. The in Eq. (10). Incidentally, comparing Eqs. (2) and (10), we conventional Raman scattering mechanism (top can see that since both QIR and Qe transform as vectors, panel of Fig. 2) is described by the β coefficient. they both couple to Raman phonons in the same way. It The effective electronic coordinate Qe can respond follows that all of the symmetry arguments presented above to any frequency of light at or below its fundamental are true for both the conventional electronically mediated frequency ωe. The combined motion of Qe with the Raman effect and the infrared-resonant Raman effect. electric field induces a driving force for the Raman Considering Eqs. (1), (2), (9), and (10), and taking coordinate QR through the parameter β [first term on derivatives of U with respect to Qe , QIR , and QR , we find the right-hand side of Eq. (11c)]. the following equations of motion: (ii) Infrared resonant Raman scattering. The IRRS mechanism (middle panel of Fig. 2) is analogous Le Qe ¼ ζE þ βQR E; ð11aÞ to the conventional Raman-scattering pathway, ex- cept it substitutes the displacement of the electron LIR QIR ¼ Z̃ E þ bQR E þ 2BQIR QR ; ð11bÞ cloud characterized by Qe, with the displacement of an IR phonon QIR . Displacement of an IR phonon in LR QR ¼ βQe E þ bQIR E þ BQ2IR : ð11cÞ the presence of an electric field induces displace- ments of Raman phonons through the nonlinear We define the linear operator Lσ ¼ Mσ ½ðd2 =dt2 Þ þ polarizability described by the coefficient b. The 2γ σ ðd=dtÞ þ ω2σ for notational convenience. We include largest IR phonon response is when a component of a damping parameter γ σ and note that Mσ is a reduced mass the applied field is tuned to the frequency ωIR. Once coordinate. The right-hand side of Eq. (11) describes the resonantly excited, the combined motion of QIR and driving terms through the electric field, coupling through the electric field drive QR through b. FIG. 2. Comparison between the conventional (top), infrared-resonant (middle), and ionic Raman-scattering (bottom) mechanisms. Blue, green, and orange panels represent the effect of the three electric field components, while the induced polarization is shown in the red panels. Driving terms in Eq. (11) are shown in ovals with induced motion represented in rectangles with the allowed frequency response written below. The connection to linear and nonlinear polarization, and the anharmonic potential are shown in the text in each panel with resonance conditions for each effect called out in the polarization panels. Dashed arrows leading into the light-blue region in the middle of the figure show that cross-coupling is allowed between all three effects. The conventional and infrared-resonant Raman responses have potential for third-order resonance in the polarization [see Eqs. (13) and (A7)–(A10)], while ionic Raman scattering has potential for a fifth-order resonance [see Eqs. (A7)–(A10)]. 021067-5
KHALSA, BENEDEK, and MOSES PHYS. REV. X 11, 021067 (2021) (iii) Ionic Raman scattering. An additional Raman- To simplify the presentation, we focus on a scenario scattering mechanism (bottom panel of Fig. 2) is where one laser is used to drive an IR phonon on, or provided by the anharmonic lattice potential. After near, resonance, while a second laser samples the optical resonant excitation of QIR , there is a driving force on response at another frequency taken to vary over a large QR induced by the parameter B proportional to Q2IR . range. This scenario can be viewed as intensity-dependent This scattering pathway is an example of nonlinear dielectric changes due to the excitation of an IR phonon. ionic source terms in the dielectric response arising The electric field is taken to be from the anharmonic lattice potential [39] and has been described in the literature as ionic Raman 1 EðtÞ ¼ ðE1 e−iω1 t þ E−1 eiω1 t þ E2 e−iω2 t þ E−2 eiω2 t Þ scattering [10–12,40]. It should be noted that this 2 pathway is distinct from the other two in that the ð12Þ applied field directly induces only a displacement to an IR phonon; i.e., the presence of an electric field is with the field strength defined with the constraint E−n ¼ En not required to couple IR phonon motion to Raman to enforce real fields. Notice that with this convention, phonon motion. It should also be noted that this we can take ω−n ¼ −ωn and definePthe general multi- pathway prevents fully resonant excitation of the component electric field as EðtÞ ¼ 12 n¼1;2;… En e−iωn t Raman phonon except for the singular case where by summing over both negative and positive components of the frequency of the applied electric field is half the the field. The third-order susceptibility for the process frequency of the Raman phonon. In contrast, in conventional Raman scattering and in IRRS, reso- under investigation χ ð3Þ ðω2 ;ω1 ;−ω1 ;ω2 Þ ≡ χ ð3Þ ð2;1;−1;2Þ nant Raman excitation may be achieved through the describes the macroscopic nonlinear polarizability at ω2 combination of any two laser frequencies such due to the mixing of light at ω1 (taken to be near the IR that ω1 ω2 ≈ ωR . resonance) and ω2 . To simplify χ ð3Þ further, we assume that all laser frequencies are far below the electronic B. Perturbative approach to the resonance ωe , but include general expressions for the nonlinear susceptibility polarizability in the Appendix [see Eq. (A7)]. The non- We derive expressions for the optical susceptibility using linear polarization of the crystal is then defined by Pð3Þ ¼ a perturbative approach in the parameters β, b, and B and χ ð3Þ ð2; 1; −1; 2ÞjE1 j2 E2 e−iω2 t þ c:c: ≡ δχ ð1Þ ðI 1 ÞE2 e−iω2 t þ solve Eq. (11) in the presence of a multicomponent electric c:c: We see that the polarization is measured at the field, expressing Qσ in terms of components of E. These frequency ω2 and can be interpreted as an intensity- solutions are used to remove Qe , QIR , and QR from Eqs. (2) dependent change to the linear susceptibility and (10) and express the polarizability in terms of only the δχ ð1Þ ðω2 ; I 1 Þ ∝ I 1 , where the intensity I 1 ¼ jE1 j2. With electric field so that the linear and nonlinear contributions this definition, the effective linear susceptibility at ω2 takes ð1Þ to the polarizability can be collected. By symmetry, we can the form χ eff ðω2 ; I 1 Þ ¼ χ ð1Þ ðω2 Þ þ δχ ð1Þ ðω2 ; I 1 Þ, which see that the dipole active coordinates Qe and QIR will be reflects that the linear optical properties for E2 are altered replaced by a parallel electric field E, while each Raman by the presence of a strong E1 . phonon will be replaced by two factors of the electric field. Even with these assumptions, the perturbative approach From Eqs. (2) and (10), we see that Z̃ QIR and ζQe will leaves us with cumbersome expressions. Focusing on the contribute to first order in E, while bQR QIR and βQR Qe component of the third-order susceptibility due solely to the will contribute terms to third order in E. In this way, we find nonlinear contribution to the polarizability with coefficient that the polarizability includes both linear and third-order b (corresponding to the IRRS effect introduced here; see susceptibilities P⃗ ¼ χ ð1Þ E ⃗ þ χ ð3Þ E ⃗ E ⃗ E. ⃗ middle pathway in Fig. 2), we define and find ð3Þ ðbZ̃Þ2 χ b;b ð2; 1; −1; 2Þ ¼ 1 þ G−1 þ G2 þ G−2 ÞG2 G ðω1 − ω1 ¼ 0Þ × ½2ðGIR IR IR IR IR R ϵ0 V þ ðGIR 2 G2 þ G1 G2 þ G2 G−1 þ G1 G−1 ÞG ð−ω1 þ ω2 Þ IR IR IR IR IR IR IR R 2 G2 þ G1 G2 þ G2 G−1 þ G1 G−1 ÞG ðω1 þ ω2 Þ: þ ðGIR IR IR IR IR IR IR IR R ð13Þ In this expression, Gσn ¼ Gσ ðωn Þ is the inverse of the linear operator Lσ in the frequency domain [see Eq. (11)] evaluated at ωn . That is, 021067-6
ULTRAFAST CONTROL OF MATERIAL OPTICAL PROPERTIES … PHYS. REV. X 11, 021067 (2021) 1=MIR ð3Þ seen in the magnitude of χ b;b at the difference and sum n ¼ G ðωn Þ ¼ GIR ð14aÞ IR ; ðω2IR − ω2n Þ − 2iγ IR ωn frequencies of 8 and 32 THz, respectively. While the magnitude remains constant below 8 THz, it falls off as 1=MR f −2 for high frequency (above 32 THz). At the difference GRmn ¼ GR ðωmn Þ ¼ ; ð14bÞ ðω2R − ω2mn Þ − 2iγ R ωmn frequency, the phase of χ ð3Þ approaches −π=2, suggesting ð3Þ χ b;b is purely imaginary and that there will be emission of where ωmn ¼ ωm þ ωn . Equation (13) is organized by the radiation at 8 THz. At the sum frequency, the phase frequency response of the Raman phonon. The right-hand approaches þπ=2, suggesting absorption of radiation at side of the first line shows the contribution from static 32 THz. This is consistent with the classical theory of displacement of the Raman phonon through rectification of Stokes and anti-Stokes Raman scattering. We therefore find the electric field components (ωmn ¼ 0, remembering that that the nonlinear contribution to the polarization shown in ωnðmÞ is summed over positive and negative frequencies). Eq. (2) resonantly enhances the Stokes and anti-Stokes The remaining lines are due to dynamical responses of the response known from the conventional Raman effect Raman phonon. The second line gives the contribution through excitation of an IR phonon. from the motion of the Raman phonon at −ω1 þ ω2 . In between the difference and sum frequencies, the phase Since the function GR is peaked at the Raman frequency, of the response is zero, indicating that the real part of the the second line of Eq. (13) is resonant when ð3Þ ð−ω1 þ ω2 Þ ¼ ωR , while the third line is resonant when dielectric constant will increase through χ b;b . Below the ðω1 þ ω2 Þ ¼ ωR . difference frequency and above the sum frequency, ð3Þ Each term in Eq. (13) includes two contributions the phase of χ b;b becomes ∓ π, suggesting a decrease in from GIR and one from GR . This corresponds to a double the real part of the dielectric constant in these frequency resonance due to the IR phonon response and a single ranges. These effects are also consistent with conventional resonance from the Raman response. An overall triply Raman scattering. resonant response is therefore possible in the two-laser scenario we are describing. As an example, consider a first IV. FIRST-PRINCIPLES CALCULATIONS laser resonant with the IR phonon (ω1 ¼ ωIR ) and a second laser tuned to a frequency ω2 away from the IR resonance The model described in the previous section requires so that −ω1 þ ω2 ¼ ωR , as is expected with a Stokes various inputs, which we obtain from first-principles (−ωR ) or anti-Stokes Raman (þωR ) response. We note that calculations. Density-functional-theory calculations are this triply resonant response is analogous to conventional performed using projector-augmented-wave potentials resonant stimulated Raman scattering, wherein the first and the local density approximation (LDA), as imple- laser is tuned to an electronic resonance (ω1 ¼ ωe ). mented in VASP. We use a 600-eV plane-wave cutoff pffiffiffiand However, these responses are found in disparate ranges a ffiffi6ffi × 6 × 4 Monkhorst-Pack k-point grid for a 2a × p of the optical spectrum. 2a × 2a supercell, where a is the optimized lattice Figure 3 shows the magnitude and phase of constant of SrTiO3 in the cubic Pm3̄m phase. The χ ð3Þ ð2; 1; −1; 2Þ schematically when coupling between a calculated lattice constants a ¼ b ¼ 5.44 Å and c ¼ single IR phonon at f IR ¼ ωIR =2π ¼ 20 THz, and a single 7.75 Å underestimate the experimental [41] lattice con- Raman phonon at f R ¼ ωR =2π ¼ 12 THz is allowed stants of a ¼ b ¼ 5.51 Å and c ¼ 7.81 Å as expected in through the nonlinear dipole moment. The curves indicate LDA. Phonons and Born effective charges are calculated ð3Þ the contribution from χ b;b , i.e., from IRRS. Two peaks are using density-functional-perturbation theory within VASP and used to calculate dynamical-mode-effective charges. Further details are given in Ref. [42]. For the anharmonic potential terms B, we compute the total energy U lattice on a mesh of IR and Raman phonon amplitudes up to 20 pm in 2-pm steps and fit to a symmetry-constrained polynomial. B is then inter- preted as the derivative of the total energy fit with respect to the real-space eigendisplacements of each phonon B ¼ ð∂ 3 U=∂Q2IR ∂QR Þ. Similarly, the coefficient control- FIG. 3. Magnitude (black) of the third-order IRRS susceptibil- ð3Þ ity χ b;b resulting from bQIR QR for an IR phonon at 20 THz with ling the strength of the nonlinear contribution to the lattice effective charge Z̃ ¼ 1e coupled to a Raman phonon at 12 THz polarization b is evaluated by taking derivatives of a with a coupling strength b ¼ 1e=Å. The sum and difference symmetry-constrained-polynomial fit to the polarization frequencies are 32 and 8 THz, respectively. The phase (red) is b ¼ ð∂ΔP=∂Q ⃗ IR ∂QR Þ calculated using the modern theory referenced to the right vertical axis. of polarization [43]. 021067-7
KHALSA, BENEDEK, and MOSES PHYS. REV. X 11, 021067 (2021) The damping parameters γ σ are temperature-dependent quantities. Because they require evaluation of, minimally, all third-order force constants, and often all electron- phonon coupling pathways and defect scattering pathways, their calculation from first principles is prohibitively expensive. Instead of calculating damping terms from first principles, we explore a range of values 0.1–1.0 THz consistent with typical damping parameters for phonons. In what follows, we fix damping parameters to 0.1 THz corresponding to 10-ps lifetimes and comment on any strong dependence of the optical response on this value when necessary. V. RESULTS We employ the theoretical model of Sec. III together with the first-principles calculations of Sec. IV to inves- tigate the changes to optical material properties that can be FIG. 4. Simulated magnitude (black) and phase (red) of the ð3Þ third-order susceptibility due to IRRS χ b;b in SrTiO3 when induced in SrTiO3 through IRRS. Table I summarizes the − the highest-frequency Γ5 ðEu Þ IR phonon is resonantly excited first-principles parameters for SrTiO3. As we are most ð3Þ interested in the changes to optical constants and optical (f IR ¼ 16.40 THz). (a) χ xxxx ð2; 1; −1; 2Þ exhibits coupling to the symmetry that arise from resonant or near-resonant IR Γþ þ 1 ðA1g Þ and Γ2 ðB1g Þ Raman phonons. The difference and sum pumping, we explore cubic susceptibility terms, in the frequencies that identify peaks are 12.18 and 20.62 THz for the Γþ1 ðA1g Þ phonon, and 1.19 and 31.61 THz for the Γ2 ðB1g Þ þ form of the intensity-dependent change to the linear ð3Þ susceptibility, for an applied field E⃗ 2 due to the applica- phonon. (b) χ yxxy ð2; 1; −1; 2Þ exhibits coupling to the two Γþ 4 ðB2g Þ phonons. The difference frequencies are 3.38 and tion of an infrared-resonant field E ⃗ 1 , δχ ð1Þ ij ½ω2 ; I 1 ðω1 Þ ¼ 11.88 THz, while the sum frequencies are 29.42 and ð3Þ χ ijji ð2; 1; −1; 2ÞjE1;j j2 , as defined in Sec. III B. The 20.92 THz. Also shown (dashed), the corresponding magnitude of the third-order susceptibility due to the anharmonic lattice symmetry of χ ð3Þ for the infrared-resonant Raman ð3Þ response depends on the symmetry of the displaced potential (ionic Raman scattering) χ B;B . Raman phonons as we discuss in Sec. II. The frequency dependence of the tensor components of χ ð3Þ , as is seen phonons of SrTiO3 . Through these IR-Raman couplings below, has the expected form of a Raman scattering mediated by IRRS, intensity-dependent changes to the susceptibility as seen in Fig. 3, with Stokes and anti- effective linear susceptibility for a second field E ⃗ 2 Stokes peaks corresponding to differences and sums of the ⃗ ð1Þ occur for E2 fields polarized along x, δχ xx ðω2 ; I 1 Þ ¼ IR and Raman phonons of the material, respectively. The ð3Þ ð1Þ response, however, is complicated by the presence of χ xxxx ð2; 1; −1; 2ÞjE1;x j2 and along y, δχ yy ðω2 ; I 1 Þ ¼ ð3Þ multiple IR-Raman phonon couplings for each activated χ yxxy ð2; 1; −1; 2ÞjE1;x j2 . IR phonon and the different χ ð3Þ symmetries correspond- We first consider the case where both E ⃗ 1 and E ⃗ 2 are ing to each Raman phonon. As a result, the intensity- polarized along the x axis. The Raman phonons that dependent dielectric response through the excitation of the contribute to the optical response in this case [via IR phonons [see Eq. (13) and discussion] and the resulting ð3Þ χ xxxx ð2; 1; −1; 2Þ] are the Γþ 1 ðA1g Þ mode, which is fully changes to the optical symmetry are intimately tied to the þ frequency range spanned in the experiment and the symmetric, and the Γ2 ðB1g Þ, which transforms as x2 -y2 polarizations of the applied fields. [Fig. 4(a)]. The resonance peaks are then the sums (anti- Stokes peaks) and differences (Stokes peaks) of the IR resonance and the Γþ þ 1 ðA1g Þ and Γ2 ðB1g Þ Raman phonons. A. Optical symmetry breaking We see peaks at 12.18 and 20.62 THz through coupling Figure 4 shows the simulated third-order susceptibility to Γþ 1 ðA1g Þ, and 1.19 and 31.61 THz through coupling þ ⃗ 1 is polarized along the χ ð3Þ ð2; 1; −1; 2Þ for SrTiO3 when E to Γ2 ðB1g Þ Raman phonons. The phase of the nonlinear x direction (taken to be parallel to the crystallographic susceptibility is also complicated, showing multiple a axis) and resonant with the Γ−5 ðEu Þ IR phonon at absorption and emission pathways. However, there are f IR ¼ 16.40 THz. The nonlinear susceptibility is notably broad spectral regions where the IRRS susceptibility more complex than that of the simplified response in Fig. 3. remains purely real [that is, when argðχ ð3Þ Þ ¼ f0; πg] This is due to the coupling to multiple Raman-active in ranges of frequencies not near resonances. 021067-8
ULTRAFAST CONTROL OF MATERIAL OPTICAL PROPERTIES … PHYS. REV. X 11, 021067 (2021) The intensity-dependent changes to the effective linear The splitting and shift of the optical axes due to the susceptibility induced by the Γþ 1 ðA1g Þ Raman phonon IRRS response in SrTiO3 through excitation of the Γ−5 ðEu Þ preserve the uniaxial optical symmetry. That is, IR-active phonon at 16.40 THz and the Γþ 4 ðB2g Þ Raman ð1Þ ð1Þ ð1Þ δχ xx ðω2 ; I 1 Þ ¼ δχ yy ðω2 ; I 1 Þ ≠ δχ zz ðω2 ; I 1 Þ, a result of phonon at 13.02 THz—both of which primarily involve ð3Þ ð3Þ ð3Þ motion of oxygen atoms—is shown schematically in Fig. 5. χ xxxx ð2; 1; −1; 2ÞjE1;x j2 ¼ χ yyyy ð2; 1; −1; 2ÞjE1;y j2 ≠ χ zzzz ð2; Here the Cartesian coordinates fx; y; zg are taken to be 1; −1; 2ÞjE1;z j2 . However, the response of the Γþ 2 ðB1g Þ parallel to the crystallographic axes fa; b; cg, and the Raman phonon alters the linear susceptibility so that amplitudes of distortions are exaggerated for viewing. ð1Þ ð1Þ δχ xx ðω2 ; I 1 Þ ≠ δχ yy ðω2 ; I 1 Þ, which is the property of a For light incident along the z axis and polarized in the ð3Þ biaxial optical symmetry, since χ xxxx ð2; 1; −1; 2ÞjE1;x j2 ≠ x-y plane, only Γ−5 ðEu Þ IR-active phonons can be excited ð3Þ directly. For E ⃗ 1 kx; b the induced polarization P ⃗ through χ yyyy ð2; 1; −1; 2ÞjE1;y j2 . Since both Raman modes are − driven by the IR mode simultaneously through IRRS excitation of the Γ5 ðEu Þ IR phonon is along the x axis and thus their effects on the optical response cannot be [top panel of Figs. 5(b) and 5(c)]. Considering only the disentangled, the net result of resonant pumping of the linear susceptibility, SrTiO3 remains uniaxial [top panel of Γ−5 ðEu Þ IR phonon is a shift from uniaxial to biaxial Fig. 5(d)]. Through IRRS measured by a second field E ⃗ 2 kŷ, þ symmetry, with the angle that splits the two optical axes motion of the Γ4 ðB2g Þ is also induced [middle panel controlled by I 1. of Figs. 5(b) and 5(c)] but on its own does not induce a If we instead consider the case where E ⃗ 2 is polarized dipole and therefore cannot affect the polarization direc- − along the y axis [and the Γ5 ðEu Þ IR phonon at f IR ¼ tion. The combined response of these IR and Raman ⃗ 1 polarized along the x phonons [bottom panel of Figs. 5(b) and 5(c)] causes 16.40 THz is still pumped by an E the frequency-dependent canting of the polarization axis], we now observe a cross-polarization effect. The two which is seen in the induced off-diagonal terms in the Γþ4 ðB2g Þ Raman phonons at 13.02 and 4.52 THz now effective linear susceptibility, as we describe above. The ð3Þ facilitate the response through χ yxxy ð2; 1; −1; 2Þ [Fig. 4(b)]. biaxial optical axes induced by the IRRS are shown in the Again, complicated amplitude peaks and phase responses bottom panel of Fig. 5(d), where the off-diagonal compo- are seen with difference frequencies (Stokes peaks) nents of the effective linear susceptibility have now forced and sum frequencies (anti-Stokes peaks) of 3.38 and the direction of the in-plane principle axes (shown as 11.88 THz, and 29.42 and 20.92 THz, respectively. fx0 ; y0 ; z0 g). Interpreting this response from the perspective of the We note that the canting of the polarization in SrTiO3 is intensity-dependent linear susceptibility, we find that not directly due to the displacement of ions through the ð1Þ ð1Þ motion of the IR and Raman phonons. Rather, the com- δχ xy ðω2 ; I 1 Þ ¼ δχ yx ðω2 ; I 1 Þ are nonzero. That is, an opti- cal constant not allowed by the symmetry of the equilib- bined motion of the IR and Raman phonons lowers the rium structure appears and becomes intensity dependent. symmetry of the crystal; this induces changes to the This implies an intensity-dependent shift to the principal electronic structure of the occupied states, which conse- optical axes. quently cants the polarization. Although motion of the ions Figure 4 also shows that the contribution to does not contribute directly to the canting of the polariza- χ ð3Þ ð2; 1; −1; 2Þ coming purely from the anharmonic lattice tion in SrTiO3 , it is unclear how general this is in arbitrary potential (blue dashed line in Fig. 4) is many orders of crystalline systems. magnitude smaller than the contribution due to IRRS in SrTiO3 . This could have been anticipated by the definition B. Giant refractive index shifts of the induced polarization [Eqs. (2) and (10)] and the When E⃗ 1 is instead resonant with the lowest-frequency equations of motion Eq. (11) along with the perturbation Γ−5 ðEu ÞIR-active phonon at 2.67 THz, χ ð3Þ can be remark- approach shown schematically in the bottom panel of Fig. 2 ably large—approaching unity at resonance peaks when and developed in Sec. III B. In the absence of b and β, the jE1 j approaches 1 MV=cm. That is, the shift in the effective only possible changes to the polarization are through linear susceptibility for the infrared-resonant Raman changes in QIR . While the anharmonic lattice potential response in SrTiO3 can be comparable to the typical linear induces a first-order change in the Raman coordinate QR , it dielectric response of many optical materials (χ ð1Þ ≈ 1–10). induces only a second-order change in QIR ; thus, we should ð3Þ expect the pure anharmonic lattice contribution to the third- Figure 6 shows χ zxxx ð2; 1; −1; 2Þ for this case. Here, the þ order susceptibility to be small. An expression for the Γ5 ðEg Þ Raman phonons, which have fyz; zxg symmetry, changes to χ ð3Þ induced by the anharmonic lattice potential are activated in the optical process, so the optical changes and all possible cross-coupling pathways for χ ð3Þ up to are again along a perpendicular axis (that is, E⃗ 2 is polarized second order in perturbation theory are given in the along the z axis). The 1.25- and 4.35-THz Γþ 5 ðEg Þ phonons Appendix [see Eqs. (A9) and (A10)]. dominate the IRRS process, while the 13.09-THz Γþ 5 ðEg Þ 021067-9
KHALSA, BENEDEK, and MOSES PHYS. REV. X 11, 021067 (2021) FIG. 5. Activation of IR and Raman phonons, and symmetry breaking in SrTiO3 through IRRS. (a) Equilibrium crystal structure of SrTiO3 from two perspectives. (b) Schematic representation of the IR, Raman, and combined IR and Raman phonons. The Γ−5 IR phonon at 16.40 THz and the Γþ 4 Raman phonon at 13.02 THz are shown here. (c) Distorted structure when IR, Raman, and the combined IR and Raman phonons are included. The induced polarization is canted by the activation of the Γ−5 IR phonon polarized in the x-y plane and the Γþ 4 Raman phonon that transforms like xy. (d) Away from equilibrium, the uniaxial nature of SrTiO3 is altered— splitting and tilting the optical axes. Here, x0 ; y0 ; z0 are the principle axes of the distorted crystal with the optical axes canted from z0 in the z0 -x0 plane. is not significantly altering the optical response because ð1Þ ð1Þ δχ yz ðω2 ; I 1 Þ ≠ 0 and δχ zx ðω2 ; I 1 Þ ≠ 0. Focusing on the of its weak coupling to the 2.57-THz IR phonon. response above 10 THz, we again note a phase of π=2 and a Difference-frequency (Stokes) and sum-frequency (anti- falloff with frequency proportional to f −2 showing that the Stokes) responses are clearly seen in the amplitude and large intensity-dependent changes to the real parts of the phase of χ ð3Þ at 1.68 and 1.42 THz, and 7.02 and 3.92 THz, respectively. Interpreting the nonlinear optical changes as intensity-dependent susceptibility changes suggests TABLE I. Coupling coefficients for SrTiO3 used in Figs. 4 and 6. The reduced mass and effective charges for the high- and low- frequency Γ−5 ðEu Þ IR phonons are M ¼ 16.01μ and Z̃ ¼ 6.92e, and M ¼ 20.12μ and Z̃ ¼ 14.97e, respectively. Γ−5 ðEu Þ IR phonon at 16.40 THz Symmetry fðTHzÞ Mðmu Þ bðe=ÅÞ Γþ 1 ðA1g Þ: 1 4.22 16.00 0.33 Γþ 2 2 ðB1g Þ: x − y 2 15.21 16.00 −0.35 þ −0.68 Γ4 ðB2g Þ: xy 13.02 16.02 4.52 86.95 −0.28 FIG. 6. Simulated magnitude (black) and phase (red) of the ð3Þ third-order susceptibility due to IRRS χ b;b in SrTiO3 when the − lowest-frequency Γ5 ðEu Þ IR phonon is resonantly excited Γ−5 ðEu Þ IR phonon at 2.67 THz ð3Þ (fIR ¼ 2.67 THz). χ zyxx ð2; 1; −1; 2Þ is now facilitated by the Symmetry fðTHzÞ Mðmu Þ bðe=ÅÞ þ Γ5 ðEg Þ Raman phonons. The difference and sum frequencies are Γþ 5 ðEg Þ: fyz; zxg 13.09 16.03 −0.03 now 1.68 and 1.42 THz, and 7.02 and 3.92 THz, respectively. The 4.35 80.05 −1.33 coupling to the 13.09-THz Raman phonon is weak and does not 1.25 16.25 0.26 alter the response significantly. 021067-10
ULTRAFAST CONTROL OF MATERIAL OPTICAL PROPERTIES … PHYS. REV. X 11, 021067 (2021) ð1Þ ð1Þ constants on Raman phonon displacements. Since some effective χ yz and χ zx extend far above the region where optical phonons are present. Raman phonons in noncentrosymmetric media have the same symmetry as IR-active phonons, evaluation of IRRS- induced shifts of χ ð2Þ is considerably more involved. VI. DISCUSSION However, such media present a complex response to IR- The findings of Secs. III and V suggest a broad relevance driven light that might be used to simultaneously tailor to the fields of optics and materials physics. linear, electro-optic, and higher-order constants through the In optics, IRRS offers a previously unidentified route to application of IR-resonant light fields. For example, in strong control of optical material properties. In the analysis AlN, the Γ1 ðA1 Þ optical phonon is simultaneously IR and of SrTiO3 in Sec. V, large, broad-frequency changes to the Raman active, and invariant under all symmetry operations. dielectric response are observed in the form of new tensor Extending the discussion of Sec. II C, every optical con- elements—in one case reflecting an intensity-dependent stant, of every order, will be proportional to the displace- shift from uniaxial to biaxial symmetry—as well as the ment of this phonon while also directly excitable. induction of strong absorption and emission peaks, and We anticipate that the potential utility provided by IRRS large refractive-index shifts. Extending these ideas to through the effects seen in Sec. V for optical technologies include circularly polarized fields, we might expect will rely on three considerations: the applicability of having IRRS to give strong control of chiral optical response as strong absorption of a control pulse over a short length well. Such large effects are possible via a triply resonant scale, the possible utility of achieving relative shifts in Raman-scattering susceptibility through the coupling of IR propagation constants with field polarization, and the and Raman phonons mediated by nonlinear contributions degree to which the use of multiple laser frequencies is to the polarizability, as shown in Eq. (2). practical. Through the application of propagating or stand- Whereas it is akin to the conventional electronically ing-wave infrared light fields, one might imagine signifi- mediated resonant Raman response, which couples Raman cant applications on the scale of integrated optical devices, phonons to virtual electronic dipole transitions through the e.g., in which side pumping of a waveguide is used to nonlinear polarizability, IRRS is relevant over a vastly induce effects such as light-induced wave retardation, different frequency range relevant to the emergent fields of polarization ellipse rotation, Bragg reflection, etc. midinfrared and THz optics. The theoretical approach we We note that the optical effects described in this article use is quite general and can be used to analyze IRRS in a offer a route to control of optical symmetry akin to that wide variety of optical materials, including other complex provided by the Pockels effect (linear electro-optic effect), oxides and III-V semiconductors. The main features of a but by a very different physical mechanism. The Pockels material allowing strong IRRS response are large nonlinear effect induces an optical-field-dependent shift to the linear polarizability b ¼ ð∂ΔP=∂Q ⃗ IR ∂QR Þ and effective charge electric susceptibility via the action of a strong dc or low- frequency electric field through a nonzero quadratic electric Z̃. SrTiO3 has modest values of these parameters, and while ð1Þ ð2Þ the evaluation of other materials is beyond the scope of this susceptibility, δχ ij ¼ 2χ ijk Ek ðω ≈ 0Þ. The low-frequency article, we might anticipate optical materials with signifi- field shifts the electronic distribution from its equilibrium ð3Þ coordination, thus, breaking the original symmetry of the cantly larger χ b;b. The parameter b can be viewed as the change in the electronic potential with respect to new electronic displace- ments induced by a second electric field. In contrast, IRRS mode-effective charge Z̃ due to the Raman phonon [see induces a change to the lattice from its equilibrium discussion below Eq. (2)]. In SrTiO3 we find that the structure, thus, also breaking the original symmetry of parameter b is dominated by changes to so-called anoma- the electronic potential, as the electronic displacements lous charge contributions to the mode-effective charge— induced by a second electric field are now with respect to changes to the electronic structure of occupied electronic the electronic distribution of the changed lattice. states. This finding suggests that materials with large Experimental verification of IRRS in mid-IR experi- anomalous charge should be the focus of the initial search ments is most straightforward through observation of an for materials with sizable infrared-resonant Raman IR-resonant enhancement of Stokes or anti-Stokes Raman response. Perovskites are well known to exhibit large peaks. Inspecting Fig. 4, it is clear that the spectral features anomalous charges and are therefore a useful theoretical for IRRS and ionic Raman scattering in SrTiO3 are and experimental test ground for IRRS. different, allowing for the experimental distinction between The principle of IR resonant modification of χ ð1Þ via the two effects. Additionally, our first-principles evaluation IRRS could be readily extended to explore infrared-driven of the coupling terms in SrTiO3 suggests that the resonant control of higher-order susceptibilities in both centrosym- enhancement is overwhelmed by IRRS, with many orders metric and noncentrosymmetric crystals where large of magnitude smaller contribution from ionic Raman ð2Þ ð3Þ changes to χ eff , χ eff , etc., may be anticipated due to the scattering, that is, through the anharmonic lattice potential. dependence of the symmetry and size of these optical The degree to which IRRS overwhelms ionic Raman 021067-11
