2018 PRODUCT BOOK
WE HAVE COME A LONG WAY…
Eleveight kiteboarding is created with the essence
of passion, dedication and experience.
Passion that revolves around the unique lifestyle of water sports.
Dedication to functional quality products and the belief in constant innovation.
Experience as our team is composed of long term professionals from the industry.
We aim to work with partners that share our vision and
believe in the same values as we do.
Our passion is yours
Picture: Photokitesurf / Sicily Kite Park, Lo Stagnone / Sicily, Italy Page / 03
CONTENT KITES FSeries Freestyle / Freeride 09 RSeries Freeride / Cross Over 15 WSeries Wave / Freeride 19 PSeries Progression / Freeride 25 SHOULDER BAG 29 E/8 TRUSTED QUALITY 33 BAR CSeries Control Bar 38 SURFBOARDS CURL Performance surfboard 41 ESCAPE Freestyle surfboard 43 TWINTIP PROCESS Performance Freeride 45 ACCESSORIES 50
Inspired by the roots…
We have a strong passion for water sports. An urge to
be out there. This manifests in the brand we created.
Our main drive is our history and passion. Each and
every member of our team is most comfortable when
there is a board beneath the feet. Our inspiration
comes from kiteboarding, surfing, skateboarding,
wakeboarding, snowboarding and windsurfing.
In the process of building this brand we came across
the word “elevate” which best describes our feeling
while riding. We combined it with the “eight” that
represents not only the fluid movement of a kite but
furthermore our vision and spirit for infinity, harmony
and sustainability.
Eleveight was born.
Page / 07Picture: Photokitesurf / Sicily Kite Park, Lo Stagnone / Sicily, Italy
Page / 09

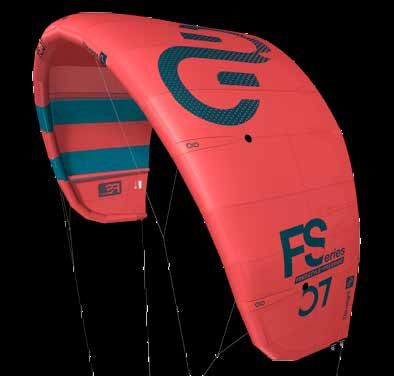

42DESIGN VISION
We set out to design a kite for ambitious riders that love freestyle, commit to radical
kite loops and enjoy a well-balanced performance kite. The FS is a tip turning kite
with a high aspect ratio and low sweep. This design parameters are the fundamental
DNA to provide the FS with the essence of performance in his category.
PERFORMANCE FEATURES
● 5 strut open C design
● High aspect ratio
● Fast and powerful turning characteristics
● Kite for big airs and vigorous loops
● Good upwind performance and great stability
● Plenty line slack and trick performance
● Light wind sizes (14 & 16 m are equipped with 3 m extensions)
● E/8 trusted quality Red: 117
SIZES 06 / 07 / 08 / 09 / 10 / 12 / 14 / 16
EFS1806061 18 FS V1 6m
EFS1807061 18 FS V1 7m
EFS1808061 18 FS V1 8m
EFS1809061 18 FS V1 9m
EFS1810061 18 FS V1 10m
EFS1812061 18 FS V1 12m Green: 116 Blue: 115
EFS1814061 18 FS V1 14m
EFS1816061 18 FS V1 16m
Page / 11FS
TURNING
CHARACTERISTIC
● Wingtip turner
● Powerful turn
RIDING Style ● High velocity turn
FS FS To equip the FS with
Freeride ● ● ● ● ● RS WS WS RS powerful and fast turning
Big air / Megaloop ● ● ● ● ● ● PS PS
characteristics, we shifted
Freestyle / Wakestyle ● ● ● ● ● ● TURNING CENTER TURNING its turning axes towards the
Surf ● ● ● ● AXIS TURNING AXIS wingtip. This greatly enhances
its energy and agility.
Light Wind Race ● ● ● ● ●
WIND Range
PS
ASPECT RATIO
WS
Size / Knots 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 RS
● High
FS
● Good upwind performance
CHORD
06m ● ● ● ● ● ● ● ● ● ● FS ● Efficient lift / drag ratio
07m ● ● ● ● ● ● ● ● ● ● ● ●
08m ● ● ● ● ● ● ● ● ● ● ● ● ● The FS’ high AR with a
efficient lift/drag ratio provides
● ● ● ● ● ● ● ● ● ● ● ● ●
WINGSPAN
09m
this high performance kite
10m ● ● ● ● ● ● ● ● ● ● ● ● ● FS RS WS PS PS WS RS FS with great upwind and
12m ● ● ● ● ● ● ● ● ● ● ● ● jumping characteristics.
14m ● ● ● ● ● ● ● ● ● ● ●
16m ● ● ● ● ● ● ● ● ● ●
Beaufort 2 3 4 5 6 7 8
Description Light Gentle Moderate Fresh Strong breeze High wind, Strong wind SWEEP
breeze breeze breeze breeze moderate
● Low sweep
Based on average rider weight of 75kg/165 lbs ● Explosive power
FS
● Vertical lift
With its moderate sweep,
the FS deploys its power
explosively when jumping/
looping. Furthermore it also
provides plenty of slack for
SWEEP
freestyle tricks.
FS WS RS PS
Page / 13DESIGN VISION
Our goal was to design a kite with a versatile character that adapts to all weather and
spot conditions without any performance reductions. We created the RSeries, a kite with
a balanced grunt, massive hangtime and a huge wind range.The riders will instantly notice
the kite’s DNA which is based on a med to high aspect ratio, a medium sweep and a mix
of pivot and tip turning. In short, the RS is a very agile but stable performance freeride kite
that guarantees fun!
PERFORMANCE FEATURES
● 3 strut delta hybrid shape
● Medium to high aspect ratio
● Quick and smooth turning
● Big jumping and long hangtime
● Great upwind performance
● Most versatile high performance kite
Red: 217
● Light wind sizes (14 & 17m come with 3 m extensions)
● E/8 trusted quality
SIZES 05 / 06 / 07 / 08 / 09 / 10 / 12 / 14 / 17
ERS1805061 18 RS V1 5m
ERS1806061 18 RS V1 6m
ERS1807061 18 RS V1 7m
ERS1808061 18 RS V1 8m
ERS1809061 18 RS V1 9m
Blue: 215 Orange: 218 Neon Red: 219
ERS1810061 18 RS V1 10m
ERS1812061 18 RS V1 14m
ERS1814061 18 FS V1 16m
ERS1817061 18 RS V1 17m
Page / 15RS PS
TURNING
CHARACTERISTIC
● Wingtip to pivot turner
● Smooth turn
RIDING Style ● Fast turn
RS/PS RS/PS
Freeride ● ● ● ● ● ● The RS has its turning axis in
Surf ● ● ● ● ●
FS WS WS FS
the shoulder which provides
a smooth fast turn, right in the
Progression ● ● ● ● ● TURNING
AXIS
CENTER
TURNING
TURNING
AXIS middle between tip and pivot
Big Air / Old School ● ● ● ● ● ● turn.
Light Wind Foil ● ● ● ● ● ●
WIND Range ASPECT RATIO
● Medium to high
Size / Knots 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 PS
WS ● High upwind performance
RS ● Massive wind range
FS
05m ● ● ● ● ● ● ● ● ● ●
CHORD
RS
06m ● ● ● ● ● ● ● ● ● ● ● ● The medium to high
aspect ratio of the RS
07m ● ● ● ● ● ● ● ● ● ● ● ● ●
comes with a good lift/drag
08m ● ● ● ● ● ● ● ● ● ● ● ● ● WINGSPAN ratio. It provides this high
09m ● ● ● ● ● ● ● ● ● ● ● ● ● performance kite with great
10m ● ● ● ● ● ● ● ● ● ● ● ● ● FS RS WS PS PS WS RS FS upwind and jumping abilities
12m ● ● ● ● ● ● ● ● ● ● ● ● and a smooth but grunty pull.
14m ● ● ● ● ● ● ● ● ● ●
17m ● ● ● ● ● ● ● ● ●
Beaufort 2 3 4 5 6 7 8 SWEEP
Description Light Gentle Moderate Fresh Strong breeze High wind, Strong wind
breeze breeze breeze breeze moderate ● Medium sweep
● Grunty power
Based on average rider weight of 75kg/165 lbs
RS ● Great hangtime
With its medium sweep, and
mid AR the RS has a good
amount of grunt a provides
incredible hang time.
SWEEP
FS WS RS PS
Page / 17Picture: David Varekamp / Surfkitephoto.com / One Eye, Mauritius
Page / 19DESIGN VISION
The WS reflects our long journey and the search for the perfect wave kite. The core of a
perfect wave kite is fairly simple and consist of a controlled power, a direct pivot turn with a
stable downwind drift. The medium aspect ratio, the med to low sweep and the pivot turning
characteristics are the perfect DNA for a wave kite. Everybody who touched the WS was
impressed by his crossover capacity and what a fun kite this is to fly.
PERFORMANCE FEATURES
● 3 Strut Open C Hybrid
● Medium aspect ratio
● Rapid and direct turning characteristics
● Stable downwind drift
● Absorbing gusts and provides control in light winds
● Light bar pressure for single hand control
● Exceptional control of power and steering
Grey: 312
● E/8 trusted quality
SIZES 05 / 07 / 09 / 11
EWS1805031 18 WS V1 5m
EWS1807031 18 WS V1 7m
EWS1809031 18 WS V1 9m
EWS1811031 18 WS V1 11m
Turquoise: 313 Blue: 315
Page / 21WS
TURNING
CHARACTERISTIC
● Pivot turner
● Direct drift turn
● Extreme fast turn
RIDING Style WS WS
FS RS
PS
RS FS
PS The WS has its turning axis in
Surf ● ● ● ● ● ● the center this allows the kite
TURNING CENTER TURNING
to turn on a dime (pivot turn).
Freeride ● ● ● ● ● AXIS TURNING AXIS
Also it stabilizes the drift,
Strapless Freestyle ● ● ● ● ● ● similar as if you hold the kite in
New to the sport ● ● ● ● the center
Light Wind Foil ● ● ● ● ●
ASPECT RATIO
WIND Range PS
WS
RS
FS ● Medium
CHORD
Size / Knots 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 ● Stable downwind drift
WS ● Gust absorber
05m ● ● ● ● ● ● ● ● ● ● ●
The medium aspect ratio is a
07m ● ● ● ● ● ● ● ● ● ● ● ● ● WINGSPAN
key ingredient for its position
09m ● ● ● ● ● ● ● ● ● ● ● ● ● in the wind window. The WS
11m ● ● ● ● ● ● ● ● ● ● ● FS RS WS PS PS WS RS FS
has an unmatched drift and a
smooth power deployment.
Beaufort 2 3 4 5 6 7 8
Description Light Gentle Moderate Fresh Strong breeze High wind, Strong wind
breeze breeze breeze breeze moderate
Based on average rider weight of 75kg/165 lbs
SWEEP
● Medium to low sweep
● Controlled power
WS ● Direct handling
The medium to low sweep
allows smooth power
deployment combined with
rapid reactivity.
SWEEP
FS WS RS PS
Page / 23DESIGN VISION
With the PS we had a clear aim in mind. A very well-balanced price point kite for kite newbies
and schools but without compromising on quality and performance. We believe on a simple
kite DNA which consist of moderate turning speed, an easy and nearly automatic relaunch
and a high flight stability. We reinforced strategic areas to decrease the wear and tear. For the
need of this target group we introduced an innovative pull in bridle system which decreases
line tangle.
PERFORMANCE FEATURES
● 3 strut delta shape
● Low to medium aspect ratio
● Moderate and smooth turning speed
● Grunty power. Sheet in to ride
● High flight stability
● Automatic relaunch
● Tangle free bridle by new pull-in bridle innovation
Blue: 415
● Extra leading edge reinforcements for added protection
● E/8 trusted quality
SIZES 04 / 06 / 08 / 10 / 12
EPS1804061 PS V1 4m (school)
EPS1806061 PS V1 6m (school)
EPS1808061 PS V1 8m (school)
EPS1810061 PS V1 10m (school)
Purple: 414 Orange: 418
EPS1812061 PS V1 12m (school)
Page / 25RS PS
TURNING
CHARACTERISTIC
● Wingtip to pivot turner
● Constant pull turn
● Medium turning speed
RIDING Style
RS/PS RS/PS We placed the PS’ turning axis
Progression ● ● ● ● ● ● FS WS WS FS at its shoulder to create super
Freeride ● ● ● ● ● smooth turning characteristics.
School ● ● ● ● ● ● TURNING
AXIS
CENTER
TURNING
TURNING
AXIS
They are right in between
powerful tip turns and moderate
Jump ● ● ● ●
pivot turns.
Surf ● ● ● ●
WIND Range
PS ASPECT RATIO
WS
RS
Size / Knots 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38
CHORD
FS
PS
● Medium to low
● High flight stability
04m ● ● ● ● ● ● ● ● ● Constant power
06m ● ● ● ● ● ● ● ● ● ● ● WINGSPAN
08m ● ● ● ● ● ● ● ● ● ● ● The low to medium aspect ratio
FS RS WS PS PS WS RS FS provides a high flight stability and
10m ● ● ● ● ● ● ● ● ● ● ●
a constant power generation.
12m ● ● ● ● ● ● ● ● ● ●
Beaufort 2 3 4 5 6 7 8
Description Light Gentle Moderate Fresh Strong breeze High wind, Strong wind
breeze breeze breeze breeze moderate
Based on average rider weight of 75kg/165 lbs
SWEEP
PS ● High sweep
● Automatic relaunch
● Predictable handling
The high sweep of its wingtips
generates a easy to fly silhouette.
Furthermore the relaunch is
SWEEP almost automatic.
FS WS RS PS
Page / 27ELEVEIGHT SHOULDER BAG
Each kite comes in a trendy shoulder bag that is comfortable to carry,
fits additional equipment and can be used apart from kiting.
● Comes in two sizes and easily fits two kites.
● Comfortable and detachable shoulder strap.
● Perfect as cabin luggage and for activities other
than kiteboarding.
● Equipped with kite repair kit and extra pouch for your
phone, wallet and sunnies.
● Clips the bar bag and has a spare pocket for additional gear.
FRONT
BACK
NAME
PHONE
EMAIL
www.eleveightkiteboarding.com/usermanual
FRONT
Page / 2915 YEARS OF EXPERIENCE….
Eleveight’s technical product design is based on the principles of performance, quality,
functionality and innovation.
The variety of kiteboarding styles is demanding on our gear in a lot of ways. Only very
well designed products fulfil the rider’s needs and are truly satisfying. Clean and smooth
canopy profiles, stable flight geometry, harmonic shapes and well-constructed details are
visible indicators for great design and make all the difference in the kite’s performance. Only
great design allows us to push the sport. With more than 15 years of experience designing
inflatable kites, more than 1500 engineered prototypes and countless bridle setups tested,
designing kites is natural to me.
Eleveight puts 100% focus on the products. We love the sport and great product design
makes all the difference.
Peter Stiewe
Page / 31E/8 TRUSTED QUALITY
1 / Teijin Techno Force
Eleveight kites are constructed with the highest quality materials out there such as the
renowned TechnoForce Double Ripstop Canopy.
2 / Double Bond Canopy
To ensure your kite can take a beating, every seam is glued and stitched for maximum durability.
3 2 1
3 / Quick Flow
The large diameter of the valve and strut connectors ensures easy and fast inflation and
deflation of your kite.
4 / Strut Force Distribution
Double strut head reinforcement for solid inflatable kite frame.
5 / Short bridle
The short bridle setup with only one wingtip pulley enhances the kite’s agility while providing
a direct bar feeling and less risk off bridle catch.
4
6 / 3D bridle deflector 12
We installed 3D shaped foam wedges to increase your safety, making sure that the wingtip
does not get caught in the bridle.
5
7 / Canopy Guards
Strategic Dacron canopy reinforcements to eliminate canopy wear and tear including pin 11
holes caused by the valves. 6
8 / German made PU Bladder Material
The toughest and lightest bladder material available, made in Germany.
9 / Safe Connect
Avoid mixing up lines with the kook proof front- and backline connection points.
10 / Easy Trim 10
Fly the kite your way by easily switching between backline trim options with the pull to pull tags.
11 / Leading Edge Super Seam 9
A triple reinforced closing seam along the leading edge makes it practically indestructible.
It is the strongest seam possible.
12 / Load Diffuser
Angled reinforcements along the trailing edge diffuse the load and strain on the canopy, 7 8
making it more durable, improving kite stability and increasing the longevity.
13 / Light & Tough Construction KITE STRUCTURE
Strategic reinforcements on points of stress and strain protect your kite from wear and tear Key part
while keeping it light and agile.
Page / 33CONTROL BAR
DESIGN VISION
Following our beliefs in clean, rider friendly design we began developing a bar
that is safe and functional. We engineered the CS bar. Its core piece is the newly
designed Quick Matic Quick release. The activation pressure is under 6 kg with
a 200 kg load (French norm tested) and assembling has never been easier: No
need to move the cuff up – the chicken loop smoothly clicks back into the system
and the bar is ready to be used again. The bar works in perfect harmony with our
complete kite range.
PERFORMANCE FEATURES
● 4 line bar with single front line safety
● Innovative Quick-Matic release system with top swivel
● Customizable de-power length with clam cleat
● Front and backline trim option
● Kook proof connection system
● French norm safety compliance
● Thermocoated high performance lines made in Germany
● Short safety leash included
SIZES
Small (47cm)
Large (52cm)
3m line extensions for kites 14- 17m
ECB1847051 18 ECB small 47 cm
ECB1852051 18 ECB large 52 cm
Page / 35Picture: David Varekamp / Surfkitephoto.com / One Eye, Mauritius
37
Page / 42PERFORMANCE SURFBOARD
DESIGN VISION
Our goal was to develop a great all- around performance board, designed to keep
speed and control in solid wave conditions. The thin rail profile together with the
harmonic outline gives you an excellent rail to rail performance. The bottom shape
has a single concave running all the way through providing the board with grip
and drive. The rocker line with a nice tail kick makes every top turn an explosion.
Using carbon stringers, inegra vector net reinforcements and the Futures fin
box system makes these boards extremely durable and keeps them ultra high
performing.
PERFORMANCE FEATURES
● Modern short board shape for quick turns
● The single concave makes this board is extremely fast and drivey
● Thruster fin set up with Futures box
● Medium density foam for balanced ratio of high performance
and maximum durability
● Inegra Vector grid reinforcements for enhanced durability
● Carbon stringer for responsive flex
● Hand shaped high performance board (no inserts for straps)
● Ideal wave size medium to big
SIZES
5´7 x 17 5/8 x 2 - 23 Ltr
5´10 x 19 x 2 ¼ - 26.5Ltr
18CURL0057 Curl 5’7
18CURL0051 Curl 5’10
Page / 39FREESTYLE SURFBOARD
DESIGN VISION
The Escape reflects the need for a new generation of kitesurfers. The no-nose shape
together with the moderate entry rocker provide plenty of lift on the water as well as
in the air. The shorter parallel rail line minimizes drag and helps with early planing.
In the surf the Escape performs excellent in small to medium waves. Using carbon
stringers, inegra vector net reinforcements and the Futures fin box system makes
these boards extremely durable and keeps them ultra-high performing.
PERFORMANCE FEATURES
● Modern no-nose shape for strapless freestyle and snappy turns
● Single bottom concave with channels for enhanced control
● Short rail line to minimize drag and optimize swing weight
● Moderate rocker line for speed early planing
● Thruster fin set up with Futures box
● Medium density foam for balanced ratio of high performance
and maximum durability
● Inegra Vector grid reinforcements for enhanced durability
● Carbon stringer for responsive flex
● Hand shaped high performance board (no inserts for straps)
● Ideal for strapless freestyle and small to medium waves
SIZES
4´11 x 17 ½ x 2 - 20 Ltr
5´4 x 18 ½ x 2 3/16 - 25.5Ltr
18ESCA0041 Escape 4’11
18ESCA0054 Escape 5’4
Page / 41Picture: Photokitesurf / Sicily Kite Park, Lo Stagnone / Sicily, Italy
Page / 43
42PROCESS
PERFORMANCE FREERIDE
DESIGN VISION
The Process is our new freeride board. Equipped with a revolutionary 3-D concept.
The board’s base is a newly developed Paulownia wood core. 3-D-channels
combined with well-balanced flex of the tips generates great upwind performance,
smooth handling in chop and an amazing pop for all tricks. This smooth and easy
accessible performance allows the rider to concentrate on what really counts!
PERFORMANCE FEATURES
● Performance freeride twin tip
● Lightweight paulownia wood core for balanced flex and control
● Carbon reinforcement for better landings and carving ability
● Harmonized rocker line for early planing
● Smooth channels for better control
● Reinforced inserts used in snowboard technology
● Ultra durable top sheet with UV resistance
● 45mm G10 fins
SIZES
135x41 / 139x42,5 / 144x44
18PROC00135 Process (complete) 135 cm
18PROC00139 Process (complete) 139 cm
18PROC00144 Process (complete) 144 cm
Shaped by
Page / 45Pictures / SF / Portugal
Page / 47Accessories Accessories
Flags Stickers
- -
Flag
Sizes: 90 cm x 60 cm Sizes: 80 cm x 20 cm
EPOPF189060 FLAG EPOPST188020 STICKER
Sizes: 24 cm x 24 cm
EPOPST182424 STICKER LOGO B&W
Banner
Sizes: 160 cm x 60 cm
EPOPB1816060 BANNER
Sizes: 24 cm x 26 cm
EPOPST182426 STICKER LOGO
Beach Flag
Sizes: 430 cm x 80 cm
EPOPBF1843080 BEACH FLAG
Page / 49Accessories Accessories
Tshirts & Pump Twin tip
- -
Dark Grey Fins G10 Epoxy
Sizes: S / M / L / XL Sizes: 45 mm
EACCTTF18G10 FINS G10 Twin Tip, epoxy, 45mm 2018
EPOPT18DGS S
EPOPT18DGM M
EPOPT18DGL L
EPOPT18DGXL XL
Footstraps Airgo
Light Grey
EACCTTFPS18 PADS&STRAPS TT AIRGO 2018
Sizes: S / M / L / XL
EPOPT18LGS S
EPOPT18LGM M
EPOPT18LGL L
EPOPT18LGXL XL
AIRGO AIRGO
PUMP
EACCP18 PUMP 2018
Page / 51www.eleveightkites.com
You can also read
