SalesForce REST Custom Wrapper
Revision 20190205
NOTE
This document is confidential and proprietary of Denodo Technologies.
No part of this document may be reproduced in any form by any means without prior
written authorization of Denodo Technologies.
Copyright © 2024
Denodo Technologies Proprietary and Confidential
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.com
SalesForce REST Custom Wrapper 20190205
2 of 22
CONTENTS
1 INTRODUCTION.................................................................3
2 FEATURES........................................................................4
2.1 WRAPPER TYPES...........................................................................4
2.2 ARCHITECTURE..............................................................................4
2.3 CAPABILITIES................................................................................5
2.4 LIMITATIONS.................................................................................6
3 SUPPORTED ENTITIES........................................................7
4 HOW TO USE THE CUSTOM WRAPPERS...............................9
4.1 GETTING OAUTH AUTHENTICATION TOKENS....................................9
4.2 CONFIGURING VDP......................................................................12
5 EXAMPLES......................................................................19
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comSalesForce REST Custom Wrapper 20190205
3 of 22
1 INTRODUCTION
salesforce-rest-customwrapper is a Virtual DataPort set of custom wrappers created
to be able to perform both CRUD and complex-query operations against
SalesForce from VDP in an integrated manner. This custom wrapper communicates
with SalesForce using the REST API enabled by SalesForce and using JSON to exchange
data with it.
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comSalesForce REST Custom Wrapper 20190205
4 of 22
2 FEATURES
2.1 WRAPPER TYPES
The salesforce-rest-customwrapper library includes several different wrappers, all in
the com.denodo.salesforce.rest.wrapper package:
● Abstract Wrapper (class AbstractSalesforceRestWrapper): this wrapper
cannot be used as it is an abstract class
● Entities Wrapper (class SalesforceRestWrapper): which allows you to create
one base view for each entity available in Salesforce (even custom entities)
● Entities Wrapper (class SalesforceRestSelectWrapper): same behavior as
previous one but contains a dropdown to select entity so only the entities in the
dropdown can be used (not valid neither for custom entities nor for those not
available in the dropdown)
● SOQL Wrapper (class SalesforceSOQLWrapper): which allows you to perform
SOQL queries from VDP so that you can perform more specific queries against
SalesForce (not supported by the entities in the library). This is a read only
wrapper.
● Predefined SOQL Wrapper (class SalesforcePredefinedSOQLWrapper):
which allows you to perform a predefined SOQL query from VDP. This wrapper
always executes the same query so no delegation is being performed. This is a
read only wrapper.
Using the entities wrappers you can perform CRUD operations against SalesForce
entities and custom entities in an SQL-way. Thanks to SalesforceSOQLWrapper, you
can execute arbitrary SOQL (Salesforce Object Query Language) queries and fetch their
results both as a piece of JSON and also as a VDP complex object (a set of
fieldName/fieldValue pairs in the shape of a JDBC array of structs).
SalesforcePredefinedSOQLWrapper allows you the configuration of a SOQL query to
be executed always and see its results as simple properties and, for those that are
objects, in a similar way to the SalesforceSOQLWrapper: as a piece of JSON and as a
VDP complex object.
2.2 ARCHITECTURE
All the wrappers use the new SalesForce.com REST API, based on JSON information
interchange and OAuth 2.0 authentication tokens (it also supports XML but we use
JSON). Using this REST API instead of the older contract-first SOAP API gives us much
greater flexibility and doesn’t require us to maintain a heavy AXIS-based Web Service
skeleton generated from the service’s WSDL. OAuth-based web authentication flow
allows VDP admins to configure these wrappers without the need to store SalesForce
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comSalesForce REST Custom Wrapper 20190205
5 of 22
user/password information in VDP (OAuth is the authentication system developed by
twitter for their client apps).
OAuth functionality includes auto-refresh of tokens, so that once the authentication
token has expired (SalesForce does not allow these tokens to be valid forever), the
custom wrappers will execute automatic refresh logic that will obtain a new one.
Sometimes Salesforce may change the instance you have to connect to. In those cases,
as the refresh flow returns the instance URL, the custom wrapper will adapt by
performing a refresh in order to get the new instance url. This way, requests will be
executed against the new instance. No manual changes will be necessary at all.
All the wrappers include, also, configuration parameters that allow you to (optionally)
use an HTTP/HTTPS proxy to connect to Salesforce.
All the wrappers allow you to set the Salesforce REST API version that will be used. By
default v30.0 will be used although there is a parameter you can set to use a different
one: v29.0, v33.0 and so on.
The wrappers access Salesforce resources by creating connections to the Salesforce
instance url (something like https://na2.salesforce.com) using httpclient library. SSL
connections are configured to use TLSv1.2.
When calling SalesForce, you can let it know you accept compressed responses. This is
also a configuration option for these custom wrappers. Anyway, you should take into
account custom wrappers only use compression if configured so and you are fetching
all the data or performing a select with filtering. No compression will be used by these
custom wrappers if deleting an entity or adding a new one. Apart from that, REST API is
not required to compress responses even if you tell it you accept them. Based on this,
it’s recommended that, in case you are fetching a big amount of data, you try if
compression makes a difference for you in performance.
2.3 CAPABILITIES
The SalesforceRestWrapper and SalesforceRestSelectWrapper can delegate to
SalesForce the following query artifacts and operators:
● AND conditions
● OR conditions (see Limitations section)
● Operators: =, , >, >=,SalesForce REST Custom Wrapper 20190205
6 of 22
2.4 LIMITATIONS
Salesforce has a limitation in the length of the queries, if we send a request too large to
the server, SalesForce would respond with a message as this "Request Header Fields
Too Large". In this case we would have to reduce the size of the request.
The following limitations described in this section are related to VQL sentences so they
only affect SalesforceRestWrapper and SalesforceRestSelectWrapper as the other
custom wrappers use SOQL sent to SalesForce directly. They should be taken into
account when using those custom wrappers.
● Delegation of ORDER BY.
○ VDP 5.5+: The current VDP Custom Wrapper API allows the delegation of
the ORDER BY clauses although, as some fields are not searchable at
SalesForce, the ORDER BY clauses will be delegated to the source only
when all the fields included at the ORDER BY clause are searchable.
Otherwise, ordering will be performed by VDP in-memory.
● ORDER BY when joining views:
○ VDP 5.5+: As ORDER BY is being delegated to SalesForce, there can be
inconsistent results when trying to MERGE JOIN views from SalesForce
and other sources. This is due to the lack of control over SalesForce
ORDER BY collation. This may lead us to sources with different ORDER BY
criteria and, as a consequence, to inconsistent results. In order to avoid
this, if criteria are different or you don't really know, the safest approach
is to avoid MERGE JOIN and use, for example, a HASH JOIN so that how
sources perform ORDER BY does not matter.
● Insertion/update of BINARY values.
○ VDP 5.5+: The current VDP JDBC Driver does not allow setting binary
(either byte[] or VDBJDBCBlob) parameters to Prepared Statements, so
there is no possibility for inserting / updating values to the content of the
Attachment entity in SalesForce via VDP.
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comSalesForce REST Custom Wrapper 20190205
7 of 22
3 SUPPORTED ENTITIES
The SalesforceRestSelectWrapper can only work with the entities available at the
entity selector dropdown whereas the SalesforceRestWrapper can work with almost
every entity available at your Salesforce account (some entities do not support queries
or are restricted to be used under certain conditions). For example, some of the mostly
used entities you may end up using are:
● Account
● Approval
● Asset
● Attachment
● Campaign
● Case (also related: CaseComment)
● Solution
● CaseSolution
● CategoryNode
● Contact
● Contract
● Event
● Lead
● Note
● Opportunity (also related: OpportunityContactRole, OpportunityLineItem)
● Pricebook (also related: PricebookEntry)
● Product
● Task
● User
● UserRole
● ServiceContract
● SlaProcess (entitlement Process)
● EntitlementTemplate
● Entitlement (also related: EntitlementContact)
● BusinessHours
● MilestoneType
● CaseMilestone
● ContractLineItem
● ProductEntitlementTemplate
● Order
● OrderItem
● Question
● Reply
● ReplyReportAbuse
● Vote
But you can also use less known entities such as OpportunityHistory,
ContactHistory or a Custom Object defined by yourself at your Salesforce instance
(e.g. MyCustomLicense__c).
Note that all the entities are supported in a specific manner, which means that the data
type of each of their fields is respected, and any custom field added to them at
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comSalesForce REST Custom Wrapper 20190205
8 of 22
Salesforce.com is automatically detected and added to the base view during creation. If
any custom field is added once the base view has been created, you can perform a
source refresh of the view at VDP so that the new field can be added to the view.
The SalesforceSOQLWrapper does not depend on any entities as it just receives an
SOQL query and then simply sends it over to SalesForce. That’s also the case of the
SalesforcePredifinedSOQLWrapper.
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comSalesForce REST Custom Wrapper 20190205
9 of 22
4 HOW TO USE THE CUSTOM WRAPPERS
Whenever you communicate with SalesForce, you need to be authenticated. That’s why
the usage of these custom wrappers needs authentication details in order to work.
Authentication when using the SalesForce REST API is done by means of OAuth 2.0.
Before configuring any SalesForce base view in VDP you will have to obtain the
authentication tokens from your SalesForce instance.
4.1 GETTING OAUTH AUTHENTICATION TOKENS
This section will give you just a brief introduction to OAuth 2.0 authentication process
as Salesforce already provides good documentation on how to get the authentication
tokens required to use these Denodo custom wrappers.
The SalesForce REST Custom Wrappers can use two different authentication flows
supported by Salesforce:
● OAuth 2.0 Web Server Authentication Flow: this is the recommended flow to be
used. It is based on the use of a token that can be refreshed once expired if
configured so at SalesForce.
The token may not be refreshable if “Refresh Token Policy” is set to
“Immediately expire Refresh Token”. In that case, we may have an invalid
refresh token or not have refresh token at all (depending on how we configured
our remote access).
● OAuth 2.0 Username-Password Flow: the use of this flow is not
recommended (even by Salesforce) due to its lower security. It should not be
used in production environments. It’s based on the use of the Salesforce
account username and password.
Further information on how OAuth authentication works can be found at SalesForce:
➢ https://help.salesforce.com/apex/HTViewHelpDoc?
id=remoteaccess_authenticate.htm&language=en
➢ http://www.salesforce.com/us/developer/docs/packagingGuide/Content/connecte
d_app_manage_edit.htm
4.1.1 OAuth 2.0 Web Server Authentication Flow
In order to use the SalesForce REST Custom Wrappers with OAuth 2.0 Web server
authentication flow, you need to provide the custom wrappers with the following
parameters:
● client id
● refresh token (optional as if “Refresh Token Policy” is set to “Immediately
expire Refresh Token” we may not have a refresh token)
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comSalesForce REST Custom Wrapper 20190205
10 of 22
● access token (optional if you provide refresh token, as it can be regenerated
with the use of the other tokens)
You can configure in your SalesForce instance the duration of the access token, but it
has to expire at some point. The VDP automatically refreshes the access token (once
expired) using the client id and refresh token of the application in case you
provide them. Note that, if policy is “Immediately expire Refresh Token” and you have a
refresh token, this will not be refreshable as it will have been invalidated by SalesForce
when policy was set to expire.
In order to get those tokens, you have to:
● Register your application (you may need to develop one in case you don’t have
it) as a Connected App at your SalesForce instance by following the
instrunctions at this page: https://help.salesforce.com/HTViewHelpDoc?
id=connected_app_create.htm
This process will provide the following parameters:
○ Client identifier (Referenced in Salesforce as Consumer Key)
○ Client secret (Referenced in Salesforce as Consumer Secret)
● Obtain your user tokens using one of the following processes
○ Follow the OAuth 2.0 Web Flow:
https://na2.salesforce.com/help/doc/en/remoteaccess_oauth_web_server_
flow.htm
○ Use the OAuth 2.0 Credentials Wizard in VDP Admin Tool, available since
Denodo 5.0 at Tools → OAuth Credentials Wizards → OAuth 2.0 Wizard.
With the VDP OAuth 2.0 Credentials Wizard (recommended if you are using Denodo 5.0
or above) you can input your SalesForce authentication details and follow the steps to
obtain your tokens:
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comSalesForce REST Custom Wrapper 20190205
11 of 22
Note the above screenshot configures access to a SalesForce SandBox instance. For
configuring access to a production instance, you should use login.salesforce.com
instead of test.salesforce.com (check the SalesForce documentation for more
details). Also note that in order to use this wizard for the SalesForce wrapper, we
recommend that the VDP Admin Tool is executed in the same machine as the VDP
Server.
Once you have obtained all the tokens, we can start configuring VDP.
4.1.2 OAuth 2.0 Username-Password Flow
In order to use the custom wrappers with the username-password flow, you need to
provide them with these authentication parameters:
● clientId: consumer key from the remote access application definition
● clientSecret: consumer secret from the remote access application definition
● username: your Salesforce account username
● password: your Salesforce account password
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comSalesForce REST Custom Wrapper 20190205
12 of 22
● securityToken: a security token to be concatenated to the password
● access token (optional, as it can be regenerated with the use of the other
tokens)
All those tokens (except the access token) are necessary to get an access token
either for the first time or once the current one expires. You can configure, in your
SalesForce instance, the duration of this access token (but it has to expire anyway).
Although, explaining this is not the aim of this manual, in order to get those tokens, you
have to:
● Register your application (you don’t have to develop anything) as a remote
access point at your SalesForce instance. With this step you will get the
clientId and clientSecret
● Get the securityToken from your Salesforce instance
Once you have done so, we can start configuring VDP. Remember the fetched tokens
and your SalesForce instance URL as these are the parameters VDP will request from
you.
Further information on how to get these authentication tokens can be found at
SalesForce:
http://help.salesforce.com/help/doc/en/remoteaccess_oauth_username_password_flow.h
tm
4.2 CONFIGURING VDP
In order to install it, you have to import the corresponding jar file (denodo-salesforce-
rest-wrapper-[DENODO_PLATFORM_VERSION]-[WRAPPER_VERSION]-jar-with-
dependencies.jar) in VDP (through File/Extensions/Jar management) and add all
the wrappers (or the one/s you need) as Data Sources. Once done, you can create the
base views.
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comSalesForce REST Custom Wrapper 20190205
13 of 22
4.2.1 SalesforceRestWrapper and SalesforceRestSelectWrapper
The custom wrapper SalesforceRestSelectWrapper allows you to create one base
view for each SalesForce entity available in the entity dropdown whereas the custom
wrapper SalesforceRestWrapper allows you to create one base view for each entity
available in Salesforce (even custom entities). Base views created from any of them
need the following mandatory parameters:
● ENTITY: name of the entity you wish to create the base view for (e.g. Account,
mycustomlicense__c ,...). The entity name will be selected from a dropdown
for SalesforceRestSelectWrapper or written for SalesforceRestWrapper
(case insensitive).
● BASE_URL: your SalesForce instance base url (e.g. https://na2.salesforce.com).
This url will be used to perform data requests to.
● SANDBOX: whether the instance you are connecting to is a Sandbox or not.
Default value is false (Production instances). This will be used for the refresh
flow: executed against login.salesforce.com for production instances and
test.salesforce.com for Sandbox ones.
● CLIENT_ID: the Customer Key you got from SalesForce when enabling OAuth.
This value will be used to get a new accessToken in case the current one has
expired.
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comSalesForce REST Custom Wrapper 20190205
14 of 22
There are also some optional parameters (some of them will be required depending on
the used authentication flow):
● API_VERSION: the REST API Version that will be used. If not set, v30.0 will be
used. In case you provide a value for this field, it has to be something in the
form vXY.Z. That is, something like v29.0, v33.0 and so on
● ACCESS_TOKEN: The access token to communicate with SalesForce. If you
provide it, it will not be necessary for the wrappers to get one at first… just once
it expires.
● REFRESH_TOKEN: not required but used for the web flow if present. This value will
be used to get a new accessToken in case the current has expired.
● CLIENT_SECRET: required for the username-password flow. It is the consumer
secret from the remote access application definition
● USERNAME: required for the username-password flow. It is your Salesforce
account username.
● PASSWORD: required for the username-password flow. It is your Salesforce
account password.
● SECURITY_TOKEN: required for the username-password flow.
● RESPONSE_COMPRESSION_TYPE: it must be one of GZIP, DEFLATE or NONE. If not
provided, NONE is the default value. If using GZIP or DEFLATE, custom wrapper
will let SalesForce know we accept compressed responses
● PROXY_HOST: the proxy host
● PROXY_PORT: the proxy port
● PROXY_USERNAME: if not null, the username to connect to the proxy
● PROXY_PASSWORD: if not null, the password to connect to the proxy
● SHOW_ARCHIVED_RECORDS: whether the records that have been deleted or
archived are shown. You can see the definition of archived activities in the
documentation of Salesforce https://help.salesforce.com/articleView?
id=activities_archived.htm&type=5. Default value is false.
Once you provide these parameters, the wrapper will connect to SalesForce in order to
ask for a description of all the fields existing for the given entity in your SalesForce
installation, including custom ones. Each field will be given its own column with the
correct data type.
The image below displays the form to fill in with the entity details explained above.
Here we are creating a base view for the account entity using the web flow. Note how,
in this case, we provide data for the proxy host and port but not the username and
password as our proxy does not require authentication.
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comSalesForce REST Custom Wrapper 20190205
15 of 22
The image below displays the fields for the Opportunity entity. Once we create a base
view for the Opportunity, we can see its fields. Those fields are being fetched at that
moment from Salesforce (and when you refresh the base view later). Note how as our
entity contains custom fields they are displayed at the bottom of the entity (the ones
ending with __c).
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comSalesForce REST Custom Wrapper 20190205
16 of 22
4.2.2 SalesforceSOQLWrapper
The SalesforceSOQLWrapper is a read only wrapper that allows you to perform SOQL
queries from VDP so that you can execute more specific queries against SalesForce.
The base view created from the SalesforceSOQLWrapper needs the same parameters
as the entity-based ones except for the ENTITY field, which has no use in this case. This
generated base view will have the following columns:
● QUERY: the SOQL query executed (mandatory input parameter).
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comSalesForce REST Custom Wrapper 20190205
17 of 22
● RESULT_JSON: a JSON document representing the query output (an object
containing the field names and their values -note that some internal parameters
may have been removed due to their lack of usefulness (only the data will be
returned).
● RESULT_COMPLEX: the same result in the form of a VDP JDBC array of
fieldName/fieldValue structs.
The image below shows the VQL Shell with an SOQL query (using the sf_soql base
view we have created) so that you can see the response. It includes the result as a
JSON String and the result as an array.
The previous image does not let you see the array itself so here you can see it for the
first record:
4.2.3 SalesforcePredefinedSOQLWrapper
The SalesforcePredefinedSOQLWrapper is a read only wrapper that allows you to
perform a predefined SOQL query from VDP. The wrapper always executes the same
query with which it was defined. The base view created from this wrapper needs the
same parameters as the SalesforceSOQLWrapper and also this one:
● SOQL_QUERY: the SOQL query to be executed.
The generated base view columns depend on the SOQL_QUERY. Every simple field
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comSalesForce REST Custom Wrapper 20190205
18 of 22
returned by the query will be a column and, every field that is returned from Salesforce
as an object, will be represented in two different columns: one with the JSON itself and
another with a VDP complex object containing the pairs key - value of that JSON object.
Below we can see the fields for the query:
SELECT Contact.Id, Contact.Owner.Id, Contact.Name,
Contact.Owner.email, Contact.Account.Id, Contact.Account.Name,
Contact.Account.Phone, Contact.Account.Type,
Contact.Account.External_Customer_Code__c from Contact
In the above image you can see two simple properties: id and name and two complex
ones: owner and account as explained before.
The execution of the previous base view will return what you can see below:
Note that, in order to fetch the structure of the query, the query needs to be performed
when we define the base view and, the output, analyzed to know which fields are
simple and which ones complex. If we have no information on a field (=all the data
returned by the query has a null value for that property) it will be displayed as a simple
property.
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comSalesForce REST Custom Wrapper 20190205
19 of 22
5 EXAMPLES
Once you have created the base views for your entities, you can start using them. Let’s
see some sentences we can execute:
● Select Account by id:
○ SELECT Id, Name, Phone, Type,fax from sf_account where Id =
'001V000000FE83kIAD'

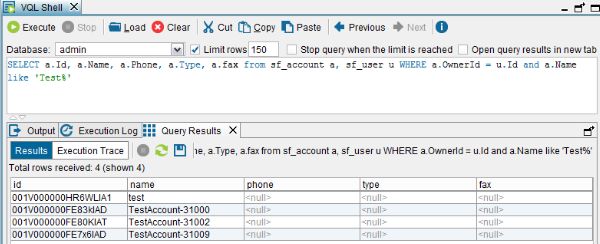

● Select Accounts based on account name and user email:
○ SELECT a.Id, a.Name, a.Phone, a.Type, a.fax from sf_account
a, sf_user u WHERE a.OwnerId = u.Id and a.Name like 'Test%'

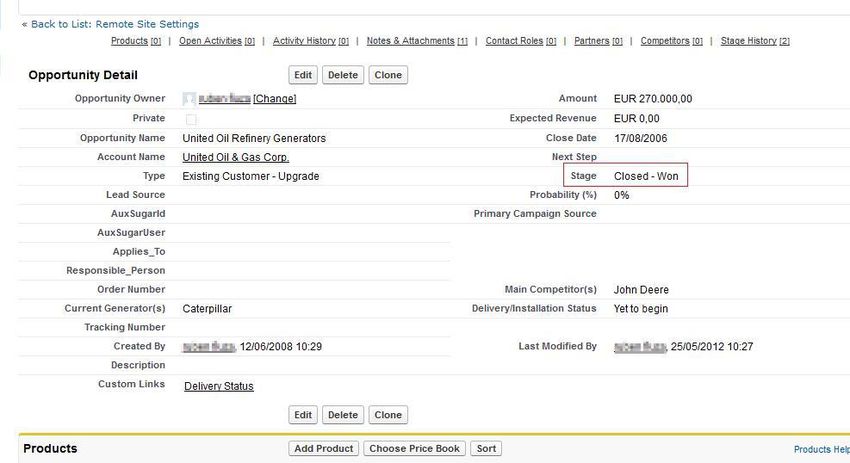

● Update Opportunity state:
○ Update sf_Opportunity SET StageName = 'Closed - Won' Where Id
= '006V00000045z6HIAQ'
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comSalesForce REST Custom Wrapper 20190205
20 of 22
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comSalesForce REST Custom Wrapper 20190205
21 of 22
● Add Note to Opportunity:
○ Insert into sf_Note (ParentId, Body, Title) values
(‘345456476757RR’, ‘Send email to communicate with the
client’, ‘Communication’)
● Execute SOQL to fetch Accounts (this could be done by directly executing a
Select against our base view sf_account):
○ Select RESULT_JSON, RESULT_COMPLEX from sf_soql where QUERY =
"Select Id, Name from Account"
The result of this sentence will be a String as the value of the RESULT_JSON
column (e.g. {"Id":"0014000000VLyoiAAD","Name":"GenePoint España"})
and an array as the value of the RESULT_COMPLEX column with the pairs key -
value in the JSON, for example:
Id 0014000000VLyoiAAD
Name GenePoint España
● Execute predefined SOQL query to fetch information on the contacts and their
accounts.
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comSalesForce REST Custom Wrapper 20190205
22 of 22
The result of this base view will be a list of tuples where each one contains a
complex object that represents the account for the contact in that tuple.
Denodo Inc.: 525 University Avenue, Suite 31, Palo Alto, CA 94301. USA www.denodo.comYou can also read
