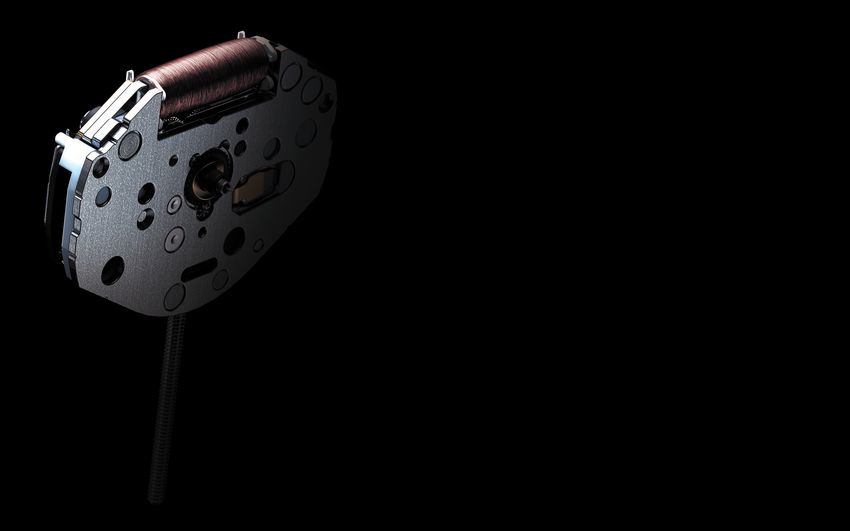

Cal. 2035
 “2035” the representative movement of
 MIYOTA. After the 2035 has appeared to
 the market, a lot of brands is using
 regularly all over the world.




 YOUR ENGINE
 For nearly 40 years, MIYOTA has been providing watch movements for leading
 brands worldwide. MIYOTA’s heritage dates back to 1959, when Citizen Watch
 established a movement-making factory in the town of Miyota, Japan, and traces
 back to an original spirit of excellence and innovation.
 MIYOTA’s name lives up to its pedigree, having manufactured its Cal. 2035 quartz movement since 1981. The Cal. 2035 has been
 known as one of the de facto standard watch movements in the industry. It is durable, repairable, and reliable. Through various
 improvements and refinements a variety of calibers were born based on the Cal. 2035 that are well known as the Cal. 2000 series
 and include the Cal. 2105 and Cal. 2115. This series has lasted for over 30 years, and continues to attract watch brands and
 manufacturers to this day.




02
MIYOTA 2018 METAL MOVEMENT MADE IN JAPAN
JAPAN MOVEMENT

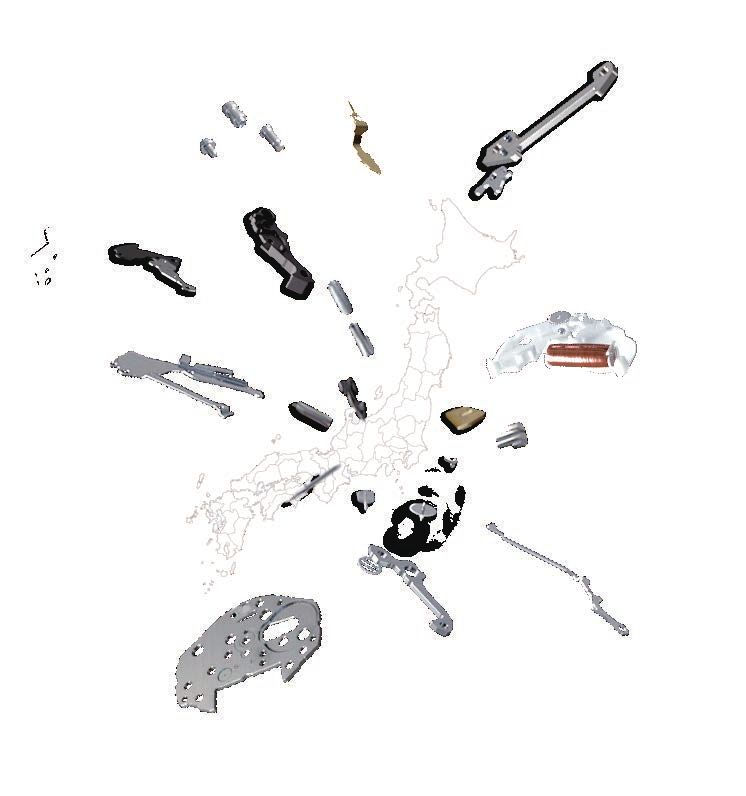

Every single part used in MIYOTA’s movements is made at our plants in Japan.
This enables us to ensure the quality of our movements. In addition, the parts we
use are mostly metal, which assure high precision and durability. Our metal parts
also facilitate disassembling and repairing.

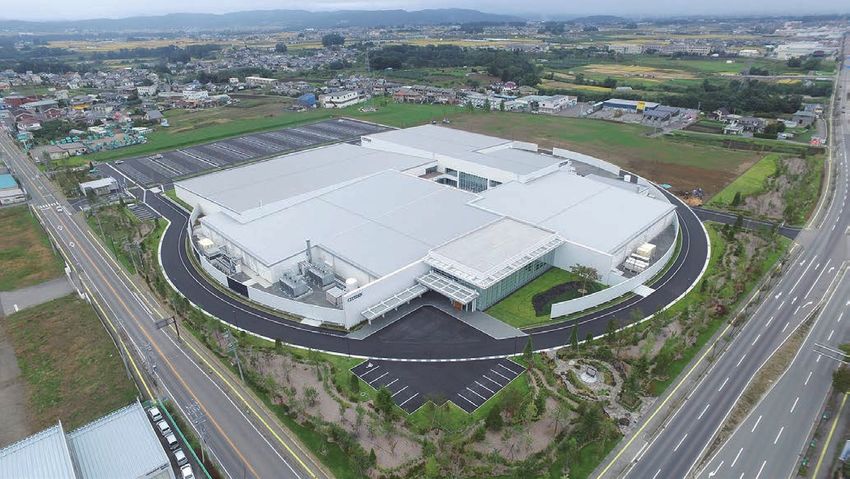

                                         MIYOTA Saku Factory




                                         The MIYOTA Saku Factory started operations in December 2016
                                         (Saku city, Nagano prefecture)

                                          Factory                          Group Company
                                          Iida Matsuo Factory              Aikawa Seimitsu Co.,ltd.
                                          Iida Tonooka Factory             Citizen Yubari Co.,Ltd.
                                          Kawaguchiko CFD Factory          CITIZEN MICRO CO., LTD.
                                          Kawaguchiko Fuji Factory         Citizen Watch Kagoshima Co.,Ltd.
                                          Miyota Factory                   Citizen Watch Myoko Co.,Ltd.
                                          Saitama Sayama Factory           Kitakami Jewelry Co.,Ltd.
                                          Saitama Tanashi Factory
                                          Saitama Tokorozawa Factory
                                          Saitama Yoshimi Factory
                                          Tohoku Kitakami Factory
                                          Tohoku Kitakami Minami Factory
                                          Tohoku Soma Factory




                                           When it comes to movements, MIYOTA considers that it is
                                           important for a movement manufacturer to have it all:
                                           both high levels of quality and flexibility in R&D and
                                           manufacturing to meet demands from customers and the
                                           marketplace. MIYOTA’s commitment to quality and
                                           flexibility is achieved by utilizing specially designed
                                           precision manufacturing technology and automated lines
                                           to match customer demands. However, our employees
                                           are our biggest source of pride, as they work to guide our
                                           technologies to produce the highest possible quality
                                           movements. The combination of precision machining and
                                           emphasis on well-trained people means MIYOTA can
                                           provide the best possible service to our customers.




                                                                                                              03
MIYOTA 2018 METAL MOVEMENT MADE IN JAPAN
Feature
     Powercell Saving Reset Mechanism (PSRM)

     If the crown is pulled out to reset position and the watches are shipped under that condition, it can make the movement save
     2/3 of the battery consumption. Therefore even if the movement and/or assembled watches are kept in stock for 1-2 years,
     actual battery consumption is about 1/3 only of normal running condition as well.
     *All of our analogue quartz movements have Powercell Saving Reset Mechanism (PSRM) except Cal.4S20.


                                     IC
                                                                      Battery Consumption
                                          RESET TERMINAL



                                                                                                             When the crown is pulled out to reset position,the
                   STOP
                                                                                                             reset lever moves to touch the reset terminal
                                                                                                             which can make movement save 2 / 3 of the
                                                                                                             battery consumption.
                                             RESET LEVER
                                                                                      PSRM
                                      STEP MOTOR




     Overload Compensation Device (OLCD)

     Thanks to Overload Compensation Device (OLCD) which can make battery comsumption minimize.
     The motor drive pulse is usually output by the minimum energy that motor turns in a state of the normal load. When the load
     fluctuates by a slight hindrance, the motor may not turn around in the conventional pulse. In order to avoid that, the IC inside
     the movement always monitors whether motor turns correctly, and generates a big pulse of energy (=compensation pulse) at
     once if the motor did not turn correctly, which results in precise timekeeping continuously.
     *All of our analogue quartz movements have Overload Compensation Device (OLCD) except Cal.4S20.




     Icon
             Long battery life                                                         Parallel push button
             Battery life longer than 4 years.                                         Push buttons can be set parallel for square-shaped
                                                                                       watch case.



             Shock detection                                                           Super quick date adjusting
             The SMART IC inside the movement will detect the                          The date disc flips super quickly when the crown is
             external impact/shock and prevent hands' jumping.                         turned for date adjusting.
             It will give you more flexibility for hands selection.




             Quick reset                                                               4 Beats hand movement
             The remarkable mechanism of Heart-shaped cam allows                       Center chronograph hand sweeps in 1/4 second
             the two counters of second/minute chronograph to                          increments.
             reset instantly. The center chronograph second hand is
             IC-controlled and reset smoothly.



             Super runner                                                              Alarm
                                                                                       The alarm will sound when the hour hand aligns with the
             Watch users can take pleasure in the unique hand
                                                                                       alarm time indicator.
             movements featuring a 1/20 second counter or 1/100
             second counter at ultimate spead as a feature of
             professional chronograph.


             Qlick feeling of push button                                              Moon phase display
             Watch users will notice the premium value of the                          A function to display waxing and waning of the moon.
             watches from the click of push buttons.                                   Watch users can use the moon dial indication as a guide
                                                                                       to the age or phase of the moon.

04
MIYOTA 2018 METAL MOVEMENT MADE IN JAPAN
INDEX
Contents
1. Standard                   p6-7



2. Slim                       p8



3. Small                      p9



4. Multi-function             p10-11



5. Chronograph                p12-14



6. Small Second Chronograph   p15



7. Standard Automatic         p16-17



8. Premium Automatic          p18-19



9. Small Automatic            p20-21




                                       05
MIYOTA 2018 METAL MOVEMENT MADE IN JAPAN
01
01 Standard




                                                     Standard

                          2 Hands                                                2 Hands / Small Second                          2 Hands / Small Second / Day / Date                                       3 Hands




                   Basic
                                                                         350µ



                                                           450µ          2400µ
                                                                                                                                Features of Super 2035
                                                           850µ
                                                                                                                                 4 Years Battery Life
                                                    2025          2026                                                           High Accuracy of ±15 sec / month
                                                                                                                                 Covered Coil
                   2025                                                                                                                                                                     Super 2035
                   Height 3.15mm                                                                                                                                                            Height 3.15mm
                   3 years battery life (SR626SW)                                                                                                                                           4 years battery life (SR626SW)

                                                                                                                                                                                    450µ
                                                                                                                                                                                    400µ
                                                                                                                                                                     250µ
                                                                                                                                                      300µ           460µ
                                                                                                                                       400µ           300µ
                                                                                                                         350µ          500µ
                                                                                                                                                                                    2500µ
                                                                                                                         400µ                                        1850µ
                                                                                                                                                      1700µ
                                                                                                                                       1200µ
                                                                                                                         850µ

                                                                                                                  2035          2036           2039           2033           203A


                                                                                                                                                                                            2035
                                                                                                                                                                                            Height 3.15mm
                                                                                                                                                                                            3 years battery life (SR626SW)




                                                                                                                                                                                            2035G
                                                                                                                                                                                            Height 3.15mm
                                                                                                                                                                                            3 years battery life (SR626SW)




                                                                                                                                                                                            2034
                                                                                                                                                                                            Height 3.15mm
                                                                                                                                                                                            High-torque for second-disc
                                                                                                                                                                                            14 months battery life (SR626SW)

                   Small Second
                                                                                                                                                                                                                               6³/4 ×8’’’




                                                                                                                                                                                                                                 13¹/2’’’
                                                                                 1L40
                                                                                 Height 2.93mm
                                                                                 Small second for LADIES'
                                                                                 3 years battery life (SR621SW)




                                                                                                                                   0T45
                                                                                 1L45                                              Height 4.13mm
                                                                                 Height 2.93mm                                     Small second
                                                                                 Small second for GENTS'                           5 years battery life (SR927W)
                                                                                 3 years battery life (SR621SW)




                                                                                                                         NEW       0T50
                                                                                                                                   Height 5.10mm
                                                                                                                                   Small second
                                                                                                                                   5 years battery life(SR927W)

              06
MIYOTA 2018 METAL MOVEMENT MADE IN JAPAN
Long battery life            Shock detection



                                                                                                          3 Hands / Date                            3 Hands
               3 Hands Date                                              3 Hands Day / Date             Enlarged Calendar                        Date / Wide Day
                                                                                                                                                          SUNDAY




                                                                                                                                                                                                      01 Standard
                                                                                                                                                                        6³/4 ×8’’’




     2015                                                           2005
     Height 4.15mm                                                  Height 4.15mm
     3 years battery life (SR626SW)                                 3 years battery life (SR626SW)



                                                                                                                                                                          10 ¹/2’’’



                                                            350µ
                                             350µ           400µ
                                             400µ

                                             1100µ          1400µ


                                      2115           2117
     2115                                                           2105
     Height 4.15mm                                                  Height 4.15mm
     3 years battery life (SR626SW)                                 3 years battery life (SR626SW)



                                                                                                                                                                          11 ¹/2’’’



                                                             350µ
                                             350µ            400µ
                                             400µ
                                                                                                                                                                                              350µ
                                             1100µ          1400µ                                                                                                              350µ           400µ
                                                                                                                                                                               400µ
                                      2315           2317                                                                                                                      1100µ          1400µ


     2315                                                           2305                             2353                                    2350                       2350           2357
     Height 4.15mm                                                  Height 4.15mm                    Height 4.15mm                           Height 4.15mm
     3 years battery life (SR626SW)                                 3 years battery life (SR626SW)   3 years battery life (SR626SW)          3 years battery life (SR626SW)


                                                                                                                                                                          13 ¹/2’’’




                                                            450µ
                                             500µ
                                                            500µ
                                             500µ

                                             950µ           1200µ


                                      2415           2417
     2415                                                           2405                             2453
     Height 4.35mm                                                  Height 4.35mm                    Height 4.35mm
     3 years battery life (SR626SW)                                 3 years battery life (SR626SW)   3 years battery life (SR626SW)

10 Years Battery
                                                                                                                                                                        6³/4 ×8’’’




1L60
Height 4.30mm
10 years battery life (CR1616)


                                                                                                                                                                          10 ¹/2’’’




2S60                                                                2S65
Height 3.99mm                                                       Height 4.22mm
10 years battery life (CR2012)                                      10 years battery life (CR2012)

                                                                                                                                                                                               07
MIYOTA 2018 METAL MOVEMENT MADE IN JAPAN
02                        Slim

                                               2 Hands                                    2 Hands Date                 3 Hands
                                                                                                                                  Long battery life                   Shock detection




                                                                                                                                                                 3 Hands Date
                                                                                                                                                                                                         Super quick date adjusting




                                                                                                                                                                                                        3 Hands Day / Date
02 Slim / 03 Small




                          Super Slim
                                                                                                                                                                                                                       6³/4 ×8’’’




                                            9T22                              9T15                             9T33                                      9T13
                                            Height 1.90mm                     Height 2.33mm                    Height 1.90mm                             Height 2.33mm
                                            2 years battery life (SR616SW)    2 years battery life (SR616SW)   2 years battery life (SR616SW)            2 years battery life (SR616SW)
                                                                                                               Battery detector function                 Battery detector function


                                                                                                                                                                                                                             10¹/2’’’




                                                                              9U15                                                                       9U13
                                                                              Height 2.33mm                                                              Height 2.33mm
                                                                              4 years battery life (SR916SW)                                             4 years battery life (SR916SW)
                                                                                                                                                         Battery detector function
                          Basic Slim                                                                                                                                                             NEW
                                                                                  400µ
                                                                                                                                                          300µ
                                                                                                                                                          360µ                                          350µ           6³/4 ×8’’’
                                                                    350µ                                                                  300µ                                                          500µ
                                                                                  1200µ                                                   350µ                                            300µ
                                                                    800µ                                                                                 1500µ                            400µ
                                                                                                                                          800µ                                                          1450µ
                                                                                                                                                                                          800µ
                                                             GL20          GL26                                                    GL30           GL36
                                                                                                                                                                                GL10             GL13




                                            GL20                              GL15                             GL30                                      GL10                                      GL00
                                            Height 2.28mm                     Height 2.71mm                    Height 2.28mm                             Height 2.71mm                             Height 2.94mm
                                            5 years battery life (SR621SW)    5 years battery life (SR621SW)   3 years battery life (SR621SW)            3 years battery life (SR621SW)            3 years battery life (SR621SW)



                                                                                                                                                                                                                              8³/4’’’




                                                                              GN15                                                                       GN10
                                                                              Height 2.71mm                                                              Height 2.71mm
                                                                              5 years battery life (SR621SW)                                             3 years battery life (SR621SW)



                                                                                                                                                                                                                             10¹/2’’’
                                                                                                                                         NEW
                                                                                                                                                 350µ
                                                                                                                                                 500µ

                          Features of G Series
                                                                                                                                  300µ
                                                                                                                                  400µ
                                                                                                                                                 1450µ
                                                                                                                                  800µ

                           Covered Coil                                                                                    GM10          GM13
                           Super Quick Date Adjusting
                           Non-Breakable Date Construction

                                                                              GM15                                                                       GM10                                      GM00
                                                                              Height 2.71mm                                                              Height 2.71mm                             Height 2.94mm
                                                                              5 years battery life (SR621SW)                                             3 years battery life (SR621SW)            3 years battery life (SR621SW)

                          Large
                                                                                                                                                                                                                             11¹/2’’’




                                                                                                                                                         1S13                                      1S02
                                                                                                                                                         Height 2.71mm                             Height 3.07mm
                                                                                                                                                         3 years battery life (SR621SW)            3 years battery life (SR621SW)
                     08
MIYOTA 2018 METAL MOVEMENT MADE IN JAPAN
03     Small

         2 Hands                                               3 Hands




                                                                                                                            4’’’



     4S20
     Height 2.95mm
     2 years battery life (SR512SW)
     Size: ø9.9 x 9.4mm




                                                                                                                                        02 Slim / 03 Small
                                                                                                                         4³/4’’’
                                                    400µ
                                      400µ
                                                    1300µ
                                      800µ

                               5R21          5R22


     5R21                                                   5R32
     Height 1.90mm                                          Height 2.00mm
     4 years battery life (SR416SW)                         2 years battery life (SR416SW)
     Size: 9.0 x 13.2 x 13.5mm                              Size: 9.0 x 13.2 x 13.5mm



                                                                                                                   5¹/2 ×6³/4’’’
                                                                                                           330µ
                                                    400µ                                                   400µ
                                                                                             300µ
                                      400µ                                                   400µ
                                                    1350µ                                                  1350µ
                                      800µ                                                   800µ

                               5Y20          5Y26                                    5Y30           5Y36



     5Y20                                                   5Y30
     Height 2.54mm                                          Height 2.54mm
     4 years battery life (SR521SW)                         2 years battery life (SR521SW)




                                                                                                                                   09
MIYOTA 2018 METAL MOVEMENT MADE IN JAPAN
04                                Multi-function



                                                          10¹/2’’’



                                                                       6P28                                                                    6P26
                                                                       Height 3.45mm                                                           Height 3.45mm
                                                                       1 eye (24 hour)                                                         1 eye (Date)
                                                                       3 years battery life (SR621SW)                                          3 years battery life (SR621SW)
04 Multi-function




                         6P22                                          6P23                                       300µ
                                                                                                                                      300µ
                                                                                                                                      380µ     6P25                                     300µ
                                                                                                                                                                                                         300µ
                                                                                                                                                                                                         380µ
                         Height 3.45mm                                 Height 3.45mm                              380µ                         Height 3.45mm                            380µ
                         2 eyes (Date/24 hour)                         2 eyes (Date/24 hour)                      1120µ      1150µ
                                                                                                                                      1520µ    2 eyes (Day/Date)                        1120µ    1150µ
                                                                                                                                                                                                         1520µ
                         3 years battery life (SR621SW)                3 years battery life (SR621SW)    750µ                                  3 years battery life (SR621SW)    750µ

                                                                                                        6P23                6P73                                                6P25            6P75




                         6P05                                          6P27                                                                    6P29
                                                                                                                    300µ                                                                                 300µ
                                                                                                                    380µ                                                                                 380µ
                                                                                                                                                                                        300µ
                                                                                                                                                                                        380µ
                         Height 3.45mm                                 Height 3.45mm                       750µ
                                                                                                                    1120µ                      Height 3.45mm
                         3 eyes (Day/Date/Month)                       3 eyes (Day/Date/24 hour)                                               3 eyes (Day/Date/24 hour)                                 1520µ
                                                                                                                                                                                        1120µ    1150µ
                                                                                                                                                                                 750µ
                         3 years battery life (SR621SW)                3 years battery life (SR621SW)    6P27        300µ               300µ   3 years battery life (SR621SW)
                                                                                                                     380µ               380µ
                                                                                                                                                                                6P29            6P79
                                                                                                                    1520µ              1520µ
                                                                                                                              1150µ
                                                                                                           750µ

                                                                                                         6P57                6P77




                         6P88                                          6P89                                        300µ
                                                                                                                                      300µ
                                                                                                                                      380µ     6P09
                                                                                                                   380µ
                         Height 3.85mm / month disc                    Height 3.85mm / month disc                                              Height 3.45mm
                         2 eyes (Day/24 hour)                          3 eyes (Day/Date/24 hour)                   1120µ
                                                                                                                                      1520µ    4 eyes (Month/Day/Date/24 hour)
                                                                                                          750µ               750µ
                         3 years battery life (SR621SW)                3 years battery life (SR621SW)                                          3 years battery life (SR621SW)
                                                                                                        6P89                6P8B

                         Moon-Phase




                         6P24                                          6P21                                                                    6P20
                         Height 3.45mm                                 Height 3.45mm                                                           Height 3.45mm
                         1 eye (Moon)                                  3 eyes (Day/Date/Moon)                                                  3 eyes (Day/Date/Moon)
                         3 years battery life(SR621SW)                 3 years battery life (SR621SW)                                          3 years battery life (SR621SW)




                         6P80                                          6P00
                         Height 3.85mm / Date pointer                  Height 3.45mm
                         1 eye(Moon) / 2 Discs (Day/Month)             4 eyes (Day/Date/Month/Moon)
                         3 years battery life(SR621SW)                 3 years battery life (SR621SW)

                    10
Shock detection          Qlick feeling of push button       Moon phase display




Dual-Time
                                                                                                                                              12¹/2’’’




                                                                                        Dual-Time(6H)
                                                JP11
                                                Height 4.30mm
                                                Date/24 hour(12H)
                                                2 years battery life (SR621SW)




                                                                                                                                                              04 Multi-function
                                Dual-Time(6H)                                           Dual-Time(6H)
JP15                                            JP25
Height 4.30mm                                   Height 4.30mm                                                          Case Compatible with
Day/Date/24 hour(12H)                           Day/Date/24 hour(3H)
2 years battery life(SR621SW)                   2 years battery life(SR621SW)                                          JS05, JS15, JS25


Retrograde
                                                                                                                                              12¹/2’’’




                                                JR00
                                                Height 4.18mm
                                                Retrograde day/Date/24 hour
                                                3 years battery life(SR621SW)




JR20                                            JR10
Height 4.18mm                                   Height 4.18mm                                                          Case Compatible with
Retrograde day/Date/24 hour                     Retrograde day/Date/24 hour
3 years battery life(SR621SW)                   3 years battery life(SR621SW)                                          JS00, JS10, JS20, JS50, JS55




                                                                                                                                                         11
05                              Chronograph


                                                                                                                                                                     Features of 0S Series
                                                                                                                                                                       Quick Reset (by Heart Cam Reset System)
                                                               Regular                                                                                                 Click Feeling Push Button Handling

                                                               0S Series                                                                                               Center Chrono Second Hand Max. 0.11μNm
                                                                                                                                                                       TACHYMETER Available

                                                               13¹/2’’’




                                                               300µ
                                                               400µ

                                                               1200µ
                                                       750µ
05 Chronograph




                                                      0S10                      350µ
                      0S10                                      400µ
                                                                450µ
                                                                                400µ
                                                                                        0S00                                        350µ
                                                                                                                                                    350µ
                                                                                                                                                    380µ    0S30
                      Height 4.13mm                                                     Height 5.10mm                               380µ                    Height 4.13mm
                                                                                2150µ
                      Chrono hour / min / sec                  1600µ                    Chrono hour / min / sec                    1200µ    1200µ
                                                                                                                                                    1650µ   Chrono hour / min / sec
                                                       1150µ            1150µ                                            750µ
                      5 years battery life (SR927W)                                     5 years battery life (SR927W)                                       5 years battery life (SR927W)
                                                      0S1A             0S1F                                             0S00               0S06




                                                                                 350µ
                                                                350µ             380µ
                                                                380µ
                                                                                1650µ
                                                               1200µ
                                                       750µ             750µ

                                                      0S20             0S2B
                                                                                 400µ
                      0S20                                      350µ
                                                                380µ
                                                                                 430µ   0S11                                                                0S21
                      Height 5.10mm                                                     Height 4.13mm                                                       Height 5.10mm
                      Chrono min / sec, 24 hour                                 2000µ   Chrono min / sec                                                    Chrono min / sec, 24 hour
                                                               1650µ
                                                       1200µ            1200µ
                      5 years battery life (SR927W)                                     5 years battery life (SR927W)                                       5 years battery life (SR927W)
                                                      0S2A             0S2F



                      Professional




                                                                                                                                                                                               1/100 Second Chrono




                      0S25                                                              0S60                                                                0S90
                      Height 5.10mm                                                     Height 4.13mm                                                       Height 4.13mm
                      Chrono min / sec, 1/20 second, 24 hour                            Chrono hour / min / sec, 1/20 second                                Chrono min / sec, 1/100 second, 24 hour
                      2 years battery life (SR927W)                                     2 years battery life (SR927W)                                       2 years battery life (SR927W)




                                                           Retrograde Chrono                                                   Retrograde Chrono                                                          Alarm
                                                             (1/20 Second)                                                       (1/20 Second)




                      0S22                                                              0S62                                                                0S80
                      Height 5.10mm                                                     Height 4.13mm                                                       Height 4.68mm
                      Chrono min / sec, 1/20 second, 24 hour                            Chrono hour / min / sec, 1/20 second                                Chrono hour / min / sec, 1/20 second, alarm
                      2 years battery life (SR927W)                                     2 years battery life (SR927W)                                       2 years battery life (SR927W)
                 12
Long battery life   Shock detection         Quick reset   Super runner           Qlick feeling of push button   4 Beats hand movement             Alarm



                                                                              Features of 6S Series
                                                                                Quick Reset (by Heart Cam Reset System)
                                                                                Click Feeling Push Button Handling

                                        Large                                   4 Beats Center Chrono Second Hand
                                                                                Balanceable Weight of Hands
                                        6S Series                               Minute Hand Max. 1.00µNm                                           450µ
                                                                                                                                                   450µ
                                                                                Center Chrono Second Hand Max. 0.40µNm
                                                                                Other Small Hands Max. 0.04µNm                                     1650µ
                                        15’’’                                   High Hand Standard
                                                                                                                                                                      1200µ

                                                                                TACHYMETER Available                                  center hand height   small hand height




                                                         MON




6S00                                                                          6S10
Height 5.35mm                                                                 Height 4.90mm
Chrono min / sec, 1/20 second                                                 Chrono min / sec, 1/20 second
4 years battery life (SR927W)                                                 4 years battery life (SR927W)




                                                                                                                                                                                    05 Chronograph
6S20                                                                          6S30
Height 4.90mm                                                                 Height 4.90mm
Chrono min / sec, 1/20 second                                                 Chrono min / sec, 1/20 second
4 years battery life (SR927W)                                                 4 years battery life (SR927W)




6S11                                                                          6S21
Height 4.90mm                                                                 Height 4.90mm
Chrono min / sec                                                              Chrono min / sec
4 years battery life (SR927W)                                                 3 years battery life (SR927W)




                                        Retrograde Chrono
6SA2                                      (1/20 Second)                       6S50
Height 4.90mm                                                                 Height 5.95mm
Chrono hour / min / sec, 1/20 second                                          Chrono min / sec, 1/20 second
4 years battery life (SR927W)                                                 4 years battery life (SR927W)




                                                                                                                                                                               13
Shock detection              Quick reset           Qlick feeling of push button          Parallel push button




                                                                                                                                                                                       Features of FS Series
                                                                           Small                                                                                                         Quick Reset (by Heart Cam Reset System)
                                                                                                                                                                                         Click Feeling Push Button Handling
                                                                           FS Series                                                                                                     TACHYMETER Available


                                                                           10¹/2’’’




                                                                                                                                                                                                                                 350µ
                                                                                                 300µ                                                            300µ
                                                                                                                                                                 400µ                                                            400µ
                                                                            300µ                 400µ                                          300µ                                                           300µ
                                                                            400µ                                                               400µ                                                           400µ
                                                                                                 1600µ                                                           1600µ                                                           1750µ
                                                                           1200µ     1200µ                                                     1200µ    1200µ                                                 1200µ    1300µ
                                                                750µ                                                                  750µ                                                             750µ

                                                             FS10                  FS11                                             FS20               FS21                                          FS00             FS01
                                   FS10                                                                  FS20                                                               FS00
                                   Height 5.10mm                                                         Height 5.10mm                                                      Height 4.13mm
                                   Chrono min / sec, 24 hour                                             Chrono min / sec, 24 hour                                          Chrono min / sec, 24 hour
                                   2 years battery life (SR626SW)                                        2 years battery life (SR626SW)                                     2 years battery life (SR626SW)
                                                                                     FS11                                                                FS21                                                             FS01
06 Small Second Chronograph
05 Chronograph




                                                                         Dual-Time                                                           Dual-Time
                                   FS16                                                                  FS26
                                   Height 5.10mm                                                         Height 5.10mm
                                   Chrono min / sec, 24 hour                                             Chrono min / sec, 24 hour
                                   2 years battery life (SR626SW)                                        2 years battery life (SR626SW)




                                                                       Retrograde Day                                                 Retrograde Chrono Min
                                   FS60                                                                  FS80                             Retrograde Day
                                   Height 5.10mm                                                         Height 5.10mm
                                   Chrono min / sec                                                      Chrono min / sec
                                   2 years battery life (SR626SW)                                        2 years battery life (SR626SW)
                                                                                          FS61                                                   FS81




                              14
06                               Small Second Chronograph



                                    JS Series
                                    12¹/2’’’




                                                                400µ
                                               400µ             450µ


JS15                                                                    JS10
                                               450µ
                                                                1800µ
                                               1250µ    1350µ
Height 4.30mm                         800µ                              Height 4.18mm
Chrono 30min/sec, 24 hour                                               Chrono 30min/sec, 24 hour
2 years battery life (SR621SW)      JS15               JS16             2 years battery life (SR621SW)




                                                                400µ
                                               400µ             450µ


JS25                                                                    JS20
                                               450µ
                                                                1800µ
                                                        1350µ
Height 4.30mm                         800µ
                                               1250µ                    Height 4.18mm
Chrono 30min/sec, 24 hour                                               Chrono 30min/sec, 24 hour
2 years battery life (SR621SW)      JS25               JS26             2 years battery life (SR621SW)




                                                                                                                                                      05 Chronograph
                                                                                                                                                      06 Small Second Chronograph
                                                                400µ
                                               400µ             450µ

JS05                                           450µ
                                                                1800µ
                                                                        JS00
Height 4.30mm                         800µ
                                               1250µ    1350µ           Height 4.18mm
Chrono 30min/sec, 24 hour                                               Chrono 30min/sec, 24 hour
2 years battery life (SR621SW)      JS05               JS06             2 years battery life (SR621SW)




JS50                                                                    JS55
Height 4.18mm                                                           Height 4.18mm
Chrono 30min/sec, 24 hour                                               Chrono 30min/sec, 24 hour
2 years battery life (SR621SW)                                          2 years battery life (SR621SW)




                                                                           JS00, JS10, JS20, JS50, JS55  Case Compatible with JR00, JR10, JR20
                                                                           JS05, JS15, JS25    Case Compatible with JP11, JP15 JP25



                                                                                                                                                 15
07                           Standard Automatic




                                                                                                                                   3 Hands Date
                             8215                                                8215 Gilt
                             Height 5.67mm / 21 jewels                           Height 5.67mm / 21 jewels
                             21600 Vibrations per hour                           21600 Vibrations per hour
                             Automatic and hand winding                          Automatic and hand winding
                             Quick date setting                                  Quick date setting




                             821A                                                821A-21D
                             Height 5.67mm / 21 jewels                           Height 5.67mm / 21 jewels
                             21600 Vibrations per hour                           21600 Vibrations per hour
                             Automatic and hand winding                          Automatic and hand winding
                             Quick date setting                                  Quick date setting




                                                                                                                                3 Hands Day / Date
                             8205                                                8205 Gilt
                             Height 5.67mm / 21 jewels
                             21600 Vibrations per hour                           Height 5.67mm / 21 jewels
                             Automatic and hand winding                          21600 Vibrations per hour
                             Quick day / date setting                            Automatic and hand winding
                                                                                 Quick day / date setting


                                                                                                                                                    13’’’
07 Standard Automatic




                                                                                                                                        SUNDA Y




                             820A                                                                                                   3 Hands
                             Height 5.67mm / 21 jewels                                                                           Date / Wide Day
                             21600 Vibrations per hour                           8285
                             Automatic and hand winding                          Height 5.94mm / 21 jewels
                             Quick day / date setting                            21600 Vibrations per hour
                                                                                 Automatic and hand winding
                                                                                 Quick day / date setting

                             Small Hands                                                                                                          11¹/2’’’




                                                                     3 Hands Date / 24H                                         3 Hands Date / 24H
                             8217                                                                 8217 Gilt
                             Height 5.67mm / 21 jewels                                            Height 5.67mm / 21 jewels
                             21600 Vibrations per hour                                            21600 Vibrations per hour
                             Automatic and hand winding                                           Automatic and hand winding
                             Quick date setting                                                   Quick date setting




                                                                      2 Hands Date                                                 2 Hands Date
                                                                     / Small Second                                             / Small Second / 24H
                             8218                                                                  8219
                             Height 5.67mm / 21 jewels                                             Height 5.67mm / 21 jewels
                             21600 Vibrations per hour                                             21600 Vibrations per hour
                             Automatic and hand winding                                            Automatic and hand winding
                             Quick date setting                                                    Quick date setting
                        16
Open-Heart
                                                                                   11¹/2’’’




82S0                         82S0 Gilt                           3 Hands
Height 5.67mm / 21 jewels    Height 5.67mm / 21 jewels
21600 Vibrations per hour    21600 Vibrations per hour
Automatic and hand winding   Automatic and hand winding




82S5                         82S5 Gilt                          2 Hands /
                                                               Small Second
Height 5.67mm / 21 jewels    Height 5.67mm / 21 jewels
21600 Vibrations per hour    21600 Vibrations per hour
Automatic and hand winding   Automatic and hand winding




82S7                         82S7 Gilt                         2 Hands /
Height 5.67mm / 21 jewels    Height 5.67mm / 21 jewels      Small Second / 24H
21600 Vibrations per hour    21600 Vibrations per hour
Automatic and hand winding   Automatic and hand winding




82D7                         82D7 Gilt                         2 Hands /
                                                            Small Second / 24H
Height 5.67mm / 21 jewels    Height 5.67mm / 21 jewels
21600 Vibrations per hour    21600 Vibrations per hour
Automatic and hand winding   Automatic and hand winding




                                                                                                   07 Standard Automatic
Skeleton
                                                                                   11¹/2’’’




8N24                         8N24 Gilt                           3 Hands
Height 5.55mm / 21 jewels    Height 5.55mm / 21 jewels
21600 Vibrations per hour    21600 Vibrations per hour
Automatic and hand winding   Automatic and hand winding




8N40                         8N40 Gilt                    2 Hands / Small Second
Height 5.55mm / 21 jewels    Height 5.55mm / 21 jewels
21600 Vibrations per hour    21600 Vibrations per hour
Automatic and hand winding   Automatic and hand winding

                                                                                              17
08                              Premium Automatic




                            Slim = Beautiful
                            The ultimate beautility and its fine feeling of tension brought by the slimness of
                            MIYOTA Cal.9015. "To be slim ( = beauty)" is an essential element for the superior watches
                            today. Cal.9015 which height is only 3.90mm gives the sophisticated beauty and
                            pleasure to the watch on your wrist.

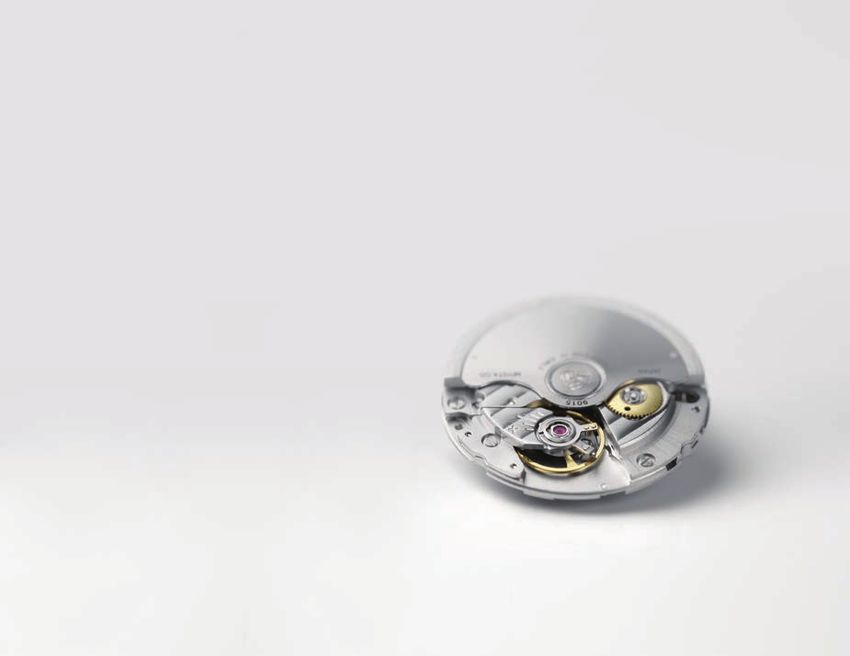

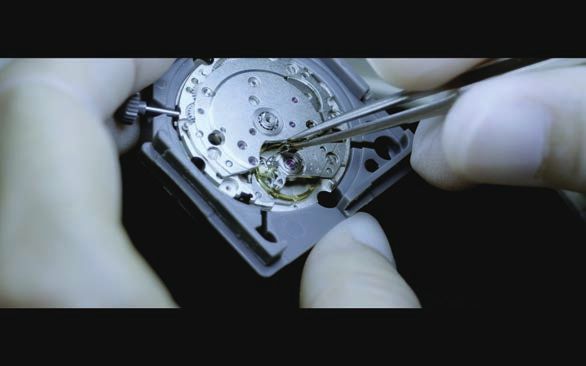

                            Made in Japan + High accuracy = High reliability
                            Ultra thin and small parts for Cal.9 015 are made in our factory with the micron
                            clearance management. These highly precise parts are assembled by latest facilities
                            in Japan, and is qualified by a strict qualit y control.The unite of sophisticated
                            technology and proficient skills of engineers, creates the high reliability of Cal.9015.




                                                                                                                                                        450µ
                                                                                                                                          450µ          450µ
                                                                                                                                          400µ
                                                                                                                                                        1200µ
                                                                                                                                          900µ


                                                                                                                         3 Hands   9039          9015

                            NEW    9039
                                   Height 3.90mm / 24 Jewels
                                   28800 vibrations per hour
                                   Stop second device
                                   Automatic and hand winding




                                                                                                                   3 Hands Date
                                   9015
                                   Height 3.90mm / 24 Jewels
08 Premium Automatic




                                   28800 Vibrations per hour
                                   Stop second device
                                   Automatic and hand winding
                                   Quick date setting



                            Open-Heart                                                                                                                          11¹/2’’’




                                                                                                                         3 Hands
                                   90S5
                                   Height 3.90mm / 3 hands
                                   28800 vibrations per hour / 24 jewels
                                   Stop second device
                                   Automatic and hand winding




                       18
Complication                                                                                     13¹/2’’’




                                    3 Hands Date                                            3 Hands Date
                                    Power reserve                                           Power reserve
                                   Month / Day / 24H                                          Day / 24H




      9100                                                   9110
      Height 5.52mm / 26 Jewels                              Height 5.52mm / 26 Jewels
      28800 Vibrations per hour                              28800 Vibrations per hour
      Stop second device                                     Stop second device
      Automatic and hand winding                             Automatic and hand winding
      Quick date setting                                     Quick date setting




                                    3 Hands Date                                             3 Hands Date
                                   Month / Day / 24H                                         Month / Day




      9120                                                   9122
      Height 5.52mm / 26 Jewels                              Height 5.52mm / 26 Jewels
      28800 Vibrations per hour                              28800 Vibrations per hour
      Stop second device                                     Stop second device
      Automatic and hand winding                             Automatic and hand winding
      Quick date setting                                     Quick date setting




                                    3 Hands Date                                            3 Hands Date
                                    Power reserve                                         Power reserve / 24H




      9130                                                   9132
      Height 5.52mm / 26 Jewels                              Height 5.52mm / 26 Jewels
      28800 Vibrations per hour                              28800 Vibrations per hour
      Stop second device                                     Stop second device
      Automatic and hand winding                             Automatic and hand winding
      Quick date setting                                     Quick date setting
                                                                                                                       08 Premium Automatic




                                    3 Hands Date                                            3 Hands Date
                                    Power reserve                                         Power reserve / 24H




NEW   9133                                             NEW   9134
      Height 5.52mm / 26 Jewels                              Height 5.52mm / 26 Jewels
      28800 Vibrations per hour                              28800 Vibrations per hour
      Stop second device                                     Stop second device
      Automatic and hand winding                             Automatic and hand winding
      Quick date setting                                     Quick date setting




                                                                                                                  19
09                           Small Automatic




                                                                                             3 Hands Date
                          6T15
                          Height 5.98mm / 21 jewels
                          28800 Vibrations per hour
                          Automatic and hand winding
                          Quick date setting




                                                                                            3 Hands Day / Date

                          6T51                                 6T51 Gilt
                          Height 5.98mm / 21 jewels            Height 5.98mm / 21 jewels
                          28800 Vibrations per hour            28800 Vibrations per hour
                          Automatic and hand winding           Automatic and hand winding
                          Quick date setting                   Quick date setting




                          Open-Heart                                                                             8³/4’’’




                                                                                                 3 Hands
                          6T28
                          Height 5.23mm / 21 jewels
                          28800 Vibrations per hour
                          Automatic and hand winding
09 Small Automatic




                     20
09 Small Automatic




                 21
miyotamovement.com

     QUICK & EASY ACCESS TO NECESSARY INFORMATION
     You can find more information through miyotamovement.com.
       Specification / Drawing / Calendar Variation / Photo of Miyota movement / Watch design sample

                                                                                                                                                                                                                                      Specification




                                                        SEARCH BY A KEYWORD                                                                                                     SEARCH BY FUNCTION




                                                                                                                                                                                                                                                                                  Drawing




                                                        Calendar Variation                                                                                                      Watch design sample            Photo of Miyota movement

                                                                                                                       6S CHRONOGRAPH SERIES
                                                                                                 MINIMUM UNIT ORDER : 1000pcs PER EACH MODELS
                                                                                                 LEAD TIME(PRODUCTION BY ORDER) : 2 MONTHS
                                                               CAL.              6S10-00A            6S10-00Z              6S11-00A          6S20-00A         6S20-0AQ




                                                               15'''

                                                             Dial Drawing    11111PDF11111 11111PDF11111 11111PDF11111 11111PDF11111 11111PDF11111
                                                                W.POSITION           3H                  3H                    3H             4.5H(SLA)       4.5H(SLA)
                                                                  W.SHAPE         SQUARE              SQUARE                SQUARE            SQUARE          SQUARE
                                                        Date
                                                               BACKGROUND          WHITE               BLACK                 WHITE              WHITE          BLACK
                                                                   LETTER          BLACK               WHITE                 BLACK             BLACK            WHITE
                                                           CROWN POSITION            3H                  3H                    3H                3H              3H
                                                               ORDER             STANDARD        PRODUCTION BY ORDER       STANDARD          STANDARD     PRODUCTION BY ORDER


                                                               CAL.              6S20-00Z            6S20-00Q




                                                               15'''

                                                            Dial Drawing     11111PDF11111 11111PDF11111
                                                               W.POSITION            6H                  6H
                                                                 W.SHAPE          SQUARE              SQUARE
                                                        Date
                                                              BACKGROUND           WHITE               BLACK
                                                                  LETTER           BLACK               WHITE
                                                          CROWN POSITION             3H                  3H
                                                              ORDER          PRODUCTION BY ORDER PRODUCTION BY ORDER


                                                               CAL.              6S21-00A            6S21-00Z              6S21-00Q          6S30-00A




                                                               15'''

                                                            Dial Drawing     11111PDF11111 11111PDF11111 11111PDF11111 11111PDF11111
                                                               W.POSITION         4.5H(SLA)              6H                    6H             4.5H(SLA)
                                                                 W.SHAPE          SQUARE              SQUARE                SQUARE            SQUARE
                                                        Date
                                                              BACKGROUND            WHITE              WHITE                 BLACK              WHITE
                                                                  LETTER           BLACK               BLACK                 WHITE             BLACK
                                                          CROWN POSITION             3H                  3H                    3H                3H
                                                              ORDER              STANDARD            STANDARD          PRODUCTION BY ORDER   STANDARD

                                                               CAL.              6S50-00A            6S50-00Q

                                                                                   23                   23

                                                               15'''

                                                            Dial Drawing     11111PDF11111 11111PDF11111
                                                               W.POSITION           12H                 12H
                                                                 W.SHAPE          SQUARE              SQUARE
                                                        Date
                                                              BACKGROUND           WHITE               BLACK
                                                                  LETTER           BLACK               WHITE
                                                          CROWN POSITION             3H                  3H
                                                              ORDER              STANDARD        PRODUCTION BY ORDER




     The Miyota Newsletter


     To provide updated information about MIYOTA watch movements as well as other                                                                                                                                                                           The Miyota Newsletter            Vol. 6   October 2017

     information about the watch industry, we have started issuing “The Miyota Newslet-
     ter.”To subscribe the newsletter timely, please send an e-mail as follows.



                                                                                                                                                                                                      TOPICS
     To : miyota-newsletter_subscribe@citizen.co.jp
                                                                                                                                                                                                       现代化的生产工厂
                                                                                                                                                                                                                                                      厂房周围的60盏LED明灯一起点亮,从高处望去,整个厂区就像是设置在广袤大地上的
                                                                                                                                                                                                                                                      一块闪闪发光的名贵手表。厂房四周还建有葱郁的绿化带。建筑物的设计能够使室内充


     Subject : newsletter *                                                                                                                                                                                                                           分沐浴阳光,同时采用隔热性能优异的建筑材料提高了环保性能。
                                                                                                                                                                                                                                                        工厂里还设有参观空间,便于客户参观MIYOTA富有创新性的生产和了解优质机
                                                                                                                                                                                                                                                      心的组装过程,从而加深对我们生产活动的认识和理解。



                                                                                                                                                                                                                                                       融合尖端技术的自动生产线

                                                                                                                                                                                                                                                        我们的自动化生产线具有极
                                                                                                                                                                                                                                                      高的生产效率,对于MIYOTA的量
                                                                                                                                                                                                                                                      产型机心,基本上1秒钟便可组装1
                                                                                                                                                                                                                                                      个。自动化生产线由知识和经验丰
                                                                                                                                                                                                                                                      富的公司技术人员研发和制造,为
                                                                                                                                                                                                                                                      产品质量和生产效率提供了保障,
                                                                                                                                                                                                      2016年12月投产的MIYOTA佐久工厂(长野县佐久市)
                                                                                                                                                                                                                                                      今后将继续获得改进。对自动化生
                                                                                                                                                                                                         我们的MIYOTA佐久工厂是全球规模位居前列的机心组装工厂,拥有最先进的生        产线进行内部研发和制造的优势
                                                                                                                                                                                                      产设备。该工厂于2016年秋季竣工,厂房室内面积约达2万平方米,厂区占地面积约         在于可随时根据时代需求的变化
                                                                                                                                                                                                      达8.2万平方米,将迄今为止分散在3个工厂的自动生产线汇聚在一起,大幅提高了生         开展技术革新。自动化生产线为
                                                                                                                                                                                                      产效率和质量管理效率,能够为客户更快、更多地提供优质机心产品。                 MIYOTA向客户稳定供应价廉物
                                                                                                                                                                                                                                                      美的机心产品提供了保障。

                                                                                                                                                                                                       MIYOTA佐久工厂的设计理念                                                    MIYOTA佐久工厂的自动生产线


                                                                                                                                                                                                         MIYOTA佐久工厂的设计理念是“注重环保、能为客户展示生产过程、为员工创造         现在,MIYOTA的机心都诞生于MIYOTA佐久工厂。如果希望了解我们机心的生产
                                                                                                                                                                                                      良好的工作环境”。从高空俯瞰,整个厂区令人联想到一块圆形钟表,各个建筑物设计          过程,请一定来MIYOTA佐久工厂参观。
                                                                                                                                                                                                      成机心等钟表内部零件的形态,环绕厂房的道路看似为钟表的外框。当夜幕降临时,




22                                                                                                                                                                                                        MIYOTA 机心的零部件全部由日本国内制造
                                                                                                                                                                                                            为了保障机心的质量,MIYOTA机心所使用的零部件全部由公司在日本国内的下辖工厂生产。其中,构成机心的主要零部件、金属零件具有精度高、耐久性强、修理
MOVEMENT DIVISION



Tokyo Head Office
Address : 6-1-12, Tanashi-Cho, Nishi Tokyo-Shi, Tokyo, 188-8511, Japan
Phone : +81-424-67-6218 Fax : +81-424-67-1549

Hong Kong Office
Address : 1F., 64 Hung To Road, Kwun Tong, Kowloon, Hong Kong
Phone : +852-2219-7833 Fax : +852-2219-7811

Europe Office
Address : Hans-Duncker-Straße 8, 21035 Hamburg, Germany
Phone : +49-40-73462-0

Home Page : miyotamovement.com
E-mail    : miyota_mvt@citizen.co.jp                          2018.03
Next part ... Cancel
