Gigabyte 2H12 Server & Workstation Motherboards. Enterprise Server Barebones & Accessories.


Gigabyte 2H12 Server & Workstation Motherboards. Enterprise Server Barebones & Accessories.
Technology Created For Server

          2H12
          2H12
               Server & Workstation Motherboards
               Enterprise
                Server & Server Barebones
                          Workstation     & Accessories
                                      Motherboards
                Enterprise Server Barebones & Accessories
Gigabyte 2H12 Server & Workstation Motherboards. Enterprise Server Barebones & Accessories.
SERVER MOTHERBOARDS SUMMARY
SEGMENT             ENTRY LEVEL RACK/TOWER BOARDS                     HIGH END WORKSTATION BOARDS                                             HIGH END SERVER/DATACENTER BOARDS
Model            GA-6UASL Series           GA-6UASV3/4               GA-6PXSV1                 GA-6PXSV3               GA-7PESH1/2              GA-7PESE3/4              GA-7PESL/X                GA-7PCSL
Socket             1 x LGA 1155             1 x LGA 1155            1 x LGA 2011              1 x LGA 2011             2 x LGA 2011             2 x LGA 1356             2 x LGA 1356             2 x LGA 1356
Form Factor          MicroATX                MicroATX                    ATX                       ATX                      EEB                      EEB                     EATX                     CEB
CPU            Intel Xeon E3-1200 V2    Intel Xeon E3-1200 V2   Intel Xeon E5-1/2600      Intel Xeon E5-1/2600      Intel Xeon E5-2600       Intel Xeon E5-2400       Intel Xeon E5-2400       Intel Xeon E5-2400
Chipset                C202                     C202                    C604                      C604                     C602                     C602                     C602                     C602
Memory          4 x DDR3 DIMM slots     4 x DDR3 DIMM slots     8 x DDR3 DIMM slots       8 x DDR3 DIMM slots      16 x DDR3 DIMM slots     12 x DDR3 DIMM slots     12 x DDR3 DIMM slots     8 x DDR3 DIMM slots
                   UDIMM ECC                UDIMM ECC           RDIMM/UDIMM ECC           RDIMM/UDIMM ECC          RDIMM/UDIMM ECC          RDIMM/UDIMM ECC          RDIMM/UDIMM ECC          RDIMM/UDIMM ECC
                     1600MHz                  1600MHz                 1600MHz                   1600MHz                  1600MHz                  1600MHz                  1600MHz                  1600MHz
Network            1 x GbE LAN              2 x GbE LAN             1 x GbE LAN               2 x GbE LAN              2 x GbE LAN              2 x GbE LAN              2 x GbE LAN              2 x GbE LAN
                         or                                                               1 x Management LAN                or                       or              1 x Management LAN 1 x Management LAN
                   2 x GbE LAN                                                                                     2 x 10GbE BASE-T LAN         4 x GbE LAN
                                                                                                                   1 x Management LAN 1 x Management LAN
SATA             6 x SATA II 3Gb/s        6 x SATA II 3Gb/s       2 x SATA III 6Gb/s        2 x SATA III 6Gb/s       2 x SATA III 6Gb/s       2 x SATA III 6Gb/s       2 x SATA III 6Gb/s       2 x SATA III 6Gb/s
                   RAID 0/1/10/5           RAID 0/1/10/5          4 x SATA II 3Gb/s         4 x SATA II 3Gb/s        4 x SATA II 3Gb/s        4 x SATA II 3Gb/s        4 x SATA II 3Gb/s        4 x SATA II 3Gb/s
                                                                    RAID 0/1/10/5            RAID 0/1/10/5            RAID 0/1/10/5            RAID 0/1/10/5            RAID 0/1/10/5            RAID 0/1/10/5
SAS                      -                        -                 4 x SAS 3Gb/s            4 x SAS 3Gb/s            8 x SAS 6Gb/s            8 x SAS 3Gb/s            8 x SAS 3Gb/s            8 x SAS 3Gb/s
                                                                     RAID 0/1/10              RAID 0/1/10             RAID 0/1/1E/10            RAID 0/1/10              RAID 0/1/10              RAID 0/1/10
                                                                                                                                                                              or
                                                                                                                                                                        8 x SAS 6Gb/s
                                                                                                                                                                        RAID 0/1/1E/10
Expansion      1 x PCIe x16 (3.0 x16)   1 x PCIe x16 (3.0 x8)   1 x PCIe x16 (3.0 x16)    2 x PCIe x16 (3.0 x16)   1 x PCIe x16 (3.0 x16)   2 x PCIe x16 (3.0 x16)   2 x PCIe x16 (3.0 x16)   1 x PCIe x16 (3.0 x16)
                1 x PCIe x8 (2.0 x4)     1 x PCIe x8 (3.0 x8)    2 x PCIe x8 (3.0 x8)      1 x PCIe x4 (2.0 x2)    1 x PCIe x16 (3.0 x8)     1 x PCIe x8 (3.0 x8)     1 x PCIe x8 (3.0 x4)    1 x PCIe x16 (3.0 x8)
                1 x PCIe x4 (2.0 x2)     1 x PCIe x8 (2.0 x4)    1 x PCIe x4 (2.0 x4)                               2 x PCIe x8 (3.0 x4)                              1 x PCIe x8 (2.0 x4)     1 x PCIe x8 (3.0 x4)
                 1 x PCI 32/33MHz        (1 x PCI 32/33MHz)       1 x PCI 32/33MHz                                  1 x PCIe x4 (2.0 x1)                              1 x PCIe x4 (2.0 x1)      1 x PCI 32/33MHz
Monitoring          HWMonitor               ASPEED 2150                    -                  ASPEED 2300              ASPEED 2300              ASPEED 2300              ASPEED 2300              ASPEED 2300
Interface           6 x USB 2.0              4 x USB 2.0        6 x USB 2.0, 2 x COM      6 x USB 2.0, 1 x VGA        4 or 2 x USB 2.0           4 x USB 2.0              4 x USB 2.0              4 x USB 2.0
                 1 x VGA, 1 x COM        1 x VGA, 1 x COM       1 x RJ45, 1 x IEEE 1394    1 x COM, 3 x RJ45        1 x VGA, 1 x COM         1 x VGA, 1 x COM         1 x VGA, 1 x COM         1 x VGA, 1 x COM
                      1 x RJ45                2 x RJ45             6 x Audio jacks           6 x Audio jacks             3 x RJ45               5 or 3 x RJ45              3 x RJ45                 3 x RJ45
Internal USB        4 x USB 2.0              4 x USB 2.0             4 x USB 3.0               4 x USB 3.0              2 x USB 2.0              4 x USB 2.0              4 x USB 2.0              4 x USB 2.0
                1 x Vertical type A      1 x Vertical type A

Audio          5.1 HD Audio in option             -                7.1+2 HD Audio           7.1+2 HD Audio                   -                        -                        -                        -

                                                                                                                                                                                                                      2
Gigabyte 2H12 Server & Workstation Motherboards. Enterprise Server Barebones & Accessories.
GA-6UASL Series
PRESENTATION                                                                                SPECIFICATIONS
Series of three entry level single processor server motherboards, designed for small        Model                 GA-6UASL1                                   GA-6UASL2                   GA-6UASL3
and medium business applications. Thanks to their compact form factor, these                Form Factor            microATX                                    microATX                    microATX
models ideally fit into small server towers to constitute an affordable hardware base                           244 x 244 mm                                244 x 244 mm                244 x 244 mm
for server tasks such as web, e-mail, file & print, storage, or any other server applica-   CPU             Intel Xeon E3-1200 V2                       Intel Xeon E3-1200 V2       Intel Xeon E3-1200 V2
tions.                                                                                                             LGA 1155                                   LGA 1155                     LGA 1155

With the uncompromised performance of Intel’s latest processor generation, this             Memory           4 x DDR3 DIMM slots                         4 x DDR3 DIMM slots         4 x DDR3 DIMM slots

Series is also suitable for embedded high perfomance applications, as entry-level                          Up to 32 GB UDIMM ECC                   Up to 32 GB UDIMM ECC           Up to 32 GB UDIMM ECC
                                                                                                                1600/1333 MHz                               1600/1333 MHz               1600/1333 MHz
workstation or high end desktop board.
                                                                                            Chipset               Intel C202                                  Intel C202                  Intel C202
Intel Xeon Processor E3-1200 V2 Product Family                                              Network            1 x Intel 82579LM                           1 x Intel 82579LM            2 x Intel 82574L
With an average performance boost of 20%, the support of faster 1600MHz ECC                                                                                 1 x Intel 82574L

memory, the support of PCI Express Gen. 3.0, the addition of Intel Turbo Boost 2.0,         SATA               6 x SATA II 3Gb/s                           6 x SATA II 3Gb/s           6 x SATA II 3Gb/s
Intel Hyper-Threading, Intel Smart Cache, and Intel Rapid Storage technologies, this                        Intel SW RAID 0/1/10/5                      Intel SW RAID 0/1/10/5      Intel SW RAID 0/1/10/5

new Xeon generation brings a significant increase in computing power and features           Graphics             XGI Volari Z9s                             XGI Volari Z9s               XGI Volari Z9s

for ever more demanding server applications.                                                Expansion      1 x PCIe x16 (3.0 x16 bus)              1 x PCIe x16 (3.0 x16 bus)      1 x PCIe x16 (3.0 x16 bus)
                                                                                                            1 x PCIe x8 (2.0 x4 bus)                    1 x PCIe x8 (2.0 x4 bus)    1 x PCIe x8 (2.0 x4 bus)
                                                                                                            1 x PCIe x4 (2.0 x2 bus)                    1 x PCIe x4 (2.0 x2 bus)    1 x PCIe x4 (2.0 x2 bus)
                                                                                                               1 x PCI 32/33MHz                           1 x PCI 32/33MHz             1 x PCI 32/33MHz
                                                                                            Monitoring            HWMonitor                                   HWMonitor                   HWMonitor
                                                                                            Interface             6 x USB 2.0                                 6 x USB 2.0                 6 x USB 2.0
                                                                                                              1 x VGA, 1 x COM                            1 x VGA, 1 x COM            1 x VGA, 1 x COM
                            GA-6UASL2 with audio interface
                                                                                                                   1 x RJ45                                    2 x RJ45                    2 x RJ45
                                                                                            Audio       Reserved footprint for optional          Reserved footprint for optional               -
                                                                                                         Realtek ALC662 2.0 HD Audio             Realtek ALC662 2.0 HD Audio

                                                                                            USB 2.0        6 x Rear I/O, 4 x Internal               6 x Rear I/O, 4 x Internal     6 x Rear I/O, 4 x Internal
                                                                                                              1 x Vertical type A                         1 x Vertical type A         1 x Vertical type A

         GA-6UASL1                     GA-6UASL2                     GA-6UASL3                                                      Solid Caps
                                                                                                                                                   TM

                                                                                                                                                                                                                3
Gigabyte 2H12 Server & Workstation Motherboards. Enterprise Server Barebones & Accessories.

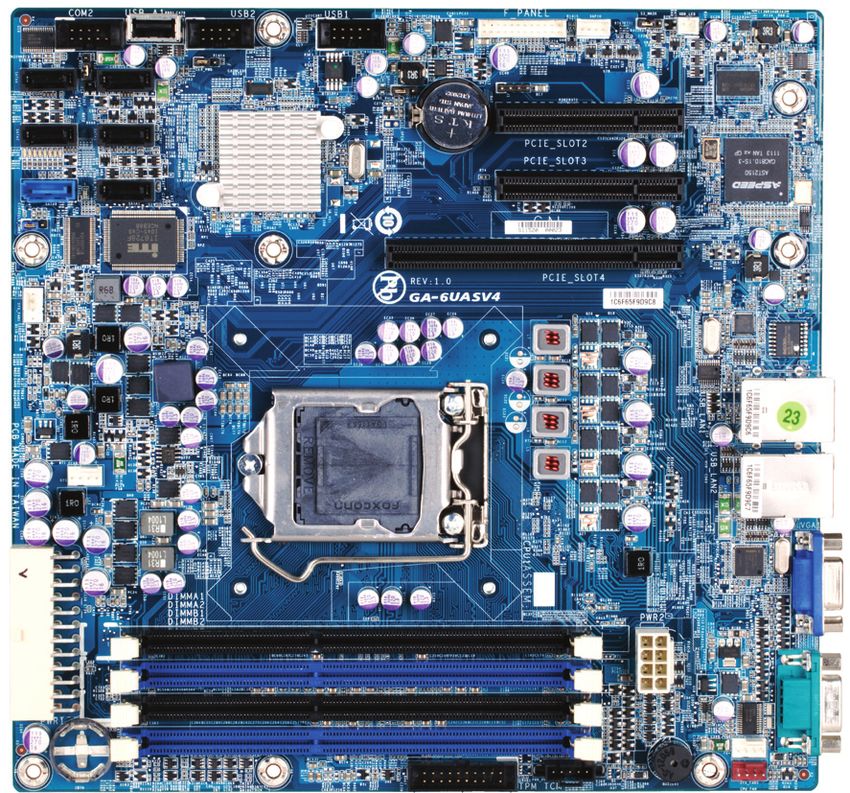

GA-6UASV3/GA-6UASV4
PRESENTATION                                                                                                         SPECIFICATIONS
These two models are a different version of the GA-6UASL Series. All the memory DIMMs, the PCIe connectors and
                                                                                                                     Model                              GA-6UASV3                 GA-6UASV4
the other ports are aligned in the same direction to guarantee optimal air flow within rackable chassis. They are
                                                                                                                     Form Factor                         microATX                  microATX
therefore affordable yet high performing pieces of hardware to fill racks and build up server cabinets.
                                                                                                                                                       244 x 244 mm              244 x 244 mm

Intel Xeon Processor E3-1200 V2 Product Family                                                                       CPU                            Intel Xeon E3-1200 V2    Intel Xeon E3-1200 V2

With an average performance boost of 20%, the support of faster 1600MHz ECC memory, the support of PCI                                                   LGA 1155                  LGA 1155

Express Gen. 3.0, the addition of Intel Turbo Boost 2.0, Intel Hyper-Threading, Intel Smart Cache, and Intel Rapid   Memory                         4 x DDR3 DIMM slots       4 x DDR3 DIMM slots
                                                                                                                                               Up to 32 GB UDIMM ECC        Up to 32 GB UDIMM ECC
Storage technoloigies, this new Xeon generation brings a significant increase in computing power and features for
                                                                                                                                                       1600/1333 MHz            1600/1333 MHz
ever more demanding server applications.
                                                                                                                     Chipset                             Intel C202                Intel C202
                                                                                                                     Network                          1 x Intel 82579LM        1 x Intel 82579LM
                                                                                                                                                       1 x Intel 82574L         1 x Intel 82574L

                                                                                                                     SATA                             6 x SATA II 3Gb/s        6 x SATA II 3Gb/s
                                                                                                                                                Intel SW RAID 0/1/10/5       Intel SW RAID 0/1/10/5

                                                                                                                     Graphics                       128MB DDR2 VRAM           128MB DDR2 VRAM

                                        GA-6UASV3/GA-6UASV4 Interface                                                Expansion                 1 x PCIe x16 (3.0 x8 bus)    1 x PCIe x16 (3.0 x8 bus)
                                                                                                                                                1 x PCIe x8 (3.0 x8 bus)    1 x PCIe x8 (3.0 x8 bus)
                                                                                                                                                1 x PCIe x8 (2.0 x4 bus)    1 x PCIe x8 (2.0 x4 bus)
                                                                                                                                                      1 x PCI 32/33MHz
                                                                                                                     Monitoring                         ASPEED 2150              ASPEED 2150
                                                                                                                                               IPMI 2.0, iKVM in option     IPMI 2.0, iKVM in option

                                                                                                                     Interface                           4 x USB 2.0               4 x USB 2.0
                                                                                                                                                     1 x VGA, 1 x COM          1 x VGA, 1 x COM
                                                                                                                                                          2 x RJ45                  2 x RJ45

                                                                                                                     USB 2.0                   4 x Rear I/O, 4 x Internal   4 x Rear I/O, 4 x Internal
                                                                                                                                                     1 x Vertical type A      1 x Vertical type A

                                                                                                                                               TM

                                                                                                                                  Solid Caps

                    GA-6UASV3                                                    GA-6UASV4

                                                                                                                                                                                                         4
Gigabyte 2H12 Server & Workstation Motherboards. Enterprise Server Barebones & Accessories.

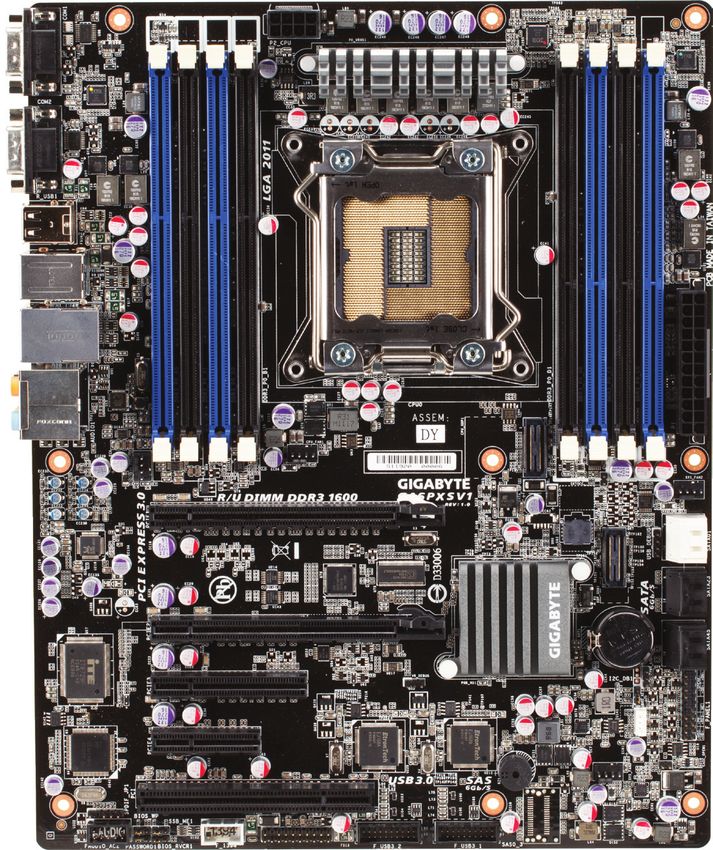

GA-6PXSV1
PRESENTATION                                                                                                                                        SPECIFICATIONS
The GA-6PXSV1 is a high end motherboard offering support for powerful computing as well as the latest connectivity technologies and revisions,
                                                                                                                                                    Model                   GA-6PXSV1
being an ideal product for extreme performance desktop segment and workstation applications.
                                                                                                                                                    Form Factor         ATX (305 x 244 mm)

                                                                         Intel Xeon Processor E5-1600/2600 Product Family                           CPU              Intel Xeon E5-2600/1600

                                                                         With up to 8 cores / 16 threads per socket, TDP up to 135W, cache size                              LGA 2011

                                                                         up to 20MB, increased QPI frequency, and doubled inter-socket QPI          Memory             8 x DDR3 DIMM slots

                                                                         links, this new generation brings a significant increase in computing                      Up to 256GB RDIMM ECC
                                                                                                                                                                     Up to 64GB UDIMM ECC
                                                                         power for demanding workstation applications.
                                                                                                                                                                          1600/1333MHz
                                                                         Digital Power Control                                                      Chipset                 Intel C604
                                                                         Including   GIGABYTE’s    digital   PWM   controllers,   providing   and   Network        1 x GbE LAN (Intel 82579LM)
                                                                         fine-tuning ultra-fast power supply to CPU and memory, ensuring            SATA                 2 x SATA III 6Gb/s

                                                                         optimal system calibration, stability and performance.                                          4 x SATA II 3Gb/s
                                                                                                                                                                      Intel SW RAID 0/1/10/5
                                                                         SATA 3.0                                                                   SAS            1 x mini-SAS for 4 x SAS 3Gb/s
                                                                         The GA-6PXSV1 can receive up to two SATA 3.0 devices to benefit                               Intel SW RAID 0/1/10
                                                                         from today’s best data transfer rates.                                     Audio                Realtek ALC892
                                                                                                                                                                     7.1+2 channels HD audio
                                                                         PCIe Generation 3.0
                                                                                                                                                    Expansion        1 x PCIe x16 (3.0 x16 bus)
                                                                         Reduced latency and improved data bandwidth to get the most out
                                                                                                                                                                      2 x PCIe x8 (3.0 x8 bus)
                                                                         of the latest discrete graphics cards.                                                       1 x PCIe x4 (2.0 x4 bus)
                                                                                                                                                                         1 x PCI 32/33MHz
                                                                         Firewire
                                                                                                                                                    Interface          6 x USB 2.0, 2 x COM
                                                                         Useful for professional audio/video applications, the GA-6PXSV1 is
                                                                                                                                                                      1 x RJ45, 1 x IEEE 1394
                                                                         equipped with IEEE 1394 connectors, allowing the board to be
                                                                                                                                                                          6 x Audio jacks
                                                                         connected to one external or internal Firewire device.                     Internal USB        4 x USB 3.0 headers

                                                                         HD Audio
                                                                         The motherboard is built with a high quality audio chipset providing

                                                                         support to 7.1+2 channels of high definition audio.

                                                                                                                                                                                                    5
Gigabyte 2H12 Server & Workstation Motherboards. Enterprise Server Barebones & Accessories.
GA-6PXSV3
PRESENTATION                                                                                                                                         SPECIFICATIONS
The GA-6PXSV3 is a different version of the GA-6PXSV1 with more server oriented features, such as higher end LAN controller solution, remote
                                                                                                                                                     Model                   GA-6PXSV3
board control chipset with the essential management features, and different connectivity. It is therefore suitable for workstations needing others
                                                                                                                                                     Form Factor         ATX (305 x 244 mm)
features than the GA-6PXSV1 and for high end server towers.
                                                                                                                                                     CPU               Intel Xeon E5-2600/1600

                                                       Intel Xeon Processor E5-1600/2600 Product Family                                                                       LGA 2011

                                                                                                                                                     Memory              8 x DDR3 DIMM slots
                                                       With up to 8 cores / 16 threads per socket, TDP up to 135W, cache size up to 20MB,
                                                                                                                                                                      Up to 256GB RDIMM ECC
                                                       increased QPI frequency, and doubled inter-socket QPI links, this new generation brings
                                                                                                                                                                      Up to 64GB UDIMM ECC
                                                       a significant increase in computing power for demanding workstation applications.
                                                                                                                                                                           1600/1333MHz
                                                                                                                                                     Chipset                  Intel C604
                                                       Digital Power Control
                                                                                                                                                     Network        2 x GbE LAN (Intel 82574L NIC)
                                                       Including GIGABYTE’s digital PWM controllers, providing and fine-tuning ultra-fast power                         1 x Management LAN
                                                       supply to CPU and memory, ensuring optimal system calibration, stability and perfor-
                                                                                                                                                     SATA                 2 x SATA III 6Gb/s
                                                       mance.                                                                                                             4 x SATA II 3Gb/s
                                                                                                                                                                       Intel SW RAID 0/1/10/5
                                                       High End LAN Controller
                                                                                                                                                     SAS            1 x mini-SAS for 4 x SAS 3Gb/s
                                                       The GA-6PXSV3 is equipped with a high end dual GbE LAN controller to satisfy more                                Intel SW RAID 0/1/10
                                                       demanding networking requirements in a workstation environment.                               Audio                 Realtek ALC892
                                                                                                                                                                      7.1+2 channels HD audio
                                                       Remote Management
                                                                                                                                                     Expansion        2 x PCIe x16 (3.0 x16 bus)
                                                       With the ASPEED 2300 chipset and a separate management LAN port, this board offers                              1 x PCIe x4 (2.0 x2 bus)
                                                       comprehensive remote control options.                                                         Monitoring             ASPEED 2300
                                                                                                                                                                            IPMI 2.0, iKVM
                                                       PCIe Generation 3.0
                                                                                                                                                     Interface           6 x USB 2.0, 1 x VGA
                                                       Reduced latency and improved data bandwidth to get the most out of the latest discrete                             1 x COM, 3 x RJ45

HD Audio                                               graphics cards.                                                                                                     6 x Audio jacks
                                                                                                                                                     Internal USB        4 x USB 3.0 headers
The motherboard is built with a high quality audio

chipset providing support to 7.1+2 channels of

high definition audio.

                                                                                                                                                                                                     6
Gigabyte 2H12 Server & Workstation Motherboards. Enterprise Server Barebones & Accessories.

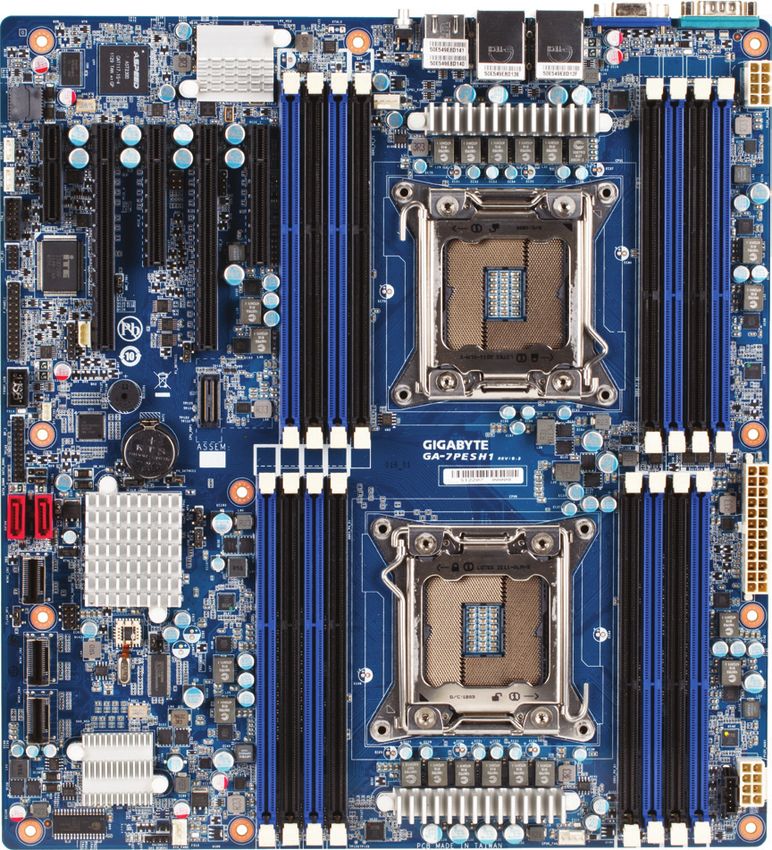

GA-7PESH1/GA-7PESH2
PRESENTATION                                                                                                                             SPECIFICATIONS
The GA-7PESH1 and GA-7PESH2 are two high end dual socket server motherboards designed to give the best potential for building
                                                                                                                                         Model                     GA-7PESH1/GA-7ESH2
state of the art HPC, virtualization and other server machines. With a spacious design around the sockets and the position of the PCIe
                                                                                                                                         Form Factor                 EEB (305 x 330 mm)
x16 slots, it can easily receive the best and biggest components while guaranteeing an optimal airflow.
                                                                                                                                         CPU                         Intel Xeon E5-2600

                                                        Intel Xeon Processor E5-2600 Product Family                                                                       LGA 2011

                                                                                                                                         Memory                     16 x DDR3 DIMM slots
                                                        With up to 8 cores / 16 threads per socket, TDP up to 135W, cache size up to
                                                                                                                                                                  Up to 512GB RDIMM ECC
                                                        20MB, increased QPI frequency, and doubled inter-socket QPI links, this new
                                                                                                                                                                  Up to 128GB UDIMM ECC
                                                        generation brings a significant increase in computing power.                                                 1600/1333/1066MHz
                                                                                                                                         Chipset                          Intel C602
                                                        Digital Power Control
                                                                                                                                         Network            2 x GbE LAN (Intel i350) (GA-7PESH1)
                                                        Including GIGABYTE’s digital PWM controllers, providing and fine-tuning                               2 x 10GbE BASE-T LAN (Intel X540)
                                                        ultra-fast power supply to CPU and memory, ensuring optimal system                                              (GA-7PESH2)

                                                        calibration, stability and performance.                                          SATA                         2 x SATA III 6Gb/s
                                                                                                                                                                      4 x SATA II 3Gb/s
                                                        10GbE LAN                                                                                                  Intel SW RAID 0/1/10/5

                                                        The GA-7PESH2 has a 10GbE BASE-T controller providing extra fast nominal         SAS            2 x Mini-SAS for 8 x SAS 6Gb/s via LSI SAS2008
                                                                                                                                                                   LSI SAS RAID 0/1/1E/10
                                                        data rates. Customers can therefore choose which networking solution is

                                                        best tailored for their specific needs.                                          Expansion                1 x PCIe x16 (3.0 x16 bus)
                                                                                                                                                                   1 x PCIe x16 (3.0 x8 bus)
                GA-7PESH1 Top View                      Remote Management                                                                                          2 x PCIe x8 (3.0 x4 bus)
                                                                                                                                                                   1 x PCIe x4 (2.0 x1 bus)
                                                        With the ASPEED 2300 chipset and a separate management LAN port, these
                                                                                                                                         Monitoring                     ASPEED 2300
                                                        boards offer comprehensive remote control options.
                                                                                                                                                                        IPMI 2.0, iKVM

                                                        SATA 3.0 & SAS 2.0 Revisions                                                     Interface                 4 x USB 2.0 (GA-7PESH1)
                                                                                                                                                                   2 x USB 2.0 (GA-7PESH2)
                GA-7PESH1 Interface                     The boards can receive up to two SATA 6Gb/s and 8 SAS 6Gb/s devices to
                                                                                                                                                                      1 x VGA, 1 x COM
                                                        benefit from today’s best data transfer rates.                                                                     3 x RJ45
                                                                                                                                         Internal USB                2 x USB 2.0 headers
                                                        PCIe Generation 3.0

                                                        Reduced latency and improved data bandwidth to get the most
     GA-7PESH2 Interface With 10GbE LAN Ports           out of the latest discrete graphics cards.

                                                                                                                                                                                                     7
Gigabyte 2H12 Server & Workstation Motherboards. Enterprise Server Barebones & Accessories.
GA-7PESE3/GA-7PESE4
PRESENTATION                                                                                                                                      SPECIFICATIONS
The GA-7PESE3/GA-7PESE4 are the dual socket models that are specially designed to deliver the highest efficiency in terms of power
                                                                                                                                                  Model                GA-7PESE3/GA-7PESE4
consumption and cooling in high density infrastructure. Thanks to the grouped position of the socket, the processors can be cooled more
                                                                                                                                                  Form Factor            EEB (305 x 330 mm)
effectively, and the air flow directed on the sockets will also pass on the expansions located on the same axis.
                                                                                                                                                  CPU                     Intel Xeon E5-2400

                                                                         Intel Xeon Processor E5-2400 Product Family                                                          LGA 1356

                                                                                                                                                  Memory                12 x DDR3 DIMM slots
                                                                         While it keeps up to 8 cores / 16 threads per socket and cache size up
                                                                                                                                                                      Up to 384GB RDIMM ECC
                                                                         to 20MB, this new generation slightly narrows down some of the top
                                                                                                                                                                       Up to 96GB UDIMM ECC
                                                                         capabilities of the E5-2600 family to focus on more mainstream pure                                1600/1333MHz
                                                                         server applications emphasizing cost and power efficience first.         Chipset                     Intel C602
                                                                                                                                                  Network        4 x GbE LAN (Intel i350) (GA-7PESE3)
                                                                         High End LAN Controller
                                                                                                                                                                 2 x GbE LAN (Intel i350) (GA-7PESE4)
                                                                         Intel’s i350 LAN controller basically delivers twice the bandwidth of                          1 x Management LAN

                                                                         standard GbE LAN controllers, and brings Intel Data Direct I/O           SATA                    2 x SATA III 6Gb/s

                                                                         Technology as well as the Intel Virtualization Technology for                                     4 x SATA II 3Gb/s
                                                                                                                                                                          SW RAID 0/1/10/5
                                                                         Connectivity.
                                                                                                                                                  SAS               2 x mini-SAS for 8 x SAS 3Gb/s
                                                                         Remote Management                                                                               Intel SW RAID 0/1/10

                                                                         With the ASPEED 2300 chipset and a separate management LAN               Expansion           2 x PCIe x16 (3.0 x16 bus)
                                                                                                                                                                        1 x PCIe x8 (3.0 x8 bus)
                                                                         port, this board offers comprehensive remote control options.
                                                                                                                                                  Monitoring                 ASPEED 2300
                                                                         SATA 3.0 revision                                                                                  IPMI 2.0, iKVM

                                                                         The boards can receive up to two SATA 3.0 devices to benefit from        Interface         4 x USB 2.0, 1 x VGA, 1 x COM
                                                                                                                                                                        5 x RJ45 (GA-7PESE3)
                                                                         today’s best data transfer rates.
                                                                                                                                                                        3 x RJ45 (GA-7PESE4)
                        GA-7PESE4 Top View
                                                                         PCIe Generation 3.0                                                      Internal USB           4 x USB 2.0 headers
                                                                                                                                                  PSU               12V single output (GA-7PESE4)
                                                                         Reduced latency and improved data bandwidth to get the most out
                                                                                                                                                  Connector 3 x SSI 12V 8 pin power connectors
                                                                         of expansion accessories.

                        GA-7PESE4 Interface

                                                                                                                                                                                                     8
Gigabyte 2H12 Server & Workstation Motherboards. Enterprise Server Barebones & Accessories.
GA-7PESL/GA-7PESLX
PRESENTATION                                                                                                                      SPECIFICATIONS
The GA-7PESL and GA-7PESLX are two high end dual socket server motherboards addressed to enterprise requirements for top
                                                                                                                                  Model                     GA-7PESL/GA-7PESLX
performance computing in server and datacenter environments.
                                                                                                                                  Form Factor                EATX (305 x 330 mm)

                                                         Intel Xeon Processor E5-2400 Product Family                              CPU                         Intel Xeon E5-2400
                                                                                                                                                                   LGA 1356
                                                         While it keeps up to 8 cores / 16 threads per socket and cache size up
                                                                                                                                  Memory                     12 x DDR3 DIMM slots
                                                         to 20MB, this new generation slightly narrows down some of the top
                                                                                                                                                          Up to 384GB RDIMM ECC
                                                         capabilities of the E5-2600 family to focus on more mainstream pure
                                                                                                                                                           Up to 96GB UDIMM ECC
                                                         server applications emphasizing cost and power efficience first.                                 1600(1.5V)/1333/1066MHz
                                                                                                                                  Chipset                         Intel C602
                                                         Remote Management
                                                                                                                                  Network                 2 x GbE LAN (Intel 82574L)
                                                         With the ASPEED 2300 chipset and a separate management LAN                                         1 x Management LAN
                                                         port, these boards offer comprehensive remote control options.           SATA                         2 x SATA III 6Gb/s
                                                                                                                                                               4 x SATA II 3Gb/s
                                                         SATA 3.0 & SAS 2.0 Revisions
                                                                                                                                                              SW RAID 0/1/10/5
                                                         The boards can receive up to two SATA 6Gb/s devices and up to            SAS                   2 x mini-SAS for 8 x SAS 3Gb/s
                                                         eight additional SAS 3Gb/s or 6Gb/s devices for the GA-7PESLX                                 Intel SW RAID 0/1/10 (GA-7PESL)

                                                         through an onboard LSI SAS solution to benefit from today’s best                        2 x mini-SAS for 8 x SAS 6Gb/s via LSI SAS2008
                                                                                                                                                        SAS RAID 0/1/10 (GA-7PESLX)
                                                         data transfer rates.
                                                                                                                                  Expansion                2 x PCIe x16 (3.0 x16 bus)
                                                         PCIe Generation 3.0                                                                                1 x PCIe x8 (3.0 x4 bus)

                  GA-7PESL Top View                                                                                                                         1 x PCIe x8 (2.0 x4 bus)
                                                         With the support of the latest PCI Express Gen 3.0 technology
                                                                                                                                                            1 x PCIe x4 (2.0 x1 bus)
                                                         directly on the CPU, the GA-7PESL/GA-7PESLX are fully configured to
                                                                                                                                  Monitoring        ASPEED 2300 (ASPEED 2150 in option)
                                                         provide users with dramatically reduced latency and improved
                                                                                                                                                                IPMI 2.0, iKVM
                                                         data bandwidth to get the most out of expansion cards. Moreover,
                                                                                                                                  Interface                       4 x USB 2.0
                                                         they are built with a comprehensive variety of PCIe connectors to                                    1 x VGA, 1 x COM
                  GA-7PESL Interface                     provide the most flexible expansion platform to the user.                                                 3 x RJ45
                                                                                                                                  Internal USB                4 x USB 2.0 headers

                                                                                                                                                                                              9
Gigabyte 2H12 Server & Workstation Motherboards. Enterprise Server Barebones & Accessories.
GA-7PCSL
PRESENTATION                                                                                                                                      SPECIFICATIONS
The GA-7PCSL is a mainstream dual socket server motherboard dedicated to specific server applications that do not require particularly large
                                                                                                                                                  Model                   GA-7PCSL
memory and expansion platforms, although it keeps the best standards of today as well as GIGABYTE proven design.
                                                                                                                                                  Form Factor        CEB (305 x 267 mm)

                                                                         Intel Xeon Processor E5-2400 Product Family                              CPU                 Intel Xeon E5-2400
                                                                                                                                                                           LGA 1356
                                                                         While it keeps up to 8 cores / 16 threads per socket and cache size up
                                                                                                                                                  Memory             8 x DDR3 DIMM slots
                                                                         to 20MB, this new generation slightly narrows down some of the top
                                                                                                                                                                  Up to 256GB RDIMM ECC
                                                                         capabilities of the E5-2600 family to focus on more mainstream pure
                                                                                                                                                                   Up to 64GB UDIMM ECC
                                                                         server applications emphasizing cost and power efficience first.                         1600(1.5V)/1333/1066MHz
                                                                                                                                                  Chipset                 Intel C602
                                                                         Remote Management
                                                                                                                                                  Network         2 x GbE LAN (Intel 82574L)
                                                                         With the ASPEED 2300 chipset and a separate management LAN                                 1 x Management LAN
                                                                         port, this board offers comprehensive remote control options.            SATA                 2 x SATA III 6Gb/s
                                                                                                                                                                       4 x SATA II 3Gb/s
                                                                         SATA 3.0 revision
                                                                                                                                                                      SW RAID 0/1/10/5
                                                                         The boards can receive up to two SATA 3.0 devices to benefit from        SAS            2 x mini-SAS for 8 x SAS 3Gb/s
                                                                         today’s best data transfer rates.                                                           Intel SW RAID 0/1/10

                                                                                                                                                  Expansion        1 x PCIe x16 (3.0 x16 bus)
                                                                         PCIe Generation 3.0
                                                                                                                                                                   1 x PCIe x16 (3.0 x8 bus)
                                                                         With the support of the latest PCI Express Gen 3.0 technology                              1 x PCIe x8 (3.0 x4 bus)

                                                                         directly on the CPU, the GA-7PCSL is fully configured to provide users                        1 x PCI 32/33MHz
                         GA-7PCSL Top View                               with dramatically reduced latency and improved data bandwidth            Monitoring             ASPEED 2300
                                                                                                                                                                        IPMI 2.0, iKVM
                                                                         to get the most out of expansion accessories. Moreover, is built with
                                                                                                                                                  Interface               4 x USB 2.0
                                                                         a comprehensive variety of PCIe connectors to provide the most
                                                                                                                                                                      1 x VGA, 1 x COM
                                                                         flexible expansion platform to the user.
                                                                                                                                                                           3 x RJ45
                                                                                                                                                  Internal USB        4 x USB 2.0 headers

                         GA-7PCSL Interface

                                                                                                                                                                                                10
GS-R11U4S                                                                          GS-R12P4S
                          Chassis Type                       1U                                              Chassis Type                       1U
                          Dimensions            440 x 570 x 43.5 mm (WxDxH)                                  Dimensions            440 x 570 x 43.5 mm (WxDxH)
                          CPU                      Intel Xeon E3-1200 V2                                     CPU                        Intel Xeon E5-2400
                                                         LGA 1155                                                                           LGA 1356

                          Memory                    4 x DDR3 DIMM slots                                      Memory                    8 x DDR3 DIMM slots
                                                  Up to 32GB UDIMM ECC                                                              Up to 256GB RDIMM ECC
                                                       1600/1333MHz                                                                  Up to 64GB UDIMM ECC
                                                                                                                                    1600(1.5V)/1333/1066MHz

                          Chipset                        Intel C202                                          Chipset                        Intel C602
                          Network                      2 x GbE LAN                                           Network                2 x GbE LAN (Intel 82574L)
                                           (1 x Intel 82579LM, 1 x Intel 82574L)                                                      1 x Management LAN

                          HDD Type                          3.5”                                             HDD Type                          3.5”
                          HDD Bays                           4                                               HDD Bays                           4
                          SATA Supported        SATA III 6Gb/s, SATA II 3Gb/s                                SATA Supported        SATA III 6Gb/s, SATA II 3Gb/s

   GS-R11U4S Top View     SATA RAID                Intel SW RAID 0/1/10/5             GS-R12P4S Top View     SATA RAID                Intel SW RAID 0/1/10/5
                          SAS Supported                       -                                              SAS Supported                       -
                          SAS RAID                            -                                              SAS RAID                            -
                          Expansion               1 x PCIe x16 (3.0 x8 bus)                                  Expansion              1 x PCIe x16 (3.0 x16 bus)
                                                        supporting                                                                         supporting
                                                  1 x Full profile PCIe x16                                                          1 x Full profile PCIe x16
   GS-R11U4S Front View                                                               GS-R12P4S Front View

                          Monitoring                   ASPEED 2150                                           Monitoring                   ASPEED 2300
                                                       IPMI 2.0, iKVM                                                                     IPMI 2.0, iKVM

                          Optical Drive                       -                                              Optical Drive                DVD in option
                          Interface                      6 x USB 2.0                                         Interface                      6 x USB 2.0
   GS-R11U4S Rear View                                                                GS-R12P4S Rear View
                                                     1 x VGA, 1 x COM                                                                   1 x VGA, 1 x COM
                                                          2 x RJ45                                                                           3 x RJ45
                          System Fans                  4 x 40.28 mm                                          System Fans           2 x 40.56 mm + 4 x 40.28 mm
                          Power                     1 x 350W fixed PSU                                       Power                     1 x 500W fixed PSU
                                                       100~220V AC                                                                        100~220V AC

                          Green Certification          80 PLUS, RoHS                                         Green Certification      80 PLUS Bronze, RoHS

                                                                                                                                                                 11
GS-R12P4E                                                                       GS-R12P8E
                          Chassis Type                       1U                                           Chassis Type                       1U
                          Dimensions            444 x 615 x 43.5 mm (WxDxH)                               Dimensions            444 x 615 x 43.5 mm (WxDxH)
                          CPU                        Intel Xeon E5-2400                                   CPU                        Intel Xeon E5-2400
                                                         LGA 1356                                                                        LGA 1356

                          Memory                   12 x DDR3 DIMM slots                                   Memory                   12 x DDR3 DIMM slots
                                                 Up to 384GB RDIMM ECC                                                           Up to 384GB RDIMM ECC
                                                  Up to 96GB UDIMM ECC                                                            Up to 96GB UDIMM ECC
                                                       1333/1066MHz                                                                    1333/1066MHz

                          Chipset                        Intel C602                                       Chipset                        Intel C602
                          Network                 2 x GbE LAN (Intel i350)                                Network                 2 x GbE LAN (Intel i350)
                                                   1 x Management LAN                                                              1 x Management LAN

                          HDD Type                          3.5”                                          HDD Type                          2.5”
                          HDD Bays                           4                                            HDD Bays                           8
                          SATA Supported        SATA III 6Gb/s, SATA II 3Gb/s                             SATA Supported        SATA III 6Gb/s, SATA II 3Gb/s
                          SATA RAID                Intel SW RAID 0/1/10/5                                 SATA RAID                Intel SW RAID 0/1/10/5
                          SAS Supported                       -                                           SAS Supported                       -
   GS-R12P4E Top View                                                              GS-R12P8E Top View
                          SAS RAID                            -                                           SAS RAID                            -
                          Expansion               1 x PCIe x16 (3.0 x8 bus)                               Expansion               1 x PCIe x16 (3.0 x8 bus)
                                                        supporting                                                                      supporting
                                                  1 x Low profile PCIe x16                                                        1 x Low profile PCIe x16

   GS-R12P4E Front View                            1 x Low profile PCIe x8         GS-R12P8E Front View                            1 x Low profile PCIe x8

                          Monitoring                   ASPEED 2300                                        Monitoring                   ASPEED 2300
                                                       IPMI 2.0, iKVM                                                                  IPMI 2.0, iKVM

                          Optical Drive                DVD in option                                      Optical Drive                DVD in option
                          Interface                      6 x USB 2.0                                      Interface                      6 x USB 2.0
   GS-R12P4E Rear View                               1 x VGA, 1 x COM              GS-R12P8E Rear View                               1 x VGA, 1 x COM
                                                          3 x RJ45                                                                        3 x RJ45
                          System Fans           2 x 40.56 mm + 4 x 40.28 mm                               System Fans           2 x 40.56 mm + 4 x 40.28 mm
                          Power                     1 x 500W fixed PSU                                    Power                     1 x 500W fixed PSU
                                                       100~220V AC                                                                     100~220V AC

                          Green Certification       80 PLUS Gold, RoHS                                    Green Certification       80 PLUS Gold, RoHS

                                                                                                                                                              12
GS-R12PH/GS-R12PH1                                                                GS-R12P4P
                         Chassis Type                        1U                                 Chassis Type                       1U
                         Dimensions             430 x 710 x 43.5 mm (WxDxH)                     Dimensions            430 x 710 x 43.5 mm (WxDxH)
                         CPU                         Intel Xeon E5-2400                         CPU                        Intel Xeon E5-2600
                                                         LGA 1356                                                               LGA 2011

                         Memory                    12 x DDR3 DIMM slots                         Memory                    16 x DDR3 DIMM slots
                                                 Up to 384GB RDIMM ECC                                                 Up to 512GB RDIMM ECC
                                                  Up to 96GB UDIMM ECC                                                 Up to 128GB UDIMM ECC
                                                    1600/1333/1066MHz                                                        1600/1333MHz

                         Chipset
                         Network
                                                         Intel C602
                                               2 x GbE LAN (Broadcom 5720)
                                                                                  COMING SOON   Chipset
                                                                                                Network
                                                                                                                               Intel C602
                                                                                                                         2 x GbE LAN (Intel i350)
                                                   1 x Management LAN                                                    1 x Management LAN

                         HDD Type                           3.5”                                HDD Type                          3.5”
                         HDD Bays                             4                                 HDD Bays                            4
                         SATA Supported         SATA III 6Gb/s, SATA II 3Gb/s                   SATA Supported        SATA III 6Gb/s, SATA II 3Gb/s
                         SATA RAID                 Intel SW RAID 0/1/10/5                       SATA RAID                Intel SW RAID 0/1/10/5
                         SAS Supported                        -                                 SAS Supported            SAS 6Gb/s, SAS 3Gb/s
                         SAS RAID                             -                                 SAS RAID              LSI SAS2008 IR RAID 0/1/1E/10
                         Expansion             3 x Low profile PCIe x8 (3.0 x8)                 Expansion               1 x Low profile PCIe x16
   GS-R12PH Top View
                         Monitoring                     ASPEED 2300                                                           (3.0 x16 bus)
                                                       IPMI 2.0, iKVM                           Monitoring                    ASPEED 2300
                         Optical Drive                        -                                                              IPMI 2.0, iKVM
   GS-R12PH Front View
                         Interface                       4 x USB 2.0                            Optical Drive                       -
                                                     1 x VGA, 1 x COM                           Interface                      6 x USB 2.0
                                                          3 x RJ45                                                              1 x VGA
   GS-R12PH Rear View
                         System Fans            2 x 40.56 mm + 2 x 40.28 mm                                                     1 x COM
                         Power                  2 x 650W 1+1 PSU (GS-R12PH)                                                     3 x RJ45
                                                          380VDC                                System Fans                   5 x 40.56 mm
                                               1 x 600W fixed PSU (GS-R12PH1)                                                 1 x 40.28 mm
                                                       100~220V AC                              Power                      1 x 600W fixed PSU
                         Green Certification    80 PLUS Platinum (GS-R12PH)                                           (2 x 650W 1+1 PSU in option)
                                                 80 PLUS Gold (GS-R12PH1)                       Green Certification       80 PLUS Gold, RoHS

                                                                                                                                                    13
GS-R12PE/GS-R12PE1                                                                  GS-R22PH/GS-R22PH1
                         Chassis Type                         1U                                             Chassis Type                         2U
                         Dimensions             430 x 710 x 43.5 mm (WxDxH)                                  Dimensions            430 x 710 x 86.5 mm (WxDxH)
                         CPU                          Intel Xeon E5-2600                                     CPU                   Intel Xeon E5-2400, LGA 1356
                                                          LGA 2011                                           Memory                    12 x DDR3 DIMM slots
                         Memory                     24 x DDR3 DIMM slots                                                             Up to 384GB RDIMM ECC
                                                  Up to 768GB RDIMM ECC                                                               Up to 96GB UDIMM ECC
                                                  Up to 192GB UDIMM ECC                                                                 1600/1333/1066MHz
                                                     1600/1333/1066MHz                                       Chipset                         Intel C602
                         Chipset                          Intel C602                                         Network               2 x GbE LAN (Broadcom 5720)
                         Network                   2 x GbE LAN (Intel i350)                                                            1 x Management LAN
                                                2 x 10GbE BASE-T (Intel X540)                                HDD Type                         3.5”, 2.5”
                                                    1 x Management LAN                                       HDD Bays                     12 x 3.5”, 4 x 2.5”
                         HDD Type                            3.5”                                            SATA Supported         SATA III 6Gb/s, SATA II 3Gb/s
                         HDD Bays                              4                                             SATA RAID                 Intel SW RAID 0/1/10/5
                         SATA Supported          SATA III 6Gb/s, SATA II 3Gb/s                               SAS Supported                   SAS 3Gb/s
                         SATA RAID                  Intel SW RAID 0/1/10/5                                   SAS RAID                  Intel SW RAID 0/1/10/5
                         SAS Supported              SAS 6Gb/s, SAS 3Gb/s                                     Expansion               2 x FP PCIe x8 (3.0 x8 bus)
                         SAS RAID               LSI SAS2008 IR RAID 0/1/1E/10                                                      2 x LP MD2 PCIe x8 (3.0 x8 bus)
                                                                                       GS-R22PH Top View
                         Expansion             1 x Low profile PCIe x16 (3.0 x16)                                                  1 x LP MD1 PCIe x8 (3.0 x8 bus)
   GS-R12PE Top View
                         Monitoring                      ASPEED 2300                                         Monitoring                     ASPEED 2300
                                                        IPMI 2.0, iKVM                                                                     IPMI 2.0, iKVM

                         Optical Drive                         -                       GS-R22PH Front View   Optical Drive                         -
   GS-R12PE Front View
                         Interface                        4 x USB 2.0                                        Interface                  2 x USB 2.0, 3 x RJ45
                                                      1 x VGA, 1 x COM                                                                   1 x VGA, 1 x COM
                                                           5 x RJ45                                          System Fans                    4 x 80.38 mm
   GS-R12PE Rear View
                         System Fans                     6 x 40.56 mm                                        Power                   2 x 650W 1+1 PSU 380V DC
                                                                                       GS-R22PH Rear View
                         Power                        2 x 650W 1+1 PSU                                                                       (GS-R22PH)
                                                     380V DC (GS-R12PE)                                                             2 x 750W 1+1 100~220V AC
                                                  100~220V AC (GS-R12PE1)                                                                   (GS-R22PH1)
                         Green Certification     80 PLUS Platinum (GS-R12PE)                                 Green Certification   80 PLUS Platinum (GS-R22PH)
                                                  80 PLUS Gold (GS-R12PE1)                                                           80 PLUS Gold (GS-R22PH1)

                                                                                                                                                                   14
GS-R22PXL                                                                           GS-R22PFL
                          Chassis Type                         2U                                             Chassis Type                         2U
                          Dimensions             430 x 712 x 86.5 mm (WxDxH)                                  Dimensions             430 x 712 x 86.5 mm (WxDxH)
                          CPU                          Intel Xeon E5-2400                                     CPU                         Intel Xeon E5-2400
                                                           LGA 1356                                                                            LGA 1356

                          Memory                     12 x DDR3 DIMM slots                                     Memory                     12 x DDR3 DIMM slots
                                                   Up to 384GB RDIMM ECC                                                               Up to 384GB RDIMM ECC
                                                    Up to 96GB UDIMM ECC                                                               Up to 96GB UDIMM ECC
                                                         1600/1333MHz                                                                       1600/1333MHz

                          Chipset                          Intel C602                                         Chipset                          Intel C602
                          Network                  2 x GbE LAN (Intel 82574L)                                 Network                 2 x GbE LAN (Intel 82574L)
                                                     1 x Management LAN                                                                 1 x Management LAN

                          HDD Type                            3.5”                                            HDD Type                            2.5”
                          HDD Bays                             12                                             HDD Bays                             24
                          SATA Supported          SATA III 6Gb/s, SATA II 3Gb/s                               SATA Supported         SATA III 6Gb/s, SATA II 3Gb/s
                          SATA RAID                  Intel SW RAID 0/1/10/5                                   SATA RAID                 Intel SW RAID 0/1/10/5
                          SAS Supported              SAS 6Gb/s, SAS 3Gb/s                                     SAS Supported             SAS 6Gb/s, SAS 3Gb/s

   GS-R22PXL Top View     SAS RAID               LSI SAS2008 IR RAID 0/1/1E/10         GS-R22PFL Top View     SAS RAID               LSI SAS2008 IR RAID 0/1/1E/10
                          Expansion             2 x Low profile PCIe x16 (3.0 x8)                             Expansion             2 x Low profile PCIe x16 (3.0 x8)
                                                 1 x Low profile PCIe x8 (3.0 x4)                                                   1 x Low profile PCIe x8 (3.0 x4)
                                                 1 x Low profile PCIe x8 (2.0 x4)                                                   1 x Low profile PCIe x8 (2.0 x4)
                                                 1 x Low profile PCIe x4 (2.0 x1)                                                   1 x Low profile PCIe x4 (2.0 x1)
   GS-R22PXL Front View                                                                GS-R22PFL Front View
                          Monitoring                      ASPEED 2300                                         Monitoring                     ASPEED 2300
                                                         IPMI 2.0, iKVM                                                                      IPMI 2.0, iKVM
    GS-R22PXL Rear View   Optical Drive                         -                                             Optical Drive                         -
                          Interface                   4 x USB 2.0, 3 x RJ45                                   Interface                        4 x USB 2.0
   GS-R22PXL Rear View                                 1 x VGA, 1 x COM                GS-R22PFL Rear View                                1 x VGA, 1 x COM

                          System Fans                     4 x 80.38 mm                                                                          3 x RJ45

                          Power                 1 x 700W fixed PSU 100~220V AC                                System Fans                    4 x 80.38 mm

                                                (2 x 750W 1+1 PSU 80 PLUS Gold                                Power                       1 x 750W fixed PSU
                                                           in option)                                                                        100~220V AC

                          Green Certification        80 PLUS Bronze, RoHS                                     Green Certification         80 PLUS Gold, RoHS

                                                                                                                                                                   15
GS-R22PXP                                                                            GS-R22PE/GS-R22PE1
                          Chassis Type                         2U                                             Chassis Type                          2U
                          Dimensions             430 x 712 x 86.5 mm (WxDxH)                                  Dimensions             430 x 710 x 86.5 mm (WxDxH)
                          CPU                          Intel Xeon E5-2600                                     CPU                          Intel Xeon E5-2600
                                                           LGA 2011                                                                             LGA 2011

                          Memory                     16 x DDR3 DIMM slots                                     Memory                     24 x DDR3 DIMM slots
                                                   Up to 512GB RDIMM ECC                                                               Up to 768GB RDIMM ECC
                                                   Up to 128GB UDIMM ECC                                                               Up to 192GB UDIMM ECC
                                                         1600/1333MHz                                                                     1600/1333/1066MHz

                          Chipset                          Intel C602                                         Chipset                          Intel C602
                          Network                   2 x GbE LAN (Intel i350)                                  Network                   2 x GbE LAN (Intel i350)
                                                     1 x Management LAN                                                              2 x 10GbE BASE-T (Intel X540)

                          HDD Type                            3.5”                                                                       1 x Management LAN

                          HDD Bays                             12                                             HDD Type                          3.5”, 2.5”

                          SATA Supported          SATA III 6Gb/s, SATA II 3Gb/s                               HDD Bays                      12 x 3.5”, 4 x 2.5”

                          SATA RAID                  Intel SW RAID 0/1/10/5                                   SATA Supported          SATA III 6Gb/s, SATA II 3Gb/s

                          SAS Supported              SAS 6Gb/s, SAS 3Gb/s                                     SATA RAID                  Intel SW RAID 0/1/10/5

                          SAS RAID               LSI SAS2008 IR RAID 0/1/1E/10                                SAS Supported              SAS 6Gb/s, SAS 3Gb/s
   GS-R22PXP Top View                                                                   GS-R22PE Top View
                          Expansion             1 x Low profile PCIe x16 (3.0 x16)                            SAS RAID               LSI SAS2008 IR RAID 0/1/1E/10

                                                1 x Low profile PCIe x16 (3.0 x8)                             Expansion             1 x Low profile PCIe x16 (3.0 x16)
                                                 2 x Low profile PCIe x8 (3.0 x4)                                                   1 x Low profile PCIe x16 (3.0 x8)
                                                 1 x Low profile PCIe x4 (2.0 x1)                             Monitoring                      ASPEED 2300
   GS-R22PXP Front View                                                                 GS-R22PE Front View
                          Monitoring                      ASPEED 2300                                                                        IPMI 2.0, iKVM
                                                         IPMI 2.0, iKVM                                       Optical Drive                          -
                          Optical Drive                         -                                             Interface                        2 x USB 2.0
                          Interface                   4 x USB 2.0, 3 x RJ45                                                                1 x VGA, 1 x COM
   GS-R22PXP Rear View                                 1 x VGA, 1 x COM                 GS-R22PE Rear View                                       5 x RJ45

                          System Fans                     4 x 80.38 mm                                        System Fans                     4 x 80.38 mm

                          Power                 2 x 750W 1+1 PSU 100~220V AC                                  Power                  2 x 650W 1+1 PSU (GS-R22PE)

                                                  (1 x 700W fixed PSU 80 PLUS                                                        2 x 750W 1+1 PSU (GS-R22PE1)

                                                         Gold in option)                                      Green Certification     80 PLUS Platinum (GS-R22PE)
                          Green Certification         80 PLUS Gold, RoHS                                                               80 PLUS Gold (GS-R22PE1)

                                                                                                                                                                   16
2U-4 NODES HIGH DENSITY RACK SERVERS
PRESENTATION                                                      CHASSIS
GIGABYTE introduces its most advanced hardware specially                                      REAR ACCESS                                   FRONT ACCESS
designed for datacenter usage, with three models of multi-                          440 mm                                                                                 Front
                                                                                                                                                                          access
nodes chassis. These 2U racks regroup all the critical features
                                                                                                                                                                          blade
required to answer today’s most challenging needs of                                                                     12 x 3.5”           16 x 2.5”
                                                                                                                   Hot-swappable HDD   Hot-swappable HDD
datacenter builders:
                                                                                                          1+1 1400 PSU                      1+1 1400 PSU
SPACE        Each chassis can receive four motherboards

             (computing nodes), when traditional 2U racks         735 mm
             have only one. The computing density is multi-

             plied by 4, which means the space utilization is

             improved by 3.

POWER        Within a chassis, the power supplies and cooling

             functions are removed from each board to be
                                                                  MOTHERBOARDS
             shared and managed at the rack level. This
                                                                  Model                      GA-7PTSV                                                  GA-6UTSL
             implies less components obstruction, enhanced
                                                                  Form Factor                Proprietary                                               Proprietary
             thermal performance, and reduced power
                                                                  CPU                  2 x Sockets LGA 1356                                       1 x Socket LGA 1155
             consumption.                                                       Intel Xeon processor E5-2400 family                      Intel Xeon processor E3-1200 V2 family

                                                                  Chipset                    Intel C602                                                Intel C202
FLEXIBILITY With   front or rear access to the computing
                                                                  Memory               12 x DDR3 DIMM slots                                       4 x DDR3 DIMM slots
             nodes, the racks can fit in most of existing
                                                                                     Up to 384GB RDIMM ECC                                      Up to 32GB UDIMM ECC
             datacenter infrastructure. Also, they perfectly
                                                                                     Up to 96GB UDIMM ECC                                         1600/1333/1066MHz
             match hot aisle/cold aisle designs.
                                                                                       1600/1333/1066MHz

COST         Being able to fit 4 motherboards within 1 chassis    Network       2 x GbE LAN (Broadcom BCM5720)                                2 x GbE LAN (Intel 82576EB)

             instead of 4, you save on the chassis cost.          SATA          2 x SATA III 6Gb/s, 4 x SATA II 3Gb/s                               6 x SATA II 3Gb/s
                                                                  Expansion       1 x Mezzanine I/F PCIe (3.0 x8)                           1 x Low profile PCIe x16 (3.0 x16)
MODELS                                                                            1 x Low profile PCIe x8 (3.0 x8)

             Front Access Chassis      Rear Access Chassis        Management               ASPEED 2300                                                ASPEED 2150
GA-6UTSL         Coming soon                GS-R21UDV             Interface             2 x USB 2.0, 3 x RJ45                                     2 x USB 2.0, 3 x RJ45
GA-7PTSV           GS-R22PDC                 GS-R22PD                                   1 x VGA, 1 x COM                                           1 x VGA, 1 x COM

                                                                                                                                                                                 17
EXPANSION CARDS
GC-MSLZ1 SAS Card                                         GC-MLBZ1 10GbE Card                                             GC-MLBZ2 10GbE Card
Processor                    LSI SAS2208                  Processor               Broadcom BCM57811S                      Processor               Broadcom BCM57810
Connector             Mezzanine I/F connector             Connector                  1 x PCIe x8 (2.0 x8)                 Connector                 1 x PCIe x8 (2.0 x8)
RAID           Hardware RAID 0/1/10/5/50/6/60/JBOD        Network                     10GbE SFP+ LAN                      Network                    10GbE SFP+ LAN
Interface                    2 x Mini-SAS                 Interface                   Single SFP+ port                    Interface                  Dual SFP+ ports
               Supporting up to 8 x SAS or SATA devices   Dimension          Low profile standard form factor             Dimension         Low profile standard form factor
SAS Support                  SAS II 6Gb/s                 Others                Single root I/O virtualization            Others               Single root I/O virtualization
                             SAS 3Gb/s                                               MSI/MSI-X support                                              MSI/MSI-X support

SATA Support                SATA III 6Gb/s                                  Microsoft TCP chimney compliant                                Microsoft TCP chimney compliant

                            SATA II 3Gb/s                                 Full FASTPATH TCP offload (IPv4 & IPv6)                        Full FASTPATH TCP offload (IPv4 & IPv6)
                                                                       Offloaded full HBA functionality iSCSI initiator               Offloaded full HBA functionality iSCSI initiator
Dimension                130 x 81 mm (D x W)
                                                                         iSCSI boot and iSCSI crash dump support                        iSCSI boot and iSCSI crash dump support
Others              Backup Battery Unit interface
                                                                          Receiver and transmitter CRC offload                           Receiver and transmitter CRC offload
                                                                       Offloaded full HBA functionality FCoE initiator                Offloaded full HBA functionality FCoE initiator
                                                                           Hardware-based data placement in                               Hardware-based data placement in
                                                                       application buffers without CPU intervention                   application buffers without CPU intervention
                                                                          Network Controller Sideband Interface                          Network Controller Sideband Interface
                                                                                   PXE v2.1 remote boot                                           PXE v2.1 remote boot
                                                                                   Wake-on-LAN (WOL)                                              Wake-on-LAN (WOL)
                                                                         Statistics gathering (SNMP MIB II, Ethernet                    Statistics gathering (SNMP MIB II, Ethernet
                                                                               MIB) (IEEE 802.2x, Clause 30)                                  MIB) (IEEE 802.2x, Clause 30)

                                                                      COMING SOON

                                                                                                                                                                                   18
SERVER RACKS SUMMARY
SEGMENT          ENTRY LEVEL 1U                                                        MIDDLE RANGE 1U                                                                          HIGH END 1U
Model              GS-R11U4S                    GS-R12P4S                   GS-R12P4E                   GS-R12P8E              GS-R12PH/GS-R12PH1                GS-R12P4P              GS-R12PE/GS-R12PE1
CPU           Intel Xeon E3-1200 V2         Intel Xeon E5-2400          Intel Xeon E5-2400          Intel Xeon E5-2400           Intel Xeon E5-2400          Intel Xeon E5-2600          Intel Xeon E5-2600
Chipset                C202                     Intel C602                   Intel C602                  Intel C602                  Intel C602                  Intel C602                    Intel C602
Memory          4 x DDR3 UDIMM           8 x DDR3 UDIMM/RDIMM 12 x DDR3 UDIMM/RDIMM 12 x DDR3 UDIMM/RDIMM 12 x DDR3 UDIMM/RDIMM 16 x DDR3 UDIMM/RDIMM 24 x DDR3 UDIMM/RDIMM
Network            2 x GbE LAN                 2 x GbE LAN                  2 x GbE LAN                 2 x GbE LAN                 2 x GbE LAN                 2 x GbE LAN           2 x GbE + 2 x 10GbE LAN
HDD Bays         4 x 3.5” (Fixed)        4 x 3.5” (Hot-swappable) 4 x 3.5” (Hot-swappable) 8 x 2.5” (Hot-swappable) 4 x 3.5” (Hot-swappable) 4 x 3.5” (Hot-swappable) 4 x 3.5” (Hot-swappable)

Expansion    1 x PCIe x16 (3.0 x8 bus)   1 x PCIe x16 (3.0 x16 bus)   1 x PCIe x16 (3.0 x8 bus)   1 x PCIe x16 (3.0 x8 bus)    3 x Low profile PCIe x8     1 x Low profile PCIe x16    1 x Low profile PCIe x16
                   supporting                   supporting                  supporting                  supporting                   (3.0 x8 bus)               (3.0 x16 bus)                 (3.0 x16 bus)
             1 x Full profile PCIe x16    1 x Full profile PCIe x16   1 x Low profile PCIe x16    1 x Low profile PCIe x16
                                                                      1 x Low profile PCIe x8     1 x Low profile PCIe x8
Power          1 x 350W fixed PSU           1 x 500W fixed PSU          1 x 500W fixed PSU          1 x 500W fixed PSU        2 x 650W 1+1 (GS-R12PH)        1 x 600W fixed PSU           2 x 650W 1+1 PSU
                  100~220V AC                 100~220V AC                  100~220V AC                 100~220V AC                 1 x 600W fixed           (2 x 650W 1+1 PSU in        380V DC (GS-R12PE)
                                                                                                                                    (GS-R12PH1)                    option)            100~220V AC (GS-R12PE1)

SEGMENT                                     MIDDLE RANGE 2U                                                           HIGH END 2U                                     HIGH DENSITY 2U - 4 NODES
Model         GS-R22PH/GS-R22PH1                GS-R22PXL                    GS-R22PFL                  GS-R22PXP               GS-R22PE/GS/R22PE1               GS-R21UDV             GS-R22PD/GS-R22PDC
CPU            Intel Xeon E5-2400           Intel Xeon E5-2400          Intel Xeon E5-2400          Intel Xeon E5-2600           Intel Xeon E5-2600         Intel Xeon E3-1200 V2        Intel Xeon E5-2400
Chipset             Intel C602                  Intel C602                   Intel C602                  Intel C602                  Intel C602                  Intel C202                    Intel C602
Memory      12 x DDR3 UDIMM/RDIMM 12 x DDR3 UDIMM/RDIMM 12 x DDR3 UDIMM/RDIMM 16 x DDR3 UDIMM/RDIMM 24 x DDR3 UDIMM/RDIMM                                    16 x DDR3 UDIMM          48 x DDR3 UDIMM/RDIMM
Network            2 x GbE LAN                 2 x GbE LAN                  2 x GbE LAN                 2 x GbE LAN           2 x GbE + 2 x 10GbE LAN           8 x GbE LAN                   8 x GbE LAN
HDD Bays    12 x 3.5” (Hot-swappable) 12 x 3.5” (Hot-swappable) 24 x 2.5” (Hot-swappable) 12 x 3.5” (Hot-swappable) 12 x 3.5” (Hot-swappable)                    12 x 3.5” or                 12 x 3.5” or
                 4 x 2.5” (Fixed)                                                                                                  4 x 2.5” (Fixed)       16 x 2.5” (Hot-swappable) 16 x 2.5” (Hot-swappable)

Expansion     2 x Full profile PCIe x8    2 x LP PCIe x16 (3.0 x8)    2 x LP PCIe x16 (3.0 x8)    1 x LP PCIe x16 (3.0 x16)    1 x Low profile PCIe x16    4 x Low profile PCIe x16    4 x Mezzanine I/F PCIe
                   (3.0 x8 bus)           1 x LP PCIe x8 (3.0 x4)      1 x LP PCIe x8 (3.0 x4)    1 x LP PCIe x16 (3.0 x8)          (3.0 x16 bus)               (3.0 x16 bus)                 (3.0 x8 bus)
             3 x Low profile PCIe x8      1 x LP PCIe x8 (2.0 x4)      1 x LP PCIe x8 (2.0 x4)     2 x LP PCIe x8 (3.0 x4)     1 x Low profile PCIe x8                                 4 x Low profile PCIe x8
                   (3.0 x8 bus)           1 x LP PCIe x4 (2.0 x1)      1 x LP PCIe x4 (2.0 x1)     1 x LP PCIe x4 (2.0 x1)           (3.0 x8 bus)                                             (3.0 x8 bus)
Power       2 x 650W 1+1 (GS-R22PH)         1 x 700W fixed PSU          1 x 750W fixed PSU           2 x 750W 1+1 PSU         2 x 650W 1+1 (GS-R22PE)        2 x 1400W 1+1 PSU           2 x 1400W 1+1 PSU
            2 x 750W 1+1 (GS-R22PH1)       (2 x 750W 1+1 PSU in            100~220V AC             (1 x 700W fixed PSU in     2 x 750W 1+1 (GS-R22PE1)
                                                  option)                                                 option)

                                                                                                                                                                                                              19
b2b.gigabyte.com

                                                              Rack Server                           Server Motherboard                               NAS                  All-in-One PC                      Notebook/Netbook                                 Tablet                    IPTV

GIGABYTE TECHNOLOGY CO LTD.

About NCBU
GIGABYTE’s Networking and Communications Business Unit provides customized hardware solutions that are tailored to our OEM client’s needs. Over the past few years, our products have been launched to serve a diverse line of integrated communication devices:
server motherboards, barebone servers, network storage, AIO PCs, Notebooks, Netbooks, Tablet PCs, IP Set-top-box, and much more.
Leveraging GIGABYTE’s efficient and reliable PCB design and layout, matched with the highest quality components and manufacturing expertise brings the highest return on investment to our customers, and in turn, to their customers. We are committed to develop
customized integrated solutions for any imaginable application. By listening to each unique request with a keen focus on today’s core technologies, our service brings premium results for all of our partners.

* GIGABYTE, the GIGABYTE logo are trademarks of GIGABYTE Inc. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. GIGABYTE disclaims proprietary interest in the marks and names of others.
* Copyright 2007 GIGABYTE Inc. All rights reserved. Reproduction in any manner whatsoever without the express written permission of GIGABYTE Inc. is strictly forbidden.
* For more information contact GIGABYTE. GIGABYTE can not be responsible for errors in typography or photography
* Specifications and pictures are subject to change without notice
* GIGABYTE server recommend Intel® Xeon® processor
* Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.
You can also read
Next slide ... Cancel
