SYSTEM 50 Trade fair construction | Promotion | Shopfitting | Exhibitions | Events
2
3
QUICK.
From planning to the ordering process
and through to assembly and disassembly,
CORNECT® Exhibition is quick and
user-friendly.
SIMPLE.
Our products will captivate you with their
simple planning and assembly. What’s more,
they can be expanded in a flexible manner.
UNIQUE.
With innovative product solutions and tailor-
THE made offers, the presentation systems create
one-of-a-kind places to experience.
PRINCIPLES
OF CORNECT ®
4
5
1 LET’S
CORNECT.
2 IT’S
CORNECTED.
THINKING EXCELLENT CONNECTION
TECHNOLOGY.
AHEAD OF With the CORNECT® Exhibition SYSTEM50, the entire system. With the Easy CORNECT®
THE CURVE.
you can not only connect profiles together Plus technology, profiles, frames and more can
with clamping systems, all without tools. We be quickly connected together, and are high-
have applied this wonderful principle across strength and releasable.
6
7
SYSTEM
COMPONENTS.
SIMPLY A PERFECT COMBINATION.
High-quality materials, impeccable finishing and perfect
functionality are the basis for our profile system, both
slim and highly stable. Dozens of innovations and detai-
led, flexible solutions open up a world of possibilities
for design.
The corner connectors with their clamping systems
form the patented core of the system. Yet the
SYSTEM50 also offers an interesting alternative with
the integrated screw connection, particularly if frames
are only very occasionally disassembled.
With these corner connectors and profiles, you can
easily construct ready-made frames or order them
pre-assembled ex works.
For solutions concerning corners, there are different
connection profiles available, from the simple 90 degree
connection to multiple outlets and flexible corners.
Frame-to-frame connectors with
There are so many possibilities that will perfectly
thumb screws for fixing or with
meet your individual requirements. Our system clamping system.
is adaptable and always focuses on an easy and
uncomplicated setup.
8
9
rectangular frames
245 x 2450 490 x 2450 980 x 2450 1470 x 2450 1960 x 2450 2450 x 2450
FLEXIBILITY
245 x 1960 490 x 1960 980 x 1960 1470 x 1960 1960 x 1960
245 x 1470 490 x 1470 980 x 1470 1470 x 1470
245 x 980 490 x 980 980 x 980
WITHOUT LIMITS.
245 x 490 490 x 490
245 x 245
SYSTEM50’S RANGE OF SIZES. curved frames
490 x 2450 980 x 2450 685 x 2450
for double walls
490 x 1960 980 x 1960 685 x 1960
special sizes
26 rectangular and 10 curved frames – all fit perfectly together. Minimal installation effort is required, yet there 490 x 1470 980 x 1470 685 x 1470
are maximum possibilities for implementation. Thanks to an extensive range of sizes, your project can be planned 490 x 980 980 x 980 685 x 980
and constructed in a flexible manner in accordance with your requirements. 490 x 490 980 x 490 685 x 490
width x height in mm
10
11
THE FRA
M
IN DETA E
IL .
Cable bushing Connection component for double wall Floor fixing for screwing
Universal drill hole
Each profile is fitted with two universal drill holes that can be used in a ver-
satile manner, whether as a holder for a floor fixing, as a cable bushing or as a
separator in double-walled constructions. With the floor fixing, the frames can
be easily screwed to the ground. Simply insert the optional component into the
hole, then screw it securely.
A NEW TYPE OF VERSATILITY.
TIP: You don’t always need complete frames. Thanks to the clever
connection technology, you can create a new frame size with
two additional profiles quickly and in an uncomplicated manner. Frame-to-frame-connection
This saves both materials and money, and greatly increases the A wonderful principle consistently applied – the CORNECT® band is built
system’s cost effectiveness. around the idea of connecting profiles in a simple, uncomplicated manner
with clamping systems. It should therefore come as no surprise that we use
this principle for frame-to-frame-connections. The inserts for guiding the
connectors are already integrated in the profile, so they can only be inserted
and fixed in the right direction.
12
13
SYSTEM50 AT A GLANCE.
Connection profile
4 outlets
INNOVATIVE PRODUCT SOLUTIONS.
Illuminated walls – can be combined with SYSTEM170 Adjustable connection profile
The complete range of sizes with SYSTEM50 and 170 allows both product Can’t accept any compromises and only think in 90-degree angles? If so,
lines to be combined. This means you have the flexibility to integrate perfect- this product is what you need. Frames can be connected with the adjusta-
ly illuminated frames into the construction. The profiles of the illuminated ble connection profile and their angles with one another can be adjusted in
Connection profile
frames are furnished with two grooves, meaning they can be integrated in a an infinitely variable manner. This way, you can create varied and creative fabric corners
completely flush manner or protruding into the SYSTEM50. presentation spaces.
Connection profile
rounded
Flex connector T-components – enormous efficiency
Need to make later additions? Perhaps your trade fair stand needs expanding You can also construct large presentation walls with our T-components.
or a change has to be implemented on site at short notice. With the flex con- The advantage for you is that the walls can be put up even faster because
nector, you can implement changes at a later moment without disrupting the the frame-to-frame-connection is no longer necessary. Suitable for fabric Connection profile
adjustable
foundations of the stand. You can add an additional cabin or insert a dividing fillings.
wall to better structure the stand.
14
15
VERSATILITY
IS A CLINCHER.
Velcro
hook & loop
tape
1 PROFILE – 2 FILLINGS.
Panel-
filling, Fabric filling
3 mm with sewn-on
FABRIC: PANEL:
thick rubber lip
• High-quality fabric • High-quality Kömaprint panels 3 mm
• Different printing processes: • Different printing processes:
50 mm
– Sublimation printing – Direct printing
– UV printing – Foil printing
• Easy to attach due to fabric with rubber lip system – Protective lamination
• B1 certification (fire protection) • B1 certification (fire protection)
• Compact transport • Brilliant colour
It doesn’t matter whether it’s fabric or panel – with The flat and high-quality velcro will impress you
just one CORNECT® frame, you have a whole load of with its safe and easy fixing of the hard-foam panels.
possibilities, because requirements change. Got a new Fitted with a stable keder system, fabrics can be easily
idea or altered your concept? No problem! With the be clamped into the groove. It all makes for a modern,
SYSTEM50, you can not only edit the graphics but also flat appearance with the greatest possible flexibility
the filling material. during transport.
16
17
SYSTEM50 TRADE FAIR STAND.
CATCHING ATTENTION.
Advertising tower
This advertising tower stands out.
With its adjustable height, it can
be integrated into many trade fair
stands. It provides great long-
distance effects – company logos,
product images and advertising
slogans can be displayed in large
format. Door components can also
be integrated to provide additional
storage space. Can be combined
with fabric or panel.

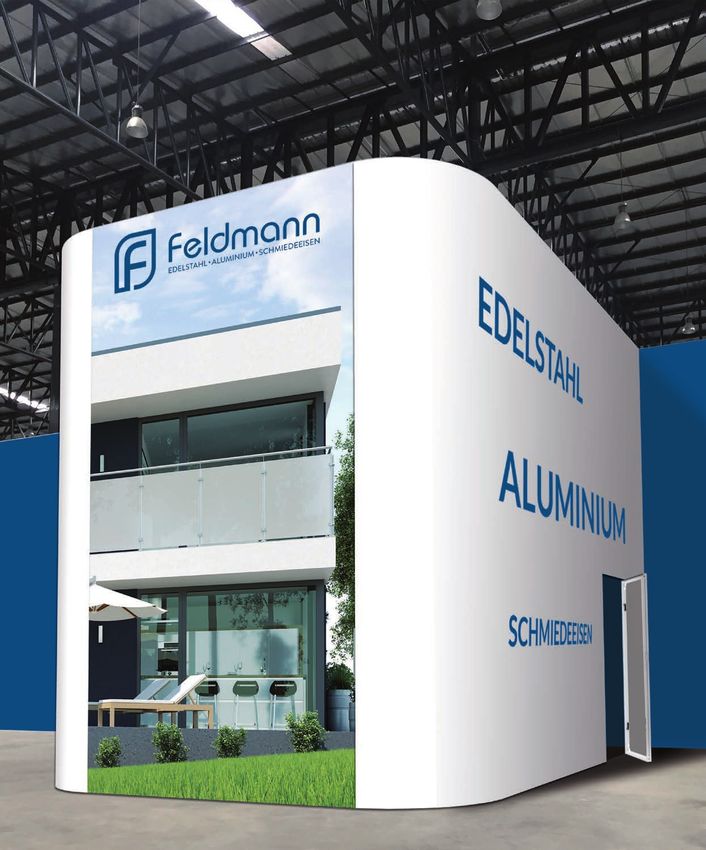

Roof components Curved profiles
Visual highlighting or separation of Curved exhibition buildings provide an exciting and dyna-
individual areas on a trade fair stand mic design. Thanks to the extensive range of sizes, curved
is easy to plan with the CORNECT® profiles can be perfectly integrated. Additionally, sharp
roof components. It is also particular- edges on the exhibition structures are avoided, which
ly easy to implement using the 4-way among other things is important from a safety viewpoint.
connection profiles.
18
19
TRADE FAIR STANDS
Finished frames in different dimensions form the basis for SYSTEM50. Thanks to the innovative connectors and
connection profiles, they can be combined to produce creative spaces on the trade fair floor. With cabins and diffe-
rent additional components like built-in shelving, the trade fair walls can be further individualised. Combined with
large-format textile printing boasting brilliant colour quality, the result will be attention-grabbing experiences at
your trade fair stand.
POSSIBILITIES20
21
Large ceiling components
(inner and outer fillings possible)
Counter ONE
CEILING
With the SYSTEM50, you can create attention-grabbing
long-distance effects. This way, large-format advertising
COMPONENTS.
spaces rise above the heads of trade fair visitors – perfectly
visible, even from a great distance.
Large ceiling
components
Counter ONE XL
COUNTER.
The SYSTEM50 counters are quick and easy to build. Either fabric or panels can be attached
across three sides. Further options like printing, additional shelving or cable bushing make
these trade fair counters flexible all-rounders.22
23
With SYSTEM50, there are no problems.
Construct YOUR display.
DISPLAYS AND
PRESENTATION WALLS.
Whether as a presentation component at a trade fair, at a POS, or for a temporary event.
Displays – constructed with SYSTEM50 – are high-quality in appearance and flexible in application.24
25
ACCESSORIES
CORNECTED.
A stand at a trade fair should be interactive and invigo- Brochure holders in a variety of sizes; product carriers;
rating. Even if the stand construction and design are ap- wall mounting sets for monitors; LED display lights; door
pealing, the visitor should not just look at it. Rather, they components – the range of accessories includes every-
should be interested in getting information and spending thing, all perfectly coordinated.
time at the stand. Consequently, the SYSTEM50 can be
flexibly expanded.
ADDITIONAL
COMPONENTS.
DOOR COMPONENTS.
The door component fits perfectly with the range of sizes in
SYSTEM50. Depending on the size of the construction, you can
Enhance the versatility of your trade fair walls! Simply attach the accessory base component between two profiles choose between two door heights – 1960 mm and 2450 mm.
without tools, and then attach the desired additional components using magnets (for fabric) or screwed profiles Solutions for DIN left and DIN right are available, depending on
(panel). This way, you can attach hooks, brochure holders, shelving and monitor brackets to the CORNECT® trade fair whether it opens inward or outward. A locking cylinder and two
wall at your desired height. keys are included in the delivery.26
27

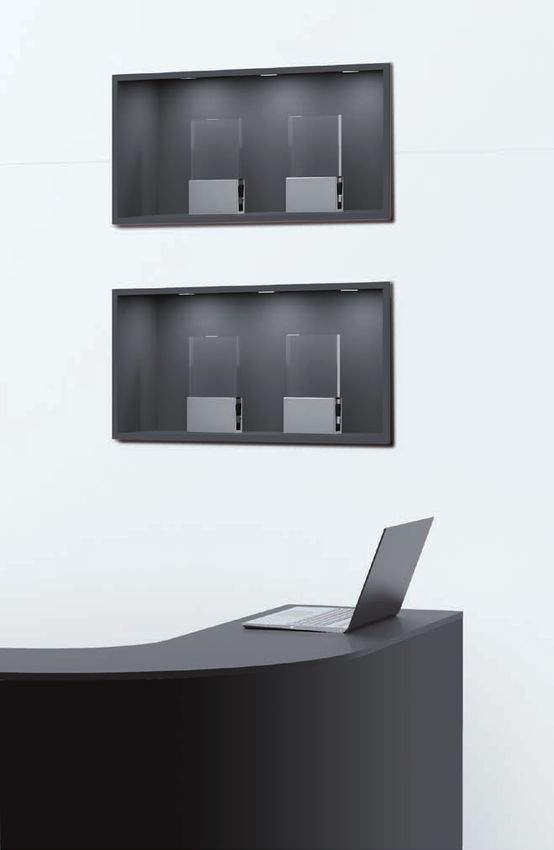

BUILT-IN SHELVING.
Looking for a trade fair wall that not
only communicates your printed ad-
vertising message, but also presents
your products? If so, our built-in
shelves are what you need. Easy to
assemble, nice to look at and versati-
le in application, the component can
be attached to the system frames in
various positions.
LED LIGHTING.
Discover a new generation of lamps for the perfect illumination of your presentation walls or trade fair stands.
With the power of 35 watts per component, very powerful LED lamps are available. Other functions are also impressive.
This way, the components can be attached to the SYSTEM50 frames, be connected in series, and be operated without
an external power supply.28
29
TRANSPORT- THOUGHT THROUGH
THE FLEX
TRANSPORT
SOLUTIONS. TO THE FINEST DETAIL. SOLUTIONS.
SYSTEM50 is a holistic product with innovative solutions
for each product line component. Packaging and trans-
port are also elementary components of the concept, be-
cause after production and before use, the modules must
be transported in a safe, space-saving and cost-effective
1 2 3 4 manner to their place of use.
1. Locking bars with foam secure the panel material in the transport carriage; 2. Castors with locking brakes; 3. Box with foam covering for
aluminium profiles and corner connectors; 4. Stable handles for pushing or holding the box
Transport cradle FLEX
Transport box frames
PREMIUM
Transport bag FLEX
Transport box profiles
PREMIUM
Transport trolley panels
PREMIUM
Plastic box FLEX30
31
THE
CORNECT
®
MADE IN GERMANY.
MODULAR
Speed in production and flexibility in how your requirements are realised are
realised through our own manufacturing process, all “Made in Germany”. This
promise is based on many years of experience in metal processing, the latest
PRINCIPLE.
machine technology and complete quality control. We produce all product
components with flawless finishes, and we place emphasis for highest precision.
This means all components fit together perfectly.
FROM PLANNING TO
DELIVERY.
You decide which services you want to make use of with CORNECT® Exhibition.
We can offer you the complete spectrum from personalised product planning,
production of the frame system to processing and printing of the fillings, as well as
tailor-made transport solutions. Anything is possible, and all from a single source.
Anything is possible, and all from a single source.
PLANNING. PROFILE FRAMES. WALL FILLINGS.
We can plan your com- We can produce your Whether fabric or
plete package, personal- profiles to a perfect panel, we are perfectly
ised to your needs. standard. able to customise your
wall filling.
DESIGN. PRINTING. TRANSPORT SOLUTIONS.
If requested, we can We print our products Our packaging guarantees
undertake the design of with your promotional secure shipping.
your wall fillings. logos and slogans on them.which can be viewed at www.cornect-exhibition.com. All prices listed in € plus VAT, packaging and transport costs.
Subject to technical changes, printing errors and price deviations. Exclusively our AGB apply,
A business unit of
Feldmann Metall & Schmiedekunst GmbH
Company Management / Product Management: Mühlsteig 25
Sales / Production / Showroom: Mühlsteig 35 a
90579 Langenzenn, Germany
T +49 9101-4977-700, F +49 9101-4977-710
info@cornect-exhibition.com
www.cornect-exhibition.comYou can also read
