Technical Brief August 2020 A Revolutionary Approach to Distributed Valve Manifold Control How the AVENTICS™ 580 CHARM Node saves substantial time and cost when integrating pneumatic valve manifolds into a DeltaV™ distributed control system www.Emerson.com/AVENTICS
Technical Brief A Revolutionary Approach to
August 2020
Distributed Valve Manifold Control
Introduction Problems with traditional
Traditionally, the chores of I/O mapping and wired marshalling
configuring bus networks to valve manifolds in In the time-honored way of wiring I/O to a distributed
a distributed control system (DCS) have made control system, technicians wire field devices
commissioning time-consuming, expensive,and to terminal blocks in marshalling panels located
confusing. Also, users report increasing shortages of within an I/O room. Wires come in from the field
the skilled workers needed for all the myriad tasks of through multi-core cables, and are connected to
system implementation. their appropriate I/O cards in controller cabinets.
In recent years, significant steps toward Wiring is cross-marshalled, so that each device gets
simplification have become imperative connected to its appropriate I/O card and channel.
Fortunately, Emerson’s 2009 introduction of Unfortunately, the process is often frustrating for
Electronic Marshalling technology for DeltaV all concerned: from technicians and integrators to
revolutionized many aspects of plant control, and control engineers and project managers. Problems
not coincidentally of system implementation. It gave can occur at almost every step.
DeltaV users previously unprecedented flexibility, For instance, during cross-marshalling, it becomes
with the option to add I/O anywhere in the plant at harder and harder to keep track of where each and
any stage of the project. every wire comes from, and where it should go to.
Now an exciting new technology from Emerson Human errors abound. Wires are connected to the
extends Electronic Marshalling, and for the first wrong place. Wires are even left out altogether.
time allows integrated control of pneumatic valve And even when cross-marshalling is “all done” — it’s
manifolds on one network. The AVENTICS 580 actually not.
CHARM node, attached to an AVENTICS Series 500 Almost invariably, every project is subjected to
valve manifold, can interface directly with the DeltaV cascades of late I/O changes. These include rework
CHARacterization Module (CHARM) I/O card on drawings, control system partitioning, moving
from Emerson. wires, building new cabinets, and many other
The 580 CHARM node represents a revolutionary detailed tasks. Every change adds cost, time, and
approach to distributed valve manifold control. It most importantly risk to the job.
can benefit DeltaV S-series users in chemicals, Result: delays. And in the field, even a 1-day delay
pharmaceuticals, life sciences, petrochemicals, and can add millions to the costs of a critical
food and beverage manufacturing, as well as control automation project.
skid assemblers. The 580 CHARM coil capacity can
pilot up to 96 process valves. Advantages of Emerson’s Electronic Marshalling
This paper examines problems with traditional wiring and CHARM technology
approaches, and explains how this new technology An increasing percentage of operations have been
leverages the power of DeltaV and Electronic moving away from the outdated wired marshalling
Marshalling with integrated pilot valve control to save approaches mentioned above. That includes
substantial time and provides users with a lower businesses using DeltaV with Electronic Marshalling
total cost of ownership — while greatly simplifying for continuous or batch-oriented manufacturing
thecontrol of valve manifolds. processes with distributed I/O. It also includes
facilities that wish to implement modular plant
architecture (MPA) for I/O-anywhere distribution.
The newer approach of choice:
Electronic Marshalling.
www.Emerson.com/AVENTICSTechnical Brief A Revolutionary Approach to
August 2020
Distributed Valve Manifold Control
Electronic Marshalling is an innovative approach CHARM connection with valve manifolds
developed for the interconnection of field Adding CHARM functionality to the DeltaV DCS
measurement devices to the DeltaV distributed represents a giant step in efficient I/O component
control system. It’s part of Emerson’s Human implementation. However, problems remain with the
Centered Design initiative. connection of valve manifolds.
Electronic Marshalling focuses on the areas of Some users connect CHARMs with pneumatic
commissioning that many users find most complex, valves via hard wiring. But this is expensive, and
labor-intensive, and potentially disruptive. Simply configuration requires extra time and labor.
put, Electronic Marshalling eliminates all the design,
Other users improve on valve manifold hard-wiring
engineering, and work associated with cross-
by adding an additional fieldbus network. This yields
marshalling.Instead, each individual I/O channel can
some simplification of commissioning, and allows
be electronically marshalled to any controller in the
some added diagnostics.
system. So I/O can be bound to specific controllers
at any stage in the project without manually rewiring. However, this approach requires a second
communications card and adds complexity along
Electronic Marshalling’s revolutionary advantage:
with additional data mapping. Furthermore, an
it allows users to make late changes to I/O
additional network (usually PROFIBUS-DP,
types, or add new I/O — with no adjustments to
DeviceNet, or EtherNet/IP), requires additional
existing wiring or cabinets! You just add new I/O to
configuration and mapping of data. Lastly, under this
marshalling cabinets, and electronically marshall
approach, the amount of time required to modify a
them to the controllers that need that I/O.
system can increase exponentially with the system’s
This retains some advantages of bussed I/O complexity, and may not support communication and
networks (reduced wiring and footprint; more power redundancy.
diagnostics; device add/change flexibility). Most
Fortunately, a third approach is now available.
important, it greatly decreases system complexity
and system footprint. Advantages of AVENTICS 580 CHARM nodes
A critical component for this new way of doing things The latest and best way to integrate valve manifolds
is CHARM technology. A CHARM is a single-channel into a DeltaV system with Electronic Marshalling
component with an analog-to-digital (A/D) converter utilizes the new AVENTICS 580 CHARM node.
and signal characterizer. You simply click it onto Using Electronic Marshalling technology, the 580
the terminal block — now a smart terminal strip — CHARM node provides full integration of AVENTICS
where field wires are landed. It inserts anywhere Series 500 valves into the DeltaV system. It
onto the strip. No screwdrivers or other tools are significantly simplifies commissioning, and empowers
needed. the full, native diagnostic capabilities of DeltaV.
This simple but significant new technology brings The approach requires only one network connection
unprecedented flexibility to wiring work. It allows field to connect an Electronic Marshalling Cabinet, which
wiring of any signal type to be terminated anywhere. includes I/O and a pilot valve manifold, back to the
So using CHARM permits late characterization of DeltaV system. This single field connection carries
any type of I/O signal — analog input, analog output, control signals for both I/O and the solenoid pilot
digital input, digital output, or RTD and thermocouple valve manifold. The pilot valve manifold is connected
temperature sensors. For system planners, the to the CHARM baseplate via two redundant cables
ultimate charm of CHARM is simply this: flexibility to that carry the power and control signals. These
add any type of I/O, anywhere, anytime. connections provide the user with a direct interface
of the 580 CHARM node to the DeltaV Control
Network — as if the pilot valve manifold was
mounted directly on a CHARM baseplate — with no
need for CHARM digital output cards to drive each
valve coil on the pneumatic valve manifold.
www.Emerson.com/AVENTICSTechnical Brief A Revolutionary Approach to
August 2020
Distributed Valve Manifold Control
Results: significant reductions in network and Cost savings
programming interfaces, network gateways, wiring, The 580 CHARM node solution provides substantial
and junction boxes with increased reliability and savings in network cards, associated I/O, wiring, and
diagnostics. commissioning time. But its largest savings for many
All communication between electronically applications may come from eliminating the need for
marshalled components, including valve manifolds, two different networks. It’s no longer necessary to
and the DeltaV controller takes place on the DeltaV stuff and maintain two networks in each cabinet. For
Control Network. No dedicated secondary networks example, this new solution eliminates the need to
are necessary. With a 580 CHARM node, the use PROFIBUS-DP to control pilot valve manifolds.
valve manifold is electronically marshalled to any Instead, the job can be done more efficiently solely
controller in the system. Any I/O is available to any by the DeltaV Control Network via the CHARM I/O
controller via one network. Card, which reads the sensors on process valves.

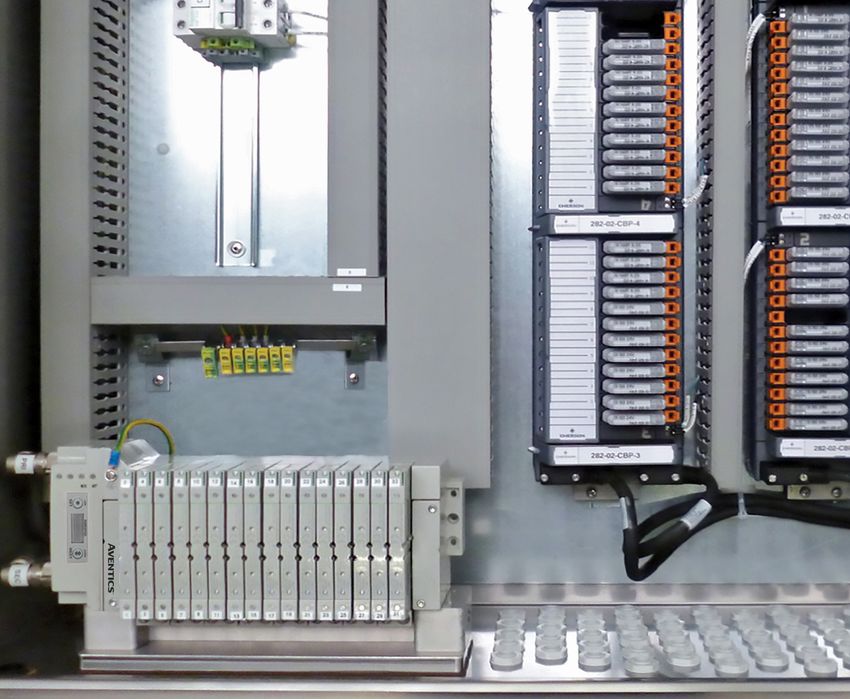

An electronically marshalled cabinet with these new Of course, integrating 580 CHARM nodes into a
CHARM nodes is 100% functionally equivalent to a DeltaV system using Electronic Marshalling is a new
traditional wired marshalled cabinet. But it involves way of doing things — but all the elements add up to
fewer wires, much less work, much more flexibility, make truly impressive reductions in cost and effort:
a lot fewer change order hassles, and better • Savings of up to 15% on wiring and
diagnostics.Users gain safe, reliable, and redundant components alone
control of pneumatic signals. And they can achieve
• Significant savings in costs for programming
process efficiency without painful delays in
and commissioning
response times.
• Substantial savings in eliminating or mitigating
The 580 CHARM node only connects to AVENTICS
any need for a secondary industrial control
Series 500 valves. This family of high performance,
network (e.g., PROFIBUS-DP) and all its
“plug-in” directional control valves offers a host of
associated hardware
advantages: higher flow rates; the broadest range
of components and accessories in its class; and • 580 CHARM coil capacity can pilot up to 96
exceptional ease of installation, configuration, process valves
and modification. Ease of use
Applying the 580 CHARM node approach provides Integrating 580 CHARM nodes into Electronic
users with a complete, integrated Emerson I/O Marshalling technology is easy. Solenoid valve
and pneumatic valve manifold solution for DeltaV outputs are treated like any other electronic outputs
installations.Interoperability is guaranteed via proven by the DeltaV system. There’s no need for individual
Emerson technology. Discrete Output (DO) CHARMs to drive each
This solution offers tight integration to existing solenoid valve.
Emerson hardware, software, native diagnostics, This approach takes advantage of the native
and redundancy. It eliminates added configuration capabilities of the DeltaV DCS. Greatly enhanced,
tools, or the necessity for becoming familiar with higher-level diagnostics are provisioned from the
multiple networks. It gives the user a single point DeltaV system to any authorized workstation —
of responsibility for products, documentation, using existing applications, in the same manner as
and support. And it imposes no learning curve on other DeltaVconnected devices.
existing CHARM programmers or users. So using 580 CHARM nodes provides several
critical capabilities: It makes it easy to respond to
late change orders around I/O requirements (that
might otherwise add cost and risk). It supplies
increased ease of commissioning. And it furnishes
native diagnosticreporting and redundant power and
communications to the pilot valve manifold.
www.Emerson.com/AVENTICSTechnical Brief A Revolutionary Approach to
August 2020
Distributed Valve Manifold Control
Finally, this proven, efficient Emerson solution offers This simplifies implementation of systems with
maximum implementation flexibility. Not only can integrated valve manifolds, greatly reduces
you add any type of I/O, anywhere, at any time, but complexity, and eliminates learning curves for
you can now add any AVENTICS Series 500 valve DeltaV users. It cuts project risk, and avoids
manifold with that same freedom. potentially serious delays. Finally, it means
Additional advantages substantial cost and time savings in wiring and
components; added savings in programming and
• Local field solution for modular skid applications
commissioning; and even more savings from
— since field junction boxes provide analog and
eliminating secondary networks.
digital inputs wired to DeltaV CHARM; manifold
directly connected to CHARM baseplate to Takeaways
drive valve solenoid coils, replacing pilot valve • Conventional hard-wiring and dual-network
dedicated Discrete Output (DO) CHARM methodologies make for costly, complex, time-
• Easy-to-use, task-based engineering consuming control system implementation
environment familiar to DeltaV users — • Newer Emerson Electronic Marshalling
configures same as Discrete Output technology brings substantial simplification and
(DO) CHARM savings
• Connection of CIOC (CHARM I/O Card) • AVENTICS 580 CHARM nodes help extend
redundant communication and power these benefits to the valve manifold level, and
connections to valve manifolds via existing provide a host of advantages for current
CHARM column extender connections — adds DeltaV users
control and reliable communication functionality • They promise substantial rewards for
to valve manifolds; not available with any businesses that implement the winning
competitive approaches combination of Emerson’s DeltaV system with
Conclusion Electronic Marshalling, AVENTICS 580
Traditional hard-wiring approaches for I/O points CHARM nodes, and AVENTICS Series 500
in distributed control systems add considerable valve manifolds
time and costs. So the availability of Electronic
Marshalling and CHARM technologies has been an
important advantage of more recent DeltaV system
implementation.
Now the full benefits of Electronic Marshalling can
be even further improved and extended to the
pilot valve level with AVENTICS 580 CHARM
technology. Users receivefull native DeltaV system
diagnostics functionality; full redundancy; full
interoperability — and the flexibility to make late
changes anywhere, anytime.
Your local contact: Emerson.com/contactus
©2020 Emerson Electric Co. All rights reserved.You can also read
