AHPC 2020
Klosterneuburg 21-02-2020
sipearl.com
European-processor-initiative.eu
P. Notton, Bio : EPI G.M. / SiPearl CEO
• Academic
• Engineer, Supelec (FR) (1993, Major in Signal Processing)
• Executive MBA Essec (FR) & Mannheim (DE) (2008)
• Business https://www.linkedin.com/in/pnotton/
• 1994-2000: HW, SW, Design, Integration for Digital TV - Thomson, Canal+ - France, USA
• 2000-2005: Support, Marketing- LSI Logic, now Avago – Zarlink Semi., now Intel. France, UK
• 2006-2014: VP Marketing, Associate, SetTopBox and TV, Mstar Semi. (now Mediatek). UK, Taiwan. From Startup to IPO and
M&A with Mediatek of US$4B
• #1 WW on TV (>200Mu per year). #3 WW on STB. 1st Secure chips in Asia.
• 2014-2016: ST Micro, Group VP and GM Consumer Products Division (2400pers, WW P&L).
• STB (Audio/Video/CPU/GPU/Security/Heavy SW and ecosystem)
• Consumer Asics
• 150mm2 Docis3.1 (28FD) / 90mm2 UHD STB (28FD) / 40mm2 HD STB (28FD)
Directly involved or in charge of more than 1 Billion chips with an $4-$20 ASP
Left an Exec position in ST to drive the next big Adventure in Europe and lead the future European Intel
Semiconductor industry background
Market Size Around $400B and growing
Intel : $70B in sales
Selected Numbers TSMC (#1 foundry) : Market cap = US$B260

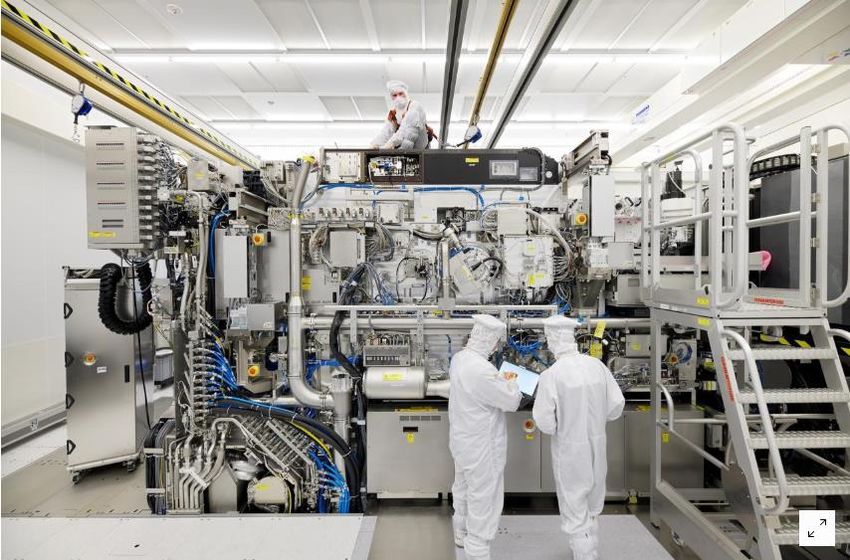

ASML (Tools for foundries) : Market cap = US$70B (google “Trump ASML Huawei”)
Copyright © SiPearl 2019 Event/Recipient/Place/Date
EPI UPDATE AHPC2020 PHILIPPE NOTTON / GM EPI – SIPEARL CEO
HPC for
But…
Source: https://ec.europa.eu/newsroom/dae/document.cfm?doc_id=54437
EUROPEAN PROCESSOR INITIATIVE
EC expectations from ICT-42
& EPI value proposal Technology
drive
EPI expected impacts
(as per EC request) High Performance Computing needs for Exascale
▶ Get a world class processor machines and beyond
for the Exascale machines
supplied by EuroHPC in
2023 Connected mobility, Advanced Driver
▶ Develop a sustainable Assistance Systems (ADAS) & Edge computing
needs beyond 2023
economic model
EPI is an H2020 program but with Servers, Cloud, Edge Low Power CPU needs
industrial mindset &
product delivery oriented
Business drive
THE EPI STORY, PART 1
THE EPI STORY, PART 2
THE EPI STORY, PART 3
THE EPI STORY, PART 4
SO NOW LET’S HAVE THIS EU SOLUTION READY !
WHAT IS BEHIND EPI AND WHERE ARE WE GOING ? Copyright © European Processor Initiative 2020. AHPC2020
27 EPI PARTNERS
SIPEARL = EPI FABLESS COMPANY
ONE OF THE LONG TERM VISION: FAR BEYOND HPC:
END2END SECURITY - FROM THE AUTOMOTIVE SYSTEM TO THE CLOUD
Secure channelWHAT ARE THE CHALLENGES ? (BEYOND THE INITIAL « MISSION IMPOSSIBLE » ITEMS) Copyright © European Processor Initiative 2020. AHPC2020
What is “really” good
Intel bought MobileEye for $15B (2017)
Semiconductor Companies value Intel bought Habana Labs for $2B (2019)
Nvidia bought Mellanox for $6.9B (2019)
Microprocessor is THE big cookie in terms of engineering
Very complex development
In Semiconductor engineering
Top Notch technology
… and Europe is out of it , for finished goods (at least up to now)
Part of our Key Words CyberSecurity, BigData, AI, Sovereignty, DeepLearning, Quantum, Adas, Edge
EU (>1B€) budget for EuroHPC
Our supporters
Actual geo-politics in favour of data protection and sovereignty
Copyright © SiPearl 2019 Event/Recipient/Place/DateWhat is “tough”
While Research has….
… tons of idea to rebuild the world
… working in a different time dimension
Combined “Research” and
Semiconductor industry is…
“Industrial project”
… over expensive and not doing anything for free
… not really “startup” centric in Europe
… seen as technology for “grand’pa” and dirty (i.e, let’s do SW and Web SW)
You burn cash for years
The fun of “deep-tech” like Product may work
semiconductor Product may have the expected performance
Product may have a customer
Investors are running away… in Europe
The fun of “semiconductor
But in USA over the past years, $4B invested for AI hardware…. (not to mention SW budget)
investment”
China invested $150B to develop a real semiconductor industry
European market Is wide open to non-European competitors (example of solar panels)
The budget EPI EU H2020 budget has to be completed with private budget (>100M€+)
Copyright © SiPearl 2019 Event/Recipient/Place/DateBut it happens….
Closure of 1st financial
Q2-2020
round
Exec team is joining SiPearl
Q1-2020
Major announcement with Arm
SiPearl becomes
Sept-2019 EPI industrial hand
6,2M€ raised
June-2019 SiPearl is incorporated
Dec-2018 EPI kick-off
EPI kick off 80M€ H2020 allocations
80M€ allocation IP / Architecture initiated
European Processor Initiative
2017-2018
consortium setup
Copyright © SiPearl 2019 Event/Recipient/Place/DateAnd the EU (and far beyond) press is following us… 22| 06/05/2020 | © SIPEARL Project Confidentiel – Peut evoluer pour amélioration
BUT, WHAT’S THE TECH’ AND HPC STRATEGY BEHIND EPI ? Copyright © European Processor Initiative 2020. AHPC2020
Cambrian explosion
Achieving performance through specialization
5/6/2020 Courtesy Steve Scott
Cray CTOTOP10 OVER THE LAST 10 YEARS
2009 – Nov. 2014 – Nov. 2019 – Nov. (Post)
Exascale
CPU only 9 5 2 0
CPU + ACC. 1 5 8 10WHY? SOME OBVIOUS REASONS…
Linpack
AIEND OF MOORE’ LAW 1/
Gate density (million gates/mm2)
80.00
70.00 3 nm
60.00
Cost & density increase x11 in gate
50.00 density
5 nm
40.00
30.00
7 nm
20.00
10 nm
16 nm
10.00
28 nm
AI
40 nm
65 nm
0.00
Geometry (logarithmetics)END OF MOORE’ LAW 2/
Energy per switch (femto Joule /gate switch)
10.00
/9 in energy per
switch 65 nm
Power figure increase 1.00 40 nm
28 nm
16 nm
10 nm
0.10
7 nm
5 nm
3 nm
AI
0.01END OF MOORE’ LAW & NEEDS FOR DATA PROCESSING 3/
More Computing Power:
→ Higher density (more gates)
Basic Needs
Less power consumption
→ Newer silicon process per gate
Impact 1 Development cost higher and higher to cover density need and power consumption
Impact 2 Find more money, engineers and development time
Impact 3 Or be creative and move to 2.5D design ?
Copyright © SiPearl 2019 Event/Recipient/Place/DateHPC BEFORE ARTIFICIAL INTELLIGENCE
Theoretical model HPC Application ResultsHPC WITH ARTIFICIAL INTELLIGENCE
Theoretical model HPC Application
Results
Results
Big Data AIHPC & AI AT EXASCALE: IT’S ALL ABOUT WORKFLOWS (1/2)
Edge Edge
X86
Computing Computing X86
Public Clouds
Realtime data Realtime data
processing
processing
Theoritical model HPC Application
SUMMIT sunway taihulight FUGAKU
Results
Results
Big Data AIHPC & AI AT EXASCALE: IT’S ALL ABOUT WORKFLOWS (2/2)
Edge Edge
Computing Computing
Public Clouds
Realtime data Realtime data
processing
processing
European
approach ✓ EU Architecture
✓ EU HW
✓ EU SW
✓ Handle all complexity the others don’t know how to
?
Legacy X86 RHEA (ARM) RHEA +ACC. RHEA + GPU RHEA + ***
(ARM+Risc-V) (ARM+Nvidia/AMD) (ARM+Common Platform)HPC & AI AT EXASCALE: IT’S ALL ABOUT WORKFLOWS (2/2)
Edge Edge
Computing Computing
Public Clouds
Realtime data Realtime data
processing
processing
European
approach ✓ EU Architecture
✓ EU HW
✓ EU SW
✓ Handle all complexity the others don’t know how to
Compiler
CPU CPU CPU CPU CPU
Legacy X86 RHEA (ARM) RHEA +ACC RHEA + GPU RHEA + ***
(ARM+Risc-V) (ARM+Nvidia/AMD) (ARM+Common Platform)
ACC. A ACC. B ACC. C ACC. D ACC. ETHE DEVELOPER / USER STANDPOINT
Compiler (unified front-end)
OPENMP 5.0 / OpenCL / OPENACC / OPENAPI
Specific backend
Target A Target B Target C Target D Target E
RHEA RHEA RHEA RHEA RHEA
ACC. A ACC. B ACC. C ACC. D ACC. E
ACC. A ACC. B ACC. C ACC. D ACC. E
ACC. A ACC. B ACC. C ACC. D ACC. E
ACC. A ACC. B ACC. C ACC. D ACC. EEVIDENCE: INTEL OVERALL STRATEGY IN HPC, CLOUD, EDGE
Intel own accelerator developments: CPU - Accelerator interface:
- GPU (Artic Sound) - CXL
- CSA
Accelerator companies acquired by Intel or
with intel in their Capital, in the last years:
X86
- Altera
- Habana
- Mobileye
- Untether AI* (Toronto, Ontario, Canada) User environment:
- SambaNova Systems* (Palo Alto, - Intel Compiler
California, U.S.) - OneAPI
- Zhuhai EEasy Technology Co. Ltd.*
(Zhuhai, China)
- …LESSONS LEARNED
PROFILE FOR EXASCALE SOLUTIONS
Main changes The CPU has to be well balanced
- Holistic view of data from IoT to Supercomputers. - peak performance is not important
- Hybrid in-house / cloud - Agility (FP64 for HPC, BF16 for deep learning) is crucial
- Workflow everywhere - Data transfer is crucial
➔ Cover day to day needs and for all compute not fitting well in ACC
Modularity is a must have. One does not fit all
Keep overall architecture simple
Several accelerators, typically one per module ➔ one CPU to unify all accelerators
Performance comes from accelerators
Keep end user life simple
- 1 CPU only
- LLVM + GCC + OPENMP 5.0
- Keep it open!TECHNOLOGY & ROADMAP Copyright © European Processor Initiative 2020. AHPC2020
COMMON PLATFORM VISION: FEDERATE ACCELERATORS
Interposer function Value proposition +60 potential ACC. (non exhaustive)
SIPEARL RHEA chip
Embedded memory (like
HBM)
HBM
Chiplet
Low cost chip from AI
start-ups
HBM AI
Chiplet Chiplet
AI Start-up Crypto Quantum or
accelerator Accelerator photonics
accelerator
Interposer for integration
THE COMMON OPEN PLATFORM IS
THE EUROPEAN STANDARD FOR MANAGING EXTREME SPECIALIZATIONCONCEPT OF COMMON PLATFORM : INTERPOSER & MULTI-CHIPLET
HBM HBM
HBM HBM
Chiplet #2
Chiplet #1
Silicon interposer (passive)
Package substrateCONCEPT OF COMMON PLATFORM : INTERPOSER & MULTI-CHIPLET
CPU
Accelerator(s)
HBM HBM
HBM Chiplet #1 Chiplet #2 HBM
65mm
Silicon interposer (passive)
Package substrate
65mmHETEROGENEOUS INTEGRATION
I/O coherent
Accelerators Traditional GP-GPU, interconnect
and to the storage
PCIe/CXL links
PCIe links
Package substrate
inter-chiplet links
memorires
over substrate
HBM
Coherent
EST Common chiplet
Platform Design
memories
DDR
CCIX links via PCB
Possible location
for User functions
Coherent
Commerical FPGA chips
accelerator
or CCIX enabled companions chips
(accelerator, NIC or other EST chips)
42GENERAL PURPOSE PROCESSOR (GPP) AND COMMON OPEN ARCHITECTURE
CCIX (RHEA) Kalray
PCIe gen5 external CCIX & CXL (CRONOS)
links links
ZEUS
(ARM) links Dedicated
to adjacent chiplets
cryptographic
EPI
ZEUS
Common
ZEUS
Platform
ZEUS MPPA
open vision
ASIC IP
is to integrate most of EPI IP’s
eFPGA
ZEUS ZEUS development
ZEUS EPAC eFPGA ASIC
HBM 2e
memories Menta
(FR)
NoC
DDR5 ARM
memories
CPU (RHEA) DESIGNS
44EPAC – RISC-V ACCELERATOR FOUNDATIONS
VPU
EPAC Bridge to GPP
STX
VRP
Bridge to GPP
THIS IS ONE OF THE FUNDAMENTAL RESEARCH DIMENSION IN EPI !!!

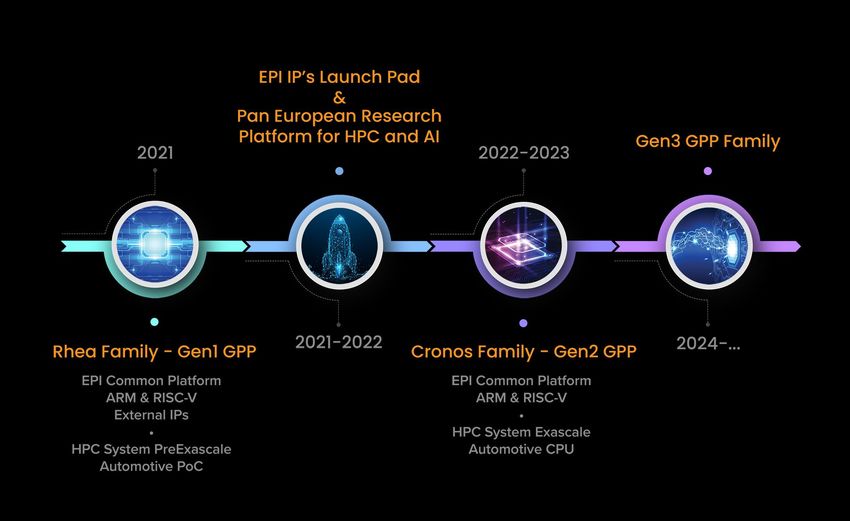

IT WILL END ONCE MATURE INTO A FULLY DEDICATED CHIPROADMAP
ZEUS Core
TITAN Acc.
5nm
ZEUS Core
N6 2022 – H2
EU Exascale Supercomputer
Edge-HPC (autonomous vehicle)
with CRONOS & TITAN
2021 – H2
E4 - PCIe board (WS compatible)
ATOS - BullxSequana Board
with RHEA β versionCONCLUSION
EUROPEAN APPROACH FOR (POST) EXASCALE CHALLENGES
Technology Open Ecosystem (holistic)
Business pragmatism
→ →
TO MEET THE TEAMS
TO KNOW MORE ABOUT EP AND IT’S ECOSYSTEM
TO KNOW MORE ABOUT SILICON TECHNOLOGIES FOR DATA PROCESSING
Save the date
1
EPI Forum
st
March, 16-17 , 2020
thThank You for your attention
