CB Line of Gantry Washes
Attractive, user-friendly, reliable
car washing with the Kärcher CB Line
Kärcher CB Line
Reliable system for modern car washing
With its innovative concept, from an entry-level model to a professional wash centre, the
Kärcher CB line meets the broadest range of requirements in automatic car washing. It is the
result of a new development programme which has produced a simple, maintenance-free
system incorporating advanced technology and high-grade components.
The consistent quality of the engineering, finish and control system considerably simplifies
operation, maintenance and service. The CB line’s attractive appearance stands for excep-
tional washing and drying results.
Professional vehicle Award-winning design High brand recognition Economy in operation
washing
The Kärcher name stands for The appearance of the CB Line In choosing Kärcher vehicle High-grade components are
professional vehicle cleaning: not only convinces potential cus- washes, wash operators put used in the construction of
The company offers a full range tomers when it comes to choos- their trust a world brand name Kärcher plants to achieve long
of car and commercial vehicle ing vehicle wash. It received the which enjoys an aided brand service lives, avoid failures and
washes with matching cleaning iF Product Design Award in recognition of 93% in the con- minimize servicing and running
and care agents as well as water 2006. sumer segment. costs. Furthermore, the time-
treatment plants and a fully proven technology guarantees a
equipped coin-op wash centre. minimum of maintenance.
In addition, the range includes all
the peripheral equipment needed
for indoor and outdoor cleaning
– from pressure washers, wet-
and-dry vacuums and sweepers
to scrubber dryers.
Check here for more information:
Reassuringly close
Basic equipment of CB Line Page 4–5
CB 1 Eco Page 6–7
Kärcher’s worldwide service CB 1 Page 8–9
network of 36,000 sales outlets CB 2 Page 10–11
offers customers excellent Water recycling systems Page 12
service support and availability. Cleaning agents Page 13

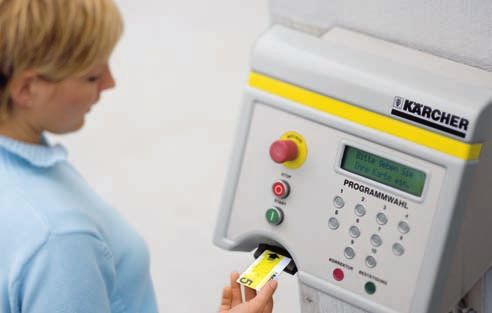

Card readers and payment systems Page 14
Planning and operator concepts Page 15
The right gantry wash for every requirement
Model CB 1 Eco CB 1 basic CB 2 basic
Target group/requirement For in-house requirements of Entry into car wash business for For professional car washing in
car dealers and fleet operators filling stations and car dealers wash centres and car dealers
Design Simple, neutral panelling Attractive panelling with integral Additional vehicle lighting
design elements, yellow columns
and wash symbols
Additional basic equipment 3 brushes Foam arch Pneumatic side brush lock and
Horizontal, contour-hugging Side dryer inclination
dryer for roof and sides Wheel wash More programme options
Shampoo and drying aid Positioning light Hot wax
Wheel wash with internal water
feed
Model versions CB 1 Eco (WW) CB 1 comfort CB 2 comfort
+ wheel wash + hot wax + high-pressure side wash
+ high-pressure side wash CB 2 exclusive
+ high-pressure side and roof wash
Basic equipment of CB Line
The perfect basis for gleaming results
The CB Line is based on a common technology and design platform which can be flexibly adapted to meet customer require-
ments. Its engineering is simple and robust and thus fulfils all the prerequisites for minimum maintenance and operating costs.
The intelligent software concept ensures easy installation and operation of the plant. It runs so reliably that you can concen-
trate entirely on your customers.
Attractive design, simple handling, perfect wash quality:
The CB Line has a lot to offer your customers
First impressions count
• All models in the CB Line are
consistently finished in the
Kärcher colour scheme.
•T
he ticker display shows the
wash phases, operating
instructions, status and adver-
tising texts and is available as
an option for all models.
•T
he clearly laid out front panel
with a high-quality LED traffic
light and optional illuminated
wash phase indicators
creates an inviting appearance
and facilitates customer guid-
ance and vehicle positioning.
•C overed brushes, easily
washed polymer panels and
a colour scheme that does
not show the dirt promote
the clean, professional impres-
sion.
.
Thorough vehicle wash
• Even stubborn stains are loos- • The high-pressure prewash • Brush and wheel wash with • The contour-controlled blow-
ened gently but effectively with with Kärcher power nozzles alternating direction of rota- er unit integrated in the gantry
active foam. ensures efficient removal of tion is effected in a single guarantees superb drying
loose dirt with maximum pass. This helps save time and results.
paintwork protection. allows a higher vehicle
throughput.
Benefits of CB Line
High-grade materials, maintenance-free technology, simple operation:
The CB line guarantees high efficiency in maintenance, operation and running
No maintenance Plant longevity Direct access More convenience
•T
he CB line promises mainte- • Steel components are hot- • Switchgear cabinet is integrat- • Compact high-pressure unit
nance-free galvanised and additionally ed in the gantry for ease of with Kärcher power nozzles
protected by a powder coat- servicing and to save space. and fan jet nozzles for perfect
➔ bearings and guides ing. results.
•P
lant is accessible from three
irect drives, e.g. for side
➔d •H
ighly stressed and exposed sides for ease of servicing. •T
he wash can be equipped
brush infeed parts, such as doors, panel- with a choice of polyethylene
ling, guide rails and the wheel •T
he integrated interface or Carlite brushes.
➔ a
s well as flat belt drive for wash, are made of high-grade reports malfunctions via a fault
lifting movements plastics or stainless steel. alarm system to cell phones •T
he use of Kärcher detergent
using SMS text messaging to tanks or the optional external
•T
he use of high-quality ensure rapid remedial action. metering station permits long
geared canned motors periods of operation without
guarantees a long service life. refilling.
•P
ower and supplies may be
routed to the plant via ener-
gy pillars, a cable track or
energy chain.
Compact dimensions High throughput Built-in safety Matching control panel
•T
he CB Line can also be • The CB line offers a high • Numerous safety precau- • Basic and comfort versions
installed where space is at a vehicle throughput com- tions, e.g. inductive proximity have direct entry keys for
premium – i.e. maximum bined with an excellent switches, light barriers and selecting the programme. We
washing length is guaranteed wash quality. That reduces mechanical devices designed recommend the basic version
with the minimum building waiting times and increas- to protect man and machine, where wash card readers are
length. es your earnings. guarantee trouble-free and used, or the comfort version
safe operation. for sites with attendants. The
service control panel service
enables washing data to be
easily called up as required.
CB 1 Eco model versions and accessories
CB 1 Eco – gantry wash for in-house requirements
Kärcher has developed the CB 1 Eco as a basic model which incorporates the time-proven technology of the CB Line. The
plant concept provides the basic functions and is therefore an economical solution for companies with an in-house require-
ment, such as car dealers and municipal services with large fleets. Short washing times and very good washing results make
this an attractive choice.
Concentrating on the basics:
Plain and simple: Quickly positioned Targeted use Wheel wash
Eco design of chemicals
• Designed
as a “lean” plant, the • Instead
of a positioning light, a • The
plant uses two chemical • The
CB 1 Eco is available in
CB 1 Eco features none of the wheel plate can be used with products: Shampoo and a three washing heights with an
typical yellow design elements the CB 1 Eco for correct posi- drying aid for a spotless finish. optional factory-installed wheel
and wash phase symbols. tioning of the vehicle or, as an wash with external water feed.
alternative, a simple marking
applied by the operator in the
washing bay.
Identical platform All-round drying
• All versions of the CB Line are • The
roof and sides are fully
based on the same platform. covered by a horizontal, con-
The CB 1 Eco therefore profits toured-controlled dryer. This
from the high-quality, time- helps considerably reduce
proven technology which power consumption.
includes the frequency control-
led motors and electrically
controlled brush contact pres-
sure which are found on the
CB 1 and CB 2.
Technical Data CB 1/23 Eco CB 1/25 Eco CB 1/28 Eco
Washing height mm 3150 3350 3650
Washing width mm 2300 2300 2300
Plant height mm 3150 3350 3650
Plant width* without splash guard mm 4035 4035 4035
Fresh water supply l/min /bar 50 /4–6 50 /4–6 50 /4–6
Power supply Ph/V/Hz 3/400/50 3/400/50 3/400/50
With optional wheel wash CB 1/23 Eco (Rawa) CB 1/25 Eco (Rawa) CB 1/28 Eco (Rawa)
* with brushes running
Optional equipment
CB 1 Eco CB 1 CB 2
Carlite or polyethylene brushes i i i
Additional positioning device i i i
Side splash guard i i i
Low water monitoring system i i i
Drive-in guide/wheel deflector i i i
Underbody wash i i i
Customized design elements/panelling i i i
Antifreeze system i i i
Water supply unit where there is a lack of fresh water i i i
Water recycling system for economical operation i i i
System for better contour detection i* i* I
Ticker display i i i
Different programme start/payment systems i i i
Remote monitoring i i i
Wash programme options
Basic shampoo and drying aid programmes I I I
Special programmes
Foam prespray i I I
Hot wax i I
Intensive prewash, wheel prewash, foam wax,
wax finish, body care i
i Option
I Standard * under development
CB 1 model versions and accessories
CB 1 – entry-level model for professional washing business
The CB 1 is the right choice for filling stations, shopping centres, car dealers and wash centres who want to enter the profes-
sional car washing business. This highly efficient gantry wash offers all the necessary basic functions of an automatic vehicle
wash in terms of washing and drying – for a moderate investment and with relatively low running costs.
Sound basic equipment attractively packaged
Attractive gantry design Thorough wash All-round drying Soft wash
• The
gantry’s two yellow col- • The
roof and side brushes as • Two separate side dryers are • The
technology in the back-
umns and wash phase indica- well as wheel wash brushes combined with a horizontal, ground is designed for a
tor are finished in the Kärcher with internal water feed alter- contour-controlled roof dryer for smooth washing cycle. For
colour scheme. A vehicle posi- nate their direction of rotation perfect drying results. example, the travel and lift
tioning light with LED display to provide particularly thor- motors of the roof brush and
ensures safe and accurate ough results. The contact the roof dryer are frequency
guidance of the vehicle into pressure of the brushes is controlled.
the gantry. electronically controlled.
Foam versus dirt Flexible choice of programme Comfort version
• Foam
is applied uniformly to • Depending on the plant’s • The
new CB 1 comfort model
the sides, front and rear to equipment, the standard pro- version optimizes the finish
dissolve even the most stub- grammes can be modified to with high-pressure side wash
born dirt and stains. suit individual requirements. and hot-water mode.
Technical Data CB 1/23 CB 1/25 CB 1/28
Washing height mm 2300 2500 2800
Washing width mm 2300 2300 2300
Plant height mm 3200 3400 3700
Plant width* without splash guard mm 4035 4035 4035
Fresh water supply l/min /bar 100 /4–6 100 /4–6 100 /4–6
Power supply Ph/V/Hz 3/400/50 3/400/50 3/400/50
Optional hot wax and CB 1/23 comfort CB 1/25 comfort CB 1/28 comfort
high-pressure side wash
* with brushes running
Optional equipment
CB 1 Eco CB 1 CB 2
Carlite or polyethylene brushes i i i
Additional positioning device i i i
Side splash guard i i i
Low water monitoring system i i i
Drive-in guide/wheel deflector i i i
Underbody wash i i i
Customized design elements/panelling i i i
Antifreeze system i i i
Water supply unit where there is a lack of fresh water i i i
Water recycling system for economical operation i i i
System for better contour detection i* i* I
Ticker display i i i
Different programme start/payment systems i i i
Remote monitoring i i i
Wash programme options
Basic shampoo and drying aid programmes I I I
Special programmes
Foam prespray i I I
Hot wax i I
Intensive prewash, wheel prewash, foam wax,
wax finish, body care i
i Option
I Standard * under development
CB 2 modul versions and accessories
CB 2 – more performance for discerning users
Requirements increase along with the number of customers. The CB 2 meets these requirements with high efficiency, an
attractive package of features and the option to customize the plant to your specific needs by way of special add-ons. This
makes the CB 2 the number one choice of big filling stations, car dealerships, wash centres and supermarket chains, which
attach special importance to an attractive corporate image, simple operation and additional programmes that can be adapted
to suit their own requirements.
Top-of-the-line model with extensive options
Precision Optimised consumption Integral metering station Efficient waxing
contour-hugging wash
• Automatic inclination of side • A precision water distributor • The CB 2 has space on the • Kärcher’s new Polish Plus
brushes cleans the upper part ensures that water and clean- gantry to accommodate (RM 831) provides a stable,
of the vehicle and, together ing agent are sprayed only metering pumps for foam, deep-acting, water repellent
with the brush lock for the where they are really needed – shampoo, drying aid, hot wax care film. This not only
door sill area, guarantees opti- to keep running costs down and the optional intensive front enhances the shine but pro-
mum results, even at a low for greater economy. prewash or the polishing pro- tects the vehicle for several
brush contact pressure. A gramme. weeks from traffic grime, acid
contour-controlled high-pres- rain, insects, winter road salt
sure roof wash is available as and other pollution.
an option.
Spotless drying Setting the scene Thorough wheel wash
• The optional body care with • The plant is illuminated with • A wheel wash with internal
demineralised osmosis water spotlights for brightness and water feed is standard on the
promises a gleaming finish show. comfort and exclusive ver-
even for programmes without sions.
blow-drying.
Technical Data CB 2/23 CB 2/25 CB 2/28
Washing height mm 2300 2500 2800
Washing width mm 2300 2300 2300
Plant height mm 3.200 3400 3700
Plant width* without splash guard mm 4035 4035 4035
Fresh water supply l/min /bar 100 /4–6 100 /4–6 100 /4–6
Power supply Ph/V/Hz 3/400/50 3/400/50 3/400/50
Optional high-pressure side wash CB 2/23 comfort CB 2/25 comfort CB 2/28 comfort
Optional high-pressure side wash CB 2/23 exclusive CB 2/25 exclusive CB 2/28 exclusive
and contour-controlled roof wash
* with brushes running
10Optional equipment
CB 1 Eco CB 1 CB 2
Carlite or polyethylene brushes i i i
Additional positioning device i i i
Side splash guard i i i
Low water monitoring system i i i
Drive-in guide/wheel deflector i i i
Underbody wash i i i
Customized design elements/panelling i i i
Antifreeze system i i i
Water supply unit where there is a lack of fresh water i i i
Water recycling system for economical operation i i i
System for better contour detection i* i* I
Ticker display i i i
Different programme start/payment systems i i i
Remote monitoring i i i
Wash programme options
Basic shampoo and drying aid programmes I I I
Special programmes
Foam prespray i I I
Hot wax i I
Intensive prewash, wheel prewash, foam wax,
wax finish, body care i
i Option
I Standard * under development
11Water recycling systems
ARS for greater economy
A decision in favour of an ARS is an investment in the future because it saves resources in day-to-day operation. The washing
water is cleaned by physical filtration so that it can be returned to the washing process. In this way fresh water consumption is
reduced by up to 85%, it is used only for rinsing and adding care products.
The recycling circuit All suspended particles larger washing water circuit.
than 20 µm are filtered out with- The treated process water
The water that drains from the out having to use a flocculent. passes to a washing water
vehicle wash flows through the At the same time, a metering tank and is used for all phases
settling tank to a pump reser- pump adds a germ reducing of the vehicle wash.
voir. It is pumped from there agent to the washing water. This
into a media filter which per- prevents unpleasant smells and
forms physical filtration. the build-up of slime in the
ater
f fre sh w
85% o
up to
ves
• Sa
Circuit/circulation Emergency
operates 24 hrs/day fresh water supply*
85 %
Fresh water
Air
Level
control* 15 %
ARS*
Circu-
Aerating lation* Pump
pump*
Media filter*
Air
Metering pump* Washingwater tank*
above ground
below ground
Baffle plate
Low water
cut-out* Submerged
pump* *included in scope of supply
Separator/ Pump reservoir Settling tank
drain (large particles settle)
12Cleaning Agents
Highly effective, environment friendly
Application Description Recommended use Properties/Yield Size Order No.
of pack
Prespraying RM 803 ASF Prewash For hot water high-pressure cleaners Alkaline 10 l 6.295-040
Highlyactive,non-aggressivehigh-pressurepresprayingagent. and self-service washes pH value: 13 25 l 6.294-977
Facilitatessoakingandremovalofoilandgreasedepositsas Dosage: 0.5 – 2 % in concentrate 200 l 6.294-978
well as dried-on insects. (starting with concentrate) Yield: 20 ml/car
RM 806 ASF HP Wash For hot water high-pressure cleaners, Alkaline 25 l 6.295-133
This concentrate has a broad dirt dissolving range and self-service washes, presprayers or pH value: 13.5 200 l 6.295-134
removes the most stubborn road dirt, such as dust, oil, lubri- brush washes in concentrate
cating grease, insects, tree resin and mud. Dosage: 0.2 – 0.5 %
(starting with concentrate)
Wheel cleaning RM 800 ASF Active Wash Used primarily as manual prespraying Acid 25 l 6.295-189
High efficiency wheel cleaning concentrate. Active foam agent pH value: 1
supportsthegentle-actionremovalofallnormalwheelstains, Dosage: 10 % in concentrate
such as brake dust, rubber dust, winter salt residue and Yield:2,5ml/wheel
limescale deposits.
Main/ RM 811 ASF Active Wash Used primarily in automatic brush Mildly alkaline 10 l 6.295-037
foam wash Highly active, wax-compatible shampoo for brush wash in washes pH value: 8.5 25 l 6.295-139
automatic vehicle washes. Specially formulated to reduce Dosage: 0.2 % in concentrate 200 l 6.295-140
slidingfrictionofbrushesandthusprotectthesurfaceofthe Yield: 30 ml/car
vehicle.
RM 812 ASF Active Foam Used primarily in automatic brush Mildly alkaline 25 l 6.295-136
Highlyactivebrushshampooproducesaparticularlyintensive washes and self-service washes pH value: 8.5 200 l 6.295-137
foam.Speciallyformulatedtoprotectvehiclesurfacesaswell Dosage: 0.2 % in concentrate
as the brushes. Yield: 16 ml/car
RM 831 Polish Plus Used for waxing vehicles in automatic Acid 25 l 6.295-211
Newspecialformulavehiclecareagentprovideslong-acting brush washes equipped with “wax pH value: 3.5
new wax preservation. Protects the vehicle from traffic grime, preservation” option. in concentrate
insects, acid rain and other pollutants. Yield:40-80ml/car
Drying/care RM 820 ASF Hot Wax Used in brush washes, self-service Neutral 25 l 6.295-142
Thisliquidthermo-waxproducesaweather-resistantcoating washes and with hot water high- pH value: 6 200 l 6.295-143
which protects vehicles against corrosion. Containsnatural pressure cleaners in concentrate
carnauba wax. Premix: 1+9 Yield: 20 ml/car
Dosage: 0.1 – 0.2 %
RM 824 ASF Super Pearl Wax Used in brush washes Neutral 10 l 6.295-038
Drying, protection and care in a single product.This liquid Premix, brush washes: undiluted pH value: 6 25 l 6.295-073
pearlwaxquicklybreaksdownthewaterfilmandensuresvery Premix, self-service washes, HP units: in concentrate 200 l 6.295-074
good drying characteristics, especially if hard water is used. 1+9 to 1+29 Yield: 20 ml/car
Dosage: 0.1 – 0.2 %
RM 828 ASF Active Drying Agent Used as drying aid in brush washes Neutral 25 l 6.295-203
Thermo-waxconcentrate,quicklybreaksdownthewaterfilm and high-pressure washes pH value: 6 200 l 6.295-204
and leaves a protective, water-repellent coating. Dosage: 0.1 – 0.2 % in concentrate
Yield: 50 ml/truck
RM 829 ASF Drying Aid Used as drying aid in brush washes Neutral 10 l 6.295-039
This drying aid rapidly breaks down the water film and pro- Dosage: 0.1 – 0.2 % pH value: 5 25 l 6.295-076
videsalong-lastingprotectivecoating.Alsosuitableforsoft in concentrate 200 l 6.295-077
water and osmosis water. Yield: 15 ml/car
Underbody care RM 830 ASF Underbody Wax Used in vehicle washes with under- Neutral 25 l 6.291-176
Underbody wax with capillary action penetrates difficult- body spraying equipment downstream pH value: 6
to-reach areas and gets under aggressive dirt particles to of the underbody wash in concentrate
effectively reduce corrosion. Dosage: 1 – 3 % Yield: 10 ml/car
Special products RM 841 ASF Washing Bay and Tile Cleaner For manual deep cleaning and main- Acid 25 l 6.290-081
This acid concentrate quickly and effectively removes lime, tenance cleaning of washing bays pH value: 1
grease, soap residue and traces of rust. Deep cleaning in concentrate
Premix: 1+1 to 1+4 Yield: 75 m2/l
Dosage: 20 – 50 %
Maintenance cleaning
Premix: 1+9 to 1+19
Dosage: 10 %
Water Softening Salt For gantry and self-service washes 25 kg 6.287-016
Specially suitable for water softening in soft water and
osmosis water plants.
13Card Readers and Payment Systems
Systems designed for maximum security
A high level of security, trouble-free wash operation and the efficiency of the system are the
essential criteria when it comes to selecting payment and card systems. Kärcher supports
different card and code systems with the appropriate readers.
CR 113 magnetic card reader CR 114 code terminal CR 110 magnetic card reader
The favourably priced basic unit A PIN code system which This universal device for wash
for magnetic cards. requires the user to enter a cards with magnetic strip or PIN
six-digit numerical code. code system features a display
which guides the user through
Wash cards PIN code output unit the operation of the plant on a
step-by-step basis.
With this unit you can issue PIN
code coupons for different wash
programmes at the till.
Wash card / Single Multiple Prepaid
Plant PIN-Code CB 1* CB 2*
Card reader wash card wash card wash card
CR 113 • • •
CR 114 • • •
CR 110 • • • • • •
* Interface required
14Planning and operator concepts
Professional solutions, from planning to start-up
The future belongs to the car care centre which offers drivers
a choice of different systems. Kärcher covers all areas of
modern car cleaning: from a perfectly equipped coin-op
washing bay to gantry washes and a complete line of coin-op
vacuums.
Equipment room Car wash
Coin-op vacuums
Office, kiosk
Coin-op washing bays
In planning and implementing a
car wash it is essential to take
local conditions into account
and observe certain success cri-
teria at the same time. If
required, Kärcher will support
you with a comprehensive pack-
age of services:
• Profitability calculations The clean park
• Site assessments franchise system
• Optimising planning • Entry into a time-proven vehicle care system
• Technical design To those who want to utilise the • An established brand name
• Project supervision strength of a well-known brand • Well-known, attractive image
• Advertising support name while still remaining inde- • Latest Kärcher know-how and technology
• Operator counselling pendent, Kärcher offers the • Effective advertising support
• Sales advice clean park self-service system, a • Technical servicing of your equipment
• Exchange of experience professional operator concept • Business counselling
on a franchise basis. This orga- • Exchange of experience within the clean park family
nisation, which now numbers • Training your staff
more than 300 franchise part- • Technical seminar for the operator
ners in Germany alone, offers • Franchise partner meetings
you the following advantages:
15All models at a glance
CB 1 Eco CB 1 CB 2
CB 1/23 Eco CB 1/25 Eco CB 1/28 Eco CB 1/23 CB 1/25 CB 1/28 CB 2/23 CB 2/25 CB 2/28
Dimensions mm
Max. washing height mm 2300 2500 2800 2300 2500 2800 2300 2500 2800
Max. washing width mm 2300
Plant height mm 3150 3350 3650 3200 3400 3700 3200 3400 3700
Required clear building height mm 3250 3450 3750 3300 3500 3800 3300 3500 3800
Plant width with rotating brushes/ mm 4035
with side splash guard mm 4140
Required building width without/with mm 4500
side splash guard (incl. safety clearance) mm 5140
Travel rail length, basic plant mm 9000
Min. required building length
Po. · 08/06 · Order No. 0.018-914 · Printed in Germany with eco-friendly inks on paper bleached without chlorine. Specifications subject to change without prior notice.
to wash (brush + dry) 5-m
mm 8320
vehicle with limit switch
Max. washable vehicle length
mm 6200
in basic plant (outdoor installation)
Distance between travel rails / track mm 2700
Technical Data
No. of brushes, basic plant 2 side brushes, 1 roof brush 2 side brushes, 1 roof brush 2 side brushes, 1 roof brush, 2 wheel wash
Detergent metering pumps, basic plant 2 2 4
Wheel wash, basic plant,
mm – 355 620
length of stroke
Washing programmes max. 5 max. 7 max. 15
Vehicle throughput per hour
5–14
(depending on wash programme)
Required fresh water supply l/min / bar 50 / 4–6 100 / 4–6
Power supply, basic plant Ph / V / Hz / kW 3 / 400 / 50 / 8 3 / 400 / 50 / 16
Compressed air supply l/min bar 300 / 6–8
Washing programmes
Intensive prewash, front – – – – – – i i i
Intensive prewash, full – – – – – – i i i
Wheel prespray – – – – – – i i i
Foam i i i I I I I I I
Hot foam – – – – – – I I I
Rinsing with drying aid I I I I I I I I I
Hot wax – – – i* i* i* I I I
Shampoo I I I I I I I I I
Foam wax – – – – – – i i i
Waxing programme (Polish Plus) – – – – – – i i i
Body care with osmosis water – – – – – – i i i
Underbody wash i i i i i i i i i
High-pressure wash (16 or 60 bar)
High-pressure wheel and sill panel wash – – – – – – i i i
Side high-pressure – – – i* i* i* i* i i
All-round high-pressure – – – – – – i** i** i**
* comfort versions only ● standard p option
** exclusive versions only
Please contact us if you would like more information:
Head Office Germany United Kingdom Regional Head Office Australia South Africa
Alfred Kärcher GmbH & Co. KG Kärcher (UK) Ltd Asia-Pacific Kärcher Pty. Ltd. Kärcher (Pty) Ltd
Alfred-Kärcher-Str. 28 – 40 Beaumont Road Karcher Asia-Pacific Pte Ltd 40 Koornang Road 144 Kuschke Street
71364 Winnenden Banbury 5 Toh Guan Road East, Scoresby VIC 3179 Meadowdale
Tel. +49-7195-14-0 Oxon OX16 1TB #01-00 Freight Links Victoria Edenvale
Fax +49-7195-14-2212 Tel. +44-1295-752-100 Express Distripark, Tel. + 61-3-9765-2300 1614
www.kaercher.com Fax +44-1295-752-103 Singapore 608831 Fax + 61-3-9765-2399 South Africa
www.karcher.co.uk Tel. 65-68971811 www.karcher.com.au Tel. +27-11-574-5360
Fax 65-68971611 Fax +27-11-454-4682
www.karcher.com.sg
Ireland Hong Kong New Zealand United Arab Emirates
Karcher Ltd (Ireland) Kärcher Limited Karcher Limited Karcher FZE
12 Willow Business Park Unit 10, 17/F, APEC Plaza East Tamaki RA 8, XB 1
Nangor Road 49 Hoi Yuen Rd., Auckland P.O. Box 17416
Dublin 12 Kwun Tong, KLN Tel. +64-9-274-4603 Jebel Ali Free Zone, Dubai
Tel. +353-1-409-7777 Tel. +852-2-357-5863 Fax +64-9-274-5609 Tel. +971-4-8836-776
Fax +353-1-409-7775 Fax +852-2-357-5632 www.karcher.co.nz Fax +971-4-8836-656
www.karcher.com.hk www.kaercher.comYou can also read
