Catalogue Power tools Villager 2017

Catalogue Power tools Villager 2017
Catalogue Power tools • www.villager-tools.com •
Catalogue Power tools Villager 2017
2 • Power tools • 2017 • • ABOUT US • Dear friends, colleagues, and partners, Here comes another year in which we have tried to make your gardening more pleas- urable, to make the work in your workshop easier, to make the housework more interesting, and to help you with your repairs and crafts- manship. Therefore, you are presented with a new cata- logue for the season of 2017, which includes all of your suggestions, comments, ex- periences you have had with our products. This catalogue is the way it is because you wanted it to be that way. Every machine, from powerful big machine, to the tiniest hand tools is the result of a search for the most ad- vanced solution. A solution in every sense: quality, price, performance. Because that is what Villager stands for. To make an informed choice, you can find detailed information about every ma- chine, its performance, di- mensions, parts, power sup- ply, maintenance, etc. We are at your service to advise you on the proper use, choice of the most appropri- ate machine, safety precau- tions, the factors affecting the results and longevity of the product. The only thing you are re- quired to do is to let your im- agination run wild and picture your garden, orchard, lawn or anything new you are go- ing to make or repair in your workshop. Let us do the rest. Your Villager® team
Catalogue Power tools Villager 2017
3 • www.villager-tools.com • • CONTENTS • About us 2 Contents 3 Research and development 4 Design and construction 4 Production and quality control 4 Electric pneumatic hammers • VPL 5 Angle grinders • VPL 5 Cordless drill-drivers • VLP 6 Angle grinders • VLP 7 Vibration drills • VLP 8 Electric pneumatic hammers • VLP 8 Wood-processing tools • VLP 11 Screwdrivers, wrenches and hot air guns • VLP 13 Cordless drill-drivers • VLN 14 Electric drills • VLN 15 Angle grinders • VLN 16 Grinder-polishers • VLN 16 Vibration drills • VLN 17 Electric pneumatic hammers • VLN 18 Wood-processing tools • VLN 21 Tools for processing wood, metal and ceramic • VLN 22 Stationary machines 24 Interior design tools 27 Vacuum cleaners 28 Generators 29 Welding tools 30 Electric hoists 31 Battery chargers 31 Compressors 32 Pneumatic tools 34 Hand tools 37 Consumables 38 Spare parts 43 Authorised service providers 43 Demo Combi 43 In order to meet new design standards, in 2016 we started changing the colour of the tools produced within VLN and VLP ranges. The new VLN colour is orange, and VLP is black. The es- timated time of transition is about two years.
Catalogue Power tools Villager 2017
4 • Power tools • 2017 • • RESEARCH AND DEVELOPMENT • DESIGN AND CONSTRUCTION • PRODUCTION AND QUALITY CONTROL • Research and Development Research and develop- ment represent a key com- petitive advantage that has made the Villager company one of the leading brands of garden and power tools in Europe. We are continually com- mitted to development and innovation, and we invest in research and development on a large scale. We im- plement the most efficient strategy for new product development (testing and designing products - manu- facturing prototypes - qual- ity control and testing pro- totypes - pilot production - final quality control and testing), all of which has en- abled us to achieve flexible constructions and develop- ment of parts. Design and construction Market demand analysis has allowed us to have gre- ater insight into types and characteristics of products our customers require, and our design team has been trying to meet those de- mands accordingly. We use the most mo- dern constructing software in the process of constructi- on. They enable us to para- metrically make changes on the product or its parts and to follow the effect of those changes live. Besides the constructing with the most modern software tools, we measure and analyse tensi- on forces in parts and fra- mes so as to remove all po- ssible flaws and offer only products of top quality to the market. Production and quality control We have reached a high level of production quality which is healthy and envi- ronmentally conscious. We analyse machine parts and frames in a detailed manner and in such a way we ensure the quality of the product and minimise or timely remove all the potential flaws. We produce machines and tools that meet all the applicable rules and regula- tions and standards, by ap- plying strict quality control. More than a million happy customers are a sound proof that the design and produc- tion of our products guaran- tee absolute reliability and longevity.
Catalogue Power tools Villager 2017
5 • www.villager-tools.com • • VPL • ANGLE GRINDERS • ELECTRIC PNEUMATIC HAMMERS • Angle grinders VPL AG 720 VPL AG 860 VPL AG 2450 Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz 230 V ~ 50 Hz Power input 720 W 860 W 2450 W No load speed 11000 rpm 10000 rpm 6500 rpm Spindle thread M 14 M 14 M 14 Disc size 115 mm / 22.23 mm 125 mm / 22.23 mm 230 mm / 22.23 mm Weight approx. 1.5 kg 1.9 kg 4.9 kg Art. no. 030824 030825 030826 EAN no. 8606012806900 8606012806917 8606012806924 Consumables 023768 023771 023775 For EU market Functions Quick Guardtm System Ergonomic design Quick Guardtm System Ergonomic design Quick Guardtm System Antivibrationtm System Easy Starttm Electric pneumatic hammer VPL EH 680 Voltage 230 V ~ 50 Hz Power input 680 W Drill chuck SDS plus Impact rate 0 - 4850 ipm Impact power 2.4 J Drilling capacity steel 13 mm Drilling capacity concrete 22 mm Drilling capacity wood 30 mm Weight approx. 2.5 kg Art. no. 038345 EAN no. 8605032602752 Consumables 011623 For EU market • Functions Mode switch Direction switch Ergonomic design Accessories Auxiliary handle Depth gauge Case VPL RANGE VPL range was designed for professionals whose top priorities are longevity and high tool performances.
Catalogue Power tools Villager 2017
6 • Power tools • 2017 • • VLP • CORDLESS DRILL-DRIVERS • Cordless drill-drivers VLP 5112 L VLP 5122 L Battery type Li-ion Li-ion Battery voltage 10.8 V / 1.5 Ah 10.8 V / 1.5 Ah Charging time 60 minutes 60 minutes No load speed 0 - 350 rpm / 0 - 1300 rpm 0 - 350 rpm / 0 - 1300 rpm Drill chuck 0.8 - 10 mm 6.35 mm HEX Torque 16 Nm 16 Nm Drilling capacity steel 10 mm 10 mm Drilling capacity wood 18 mm 18 mm Weight approx. 1.05 kg 0.9 kg Art. no. 036811 039632 EAN no. 8605032601625 8605032602981 Replacement battery 039589 039589 For EU market • • Functions Li-ion battery Battery indicator LED light Fast charger Li-ion battery Battery indicator LED light Fast charger Cordless drill-drivers VLP 5123 L VLP 5124 L Battery type Li-ion Li-ion Battery voltage 14.4 V / 1.5 Ah 18 V / 1.5 Ah Charging time 60 minutes 60 minutes No load speed 0 - 350 rpm / 0 - 1000 rpm 0 - 350 rpm / 0 - 1000 rpm Drill chuck 0.8 - 10 mm 0.8 - 10 mm Torque 20 Nm 24 Nm Drilling capacity steel 10 mm 10 mm Drilling capacity wood 18 mm 18 mm Weight approx. 1.34 kg 1.41 kg Art. no. 033139 033138 EAN no. 8606012807648 8606012807655 Replacement battery 037394 037399 For EU market • • Functions 2-speed gearbox Battery indicator LED light Fast charger 2-speed gearbox Battery indicator LED light Fast charger VPL CORDLESS DRILL-DRIVERS Villager® cordless drill-dri- vers are multifunctional tools designed for drilling holes and driving/remo- ving screws. Their keyless chucks are compatible with a wide range of drills and driver bits with round and hexagonal heads and other accessories. All cordless drill-drivers are also equi- pped with a multilevel tran- smission which enables you to adjust the torque in order to achieve precise and tight driving.
Catalogue Power tools Villager 2017
7 • www.villager-tools.com • • VLP • ANGLE GRINDERS • VPL ANGLE GRINDERS We offer you a wide range of angle grinders, with light housing and a frame which ensures comfortable and safe posture. Alumini- um housing of gear wheel guarantees additional en- durance. Choosing one of the multiple positions of the handle ensures easy and comfortable work. Angle grinders VLP 439 VLP 440 VLP 450 Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz 230 V ~ 50 Hz Power input 710 W 850 W 850 W No load speed 10500 rpm 11000 rpm 6600 - 11000 rpm Spindle thread M 14 M 14 M 14 Disc size 115 mm / 22.23 mm 125 mm / 22.23 mm 125 mm / 22.23 mm Weight approx. 2.18 kg 2.1 kg 1.95 kg Art. no. 015201 015202 039634 EAN no. 8606012800052 8606012800069 8605032603001 Consumables 023769 023771 023770 For EU market Functions Quick Guardtm System Aluminum housing Ergonomic design Quick Guardtm System Aluminum housing Ergonomic design Quick Guardtm System Antivibrationtm System Ergonomic design Regulator broja obrtaja Accessories Auxiliary handle; Wrench Angle grinders VLP 436 VLP 442 Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz Power input 1050 W 2200 W No load speed 9500 rpm 5800 rpm Spindle thread M 14 M 14 Disc size 150 mm / 22.23 mm 230 mm / 22.23 mm Weight approx. 3.7 kg 6.4 kg Art. no. 030882 028714 EAN no. 8606104853034 8606104853041 Consumables 023772 023775 For EU market • • Functions Quick Guardtm System Aluminum housing 3 position handle Quick Guardtm System Aluminum housing 3 position handle Accessories Auxiliary handle; Wrench
Catalogue Power tools Villager 2017
8 • Power tools • 2017 • • VLP • VIBRATION DRILLS • ELECTRIC PNEUMATIC HAMMERS • Electric pneumatic hammers VLP 316 VLP 309 Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz Power input 710 W 1050 W Drill chuck SDS plus SDS plus No load speed 0 - 1000 rpm 0 - 800 rpm Impact rate 0 - 4600 ipm 0 - 4400 ipm Impact power 2.6 J 7 J Drilling capacity (steel / concrate / wood) 13 mm / 22 mm / 30 mm 13 mm / 32 mm / 36 mm Weight approx. 3.48 kg 5.55 kg Art. no. 015494 010104 EAN no. 8606012800045 8606104853058 Spare Bit set 011623 011623 For EU market • • Functions Mode switch Direction switch Speed regulator switch Mode switch Direction switch Speed regulator switch Accessories Auxiliary handle; Chuck; Depth gauge; Bit set; Chisel bit; Peak bit; Case Impact drills VLP 235 VLP 229 Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz Power input 900 W 1050 W Drill chuck 13 mm 13 mm No load speed 0 - 2800 rpm 0 - 3000 rpm Impact rate 0 - 44800 ipm 0 - 48000 ipm Drilling capacity (steel / concrate / wood) 10 mm / 13 mm / 20 mm 13 mm / 20 mm / 30 mm Weight approx. 2.55 kg 3.5 kg Art. no. 028713 030153 EAN no. 8606104853072 8606104853065 Replacement chulck 037017 037017 For EU market • • Functions Mode switch Speed regulator switch Tool magazine Mode switch Speed regulator switch Heavy Duty housing Accessories Adjustable handle; Depth gauge; Bit-set Adjustable handle; Depth gauge; Chuck key VIBRATION DRILLS ELECTRIC PNEUMATIC HAMMERS Light and durable, Villager vi- bration drills are designed for work in difficult conditions. Villager® electric pneumatic hammers are designed for work in difficult conditions..
Catalogue Power tools Villager 2017
9 • www.villager-tools.com • ELECTRIC PNEUMATIC HAMMERS • VLP • ELECTRIC PNEUMATIC HAMMERS • Electric pneumatic hammers VLP 1160 VLP 1210 Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz Power input 1100 W 1250 W Drill chuck SDS plus SDS MAX No load speed 0 - 750 rpm 0 - 450 rpm Impact rate 0 - 2650 ipm 0 - 2800 ipm Impact power 6 J 10 J Drilling capacity (steel / concrate / wood) 13 mm / 30 mm / 40 mm × / 40 mm / × Weight approx. 5.5 kg 6.8 kg Art. no. 023484 023485 EAN no. 8606012803947 8606012803954 Spare Bit set 023808 023783 For EU market • • Functions Mode switch Antivibrationtm System Magnesium housing Mode switch Antivibrationtm System Magnesium housing Accessories Chisel bit, Peak bit; Auxiliary handle; Depth gauge; Bit set; Case With their robust frame, SDS plus and SDS max chucks, Vi- llager’s electric hammers are designed for drilling and cha- sing out in difficult working conditions. Reliable and easy- to-use, they will turn even the most difficult of jobs into ple- asure.
Catalogue Power tools Villager 2017
10 • Power tools • 2017 • • VLP • ELECTRIC PNEUMATIC HAMMERS • Electric pneumatic hammers VLP 1525 VLP 1745 Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz Power input 1500 W 1250 W Drill chuck SDS MAX HEX Impact rate 1800 ipm 0 - 1300 ipm Impact power 25 J 45 J Weight approx. 10.1 kg 14.18 kg Art. no. 030147 030148 EAN no. 8606012806481 8606012806498 Spare bit 023790 / 023792 031756 / 031757 For EU market • • Functions Antivibrationtm System Power indicator Gront grip Switch lock Accessories Chisel bit; Peak bit; Auxiliary handle; Key; Grease; Case Chisel bit; Peak bit; Auxiliary handle; Spare brushes; Key; Grease; Case; Duster
11 • www.villager-tools.com • • VLP • WOOD-PROCESSING TOOLS • Manual circular saw VLP 600 Voltage 230 V ~ 50 Hz Power input 600 W No load speed 5500 rpm Cutting capacity 26.5 mm Weight approx. 2.3 kg Art. no. 040672 EAN no. 8605032602851 Spare saw 040676 / 040677 / 040678 For EU market • Functions Laser Cutting depth setings Ergonomic design Accessories Cutting disc for metal and wood; Diamond cutting disc; Vacuum cleaner adapter VLP 600 bracket for angled cuts Art. no. 040674 EAN no. 8605032602875 For EU market • VLP 600 cutting guide Art. no. 040673 EAN no. 8605032602868 For EU market • Villager® VLP 600 manual circular saw is a universal, compact machine perfect for precise cutting of wood, laminate, ceramic tiles, aluminium and plastic. It is powerful enough to cut through any material and it is easy enough to control to be used with one hand. Compactness and ergonomic design of this machine make the handling and monitoring of the cut easier. VLP 600
12 • Power tools • 2017 • • VLP • WOOD-PROCESSING TOOLS • Jig saw VLP 1110 Voltage 230 V ~ 50 Hz Power input 710 W No load speed 0 - 3300 rpm Stroke length 26 mm Cutting depth (metal / wood) 8 mm / 80 mm Weight approx. 3.6 kg Art. no. 023508 EAN no. 8606012804067 Spare saw 027184 For EU market • Functions Laser Speed regulator switch Accessories Spare saw; Key; Saw prote- ctor; Battery 1.5 V Orbital sander VLP 703 Voltage 230 V ~ 50 Hz Power input 210 W No load speed 12000 rpm Working area size 114 × 105 mm Sand paper size 114 × 140 mm Weight approx. 1.4 kg Art. no. 037019 EAN no. 8605032601601 For EU market • Functions Safe switch Ergonomic design Accessories Dust colector; Sand paper 114 × 140 mm Multifunctional tool VLP 300 Voltage 230 V ~ 50 Hz Power input 300 W No load speed 15000 - 21000 rpm Weight approx. 1.4 kg Art. no. 038349 EAN no. 8605032602660 Spare Sand paper 034896 For EU market • Functions Speed regulator switch Fast tool change Ergonomic design Accessories Grinder; Jig blade; Univer- sal blade; Sand paper holder; Sand paper Circular saw VLP 605 Voltage 230 V ~ 50 Hz Power input 1600 W No load speed 4500 rpm Disc size 185 mm / 25.4 mm Cutting depth 62 mm (90°) / 40 mm (45°) Weight approx. 3.6 kg Art. no. 015200 EAN no. 8606104800090 Spare saw 033420 For EU market • Functions Laser Cutting angle setings Cutting depth setings Accessories Wrench
13 • www.villager-tools.com • • VLP • SCREWDRIVER • IMPACT WRENCH • HOT AIR GUN • Hot air gun VLP 200 Voltage 230 V ~ 50 Hz Power input 2000 W No load speed 0 - 2800 rpm Air flow / temperature I - 120 - 550 l/min / 60°C II - 120 - 550 l/min / 60 -630°C III - 550 l/min / 630°C Weight approx. 2.3 kg Art. no. 040635 EAN no. 8605032602844 For EU market • Accessories 2 × difusor; 2 × grinder Screwdriver VLP 1411 Voltage 230 V ~ 50 Hz Power input 720 W No load speed 0 - 2800 rpm Weight approx. 2.13 kg Art. no. 015497 EAN no. 8606012800106 Replacement chulck 021559 For EU market • Functions Speed regulator switch Accessories Additional chuck; Spare brushes Impact wrench VLP 1901 Voltage 230 V ~ 50 Hz Power input 900 W No load speed 2400 rpm Torque 320 Nm Spindle thread M 22 Weight approx. 3.2 kg Art. no. 037020 EAN no. 8605032601618 For EU market • Functions Direction switch Big torque Ergonomic design Accessories Spare brushes
14 • Power tools • 2017 • • VLN • CORDLESS DRILL-DRIVERS • Cordless drill-drivers VLN SDL 3.6 VLN 3210 VLN 3212 Battery type Li-ion Li-ion Li-ion Battery voltage 10.8 V / 1.5 Ah 14.4 V / 1.3 Ah 18 V / 1.3 Ah Charging time 180 - 300 minutes 60 minutes 60 minutes No load speed 0 - 180 rpm 0 - 350 rpm / 0 - 1000 rpm 0 - 350 rpm / 0 - 1000 rpm Drill chuck HEX Chuck: 0.8 - 10 mm Chuck: 0.8 - 10 mm Torque 3.5 Nm 22 Nm 25 Nm Drilling capacity steel × 10 mm 10 mm Drilling capacity wood × 18 mm 18 mm Weight approx. 0.37 kg 3.3 kg 3.55 kg Art. no. 034887 046810 046811 EAN no. 8606012808751 8605032606248 8605032606255 Replacement battery × 048159 048160 For EU market Functions Li-ion battery LED light 2-speed gearbox Battery indicator Torque settings Direction switch LED light 2-speed gearbox Battery indicator Torque settings Direction switch LED light Accessories Charger Bit set (55 pcs) Charger Additional battery Case Charger Additional battery Case
15 • www.villager-tools.com • • VLN • CORDLESS DRILL-DRIVERS • ELECTRIC DRILLS • VLN 3203 VLN 3204 VLN CD 14 VLN CD 18 Ni-Cd Ni-Cd Ni-Cd Ni-Cd 12 V / 1.3 Ah 14.4 V / 1.3 Ah 14.4 V / 1.3 Ah 18 V / 1.3 Ah 180 - 300 minutes 180 - 300 minutes 180 - 300 minutes 180 - 300 minutes 0 - 550 rpm 0 - 550 rpm 0 - 550 rpm 0 - 550 rpm / 0 - 1350 rpm Chuck: 0.8 - 10 mm Chuck: 0.8 - 10 mm Chuck: 0.8 - 10 mm Chuck: 0.8 - 10 mm 12 Nm 14 Nm 18 Nm 20 Nm 10 mm 10 mm 10 mm 10 mm 18 mm 18 mm 18 mm 18 mm 1.43 kg 1.53 kg 1.5 kg 1.7 kg 036812 036813 015489 015490 8605032601632 8605032601649 8606012800199 8606012800182 039602 039603 029474 029486 Ni-Cd Battery Torque settings Direction switch LED light Ni-Cd Battery Torque settings Direction switch LED light Ni-Cd Battery Torque settings Direction switch 2-speed gearbox Ni-Cd Battery Torque settings Direction switch Charger Additional battery Charger Additional battery Charger Additional battery Bit set Charger Additional battery Bit set Electric drill VLN 240 Voltage 230 V ~ 50 Hz Power input 240 W Drill chuck 10 mm No load speed 0 - 750 rpm Torque 10 Nm Drilling capacity steel 10 mm Drilling capacity wood 20 mm Weight approx. 2.55 kg Art. no. 041470 EAN no. 8606104853072 Consumables 011625 / 011621 For EU market • Functions Torque settings Direction switch
16 • Power tools • 2017 • • VLN • ANGLE GRINDERS • POLISHER • Angle grinders VLN 457 VLN 458 VLN 425 Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz 230 V ~ 50 Hz Power input 1200 W 1600 W 2000 W No load speed 0 - 9000 rpm 0 - 7800 rpm 0 - 7600 rpm Spindle thread M 14 M 14 M 14 Disc size 125 mm / 22.23 mm 180 mm / 22.23 mm 180 mm / 22.23 mm Weight approx. 3.06 kg 3.66 kg 6.5 kg Art. no. 023509 023510 019005 EAN no. 8606012804111 8606012804128 8606012801288 Consumables 023771 023774 023775 For EU market Functions Quick Guardtm System Spindle lock 3 position handle Quick Guardtm System Spindle lock 3 position handle Quick Guardtm System Protective rotating handle Spindle lock Accessories Auxiliary handle; Wrench Polisher VLN 120 Voltage 230 V ~ 50 Hz Power input 1200 W No load speed 0 - 3300 rpm Spindle thread M 14 Disc size 180 mm / 22.23 mm Weight approx. 3.1 kg Art. no. 032434 EAN no. 8606012807624 Consumables 1 034891 Consumables 2 034892 For EU market • Functions Speed regulator switch Spindle lock Accessories Gront grip; Polisher holder; Polisher Impact drills Voltage Power input Drill chuck No load speed Impact rate Drilling capacity (steel / concrate / wood) Weight approx. Art. no. EAN no. Replacement chulck For EU market Functions Accessories
17 • www.villager-tools.com • • VLN • ANGLE GRINDERS • IMPACT DRILLS • VLN 460 VLN 452 VLN 454 VLN 432 230 V ~ 50 Hz 230 V ~ 50 Hz 230 V ~ 50 Hz 230 V ~ 50 Hz 2200 W 600 W 780 W 800 W 0 - 6000 rpm 0 - 11000 rpm 0 - 11000 rpm 0 - 11000 rpm M 14 M 14 M 14 M 14 230 mm / 22.23 mm 115 mm / 22.23 mm 125 mm / 22.23 mm 115mm/22.23mm125mm/22.23mm 5.98 kg 1.85 kg 2.3 kg 2.1 kg 023515 030151 030152 008036 020541 8606012804135 8606012806528 8606012806535 86061040321878606012806696 023775 023768 023770 023768 023770 Quick Guardtm System Spindle lock 3 position handle Quick Guardtm System Spindle lock Quick Guardtm System Spindle lock Quick Guardtm System Spindle lock Auxiliary handle; Wrench VLN 242 VLN 224 VLN 250 230 V ~ 50 Hz 230 V ~ 50 Hz 230 V ~ 50 Hz 500 W 710 W 1050 W 13 mm 13 mm 13 mm 0 - 3000 rpm 0 - 3000 rpm 0 - 3000 rpm 0 - 45000 ipm 0 - 45000 ipm 0 - 45000 ipm 10 mm / 13 mm / 20 mm 10 mm / 13 mm / 20 mm 13 mm / 16 mm / 25 mm 2 kg 2.3 kg 2.6 kg 023511 008034 023512 8606012804098 8606104032170 8606012804104 037017 037018 037017 Mode switch Speed regulator switch Mode switch Speed regulator switch Quick huck Mode switch Speed regulator switch Adjustable handle; Depth gauge; Chuck key Adjustable handle; Depth gauge; Chuck key Adjustable handle; Depth gauge; Chuck key
18 • Power tools • 2017 • • VLN • ELECTRIC PNEUMATIC HAMMERS • Electric pneumatic hammers Voltage Power input Drill chuck No load speed Impact rate Impact power Drilling capacity (steel / concrate / wood) Weight approx. Art. no. EAN no. Spare bit set For EU market Functions Accessories Electric pneumatic hammers VLN 1040 VLN 1545 Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz Power input 1050 W 1500 W Drill chuck SDS plus SDS plus No load speed 800 rpm 750 rpm Impact rate 0 - 3000 ipm 0 - 3000 ipm Impact power 4.2 J 5 J Drilling capacity (steel / concrate / wood) 13 mm / 30 mm / 40 mm 13 mm / 36 mm / 40 mm Weight approx. 5 kg 5.5 kg Art. no. 023486 023487 EAN no. 8606012803961 8606012803978 Spare Bit set 011623 011623 For EU market • • Functions Mode switch Mode switch Antivibrationtm System Accessories Auxiliary handle; Depth gauge; Chisel and peak bit; Grease; Duster; Case
19 • www.villager-tools.com • • VLN • ELECTRIC PNEUMATIC HAMMERS • VLN 303 VLN 0804 VLN 0805 230 V ~ 50 Hz 230 V ~ 50 Hz 230 V ~ 50 Hz 620 W 720 W 800 W SDS plus SDS plus SDS plus 900 rpm 830 rpm 900 rpm 0 - 4300 ipm 0 - 3000 ipm 0 - 3900 ipm 2.4 J 2.4 J 4 J 13 mm / 26 mm / 30 mm 13 mm / 24 mm / 30 mm 13 mm / 26 mm / 42 mm 4.65 kg 3.1 kg 3.78 kg 008035 030146 046495 8606104032217 8606012806474 8605032606248 011623 011623 011623 Mode switch Mode switch Antivibrationtm System Mode switch Antivibrationtm System Auxiliary handle; Depth gauge; Chisel and peak bit; Case Auxiliary handle; Depth gauge; Chisel and peak bit; Grease; Duster; Case VLN 1506 VLN 1609 230 V ~ 50 Hz 230 V ~ 50 Hz 1500 W 1600 W SDS plus SDS MAX 860 rpm 560 rpm 0 - 4250 ipm 0 - 3530 ipm 6 J 9 J 13 mm / 32 mm / 42 mm × / 40 mm / 60 mm 5.2 kg 7.3 kg 046496 046497 8606032605616 8605032605623 011623 023783 • • Mode switch Antivibrationtm System Auxiliary handle; Chisel and peak bit; Grease; Duster; Case
20 • Power tools • 2017 • • VLN • ELECTRIC PNEUMATIC HAMMERS • Electric pneumatic hammers VLN 1515 VLN 1760 Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz Power input 1200 W 1700 W Drill chuck SDS MAX HEX Impact rate 0 - 3350 ipm 0 - 1850 ipm Impact power 15 J 60 J Weight approx. 6.1 kg 16 kg Art. no. 022620 46498 EAN no. 8606012803213 8605032605630 Consumables 023790 / 023792 031756 / 031757 For EU market • • Functions Antivibrationtm System Power indicator Gront grip Switch lock Accessories Chisel bit; Peak bit; Auxiliary handle; Key; Grease; Case Chisel bit; Peak bit; Auxiliary handle; Spare brushes; Grease; Case
21 • www.villager-tools.com • • VLN • WOOD-PROCESSING TOOLS • Power planer VLN 1008 Voltage 230 V ~ 50 Hz Power input 900 W No load speed 17000 rpm Working width 82 mm Groove depth 16 mm Step setting 0 - 3 mm Weight approx. 3.35 kg Art. no. 009902 EAN no. 8606104853010 Consumables 014144 For EU market • Functions Depth adjustment Two blades Accessories Dust colector Router VLN 1204 Voltage 230 V ~ 50 Hz Power input 1200 W No load speed 9000 - 30000 rpm Milling depth 60 mm Shaft 6 mm, 8 mm Weight approx. 4.75 kg Art. no. 011553 EAN no. 8606104032637 Consumables 011624 For EU market • Functions Depth adjustment Speed regulator switch Accessories Colects; guide bush 18 mm; set guide fence Jig saw VLN 1106 Voltage 230 V ~ 50 Hz Power input 580 W No load speed 500 - 3000 rpm Stroke length 26 mm Cuttingdepth(metal/wood/pvc) 16 mm / 80 mm / 8 mm Weight approx. 2.55 kg Art. no. 008037 EAN no. 8606104032200 Spare saw 027185 For EU market • Functions Tool adjustment Speed regulator switch Accessories Saw blade; Key; Saw protector; Multifunctional tool VLN 180 Voltage 230 V ~ 50 Hz Power input 180 W No load speed 21000 rpm Weight approx. 1.2 kg Art. no. 034888 EAN no. 8606012808768 Consumables 034896 For EU market • Functions Speed regulator switch Fast tool change Ergonomic design Accessories Grinder; Jig blade; Univer- sal blade; Sand paper holder; Sand paper
22 • Power tools • 2017 • • VLN • TOOLS FOR PROCESSING WOOD, METAL AND CERAMIC • Circular saw VLN 160 Voltage 230 V ~ 50 Hz Power input 1200 W No load speed 4800 rpm Disc size 160 mm / 16 mm Cutting depth 55 mm (90°) / 38 mm (45°) Weight approx. 4.4 kg Art. no. 022621 EAN no. 8606012803220 Spare saw 033418 For EU market • Functions Cutting angle setings Cutting depth setings Accessories Cutting disc Wrench Circular saw VLN 2201 Voltage 230 V ~ 50 Hz Power input 1200 W No load speed 12000 rpm Disc size 115 mm / 22.23 mm Cutting depth 32 mm Weight approx. 3.18 kg Art. no. 008038 EAN no. 8606104032194 Spare saw 023776 For EU market • Functions Cutting depth setings Water link Accessories Ceramic cutting disc Wrench Sabre saw VLN 2615 Voltage 230 V ~ 50 Hz Power input 1200 W No load speed 600 - 4800 rpm Stroke length 26 mm Cutting capacity 150 mm Weight approx. 3.8 kg Art. no. 039636 EAN no. 8605032603025 Spare saw 041821 For EU market • Functions Fast tool change Speed regulator switch Accessories Saw for wood; Saw for metal Plastic pipe welder VLN PW 1500 Voltage 230 V ~ 50 Hz Power input 1500 W Max. temperature 300°C Heating time ≤ 15 min. Size adaptera (mm) 20 / 25 / 32 / 40 / 50 / 63 Weight approx. 4.5 kg Art. no. 033856 EAN no. 8606012807563 For EU market • Functions Two heatersa Short heating time Accessories Replaceable tips; Metal case
23 • www.villager-tools.com • • VLN • TOOLS FOR PROCESSING WOOD, METAL AND CERAMIC • Belt grinder VLN 2101 Voltage 230 V ~ 50 Hz Power input 900 W No load speed 2500 rpm Working area size 75 × 533 mm Weight approx. 4.15 kg Art. no. 009903 EAN no. 8606104853027 Consumables 011626 For EU market • Functions Easy belt changing Ergonomic design Accessories Dust colector; Sand paper 75 × 533 mm Sheet sander VLN 300 Voltage 230 V ~ 50 Hz Power input 300 W No load speed 11000 rpm Working area size 115 × 230 mm Weight approx. 2.5 kg Art. no. 027845 EAN no. 8606012805279 For EU market • Functions Easy grinder changing Ergonomic design Accessories Dust colector; Sand paper 115 × 230 mm Rotating grinder VLN 380 Voltage 230 V ~ 50 Hz Power input 380 W No load speed 6000 - 13000 rpm Working area size 125 mm Weight approx. 2.3 kg Art. no. 040675 EAN no. 8605032602882 Spare Sand paper 037005 For EU market • Functions Easy grinder changing Speed regulator switch Ergonomic design Accessories Dust colector; Sand paper diameter 125 mm Bench grinder VLN 350 Voltage 230 V ~ 50 Hz Power input 350 W No load speed 2950 rpm Grinding stone size Ø200 × Ø20 × 16 mm Weight approx. 7.3 kg Art. no. 028905 EAN no. 8606012805750 For EU market • Functions Safe switch Protective glass Accessories 2 × stone grinder

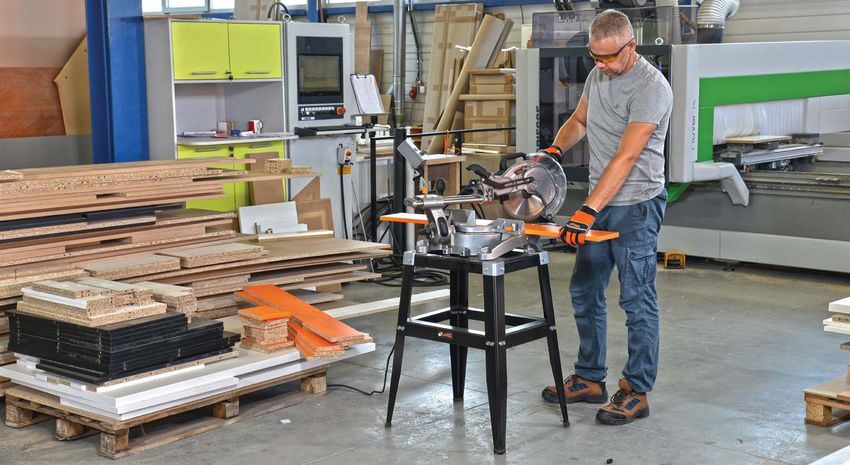

24 • Power tools • 2017 • • STATIONARY MACHINES • Stationary machines VLP 1509 VLN 1600-255 Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz Power input 1900 W 1600 W No load speed 4700 rpm 5000 rpm Cutting capacity (0° / 90°) 85 mm × 300 mm 78 mm × 340 mm Cutting capacity (0° / 45°) 85 mm × 210 mm 78 mm × 240 mm Cutting capacity (45° / 90°) 45 mm × 300 mm 42 mm × 340 mm Cutting capacity (45° / 45°) 45 mm × 210 mm 42 mm × 240 mm Disc size 255 mm / 25.4 mm 255 mm / 25.4 mm Weight approx. 19.5 kg 16 kg Art. no. 016136 027618 EAN no. 8606012800113 8606012805323 Consumables 033425 033426 For EU market • • Functions Laser Cutting angle setings (2 axes) Cutting angle setings (2 axes) Villager® offers you a wide range of stationary machines for different sorts of cutting of wood, metal and ceramic. STATIONARY MACHINES
25 • www.villager-tools.com • • STATIONARY MACHINES • VLN 1205-210 S VLN 1210-210 T VLN 1308 230 V ~ 50 Hz 230 V ~ 50 Hz 230 V ~ 50 Hz 1200 W 1200 W 2000 W 5000 rpm 5000 rpm 3800 rpm 60 mm × 120 mm 55 mm × 120 mm 130 mm 60 mm × 80 mm 55 mm × 90 mm × 35 mm × 120 mm 30 mm × 120 mm × 35 mm × 80 mm 30 mm × 90 mm × 210 mm / 25.4 mm 210 mm / 25.4 mm 355 mm / 25.4 mm 9.5 kg 12 kg 20.2 kg 046812 046813 039635 8605032606286 8605032606293 8605032603018 033422 033422 038346 Cutting angle setings (2 axes) Cutting angle setings (2 axes) Table saw Cutting angle setings Spindle lock Working table 8TL 601 Art. no. 037956 EAN no. 8605032603827 For EU market • Compatible with VLP 1509 VLN 1600-255
26 • Power tools • 2017 • • STATIONARY MACHINES • Stationary machine VSTP 1250 Voltage 230 V ~ 50 Hz Power input 1250 W No load speed 8000 rpm Blade size 210 mm / 20 mm Power planer (flat surface) Max. Cutting width 204 mm Max. Cutting depth 2 mm Guard size 500 mm × 90 mm Guarding angle 90° - 135° Planer table size 740 mm × 210 mm Power tinner Max. Cutting width 204 mm Max. Cutting depth 2 mm Max. Cutting thickness 120 mm Tinner table size 250 mm × 204 mm Weight approx. 25 kg Art. no. 030143 EAN no. 8606012806443 Spare saw 036828 For EU market • Functions Depth adjustment Tinner input up to 120 mm Table saw VTS 1805 Voltage 230 V ~ 50 Hz Power input 1500 W No load speed 4500 rpm Blade size 255 mm / 15.9 mm Cutting capacity (90° / 45°) 204 mm Table size 430 mm × 638 mm Weight approx. 24.6 kg Art. no. 041693 EAN no. 8605032604596 For EU market • Functions Cutting angle setings Cutting width setings Stationary machine VTC 600 Voltage 230 V ~ 50 Hz Power input 600 W No load speed 3000 rpm Blade size 180 mm / 25.4 mm Cutting depth (90°) 25 mm Cutting depth (45°) 17 mm Table size 500 mm × 385 mm Weight approx. 24 kg Art. no. 030144 EAN no. 8606012806450 For EU market • Functions Cutting up to 450 mm Water pump
27 • www.villager-tools.com • • INTERIOR DESIGN TOOLS • Mixers VEM 1050 VEM 1600 Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz Power input 1050 W 1600 W No load speed 0 - 580 rpm 180 - 460 rpm / 300 - 700 rpm Spindle thread M 14 M 14 Paddle size 120 mm 140 mm Weight approx. 4.6 kg 7.5 kg Art. no. 026826 026827 EAN no. 8606012804432 8606012804425 Spare paddle 026829 026830 For EU market • • Functions Direction switch Speed regulator switch Easy Starttm Speed regulator switch Accessories Auxiliary handle; Paddle Paddle Wall sander VDS 600 VDS 1220 Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz Power input 600 W 1220 W No load speed 0 - 1000 rpm 1500 - 2300 rpm Working area diameter 225 mm 225 mm Pool diameter 32 mm 32 mm Length 1230 mm - 2200 mm × Weight approx. 5 kg 2.8 kg Art. no. 026828 029856 EAN no. 8606012804449 8606012805699 Consumables 026724 026725 For EU market • • Functions Extension pool Speed regulator switch Two positions holder Speed regulator switch Accessories Vacuum cleaner adapter Dust colector
28 • Power tools • 2017 • • VACUUM CLEANERS • Vacuum cleaners VVC 18 S VVC 20 VVC 30 Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz 230 V ~ 50 Hz Power input 1500 W 1250 W 1500 W Suction 19 kPa 14 kPa 17 kPa Max. air flow 65 l/s 58 l/s 65 l/s Capacity 18 l 20 l 30 l Tube size 4 m 1.8 m 2.5 m Accessories specification 42 mm 35 mm 35 mm Dry filter Dust filter, Dust colector Dust filter, Dust colector Dust filter, Dust colector Wet filter Spongy filter Spongy filter Spongy filter Weight approx. 10.38 kg 5.14 kg 8.23 kg Art. no. 023489 023490 023491 EAN no. 8606012804012 8606012803992 8606012804005 Spare tube 024835 024860 024859 For EU market Accessories Narrow nozzle; Wide nozzle; Car nozzle; Flor brush; Round brush; Extension tube Narrow nozzle; Flor brush; Extension tube Narrow nozzle; Flor brush; Round brush; Extension tube Accessories for VVC 18 S Accessories for VVC 20 Accessories for VVC 20
29 • www.villager-tools.com • • GENERATORS • Generators VGP 2500 S VGP 3000 S VGP 6500 S Tip motora 4-stroke, air cooled 4-stroke, air cooled 4-stroke, air cooled Displacement 196 cm3 196 cm3 389 cm3 Engine power / rpm 4.8 kW / 3600 rpm 4.8 kW / 3600 rpm 9.6 kW / 3600 rpm Starter type Reversible Reversible Reversible / Electric start Nominal power kW / kVA 2.0 kW / 2.5 kVA 2.5 kW / 3.2 kVA 5 kW / 6.25 kVA Max. power kW / kVA 2.2 kW / 2.755 kVA 2.8 kW / 3.5 kVA 5.5 kW / 6.9 kVA Electrical current 9.56 A 10.8 A 7.9 A Nominal voltage 230 V 230 V 230 V / 400 V Sockets 2 × 230 V 2 × 230 V 2 × 230 V / 1 × 400 V Working time ≈ 13 h ≈ 10 h 30 min. ≈ 8 h 30 min. Fuel Unleaded fuel Unleaded fuel Unleaded fuel Weight approx. 42 kg 48 kg 85 kg Art. no. 029193 029194 029195 EAN no. 8606012805590 8606012805606 8606012805613 For EU market Generators VGD 5500 S VGD 5500 O Engine type 4-stroke, air cooled 4-stroke, air cooled Displacement 418 cm3 418 cm3 Engine power / rpm 7.4 kW / 3600 rpm 7.4 kW / 3600 rpm Starter type Reversible Reversible / Electric start Nominal power kW / kVA 5 kW / 6.25 kVA 5 kW / 6.25 kVA Max. power kW / kVA 5.5 kW / 6.9 kVA 5.5 kW / 6.9 kVA Electrical current 8.3 A 8.3 A Nominal voltage 230 V / 400 V 230 V / 400 V Sockets 1 × 230 V / 1 × 400 V 1 × 230 V / 1 × 400 V Working time ≈ 9 h 30 min. ≈ 9 h 30 min. Fuel Diesel Diesel Weight approx. 165 kg 120 kg Art. no. 038077 038078 EAN no. 8605032602356 8605032602363 For EU market × × Battery fora VGP 6500 S Art. no. 029196 EAN no. 8606012805620 For EU market *VGP 6500 S is delivering without battery
30 • Power tools • 2017 • • WELDING TOOLS • Welding machine MAG 170 R Voltage 230 V ~ 50 Hz / 400 V ~ 50 Hz Power input 6 kW No load voltage 35.5 V Rated duty cycle (Amp 160 - 10 / 62 - 100 Welding curent range 50 A - 160 A Usable wire 0.8 mm - 1 mm Weight approx. 36 kg Art. no. 030149 EAN no. 8606012806504 Consumables 030200 For EU market • Accessories MIG gun; Earth clamp; Welding cable; Brush/ hammer; Adaptor from 400 V to 230 V. Welding tools Invertor VIWM 170 Invertor VIWM 200 Invertor - TIG 160 R Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz 230 V ~ 50 Hz Power input 4.6 kW 5.6 kW 2.8 kW No load voltage 93 V 60 V 76 V Rated duty cycle (Amp 160 - 60 / 125 - 100 200 - 15 / 77.5 - 100 160 - 25 / 80 - 100 Welding curent range 20 A - 160 A 25 A - 200 A 20 A - 150 A Usable electrode 1.6 mm - 4 mm 1.6 mm - 4 mm 1.6 mm - 4 mm Weight approx. 2.6 kg 5.7 kg 7.2 kg Art. no. 033415 046486 022354 EAN no. 8606012807709 8605032605593 8606012803879 Consumables 030198 030198 030198 For EU market Accessories Electrode holder; Earth clamp; Protective mask; Brush/hammer; (TIG torch only for TIG 160 R) Welding tools VWM 160 VWM 200 Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz Power input 6.4 kW 9 kW No load voltage 48 V 48 V Rated duty cycle (Amp 160 - 10 200 - 10 Welding curent range 55 A - 160 A 60 A - 200 A Usable electrode 2 mm - 3.25 mm 2 mm - 4 mm Weight approx. 18.5 kg 23 kg Art. no. 010445 010446 EAN no. 8606104853584 8606104853591 Consumables 030197 030198 For EU market • × Accessories Electrode holder; Earth clamp; Protective mask; Brush/hammer;
31 • www.villager-tools.com • • ELECTRIC HOISTS • BATTERY CHARGERS • Battery chargers VCB 6E VCB 18S Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz Fuse 10 A 30 A Charging voltage 6 V / 12 V 12 V / 24 V Charging capacity 20 Ah - 75 Ah 60 Ah - 150 Ah Weight approx. 3.5 kg 8.5 kg Art. no. 017030 016432 EAN no. 8606012800328 8606012800335 For EU market • • Accessories Spare fuse 10 A Spare fuse 30 A Electric hoists VEH 250 VEH 500 VEH 800 Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz 230 V ~ 50 Hz Power input 500 W 900 W 1350 W Lifting height 6 m / 12 m 6 m / 12 m 6 m / 12 m Lifting speed 4 m/min / 8 m/min 4 m/min / 8 m/min 4 m/min / 8 m/min Cable diameter 3 mm 4.2 mm 5.1 mm Weight approx. 14 kg 16.5 kg 20 kg Art. no. 011631 011632 020237 EAN no. 8606104032507 8606012804340 8606012802681 For EU market ×
32 • Power tools • 2017 • • COMPRESSORS • Air compressor VAT 16 L VAT 24 L Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz Power input 1.5 kW 1.5 kW Engine type Line engine Line engine Theoretic displacement 206 l/min 206 l/min Working pressure 8 bar 8 bar Number of sockets 1 2 Weight approx. 24 kg 23 kg Art. no. 030150 007584 EAN no. 8606012806511 8606102570773 Air hose 008002 008002 For EU market • • Functions Oil lubrication; Pressure switch Kompresori VAT LE 100 L VAT VE 100 L Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz Power input 2.2 kW 2.2 kW Engine type Line engine V engine Theoretic displacement 290 l/min 316 l/min Working pressure 8 bar 8 bar Number of sockets 2 2 Weight approx. 75 kg 75 kg Art. no. 010327 020183 EAN no. 8606012801219 8606012805644 Air hose 009102 009102 For EU market • • Functions Oil lubrication; Pressure switch
33 • www.villager-tools.com • • COMPRESSORS • VAT 50 L VAT LE 50 L VAT VE 50 L 230 V ~ 50 Hz 230 V ~ 50 Hz 230 V ~ 50 Hz 1.5 kW 2.2 kW 2.2 kW Line engine Line engine V engine 206 l/min 290 l/min 316 l/min 8 bar 8 bar 8 bar 2 2 2 32 kg 46 kg 42 kg 007585 014949 042317 8606102570780 8606012805637 8605032605098 009102 009102 009102 Oil lubrication; Pressure switch AB 200/4 AB 300/5.5 AB 500/7.5 400 V ~ 50 Hz 400 V ~ 50 Hz 400 V ~ 50 Hz 3 kW 4 kW 5.5 kW Line engine Line engine Line engine 400 l/min 600 l/min 750 l/min 10 bar 10 bar 10 bar 1 1 1 108 kg 175 kg 245 kg 023573 023575 023577 8020119083628 8020119083611 8020119083635 028461 028461 028461 Pressure switch three phase, pressure regulator with 2 manometers, 1 universal quick coupling + coupling on the tank, max pressure 10 bar, 2 wheels + front swive- ling, CONDOR switch. Pressure switch three phase, pressure regulator /filter with 2 manometers 3/8”, universal quick coupling + coupling on the tank, max pressure: 10 bar, safety valve: 10,5 bar 2 wheels + front sweaveling,CONDORswitch Pressure switch; three phase, 1 coupling on the tank. Max pressure: 10 bar, Safety valve: 10,5 bars stationary, CONDOR switch
34 • Power tools • 2017 • • PNEUMATIC TOOLS • Air impact wrench kit WF 002 A No load speed 7000 rpm Torque 312 Nm Inlet 1/2" Art. no. 007994 EAN no. 8606104032255 Accessories 1 × Hex key 4 mm 1×extension125mm(1/2") 10 × sockets (9 - 27 mm) 1 × double nipple 1 × oil pot Air hammer kit WF 007 No load speed 4500 rpm Torque 61 Nm Inlet 1/4" Art. no. 007996 EAN no. 8606104032231 Accessories 4 × chisel bit 120 mm 1 × double nipple 1 × oil pot Air impact wrench kit VAT WF 030 No load speed 4500 rpm Torque 2500 Nm Inlet 1" Art. no. 009908 EAN no. 8606104032989 Accessories 1 × Hex key 1 × handle 2 × sockets (32, 33) Ratchet wrench kit WF 003 No load speed 150 rpm Torque 61 Nm Inlet 1/2" Art. no. 010081 EAN no. 8606104032972 Accessories 7 × sockets (9, 10, 11, 13, 14, 17, 19) 4 × extension 1 × oil pot Electric spray gun Input power 150 rpm Tank 61 Nm Max. flow 250 ml/min Art. no. 019018 EAN no. 8606104032255 Air grinder kit WF 005 No load speed 22000 rpm Inlet 1/4" Art. no. 007995 EAN no. 8606104032248 Accessories 2 × wrench 5 × grinder 5 mm 5 × grinder 6 mm 1 × double nipple 1 × 1/8" colleta
35 • www.villager-tools.com • • PNEUMATIC TOOLS • Pneumatic tools WFS 2036 VAT 1035 WFG 1218 WFD 1050 No load speed 10000 rpm 8000 rpm 10000 rpm 1800 rpm Pad size Ø 127 mm 90 mm × 170 mm Ø 100 mm × Chuck size 10 mm Inlet 1/4" 1/4" 1/4" 1/4" Art. no. 011655 019017 010079 007993 EAN no. 8606012804166 8606012801387 8606104032927 8606104032224 Pneumatic tools WF 1505 WFX 1500 VAR DG 10 AB VAT PS-7 VT DS 8 Cutting capacity Ø 20 mm 1.4 mm Volume 0.4 l × Inlet 1/4" 1/4" 1/4" 1/4" 1/4" Art. no. 025452 009905 009904 011653 001652 EAN no. 8606012804159 8606104032941 8606104032996 8606012801370 8606012801400 Spray gun H 2000 G2 602 A VAT 970 A VAT 601 A VAT 801 AG Cup size 0.1 l 0.1 l 0.6 l 0.6 l 0.6 l Nozzle size 0.8 mm 0.8 mm 1.4 mm 1.4 mm 1.3 mm Fluid delivery 70 - 100 ml/min 65 - 100 ml/min 160 - 220 ml/min 100 - 250 ml/min 60 - 110 ml/min Inlet 1/4" 1/4" 1/4" 1/4" 1/4" Art. no. 007998 011656 007997 011657 036817 EAN no. 8606104032279 8606012804197 8606104032286 8606012801363 8605032601663 Inflation gun VAT TG 18 VAT TG 5 Working pressure 0 - 8 bar 0 - 8 bar Manometar range 0 - 12 bar 0 - 10 bar Inlet 1/4" 1/4" Art. no. 036814 007999 EAN no. 8605032601663 8606104032262 Pressure regulator VAT MF 5 Max. pressure 0 - 8 bar Art. no. 019014 EAN no. 8606012801332
36 • Power tools • 2017 • • PNEUMATIC TOOLS • Air filters VAT MF 9 VAT MF 10 Max. pressure 10 bar 10 bar Inlet 1/4" 1/4" Art. no. 011654 019013 EAN no. 8606012801356 8606012801349 Nail guns VAT 50/9040 VAT 8016 Needle width 1.06 mm 0.66 mm Needle thickness 1.26 mm 0.95 mm Depth 16 mm - 40 mm 6 mm - 16 mm Nail width 5.7 mm × Working pressure 6 - 12 bar 6 - 10 bar Inlet 1/4" 1/4" Art. no. 019015 019016 EAN no. 8606012801318 8606012801301 Air hose VAT PU 001 5 m VAT PU 001 10 m VAT PU 007 Crevo 6.5 × 10 Dimensions 5 m 10 m 10 m 8 m Max. pressure 8 bar 8 bar 15 bar 25 bar Inlet 3/8" / 1/4" 3/8" / 1/4" 3/8" / 1/4" × Art. no. 008002 009102 009909 028461 EAN no. 860610432552 8606012804203 8606012807433 8606012805484 Universal couplings VAT UQ 1 VAT UQ 3 VAT UQ 4 Max. pressure 10 bar 10 bar 10 bar Inlet 1/2" 3/8" 1/4" Art. no. 008000 010080 008001 EAN no. 860610432552 8606012804203 8606012807433
37 • www.villager-tools.com • • HAND TOOLS • Art. no. 011661 011664 011663 011660 011658 011662 011659 EAN no. 8606104032699 8606104032729 8606104032712 8606104032682 8606104032668 8606104032705 8606104032675 driver model cross VDE 3PH1 cross VDE 3PH2 cross VDE 3PH3 flat VDE 2A2 flat VDE 2A3 flat VDE 2A4 flat VDE 2A5 Art. no. 035516 035514 035513 035508 035509 035510 035511 Size 1 x 80 mm 2 x 100 mm 3 x 150 mm 1.2 x 6.5 x 150 mm 1.0 x 5.5 x 125 mm 0.8 x 4.0 x 100 mm 0.8 x 4.0 x 75 mm Material type 60CrNiMoV 60CrNiMoV 60CrNiMoV 60CrNiMoV 60CrNiMoV 60CrNiMoV 60CrNiMoV Hardnesss HRC52-58 HRC52-58 HRC52-58 HRC52-58 HRC52-58 HRC52-58 HRC52-58 EAN no. 8606012809284 8606012809277 8606012809260 8606012809222 8606012809239 8606012809246 8606012809253 Model Combination pliers V217 Combination pliers V218 Long nose pliers V226 Long nose pliers V228 Cutting pliers V236 Water plimo pliers V2495 Multifunctional knife Art. no. 035517 035518 035519 035520 035521 035522 038621 Size 180 mm 200 mm 160 mm 200 mm 160 mm Material type Chrom vanadium Chrom vanadium Chrom vanadium Chrom vanadium Chrom vanadium Chrom vanadium EAN no. 8606012809291 8606012809307 8606012809314 8606012809321 8606012809338 8606012809345 8605032602462 model Combination pliers VDE 117 Long nose pliers VDE 126 Cutting pliers VDE 136 Wire stripping pliers VDE146 Art. no. 035504 035505 035506 035507 Size 180 mm 200 mm 160 mm 200 mm Material type Chrom vanadium Chrom vanadium Chrom vanadium Chrom vanadium EAN no. 8606012809291 8606012809307 8606012809314 8606012809321 Driver flat cross isolated size Art. no Art. no Art. no 6 x 38 5 x 75 5 x 100 6 x 100 8 x 150 8 x 200 8 x 250 8294 8302 8303 8304 8306 8307 8308 8293 8295 8296 8297 8299 8300 8301 8305 8298 model Drivers set - Box Drivers set - Box Drivers set - Blister Drivers set - Blister Art. no. 008312 008311 008309 008310 Content 5 pcs 7 pcs 6 pcs 21 bits Measuring tapes Size Art. no. 2 m x 16 mm 3 m x 16 mm 5 m x 19 mm 5 m x 25 mm 7.5 m x 25 mm 8313 8314 8315 8316 8317
38 • Power tools • 2017 • • CONSUMABLES • Welding wire ER70S-6 Art. no. Size Pacage EAN no. 030199 0.6 5 kg 8606012805880 030200 0.8 5 kg 8606012805897 030201 0.8 15 kg 8606012805903 030202 1.0 15 kg 8606012805910 030203 1.2 15 kg 8606012805927 Electrode E6013 Art. no. Diameter Pacage EAN no. 030197 2.5 mm 1 kg 8606012805934 030198 3.25 mm 5 kg 8606012805941 Cutting discs for metal Name Art. no. Size EAN no. Cw 11510 023768 115 x 22.23 x 1 mm 7630005256060 Cw 11512 023769 115 x 22.23 x 1.2 mm 7630005256077 Cw 12510 023770 125 x 22.23 x 1 mm 7630005256084 Cw 12512 023771 125 x 22.23 x 1.2 mm 7630005256091 Cw 15012 023772 150 x 22.23 x 1.2 mm 7630005256107 Cw 15016 023773 150 x 22.23 x 1.6 mm 7630005256114 Cw 18016 023774 180 x 22.23 x 1.6 mm 7630005256121 Cw 23020 023775 230 x 22.23 x 2 mm 7630005256138 Cfmb 355 038346 355 x 25.4 8605032602677 Grinding disc for metal Name Art. no. Size EAN no. GW23060 038347 230x22.23x6mm 8605032602691 GW12560 038348 125x22.23x6mm 8606032602684 GW11560 041403 115x22.23x6mm 8605032603483 Diamond cutting disc Name Art. no. Size EAN no. DCB115C 023776 115 x 22.23 mm 7630005257074 DCB125C 023777 125 x 22.23 mm 7630005257081 DCB150C 023778 150 x 22.23 mm 7630005257098 DCB180C 023779 180 x 22.23 mm 7630005257104 DCB230C 023780 230 x 22.23 mm 7630005257111 Peak bits Name Art. no. Size EAN no. CHM300S 023790 300 mm SDS MAX 7630005252017 CHM400S 023791 400 mm SDS MAX 7630005252024 CH250S 023824 250 mm SDS PLUS 7630005254011 CHP 30 x 410 031757 410 mm HEX 8606012807402 Chisel bits Name Art. no. Size EAN no. CHM300F25 023792 300/25 mm SDS MAX 7630005252031 CHM400F25 023793 400/25 mm SDS MAX 7630005252048 CHM300F50 023794 300/50 mm SDS MAX 7630005252055 CHM400F50 023795 400/50 mm SDS MAX 7630005252062 CHM300K 023796 300 mm SDS MAX 7630005252079 CHM250SF25-CH 023825 250/25 mm SDS PLUS 7630005254028 CHM250SF50-CH 023827 250/50 mm SDS PLUS 7630005254035 CHM250K-CH 023829 250 mm SDS PLUS 7630005254042 CHF 30 x 410 031756 410 mm HEX 8606012807396 Villager offers a complete programme of consuma- bles which are compatible not only for our tools, but also for the tools by other brands.
39 • www.villager-tools.com • • CONSUMABLES • Drill bits TWD-Metal Material: l28-09-2015 HH4241 (HIGH SPEED STEEL) / Hardness : HRC58 Name Art. no. Size EAN no. TWD-1 5/1 036977 34 mm 8605032601441 TWD-1.5 5/1 036978 40 mm 8605032601458 TWD-2 5/1 036979 49 mm 8605032601182 TWD-2.5 5/1 036980 57 mm 8605032601199 TWD-3 5/1 036981 61 mm 8605032601205 TWD-3.2 036982 65 mm 8605032601465 TWD-3.5 036983 70 mm 8605032601212 TWD-4 036984 75 mm 8605032601229 TWD-4.2 036985 75 mm 8605032601595 TWD-4.5 036986 80 mm 8605032601472 TWD-5 036987 86 mm 8605032601236 TWD-5.5 036988 86 mm 8605032601489 TWD-6 036989 93 mm 8605032601243 TWD-6.5 036990 101 mm 8605032601496 TWD-7 036991 109 mm 8605032601250 TWD-7.5 036992 109 mm 8605032601502 TWD-8 036993 117 mm 8605032601519 TWD-9 036994 125 mm 8605032601526 TWD-10 036995 133 mm 8605032601533 TWD-11 036996 142 mm 8605032601540 TWD-12 036997 151 mm 8605032601557 TWD-13 036998 151 mm 8605032601564 Drill bit MAD-concrete Material : YG8(steel) / Hardness : HRC40-45 Name Art. no. Size EAN no. MAD 5/1 036999 4 x 75 mm 8605032601267 MAD 5/1 037000 5 x 85 mm 8605032601274 MAD 037001 6 x 100 mm 8605032601281 MAD 037002 8 x 120 mm 8605032601298 MAD 037003 10 x 120 mm 8605032601571 MAD 037004 12 x 150 mm 8605032601588 Drill bit SDS MAX Material: 41CR(steel) / Hardnesss :HRC47-53 Name Art. no. Size EAN no. DBM16540 023781 16 x 540 mm 7630005251010 DBM18540 023782 18 x 540 mm 7630005251027 DBM20540 023783 20 x 540 mm 7630005251034 DBM25600 023784 25 x 600 mm 7630005251041 DBM28600 023785 28 x 600 mm 7630005251058 DBM30600 023786 30 x 600 mm 7630005251065 DBM32600 023787 32 x 600 mm 7630005251072 DBM35600 023788 35 x 600 mm 7630005251089 DBM38600 023789 38 x 600 mm 7630005251096 Drill bit SDS PLUS Material : 40CR(steel) / Hardnesss : HRC47-53 Name Art. no. Size EAN no. DBC4110 023797 4 x 110 mm 7630005253014 DBC5110 023798 5 x 110 mm 7630005253021 DBC5160 023799 5 x 160 mm 7630005253038 DBC6110 023800 6 x 110 mm 7630005253045 DBC6160 023801 6 x 160 mm 7630005253052 DBC65160 023802 6.5 x 160 mm 7630005253069 DBC7160 023803 7 x 160 mm 7630005253076 DBC8110 023805 8 x 110 mm 7630005253083 DBC8160 023806 8 x 160 mm 7630005253090 DBC10160 023807 10 x 160 mm 7630005253106 DBC10210 023808 10 x 210 mm 7630005253113
40 • Power tools • 2017 • • CONSUMABLES • DBC12210 023809 12 x 210 mm 7630005253120 DBC12260 023810 12 x 260 mm 7630005253137 DBC14210 023811 14 x 210 mm 7630005253175 DBC14260 023812 14 x 260 mm 7630005253151 DBC16210 023813 16 x 210 mm 7630005253168 DBC16260 023814 16 x 260 mm 7630005253175 DBC16450 023815 16 x 450 mm 7630005253182 DBC18310 023816 18 x 310 mm 7630005253199 DBC18460 023817 18 x 450 mm 7630005253205 DBC20450 023818 20 x 450 mm 7630005253212 DBC20600 023819 20 x 600 mm 7630005253229 DBC22450 023820 22 x 450 mm 7630005253236 DBC22600 023821 22 x 600 mm 7630005253243 DBC25600 023822 25 x 600 mm 7630005253250 DBC25800 023823 25 x 800 mm 7630005253267 Jig saw blades Name Art. no. Size EAN no. JSB144D 023830 75 mm Wood, SET 5/1 7630005258088 JSB119B 023831 50 mm Wood, PVC SET 5/1 7630005258095 JSB101B 023832 75 mm Wood, PVC SET 5/1 7630005258101 JSB118A 023833 50 mm Metal, SET 5/1 7630005258811 JSB144D 027184 75 mm Wood, SET 5/1 (b-tip) 7630005252413 JSB119B 027185 50 mm Wood, PVC SET 5/1(b-tip) 7630005252420 JSB101B 027186 75 mm Wood, PVC SET 5/1(b-tip) 7630005252437 JSB118A 027187 50 mm Metal, SET 5/1(b-tip) 7630005252444 Saw blades Name Art. no. Size EAN no. SSBM 150 for metal (set 3 pcs.) 041821 150 mm 8605032603551 SSBW 150 for wood (set 3 pcs.) 041820 150 mm 8605032603544 Laminated grinder discs Name Art. no. Size EAN no. FD 115/60 030483 115/22,23 mm grain 60 8606012807150 FD 115/80 030484 115/22,23 mm grain 80 8606012807167 FD 115/100 030485 115/22,2mm grain 100 8606012807174 Saw blades for wood Saw blades for wood - carbide-tipped Name Art. no. Size EAN no. 160X20/16X2.2X18T 033418 160 mm 8606012807716 160X20/16X2.2X30T 033419 160 mm 8606012807723 185X25.4/20X2.2X24T 033420 185 mm 8606012807730 185X25.4/20X2.2X30T 033421 185 mm 8606012807747 210X30/25.4X2.4X24T 033422 210 mm 8606012807754 210X30/25.4X2.4X40T 033423 210 mm 8606012807761 210X30/25.4X2.4X60T 033424 210 mm 8606012807778 255X30/25.4X2.6X24T 033425 255 mm 8606012807785 255X30/25.4X2.6X40T 033426 255 mm 8606012807792 255X30/25.4X2.6X60T 033427 255 mm 8606012807808 Consumables for polishing Art. no. Size EAN no. Polishing cushion 034891 180 mm 8606012808775 Polishing pad 034892 180 mm 8606012808782 Sand paper Name Art. no. Size EAN no. SD 40WM 6/1 037005 125 mm 8605032601304 SD 60 WM 6/1 037006 125 mm 8605032601311 SD-80WM 6/1 037007 125 mm 8605032601328 SD-120WM 6/1 037008 125 mm 8605032601335
41 • www.villager-tools.com • • CONSUMABLES • SD-180WM 6/1 037009 125 mm 8605032601342 SD-240WM 6/1 037010 125 mm 8605032601359 SD1-40WM 5/1 037011 150 mm 8605032601366 SD1-60WM 5/1 037012 150 mm 8605032601373 SD1-80WM 5/1 037013 150 mm 8605032601380 SD1-120WM 5/1 037014 150 mm 8605032601397 SD1-180WM 5/1 037015 150 mm 8606032601403 SD1-240WM 5/1 037016 150 mm 86050326601410 Grind belts Granulacija Art. no. Size EAN no. 40 011626 75x533 8606012800502 60 011627 75x533 8606012800519 80 011628 75x533 8606012800526 100 011629 75x533 8606012800489 120 011630 75x533 8606012800496 Sand paper 5/1 Name Art. no. Granulacija EAN no. za VDS 600 026724 60 7630005251317 za VDS 600 026725 80 7630005251324 za VDS 600 026726 120 7630005251331 za VDS 600 026727 150 7630005251348 za VDS 600 026728 180 7630005251355 za VDS 600 026729 240 7630005251362 Replacement chulck Name Art. no. Size EAN no. KC 13 037018 180 mm 8605032601434 KLC 13 037017 180 mm 8605032601427 Consumables for multifunctional tools VLN 180 / VLP 300 Name Art. no. EAN no. Grinder 034893 8606012808799 Blade 034894 8606012808805 Sand paper holder 034895 8606012808812 Sand paper 034896 8606012808829 Cutter 034897 8606012808836 Balde 034898 8606012808843 Wood saw for VLP 600 Name Art. no. Size EAN no. TCT 40676 85 mm 8605032602950 Metal saw for VLP 600 Name Art. no. Size EAN no. HSS 40678 85 mm 8605032602974 Diamond saw for VLP 600 Name Art. no. Size EAN no. Diamont 40677 85 mm 8605032602967 Drill set for metal SET 21/1 Name Art. no. Size EAN no. SET 21/1 011621 1, 1.5, 2.5, 3.2, 3.5, 4, 4.2, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10 (mm) 8606012801523 Drill set for for concrete SET 7/1 Name Art. no. Size EAN no. SET 7/1 NI 011622 4, 5, 6, 7, 8, 10, 12 (mm) 8606012801530
42 • Power tools • 2017 • • CONSUMABLES • Electric hammer set SDS PLUS 15/1 Name Art. no. Size EAN no. SET SDS PLUS 011623 8606012801554 Drill set for wood SET 7/1 Name Art. no. Size EAN no. SET 7/1 011625 4,5,6,7,8,10 mm 8606012801547 Iron brushes for drills Name Art. no. Size EAN no. WBA 100 C 030486 100 mm 8606012807181 WBA 100 CC 030487 100 mm 8606012807198 WBA 65 KB 030488 65 mm 8606012807204 WBA 80 KB 030489 80 mm 8606012807211 WBA 100 KB 030490 100 mm 8606012807228 WBA 100 KK 030491 100 mm 8606012807235 Paddles for mixers Name Art. no. Size Paddle 120mm R001 026829 120 mm Paddle140mm R003 026830 140 mm Paddle 140mm R004 026831 140 mm Paddle 160mm R004 026832 160 mm Staplers 1000/1 pcs Size Art. no. Size Art. no. 16 mm 019084 16 mm 019093 20 mm 019085 14 mm 019094 22 mm 019086 12 mm 019095 25 mm 019087 10 mm 019096 28 mm 019088 8 mm 019097 32 mm 019089 6 mm 019098 32 mm 019090 45 mm 022059 38 mm 019091 50 mm 022060 40 mm 019092 Nails 1000/1 pcs Size Art. no. 50 mm 019099 45 mm 019100 40 mm 019101 38 mm 019102 32 mm 019103 25 mm 019104 20 mm 019105
43 • www.villager-tools.com • • SPARE PARTS • SERVICE NETWORK • DEMO COMBI • Copyright © 2017 Villager doo. Kajuhova 32 P, 1000 Ljubljana, Slovenija, we reserve the rights to change, possible typos when providing technical details and description of the products shown here. The pictures in the catalogue may be different from the real appearance of the product. Spare parts Our original spare parts are developed simultaneous- ly with Villager machines, which means that they meet the same criteria and that they are tested in the same way as the parts used in pro- duction. In this way, tolerance and marginal performance of characteristics which should be met are ensured, as well as the compatibility of the machine and spare parts. Spare parts are also available after the production of a machine has been dis- continued, so you can easi- ly use the machine for many more years. The efficient global net- work with strong logistics system ensures a quick and safe delivery in the region, within 24 hours of receiv- ing the order. Service parts may be a part of the Service Contract or can be ordered directly from our service de- partment. You can find the link to downloading the consuma- bles and spare parts cata- logue here: http://www.villager-tools. com/page/spare-parts Service network The quality of a product is determined according to a set of very different param- eters. One of them is a pos- sibility of servicing products within and out of warranty period, as well as the possi- bility of original spare parts procurement. Authorised service pro- viders have great experience and knowledge necessary to efficiently solve a wide range of problems. Villager service network is constant- ly expanding and improving, with the aim of satisfying our customers. Villager service providers perform repairs of your machines and procure- ment of spare parts, so you have everything in one place. For the complete list of service centres, check out the Service network list or find the nearest service in three simple steps with the application below. You can find the list of serviceprovidersbycityhere: http://www.villager-tools. com/page/services Demo Combi In order to be at servi- ce of our customers at all times, we attend all the fa- irs in our industry. Our demo van is a unique promotio- nal vehicle which travels through the region, and we are also to be found throu- gh mass media, as well as in digital media and social networks. http://www.villager-tools. com/news
