COLLECTION 2019 / 2020 - Ryde rims
Ryde philosophy
One of the most important inventions in human
history is the wheel. A very basic, simple form, but with
tremendous effect on human progress. We don’t say we
are reinventing the wheel, we just love improving it.

In this respect, Ryde proudly develops all        Vision
rims in house. New product developments are       Become the best global supplier of aluminum
based on feedback from the field, from teams      rims in terms of product quality, availabili-
or from our own experience. We are driven         ty, reactivity and customer satisfaction. As
to supply you with better rims. Be it longer      such it aims helping its partners and cus-
lasting rims, stronger rims, smoother rims or     tomers, designing better bicycle wheels.
rims that make the tires work better, rims that
improve the quality of the wheel as a whole.

page 2
COLLECTION 2019 / 2020 - Ryde rims
About Ryde
History

Back in 1908, Ryde, built on the founda-          own facility located in Europe and Asia.
tions of the illustrious Van Schothorst           In that way Ryde can control every step of the
plant, has been synonymous of safety and          process and guarantees the highest quality.
top-class products. Ryde started as a forge       More recently, Ryde also partnered with
and wheel manufacturer in Barneveld,              Cycling Parts Testing, a state-of-the-art
later it moved to Boxmeer and more                testing center that puts all new models
recently to Venray in a modern building           of Ryde under pressure and makes sure
location. From the very beginning, Ryde           that rims meet the stricter standards.
has focused on the production of rims, an
activity in which it has specialized since the    Design with a purpose
1950’s. Over the years, Ryde has always part-     Ryde proudly develops all rims in house.
nered with the largest bike and wheel manu-       New designs are based on new insights from
facturers. As a consequence, it has accumu-       the market or from teams. We are driven to
lated a unique and outstanding experience and     give your customers a better ride. Be it longer
is able to deliver the highest quality rims in    lasting rims, stronger rims, or rims that make
each segment, from the simplest rims to the       tires work better, rims that improve the qual-
most sophisticated. Since the beginning Ryde      ity of the wheel as a whole. Ryde always
has been synonymous with quality, safety,         was at the forefront of the latest develop­
reliability and a continuous commitment to        ments. And we are still leading the way with
improving and perfecting its products. But we     our current line-up of aluminum rims.
don’t just sit back and wait to see what others   Ryde offers a very wide product range,
will do. We prefer to put our heads together      from the simple Rival 19 or Zac 2000 to
with our customers to come up with a solu-        the most sophisticated Andra or Edge
tions that make cycling even more attractive,     series. There is something for every
more comfortable and safer. Together with         bicycle producers, wheel assemblers or
our highly trained and dedicated product          bicycle shops in the range of Ryde.
engineers we look for opportunities for prod-
uct innovation and we open up new markets.
Development and production is done in our

                                                                                             page 3
COLLECTION 2019 / 2020 - Ryde rims
Durability                                          meet all possible needs in this segment.
Extra strong rims are another specialty of          In its high end segment, all rims are tube-
Ryde. We build rims for the hardest rides           less ready. With this technology now gain-
of world travelers and we supply the rims           ing momentum in trekking bikes as well,
for many cargo bikes. Same rims are also            Ryde keeps an edge on the competition.
often used for the most demanding pro-              Future designs and new ideas are cur-
ducers of e-bikes. The Andra range has an           rently tested in a state of the art test
impeccable reputation among its users.              laboratory, Cycling Parts Testing. All
Ryde has recently extended this range to            this should provide you the best rims.

                                          RYDE
                                      NETHERLANDS

                    RYDE
                    USA
                                                  RYDE               WEINMANN
                                                HUNGARY                CHINA

                                                                      RYDE
                                                                   M A L AY S I A

Production where it matters                         supply and better understand local product
Ryde builds its rims where they are needed          needs and specification. By producing every
the most. We have our own production fa-            rim in house we have the maximum control
cilities in Europe, in The Netherlands and in       over the quality. All Ryde factories work to
Hungary. And we produce in our own factories        the same standard, the highest aluminum
in Asia, in Malaysia and in China. This helps       grade. Every facility has its own specialties.
to improve the reactivity in terms product

page 4
COLLECTION 2019 / 2020 - Ryde rims
History: Trace of origins

1908:    Start of Rigida, France
1923: 	Start of Van Schothorst, The Netherlands

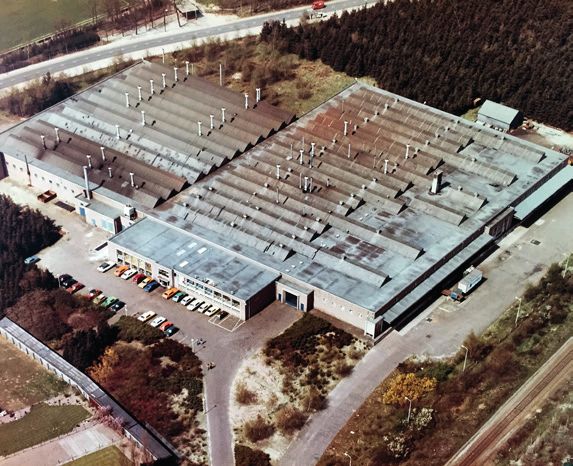

1955: 	Opening of new factory in Boxmeer, The Netherlands
1989: 	Van Schothorst purchases Rigida, the
         new group is called Rigida Group
1990: 	Opening of a factory in Malaysia
1992: 	Introduction of the famous DP18 rim
1997: 	Rigida Group acquires Alesa, Belgium
1997: 	Rigida Group acquires Weinmann, China
1998: 	First rims with the CSS coating
2003: Introduction of the Andra range
2008: Creation of Ryde Hungary
2013: 	Introduction of a new high end range, the Edge series
2016: 	Extension of the Andra series
2017: 	Improving the design and extending the range
         of the Edge series to make them stronger
         and even more reliable

                                                                page 5
COLLECTION 2019 / 2020 - Ryde rims
Usage recommendations

                                                                                                                                       Randoneur
                                            Time trial

                                                                                        Criterium
                                                         Triathlon

                                                                                                                      Gravel
                                 Track

                                                                     Road

                                                                                                     CX
                       DP 16       0           +            + ++ + +                                                      + ++
                   DP 16 disc      0           +            + ++ + +                                                      + ++
                       DP 19       0           0            0 ++ ++ +                                                     + +

                                                                                                                                                         E-bike 25 km
                                                                     All Mountain
                                                         Marathon

                                                                                                                      Down hill
                                                                                        Free ride
                                 XC comp

                                                                                                     Enduro

                                                                                                                                       E-MTB
                                            XC

                     Disc 30       0           +            + ++ ++ ++ + ++ ++
                     Disc 35       0           0            + + ++ ++ + ++ ++
                     Disc 40       0           0            0  + ++ ++ ++ ++ ++
                                                                                                                                                        Max. load 180 kg
                                                                                                                                      High load 130kg
                                                                                                                     E-bike 45 km/h
                                                                                                    E-bike 25 km/h
                                            Touring
                                 Road

                                                                                        MTB
                                                                     ATB
                                                         City

               X-Plorer R                    ++          ++          ++                                                    0                x                 x
                                + + + + +

                                                                                    + + + + +
                                                                                                    +

                 Dutch 19                    ++          ++          ++                               ++                                    x                 x
                                                                                                                     + +

               Dutch 19 R                    ++          ++          ++                               ++                                    x                 x
               ZAC 2000                      ++          ++          ++                                                    x                x                 x
                                                                                                    +

                 ZAC 421                     ++          ++          ++                    ++                                               x                 x
                                                                                                                     +

                  Big Bull         0         ++          ++          ++                 ++ ++ ++                                                               0
                                                                                                                                      +

                  Rival 19                   ++          ++          ++                 ++     x                                            x                 x
                                + +

                                                                                                    + +

                  Rival 21                   ++          ++          ++                 ++     x                                            x                 x
                 Rival 23          0         ++          ++          ++                 ++ ++ x                                             x                 x
                 Rival 26          0         ++          ++          ++                 ++ ++ x                                             x                 x
                 Rival 30          0         ++          ++          ++                 ++     0                                            0                 x
                                                                                                    +

                Andra 30                     ++          ++          ++                    ++                                           ++ 0
                                +

                                                                                    +

                                                                                                                     + +

                Andra 35           0         ++          ++          ++                 ++ ++                                           ++ 0
                Andra 40           0         ++          ++          ++                 ++ ++ ++                                        ++ ++
               Andra 321                     ++          ++          ++                 ++ ++                                           ++ 0
                                +

                                                                                                                     +

                    HL 32          x         ++          ++                                0                               x                0                 x
                                                                     +

                                                                                                    +

                   ZAC 19                    ++          ++          ++                    0              0                x                x                 x
                                + +

                  Sputnik                    ++          ++          ++                                                    x                0                 x
                                                                                    +
                                                                                                    +

                     V38           0         ++          ++              0                 0              x                x                x                 x

 ++      optimal           +       good                                             0        not advised                                                x don’t use

page 6
COLLECTION 2019 / 2020 - Ryde rims
Introduction & content

Ryde has put together a list of rims to cover most of the consumer
needs. This range is organized around the shape of the rim: the “V” shape,
the “U” shape, the “Round” shape, the Andra rims and the
“Vintage” rims.

           V-SHAPE RIMS
                                               ROUND SHAPE RIMS
                      DP 16    page 10
                                                                   Rival 19   page 25
                  Dp 16 disc   page 11
                                                                   Rival 21   page 26
                      DP 19    page 12
                                                                  Rival 23    page 27
                  X-Plorer R   page 13
                                                                  Rival 26    page 28
                   Dutch 19    page 14
                                                                  Rival 30    page 29
                  Dutch 19 R   page 15

                    Disc 30    page 16
                                                         ANDRA RIMS
                    Disc 35    page 17

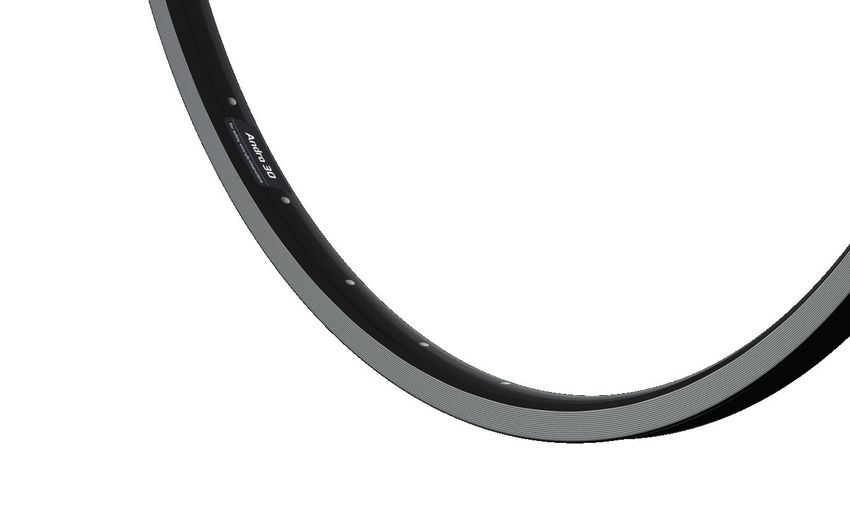

                                                                 Andra 30     page 31
                    Disc 40    page 18
                                                                 Andra 35     page 32

                                                                 Andra 40     page 33
           U-SHAPE RIMS
                                                                Andra 321     page 34
                  ZAC 2000     page 20

                    ZAC 421    page 21
                                             V I N TA G E S H A P E R I M S
                    Big Bull   page 22
                                                                     HL 32    page 36

                                                                    ZAC 19    page 37

                                                                   Sputnik    page 38

                                                                      V38     page 39

                                                                                   page 7
COLLECTION 2019 / 2020 - Ryde rims
Technical features

         Flat hole (FL)                               Ultimate Power (UP)
         These nipple holes come in different         The machined turned off side wall
         diameter as an option for 13G nipples as     improve the braking performance and
         well. We offer 4,5mm 14G and 5,5mm           offers an optimal parallelism of the
         13G. Those holes are often directional       rim, a smooth joint and a better look.
         drilled to improve the spoke nipple line
         up to a certain extent.                      Safety line
                                                      This system shows the rim wear
         Single eyelets (SE)                          without the risk that the rim sidewall
         The stainless steel material resist to       collapses immediately without warning.
         corrosion. It improves the strength          The pin chanel is opening up before the
         around nipple hole, improves nipple /        hook is collapsing. With the visible crack
         rim seat and reduces the wearing out of      in the rim the sidewall stays with it
         the nipples and rim.                         integrity, but needs to be replaced asap.
                                                      This prevents potential accidents. Safe-
         Double eyelets (DE)                          ty line is a Ryde patented design. Safety
         The stainless steel material of the          line is offered on all UP pinned rims.
         external eyelet resist to corrosion.
         Together with the internal pan it            Pin joint
         improves strength of the rim by              Pin joint rim offer more stability. The
         connecting the two walls of the rim. It      two channels add more weight and
         distributes the spoke tension on two         stiffness to the profile. Pin joint rims
         rim walls. The strength around nipple        and Saftyline work together in one
         hole is higher. Like the SE It improve the   construction unit.
         nipple / rim seat and reduces the wea-
         ring out of the nipple and rim. Wheel        ETRTO
         building a double eyelet rim is easier as    The added number to the profile insu-
         the nipple can not fall in the chamber.      res that the size tire is clearly defined.
                                                      ETRTO conform rims are state of the
         Internal dimpling (ID)                       art and bring a perfect tire mounting
         The spoke holes are drilled under two        and seat.
         angles, radial and axial. The spoke/
         nipple line for wheels with big diameter
         hubs or small sized rims is adjusted.
         A better spoke nipple line guides to
         a longer lifetime of the spokes and a
         higher, more equal spoke tension. It is

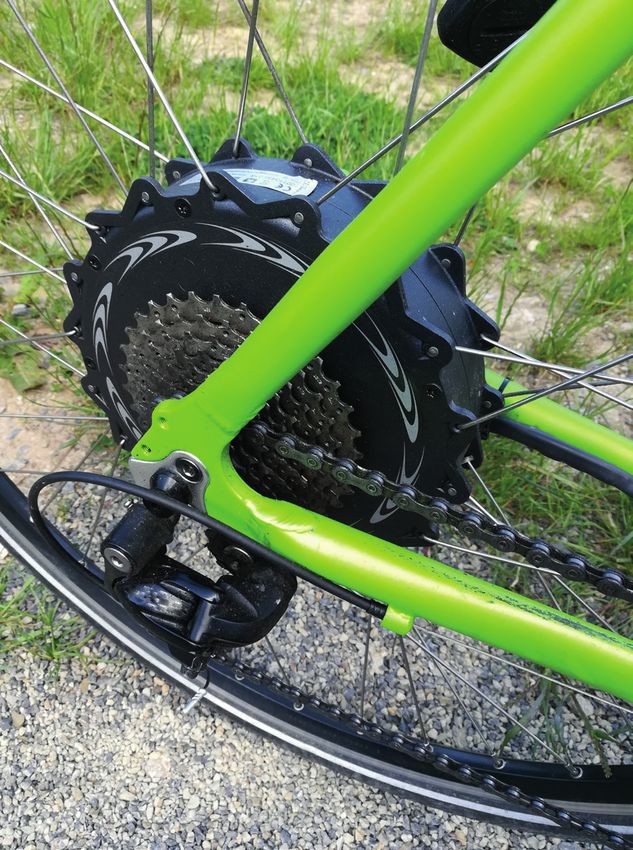

         ideal for big hubs such as E-bikes/ bikes
         or internal gear hubs and an excellent
         solution for heavy duty wheels. The
         dimpling adds also more contact to the
         nipple and the deformation of the nipple
         is less. ID is a Ryde patented design.

page 8
COLLECTION 2019 / 2020 - Ryde rims
V-SHAPE RIMS

               page 9
COLLECTION 2019 / 2020 - Ryde rims
DP 16                                                                                    22,5 mm
                                                                                                         16 mm
V-SHAPE RIMS

               Designed as a V-shaped road rim it offers a superior strength   10 mm
               due to the high profile and the use a a superior aluminum
                                                                                                                                   28 mm
               grade. The 16mm internal width work perfectly for classic
               road tires of 23mm as well as randoneur tires of 32mm.
               A perfect allrounder for road bikes.

                                                  standard
                                        Shape     double wall
                                          Joint   pin
                                      Tire use    tube
                                    Hook type     crotchet
                                   Brake type     rim brake
                                        ETRTO     16 C
                                    Size (mm)     622
                                  Weight (gr)     580
                                    ERD (mm)      583
                      Mechanical treatment        raw / UP
                         Chemical treatment       powder coated                RECOMMENDED USE
                                         Color    black
                                  Spoke holes     28 / 32
                   DFL, Fl, SE, DE, ID washer     FL
                                                                                                                                                 Randoneur

                           Valve hole ø (mm)      6.5 F
                                                                                       Time trial

                                                                                                                       Criterium
                                                                                                    Triathlon

                     Max. spoke tension (N)       1300
                                                                                                                                        Gravel
                                                                               Track

                                                                                                                Road

                             Tire width (mm)      23-32
                                                                                                                                   CX

                   Max. System weight (kg)        120
                                                                                       ++

                                                                                       ++

                                                                                O
                                                                                       +
                                                                                       +

                                                                                       +
                                                                                       +
                                                                                       +

                    Max. Tire pressure (bar)      according tire

               page 10
DP 16 disc
                                                                                             20,4 mm
                                                                                             16 mm

                                                                                                                                                V-SHAPE RIMS
The classical experience of a DP 16 rim with the contempo-
rary disc brake touch. Designed as a V-shaped road rim it
                                                                                                                      28 mm
offers a superior strength due to the high profile and the use
of a superior aluminum grade. The 16mm internal width work
perfectly for classic road tires of 23mm as well as randoneur
tires of 32mm. A perfect allrounder for road bikes.

                                 standard
                       Shape     double wall
                         Joint   pin
                     Tire use    tube
                   Hook type     crotchet
                  Brake type     disc brake
                       ETRTO     16 C
                   Size (mm)     622
                 Weight (gr)     580
                   ERD (mm)      583
     Mechanical treatment        raw
        Chemical treatment       powder coated                   RECOMMENDED USE
                        Color    black
                 Spoke holes     28 / 32
  DFL, Fl, SE, DE, ID washer     FL
                                                                                                                                    Randoneur

          Valve hole ø (mm)      6.5 F
                                                                         Time trial

                                                                                                         Criterium
                                                                                      Triathlon

    Max. spoke tension (N)       1300
                                                                                                                          Gravel
                                                                 Track

                                                                                                  Road

            Tire width (mm)      23-32
                                                                                                                     CX

  Max. System weight (kg)        120
                                                                         ++

                                                                         ++

                                                                  O
                                                                         +
                                                                         +

                                                                         +
                                                                         +
                                                                         +

   Max. Tire pressure (bar)      according tire

                                                                                                                                   page 11
24,2 mm
               DP 19                                                                                     18,8 mm
V-SHAPE RIMS

               Light and Stiff, a Disc Brake U-shaped rim for the new
               generation of road tires. Designed as a Disc Brake
                                                                                                                                  24,8 mm
               U-shaped rim with a contemporary wide shape,
               the 18,8 mm internal width works perfectly with
               the 30+ mm gravel/cyclocross tires.

                                                  standard
                                        Shape     double wall
                                          Joint   pin
                                      Tire use    tube
                                    Hook type     crochet
                                   Brake type     disc brake
                                        ETRTO     19 C
                                    Size (mm)     622
                                  Weight (gr)     540
                                    ERD (mm)      588
                      Mechanical treatment        sandblasted
                         Chemical treatment       pre anodized          RECOMMENDED USE
                                         Color    black
                                  Spoke holes     32
                   DFL, Fl, SE, DE, ID washer     FL
                                                                                                                                          Randoneur
                                                                                Time trial

                                                                                                                Criterium

                           Valve hole ø (mm)      6,5
                                                                                             Triathlon

                                                                                                                                 Gravel

                     Max. spoke tension (N)       1300
                                                                        Track

                                                                                                         Road

                             Tire width (mm)      28-57
                                                                                                                            CX

                   Max. System weight (kg)        120
                                                                                                         ++
                                                                                                                ++

                                                                         O         O            O
                                                                                                                            +
                                                                                                                                 +
                                                                                                                                          +

                    Max. Tire pressure (bar)      according tire

               page 12
X-Plorer                                                                                           24,4 mm
                                                                                                   19 mm

                                                                                                                                                                                 V-SHAPE RIMS
For light trekking or as a sturdy rim on a city bike, the X-plorer
                                                                            12 mm
does the job while looking good all the way. The extra stiffness
due to the higher profile also works wonders for e-bikes. If you                                                                           25 mm

want the ultimate strength, you can combine the X-plorer with
the similar looking Andra 20 at the e-bike motor wheel.

                                  standard
                        Shape     double wall
                          Joint   pin
                      Tire use    tube
                    Hook type     crotchet
                   Brake type     rim brake
                        ETRTO     19C
                    Size (mm)     406 / 622
                  Weight (gr)     433 / 695
                    ERD (mm)      373 / 589
      Mechanical treatment        raw / UP
         Chemical treatment       powder coated / pre anodized       RECOMMENDED USE
                         Color    black / silver
                                                                                                                                                              Max. load 180 kg

                  Spoke holes     32 / 36
                                                                                                                                           High load 130kg
                                                                                                                          E-bike 45 km/h
                                                                                                         E-bike 25 km/h

   DFL, Fl, SE, DE, ID washer     FL
           Valve hole ø (mm)      6.5 F
                                                                            Touring

     Max. spoke tension (N)       1300
                                                                     Road

                                                                                                   MTB
                                                                                             ATB
                                                                                      City

             Tire width (mm)      28-57
   Max. System weight (kg)        120
                                                                     ++
                                                                     ++
                                                                     ++

                                                                                                                              O                 X                  X
                                                                     +

                                                                     +
                                                                     +

    Max. Tire pressure (bar)      according tire

                                                                                                                                                             page 13
Dutch 19                                                                           24,5 mm
V-SHAPE RIMS

                                                                                                   19 mm

               Strong and modern, the instant classic. Not only does the
               Dutch 19 enhance the riding characteristics of your bike, it
               also improves the look. The high profile is extremely stiff                                                         30 mm
               and sturdy that makes the Dutch 19 very suitable for city-
               and touring bikes with disc- or drum brakes.

                                                 standard
                                       Shape     double wall
                                         Joint   pin
                                     Tire use    tube
                                   Hook type     crotchet
                                  Brake type     drum, disc brake
                                       ETRTO     19C
                                   Size (mm)     622
                                 Weight (gr)     640
                                   ERD (mm)      578
                     Mechanical treatment        raw
                        Chemical treatment       powder coated                RECOMMENDED USE
                                        Color    black
                                                                                                                                                                       Max. load 180 kg

                                 Spoke holes     32 / 36
                                                                                                                                                     High load 130kg
                                                                                                                                    E-bike 45 km/h
                                                                                                                  E-bike 25 km/h

                  DFL, Fl, SE, DE, ID washer     FL
                          Valve hole ø (mm)      6,5 F
                                                                                     Touring

                    Max. spoke tension (N)       1300
                                                                              Road

                                                                                                            MTB
                                                                                                      ATB
                                                                                               City

                            Tire width (mm)      28-57
                  Max. System weight (kg)        120
                                                                              ++
                                                                              ++
                                                                              ++

                                                                              ++

                                                                                                                                                          X                 X
                                                                              +

                                                                              +

                                                                              +

                   Max. Tire pressure (bar)      according tire

               page 14
Dutch 19 R                                                                                25,4 mm

                                                                                                                                                                            V-SHAPE RIMS
                                                                                          18,8 mm
The Dutch 19 fulfils a double duty as strong city bike rim and
as sexy single speeder rim. The Dutch 19 R makes the rim            11 mm
even more versatile by adding a rim brake surface to the
                                                                                                                             30,1 mm
rim. The strength remains, which means that the Dutch 19 R
rims can even be used on trekking and travel bikes.

                                 standard
                       Shape     double wall
                         Joint   pin
                     Tire use    tube
                   Hook type     crotchet
                  Brake type     rim brake
                       ETRTO     19C
                   Size (mm)     622
                 Weight (gr)     695
                   ERD (mm)      578
     Mechanical treatment        raw / UP
        Chemical treatment       powder coated                   RECOMMENDED USE
                        Color    black
                                                                                                                                                         Max. load 180 kg

                 Spoke holes     32 / 36
                                                                                                                                       High load 130kg
                                                                                                                      E-bike 45 km/h
                                                                                                     E-bike 25 km/h

  DFL, Fl, SE, DE, ID washer     FL
          Valve hole ø (mm)      6,5 F
                                                                        Touring

    Max. spoke tension (N)       1300
                                                                 Road

                                                                                               MTB
                                                                                         ATB
                                                                                  City

            Tire width (mm)      28-57
  Max. System weight (kg)        120
                                                                 ++
                                                                 ++
                                                                 ++

                                                                 ++

                                                                                                                                            X                 X
                                                                 +

                                                                 +

                                                                 +

   Max. Tire pressure (bar)      according tire

                                                                                                                                                            page 15
Disc 30                                                                                 34,4 mm
V-SHAPE RIMS

                                                                                                          30 mm

               Contemporary and light. A new entry to RYDE family.
               The Disc 30 offers a stable platform to wider size tubeless
                                                                                                                                                       17,5 mm
               tires without compromising weight. With a modern
               eyeleted design to increase stiffness, this rim fits
               perfectly the demands of the S-Pedelecs and E-MTB’s.

                                                  standard
                                        Shape     double wall
                                          Joint   pin
                                      Tire use    tubeless ready
                                    Hook type     crochet
                                   Brake type     disc brake
                                        ETRTO     not conform
                                    Size (mm)     622
                                  Weight (gr)     588
                                    ERD (mm)      603
                      Mechanical treatment        sandblasted
                         Chemical treatment       pre anodized               RECOMMENDED USE
                                         Color    black
                                  Spoke holes     32
                   DFL, Fl, SE, DE, ID washer     SE
                                                                                                                                                               E-Bike 25 km
                                                                                                       All Mountain

                           Valve hole ø (mm)      6,5
                                                                                            Marathon

                                                                                                                                           Down hill
                                                                                                                      Free ride
                                                                             XC comp

                                                                                                                                  Enduro

                     Max. spoke tension (N)       1200
                                                                                                                                                       E-MTB

                             Tire width (mm)      54-71
                                                                                       XC

                   Max. System weight (kg)        140
                                                                                       ++
                                                                                       ++
                                                                                       ++

                                                                                       ++
                                                                                       ++

                                                                               0
                                                                                       +
                                                                                       +

                                                                                       +

                    Max. Tire pressure (bar)      according tire

               page 16
Disc 35                                                                                 39,4 mm

                                                                                                                                                               V-SHAPE RIMS
                                                                                          35 mm

Attractive and agile. The new Disc 35 offers a stable plat-
form for all ‘plus’ size tires up to 3.0”. With an elegant                                                                                      17,5 mm
but sturdy design improve with eyelets for extra stiffness
this rim covers a wide range from rougher MTB to urban
S-Pedelecs.

                                 standard
                       Shape     double wall
                         Joint   pin
                     Tire use    tubeless ready
                   Hook type     crochet
                  Brake type     disc brake
                       ETRTO     not conform
                   Size (mm)     622
                 Weight (gr)     635
                   ERD (mm)      603
     Mechanical treatment        sandblasted
        Chemical treatment       pre anodized                 RECOMMENDED USE
                        Color    black
                 Spoke holes     32
  DFL, Fl, SE, DE, ID washer     SE
                                                                                                                                                E-Bike 25 km
                                                                                        All Mountain

          Valve hole ø (mm)      6,5
                                                                             Marathon

                                                                                                                            Down hill
                                                                                                       Free ride
                                                              XC comp

                                                                                                                   Enduro

    Max. spoke tension (N)       1200
                                                                                                                                        E-MTB

            Tire width (mm)      57-76
                                                                        XC

  Max. System weight (kg)        140
                                                                             ++
                                                                             ++

                                                                             ++
                                                                             ++

                                                                0       0
                                                                             +
                                                                             +

                                                                             +

   Max. Tire pressure (bar)      according tire

                                                                                                                                                  page 17
Disc 40                                                                                   44,3 mm
V-SHAPE RIMS

                                                                                                         40 mm

               Appealing and robust. The New Disc 40 is the tubeless
               option for the wider tires in the market. This is an eyeleted
               rim with a modern design created to fulfil the highest de-                                                                                 17,5 mm
               mands of the E-Segment. The combination of wider rim/
               tires allows to cycle in terrains till now unexplored.

                                                  standard
                                        Shape     double wall
                                          Joint   pin
                                      Tire use    tubeless ready
                                    Hook type     crochet
                                   Brake type     disc brake
                                        ETRTO     not conform
                                    Size (mm)     622
                                  Weight (gr)     681
                                    ERD (mm)      603
                      Mechanical treatment        sandblasted
                         Chemical treatment       pre anodized                 RECOMMENDED USE
                                         Color    black
                                  Spoke holes     32
                   DFL, Fl, SE, DE, ID washer     SE
                                                                                                                                                                 E-Bike 25 km
                                                                                                         All Mountain

                           Valve hole ø (mm)      6,5
                                                                                              Marathon

                                                                                                                                             Down hill
                                                                                                                        Free ride
                                                                               XC comp

                                                                                                                                    Enduro

                     Max. spoke tension (N)       1200
                                                                                                                                                         E-MTB

                             Tire width (mm)      61-96
                                                                                         XC

                   Max. System weight (kg)        140
                                                                                                         ++
                                                                                                         ++
                                                                                                         ++
                                                                                                         ++
                                                                                                         ++

                                                                                 0       0      0
                                                                                                         +

                    Max. Tire pressure (bar)      according tire

               page 18
U-SHAPE RIMS

               page 19
Zac 2000                                                                                        24,6 mm
U-SHAPE RIMS

                                                                                                               19 mm

               The elegant, timeless design of the ZAC 2000 works for
                                                                                    10,5 mm
               many types of bikes. Light trekking or touring bikes, but
                                                                                                                                                        21,5 mm
               also for mountain bikes.

                                                  standard
                                        Shape     double wall
                                          Joint   pin
                                      Tire use    tube
                                    Hook type     crotchet
                                   Brake type     rim brake
                                        ETRTO     19C
                                    Size (mm)     559 / 622
                                  Weight (gr)     530 / 590
                                    ERD (mm)      523 / 595
                      Mechanical treatment        raw / UP
                         Chemical treatment       powder coated / pre anodized   RECOMMENDED USE
                                         Color    black / silver
                                                                                                                                                                          Max. load 180 kg

                                  Spoke holes     32 / 36
                                                                                                                                                        High load 130kg
                                                                                                                                       E-bike 45 km/h
                                                                                                                      E-bike 25 km/h

                   DFL, Fl, SE, DE, ID washer     DE
                           Valve hole ø (mm)      6,5 F
                                                                                        Touring

                     Max. spoke tension (N)       1200
                                                                                 Road

                                                                                                                MTB
                                                                                                         ATB
                                                                                                  City

                             Tire width (mm)      28-62
                   Max. System weight (kg)        110
                                                                                 ++
                                                                                 ++
                                                                                 ++

                                                                                                                                            X                X                 X
                                                                                 +

                                                                                 +
                                                                                 +

                    Max. Tire pressure (bar)      according tire

               page 20
Zac 421                                                                               26,6 mm
                                                                                      20,8 mm

                                                                                                                                                                         U-SHAPE RIMS
The ZAC 421 is created with modern tire width in mind.       10,5 mm
The construction offers higher strength than the Zac 2000.                                                                     21 mm

                                 standard
                       Shape     double wall
                         Joint   pin
                     Tire use    tube
                   Hook type     crotchet
                  Brake type     rim brake
                       ETRTO     21C
                   Size (mm)     559 / 584 / 622
                 Weight (gr)     580 / 605 / 660
                   ERD (mm)      535 / 567 / 597
     Mechanical treatment        raw
        Chemical treatment       powder coated / anodized    RECOMMENDED USE
                        Color    black / silver
                                                                                                                                                      Max. load 180 kg

                 Spoke holes     32 / 36
                                                                                                                                   High load 130kg
                                                                                                                  E-bike 45 km/h
                                                                                                 E-bike 25 km/h

  DFL, Fl, SE, DE, ID washer     DE
          Valve hole ø (mm)      6,5F
                                                                    Touring

    Max. spoke tension (N)       1200
                                                             Road

                                                                                           MTB
                                                                                     ATB
                                                                              City

            Tire width (mm)      32-64
  Max. System weight (kg)        120
                                                             ++
                                                             ++
                                                             ++

                                                             ++

                                                                                                                                        X                  X
                                                             +

                                                             +

                                                             +

   Max. Tire pressure (bar)      according tire

                                                                                                                                                     page 21
Big Bull                                                                                     31 mm
                                                                                                            25 mm
U-SHAPE RIMS

               The Big Bull is a wide rim designed for wider tires. The
                                                                                 11,3 mm
               design makes the rim very stiff. It makes the rim just as
                                                                                                                                               21 mm
               suitable for hard everyday use on rim brake bikes.

                                                  standard
                                        Shape     double wall
                                          Joint   pin
                                      Tire use    tube
                                    Hook type     crotchet
                                   Brake type     rim brake
                                        ETRTO     25C
                                    Size (mm)     559 / 622
                                  Weight (gr)     663 / 738
                                    ERD (mm)      533 / 596
                      Mechanical treatment        raw
                         Chemical treatment       powder coated / pre anodized     RECOMMENDED USE
                                         Color    black / silver
                                  Spoke holes     32/36
                                                                                                                                                                            Max. load 180 kg
                                                                                                                                                          High load 130kg
                                                                                                                                         E-bike 45 km/h
                                                                                                                        E-bike 25 km/h

                   DFL, Fl, SE, DE, ID washer     DE
                           Valve hole ø (mm)      6,5
                                                                                           Touring

                     Max. spoke tension (N)       1300
                                                                                    Road

                                                                                                                  MTB
                                                                                                            ATB

                             Tire width (mm)      44-64
                                                                                                     City

                   Max. System weight (kg)        120
                                                                                           ++
                                                                                           ++
                                                                                           ++
                                                                                           ++
                                                                                           ++
                                                                                           ++

                                                                                     O                                                                                           O
                                                                                           +

                    Max. Tire pressure (bar)      according tire

               page 22
page 23
ROUND SHAPE RIMS

                             ROUND SHAPE
                                    RIMS

                   page 24
ROUND SHAPE RIMS
Rival 19                                                                              24,6 mm
                                                                                      19 mm

Light, modern, sleek. The Rival 19 is a modern all rounder
for many bikers. The Rival 19 is a lightweight, modern rim.
                                                                                                                             18 mm
Suitable for mountain bike use but more ideal for trekking
and touring bikes.

                                 standard
                       Shape     double wall
                         Joint   pin
                     Tire use    tube
                   Hook type     crotchet
                  Brake type     disc
                       ETRTO     19C
                   Size (mm)     584 / 622
                 Weight (gr)     467 / 498
  ERD (mm)(SE, DE + 1mm)         564 / 602
     Mechanical treatment        sandblasted
        Chemical treatment       pre anodized                 RECOMMENDED USE
                        Color    black
                                                                                                                                                       Max. load 180 kg

                 Spoke holes     32
                                                                                                                                    High load 130kg
                                                                                                                   E-bike 45 km/h
                                                                                                  E-bike 25 km/h

  DFL, Fl, SE, DE, ID washer     SE
          Valve hole ø (mm)      6,5 F
                                                                     Touring

    Max. spoke tension (N)       1200
                                                              Road

                                                                                            MTB
                                                                                      ATB
                                                                               City

            Tire width (mm)      28-62
  Max. System weight (kg)        120
                                                              ++
                                                              ++
                                                              ++
                                                              ++

                                                                                                                        X                X                  X
                                                              +

                                                              +

   Max. Tire pressure (bar)      according tire

                                                                                                                                                      page 25
ROUND SHAPE RIMS

                   Rival 21                                                                             25,9 mm
                                                                                                         21 mm

                   Light, wide, modern, sleek. The Rival 21 is a modern all
                   rounder for many bikers. With an internal width of 21mm                                                                            16 mm
                   the Rival is lightweight, modern rim. Suitable for hard
                   mountain bike use but also ideal for light trekking bikes.

                                                      standard
                                            Shape     double wall
                                              Joint   pin
                                          Tire use    tubeless ready
                                        Hook type     crotchet
                                       Brake type     disc
                                            ETRTO     not conform
                                        Size (mm)     584 / 622
                                      Weight (gr)     470 / 500
                                        ERD (mm)      563 / 602
                          Mechanical treatment        raw
                             Chemical treatment       pre anodized              RECOMMENDED USE
                                             Color    black
                                                                                                                                                                        Max. load 180 kg

                                      Spoke holes     32
                                                                                                                                                      High load 130kg
                                                                                                                                     E-bike 45 km/h
                                                                                                                    E-bike 25 km/h

                       DFL, Fl, SE, DE, ID washer     SE
                               Valve hole ø (mm)      6,5 F
                                                                                       Touring

                         Max. spoke tension (N)       1200
                                                                                Road

                                                                                                              MTB
                                                                                                        ATB
                                                                                                 City

                                 Tire width (mm)      35-64
                       Max. System weight (kg)        120
                                                                                ++
                                                                                ++
                                                                                ++
                                                                                ++

                                                                                                                                          X                X                 X
                                                                                +

                                                                                +

                        Max. Tire pressure (bar)      according tire

                   page 26
ROUND SHAPE RIMS
Rival 23                                                                            28,4 mm
                                                                                    23,5 mm

The Rival 23 is a modern wide use MTB rim. Our start into
a reasonable priced tubeless ready Rival range of MTB pin                                                                20 mm
joined rims.

                                 standard
                       Shape     double wall
                         Joint   pin
                     Tire use    tubel
                   Hook type     crotchet
                  Brake type     disc
                       ETRTO     not conform
                   Size (mm)     584 / 622
      weight (GR)(SE +10g)       581 / 619
    ERD (MM)(SE,DE+1mm)          559 / 567
     Mechanical treatment        raw
        Chemical treatment       pre anodized               RECOMMENDED USE
                        Color    black
                                                                                                                                                     Max. load 180 kg

                 Spoke holes     32
                                                                                                                                  High load 130kg
                                                                                                                 E-bike 45 km/h
                                                                                                E-bike 25 km/h

  DFL, Fl, SE, DE, ID washer     SE
          Valve hole ø (mm)      6,5 F
                                                                   Touring

    Max. spoke tension (N)       1200
                                                            Road

                                                                                          MTB
                                                                                    ATB
                                                                             City

            Tire width (mm)      37-64
  Max. System weight (kg)        120
                                                                   ++
                                                                   ++
                                                                   ++
                                                                   ++
                                                                   ++

   Max. Tire pressure (bar)      according tire              O                                                        X                X                  X

                                                                                                                                                    page 27
ROUND SHAPE RIMS

                   Rival 26                                                                           30,9 mm
                                                                                                      25,8 mm

                   The Rival 26 is modern wide use MTB rim. Tubeless ready,
                   is the ideal for mountain biking and trekking bikes.
                                                                                                                                                    20 mm

                                                      standard
                                            Shape     double wall
                                              Joint   pin
                                          Tire use    tubeless ready
                                        Hook type     crotchet
                                       Brake type     disc
                                            ETRTO     not conform
                                        Size (mm)     584 / 622
                                      Weight (gr)     580 / 620
                                        ERD (mm)      559 / 598
                          Mechanical treatment        raw
                             Chemical treatment       pre anodized            RECOMMENDED USE
                                             Color    black
                                                                                                                                                                       Max. load 180 kg

                                      Spoke holes     32
                                                                                                                                                     High load 130kg
                                                                                                                                   E-bike 45 km/h
                                                                                                                  E-bike 25 km/h

                       DFL, Fl, SE, DE, ID washer     SE
                               Valve hole ø (mm)      6,5 F
                                                                                     Touring

                         Max. spoke tension (N)       1200
                                                                              Road

                                                                                                            MTB
                                                                                                      ATB
                                                                                               City

                                 Tire width (mm)      35-64
                       Max. System weight (kg)        120
                                                                                     ++
                                                                                     ++
                                                                                     ++
                                                                                     ++
                                                                                     ++

                        Max. Tire pressure (bar)      according tire           O                                                        X                 X                 X

                   page 28
ROUND SHAPE RIMS
Rival 30                                                                                34,7 mm
                                                                                    29,8 mm

The strong yet light Rival 30 is the perfect allround disc
rim for mountainbiking. A wide range of tyre widths will
                                                                                                                                  21 mm
fit this new rim. But the Rival 30 is also ideal for trekking
bikes with wider tyres.

                                  standard
                        Shape     double wall
                          Joint   pin
                      Tire use    tube
                    Hook type     crotchet
                   Brake type     disc
                        ETRTO     not conform
                    Size (mm)     584 / 622
                  Weight (gr)     660 / 705
                    ERD (mm)      558 / 597
      Mechanical treatment        sandblasted
         Chemical treatment       pre anodized                  RECOMMENDED USE
                         Color    black
                                                                                                                                                          Max. load 180 kg

                  Spoke holes     32
                                                                                                                                       High load 130kg
                                                                                                                      E-bike 45 km/h
                                                                                                     E-bike 25 km/h

   DFL, Fl, SE, DE, ID washer     SE
           Valve hole ø (mm)      6,5 F
                                                                       Touring

     Max. spoke tension (N)       1200
                                                                Road

                                                                                               MTB
                                                                                         ATB
                                                                                 City

             Tire width (mm)      54-71
   Max. System weight (kg)        120
                                                                       ++
                                                                       ++
                                                                       ++
                                                                       ++

                                                                 O                                                        O                 O                  X
                                                                       +

    Max. Tire pressure (bar)      according tire

                                                                                                                                                         page 29
A
          ANDRA RIMS

page 30
Andra 30                                                               Rim brake
                                                                                              23,8 mm
                                                                                              19 mm

                                                                                                                                                                                  ANDRA RIMS
A modern day classic, the Andra 30 has built a strong reputa-
tion over the years. It is one of the most used rims for travel         13,5 mm
                                                                                                                          20,5 mm
bikes and proves time after time that it is almost indestructible!
Therefore, the Andra 30 is also a perfect match for e-bikes.

                                                                       Disc brake
                                                                                               25 mm
                                                                                              19 mm

                                                                                                                          20,5 mm

                                 standard
                       Shape     double wall
                         Joint   pin
                     Tire use    tube
                   Hook type     crotchet
                  Brake type     rim brake / disc brake
                       ETRTO     19C
                   Size (mm)     559 / 622
                  rim brake      696/786
 weight (GR)
                   disc brake    740/830
                   ERD (mm)      535 / 598
     Mechanical treatment        raw / up
        Chemical treatment       pre anodized                        RECOMMENDED USE
                        Color    black
                                                                                                                                                               Max. load 180 kg

                 Spoke holes     32 / 36
                                                                                                                                            High load 130kg
                                                                                                                           E-bike 45 km/h
                                                                                                         E-bike 25 km/h

  DFL, Fl, SE, DE, ID washer     ID
          Valve hole ø (mm)      6,5 F
                                                                            Touring

    Max. spoke tension (N)       1400
                                                                     Road

                                                                                                   MTB
                                                                                             ATB
                                                                                      City

            Tire width (mm)      28-57
  Max. System weight (kg)        130
                                                                     ++
                                                                     ++
                                                                     ++

                                                                     ++

                                                                     ++

                                                                                                                                                                    O
                                                                     +

                                                                     +

                                                                     +

   Max. Tire pressure (bar)      according tire

                                                                                                                                                              page 31
Andra 35                                                          Rim brake
                                                                                                       26,4 mm
                                                                                                        22 mm
ANDRA RIMS

             The square shape is similar to that of the Andra 30. The in-
             ternal measurement of 22 millimetres is perfect for the use       11,5 mm                                                 20,5 mm
             of wider tyres. The wider Andra 35 will still fit between the
             rim brakes. It is the only Andra without dimpling, but offers a
             lot of safety with a very thick rimbottom of 2,5mm.
                                                                               Disc brake

                                                                                                        28 mm
                                                                                                        22 mm

                                                                                                                                       20,5 mm

                                                standard
                                      Shape     double wall
                                        Joint   pin
                                    Tire use    tubeless ready
                                 Hook type      crotchet
                                Brake type      rim brake/ disc brake
                                     ETRTO      not conform
                                 Size (mm)      584 / 622
                                  rim brake     660/700/750
               weight (GR)
                                 disc brake     710/750/800
                                 ERD (mm)       568 / 598
                   Mechanical treatment         raw
                      Chemical treatment        pre anodized                   RECOMMENDED USE
                                       Color    black
                               Spoke holes      32
                                                                                                                                                                       Max. load 180 kg
                                                                                                                                                     High load 130kg
                                                                                                                                    E-bike 45 km/h
                                                                                                                   E-bike 25 km/h

                DFL, Fl, SE, DE, ID washer      DFL
                        Valve hole ø (mm)       6,5 F
                                                                                      Touring

                  Max. spoke tension (N)        1200
                                                                               Road

                                                                                                             MTB
                                                                                                       ATB
                                                                                                City

                          Tire width (mm)       28-64
                Max. System weight (kg)         110
                                                                                      ++
                                                                                      ++
                                                                                      ++
                                                                                      ++
                                                                                      ++

                                                                                      ++

                                                                                0                                                                                           0
                                                                                      +

                 Max. Tire pressure (bar)       according tire

             page 32
Andra 40                                                          Rim brake
                                                                                           30,8 mm
                                                                                            25 mm

                                                                                                                                                                             ANDRA RIMS
To get the strongest wheels for hard used bikes used from
                                                                    11,3 mm                                                    21 mm
cargo bikes to rickshaw to speed pedalic. The 25 mm internal
width works perfectly with all the wider tyres that are avail-
able. If it has to last, take the Andra 40. We give an approval
for 180kg load. The rim is offered in a UP version and as an
                                                                  Disc brake
even more stable disc version.
                                                                                           31,4 mm
                                                                                           25 mm

                                                                                                                               21 mm

                                  standard
                        Shape     double wall
                          Joint   pin
                      Tire use    tube
                   Hook type      crotchet
                  Brake type      rim brake/ disc brake
                       ETRTO      25C
                   Size (mm)      406/507/559/584/622
                    rim brake     600/745/825/850/905
 weight (GR)
                   disc brake     610/760/840/875/935
                   ERD (mm)       382/483/534/560/597
     Mechanical treatment         raw / UP
        Chemical treatment        pre anodized                    RECOMMENDED USE
                         Color    black
                 Spoke holes      32 / 36
                                                                                                                                                          Max. load 180 kg
                                                                                                                                        High load 130kg
                                                                                                                       E-bike 45 km/h
                                                                                                      E-bike 25 km/h

  DFL, Fl, SE, DE, ID washer      ID
          Valve hole ø (mm)       8,5 F
                                                                         Touring

    Max. spoke tension (N)        1400
                                                                  Road

                                                                                                MTB
                                                                                          ATB
                                                                                   City

            Tire width (mm)       28-69
  Max. System weight (kg)         180
                                                                         ++
                                                                         ++
                                                                         ++
                                                                         ++
                                                                         ++
                                                                         ++
                                                                         ++
                                                                         ++

   Max. Tire pressure (bar)       according tire                   0

                                                                                                                                                      page 33
Andra 321
                                                                                               26,5 mm
                                                                                               20,8 mm
ANDRA RIMS

             The round shaped Andra 321 has an internal width of 21
                                                                                                                      20 mm
             millimetres for more stability to the wider tyres used
             these days. This disc only design fits perfectly to the Rival
             serie.

                                                standard
                                      Shape     double wall
                                        Joint   pin
                                    Tire use    tube
                                  Hook type     crotchet
                                 Brake type     disc
                                      ETRTO     21C
                                  Size (mm)     559 / 584 / 622
                                Weight (gr)     610 / 630 / 670
                                  ERD (mm)      537 / 562 / 599
                    Mechanical treatment        raw
                       Chemical treatment       pre anodized                 RECOMMENDED USE
                                       Color    black
                                                                                                                                                                     Max. load 180 kg

                                Spoke holes     32 / 36
                                                                                                                                                   High load 130kg
                                                                                                                                  E-bike 45 km/h
                                                                                                                 E-bike 25 km/h

                 DFL, Fl, SE, DE, ID washer     ID
                         Valve hole ø (mm)      6,5 F
                                                                                    Touring

                   Max. spoke tension (N)       1400
                                                                             Road

                                                                                                           MTB
                                                                                                     ATB
                                                                                              City

                           Tire width (mm)      28-65
                 Max. System weight (kg)        130
                                                                             ++
                                                                             ++
                                                                             ++

                                                                             ++

                                                                             ++

                                                                                                                                                                          0
                                                                             +

                                                                             +

                                                                             +

                  Max. Tire pressure (bar)      according tire

             page 34
V I N TA G E
SHAPE RIMS

               page 35
◊
V I N TA G E S H A P E R I M S

                                 HL 32
                                                                                                                       32,4 mm
                                                                                                                        26 mm

                                 Designed as replacement of the stainless steel rims, this
                                 rim offers the same look with a polished surface and                                                                                   19,5 mm

                                 dimpled holes. In aluminum the rim is stiffer and lighter.

                                                                    standard
                                                          Shape     single wall
                                                            Joint   pin
                                                        Tire use    tube
                                                     Hook type      crotchet
                                                    Brake type      disc brake / drum brake
                                                         ETRTO      26C
                                                     Size (mm)      622 / 635
                                                   Weight (gr)      660 / 675
                                      ERD (MM)(SE,DE+1mm)           602 / 655
                                        Mechanical treatment        raw
                                          Chemical treatment        High polish               RECOMMENDED USE
                                                           Color    transparent coating
                                                                                                                                                                                      Max. load 180 kg

                                                   Spoke holes      36
                                                                                                                                                                    High load 130kg
                                                                                                                                                   E-bike 45 km/h
                                                                                                                                  E-bike 25 km/h

                                    DFL, Fl, SE, DE, ID, washer     Dimpled
                                            Valve hole ø (mm)       8,5 E
                                                                                                     Touring

                                      Max. spoke tension (N)        1300
                                                                                              Road

                                                                                                                            MTB
                                                                                                                      ATB
                                                                                                               City

                                              Tire width (mm)       44-46
                                     Max. System weight (kg)        120
                                                                                                     ++
                                                                                                     ++

                                                                                               X                             O                          X                O                 X
                                                                                                                      +

                                                                                                                                  +

                                     Max. Tire pressure (bar)       according tire

                                 page 36
◊

                                                                                                                                                                           V I N TA G E S H A P E R I M S
                                                                                       24,4 mm
ZAC 19                                                                                  19 mm

The reliable all-rounder, often copied, never surpassed.        10,1 mm
                                                                                                                         17,5 mm
One of your bikes surely had a ZAC 19 rim. This is one of
our hits. Be it for trekking bikes or for mountainbikes, the
ZAC 19 serves all.

                                  standard
                      Shape       double wall
                        Joint     pin
                    Tire use      tube
                  Hook type       crotchet
                  Brake type      rim brake
                      ETRTO       19C
                  Size (mm)       559 / 622
  weight (GR)(SE +10g, DE +38g)   514 / 575
     ERD (MM)(SE,DE+1mm)          541 / 604
      Mechanical treatment        raw/UP
         Chemical treatment       powder coated                RECOMMENDED USE
                        Color     black / silver
                                                                                                                                                        Max. load 180 kg

                  Spoke holes     32/36
                                                                                                                                     High load 130kg
                                                                                                                    E-bike 45 km/h
                                                                                                   E-bike 25 km/h

   DFL, Fl, SE, DE, ID washer     DE
           Valve hole ø (mm)      8,5 F
                                                                      Touring

     Max. spoke tension (N)       1200
                                                               Road

                                                                                             MTB
                                                                                       ATB
                                                                                City

             Tire width (mm)      28-62
   Max. System weight (kg)        110
                                                               ++
                                                               ++
                                                               ++

                                                                                              O        O                 X                X                  X
                                                               +

    Max. Tire pressure (bar)      according tire

                                                                                                                                                       page 37
◊
V I N TA G E S H A P E R I M S

                                 Sputnik                                                                                     25 mm
                                                                                                                             19 mm

                                 Heavy duty classic. The ‘other’ travellers rim. The Sputnik
                                                                                                      13 mm
                                                                                                                                                                     19,5 mm
                                 is the eyeleted version of the Andra 30 and just as popular
                                 among world travellers.

                                                                    standard
                                                        Shape       double wall
                                                          Joint     pin
                                                      Tire use      tube
                                                    Hook type       crotchet
                                                    Brake type      rim brake
                                                        ETRTO       19C
                                                    Size (mm)       622
                                    weight (GR)(SE +10g, DE +38g)   721
                                       ERD (MM)(SE,DE+1mm)          600
                                        Mechanical treatment        raw / UP / polished
                                           Chemical treatment       powder coated              RECOMMENDED USE
                                                          Color     black / silver
                                                                                                                                                                                        Max. load 180 kg

                                                    Spoke holes     36
                                                                                                                                                                      High load 130kg
                                                                                                                                                    E-bike 45 km/h
                                                                                                                                   E-bike 25 km/h

                                     DFL, Fl, SE, DE, ID washer     DE
                                             Valve hole ø (mm)      6,5 F
                                                                                                      Touring

                                       Max. spoke tension (N)       1300
                                                                                               Road

                                                                                                                             MTB
                                                                                                                       ATB
                                                                                                                City

                                               Tire width (mm)      28/62
                                     Max. System weight (kg)        120
                                                                                               ++
                                                                                               ++
                                                                                               ++

                                                                                                                                                         X                 O                 X
                                                                                               +

                                                                                               +
                                                                                               +

                                      Max. Tire pressure (bar)      according tire

                                 page 38
◊

                                                                                                                                                                          V I N TA G E S H A P E R I M S
V38                                                                                  38 mm
                                                                                     24,4 mm
Retro and strong (ALLOY). West wood design is suitable for
replacement in your old-timer.
                                                                                                                                    15,5 mm

                                 standard
                       Shape     single wall
                         Joint   pin
                     Tire use    tube
                   Hook type     crotchet
                  Brake type     disc brake
                       ETRTO     25
                   Size (mm)     622 / 635
                 Weight (gr)     658 / 672
                   ERD (mm)      606 / 619
     Mechanical treatment        raw
        Chemical treatment       powder coated               RECOMMENDED USE
                        Color    black
                                                                                                                                                       Max. load 180 kg

                 Spoke holes     36
                                                                                                                                    High load 130kg
                                                                                                                   E-bike 45 km/h
                                                                                                  E-bike 25 km/h

  DFL, Fl, SE, DE, ID washer     FL
          Valve hole ø (mm)      8,5 E
                                                                    Touring

    Max. spoke tension (N)       1300
                                                             Road

                                                                                            MTB
                                                                                      ATB
                                                                              City

            Tire width (mm)      40-52
  Max. System weight (kg)        120
                                                                    ++
                                                                    ++

   Max. Tire pressure (bar)      according tire               X                        O     O         X                X                O                  X

                                                                                                                                                      page 39
The Netherlands
Ryde B.V.
+ 31 485 56 17 80

info@ryde.nl

www.ryde.nl
You can also read
NEXT SLIDES ... Cancel
