Contract modelling &
Simulation in 6SigmaROOM
ALPHA-Numerics GmbH is a supplier and
service provider in the field of CFD-supported
temperature simulation.
1. We distribute the products of the
manufacturer FutureFacilities as exclusive
dealer and train users in the use of the
software 6SigmaROOM. In addition, we offer
a German and English language hotline for
our licensed customers (Germany, Austria,
Switzerland, Italy, Spain and Eastern Europe).
2. Through our parallel offer for order
simulations we offer interested parties, as an
extended workbench and consultant, to take
over the part of flow simulation of air
conditioning concepts in close cooperation
with your computer center planners.
ALPHA-Numerics GmbH
Römerstraße 32
56355 Nastätten
Request for proposal and project clarification
Mr. Tobias Best
Phone: +49 6772 969 3430
tobias.best@alpha-numerics.de
Electronics cooling in general
We have been working as specialists for electronics cooling for over 20
years and support all electronics industries as a service provider, from
device development to computer center planning or troubleshooting in
existing data centers. For this we use the latest CFD technology
(Computational Fluid Dynamics), the industry-specific tools of the
London-based company FutureFacilities.
ALPHA-NUMERICS – Effiziente Kühlwege planen und prüfen
The CFD tool
The Software 6SigmaROOM / RoomLite What can be achieved in 4 weeks test phase
without training?
In 6SigmaROOM comprehensive libraries of cooling units are
available to realistically represent manufacturer-specific cooling
units. These can be air/air or air/fluid room units, in-row units and Through the provided tutorials, which you can perform through
rack-integrated coolers. the virtual planning, modeling and simulation of a data center in
But there are no limits to the flexibility. With the available data only 2 days, you will get to know the digital twin in
sheet parameters, you can define any cooling unit in 6SigmaROOM. Supported by the extensive support via email,
6SigmaROOM yourself and control it temperature-dependently
using sensors positioned in the room. technical hotline and web helpdesk, you can learn how to use the
On this basis, you can now test different indirect and direct software independently in just a few days. With the industry-
cooling concepts and evaluate their thermal effect specific input options for data center model building through the
6SigmaROOM calculates the available cooling capacity for each extensive hardware library of ACUs, IT hardware, PDUs and
rack and lets you make smart positioning decisions for the
integration of new hardware. other basic data center internals, you only need to focus on
correctly modeling the task at hand. At the end of the 4 weeks
So that you and your IT systems do not break a sweat even in you can operate the software and marvel at your own data center
extreme situations. as a 3D model as well as the calculated cooling air distribution
and the risky hotspot regions.
Just ask us for a test license!
Target group: Recommendation:
Data center planners or operators who want to test the
advantages of a digital twin for advance- or risk analysis as well A training-free evaluation also involves risks. Incorrect results are
as for virtual capacity management (power, data, cooling, space). rarely attributed to the software. Please keep close contact with
Only interested parties who register with their company contact our technical support to evaluate high quality calculation models.
data (for bachelor or master theses please have the registration
be done by the supervisor) are authorized. We cannot support
private persons due to the support effort of a goal-oriented
evaluation.
ALPHA-NUMERICS – Effiziente Kühlwege planen und prüfen
The simulation service
Especially for computer center planners and operators, who only Possible order scenarios
need one computer center simulation per year, it is rarely
profitable to invest in special software and the associated training Scenario 1
of employees. You are planning a computer center and would like to virtually
test and secure various cooling concepts or emergency running
If you are planning a new server room or a data center, we will characteristics for n+1(x) concepts or other what/if scenarios.
gladly support you in modeling the digital twin. We virtually
reconstruct your data center room with the help of 6SigmaRoom - Scenario 2
with all racks including built-in IT systems as well as the You have an existing data center and would like to have a
corresponding climate infrastructure. clarification of the current climate situation, airways and problem
areas.
You can then manage your data center independently, virtually • Detail level of the rack internals as a black box with air flow
and re-equip it with new IT hardware in daily operation. At the rate and power loss
same time, you always have an overview of the capacity • Detailed level of IT hardware mapped exactly according to the
utilization in terms of space, power load, port availability and manufacturer
available cooling capacity per rack.
Scenarion 3
Of course, we can also take over the complete thermal simulation You would like us to build up an image of your DC as a digital
of your data center or server room on request. In the first step twin for your stand "now". You will then receive this 3D model for
this is virtually set up and equipped in 6SigmaRoom. We then extended capacity management Space/Cooling with optional
evaluate the air conditioning according to parameters specified extension of power & data cable management
by you.
Offer
In this way, cooling problems in existing systems can be quickly We take over the model construction, the simulation and advise
you on the results. You will receive your virtual twin as 3D
identified and rectified or new data centers can be designed for
models with free viewer for your own internal investigations and
efficient cooling from the outset and thus become more efficient. presentations.
ALPHA-NUMERICS – Effiziente Kühlwege planen und prüfen

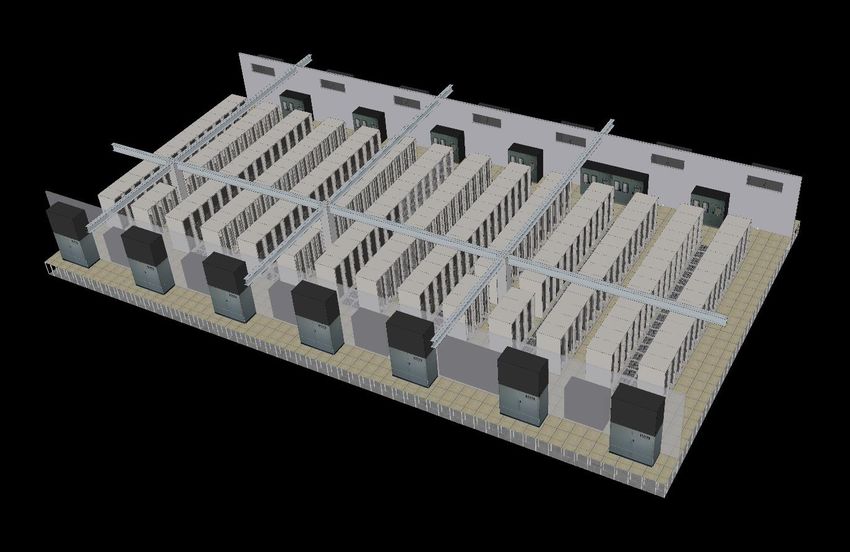

Construction of a digital twin
Floor plan
To start a data center modelling, we need a floor
plan of the architectural spatial dimensions. By
adding additional information, such as a raised
floor with 0.66 m panel grid and 1 m height, the IT
room can be modelled in 6SigmaROOM even
with ramps, doors and, if necessary, wall
openings for cold clamps.
ALPHA-NUMERICS – Effiziente Kühlwege planen und prüfen

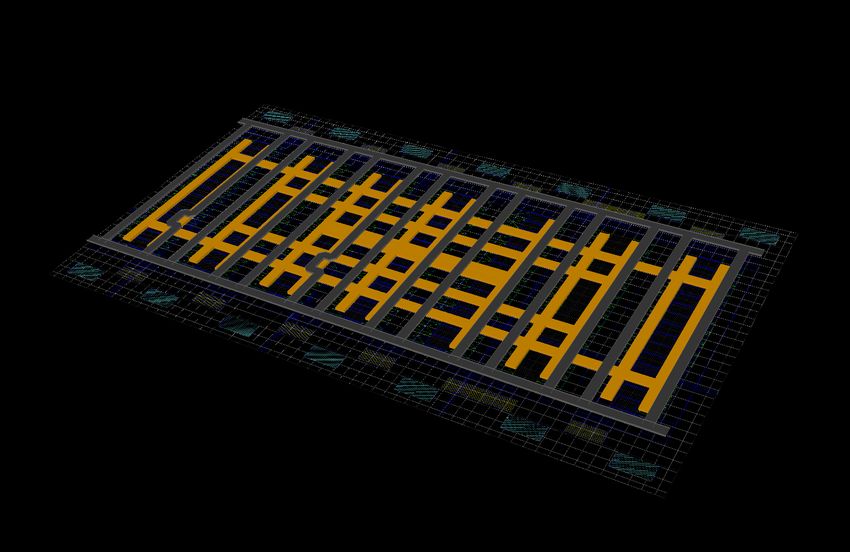

Construction of a digital twin Cable routes Already with the modeling or later, when the ACUs, PDUs and racks are in the room, the cable routes and the piping of the ACUs can be added. Here we need the route width, height and filling degree in %, if the cable routes are not closed but consist of open baskets. The position can be in the subfloor, in the room or in the ceiling. The floor or room swirl diffusers can also be modelled and positioned according to the specification. In the case of perforated floor plates, an opening ratio and hole geometry would also be sufficient to ensure the correct pressure drop across the plate. ALPHA-NUMERICS – Effiziente Kühlwege planen und prüfen
Construction of a digital twin
ACUs – Air cooling units
In the planning phase it is possible for us to define
no-name units for conceptual design with fixed or
adjustable volume flow and supply air temperature,
or to position the ACU via the manufacturer
database using drag & drop.
P [W]
V [m³/hr ] = 3.1
T [K]
ALPHA-NUMERICS – Effiziente Kühlwege planen und prüfen
Evaluation of such library parts
Example – Air cooling units
1 *. An object based on limited information, e.g. manufacturer, model, cooling capacity, airflow with other properties
based on estimates
2 *. An object based on a product brochure with some minor estimates of the most important features
3*. An object based on a published data sheet or data book, with published data for all key characteristics and some
estimates for detailed characteristics
4 *. An object that is based on a published data sheet or data book and whose estimated values and key characteristics
have not been verified by testing
5 *. An object based on information provided directly by the manufacturer for all characteristics
ALPHA-NUMERICS – Effiziente Kühlwege planen und prüfen
Construction of a digital twin
Rack definition and positioning
In addition to no-name racks with predefined external dimensions,
manufacturer-specific racks or mounting carriers can also be positioned
ALPHA-NUMERICS – Effiziente Kühlwege planen und prüfen
Construction of a digital twin
KW per Rack or specific IT
In addition to no-name racks with predefined external dimensions,
manufacturer-specific racks or mounting carriers can also be positioned
For each rack, a preset power can be defined, or IT-specific, each
device with XY % load at maximum power can be defined.
For this purpose we also offer the import of the common DCIM tools for
existing data centers. With access to our IT library, this import can
automatically populate the racks and assign a load.
Manufacturer-unspecific for planners
ALPHA-NUMERICS – Effiziente Kühlwege planen und prüfenConstruction of a digital twin PDU (Power distribution unit) positioning and connection to the power lines After selection or definition of the PDUs (geometry & thermal load), they are positioned according to specifications and connected to the power lines, e.g. in the underfloor. ALPHA-NUMERICS – Effiziente Kühlwege planen und prüfen
Supplementary DC-Capacities e.g. 6SigmaROOM ALPHA-NUMERICS – Effiziente Kühlwege planen und prüfen
Further modelling possibilities
Cold- or Warm aisle containment
With such a virtual twin, the most diverse air conditioning
strategies can be tested virtually without having to take
measurements during operation.
ALPHA-NUMERICS – Effiziente Kühlwege planen und prüfenSimulation results
Which results does a typical service
report contain?
• Temperature plot per rack according to ASHRAE
• Sensor values, which have been previously defined
in their position
• Temperature distribution in the room
• → Result sections
• Under floor pressure distribution
• …
ALPHA-NUMERICS – Effiziente Kühlwege planen und prüfenSimulation results
Which results does a typical service report
contain?
• Local flow analyses
• Volume flows per perforated base plate
• Visualization of ventilation short circuits
• Documented ACU failure scenarios
• Timing for ACU failure
ALPHA-NUMERICS – Effiziente Kühlwege planen und prüfenPossible model adoption
Further independent management of available
capacities possible with the tool
6SigmaACCESS
6SigmaAccess is a browser-based tool that reduces the capacity
planning process from weeks to hours by consolidating critical
data center resources into a single view. 6SigmaAccess is
supported by our advanced CFD software, 6SigmaRoom, and
enables you to meet future capacity planning needs by predicting
the impact of any change in your facility.
6SigmaAccess allows users to view a digital twin of their active
data centre in their browser. There they can test potential
movements, additions and changes to their IT. Suggested
changes are automatically forwarded to 6SigmaRoom where DC
engineers can investigate, analyse and mitigate potential
problems. The entire workflow is designed to keep you one step
ahead and eliminate the risks of physical implementation.
