Data and Security Specialists - ABOUT US
RWL are the leading Data and Security Specialist distributor in Ireland. In
addition to Ireland, RWL operate an EMEA model in providing solutions
and services to our partners across Europe. We are skilled in completing
all logistical challenges for delivering systems regardless of destination or
location.
We represent most of the leading manufacturers in Ireland. With an
experienced team of individuals with extensive industry experience we offer
a comprehensive pre and post-sales service. With trade counters in Dublin
and Cork, together with enthusiastic sales personnel, we deliver a customer
focussed approach.
How to Order
You can order from RWL in two simple ways:
Over the Phone At our Trade Counters
Our highly knowledgeable sales You can order your goods by
team can deal with all your enquiries
visiting our Dublin and
and orders over the phone.
Cork trade counters.
w w w . r w l . i e Cork: +353 (0)21 431 6744
Dublin: +353 (0)1 424 2414 2
2
w w w. r w l . i e
Our Brands 3 w w w. r w l . i e
Contents
5 Why Choose Excel?
6 Become an Excel Partner
7 Excel Cable Types
8 Excel Category 5e Cable
9 Excel Category 6 Cable
10 Excel Category 6A Cable
11 Excel Toolless Jacks
12 Excel Patch Panels
13 - 14 Excel Category 5e Patch Leads
15 - 16 Excel Category 6 Patch Leads
17 - 18 Excel Mounting Hardware
19 Excel Grid Outlet Position (GOP) Box Plus
20 - 22 Excel Fibre Optic Cabling
23 - 24 Preterminated Fiber Cabling
25 - 26 Excel Cabinet Features
27 - 32 Excel Networking Racks & Open Frames
33 Excel Power Distribution Units
34 Other Cables
35 - 36 Cable Accessories
37 Level One Switches & Injectors
38 CNet Training
39 - 40 APC
41 - 42 Fluke
4
w w w. r w l . i e
Why Choose Excel?
Connected by one solution
Choosing the right cabling infrastructure solution for your business is critical; it no
longer provides just the connectivity for your IT system, it is the foundation of a
modern building management system (BMS). Making the right choice creates a
future proof, high performance, flexible platform from which your business can gain
efficiency and cost benefits.
Building Management Systems are now more prevalent across many businesses
and allow them to run multiple services across one network including: access
control, wireless, IP Security, Environmental Control and Lighting to name but a few.
The benefits of doing this are huge, businesses can monitor, manage and integrate
these services far more efficiently and as a result save time and costs.
5
w w w. r w l . i e
Become An Excel Partner
Become an Excel Cabling Partner (ECP) by using end-to-end solutions
and achieve a 25 year warranty on Excel products.
• 25 year product and application warranty as standard on all installations
completed by an accredited Excel Partner.
• The comprehensive warranty provides support and peace of mind from
racks to copper, fibre & voice cabling systems.
• Link warranty is provided as standard, a channel warranty can be issued
subject to use of Excel patch cords and prior discussion with our technical
support team.
• Issued to current ISO and EIA/TIA published standards.
• Bandwidth warranty. For example Category 6A warranties assure support of
all applications, current and future, designed to operate at up to 500MHz.
• Warranty applications typically processed in 5 working days.
The Excel 25 year product and application warranty is only available when
systems are designed, installed, and tested by Excel Partners with current training
certification in place. Warranties are issued only after an audit of test data, and
at the discretion of the Excel technical support team after a site audit. In all cases
100% of the links which require warranty support must be tested.
6
w w w. r w l . i e
Excel Cable Types
The first letter describes the overall screening. The second letter describes
the screening of the individual pairs and the TP refers to the Twisted Pairs.
The reason for the additional letter at the beginning is to avoid confusion of
the different types of screened cables.
The following are the types of cable recognised in the ISO/IEC 11801
standard.
Cable Sheath Cable Sheath
Braid Screen
Pair
Foil Screen
Screened Pair
Unscreened Con braid
duc
outer with to r foilouter
and
unscreened with
twisted pairs unscreened Conductor
twisted pairs
Cable Sheath Cable Sheath
Foil Screen Braid Screen
Pair Foil Pair Screen
Screened Pair
Screenedfoil braid outer
outer with with
unscreened individual
twisted pairs r
toscreened foil Conductor
duc twisted pairs
Con
Cable Sheath Cable Sheath
FoilPairScreen Foil Screen
Pair Foil Pair Screen
Screenedfoil Pair
Unscreened
outer outer with
with in- individual
dividual screened foil
twisted pairs Conductor
screened foil Conductor
twisted pairs
Cable Sheath Cable Sheath
Foil Screen
‘S’ Foil Pair Screen
Unscreened Screenedfoil ‘S’ Foil Pair Screen
Pair Pair
outer with outer with
two sets of two sets of
two pairs foil two pairs foil Conductor
screenedin‘S’ screenedin‘S’
configuration Conductor configuration
7 w w w. r w l . i e
Excel Category 5e Cable
Excel Cat5e Unscreened Twisted Pair (U/UTP) Cable
Excel solid conductor Cat5e is a 4 pair U/UTP cable which conforms to the
enhanced performance Category 5 specification. It is also Power Sum Compliant
and is tested for FEXT and return loss. The cable comes in a 305m fast feed box
with 305-0 metre markings to help reduce waste.
Excel Cat5e Unscreened Twisted Pair (U/UTP) Cable - LSOH
Excel solid conductor Cat5e is a 4 pair U/UTP cable with a low smoke zero halogen
outer sheath. The cable conforms to Category 5 specification and comes in a
variety of colours. It is also Power Sum Compliant and is tested for FEXT and return
loss. The cable comes in a 305m fast feed box with 305-0 metre markings to help
reduce waste.
Excel Cat5e Unscreened Twisted Pair (U/UTP) Cable - External
Excel solid conductor 4 pair U/UTP external grade cable with black polyethylene
outer sheath. The cable is duct grade, UV resistant and Cat5e compliant. It comes in
a 305m fast feed box with 305-0 metre markings to help reduce waste.
Excel Cat5e Screened Twisted Pair (F/UTP) Cable
Excel solid conductor 4 pair F/UTP is a high performance Category 5e compliant
cable suitable for installations where there may be high levels of EMI and RFI
present. The cable comes with PVC or LSOH outer sheath and 100% aluminium foil
tape screen.
CPR Compliant to Dca
Description Part Number
Category 5e U/UTP Cable Grey - 305m R-100-065
Category 5e U/UTP Cable LSOH Violet - 305m R-100-066
Category 5e U/UTP Cable LSOH White - 305m R-100-060
Category 5e U/UTP Cable LSOH Red - 305m R-100-061
Category 5e U/UTP Cable LSOH Blue - 305m R-100-062
Category 5e U/UTP Cable LSOH Green - 305m R-100-063
Category 5e U/UTP Cable LSOH Yellow - 305m R-100-064
Category 5e U/UTP Cable LSOH Orange - 305m R-100-057
Category 5e U/UTP Cable External Black - 305m R-100-090
Category 5e F/UTP Cable Grey - 305m R-100-216
w w w. r w l . i e 8
Excel Category 6 Cable
Excel Category 6 Unscreened Twisted Pair (U/UTP) Cable
Excel Cat6 U/UTP cable is designed for optimal support of high-speed
data protocols delivering 1Gbps performance to the workstation.
Designed to be quick and easy to install the cable requires no specialist
installation tools and is supplied in reelex packaging for fast snag free
installation. To reduce waste the cable sheath is numbered from 305m
to 1m, allowing quick and easy calculation of the cable remaining in the
box. The inclusion of polyethylene cross filler ensures optimum cross talk
performance.
Excel Category 6 Unscreened Twisted Pair (U/UTP) -
External Grade (PE)
Excel Cat6 U/UTP cable is designed for optimal support of high-speed
data protocols delivering 1Gbps performance to the workstation. The cable
comes with a black polyethylene outer sheath, for outdoor use.
Designed to be quick and easy to install the cable requires no specialist
installation tools and is supplied in reelex packaging for fast snag free
installation. To reduce waste the cable sheath is numbered fro 305m to 1m,
allowing quick and easy calculation of the cable remaining in the box.
CPR Compliant to Dca
Description Part Number
Category 6 U/UTP Cable LSOH Violet - 305m R-100-071
Category 6 U/UTP Cable LSOH Grey- 305m R-100-070
Category 6 U/UTP Cable LSOH White - 305m R-100-074
Category 6 U/UTP Cable LSOH Orange - 305m R-100-075
Category 6 U/UTP Cable External Black - 305m R-100-100
9 w w w. r w l . i eExcel Category 6A Cable
Excel Category 6A take the performance capabilities of copper
infrastructure to new levels. Designed to the current ISO, EN and
TIA standards for Class E, augmented Cat6A performance these
products are intended to deliver reliable, high network performance
over link distances of up to 90 metres, including support of emerging
applications such as 10 GBase-T and10 Gigabit Ethernet. Excel Cat6A
cables are jacketed with an Ice Blue low smoke zero halogen LSOH
compound compliant with flame retardant standards as defined in
IEC 60332-1 and smoke emission standards IEC61034.
Excel Cat6A Unscreened Twisted Pair (U/UTP) Cable
Each cable consists of 4 unscreened twisted pairs which are formed
around specifically designed X filler, manufactured from lightweight
flexible polyethelene. The cable has a unique oval appearance to
ensure that installed looms of cables are not able to form consistent
‘side by side’ bundles which would increase the probability of alien
cross talk between adjacent cables. Excel Cat6A cables are jacketed
with an Ice Blue low smoke zero halogen LSOH compound compliant
with flame retardant standards as defined in IEC 60332-1 and smoke
emission standards IEC61034.
Excel Cat6A Screened Twisted Pair (U/UTP) Cable
Each cable consists of two sets of two pairs wrapped together in an ‘S’
configuration with high quality, strong, aluminium/polyester foil tape
providing screening for each pair. The ‘S’ Foil configuration ensures
separation of the pairs ensuring performance. By using two sets of two
pairs has resulted in a reduced diameter and cable weight. The smaller
cable diameter has reduced the cable
cross-sectional area by 14.5%.
CPR Compliant to Dca
Description PartNumber
Category 6A U/UTP Cable LSOH Ice Blue - 500m R-100-189
Category6AU/FTP‘S’FoilCableLSOHIceBlue-500m R-100-190
w w w. r w l . i e 10Excel Toolless Jacks
Excel Cat5e/Cat 6/Cat 6A Low Profile Unscreened Keystone
Jack - Tooless
The Excel low profile unscreened keystone jack is a reduced size toolless
termination RJ45 socket. The reduced size allows for multiple cable entry
directions to be accommodated when this jack is mounted in a standard
depth back box. This permits many mounting options including flush
shutters at the outlet as well as more common angled shutter used with
keystone jacks. A choice of compatible patch panel frames with either 16
or 24 port density in both black and chrome are available. The low profile
design allows this jack to fit in the Excel 0.5U 24 port patch panel resulting
in a maximum port density of 48 per 1U. The socket itself is housed in a
high quality fire retardant plastic cast housing, which opens at the rear in
a butterfly manner to reveal the IDC termination points. Once the pairs are
arranged in the cable management cap and trimmed, it is a simple case of
closing the butterfly together to complete the termination.
Description Part Number
Category5eUnscreenedButterflyStyleToollessKeystone R-100-202-WT
Jack - White, Low Profile
Category5eUnscreenedButterflyStyleToollessKeystone R-100-202-BK
Jack - Black, Low Profile
Category6UnscreenedButterflyStyleToollessKeystone R-100-215-WT
Jack - White, Low Profile
Category6UnscreenedButterflyStyleToollessKeystone R-100-215-BK
Jack - Black Low Profile
Category6AUnscreenedButterflyStyleToollessKeystone R-100-182-WT
Jack - White Low Profile
Category6AUnscreenedButterflyStyleToollessKeystone R-100-182-BK
Jack - Black Low Profile
Unloaded24portblackpatchpanelframe-plasticfascia R-100-026
11 w w w. r w l . i eExcel Patch Panels

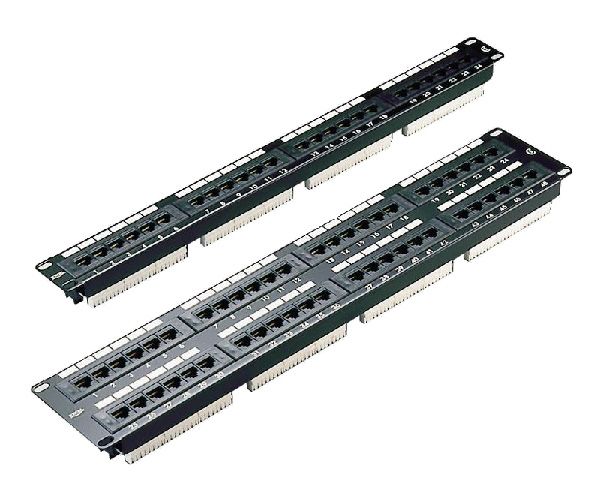

Excel Cat5e/Cat 6 Unscreened RJ45 Patch Panels
The Excel patch panels comply with the EIA TIA Standard for enhanced
Category 5 and are available in a choice of port density. Each panel offers
a choice of labelling with the option to use the screen printed fields on the
panel fascia or the slide label system which is enclosed with each panel.
Ease of installation is assured with ample rear cable management positions
and IDC blocks allowing use of Krone tooling.
Description Part Number
Category 5e 24 Port 1U Black Patch Panel R-100-726
Category 5e 48 Port 2U Black Patch Panel R-100-728
Category 6 24 Port 1U Black Patch Panel R-100-304
w w w. r w l . i e 12Excel Cat 5e Patch Leads
Excel Category 5e Unscreened Twisted Pair U/UTP Patch Leads
Length(M) Grey Red Blue Black Green
0.2 BB0.2MPLGE BB0.2MPLRD - - -
0.5 BB0.5MPLGE BB0.5MPLRD BB0.5MPLBU BB0.5MPLBK BB0.5MPLGN
0.75 BB0.75MPLGE BB0.75MPLRD BB0.75MPLBU BB0.75MPLBK BB0.75MPLGN
1 BB001MPLGE BB001MPLRD BB001MPLBU BB001MPLBK BB001MPLGN
1.5 BB015MPLGE BB015MPLRD BB015MPLBU BB015MPLBK BB015MPLGN
2 BB002MPLGE BB002MPLRD BB002MPLBU BB002MPLBK BB002MPLGN
3 BB003MPLGE BB003MPLRD BB003MPLBU BB003MPLBK BB003MPLGN
4 BB004MPLGE BB004MPLRD BB004MPLBU BB004MPLBK BB004MPLGN
5 BB005MPLGE BB005MPLRD BB005MPLBU BB005MPLBK BB005MPLGN
6 BB006MPLGE BB006MPLRD BB006MPLBU - BB006MPLGN
7 BB007MPLGE BB007MPLRD BB007MPLBU BB007MPLBK BB007MPLGN
8 BB008MPLGE BB008MPLRD BB008MPLBU BB008MPLBK BB008MPLGN
9 BB009MPLGE - BB009MPLBU - BB009MPLGN
10 BB010MPLGE BB010MPLRD BB010MPLBU BB010MPLBK BB010MPLGN
15 BB150MPLGE BB150MPLRD BB150MPLBU BB150MPLBK BB150MPLGN
20 BB200MPLGE BB200MPLRD BB200MPLBU - BB200MPLGN
25 BB250MPLGE - - - -
30 BB300MPLGE - - - -
13 w w w. r w l . i eExcel Cat 5e Patch Leads
Excel Category 5e Unscreened Twisted Pair U/UTP Patch Leads
Length Yellow Violet White Orange Pink
(M)
0.2 - - - - -
0.5 BB0.5MPLYW BB0.5MPLVT BB0.5MPLWT BB0.5MPLOR -
0.75 BB0.75MPLYW BB0.75MPLVT BB0.75MPLWT BB0.75MPLOR BB0.75MPLPK
1 BB001MPLYW BB001MPLVT BB001MPLWT BB001MPLOR BB001MPLPK
1.5 BB015MPLYW BB015MPLVT BB015MPLWT BB015MPLOR -
2 BB002MPLYW BB002MPLVT BB002MPLWT BB002MPLOR BB002MPLPK
3 BB003MPLYW BB003MPLVT BB003MPLWT BB003MPLOR BB003MPLPK
4 BB004MPLYW BB004MPLVT - BB004MPLOR -
5 BB005MPLYW BB005MPLVT BB005MPLWT BB005MPLOR BB005MPLPK
6 BB006MPLYW BB006MPLVT BB006MPLWT BB006MPLOR -
7 BB007MPLYW BB007MPLVT BB007MPLWT BB007MPLOR -
8 BB008MPLYW - - BB008MPLOR -
9 - - - - -
10 BB010MPLYW BB010MPLVT BB010MPLWT BB010MPLOR -
15 BB150MPLYW BB150MPLVT BB150MPLWT - -
20 BB200MPLYW - BB200MPLWT - -
25 - - BB250MPLWT - -
30 - - BB300MPLWT - -
w w w. r w l . i e 14Excel Cat 6 Patch Leads
Excel Category 6 Unscreened Twisted Pair U/UTP Patch Leads
Booted - LSOH
Length Grey Red Blue Black Green
(M)
0.5 R-100-395 - - - -
1 R-100-310 R-100-315 R-100-325 R-100-350 R-100-320
2 R-100-311 R-100-316 R-100-326 R-100-360 R-100-321
3 R-100-312 R-100-317 R-100-327 R-100-371 R-100-322
4 R-100-357 R-100-358 R-100-364 - R-100-359
5 R-100-314 R-100-319 R-100-329 R-100-373 R-100-324
6 R-100-318 R-100-323 R-100-334 - R-100-328
7 R-100-414 R-100-422 R-100-423 R-100-400 R-100-424
8 R-100-352 - R-100-355 - R-100-354
10 R-100-335 R-100-338 R-100-344 R-100-401 R-100-341
15 R-100-336 R-100-339 R-100-345 - R-100-342
20 R-100-337 R-100-340 R-100-346 - R-100-343
15 w w w. r w l . i eExcel Cat 6 Patch Leads
Excel Category 6 Unscreened Twisted Pair U/UTP Patch Leads
Booted - LSOH
Length(M) Yellow Violet White Orange
0.5 - - R-100-415 -
1 R-100-330 R-100-387 R-100-416 R-100-426
2 R-100-331 R-100-388 R-100-417 R-100-427
3 R-100-332 R-100-389 R-100-418 R-100-428
4 R-100-387 - - -
5 R-100-365 R-100-392 R-100-419 R-100-429
6 R-100-333 - - -
7 R-100-425 - R-100-420 R-100-402
8 R-100-356 - - -
10 R-100-347 R-100-390 R-100-421 R-100-412
15 R-100-348 R-100-393 - R-100-431
20 R-100-349 R-100-391 - R-100-413
w w w. r w l . i e 16Excel Mounting Hardware
In addition to the standard flat Euromod - 50x25mm and 6c - 22.5x37mm
- is the recommended angled shutter. Available in the standard Euromod
cut out size, this housing is designed to assist with the installation of large
diamater cables in confined spaces such as standard back boxes, multi
100-175 compartment trunking and floor boxes. The design presents the keystone
at 45degrees to both the solid conductor cable being terminated, and
the RJ45 patch cable to be connected to the installed socket. This design
optimises the space available and ensures minimal if any stress is applied
to the cables during installation or use. Each of the shutters and blanking
100-014
plates available are compatible with the Excel range of faceplates.
Part Number Description
R-100-175 WhiteShuttertosuitKeystoneJack,Angled,50x25mm
R-100-014 White Shutter to suit Keystone Jack, 50x25mm
100-018 100-022 R-100-018 WhiteShuttertosuitKeystoneJack,6c,38.5x25mm
R-100-022 White Shutter to suit Keystone Jack, Angled, 6c
R-100-175-BK BlackShuttertosuitKeystoneJack,Angled,50x25mm
R-100-018-BK Black Shutter to suit Keystone Jack, 6c, 38.5x25mm
100-712 R-100-712 Single Gang Bevelled Plate without Blanks
R-100-714 Single Gang Flat Plate without Blanks
R-100-714-BK Black Single Gang Flat Plate without Blanks
R-100-716 Double Gang Bevelled Plate without Blanks
100-716 R-100-718 Double Gang Flat Plate without Blanks
R-100-718-BK Black Double Gang Flat Plate without Blanks
R-100-715 Half Width12.5mm Blank Plate
100-714 R-100-719 Half Width 25mm Blank Plate
100-718
17 w w w. r w l . i eExcel Office Mounting Hardware
The Excel Office Range brings style and enhanced aesthetics to any Excel
installation, thanks to its curved plate finish and built in labelling fields.
The portfolio includes Cat5e and Cat6 low profile modules allowing
installation in shallow back boxes and dado trunking. Additionally an angled
keystone shutter is available that accepts the full range Excel Cat5e, Cat6
and Cat6a keystone jacks. The Single and Double Gang faceplates are each
supplied with two half (12.5mm wide) blanks. In the case of the Single Gang
Faceplate this allows a single jack or shutter to be mounted centrally in the
aperture. The two half (12.5mm wide) blanks supplied with the Double Gang
Faceplate allows spacing options for mounting three jacks or shutters in the
faceplate.
The range is available in Office White or Charcoal Grey.
PartNumber Description
R-100-270 Excel Office Single Gang Faceplate complete with 2 half blanks - White
R-100-270- Excel Office Single Gang Faceplate complete with 2 half blanks - Grey
GE
R-100-271 Excel Office Double Gang Faceplate complete with 2 half blanks - White
R-100-271-GE Excel Office Double Gang Faceplate complete with 2 half blanks - Grey
R-100-275 Excel Office Cat5e Unscreened Module - Low Profile - White
R-100-275- Excel Office Cat5e Unscreened Module - Low Profile - Grey
GE
R-100-276 Excel Office Cat6 Unscreened Module - Low Profile - White
R-100-276- Excel Office Cat6 Unscreened Module - Low Profile - Grey
GE
R-100-280 Excel Office Angled Keystone Shutter 25x50mm - White
w w w. r w l . i e 18Excel Grid Outlet Position
(GOP) Box Plus
The Excel Grid Outlet Position (GOP) Box Plus is available in four versions from 2 Way to 6 Way.
The 2 and 4 way are available with a 25mm flexible conduit fixing point and the 4 and 6 way
are available with a 32mm fixing point. The range has been developed for fixing to the end of
flexible conduit typically where outlets are presented in a grid layout with cable containment
mounted within a raised floor system. The GOP Box then has a degree of flexibility to be
positioned within the radius of the flexible conduit to suit the office layout. 25mm and 32mm
‘L’ Brackets are available to fix the other end of the flexible conduit to the floor slab. GOP Boxes
are typically then attached to the underside of the desk, the flexible conduit passing through
the floor tile via a grommet.
These Plus versions are enhanced with cable tie saddles adjacent to the conduit fixing point
to accept either nylon of hook and loop ties. This permits the cable to be secured if required.
Additionally the GOP box has a hole at each end of the upper case to accept self-tap screws
for fixing to adaptor plates or bespoke brackets. Supplied with the GOP Boxes are black rubber
blanks for the un-used 6c apertures. The 2 way is supplied with 1 blank, the 4 way is supplied
with 2 blanks and the 6 way with 4 blanks. The blanks are also available separately.
The flexible conduit fixing hole is slotted to aid cable installation. As the flexible conduit
hole is part of the jack mounting metal work it ensures easy termination of the outlet while
maintaining the cable management. The base has two fixing holes for mounting where
required. The two parts of the box are assembled with a single machine screw. The flexible
conduit is sold separately.
Description PartNumber GOP Box Dimensions
Length Width Height
Excel2WayGOPBoxPlus-25mm-Packof10 350-639 105mm 62 mm 55mm
Excel4WayGOPBoxPlus-25mm-Packof10 350-640 160mm 62mm 60mm
Excel4WayGOPBoxPlus-32mm-Packof10 350-641 160mm 62mm 60mm
Excel6WayGOPBoxPlus-32mm-Packof10 350-642 220mm 62mm 70mm
Excel LJ6c Black Rubber Blank - Pack of 10 350-645
Excel25mmFlexibleConduit‘L’BracketPlus- 750-102
Pack of 10
Excel32mmFlexibleConduit‘L’BracketPlus- 750-103
Pack of 10

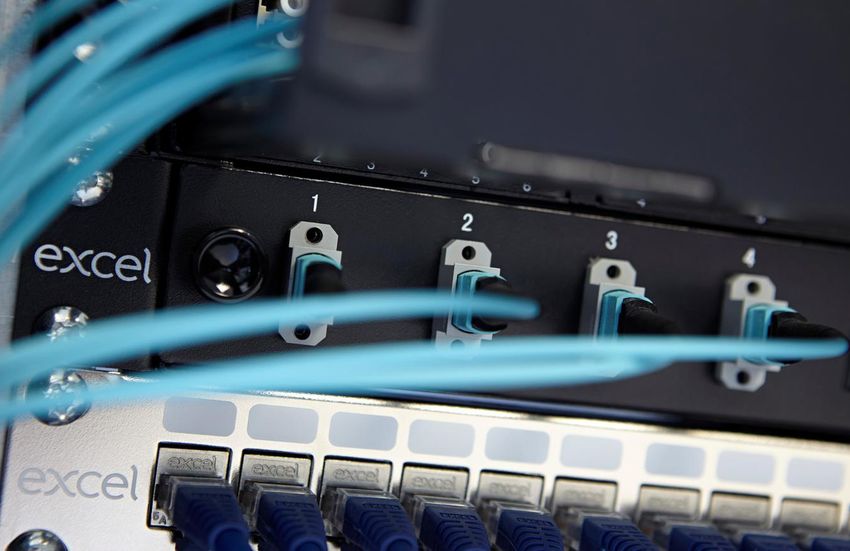

19 w w w. r w l . i eExcel Fibre Optic Cabling
Fibre optic cabling can be split into two families -- Multimode and Singlemode.
‘Mode’ means path, so the light travels down multi and single paths respectively.
Multimode can use the less expensive LED and VCSEL light source to transmit
the signal. This is referred to as ‘overfilled’ as the source is broad and floods the
modes (and some of the cladding, hence overfilled). The core is manufactured
with a graded index. This means that the central light path is ‘slower’ than the
outer paths, which drastically reduces modal dispersion which is one of the
limiting factors for the performance of multimode.
Singlemode requires a laser to transmit the signal along a single path. Lasers
offer a high powered signal that can be transmitted for greater distances.
However, the active equipment is a higher price than that of multimode.
The fibre core comprises of a core and a cladding.
The cladding is then covered by a primary coating.
The core is the medium that the light is transmitted
along. The cladding is part of the manufacture of
the glass. Typically, the cladding is of a consistant Primary
size for multimode and singlemode; namely 125µm. Coating
Likewise, the primary coating is usually 250µm Cladding
for both multimode and singlemode. The primary
Core
coating can be coloured to differentiate between
the cores within a cable.
250µm 250µm
250µm 125µm
125µm 125µm
9µm 62.5µm 50µm
Singlemode Multimode Multimode
OS1 & OS2 OM1 & OM2 OM1, OM3 & OM4
w w w. r w l . i e 20Excel Fibre Optic Cabling
Central Loose Tube Fibre
The cables are constructed around a silica gel filled tube containing up to 24
colour coded 250um buffered 62.5/125um or 50/125um Multimode or 9/125um
SInglemode fibres. This tube is covered with aramid strength members and a
flame retardant and low smoke halogen free, outer sheath.
Black Outer Sheath
No.ofCores OM1 OM2 OM3 OM4 OS2
4 R-200-047 R-200-049 R-200-150 R-204-004 R-205-300
6 R-200-060 R-200-065 R-200-149 R-204-006 -
8 R-200-067 R-200-069 R-200-151 R-204-008 R-205-301
12 R-200-087 R-200-089 R-200-152 R-204-012 R-205-302
16 R-200-081 R-200-090 R-200-153 R-204-016 R-205-303
24 R-200-084 R-200-092 R-200-154 R-204-024 R-205-304
Tight Buffered Fibre
The cables are constructed from a number of 900um buffered fibres which are
colour coded and packed in water resistant rodent protected strength members.
he outer sheath is both flame retardant and low smoke zero halogen. The design
and construction of this range has resulted in a light,
easy to install, cost effective cable.
Black Outer Sheath
No.ofCores OM1 OM2 OM3 OM4 OS2
4 R-200-110 R-200-115 R-200-155 R-204-104 R-205-320
6 R-200-116 R-200-117 R-200-118 R-204-106 R-100-230
8 R-200-130 R-200-135 R-200-156 R-204-108 R-205-322
12 R-200-140 R-200-145 R-200-157 R-204-112 R-205-324
16 R-200-141 R-200-146 R-200-158 R-204-116 R-205-326
24 R-200-142 R-200-147 R-200-159 R-204-124 R-205-328
21 w w w. r w l . i eExcel Fibre Optic Cabling
Loose Tube Fibre - Single Sheath Rodent Protected CST Armoured
Excel corrugated steel tape cables are available in OM1, 2, 3, 4 and OS2
specification. The loose tube containing up to 24 fibres is packed in aramid
strength elements. The steel tape and blue low smoke zero halogen rodent
protected sheath completes the design.
Blue Outer Sheath
No.ofCores OM1 OM2 OM3 OM4 OS2
4 R-205-270 R-205-275 R-205-280 R-204-204 R-205-305
6 - - - R-204-206 -
8 R-205-271 R-205-276 R-205-281 R-204-208 R-205-306
12 R-205-272 R-205-277 R-205-282 R-204-212 R-205-307
16 R-205-273 R-205-278 R-205-283 R-204-216 R-205-308
24 R-205-274 R-205-279 R-205-284 R-204-024 R-205-309
Loose Tube Fibre - Single Sheath Rodent Protected SWA Armoured
The steel wire armoured cables are suitable for direct burial and the most demanding of
installations. Available in OM1, OM2 and OS2 these cables are constructed from standard
single loose tube cables from which are then packed into a flexible but strong fibreglass
waterblocking strength member. An internal sheath of Black Low Smoke Zero Halogen
material is then applied, a rip cord is inserted under this sheath to ease cable stripping.
Lengths of steel wire armouring are then applied and an oversheath of Black Low
Smoke Zero Halogen is added.
Black Outer Sheath
No. of OM1 OM2 OM3 OM4 OS2
Cores
4 R-200-110 R-200-115 R-200-155 R-204-104 R-205-320
6 R-200-116 R-200-117 R-200-118 R-204-106 R-100-230
8 R-200-130 R-200-135 R-200-156 R-204-108 R-205-322
12 R-200-140 R-200-145 R-200-157 R-204-112 R-205-324
16 R-200-141 R-200-146 R-200-158 R-204-116 R-205-326
24 R-200-142 R-200-147 R-200-159 R-204-124 R-205-328
w w w. r w l . i e 22Pre-Terminated Fibre
OurValueAddedServicesincludeafullrangeofPre-TerminatedFibresolutions.
What are the benefits of Pre-Terminated Fibre?
Features
• Available in OM1, OM2, OM3, OM4 and OS2
• Available in all core counts from 2 to 24
• Bespoke breakout lengths to suit application
• Machine polished
• Pre-labelled
• Interferometer to ensure best performance in all conditions
• Fitted with protection both ends
• One end fitted with a pulling eye
• Glands pre-fitted both ends
• Available on a drum or coiled in a bag
• Plug and Play
23 w w w. r w l . i ePre-Terminated Fibre
ExceleratorDistribution Excel Loose Tube
Excel CST cables cables cables
• Ideal for panel to panel links •Similartodistributioncablesbutusing
• Similar to loose tube - same
internal construction •Internal/externaltight-bufferedcable loose tube construction
•Corrogatedsteeltapearmoured • LSOH • Internal/external
• Internal/external grade • 900 micron tails • Silica gel filed tube
• LSOH • All tails colour coded • LSOH
• Duct grade •Availablewithcassettespre-fittedfor • Small diameter
• Rodent resistant the Excel mixed-use panel
• Cable colour - black
Excel SWA cables Excel Fibre panels
• Similar to loose tube - •Preloadedadaptors,cassettes,pigtailsas
(same internal construction) required
• Steel wire armoured • Any quantity of adaptors, pigtails
• Internal/external grade • Splice cassettes and splice holders
• LSOH • Labelling
• Duct grade
• Rodent resistant
• Suitable for direct burial
• Available in OM1, OM2 and OS2
w w w. r w l . i e 24Excel Cabinet Features
Available Available Load Manufactured 1U
U Size Widths Depths Bearing Colour to ISO 9000 height
Capacity standard markings
6U
9U
Excel Wall 12U 390mm Grey
Cabinets 15U 600mm 500mm 63kg or
18U 600mm Black
21U
15U
18U
600 Series 22U
ExcelFloor 27U 600mm 600mm 400kg Grey
Cabinets 39U 800mm 800mm
42U 1000mm
47U
800 Series 22U
ExcelFloor 27U 600mm
Cabinets 39U 600mm 800mm 400kg Grey
47U 800mm 1000mm
Equipment
Series 42U 600mm 800mm 400kg Black
Excel 47U 800mm 1000mm
Server
Cabinets
Server
42U 600mm 1000mm 1000kg Black
Series
47U 800mm
Excel
Cabinets
25
w w w. r w l . i eExcel Cabinet Features
Quick Adjustable Swing Available Enhanced Full Space Telescopic Jacking
release front and lock in flat vertical width saving plinth feet as
doors rear 19” handle pack management vented wardrobe standard
and mounting onfront system front stylerear
side profiles door door doors
panels
800 only
&
800 only
Castors
26
w w w. r w l . i eExcel Networking Racks &
Open Frames
Environ OR Series - 2 Post Open Rack
Features
• 2 post rigid aluminium construction
• Available in 42U, 48U and 52U heights
• 19” profiles marked with U height positions
• 1500kg static load bearing
• M6 threaded 19” profiles
• Available with adjustable depth profiles
• Simple Bolt Together Assembly
• Compatible high density cable management
• Supplied flat packed
• DIN41494 compliant
• Heavy duty top and base cross members
• 25 Year System Warranty Available
Standard DIN 41494
Rack Material Aluminium
Paint Coating Black- RAL9005
Supply Flat Pack
U Frames 2 pieces
Base Plates 2 pieces
Upper Cross 2 pieces
member
M6 self tap 30 pieces
screws
Rear door lock Single point barrel lock
27
w w w. r w l . i eExcel Networking
600mm Wide Comms Racks
Environ CR600
Features
• 15U to 47U high • Aesthetically pleasing framed
• 600, 800 or 1000mm deep glass front door.
• Grey White or Black Colour • Swing handle cam lock fitted to
• 600kg load capacity glass front door
• Available with or without • Barrel lock fitted to steel rear
side panels door
• Jacking feet included • Full height front and rear
• Baying kit included adjustable 19” profiles
• Large cut out in base for • Galvanised steel 19” mounting
cable entry profiles
• Heavy duty lockable castors • 19” profiles marked with U height
included position
• Jacking feet and castors can be • Supplied assembled or flat pack
fitted simultaneously • Removable side panels
• Multiple brush strip cable entry • Left or right hinge door
in roof and base
Standard ANSI/EIA-310-E
- IEC 60297-2
- DIN 41494 Part 1 & 7
Material SPCC Cold Rolled Steel
19” Rails 2.0 mm thick
Side Panels 1.0 mm thick
Other 1.2 mm thick
Colour Grey White - RAL 9002
Black - RAL 9004
Load capacity 600kg (Static)
Front door lock Single point cam lock swing handle
Rear door lock Single point barrel lock
Side panels lock Single point barrel lock
28
w w w. r w l . i eExcel Networking
800mm Wide Comms Racks
Environ CR800
Features
• 24U to 47U high • Aesthetically pleasing framed
• 600, 800 or 1000mm deep glass front door.
• Grey White or Black Colour • Swing handle cam lock fitted to
• 600kg load capacity glass front door
• Available with or without • Barrel lock fitted to steel rear door
side panels • Full height front and rear adjustable 19”
• Jacking feet included profiles
• Baying kit included • Galvanised steel 19” mounting profiles
• Large cut out in base for • 19” profiles marked with U height position
cable entry • Supplied assembled or flat pack
• Heavy duty lockable castors • High density vertical cable management
included • Removable side panels
• Jacking feet and castors can be • Left or right hinge door
fitted simultaneously
• Multiple brush strip cable entry
in roof and base
Standard ANSI/EIA-310-E
- IEC 60297-2
- DIN 41494 Part 1 & 7
Material SPCC Cold Rolled Steel
19” Rails 2.0 mm thick
Side Panels 1.0 mm thick
Other 1.2 mm thick
Colour Grey White - RAL 9002
Black - RAL 9004
Load capacity 600kg (Static)
Front door lock Singlepointcamlockswinghandle
Rear door lock Single point barrel lock
Side panels lock Single point barrel lock
29
w w w. r w l . i eExcel Networking
800mm Wide Comms Racks
Environ CR800
600 mm Deep Racks
U Size Width Depth Overall Grey White Black
Height
24U 800 mm 600 mm 1270 mm 542-2486-GSBF-GW 542-2486-GSBF-BK
29U 800 mm 600 mm 1490 mm 542-2986-GSBF-GW 542-2986-GSBF-BK
33U 800 mm 600 mm 1670 mm 542-3386-GSBF-GW 542-3386-GSBF-BK
42U 800 mm 600 mm 2070 mm 542-4286-GSBF-GW 542-4286-GSBF-BK
47U 800 mm 600 mm 2207 mm 542-4786-GSBF-GW 542-4786-GSBF-BK
800 mm Deep Racks
U Size Width Depth Overall Grey White Black
Height
24U 800 mm 800 mm 1270 mm 542-2488-GSBF-GW 542-2488-GSBF-BK
29U 800 mm 800 mm 1490 mm 542-2988-GSBF-GW 542-2988-GSBF-BK
33U 800 mm 800 mm 1670 mm 542-3388-GSBF-GW 542-3388-GSBF-BK
42U 800 mm 800 mm 2070 mm 542-4288-GSBF-GW 542-4288-GSBF-BK
47U 800 mm 800 mm 2207 mm 542-4788-GSBF-GW 542-4788-GSBF-BK
1000 mm Deep Racks
U Size Width Depth Overall Grey White Black
Height
29U 800mm 1000mm 1490 mm 542-29810-GSBF-GW 542-29810-GSBF-BK
33U 800mm 1000mm 1670 mm 542-33810-GSBF-GW 542-33810-GSBF-BK
42U 800mm 1000mm 2070 mm 542-42810-GSBF-GW 542-42810-GSBF-BK
47U 800mm 1000mm 2207 mm 542-47810-GSBF-GW 542-47810-GSBF-BK
The racks above are supplied fully built, racks without side panels
are available on request.
w w w. r w l . i e 30Excel Networking
Wall Mounted Racks
Environ
Features
• Choice of 390mm, 500m and • Angled vented roof
600mm depths • Fully adjustable front and rear
• Available in 6 heights, 6U, 9U, 12U, 19” mounting profiles
15U, 18U and 21U • Removable cable entry panel
• Available in grey or black in top and base providing easy
• Aesthetically pleasing framed safety access to install cables and
glass front door equipment. The back is not
• Load carrying capacity 63kg on removable.
390mm and 60kg on 500mm and • Available as a flat pack
600mm depths. • First fix mounting plate included
• Quick release doors as standard.
• Lockable, quick release side panels for
maximum access into rack.
Product Specification
Material Thickness Product Standard Compliance
Rack Part Process/Part Standard
Frame 1.2mm Manufacturing facility ISO 9001:2000
Top cover and fan entry plate 1.2mm 19” mounting angles IEC60297-1
19” mounting angles 1.5mm Overall rack dimensions IEC60297-2
Side panels 1.2mm Load carrying capacity, 390mm 63kg
Front door frame 1.2mm Load carrying capacity, 500mm 60kg
Front door glass 5.0mm and 600mm
Paint finish, grey rack RAL 7044
Paint finish, black rack RAL 9004
Paint finish, front door blue trim RAL 5013
Glass door, safety specification BS3193:1993
Surface treatment Phosphate
Coating
31
w w w. r w l . i eExcel Networking
Wall Mounted Racks
WR390 Series
U Size Width Overall Depth Part Number PartNumberBlack
Height Grey
6U 600 mm 368 mm 390mm WB6.390SG WB6.390SG-BK
9U 600 mm 501 mm 390mm WB9.390SG WB9.390SG-BK
12U 600 mm 635 mm 390mm WB12.390SG WB12.390SG-BK
15U 600 mm 769 mm 390mm WB15.390SG WB15.390SG-BK
18U 600 mm 901 mm 390mm WB18.390SG WB18.390SG-BK
21U 600 mm 1037 mm 390mm WB21.390SG WB21.390SG-BK
WR500 Series - 500mm Deep Wall Mounted Racks
U Size Width OverallHeight Depth Part Number Grey PartNumberBlack
6U 600 mm 368 mm 500 mm WB6.5SG WB6.5SGB
9U 600 mm 501 mm 500 mm WB9.5SG WB9.5SGB
12U 600 mm 635 mm 500 mm WB12.5SG WB12.5SGB
15U 600 mm 769 mm 500 mm WB15.5SG WB15.5SGB
18U 600 mm 901 mm 500 mm WB18.5SG WB18.5SGB
21U 600 mm 1037 mm 500 mm WB21.5SG WB21.5SGB
1000 mm Deep Racks Wall Mounted Racks
U Size Width OverallHeight Depth PartNumberGrey PartNumberBlack
6U 600 mm 368 mm 600 mm WB6.6SG WB6.6SGB
9U 600 mm 501 mm 600 mm WB9.6SG WB9.6SGB
12U 600 mm 635 mm 600 mm WB12.6SG WB12.6SGB
15U 600 mm 769 mm 600 mm WB15.6SG WB15.6SGB
18U 600 mm 901 mm 600 mm WB18.6SG WB18.6SGB
21U 600 mm 1037 mm 600 mm WB21.6SG WB21.6SGB
32
w w w. r w l . i eExcel Power Distribution Units
Excel have an extensive range of professional grade power distribution
units designed specifically for the 19” electronic enclosure market. Offered
with a comprehensive range of socket choice to suit wall mounting or floor
standing racks.
Features
• Robust all aluminium housing • 3 metre input lead terminated
• BS1363 sockets angled for with a BS1363 plug fused at
optimum cable dressing on 13A
vertical mount units • Unit overall rating 13A, 250V
• Fully shrouded switch • Choice of vertical or
• Illuminated power indicator horizontal mounting
• External earth facility
Description Part Number
4 Way 90 ⁰ Angle Socket BS1363 Power Strip Horizontal R-D13-4H-EXL
5 Way 45 ⁰ Angle Socket BS1363 Power Strip Vertical R-D13-5-EXL
5 Way 90 ⁰ Angle Socket BS1363 Power Strip Horizontal R-D13-5H-EXL
6 Way 45 ⁰ Angle Socket BS1363 Power Strip Vertical R-D13-6-EXL
6 Way 90 ⁰ Angle Socket BS1363 Power Strip Horizontal R-D13-6H-EXL
8 Way 45 ⁰ Angle Socket BS1363 Power Strip Vertical R-D13-8-EXL
10 Way 45 ⁰ Angle Socket BS1363 Power Strip Vertical R-D13-10-EXL
12 Way 45 ⁰ Angle Socket BS1363 Power Strip Vertical R-D13-12-EXL
33 w w w. r w l . i eOther Cables
RG59
High quality RG type coax cable, 75 Ohm, black, available in 100, 200
and 500m rolls.
Part Code: R-RG59B1 (100m)
RG59+2
High quality RG coax cable with 2 core power cable, black, available in
100 and 500m rolls.
Part Code: R-RG59/2C/SG
Belden Equiv. 9502
Belden equivalent 2 pair overall screen 24AWG .22, available in 100m
and 200m rolls.
Part Code: R-OSP2-100
Belden Equiv. 9504
Belden equivalent 4 pair overall screen 24AWG .22, available in 100m and
200m rolls.
Part Code: R-OSP4-100
We also stock a wide range of other Belden equivalents please ask at our
trade counter for further information
Flex
3 core flex 1.5mm conductors, stranded bare copper conductors, PVC
insulated, cores twisted to form a circular cable, PVC Sheathed. Also
available in 3 core 0.75mm.
Part Code: R-QF/3183Y/1.5
R-QF/3183Y/0.75
w w w. r w l . i e 34Cable Accessories
Punch Down Tool
IDC termination tool, for use when terminating wires to IDC
contacts within line jack units. Steel-jawed professional tool
with integral wire extraction.
Part Code: R-TO1024
Stripping Tool
Cyclops stripping tool, UTP & STP twisted pair cable stripper.
Suitable for all types of data, alarm, telephone audio and fibre
optic cables up to 11mm in diameter.
Part Code: R-TO1026
Coupler
RJ45 Cat 5e UTP in-line coupler.
Part Code: R-301001
Crimp Plug
RJ45 Cat 5e UTP crimp plug, (Bag of 100).
Part Code: R-701004
Jelly Connectors
8A two wire jelly crimp connectors, (Bag of 100).
Part Code: R-SPLICE8A-(Bag of 100)
Tone and Probe Kit
Fluke PRO3000 analog tone and probe/oscillator kit, tone and
trace wire on non-active networks, five distinct tones for exact
pair identification, sends loud tone up to 16 km on most cables,
loud speaker on probe.
Part Code: R-26000900
35
w w w. r w l . i eCable Accessories
Velcro Ties
Features
• Quick and easy installation
• Reusable
• 20 mm wide
• UL-94-V2 Compliant
• Will not crush cable CL3300/20 13mm x 300mm x 20mm Class O
• Range of colours CL3500/20 13mm x 500mm x 20mm Class O
• RoHS Compliant CL3600/20 13mm x 600mm x 20mm Class O

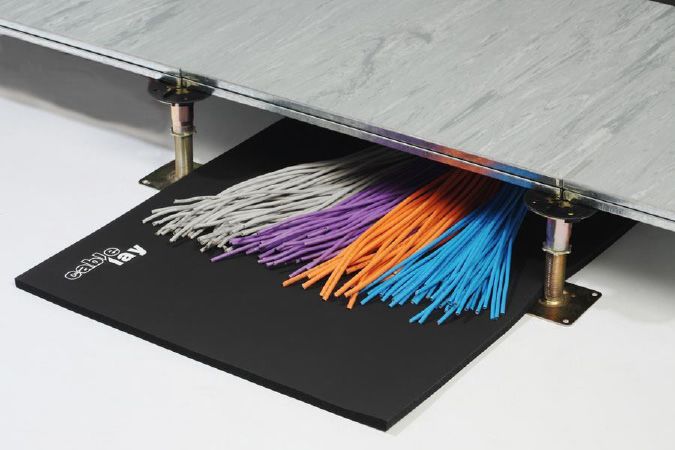

CableLay Floor Matting
Features
• Wide range of roll lengths and widths available
• Closed cell structure provides a high resistance to moisture and water
penetration
• Dust, fibre and CFC free with an Ozone Depletion Potential of zero - an
environmentally-friendly product.
• Class ‘O’ fire category means low fire propagation index producing a
zero surface spread of flame for a high degree of fire protection and
180-077-PACK20 150mm Black Pack of 20
safety (BS476 part 6 1989 and BS476 part 7 1987).
180-078-PACK20 230mm Black Pack of 20
• Joining of sections to prevent gaps can be achieved simply by using
180-083-PACK20 330mm Black Pack of 20
180-094 Hook & Loop Black (approx 80,
Cablelay tape which will maintain the Class ‘O’ fire rating.
300mm)
BRAIDED SLEEVINGS | BLACK & GREY
INSULATED SLEEVINGS
Braided sleeving is lightweight self-fitting, self-extinguishing, flexible
sleeving that provides tough protection for bundles, wires, cables and
flexible pipe systems. Suitable for use with cables up to a maximum
diameter of 140mm, it has excellent ageing characteristics. Extremely
useful for cable harnessing because of its high elasticity and flexibility. It
is low smoke, low toxicity and halogen-free.
Available in black or grey as standard. Other colours are available on re-
quest; red, blue, yellow, orange, brown, green, white, clear, purple striped
and custom patterns. Minimum order quantities may apply.
36
w w w. r w l . i eSwitches & Accessories
8 port Switch
8 port 10/100/1000 Gigabit switch/2 ports Gigabit uplink.
LCD PoE power consumption monitor/supports all ports
Extend Mode
Part Code: GSD-1002VHP
24 port Switch
10/100/1000 Gigabit switch/2 ports Gigabit uplink.
LCD PoE power consumption monitor/supports all
ports Extend Mode
Part Code: GSW-2620VHP
GBIC
The LevelOne GVT-0300 SFP (Small form-factor pluggable)
fiber optic transceiver provides fullduplex connectivity over
multi-mode fiber at distances up to 550 meters. GVT-0300 is
designed for use in Gigabit Ethernet networks to provide an IEEE-
802.3z-compliant link for 1.25 Gb/s speeds to serve short-range
applications.
Part Code: GVT-0300
Injector
Level One PoE injector, delivers power and data to equipment
via a single ethernet cable, internal power supply, high surge
protection, remote power feeding up to 100m.
Part Code: R-POI-2002
w w w. r w l . i e
37The Global Leader in Technical Education
for the Digital Infrastructure Industry
Certified Network Cable Installer
Shaping the future of the Network Infrastructure Sector
� The industry approved certification � Demonstrates highest levels of knowledge,
for network infrastructure professionals skills and expertise in network cabling
� 10 day program � GBTEC Level 3 qualification
CNCI® Copper Cabling NCI® Fibre Optic Cabling
• Introduction to Structured Cabling • Introduction to Fibre
• LAN Hardware • Safely Working with Fibre/General safety
• Installing Structured Cabling • Network Overview
• Network Overview • Hardware
• Signal Theory • Theory of Light Transmission
• Health & Safety • Cable
• Standards • Enclosures
• Fire Stopping • Standards
• Documentation & Labelling • Outside Plant (OSP)
• Ethernet in the LAN • Documentation & Labelling
• Practical • Testing
• Fluke CCTT (Copper) • Fire Stopping
• CNCI® Fibre Optic Cabling • Cable Termination/Practical
• Fluke CCTT (Fibre)
www.rwl.ie
3838
+353 (0)1 424 2414 | sales@rwlas.comUPS

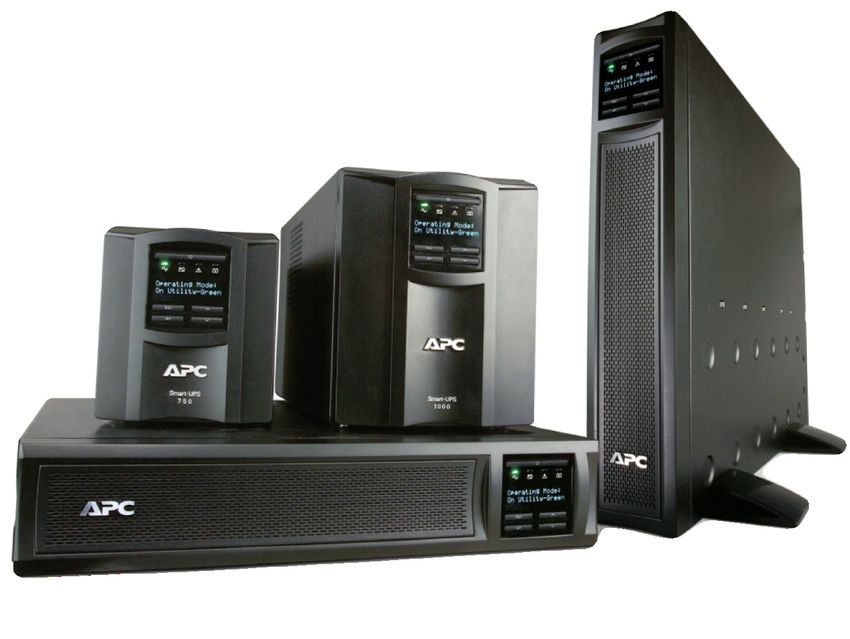

Single and Three Phase Power
protection and management
solutions from home to data
center to industrial environ-
ments.
IT Cabinets
NetShelter SwX is a multi-func-
tional rack enclosure influenced
by customer feedback from
around the world designed to
meet demands from current IT
market trends and applications.
39 w w w. r w l . i eNetBotz
Best value security and environ-
mental monitoring for network
closet to data centers intrusion
prevention.
PDU
Rack Power Distribution
Reliable Basic, Metered and
Switched rack power distribu-
tion.
w w w. r w l . i e 40Pro3000™ Analog Tone and Probe
Pro3000 Analog Tone & Probe Kit tones and traces wire.
• Tone and trace wire on non-active networks
• SmartToneTM technology provides five distinct tones for exact pair
identification
• Sends loud tone up to 10 miles (16 kilometers) on most cables
• Loud speaker on Probe makes the tone easier to hear through
drywall, wood, and other enclosures
• Angled bed-of-nails clips allow easy access to individual pairs
• RJ-11 connector is ideal for use on telephone jacks
• Attach nylon pouch (included in kit) to your belt for easy transport
DSX-600 CableAnalyzer™
Essential certification of copper, twisted pair structured
cabling from Cat 3 / Class C through Cat 6A / Class EA
• Cat 6A and Class EA Copper Certification
• Includes Channel Measurement Adapters; Optional rugged Permanent
Link Adapters with removable test plug available
• 10 second Cat 6A test time
• ProjX™ Management System makes test setup fast and foolproof
• HDTDX and HDTDR diagnostics pinpoint fault location
• Integrates with LinkWare™ Live to manage jobs and testers from any
smart device.
• Quickly and easily create professional custom PDF reports with Link-
Ware™ PC.
DSX-5000 CableAnalyzer™
• Ten second Cat 6A test time contributes to the fastest way to gain
certification
• Graphically displays the source of failures including crosstalk and dis-
tance to shield faults for faster troubleshooting
• Manage up to 12,000 test results with full graphics
• Capacitive touchscreen allows quick tester setup with easily selectable
cable types, standards and testing parameters
• 1 billion links reported on LinkWare management software
41 w w w. r w l . i eFluke Networks DSX-5000QOI 120
Versiv CableAnalyzer w/OLTS Quad, OTDR Quad
and Fiber Inspection
• Kit includes 2 Certifiber OLTS modules, and 1 Optifiber Quad
QTDR module
• The DSX-5000 CableAnalyzer is ideal for every step of the cop-
per certification process
• Versiv enables users to accomplish more than ever with a cable
tester, by accelerating every step of the testing process
• ProjX management system eases tasks from initial set-up of a
job to system acceptance. It eliminates redundant steps, and
ensures that all tests are completed correctly the first time,
and every time
• Taptive user interface puts advanced data analysis and easy
set-up and operation at the fingertips of of technicians of all
skill levels
• Included WiFi adapter makes it easy to connect the Versiv Main-
frame to Linkware Live
• LinkWare management software provides unmatched analysis
of test results and professional test reports
• The DSX reduces the time required to fix cabling faults with
Dedicated Diagnostics, a simple test that locates the problem
• Built in Alien Crosstalk testing capability
Fluke Networks DSX-8000-W
2GHZ CAT 8 DSX Cable Analyzer with Wi-Fi
• Eight second Cat 6A test time contributes to the
fastest way to gain certification
• Graphically displays the source of failures including
crosstalk and distance to shield faults for faster
troubleshooting
• Manage up to 12,000 Cat 6A test results with full
graphics
• Capacitive touchscreen allows quick tester setup
with easily selectable cable types, standards and
testing parameters
• Over 1 billion links reported on Link-
Ware PC management software
w w w. r w l . i e 42Want to find out more?
Contact our sales department today:
Dublin Cork London
+353 (0)1-4242414 +353 (0)21-4316744 +44 (0)207 084 6219
www.rwl.ie sales@rwlas.com salescork@rwlas.com salesuk@rwlas.comYou can also read
