LANactive Industry So l ut io n for harsh enviro n men t s cat a l o gue
Switches Cabling Network management Services Table of content Harsh environments introduction 4 LANactive Industry solution introduction 5 LANactive Industry solutions benefits 6 iGigaSwitch managed industrial switches family introduction 12 GigaSwitch V5 IND managed industrial switches family introduction 14 NEXMAN switches management and configuration platform introduction 16 Universal LANmark Industry iConnectBox DIN-rail mounted patch panel introduction 18 LANmark Industry IP67 outlets introduction 20 LANmark Industry RJ45 plug for field termination introduction 21 iGigaSwitch 16xx industrial switches family 22 iGigaSwitch 10xx industrial switches family 23 GigaSwitch V5 IND industrial switches family 24 iPowerSupply industrial DIN-rail mounted power supplies 25 SFP modules 26 NEXMAN device manager 27 Memory cards for switches 28 Console configuration cables 28 LANmark Industry copper cables range 29 LANmark copper cables range 29 Universal LANmark Industry iConnectBox DIN-rail mounted patch panel 30 LANmark Maritime and Industry 19” 1U patch panel 30 LANmark 19” 1U patch panels 30 LANmark ruggedized lockable zone distribution box 31 LANmark zone distribution boxes 31 LANmark Industry DIN-rail mount module with 1x Snap-In 32 LANmark-7A Maritime Snap-In screened connector 32 LANmark Snap-In copper connectors 32 LANmark Industry field terminable RJ45 plug Cat 6A 33 LANmark Industry IP65/67 outlet kit with 2x Snap-In 33 LANmark face plates and mounting frames for Snap-In connectors 33 LANmark Industry screened patch cord RJ45/RJ45 IP67/IP20 34 LANmark UniBoot screened patch cords RJ45/RJ45 34 LANmark Secure Lock screened patch cord RJ45/RJ45 and keys 35 LANmark-OF TBUN universal fibre cables 35 2
Switches Cabling Network management Services
LANmark-OF MBUN universal fibre cables 36
LANmark-OF outdoor armored fibre cables – fully dielectrical 36
LANmark-OF outdoor/indoor armored fibre cables - metal armoring 37
Universal LANmark Industry iConnectBox, DIN-rail mounted, 6x Snap-In 37
LANmark-OF fibre patch panel 19” 1U 24x Snap-In Sliding 38
LANmark-OF Plug&Play Patch Panel 19” 1U and adaptor plates 38
LANmark-OF Anaerobic Simplex Connectors 39
LANmark-OF Pigtails 39
LANmark-OF Secure Lock fibre locking pigtails 40
LANmark-OF Fibre Snap-In Adaptors 40
LANmark Industry splice cassette and cover for iConnectBox 41
LANmark-OF splice cassettes and covers 41
LANmark-OF splice protection 42
LANmark-OF cable glands 42
LANmark-OF Ruggedised fibre patch cords 43
LANmark-OF Secure Lock fibre locking patch cords and keys 43
LANmark-OF ENSPACE fibre patch cords 44
LANmark-OF fibre patch cords 44
LANmark Colored Shutters 45
LANmark colored latch protectors 45
LANmark snap-in to keystone adaptors 45
Hook & Loop cable strap 46
19” 3U DIN-rail mounting kit 46
DIN-rail mounting kits for GigaSwitch IND 46
19” Patch cords guides 47
19” blank panels 47
Universal Comfort tool for Snap-in connectors 47
LANmark-7 Easy Termination tool 48
LANmark-OF Tool for aluminum fusion splice protection 48
LANmark-OF cleaning tool for connectors 48
LANactive Industry Starter Kit - iGigaSwitch 1604 E+ PoE 49
Nexans support services 50
Switches support models 50
Enhanced Network Management Training 51
3
Switches Cabling Network management Services
High uptime and lifelong
reliability in mission critical
applications and harsh
environments
Any application in which an infrastructure failure components for mission critical applications need
could result in serious damage or life-threatening to meet far higher requirements than a standard
situations may be considered mission critical. network for offices.
Mission critical applications are not limited to
transport, traffic monitoring, oil & gas, Smart Design must be compact and robust, equipment
Grids, electrical substations, or wind turbines, should offer high redundancy in areas such as
but might also include IP video surveillance and data transmission and power and guarantee high
security in cities or on campuses. levels of availability and security. Compliance
with specific industry standards is vital, as are
Network infrastructure in these applications advanced solutions for ongoing monitoring. A
must operate under the harshest conditions. large number of ‘non-traditional’ devices are
Performance can be affected by, for example, currently being connected to networks and
extreme temperatures, chemicals, ingress, these need to be monitored and managed
interference, vibration or moisture. However, by SCADAs. As large areas are covered, the
the infrastructure should have no failures or network must be managed and maintained
downtime, as this could result in severe damage in a smarter way than ever before, using a
or even loss of life. That’s why infrastructure and centralized approach.
NEXANS INDUSTRIAL SWITCHES
IEC 61850 COMPLIANT
NEXANS COPPER
& FIBRE CABLING

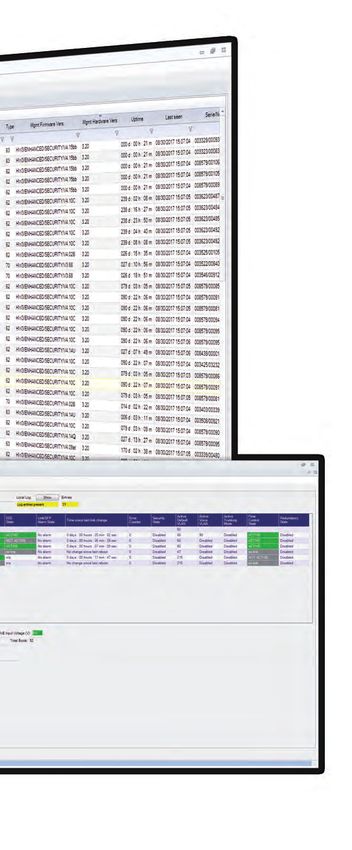

NEXMAN - DEVICE MANAGER
4
Switches Cabling Network management Services
MEETING REAL-LIFE REQUIREMENTS WITH NEXANS LANACTIVE
INDUSTRY SOLUTIONS
LANactive Industry solution, which offers products Nexans also provide easy and intuitive solutions,
designed for mission critical applications, is based on a NEXMAN software platform, for
based on over 30 years of Nexans experience centralized configuration and management of
in developing and producing managed industrial large networks. Thousands of switches may be
and FTTO switches for harsh environment operated by a single employee.
applications. Industrial switches and accessories
are the core of our industrial offering. LANmark Nexans LANactive offering is rounded off with a
Industry copper and fibre cabling has been wide range of support and training services, with
developed to meet the high standards, access to a global expert and service network
transmission demands and environmental through a single point of contact.
requirements of mission critical applications.
NEXANS MAKES SURE YOUR NETWORK KEEPS GOING,
UNDER ANY CIRCUMSTANCES.
NEXANS LANACTIVE INDUSTRY SOLUTION
• Intelligent industrial switches designed for • Integrated, centralised configuration and
harsh environment applications management platform
• First class support services
• Extensive portfolio for copper and fibre
cabling including industry grade variant • 5 years warranty for industrial switches
ABOUT NEXANS
Nexans has over 30 years’ experience in research, development
and production of intelligent, manageable Ethernet Switches and
in network design and security. All solutions are developed and
manufactured by Nexans in Germany.
Nexans clients include the world’s leading companies, institutions,
airports, hospitals, universities and ministries. Best-in-class, industrial
and military grade network components ensure extremely high
reliability and long lifespan in harsh environments. Nexans offers
quality “Made in Germany”, tailor-made concepts and solutions,
a holistic concept including accessories and software features and
first-class worldwide support.
5
Switches Cabling Network management Services
High availability for mission
critical networks
If our mission critical network goes down, the High availability and long lifespan in
consequences could be dangerous or even even the harshest environments
life-threatening – that’s why the requirements
are much higher than those of an office When it comes to mission critical infrastructure, no
network. failures or downtime are permissible, as they may result
in severe damage or even loss of life. Robust Nexans
LANactive Industry solutions continue to operate for a
long time in even the harshest environments without
failure. Systems always remain up, even when exposed
to high levels of EMC, RMI, vibration, humidity or
-40 to +85oC temperatures.
Nexans industrial switches are compact, robust and
built according to relevant industrial standards. Military
grade components ensure high reliability and a long
lifespan in even the harshest environments. Every single
switch undergoes extreme testing, such as burn-in and
run-in tests. LANmark Industry copper and fibre cabling
is also especially designed for harsh environments.
Switch designs are based on decades of experience
in developing products for mission critical applications.
These are also resistant to most common types of
human error. Full compatibility with industry-specific
communications protocols allows integration into, for

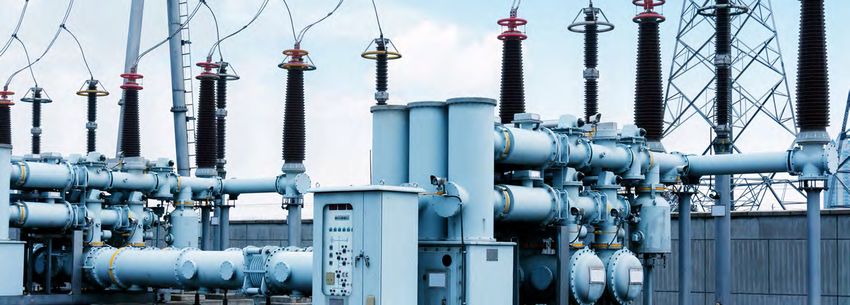

example, Smart grid applications. Full compliance with
IEC 61850, the global standard for communication in
substations, allows integration into Smart Grid and
Utilities environments.
LANactive Industry
6
Switches Cabling Network management Services
High network security for
mission critical networks
Even the most robust system can be Effectively reducing risk of targeted
interrupted by people with bad intentions – internal or external attacks
how can we prevent that from happening?
Besides high levels of availability, products for mission
critical network applications should also offer the highest
possible security. Special protocols and features
supported by Nexans industrial switches offer advanced
anti-hacking protection and cyber security options.
Controlled access to data is realized through multiple
authentication levels, port security and encryption
(including SCP, SSHv2, HTTPS, RADIUS, SNMPv3,
IEEE 802.1X , TACACS+ etc.).
Switch I/O ports can connect to door sensors or access
control systems and automated event-related security
scenarios can be started up via switches.
Deliberate or accidental disconnection or access can
disturb operations or result in full-scale system failures.
This, in turn, brings costly fault tracking and repair.
SecureLock lockable copper and fibre connectivity
protects vital links from deliberate or accidental
disconnection.
7
Switches Cabling Network management Services
Easy maintenance for
mission critical networks
Our network is spread across multiple Making infrastructure maintenance easy
locations, over a large geographical area – and smart with Nexans industrial switches
how can our IT teams manage all equipment
and connections and find and fix faults Critical infrastructure networks often span or connect
easily and efficiently? large areas, such as smart grid subsections, transport
infrastructures or urban public service networks, and need
to be remote managed from central office. LANactive
Industry solution allows automation of processes required
in networks spanning hundreds of kilometres, reducing
time needed to track and resolve issues and making it
possible to use IT resources and staff in the most efficient
way.
Each iGigaSwitch can provide diagnostic data
regarding temperature, power level, port usage, copper
cables, PoE, SFP status and much more as well as alerts
can be defined for a wide range of parameters.This
ensure easy, fast localization of possible faults.
Nexans memory cards offer automatic redundant
storage of the complete configuration and firmware
for industrial switches. Optionally, it has a unique, fixed
MAC address. In case of switch replacement, the SD
card needs to be removed from one switch and installed
in a new one. When inserted, the card’s unique MAC
address, configuration and firmware are applied to the
new switch. No changes in the network policy or pre-
setup works are required, as the system will see the same
switch as it did before.
LANactive Industry
8
Switches Cabling Network management Services
PoE and power for mission
critical networks
We need to add peripherals such as Providing power over long distances to
cameras, Wi-Fi hot spots, sensors and hard-to-reach locations.
monitoring equipment at remote sites and
hard-to-reach locations across our network – There’s no need to roll out separate power lines to end
can we do that without rolling out separate devices such as cameras or BMS (Building Management
power cabling to devices up to 100 metres System) sensors, which are typically installed in locations
that are difficult to access.
away?
Nexans switches can power end devices with up to
71W. Nexans iGigaSwitch series provides up to 12x
PoE+ in accordance with IEEE 802.3at or 6x PoE++ in
accordance with IEEE 802.3bt.
There are planty applications where PoE, PoE+ or PoE++
technologies are used to power connected devices:
public facilities and cities, highways and tunnels, airports
and railways, campuses and infrastructures, many others.
9
Switches Cabling Network management Services
Supplier independence for
mission critical networks
We also want the freedom to adopt different Freedom of choice with core compatibility:
types of equipment that will work together best components without vendor lock-in
perfectly, and interact with third party
SCADAs. Nexans iGigaSwitches are fully interoperable with
offerings from other switch manufacturers, such as
Cisco, HP, Alcatel Lucent, Extreme Networks.
Switches can manage and receive alerts from
non-Ethernet devices such as sensors and controllers
through I/O ports. LANactive Industry solution also offers
full interoperability with various SCADA (Supervisory
Control & Data Acquisition) systems.
Nexans switches are also compliant with IPv6-Forum
phase 2 core specification.
LANactive Industry
10Switches Cabling Network management Services
Flexibility for mission critical
networks
We require network design flexibility and Standardised Ethernet infrastructure for
have several specific requirements as our highest network design flexibility
network needs to operate in highly unusual
conditions with, very often, connections to A universally configurable switch portfolio features
non-Ethernet devices? models offering multiple fibre ports, PoE, PoE+
and PoE++, I/O modules and much more, can
accommodate any current or future topology requirement.
LANactive Industry solution also offers a wide range
of fibre SFP transceivers for links from 10 to 120
kilometres, including vendors compatible versions.
Smart design of switches means that larger projects may
only need two switch types and a minimal storage of
spare parts. In fact, existing large projects with over
thousands Nexans industrial switches rely on just two
models.
11Switches Cabling Network management Services iGigaSwitch 16xx E+ family OPERATING TEMPERATURE RANGE -40 ... +85°C for DC models -40 ... +70°C for AC models 2X REDUNDANT POWER INPUTS 18 ... 60V DC or 90...264V AC CONSOLE PORT DIP SWITCHES MEMORY CARD SLOT CONFIGURABLE LEDs I/O PORTS - 16-PIN TEMINAL BLOCK 2x Alarm Outputs and 4x Function Inputs LANactive Industry 12
iGigaSwitch 1604 E+
RJ45 PORTS: 12
SFP PORTS: 4
iGigaSwitch 1608 E+
RJ45 PORTS: 8
SFP PORTS: 8
DIN-RAIL MOUNTING CLIP
Can be fixed on the side of the switch iGigaSwitch 1612 E+
in different positions
RJ45 PORTS: 4
SFP PORTS: 12
iGigaSwitch 1606 HSR
RJ45 PORTS: 10
SFP PORTS: 2x HSR SFP + 4x SFP
POWER INPUT FOR POE+/POE++
46 ... 57V DC iGigaSwitch 1202 HSR
RJ45 PORTS: 10
SFP PORTS: 2x HSR SFP
iGigaSwitch 1002 E+
RJ45 PORTS: 8
UP TO 12X RJ45 PORTS
SFP PORTS: 2
10/100/1000 Mbps
UP TO 12X FIBRE SFP PORTS
100/1000 Mbps
iGigaSwitch 1004 E+
IEC 61850 COMPLIANCE RJ45 PORTS: 6
Parts 6, 7-1, 7-2, 7-3, 7-4, 8-1, 9-1 and 9-2 SFP PORTS: 4
Communication networks and systems for
power utility automation
iGigaSwitch 1008 E+
RJ45 PORTS: 2
SFP PORTS: 8
www.nexans.com/LANactiveindustry
13Switches Cabling Network management Services GigaSwitch V5 IND family ROTATABLE HEAD WITH RJ45 PORTS COPPER PORTS 4x RJ45 PoE+ ports 10/100/1000 Mbps DIN-RAIL MOUNTING KIT (optional) FREE PROGRAMMABLE INPUT CONTACTS with alarm function POWER SUPPLY 46 ... 57V DC LANactive Industry 14
GigaSwitch V5 SFP-2VI
RJ45 USER
4
PORTS:
RJ45 UPLINK
-
PORTS:
SFP UPLINK
2
PORTS:
PoE+ PORTS 4
GigaSwitch V5 TP SFP-VI
RJ45 USER
4
PORTS:
RJ45 UPLINK
1
PORTS:
SFP UPLINK
1
PORTS:
PoE+ PORTS 4
COMPACT DESIGN
GigaSwitch V5 TP(PSE+) SFP-2VI IND
90 x 45 x 70 mm
RJ45 USER
4
PORTS:
RJ45 UPLINK
MEMORY CARD SLOT 1
PORTS:
SFP UPLINK
with MAC-address PORTS:
2
PoE+ PORTS 5
CONFIGURABLE LEDs
EXTENDED OPERATING TEMPERATURE RANGE
-25 ... +65°C
UP TO 2X UPLINK PORTS
Versions with up to 2x SFP ports and up to 1x RJ45 port
100/1000 Mbps for SFP ports
10/100/1000 Mbps for Copper ports
www.nexans.com/LANactiveindustry
15Switches Cabling Network management Services NEXMAN – switches manageme CENTRALIZED END-TO-END NETWORK CONFIGURATION AND MANAGEMENT EASY, INTUITIVE AND COMFORTABLE SOLUTION FOR THOUSANDS OF DEVICES ZERO-TOUCH CONFIGURATION Add new switches automatically FLEXIBLE CONFIGURATION Master configuration and update functionality SCHEDULED ACTIONS FOR DEFINED DEVICES GROUPS INTEROPERABILITY Integration into higher level management systems LANactive Industry 16
ent and configuration platform
IMPORT AND EXPORT OF DEVICE LIST
DIAGNOSTIC AND STATE OF
PHYSICAL INTERFACES
LIVE DEVICES MONITORING
CLIENT-SERVER CAPABILITY
UPDATES
Simultaneous firmware update for hundreds of devices
ALARM MANAGEMENT AND LOGGING
www.nexans.com/LANactiveindustry
17Switches Cabling Network management Services LANmark Industry universal iConnectBox UNIVERSAL PATCH PANEL for copper and fibre connectivity 6X SNAP-IN PORTS 6x LANmark copper Snap-In connectors 6x fibres with duplex SC Snap-In adaptors 12x fibres with duplex LC Snap-In adaptors SECURE LOCK PATCH CORDS Copper and fibre patch cords Redundant links conncting IP Cameras, PoE, etc. RUGGUDISED FIBRE PATCH CORDS For harsh environments where strong mechanical protection is required LANactive Industry 18
WALL MOUNTING POSSIBILITY DIN-RAIL MOUNTING CLIP
COLORED SHUTTER
Ports color coding
7 additional colors are available
SNAP IN CONNECTOR
with DIN-rail adapter
Cat.6, 6A and 7A
COLORED LATCH PROTECTORS
Copper patch cord color coding
7 additional colors are available
CABLE GLANDS
For LANmark Industry and LANmark
Copper and fibre cables
19Switches Cabling Network management Services LANmark Industry IP67 outlets FOR INDUSTRIAL AND HARSH AREAS IP65/67 Protection level (Dust/Liquids) COMPLIANT WITH ISO/IEC 24702 The physical and mechanical requirements 2X PORTS 2x LANmark-6, 6A or 7A shielded connectors Compliant with IEC 61073-3-106 (8way Industrial connector) CABLE GLANDS To fix all LANmark Industry cables LANactive Industry 20
LANMARK INDUSTRY RJ45 PLUG FOR FIELD TERMINATION
Quick, simple and high quality method
of termination on-site
OPERATING TEMPERATUR RANGE
-40 to 70°C
INDUSTRIAL COPPER CABLES
Cables with good mechanical performance
and resistant to chemicals
INDUSTRIAL PATCH CORDS
Screened patch cords RJ45 IP67/20 Cat 6A
21Switches Cabling Network management Services
iGigaSwitch 16xx and 12xx family – Nexans industrial managed switches
•• up to 12x PoE+ ports according to IEEE 802.3at with 360W budget
•• up to 12x SFP ports
•• switch model with HSR redundancy protocol
•• extensive diagnostics functionality
Nexans iGigaSwitch 16xx family presents
managed full gigabit industry grade DIN-rail
mounted switches designed to ensure extremely
high reliability and long lifespan in harsh environ-
ments of different mission critical applications. The
switches provide high flexibility in network design
– they have up to 16 ports: fibre-optic or copper
in different combinations, including the variant
with 12x SFP and 4x RJ45 ports. The iGigaSwitch
family has up to 12x PoE+ ports with 360W
budget according to IEEE 802.3at.
Optional I/O interfaces allow a fast, simple and
low-cost integration of additional non-Ethernet
devices directly in the field.
Nexans industrial switches enable an intelligent
communication environment for Smart Grids
supporting the IEC 61850 standard (parts 6, 7-1,
7-2, 7-3, 7-4, 8-1, 9-1 and 9-2 Communication
networks and systems for power utility automation).
PRODUCT CODES
RJ45 SFP I/O INPUT
CODE NAME POE/POE+
10/100/1000 100/1000 MODULE VOLTAGE
Up to 12
88306504 Nexans iGigaSwitch 1604 E+ SFP-4VI HW5 12 4 Optional 18…60V DC
Optional
Up to 8
88306508 Nexans iGigaSwitch 1608 E+ SFP-8VI HW5 8 8 Optional 18…60V DC
Optional
Up to 4
88306512 Nexans iGigaSwitch 1612 E+ SFP-12VI HW5 4 12 Optional 18…60V DC
Optional
6 Up to 8
88306406 Nexans iGigaSwitch 1606 HSR SFP-6VI HW5 10 Optional 18…60V DC
(2x HSR/PRP) Optional
6
88306476 Nexans iGigaSwitch 1606 HSR SFP-6VI AC HW5 10
(2x HSR/PRP)
Optional N/A 90…264V AC
2
88306432 Nexans iGigaSwitch 1202 HSR SFP-2VI AC HW5 10
(2x HSR/PRP)
Optional N/A 90…264V AC
88301602 Nexans iOption PoE+ 2/4P-30W 2 or 4
88301604 Nexans iOption PoE+ 6/8P-30W 6 or 8
88301606 Nexans iOption PoE+ 10/12P-30W 10 or 12
4 function inputs +
88301600 Nexans iSwitch I/O Module Digital 4xIn 2xOut 2 alarm contacts
22Switches Cabling Network management Services
iGigaSwitch 10xx family – Nexans industrial managed switches
•• up to 6x PoE++ ports according to IEEE 802.3bt or up to 8x PoE+ ports according to IEEE 802.3at
•• up to 8x SFP ports
•• wide diagnostic functionality
•• I/O port preinstalled
Nexans iGigaSwitch 10xx family is smaller
variant of the 16xx family with smaller dimensions
and less number of ports – up to 10 gigabit
copper and fibre-optic ports in different combina-
tions. To power different network devices,
iGigaSwitch 10xx family has up to 8x PoE+ ports
(different options are available) in accordance
with the latest IEEE 802.3at and 802.3bt
standards.
The preinstalled I/O module of iGigaSwitch 10xx
family has two potential-free function inputs and
two programmable alarm contacts for fast, simple
and low-cost integration of additional non-Ethernet
devices.
The iGigaSwitch 10xx family complies with the
IEC 61850 standard (parts 6, 7-1, 7-2, 7-3, 7-4,
8-1, 9-1 and 9-2) and enable an intelligent
communication environment for Smart Grids.
PRODUCT CODES
RJ45 SFP I/O INPUT
CODE NAME POE/POE+
10/100/1000 100/1000 MODULE VOLTAGE
Up to 8 PoE+
88306422 Nexans iGigaSwitch 1002 E+ SFP-2VI HW5 8 2 Included
Optional
18…60V DC
Up to 6 PoE++
88306424 Nexans iGigaSwitch 1004 E+ SFP-4VI HW5 6 4 Included 18…60V DC
Optional
Up to 2 PoE+
88306428 Nexans iGigaSwitch 1008 E+ SFP-8VI HW5 2 8 Included 18…60V DC
Optional
Nexans iGigaSwitch 1002 E+ SFP-2VI Up to 8 PoE+
88306442 8 2 Included 11…36V DC
12/24V HW5 Optional
Nexans iGigaSwitch 1004 E+ SFP-4VI Up to 6 PoE++
88306444 6 4 Included 11…36V DC
12/24V HW5 Optional
Nexans iGigaSwitch 1008 E+ SFP-8VI Up to 2 PoE+
88306448 2 8 Included 11…36V DC
12/24V HW5 Optional
88301602 Nexans iOption PoE+ 2/4P-30W 2 or 4
88301604 Nexans iOption PoE+ 6/8P-30W 6 or 8
88301664 Nexans iOption PoE++ 2/4P-90W 2 or 4
88301666 Nexans iOption PoE++ 6/8P-90W 6 or 8
23Switches Cabling Network management Services
GigaSwitch V5 IND family – Nexans industrial managed switches
•• 5x PoE+ ports according to IEEE 802.3at
•• Models with up to 2x SFP uplink ports and up to 1x RJ45 port
•• Extensive diagnostics functionality
•• Very compact design: 90 x 45 x 70 mm
Nexans compact managed GigaSwitch V5 IND
family is designed to provide additional flexibility
in network design for many mission critical appli-
cations. The switches have operating temperature
ranges between -25 and +65 °C. Together with
the robust housing, the optional memory card and
the high MTBF value, Nexans industrial switches
are highly reliable.
Full gigabit GigaSwitch V5 IND family has 4x
RJ45 user ports and 2 uplink ports in different
combinations: 2x SFP or 1x RJ45 and 1x SFP
ports. Thanks to PoE+ functionalities different de-
vices can be powered through the same network
according to IEEE 802.3at.
The very compact design of GigaSwitch V5 IND
allows different ways of installations: a snap-in
installation (no tools needed) in standard 45mm
cable ducts, frames, floor boxes or with mounting
kits on walls, under the ceiling or on DIN-rails.
The preinstalled free programmable functional
input contacts with alarm function allow fast and
simple integration of additional simple devices,
like dry contacts, directly in the field.
PRODUCT CODES
RJ45 PORTS RJ45 PORTS SFP PORTS
POE/
CODE NAME (USER) (UPLINK) (UPLINK)
POE+
10/100/1000 MBPS 10/100/1000 MBPS 100/1000 MBPS
88303959 Nexans GigaSwitch V5 SFP-2VI 48/54VDC IND 4 - 2 4
88303956 Nexans GigaSwitch V5 TP SFP-VI 48/54VDC IND 4 1 1 4
88303960 Nexans GigaSwitch V5 TP(PSE+) SFP-2VI 54VDC IND 4 1 2 5
24Switches Cabling Network management Services
iPowerSupplies – Nexans industrial power supplies
•• Easy assembly on the DIN-rail or wall
•• Maximum energy efficiency thanks to low idling losses
•• Startup temperature > -40°C
•• Overload and short circuit-/no-load protection
The compact iPowerSupply perfectly complements
Nexans Industrial Ethernet product portfolio. Due
to the design, the wide-range inputs and the
global approvals, the iPowerSupply is well suited
for use in installations around the globe. The
iPowerSupplies comply with high requirements for
EMC and environmental conditions which allows
its operation in very harsh environments.
The iPowerSupply is not only able to supply active
systems, such as switches, with power, but also
other Power over Ethernet enabled devices at
the same time. Moreover a parallel connection
of iPowerSupplies can be used to increase the
power and realise redundancy. The reliability and
efficiency of the iPowerSupply is underlined by a
high electrical efficiency, low stand-by losses and
high MTBF values.
PRODUCT CODES
NOMINAL AC INPUT DC INPUT
OUTPUT POWER
CODE NAME OUTPUT VOLTAGE VOLTAGE
VOLTAGE OUTPUT
VOLTAGE RANGE RANGE
Nexans iPowerSupply S
88646181 24V DC 24 30W 85...264V AC
115-230VAC/24VDC 30W
Nexans iPowerSupply S
88645963 24V DC 22.5-29.5 100W 85...264V AC 95...250V DC
110-230VAC/24VDC 100W
Nexans iPowerSupply S
88646182 48V DC 48 60W 85...264V AC
115-230VAC/48VDC 60W
Nexans iPowerSupply S 95...250V DC
88645960 48V DC 30…56 100W 85...264V AC
115-230VAC/48VDC 100W
Nexans iPowerSupply S
88646250 48V DC 30…56 240W 85...264V AC
115-230VAC/48VDC 240W
Nexans iPowerSupply S
88646072 48V DC 30…56 500W 85...264V AC
115-230VAC/48VDC 500W
25Switches Cabling Network management Services
SFP modules
•• Dual and single fibre variants
•• Digital diagnostics monitoring functionality
•• Wide operation temperature range: from -40°C up to +85°C
•• Gigabit, Fast Ethernet and vendors compatible versions are available
Nexans SFP transceivers support digital optical
monitoring functions according to the standard
SFF-8472 and multisource agreement. These fea-
tures give the users the ability to monitor real-time
parameters of the SFP module. Nexans switch
management allows to define “Threshold Values”
for Laser Bias Current, Output Power and Input
Power for each individual SFP interface. By using
these functionalities as an early warning system it
is possible to increase significantly network avail-
ability. The Nexans active systems with SFP slots
could use the monitoring and diagnostics capabili-
ty to calculate attenuation of fibre link.
Nexans SFP transceivers are compliant with SFP
MSA (Multi-Source Agreement) and SFF-8472. All
modules satisfy Class I Laser Safety requirements
in accordance with the international IEC-825
standard.
PRODUCT CODES
WAVELENGTH TYP. LINK OPTICAL
CODE NAME FIBRE TYPE TYP., NM RANGE BUDGET MIN,
(TX/RX) M DB
88646010 Nexans SFP 100 Transceiver GI(LC)E MM, Dual fibre 1310/1310 2.000 12
88646011 Nexans SFP 100 Transceiver SM(LC)E L10 SM, Dual fibre 1310/1310 10.000 16
88646015 Nexans SFP 1000 Transceiver GI(LC)E MM, Dual fibre 850/850 550 9
88646016 Nexans SFP 1000 Transceiver SM(LC)E L10 SM, Dual fibre 1310/1310 10.000 12
88646017 Nexans SFP 1000 Transceiver SM(LC)E L40 SM, Dual fibre 1310/1310 40.000 19
88646018 Nexans SFP 1000 Transceiver SM(LC)E L80 SM, Dual fibre 1550/1550 80.000 24
88646019 Nexans SFP 1000 Transceiver SM(LC)E L120 SM, Dual fibre 1550/1550 120.000 29
88646073 Nexans SFP 1000 Transceiver SF3(LC)E L10 SM, Single fibre 1310/1550 10.000 12
88646075 Nexans SFP 1000 Transceiver SF5(LC)E L10 SM, Single fibre 1550/1310 10.000 12
88646226 Nexans TP SFP Transceiver 10/100/1000 Base-T RJ45 N.A. 100 N.A.
26Switches Cabling Network management Services
NEXMAN device manager
•• Easy, intuitive and comfortable solution for centralised network configuration and management
•• Client-Controller Version
•• Zero-Touch Configuration functionality
•• Integration into higher level management systems
Nexans device manager NEXMAN provides an
easy, intuitive and comfortable solution for config-
uration, management and supervision of Nexans
switches. Both Nexans industrial and FTTO switch-
es can be connected to Nexans device manager.
Thanks to the activation of optional parameters
during set-up of Nexans device manager, it can
be easily integrated into a central management
system (e.g. SNMPc, HP-BTO/Openview…). In
this case the Device List will be bypassed and the
Device-Editor will be started directly.
Zero-Touch Configuration allows an easy instal-
lation of all Nexans switches. After connecting
a Nexans LANactive iGigaSwitch to a network
segment, the switch will automatically link to its
controller to receive provisioned firmware and
configuration. Alternatively, a layer 3 automatic
discovery via a router can be performed.
Through a master configuration high number of
switches can be configured at once. The master
configuration can be saved for each department,
in case they require different settings.
NEXMAN Client-Controller offers a centralized
way to manage a network devices and users.
PRODUCT CODES
CODE NAME
- NEXMAN, Evaluation Version
88301908 NEXMAN Switch Manager Single Licence
88301909 NEXMAN Switch Manager Company Licence
88301920 NEXMAN Device Manager Client-Controller Licence
27Switches Cabling Network management Services
Memory cards for switches
Nexans memory cards are redundant encrypted storage
(AES256) for industrial and FTTO switches which always
stores its complete and most actual configuration and firm-
ware automatically. There are different formats: SD and micro
SD for industrial and IND switches respectively.
To make network maintenance processes easier, Nexans
memory cards have unique MAC address fixed on it. Switch
replaces its own MAC address with the one read from
memory card. In case of a switch replacement the SD card
needs to be removed from one switch and installed into the
new one. The MAC-address, configuration and firmware
will be taken on by the new switch from this SD-card. So no
changes in the network policy or pre-setup works need to be
made as the system will see the same switch as before.
MAC
CODE NAME ADDRESS
Nexans SD Memory Card for iGigaSwitch with
88300692 SD
MAC-Address
Nexans micro SD memory card
88300691 Micro SD
for GigaSwitch IND
Console configuration cables
The V.24 console port on Nexans switches allows you to
configure the switch on site and/or to retrieve its status without
an Ethernet network connection. Configuration via the V.24
console port provides full configuration functionality.
SWITCHES
CODE NAME FORMAT
TYPE
Nexans USB Console Cable iGigaSwitch
88300716 RJ45 Industrial
Series
Nexans USB Console Cable GigaSwitch 10-pin
88300715 IND
Series mini-socket
28Switches Cabling Network management Services
LANmark Industry copper cables range
•• Copper cables designed to operate in harsh environments
•• High shielding and mechanical performance for harsh envi-
ronment applications
•• Universal variants for installation inside or outside of
buildings
•• Compliant with International, European and American
cable standards
CODE NAME
Nexans LANmark Industry S/FTP AWG23 Cat 7 PUR Black
N10i.002
500m reel
Nexans LANmark Industry S/FTP AWG23 Category 6A LSZH Dca
N10i.005-ODKF
Orange + PE Fca Black 500m reel
Nexans LANmark Industry SF/UTP AWG24 Category 5e LSZH
N10I.101-KE
In/Outdoor Eca Black 1000m reel
Nexans LANmark Industry S/FTP AWG23 Category 6A LSZH Cca
N10i.005-OCKF
Orange + PE Fca Black 500m reel
LANmark copper cables range
•• Unshielded and shielded constructions
•• All categories: 5e, 6, 6A, 7, 7A, 8
•• LSZH orange sheath
•• Versions available with enhanced reaction to fire perfor-
mance according to EN50575:2014+A1:2016 following
Construction Products Regulation (EU) No 305/2011
CODE NAME
Nexans LANmark-6 F1/UTP AWG24 Cat 6 350MHz LSZH
N100.622-OD
Dca s2 d1 a1 Orange 1000m reel
Nexans LANmark-6A F/FTP AWG23 Cat 6A LSZH
N100.692G-OD
Dca s2 d1 a1 Orange 1000m reel
Nexans LANmark-6A F/FTP AWG23 Cat 6A LSZH
N100.692G-OC
Cca s1a d1 a1 Orange 1000m reel
Nexans LANmark-7 S/FTP AWG23 Cat 7 LSZH
N100.365-OD
Dca s2 d1 a1 Orange 1000m reel
Nexans LANmark-7 S/FTP AWG23 Cat 7 LSZH
N100.365-OC
Cca s1a d1 a1 Orange 1000m reel
Nexans LANmark-7A 1250 S/FTP AWG23 Cat 7A 1250MHz LSZH
N100.371-OD
Dca s2 d1 a1 Orange 1000m reel
Nexans LANmark-7A 1250 S/FTP AWG23 Cat 7A 1250MHz LSZH
N100.371-OC
Cca s1a d1 a1 Orange 1000m reel
Nexans LANmark-7A 1250 S/FTP AWG23 Cat 7A 1250MHz LSZH
N100.371-OB
B2ca s1a d1 a1 Orange 1000m reel
29Switches Cabling Network management Services
Universal LANmark Industry iConnectBox, DIN-rail, 6x Snap-In
•• Ideal for areas with restricted space
•• For mounting on standard DIN-rail (35mm) or the wall
•• Universal panel for copper or fibre connectivity
•• Density: 6x copper Snap-In modules, 6x fibres with SC
Snap-In adaptors, 12x fibres with LC Snap-In adaptors
•• Wide range of accessories
CODE NAME
Nexans LANmark Industry Modular iConnect Box DIN Rail Mount 6
N42i.101
Snap-In Black
Nexans extension for LANmark Industry Modular iConnect Box DIN Rail
N42i.105
Mount 6 Snap-In Black
LANmark Maritime and Industry Patch Panel, 19”, 1U, 24x Snap-In
•• Designed for industrial and maritime applications
•• Robust construction made from 316 grade stainless steel
•• 24 Snap-In ports with shutters
•• Compatible with all copper LANmark Snap-In connectors
•• Exclusive Auto-Connect Earthing system
•• Printed numbering for port labelling
•• “T” slots for strain relief of cables using cable ties
CODE NAME
N52m.664 Nexans LANmark Maritime and Industry Fixed Patch Panel 24x Snap-In
LANmark Patch Panels, 19”, 1U, 24x Snap-In
•• 24 Snap-In ports with shutters
•• Panels with fixed construction and sliding mechanism
•• Flat and angled versions are available
•• Exclusive Auto-Connect Earthing system
•• Fully painted design: black and white colors
•• Optional coloured shutters for ports colour coding
CODE NAME
N521.663BK Nexans LANmark Patch Panel 24 Snap-In Sliding Black
N521.661BK Nexans LANmark Patch Panel 24 Snap-In Black
N521.664BK Nexans LANmark Patch Panel 24 Snap-In Black
N521.671 Nexans LANmark Angled Patch Panel 24 Snap-In Black
30Switches Cabling Network management Services
LANmark ruggedized lockable zone distribution box
•• For use as consolidation point
•• 12x ports with shutters for all LANmark copper and fibre
Snap-In connectors
•• Ruggedized design for industrial and secure environments
•• Lockable with key (supplied)
•• Designed to support installations with extractable fibre
bundles
•• Steel mounting foot (N521.6121) is available to raise a
ZD box to 50mm from the floor
CODE NAME
N521.612 Nexans LANmark Ruggedised Lockable ZD Box 12 Snap-In White
N521.6121 Nexans LANmark Ruggedised Lockable ZD Box Mounting Foot White
LANmark zone distribution boxes
•• For use as a consolidation point
•• 12x or 6x numbered Snap-In ports with shutters
•• Different ZD boxes for LANmark copper modules and fibre
adaptors
•• Multiple mounting facilities
•• Optional colored shutters for ports color coding
•• Easy to install
CODE NAME
N521.600 Nexans LANmark ZD box 12 Snap-In White
N521.630 Nexans LANmark-OF ZD box 12 Snap-In White
N521.606BK Nexans LANmark ZD box 6 Snap-In Black
N521.606 Nexans LANmark ZD box 6 Snap-In White
31Switches Cabling Network management Services
LANmark Industry DIN-rail mount module with 1x Snap-In
•• For mounting on standard DIN-rail (35mm)
•• Data connections for industrial environments
•• For technical enclosures, WiFi, Industrial cabinets
CODE NAME
Nexans LANmark Industry DIN-rail mount module with 1x Snap-In
N20i.000
Cat 6 Grey 12x
Nexans LANmark Industry DIN-rail mount module with 1x Snap-In
N20i.004
Cat 6A Grey 12x
Nexans LANmark Industry DIN-rail mount module with 1x Snap-In
N20i.005
Cat 7A Grey 12x
N20i.002 Nexans LANmark Industry Side Cover DIN-rail mount Cat 6 Grey
N20i.003 Nexans LANmark Industry Side Cover DIN-rail mount Cat 7 Grey
LANmark-7A Maritime Snap-In screened connector
•• Version for solid cable and heavy duty environments
•• High speed ‘GG45 2 in 1’ category 7A Snap-In connector
•• Backwards compatible with RJ45 plugs
•• Fits in all Nexans LANmark Snap-In copper panels
•• Supports data applications up to 1000 MHz, CATV VHF
and UHF
•• Supports PoE Plus applications
CODE NAME
Nexans LANmark Maritime GG45 Marine Snap-In Connector Cat 7A
N42m.730
Screened
LANmark Snap-In copper connectors
•• Screened versions have 360° shielding offering full ANEXT
compliance
•• Support PoE++ Type 4 applications delivering up to
90W/71W
•• An adapter can be added to fit the keystone format
CODE NAME
N420.555 Nexans LANmark-5 Evo Snap-In Connector Cat 5e Screened
N420.666 Nexans LANmark-6 Evo Snap-In Connector Cat 6 Screened
Nexans LANmark-6 Evo Snap-In Connector Cat 6 Screened
N420.667
Stranded Wire
N420.66A Nexans LANmark-6A Evo Snap-In Connector Cat 6A Screened
Nexans LANmark-6A Evo Snap-In Connector Cat 6A Screened
N420.67A
Stranded Wire
N420.735 Nexans LANmark-7A GG45 12C Snap-In Connector Cat 7A Screened
32Switches Cabling Network management Services
LANmark Industry field terminable RJ45 plug Cat 6A
•• Robust industrial, fully shielded design
•• Quick, simple and high quality method of termination on-
site with no special tools
•• Category 6A performance
•• Temperature range -40 to 70°C
•• Solid and stranded conductors 27-22 AWG
•• Cable diameter from 4.5mm to 9mm
CODE NAME
N42i.900 Nexans LANmark Industry field terminable RJ45 plug Cat 6A
LANmark Industry IP65/67 outlet kit with 2x Snap-In Black
•• Industrial outlet with 2x LANmark-6, 6A or 7A shielded
connectors
•• IP65/67 Protection level (Dust/Liquids)
•• Easy termination, without punch down tool
•• Full conformity with the physical and mechanical
requirements of the ISO/IEC 24702
CODE NAME
Nexans LANmark Industry preloaded outlet IP65/67 2 Category 6
N42i.001
black
Nexans LANmark Industry preloaded outlet IP65/67 2 Category 6A
N42i.002
black
Nexans LANmark Industry preloaded outlet IP65/67 2 Category 7A
N42i.003
black
LANmark face plates and mounting frames for Snap-In connectors
•• EU, UK and German style formats
•• Angled and flat variants with 1x or 2x Snap-In ports
•• Designed for all LANmark Snap-In copper connectors
•• Also suitable for LANmark fibre Snap-In adapters
•• Removable shutters, replaceable with colored version
CODE NAME
N423.540N Nexans LANmark EU Style Angled 45 x 45 Module 2 Snap-In White
N423.520 Nexans LANmark EU Style Angled 45 x 45 Module 1 Snap-In White
N200.050 Nexans LANmark EU Style 45 x 45 Frame White
N200.116 Nexans LANmark EU Style 45 x 45 Surface mount box White
33Switches Cabling Network management Services
LANmark Industry patch cord RJ45 IP67/IP20
•• Industrial screened patch cords RJ45 Cat 6A
•• One end with IP67 protection Level (Dust/liquids) - IP20 on
the other end
•• Suitable for the LANmark Industry IP65/67 outlets Cat 6,
Cat 6A or Cat 7A
•• Cable with good mechanical performance and resistant to
chemicals
•• Conform to the requirements of the ISO/IEC 24702 and
IEC 61076-3-106 (8way Industrial connector)
•• Temperature range -10 to 80°C
CODE NAME
Nexans LANmark Industry Patch Cord RJ45 RJ45-IP67 Cat 6 Screened
N10i.E34DJ
PVC 1.5m Yellow
Nexans LANmark Industry Patch Cord RJ45 RJ45-IP67 Cat 6 Screened
N10i.E34FJ
PVC 3m Yellow
Nexans LANmark Industry Patch Cord RJ45 RJ45-IP67 Cat 6 Screened
N10i.E34HJ
PVC 5m Yellow
Nexans LANmark Industry Patch Cord RJ45 RJ45-IP67 Cat 6 Screened
N10i.E34OJ
PVC 10m Yellow
Nexans LANmark Industry Patch Cord Single-end RJ45-IP67 Cat 6
N10i.E64OJ
Screened PVC 10m Yellow
LANmark UniBoot screened patch cords RJ45/RJ45
•• Screened patch cords compliant with Cat. 5e, 6 or 6A
•• Standard length: 1, 2, 3, 5, 10, 20 and 30m
•• Black removable latch protector, replaceable with 7
other colours, offering the possibility for differentiation
between services
•• High density support due to slim boot design
•• X - patch cords length. Example: N115.P1B010OU for
1m cat.5e screened cord
CODE NAME
Nexans LANmark-5 Patch Cord Cat 5e Screened
N115.P1B0X0OU
LSZH Xm Orange
Nexans LANmark-6A Ultim Patch Cord Cat 6A Screened
N11A.U1F0X0OK
LSZH Xm Orange
34Switches Cabling Network management Services
LANmark Secure Lock screened patch cord RJ45/RJ45
•• Secure Locking screened cords for critical applications
•• Examples: redundant copper links, connection of IP security
cameras, PoE connector protection (damage caused by
demating under load), theft prevention, etc.
•• Clear boots and keys as standard
•• 5 other colours of boots and keys are available on request
•• Available for CAT 6 also
•• Available also with One end plug with secure locking hood
and other end plug as standard RJ45 plug
CODE NAME
Nexans LANmark-6A Secure Lock Patch Cord Cat 6A Screened
N11A.L1F010O77
LSZH 1m Orange White Boot
Nexans LANmark-6A Secure Lock Patch Cord Cat 6A Screened
N11A.L1F020O77
LSZH 2m Orange White Boot
Nexans LANmark-6A Secure Lock Patch Cord Cat 6A Screened
N11A.L1F030O77
LSZH 3m Orange White Boot
Nexans LANmark-6A Secure Lock Patch Cord Cat 6A Screened
N11A.L1F050O77
LSZH 5m Orange White Boot
N110.SRJKW Nexans LANmark Secure Lock Patch Cord Key White
LANmark-OF TBUN universal fibre cables
•• Indoor cable and outdoor installation in a duct
•• Tight fiber stucture (TBUN) with Overcoated fibre design
(900µm) with smooth coating removal
•• Operating temperature range: -40 .. 70°C
•• Fully waterproof and rodent retardant
•• Reaction to fire: B2ca-s1,d0,a1 according to
EN50575:2014+A1:2016
•• XX - number of fibres: 4, 6, 8, 12 and 24
CODE NAME
Nexans LANmark-OF Tight Buffer Universal XXx Singlemode
N164.TBUNXX-YB
9/125 OS2 LSZH B2ca s1ad0a1 Yellow
Nexans LANmark-OF Tight Buffer Universal XXx Multimode
N165.TBUNXX-AB
50/125 OM3 LSZH B2ca s1ad0a1 Aqua
LANmark-OF Tight Buffer Universal XXx Multimode 50/125
N167.TBUNXX-AB
OM4 LSZH B2ca s1ad0a1 Aqua
35Switches Cabling Network management Services
LANmark-OF MBUN universal fibre cables
•• Indoor cable and outdoor installation in a duct
•• Micro Bundle structure (MBUN) with unibundle (≤ 12fibres)
or 12 fibres bundle modulus (250µm) for easy fiber access
•• Operating temperature range: -20 .. 60°C
•• Fully waterproof and rodent retardant
•• Reaction to fire: B2ca-s1,d0,a1 according to
EN50575:2014+A1:2016
•• XX - number of fibres: 4, 6, 8, 12, 24, 48, 72 and 96
CODE NAME
Nexans LANmark-OF Micro-Bundle Universal XXx Singlemode
N164.MBUNXX-YB
9/125 OS2 LSZH B2ca s1ad0a1 Yellow
Nexans LANmark-OF Micro-Bundle Universal XXx Multimode
N165.MBUNXX-AB
50/125 OM3 LSZH B2ca s1ad0a1 Aqua
Nexans LANmark-OF Micro-Bundle Universal XXx Multimode
N167.MBUNXX-AB
50/125 OM4 LSZH B2ca s1ad0a1 Aqua
LANmark-OF outdoor armored fibre cables – fully dielectric
•• Suitable for outdoor in ducts or direct burial
•• Fully dielectric: armored by FRP elements
•• High rodent resistance and superior crush resistance
•• Available in 12, 24 fibres (UD type: Unitube) 48, 72 and
96 fibres (MD type: Multitube). Fibre grade: OM3, OM4
and OS2
CODE NAME
Nexans LANmark-OF UDPE 12x Multimode 50/125 OM3
N165.UDPE12B
Black
Nexans LANmark-OF UDPE 12x Multimode 50/125 OM4
N167.UDPE12B
Black
Nexans LANmark-OF UDPE 12x Singlemode 9/125 OS2
N164.UDPE12B
Black
Nexans LANmark-OF UDPE 24x Singlemode 9/125 OS2
N164.UDPE24B
Black
Nexans LANmark-OF MD 24x Singlemode 9/125 OS2
N164.MDPEPE24B
PE/PE Black
Nexans LANmark-OF MD 48x Singlemode 9/125 OS2
N164.MDPEPE48B
PE/PE Black
Nexans LANmark-OF MD 72x Singlemode 9/125 OS2
N164.MDPEPE72B
PE/PE Black
Nexans LANmark-OF MD 96x Singlemode 9/125 OS2
N164.MDPEPE96B
PE/PE Black
36Switches Cabling Network management Services
LANmark-OF outdoor/indoor armored fibre cables - metal armoring
•• Corrugated steel tape armouring
•• Full rodent resistance
•• LSZH Sheath for Indoor/Outdoor installation or PE Sheath
for outdoor installation (Ducts, direct burial)
•• Available in 12 and 24 fibres (UC type: Unitube) with
OM3, OM4 and OS2 Fibre grade
•• Cable construction with fibre count up to 96
is also available
CODE NAME
Nexans LANmark-OF UC 12x Multimode 50/125 OM3 PE
N165.UCPE12B
Black
Nexans LANmark-OF UC 12x Multimode 50/125 OM4 PE
N167.UCPE12B
Black
Nexans LANmark-OF UC 12x Singlemode 9/125 OS2 PE
N164.UCPE12B
Black
Nexans LANmark-OF UC 24x Singlemode 9/125 OS2 PE
N164.UCPE24B
Black
Nexans LANmark-OF UC 12x Multimode 50/125 OM3 LSZH
N165.UCUN12B
Black
Nexans LANmark-OF UC 12x Multimode 50/125 OM4 LSZH
N167.UCUN12B
Black
Nexans LANmark-OF UC 12x Singlemode 9/125 OS2 LSZH
N164.UCUN12B
Black
Nexans LANmark-OF UC 24x Singlemode 9/125 OS2 LSZH
N164.UCUN24B
Black
Universal LANmark Industry iConnectBox, DIN-rail, 6x Snap-In
•• Ideal for areas with limited space
•• For mounting on a standard DIN-rail (35mm) or the wall
•• Universal panel for copper or fibre connectivity
•• Density: 6x copper Snap-In modules, 6x fibres with SC
Snap-In adaptors, 12x fibres with LC Snap-In adaptors
•• Wide range of accessories
CODE NAME
Nexans LANmark Industry Modular iConnect Box DIN Rail
N42i.101
Mount 6 Snap-In Black
Nexans extension for LANmark Industry Modular iConnect Box
N42i.105
DIN Rail Mount 6 Snap-In Black
Nexans LANmark Industry iConnect Splice Cassette
N42i.106
12x heat shrink protection
Nexans LANmark Industry iConnectBox Splice Cassette
N42i.102
6x splice protection holder
N42i.104 Nexans LANmark Industry iConnect Splice Cassette Cover Grey
37Switches Cabling Network management Services
LANmark-OF fibre patch panel 19” 1U 24x Snap-In Sliding Black
•• Modular patch panel: mix of adaptor and fibre types
possible
•• Designed for Snap-In adaptors for fast installation and
flexibility
•• Density: 24x fibres with duplex SC or 48x fibres with
duplex LC Snap-In adaptors
•• Sliding and removable tray
•• 3 possible positions for the front: flush, flat or recessed
•• Optimised for splicing, direct termination and Pre-Term
•• Marking strip to number and categorise ports
CODE NAME
N439.4SNW Nexans LANmark-OF Patch Panel Snap-In Sliding White
N439.4SNB Nexans LANmark-OF Patch Panel Snap-In Sliding Black
LANmark-OF Plug&Play Patch Panel 19” 1U and adaptor plates
•• Optical panel that holds up 4 Plug&Play adaptor plates
•• High density connectivity: up to 48x fibres with SC or 96x
with LC adaptor plates
•• Adapter plates for 3DSC, 6DSC, 6DLC or 12DLC
•• Available in multimode and singlemode
•• Sliding and removable tray
CODE NAME
Nexans LANmark-OF Plug&Play Patch Panel Trunk Pre-Term
N439.3MPP
Sliding Black
N441.2MBP Nexans LANmark-OF Plug&Play Blank Plate Black 5x
Nexans LANmark-OF Adaptor Plate 12 LC Multimode
N205.ALC12MMA
Aqua
Nexans LANmark-OF Adaptor Plate 12 LC Singlemode
N205.ALC12SMB
Blue
Nexans LANmark-OF Adaptor Plate 12 LC Singlemode APC
N205.ALC12SAG
Green
Nexans LANmark-OF Adaptor Plate 24 LC Multimode
N205.ALC24MMA
Aqua
Nexans LANmark-OF Adaptor Plate 24 LC Singlemode
N205.ALC24SMB
Blue
Nexans LANmark-OF Adaptor Plate 24 LC Singlemode APC
N205.ALC24SAG
Green
38Switches Cabling Network management Services
LANmark-OF Anaerobic Simplex Connectors
•• LC, SC and ST connectors for on-site termination
•• For installation on 900µm fibre or mini-ZC cable 1.6-
2.2mm
•• Installed using Nexans anaerobic toolkit
•• For other connectors types, technologies and tools please
refer to Nexans Fibre Solutions catalogue available on
www.nexans.com/LANsystems
CODE NAME
Nexans LANmark-OF LC Connector Multimode Anaerobic
N205.633
900µm Aqua
LANmark-OF LC Connector Multimode Anaerobic 900µm Aqua
N205.633bulk
100X
Nexans LANmark-OF LC Connector Multimode Anaerobic
N205.634
2.0mm Aqua
Nexans LANmark-OF Toolkit SM & MM Anaerobic Connector
N102.230
(starter kit)
LANmark-OF Pigtails
•• Tight buffer and Maxistrip pigtails
•• Maxistrip pigtails for ease of splicing and high density
•• Available with SC and LC connectors
•• Insertion loss per connection without splice: 0.25 dB
maximum
•• 100 % factory tested
•• For “X” in product codes below: 7 – OM4, 4 – OS2 fibres
CODE NAME
N121.XTLY Nexans LANmark-OF Pigtail LC Tight Buffer LSZH X 1m
N121.XMLY Nexans LANmark-OF Pigtail LC Maxistrip LSZH X 1m
Nexans LANmark-OF Pigtail LC SM APC Maxistrip
N121.4MPY
LSZH 9/125 1m
Nexans LANmark-OF Pigtail LC SM APC Tight Buffered
N121.4TPY
LSZH 9/125 1m Yellow
39Switches Cabling Network management Services
LANmark-OF Secure Lock fibre locking pigtails
•• Secure Locking pigtails for critical applications
•• Designed to prevent unauthorised and inadvertent changes
in highly sensitive applications and secure IT networks
•• Fully compatible with Standard LC adaptors
CODE NAME
Nexans LANmark-OF Secure Lock LC Pigtail OM3
N124.P5KNN010
Black Boot 1m
Nexans LANmark-OF Secure Lock LC Pigtail OM3
N124.P5RNN010
Red Boot 1m
Nexans LANmark-OF Secure Lock LC Locking Plug
N124.BNK
Black
Nexans LANmark-OF Secure Lock LC Locking Plug
N124.BNR
Red
Nexans LANmark-OF Secure Lock LC Key
N124.KNP
Purple
LANmark-OF Fibre Snap-In Adaptors
•• Designed for installation into the LANmark-OF Snap-In
panels and LANmark Industry iConnectBox, ZD boxes and
outlets
•• Available in duplex LC and duplex SC, multimode, single-
mode and singlemode APC
•• For other connectors types, technologies and tools please
refer to Nexans Fibre Solutions catalogue available on
www.nexans.com/LANsystems
CODE NAME
Nexans LANmark-OF Duplex LC Snap-In Adaptor Multimode
N205.617
Aqua
N205.627 Nexans LANmark-OF Duplex LC Snap-In Adaptor Singlemode
Nexans LANmark-OF Duplex LC Snap-In Adaptor Singlemode
N205.628
APC
40Switches Cabling Network management Services
LANmark Industry splice cassette and cover for iConnectBox
•• Designed for LANmark Industry iConnectBox panels
(N42i.101)
•• 12x heat shrink protectors
•• Compact splice cassette and cover
CODE NAME
Nexans LANmark Industry iConnectBox Splice Cassette
N42i.106
12x Heat shrinks
Nexans LANmark Industry iConnectBox Splice Cassette
N42i.102
6x splice protection holder
N42i.104 Nexans LANmark Industry iConnectBox Splice Cassette Cover
LANmark-OF splice cassettes and covers
•• Large splice cassettes (N890.090, N890.091 and
N890.092) can be used with LANmark-OF patch panels
(N439.*), sliding preloaded patch panels (N883.2B*)
and new version of LANmark-OF snap-in panels
(N439.4SNW and N439.4SNB)
•• The small splice cassettes (N890.095, N890.096 and
N890.097) are compatible with ZD-boxes (N521.630
and N521.612)
CODE NAME
Nexans LANmark-OF Splice Cassette Large
N890.090
12 Heat Shrink Protection
Nexans LANmark-OF Splice Cassette Large
N890.091
24 Aluminum Protection
N890.092 Nexans LANmark-OF Cover Splice Cassette Large
Nexans LANmark-OF Splice Cassette Small
N890.095
12 Heat Shrink Protection
Nexans LANmark-OF Splice Cassette Small
N890.096
24 Aluminum Protection
N890.097 Nexans LANmark-OF Cover Splice Cassette Small
41Switches Cabling Network management Services
LANmark-OF splice protection
•• Fusion splice heat shrink protector with a length of 45mm
•• Compatible with tight buffer or loose tube cables
(250 and 900 um coated fibres)
•• Aluminum Protectors with a length of 30mm
•• Aluminum Protectors compatible with loose tube,
Micro-Bundle cables (250 um coated fibres) and Maxistrip
Pigtails
CODE NAME
Nexans LANmark-OF Fusion Splice Heat Shrink Protection
N890.021
45mm 100x
N890.003 Nexans LANmark-OF Fusion Splice Aluminum Protection 150x
LANmark-OF cable glands
•• Designed to fix cables on LANmark-OF and LANmark
Industry fibre patch panels and ZD boxes
•• N890.146 covers cables with a 12.3 …18 mm diameter
•• N890.147 covers cables with a 4.3 - 11.9 mm diameter
CODE NAME
N890.146 Nexans LANmark-OF Cable Gland 25 mm
N890.147 Nexans LANmark-OF Cable Gland 20 mm
42Switches Cabling Network management Services
LANmark-OF Ruggedised fibre patch cords
•• For harsh environment applications where strong mechani-
cal protection is required
•• Each tight buffered fibre is protected by a metal spring
•• Between the spring and LSZH jacket aramid yarns are intro-
duced to enhance the pulling force
•• Very flexible patch cords with a bend radius of only 30mm
•• For “X” in product codes below: 5 – OM3, 7 – OM4, 4 –
OS2 fibres
CODE NAME
Nexans LANmark-OF Ruggedised Patch Cord Duplex LC Duplex
N123R.XLLA2
LC X LSZH 2m Aqua
Nexans LANmark-OF Ruggedised Patch Cord Duplex LC Duplex
N123R.XLLA5
LC X LSZH 5m Aqua
Nexans LANmark-OF Ruggedised Patch Cord Duplex LC Duplex
N123R.XLLA10
LC X LSZH 5m Aqua
LANmark-OF Secure Lock fibre locking patch cords
•• Secure Locking fibre patch cords to prevent unauthorized
and inadvertent changes in highly sensitive applications
and secure IT networks
•• Eight coloured locking boots and keys are available
•• For XX in product codes: KK - Black Boot, RR - Red Boot
CODE NAME
Nexans LANmark-OF Secure Lock LC Patch Cord OM3 XX 1m
N124.C5XXA010A
Aqua
Nexans LANmark-OF Secure Lock LC Patch Cord OM3 XX 2m
N124.C5XXA020A
Aqua
Nexans LANmark-OF Secure Lock LC Patch Cord OM3 XX 3m
N124.C5XXA030A
Aqua
Nexans LANmark-OF Secure Lock LC Patch Cord OM3 XX 5m
N124.C5XXA050A
Aqua
N124.BNK Nexans LANmark-OF Secure Lock LC Locking Plug Black
N124.BNR Nexans LANmark-OF Secure Lock LC Locking Plug Red
N124.KNK Nexans LANmark-OF Secure Lock LC Key Black
N124.KNR Nexans LANmark-OF Secure Lock LC Key Red
N124.KNP Nexans LANmark-OF Secure Lock LC Key Purple
43You can also read
