Digital
Microscopy
High throughput scanning • Digital workflow • Software analysis • LMS /IMS/IT
1
Multiple parallel working From
scanning units tailored to your
throughput needs
300 slides – per hour, per day, per week? Each research la-
200
Slides /8 hours
boratory has different throughput requirements. Therefore
PreciPoint offers a comprehensive system that can be fle-
xibly adapted to your requirements. Our goal is to make the
entire process from scanning and analysis to data exchange

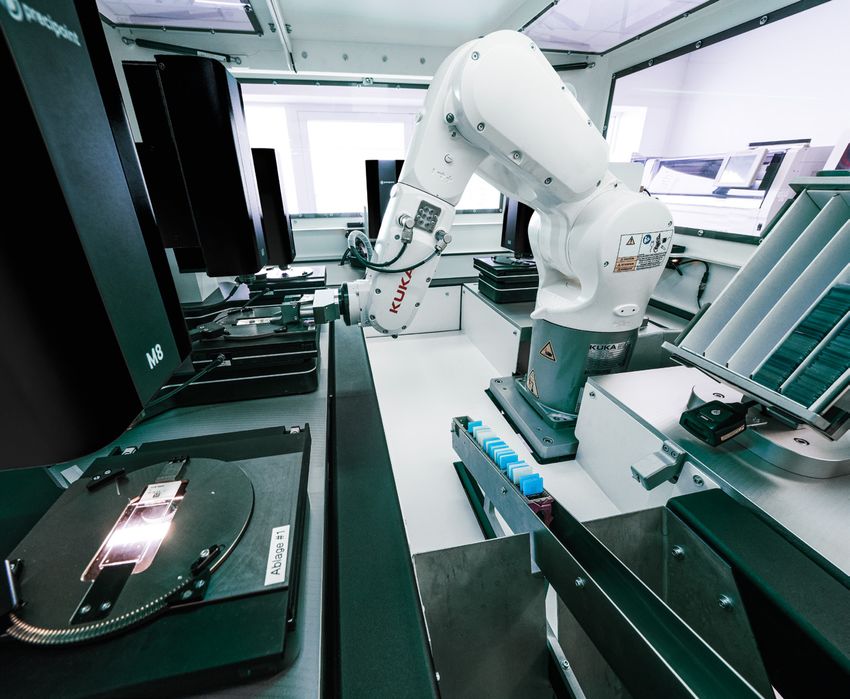

as simple and efficient as possible. We use robot technology
up to
2000
that automatically feeds and removes slides from one or
more scanning units.
Easily scalable throughput Slides /8 hours

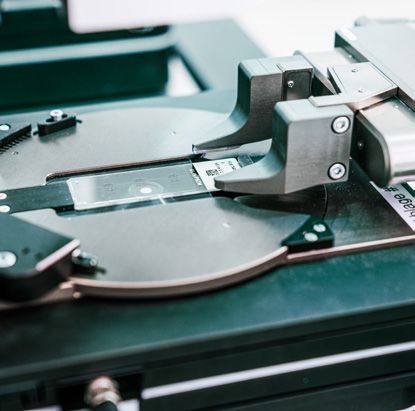

After the scanning process, each slide is recorded in the
Image Management System, the digital archive, through its
barcode information so that individual slides can be quickly
found at a later point in time. Independent of time and
place, the resulting virtual sample can now be conveniently
viewed in our viewer soft ware, which has been specifically
developed for the needs in microscopy.

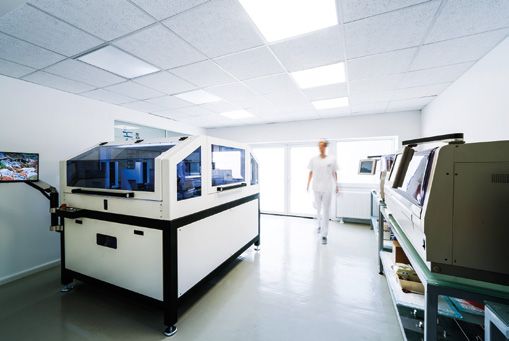

The system operates fully autonomously 24/7 without
supervision. In case that one or more scanners fail, the
Microscope only as stand-alone device
system does not switch off but continues to run with the
available, depicted confi guration is only
exemplary and not available for purchase.
functional units. PreciPoint solutions can be maintained
Feel free to contact us to learn more about via a VPN tunnel, enabling monitoring the system and its
our automization solutions
processes from any location and at all times.
Automated
Slide Scanning More Benefits Housing of the scanner-units
Our solutions adapt easily to your throughput demands.
With fully automated digitization, tracking and archiving of Parallel scanning enables flexible scaling of throughput
slides your lab is ready for the digital future of microscopy. German engineering, 24/7, robust und reliable
Processing of different thicknesses and sizes of slides
Flexibility in IT, IMS and LMS integration
For research use only.
2 3
Digital Want to learn more?
Free Digitalization Workshop
We consult you on your options on how
Workflow
to digitize your laboratory workflow
•
+49 (0) 8161 976 93 49
sales@precipoint.com
Every lab is different. That‘s why we closely look at every
step of your workflow. To digitize your specific workflow we
offer a comprehensive set of technologies and services.
User Work Station
• Ergonomic, digital workplace
• Full integration of LMS, IMS
and viewer software to enable
efficient workflow
• One-click solutions
• Work remotely, anytime and
anywhere
Image Management Send, share
System and reuse data
• Image database • Quality assurance
Automated
• Image data is managed • Research
Slide Scanning
and can be retrieved and
• Second opinion
• Scalable throughput processed at any time
• Education
• 24/7 slide scanning • Integration to LMS
• High-quality images • Integration to viewer software • Conferencing
• Robust German design
• Various scanning algorithms
Barcode Reader* Software Analysis
• Code verification • Empowering users and processes
• Continuous tracking • Full-automation
• Integration to IMS • Assistance systems
For research use only.
* Barcode Reader upon request • Integration to LMS • Efficiency gains
• Quality control
4 5
Software Analysis
After successfully implementing an all-new digital work-
flow, the implementation of software analytics and AI is Empowering users and processes
started. The basis for implementing AI is a powerful plat-
form that connects annotation tools with the IMS. Both,
the annotation tool as well as the IMS can be on-premise
Full-automation
or web-based or a hybrid mix of both solutions. Based on
the annotated data, different AI models can be tested and
Assistance systems
applied to find the best available solutions to improve the
digital workflows. Efficiency gains
While the advantages of AI and software analysis are well Quality control
known, most users are faced with the challenge of selec-
ting the right partners and struggle building the infrastruc-
ture needed to train, deploy and scale production-ready
AI applications. PreciPoint offers an open platform where
companies and their users can apply various technologies
to find answers to their specific questions. Thus, obstacles
and risks for users can be reduced and the potential of
outcomes can be multiplied.
User
Work-Station
Your workplace is at the heart of the lab. All data is bundled
here waiting to be processed. The digital images are con-
nected to the LMS and IMS systems and all data is retrieved
with one click. This is where work is done, decisions are
made and most of the working day is spent.
After a busy day, users shouldn‘t have to go home with
orthopedic discomfort. This is why we design workplaces
Software Analysis
to be as ergonomic and efficient as possible. Of course, we
also supply screens and input devices as well as our own
viewer software which is specifically designed and develo-
ped for the needs in microscopy.
and Work-Station LMS Viewer Software Detailed overview
The digitization of your workflow gives you access to a wide
spectrum of new opportunities: From the optimization of
your work-station, to efficiency gains in your overall work-
flow and the future possibilities of software analytics and AI.
For research use only.
6 7
Bi-directional LMS and IT integration
Our approach to integration is to find together with you the
solution with minimum interference into the existing infras-
Our integration specialists have decades of experience.
While they can offer a comprehensive solution consisting
Integration as key
tructure and work processes. The scalable solution design mostly of PreciPoint hardware and soft ware products, we
and agile project execution offers exceptional integration will also help you successfully integrate and digitize your la-
and unique performance. Focus is laid on bi-directional, boratory workflow with any other existing or new 3rd party
comprehensive integration as the essential foundation for solution. We are driven to help you succeed going digital –
to success
maximum efficiency and effectiveness of your laboratory. no matter what.
Pulls image data
Integration of the scanning system and Image Management
Scanning IMS LMS Viewer
System into the user´s Laboratory Management System, Station
IT infrastructure and existing processes is key to successful Integration Integration Integration
digitization and acceptance by all stakeholders.
Image Management Laboratory Management
System System
Scan
Station
IT
Viewer
IMS
8
Work LMS 9
Station
Tech Specs Throughput
Throughput in slides per h with 20x objective /
40x magnification
Scanning speed per slide
Single Unit: 30
Total System: max. configuration 300
2min
Our modular system adapts to your specific requirements. (20x objective, 40x magnifi cation, 15 x 15 mm) (depending on sample preparation, scan parameters and objectives)
Take a look at the technical data and key-features and see Slideloader (type, loading capacity) feeding system | max. 2.000
for yourself. Software
Image data analysis upon request
Viewer – virtual microscope stand-alone, web-based, mobile
LMS and Data Management
Integration to Laboratory Management System ( LMS ) yes, based on user requirements
Image Data Management ( IMS ) Local, Server, web-based
Barcode scanner upon request
Image generation
Olympus: 20x, 0,75; 20x, 0,50; 40x,
Objectives (magnifi cation, NA)
0,95; 40x, 0,75; 60x, 0,90
20x, 0,75NA: 0,55; 40x, 0,95NA: 0,28
Pixel resolution (μm/pixel)
(depending on screen and viewing distance)
Image processing White balance, color correction
Light source type LED, brightfield
z-stack support
25 nm steps over 100 mm path
(min. distance, full distance)
Dimensions
Supported slide dimensions (mm) 75±1x25x1±0,05; 75±1x50x1±0,05
Single Unit: 1 scanning unit + 1 feeding system (optional)
Modular design
Total System: max.10 scanning units + 1 feeding system
Single Unit: 45 x 40 x 30
Width x height x depth (cm)
Total System: up to max. 160 x 200 x 160 incl. feeder
Single Unit: 25
Weight (kg)
Total System: total max. 1.000
More features
Self-calibration yes
Loading from staining-racks (type) yes, e.g. staining-basket from Sakura
Supported image formats VMIC (conversion options upon request)
Tissue Microarray (TMA) upon request
Microscope only as stand-alone device
available, depicted confi guration is only
exemplary and not available for purchase. For research use only.
Feel free to contact us to learn more about Technical specifications vary depending on your specific requirements and
our automization solutions are subject to change.
10 11
About PreciPoint
German Engineering at its best
Our mission is to shape the future of cancer diagnostics
by digitizing microscopy and to make state-of-the-art
workflows accessible to everyone. We believe in techno-
20
Active in over 20 countries
logy to inspire and educate new generations of scientists worldwide
and doctors and to deliver them state of the art tools to
enhance patient care. This motivates us to design products
that combine great optics and precision with easy-to-use,
intuitive, and powerful soft ware that increases efficiency,
effectiveness, and quality of cancer diagnostics.
Our PreciPoint Product Family
Made
in
Germany

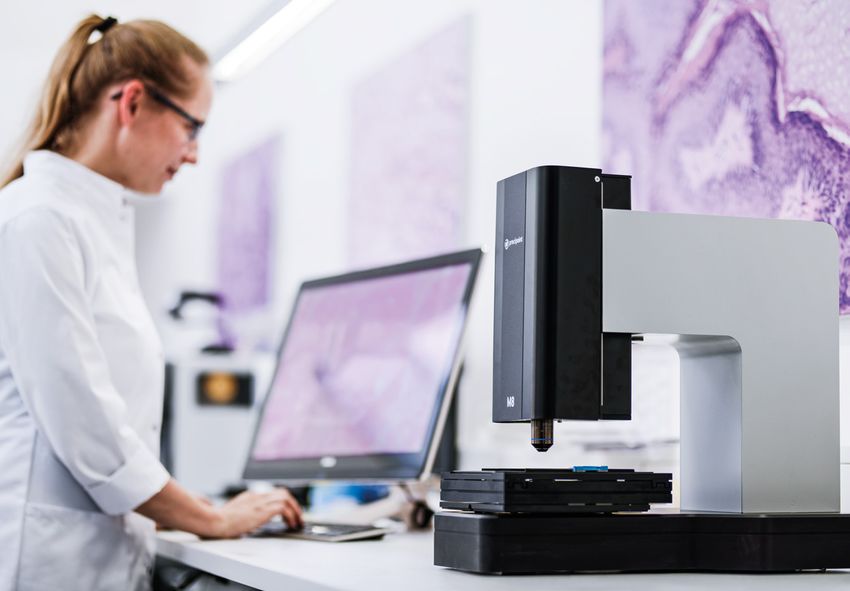

M8 Microscope
and
Scanner O8 Oil Microscope
and
Scanner I8 Inverted
Microscope
and Scanner
Wildenspring
Production
Freising
Headquarters
For research use only. Not for use in diagnostic procedures.
12 13
Microscope only as stand-alone device
available, depicted confi guration is only
exemplary and not available for purchase.
Feel free to contact us to learn more about
our automization solutions
Service and Over 37 Years of experience in
customer service and support
Want to learn more?
Free Digitalization Workshop
We consult you on your options on how
Support
We offer technological advise and service to achieve the
optimal perfor mance of your workflows. Our customer to digitize your laboratory workflow
service is happy to respond quickly to all arising questions. •
Should there still be an issue, we will be on-site as soon as +49 (0) 8161 976 93 49
possible to take care of it. sales@precipoint.com
Our commitment to quality does not end with your purchase. Our field support makes sure, your laboratory is running
smoothly and reliably. Our Application specialists have their
We offer different service packages tailored to your require- background in science and engineering and can help you
ments. You can expect long-term support and maintenance, with any arising question.
that accompanies you throughout the entire service life of
your product.
14 15
