HEINEN & HOPMAN PASSENGER VESSELS
HEINEN & HOPMAN
PASSENGER VESSELS
Our mission is to ensure you the perfect climate indoors, regardless of the weather
outside.

                                                                                                                    OUTSIDE HUMIDITY
                                                                                                                     35°C    90%
                                                                                                                     45°C    40%

                                                                                                                  22º C
                                                                                                                      PROVIDED BY
                                                                                                                                 Inside

                                                                                                                   HEINEN & HOPMAN

1   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©              HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©     1
        Heating                   Ventilation             Air Conditioning              Refrigeration
HEINEN & HOPMAN PASSENGER VESSELS
1   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   1
HEINEN & HOPMAN PASSENGER VESSELS
TABLE OF CONTENTS                         PAGE
                                                          INTRODCTION				3

                                                          PRODUCTS				5
                                                          COOLING PLANT			             5
                                                          ABSORPTION CHILLER		         6
                                                          TURBOCOR CHILLER		           6
                                                          PROPANE CHILLER		            7
                                                          REPLACEMENT CHILLER		        7
                                                          MGO COOLER			                8
                                                          CONDENSING UNIT              9
                                                          AIR HANDLING UNIT		          9
                                                          SELF-CONTAINED UNIT		        10
                                                          PACKAGE UNIT			              10
                                                          HEATER				                   11
                                                          FANS				                     11
                                                          CONTROL STARER PANEL		       12
                                                          GALLEY INDUCTION VENTILATION 12
                                                          CABIN UNIT			                13
                                                          CABIN FAN COIL UNIT		        13

                                                          SERVICES				14

                                                          REFERENCES			                                 16

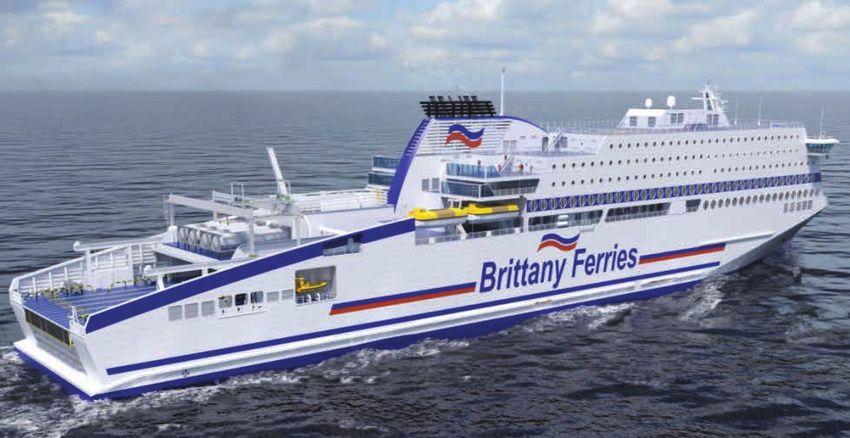

                                                          BRITTANY FERRIES       		                     16

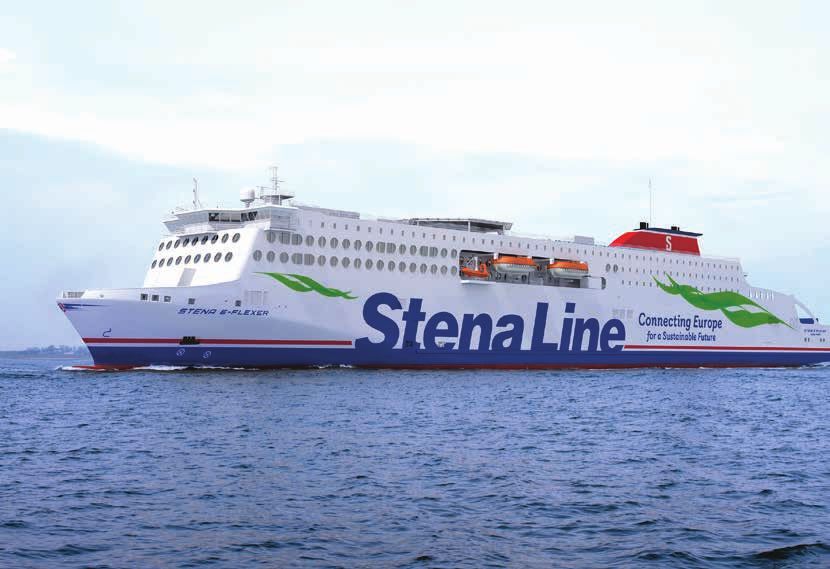

                                                          STENA ROPAX      			                          17
                                                          POLAR CRUISE VESSEL 			                       18

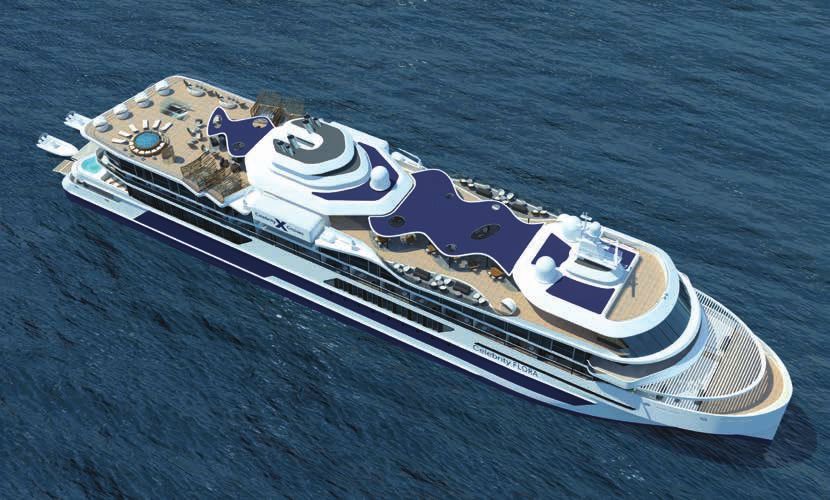

                                                          CELEBRITY FLORA        		                     19
                                                          REFIT OF MILLENNIUM CLASS VESSELS             20
                                                          PASSENGER FERRIES		                           21
                                                          RIVER CRUISE VESSELS		                        26
                                                          SUPERYACHTS +100M		                           27
                                                          CRUISE VESSELS			                             28

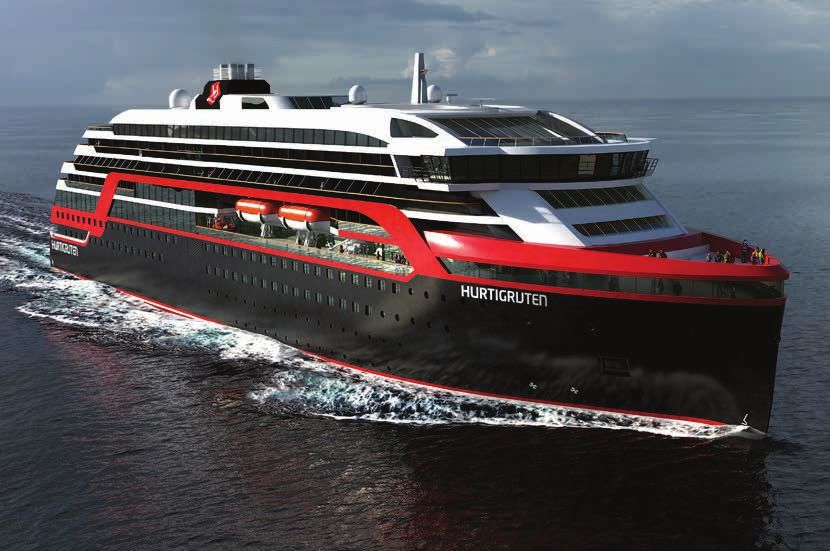

                                                          EXPEDITION VESSELS		                          30

2   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©    HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   2
HEINEN & HOPMAN PASSENGER VESSELS
INTRODUCTION
Tourism is growing continuously, and remote
locations like the Arctic and Antarctic areas
become more accessible. These areas are dream
destinations for many tourists, and cruise vessel
operators are fighting to have the best ships
providing the best customer experience.

Satisfy your most demanding customers
Passengers on these ships are expecting full
luxury cruise standard, enjoying the view of
icebergs passing by their cabin windows while
they are enjoying a glass of wine in a perfect
indoor climate. For these projects the HVAC
systems become one of the key systems for
customer satisfaction. We can design HVAC
systems that meet the highest requirements
and satisfy your most demanding customers.
Our main focus is on energy-efficient solutions
with ultra-low noise levels and minimum energy
consumption.

Over the last three decades we have garnered
enormous experience in creating the perfect
environment onboard passenger vessels. Our
expertise and long-time involvement in design,
manufacturing, installation and commissioning
of customised air handling systems has paid
dividends for countless owners. We have also
introduced many key innovations over the years,
such as the Heinen & Hopman fan coil unit.
Virtually all the world’s leading yards have been
our customers for many years.

Fine products must be backed up by superlative
after-sales services. For your convenience,
Heinen & Hopman maintains representatives
all over the world, assuring you of 24/7 support
wherever you may choose to cruise. Our facilities
worldwide will provide you with immediate
service and maintenance… Guaranteed.

3   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   3
HEINEN & HOPMAN PASSENGER VESSELS
Products
                                                          Heinen & Hopman is a well-known designer and
                                                          manufacturer of numerous products in a variety
                                                          of sizes, models and capacities. Synergies due
                                                          to our involvement in several other maritime
                                                          sectors result in top class solutions and products.
                                                          Our range consists of fan coil units, fans, air
                                                          handling units, all types of air filters, engine
                                                          room ventilation, cooling systems and chillers.
                                                          We design and manufacture chillers for all
                                                          formats and uses in accordance with your wishes
                                                          and special requirements. Thanks to recent
                                                          innovations, we are also able to connect the
                                                          complete HVAC, provision cooling and chillers
                                                          to ship monitoring systems, while our service
                                                          offices can provide remote First Aid Service from
                                                          a distance.

                                                          Systems
                                                          As specialists in air handling, Heinen & Hopman
                                                          focuses on air conditioning and ventilation
                                                          systems. We create solutions in all formats, from
                                                          smaller spaces to complete vessels, and from
                                                          accommodation to technical areas. Furthermore,
                                                          as a system integrator we offer you the
                                                          possibility to combine these systems with other
                                                          arrangements, such as provision cooling plants
                                                          and all kinds of sanitary and fire fighting systems.

                                                          Our high-tech solutions all incorporate Heinen &
                                                          Hopman in-house expertise, with the exception
                                                          of sanitary and fire fighting systems.
                                                          For the latter, we maintain a close cooperation
                                                          with renowned brands that provide worldwide
                                                          service availability. State-of-the-art installation,
                                                          commissioning, service and after sales facilities
                                                          constitute first-rate support for these extensive
                                                          systems capabilities.

4   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©     HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   4
HEINEN & HOPMAN PASSENGER VESSELS
PRODUCTS - COOLING PLANT
   A cooling plant belongs to the main units of an air conditioning system. Without a cooling plant it will be impossible to
   meet a comfort inside climate when cooling is needed. A cooling plant consist of four main components “Compressor,
   condenser, expansion valve and evaporator”. The diagram below shows the complete cooling circuit with all the main
   component as well the phase of the refrigerant in each stage of the circuit.

   The selection of a cooling plant depends on several factors like the required cooling capacity, the refrigerant type and
   cooling medium.

   KEY FEATURES
   • High quality assured;
   • Standard Capacity control 25%, 50%, 75% and 100%;
   • Refrigerant 134a, [complies with the most ship classifications];
   • All common power supplies available on request;
       Paint color standard RAL6011 other colors available on request;
   • Easy accessible for maintenance and cleaning;
   • Fully ventilated electric switch board;
   • Easy cleanable condensers;
   • Two fully independent circuit;
   • Step less capacity control 25% till 100%;
   • All other power supplies available on request;
   • Troubleshooting on distance.

                                                                      Volume            Volume
Model num-         Q0 (kW)          Pe (kW)                                                               Dimensions            Weight
                                                      Imax (A)     flow (m3/h)       flow (m3/h)
   ber             R134a           absorbed                                                               LxWxH (m)              (kg)
                                                                    condenser           chiller
HHSCHSC Series                                                                                          3.20x1.00x1.66 -
                  190 - 1100 2x32 - 2x172           2x92 - 2x465   2x16,5 - 2x93,9     27,8 - 161                            1960 - 7000
    50 Hz                                                                                                4.50x1.75x2.25
HHSCHFC Series                                                                                          3.20x1.00x1.66 -
                  190 - 1100 2x32 - 2x172           2x92 - 2x465   2x14,5 - 2x82,4     27,8 - 161                            1960 - 6900
    50 HZ                                                                                                4.30x1.60x2.25
HHSCHSC Series                      2x38,5 -                          2x17,4 -                          3.20x1.00x1.66 -
                  200 - 1200                       2x101 - 2x509                      29,4 - 176,2                           1960 - 7000
    60 Hz                           2x206,9                           2x102,6                            4.50x1.75x2.25
HHSCHFC Series                      2x38,5 -                                                            3.20x1.00x1.66 -
                  200 - 1200                       2x101 - 2x509 2x16,3 - 2x90,5      29,4 - 176,2                           1960 - 6900
    60 HZ                           2x206,9                                                              4.30x1.60x2.25

   5   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                       HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   5
HEINEN & HOPMAN PASSENGER VESSELS
PRODUCTS - ABSORPTION CHILLER
A special Maritime Absorption Chiller has been designed considering and resolving negative aspects such as the
refrigerant’s overflow and mixing caused by ship motions, special welding, structure strength and performance de-
rating in view of the ship pitching and rolling. After careful design and research the absorption chillers were tested on
a moving bed to simulate the marine conditions. Our Maritime Absorption Chillers can be steam or hot water fired and
seawater cooled with Cu/Ni or Ti absorber and condenser heat exchangers. It can be used to replace a conventional
electric chiller (heat source must be 100% of the time available) or in a hybrid version (Electric chiller as back up).

KEY FEATURES
• Customized design for vessel conditions;
• Anti-rolling & pitching construction;
• Standard designed for hot water (min. 75C) &
    steam (1 ÷ 3 bar(g)) as a heat source;
• Other waste heat sources available on request (i.e exhaust gas);
• Seawater absorber & condenser in Cu/Ni or Ti;
• Range from ~150kw to ~5,000kW;
• COP up to 0,8.

                Dimensions          Dimensions         Dimensions                     Cooling          Chilled          Chilled wa-
     Model                                                                Weight
                 in length           in width           in height                     capacity       water Inlet        ter Outlet
    number                                                               (tonnes)
                   (mm)                (mm)               (mm)                          (kW)            (0C)                (0C)
    SWM-60
      to
                 2600 - 6818         1400 - 2829           1877 - 3450   3.9 - 36.4   176 - 3868           12                  7
     SWM-
     1200

PRODUCTS - TURBOCOR CHILLER
As part of an on-going quest to optimize systems and services, Heinen & Hopman has introduced the Turbocor
compressors to the maritime industry. With a focus on the environment and cost savings, this HVAC-R technique makes
a world of difference in efficiency, sustainability and applicability. The Turbocor compressors benefit from aerospace
and industrially proven technologies such as magnetic bearings, variable-speed centrifugal compression and digital
electronic controls. Combined with Heinen & Hopman’ exceptional knowledge of marine HVAC-R technology, this
enables the Turbocor range of compressors to achieve the highest overall efficiencies for HVAC-R applications in the
maritime sector.

Taking up half the space of conventional compressors and being about one fifth of their weight, Turbocor compressors
reduce energy consumption by up to 50% and are around 60% more efficient than comparable compressors. They
also have a long service life due to the absence of mechanical wear surfaces offered by frictionless magnetic bearing
technology. This further enhances efficiency while adding value in terms of reliability, noise reduction and maintenance.

KEY FEATURES
• HFC refrigerant for optimum environmental position;
• Outstanding part load efficiency;
• High full load efficiency;
• Intelligent, self-contained control;
• Light weight;
• Low vibration;
• Oil free operation reduces complexity and cost, improves heat
    exchange efficiency and eliminates disposal issues;
• Very low sound;
• Soft starting;
• Small footprint;
• Unique technology made ready for the maritime industry.

6    HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                        HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   6
HEINEN & HOPMAN PASSENGER VESSELS
PRODUCTS - PROPANE CHILLER
 The propane chiller is our answer to the phase out of greenhouse gases. Refilling existing systems with virgin R22 has
 been prohibited since 2010 and as of 2015, refilling existing systems with recycled R22 has been prohibited as well. The
 quest to find an environmentally friendly alternative for R22 led to the conclusion that propane (R290) would be the
 best substitute. Propane has very similar thermodynamic behavior to R22 and it is a natural refrigerant. By using R290
 as a refrigerant, the environmental impact is reduced, because R290 has a zero ODP (Ozone Depletion Potential), a very
 low GWP (Global Warming Potential) and an assumed equal energy efficiency to R22. Propane is a flammable refrigerant
 and therefore cautious handling of the refrigerant is required. The most important safety concern is to ensure that in
 case of a leakage the refrigerant doesn’t ignite. By placing the cooling system inside a casing, the possible explosive
 atmosphere is located inside the casing when a leakage occurs. By using an ATEX fan, the casing can be ventilated
 so the mixture of gas and air can be discharged outside the casing. We strongly believe it is important to be able to
 live in a world with optimal environmental conditions. Not just for us, but for the next generations to come as well.
 With our propane chiller you benefit from the latest, highly efficient, chiller technology while knowing it’s utilizing an
 environmentally friendly refrigerant.

 KEY FEATURES
 • In accordance with F-gas regulations;
 • Environmentally friendly;
 • Highly energy efficient.

 PRODUCTS - REPLACEMENT CHILLER
 An AC-chiller is an essential piece of equipment onboard a ship. So when a unit breaks down, is it better to repair the
 unit or replace the chiller altogether? One of the greatest challenges with replacement is the difficulty of gaining access.
 This expensive and time-consuming operation involves cutting into the hull, removing the existing chiller and mounting a
 new one in its place. Now, with our innovative line of custom Replacement Chillers, Heinen & Hopman offers a new way
 of overcoming this hurdle. The difference with ‘normal’ AC-chillers lies in the fact that Heinen & Hopman’s Replacement
 Chillers are specially designed and manufactured as a building package. While still intended as a permanent solution,
 they are suitable for transporting through the doors inside a ship and no hole has to be cut in the hull. In addition to the
 obvious money savings, this also means you don’t have to wait to replace your old AC unit with a state-of-the-art, fully
 customisable Replacement Chiller. The complete project is handled by our specialists, including:
 • Design and engineering;
 • Manufacturing and testing;
 • Disassembly and shipment;
 • Onboard assembly and commissioning.

 KEY FEATURES
 • High quality assured;
 • Fully custom built solutions available on request;
 • Refrigerant 407C, (complies with all ship classifications);
 • Proven method for more than a decade;
 • Fully tested a factory and in the field;
 • Power management system;
 • Frequency controllers;
 • All common power supplies available on request;
 • Paint colour fully customable;
 • Sea water or fresh water cooled.

                                              Cooling                    P.             P.           Chilled         Chilled
                        Dimensions                        Weight
Model number                                  capacity               absorbed       Installed         water           water
                      (LxWxH) in mm                        (kg)
                                                (kW)                   (kW)           (kW)          Inlet (0C)      Outlet (0C)
20TR (2-stage)         1742x950x1789               70     1.100        2 x 11          2 x 16            12                6
30TR (2-stage)        1942x1050x1789              106     1.250       2 x 17.7         2 x 25            12                6
40TR (2-stage)        1942x1050x1789              141     1.400       2 x 24.5         2 x 36            12                6
40TR (3-stage)        1942x1200x2002              141     1.600       3 x 15.8         3 x 23            12                6
50TR (3-stage)        1942x1200x2252              176     1.850        3 x 21          3 x 29            12                6
60TR (3-stage)        1942x1200x2252              211     1.900       3 x 24.5         3 x 36            12                6
7   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                    HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   7
HEINEN & HOPMAN PASSENGER VESSELS
PRODUCTS - MGO COOLER
The MGO Cooler has been developed in response to the MARPOL sulphur emission regulations. Currently, the most
widely used fuel in the shipping industry is Heavy Fuel Oil (HFO). Because of its high content in sulphur and heavy
metals, sea going vessels burning HFO emit large amounts of air pollutants and are consequently a major environmental
issue worldwide. The MARPOL sulphur emission regulations have been implemented through a series of deadlines
that progressively lower the maximum sulphur content of the fuel over years. Ships sailing in ECA waters have already
updated their operations to stricter sulphur limitations in 2010, mainly by switching to Low Sulphur Fuel Oil with a
maximum sulphur content of 1.0%. In upcoming regulations the allowed maximum sulphur content will be set to 0.1%.
Technically, this is impossible to achieve in HFO. Therefore, shipping operators currently face a great challenge on how
to implement the technical solutions to adapt existing or future installations to the new MARPOL standards.

Our MGO has been developed based upon decades of experience in successful worldwide sold and operating Heinen
& Hopman marine chillers. We have translated our expertise in climate control to fully meet our clients’ needs when
adapting their operation to the upcoming emission limitations. Thanks to a precise fuel temperature control, our MGO
cooler ensures an optimal protection for any type of engine when fuel is switched from HGO to MGO.

KEY FEATURES
• Customized design for vessel conditions;
• Accurate fuel viscosity and temperature drop control;
• Available with design cooling capacities from 4 to 46 kW suitable
    for main engine power ranging from 2800 to 3250 kW;
• Sea water or fresh water cooled condenser;
• Designed according to EN 378-2008-Refrigerating Systems and
    Heat Pumps Safety and Environmental Requirements;
• Delivered for ‘Plug & Play’ which makes it easy to install and
    minimizes the ship downtime.

                                             Dimensions      Qo       Weight       Pe absorbed
      Range        Model number                                                                          I Max (A)
                                           (LxWxH) in mm    (kW)       (kg)           (kW)
     50Hz           HH MGO 4 SW              1100x600x640     4         230               1.5                 2.8
                    HH MGO 10 SW             1200x650x700    10         260              3.35                 7.1
                    HH MGO 16 SW             1200x750x700    16         320              4.57                10.7
                    HH MGO 30 SW             1800x900x750    30         550              8.69                20.4
                    HH MGO 46 SW             2200x950x800    46         700             13.22                21.5
     60Hz           HH MGO 4 SW              1100x600x640     4         230               1.4                 2.8
                    HH MGO 10 SW             1200x650x700    10         260              3.35                 7.1
                    HH MGO 16 SW             1200x750x700    16         320                5                 10.1
                    HH MGO 30 SW             1800x900x750    30         550              10.5                20.4
                    HH MGO 46 SW             2200x950x800    46         700             12.15                23.7

8   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                 HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   8
HEINEN & HOPMAN PASSENGER VESSELS
PRODUCTS - CONDENSING UNIT
Cooling is accomplished by the direct expansion of a refrigerant in a cooling coil (DX system). The DX system includes a
refrigerant condensing unit that can be either a seawater-cooled type, or an air-cooled type. More than one evaporator
cooling coil can be connected to a single condensing unit (co-balanced). DX systems are generally confined to the
smaller and intermediate tonnage air conditioning applications (less than 50 tons) and are used for all-air systems / air-
water systems.

Heinen & Hopman’s standard water cooled condensing units work in conjunction with one or multiple evaporators to
form an air conditioning or high temperature refrigeration system.

KEY FEATURES
• Simplified system;
• Localised piping system;
• Lower off-coil temperatures;
• Compact equipment;
• Fits through standard doors
• Sea water or Fresh water cooled;
• Low weight.

                         Q0 (kW)                                       Volume
     Model                                   Pe (kW)                                    Dimensions
                         R407C/                           Imax (A)      flow                                  Weight (kg)
    number                                  absorbed                                    LxWxH (m)
                          R134a                                        (m3/h)
HHSCHSC Series                                                                        1.22x0.52x0.75 -
                     30/20 - 220/145        9/5 - 60/36   20 - 135       6 - 27                                 250 - 870
    50 Hz                                                                              1.76x0.66x1.27
HHSCHFC Series                                                                        1.18x0.52x0.75 -
                     30/20 - 220/140        9/5 - 60/38   20 - 135      10 - 48                                 250 - 870
    50 HZ                                                                              1.76x0.66x1.27
HHSCHSC Series                                                                        1.22x0.52x0.75 -
                     37/25 - 265/178       10/6 - 71/43   20 - 135      10 - 60                                 250 - 870
    60 Hz                                                                              1.76x0.66x1.27
HHSCHFC Series                                                                        1.18x0.52x0.75 -
                     37/24 - 265/170       10/6 - 71/45   20 - 135      10 - 90                                 250 - 870
    60 HZ                                                                              1.76x0.66x1.27

PRODUCTS - AIR HANDLING UNIT
Air-Handling Units DB are used for the off-shore and marine industry. The air handling units are specially designed to
be compact and allow for fitting in the often limited space of ships, yachts and offshore modules. The fans are made of
high-quality materials to withstand the extreme sea climate conditions.

The Heinen & Hopman air handling unit is made of the most sturdy materials to withstand extreme cold or hot and
humid air conditions, the salt sea air and the extreme environments.

KEY FEATURES
• Aluminium framework - galvanized steel or welded
    stainless steel are optional;
• Built according to ATEX directives;
• Streamlined manufacturing process accelerates
    project cycles and increases speed to installation;
• Tested before delivery;
• Reduced sound levels.

9   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   9
PRODUCTS - SELF-CONTAINED UNIT
   Heinen & Hopman’s self-contained cooling units are specially designed for
   marine application and are complete with a compressor, condenser,
   evaporator and fan built together in a casing. All electrical wiring and
   refrigeration piping built within.

   KEY FEATURES
   • Sea water or Fresh water cooled;
   • Electro-coated mild-steel casing with powder-coated paint (color on request);
   • Removable front and side panels for easy access and maintenance.

   PRODUCTS - PACKAGE UNIT
   The package unit type HH-PU is a compact unit specially designed for marine installations as air supply for single pipe
   and or dual pipe systems on board of ships and platforms.

   The HH-PU contains of an air handling unit and a cooling plant.

   KEY FEATURES
   • Semi-hermetic compressor;
   • Frame of galvanized steel or stainless steel including
       vibration dampers;
   • All necessary control equipment for accurate control of
       correct working of the package unit;
   • Design comply according to EN 1886 and EN 378, other
       International standards are available on request.

Model                               Cooling          Compres-     Heating           Fan motor
             Air quantity                                                                                             Dimensions
num-                                capacity         sor power    capacity          power con-           Class
                range                                                                                                   in mm
 ber                                 range             range       range             sumtion
                                                                                                          IP 54
HH-PU-1    1500-3500 m3/hr          30-65 kW           9-19 kW    20-50 kW            1.5-3 kW                      2650x1030x1660
                                                                                                         isol. F
                                                                                                          IP 54
HH-PU-2    3500-7000 m3/hr          65-95 kW          18-26 kW   50-100 kW            3-5.5 kW                      3050x1260x1960
                                                                                                         isol. F
                                                                                                          IP 54
HH-PU-3   7000-11000 m3/hr         95-135 kW          26-39 kW   70-150 kW           5.5-11 kW                      3150x1530x2080
                                                                                                         isol. F
           11000-15000 m3/                                                                                IP 54
HH-PU-4                           135-170 kW          39-45 kW   140-220 kW          11-15 kW                       3350x1800x2230
                 hr                                                                                      isol. F

 10   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                    HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   10
PRODUCTS - HEATERS
 Our reliable heating technology for cruise ships keeps everyone onboard warm and comfortable when cruising in cold
 weather. Our heating systems are designed and installed in such a way that the equipment is easy accessible for cleaning
 and maintenance work. Basically we provide two types of heating systems:

 UNIT HEATER
 The unit heaters are primary used to heat larger
 spaces outside the accommodation like workshops,
 engine rooms. The heating is done by hot-air supply
 through a heating coil. There are different types of
 heating units:
 • Electrical heating unit
 • Explosion-proof electrical heating unit
 • Hot-water heating unit
 • Thermal-oil heating unit
 • Portable heating unit

 DUCT HEATER
 Duct heaters heat up the air that flows in a
 ducting system. The duct heater can be delivered
 in the desired size (round or rectangular). Depending
 on the minimum air flow, the surface load will be set.
 There are different types of heating units:
 • Electric duct heater
 • Round duct heater
 • Square/ rectangular duct heater
 • Plug air heater
 • Explosion-proof duct heater
 • Hot-water duct heater

 PRODUCTS - FANS
 In many ships, there is enough air for engines to burn their fuel, but not enough to cool the engine room as well. Since
 warm air doesn’t hold as much oxygen, engines end up with less power, and less efficiency. To assure peak performance,
 high energy-efficiency and operational safety of the equipment in technical spaces, Heinen & Hopman delivers proven
 solutions ensuring an optimal extraction of the combustion air. Our ventilation systems are redundantly executed to
 offer the ship owner more certainty during distant voyages. Engine room ventilation keeps equipment in the engine
 room clean and in better working order, increases engine life and reduces the required maintenance.

 AXIAL FANS
 Axial fans are used for the mechanical ventilation or areas such as engine
 rooms, cargo holds and pump rooms. The fans are available for both
 indoor and outdoor installations in standard formats or in special designs.
 Axial fans are available in different materials:
 • Galvanized steel
 • Primed and painted steel
 • Marine corrosion-resistand aluminum
 • Stainless steel

11   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                  HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   11
PRODUCTS - CONTROL STARTER PANEL
 Combining both control and starting technology, the control starter panel offer a unique total product, at the high
 levels of quality and reliability that Heinen & Hopman is known for. The starter panel contains the main circuits of the
 electrical installation. Motor, pumps and heaters are started and stopped from the panel. Usually, these circuits are
 controlled by the PLC from the starter panel.

 KEY FEATURES
 • Copper rail system for large power consumers;
 • Equipped with frequency conrollers;
 • Energy management (development);
 • PLC/Screen controls + HMI.

 PRODUCTS - GALLEY INDUCTION VENTILATION
 The induction system helps creating a perfect air envelope around the cooking area. In this way almost all fumes and
 contamination will be extracted. By feeding air from the central air-handling unit directly to the galley range hood not
 only helps creating that specific air envelope, it also contributes to lower energy loss because not all the treated air in
 the kitchen is extracted by the galley range hood. This means in the end the galley is not only free from fumes, smells
 and contaminants; it is also saving money by saving energy.

 KEY FEATURES
 • Cost effective and energy saving;
 • Air envelope around the cooking area;
 • Perfect working conditions for end-users;
 • Fully customizable SCADA Control system;
 • Fully customizable solutions for galley ventilation.

12   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                     HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   12
PRODUCTS - CABIN UNIT
       Cabin units supply conditioned air into the accommodation of ships and offshore platforms.
       There are different types of cabin units:
       • Single-duct cabin units: single-duct air-handling unit
       • Dual-duct cabin units: dual-duct air-handling unit
       • Reheat cabin units: single-duct cabin unit with electric reheater and automatic air temperature control

       KEY FEATURES
       • Plug and play installation and commissioning;
       • Excellent noise reducing capacities;
       • Air flow: 250 ~ 450 m3/h;
       • Air capacity regulating device;
       • Fire protection: B-15 class certified.

                                                                   Diffuser                 Diffuser              Weight            Weight
   Model             Casing                Insulation
                                                                 (upper part)            (lower part)            aluminium         galvanized
  HCM sin-      Galvanized steel Mineral wool, 160 kg/m3 Galvanized steel, alumi-    Galvanized steel, alumi-
                                                                                                              2.85 - 4.85 kg 8.3 - 14.5 kg
  gle-duct       or aluminium    and thickness of 20 mm nium or stainless steel      nium or stainless steel
                Galvanized steel Mineral wool, 160 kg/m3 Galvanized steel, alumi-    Galvanized steel, alumi-
HCD dual-duct                                                                                                   5 - 8.8 kg   13.8 - 16 kg
                 or aluminium    and thickness of 20 mm nium or stainless steel      nium or stainless steel
  HCM-E sin-    Galvanized steel Mineral wool, 160 kg/m3 Galvanized steel, alumi-    Galvanized steel, alumi-
                                                                                                              3.65 - 5.6 kg 10.6 - 16.3 kg
gle-duct reheat  or aluminium    and thickness of 20 mm nium or stainless steel      nium or stainless steel

       PRODUCTS - CABIN FAN COIL UNIT
       The CFU-500 Enigma, is a beautiful state of the art designed fan coil unit. Vertical installation makes it possible to install
       the unit in narrow service spaces outside cabins or public rooms. Robust lightweight casing executed in reinforced
       plastics with flame-retardant special designed insulating material. This unique material allows us to create the lightest
       fancoil unit available in its segment. Easy maintenance through one (1) access panel, the fan coil is able to be connected
       with the network and have interfacing with balcony doors and hotel management for automatic adjustment to ECO/
       Ventilation mode on occupancy or presence. In Eco mode, it also controls the fresh air supply and exhaust for correct
       balancing. Their controller is a newly designed wall mounted unit, 4 inch touchscreen type. It controls the room’s
       temperature by cooling, variable automatic airflow and stepples reheating. It can even match the room’s color mood by
       a subtle led lit backlight.

       Easily controlled
       The cabin climate is controlled by a newly designed 4,3’’ touchscreen thermostat, which matches the room’s color mood
       by a subtle backlighting. The clean and intuitive interface allows for easy adaptation of the climate to the user’s desires.

       KEY FEATURES
       • State-of-the-art design.
       • Future-proof design considering increasing sustainability and comfort requirements.
       • Energy-efficient due to the integrated intelligence.
       • Minimal fluctuations due to continuously measurements.
       • Plug and play installation and commissioning.
       • Excellent noise reducing capacities.
       • Stand-alone or network connection possible.
       • Clean and intuitive 4,3’’ touchscreen thermostat.
       • MED B-15 certificated.

      13   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                     HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   13
SERVICES
 In response to increasing demands for maintenance, repairs, overhauls, conversions, revamps, refits and lifetime
 extensions from our yachting, marine, navy and offshore clients, Heinen & Hopman has formed a dedicated MRO and
 Service department with 100% dedicated and field-experienced project teams.

 If you are looking for a partner for major jobs, as described above, regarding your existing HVAC system, our MRO and
 Service department will assign you a dedicated project team. We can be a trustworthy partner throughout the complete
 project and provide you with adequate inspection, reporting, advice, engineering, project management and - of course -
 a pleasing result.

 A SELECTION OF SERVICES CARRIED OUT BY HEINEN & HOPMAN
 • Kitchen/galley/cold store extract cleaning services
 • Air duct cleaning
 • Electronic disinfecting process
 • Inspection (video robots)
 • Explosion safe video inspections
 • Endoscopic examination
 • Microbiological examination
 • Reconditioning of air handling units

 For inquiries, please contact our Spare Parts department at spares@heinenhopman.com or use one of the contact
 details stated on the last page of this brochure.

 24/7 service & maintenance contracts
 Heinen & Hopman knows your yacht is an investment in creating a perfect way of spending your rare spare time in life.
 The air conditioning system has a great impact on the ambience and comfort onboard. When stepping indoors, you
 expect to chill out in an area with the right temperature and humidity level. Furthermore, the air conditioning should
 be whisper quiet and - most importantly - work perfectly at all times. We take good care of our clients by offering global
 24/7 service and spare parts availability. You can count on us any time you may need HVAC assistance. We support
 clients with our personal service and proactive advice: before, during and after developing a solution. To keep your
 HVAC system fit, periodic maintenance is advised as regular preventive check-ups are crucial for a properly functioning
 HVAC system. A healthy HVAC system minimises the risk of system failure - causing down time at inconvenient moments
 – and guarantees an optimal indoor climate while simultaneously reducing power consumption. The result: an energy-
 efficient, healthy and environmentally friendly HVAC system.

 Besides offering periodic maintenance, we also offer contractual 24/7 service, including telephonic support and fast
 action.

 KEY FEATURES
 • Regular periodic maintenance
 • 24/7 emergency support
 • Remote support
 • Worldwide support on location

14   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                  HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   14
A SELECTION OF OUR PASSENGER
 VESSEL PROJECTS CARRIED OUT
 Activities
 Consultancy
 Design & Engineering
 Project management
 Custom built equipment
 Installation & Implementation
 Supervision
 Commissioning
 Service & Maintenance

 Equipment
 Air intake systems for HVAC
 Air Handling Units
 Fan coil units
 Refrigeration equipment
 Centrifugal fans
 Axial fans
 Air filters
 Duct heating & cooling Coils
 Dampers
 Sound attenuators
 Supply & extract
 Ornaments
 Heaters
 Sea water coolers
 Self-contained units
 Package units
 HVAC control systems
 HVAC instrumentation
 Piping & Insulation
 Ducting & Insulation

 Specialism
 Heating systems
 Ventilation Systems
 Air Conditioning Systems
 Refrigeration Systems

 Air Conditioning Energy Savings Systems
 Heat Recovery systems

 Whispering/draught-free/invisible HVAC+R
 Explosion proof HVAC+R
 Arctic HVAC+R

 Air filtering systems
 Proces ventilation systems

 Provision Cooling Plants

 Custom design & production

15   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   15
CASE REPORT BRITTANY FERRIES
 We’re proud to announce that our subsidiary Drews Marine GmbH was awarded the contract to supply the HVAC and
 refrigeration for a 187.4m RoPax ferry, to be built for Brittany Ferries. Brittany Ferries has a profound respect for the
 environment and is committed to reducing the impact of its operations: this new RoPax ferry will be LNG powered,
 resulting in far lower CO2 emission levels.

 Flensburger Schiffbau-Gesellschaft
 Founded in 1872, Flensburger has developed an expertise in the design and construction of tailor made ships for owners
 and operators that require high reliability and optimization of their ship operations. The shipyard has built many RoRo
 vessels, ConRo vessels, RoPax vessels, ferries, offshore vessels and specialized vessels.

 Energy saving HVAC technology
 Drews Marine, extensively experienced in HVAC technology for river cruise vessels, will install the HVAC system serving
 the accommodation, a Turbocor chiller, a provision cooling plant, a brine cooling plant and self-contained units. Energy
 saving technologies will be implemented, such as sorption heat recovery wheels, Turbocor compressors, free cooling,
 water re-heating zones PS/SB for cabins.

 Design conditions
 The following design conditions were requested:

 Outside-Inside Summer
 Outside: 32˚C/50% R.H.
 Inside: 24˚C/50% R.H.
                                                           SUBSIDIARY      |       Drews Marine
 Outside-Inside Winter                                     SHIPYARD        |       Flensburger Schiffbau-Gesellschaft
 Outside: -5/-20˚C                                         IMO NO.         |       T.B.A.
 Inside: 22˚C/30 - 45% R.H.                                NAME VESSEL     |       T.B.A.
                                                           OWNER		         |       Brittany Ferries
                                                           DELIVERY YEAR   |       2020
                                                           COUNTRY OF
                                                           DELIVERY        |       Germany
                                                           VESSEL TYPE     |       RoPax
                                                           LENGTH		        |       187.4 M
                                                           DESIGNER        |       FSG

16   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   16
CASE REPORT STENA ROPAX
 We are proud to announce that Heinen & Hopman China was awarded the EPC contract to supply the complete HVAC
 system for a RoPax vessel for Stena RoRo. The 214-metre ship will be built by Chinese shipyard AVIC Ship International,
 who is specialized in RoPax and RoRo vessels. It is the fifth in the Stena E-Flexer RoPax class. The new ferry has been
 signed to a 10-year bareboat charter with DFDS and will operate in the English Channel between Dover and Calais. The
 ship will be designed to the highest technical and environmental standards and will offer an anticipated 25 per cent
 lower fuel consumption compared with current operation.

 HVAC
 Heinen & Hopman China will supply the HVAC for the living quarters, cargo hold ventilation, engine room ventilation,
 machinery space ventilation and provision cooling. Limited space and noise and vibration requirements are the main
 challenge for this project. For energy saving purposes, a heat recovery wheel will be incorporated in the ventilation
 systems.

 Design conditions                                         SUBSIDIARY      |       Heinen & Hopman China
 The following design conditions                           SHIPYARD        |       AVIC Ship
 were requested:                                           IMO NO.         |       T.B.A.
                                                           NAME VESSEL     |       T.B.A.
 Outside-Inside Summer                                     OWNER		         |       STENA RORO
 Outside: 32˚C/70% R.H.                                    DELIVERY YEAR   |       2020
 Inside: 24˚C/50% R.H.                                     COUNTRY OF
                                                           DELIVERY        |       China
 Outside-Inside Winter                                     VESSEL TYPE     |       RoPax
 Outside: -20˚C                                            LENGTH		        |       214.0 M
 Inside: 22˚C/30 – 50% R.H.                                DESIGNER        |       Deltamarin

17   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   17
CASE REPORT POLAR CRUISE VESSELS
 Teknotherm will supply the complete HVAC systems and Provision Cooling Plant for up to four new Polar Cruise Ships
 for Hurtigruten, to be built by Norwegian shipyard Kleven Verft. These Polar cruise vessels will be deployed in Arctic
 and Antarctic areas and are designed by Rolls-Royce Marine in Norway, and customised specifically for adventure-rich
 expedition voyages.

 Adventure Tourism
 Adventure tourism is one of the fastest growing global tourist trends and has witnessed an increase of 195% over just
 two years. The new state-of-the-art vessels offer a host of activities for adventure seekers, from climbing and kayaking
 to rib-tours, whale and sea eagle safaris.

 Green HVAC equipment
 Hurtigruten prioritises sustainability, and the new ships will be equipped with advanced environmentally-friendly
 technology to reduce emissions, underlining its vision of playing a lead role when it comes to green shipping. Using
 energy recovery solutions and energy-efficient equipment in the HVAC systems, Teknotherm contributes to the
 ‘greenness’ of the ships.
                                                        SUBSIDIARY       |        Teknotherm Marine
 Design conditions                                      SHIPYARD         |        Kleven Werft
 The following design conditions                        IMO NO.          |        T.B.A.
 were requested:                                        NAME    VESSEL   |        T.B.A.
                                                        OWNER		          |        Hurtigruten
 Outside-Inside Summer                                  DELIVERY YEAR |           2019/2020
 Outside: 32˚C/90% R.H.                                 COUNTRY OF
 Inside: 21 - 27˚C/30 - 60% R.H.                        DELIVERY         |        Norway
                                                        VESSEL TYPE      |        Expedition Cruise Vessel
 Outside-Inside Winter                                  LENGTH		         |        140.0 M
 Outside: -25˚C                                         DESIGNER         |        Rolls-Royce Marine
 Inside: 18 - 24˚C/30 - 60% R.H.

18   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                  HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   18
CASE REPORT CELEBRITY FLORA
 Celebrity Cruises has ordered a new ship at Scheepswerf De Hoop Lobith specially designed for the Galapagos Islands.
 The expedition cruise vessel – named Celebrity Flora – brings a new level of luxury, sustainability and natural exploration
 to the region. Besides state-of-the-art and eco-friendly technology,
 the vessel shall have the largest and most luxurious accommodations in the Galapagos Islands. In total eight decks will
 have a wide selection of spaces for in total 100 passengers.

 Designed with the destination in mind
 The destination and its environment – with a large number of flora and fauna that do not exist anywhere else in the
 world – have greatly influenced every decision made in the ship’s design. Celebrity Flora is one of the most energy-
 efficient ships in its class, with a 15 percent reduction of fuel consumption and equivalently fewer air emissions
 compared to Celebrity’s Xpedition Class.

 Energy-efficient HVAC technology
 To contribute to the sustainability of the ship, a low-energy HVAC system will be supplied by Heinen & Hopman. As a
 substantial part of the total energy consumption onboard ships is used for operating the HVAC system, it is one of the
 main targets for efficiency improvements. Heinen & Hopman will supply custom-built revolutionary high performance
 chillers and Enigma fan coil units for all passenger cabins to achieve the goal of reduced fuel consumption.

 Design conditions                                         SUBSIDIARY      |       Heinen & Hopman HQ
 The HVAC installation has been designed                   SHIPYARD        |       Shipyard De Hoop
 to maintain the following inside conditions               IMO NO.         |       T.B.A.
 at the stated ambient conditions:                         NAME VESSEL     |       Celebrity Flora
                                                           OWNER		         |       Celebrity Cruises
 Outside-Inside Summer 		                                  DELIVERY YEAR   |       2019
 Outside: 35˚C/70% R.H.				                                COUNTRY OF
 Inside: 22˚C/50-60% R.H.			                               DELIVERY        |       The Netherlands
                                                           VESSEL TYPE     |       Expedition Cruise Vessel
 Outside-Inside Winter                                     LENGTH		        |       101.5 M
 Outside: 0˚C                                              DESIGNER        |       Celebrity Cruises
 Inside: 20˚C.

19   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   19
CASE REPORT CELEBRITY REVOLUTION - REFIT OF THE
 MILLENNIUM CLASS VESSELS
 As part of Celebrity’s modernization program called Celebrity Revolution, two cruise ships in Celebrity’s Millennium-
 class were refitted in the first quarter of 2019. With stunningly redesigned accommodations, luxuriously updated
 restaurants and lounges, guests are ready to meet a modern luxury experience while sailing to the world’s most
 incredible destinations.

 Revolutionary accommodations
 With every stateroom of the ships refreshed, the vessels will be complimentary to guest’s wishes and meet Celebrity’s
 Edge-class quality. When redesigning the accommodations, every detail has been carefully thought out, with guest
 comfort at the front of mind. Every detail has been raised in standard and every comfort has been refined. By the end of
 the Celebrity Revolution, the entire fleet will have the same quality, design essence and consistency of modern luxury,
 putting its fleet on ‘the edge’. All accommodations
 will feature a fresh, chic design reminiscent of the     SUBSIDIARY       |       Heinen & Hopman HQ
 best boutique hotels in the world.                       SHIPYARD         |       Sembcorp Marine and Freeport Ship
                                                           			                    Services
 Green HVAC technology                                     IMO NO.       |        9189419 and 9192387
 Celebrity Cruises prioritizes sustainability,             NAME VESSEL |          Celebrity Millennium and Celebrity
 and the modernized on board area’s and state              			                    Summit
 rooms will be equipped with advanced                      OWNER		       |        Royal Caribbean Cruises Ltd.
 environmentally-friendly technology to                    DELIVERY YEAR |        2019
 reduce emissions, using energy recovery                   COUNTRY OF
 solutions and energy-efficient equipment                  DELIVERY      |        Singapore and The Bahamas
 in the HVAC systems.                                      VESSEL TYPE   |        Cruise Vessel
                                                           LENGTH		      |        294.0 M

20   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                  HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   20
PASSENGER FERRIES
     Honfleur                                 N.N.                             Willem de Vlamingh (+1)
     Shipyard                                 Shipyard                         Shipyard
     Flensburger Schiffbau-Gesellschaft       AVIC International Shipyard      Strategic Marine Singapore
     Owner                                    Owner                            Owner
     Brittany Ferries                         Stena RoRo                       Rederij Doeksen
     Ship-Type                                Ship-Type                        Ship-Type
     RoPax Ferry                              RoPax Ferry                      RoPax Ferry
     Systems                                  Systems                          Systems
     HVAC, CW, PCP, Brine Provision,          HVAC, Cargo hold & ER            HVAC, Heat recovery, SCADA
     SCADA (EPIC)                             ventilation, PCP, SCADA (EPC)    (EPIC)

     N.N. (2 vessels)                         Color Hybrid                     Villa de Teror
     Shipyard                                 Shipyard                         Shipyard
     Vigor Alaska                             Ulstein Verft                    Factorias Vulcano
     Owner                                    Owner                            Owner
     Alaska Marine Highway                    Color Line                       Acciona Trasmediterranea
     Ship-Type                                Ship-Type                        Ship-Type
     RoRo Passenger Vessel                    Hybrid RoPax Ferry               RoPax Ferry
     Systems                                  Systems                          Systems
     HVAC, car deck and engine room           HVAC, CW, Absorption Cooling,    HVAC, CW, SCADA (EPC)
     ventilation (EPIC)                       PCP, SCADA (EPC)

     N.N. (3 vessels)                         N.N. (2 vessels)                 N.N. (2 vessels)
     Shipyard                                 Shipyard                         Shipyard
     Eastern Shipbuilding                     Vard Brevik                      Damen Shipyards
     Owner                                    Owner                            Owner
     New York City dept of                    Torghatten Nord                  Ontario Government
     Transportation                           Ship-Type                        Ship-Type
     Ship-Type                                RoPax Ferry                      Road Ferry
     Ferry                                    Systems                          Systems
     Systems                                  HVAC, Battery cooling, SCADA     HVAC, CW, SCADA (EPIC)
     HVAC, deck de-icing, SCADA               (EPC)

     N.N. (2 vessels)                         N.N.                             N.N.
     Shipyard                                 Shipyard                         Shipyard
     Tersan Shipyard                          Damen Shipyards                  Vard Brevik
     Owner                                    Owner                            Owner
     Havila Kystlink AS                       Unknown                          Boreal Sjø
     Ship-Type                                Ship-Type                        Ship-Type
     Coastal Pax/freighter                    Fast Ferry                       Double Ended Ferry
     Systems                                  Systems                          Systems
     HVAC, CW, PCP, Heat pump,                HVAC, CW, PCP, SCADA (EPIC)      HVAC, CW, PCP, Heat pump,
     SCADA (EPIC)                                                              SCADA (EPC)

     N.N. (2 vessels)                         N.N.                             N.N. (2 vessels)
     Shipyard                                 Shipyard                         Shipyard
     Barreras                                 Thecla Bodewes                   Cochin Shipyard
     Owner                                    Owner                            Owner
     Havila Kystlink AS                       WDR                              Shipping Corporation of India
     Ship-Type                                Ship-Type                        Ship-Type
     Coastal Pax/freighter                    RoPax Ferry                      Ferry
     Systems                                  Systems                          Systems
     HVAC, CW, PCP, Heat pump,                HVAC, MV (EPIC)                  HVAC, CW, PCP (EPIC)
     SCADA (EPC)

21     HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                    HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   21
PASSENGER FERRIES
     Viking Glory                             N.N. (2 vessels)                Huftarøy (+2 vessels)
     Shipyard                                 Shipyard                        Shipyard
     Xiamen Shipyard                          Damen Shipyards                 Tersan Shipyard
     Owner                                    Owner                           Owner
     Viking Line                              Seaspan Ferries                 Torghatten Nord
     Ship-Type                                Ship-Type                       Ship-Type
     RoPax Ferry                              Ferry                           Double Ended Ferry
     Systems                                  Systems                         Systems
     Cargo hold ventilation and engine        HVAC, CW, MV, SCADA (EPIC)      HVAC, Battery cooling
     room ventilation (EPC)

     N.N.                                     N.N. (2 vessels)                N.N. (2 vessels)
     Shipyard                                 Shipyard                        Shipyard
     Damen Shipyards                          Chantier Davie Canada Inc.      Damen Shipyards
     Owner                                    Owner                           Owner
     Unknown                                  Government of Quebec            La Collectivite de Sainte Pierre et
     Ship-Type                                Ship-Type                       Miquelon
     Fast Ferry                               Ro-Pax Ferry                    Ship-Type
     Systems                                  Systems                         RoPax Ferry
     HVAC+R                                   HVAC                            Systems
                                                                              HVAC, Provision Cooling

     MV Chetzemoka                            El Coqui                        MV Legionnaire
     Shipyard                                 Shipyard                        Shipyard
     Todd Pacific Shipyards                   VT Halter Marine                Damen Shipyards
     Owner                                    Owner                           Owner
     Washington State DOT                     Crowley Maritime Corporation    Government of Newfoundland and
     Ship-Type                                Ship-Type                       Labrador, Canada
     Ferry                                    ConRo Ship                      Ship-Type
     Systems                                  Systems                         RoPax Ferry
     HVAC                                     HVAC                            Systems
                                                                              AC, Mechanical Ventilation

     MV FA Gauthier                           MS San Francisco                Jelena
     Shipyard                                 Shipyard                        Shipyard
     Chantier Davie Canada Inc.               Marine Group Boat Works         Damen Shipyards
     Owner                                    Owner                           Owner
     Government of Quebec                     Golden Gate Bridge Highway      Jadrolinija
     Ship-Type                                Transportation District         Ship-Type
     Ro-Pax Ferry                             Ship-Type                       Fast Ferry
     Systems                                  Passenger Ferry                 Systems
     HVAC                                     Systems                         HVAC+R
                                              HVAC

     Cabinda                                  MV Salish                       Uthlande V
     Shipyard                                 Shipyard                        Shipyard
     Damen Shipyards                          Todd Pacific Shipyards          J.J. Sietas
     Owner                                    Owner                           Owner
     Angolan Transport Ministry               Washington State DOT            Wyker Dampfschiffs-Reederei
     Ship-Type                                Ship-Type                       Föhr-Amrum
     Fast RoPax Ferry                         Ferry                           Ship-Type
     Systems                                  Systems                         Passenger Ferry
     HVAC                                     HVAC                            Systems
                                                                              HVAC

22     HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   22
PASSENGER FERRIES
     Helgoland                                Leiger                            Victoria of Wight
     Shipyard                                 Shipyard                          Shipyard
     Fassmer                                  Sefine Denizcilik Tersanecilik    Cemre Shipyard
     Owner                                    Owner                             Owner
     HADAG                                    TS Laevard                        Wightlink
     Ship-Type                                Ship-Type                         Ship-Type
     LNG Passenger Ferry                      Double Ended Ferry                RoPax Ferry
     Systems                                  System                            Systems
     HVAC                                     HVAC                              HVAC

     Mazovia                                  MV Samish                         Ostfriesland (refit)
     Shipyard                                 Shipyard                          Shipyard
     Master sp. z.o.o.                        Vigor Industrial                  BVT Bremerhaven
     Owner                                    Owner                             Owner
     Polish Ferry Group                       Washington Department of          AG Ems
     Ship-Type                                Transportation                    Ship-Type
     Ferry                                    Ship-Type                         Ferry
     System                                   WSF Car Ferry                     Systems
     HVAC                                     Systems                           HVAC, Engine Room Ventilation
                                              HVAC, Engine Room Ventilation

     MV Woods Hole                            Tariq Ibn Ziyad                   Töll
     Shipyard                                 Shipyard                          Shipyard
     Conrad                                   Union Naval de Levante            Remontowa Shipbuilding D.A.
     Owner                                    Owner                             Owner
     Woods Hole Steamship Authority           Algérie Ferries                   TS Laevard
     Ship-Type                                Ship-Type                         Ship-Type
     Passenger/Vehicle Ferry                  RoRo Ferry                        Double Ended Ferry
     Systems                                  Systems                           System
     HVAC, Engine Room Ventilation,           HVAC, Control System              HVAC
     Cargo Ventilation

     MV Tokitae                               MV Veteran                        Pão de Açúcar
     Shipyard                                 Shipyard                          Shipyard
     Vigor Industrial                         Damen Shipyards                   Afai Southern Shipyard
     Owner                                    Owner                             Owner
     Washington Department of                 Government of Newfoundland and    SETRANS Rio de Janeiro
     Transportation                           Labrador, Canada                  Ship-Type
     Ship-Type                                Ship-Type                         Ferry
     WSF Car Ferry                            RoPax Ferry                       Systems
     Systems                                  Systems                           Mechanical Ventilation
     HVAC, Engine Room Ventilation            AC, Mechanical Ventilation

     Isle of Innisfree                        Ben My Chree                      Bagtyyar
     Shipyard                                 Shipyard                          Shipyard
     Van der Giessen de Noord                 Van der Giessen de Noord          Uljanik
     Owner                                    Owner                             Owner
     Irish Ferries                            Isle of Man Steam Packet          State Service of Maritime and
     Ship-Type                                Company Ltd.                      River Transport of Turkmenistan
     RoPax Ferry                              Ship-Type                         Ship-Type
     Systems                                  RoPax Ferry                       RoPax Ferry
     AC, Mechanical Ventilation               Systems                           System
                                              AC, Mechanical Ventilation        HVAC, Provision Cooling

23     HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                     HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   23
PASSENGER FERRIES
     Ark Germania                             Ark Dania                           Landegode
     Shipyard                                 Shipyard                            Shipyard
     P&S Werften Stralsund                    P&S Werften Stralsund               Remontowa Shipbuilding S.A.
     Owner                                    Owner                               Owner
     DFDS Tor Line AS                         DFDS Tor Line AS                    Torghatten Nord
     Ship-Type                                Ship-Type                           Ship-Type
     Ferry                                    Ferry                               RoRo Ferry
     Systems                                  Systems                             System
     Air Conditioning, Provision              Air Conditioning, Provision         HVAC
     Cooling, Engine Room Ventilation         Cooling, Engine Room Ventilation

     Berkarar                                 Royale Floatel                      Kennewick
     Shipyard                                 Shipyard                            Shipyard
     Uljanik                                  Vijai Marine Goa                    Todd Pacific Shipyard
     Owner                                    Owner                               Owner
     State Service of Maritime and            Delta Corp Ltd                      Washington State DOT
     River Transport of Turkmenistan          Ship-Type                           Ship-Type
     Ship-Type                                Passenger vessel                    Ferry
     RoPax Ferry                              Systems                             Systems
     System                                   Air Conditioning                    HVAC
     HVAC, Provision Cooling

     Rossini                                  Aranui 5                            Kvernsund
     Shipyard                                 Shipyard                            Shipyard
     Shipyard De Hoop                         Huanghai Shipbuilding Co., Ltd.     Sefine Denizcilik Tersanecilik
     Owner                                    Owner                               Owner
     Wagenborg Offshore                       Compagnie Polynésienne de           Forsen Namsos
     Ship-Type                                Transport Maritime (CPTM)           Ship-Type
     Floatel                                  Ship-Type                           Double Ended Ferry
     Systems                                  Passenger Cargo Vessel              System
     HVAC                                     Systems                             HVAC
                                              HVAC, Provision Cooling

     Grand Manan Adventure                    Taino                               Lodingen
     Shipyard                                 Shipyard                            Shipyard
     Eastern Shipbuilding                     VT Halter Marine                    Remontowa Shipbuilding S.A.
     Owner                                    Owner                               Owner
     New Brunswick                            Crowley Maritime Corporation        Torghatten Nord
     Ship-Type                                Ship-Type                           Ship-Type
     Floatel                                  ConRo Ship                          RoRo Ferry
     Systems                                  Systems                             System
     HVAC                                     HVAC                                HVAC

24     HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                       HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   24
25   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   25
RIVER CRUISE VESSELS
     N.N. (11 vessels)                        MS Amadeus Queen                   Crystal Ravel
     Shipyard                                 Shipyard                           Shipyard
     Neptun Werft                             Shipyard De Hoop                   Lloyd Werft
     Owner                                    Owner                              Owner
     Viking River Cruises                     Lüftner Cruises                    Crystal Cruises
     Ship-Type                                Ship-Type                          Ship-Type
     River Cruise Vessel                      Rivercruise vessel                 River Cruise Vessel
     Systems                                  Systems                            Systems
     HVAC, MV, CW, PCP, SCADA                 HVAC accommodation                 Heating, Ventilation, Air
     (EPIC)                                                                      Conditioning, Provision Cooling

     Crystal Mahler                           Crystal Mozart                     American Dutchess (refit)
     Shipyard                                 Shipyard                           Shipyard
     Lloyd Werft                              Deggendorfer Werft und Eisenbau    Bollinger Amelia Repair
     Owner                                    Owner                              Owner
     Crystal Cruises                          Crystal Cruises                    American Queen Steamboat Co.
     Ship-Type                                Ship-Type                          Ship-Type
     River Cruise Vessel                      River Cruise Vessel                River Cruise Vessel
     Systems                                  Systems                            Systems
     Heating, Ventilation, Air                Heating, Ventilation, Air          HVAC+R
     Conditioning, Provision Cooling          Conditioning, Provision Cooling

     Viking Vilhjalm                          Viking Ve                          Viking Alsvin
     Shipyard                                 Shipyard                           Shipyard
     Neptun Werft                             Neptun Werft                       Meyer Werft
     Owner                                    Owner                              Owner
     Viking River Cruises                     Viking River Cruises               Viking River Cruises
     Ship-Type                                Ship-Type                          Ship-Type
     River Cruise Vessel                      River Cruise Vessel                River Cruise Vessel
     Systems                                  Systems                            Systems
     Heating, Ventilation, Air                Heating, Ventilation, Air          Heating, Ventilation, Air
     Conditioning, Provision Cooling          Conditioning, Provision Cooling    Conditioning, Provision Cooling

     Viking Odin                              Viking Idun                        Viking Freya
     Shipyard                                 Shipyard                           Shipyard
     Neptun Werft                             Neptun Werft                       Neptun Werft
     Owner                                    Owner                              Owner
     Viking River Cruises                     Viking River Cruises               Viking River Cruises
     Ship-Type                                Ship-Type                          Ship-Type
     River Cruise Vessel                      River Cruise Vessel                River Cruise Vessel
     Systems                                  Systems                            Systems
     Heating, Ventilation, Air                Heating, Ventilation, Air          Heating, Ventilation, Air
     Conditioning, Provision Cooling          Conditioning, Provision Cooling    Conditioning, Provision Cooling

     Viking Njord                             A-Rosa Silva                       Viking Idi
     Shipyard                                 Shipyard                           Shipyard
     Neptun Werft                             Neptun Werft                       Neptun Werft
     Owner                                    Owner                              Owner
     Viking River Cruises                     A-Rosa Cruises                     Viking River Cruises
     Ship-Type                                Ship-Type                          Ship-Type
     River Cruise Vessel                      River Cruise Vessel                River Cruise Vessel
     Systems                                  Systems                            Systems
     Heating, Ventilation, Air                Heating, Ventilation, Air          Heating, Ventilation, Air
     Conditioning, Provision Cooling          Conditioning, Provision Cooling    Conditioning, Provision Cooling

26     HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                      HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   26
RIVER CRUISE VESSELS
     Viking Embla                             Viking Skinir                      A-Rosa Viva
     Shipyard                                 Shipyard                           Shipyard
     Neptun Werft                             Neptun Werft                       Neptun Werft
     Owner                                    Owner                              Owner
     Viking River Cruises                     Viking River Cruises               A-Rosa Cruises
     Ship-Type                                Ship-Type                          Ship-Type
     River Cruise Vessel                      River Cruise Vessel                River Cruise Vessel
     Systems                                  Systems                            Systems
     Heating, Ventilation, Air                Heating, Ventilation, Air          Heating, Ventilation, Air
     Conditioning, Provision Cooling          Conditioning, Provision Cooling    Conditioning, Provision Cooling

     Viking Osfrid                            Viking Tor
     Shipyard                                 Shipyard
     Meyer Werft                              Neptun Werft
     Owner                                    Owner
     Viking River Cruises                     Viking River Cruises
     Ship-Type                                Ship-Type
     River Cruise Vessel                      River Cruise Vessel
     Systems                                  Systems
     Heating, Ventilation, Air                Heating, Ventilation, Air
     Conditioning, Provision Cooling          Conditioning, Provision Cooling

 SUPERYACHTS +100M

     BN 13708                                 BN 13709                           N.N.
     Shipyard                                 Shipyard                           Shipyard
     Lürssen Yachts                           Lürssen Yachts                     Feadship - De Vries
     Owner                                    Owner                              Owner
     Confidential                             Confidential                       Confidential
     Ship-Type                                Ship-Type                          Ship-Type
     Motor Yacht                              Motor Yacht                        Motor Yacht
     Systems                                  Systems                            Systems
     HVAC, CW, PCP, SCADA (EPIC)              HVAC, CW, PCP, SCADA (EPIC)        HVAC, CW, PCP, SCADA (EPIC)

     Crescent                                 Dilbar                             BN 13704
     Shipyard                                 Shipyard                           Shipyard
     Lürssen Yachts                           Lürssen Yachts                     Lürssen Yachts
     Owner                                    Owner                              Owner
     Confidential                             Confidential                       Confidential
     Ship-Type                                Ship-Type                          Ship-Type
     Motor Yacht                              Motor Yacht                        Motor Yacht
     Systems                                  Systems                            Systems
     HVAC, Provision Cooling                  HVAC, Provision Cooling            HVAC, CW, PCP, SCADA (EPIC)

     BN 13705                                 Y719, Y720 and Y721                A
     Shipyard                                 Shipyard                           Shipyard
     Lürssen Yachts                           Oceanco                            Nobiskrug
     Owner                                    Owner                              Owner
     Confidential                             Confidential                       Confidential
     Ship-Type                                Ship-Type                          Ship-Type
     Motor Yacht                              Motor Yacht                        Motor Yacht
     Systems                                  Systems                            Systems
     HVAC, CW, PCP, SCADA (EPIC)              HVAC, CW, PCP, Sanitary, SCADA     HVAC, Provision Cooling
                                              (EPIC)

27     HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                      HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   27
SUPERYACHTS +100M
     Symphony                                 Benetti 277                        Benetti 272
     Shipyard                                 Shipyard                           Shipyard
     Feadship                                 Benetti SpA                        Benetti SpA
     Owner                                    Owner                              Owner
     Confidential                             Confidential                       Confidential
     Ship-Type                                Ship-Type                          Ship-Type
     Motor Yacht                              Motor Yacht                        Motor Yacht
     Systems                                  Systems                            Systems
     HVAC, Provision Cooling                  HVAC, CW, SCADA (EPIC)             HVAC, CW, SCADA (EPIC)

     Amadea                                   Black Pearl                        Bravo
     Shipyard                                 Shipyard                           Shipyard
     Lürssen Yachts                           Oceanco                            Oceanco
     Owner                                    Owner                              Owner
     Confidential                             Confidential                       Confidential
     Ship-Type                                Ship-Type                          Ship-Type
     Motor Yacht                              Sailing Yacht                      Motor Yacht
     Systems                                  Systems                            Systems
     HVAC, Provision Cooling                  HVAC, Provision Cooling, Engine    HVAC+R, sanitary
                                              Room Ventilation, Sanitary

     BN 13756                                 N.N.                               Anna
     Shipyard                                 Shipyard                           Shipyard
     Lürssen Yachts                           Feadship - De Vries                Feadship - De Vries
     Owner                                    Owner                              Owner
     Confidential                             Confidential                       Confidential
     Ship-Type                                Ship-Type                          Ship-Type
     Motor Yacht                              Motor Yacht                        Motor Yacht
     Systems                                  Systems                            Systems
     HVAC, CW, PCP, SCADA (EPIC)              HVAC, CW, PCP, SCADA (EPIC)        HVAC, Provision Cooling

     Jubilee                                  Al Lusail
     Shipyard                                 Shipyard
     Oceanco                                  Lürssen Yachts
     Owner                                    Owner
     Confidential                             Confidential
     Ship-Type                                Ship-Type
     Motor Yacht                              Motor Yacht
     Systems                                  Systems
     HVAC, Provision Cooling, Engine          HVAC, Provision Cooling
     Room Ventilation, Sanitary

28     HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                      HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   28
CRUISE VESSELS
     MSC Magnifica                            Allure of the Seas                     Minerva (refit)
     Shipyard                                 Shipyard                               Shipyard
     Aker Yards/STX Europe                    Meyer Turku/STX Europe                 Lloyd Werft
     Owner                                    Owner                                  Owner
     MSC Cruises                              Royal Carribean Cruises Ltd.           Swan Hellenic
     Ship-Type                                Ship-Type                              Ship-Type
     Cruise Vessel                            Cruise Vessel                          Cruise Vessel
     Systems                                  Systems                                Systems
     Delivery of Provision Cooling Plant      Delivery of Provision Cooling Plant    Air Conditioning
                                              and Condensing Unit

     Amadea (refit)                           Albatros (refit)                       Norwegian Epic
     Shipyard                                 Shipyard                               Shipyard
     Lloyd Werft                              Lloyd Werft                            Aker Yards/STX Europe
     Owner                                    Owner                                  Owner
     Amadea Shipping Company                  Phoenix Reisen                         MSC Cruises
     Ship-Type                                Ship-Type                              Ship-Type
     Cruise Vessel                            Cruise Vessel                          Cruise Vessel
     Systems                                  Systems                                Systems
     Air Conditioning                         Air Conditioning                       Delivery of Provision Cooling Plant
                                                                                     and Condensing Unit

     Oasis of the Seas                        Grandeur of the Seas                   Enchantment of the Seas
     Shipyard                                 Shipyard                               Shipyard
     Meyer Turku/STX Europe                   Kvaerner Masa-Yards                    Kvaerner Masa-Yards
     Owner                                    Owner                                  Owner
     MSC Cruises                              Royal Caribbean Cruises Ltd            Royal Caribbean Cruises Ltd
     Ship-Type                                Ship-Type                              Ship-Type
     Cruise Vessel                            Cruise Vessel                          Cruise Vessel
     Systems                                  Systems                                Systems
     Delivery of Provision Cooling Plant      HVAC, Provision Cooling, Control       HVAC, Provision Cooling, Control
     and Condensing Unit                      System                                 System

     MS Braemar (refit)                       MS Arcadia (refit)                     MSC Orchestra
     Shipyard                                 Shipyard                               Shipyard
     Blohm+Voss                               Lloyd Werft                            Aker Yards/STX Europe
     Owner                                    Owner                                  Owner
     Fred Olsen Cruises                       Carnival PLC                           MSC Cruises
     Ship-Type                                Ship-Type                              Ship-Type
     Cruise Vessel                            Cruise Vessel                          Cruise Vessel
     Systems                                  Systems                                Systems
     AC technical rooms, Provision            Air Conditioning                       Delivery of Provision Cooling Plant
     cooling, Engine room ventilation                                                and Condensing Unit

     MS Queen Elizabeth (refit)               MS Pride of America                    A’Rosa Blu (refit)
     Shipyard                                 Shipyard                               Shipyard
     Lloyd Werft                              Lloyd Werft                            Lloyd Werft
     Owner                                    Owner                                  Owner
     Cunard Line                              Norwegian Cruise Line                  Carnival UK
     Ship-Type                                Ship-Type                              Ship-Type
     Cruise Vessel                            Cruise Vessel                          Cruise Vessel
     Systems                                  Systems                                Systems
     Air Conditioning                         Mechanical Ventilation, Engine         Air Conditioning
                                              Room Ventilation

29     HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©                          HVAC for Passenger Vessels - HEINEN & HOPMAN 2020 ©   29
You can also read
