HIGH PERFORMANCE CFD SIMULATIONS
DIGITAL TWINS
& TECHNICAL CENTER 3D
SIMULATIONS
THE EASY WAY:
without own software
without own hardware
without own specialists WE DEFEND YOUR DATA BY OURSELVES. IN GERMANY.
WITH CONSISTENT SYSTEM HARDENING.
plattform-independent: Define and start simulations
intuitively and view results easily in the office or directly
next to the process machines on your tablet.
THE DATA ARE ONLY USEFUL IN THE CONTENT OF YOUR
SYSTEM SOLUTIONS AND IN YOUR SPECIFIC WORKFLOW.
BUT NOT BEYOND IT.
CONNECT
KEY TECHNOLOGIES. REDUNDANT SERVICES / SUPERCOMPUTERS
WILL ENSURE A CONTINUOUS SUPPLY OF
YOUR RESULTS.
High-performance CFD code
High-performance computer
3D web application
SELECT YOUR DIGITAL TWIN &
YOUR MEDIUM
IN 3 WAYS TO YOUR
SIMULATION.
Individually. Simple use even without previous knowledge.
StrömungsRaum is a tailor-made system solution for the simulati-
on of your flow processes and machines. It doesn´t require any spe-
cial hard- or software and can be used on every computer or tablet.
StrömungsRaum makes it possible for you to define and start an
entire CFD simulation without any expertise. START THE SIMULATION
You will be guided easily and intuitively through the process.
The input of the process and material parameters occurs clearly
and step-by-step directly in the browser on your computer or com-
fortably on a tablet next to the facility.
Afterwards, you will be informed via email and you can download
the results of the simulation in the form of PDF files or graphics and
animations from our server.
GET YOUR RESULTS &
OPTIMIZE YOUR PROCESSES
SINGLE-SCREW SINGLE-SCREW
TWIN-SCREW TWIN-SCREW
Using your individual StrömungsRaum allows you to easily start a
flow simulation yourself – from any location using our
simulation-on-demand (simod) solution.

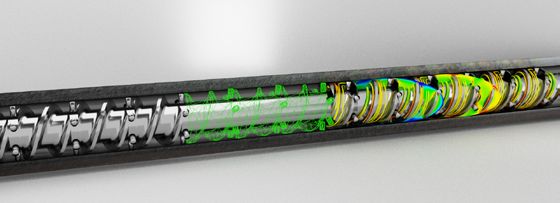

DEAD ZONES Finding key figures of various screws or screw elements can be
HOTSPOTS done in a fast and efficient manner using your 3D center.
Using 3D flow simulations, you can
PRESSURE PROBLEMS
identify the sources of known and
DWELL TIMES
common error images, such as:
MATERIAL DEGRADATION
PULSATION Mid mass temperature
ETC. Temperature peaks
Energy input
3D CENTER Pressure increase
Conveying capacity
You can simulate all kinds of common twin-screws with our high
performance numerical code: Dispersive and distributive mixing behaviour
Shear distribution
CYLINDRICAL
CO-ROTATING COUNTER-ROTATING
CONICAL
Even all common single screws and its elements can easily be
simulated in your 3D center.
PUMPS
> UPLOAD THE GEOMETRY
ANYTIME AT ANY LOCATION
Using StrömungsRaum, you can also start a simulation for your USING YOUR STRÖMUNGSRAUM
pumps, using our simulation-on-demand (simod) solution.
Our powerful numeric code will help you to improve the efficiency
of the pumps in the system, reduce costs due to possible
construction faults or raise the quality level of your end products.
WITH THE AID OF FLOW SIMULATIONS,
THE FOLLOWING PROBLEMS CAN BE MINIMIZED
> DEFINE THE OPERATIONAL POINTS
AND WEAR CAN BE REDUCED
> SELECT MEDIUM
> START THE SIMULATION
> Unwanted high shear stress
> Cavitations
> Pulsations
> Turbulences of the pump
> Unfavourable performance after the pump
> VIEW RESULTS
> IMPROVE THE GEOMETRY
EXTRUSION DIES SIMPLE, TRANSPARENT
& COST SAVING.
Flow simulations can also be done for extrusion dies – using our
simulation-on-demand (simod) solution.
> Spiral mandrel distributors #1 #2
> Wide slot nozzles
> Profile extrusion dies
> Rubber and silicone dies
> Co-Extrusion dies
> Etc.
With a 3D flow simulation, common problems can be found even before
the die will be produced. No extensive trial & error: CREATE YOUR AUTONOMOUS USE
INDIVIDUAL, USING 3D CENTER
> Dead zones > Hotspots DIGITAL TWIN
> Wall-thickness fluctuations > Pressure related problems „3D CENTER“
> Specks > Changes in viscosity etc. „DIGITAL TWIN“
Simulations allow for finding outflow velocities, transverse flows, Once-off costs depending Cost per simulation.
dwelling times using particle tracking analysis, hungry-horse effects, on requirements.
waves and dross formation.
ADDITIONAL
FAST, SIMPLE UND AVAILABLE OPTIONS.
ANYWHERE, USING YOUR 3D CENTER.
Export for various formats
QM connectivity
Cross-Referencing of simulation data with real plant data
High-End 3D visualization directly inside browser
Automatic optimization
