InRouter300 Compact Industrial LTE Router September 2020
Speakers
Louis Tao Zilla Li
Business Development Manager, Europe Technical Support
2
Contents
About InHand Networks
Introducing InRouter300
Applications
Selection Guide
Q&A
3
Pioneering IoT for 19 Years
Listed on SSE STAR Market
Tech Board as of Feb.12, 2020
2020
Proven by world-class customers
Delivered industrial cellular 2019
Founded as modem for China State Grid
M2M startup, 2017
New factory construction completed
Pioneer of IoT 2012
2007
Schneider CAPP and
2005 Rockwell Product Partner
2001
Selected by GE Healthcare;
Now a global supplier of GEHC
*STAR Market is a Nasdaq-style tech board – the Science and
Technology Innovation Board at Shanghai Stock Exchange.
Global Coverage
Employees 300+
R&D Team 100+
Germany Office
US Office APAC
2019 Total Sales $40 Million+
390K+ IoT products shipped
worldwide
New factory plant in Jiaxing,
China,
IoT/M2M Products & Solutions
Industrial IoT/M2M
“Cloud + Edge”
products, Intelligent distribution network
monitoring system,
Application Layer
IoT Solution smart vending control system:
Distribution Network Monitoring System (IWOS) Smart Vending Control System Smart IoV System
Device Cloud
PaaS Platform InHand Device Networks
Platform Layer Cloud Platform
IIoT/M2M
Products
Network Layer Industrial Cellular Router Industrial Ethernet Switch Cellular Modem Edge Gateway
Sensors,
Controllers, ……………
Industrial Devices
Sense & Control Layer Sensor Industrial Device
6
!!!'%&$ "'&$"$&" "
!"'&$ $! "'&$ ! !"'&$ " #&"'&$
$ &* !!
%& &*
") "%&
(
! $
!'%&$ $
" #&% +"$%*
!%& & "!
InRouter300 Features
9
InRouter302
Compact Industrial Router IR300
Versatile LTE CAT 4/1, CAT M1 Highly secure Easy to deploy
ETH, Wi-Fi and manage
Dual-SIM FailoverInRouter302
Network Access Anywhere
Dual ETH ports, ADSL
Cellular network access:
! High-speed network
! LTE Cat-4 (150 / 50Mbps down/uplink)
! Low and medium speed network
! LTE Cat-1 (10 / 5Mbps down/uplink)
! LTE Cat-M (588 / 1119Kbps down/uplink)
! Narrowband network
! NB-IoT (127 / 158.5Kbps down/uplink)
! Dual-SIM failover
Wi-Fi network access, standard 802.11b/g/nInRouter302
Reliable Network Connection
Multiple Link Backups: mutual failover
between wired ETH, wireless and Wi-Fi
Main link:
Ethernet, Wi-Fi, 4G Dual SIM: failover between different
operator networks
Internet
Backup link: Data Center VRRP Hot Backup: build a redundant
Ethernet, Wi-Fi, 4G network link with multiple routers
Multi-layer auto detection and recovery of
link failuresInRouter302
Comprehensive Data Protection
! Full state packet inspection (SPI)
! Built-in DoS protection
! Filter multicast/Ping packets
Network ! Access control list (ACL)
! Virtual IP mapping
Security ! MAC-IP address binding
! IPsec VPN, L2TP, PPTP, GRE,
Data Security OPENVPN
! Digital certificate CA, supports
PEM, PKCS12, SCEP and X.509.
! User authorization management
Device Access ! Local or remote HTTP, HTTPS,
Security Telnet, SSH management,
console login
! User management logs
InRouter302
Easy Deployment and Network Management
" APN self-adaptation, no user configuration needed
on simple public network connection
540957 " Multiple configuration methods: CLI, HTTP, HTTPS,
SSH, etc.
" SNMP V1/V2c/V3 simple network management
(049(04
protocol
(4(., " Supports alarms
" Supports data traffic management
" Supports InHand Device Manager (DM), for efficient
monitoring and management of large numbers of
devices
InRouter302
Built for Industrial Use, Easy to Install and Deploy
" Small and compact, fit in narrow spaces more easily
" Supports both panel and DIN-rail mounting,
suitable for various IoT deployment sites
!"#$%&'()*
" industrial design.
InRouter302
Various IoT Applications
InRouter300
Device
Manager
InRouter300
InRouter300
InRouter300
iot.inhandnetworks.com
InRouter300
Remotely manage distributed equipments for various industries.
!"InRouter302
Easy Connection, Instant Remote Maintenance
! InConnect is a simple service which builds
secure remote networks for your IoT
applications
! Gateway traffic monitoring
! Update of gateway configurations
! Upgrading of gateway firmware
ics.inhandnetworks.com
Application Cases of InRouter300
Smart Retail Smart City More Industries
! Self-service terminal ! Intelligent lighting ! Smart metering
! ATM/POS ! Traffic Management ! HVAC
! Coffee machine ! Security surveillance ! Facilities
! Digital signage ! Charging station ! Work-from-home
! Vending machine ! Smart parking connectivity
! Accesses bank system through the operator VPDN
! Establishes VPN tunnel to the data center
! Uses AAA server for authentication, authorization and accounting
! Performs identity authentication effectively using CA certificate
4G/3G
VPN

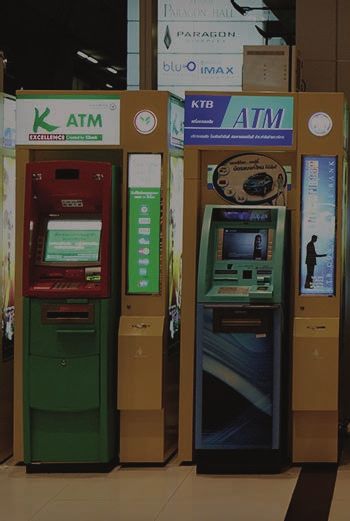

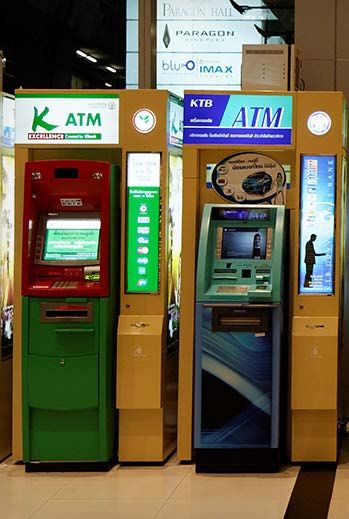

Offsite ATMs and Self- InRouter302
InHand SmartATM Platform
service Terminals Offsite ATM
Self-service terminal
Networking Solution Utility bill payment terminal
Traffic fine payment terminal
! Send transaction data to the operation center in real time
! Inventory alert
! Video monitoring

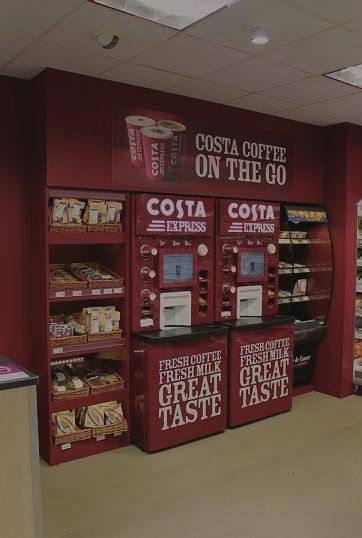

Coffee Machine 4G/3G
Remote Networking InRouter302 Costa Data Center
Solution LAN
Self-service
Coffee Machine
#$%&'()*+,'(%)-*.&&/-001112)3+&)45
,67$6)+.,/28)09):;,,&0!>"?0=@"A0B>!B0>!BA0@!C=0D>EE0AEFG0BCH"0A
I?=0J,6)KA,'6&)(KL,/$)2M#NO
.&&/-00$283$7PQ3$72%,2'40$0/$R0BE!?0!!0E?0!=0BIBH=@?GEEEEE?>G5HHE?!!E5$Q3O)535
!?K!==">HBG!BG"G2S/OEV Charging Pile Charging Station Operation Data Center Networking Solution 4G/3G

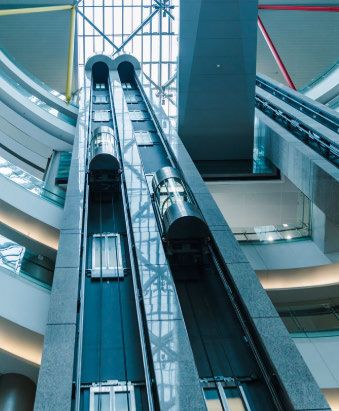

Elevator Networking
Solution
4G/3G
Elevator IoT
InRouter302
Monitoring
CenterBuild a smarter real-time monitoring network of heat exchange stations,
make your business more efficient, profitable and sustainable.
Heat Exchange Station
Networking Solution
HMI
InRouter302 Data Center
Heat Exchanger

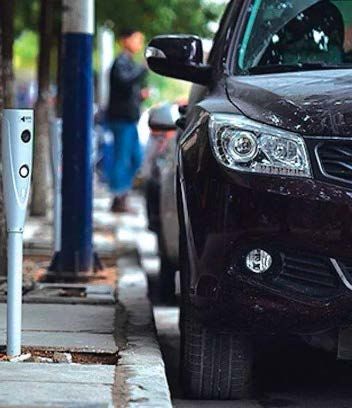

ControllerParking Space Status
Roadside Parking InRouter302
Networking Solution Roadside Parking
Management System
Parking Space Status
InRouter302
Mobile APP/ Monitoring Center
Parking Space Status
!"'&$
Mobile Bedside
Monitor Networking 4G/3G
Solution !& &"$
InRouter302
Medical Equipment
Monitoring Center
Monitor
Selection Guide
Comparison: Network Type
LTE CAT 6 LTE CAT 4/3 LTE CAT 1 LTE CAT M1 NB-IoT
InVehicle G710
Vehicle Gateway
InGateway902
IoT Edge Gateway
InRouter900
High-end Industrial LTE Router
! Industrial, Smart Grid, Oil &
Gas, Smart City
InRouter600-S
Enhanced Industrial LTE Router
! Light industrial, Smart City,
Retail/Kiosk
InRouter300
Compact Industrial LTE Router
! Light industrial, Smart City,
Retail/Kiosk
InDTU300
Serial-to-Cellular Modem
! Energy, Industrial Automation Selection Guide for Industrial LTE Routers
InRouter611-S InRouter615-S InRouter302
,22:2(7 25)(2 $ 25)(2 $ 25)(2 $
9/,74,9 & &
!5798
49,7-(*,8 &00 ',8 ) . 4 ',8 ) . 4 ',8 ) . 4
)68 )68 )68
#,70(2!5798 "# "# "# 5
:(2# ',8 ',8
&57104.$,36,7(9:7, @ B @ B @ B
&57104. %529(., %*07*:2(7/52, %04+:8970(29,7304(2 %04+:8970(29,7304(2
,*/(40*(2
,(9:7,8 489(22(9054 !(4,235:4904. 7(02 &(2235:4904. 7(02 !(4,235:4904.
03,480548 = = 33 = =33 = = 33
2,;,2 2,;,2 2,;,2
IR302 vs. IR611-S
2*LAN, WAN/LAN setting supported 1*LAN
Dual-SIM failover Single SIM
No serial port Serial port: RS232
Wi-Fi: 802.11 b/g/n 150Mbps Wi-Fi: 802.11 b/g/n 300Mbps
Flexible installation: DIN-rail and panel mounting Only panel mounting supported
Compact size: 90x90x25(mm) Dimensions: 100x98.5x23.5(mm)
29IR300 Installation
DIN-rail Mounting （Optional.
Panel Mounting
Need to be placed in order)
