ITRANS TRANSLATOR (Firefox Extension) - PROF. G. SIVAKUMAR AJIT BURAD (03005009) KSHITIJ BHARDWAJ (03005010) AMAN PARNAMI (03D05008)

ITRANS TRANSLATOR
           (Firefox Extension)

                               A project under :
                 PROF. G. SIVAKUMAR

Group Members

AJIT BURAD (03005009)
KSHITIJ BHARDWAJ (03005010)
AMAN PARNAMI (03D05008)

Project site:­>
    http://10.3.2.40/itrans/index.html

Objective : To design a Firefox extension which will convert
selected itrans text to corresponding Indian languages and also
provide an online interface for it.

Languages used :
1) PHP , HTML ,XML
2)Java script
3)Shell script

Overview :

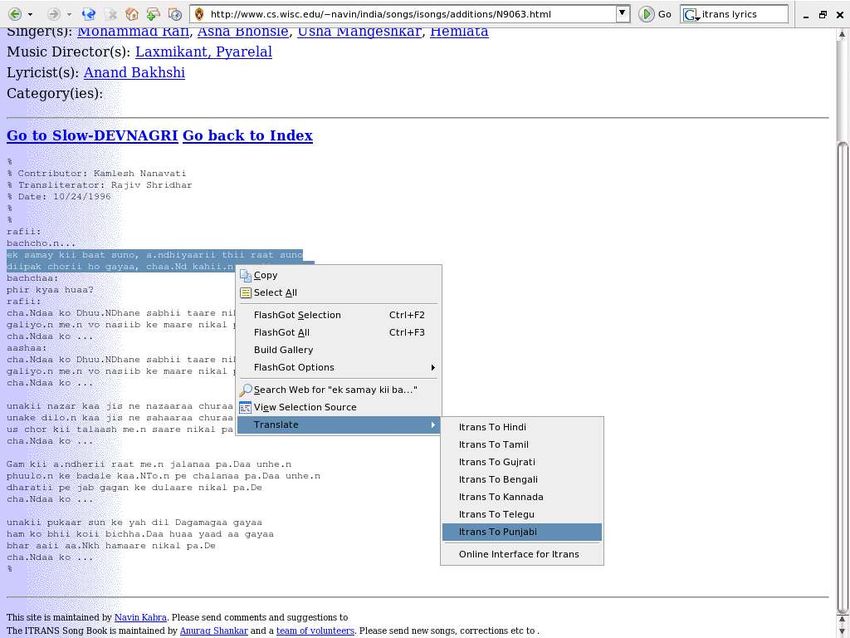

After the extension is installed it allows the user to select any itrans
text on the current page and on right clicking displays the options
regarding the target language . Once an option is selected

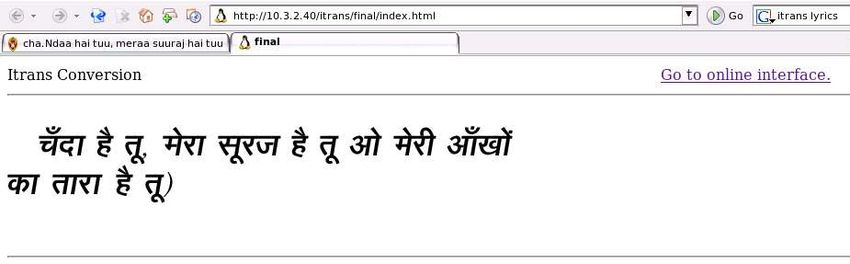

translated text is displayed in a new page which includes an option
to switch to Online interface .

Implementation :
Our implementation runs in 3 stages :

1)Extension part .
2)Web server processing Itrans text .
     a) PHP module
     b) Shell script
3) Online interface .

1. EXTENSION PART

 Structure of an extension :

 Following figure gives hierarchial structure of a firefox
extension :

1.1 Install.rdf : This is a Resource Description Framework File
  (rdf). It is needed by firefox to recognize an extension uniquely.
  It contains a key that should be different
  from that of all the installed extensions on the browser . It also
  contains a key of the target application (for ex .
  firefox,thunderbird etc.) . It specifies whether or not it can be
  installed on an application.
            It also contains information about the extension like
  creator,version and home page url . This is the information
  viewed when we right click on the extension in the extension's
  window of firefox and select the 'About' option.(Reference 5)

1.2 Chrome : This folder contain a Java Archive(.jar) . In our
  case it is Itrans.jar .
  On extracting this file we obtain following folders :
                                 a) Content
                                 b) Skin

  a) Content : This folder contains a single folder by the same
name as that of java archive file . This folder contains files with
extensions .js , .xul , .rdf . There can be other files too which are
specific to an extension . In our case following files are there in
this folder : itransOverlay.xul
              itransOverlay.js
              contents.rdf
              about.xul

      >itransOverlay.xul : This file contains the name of the
javascript file in which the functions to which it makes a call are
defined. In our extension it contains itransOverlay.xul. It is this
file that contains the description for the menu of the extension in

the context menu. Like in our case we have an option by the name
of Translator in the right click menu. And on taking the cursor to
this, a submenu appears. This submenu has been defined in this file
under the tag menupopup.
            Each of the item in this submenu has been defined as a
menuitem. Each is associated with a keyword label. The value of
the label gives the text which is displayed it the submenu. And
each item is also associated with the keyword oncommand(). The
value of this tag gives the functions which is to be called when this
item is clicked in the submenu.(Reference 4)

     >itransOverlay.js : This contains definitions of the functions
that are used by the extension. Our extension contains a function
that appends the text selected in the browser to the appropriate url.
The url is selected by the call made in the .xul file depending on
which item in the submenu was clicked. There are functions which
check whether the selected text is proper or not in the sense that it
should not be an input field, textbox. Finally the function
itrans_gotoWebService() which opens the url obtained after
appending the text.

     >contents.rdf : This describes paths specific to firefox and
extension. It also contains description about the author,the name of
the extension and description about it.

    >about.xul : This contains information about the 'About'
window that was discussed in Install.rdf section.The values of the
fields are defined in the Install.rdf.

  b) Skin : It contains folder for various skins of the extension .
Within these folders there must be a folder with the same name as
that of the name of the java archive file in the content folder.This

folder must contain a contents.rdf file. It can also contain images
used by the extension.

 From HelloWorld! to Itranslator v0.1

The first extension we started with was Helloworld!.(Reference 7)
It was a simple extension which displayed HelloWorld! in an alert
window when selected in context menu.
Next we studied an extension by the name of simpledictionary.
(Reference 6) It when installed added a text box to the browser
toolbar. It searched the meaning of the word entered in an online
dictionary and displayed it in a new tab. We modified it to convert
the entered text into hindi by passing the selected text to our
webserver.(configured for hindi only at that time) Then we tried
implementing a popup menu when an option in the context menu
is selected.And once this was done we modified the code to add
more languages for translation.To implement this we modified the
functions in the itransOverlay.js file at the same time changing
the itransOverlay.xul file to get more options in the popup menu.
Finally, we added an option for online interface in the popup
menu.

2. WEB SERVER PROCESSING ITRANS TEXT :

 Firstly, we installed itrans supporting different indian languages and fonts
to be used in Latex(.tex) to Postscript(.ps) file conversion . We also used
Latex(.tex) to Html(.html) and Postscript(.ps) to Image(.png) conversion.
We used a .PHP file to pass the selected text and opted language from the
extension to a shell script ,which first creates an itrans(.itx) file and then
carries out following conversions in specified order .(Reference 8)

Order of conversion :
1) Itrans(.itx) to Latex(.tex)
2) Latex(.tex) to Postscript(.ps)
3) Postscript(.ps) to Image(.png)

This script also exports paths used by different commands (for ex. dvips,
latex2html etc) to font files used .

  While Postscript to Image conversion we first magnified the image and
then cropped the extra spaces . We then embedded this image into an Html
page . This page also contains a link to the online interface (Reference 1)
which will be discussed in later portion of report.

Problem Faced :
● Installation Itrans : The dvips was not able to find proper paths
  for font files. The problem was solved by placing DVIPSRC
  appropriately in user's home directory with name .dvipsrc . Also adding
  paths of fonts for indian languages in psfont.map.
● Accessing Itrans & dvips command by an web user was giving error.
  so these commands were run by calling sudo (i.e. with root permission
  for specific file) using exec() PHP which is used to call system commands
  by PHP files.

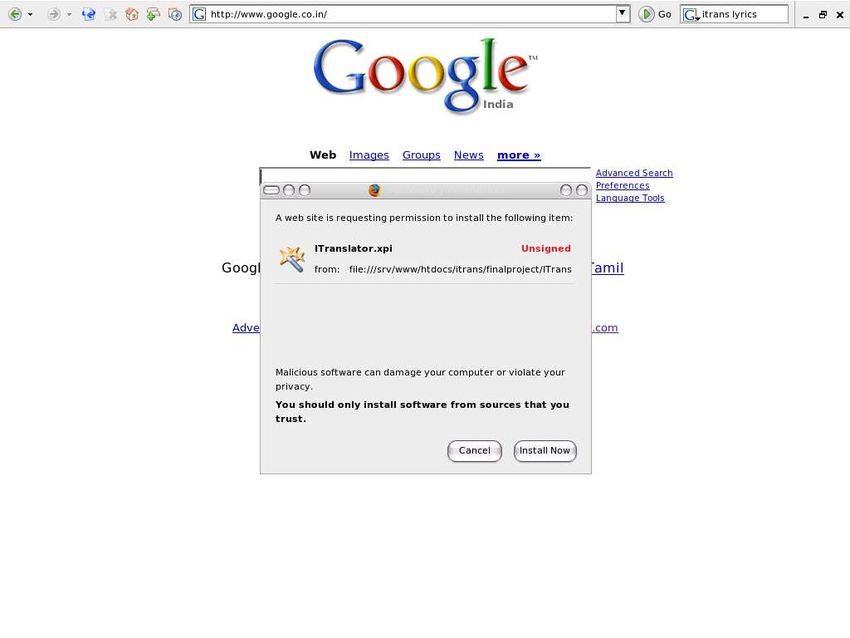

Installing extension: Drag the extension to Firefox after saving it
to our system.

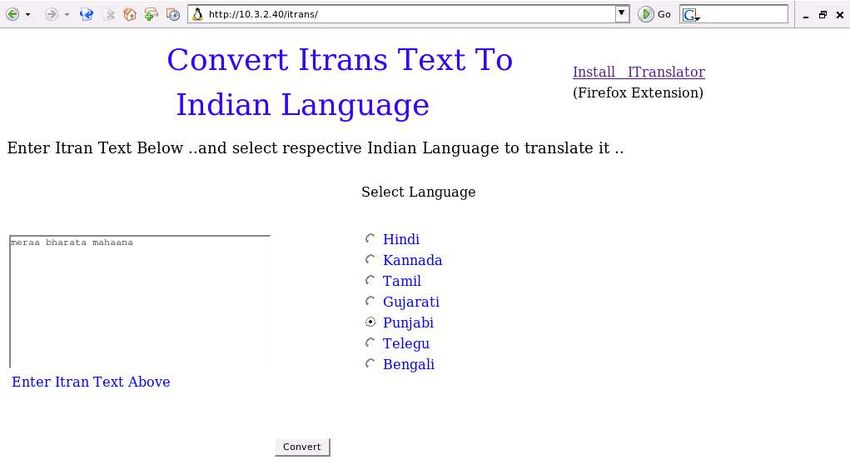

Online Interface

This is a web page hosted on the same server . It provides user a means of
translating itrans text of his choice to specified Indian language.

References :

1. http://www.aczoom.com/itrans/online/
2. http://businesslogs.com/technology/firefox_extension_tutorial.php
3. http://mesh.typepad.com/blog/firefox_development/
4. http://www.xulplanet.com/tutorials/xultu/
5. http://www.bengoodger.com/software/mb/extensions/howto.html
6. https://addons.update.mozilla.org/extensions/?application=firefox
7. http://roachfiend.com/archives/2004/12/08/how­to­create­firefox­
   extensions/
8. http://www.php.net/
