                                                                                                                                    16      A New Shine on Steel Design
                                                                                                                                            BY NANCY BADDOO, CENG, AND
                                                                                                                                              MARK HOLLAND, PE
                                                                                                                                            A look at the new AISC Specification for
                                                                                                                                            Structural Stainless Steel.

                                                                                                                                    field notes
                                                                                                                                    20      By the Book
                                                                                                                                            INTERVIEW BY GEOFF WEISENBERGER
                                                                                                                                            As one of AISC’s longest-tenured employees,
                                                                                                                                            Cindi Duncan has wrangled countless
                                                                                                                                            committee members to keep publications on
                                                                                                                                            track and on schedule.

                                                                                                                                    business issues
  in every issue                                                                                                                    22      Looking Ahead
                                                                                                                                            A group of construction professionals
                                                                                                                                            ponders the future of the industry and what
   6 EDITOR’S NOTE                                                                                                                          can be done to ensure it’s a bright one.
  61 NEW PRODUCTS                                  resources
  62 NEWS & EVENTS                                 65 ADVERTISER INDEX
  66 STRUCTURALLY SOUND                            65 MARKETPLACE & EMPLOYMENT

features                                                                                                                            conference preview
 26     Early to Rise
                                                                  40      Building for the Future
                                                                          BY BEN LOCKHART
                                                                                                                                    54     Of Codes and Contracts
                                                                                                                                           BY JASON COPLEY, ESQ, AND
        For a new Denver hospital, early                                  A general contractor known for self-                               MATTHEW SKAROFF, ESQ
        coordination allowed for mill order and                           performing concrete work looks to steel to                       Tips for understanding the interplay between
        steel detailing packages to be issued prior to                    frame its new headquarters building in Salt                      contracts and the AISC Code of Standard Practice.
        construction documents. The result?                               Lake City.
        A faster project.                                                                                                           56     Plan the Work, Work the Plan
                                                                                                                                           BY BILL BORCH
                                                                  48      Texas-Sized Steel                                                Thoughts on how to improve erection
 32     Elevating Engineering
                                                                          BY GEORGE R. BATCHA, IV, AND
                                                                            MICHAEL T. KEMPFERT
                                                                                                                                           planning and execution.

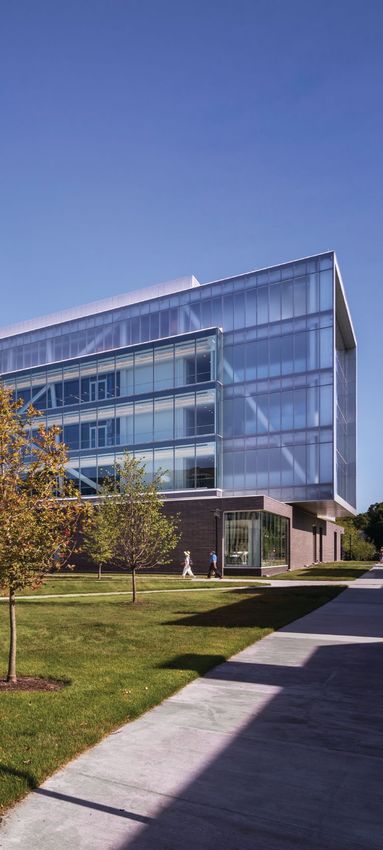

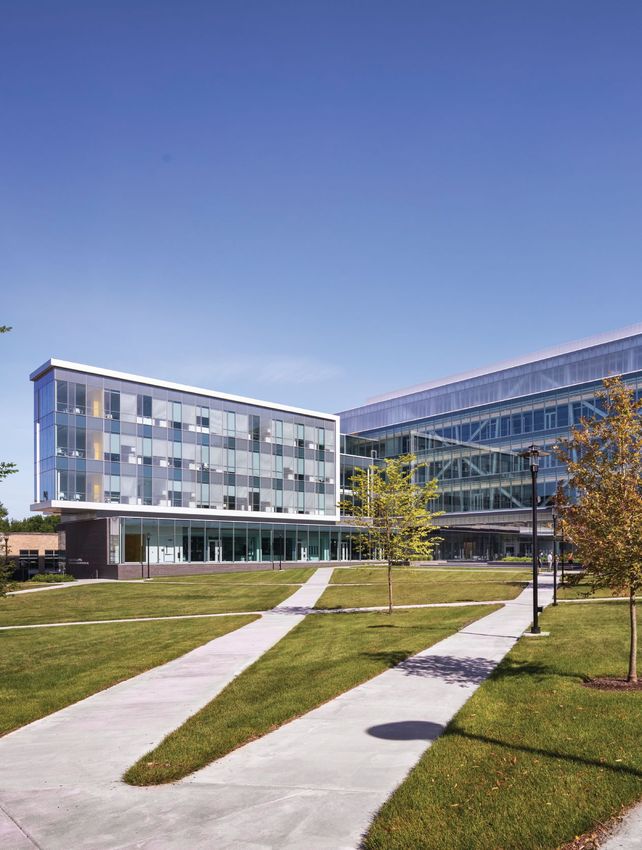

        The University of Rhode Island’s new                              A steel producer for which sizable facilities
        engineering building was designed to                              are the norm goes bigger than ever with its               59     Avoiding Surprises
                                                                                                                                           BY BRUCE F. BROTHERSEN, PE
        instigate interdisciplinary interaction.                          new sheet mill in Texas.
                                                                                                                                           Notes on delegated design and the role of the
                                                                                                                                           design professional of record.

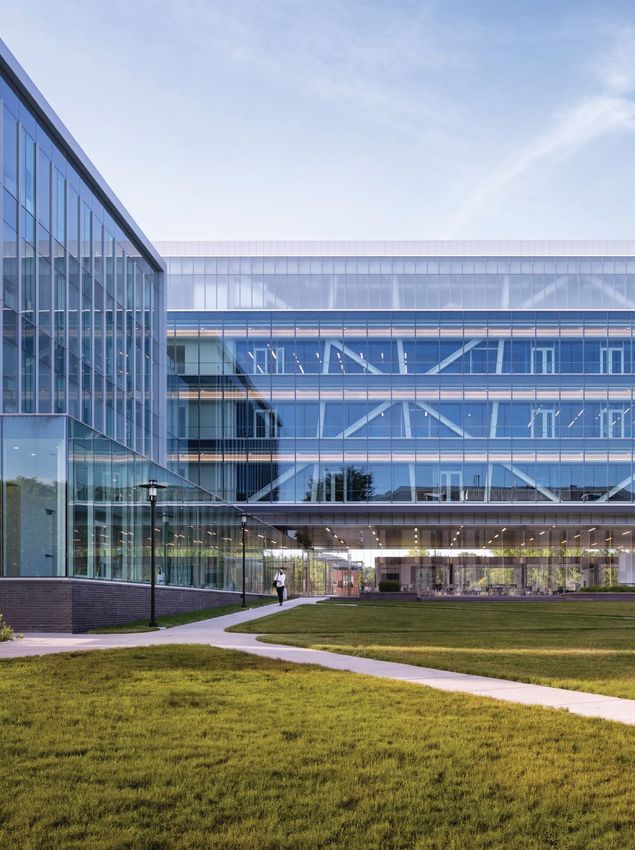

ON THE COVER: Steel bracing is on full display at the the University of Rhode Island’s Fascitelli Center, p. 32. (Photo: James Ewing)
MODERN STEEL CONSTRUCTION (Volume 62, Number 1) ISSN (print) 0026-8445: ISSN (online) 1945-0737. Published monthly by the American Institute of Steel
Construction (AISC), 130 E Randolph Street, Suite 2000, Chicago, IL 60601. Subscriptions: Within the U.S.—single issues $6.00; 1 year, $44. Outside the U.S. (Canada and
Mexico)—single issues $9.00; 1 year $88. Periodicals postage paid at Chicago, IL and at additional mailing offices. Postmaster: Please send address changes to MODERN
STEEL CONSTRUCTION, 130 E Randolph Street, Suite 2000, Chicago, IL 60601.
DISCLAIMER: AISC does not approve, disapprove, or guarantee the validity or accuracy of any data, claim, or opinion appearing under a byline or obtained or quoted
                                                                                                                                                                           Printed on paper made
from an acknowledged source. Opinions are those of the writers and AISC is not responsible for any statement made or opinions expressed in MODERN STEEL                      from a minimum of
CONSTRUCTION. All rights reserved. Materials may not be reproduced without written permission, except for noncommercial educational purposes where fewer than 25           10% recycled content.
photocopies are being reproduced. The AISC and Modern Steel logos are registered trademarks of AISC.

4 | JANUARY 2022
January 2022 - American Institute of Steel Construction
January 2022 - American Institute of Steel Construction
editor’s note

                                                                                                      Editorial Offices
                                                                                                      130 E Randolph St, Ste 2000
                                                                                                      Chicago, IL 60601
                                                    Let’s talk about                                  312.670.2400
                                                    fried chicken for a minute.                       Editorial Contacts
                                                                                                      EDITOR AND PUBLISHER
                                                                                                      Scott Melnick
                                                    I live in Chicago and commute                     melnick@aisc.org
                                                    to work via train. My local train                 SENIOR EDITOR
                                                                                                      Geoff Weisenberger
                                                    station is right across the                       312.493.7694
                                                    street from a Popeyes.                            DIRECTOR OF PUBLICATIONS
                                                                                                      Keith A. Grubb, SE, PE
                                                                                                      GRAPHIC DESIGN MANAGER
    Here are two facts, which are in direct         be 200 technical sessions delivered by the        Kristin Hall
conflict with one another. One, I’m one of          best minds in the steel design and construc-      773.636.8543
those people that prefers to patronize local        tion industry. There will be a trade show floor   hall@aisc.org

restaurants and generally avoids chains. Two,       with more than 250 exhibitors. There will         AISC Officers
I love Popeyes, which, of course, is a rather       be the exceedingly popular Thursday night         Stephen H. Knitter
large restaurant chain (there are nearly 3,500      Conference Dinner. There will be keynote          Geiger & Peters, Inc.
locations worldwide).                               addresses and the T.R. Higgins lecture. There     VICE CHAIR
    When I walk by this Popeyes location in         will be opportunities to earn up to 21 PDHs.      Hugh J. McCaffrey
                                                                                                      Southern New Jersey Steel Co.
the morning, it’s closed. But in the evening, it    There will be multiple conferences within a
                                                                                                      SECRETARY/LEGAL COUNSEL
smells magical, and every day, I almost dare        conference: the World Steel Bridge Sympo-         Edward Seglias, Cohen Seglias
myself to wander in the front door and get in       sium, QualityCon, and the NISD Conference         Pallas Greenhall & Furman, PC
line. Of course, I make excuses not to: I should    in Steel Detailing. There may or may not be       PRESIDENT
save money, I should eat at home, there are         fried chicken, but there will likely be green     Charles J. Carter, SE, PE, PhD
better places to get fried chicken (and, let’s be   chile (a popular local addition to Mexican        SENIOR VICE PRESIDENT
                                                                                                      Scott Melnick
honest, fried chicken isn’t exactly the healthi-    food and anything else you might want to
                                                                                                      VICE PRESIDENT
est food in the world anyway), and so on.           slather it on; Google it). And one low regis-     Carly Hurd
    So the compromise is that we get chicken        tration fee gains you access to all of this.      VICE PRESIDENT
(and biscuits and other sides) from Popeyes             And then there are the opportunities          Lawrence F. Kruth, PE
twice a year: once on New Year’s Day (a tra-        to catch up in person with colleagues and         VICE PRESIDENT
dition that somehow started years ago) and          friends, see a new place (or a place you’ve       Brian Raff
once on some random day.                            been before and maybe visit some old              VICE PRESIDENT
                                                                                                      Mark W. Trimble, PE
    My point is that you can always talk            haunts), or simply get a change of scenery that
                                                                                                      Editorial Advisory Panel
yourself into or out of anything. Take work         is fortuitously tied to an event geared toward    Caroline R. Bennett, PE, PhD
conferences, for example. They can seem             making you better at what you do. And keep        University of Kansas
expensive. They can take you or your                in mind that this will be the first in-person     Amanda Dean, PE
employees away from work for a few days.            Steel Conference since 2019—all the more          Walter P Moore
                                                                                                      Bryan Frazier,
And they can seem unnecessary (though               reason for those of us who are still working      Zalk Josephs Fabricators, LLC
ask yourself how many other “unnecessary”           from home all or at part of the time to go.       Keith R. Griesing, PE
things you’ve talked yourself into doing or             And did I mention that it’s in Denver? You    Hardesty and Hanover
buying throughout your life and ended up            may have heard that the Mile High City is         Stephen H. Knitter
being glad you did). But the best ones are          rather fun and is located near lots and lots of   Geiger & Peters, Inc.
investments in your livelihood.                     mountains. Stick around after the conference      Advertising Sales
    Yes, this is the point where I remind you       and make a vacation out of it! As a former        M.J. Mrvica Associates, Inc.
                                                                                                      2 W Taunton Avenue
that NASCC: The Steel Conference is just            Colorado resident, I can assure you there’s       Berlin, NJ 08009
around the corner. This year’s show is taking       plenty to do in the area.                         856.768.9360
place March 23-25 in Denver. Registration               Happy new year, and we look forward to
                                                                                                      Address Changes and
opens on January 10, and you can find out           seeing you in Denver!                             Subscription Concerns
more—and register—at aisc.org/nascc. If                                                               312.670.2401
you’re already planning to attend, great, we’ll
see you there! If you haven’t quite made up                                                           Reprints
                                                                                                      Kristin Hall
your might yet or are in the process of talking                            Geoff Weisenberger         773.636.8543
yourself into it, allow me to help. There will                                        Senior Editor   hall@aisc.org

6 | JANUARY 2022
January 2022 - American Institute of Steel Construction
Better fabrication
starts with SDS2.
The right detailing software can drive efficiency and profitability in your fabrication shop. With SDS2, you can
quickly build and adapt the detailing model to suit your needs, integrate seamlessly with any MRP, MIS and
tracking system, and maximize returns on your automated equipment.

Efficiency, accuracy, results—it all starts with SDS2. Get started today at sds2.com/start.

January 2022 - American Institute of Steel Construction
Scooping up
the PDHs
AISC Continuing Education

Education Archives
Did you know that AISC offers 30-minute to 6-hour
presentations on demand? Viewing is free—so grab some
hot chocolate (extra marshmallows!) and check them out!
  And if PDHs are what you’re after, you can purchase,
take, and pass a quiz to earn a certificate. There are
over 200 hours of options to choose from.

                                                          Smarter. Stronger. Steel.
                                                          American Institute of Steel Construction
                                                          312.670.2400 | www.aisc.org
January 2022 - American Institute of Steel Construction
steel interchange
If you’ve ever asked yourself “Why?” about something related to structural steel
design or construction, Modern Steel’s monthly Steel Interchange is for you!
Send your questions or comments to solutions@aisc.org.

All mentioned AISC codes, standards, or
manuals, unless noted otherwise, refer to
the current version and are available at

Strengthening Existing
I have a question about dealing with the
pre-load in an existing column that is to
be reinforced by adding plates. The AISC
2013 webinar “Design of Reinforcement
for Steel Members” (which you can
access at aisc.org/educationarchives;
note that PDHs are available) indicates,
on slides 42 and 43, that whether the
reinforcement is stabilizing or non-
stabilizing should be considered.
   Is the concept of stabilizing and
non-stabilizing reinforcement valid,
and what is the source for the limit on
the reinforced radius of gyration?

Pre-load does reduce the strength of
columns. However, this detrimental effect
can be partially or wholly offset by other
beneficial effects. For some conditions,
safe designs can be obtained with the
equations in AISC Specification Section E3,
which define the AISC Column Curve
(curve expressing the relationship between
flexural buckling and slenderness ratio). In
this case, a safe design can be defined as
the condition where the beneficial effects
equal or exceed the detrimental effects.
I developed the design guidance in the
2013 webinar based on an evaluation of the
available research. (Although I am planning
to write an AISC Engineering Journal
article, it has taken longer than expected.)
    Residual stresses are self-equilibrating
stresses built into the member in the
unstressed condition (no applied load).
Due to uneven cooling after the rolling
process, all steel shapes have residual
stresses. I-shaped members usually have
compression residual stresses at the
flange tips. Although the magnitude can
vary significantly, they are often assumed

                                                                       Modern Steel Construction | 9
January 2022 - American Institute of Steel Construction
steel interchange

to be about 30% to 40% of the yield              load. The beneficial effects are the residual                axis. The differences are caused by shape
stress. Longitudinal fillet welds cause          welding stresses and the locked-in tension                   factors, geometric imperfections, and
residual tension stresses in the connected       stresses caused by the pre-load.                             material imperfections (including residual
members near the weld. These stresses are            Pre-load does not affect buckling                        stresses). The AISC Column Curve is a
approximately equal to the yield stress of       in the elastic range. However, the yield                     lower-bound curve based on a statistical
the base metal.                                  point in compression is dependent on the                     analysis of many shapes. Many of the
   The locked-in stresses caused by              magnitude of the locked-in compression                       shapes included in the analysis had residual
the pre-load can be considered residual          stresses. This is important because any                      compression stresses at the flange tips,
compression stresses acting on the original      yielding causes a significant reduction                      which is the most detrimental location.
cross-section. Because the reinforcing plates    in buckling strength compared to the                         For non-preloaded columns with welding
are unstressed (excluding residual stresses)     elastic section. For a given (non-slender)                   residual stresses near the flange tips, the
until an additional load is added to the         column geometry, the flexural stiffness                      AISC Column Curve is conservative.
reinforced column, the plates effectively        about the buckling axis is the primary                          After reviewing the available research,
have locked-in tension stresses caused by        variable affecting the buckling strength.                    I determined that when rr ≤ 0.85ro, the
the pre-load. Conceptually, this is clearer if   When a portion of the column yields, that                    AISC Column curve is appropriate for
we think about the stresses in the reinforced    yielded portion can be assumed to have                       designing field-welded and pre-loaded
member if the pre-load is removed after the      a negligible contribution to the flexural                    columns. This applies only to doubly
reinforcing plates are welded.                   stiffness of the cross-section. Therefore,                   symmetric shapes with a controlling limit
   If everything else is equal, including        inelastic columns are more efficient when                    state of flexural buckling. In practice, I
the initial out-of-straightness of the           the elastic areas are located farthest from                  had used this method on several projects,
column, the beneficial and detrimental           the centroid of the reinforced section.                      even before it was presented in the 2013
effects can be evaluated based on the                All steel shapes have different column                   webinar. Ultimately, you must use your
locked-in stresses. The detrimental effects      curves that define the flexural buckling                     judgment to determine what is appropriate
are the residual compression stresses and        strength. For many shapes, the buckling                      for your situation.
the locked-in stresses caused by the pre-        curve is also dependent on the buckling                                            Bo Dowswell, PE, PhD

Weak-axis Shear in a Wide Flange Member
I am using Equation G6-1 of the 2016                I believe the provision is presented                      elements,” and each of these elements
AISC Specification for Structural Steel          the way it is because “doubly and singly                     may or may not have identical
Buildings (ANSI/AISC 360), but I am              symmetric shapes” could include one,                         dimensions (tf, bf).
not sure I am using it correctly. Even           two, three, or more “shear resisting                                                 Larry Muir, PE
though the wide-flange member is doubly
symmetric, the equation only seems
to allow me to account for the shear
strength of a single flange? Why can’t we
consider the strength of both flanges?

You have misunderstood the intent.
Equation (G6-1) provides “…the nominal
shear strength, Vn, for each shear resisting
element…” It is not intended that you use
“the strength of just one flange element”
as you have interpreted the requirement.
You can use both flange elements.

Bo Dowswell, principal with ARC                                                                               The opinions expressed in Steel Interchange do not
                                                                                                              necessarily represent an official position of the American
International, LLC, and Larry Muir                                                                            Institute of Steel Construction and have not been reviewed.
are both consultants to AISC.                                                                                 It is recognized that the design of structures is within the
                                                 Steel Interchange is a forum to exchange useful and          scope and expertise of a competent licensed structural
                                                 practical professional ideas and information on all phases   engineer, architect or other licensed professional for the
                                                 of steel building and bridge construction. Contact Steel     application of principles to a particular structure.
                                                 Interchange with questions or responses via AISC’s Steel     The complete collection of Steel Interchange questions and
                                                 Solutions Center: 866.ASK.AISC | solutions@aisc.org          answers is available online at www.modernsteel.com.

10 | JANUARY 2022
Better Together
        Bone up on steel design with your very own copies of the
            15th Edition Steel Construction Manual and the
                  3rd Edition Seismic Design Manual


        Learn more about these great AISC steel design resources
           at aisc.org/manualresources and aisc.org/seismic.

 aisc.org/publications | 800.644.2400
steel quiz
AISC turned 100 in 2021, and this month’s Steel Quiz takes a look at steel structures
from the past century. Learn more at aisc.org/legacy.

1 Proving to be stronger and more        2 What earthquake forever changed         3 What building took the title from the
   weldable than its predecessor, A-7,     the way steel structures are designed     Empire State Building as the world’s
   what year was A-36 introduced?          and fabricated?                           tallest building?
   a. 1962                c. 1960          a. Loma Prieta          c. El Centro      a. World Trade Center
   b. 1966                d. 1964          b. Northridge           d. Napa           b. John Hancock Center (aka 875
                                                                                         North Michigan Avenue)
                                                                                     c. Sears Tower (now Willis Tower)
                                                                                     d. Salesforce Tower
                                                                                   4 What iconic steel structure was built
                                                                                     for a World’s Fair?
                                                                                     a. John Hancock Center
                                                                                     b. Space Needle
                                                                                     c. Citigroup Building
                                                                                     d. Sears Tower
                                                                                   5 Which U.S. President has their name
                                                                                     on a bridge in Louisville? (Hint:
                                                                                     Check the 1960s.)
                                                                                     a. Richard Nixon
                                                                                     b. Franklin Roosevelt
                                                                                     c. John F. Kennedy
                                                                                     d. Lyndon B. Johnson
                                                                                   6 What bridge has the 17th longest
                                                                                     main span in the world and longest in
                                                                                     the Americas?
                                                                                     a. Verrazano-Narrows Bridge
                                                                                     b. Rio Grande Gorge Bridge
                                                                                     c. Mackinac Bridge
                                                                                     d. Throgs Neck Bridge
                                                                                   7 What steel structure completed in
                                                                                     1969 contains striking X-shaped
                                                                                     exterior bracing?
                                                                                     a. Sears Tower
                                                                                     b. World Trade Center
                                                                                     c. One Liberty Place
                                                                                     d. John Hancock Center
                                                                                   8 What issue endangered the
                                                                                     Citigroup Center in New York? (Hint:
                                                                                     Check the 1970s.)
                                                                                     a. Underestimated seismic loads
                                                                                     b. Miscalculated wind loads
                                                                                     c. Potential liquefaction
                                                                                     d. Faulty fabrication
                                                                                   9 What steel was adopted in 1999 as the
                                                                                     new go-to material for rolled shapes?
                                                                                     a. ASTM A572 Grade 50
                                                                                     b. ASTM A500 Grade B
                                                                                     c. ASTM A992
                                                                                     d. ASTM A588

                                                                                     TURN TO PAGE 14 FOR THE ANSWERS
12 | JANUARY 2022
steel quiz               ANSWERS

                                          1 c. A-36 was introduced in 1960 at the      6 a. New York’s Verrazzano-Narrows
                                             National Engineering Conference.             Bridge’s upper level opened in 1964,
                                                                                          the lower level in 1969.
                                          2 b. The 1994 Northridge, Calif., earth-
                                             quake spurred extensive research          7 d. The John Hancock Center (now
                                             and work, leading to the develop-            875 North Michigan Avenue) is the
                                             ment of the AISC Seismic Provisions          fourth-tallest building in Chicago.
                                             for Structural Steel Buildings (ANSI/
                                             AISC 341, aisc.org/specifications).
                                                                                       8 b. Wind loads were deemed an issue
                                                                                          and corrected after a student raised a
                                          3 a. The World Trade Center in Man-             question to the building’s chief engi-
                                             hattan used a novel system that              neer. (See the People to Know item
                                             relied on exterior walls to support the      “Delayed Reaction” in the October
                                             structure.                                   2012 issue, available in the Archives
                                                                                          section at www.modernsteel.com.)
                                          4 b. Seattle’s Space Needle followed
                                             the theme of “The Age of Space”           9 c. ASTM A992 has been the pre-
                                             and was initially designed to with-          ferred material specification for hot-
                                             stand large earthquakes.                     rolled shapes since its adoption.
                                          5 c. While still unnamed when Presi-
                                             dent Kennedy was assassinated,
                                             the bridge was later named the                Everyone is welcome to submit questions
                                             John F. Kennedy Memorial Bridge               and answers for the Steel Quiz. If you
                                                                                           are interested in submitting one question
                                             in his honor.
                                                                                           or an entire quiz, contact AISC’s Steel
 Chicago’s John Hancock Center is known
                                                                                           Solutions Center at 866.ASK.AISC or
 for its steel exterior X-bracing.

                                                         603-402-3055 • Automated Layout Technology™
                                                               Visit AUTOMATEDLAYOUT.COM for a Quote

                                                      The first automated marking machine created specifically
                                                      for the layout of commercial handrails, stair stringers and
                                                      so much more utilizing your steel detailer’s dxf files.
                                                         •   Cut Fabrication Time by More Than 50%
   “It easily doubles our output – no mistakes”          •   Ensure the Highest Level of Accuracy
   Plant Manager • Papp Iron Works                       •   Boost Your Profit Margins!
                                                         •   Lay out complex geometry in seconds
   One current customer’s team can layout 26 stair
                                                         •   Designed to replace your existing fabrication table
   stringers in 58 minutes and ended up purchasing
   another machine for their second location.
                                                             “The guys love it. They jumped right in on it and have been
                                                             working to make the most use of it. Great purchase.”
                                                             Nat Killpatrick • Basden Steel Corporation

                                                             “I think it’s fair to say that this machine continues to
                                                             exceed our expectations. We are very happy with it.”
                                                             Chief Operating Officer • Koenig Iron Works

                                                             “The machine is fantastic and could not be happier.
                                                             Keep selling this machine, it’s a winner.”
                                                             Misc. Shop Foreman • Koenig Iron Works

14 | JANUARY 2022
Quality Management
Company, LLC (QMC)
is seeking qualified
to conduct site audits for
the American Institute of
Steel Construction (AISC)
Certified Fabricators and
Certified Erector Programs.

This contract requires travel
throughout North America and
limited International travel.
This is not a regionally based
contract and a minimum of 75%
travel should be expected.
Contract auditors must have
knowledge of quality management
systems, audit principles and
techniques. Knowledge of the
structural steel construction industry
quality management systems is
preferred but not required as is
certifications for CWI, CQA, or
NDT. Prior or current auditing
experience or auditing certifications
are preferred but not required.

Interested contractors
should submit a statement
of interest and resume to

A New Shine on Steel Design

A look at the new AISC Specification for Structural Stainless Steel.

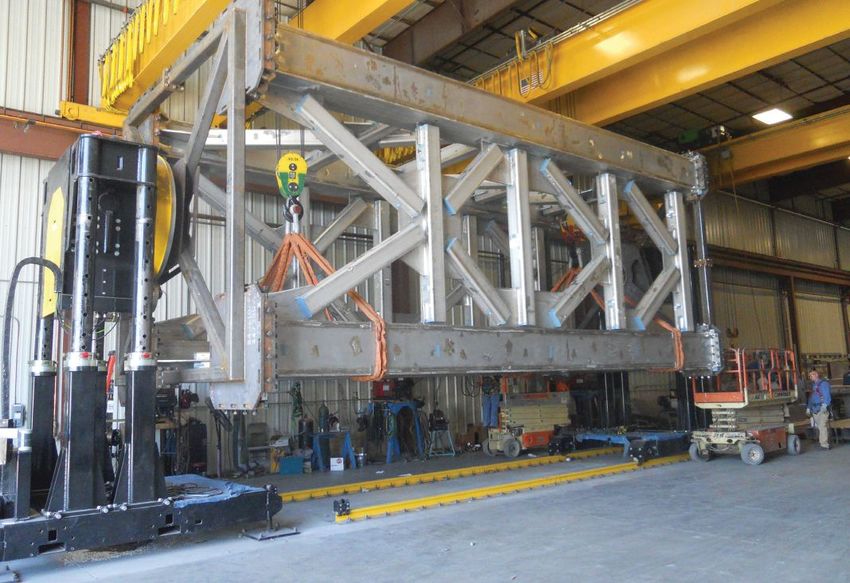

                                                                                                                           Premier Industrial/Westinghouse

                                                                                                      A stainless steel support structure was used
                                                                                               for the passive cooling system in the containment
                                                                                      structure at the Vogtle Nuclear Power Plant (Units 3 and 4)
                                                                                    in Burke County, Ga. The tower is 30 ft tall and 11 ft square,
                                                                                   and made from duplex stainless steel S32101 plate and HSS.

AS THE DEMAND for resilient, long-               for the Design of Cold-Formed Stainless Steel       following is a brief look into the new publi-
lasting structures with low maintenance          Structural Members—has been around for              cation and how it harmonizes with the 2016
requirements grows, so does the demand           decades, there wasn’t a dedicated publica-          AISC Specification for Structural Steel Buildings
for stainless steel in construction—and          tion for welded and hot-rolled stainless            (ANSI/AISC 360-16); both publications can
AISC has recently released a specification       steel products until AISC published the             be found at aisc.org/specifications.
dedicated to structural stainless steel.         first edition of Design Guide 27: Structural
    Stainless steels are attractive and highly   Stainless Steel in 2013 (aisc.org/dg).              Stainless Applications
corrosion-resistant steel alloys with favor-         Subsequent interest from the industry               First, it’s important to consider where
able strength, toughness, and fatigue char-      spurred AISC to develop a specification             structural stainless steel can be most useful
acteristics. They can be fabricated using a      dedicated to structural stainless steel. Work       or make the most sense. Prominent stainless
wide range of commonly available engi-           began with the establishment of the AISC            steel applications include external structural
neering techniques and, like traditional         Committee on Structural Stainless Steel,            members that are in close proximity to salt-
structural steel, are fully recyclable at the    which includes stainless steel fabricators and      water, exposed to deicing salts, or in heavily
end of their useful life.                        welding experts, metallurgists, designers, and      polluted locations. Stainless steels are com-
    While guidance for designing cold-           academics. And the new publication, Speci-          monly used for platforms, barriers, and equip-
formed structural stainless steel members—       fication for Structural Stainless Steel Buildings   ment supports for the water treatment, flood
in the form of ASCE/SEI 8-02: Specification      (ANSI/AISC 370-21), is now available. The           control, pulp and paper, nuclear, biomass,
