MALIBU – THE EXTRA CLASS MALIBU MOTORHOMES 2022
A-CLASS / COACHBUILT
Welcome to Malibu – a Carthago company
The extra class: impressive quality
Page
Page
3
5
WWW.MALIBU-MOTORHOMES.COM
360° Interactive 360° views
Malibu model range Page 6
Compact Class / Comfort Plus Class Page 9 Detailed Information
Malibu A-Class Page 10
Malibu coachbuilt Page 12 You can also register for our newsletter and never miss any of the news!
Malibu A-Class and coachbuilt motorhomes in detail There’s a lot more to say about our motorhomes than we can fit in the brochure!
We therefore provide a great deal of information, pictures and interactive displays on our
Living area Page 14 web site. Get some inspiration and navigate through your dream Malibu at your leisure
Kitchen Page 18 from home or on the move! Look out for to the icons in our catalogue.
Bathroom & changing room Page 22
Sleeping area Page 30
Malibu added value promise Page 34
Top class bodywork Page 36
Heating and air conditioning technology Page 38
Most storage space in its class Page 40
Pedelec scooter garage Page 44
High quality furniture construction Page 46
with double connection technology
Driver’s cabin visibility concept Page 48
Malibu interior & exterior
Worlds of Living Page 49
Worlds of Style & alloy wheels Page 50
Malibu test & rent – Enjoy a test drive Page 51 Patents / Patent registrations – leading by means of innovation!
Patents / Patent registrations are specific to the model and the country,
illustrations may differ.
2
FROM THE BEST SOURCE – THE BRAND WITH REAL ADDED VALUE
THE COMPANY
The first Malibu models which Carthago founder Karl-Heinz Schuler built in 1979 elaborate bodywork with elegant roof / side wall rounding or the high quality
were already of the highest quality standard. This heritage is just as noticeable furniture construction with double connection technology. We invest more
today in our A-Class and coachbuilt motorhomes as our decades of experience know-how, time and effort than others in order to offer you more value. More
in the premium segment. Looking for something special? If so, a Malibu motor- functionality, more comfort, more storage space, and more feeling of well-being.
home from the extra class is just the right thing! The first impression that you The GENERATION M of Malibu motorhomes is setting more standards than ever
get becomes increasingly clear the closer you look: so many well thought-out in the upper class – always with the claim of being the best motorhomes in their
details, so much more of everything that makes travelling relaxing. Such as the class, in order to give you the best holiday moments of your life.
double floor with huge storage compartment that is unique in this class, the

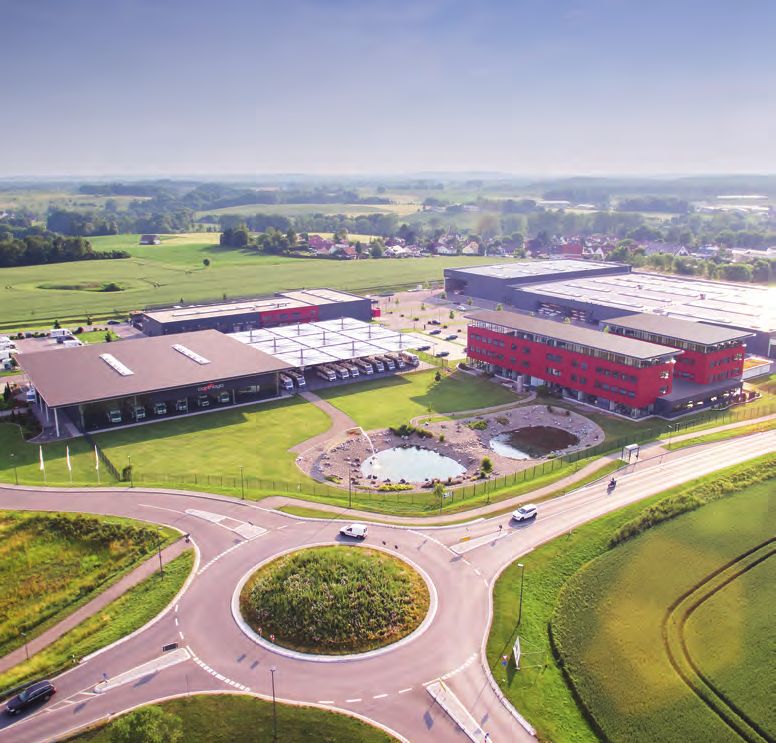

Head office of the Carthago Group in Aulendorf, Upper Swabia Malibu A-Class | I 500 QB
3
A UNIQUE SUCCESS STORY
2013
Inauguration of Carthago City in
2015
Aulendorf, southern Germany,
with a large sales showroom.
Exclusive presentation at the Caravan
Salon Düsseldorf: the new A-Class and
coachbuilt Malibu motorhomes were
impressive! Voted New Product of the Year
by AutoBild Reisemobil magazine.
2018
Three new models complete our
range of motorhomes:
the single bed model I 441 LE,
just 6.67 m in length, and the
super-comfortable I/T 490 LE
and I/T 500 QB models.
2021
Introduction of the Malibu GENERATION M.
All Malibu motorhomes stand out with a
new look and impress both inside and out.
State of the art top class technology,
elaborate main body construction, thermal
2022
bridge free roof/wall connection thanks to frame
members glued over their entire surface, combined
with a fresh design and high quality furniture construction.
The Malibu motorhomes are gathering momentum! The international service
and dealer network is being extended to around 100 dealers in Europe.
4
IMPRESSIVE MALIBU QUALITY!
THE COMPANY
“The low, pulled-down position of the wind- “The view from the driver’s seat towards
“Irrespective of that, the majority of
screen provides an extremely good view. the front and through the mirrors towards the
drivers thought that the Malibu was
[…] The windows in the driver’s cabin and rear is excellent. [...] The integrated daytime
one of the quietest motorhome they
the storage compartment hatches make a driving lights with LED fibre optic technology
had ever driven.”
pleasantly large impression.” are the most eye-catching new feature.”
AutoBild Reisemobil, 06/2020 promobil, 09/2020 promobil, 06/2020
(Driving report: Malibu I 500 QB) (Supercheck: Malibu I 441 LE) (Endurance test: Malibu T 430 LE)
“Particularly during the winter, Malibu scores points “The exterior design
with its winterproofing. It conjures up a homely of the Malibu is perfect “They came up with something special in the
cosiness in the living area thanks to the heated match for the harmo- bathroom. The entire front wall is designed as a
double floor. The workmanship quality and out- nious design of the door which can be closed across the passage to
standing driving safety are impressive.” interior.” create a private changing room.”
AutoBild Reisemobil, 02/2021 AutoBild Reisemobil, 05/2021
(Endurance test: Malibu T 430 LE) (Comparison test: Malibu I 490 LE) promobil, 09/2020 (Supercheck: Malibu I 441 LE)
“Despite having a comparatively classic layout, the Malibu T 490 LE “The furniture construction is stable, and the workmanship
scores points with several well thought-out details. This starts with is excellent. Appealing: The concave overhead storage cabinet
the wood-free body structure and the insulated double floor. flaps are appealing. [...] There is very little wind noise from the
Not only does this provide frost-free storage for the fresh water framed windows and the roof domes, and the furnishings are
and waste water tanks, it also creates additional storage space.” extremely quiet and do not rattle.”
Reisemobil International, 12/2020
Reisemobil International, 02/2020 (test drive: Malibu T 490 LE) (Professional test: Malibu T 430 LE)
5
MODEL RANGE, A-CLASS & COACHBUILT
A-Class (I)
294 cm
227 cm
667 - 750 cm
Coachbuilt (T)
Bathroom
294 cm Dimensions (L x W x H)
Sleeping berths (standard / optional)
227 cm
Seats with 3-point seat belt (standard / optional)
Garage, interior height
Weight in drivable condition from
666 - 745 cm Payload up to
6 The manufacturer reserves the right to have different colour combinations or individual colour shades, material quality differences and changes to the scope of delivery.
Compact class with short vehicle lengths, also practical within the 3.5 t weight class
195 x 160 cm
195 x 160 cm
195 x 160 cm 195 x 160 cm
695 cm 699 cm
667 cm 671 cm
200/190 210 x 147 / 200/190 200/195
x 85 cm 136 cm x 85 cm x 85 cm

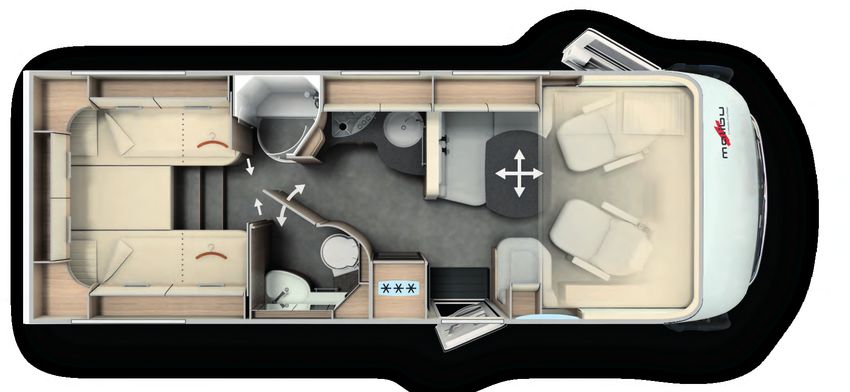

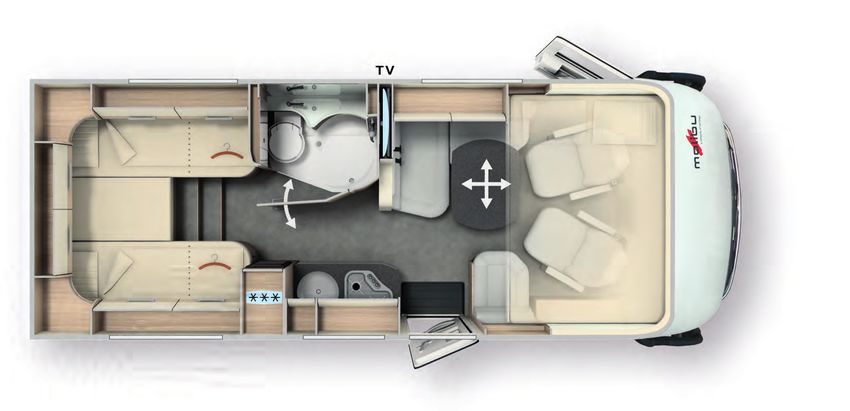

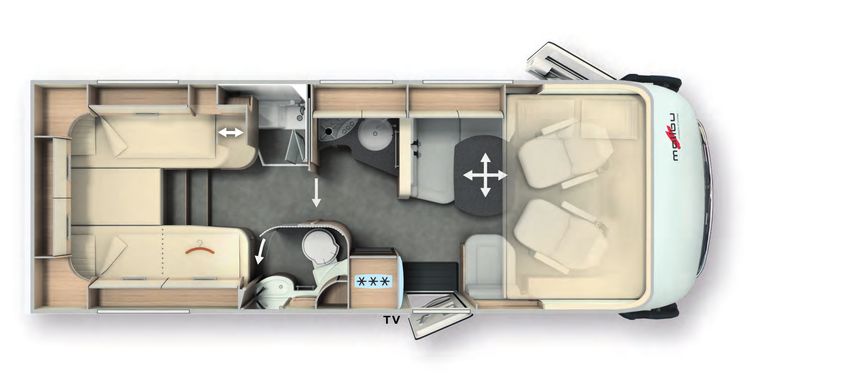

Malibu I 441 LE Malibu I 410 DB Malibu T 410 DB Malibu I 430 LE Malibu T 430 LE Malibu I 440 LE Malibu T 440 LE
Vario swivelling bathroom Combined bathroom Combined bathroom Compact luxury bathroom
667 x 227 x 294 cm 671 x 227 x 294 cm 666 x 227 x 294 cm 695 x 227 x 294 cm 690 x 227 x 294 cm 699 x 227 x 294 cm
4/4 4/5 2/4 4/5 2/3 4/5 2/4
4/4 4/ 5* 4/4 4/4
Large scooter garage, 120 cm Large scooter garage, 120 cm Large scooter garage, 120 cm Large scooter garage, 120 cm
2,925 kg 2,945 kg 2,855 kg 3,005 kg 2,915 kg 3,035 kg 2,945 kg
1,285 kg 1,265 kg 1,355 kg 1,205 kg 1,295 kg 1,175 kg 1,265 kg
This also applies to colour differences on basic vehicles, insofar as they are a result of changes made by the basic vehicle manufacturer. 7
Comfort Plus class, maximum comfort outside the 3.5 t weight class
MODEL RANGE OVERVIEW
195 x 160 cm 195 x 160 cm 195 x 160 cm
195 x 160 cm
750 cm 748 cm
725 cm
699 cm
195 x 145 cm 195 x 145 cm
200/195 204/195
x 85 cm x 85 cm

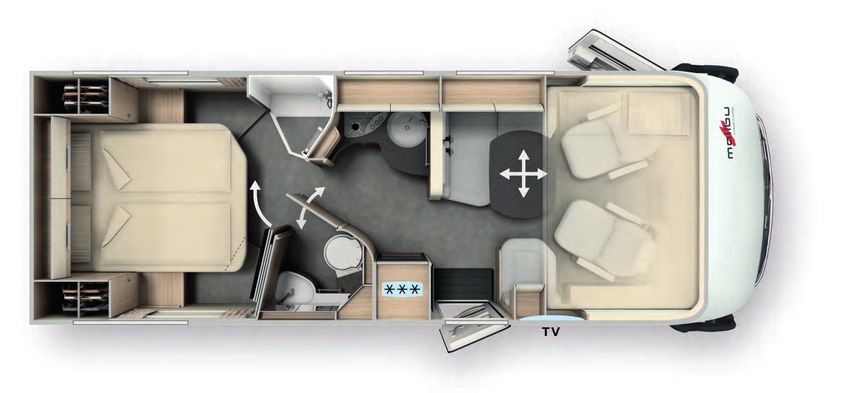

Malibu I 440 QB Malibu T 440 QB Malibu I 460 LE Malibu T 460 LE Malibu I 490 LE Malibu T 490 LE Malibu I 500 QB Malibu T 500 QB
Compact luxury bathroom Combined bathroom Comfort luxury bathroom Comfort luxury bathroom
699 x 227 x 294 cm 725 x 227 x 294 cm 720 x 227 x 294 cm 750 x 227 x 294 cm 745 x 227 x 294 cm 748 x 227 x 294 cm 743 x 227 x 294 cm
4/5 2/4 4/5 2/4 4/5 2/4 4/5 2/4
4/4 4/ 5* 4/ 5* 4/ 5*
Bicycle garage, 112 cm / 124 cm** Large scooter garage, 120 cm Large scooter garage, 120 cm Bicycle garage, 112 cm / 124 cm**
3,035 kg 2,945 kg 3,055 kg 2,965 kg 3,105 kg 3,015 kg 3,105 kg 3,015 kg
1,175 kg 1,265 kg 1,155 kg 1,245 kg 1,105 kg 1,195 kg 1,105 kg 1,195 kg
* 5th Seat with 2-point seat belt ** with optional Pedelec scooter garage 8
COMFORT CLASS COMFORT PLUS CLASS
COMPACT AND LIGHT! THE DECISIVE PLUS!
CLASS COMPARISON
The compact class of Malibu motorhomes consists of four coachbuilt and Would you like a little more? More space, more equipment, more comfort
five A-Class models. A common feature is the length of less than seven and all of this in an attractive body with enduring quality? If so, the answer
metres and the possibility of certification with a gross weight of 3.5 t. This is: Malibu Comfort Plus class. Nothing is left to be desired in the three coach-
means good handling while driving, and a motorhome which is equivalent to built and three A-Class motorhomes. They are up to half a metre longer than
a car with regard to traffic regulations. A class B driver’s licence is sufficient the biggest models in the Malibu compact class. Centimetres which make a
to drive one. In spite of this, the compact class provides all of the distinctive difference when 3.5 t certification is not decisive, and comfort is more impor-
characteristics of the new Malibu GENERATION M, and therefore complete tant than weight.
motorhome comfort. There’s no doubt about it: Malibu – compact is class! In a nutshell: Malibu Comfort Plus class – if you want a little bit more.
Malibu coachbuilt | T 430 LE T 430 LE | Rome world of living Malibu A-Class | I 490 LE I 500 QB | Chestnut part leather world of living
Malibu compact class: Malibu Comfort Plus class:
• Four coachbuilt and five A-Class vehicles ranging from 6.66 to 6.99 m • Three coachbuilt and A-Class from 7.20 to 7.50 m length
• Compact models suitable for 3.5 t driving licence • Comfort Plus models available from 3.5 t to 4.25 t
• Layouts with transverse bed, lengthways single beds or queen-size bed • Layouts with lengthways single beds or queen-size bed
• Vario swivelling, combined or compact luxury bathroom • Combined or comfort luxury bathroom
• Drop-down bed as standard for the A-Class vehicles, optional for the • Drop-down bed as standard for the A-Class, optional for the coachbuilt
three coachbuilt vehicles • All of the technical and comfort characteristics of GENERATION M
• All of the technical and comfort characteristics of GENERATION M
• Optional: increase to 4.25 t permissible gross weight
9
MALIBU Malibu A-Class | I 490 LE
A-CLASS
THE FASCINATION OF THE
PREMIUM CLASS
Elegant exterior design, top class
driver visibility and an extra-
ordinary feeling of spaciousness!
Spacious living environment and
an easily accessible drop-down
bed – sweet dreams!
STANDARD EQUIPMENT:
Driving and visi- XL main cabin Large L-shaped
bility concept with door “premium lounge seating
best test values two 2.0” area
Changing Double floor Underfloor
room storage heating
compartment effect
OPTIONS:
ALDE warm water Omission of 32" LED flat screen
heating
(depending on model)
drop-down
bed
(depending on
model)
360°
101 Extra-low dashboard and vehicle front with three-dimensional design 2 XL main cabin door “premium two 2.0”
MALIBU A-CLASS
Strengths of the Malibu A-Class:
1 Active driving, extra-low dashboard for early
visibility of the road surface after just 2.77 m.
63 cm Best test result! Three-dimensionally de-
signed front, flat angle: less wind resistance,
fuel consumption and wind noise
2X
L main cabin door “premium two 2.0” with
wider passage size of 63 cm, secure double
56° locking and extra-wide door window, pleated
blackout blind and integrated insect screen
Flush fuel Passengers cabin door 5 Large double floor roller blind
3 tank flap 4 with extra-low entrance
3 Fuel tank flap integrated flush in the side
panel
4 Passengers cabin door with extra-low en-
trance, secure double locking and electrically
operated power windows
5 Huge storage compartment in double floor,
accessible from the inside and the outside
6 Insulated pleated windscreen blind with
vertical operation as sun blind, privacy screen,
blackout and insulation from the heat and
cold of the living area
6 Insulated pleated windscreen blind 7 Reversing camera monitor in a glare-free location
7 Wiring for integrated reversing camera
monitor in a glare-free location
11MALIBU Malibu coachbuilt | T 460 LE
COACHBUILT
DYNAMIC WITH GOOD
HANDLING
These are the stylish coupés
among the motorhomes! The
original driver’s cabin is slim,
and gives you a hint of sportiness
with the dynamic roof profile.
STANDARD EQUIPMENT:
XL main cabin Large L-shaped Single level
door “premium lounge seating living area
two 2.0” area floor
Changing Double floor Underfloor
room storage com- heating
partment effect
OPTIONS:
ALDE warm water Central drop-down “Skyview”
heating (depending
on model)
bed (depending on
model)
skylight above
driver’s cabin
360°
121 XL main cabin door “premium two 2.0” 2 Large double floor
MALIBU COACHBUILT
Strengths of the Malibu coachbuilt:
1 XL main cabin door “premium two 2.0” with
wider entrance size (63 cm), secure double
63 cm locking, extra-wide door window, pleated
blackout blind and integrated insect screen
roller blind
2 Huge storage compartment in double floor,
accessible from the inside and the outside
3 The armrests of the rotating driver and
passenger seats are covered in the same
Armrests covered in same material Optional: “Skyview” skylight with
3 4 material as the living area
as living area leather covered designer headliner
4 Cosy atmosphere thanks to ceiling canopy
with integrated, indirect lighting
Optional: “Skyview” skylight with leather-
covered designer headliner above the driver’s
cabin and the living area
5 Large, all-round overhead storage cabinets in
driver’s cabin, living area and sleeping area
6 Continuous one level living area floor,
without tripping hazards
5 All-round overhead storage cabinets 6 One level floor
13LIVING
Malibu A-Class | I 490 LE | Lisbon world of living
14Malibu coachbuilt | T 460 LE | Ancona 21 world of living
LIVING, A-CLASS AND COACHBUILT
151 Swivel-out shoe cabinet Living area table can be rotated and moved 3 LED ambient lighting can be switched seperatley
2 in two directions using the foot pedal
4 Elegant kitchen worktop 5 All-round overhead storage cabinets above the lounge seating area 6 Optional: LED flat screen*
32"
167 Drop-down bed with extra-large bed dimensions and large sitting height (A-Class)
LIVING, A-CLASS AND COACHBUILT
Living advantages:
1 L-shaped lounge seating area with swivel-out
shoe cabinet and holding system for up to four
pairs of shoes integrated in the plinth of the
seat bench, including LED accent light
2 Living area table can be conveniently rotated
and moved in two directions using the foot
83 cm pedal
3 LED ambient lighting and LED work lighting
can be switched on separately
195 x 160 cm 4 Elegant kitchen work surface acts as visual
room divider and additional storage area
5 Large amount of storage space due to all-
round overhead storage cabinets above the
lounge seating area
6 Optional: LED flat screen (up to 32") at
8 Optional: Electrically operated central drop-down bed (coachbuilt, except T 430 LE)
convenient viewing level incl. wall bracket
or pull-out system*
7 Extra-large drop-down bed with bed dimen-
sions of 195 x 160 cm, large sitting height,
convenient access to bed without ladder using
side seat as well as stable bed surface
(A-Class)
8 Optional: Electrically operated central drop-
down bed, large sleeping area, headroom of
184 cm beneath the bed in the living configu-
203/177,5 ration (coachbuilt, except T 430 LE)
x 100 cm*
9 Underfloor heating effect thanks to the fully
heated double floor with climate storage
function
* Position and/or size depending on model 17GALLEY KITCHEN
(I 441 LE, I/T 430 LE)
1 Space-saving galley kitchen – for compact vehicle lengths 2 Lots of storage space thanks to six deep kitchen drawers
3 Multifunctional sink cover 4 3-ring gas hob
185 133 l Slimtower fridge at convenient hand height 6 Spacious overhead storage cabinets
KITCHEN WORLDS, A-CLASS AND COACHBUILT
Advantages of the galley kitchen:
1 Space-saving galley kitchen makes compact
vehicle lengths possible
2 Lots of storage space thanks to six deep,
roller-mounted kitchen drawers with self and
soft closing mechanism and divided front
panels for convenient access, plus integrated
waste bin and wooden cutlery insert
3 Additional storage space created by inserting
the sink cover into the wall holder
4 3-ring gas hob with one-piece glass cover,
removable cast iron grating and easy-to-clean
glass base
5 133 l Slimtower fridge with separate 12 l
freezer compartment with door opening at
both sides, positioned at convenient hand
Optional: Capsule coffee maker
6 incl. pull-out system height
6 Overhead storage cabinets with lots of stor-
age space
Optional: Capsule coffee maker including
pull-out system in overhead storage cabinet
7 Flush work surface due to embedded round
sink
8 Rear kitchen wall in cream decorative glass
for easy cleaning and maintenance
9 Optional: gas oven with grill function in the
kitchen
19CORNER KITCHEN & COMFORT CORNER KITCHEN
(Corner kitchen: I/T 410 DB, 440 LE, 440 QB, 460 LE; Comfort corner kitchen: I/T 490 LE, 500 QB)
1 Comfort corner kitchen with curved, extra-large worktop | I/T 490 LE, 500 QB 1 Corner kitchen | I/T 410 DB, 440 LE, 440 QB, 460 LE
202 153 l fridge | I/T 490 LE, 500 QB Six deep kitchen drawers and
3 additional bottle cabinet
KITCHEN WORLDS, A-CLASS AND COACHBUILT
Corner kitchen /
luxury corner kitchen advantages:
1 Extra-large, flush work surface thanks to
embedded round sink and additional storage
surface created by hooking the sink cover into
the wall holder
2 133 l Slimtower or 153 l refrigerator with 12 l or
29 l freezer compartment with door opening
at both sides at convenient hand height
3 Lots of storage space thanks to six deep,
4 Pull out waste bin | I/T 410 DB, 460 LE
roller-mounted kitchen drawers with self and
soft closing mechanism and divided front
panels for convenient access, plus integrated
waste bin and wooden cutlery insert
4 Waste bins which can be pulled out separately
with separate hygiene area
(I/T 410 DB, 460 LE)
5 Overhead storage cabinets with lots of stor-
age space
Optional: Capsule coffee maker including
pull-out system in overhead storage cabinet
Optional: Capsule coffee maker
6 3-ring gas hob with divided glass cover, remov-
5 incl. pull-out system able cast iron grating and easy-to-clean glass
base
7 Elegant kitchen worktop for visual room
partitioning and as additional storage surface
8 Optional: gas oven with grill function in
kitchen base unit (except I/T 440 LE, 440 QB)
21VARIO SWIVELLING BATHROOM WITH CHANGING ROOM
Vario swivelling bathroom: Bathroom, toilet and shower room (I 441 LE)
1 Basic position: Large bathroom and toilet 2 Swivelling wash stand mirrored wall 3 Large, completely separable shower room
196 cm
3 Bathroom remains dry while showering
22Vario swivelling bathroom: Changing room
BATHROOM WORLDS, A-CLASS AND COACHBUILT
Model I 441 LE:
A changing room which is separated from the living area is created in a single step. Vario swivelling bathroom
advantages:
The I solid bathroom door acts as a partition from the living area and creates a
private changing room at the same time. 1 Well thought-out and inno-
I
vative: clever use of space
provides plenty of room and
comfort with short vehicle
length
2 Thanks to a sophisticated
swivelling wall, a spacious
shower or bathroom/toilet
is created in an instant
3 Large shower that can be
separated off thanks to sec-
4 Private changing room thanks to solid bathroom door as a partition from the living area
tional shower door, bathroom
remains dry when showering
4 Solid bathroom door also acts
as a room partition from the
living area, therefore creating
a private changing room
5 Bathroom floor with shower
tray, two drains and one-level
floor
6 Many practical shelves, large
utensil cabinet and mirror with
backlighting
7 Plenty of light and ventilation
in the bathroom thanks to the
Mini-Heki skylight
23COMBINED BATHROOM WITH CHANGING ROOM
Combined bathroom: Bathroom, toilet and shower room (I/T 410 DB, 430 LE, 460 LE)
1 The combined bathroom has it all: Bathroom and toilet area, plus separable shower 2 Round shower with wrap-around doors – bathroom remains completely dry
3 Spacious wash stand base unit Large mirror cabinet with
4 shelving
24Combined bathroom: Changing room
BATHROOM WORLDS, A-CLASS AND COACHBUILT
Model I/T 430 LE: Model I/T 460 LE:
A changing room which is A changing room which is Advantages of the combined
separated from the living area separated from the living bathroom:
is created in a single step. and sleeping area is created
in just three steps. 1 The curved wash stand surface
The I solid bathroom door
acts as a partition from the The I solid bathroom door highlights the visual room
living area and creates a and the II pull-out room
I partitioning into a bathroom,
I private changing room at partitioning wall act as
the same time. partitioning from the living toilet and shower area
II area, creating a private
changing room at the same 2 Fully separable round shower
time.
with wrap-around doors, shower
The III optional, solid wooden base with shower tray incl. two
III sliding door acts as partition-
drains, practical storage shelves
ing from the sleeping area,
creating a completely separate integrated in shower wall and
changing room.
optional, waterproof shower
insert with the same design
5 Private changing room thanks to separable bathroom door
as the living area floor
3 Large wash stand base unit
4 Spacious mirror storage cabinet
with shelving arrangement,
additional shelves and addi-
tional mirror next to mirrored
storage cabinet
5 Private changing room with
separation from living area
thanks to solid bathroom door
Optional: Solid wooden sliding
door for separating the sleeping
area and the changing room
(I/T 460 LE)
6 Plenty of light and ventilation
in the bathroom thanks to the
Mini-Heki skylight with towel rail
25COMPACT LUXURY BATHROOM WITH CHANGING ROOM
Compact luxury bathroom: Bathroom, toilet and shower room (I/T 440 LE, 440 QB)
1 Spacious bathroom and toilet 2 Shower opposite the washing and toilet area 3 Large mirrored storage cabinet with shelving
198 cm 4 Spacious wash stand base unit
26Compact luxury bathroom: Changing room
BATHROOM WORLDS, A-CLASS AND COACHBUILT
Model I/T 440 LE:
A changing room which is separated from the living area is created in a single step. Compact luxury bathroom
advantages:
The I solid wooden sliding door acts as a partition from the living area, creating
a private changing room at the same time. 1 Separate bathroom and toilet
with lots of freedom of move-
ment
I
2 Large shower room opposite
bathroom and toilet with
headroom of 198 cm, level
shower access and removable
shower insert matching living
area floor
3 Spacious and illuminated mirror
storage cabinet with shelving
5 Private changing room
4 Spacious wash stand base unit
5 Private changing room with
separation from living area
thanks to solid wooden sliding
door
6 Hand towel rail above round
shower in roof dome
7 Plenty of light and ventilation in
the bathroom and toilet thanks
to the Mini-Heki skylight
27COMFORT LUXURY BATHROOM WITH CHANGING ROOM
Comfort luxury bathroom: Bathroom, toilet and shower room (I/T 490 LE, 500 QB) Comfort luxury bathroom: Changing room
Model I/T 490 LE:
1 Spacious bathroom and toilet 2 Large round shower opposite
A changing room which is
separated from the living
and sleeping areas is created
in just two steps.
The I solid luxury bathroom door
acts as partitioning from the living
area, creating a private changing
I room at the same time.
The II solid wooden sliding door
acts as partitioning from the
sleeping area, creating a completely
separate changing room.
II
3 Sleeping area/changing room partitioning | I/T 490 LE
198 cm
28Model I/T 500 QB:
A changing room which can be
separated from the living and
BATHROOM WORLDS, A-CLASS AND COACHBUILT
sleeping areas is created in just Comfort luxury bathroom advantages:
four steps.
1 Separate bathroom and toilet with considerable freedom of movement
The I luxury bathroom door acts
as partitioning from the living 2 Large shower room opposite bathroom and toilet with headroom of 198 cm
area, creating a private changing
and level shower access
I room at the same time.
The II pull-out TV wall and room
3 Solid wooden sliding door for separating the sleeping area from the changing
divider acts as partitioning from room (I/T 490 LE)
the sleeping area.
4 Pull-out TV wall and room divider for variable partitioning of sleeping area
II
from changing room and flexible TV positioning (I/T 500 QB)
5 Private changing room thanks to luxury bathroom door with room dividing
I Luxury bathroom door in function
position for partitioning from
living area.
6 Spacious mirrored storage cabinet with shelving
7 Hand towel rail above round shower in roof dome
II TV wall in central position for
relaxed TV viewing. 8 Plenty of light and ventilation in the bathroom and toilet thanks to the
I III Swivelling door for partitioning Mini-Heki skylight
off the sleeping area at the
passenger side.
IV Pull-out sliding door at driver’s
side for complete partitioning of
changing room from sleeping area. 4 Partitioning between sleeping area and changing areas | I/T 500 QB
II
IV III
Separate changing room with
considerable freedom of
movement, room partitioning
from living and sleeping areas
including central TV position for
relaxed viewing.
29LENGTHWAYS SINGLE BEDS
(I 441 LE, I/T 430 LE, 440 LE, 460 LE, 490 LE)
1 Lengthways single beds with extra-large bed dimensions and convenient access 2 Wardrobes beneath lengthways single beds
Sleeping area extension
200/190
x 85 cm
Pull out steps
30Pull-out lengthways single bed
WORLDS OF SLEEPING, A-CLASS AND COACHBUILT
Pull-out comfort access steps
Pull-out access steps | Optional: Pull-out comfort access Storage compartment in
3 not I/T 440 LE 3 steps | not I/T 440 LE 3 comfort access steps
Lengthways single bed
advantages:
1 Extra-large sleeping area
2 Wardrobes with additional interior
height which can be conveniently
accessed from the front and above
thanks to the lift function and the
divided mattress (I/T 440 LE driver
side only)
3 Convenient access to the bed
4 Single bed which can be extended into shower area | I/T 440 LE Floor-to-ceiling wardrobe | thanks to the pull-out access
5 I/T 460 LE steps, even when using the addi-
tional mattress for sleeping area
extension (not I/T 440 LE)
4 Lengthways single bed at passen-
ger side, extendable by 30 cm
(I/T 440 LE)
200/195
5 Floor-to-ceiling wardrobe
x 85 cm
(I/T 460 LE)
+/- 30 cm
6 Heated, ventilated slats and
7-zone cold foam mattress for
a relaxing night’s sleep
7 Adjustable head sections
(I/T 440 LE driver side only)
8 All-round overhead storage
cabinets, also in the rear area
31QUEEN-SIZE BED Pull-out TV wall and room divider
(I/T 440 QB, 500 QB)
Luxury bathroom door with room partitioning function from living TV wall in central position for relaxed viewing | Room partition with closed swivelling and sliding door for com-
1 area | I/T 500 QB 1 I/T 500 QB 1 plete room partitioning | I/T 500 QB
2 Movable queen-size bed | I/T 440 QB 3 Large drawers beneath bed *
Queen-size bed advantages:
1 Pull-out TV wall and room divider for variable
partitioning of sleeping area from changing
room and flexible TV positioning (I/T 500 QB)
2 Queen size bed movable by 30 cm, meaning
long bed dimensions in spite of short vehicle
length (I/T 440 QB)
195 x 145 cm
3 Large drawers beneath queen-size bed*
4 Fold-away mattress section | I/T 500 QB
4 Fold-away mattress section at end of bed for
extra-wide passage (I/T 500 QB)
5 Heated, ventilated slats and 7-zone cold foam
+/- 30 cm
mattress for a relaxing night’s sleep
32 * Version depending on modelTRANSVERSE REAR BED
WORLDS OF SLEEPING, A-CLASS AND COACHBUILT
(I/T 410 DB)
1 Transverse rear bed with large bed dimensions 2 Tall wardrobe 3 Wardrobe beneath transverse rear bed
Transverse rear bed advantages:
1 Large bed dimensions
2 Tall wardrobe
3 Wardrobe beneath transverse rear bed
for additional storage space
4 All-round overhead storage cabinets in
the rear area
5 Heated, ventilated slats and 7-zone cold
foam mattress for a relaxing night’s sleep
6 Window above bed on rear wall
210 x 147/ 7 Optional: World of Sleeping and decoration
136 cm set with made-to-measure elasticated covers,
decorative cushions and Malibu house blanket
33MORE MOTORHOME. My major passion is to develop ideas
MORE VALUE. through to product maturity. The
most important thing when doing
MORE HOLIDAY. this is for these ideas to always
provide real customer benefit. [...]
We want to have satisfied
Malibu motorhomes have special
customers.
characteristics and advantages
which cannot be found in this Karl-Heinz Schuler,
founder and owner of the Carthago Group
combination in any other motor-
home on the market. This added
value, which is typical of the
brand, can be felt and experi-
enced on every tour that you
make with your Malibu: with
additional functionality, addi-
tional comfort, additional
storage space and additional
sense of well-being. That has
always been our added value
promise to you. The Malibu
models in GENERATION M
set the bar even higher in
the upper class!
34MALIBU MOTORHOME ADDED VALUE
Top class bodywork with elegant Best driver’s cabin
roof and side wall rounding visibility concept
(A-Class)
High quality furniture
The most storage
construction with double
space in its class
connection technology
35TOP CLASS BODYWORK WITH ELEGANT ROOF 3 Side wall / floor connection using high-stability frame member
AND SIDE WALL ROUNDING
2
1
6
7
8
4 Extra-low rear garage
4
3
5
1 Thermal bridge-free roof/wall connection 2 Protection from hailstones from GRP roof 5 GRP floor underside
36MALIBU MAIN BODY CONSTRUCTION CONCEPT
MALIBU MOTORHOME ADDED VALUE
Advantages of the Malibu
The Malibu bodywork is consistently oriented to what Malibu drivers want: long-term carefree driving and motorhome value main body construction:
retention. That is why we put our faith in long-term quality – in the high-stability materials that are used as well as the modern
• Longevity and therefore good
processing technology. Instead of the conventional body connection using point-by-point dowel or screw connections, we use value retention
an extremely stable and thermal bridge-free connection using form-fitted bonded frame members and PU toothing profiles.
• Year-round comfort thanks to
An important difference! perfect insulation
• Maximum ride comfort and
Frequently used standard main body
Malibu main body construction safety thanks to high-stability
construction
body
Waterproofing guarantee 10 years 1 Usually significantly less
• Optimum side impact protection
Aluminium wall exterior, hard foam insulating Exterior walls often made from GRP, insulation • Protection from hailstones,
Wall structure core made from moisture-resistant RTM and via water-sensitive EPS foam, wooden frame
water-repellent PU reinforcements as connecting/reinforcing element stone impacts and moisture
• 10-year leak-proof guarantee as
High-stability frame member, bonded form- Roof and wall screwed together point-by-point
Roof/wall connection fitting with side-on collision protection effect with sealing tape and covering profile standard 1
• Low background noise level while
GRP hailstone and Wooden underfloor with maintenance-
Standard: Roof top and underfloor travelling
intensive protective coating, roof surface
stone impact protection made from GRP
made from hailstone-sensitive aluminium
• Flush-fitted fuel tank flap
Side aprons made from extruded aluminium (A-Class)
Sensitive moulded plastic parts without
Attachments profile, segmented into multiple sections.
segmenting, and no separate rear bumper • Roof / side wall rounding for
Multi-part rear frame and separate rear bumper
elegant overall appearance and
maximum main body stability
6 Seitz S4 main cabin window 7 Flat side windows 8 4-piece rear frame
• Segmented rear and side bumper
attachments, easy to repair and
therefore affordable replacement
in the event of damage
• Main cabin window frame with
increased security
37MALIBU HEATING AND AIR CONDITIONING EQUIPMENT
1
3 4
2
1 Dashboard front with heat radiation 2 Fully heated double floor 3 Heating for cold-sensitive areas 4 Underfloor heating effect
38WELL-BEING CLIMATE IN THE MOTORHOME ALL YEAR
MALIBU MOTORHOME ADDED VALUE
ROUND! Advantages of Malibu heating and
air conditioning equipment:
Is having a good climate particularly important to you when you are on the move? If so, a Malibu motorhome is the • Winter-proof motorhome with year-round
perfect companion for you! Regardless of the time of year: you will always have a real feel-good climate in the comfort
Malibu. How is that possible? On the one hand, we provide the driver’s cabin area, the technical components, the • Fully insulated double floor, therefore under-
storage compartment and the main cabin door entrance with targeted heating, and on the other hand the heat floor heating effect for warm feet
circulates through the entire double floor. This means that there is always a pleasant climate inside the motor- • High-efficiency insulation thanks to high-
home – even at freezing outside temperatures. And vice versa, when it’s hot outside, the Malibu is nice and cool. quality RTM hard foam insulation core,
Since that which insulates and heats in winter provides perfect protection from the heat in the summer. meaning less energy consumption
• Targeted heating of dashboard front for
Malibu heating and Frequently used standard heating heating the driver’s cabin (A-Class)
air conditioning equipment and air conditioning equipment
• Targeted heating of the technical components
Winter-proof motorhome with Only “suitable for winter use” or condition- protects them from frost
Year-round use year-round comfort ally suitable for comfortable year-round use
• Additional targeted heating of areas that are
The entire double floor is heated with sensitive to cold such as the storage compart-
No heated double floor, separate
Underfloor heating effect a climate storage function and
underfloor heating required
underfloor heating effect as standard ments and the main cabin door entrance in the
living area
Additional warm air outlets throughout Cold-sensitive areas such as door
eating for cold-sensitive
H the vehicle, targeted heating of all tech- entrances, tanks and storage compart- • Optional: ALDE warm water heating
areas nical components and cold-sensitive ments often do not have additional (I/T 460 LE, 490 LE, 500 QB)
locations targeted heating
• Malibu Connect Truma iNet X Pro Panel:
Dashboard with targeted heating with No additional dashboard heating Innovative and digital control panel with
Dashboard heating (A-Class) wide-area heating effect for pleasant therefore greater amount of cold
heat radiation in driver’s cabin radiation from windscreen central access to all built-in devices and main
cabin components incl. colour display with
Malibu Connect Truma iNet X Pro Panel | Touring pack A-Class touch function, Bluetooth and app control
(Touring pack A-Class)
39BIGGEST STORAGE COMPARTMENT IN THE CLASS 40
YOU CAN NEVER HAVE ENOUGH STORAGE SPACE IN A MOTORHOME!
MALIBU MOTORHOME ADDED VALUE
All Malibu motorhomes provide lots of room thanks to the extra-large double floor and many easily accessible
storage compartments, so that your holiday luggage is stowed away safely and neatly in an instant. Bulky
luggage such as camping furniture and skis can be stowed away in an optimum way in the central through-
Advantages of the double floor:
loading storage compartment. Thanks to the LED lighting in the through-loading double floor, you always
have an overview of your luggage. Your Malibu motorhome is easily and conveniently loaded from the outside
• Double floor with huge, heated storage
compartment, usable height up to 48 cm
via numerous large external hatches. The large, self-supporting living area floor hatch in the living and kitchen
• Access from the exterior via several large
area gives you convenient access to the extra deep storage compartments from the interior. And the double
hatches
floor also acts as climate storage to protect your cargo from frost.
• Large, central through-loading space (interior
height 17 cm) with extra-deep double floor
Frequently used standard
Malibu storage space storage compartment (usable height 39 cm),
storage space
also easy to load through the entrance door via
Double floor along the entire length a large, self-supporting living area floor hatch
Equipment double floor with limited use
Double floor type of the vehicle with a usable height
of storage space and less usable height
of up to 48 cm • Interior access via the L-shaped seating area
Multiple exterior access points at driver and the swing-up (I 490 LE, 500 QB) or lift-up
Few or no exterior access points,
and passenger sides with interior access side seat bench (not I 441 LE)
Exterior access via L-shaped lounge seating area and
no interior access to the exterior storage
compartments possible
side seat bench • The entire double floor is heated with a climate
Central through-loading storage No through-loading function due to storage function and underfloor heating effect
Through-loading function compartment over the entire vehicle lack of exterior access points or storage as standard
width in front of the main cabin door compartment that is not continuous
• LED lighting in through-loadable double floor
Two large, lowered living area floor No interior access, storage compart-
Interior access hatches in the entrance and kitchen area ment contains equipment and can only
incl. high quality hinges be used to a limited extent
Thanks to the large amount of storage
Limited amount of storage space and
space and multiple access locations,
Weight balance the weight can be distributed in an
access options only allow even weight
distribution to a limit extent
optimum way during loading
41BIGGEST STORAGE COMPARTMENT IN THE CLASS
Usable height up to 48 cm
1 Large, heated double floor storage compartment (usable
height up to 48 cm) with central through-loading area
(interior height 17 cm)
2 Huge living area floor hatch
in entrance area, also easy to load from the outside when
the main entrance door is open, second living area floor
hatch in kitchen area (usable depth of up to 39 cm)
3 Convenient loading of double floor storage compartment 1 4
at driver side via another large external hatch. Interior
access via L-shaped seating area, swing-up (I 490 LE, 500 QB)
Gas bottle compartment
or lift-up side seat bench (not I 441 LE) as well as via large
living area floor hatch in entrance and kitchen area
1
4 Malibu scooter garage
• L arge interior height, plenty of room for E-bikes, motorized
scooters or bicycles. Load capacity up to 250 kg
• L owered loading edge for easy loading
• Garage
floor with robust GRP covering prevents slipping
and damage
•T
wo standard garage doors for access from both sides
and easy loading and unloading
•W
ith lighting, heating and frost-proof insulation 2 2
• L ashing rails at both sides with flexibly positionable lashing
eyes for easy securing and loading
5 Large additional double floor storage compartment
with separate exterior hatch
42MALIBU MOTORHOME ADDED VALUE
Scooter garage, Optional Malibu Pedelec
load capacity up to 250 kg scooter garage for
queen-size bed models
4 4
120 cm
124 cm
4
5 3
3 3
3
1
2
5
2 5
4 4
43MALIBU PEDELEC SCOOTER GARAGE Pedelec scooter garage with
interior height extension
(Optional for I/T 440 QB, 500 QB)
Will your big bike or Pedelec not fit into the rear garage of your motorhome?
That’s no problem with Malibu – even with queen-size bed models I/T 440 QB and I/T 500 QB.
Malibu has developed a Pedelec solution especially for the requirements of queen-size bed models. Wonderfully simple, simply wonderful – how it works: just push up the
queen-size bed from the outside with a single manual operation, slide the bike into the garage using the optional push-in system, and lower the queen-size bed again.
The Malibu trick: the front wheel of the bike slots into a recess in the floor. Everything securely lashes down – ready to go. The recess in the floor and the underside of the
bed, which can be pushed upwards, create a loading height of up to 124 cm. If no bicycle is being transported, the recess in the floor is covered with a floor panel, creating
a level loading surface. Inside, in the sleeping area, the queen-size bed remains at its low, conveniently accessible height.
441 Easy loading thanks to optional infeed system 2 Loading height extension
MALIBU MOTORHOME ADDED VALUE
Malibu Pedelec scooter garage advantages
1 Optional ramp system for convenient
loading and unloading of bikes
2 Interior height extension of the Pedelec
garage from 112 cm to 124 cm
124 cm
3 Optional transport fixing system makes
secure anchoring possible while travelling
4 Cover panel for floor recess, therefore also
usable as a level loading surface
5 Bike with handlebar height of up to 124 cm
can be transported, no unloading required
for sleeping
6 Queen-size bed in sleeping area with low
and convenient bed access
7 Innovative solution with simple operation
3 Optional transport anchoring system 4 Cover panel for floor recess
124 cm
45FURNITURE CONSTRUCTION WITH DOUBLE CONNECTION TECHNOLOGY
1 Double connection technology 2 High-quality hinges 3 Roller-mounted drawers with self and soft closing mechanism
4 Door handles in household quality 5 Spacious overhead storage cabinets with internal shelf 6 “Modernline” furniture architecture
467 Underlighting with LED lighting technology 8 Curved kitchen worktop
MALIBU MOTORHOME ADDED VALUE
Advantages of high-quality furniture con-
struction with double connection technology:
1
Double connection technology: the furniture
is screwed together and also mortised – for
maximum stability and longevity
2 High quality, robust metal hinges
3 High quality, roller-mounted kitchen drawers
with self and soft closing mechanism
4 Door handles and fittings in household quality
5 Spacious overhead storage cabinets with in-
ternal shelf and microfibre lining for reducing
the noise level while travelling
6 “ Modernline” furniture architecture with
concave curved storage cabinet flaps with
modern avant garde design for a particularly
spacious feeling
Frequently used standard
Malibu furniture construction 7 Elegant under-lighting of kitchen worktops
furniture construction
and floor lighting in the seating area and
Double connection technology - screwed Mainly just screw simple connections, kitchen area for a cosy atmosphere*
Furniture connection and also mortised for maximum stability screws of furniture components
8 Elegant and practical at the same time:
and long lasting furniture construction often visible
curved kitchen work surface for visual
partitioning of the living and kitchen area
High quality and robust metal hinges,
bathroom doors with internal hinges,
Low-cost plastic hinges and and as additional storage area*
Hinges and fittings door handles and fittings in household
fittings as well as exterior hinges
on bathroom doors
quality
Low noise levels while travelling thanks
to high quality furniture construction
Significant noise generation while
(e.g. felt coverings on all furniture
Noise level while travelling connections), hinges in household
travelling due to lack of noise reducing
measures in the furniture construction
quality and microfibre covering in the
overhead storage cabinets
* depending on model 47BEST DRIVER’S CABIN VISIBILITY CONCEPT AMONG THE A-CLASS MOTORHOMES
1 2 30°
3
2,77 m
Malibu visibility concept: View of
road surface after just 2.77 m
Advantages of the driver's cabin
(A-class).
visibility concept:
Competitor models frequently only
1 Best all-round visibility thanks achieve this at 4 to 5 m.
to rear-view bus mirror with large
main mirror and wide-angle wing
mirrors Bus rearview mirror with 2 Extra-low dashboard 3 LED daytime driving lights
1 wide angle reflection
2 Optimal overview in driving
position thanks to active driving,
extra-low dashboard for early
visibility of the road as well as
the deep panoramic windscreen
3 LED daytime driving lights
48MALIBU INTERIOR
INTERIOR
Worlds of living
London (standard) Paris (standard)
Fabric combination Quilted fabric combination
Lisbon (standard) Rome (standard) Santorin (standard) Athen (optional)
Antara fabric combination Antara fabric combination Antara fabric combination Antara fabric combination with micro-leather structure
Ancona 21 (optional) Kairo (optional) Palermo 21 (optional)
Textile leather/fabric combination Textile leather/fabric combination Textile leather/fabric combination
Ivory part leather (optional) Marone part leather (optional) Ivory 21 leather (optional) Macchiato 21 leather (optional)
Leather fabric combination Leather fabric combination
Colour differences from the original are possible for typographical reasons. To make your selection, ask your dealer partner for their sample book. 49MALIBU INTERIOR AND EXTERIOR
Bellagio world of style
Advantages of the Malibu interior:
• Living area upholstery with highly
effective stain protection: fluids
do not penetrate into the fabric.
The majority of stains can be
easily wiped off with a damp cloth
Overhead storage cabinet front panels: high gloss ivory with wooden strips and Overhead storage cabinet bottom: matt ivory • Living area upholstery is hard-
chrome piping
wearing and easy to look after
• Washable curtains and decorative
cushion covers
• Antibacterial mattress cover
• Hard-wearing PVC floor covering
• Excellent anti-fade properties
• Optional: Malibu world of sleeping
& decoration set with up to three
Table and worktop decor: Shale look PVC base: Graphic Stone
decorative cushions (depending on
model), a Jacquard house blanket
Alloy wheels with woven-in Malibu logo and a
fitted sheet set to match the
respective model
Optional: 16" alloy wheels for Fiat Optional: 16" alloy wheels for Fiat
Ducato f35 light chassis Ducato f40 heavy Chassis / f35 light
Chassis in conjunction with automatic
50 transmissionMALIBU TEST & RENT: ENJOY A TEST DRIVE
MALIBU RENTAL
Vehicles are available for renting at the Malibu sales showroom in Aulendorf and many of our trade partners – be it for a one-time holiday experience or
for your first malibu experience. The optimum solution for anyone who is considering purchasing a Malibu vehicle. We would be pleased to advise you and
look forward to seeing you! More information can be found at www.malibu-motorhomes.com
Malibu table and chair set
consisting of two camping chairs
with Malibu logo and a table,
incl. practical carry bag.
51Discover our Malibu motorhomes More information about Malibu can be found at
on our social media channels: www.malibu-motorhomes.com
© Malibu GmbH & Co. KG | Carthago Ring 1 | 88326 Aulendorf | Germany
Tel. +49 (0)7525 / 9200-0
Changes may occur during the model year after the editorial deadline for this printed document in
July 2021. The manufacturer reserves the right to make structural and design changes that become
necessary, provided they are in the interest of technical progress and are reasonable for the cus-
tomer, plus changes to equipment, differences in colour combinations or individual colour shades,
material quality differences and changes to the scope of delivery on the part of the manufacturer.
This also applies to colour differences on basic vehicles, insofar as they are a result of changes
made by the basic vehicle manufacturer. Please consult your dealer for detailed advice concerning
the status of the current product or series.
The information about the scope of delivery, appearance, performance, dimensions and weights
of the vehicles (differences within the scope of the factory tolerances (± 5% max.) are possible and
permissible) corresponds to the state of knowledge at the time of going to print. Please note that
some of the vehicles are depicted with special equipment for which an additional charge applies. In
some cases they are shown with equipment features that do not correspond to the series production
version and are also not available as special equipment. The decoration depicted in the catalogue is
not a constituent of the scope of delivery. More technical information can be found in the price list.
Reprinting of this document, or even extracts thereof, is only permitted if written authorisation
is obtained from Malibu GmbH & Co. KG beforehand. The information in this publication is com-
pliant with the German StVO and StVZO (road traffic and road traffic licensing regulations).
No liability accepted for errors and/or misprints.
1
Please note the Malibu warranty conditions
Printed in GermanyYou can also read
