Measuring Instruments - Catalogue 2019 - MMM tech support
Measuring Instruments

Catalogue 2019

Prices valid after January 15th 2019
All prices of earlier catalogues are no longer valid   EN
Measuring Instruments - Catalogue 2019 - MMM tech support
Catalogue 2019
Contents                                                                                                                                                         Page

 Basics - Irrigation Scheduling                                                                                                                                           1
 Tensiometer                                                                                                                                                          3
        T1 Standard, T2 Heavy Duty , TX fast and robust, TXSU substrate, TX- E loggable, T2 Digital , IR Irrometer®, IR-P Irrometer® , IR-MLT, IR-LT, IR-E
        Spare Parts IR
 Watermark                                                                                                                                                            6
        WM Sensor, as profile probe,                       WM-S-6-VA Volt Adapter for 6 sensors,
                                          new
                                                           WM-HH handmeter - WM-M data logger - IRROmesh wireless data acquisition via radio nodes
 Irrigation Automation                                                                                                                                                8
        Irrigation controller Node, X-Core, I-Core - Electro valves PGV / 9V DC, 24V AC -
        Switching units TXS, IRS - IRS-LT substrates - WS Water Switch - WEM Watermark Electronic Module - iMetos® ICA
 Volumetry TDR / FDR                                                                                                                                                  11
        TDR150 - TDR 350 - FDR Sensors: EC-5 substrate - HS-10 soil - MAS-1 OEM - EC-TM (+ C°),
        EC-TMEC (+ C°+ EC ) - GS-3 substrate (+ C°+ EC) - EC-HH-Pro handmeter - data logger: EM5-LOG - EM50-LOG (+ rain)

 Scholander Chamber                                                                                                                                                  14
        PMS manual - M 600, M 615 < 40 bar - M 1000 < 70 bar - M1505D digital, M1515D < 100 bar - M 1505D-EXP (+ Cavitation Chamber)

 Dendrometer                                                                                                                                                         17
        DD-S shoot and stem - DF fruit - DC-2 stem - DL-18 data logger

 Measurement of Light and Radiation                                                                                                                                  18
        LS-PAR - LS-UV - LS-All hand meter for sensors: UV, Global, PAR - LS-DLI (Daily Light Integral)

 Mini data logger                                                                                                                                                    19
        LOG-T cold chain monitoring - Watch Dog: WD-RT Precipitation and temperature via SigFox,                                      A160 - C°, rel. humidity
                                                                                                                        new
        and CO2 in greenhouses - WD data logger - Watch Dog preconfigured - base unit, sensors
 Now_SMS - warning system                                                                                                                                            21
        Preconfigured: NOS-Frost - NOS-VT for early Potatoes , NOS-KLT Air C°- NOS-Rain - NOS-H2O irrigation // modular: NOS-GG base unit - NOS-sen-
        sors : BT soil C° - DB watering time - HS-10 Vol%/m3 - LT air C° - NTTT Frost - RG rain - RHLT air C°, rel. hum., - TXS switch tensiometer - VT C°
        under fleece - WMS hPa soil
 iMetos - weather station with alert function and more                                                                                                              24
        PPM - Pessl Prognosis Models - iMeteo site specific weather forecast -
        iMetos hardware: iMetos ECO D3, iMetos3, Radio Node, CropView picture transmission
 Suction Lysimeter                                                                                                                                                  28
        Lys - Option Luer connection - IR-Lys - Option low tension ceramic tip

 Nutrient Analysis                                                                                                                                                  29
        Quick tests - Nitrachek - RQFlex - LA pocket meters -                    LA-Set complete case for NO3, K, Ca, Na, pH, EC, NIT-K2 Case - PH-130K -
        NN/K-K2 (+Ammonium + Potassium) - ML-1900                                mobile Mini-Lab - SSPRES Press for Petioles - DSP Adjustable Dosing Pipettes
                                                                new
 pH Measurement                                                                                                                                                     32
        Quick test - pocket meters: PH-TM2, PH-22, SoilStik, IQ PH712 / PH 922 dry storage -
        hand meters: PH-MM1, PH-K12, accessories: PH-KL Standards - PHP instant powder for colored pH-standards
 EC Measurement                                                                                                                                                     34
        Pocket meters: EC-TM1 - EC-TM2 (+TDS, C°) - EC-22
        Hand meters: FSEC in liquids and soil, EC-MM1, EC-K12, PH-EC-MM1, PHEC-K12 (+pH) - ECAK-K12 ( + soil conductivity)
 Accessories                                                                                                                                                        36
        MiniMax C° - FWS radio weather station- WM-HT soil C° -WG Cable Protection Hose - IR-FL Colorant for Tensiometers - BS-100 Soil Probe - AG-BS-
        70 Penetrometer - installation tools: soil sampler: IW-60, PKH - VSH Simplex sledge hammer

 Installation of Sensors                                                                                                                                            38

 GTC                                                                                                                                                                 41
Imprint

Registered office & adress: Weigandufer 18, 12059 Berlin, GERMANY                                                              Phone               +49 (0)30 627 368 66
© 2019 MMM tech support GmbH & Co. KG

Personally liable partner: Mosler Verwaltungs GmbH                                                                             Fax                 +49 (0)30 627 368 67
Managing director: Dr. Christoph Mosler-Teichmann                                                                              eMail:              info@mmm-tech.de
Register court: Amtsgericht Charlottenburg, HRA 47522 B // HRB 145663 B                                                        web:                www. mmm-tech.de
Measuring Instruments - Catalogue 2019 - MMM tech support
Basics - Irrigation Scheduling
General

The exact scheduling of irrigation is very important because:
              • Both, too high and too small water applications result in negative effects on yield, plant health and environment.
              • Nutrient availability and uptake are influenced strongly by soil moisture conditions.
              • Each irrigation event is causing cost.

Benefits of exact irrigation scheduling are therefore                        Example: yield-effect of soil water potential in raspberries
                • increased yield
                • improved quality
                • savings in money and natural resources

Necessary for appropriate irrigation scheduling is:
               • exact determination of irrigation frequency
               • exact determination of irrigation water amount

To collect this information, various approaches are common. Following
some background information, these approaches will be discussed briefly.

                            Soil consists of soil particles (mineral or organic) and the soil pores, which are either filled with water or air. Depending
Soil and Soilwater

                            on the average size of soil particles (soil type), structure, compaction and organic matter content, total pore volume greatly
                            varies from soil to soil. Total pore volume is key factor for water storage capacity of any soil.

                            The narrower the diameter of water filled pores, the stronger the force with which water is bound by soil, and plants have
                            to apply more energy to extract it. This force is called soil water potential or soil water suction.

The term fieldcapacity refers to the amount of water a soil can hold back against gravity (the soil water content at a soil water potential of approx.
60 hPa or pF 1,8). Plant usable fieldcapacity is the amount of water, bound in soil with a soil water potential between 60 (pF 1,8) and 15 000 hPa
(pF 4,2), i.e. Plant usable field capacity equals field capacity minus the water, which is bound so strongly in soil, that it can not be taken up by plants
any more. (non plant available water).

Due to above described circumstances the amount of plant available soil water is varying strongly between soils. Example: Plant available water of
a typical sand ranges between approx. 5 and 15% absolute water content, while plant available water of a typical clay soil ranges between approx.
30 and 50% water content.

Irrigation scheduling Approaches

This approach measures the soil water potential as indicator of water availability for plant uptake in soils. Measuring soil water potential provides in-
A - Measurement of Soil Water Potential

formation on the force with which water is bound by soil (= energy plants have to apply to extract it), but it gives no information on the amount of
water contained in this soil. Common measurement units for soil water potential are hPa (1 hPa = 1 mbar) and kPa (1 kPa= 1 Centibar = 10 hPa /
mbar).

                     web www.mmm-tech.de                                            eMail info@mmm-tech.de                                               1
Basics
Measuring soil water potential is the classical approach of irrigation scheduling. It is possible to transfer values of soil water potential from soil type
to soil type, i.e. it is of minor importance in which soil a measurement is taken. For example a measured soil water potential of 150 hPa results in
the same information weather this measurement has been taken in a sand or in a clay soil. Clearly defined optimum ranges do exist for all major
crops, and crop development stages, which are valid for all soil types. For best results three measurement sites, each in two depth are recommended
per irrigation unit..

Tensiometer and Watermark Sensor are instruments to measure soil water potential. Tensiometers yield very accurate results in the moist end of
the range (0 to approx. 800 hPa), and are successfully used in almost all growing systems and crops, grown in mineral soil and substrates. Tensio-
meters show best results in drip irrigation systems.

Good irrigation scheduling results in optimal
moisture conditions and nutrient availability in
the whole main root-zone, without losses due to
deep percolation.

                                                    Pictures: blue: - too wet; green - optimal moisture; orange / red - too dry

This approach uses instruments to measure the volumetric water content of soil. It yields information on the total water content, including the not
B - Measurement of Volumetric Soil Water Content

plant available part of it in a given unit of soil. This approach provides no information on the energy which is necessary to extract water from this soil.
Common units in volumetric measurement are mm, Vol. % or liter of water per liter or m³ of soil

Volumetric measurement values can not be transferred between different soil types. Example: The measurement result of 30% water content would
mean for a sand saturation (soil water potential approx. 10 hPa or pF 1,0), while a silty soil would show a soil water potential of approx. 300 hPa or
pF 2,5. A clay soil at 30% water content would be close to the permanent wilting point (soil water potential approx. 15000 hPa or pF 4,2).

TDR Fieldscout and FDR ECH2O Sensor are instruments to measure the volumetric soil water content. Volumetric probes and measurement in-
struments are the ideal tool to answer the question how much water to apply per gift.

This approach measures directly the leaf- or stem water potential, the tension of the xylem water
C - Measurement of Leaf- and Stem Water Potential

in a plant, with a Scholander pressure chamber. It provides direct information on the water status
of a plant, and thus on water availability in the whole rooted zone of this plant. Common measure-
ment units are MPa and bar. (1 MPa = 10 bar)

Values from measurements with a Scholander chamber can be transferred between sites. Clearly
defined optimum ranges do exist mainly for trees and vines. The measuring process itself however
is labour intensive and can not be automated. Scholander chambers are most commonly used in
grape production and research.
                                                                                                                   1. Xylem water column in a plant is always under tension
                                                                                                                   2. When cut, water column retreats into leaf

The climatic water balance (also Geisenheimer Methode) is an indirect approach. Based on environmental data, the potential evapotranspiration (=
D - Climatic Water Balance

transpiration of plants + evaporation from soil) is calculated for a specific area and time period (most common formula: Penman-Monteith). In a
second step, this value is corrected with an empirical factor Kc (Kc determined by crop and development stage) to the actual evapotranspiration.
Finally eventual rainfall is subtracted.

The climatic water balance yields information on the water loss in mm over a given period of time. The calculation must be performed for every in-
dividual field and crop. For most crops and crop development stages various Kc correction factors do exist. Some of the iMetos automatic weather
station models offer an automated climatic water balance.
                                      Example:

© Copyright Text and Pictures: Dr. C. Tino Mosler

2             Phone +49 (0)30 627 368 66                                                   Fax +49 (0)30 627 368 67
Tensiometer
Tensiometers are ideal for irrigation scheduling of drip irrigation systems, and are field approved since many decades.
General

A tensiometer offers many advantages for irrigation scheduling:                                      • Easy interpretation of values
Advantages

     • Low cost                                                                                      • Result is valid for all soil types
     • Very accurate measurement value, even at low soil water potentials                            • Result not influenced by EC value of soil solution

strawberry and softfruit, vegetables, asparagus, hops and fruit trees in open field, tunnels and glasshouses. tree- and grape-nurseries, scientific applications
Typical Applications

T1 Standard                                                                                                                    Video

Manometer with self-explanatory colour coding for fast and easy interpretation of measurement value also by unskilled la-
ideal for protected cultivation
bour. The silicone seal guarantees an air-tight connection and enables easy re-filling in field.

Typical Applications                                           Technical Data
Strawberry                     Asparagus in tunnels            Unit           mbar (= hPa)
Softfruit                      glasshouses                     Range          0 - 600 mbar /hPa soil water potential
Vegetables                     also in open fields             Accuracy       Class 1,6 (±1,6 % max.)
Spare parts                                                    Seal           Always airtight silicone seal
Art.-No.      Article                           Price EUR*
                                                               Shaft:         OD 16 mm, ID 12 mm, Wall 2 mm
T1-S-20       T1 Shaft 20 cm                          13,50    Ceramic tip.   5 cm
T1-S-30       T1 Shaft 30 cm                          14,60
T1-S-50       T1 Shaft 50 cm                          15,60    T1- read from side                                              T1 - read from top
T1-S-60       T1 Shaft 60 cm                          16,60     Art.-No.     Article                            Price EUR*      Art.-No.      Article                          Price EUR*
T1-S-90       T1 Shaft 90 cm                          18,70     T1-v-20      T1 20 cm shaft length                   31,20      T1-q-20      T1 20 cm shaft length                  33,30
T1-M-v        Manometer read from side                22,90     T1-v-30      T1 30 cm shaft length                   32,25      T1-q-30      T1 30 cm shaft length                  34,30
T1-M-q        Manometer read from top                 25,00     T1-v-50      T1 50 cm shaft length                   33,30      T1-q-50      T1 50 cm shaft length                  35,40
T-MCAP-v      protection cap T1-v, T2-v, TX            4,10     T1-v-60      T1 60 cm shaft length                   34,30      T1-q-60      T1 60 cm shaft length                  36,40
T-MCAP-q      protection cap T1-q, T2-q                4,10     T1-v-90      T1 90 cm shaft length                   36,40      T1-q-90      T1 90 cm shaft length                  39,50
T2 Heavy Duty                                                                                                                  Video

Easy maintenance due to heavy duty shaft with high water volume and always airtight silicone cap. Manometer with self-
ideal for open fields
explanatory colour coding for fast and easy interpretation is protected by a cap against moisture and shocks.

Typical Applications           in tunnels                      Technical Data
Strawberry                     glasshouses                     Unit           mbar (= hPa)
Softfruit                      tree- and grape nurseries       Range          0 - 600 mbar /hPa soil water potential.
Vegetables                     hops                            Accuracy       Class 1,6 (±1,6 % max.)
Asparagus in open fields       fruit trees                     Seal           always airtight silicone cap
Spare parts                                                    Shaft          OD 22 mm, ID 16 mm, Wall 3 mm
Art.-No.      Article                            Price EUR*    Ceramic tip    5 cm
T2-S-20       T2 Shaft 20 cm                          22,90
T2-S-30       T2 Shaft 30 cm                          23,90
T2-S-50       T2 Shaft 50 cm                          25,00    T2 - read from side                                             T2 - read from top
T2-S-60       T2 Shaft 60 cm                          26,00     Art.-No.     Article                            Price EUR*      Art.-No.      Article                          Price EUR*
T2-S-90       T2 Shaft 90 cm                          28,10     T2-v-20      T2 20 cm shaft length                   43,70      T2-q-20      T2 20 cm shaft length                  45,80
T2-M-v        Manometer read from side                26,00     T2-v-30      T2 30 cm shaft length                   44,70      T2-q-30      T2 30 cm shaft length                  46,80
T2-M-q        Manometer read from top                 28,10     T2-v-50      T2 50 cm shaft length                   45,80      T2-q-50      T2 50 cm shaft length                  47,80
T-MCAP-v      protection cap T1-v, T2-v, TX            4,10     T2-v-60      T2 60 cm shaft length                   46,80      T2-q-60      T2 60 cm shaft length                  48,90
T-MCAP-q      protection cap T1-q, T2-q                4,10     T2-v-90      T2 90 cm shaft length                   48,90      T2-q-90      T2 90 cm shaft length                  51,00
TX fast and robust
Tensiometer TX is an innovative, almost maintenance free Tensiometer with unmatched fast reaction to changing soli water potentials. The Manometer is read from top, has a self-explanatory
High class Tensiometer
color coding is protected from water and external shock. Two versions available: TX6 with the measurement range 0-600 hPa and TX10 with the measurement range 0-1000 hPa.
Typical Applications            TX10: Overhead Irrigation Technical Data                                                      Manometer       Class 1,6 (±1,6% max.)
TX6: Drip Irrigation systems, and Drip Systems: Aspara- Unit                    mbar (=hPa)                                   Seal            Thread Cap
Strawberries, Softfruit, Veget- gus, Potatoes, Fruittrees, Range                TX6 0-600 hPa                                 Shaft           OD 22mm, ID 16mm, Wall 3mm
ables, in Tunnels and Glas- Tree and Grape Nurseries,                           TX10 0-1000 hPa Soil water potential          Ceramic Tip     5cm
houses also in Substrates       Hops
Spare Parts
Art.-No.      Article                            Price (EUR)
TX-SP         Service Pump for TX                      7,50
TS-S-20
TX-S-20       TX Shaft 20cm                           36,40
TS-S-30
TX-S-30       TX Shaft 30cm                           37,40
TS-S-50
TX-S-50       TX Shaft 50cm                           38,50
TS-S-60
TX-S-60       TX Shaft 60cm                           39,50    TX6 – 0-600 hPa                                                 TX10 – 0-1000 hPa
TS-S-90
TX-S-90       TX Shaft 90cm                           41,60     Art.-No.     Article                            Price (EUR)     Art.-No.      Article                          Price (EUR)
TX6-M         TX Manometer 0-600 hPa                  26,00     TX6-20       TX6 - 20cm shaft length                 56,10      TX10-20      TX10 – 20cm shaft length               56,10
TX10-M        TX Manometer 0-1000 hPa                 26,00     TX6-30       TX6 – 30cm shaft length                 57,20      TX10-30      TX10 – 30cm shaft length               57,20
TX-CAP        thread cap with o-ring                   1,95     TX6-50       TX6 – 50cm shaft length                 58,20      TX10-50      TX10 – 50cm shaft length               58,20
T-MCAP-v      protection cap T1-v, T2-v, TX            4,10     TX6-60       TX6 – 60cm shaft length                 59,30      TX10-60      TX10 – 60cm shaft length               59,30
TX10-MCAP     TX10 Gauge protection cap                4,10     TX6-90       TX6 – 90cm shaft length                 62,40      TX10-90      TX10 – 90cm shaft length               62,40

                        web www.mmm-tech.de                                                                     eMail info@mmm-tech.de                                                  3
Tensiometer                                                                                                                     *all prices ex Berlin, plus VAT and transport

TXSU
                                                                The TXSU is an adjustable, extra sensitive, high resolution Tensiometer, which has been developed specifically for the
Tensiometer for Substrates
                                                                use in Substrate culture. The measurement range is between 0 and 250 hPa water potential, the Manometer shows MMM’s
                                                                well approved self-explanatory color coding which has been specifically adapted to Substrates. Standard measurement
                                                                depths (shaft length) are 15 and 20cm (other length available on request). The specialty of the TX Substrate Tensiometer
                                                                is the front side zero correction of its gauge, eliminating issues with damaged manometers.
                                                                Typical Applications                                             Technical Data
                                                                All Crops grown in Substrates, Pots, Growbags, Substrate Unit                   mbar (=hPa)
                                                                troughs                                                          Range          0 – 250 hPa
                                                                  Art.-No.      Article                             Price (EUR)  Manometer:     Capsule gauge with zero correction (front)
                                                                 TXSU-15 Substrate Tensiometer 15 cm                      95,00 Accuracy        Class 1,6 (±1,6 % max.)
                                                                 TXSU-20 Substrate Tensiometer 20 cm                      95,50 Seal            Thread Cap
                                                                                                                                 Shaft          OD 22 mm, ID 16 mm, wall 3 mm
                                                                 Spare Parts
                                                                                                                                 Ceramic tip.   5 cm
                                                                 TXSU-M         TXSU capsule gauge 0-250 hPa              63,00
TX-E
                                                                TX-E is an electronic TX Tensiometer for data-logging, offering a linear Voltage Signal . Therefore TX-E can be used with
Tensiometer with linear Voltage Signal
                                                                every Data logger, which can read a Voltage Signal.
                                                                Typical Applications: Datalogging in Fruit, Vegetables, Ornamental Plants, Potatoes and other Crops
                                                                Technical Data
                                                                Unit             mbar (=hPa)                                                    5mV = 1 hPa)
                                                                Measurement: Relative Pressure (low Pressure against Power:                     9 to 25 VDC,
                                                                                 Atmosphere)                                                    with option TX-EL: 2,5 to 9 VDC
                                                                Range            0 – 1000 hPa                                  Cable:           3m
                                                                Accuracy         ±0,5 % over full range                        Seal             Thread Cap
                                                                Resolution:      1 hPa / mbar                                  Shaft            OD 22 mm, ID 16 mm, wall 3 mm
                                                                Signal:          0 to 5 VDC (0 V = 0 hPa; 5 V = 1000 hPa; Ceramic tip.          5 cm
                                                                TX-E without analogue gauge                                   TX-E with analogue gauge
                                                                 Art.-No.     Article                            Price (EUR)   Art.-No.       Article                          Price (EUR)
                                                                TX-E-20      20 cm length, w/o manometer             155,00    TX-EM-20       20 cm length, w/ manometer           176,00
Spare parts                                                     TX-E-30      30 cm length, w/o manomete              156,00    TX-EM-30       30 cm length, w/ manometer           177,00
Art.-No.      Article                             Price (EUR)   TX-E-50      50 cm length, w/o manometer             157,00    TX-EM-50       50 cm length, w/ manometer           178,00
TX-ES         electron. press. transducer 0-5 V       125,00    TX-E-60      60 cm length, w/o manometer             158,00    TX-EM-60       60 cm length, w/ manometer           179,00
TX-EL         2,5 – 9 VDC supply (surcharge)           22,50    TX-E-90      90 cm length, w/o manometer             160,00    TX-EM-90       90 cm length, w/ manometer           181,00

T2 Digital
                                                                Tensiometer with digital manometer. Press button to activate display. Read from top. Button press 1x displays measurement
Robust Solution with Digital Readout
                                                                value (3-digit number), press 2x change measurement unit, press 3x displays battery status. Auto-off after 10 seconds of
                                                                inactivity.
                                                                Technical Data                                                  Temperature compensation 0 - 40 °C,
                                                                Unit             mbar (=hPa) / kPa (=centibar) / psi                             working temperature 5 - 50 °C
                                                                Range            0 - 750 mbar in 1 mbar steps                   Battery          Lithium 3V CR 2032, Lifetime min. 30.000
                                                                Accuracy         10 mbar /hPa.                                                   Cycles
                                                                                                                                Safety           CE approved, IP 55
                                                                T2 Digital- read from top                                       Spare parts
                                                                Art.-No.      Article                            Price EUR*     Art.-No.      Article                          Price EUR*
                                                                T-BL         Blumat digital 18 cm shaft length        31,20    T2-dS-20       T2 digital Shaft 20 cm                 25,00
Typical Applications            in tunnels                      T2-d-20      T2 digital 20 cm shaft length            54,10    T2-dS-30       T2 digital Shaft 30 cm                 26,00
Strawberry                      in glasshouses                  T2-d-30      T2 digital 30 cm shaft length            55,10    T2-dS-50       T2 digital Shaft 50 cm                 27,00
Softfruit                       tree- and grape nurseries       T2-d-50      T2 digital 50 cm shaft length            56,10    T2-dS-60       T2 digital Shaft 60 cm                 28,00
Vegetables                      hops                            T2-d-60      T2 digital 60 cm shaft length            57,20    T2-dS-90       T2 digital Shaft 90 cm                 30,10
Asparagus in open fields        fruit trees                     T2-d-90      T2 digital 90 cm shaft length            59,30    T2-M-d         T2 digital manometer                   30,20

Irrometer® IR Irrometer®
IR Irrometer®                                        Video

                                                                Tensiometers manufactured by Irrometer® meet highest expectations and have been continously optimized for more than
                                                                Tensiometer of highest standards
                                                                50 years. The manometer is shock- and waterproof encapsuled, and read conveniently from top. The shaft offers an inte-
                                                                grated water reservoir for easy replacement of lost water in field. The ceramic tip is exchangeable.Irrometer Service pump,
                                                                respectively Service & Test pump, is a highly recommended accesory. If the Tensiometer is filled air-free with water for
                                                                use, it reacts to changes in soil water potential extrafast.
                                                                Technical Data                                                   Typical Applications
                                                                Unit               Centibar (= kPa)                              Strawberry                     in tunnels
                                                                Range              0 to 100 Centibar / kPa soil water potential Softfruit                       in glasshouses
                                                                Seal               Threaded cap with Reservoir                   Vegetables                     hops
                                                                Shaft              OD 22 mm, ID 12 mm, Wall 5 mm                 Asparagus in open fields       fruit trees
                                                                Ceramic tip        7 cm                                                                         tree- and grape nurseries.
                                                                                                                                 Accessories & Spare parts
                                                                Art.-No.      Article                            Price EUR*     Art.-No.      Article                          Price EUR*
 IR-SP                  IR-TP                                   IR-15        Irrometer 15 cm shaft length             90,00    IR-SP          Service Pump without manometer         65,00
                                                                IR-30        Irrometer 30 cm shaft length             93,00    IR-TP          Service & Test Pump with m.            98,00
                                                                IR-45        Irrometer 45 cm shaft length             97,00     Spare Parts
                                                                IR-60        Irrometer 60 cm shaft length            100,00    IR-KS          Irrometer ceramic tip                  13,50
                                                                IR-90        Irrometer 90 cm shaft length            105,00    IR-M           Irrometer manometer                    36,40

4          Phone+49 (0)30 627 368 66                                                                         Fax +49 (0)30 627 368 67
*all prices ex Berlin, plus VAT and transport                                                                                                                Tensiometer
IR-P Irrometer®
Unlike other models by Irrometer which are intended for permanent installation, the Model “P” is designed to be installed in a temporary situation so that the user
mobile tensiometer for maximal flexibility
can make a “spot check” of soil water tension and then relocate the instrument to other locations. A reading takes under normal conditions only 5 minutes appro-
ximately. Apart from this, model LT shows identical advantages like the standard model, and is made to meet highest standards.

Typical Applications
Consultants, Measurement at numerous different locations                                                                                                 Video
Technical Data                                                          Seal             Threaded cap with reservoir
Unit           Centibar (= kPa)                                         Shaft            OD 22 mm, ID 12 mm, Wall 5 mm
Range          0 to 100 Centibar / kPa soil water potential             Ceramic tip      7 cm
Art.-No.       Article                                                                                               Price EUR*
IR-P-30        mobile Irrometer 30 cm measurement depth, service pump, soil auger                                        319,00
IR-P-EXT       extension tube for Modell P for measurements in 60cm depth                                                 39,00

IR-MLT - Miniature Tensiometer                                                                                                    Video

Irrometer Tensiometer Modell MLT are built with a special „Low Tension“ Ceramic, which is especially sensitive and fast
Optimal for Substrates & Growbags
reacting under low tension conditions. Further the instrument has a Manometer with fine resolution (0 to 40 kPa). The Ten-
siometer offers minimal dimensions and is light-weight therefore it is optimal for measuring in small pots and growbags.
Technical Data
Unit       Centibar (= kPa)                                    Ceramic tip       length 3,5 cm, reacts sensitive and fast
Range 0 to 40 Centibar / kPa soil water potential                                under low tension conditions
Shaft      Length / measurement depth 12cm, OD 10 mm
                                                               Spare parts
                                                                         Art.-No.     Article                        Price EUR*                                  Typical Applications
Art.-No.       Article                                  Price EUR*      IR-MLT-S      MLT Shaft                           26,00                                  Substrates
IR-MLT         Mini-Tensiometer 12 cm                         72,00     IR-MLT-M      MLT manometer 0 to 40 kPa           48,00                                  Growbags and Pots

IR-LT Irrometer®
Irrometer Tensiometers Model LT feature a special „Low Tension“ Ceramic tip and a high resolution Manometer. Due to
tensiometer for substrates and low tension measurements
the ceramic, which is reacting extra sensible also under low soil water tension, is this model especially suitable for Sub-
strates. Apart from this, model LT shows identical advantages like the standard model, and is made to meet highest stan-
dards. Recommended accessory: Irrometer Service Pump
Typical Applications
Strawberry, Softfruit, Vegetables, Asparagus in open fields, in tunnels, in glasshouses. fruit trees, hops, tree- and grape
nurseries.

Technical Data                                                          Seal             Threaded cap with reservoir
Unit           Centibar (= kPa)                                         Shaft            OD 22 mm, ID 12 mm, Wall 5 mm
Range          0 to 40 Centibar / kPa soil water potential              Ceramic tip      Low Tension - 7 cm
                                                                                                                                  Spare parts - other parts please see IR Irrometer
Art.-No.       Article                                                                                               Price EUR*   Art.-No.     Article                           Price EUR*
IR-LT-15       Irrometer Tensiometer, low tension                                               15 cm shaft length       100,00   IR-LT-KS    ceramic tip low tension                   20,00
IR-LT-30       Irrometer Tensiometer, low tension                                               30 cm shaft length       103,00   IR-LT-M     manometer 0 to 40 kPa                     50,00

All Irrometer models (standard, LT and MLT) are now available with an electronic pressure-transducer instead of the ana-
IR-E Irrometer with linear Voltage-Signal
logue manometer. Every IR-E Tensiometer model can be logged with a Watermark Monitor Datalogger with extension
board.
 Technical Data
 Measurement Unit        cbar (=kPa)                          Signal:          0,5 to 4,5 VDC, linear (0,5 V = 0 kPa; 4,5
 Measurement             low pressure against atmosphere                       V = 94 kPa)
 Measurement Range 0 – 94 kPa                                 Supply Voltage: 5 VDC
 Resolution:     1 kPa                                        Cable:           90cm
Art.-No.       Article                                                                                               Price EUR*
IR-E-15
 IR-E-15        Irrometer with E-pressure transducer, 15cm                                                               155,00
 IR-E-30
IR-E-30         Irrometer with E-pressure transducer, 30cm                                                               158,00
 IR-E-45
IR-E-45         Irrometer with E-pressure transducer, 45cm                                                               161,00
 IR-E-60
IR-E-60         Irrometer with E-pressure transducer, 60cm                                                               164,00
 IR-E-90
IR-E-90         Irrometer with E-pressure transducer, 90cm                                                               169,00
 IR-E-LT-15
IR-E-LT-15      Irrometer LT with E-pressure transducer, 15cm                                                            169,00
 IR-E-LT-30
IR-E-LT-30      Irrometer LT with E-pressure transducer, 30cm                                                            172,00
IR-E-MLT
 IR-E-MLT       Mini Irrometer with E-pressure transducer, 12cm                                                          130,00
 M0-T
M0-T            Watermark Monitor Datalogger* with extension board for IR-E                                              679,00
 IR-RSU-V
IR-RSU-V        Spare part: Irrometer E-Sensor / pressure-transducer for IR-E, IR-E-LT                                   105,00
 IR-E-CAB
IR-E-CAB        Cable extension for IR-E, IR-E-LT Tensiometer, per meter                                                   3,20
* Description of Monitor Datalogger please refer to Chapter Watermark

Spare Parts for ALL tensiometer models of Irrometer®
Art.-No.       Article                                  Price EUR*      Art.-No.      Article                        Price EUR*    Art.-No.    Article                            Price EUR*
IRS-15         Irrometer Shaft 15 cm                          57,00     IRS-60        Irrometer Shaft 60 cm               67,00   IR-CAP   threaded cap with stopper                    11,00
IRS-30         Irrometer Shaft 30 cm                          60,00     IRS-90        Irrometer Shaft 90 cm               72,00   IR-STOP stopper for cap, 10 pcs.                      13,00
IRS-45         Irrometer Shaft 45 cm                          63,00                                                               IR-ORING O-Rings for Irrometer, 10 pcs.                7,00

                         web www.mmm-tech.de                                                                         eMail info@mmm-tech.de                                               5
Watermark
  The use of Watermark Granular Matrix Sensors is specifically recommended for situations with longer time lags between water applications, i.e. in
  General

  situations with higher fluctuation of soil moisture, for example in cases like irrigation by irrigation machines or in crops which need some degree of
  dry stress or which are generally cultivated at the drier end. Besides the read-out equipment by Irrometer, Watermark Sensors also can be easily
  incorporated in complex data collection systems. For details please see chapters Now-SMS and iMetos.

  Watermark Sensors measure soil water potential between 0 and 200 Centibar (0-200 kPa), are maintenance free and frost proof, and are buffered
  Advantages

  against varying salt content (EC value) in soil solution. Interpretation of data is easy, since measurement result is valid for all soil types. Watermark
  Sensors are durable and low cost, offer an accurate measurement result and have been field approved since decades.

  Watermark Sensors consist of two electrodes, which are embedded in a special granular matrix. The sensors are protected by a stainless steel
  Working Principle

  cover. Surrounding soil and the granular matrix inside a Watermark Sensor come to an equilibrium of soil water potential. The granular matrix has
  a varying resistance to electrical power (AC), depending on it’s moisture content. This resistance is converted by the readout meter into soil water
  potential (unit Centibar).

  Watermark Sensor - by Irrometer®
                                                        The Watermark Sensor is a robust, user-friendly sensor, maintenance free, frost proof and buffered against varying salt
  the maintenance free sensor
                                                        contents of soil solution. The cable can be spliced up to a total length of 100m.
                                                        However its reaction time to soil moisture variations is somewhat slower than tensiometer or volumetric sensors. Interpre-
                                                        tation of data is easy, since measurement result is given in Centibar (soil water potential), valid for all soil types.

                                                        Technical Data                                                    Typical Applications
                                                        Unit           Centibar / kPa                                      vegetables, asparagus,            arable agriculture, seed
                                                        Range          0-200 Centibar soil water potential                 softfruit, vineyards, tree        production, golf-, garden-
                                                        Temp. compensation          by read-out devices                    crops, hops, potatoes,            and landscape irrigation,
                                                                                                                           sugar beet,                       glasshouses
           Video
                                                         Art.-No.       Article                              Price EUR*
                                                         WM-S-0         Watermark Sensor , 5 cm cable             43,30
                                                         WM-S-15        Watermark Sensor, 1,5 m cable             44,80
                                                         WM-S-30        Watermark Sensor, 3 m cable               46,35
                                                         WM-S-45        Watermark Sensor, 4,5 m cable             47,90    Accessory PVC tube for Watermark Sensors
                                                         WM-S-60        Watermark Sensor, 6 m cable               49,50    WMHR-60 Tube for WM-S, length 60 cm                        3,30
                                                         WM-S-100       Watermark Sensor, 10 m cable              53,05    WM-HR-XX PVC tube- per 10 cm of length                     0,55

  ...as Profile Probe
                                                        Watermark Sensors are now also available as profile probe tor measuring multiple soil layers at only one spot, thus enabling
  for multiple depths
                                                        the monitoring of soil water potential over a complete soil profile.
                                                        Technical Data and Typical Applications please refer to Watermark Sensor above

                                                                                     Art.-Nr.     Article                                                                       Price EUR*
                                                                                     WM-3S
                                                                                     WM-3S        3 Watermarks as profile probe, Measurement 15-30-60cm, 3m Cable    185,00
                                                                                     WM-4S
                                                                                     WM-4S        4 Watermarks as profile probe, Measurement 15-30-60-90cm, 3m Cable 235,00

     Watermark Sensor voltage adapter - by Irrometer®
NEW ideal
                                                        Watermark-Voltage adapters are available in a version for one sensor and also for six sensors. The adapter converts the
          for OEM applications

                                                        signal of Watermark Sensors into a linear Voltage signal (0 – 3 V), allowing Watermark sensors to be integrated in auto-
                                                        mation and data logger systems from many other manufacturers very easily.
            Logger                          12V DC

                                                        Technical Data                   WM-S-VA                           WM-S-6-VA                    Typical Applications
                                                        Sensor slots                     1 WM-S + 1 WM-BT                  6 WM-S + 1 WM-BT             Use of Watermark Sensors with
                                                        Unit                             Centibar / kPa                    Centibar / kPa               Dataloggers and Irrigation con-
                                                        Range                            0-239 kPa                         0-239 kPa                    trollers of non-Irrometer brand.
                                                        Signal:                          0 – 3 Volt linear                 0 – 3 Volt linear
                                                        Temp. compensation               automatic, if soil temperature sensor available
                                                        Supply Voltage                   3,3 - 30 VDC (1,5 mA)12 VDC (10 mA)
                                                        Protection class                 IP67                              none
                                                        Dimensions/Weight                3 x 3,5 x 2cm, 60g                14 x 8,3 x 4,2cm, 123g
            Sensors not included in scope of delivery
                                                         Art.-No.       Article                                                    Price EUR*
                                                        WM-S-VA Watermark Volt Adapter for 1 sensor, 40 cm cable                        56,50
                                                        WM-S-6-VA Watermark Volt Adapter for 6 sensors                                 249,00
                                                         Spare parts / Accessories
                                                        WM-BT          Sensor for Soiltemp. for WM-S-VA, 4,5 m cable                     48,00
                                                        WM-S           Watermark Sensor - see above                                       s. o.

            Hint: Installation tools for watermark sensor                                                      please see chapter Accessories

  6        Phone +49 (0)30 627 368 66                                                                       Fax +49 (0)30 627 368 67
*all prices ex Berlin, plus VAT and transport                                                                                                     Watermark
Handmeter by Irrometer®                                                                                                                              Video
for Watermark Sensors
Robust solid state alternating current resistance bridge handheld meter to read any amount of Watermark Sensors. Offers
a splash proof key-pad operating panel and manually adjustable temperature compensation for varying soil temperatures.
Display in Centibar.
Technical Data
Sensor connection           Cable with clips allows readout of unlimited number of sensors
Temp. compensation          automatic, according to user-set soil temperature
Display                     LCD, Centibar
Power                       battery 9 V
Typical Applications
extension services, risk of theft & vandalism, vegetables, asparagus, softfruit, vineyards, tree crops, hops, potatoes,
sugar beet, arable agriculture, seed production, golf-, garden- and landscape irrigation

Art.-No.       Article                                                                                           Price EUR*
WM-HH         Handmeter to read any number of Watermark Sensors                                                      285,00
Spare parts / Accessories
WM-HT   Soil digital piercing thermometer to use with WM -HH                                                          22,50
WM-HH-K replacement cable for handmeter                                                                               29,50

Watermark Monitor
Datalogger by Irrometer®
Watermark Monitor is a reliable, robust and easy to use datalogger. Can read up to 8 sensors. Either soil moisture, tem-
perature, Volt, 4-20 mA, Rainfall or switch closure sensors (irrigation time) can be used. The logger reads automatically
Watermark Sensors at user-defined intervals and records measurement data.

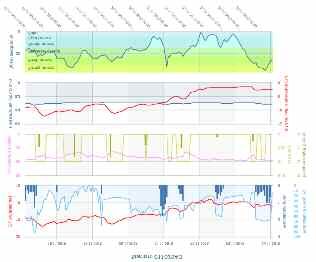

Includes WaterGraph software for operation and graphical display of readings.

Technical Data                                                                                   Typical Applications
External Sensors                8 Channels                                                       vegetables
Temp. compensation              automatic, if soil temperature attached                          asparagus and softfruit
Display                         LCD - current sensor readings                                    vineyards
Logging interval                user adjustable between 1x per minute and 1x per day             tree crops
Power                           9V battery, lifespan 6 month to 1 year                           hops
Internal memory                 170 days @ logging interval 1 hour                               potatoes, sugar beet
Communication                   USB interface, cable included                                    arable agriculture
Software                        German / English / Polish / Hungarian, Export of data to other   seed production
                                software (EXCEL) possible                                        research

Art.-No.       Article                                                                                           Price EUR*
WM-MK         Monitor incl. 7 Watermark sensors, 1 sensor for soiltemp., software, serial cable                      885,00
Spare parts / Accessories
WM-M0   Monitor without sensors, software, serial cable                                                              549,00
WM-BT   Sensor for soil temperature to use with Watermark Monitor datalogger, 4,5 m cable                             48,00
WM-M-RG Raingauge for WM Monitor, Resolution 0,2mm                                                                   175,00

IRROmesh
wireless mesh network and data-aquisition system for soil moisture, soil temperature and rainfall, which is able to manage
solar powered wireless data-acquisition with intelligent radio communication
up to 20 data-nodes, i.e. up to 60 Watermark Sensors and 20 sensors for soil temperature. Data are available either via a
data logger, or can be transferred to the Irromesh web portal (web portal is free the first month, after this monthly fee ap-
plies).
Each data-node (WM-975-N) is working at the same time as data-acquisition device, transmitter and repeater for other
data-nodes in the mesh system. Its 6 sensor ports are equipped with 3 Watermarks (WM-S), 1 sensor for soil temperature
(WM-BT) as standard. Optionally a rain gauge (WM-975-RG) and a pressure switch for recording irrigation run time (NOS-
DB) can be attached to each node.
The logged data are received by the Irromesh base (WM-975-B) and can be transferred either to a local data logger (WM-
975-L) or via a GSM gateway (WM-975-G) to the Irromesh web portal. If the base of the Irromesh network is in reach of
a computer with internet access, data can also be continuously streamed via PC-link (WM-975-P) to the Irromesh web
portal (WM-975-WEB). The portal offers online data storage, data management and data display in real time and additional
tools. The use of Irromesh web portal is free during the first month, after this, a monthly fee applies (payment: online by
credit-card).
Due to intelligent radio communication the system features:

 SELF-INITIALIZING – Nodes power up with initial sun exposure and associate themselves with the base receiver
                                                                                                                                200 ha max.
 SELF-ROUTING – Nodes route communication for maximum efficiency
 SELF-HEALING – Nodes will re-route themselves in case of network obstruction or interference.
 AUTOMATICALLY MANAGES POWER – Data transfer frequency reduces under no light conditions and will re-establish itself with sufficient sunlight

                         web www.mmm-tech.de                                                                    eMail info@mmm-tech.de                       7
Watermark / Automation                                                                                                              *all prices ex Berlin, plus VAT and transport

(continuation of Irromesh)                                       Technical Data
                                                                 Power             No Batteries Required – Solar Panels on two sides
                                                                 Sensors           per node: up to 3x Watermark Sensor, 1x Soil temperature, 1x Raingauge,
                                                                                   1x Switch closure for irrigation runtime
                                                                 Data transmission License free radio communication (868 MHz), up to 350m
                                                                 Data output       per datal logger (USB Cable) or per GSM gateway / PC Link (fee applies)
                                                                 Data Export       to other software (example: EXCEL) possible
                                                                 Typical Applications
                                                                 vegetables in open field, asparagus, softfruit, vineyards, tree crops, hops, potatoes, sugar beet, arable agriculture, seed
                                                                 production, science & research

                                                                 Complete bundles
                                                                  Art.-No.           Article                                                                                            Price EUR*
                                                                 WM-975-BL
                                                                 WM-975-BL         Base Unit WM-975-B wirth datalogger WM-975-L                                              1.245,00
                                                                 WM-975-BG
                                                                 WM-975-BG         Base Unit WM-975-B with GSM Gateway **                                                    2.130,00
                                                                 WM-975-BP
                                                                 WM-975-BP         Base Unit WM-975-B with PC-Link WM-975-P **                                                 805,00
                                                                 WM-975-N
                                                                 WM-975-N          Radio node complete with 4 sensors (3 x WM-S, 1 x soil temperature, 8m cable each)          515,00
                                                                 ** Use of IRROmesh Web Service nessesary:
                                                                             1st month free access, thereafter monthly fee of USD 10,00 per base unit + USD 5,00 per data node
                                                                              payable directly to the Irromesh web portal by credit card.

                                                                 Components and Spare parts
                                                                  Art.-No.           Article                                                                                            Price EUR*
                                                                 WM-975-B            Base Unit with radio communication and solar power without readout device                             495,00
                                                                 WM-975-L
                                                                 WM-975-L            data logger, memory for up to 700 node-days                                                           750,00
                                                                 WM-975-G
                                                                 WM-975-G            GSM gateway streams data continuously to the Irromesh web portal**                                  1.635,00
                                                                 WM-975-P            PC-link streams data continuously via PC/ internet to the Irromesh web portal**                       310,00
                                                                 WM-975-N-0
                                                                 WM-975-N-0          Irromesh radio node with 6 sensor ports for                                                           335,00
                                                                                     (3x WM-S, 1 x soil temperature, 1x rain, 1x switch closure )
                                                                 WM-975-RG
                                                                 WM-975-RG           Raingauge for Irromesh system, 3m cable                                                                175,00

Irrigation Automation
Time savings and simplified management are the central advantages of Irrigation automation. If an Irrigation controller or an electro-valve is equipped
General
with an automatic switch unit based on a sensor for soil or substrate, the crop is allways optimally irrigated but unnecessary and potentially costly
water applications are not taking place.
Depending on the availability or absence of electrical power on site and the type of soil moisture based switch unit the use of an irrigation controller
is optional or necessary. A professionally planned irrigation automation based on soil- or substrate moisture consists of the elements Soil moisture
based switch unit, electro valve and irrigation controller (in some situations not compulsory).

A - Mode of operation - with irrigation                                                           B - Mode of operation - direct control
The irrigation controller is programmed on a time based schedule, for exaple irrigation 4         The switch Tensiometer permanently controls the water availabilty in soil or substrate, and
controller                                                                                        with switch Tensiometer (24V AC only)
times per day for 15 minutes. If a soil moisture based switch unit is present, the irrigation     is wired to the electro valve. At a certain point of water availabilty or soil moisture potetianl,
controller checks every time before a water application is allowed the status of soil moisture.   the switch point, an electrical contact is closed, and the electric valve is supplied with power,
In case the soil or substrate is still wet enough this individual irrigation event is blocked,    and opens the water flow. As soon as the soil moisture potential is again below the switch
and does not take place. The system waits in this situation until the next water application      point, the valve closes again. A central advantage of this technique are low cost and a
is scheduled, when this routine is repeated.                                                      straight foreward apporach.

Automation WITHOUT electric power on site
Without electric power on site, only electro valves with latching solenoid can be used, since this type can be operated by battery power. To operate a latching solenoid an irrigation
controller is compulsory, since it creates the electrical impulse, which opens and closes the valve. Many battery operated irrigation controllers are equipped with a sensor port for soil
moisture based automation.
                                Irrigation controller                                                                              Electro valves
                                Node                                                                                               PGV / 9V DC
                                Battery powered, waterproof, up to 12 irrigation start times                                       Plastic, with 9V DC latching solenoid and flow regulation
                                by Hunter                                                                                          by Hunter
                                per day, with Sensor port

                                Art. No.      Article                             Price EUR *
                                Node-100      Node for 1 station, 9V DC               161,00                                         Art. No.     Article                               Price EUR*
                                Node-200      Node for 2 stations, 9V DC              213,00                                        PGV-101i      electro valve & latch sol., 1‘‘ IG         53,50
                                Node-400      Node for 4 stations, 9V DC              251,00                                        PGV-151i      electro valve & latch sol., 1½‘‘ IG       113,50
                                Node-600      Node for 6 stations, 9V DC              290,00                                        PGV-201i      electro valve & latch sol., 2‘‘ IG        135,50

Switch units for Mode of Operatiion A without grid power:                                         Switch units for Mode of Operatiion B without grid power:
all types of switch tensiometer, WS-B, WEM-B(9VDC)                                                iMetos ICA controls electro valves with latching solenoid directly

8           Phone +49 (0)30 627 368 66                                                                          Fax +49 (0)30 627 368 67
*all prices ex Berlin, plus VAT and transport                                                                                                                 Automation

Automation WITH electric power on site
In case electric power (220 V AC) on site is available (i.e. Greenhouse, many lawn & garden applications) an alternative to the use of an irrigation controller does exist, the direct control,
because standard electro valves with solenoid can be directly controlled by switch Tensiometers and Now_SMS units.
In any case the electric voltage is reduced by a transformer to safe 12 or 24 VAC.
Irrigation controller -                                          Electro valves
X-Core                                                           PGV / 24V AC
Up to 4 start times per day, with sensor port, pump start re-    Plastic, with 24V AC solenoid and flow regulation
by Hunter                                                        by Hunter
lais, integrated transformer, weather proof housing
 Art. No.     Article                            Price EUR *     Art. No.      Article                            Price EUR *
XC-401        X-Core for 4 stations, 24 VAC          168,00      PGV-101      electro valve & solenoid, 1‘‘ IG         29,00
XC-601        X-Core for 6 stations, 24 VAC          193,00      PGV-151      electro valve & solenoid, 1½‘‘IG         89,00
XC-801        X-Core for 8 stations, 24 VAC          232,00      PGV-201      electro valve & solenoid, 2‘‘ IG        105,00
                                                                 TR24AC       Trafo 220VAC to 24VAC, 1000mA            32,50

I-Core
Up to 8 start times per day, with sensor port, pump start re-
by Hunter
lais, integrated transformer, lockable weather proof housing.
Can be extended to up to 30 stations

                                                                                                                                  Illustrations on this page by courtesy of
 Art. No.     Article                            Price EUR *
IC-601-PL i-Core for 6 stations, 24 VAC              602,00
ICM-600 Extension Module 6 stations                  149,00

Switch units for Mode of Operatiion A with grid power:                                           Switch units for Mode of Operatiion B with grid power:
all types of switch tensiometer, WS, WEM, WEM-DC-T.                                              all types of switch tensiometer
Now_SMS with sensors for soil moisture; e.g. NOS-H2O please see chapter Now_SMS                  Now_SMS with sensors for soil moisture; e.g. NOS-H2O please see chapter Now_SMS

Switch tensiometer
Switch tensiometers are used for control of electro-valves or whole irrigation controllers based on soil water potential, and are used for irrigation automation. They be used for direct
control of electro-valves (when grid power is available on site), or can be used at the sensor port of any irrigation controller.
TXS
TXS switch tensiometers are based on Tensiometer model TX and can be used with all types of systems, normally open
Automated Irrigation at low cost
and normally closed, with AC or with DC power supply. Switching properties max: 2A/24 V. Incl. rubber protective cap IP 54.

Technical Data                                                                           Typical Applications
Unit                     mbar (= hPa)                                                    strawberry
Range                    0 to 600 mbar / hPa soil water potential                        softfruit
Manometer (optional)     accuracy class 1,6 (± 1,6 % max.)                               vegetables
Seal                     always air-tight silicone cap                                   asparagus
Shaft                    OD 22 mm, ID 16 mm, Wall 3 mm                                   in tunnels
Ceramic tip              5 cm                                                            glasshouses
Lifespan                 up to 1 000 000 switch actions                                  open fields
Electric connection      AMP-flat connectors 6,3 x 0,8 mm (DIN 46244)
Safety                   Switch-box CE-approved according to EG-Niederspannungs-Richtlinie 73/23/EWG

Switch point is factory pre-set. Upper switch point 120 mbar /hPa, lower switch point 80 mbar / hPa. Maintains soil water
TXS-F - fixed switch point
potential between 80 and 120 mbar / hPa.soil water potential.
without Manometer                                               with Manometer
Art. No.      Article                            Price EUR *     Art. No.      Article                            Price EUR *
TXS-F0-20 no manometer, 20 cm shaft                   75,90      TXS-F1-20 with manometer, 20 cm shaft                 95,70
TXS-F0-30 no manometer, 30 cm shaft                   78,00      TXS-F1-30 with manometer, 30 cm shaft                 97,80

Switch point is freely adjustable between 100 and 300 mbar / hPa. Upper switch point as set, lower switch point always 30
TXS-E - adjustable switch point
mbar / hPa below the upper switch point.
without Manometer                                             with Manometer
Art. No.      Article                            Price EUR *     Art. No.      Article                            Price EUR *
TXS-E0-20 no manometer, 20 cm shaft                    92,50     TXS-E1-20 with manometer, 20 cm shaft                112,30
TXS-E0-30 no manometer, 30 cm shaft                    94,60     TXS-E1-30 with manometer, 30 cm shaft                114,40

Spare parts - Switchbox                                         Spare parts - for TXS without manometer                          Spare parts - for TXS with manometer
Art. No.      Article                            Price EUR*      Art. No.      Article                            Price EUR*      Art. No.      Article                            Price EUR*
TXSB-F        fixed (120 hPa)                         41,60      TXS0-20      TXS Shaft 20 cm                          36,40      TXS1-20      TXS Shaft 20 cm                          40,60
TXSB-E        adjustable (100-300 hPa)                57,20      TXS0-30      TXS Shaft 30 cm                          37,50      TXS1-30      TXS Shaft 30cm                           41,60
                                                                                                                                  TX6-M        TX Manometer 0-600 hPa                   26,00

                        web www.mmm-tech.de                                                                      eMail info@mmm-tech.de                                                    9
Automation                                                                                                                          *all prices ex Berlin, plus VAT and transport

IRS - Irrometer® switch tensiometer
                                              Irrometer switch tensiometers are to be used with normally open systems. Two versions AC or DC power supply. The reed switch contact
high end automated Irrigation
                                              can be set to any switch point between 0 and 100 Centibar and offers highest safety standards.
                                              The manometer is shock- and waterproof encapsuled, and read conveniently from top. The shaft offers an integrated water reservoir for
                                              easy replacement of lost water in field. The ceramic tip is exchangeable. The Tensiometer is filled with water air-free for use, and reacts to
                                              changes in soil water potential extra fast. Recommended accessory: Irrometer Service Pump
                                              Typical Applications
                                              strawberry, softfruit, vegetables, asparagus, in tunnels, glasshouses, open fields, tree- and grape nurseries, hops, fruit trees
                                              Technical Data
                                              Unit                Centibar (= kPa)                                         Ceramic Tip        7 cm
                                              Range               0 to 100 Centibar /kPa soil water potential              Lifespan           up to 1 000 000 Switch actions
                                              Seal                threaded cap with reservoir                              Connection         wire leads
                                              Shaft               OD 22 mm, ID 12 mm, Wall 5mm                             Safety             touchless Reed contact
Irrometer Switch Tensiometer (Please specify when ordering wether AC or DC)
Art. No.        Article                                                        Price EUR*
IRS-ADC-15     Irrometer Switch Tensiometer, for AC / DC, length 15 cm             140,50         Spare parts - for shafts, please see chapter Tensiometer
IRS-ADC-30     Irrometer Switch Tensiometer, for AC / DC, length 30 cm             146,00         Art. No.    Article                                                                Price EUR*
IRS-ADC-45     Irrometer Switch Tensiometer, for AC / DC, length 45 cm             151,50         IR-RK-AC Reed-Contact Switch without Manometer, AC (alternating current)                  42,80
IRS-ADC-60     Irrometer Switch Tensiometer, for AC / DC, length 60 cm             157,00         IR-RK-DC Reed-Contact Switch without Manometer, DC (direct current)                       42,80
IRS-ADC-90     Irrometer Switch Tensiometer, for AC / DC, length 90 cm             162,50         IRS-M    Irrometer Manometer for Reed-Contact Switch                                      48,20

IRS-LT Irrometer® - Switch tensiometer for substrates and low tension
                                                                  Irrometer switch ensiometers model LT feature a special „Low Tension“ Ceramic tip and a high resolution Manometer.
                                           Video                  Range             0 to 40 Centibar / kPa soil water potentialCeramic tip Low Tension - 7 cm
                                                                  Spare parts - other parts, please see chapter Tensiometer
                                                                 Art. No.               Article                                                                                      Price EUR*
                                                                 MLT-S-ADC              Mini Irrometer switch tensiometer low tension AC, or rather DC 12 cm                                144,90
                                                                 IRS-LT-ADC-15          Irrometer switch tensiometer low tension AC or rather DC 15 cm                                      165,80
                                                                 IRS-LT-ADC-30          Irrometer switch tensiometer low tension AC or rather DC 30 cm                                      169,10

Watermark Switch Units
Watermark Switch Units are designed to control irrigation controllers with sensor-port. Only if the soil is dryer than a threshold set by the user at the Watermark Switch Unit, an irrigation
maintenance free Irrigation Automation
event is taking place. Prevents unnecessary irrigation events, saves water and energy.
The Watermark Switch Units are available in two series: Water Switch and Watermark Electronic Modules. Water Switch offer economic irrigation control based on one Watermark
Sensor and are used in golf, lawn and garden applications, the Watermark Electronic Modules offer irrigation control based on the average reading of two Watermark Sensors, and are
common in more complex systems.

Water Switch
Both Water Switch Models are „Dry Contact Switch“ units, and are connected to the Sensor-port of an Irrigation controller. The Waterswitch units check the soil moisture status
the economic solution
independently every hour (WS) or every 5 minutes (WS-B) and switch the sensor – port according to soil moisture. Waterswitch units can be used with both types of Irrigation controllers,
normally open and also normally closed contact models.

                                                                Typical Applications                 Technical Data
                                                                home garden                          Irrigation decision      based on 1 Watermark Sensor
                                                                golf- and lawn irrigation            Moisture thresholds      4 Steps (moist to dry)
                                                                landscaping
                                                                public greens
                                                                 Art. No.     Article                                                                                                Price EUR*
                                                                 WS           Water Switch,                                      24 V AC,                incl. 1 WM Sensor               142,00
                                                                 WS-B         Water Switch, incl. battery                        9 V DC,                 incl. 1 WM Sensor               160,00

Watermark Electronic Module
Watermark Electronic Modules are available in three models. Models WEM-B and WEM-DC-T are „Dry Contact Switch“ units, and are connected to the Sensor-port of an Irrigation
the professional solution
controller. The models WEM-B and WEM-DC-T check the status of soil moisture independently every 5 minutes, and set the sensor – port according to soil moisture.
The Watermark Electronic Module model WEM is a „Common Interrupt“ switch unit, and can switch a single valve or group of valves on a dedicated common. The unit reads itself only
when powered (start time) and switches according to moisture in relation to switch position. The Watermark Electronic Modules Type WEM and WEM-B can be used with both types of
Irrigation controllers, normally open and also normally closed contact models, while type WEM-DC-T needs a normally open contact.

                                                                Typical Applications                 Technical Data
                                                                trees and vines                      Irrigation decision      based on average of 2 Watermark Sensors
                                                                professional growing                 Moisture thresholds      9 / 11 Steps (10 to 90 / 110 Centibar soil water potential)
                                                                golf- and lawn irrigation
                                                                landscaping
                                                                public greens

                                                                 Art. No.     Article                                                                                                Price EUR*
                                                                 WEM
                                                                 WEM      Watermark Electronic Module,                           24V AC,                 incl. 2 WM Sensors             215,00
                                                                 WEM-DC-T
                                                                 WEM-DC-T Watermark Electronic Module with Timer                 24V AC,                 incl. 2 WM Sensors             215,00
                                                                 WEM-B
                                                                 WEM-B    Watermark Electronic Module,                           9V DC,                  incl. 2 WM Sensors             215,00

10          Phone +49 (0)30 627 368 66                                                                           Fax +49 (0)30 627 368 67
*all prices ex Berlin, plus VAT and transport                                                                                     Volumetry TDR / FDR
Volumetry - TDR / FDR
Volumetric Measuring Instruments determine the Water Content in Soils, and inform the user about the amount of water, which is presently contained
General
in soil. The shown amount of water in soil includes the non plant available part.
These Sensors are ideal to answer the question how much water needs to be applied, to fill the rooted soil-profile from the presently measured state
to a defined volumetric percentage of field capacity (for example to 90% field capacity).

     • information about the amount of water in soil
Advantages
     • very accurate technique
     • immediate reaction on changing soil moistures
     • maintenance free and frost proof sensors

TDR Fieldscout - highly accurate, fully mobile, integrated Datalogger
TDR Fieldscouts are fully mobile measuring instruments for soil water content, EC value and soil surface temperature. No permanent sensor instal-
lation necessary, no valuable equipment remains in field. Multiple field points or a multitude of different fields can be measured. One measurement
takes only seconds: prick measurement rods fully in ground, push button to take the measurement, go to next measuring point!
Working Principle TDR
TDR (Time Domain Reflectometry) Sensors determine the soil water content by measuring the dielectric properties of the soil along two (or more) measuring rods. The travel time of an
electromagnetic impulse emitted by the instrument is determined by the dielectric properties of soil , and thus it’s water content. The measurement shows the average water content of
the measured soil profile, which equals the length of the measuring rods presently in use.
Calibration
Three calibrations already programmed in the firmware of the instrument: Standard (for most soils), sand and high clay (for soils with clay contents of 30% or more).
Technical Data      Soil Moisture                       EC value                    Temperature
Range               0 to 60% Vol.                       0 - 5 mS/cm                 -30 – 60 °C
Resolution          0,1% Vol.                           0,01 mS/cm                  0,1°C
Accuracy            ±3% Vol.                            ±0,1 mS/cm                  ±1°C
Display             with switchable backlight
Measuring depth depending on measuring rods 3,8 cm, 7,5 cm, 12 cm or 20 cm
Measuring Rods exchangeable, 1 pair Measuring Rods included.(please specify length when ordering)

TDR Fieldscout 150
Small handmeter, lightweight, compact and economical, now with integrated Datalogger. Option for built-in GPS and Bluetooth
easy to carry

Technical Data
Datalogger               integrated, 50 000 values                                                    Video
Data Transfer            by USB Stick or via Smartphone
Typical Applications
Fast and easy measurement of many measuring points / multiple fields, extension service, check
moisture and EC value for seed emergence, irrigation scheduling in shallow rooted crops, like
strawberries, salad or onion. Particularly suitable for golf, lawn and garden applications. Also well
suited for substrates.

Art.-No.      Article                                                                                              Price EUR*
TDR-150       TDR Fieldscout 150 incl.1 pair of rods, case                                                             955,00

TDR Fieldscout 350
Model TDR Fieldscout 350 is easy to carry, lightweight, foldable and enables to work without bending down. Additional to
Mobile Measurements in Seconds
the properties of TDR Fieldscout 150, Model 350 has a built-in GPS unit and Bluetooth connectivity. All measurements are
logged with geo-reference.
Technical Data
Frame               foldable
Datalogger          integrated, 50 000 Values
Data Transfer       by USB Stick or via Smartphone

Typical Applications
Particularly suitable for golf, lawn and garden applications. Fast and easy measurement of many measuring points / multiple
fields, extension service, check moisture for seed emergence, irrigation scheduling in shallow rooted crops, like strawberries,
salad or onion. Can be used in substrates.

Art.-No.      Article                                                                                              Price EUR*
TDR-350       TDR Fieldscout 350 incl. 1 pair of rods, field carrying bag                                            1.555,00

Spare parts
Art.-No.      Article                            Price EUR*
TDR-N38       Rods TDR Fieldscout 3,8 cm               59,00
TDR-N75       Rods TDR Fieldscout 7,5 cm               59,00
TDR-N120      Rods TDR Fieldscout 12 cm                59,00
TDR-N200      Rods TDR Fieldscout 20 cm                59,00

                        web www.mmm-tech.de                                                                       eMail info@mmm-tech.de                                          11
Volumetry TDR / FDR                                                                                                              *all prices ex Berlin, plus VAT and transport

FDR - ECH2O Measuring System
The ECH2O measuring system by Decagon devices for volumetric soil moisture offers maximized flexibility for measuring multiple soil layers. This system is an optimal solution for irrigation
Highest Quality Low Price
scheduling according to field capacity concepts, studies about deep percolation and similar tasks. ECH2O Sensors are available in various models, offering many fascinating options.
Models EC-5 and HS-10 offer measurement of volumetric soil water content with highest accuracy, model EC-TM measures additionally soil temperature and model EC-TMEC measures
besides soil moisture and soil temperature, electric conductivity of soil additionally. ECH2O probes installed in various soil layers, provide information on soil water dynamics across the
whole profile.
For read out of ECH2O probes, one handheld meter and datalogger are available. Decagon Sensors can be attached to iMetos Stations. Datatrac Software offers multiple options for
data display and data processing for all major soil types and soilless substrates. One of the options provides necessary water applications in mm, thus enabling the user to solidly base
all irrigation decisions.
Working Principle FDR / Capacitance
FDR (Frequency Domain Reflectometry) Sensors measure the soil water content via the dielectric properties of the soil between two electrodes by capacitance. The read-out device
checks the „echo“ of an electro-magnetic impulse sent to the surrounding soil for frequency variations and thus determines the water content of the soil. .
Typical Applications: strawberry and softfruit, vegetables, asparagus, fruit trees, hops, vineyards, potatoes, sugar beets, arable agriculture and seed production, scientific applications
in open field and protected cultivation. Use in grown soil and soilless substrates
EC-5 Sensor
                                                                Sensor model EC-5 offers properties ideal for use in soilless substrates, growbags and pots: Cable extension up to 50 m
ideal for soilless Substrates, Growbags and Pots
                                                                possible.

                                                                Technical Data                                                  Accuracy with Standard Calibration
                                                                Unit           m³ water / m³ soil, Vol. %                            Mineral Soil:         ±3% at 0 to 8 dS/m
                                                                Range          0-100 % soil water content                            Rockwool:             ±3% at 0,5 to 8 dS/m
Typical Applications                                            Resolution     0,01% in mineral soil                                 Substrates:           ±3% at 3 to 14 dS/m
Protected cultivation                                                          0,25% in substrates                              Soil specific Calibration:
     on grown soil                                              Length of rods 5 cm                                                  At least ±2% in all Soils with max. 8 dS/m
     in substrates (Growbags, Pots)
                                                                Art.-No.      Article                                                                                             Price EUR*
     auf Rockwool
                                                                EC-5          Sensor for vol. soil water content.        length 5cm, cable 5 m                                        149,00
Open field
     strawberry, softfruit, vegetables, science.                SC-KAB        Cable extension for ECH2O sensors, per meter                                                              3,20

HS-10 Sensor                             Video

                                                                Sensor model HS-10 offers properties ideal for use in mineral soil, with an extra large measured soil volume, equalling ap-
                                                                ideal for mineral soil
                                                                prox. one liter. Cable extension up to 50 m possible.
                                                                Typical Applications                             Technical Data
                                                                strawberry              Hops                     Unit               m³ water / m³ soil, Vol. %
                                                                softfruit               vineyards                Range              0-57 % soil water content
                                                                vegetables              potatoes                 Resolution         0,01% in mineral soil, 0,25% in substrates
                                                                asparagus               sugar beets              Length of rods 10 cm
                                                                fruit trees             arable agri-             Accuracy with standard calibration
                                                                culture                                                             mineral soils:             ±3% @ 0 to 8 dS/m
                                                                seed production                                  Soil specific calibration:
                                                                scientific applications                                             At least±2% in all soils with max. 8 dS/m
                                                                Art.-No.      Article                                                                                             Price EUR*
                                                                HS-10         Sensor for vol. soil water content.        length 10 cm, cable 5 m                                      159,00
                                                                SC-KAB        Cable extension for ECH2O sensors, per m additionally                                                     3,20
MAS-1 Sensor
                                                                The MAS-1 4-20 milliamp sensor accurately measures water content with a standard 4-20 milliamp output, and therefore
                                                                4-20 mA Signal, ideal for long cable runs
                                                                can easily be used for OEM applications and dataloggers, which require this type of signal. Factory calibrations are included
                                                                for mineral soils, potting soils, and rockwool. This sensor can not be used with Dataloggers and Handmeters by Decagon.
                                                                Technical Data
                                                                Unit           m³ water / m³ soil, Vol. %                       Length of rods 9 cm
                                                                Range          0-100 % soil water content                       Accuracy       standard calibration mineral soils: ±4%
Typical Applications                                            Resolution     depending on read out technique                                 soil specific calibration: ±1 to 2%
OEM applications, dataloggers
of various brands which require a 4-20                          Art.-No.      Article                                                                                             Price EUR*
mA signal. Other please see HS-10.                              MAS-1         Sensor for VWC (= Volumetric Water Content). length 9 cm, cable 2 m                                     169,00

EC-TM and EC-TMEC
                                                                Both Sensor models are optimised for use in mineral soils, but can also be used in Substrates. The cable of both sensor
                                                                Sensors for VWC, Temperature and EC
                                                                models can be up to 50m.
                                                                Technical Data
                                                                Unit                      m³ water / m³ soil, Vol. %             temperature °C            EC in dS/m
                                                                Range                     0-100 % soil water content             temperature - 40 to +50°C EC 0-50 dS/m
                                                                Resolution                0,01% in mineral soils                 temperature 0,1 °C        EC 0,01 dS/m, 0 - 10 dS/m
                                                                                          0,25% in substrates                    temperature 0,1 °C        EC 0,1 dS/m, 10 - 50 dS/m
                                                                Length of rods            5 cm
                                                                Accuracy with standard calibration
                                                                Mineral Soil              ±3% in soils with 0 to 8 dS/m          temperature ±1 °C         EC ±10% to 6 dS/m
                                                                Rockwool                  ±3% with 0,5 to 8 dS/m                 temperature ±1 °C         EC ±10% to 6 dS/m
                                                                Substrates                ±3% with 3 to 14 dS/m                  temperature ±1 °C         EC ±10% to 6 dS/m
                                                                Soil specific calibration At least ±2% in all soils with max. 8 dS/m

12          Phone +49 (0)30 627 368 66                                                                        Fax +49 (0)30 627 368 67
You can also read
