New developments 2021
2 / 3 TOP NE W DE VELOPMENTS FOR 2 0 21
Products & systems

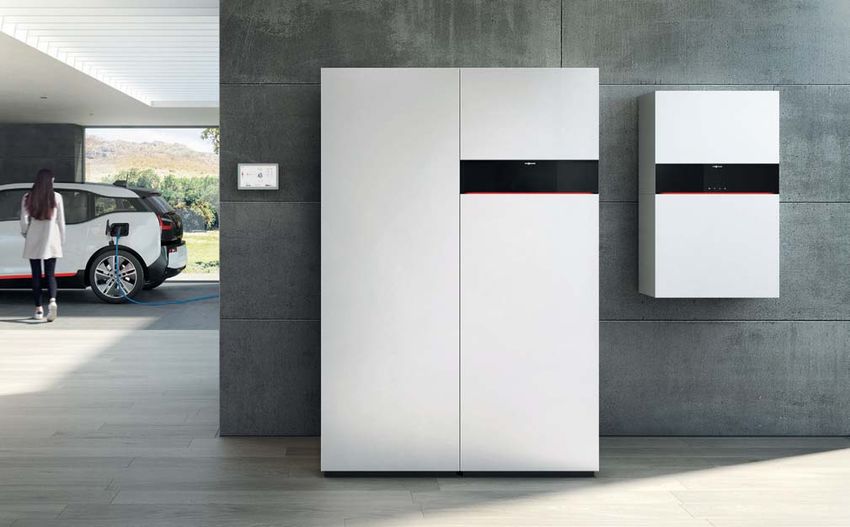

New electronic platform networks Viessmann appliances to a single system
The new electronic platform networks the various Viessmann product families
to each other, to energy systems and directly to all digital services. This
allows all the appliances to "talk" to each other, requiring only one app for all
applications. Vitoguide for our trade partners and ViCare for end customers.
Pages 10 / 11
Heating with hydrogen – innovative technology for a climate-neutral future
The first gas condensing boilers and fuel cells certified to run with blends of
up to 20 percent hydrogen will be coming onto the market in 2021. This
makes Viessmann a leading innovator in the use of hydrogen to generate
heat and power.
Pages 12 / 13

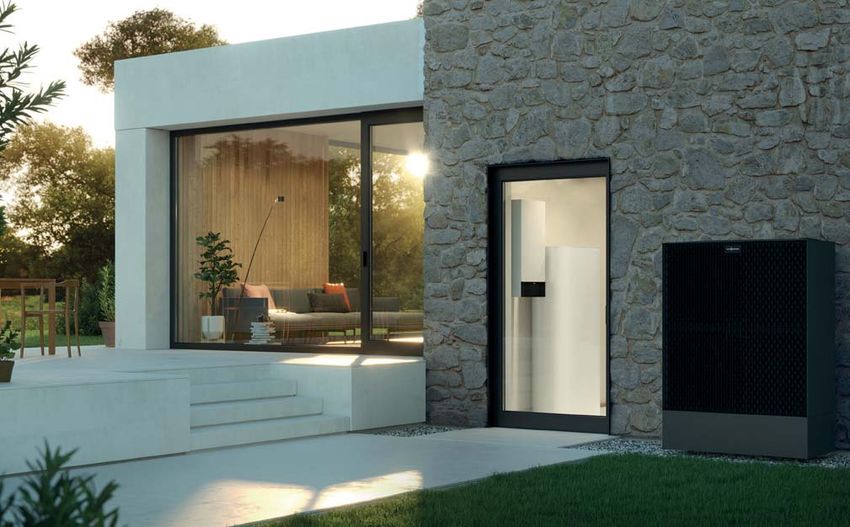

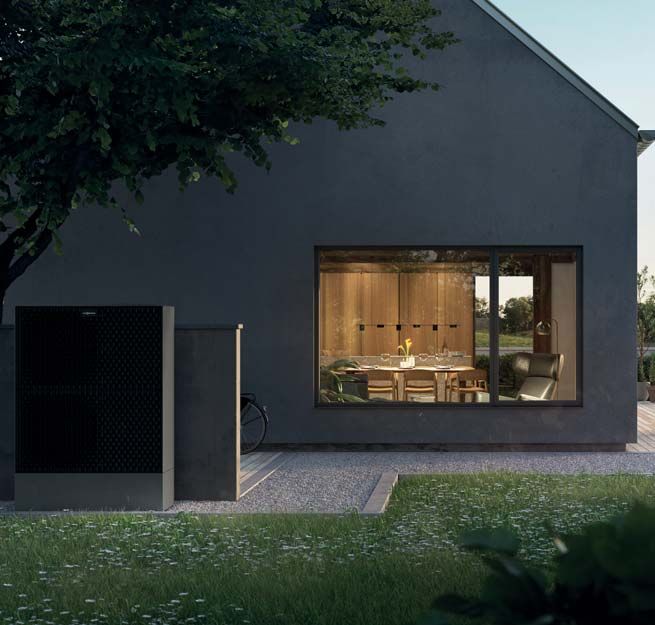

New generation of heat pumps with high flow temperature
With a flow temperature of up to 70 °C, Vitocal 25x-A was developed with
modernisation projects in mind. You can continue using any existing radiators.
With its extremely low GWP (Global Warming Potential) value of 3, the "green"
refrigerant R290 (propane) these units use is especially environmentally
responsible.
Pages 24 / 25

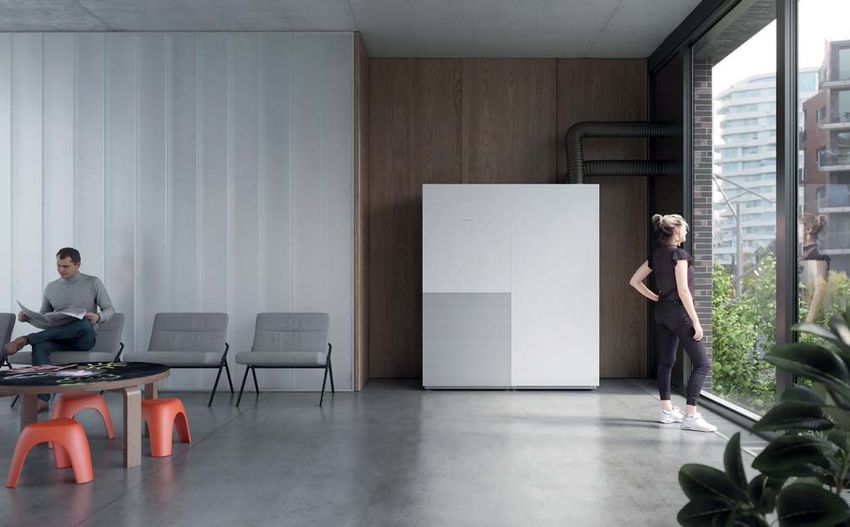

Air purification and ventilation system for rooms with up to 30 people
Ventilation systems have become an even hotter topic since the start of the
Corona pandemic. Not only does the Vitovent 200-P ventilation unit reduce
the viral load in aerosols, it also lowers the CO2 load in closed rooms. The
result is optimum indoor air quality at all times, regardless of how unusual the
situation is.
Pages 36 / 37
Especially slimline and compact ventilation system with heat exchanger
With its low installed height of 245 mm and a maximum air flow rate of
300 m3 /h, the new Vitoair FS mechanical ventilation system is particularly
slimline and extremely compact. The polymer membrane of the recuperative
enthalpy heat exchanger recovers heat and moisture. It also prevents the
transmission of viruses, mould and bacteria.
Pages 40 / 41

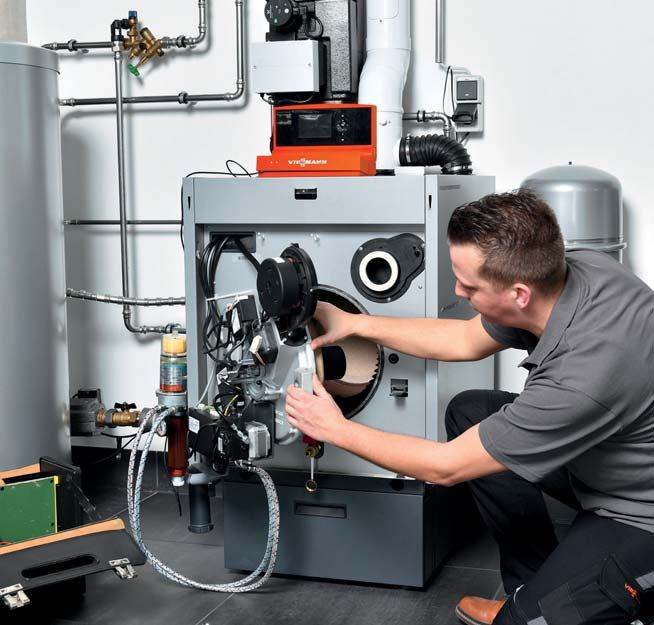

Our new condensing boiler for liquid fuels is "Green Fuels Ready"
The new Vitoladens 300-C condensing boiler is ready to work with the
FAME liquid fuels of the future. As a "Green Fuels Ready" appliance, it can also be
operated with low greenhouse gas liquid energy sources. These include HVO
HVO PTL BTL (hydrotreated vegetable oil), PTL (power-to-liquid) fuels and higher proportions
of FAME (biodiesel) instead of fossil fuel oil.
Pages 46 / 47
New CHP units are particularly compact and quiet
Vitobloc 300 NG 15 and Vitobloc 300 NG 20 are the first next-generation CHP
4 9 dB(A) units with water-cooled synchronous generators for producing three-phase
power and heating water. With their low operating noise of less than 49 dB(A)
and small space requirement, they are suitable for new build and modernisation
projects alike. These units are designed for mains substitution mode.
Pages 52 / 53
Vitomax industrial/commercial boilers designed to operate using
electricity and hydrogen
Vitomax boilers are designed for either fully electric operation or hybrid
operation with a combination of a pressure-jet burner and electric heating
cartridges. This also reduces CO2 emissions; with electric boilers, emissions
are actually zero. Versions that use alternative fuels such as hydrogen (H2) are
Pages 54 / 55
also available.
Connectivity & platforms
Viessmann Energy Management to keep all components operating efficiently
Integrated Viessmann Energy Management optimises the flow of energy in a
building. It brings all interconnected appliances, such as the Vitocal heat pump,
Vitocharge VX3 power storage unit, DHW cylinders and power consuming
appliances together in one system that can be controlled using the ViCare app.
Going forward, Viessmann Energy Management will be an integral part of all
products with an electronic platform.
Pages 60 / 61
Digital services
Vitoguide with incorporated ViStart and Service Assistant
The Vitoguide installer's app for monitoring interconnected systems is now an
all-in-one tool with new functions: the ViStart app for commissioning and the
Service Assistant for service, maintenance and parts replacement. Vitoguide
will soon be available for iOS and Android devices.
Pages 72 / 73
Value added services
Service Plus for maximum customer satisfaction
With value added and digital services, Viessmann and its partners ensure
Service
maximum customer convenience and safety. With self-service, trade partners
Plus
Partner Customer
who have their own service departments benefit from a wide range of
apps for quick commissioning and service. Trade partners without a service
department can count on Viessmann customer service.
Pages 92 / 93
Company pension plan with special terms
peccon is a digital broker in the field of financial services and offers trade
partners, customers and employees bespoke insurance solutions at special
rates. peccon has developed a company pension scheme especially for
Viessmann employees and trade partners to top up their future pension.
Pages 94 / 95
4 / 5 FORE WORD Dr Markus Klausner Chief Technology Officer Viessmann Climate Solutions SE
Dear fellow trade professionals and all readers of our New Developments brochure, A crisis like the Corona pandemic is precisely the time when it is most important to continue strengthening our established partnerships and pull together virtually. Our approach to achieving this during and after ISH 2021 will be especially focused on our digital offerings – www.viessmann.live There you will find presentations of all the new developments in our integrated range of solutions that are at least as comprehensive as in this brochure. For you, our trade partner friends, we will be bringing a wide range of new products onto the market that you and many of your colleagues played a decisive role in developing. First and foremost, I would like to highlight our new generation of heat pumps. Another new feature is the innovative electronic platform in our heat pumps, which is based on the electronic platform launched in 2019 for our gas condensing boilers, and which seamlessly links our ViCare and Vitoguide digital services with the new Viessmann Energy Management. This new electronic platform is also helping us continue consistently along the path from product to solution. For example, via simplified options for creating systems with heat pumps, ventilation, photovoltaic, power storage units and, if applicable, existing heat generators. Our innovations involving the use of the new hydrogen (H2) energy source are particularly noteworthy. The growing use of this type of fuel in the very near future will be a significant step towards decarbonising the heating market. Our Vitodens gas condensing boilers are already certified for operation with blends of up to 20 percent hydrogen in the natural gas. With new "H2 ready" fuel cells, combined heat and power units and gas condensing boilers for commercial use, we offer a comprehensive product portfolio for detached houses, apartment buildings, businesses and municipalities. Our Vitomax industrial boilers are already able to utilise 100 percent hydrogen as their energy source. Added to this are innovative ventilation systems and numerous new functionalities in digital services, such as Vitoguide, our most important digital tool for our partners. With the incorporation of the ViStart app and the Service Assistant into Vitoguide, you now need only this one tool, which runs on mobile devices with iOS and Android, for commissioning, service, maintenance and system monitoring. A number of additional functions now make Vitoguide even more powerful. These include access to advanced parameters and data trending to optimise system operation. "Co-create climate for life" is our trade fair motto this year. As a solution provider for all living spaces, Viessmann has the right products, platforms, digital services and value added services to tackle global warming – together as one big family, one team – with you, our partners in the trade. I hope that I have whetted your curiosity with regard to our latest products, and that you will enjoy learning about the new developments in Viessmann's integrated range of solutions. Dr Markus Klausner CTO, Viessmann Climate Solutions SE
6 / 7 V I E S S M A N N ' S I N T E G R AT E D R A N G E O F S O L U T I O N S
*
Dienstleistungen
Value added services
Service Plus Logistik Plus Vitoleads ...
Digitale Services
Digital services
ViCare Vitoguide Vitoscada ...
Konnektivität & Plattformen Vitoconnect Vitocontrol
Connectivity & platforms
GridBox ...
Produkte & Systeme
Products & systems
...
This brochure provides an overview of the
many new developments in Viessmann's
integrated range of solutions.
* Energy Market Solutions GmbH (EMS),
a stakeholder in the Viessmann Group, is
the operator and contractual partner in the
ViShare Energy Community.
Viessmann's integrated range of solutions
Viessmann is a leading manufacturer Products and systems and maintenance throughout the entire
of climate solutions for all living The foundation for advancing this product life cycle. The end customer
spaces. Viessmann's integrated mission is our comprehensive range of can use the ViCare app to control their
range of solutions makes it possible heating, power, cooling and ventilation heating system, for example, and
to seamlessly connect products solutions. It allows Viessmann to offer regulate the climate in individual rooms
and systems via digital platforms products and systems for the ideal with ViCare components.
with services for climate (heating, room climate – integrating the right
cooling & air quality) and refrigeration energy sources in private, commercial Value added services
solutions. These solutions are and industrial environments as the At the fourth level of the integrated
based on renewable energies and situation requires. range of solutions, Viessmann offers
maximum efficiency. Every initiative of a growing number of value added
Viessmann, a family-owned company Connectivity and platforms services. The FörderProfi subsidy
founded in 1917, springs from the Connectivity is an essential element service and Viessmann Wärme have
corporate mission statement: "We of Viessmann's integrated range of already been successfully introduced
create living spaces for generations solutions. Existing systems dating to the market. The purpose of all these
to come". This is the responsibility of back as far as 2004 can be directly value added services is to simplify
the Viessmann family with its 12,300 interconnected via Vitoconnect, and enhance the user and customer
members worldwide. the new product generation, using experience by adding value beyond the
"Connectivity Inside". This means core product.
that all Viessmann systems can be
upgraded. Integrated Viessmann V+ partner programme
Energy Management optimises completes the range
the flow of energy in a building. It The partner programme offers
pulls all interconnected appliances solutions for successfully mastering
together into one system. With the challenges of the heating sector
wibutler, Viessmann also offers an well into the future. V+ is our
open platform via which Viessmann way of offering valuable solutions
products can be digitally networked related to the topics of energy
with the digital building services from transition, digitisation, employees
many top brands. and entrepreneurship. It gets things
in shape for the future and was
Digital services developed consistently from the outset
The digital services extend the with our partners and installers from
functions of Viessmann products and all over Germany and tailored to their
offer a wide range of services for trade needs. For all you need to know about
partners and end customers. They V+, go to: vplus.viessmann.com
support partners in commissioning
8 / 9 N E W D E V E L O P M E N T S 2 0 2 1 – TA B L E O F C O N T E N T S
Products & systems
10 THE NE W VIESSMANN 36 V E N T I L AT I O N S Y S T E M S
E L E C T R O N I C P L AT F O R M
38 Vitovent 200-P
Air purification and ventilation system
12 HYDROGEN AS A FUEL 40 Vitovent 300-W
Innovative condensing technology for Mechanical ventilation system with heat recovery
a climate-neutral future
42 Vitoair FS
Mechanical ventilation system with heat recovery
14 GAS CONDENSING BOIL ERS 44 Click & Go air distribution system
For central mechanical ventilation systems
16 Vitodens 1xx
Gas condensing boilers
46 CONDENSING BOIL ER FOR LIQUID
FUELS
18 H E AT P U M P S
48 Vitoladens 300-C
20 The new generation of heat pumps Condensing boiler for liquid fuels
22 Vitocal 25x-A
Air source heat pumps
50 VITOCEL L DHW CYLINDERS
24 Vitocal 15x-A
Air source heat pumps
26 Vitocal 2xx-S 52 ENERGY SYSTEMS FOR COMMERCE, INDUSTRY
Split air source heat pumps AND LOCAL AUTHORITIES
28 Vitocal 25x-A and Vitocal 2xx-S outdoor units 54 Vitobloc 300
CHP units
56 Vitomax
30 E F F I C I E N T S Y S T E M S F O R H E AT A N D P O W E R Industrial boilers
32 Vitovalor PT2/Vitovalor PA2 58 Vitosol 200-T (type SPX)
Fuel cells Vacuum tube collectors for large area systems
34 Vitocharge VX3
Power storage system
60 Connectivity & platforms 80 Value added services
62 Viessmann Energy Management 82 Vitoleads heating system calculator
Using energy efficiently Automated quotation generation
64 Viessmann GridBox 2.0 84 FörderProfi
Controlling energy Subsidy service
66 wibutler 86 Viessmann Wärme
Manufacturer-independent smart home solution Rent rather than buy a heating system
68 Vitocontrol 100-M 88 ViShare from EMS
Multi mode system controller Energy Community
90 System Adviser
System configurator
91 Quote Assist
Heating system configuration
92 Vitodesk
Planning software
70 Digital services 94 ServicePlus
Online quotations for trade partners
96 Peccon
Insurance services
72 ViCare
Heating control tool
74 Vitoguide 98 OVERVIE W OF SERVICES
Monitoring and controlling customer systems A N D VA L U E A D D E D S E R V I C E S
76 PartnerPortal
Information centre for trade partners
78 Vitoscada
Cloud-based online monitoring for
multi mode energy systems
1 0 / 11 E L E C T R O N I C P L AT F O R M
The new Viessmann electronic platform
seamlessly networks all products into one
system.
The new Viessmann electronic platform
is designed to network digital services
with energy systems such as heat
pumps, ventilation systems and power
storage units.
Beyond controlling heat generators
and peripheral devices, it offers quick
and simple access to the ViCare and
Vitoguide apps. The electronic platform
makes it much easier for trade partners
to commission and remotely monitor
customer systems.
The architecture of the new electronic
platform also enables individual
room control and communicates with
Amazon Alexa and Google Assistant.
Menu-guided commissioning
and digital documentation
Whether via an app on a smartphone or directly on the appliance using the 7 inch or 3.5 inch Trade partners can take advantage
display, all the devices are able to communicate with each other.
of our menu-guided commissioning
process. At the same time, the new
Vitoguide app synchronises the system
parameters. An appliance self-testThe new Viessmann electronic platform
confirms that the system is operating Extremely futureproof
properly. For documentation purposes, thanks to automatic updates
a handover protocol is generated and The ViCare app is automatically
a digital project file is created. This extended for the end customer for
allows the system to be adapted additional functions such as integrated
quickly during an update to reflect a Viessmann Energy Management. In
change in conditions, such as after addition to regular updates, customers
adding a power storage unit. have the security of knowing that they
can incorporate additional system
Simple troubleshooting components, such as a heat pump to
through standardisation reduce heating costs or CO2 emissions.
Five groups of user-specific information Another option could be a photovoltaic ViCare components –
feel-good climate in the entire house
and fault codes that are the same system for generating electricity on site
for all systems are available to help and a Vitocharge power storage unit
detect malfunctions early on. This to increase self-consumption. In short:
includes the current operating status Viessmann systems are prepared for
as well as notices regarding upcoming the future.
maintenance.
Vitoguide provides trade partners with
detailed fault information, including
recommendations for troubleshooting,
either on the road or in the office.
Operating faults can often be rectified
remotely by optimising parameters
online, which eliminates the need to B E N E F I T S F O R T R A D E PA R T N E R S
travel to the customer site.
+ Futureproof thanks to ongoing development in areas such as individual
Uniform hardware – room control with hydronic balancing or a new 7 inch display in grey
fewer spare parts + System parameterisation and remote monitoring via the Vitoguide app can
The electronic platform enables reduce on-site maintenance visits
trade partners to reap the benefits of + Simple menu-guided spare parts replacement
comprehensive standardisation and + Backup and restore function to easily reinstate the "old" appliance status
uniform hardware. This means a smaller after replacing a part
inventory of spare parts can be kept. + No manual control settings
The backup and restore function can + Direct display of system extensions via the Vitoguide app with automatic
be used to easily reinstate the "old" update
appliance status after replacing a part. + Improved diagnostics through extended reporting categories,
e.g. gas/air ratio and standard fault codes
Standardised electronic and hydraulic + Service hotline for appliances with electronic platform
schemes are available, no matter what
type of energy generation is involved.
Uniform sensors help simplify BENEFITS FOR USERS
maintenance for all appliance types.
The displays used to communicate + High operational security and futureproofing through networked products
with the energy generator are largely and regular updates
identical in structure and content. + Fast and easy system expansion with system components from
Viessmann's integrated range of solutions
+ Direct display of Viessmann Energy Management in the ViCare app
+ Secure, encrypted data transmission
+ Repeater for extended wireless range12 / 13 HYDROGEN AS A FUEL
O2
Oxygen
H2
Hydrogen
H2O
Water
Renewable electricity Water electrolysis Combustion Heat
of hydrogen and air
Green hydrogen cycle: using renewable electricity, the electrolyser produces hydrogen (H2) and oxygen
(O2) from water (H2O). H2 ready heating appliances burn hydrogen highly efficiently, producing water
again in addition to heat for heating, and completing the cycle.
Into a climate-friendly future with hydrogen!
The use of hydrogen (H2) in the energy sector is considered a major contribution
towards achieving a successful energy transition. H2 is produced from water by
electrolysis.
The electricity required for this comes from wind power and photovoltaic systems.
Hydrogen
_ is not toxic, corrosive or radioactive,
_ does not contaminate water, and does not cause damage to nature or the
environment,
_ does not produce any climate-damaging CO2 during combustion.
Its increasing importance is clearly reflected in numerous political initiatives.
These include the German government's National Hydrogen Strategy, the
EU Commission's "Hydrogen Strategy for a climate-neutral Europe" and the
"European Clean Hydrogen Alliance", along with a variety of H2 strategies being
pursued by the federal states.
With systems that can use up to 100 percent hydrogen and fuel cell heating
appliances, Viessmann is a leading innovator in the use of this new energy
source. Maximilian Viessmann is a member of the German government's
National Hydrogen Council.Heating with hydrogen:
Innovative condensing technology for a climate-neutral future
Germany has a goal of becoming just 20 percent hydrogen to natural condensing boilers of the Vitodens
climate-neutral and reducing CO2 gas would reduce greenhouse gas 3xx and Vitodens 2xx families can be
emissions to zero by 2050. This can emissions by around seven percent operated with 20 percent hydrogen
only be achieved if the burning of per year. content in the natural gas without any
fossil fuels such as oil and natural gas problems. Homeowners who rely on
is avoided as far as possible. But not The development of the infrastructure modern Viessmann technology for
every house is suitable for heating needed for the production, distribution their gas heating system are therefore
with a heat pump or electric heating. and use of this new type of fuel ideally equipped for the future.
As a leading innovator in the heating is already in full swing. The EU
industry, Viessmann already has Commission's hydrogen strategy "H2 ready" condensing boiler
solutions for detached houses and envisages a major expansion of for 100 percent hydrogen
apartment buildings today that will generation capacities. The German Viessmann is currently paving the way
continue to ensure an affordable and government as well has set aside to a greenhouse gas-neutral future by
secure heat supply into the future. nine billion euros for the targeted developing an "H2 ready" condensing
development of a hydrogen boiler, an innovative solution that
Hydrogen can help infrastructure. operates using pure hydrogen.
significantly reduce CO2
To achieve this goal, it is becoming Viessmann appliances are This appliance is based on proven gas
apparent that there will need to be a hydrogen compatible condensing technology and will also be
sensible mix of electrically powered System operators who are currently able to run on natural gas or a natural
heat generators, as well as gas interested in a new heating system gas/hydrogen mixture. As a result,
condensing boilers and fuel cells that already have the option of choosing system users are no longer dependent
use hydrogen by 2050. Hydrogen a futureproof and sustainable heating on a given supplier or specific natural
produced in a CO2 neutral way is system today. That's because gas/hydrogen mixture.
particularly important in this equation. Viessmann, as one of the leading
This new fuel type makes it possible innovators in the industry, has already
to bring about a rapid and substantial made the safe and efficient use of this
reduction in CO2 emissions. Adding new fuel possible. The advanced gas
Residential Commercial
Gas condensing boilers Fuel cells Gas condensing CHP units Industrial boilers
boilers
Vitodens 3xx Vitovalor PT2 Vitobloc 300 Vitomax
Vitodens 2xx Vitocrossal 200 (NG 15/NG 20)
Vitovalor PA2
Vitodens 1xx (type CIB)14 / 15 GAS CONDENSING BOIL ERS
Vitodens 100-W
Wall mounted gas
condensing boilerNE W DE VELOPMENTS 2 0 21
Products & systems
VITODENS 100-W
GAS CONDENSING SYSTEM BOILER
Type B1HF
3.2 to 32 kW
GAS CONDENSING COMBI BOILER
Type B1KF
3.2 to 32 kW
VITODENS 111-W
GAS CONDENSING STOR AGE COMBI BOILER
Type B1LF
3.2 to 32 kW
Integral stainless steel loading cylinder with 46 litre capacity
VITODENS 111-F
GAS CONDENSING STOR AGE COMBI BOILER
3.2 to 32 kW
Type B1TF
Integral, enamelled loading cylinder with 100 litre capacity
Type B2SF
Integral, internally heated DHW cylinder with indirect coil
with 130 litre capacity, for areas with hard water
VITODENS 141-F
GAS/SOL AR CONDENSING STOR AGE COMBI BOILER
Type B1UF
3.2 to 25 kW
Integral loading cylinder with solar indirect coil,
170 litre capacity
Comes with all relevant solar components including EM-S1
extension16 / 17 GAS CONDENSING BOIL ERS
Ready for solar power
The Vitodens 141-F compact appliance
requires just 0.4 square metres of
floor space. High DHW convenience
is guaranteed by a dual mode loading
cylinder with 170 litre capacity and a
solar indirect coil. This means that the
unit is factory-equipped for connection
to the Vitosol solar collectors.
Stainless steel
makes all the difference
The MatriX-Plus burner's special
stainless steel MatriX surface is
resistant to high temperatures, which
ensures economical performance
and a long service life. The corrosion-
resistant stainless steel Inox-Radial
heat exchanger – also made of
stainless steel – efficiently converts
98 percent of the energy used into
heat.
The fully automatic Lambda Pro
combustion controller adapts
automatically to all gas types and
The new Vitodens 1xx range
ensures continuously clean and
The new Vitodens family is already equipped
for blends of up to 20 percent hydrogen. efficient combustion. All appliances are
also certified for operation with up to
20 percent hydrogen (H2) content for
reducing CO2 emissions.
The Vitodens 1xx gas condensing
family includes the wall mounted boilers Comfort and safety
Vitodens 100-W and Vitodens 111-W with ViCare
(with integral 46 litre stainless steel The electronic platform is equipped
loading cylinder) at very attractive with an integrated WiFi interface.
prices. Thanks to modern assemblies, This connects the heating system
the heating appliances can even be directly to the internet if required.
installed in small recesses to save The ViCare app makes operating the
New 7 inch greyscale touchscreen space. No side service clearances are heating system with a smartphone
required, since all the connections are easy and intuitive. It sets the course for
easily accessible from the front. This digital services and is in direct contact
makes Vitodens wall mounted boilers with the local heating contractor.
ideal for modernising apartments or
detached houses. The ViCare app provides information
on the current operating status of the
The Vitodens 111-F version is a energy system, while time programs
floorstanding compact appliance. With for central heating and DHW heating
its enamelled 100 litre loading cylinder contribute to energy cost savings. It
3.5 inch standard display or 130 litre DHW cylinder with internal is compatible with almost all iOS and
indirect coil, this energy centre ensures Android mobile devices.
a high level of DHW convenience.VIT O DEN S 1X X
3.2 to 32 kW
ViCare can use the smartphone's GPS
function* to detect how far the user is
from the heating system. If specified 2
2 3
distances are exceeded, the room 1 4
1 6
temperature is automatically reduced. 6
You can also expand the system with
a ViCare thermostat to enjoy even
more comfort and efficiency.
5
Simple operation with
7-segment display 5
The 7-segment LCD screen features 4
very simple and easy to understand
operation and a discreet "black panel" 3
look. It can be used for convenient 7
control of heating systems with VITODENS 100-W
a direct heating circuit and/or a (Type B1HF)
heating circuit with mixer.
1 MatriX-Plus burner with Lambda Pro
combustion controller
2 Inox-Radial heat exchanger VITODENS 111-F
3 LCD screen with 7-segment display (Type B1TF)
and touch buttons
4 Internet inside
5 High efficiency pump
6 Expansion vessel
* Optional fee-based service,
not available in all countries 7 Enamelled loading cylinder
(100 litre capacity)
P R O D U C T F E AT U R E S B E N E F I T S F O R T R A D E PA R T N E R S
_ Rated heating output: + Wide range of versions for many requirements
3.2 to 32 kW + Ideal for replacements during modernisation
_ Standard seasonal efficiency [to + Space saving installation – access from the front
DIN]: up to 98 % (Hs) [gross cv] + Can connect to Vitoguide
_ Power saving, high efficiency
circulation pump
_ Energy efficiency class: A BENEFITS FOR USERS
Benefit of the Vitodens 100-W + Very attractive price/performance ratio
combi boiler (B1KF): + Durable and efficient thanks to Inox-Radial stainless steel heat exchanger
_ High level of DHW convenience as + MatriX-Plus burner with Lambda Pro combustion controller for permanently
a result of the standby function high efficiency and clean combustion
+ Simple and intuitive operation via LCD screen with 7-segment display and
Benefit of the Vitodens 111-W (B1LF): touch buttons
_ High level of DHW convenience + Web-enabled thanks to integrated WiFi interface for more comfort,
thanks to an integral stainless energy savings and security with ViCare
steel loading cylinder + Certified for 20 % hydrogen content in natural gas
Benefit of the Vitodens 141-F (B1UF):
_ Gas condensing storage combi
boiler with integral solar cylinder,
3.2 to 25 kW
_ Solar coverage: > 50 %
_ Enamelled loading cylinder (170 l)
and solar indirect coil18 / 19 H E AT P U M P S
Vitocal 250-A air source heat pump
and outdoor unit with designer floor bracketNE W DE VELOPMENTS 2 0 21
Products & systems
New developments – heat pumps
T H E N E W G E N E R AT I O N O F H E AT P U M P S
Vitocal 25x-A
Vitocal 2xx-S
VITOCAL 250-A / VITOCAL 250-AH (HYBRID)
VITOCAL 252-A
A I R S O U R C E H E AT P U M P
A S M O N O B LO C K V E R S I O N
5.2 to 13 kW
Flow temperature up to 70 °C
Vitocal 252-A with enamelled DHW cylinder,
190 litre capacity
VITOCAL 150-A / VITOCAL 151-A
A I R S O U R C E H E AT P U M P
A S M O N O B LO C K V E R S I O N
5.0 to 16 kW
Flow temperature up to 70 °C
Vitocal 151-A with enamelled DHW cylinder,
190 litre capacity
VITOCAL 200-S / VITOCAL 250-SH (HYBRID)
VITOCAL 222-S
S P L I T A I R S O U R C E H E AT P U M P
4 to 10 kW
Flow temperature up to 60 °C
Vitocal 222-S with enamelled DHW cylinder,
190 litre capacity
Outdoor units
For the Vitocal 2xx-S split air source heat pumps
and the Vitocal 25x-A air source heat pumps20 / 21 T H E N E W G E N E R AT I O N O F H E AT P U M P S
The new generation of heat pumps:
Vitocal 25x-A and Vitocal 2xx-S
Reliable, compact and more
environmentally responsible than ever
before – Viessmann's new, innovative
heat pump technology enables highly
efficient use of environmental energy
for heating and cooling.
With a flow temperature of up to
70 °C, the Vitocal 25x-A was specially
developed with modernisation projects
in mind. Existing radiators can continue
to be used. Underfloor heating is not
absolutely necessary.
Vitocal 2xx-S is the system of choice
for energy efficient new build. High
energy efficiency, convenient control
via app, sustainable operation and
attractive design are all convincing
features.The new generation of heat pumps
Matched hydraulic systems Viessmann Energy
simplify installation Management simplifies Vitovolt
Hydraulic systems that are matched integration ViCare
to the relevant application scenario If electricity for the heat pump
reduce the space required for the system is generated by an on-site
by up to 60 percent and shorten photovoltaic system and stored in the
installation times by up to 90 minutes Vitocharge VX3 power storage system,
compared to conventional heat pumps. it can be drawn on as needed.
ViCare takes care of integrating the
Underfloor photovoltaic system and power storage
heating
unit, as well as complete Viessmann
Outdoor Vitocal Vitocell Vitoair
Energy Management. And in the unit Vitocharge
Heating circuit EMS ViShare Energy Community,
environmentally conscious consumers VIESSMANN ENERGY MANAGEMENT
can produce their own electricity, use
it themselves or make it available to
the community.
Outdoor Indoor unit DHW cylinder
unit
M AT C HE D H Y DR A U L IC S Y S T E M S
Works well in combination B E N E F I T S O F T H E N E W G E N E R AT I O N AT A G L A N C E :
with condensing technology
The Vitocal 250-AH and Vitocal 250-SH Reliable and straightforward installation
versions are especially good additions + Requires 60 % less space than comparable models
to any existing condensing boiler + Up to 90 minutes faster installation time
system. The heat pump provides the + Indoor units with integral heating water buffer cylinder for
base load in that case. The condensing optimising heat-up and defrosting
boiler only switches on when + Only three hydraulic systems needed to suit every application
temperatures are very low. + Reduced number of spare parts
Efficient and economical
+ 70 °C flow temperature without immersion heater at down to
Gas minus 15 °C outside temperature (Vitocal 25x-A)
condensing + COP: > 5.4 (at A7/W35)
+ Viessmann Energy Management via ViCare app
+
Oil Environmentally responsible and safe
condensing
+ Climate Protect: Vitocal 25x-A with natural refrigerant R290
Third party (propane with ultra-low GWP of 3)
boiler
+ Vitocal 2xx-S: refrigerant R32 (low GWP of 675)
Outdoor
unit Vitocal 250-AH/250-SH
C OMBIN AT ION W I T H C ONDE N SING BOIL E R22 / 23 A I R S O U R C E H E AT P U M P S
The new monoblock air source
heat pump makes modernising a
heating system as easy as replacing
a gas condensing boiler.
Vitocal 25x-A appliances achieve
high flow temperatures of 70 °C,
even at outside temperatures down
to minus 15 °C. This makes it possible
to implement flexible heating/cooling
solutions.
Climate Protect with
"green" refrigerant
With its extremely low GWP (global
warming potential) value of 3, the
"green" refrigerant R290 (propane)
these appliances use is especially
environmentally responsible. The
appliances are hermetically sealed and
are delivered fully charged.
Vitocal 250-A Vitocal 250-A Vitocal 252-A
(1 heating circuit) (2 heating circuits) (1 or 2 heating circuits) Wall mounted and
Vitocal 250-AH (hybrid) floorstanding solutions
Vitocal 25x-A heat pumps are available
as wall mounted or floorstanding
Vitocal 25x-A
compact units with integral DHW
Air source heat pumps
as monoblock versions cylinders. The electronic platform with
its 7-inch colour touchscreen allows for
easy and convenient operation directly
at the appliance or conveniently via the
ViCare app.
Outdoor unit of the Vitocal 25x-A
air source heat pump
Availability: late 2021VIT O C A L 25 0 -A
VIT O C A L 252 -A
5 . 2 to 13 kW
VITOCAL 250-A
With one heating circuit
VITOCAL 252-A
With one heating circuit
P R O D U C T F E AT U R E S B E N E F I T S F O R T R A D E PA R T N E R S
_ Air source heat pumps as + Installs as easily as a wall mounted gas boiler
monoblock versions + Indoor unit installs significantly faster
_ COP value (coefficient of + Around 50 % fewer components to install compared to conventional appliances
performance): > 5.4 (at A7/W35) + Low sound emissions mean it can be placed anywhere on the property
_ Maximum flow temperature: + High flow temperatures of 70 °C (at as low as –15 °C outside temperature)
70 °C (down to –15 °C) + Only one operating and service app for all heat generators
_ Noise emissions: 34 dB(A)* (from gas condensing boiler to heat pump)
_ Outdoor unit + Futureproof and environmentally responsible thanks to the use of natural
Dimensions: refrigerants
(width x height x length (depth)) + Can be split for better manoeuvrability in confined spaces (Vitocal 252-A)
1145 x 1386 x 600 mm
Weight: 210 kg
_ Vitocal 250-A BENEFITS FOR USERS
Dimensions:
(width x height x length (depth)) + Low running costs thanks to high efficiency and self-optimising heat pump
450 x 920 x 360 mm + Indoor and outdoor units both feature attractive, high quality design
Weight: 45 kg + Advanced acoustic design for low operating noise
_ Vitocal 252-A + Requires only 0.52 m2 area for installation (Vitocal 252-A)
Dimensions: + Environmentally responsible refrigerant – propane R290
(width x height x length (depth)) + Works well in combination with an existing condensing system (Vitocal 250-AH)
600 x 1900 x 600 mm + Easy operation and service via ViCare app
Weight: 180 kg
Cylinder capacity: 190 l
* Outdoor unit sound pressure level at a
distance of 4 m with freestanding installation
in low-noise mode24 / 25 A I R S O U R C E H E AT P U M P S
Vitocal 15x-A heat pumps complement
the 25x-A series with a favourable
price/performance ratio. Here too,
the focus is firmly on modernisation
projects thanks to a flow temperature
of up to 70 °C.
High energy efficiency, convenient
control via app, sustainable operation
and attractive design are all convincing
features of the indoor unit. The indoor
unit is available as a wall mounted
version (Vitocal 150-A) or as a compact
unit with a 190 litre DHW cylinder
(Vitocal 151-A). Both indoor units
have a compact design with integral
heating water buffer cylinder, 4/3-way
valve, heating circuit pump and 10 litre
diaphragm expansion vessel.
Save lots of time
during installation
Modernisation with Vitocal 15x-A is as
easy as with a wall mounted gas boiler.
The system requires up to 60 percent
less space, which is especially beneficial
Vitocal 150-A and Vitocal 151-A
when installing it close to the living area
Air source heat pumps
as monoblock versions (utility room). Compared to conventional
heat pumps, the time needed for
installation is reduced by up to one
and a half hours.
Operation on the
appliance and via app
For commissioning and control, the
heat pumps are equipped with 3.5 inch
greyscale displays as standard.
The in-built WiFi module is used
for connection and control via the
ViCare app. A 7 inch greyscale
display with integrated Viessmann
Energy Management is available as an
alternative. This way, the heat pump
can be used within a carefully matched
energy system with battery storage
unit and photovoltaics.
Outdoor unit of the Vitocal 15x-A
air source heat pump
Availability: late 2021VIT O C A L 15 0 -A
VIT O C A L 151 -A
5 . 0 to 16 k W
VITOCAL 150-A
VITOCAL 151-A
P R O D U C T F E AT U R E S B E N E F I T S F O R T R A D E PA R T N E R S
_ Air source heat pumps as + Installation and sizing are as easy as with a wall mounted gas boiler
monoblock versions + Indoor unit installs significantly faster
_ COP value (coefficient of + Around 50 % fewer components to install compared to conventional appliances
performance): > 5.1 (at A7/W35) + High flow temperatures of 70 °C (at as low as –15 °C outside temperature)
_ Max. flow temperature: + Only one operating and service app for all heat generators
70 °C (down to –15 °C) (from gas condensing boiler to heat pump)
_ Output: 5.0 to 16 kW + Futureproof and environmentally responsible thanks to the use of natural
_ Noise emissions: refrigerants
max. 65 dB(A)* (A7/W55)
_ Energy efficiency class: A+++/A++
_ Outdoor unit BENEFITS FOR USERS
Dimensions:
(width x height x length (depth)) + Low running costs thanks to high efficiency and self-optimising heat pump
1145 x 1386 x 600 mm + Only 0.52 m2 installation space required (Vitocal 151-A)
Weight: 210 kg + Environmentally responsible refrigerant – propane R290
_ Vitocal 150-A + Easy operation and service via ViCare app
Dimensions: + Outstanding design
(width x height x length (depth))
450 x 920 x 360 mm
Weight: 45 kg
_ Vitocal 151-A
Dimensions:
(width x height x length (depth))
600 x 1900 x 600 mm
Weight: 180 kg
Cylinder capacity: 190 l * Outdoor unit sound pressure level at a distance of 4 m with freestanding installation in low-noise mode26 / 27 S P L I T A I R S O U R C E H E AT P U M P S
The new Vitocal 2xx-S split heat pump
series achieves high flow temperatures
of up to 60 °C and is especially
recommended for energy efficient
new build.
Environmentally responsible
refrigerant
Type R32 as used here has a GWP
(global warming potential) value that is
two thirds lower than that of the still
widely used refrigerant R410A.
Wall mounted and
floorstanding solutions
Vitocal 2xx-S series heat pumps
are available as wall mounted
or floorstanding compact units
with integral DHW cylinders. The
electronic platform with its 7-inch
colour touchscreen allows for easy
and convenient operation directly
Vitocal 200-S Vitocal 200-S Vitocal 222-S
(1 heating circuit) (2 heating circuits) (1 or 2 heating circuits) at the appliance or conveniently via
Vitocal 250-SH (hybrid) the ViCare app.
Vitocal 2xx-S
Split air source heat pumps
Outdoor unit of the Vitocal 2xx-S Vitocal 222-S is highly recommended for
split air source heat pump energy efficient new build.
Availability: late 2021VIT O C A L 2 0 0 - S
VIT O C A L 222 - S
4 to 10 kW
VITOCAL 200-S
1 heating circuit
VITOCAL 222-S
1 heating circuit
P R O D U C T F E AT U R E S B E N E F I T S F O R T R A D E PA R T N E R S
_ Split air source heat pumps + Requires little space
_ COP value (coefficient of + Quick installation thanks intelligent plug-in technology for electrics and sensors
performance): > 5.4 (at A7/W35) + Straightforward commissioning with the Vitoguide app
_ Maximum flow temperature: + Annual leak test no longer required, thanks to CO2 equivalent < 5 t
60 °C + Perfectly matched accessories for visually appealing installations
_ Noise emissions: 30 dB(A)* + System monitoring via Vitoguide app
_ Dimensions (outdoor unit): + Can be split for better manoeuvrability in confined spaces (Vitocal 222-S)
(width x height x length (depth))
1080 x 830 x 500 mm
_ Dimensions (wall mounted unit): BENEFITS FOR USERS
(width x height x length (depth))
450/600 x 920 x 360 mm + Low running costs thanks to high performance values
_ Dimensions (compact unit): + Requires only 0.52 m2 area for installation (Vitocal 222-S)
(width x height x length (depth)) + Ideal for combination with photovoltaic system and power storage unit
600 x 1900 x 600 mm + Indoor and outdoor units both feature attractive, high quality design
+ Advanced acoustic design for low operating noise
+ Easy operation and service via ViCare app
+ Environmentally responsible refrigerant R32
+ Combines very easily with existing condensing systems (Vitocal 250-SH)
* Outdoor unit sound pressure level at a
distance of 4 m with freestanding installation
in low-noise mode28 / 29 OUTDOOR UNITS
The outdoor units of the new
Vitocal 25x-A and Vitocal 2xx-S
heat pump series stand out with their
clear, timeless Diamond Edge Design
that emphasises the high quality of the
weatherproof units in Vitographite.
Fan operates unseen
behind louvres
In addition to the high quality casing,
innovative technical details ensure
the high quality of the Vitocal outdoor
units. One particular feature is
whisper-quiet operation, which allows
for flexible installation of the units
in almost any location, especially in
densely built-up areas such as terraced
housing. This was achieved by
developing a louvred front to "hide"
the fan working behind it.
The robust sheet steel housing
prevents vibrations and contributes
to smooth operation.
Flexible installation
Outdoor units with designer floor bracket
solutions
for Vitocal 2xx-S (left) and
Vitocal 25x-A (right) The outdoor units can be installed
directly against the building or
R = 1 mm
freestanding on the property.
Corresponding mounting brackets
4 mm
4 mm are available. Matching covers for
concealing the brackets ensure a
uniform design. The connection to
the indoor unit can be made on the
rear or the bottom of the unit.
Diamond Edge Design
Outdoor unit
Designer
bracket
Vitocal 25x-A outdoor unit
with designer floor bracket
Availability: late 2021VIT O C A L 25X-A
VIT O C A L 2 X X- S
P R O D U C T F E AT U R E S
_ Outdoor units in Diamond Edge
Design/Vitographite
_ Vitocal 2xx-S outdoor unit
– Output levels: 4, 6, 8, 10 kW
– Noise emissions: 30 dB(A)*
– Dimensions:
(width x height x length (depth))
1080 x 830 x 500 mm
_ Vitocal 25x-A outdoor unit
– Output levels: 10, 13 kW
Vitocal 2xx-S outdoor unit Vitocal 2xx-S outdoor unit
– Noise emissions: 34 dB(A)*
with designer floor bracket with floor bracket
– Dimensions:
(width x height x length (depth))
1145 x 1386 x 600 mm
BENEFITS FOR
T R A D E PA R T N E R S
+ Flexible siting options
+ Non-visible connections at the
back/bottom of the unit
+ Matching accessories
+ Short installation times
+ Quick commissioning and system
Vitocal 2xx-S outdoor unit Vitocal 2xx-S outdoor unit
monitoring via Vitoguide app with designer wall bracket with wall bracket
BENEFITS FOR USERS
+ High quality, weather resistant
design
+ Whisper-quiet operation
+ Low power consumption
thanks to high efficiency
+ Convenient remote control
via ViCare app
Outdoor unit with designer wall bracket
* Outdoor unit sound pressure level at a
distance of 4 m with freestanding installation
in low-noise mode30 / 31 E F F I C I E N T S Y S T E M S F O R H E AT A N D P O W E R
Vitovalor PT2 fuel cell heating appliance with
Vitocharge VX3 power storage unit (right)
Our recommendation
The perfect "system component"
for a power-generating system:
ViShare from EMSNE W DE VELOPMENTS 2 0 21
Products & systems
VITOVALOR PT2
F U E L C E L L H E AT I N G A P P L I A N C E
W I T H I N T E G R A L P E A K LO A D B O I L E R
A ND TOW ER CY LINDER
Fuel cell: 705 Wel /1 kW th
Peak load boiler: 11 to 32 kW th
Stainless steel DHW cylinder: 220 litre capacity
VITOVALOR PA2
FUEL CELL AS A N A DDITION
T O E X I S T I N G H E AT I N G S Y S T E M S
705 Wel / 1 kW th
VITOCHARGE VX3
P O W E R S TO R A G E S Y S T E M
Type 4.6Ax
Usable battery capacity: 4, 8 and 12 kWh
Optimises power consumption and makes users
almost completely independent of the public grid32 / 33 FUEL CELLS
Vitovalor is designed for new detached
and two-family houses. With a
maximum return temperature of 50 °C,
these fuel cell appliances can also be
installed in professionally insulated
existing buildings.
Greater independence
with ViShare from EMS
Vitovalor system operators can
participate in the EMS ViShare Energy
Community: if they cannot use all the
electricity they generate, the surplus
is made available to the community.
If, on the other hand, members need
more electricity than the Vitovalor is
generating, they can draw energy from
the community. This enables fuel cell
operators to become less dependent
on electricity from the public grid. The
costs are a low monthly flat rate.
The degree of self-sufficiency can even
be increased to up to 90 percent in
combination with a fuel cell, photovoltaic
system and power storage unit, by
Vitovalor PA2 and Vitovalor PT2 initially storing surplus self-generated
Fuel cells for generating your own power
power in the power storage unit and
using it as needed, such as for charging
an electric vehicle.
The success story of the Vitovalor PT2/ Simplified installation
PA2 fuel cell appliances continues: The integration of fuel cells,
2021 will see the launch of the fourth photovoltaic systems and power
generation, making these the first storage units into one system has
fuel cells on the market that can be been greatly simplified: only one meter
operated with blends of up to 20 percent is now needed at the grid connection
hydrogen. This makes Viessmann one point. It used to be necessary to install
of the leading innovators in the use of three meters.
hydrogen in conjunction with fuel cell
technology. Viessmann Energy
Management optimises
Longer service life and consumption
higher electricity yield Integrated Viessmann Energy
The service life of the new fuel cell Management optimises the flow of
and the stack itself is 85,000 hours of energy in a building. This means that
runtime. That is 5000 hours more than the cheapest energy source in each
the previous model, equal to a service case is used as household electricity
life of around 15 years. The increase or for charging an electric vehicle. The
in runtime from 45 to 120 hours until charge level of the power storage unit
stack regeneration contributes to a is also monitored and displayed in the
higher electricity yield. ViCare app.
Availability: 04/2022VIT OVA L O R P T 2
VIT OVA L O R PA 2
705 Wel / 1 kW th
1 Gas condensing boiler for covering 7 7
peak loads
2 Control unit for weather-compensated 1
operation with a large colour touchscreen 6
3 Stack for generating electricity
4 Inverter for converting the stack's 2
2
DC voltage into mains AC current
5 Reformer for the generation of
hydrogen-rich process gas
6 System separation
3
7 Flue gas connection
8 220 l stainless steel DHW cylinder
4
4
8 5 5
VITOVALOR PT2 VITOVALOR PA2
P R O D U C T F E AT U R E S B E N E F I T S F O R T R A D E PA R T N E R S
_ Vitovalor PT2 fuel cell heating + Ideal system for new detached or two-family houses as well as professionally
appliance with integral peak insulated existing buildings
load boiler: 11 to 32 kW th + Simplified installation
_ Vitovalor PA2 fuel cell: + Only one meter at the grid connection point
705 Wel / 1 kW th + Remote service
_ Uninterrupted runtime: 120 h
_ Stack service life: 85,000 h
_ Service interval: 6 years BENEFITS FOR USERS
_ H2 admixture: up to 20 %
_ Vitovalor PT2 + Up to 40 % lower energy costs and up to 50 % lower CO2 emissions compared
dimensions: with separate power and heat generation
(length (depth) x width x height) + Self-generation for greater independence from the public grid
595 x 1200 x 1800 mm + Quiet operation
Weight: 326 kg + Convenient control via ViCare app
_ Vitovalor PA2: + High operational reliability
(length (depth) x width x height) + Long service intervals for low running costs
595 x 600 x 1600 mm + Attractive state subsidies
Weight: 140 kg
_ Efficiency label: A+++34 / 35 POWER STOR AGE SYSTEM
Achieve greater independence from
grid power and rising electricity prices:
Vitocharge VX3 power storage units
give homeowners an easy way to store
power and use it more efficiently.
Modular design for
individual requirements
The Vitocharge VX3 combines
a photovoltaic inverter, battery
inverter and battery modules in a
single appliance. Depending on the
connection and parameterisation
selected, it can be used as a hybrid
power storage unit when purchasing
a new photovoltaic system, as a power
storage unit for an existing photovoltaic
inverter or as a pure photovoltaic
inverter. It can be retrofitted with up
to three batteries each with a usable
storage capacity of 4 kWh.
Flat dimensions and multiple
Vitocharge VX3 installation options – either wall
Vitocharge VX3 hybrid power storage units
can be used with up to three battery units mounted or floorstanding with a
(4 / 8 / 12 kWh) or alone as a photovoltaic base – provide the flexibility needed
inverter (left).
for a wide range of installation
locations and conditions. The use of
long lasting lithium iron phosphate cells
with high environmental compatibility,
combined with an intelligent battery
management system, ensure safe
and efficient operation of the unit.
Digital services for
reliable operation
ViStart's familiar functions have been
incorporated into the new Vitoguide
and enable fast and error-free
commissioning of the Vitocharge VX3.
The 3.5 inch black panel display in the Vitocal 300-G brine/water heat pump,
This app automatically establishes a
programming unit shows the battery's Vitovent 300-W mechanical ventilation system,
current charge level. The Lightguide Vitocell DHW cylinder, Vitocharge VX3 power direct connection using its onboard
provides information on whether the storage unit and Vitovolt 300 photovoltaic
WiFi access point and guides the trade
unit is operating perfectly. system
partner through setup. For the most
convenient level of operation, end
customers can have their installation
contractor connect the Vitocharge VX3
via internet. Then there is nothing
more they need to do to keep their
power storage unit running – the trade
partner can always see at a glance via
Vitoguide that the system is working
properly and quickly respond to any
irregularities.
Vitocharge VX3 power storage unit,
Vitocal 200-S split air source heat pump
with outdoor unit, Vitocell DHW cylinder and
Vitovolt 300 photovoltaic systemVIT O CH A R GE V X 3
U s a b l e b a t t e r y c a p ac i t y : 4 / 8 / 12 k W h
All the energy flows in the The perfect combination:
Vitovolt self-generated power from
house at a glance the photovoltaic system and
The hybrid power storage unit can also fuel cell is either consumed
immediately or temporarily
be controlled via Viessmann Energy Vitocharge VX3 stored in a power storage
Management from the ViCare app. unit and called upon as
required.
Energy flows of the hybrid power
storage unit and other system
components can then be visualised
for optimised operation.
Charging point
and electric
EEBUS connectivity for vehicle
connecting a GridBox Vitovalor PT2 ViCare
Likewise, a GridBox can be Viessmann Energy
Management
incorporated via a standardised EEBUS
Power from the sun, heat
interface and used to visualise the flow Vitovolt from the environment:
of energy. the combination of
photovoltaic system and
heat pump is ideal for a high
self-consumption rate.
Vitocharge VX3
Current sensor
Charging point
and electric
vehicle
Vitocell Vitocal GridBox
Viessmann Energy
Management
P R O D U C T F E AT U R E S B E N E F I T S F O R T R A D E PA R T N E R S
Battery features + One product for three major applications in detached and two-family houses:
_ Usable storage capacity: – Hybrid solution for the combined installation of a photovoltaic system and
4 / 8 / 12 kWh power storage unit
_ Battery unit dimensions: – Retrofitting of a power storage unit to a photovoltaic system with existing PV inverter
(width x height x depth) – Installation of a photovoltaic system with PV inverter without power storage unit
600 x 500 x 250 mm + Straightforward installation thanks to manageable component weight (< 32 kg per unit)
+ Integral short circuit and reverse polarity protection when connecting the batteries
Inverter features + Multi stage safety concept as well as fail-safe lithium-ion batteries
_ AC output: 4.6 kVA (single-phase), + Guided commissioning via Vitoguide
max. 7 kWp + Precisely matched Viessmann building services components
_ Inverter unit dimensions:
(width x height x depth) BENEFITS FOR USERS
600 x 500 x 250 mm
+ Extremely slimline design
Coming soon + Wall mounted or floorstanding installation with base
_ Inverter unit, + High efficiency thanks to low conversion stages during photovoltaic charging
6 kVA (three-phase), max. 9 kWp + AC battery charging for compatibility with the fuel cell
_ Inverter unit, + Reliable lithium iron phosphate (LFP) cells with a long service life, high
8 kVA (three-phase), max. 12 kWp environmental compatibility and a multi stage safety concept
+ Ideal supplement to existing energy systems
+ Fully automatic standby power function during power failure (optional)
+ Integrated Viessmann Energy Management for full transparency through
comprehensive energy monitoring and optimisation of self-consumption
+ Access to the EMS ViShare Energy Community with a flat rate or
domestic electricity
+ 10 year cash value replacement guarantee on the Vitocharge battery cells;
more information at viessmann.de/vitocharge36 / 37 V E N T I L AT I O N S Y S T E M S
Vitovent 200-P
Air purification and ventilation system in
one unit – for effective health protectionNE W DE VELOPMENTS 2 0 21
Products & systems
VITOVENT 200-P
A I R P U R I F I C AT I O N A N D V E N T I L AT I O N S Y S T E M
Maximum air flow rate: 800 m3 /h
VITOVENT 300-W
M E C H A N I C A L V E N T I L AT I O N S Y S T E M
W I T H H E AT R E C O V E R Y
Maximum air flow rate: 225 m3 /h
VITOAIR FS
M E C H A N I C A L V E N T I L AT I O N S Y S T E M
W I T H H E AT R E C O V E R Y
Maximum air flow rate: 300 m3 /h
Click & Go air distribution system
AIR DISTRIBUTION SYSTEM FOR CENTR AL
M E C H A N I C A L V E N T I L AT I O N S Y S T E M S38 / 39 A I R P U R I F I C AT I O N A N D V E N T I L AT I O N S Y S T E M
The effectiveness of ventilation
systems has become a hot topic since
the start of the Corona pandemic. Not
only does the Vitovent 200-P ventilation
unit reduce the viral load in aerosols,
it also lowers the CO2 load in closed
rooms. The result is optimum indoor
air quality at all times, regardless
of how unusual the situation is.
Vitovent 200-P has been developed
especially for schools, seminar rooms
and kindergartens.
Plug & play for effective
infection control
Vitovent 200-P combines two functions:
it cleans the indoor air and at the same
time supplies the room with fresh
outdoor air. The following features
contribute to reducing the risk of
infection and achieving a healthy
room climate:
_ HEPA filter removes 99.99 %
of all viruses
_ Low CO2 concentration
Vitovent 200-P
Effective health protection in schools:
_ Fresh and clean air evenly
air purification and ventilation system in distributed throughout the room
one unit
A 230 V socket is all you need to
operate the Vitovent 200-P. The
plug & play system can be set up
in a short time, and as a standalone
unit it is ideal for retrofitting, e.g. in
classrooms. Connecting the fresh air
and exhaust air ducts requires the
replacement of only one window
element.
Fresh air automatically
supplied at the right time
Intelligent sensors permanently
Exhaust air
Extract air monitor the CO2 concentration in the
room. The air volume is automatically
Natural convection Natural convection adjusted based on these readings, so
Outdoor air
there is no need to set time programs
or the like.
Supply air
Continuous ventilation
Fresh air
that still saves energy
Thanks to the integral heat recovery
and humidity control, very little
The Vitovent 200-P ventilation system
heating energy is lost compared to
continuously supplies purified, fresh air for up to
30 people per room based on the displacement window ventilation. What's more, this
principle (depending on the room arrangement). system offers a pleasant room climate
during winter months thanks to the
balanced humidity level.You can also read
