TECHNOLOGY MYNICE INTEGRATED MANAGEMENT OF THE HOME ALARM SYSTEM
AND AUTOMATIONS / CATALOGUE 2018
AS SIMPLE
AS A GESTURE
NICE, EASY SOLUTIONS
CATMYNICE18/EN/00/18 • The information presented in this brochure is for information purposes only. Nice reserves the right to make
FOR HOME AND BUILDING.
AUTOMATION AND CONTROL SYSTEMS FOR GATES, GARAGE DOORS, AWNINGS, SHUTTERS
AND ALARM SYSTEMS THROUGH INTEGRATED MANAGEMENT USING INTELLIGENT
any changes to the products that it deems necessary. Product Design Roberto Gherlenda
AND INTUITIVE INTERFACES: PRACTICAL, FUNCTIONAL AND STYLISH SOLUTIONS TO OPTIMISE
THE LIVING EXPERIENCE THROUGHOUT THE HOME.
Nice cares for the environment.
Nice SpA It uses natural paper to help save raw
Oderzo TV Italia materials and prevent exploitation of forests.
Waste is reduced, energy is saved and climate
www.niceforyou.com quality is improved.
Our products and technology products are protected by patents, design models and trademarks. Any infringement of these rights will be prosecuted by law.
MYNICE
4 BENEFITS OF THE MYNICE SYSTEM
6 MYNICE WORLD APP
CATALOGUE 2018 16 THE HUB OF THE MYNICE SYSTEM: THE CONTROL UNIT
32 DETERRENCE, SECURITY AND PROTECTION: SIRENS AND DETECTORS
50 CONTROL SYSTEMS FOR INTEGRATION
72 ALPHABETIC INDEX
FOR ALARM
SYSTEMS
FOR SHUTTERS
AND VENETIAN BLINDS
FOR LIGHTING
SYSTEMS
FOR INDOOR
AND OUTDOOR AWNINGS
GARAGE DOOR
OPENER
FOR GATES
MYNICE Integrated management of the home alarm system and automations. Integration: MyNice is a simple, secure solution to manage the home alarm system and automations that are connected to it, all from a single device, the control unit. Remote access via smartphone and ability to create customised scenes. Quick to program with a procedure that guides you step by step through configuration of the system, whilst the colour touchscreen and intuitive navigation menu make it easy to use. Technicians can provide maintenance and support, even remotely, using the remote management function. Security: the bidirectional communication between the various alarm system devices confirms the commands sent. Updates are available online, ensuring your investment in security is long-lasting and always up to date. Flexible thanks to wireless and hybrid wired/wireless solutions.
MYNICE WORLD
APP
Nice now gives end users another added
benefit: With the MyNice World app, you can
manage the alarm system and automations
that are connected to the MyNice control unit,
such as awnings, shutters, gates, garage
doors, and lighting and irrigation systems,
straight from your smartphone.
SOME EXAMPLES OF
POSSIBLE SCENES
Good Morning
at the chosen time, the alarm system
will be disabled and the awnings
and shutters will open
Good Night
enables the alarm system, lowers
the shutters and switches off the lights
Welcome
opens the gate and the garage door,
disables the alarm system
and switches on the lights as soon as
you enter the house
REMOTE MANAGEMENT OF AUTOMATIONS SCENES EVERYTHING UNDER CONTROL
Intuitive graphic interface for easy and convenient control Allows you to create scenes based on your routines, The alarm system can be managed in just one click, even remotely,
of all connected automations, even remotely. which can be customised for different days of the week by choosing whether to enable it in all the areas of the building,
(weekdays and the weekend). or in specific areas only.
With a simple tap of a button, you can select the scene In addition, if an alarm is triggered, or on request, the Nice PhotoPir
of your choice out of those set up and enable it at any time. detector will take photographs of the area and send them
to the user in real time.
7
THE SIREN EMITS
CUSTOMISED DETERRING
VOICE MESSAGES
IMMEDIATE CLOSURE
OF SHUTTERS
DETECTORS WITH
AN INTEGRATED CAMERA
FOR IMAGES IN REAL TIME
LIGHTS
ON
IRRIGATION
ENABLED
DETERRENCE AND PREVENTION
FOR A SAFER HOME
A professional and reliable alarm system needs to ensure both security and protection,
preventing break-ins and burglaries before they happen.
The indoor and outdoor sirens in the MyNice range constitute an effective deterrent:
as soon as an break-in attempt is detected, the sirens emit a voice message, which can be customised,
and if the break-in attempt persists, the alarm will be triggered. The Nice PhotoPir detector will also take
photographs of the area, even in the dark, and send these in real time to the user.
Together with the siren, MyNice offers a range of measures for comprehensive deterrence.
When an initial break-in attempt is detected, for instance, the following actions can be triggered:
the sirens emit a voice alarm; the lights are switched on; the irrigation system is enabled;
and the shutters are closed immediately.
9
Detectors installed outdoors under cover PhotoPir detector for images in real time THE MOST EXTENSIVE RANGE OF DETECTORS AND ACCESSORIES 10 MYNICE 2018
Perimeter protection for doors and windows Practical detectors for safety in the home
MyNice offers a comprehensive range of movement detectors that lets you build a system The anti-masking function ensures even tighter security , signalling any attempts to tamper
that is tailored to suit your home, no matter its shape or size. with the detector, whilst the Pet Immunity function will trigger the alarm when the presence
of small animals is detected. Their presence will go undetected, however, if they are taller than
Everything under control, even at a distance: at the sound of the alarm, or on request, a specific level above the ground, to avoid false alarms.
the Nice PhotoPir detector will take photographs of the surrounding area and send these
over the Wi-Fi network to the control unit. The control unit then saves the images and sends The detectors can be installed indoors and outdoors under cover, and the parameters can be
them to the user. configured directly from the MyNice control unit.
The colour camera with an integrated flash allows you to identify the subject being photographed,
even in the dark, and up to a distance of 8 metres.
11MYNICE: A COMPREHENSIVE RANGE
FOR EASIER INTEGRATION
1. CONTROL UNITS 2. LOCAL AND REMOTE MANAGEMENT

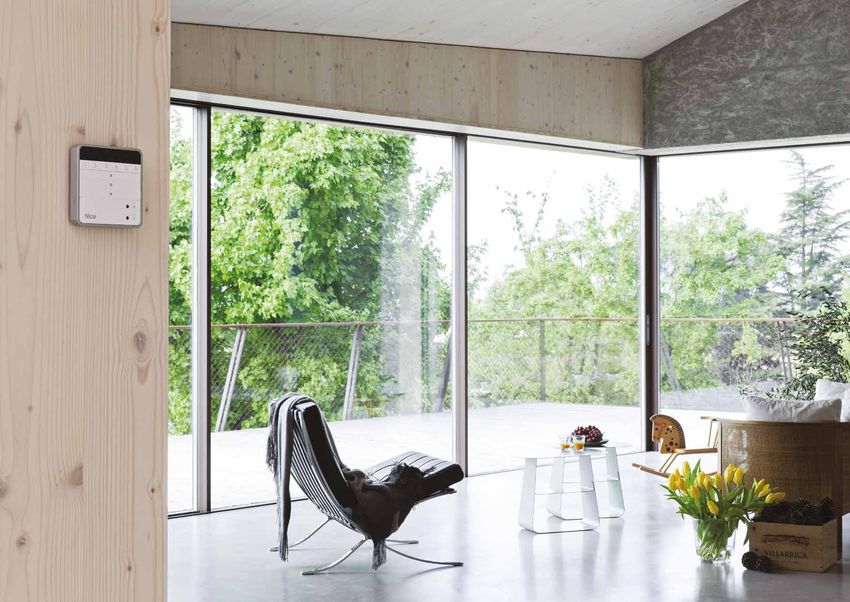

MyNice 7000 Touch MyNice 7001 Touch MyNice 7002 MNKP Keypad MNTX8 Transmitter MNB1 Transponder
Wireless, with an integrated Wired and wireless, with an integrated Wired and wireless, for hybrid Removable and portable wireless Bidirectional 8-channel transmitter Transponder badge to arm
touchscreen, for alarm systems touchscreen, for hybrid wired/wireless wired/wireless alarm systems bidirectional LCD keypad to manage with 4 icon keys to manage alarm systems and disarm the alarm by simply moving
via bidirectional dual band radio. alarm systems via bidirectional dual via bidirectional dual band radio alarm systems and automations and automations connected to Nice. the device close to the control unit
band radio and via wire. and via wire. connected to the MyNice control unit. or to the MNKP keypad.
MYNICE WORLD APP
Enables you to manage the alarm system
and automations connected to the MyNice control unit,
such as awnings, shutters, gates, garage doors,
and lighting and irrigation systems, straight
from your smartphone.
12 MYNICE 20183. DETERRENCE 4. SECURITY AND PROTECTION 5. ACCESSORIES
AND WARNING

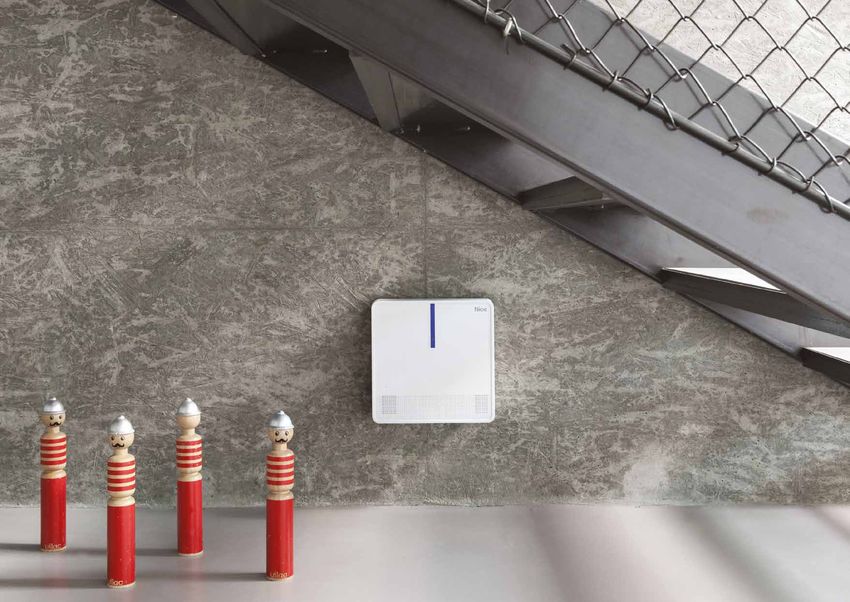

Outdoor alarm sirens MNMC MNPIRTVCC MNPIR MNCPIR MNDT MNTX0
via bidirectional dual band radio, Magnetic contact detector, Infrared detector Infrared detector Infrared detector Dual technology volumetric Bidirectional dual band radio
or via wire, with voice messages via bidirectional dual band via bidirectional dual band via bidirectional dual band via bidirectional dual band movement detector transmitter to manage
and built-in flashing LED lights. radio, signals when doors radio, with volumetric lens radio, with volumetric lens. radio, with vertical via bidirectional dual band any generic sensor using
and windows are opened. and built in Wi-Fi camera. curtain lens. radio, with anti-masking the MyNice control unit.
function.
Indoor siren MNCPIR2 MNGB MNWD MNSD MNREP
via bidirectional dual band radio, Infrared detector via Microphone glass breakage Flooding detector, via Smoke detector, via Signal repeater via
with voice messages. bidirectional dual band detector via bidirectional bidirectional dual band radio. bidirectional dual band radio. bidirectional dual band radio.
radio, with double vertical dual band radio.
curtain and anti-masking
function.
13PROFESSIONALISM AND SERVICE:
THE ADDED VALUE OF NICE SPECIALISTS
A team of highly qualified experts offers comprehensive support
for the planning, installation and setting up of the systems.
TRAINING
Intense training courses on the product range, sales techniques, and installation and programming
procedures are provided to ensure all-round, comprehensive occupational training.
SUPPORT
Nice offers an efficient, timely support service that is also available online on the website
www.niceforyou.com, featuring content designed with both technicians and end users in mind.
• The website has a special area for installation and programming video tutorials, with answers
to the most frequently asked questions.
• The downloads area provides instruction manuals, quick guides, catalogues and brochures
for you to download.
• Request software or firmware updates for timers and the control unit using the online form.
Trust in Nice, your reliable, go-to partner for all your projects.
15THE HUB OF THE MYNICE SYSTEM:
THE CONTROL UNIT
CONTROL UNITS 20 MYNICE 7000 TOUCH
20 MYNICE 7001 TOUCH
24 MYNICE 7002
KITS 22 MYNICE KIT 7000 TOUCH
23 MYNICE KIT 7001 TOUCH
26 MYNICE KIT 7002
TRANSMITTERS 28 MNTX8, TRANSMITTER
AND KEYPAD 29 MNKP, KEYPAD
30 MNB1, TRANSPONDER BADGE
17EASE OF USE
FOR THE USER
MyNice control units provide an integrated management solution for the alarm system
and radio automations connected to Nice, such as awnings, shutters, gates, garage doors,
lighting systems and other electrical loads.
MyNice is easy to use and simple to program thanks to the touchscreen.
GSM status, Wi-Fi Mains power status
and battery charging status in the event
of power outage
Quick activation by area
Customisable buttons
for quick access to commands for the alarm
system, automations and scenes
Real-time images
sent by connected IP cameras
and the PhotoPir detector
View and manage Time programmer, System programming
Main screen connected automations weekly and daily and scene creation
18 MYNICE 2018PRACTICAL AND QUICK GUIDED
PROGRAMMING
Installing the system is now even easier with guided, step-by-step programming,
with full instructions to configure each device: detectors, sirens, transmitters and other Nice automations.
In addition, with the remote management function, technicians can even provide remote support
and maintenance, once the registered user has granted permission.
Step-by-Step Guided instructions
Programming to connect devices
The parameters are pre-set to average values Customisation of each user’s activities,
to make system configuration even quicker up to a maximum of 64
19MYNICE 7000-7001
Remote support and maintenance CODE DESCRIPTION
Using the remote management function, the registered user can MNCUT MYNICE WIRELESS CONTROL UNIT, 99 ZONES IN 6 AREAS, BIDIRECTIONAL DUAL BAND RADIO
allow a technician to connect to the control unit remotely to check WITH 7” COLOUR TOUCHSCREEN. 110-240 Vac POWER SUPPLY WITH 6V 1.2Ah BACKUP
TOUCH the status of the devices, perform maintenance operations
in the event of anomalies and adjust the programming parameters. MNCUTC
BATTERIES (NOT INCLUDED). WITH BUILT-IN WI-FI.
MYNICE WIRED AND WIRELESS CONTROL UNIT, 99 ZONES IN 6 AREAS, BIDIRECTIONAL DUAL
BAND RADIO WITH 7” COLOUR TOUCHSCREEN AND CIRCUIT BOARD WITH 8 INPUT PORTS.
110-240 Vac POWER SUPPLY WITH 2X2Ah 12V BACKUP BATTERIES (NOT INCLUDED).
Flexibility of installation WITH BUILT-IN WI-FI.
The fully wireless MNCUT control unit can easily be installed MNGSM* GSM PLUG-IN MODULE
Remote controllable control units, anywhere in the home, without the need to lay cables to connect MNPSTN* PSTN PLUG-IN MODULE
with bidirectional dual band radio and built-in it to the system devices. B6V-A.4315 6V 1.2Ah LEAD ACID BATTERY
touchscreen, for wireless alarm systems B12V-C.4310 12V 2Ah LEAD ACID BATTERY
or for hybrid wired/wireless alarm systems. Reliable * The optional GSM/GPRS modules enable voice or SMS communication of alarms or technical messages, and are able to send an email containing freeze-frames, even when
Updates for MyNice control units are available online and can there is no Wi-Fi network. The PSTN board enables voice communication using the traditional telephone line.
be carried out by a technician remotely, ensuring your investment
Full integration in security is long-lasting and always up to date.
MyNice control units provide an integrated management solution
for the alarm system and radio automations connected to Nice, Everything under control
such as awnings, shutters, gates, garage doors, lighting systems The Nice PhotoPir detector and any IP camera available on
and other electrical loads. the market can be connected to MyNice control units: the images
The Nice TAG system can also be used to manage other are saved in the control unit and sent to the user when an alarm
automations available on the market. is triggered or on request. The user can also view the photos
via email and/or from the MyNice World app.
Remote management
MyNice control units can operate in client or access point mode, Deterrence and warning
which enables the alarm system and automations to be managed The system’s deterrent effect is guaranteed by powerful indoor
locally or remotely via smartphone using the units’ built-in Wi-Fi. and outdoor sirens, as well as voice sirens. MyNice control units
feature a built-in siren with a sound power of 105 dB(A),
Simple to use which can also be muted. The system can also perform other
7-inch colour touchscreen with intuitive navigation menu. deterring actions, such as switching on the lights, enabling
the irrigation system, closing the shutters and activating other
Easy to program deterrent devices.
Built-in RFID reader
Guided, step-by-step procedure for system configuration. to enable and disable
The control unit parameters are pre-set to average values Use the MyNice World app the alarm
and detectors are recognised automatically by simply inserting with the MNB1
With its easy, intuitive interface, the app allows transponder badge
the batteries, making installation both quick and easy.
local and remote management of the alarm system
and automations connected to the control unit:
Security Microphone to record
- enabling and disabling of all or part of the alarm system
The supervised dual band radio transmission over 4 different voice messages
and status check;
channels and the control of radio interference ensures secure
- control of automations;
communication between the control unit, detectors and sirens;
- enabling of customised scenes;
in the event of disturbances on a previously selected channel,
- area monitoring using IP cameras and Nice PhotoPir detector.
the system will automatically adjust itself and switch to one
of the other 4 frequencies.
The bidirectional communication between the various alarm
devices confirms the commands sent.
Built-in siren,
with mute option
20 MYNICE 2018TECHNICAL DATA
CODE MNCUT MNCUTC
CONNECTION TYPE WIRELESS WIRED AND WIRELESS
RADIO TRANSMISSION DUAL BAND GFSK MHz 433.54-433.92 AND MHz 868.30-868.94
PROTECTION RATING (IP) 40
AREAS 6
WIRELESS ALARM INPUTS 99 (INCLUDING OUTDOOR SIRENS AND KEYPADS)
DETECTOR PROGRAMMING DIRECTLY FROM THE CONTROL UNIT AND CONFIGURABLE IN 7 DIFFERENT WAYS: IMMEDIATE, DELAYED,
AND, CONFIGURABLE AS 24 H PANIC ZONE, EMERGENCY, TECHNICAL
REMOTE CONTROLS 32
TRANSPONDER KEYS 32
KEYPADS 8
WIRED INPUTS - 8
WIRED ALARM SIREN OUTPUT - 1
RELAY OUTPUT - 2
TIMERS 64
EVENT LOG 500
TAMPER PROTECTION YES
FIELD METER YES
TIMER YES
BUILT-IN SIREN YES
PSTN TELEPHONE DIALLER OPTIONAL (MNPSTN)
PHONE BOOK NUMBERS 64
GSM TELEPHONE DIALLER OPTIONAL (MNGSM)
SMS ONLY WITH THE OPTIONAL MNGSM MODULE
REMOTE CONTROLLABLE YES: WITH THE CONTROL UNIT SET TO CLIENT MODE AND WITH THE WI-FI CONNECTED TO THE INTERNET;
WITH DTMF VIA THE PSTN AND/OR GSM MODULE; SMS WITH GSM MODULE
DIGITAL PROTOCOLS CONTACT ID
POWER SUPPLY 100-240Vac/7.5V rated power, 50/60Hz, 2A 100-240Vac/14.5V rated power, 50/60Hz, 1.6A
SUPERVISION 18 MINUTES
ELECTRICAL INSULATION CLASS II
BACKUP BATTERY 6V - 1.2Ah 1(2) 12V 2Ah OPTIONAL BATTERIES
POWER OUTPUT - 12 VDC (200MA WITH 2 WIRED BATTERIES - 80MA
WITH 1 WIRED BATTERY)
AUTONOMY* DEPENDS ON THE CONTROL UNIT SETTINGS
CONTROL UNIT LANGUAGE ITALIAN
VOCAL SYNTHESIS YES, MESSAGES CAN BE RECORDED DIRECTLY BY THE USER/FITTER IN THE CONTROL UNIT
SW UPDATING AVAILABLE VIA MICRO-USB OR THE CLOUD
OPERATING TEMPERATURE -10°C ÷ +40°C
(ENVIRONMENTAL CLASS II IN ACCORDANCE WITH EN50131)
CE CERTIFICATION
DIMENSIONS (mm) (LxDxW) 265x265x40 265x265x85
WEIGHT (kg) 1.25 1.85
* For specific conditions, please see the instruction manual
21MYNICE KIT
Complete control, even remotely CODE DESCRIPTION
Integrated management of the alarm system and automations MNKITW7000T MYNICE ALARM KIT: CONTROL UNIT, 99 ZONES IN 6 AREAS, BIDIRECTIONAL DUAL BAND RADIO AND WI-FI,
connected to the control unit, even at a distance, using WITH 7” COLOUR TOUCHSCREEN. 4-KEY TRANSMITTER, MAGNETIC SENSOR AND VOLUMETRIC SENSOR.
7000 TOUCH the MyNice World app.
Maximum security
N.B. The content of the package may vary: consult the retailer.
Supervised dual band radio transmission over 4 different
channels and control of radio interference.
Kit providing an integrated management solution Bidirectional communication between alarm devices,
for home alarm systems and automations, confirming the commands sent.
using the wireless MNCUT control unit.
Simple programming
Guided, step-by-step procedure for system configuration.
Wireless freedom
Wireless solution ensuring maximum flexibility of installation. Reliability
Updates are available online, ensuring your investment
Easy to use in security is long-lasting and always up to date.
7-inch colour touchscreen with intuitive navigation menu.
Remote support and maintenance
Using the remote management function, the registered user
can allow a technician to connect to the control unit remotely
to check the status of the devices, perform maintenance
operations in the event of anomalies and adjust
the programming parameters.
DESCRIPTION OF KIT
1 MNCUT 1 MNTX8 1 MNPIR 1 MNMC
WIRELESS CONTROL UNIT PORTABLE 4-KEY TRANSMITTER INFRARED VOLUMETRIC DETECTOR DOOR/WINDOW OPEN DETECTOR
WITH BUILT-IN TOUCHSCREEN WITH WALL MOUNT AND ADAPTER WITH MAGNETIC CONTACT
FOR CORNER MOUNTING
22 MYNICE 2018MYNICE KIT
Maximum security CODE DESCRIPTION
Supervised dual band radio transmission over 4 different MNKITW7001TC MYNICE ALARM KIT: CONTROL UNIT, 99 ZONES IN 6 AREAS, BIDIRECTIONAL DUAL BAND RADIO, WI-FI,
channels and control of radio interference. AND EXPANSION CARD, WITH 7” COLOUR TOUCHSCREEN. 4-KEY TRANSMITTER, MAGNETIC SENSOR AND
7001 TOUCH Bidirectional communication between alarm devices,
confirming the commands sent.
VOLUMETRIC SENSOR.
N.B. The content of the package may vary: consult the retailer.
Simple programming
Guided, step-by-step procedure for system configuration.
Kit providing an integrated management solution
for home alarm systems and automations, using Reliability
the hybrid wired/wireless MNCUTC control unit. Updates are available online, ensuring your investment
in security is long-lasting and always up to date.
Complete control, even remotely Remote support and maintenance
Integrated management of the alarm system and automations Using the remote management function, the registered user
connected to the control unit, even at a distance, using can allow a technician to connect to the control unit remotely
the MyNice World app. to check the status of the devices, perform maintenance
operations in the event of anomalies and adjust
Easy to use the programming parameters.
7-inch colour touchscreen with intuitive navigation menu.
DESCRIZIONE
DESCRIPTION DEL KIT
OF KIT
1 MNCUTC 1 MNTX8 1 MNPIR 1 MNMC
WIRELESS CONTROL UNIT WITH BUILT-IN PORTABLE 4-KEY TRANSMITTER INFRARED VOLUMETRIC DETECTOR DOOR/WINDOW OPEN DETECTOR
CIRCUIT BOARD AND TOUCHSCREEN WITH WALL MOUNT AND ADAPTER WITH MAGNETIC CONTACT
FOR CORNER MOUNTING
MYNICE KIT 7000 AND 7001 TOUCH Kits 23MYNICE 7002
Remote support and maintenance CODE DESCRIPTION
Using the remote management function, the registered user can MNCUC MYNICE CONTROL UNIT, 99 ZONES IN 6 AREAS, BIDIRECTIONAL DUAL BAND RADIO,
allow a technician to connect to the control unit remotely to check CONTROLLABLE WITH TABLET/PC VIA WI-FI, CIRCUIT BOARD WITH 8 INPUT PORTS.
the status of the devices, perform maintenance operations 110-240 Vac POWER SUPPLY WITH 2X2Ah 12V BACKUP BATTERIES (NOT INCLUDED).
in the event of anomalies and adjust the programming parameters. MNGSM* GSM PLUG-IN MODULE
MNPSTN* PSTN PLUG-IN MODULE
Reliable B12V-C.4310 12V 2Ah LEAD ACID BATTERY
Updates for MyNice control units are available online and can * The optional GSM/GPRS modules enable voice or SMS communication of alarms or technical messages, and are able to send an email containing freeze-frames, even when
Remote controllable control unit, with be carried out by a technician remotely, ensuring your investment there is no Wi-Fi network. The PSTN board enables voice communication using the traditional telephone line.
bidirectional dual band radio, for hybrid in security is long-lasting and always up to date.
wired/wireless alarm systems.
Everything under control
The control unit can be connected to the Nice PhotoPir detector
Full integration and any other IP camera available on the market: images
Integrated management of the alarm system and radio are saved in the control unit and sent to the user if the alarm
automations connected to Nice: awnings, shutters, gates, is triggered or on request. The user can view the photos via email
garage doors, lighting systems and other electrical loads. or from the MyNice World app.
The Nice TAG system can also be used to manage other
automations available on the market. Deterrence and warning
The system’s deterrent effect is guaranteed by powerful indoor
Local and remote management via the app and outdoor sirens, as well as voice sirens. The control unit
MyNice control units can operate in client or access point mode, features a built-in siren with a sound power of 105 dB(A),
which enables the alarm system and automations to be managed which can also be muted. The system can also perform other
locally or remotely via smartphone using the units’ built-in Wi-Fi. deterring actions, such as switching on the lights, enabling
the irrigation system, closing the shutters and activating
Easy to program other deterrent devices.
Guided, step-by-step procedure for system configuration.
The control unit parameters are pre-set to average values Use the MyNice World app
and detectors are recognised automatically by simply inserting
the batteries, making installation both quick and easy. With its easy, intuitive interface, the app allows
local and remote management of the alarm system
Security and automations connected to the control unit: Built-in RFID reader
The supervised dual band radio transmission over 4 different - enabling and disabling of all or part of the alarm system to enable and disable
and status check; the alarm
channels and the control of radio interference ensures secure with the MNB1
communication between the control unit, detectors and sirens; - control of automations; transponder badge
in the event of disturbances on a previously selected channel, - enabling of customised scenes;
the system will automatically adjust itself and switch to one - area monitoring using IP cameras and Nice PhotoPir detector.
Microphone to record
of the other 4 frequencies. voice messages
The bidirectional communication between the various
alarm devices confirms the commands sent.
Built-in siren,
with mute option
24 MYNICE 2018TECHNICAL DATA
CODE MNCUC
CONNECTION TYPE WIRED AND WIRELESS
RADIO TRANSMISSION DUAL BAND GFSK MHz 433.54-433.92 AND MHz 868.30-868.94
PROTECTION RATING (IP) 40
AREAS 6
WIRELESS ALARM INPUTS 99 (INCLUDING OUTDOOR SIRENS AND KEYPADS)
DETECTOR PROGRAMMING DIRECTLY FROM THE CONTROL UNIT AND CONFIGURABLE IN 7 DIFFERENT WAYS: IMMEDIATE, DELAYED,
AND, CONFIGURABLE AS 24 H PANIC ZONE, EMERGENCY, TECHNICAL
REMOTE CONTROLS 32
TRANSPONDER KEYS 32
KEYPADS 8
WIRED INPUTS 8
WIRED ALARM SIREN OUTPUT 1
RELAY OUTPUT 2
TIMERS 64
EVENT LOG 500
TAMPER PROTECTION YES
FIELD METER YES
TIMER YES
BUILT-IN SIREN YES
PSTN TELEPHONE DIALLER OPTIONAL (MNPSTN)
PHONE BOOK NUMBERS 64
GSM TELEPHONE DIALLER OPTIONAL (MNGSM)
SMS ONLY WITH THE OPTIONAL MNGSM MODULE
REMOTE CONTROLLABLE YES: WITH THE CONTROL UNIT SET TO CLIENT MODE AND WITH THE WI-FI CONNECTED TO THE INTERNET;
WITH DTMF VIA THE PSTN AND/OR GSM MODULE; SMS WITH GSM MODULE
DIGITAL PROTOCOLS CONTACT ID
POWER SUPPLY 100-240 Vac/14.5V RATED POWER, 50/60Hz, 1.6A
SUPERVISION 18 MINUTES
ELECTRICAL INSULATION CLASS II
BACKUP BATTERY 1(2) 12V 2Ah OPTIONAL BATTERIES
POWER OUTPUT 12 Vdc (200MA WITH 2 WIRED BATTERIES - 80MA WITH 1 WIRED BATTERY)
AUTONOMY* DEPENDS ON THE CONTROL UNIT SETTINGS
CONTROL UNIT LANGUAGE ITALIAN
VOCAL SYNTHESIS YES, MESSAGES CAN BE RECORDED DIRECTLY BY THE USER/FITTER IN THE CONTROL UNIT
SW UPDATING AVAILABLE VIA MICRO-USB OR THE CLOUD
OPERATING TEMPERATURE -10°C ÷ +40°C
(ENVIRONMENTAL CLASS II IN ACCORDANCE WITH EN50131)
CE CERTIFICATION
DIMENSIONS (mm) (LxDxW) 265X265X85
WEIGHT (kg) 1.65
* For specific conditions, please see the instruction manual
25MYNICE KIT
Maximum security CODE DESCRIPTION
Supervised dual band radio transmission over 4 different MNKITW7002C MYNICE ALARM KIT: CONTROL UNIT, 99 ZONES IN 6 AREAS, BIDIRECTIONAL DUAL BAND RADIO, WI-FI,
channels and control of radio interference. AND EXPANSION CARD. 4-KEY TRANSMITTER, MAGNETIC SENSOR AND VOLUMETRIC SENSOR.
7002 Bidirectional communication between alarm devices,
confirming the commands sent.
N.B. The content of the package may vary: consult the retailer.
Simple programming
Guided, step-by-step procedure for system configuration.
Kit providing an integrated management solution
for home alarm systems and automations, using Reliability
the hybrid wired/wireless MNCUC control unit. Updates are available online, ensuring your investment
in security is long-lasting and always up to date.
Complete control, even remotely Remote support and maintenance
Integrated management of the alarm system and automations Using the remote management function, the registered user
connected to the control unit, even at a distance, can allow a technician to connect to the control unit remotely
using the MyNice World app. to check the status of the devices, perform maintenance
operations in the event of anomalies and adjust
Flexible and discreet the programming parameters.
The control unit has no display or keypad so can be installed
anywhere in the home, even in hard-to-reach places.
DESCRIPTION OF KIT
1 MNCUC 1 MNTX8 1 MNPIR 1 MNMC
WIRELESS CONTROL UNIT PORTABLE 4-KEY TRANSMITTER INFRARED VOLUMETRIC DETECTOR DOOR/WINDOW OPEN DETECTOR
WITH BUILT-IN CIRCUIT BOARD WITH WALL MOUNT AND ADAPTER WITH MAGNETIC CONTACT
FOR CORNER MOUNTING
26 MYNICE 2018MNTX8
Bidirectional CODE DESCRIPTION
The LED on the transmitter sends optical feedback (change MNTX8 BIDIRECTIONAL 4-KEY TRANSMITTER WITH DUAL FUNCTION FOR CONTROL OF NICE AUTOMATIONS
in colour) to indicate reception of the commands and activation B3VC.4320 3V (CR2032) 230mAh LITHIUM BATTERY
TRANSMITTER of the various functions.
Practical and ergonomic
fitted with a keyring hook.
8-channel, bidirectional radio transmitter, TECHNICAL DATA
433 MHz, rolling code. CODE MNTX8
POWER SUPPLY CR2032 3V LITHIUM BATTERY SUPPLIED
Simple integrated management of the alarm and automations CURRENT DRAW AT REST (µA) -
4 icon keys for the alarm system for arming, disarming CURRENT DRAW DURING OPERATION (mA) < 25
and partial enabling. AUTONOMY* > 2 YEARS
Key can be programmed with an emergency call or anti-panic RADIO TRANSMISSION GFSK 433.54 - 433.92 MHz; OOK 433.92 MHz
function (quick enabling of the sirens). INSULATION CLASS II
The side button enables switching between the alarm mode OPERATING TEMPERATURE -10 ÷ +40 °C
and automation mode, allowing any other Nice automation PROTECTION RATING (IP) 30
to be managed using the 4 icon keys. DIMENSIONS (mm) (LxDxW) 46x52x12
WEIGHT (g): 19.2
*May vary according to the number of activations, use and type of system.
Bidirectional with confirmation LEDs:
Red: alarm armed
Green: alarm disarmed
ON button:
full activation
OFF button:
full deactivation
Partial arming
Button to switch from alarm mode
to automation mode
Practical keyring hook
Alarm (panic, illness, burglary) or configurable
as second partial arming
28 MYNICE 2018MNKP
Practical management of automations CODE DESCRIPTION
Can control up to 32 different Nice automations connected MNKP BIDIRECTIONAL DUAL BAND RADIO LCD KEYPAD FITTED WITH RFID READER
to the MyNice control unit.
KEYPAD 861021 3V CR123A BATTERY
Easy enabling and disabling of the alarms
With the built-in RFID reader, the alarm system can be enabled
or disabled by moving the MNB1 transponder closer
to the keypad’s built-in RFID reader.
Bidirectional dual band radio keypad, TECHNICAL DATA
wall-mounted or portable, for control of CODE MNKP
the alarm system and automations. POWER SUPPLY CR123A 3V LITHIUM BATTERY SUPPLIED
AUTONOMY* > 2 YEARS
Secure RADIO TRANSMISSION 433 AND 868MHz
The MNKP keypad can be used to partially or totally arm, RADIO TRANSMISSION BIDIRECTIONAL DIGITAL COMMUNICATION
or disarm the alarm system using a 5-figure numerical code, OPERATING TEMPERATURE -10°C / 40°C
with confirmation of the action shown on the display. DIMENSIONS (mm) (LxDxW) 67x25x150
The backlit display also shows status feedback and anomalies. WEIGHT (g): 30
*May vary according to the number of activations, use and type of system.
Built-in RFID reader to enable
and disable the alarm
with the MNB1 transponder badge
MNTX8, MNKP Transmitter 29MNB1
Compact and practical to use CODE DESCRIPTION
MNB1 is designed to be hooked onto a keyring so you always MNB1 TRANSPONDER BADGE (PACK OF 5 PARTS)
have it within easy reach.
TRANSPONDER BADGE
Secure
If lost, MNB1 can easily be removed from the MyNice control unit
so it can no longer be operated.
Transponder badge for control TECHNICAL DATA
of the alarm system. CODE MNB1
RADIO TRANSMISSION 125 kHz, ±6 kHz
Simple to use WIRELESS RANGE APPROX. 1 cm
MNB1 enables you to arm and disarm the alarm system simply OPERATING TEMPERATURE -20 ÷ +60 °C
by moving it closer to the MyNice control unit or to the MNKP DIMENSIONS (mm) (LxDxW) 55X34X5
keypad, in line with the built-in RFID reader. WEIGHT (g) 7
Practical keyring hook
30 MYNICE 2018DETERRENCE, SECURITY AND PROTECTION
SIRENS 34 MNS/MNSC OUTDOOR SIRENS
35 MNSI INDOOR SIREN
DETECTORS 37 MNMC MAGNETIC DETECTOR
38 MNPIR INFRARED VOLUMETRIC DETECTOR
40 MNCPIR INFRARED DETECTOR WITH VERTICAL CURTAIN LENS
41 MNCPIR2 INFRARED DETECTOR WITH DOUBLE VERTICAL CURTAIN
42 MNDT DUAL TECHNOLOGY VOLUMETRIC DETECTOR
44 MNPIRTVCC INFRARED DETECTOR WITH INTEGRATED CAMERA
46 MNGB GLASS BREAKAGE MAGNETIC DETECTOR
47 MNWD FLOODING DETECTOR
48 MNSD SMOKE DETECTOR
ACCESSORIES 49 MNTX0 TRANSMITTER FOR SENSORS
49 MNREP SIGNAL REPEATER VIA RADIO
33MNS/MNSC
Deterrence and protection CODE DESCRIPTION
The 110 dB (A) sound power and built-in flashing light can identify MNS BIDIRECTIONAL DUAL BAND RADIO SIREN FOR OUTDOOR APPLICATIONS WITH VOICE
and view the location where the alarm was triggered. MESSAGES AND FLASHING LED LIGHT
OUTDOOR SIRENS Security and detailed, comprehensive design MNSC WIRED ALARM SIREN FOR OUTDOOR APPLICATIONS WITH VOICE MESSAGES
AND FLASHING LED LIGHT
Box fitted with protection against opening, removal from the wall
861000 1.5V LR20 ALKALINE BATTERY - SIZE D FOR THE MNS SIREN (6 PARTS REQUIRED)
and break-in attempts.
B12V-C.4310 12V 2Ah LEAD ACID BATTERY FOR THE MNSC SIREN
The flashing LED light signals the alarm status (armed, disarmed,
Alarm sirens for outdoors with built-in flashing pre-alarm) and the presence of events.
light and voice function, also in a version Maximum security even in the event of power outage.
operating via bidirectional dual band radio.
Deterrent voice messages
Ability to record customised voice messages to enhance TECHNICAL DATA
the effect of surprise and discourage the intruder, CODE MNS MNSC
without disturbing the neighbours. POWER SUPPLY 6 LR20 1.5V (16Ah) ALKALINE BATTERIES VIA WIRE OR 12V 2Ah lead acid battery,
SUPPLIED SUPPLIED
CURRENT DRAW AT REST < 360 (µA) < 20 (mA)
CURRENT DRAW DURING OPERATION (mA) < 660 < 800
AVERAGE AUTONOMY* > 4 YEARS
SUPERVISION EVERY 18 MINUTES
SOUND POWER 110 dB(A) 1 m
RADIO TRANSMISSION DUAL BAND GFSK
(433.54 - 433.92 MHz; 868.30 - 868.94 MHz) -
INSULATION CLASS III
PROTECTION RATING (IP) 35
OPERATING TEMPERATURE -25 ÷ +55 °C
(ENVIRONMENTAL CLASS II IN ACCORDANCE WITH EN50131)
DIMENSIONS (mm) (LxDxW) 250x85x250 mm
WEIGHT (kg) 2.25 2.25
*May vary according to the number of activations, use and type of system.
34 MYNICE 2018MNSI
Deterrence and protection CODE DESCRIPTION
Highly deterrent sound power of 100 dB(A), timed at three minutes MNSI BIDIRECTIONAL DUAL BAND RADIO SIREN FOR INDOORS WITH VOICE MESSAGES
and also and able to signal system activation/deactivation
INDOOR SIREN with low intensity signals (with mute function).
86100 1.5V LR14 ALKALINE BATTERY (MNSI REQUIRES 3 BATTERIES)
Fitted with protection against opening.
Siren via bidirectional dual band radio TECHNICAL DATA
for indoors, with voice function. CODE MNSI
POWER SUPPLY 3 LR14, 1.5V 5 Ah ALKALINE BATTERIES SUPPLIED
Discreet and compact CURRENT DRAW AT REST (µA) < 360
With its compact size and wireless technology, the MNSI CURRENT DRAW DURING OPERATION (mA) < 660
indoor siren has minimal visual impact and can easily be installed AUTONOMY* > 4 YEARS
in the most hidden places around the home. SOUND POWER 100 dB(A) 1 m
RADIO TRANSMISSION DUAL BAND GFSK
EU STANDARD 300-220-1; 300-330; 300-440
Deterrent voice messages INSULATION Class II
Ability to record customised voice messages to enhance PROTECTION RATING (IP) 35
the effect of surprise and discourage the intruder, OPERATING TEMPERATURE -10 ÷ +40 °C
without disturbing the neighbours. (ENVIRONMENTAL CLASS II IN ACCORDANCE WITH EN50131-4)
DIMENSIONS (mm) (LxDxW) 154x36x111
WEIGHT (g): 200
*May vary according to the number of activations, use and type of system.
MNS, MNSC, MNSI Siren 35MNMC
Easy to install CODE DESCRIPTION
As soon as you insert the batteries into the detector, the control MNMC MAGNETIC DETECTOR VIA BIDIRECTIONAL DUAL BAND RADIO. WITH 2 PROGRAMMABLE
unit will automatically recognise the device: you can easily WIRED INPUTS. WHITE
MAGNETIC DETECTOR configure the detector’s parameters from the control unit itself MNMCCB MAGNETIC DETECTOR VIA BIDIRECTIONAL DUAL BAND RADIO. WITH 2 PROGRAMMABLE
WIRED INPUTS. BROWN
by following the guided procedure.
861021 3V CR123A BATTERY
Reliable
You can use the MyNice World app to check the status
Magnetic contact opening detector, of the device’s battery level at any time, and set up warning
via bidirectional dual band radio; notifications when it needs to be charged.
signals when doors and windows In addition, the detector will warn you when the batteries need
are opened. to be replaced, either locally via the LED light, or by sending
the request via radio to the control unit.
Intelligent TECHNICAL DATA
Secure
Designed to protect against intrusion through doors and windows, CODE MNMC MNMCCB
The detector is protected against opening,
the detector can also be used as a transmitter for alarms POWER SUPPLY CR123A 3V 1.4 Ah BATTERY, SUPPLIED
removal and magnetic tampering.
from other detectors wired (NC/NO/balanced or with pulse CURRENT DRAW AT REST (µA) < 20
counter function) to the internal terminals. The detector CURRENT DRAW DURING OPERATION (mA) < 55
The batteries will power the detector for
can be connected to a camera or to the Nice PhotoPir detector AUTONOMY* > 4 YEARS
over 4 years, with a normal use of the device. SUPERVISION EVERY 18 MINUTES
to photograph the surrounding area when the alarm is triggered.
RADIO TRANSMISSION DUAL BAND GFSK
(433.54 - 433.92 MHz; 868.30-868.94 MHz)
INSULATION Class II
PROTECTION RATING (IP) 51
OPERATING TEMPERATURE -10 ÷ +40 °C
(ENVIRONMENTAL CLASS II IN ACCORDANCE WITH EN50131)
DIMENSIONS (mm) (LxDxW) 23x25x134
WEIGHT (g): 120
*May vary according to the number of activations, use and type of system.
The magnetic contact can
be fitted to the left or right side
of the detector, allowing you
to adjust it to suit the architecture
of the space.
MNMCCB
MNMC Detector 37MNPIR
Anti-masking function CODE DESCRIPTION
The detector is also available in an anti-masking version, MNPIR INFRARED VOLUMETRIC DETECTOR, WITH 12 m, 140° RANGE, BIDIRECTIONAL
which guarantees a high level of security in the event that DUAL BAND RADIO
INFRARED VOLUMETRIC the sensor is obstructed. MNPIRAA INFRARED VOLUMETRIC DETECTOR, WITH 12 m, 140° RANGE WITH ANTI-MASKING
DETECTOR Pet Immunity function MNPIRPET
FUNCTION, BIDIRECTIONAL DUAL BAND RADIO
INFRARED PET IMMUNITY VOLUMETRIC DETECTOR, 12 m, 90° RANGE (LENS WITH
The detector is also available in a Pet Immunity version, FAN-SHAPED COVERAGE). BIDIRECTIONAL DUAL BAND RADIO
which allows small pets to move freely about the home, MNPIRPETAA INFRARED PET IMMUNITY VOLUMETRIC DETECTOR, 12 m, 90° RANGE (LENS WITH
Infrared detector via bidirectional dual band even when the alarm is enabled. FAN-SHAPED COVERAGE). ANTI-MASKING FUNCTION, BIDIRECTIONAL DUAL BAND RADIO
radio, with volumetric lens. MNPIRLRAA INFRARED DETECTOR, WITH LONG 30 m, 10° RANGE, WITH ANTI-MASKING FUNCTION,
Reliable BIDIRECTIONAL DUAL BAND RADIO
For installation indoors and outdoors
under cover. You can use the MyNice World app to check the status 861021 3V CR123A BATTERY
of the device’s battery level at any time, and set up warning
notifications when it needs to be charged.
Detects movement in the protected area, up to 12 m In addition, the detector will warn you when the batteries need TECHNICAL DATA
away through 140°. to be replaced, either locally via the LED light, or by sending CODE MNPIR MNPIRPET MNPIRAA MNPIRPETAA MNPIRLRAA
Also available in a version with a longer range that the request via radio to the control unit. POWER SUPPLY CR123A 3V 1.4 Ah BATTERY, SUPPLIED
can detect movements up to 30 m away through 10°. CURRENT DRAW AT REST (µA) < 20 < 30
Practical and convenient CURRENT DRAW DURING OPERATION (mA) < 55
Easy to install The wall mount and adapter for corner mounting ensure easy AUTONOMY* > 4 YEARS; APPROX. 3 YEARS FOR ANTI-MASKING VERSIONS
As soon as you insert the batteries into the detector, the control installation and seamless integration with different structures SUPERVISION EVERY 18 MINUTES
unit will automatically recognise the device: you can easily both indoors and outdoors under cover. RADIO TRANSMISSION DUAL BAND GFSK
configure the detector’s parameters from the control unit itself (433.54 - 433.92 MHz; 868.30 - 868.94 MHz)
by following the guided procedure. Secure INSULATION Class III
The detector is protected against opening and removal. PROTECTION RATING (IP) 64
OPERATING TEMPERATURE -10°C ÷ +40°C
High operating autonomy (ENVIRONMENTAL CLASS II IN ACCORDANCE WITH EN50131)
Batteries will power the detector for over 4 years, with a normal DIMENSIONS (mm) (LxDxW) 68x51x112
use of the device. WEIGHT (g): 160
*May vary according to the number of activations, use and type of system.
MNPIR
MNPIR / MNPIRAA
AND MNPIRAA COVERAGE AREA
PLAN VIEW VERTICAL VIEW
1 2 19.5° 4 a 4 b
10 2
Ø 5 mm
8 3X 0
0 2 4 MAGNET
6 8 10 12 14 16 18
6
h = 1.9 - 2.3 m
4
2 Ø 5 mm
3X
0 19.5°
102 2 10
WALL MOUNTS
CR123A AND CORNER MOUNTS MNPIR / MNPIRAA
0
INCLUDED 3 84 0 2 4 6 8 10 12 14 16 18
8
66 PLAN VIEW VERTICAL VIEW 6
h = 1.9 - 2.3 m
48 19.5° 4
MAGNET ADHESIVE 10 2 MAGN
10
2 2
8 0
m00 2 4 6 8 10 12 14 16 18 0 2 4 6 8 10 12 14 16 18 0
6
3x 3x
2 PLAN VIEW h = 1.9 - 2.3 m 2
4 VERTICAL VIEW
38 MYNICE 2018 4 4
2
6 6
0
8 8Choosing the right type of detector
MyNice offers a wide range of detectors to provide effective
coverage for any space.
The size of the room that you want to protect, the presence
of small animals, and the areas that have to be walked
through are all aspects that need to be considered when choosing
the right detector.
MNPIRPET
MNPIRPET / MNPIRPETAA
AND MNPIRPETAA COVERAGE AREA MNPIRLRAA
MNPIRLRAA / MNDTLRAA
COVERAGE AREA
PLAN VIEW VERTICAL VIEW PLAN VIEW
6
10 2
4
8 0
0 2 4 6 8 10 12 14 16 18 2
6
h = depending of specific situation 0
4
2
2
4
0 90°
6
2
MNPIRPET / MNPIRPETAA m 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30
4 PLAN VIEW
6 PLAN VIEW VERTICAL VIEW VERTICAL VIEW
8
10 2 2
10
8 0 0
m 0 2 4 6 8 10 12 14 16 18 0 2 4 6 8 10 12 14 16 18 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30
6
h = depending of specific situation
PLAN
4 VIEW VERTICAL VIEW VERTICAL VIEW
2 MNPIR Detector 39
0 90°MNCPIR
Anti-masking function CODE DESCRIPTION
The detector is also available in an anti-masking version, MNCPIR INFRARED DETECTOR WITH VERTICAL CURTAIN LENS, 12 m, 5° RANGE,
which guarantees a high level of security in the event that BIDIRECTIONAL DUAL BAND RADIO
INFRARED DETECTOR WITH the sensor is obstructed. MNCPIRAA INFRARED DETECTOR WITH VERTICAL CURTAIN LENS, 12 m, 5° RANGE,
VERTICAL CURTAIN LENS Reliable 861021
BIDIRECTIONAL DUAL BAND RADIO, WITH ANTI-MASKING FUNCTION
3V CR123A BATTERY
You can use the MyNice World app to check the status of the
device’s battery level at any time, and set up warning notifications
Infrared detector via bidirectional dual band when it needs to be charged.
radio, with vertical curtain lens. In addition, the detector will warn you when the batteries need
For installation indoors and outdoors to be replaced, either locally via the LED light, or by sending
under cover. the request via radio to the control unit.
Practical and convenient
Detects any movement in the protected area, up to 12 m
The wall mount and adapter for corner mounting ensure easy TECHNICAL DATA
through 5°.
installation and seamless integration with different structures CODE MNCPIR MNCPIRAA
both indoors and outdoors under cover. POWER SUPPLY CR123A 3V 1.4 Ah BATTERY, SUPPLIED
Easy to install
As soon as you insert the batteries into the detector, the control CURRENT DRAW AT REST (µA) < 20 < 30
Secure CURRENT DRAW DURING OPERATION (mA) < 55
unit will automatically recognise the device: you can easily
The detector is protected against opening and removal. AUTONOMY* > 4 YEARS; APPROX. 3 YEARS FOR ANTI-MASKING VERSIONS
configure the detector’s parameters from the control unit itself
SUPERVISION EVERY 18 MINUTES
by following the guided procedure.
High operating autonomy RADIO TRANSMISSION DUAL BAND GFSK
Batteries will power the detector for over 4 years, with a normal (433.54 - 433.92 MHz; 868.30 - 868.94 MHz)
use of the device. INSULATION Class III
PROTECTION RATING (IP) 64
OPERATING TEMPERATURE -10°C ÷ +40°C
(ENVIRONMENTAL CLASS II IN ACCORDANCE WITH EN50131)
DIMENSIONS (mm) (LxDxW) 68x51x112
WEIGHT (g): 160
*May vary according to the number of activations, use and type of system.
MNCPIR / MNCPIRAA
COVERAGE AREA PLAN VIEW
6
4
1 2 4 a 4 b
2
Ø 5 mm
3X 0
MNCPIR / MNCPIRAA MAGNET
2
PLAN VIEW 4
6 6 Ø 5 mm
3X m 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30
4
2
WALL CR123A
MOUNTS AND CORNER MOUNTS VERTICAL VIEW
INCLUDED 30
2 4
MAGNET ADHESIVE
4 2 MAGN
6 0
m 0 2 4 6 30 2
8 10 12 14 16 18 20 22 24 26 28 0 4 6 8 10 12 14 16 18 20 22 24 26 28
3x 3x
PLAN VIEW VERTICAL VIEW
40 MYNICE 2018 VERTICAL VIEW
4MNCPIR2
Easy to install CODE DESCRIPTION
As soon as you insert the batteries into the detector, MNCPIR2AA DOUBLE INFRARED PASSAGE DETECTOR, 8 m, 5° RANGE, WITH VERTICAL CURTAIN LENS
the control unit will automatically recognise the device: AND ANTI-MASKING FUNCTION. BIDIRECTIONAL DUAL BAND RADIO. WHITE
INFRARED DETECTOR WITH you can easily configure the detector’s parameters MNCPIR2AACB DOUBLE INFRARED PASSAGE DETECTOR, 8 m, 5° RANGE, WITH VERTICAL CURTAIN LENS
DOUBLE VERTICAL CURTAIN from the control unit itself by following the guided procedure.
861021
AND ANTI-MASKING FUNCTION. BIDIRECTIONAL DUAL BAND RADIO. BROWN
3V CR123A BATTERY
Anti-masking function
which guarantees a high level of security if the sensor
Infrared detector via bidirectional is obstructed.
dual band radio, with double vertical curtain TECHNICAL DATA
and anti-masking function. Secure CODE MNCPIR2AA - MNCPIR2AACB
Signals passage through doors and windows. The detector is protected against tampering attempts POWER SUPPLY CR123A 3V 1.4 Ah BATTERY, SUPPLIED
by the double magnet. SUPERVISION EVERY 18 MINUTES
RADIO TRANSMISSION DUAL BAND GFSK
Practical and convenient Easy battery replacement (433.54 - 433.92 MHz; 868.30 - 868.94 MHz)
Ideal for volumetric protection of doors and windows. You can use the MyNice World app to check the status INSULATION CLASS III
The practical mount supplied allows you to install the device of the device’s battery level at any time, and set up warning CURRENT DRAW AT REST (µA) < 30
on the outside corner of the door or window, ensuring notifications when it needs to be charged. CURRENT DRAW DURING OPERATION (mA) < 55
complete coverage of the area to be protected and minimising In addition, the detector will warn you when the batteries need AUTONOMY* > APPROX. 3 YEARS
the aesthetic impact. to be replaced, either locally via the LED light, or by sending PROTECTION RATING (IP) 51
the request via radio to the control unit. OPERATING TEMPERATURE -10°C ÷ +40°C
Reliable The screw fixed bracket makes it quick and easy to replace (ENVIRONMENTAL CLASS II IN ACCORDANCE WITH EN50131)
The system with two PIRs generates two vertical, fan-shaped the battery. DIMENSIONS (mm) (LxDxW) 79x23x79
barriers; the first in the area around the door or window, WEIGHT (g): 160
and the second angled slightly outwards; the alarm signal *May vary according to the number of activations, use and type of system.
is triggered only when both these barriers are passed through
(AND function).
COVERAGE AREA FRONT FRONT LATERALLATERAL
VIEW VIEW VIEW VIEW
0 2 0 2 0 2 0 4 2 6 4 8 6 8
m m m m
2 2 2 2
4 4 4 4
OUTDOOR
OUTDOOR
INDOOR
INDOOR
6 6 6 6
SIDE
SIDE
SIDE
SIDE
ALARM
ALARM ALARM
ALARM
8 8 8 8
MNCPIR2AACB ‘AND’ FUNCTION FRONT VIEW PLAN VIEW
MNCPIR, MNCPIR2 Detector 41MNDT
Easy to install CODE DESCRIPTION
As soon as you insert the batteries into the detector, the control MNDTAA DUAL TECHNOLOGY (INFRARED AND MICROWAVE) VOLUMETRIC DETECTOR, 12 m, 90°
unit will automatically recognise the device: you can easily RANGE WITH ANTI-MASKING FUNCTION. BIDIRECTIONAL DUAL BAND RADIO
DUAL TECHNOLOGY configure the detector’s parameters from the control unit itself MNDTPETAA DUAL TECHNOLOGY (INFRARED AND MICROWAVE) PET IMMUNITY DETECTOR, 12 m, 90°
DETECTOR by following the guided procedure. RANGE WITH LENS WITH FAN-SHAPED COVERAGE AND ANTI-MASKING FUNCTION.
BIDIRECTIONAL DUAL BAND RADIO
Anti-masking function MNDTLRAA DUAL TECHNOLOGY (INFRARED AND MICROWAVE) VOLUMETRIC DETECTOR, WITH LONG
The detector is also available in an anti-masking version, 30 m, 10° RANGE AND ANTI-MASKING FUNCTION.
BIDIRECTIONAL DUAL BAND RADIO
Dual technology (infrared + microwave) which guarantees a high level of security in the event
861021 3V CR123A BATTERY
volumetric movement detector via bidirectional that the sensor is obstructed.
dual band radio, with anti-masking function.
For installation indoors and outdoors Pet Immunity function
The detector is also available in a Pet Immunity version,
under cover.
which allows small pets to move freely about the home,
even when the alarm is enabled. TECHNICAL DATA
Detects any movement in the protected area, up to 12 m
through 90°. CODE MNDTAA - MNDTPETAA - MNDTLRAA
Easy battery replacement POWER SUPPLY CR123A 3V 1.4 Ah BATTERY, SUPPLIED
Also available in a version with a longer range
You can use the MyNice World app to check the status CURRENT DRAW AT REST (µA) < 30
that can detect movements up to 30 m away through 10°.
of the device’s battery level at any time, and set up warning CURRENT DRAW DURING OPERATION (mA) < 55
notifications when it needs to be charged. AUTONOMY* > 4 YEARS; APPROX. 3 YEARS FOR ANTI-MASKING VERSIONS
Maximum reliability
In addition, the detector will warn you when the batteries need SUPERVISION EVERY 18 MINUTES
With dual infrared and microwave technology, the detector
to be replaced, either locally via the LED light, or by sending RADIO TRANSMISSION DUAL BAND GFSK
eliminates the risk of false alarms and can detect both movement (433.54 - 433.92 MHz; 868.30 - 868.94 MHz)
the request via radio to the control unit.
and physical presence. INSULATION Class III
Practical and convenient PROTECTION RATING (IP) 64
The wall mount and adapter for corner mounting ensure easy OPERATING TEMPERATURE -10°C ÷ +40°C
installation and seamless integration with different structures (ENVIRONMENTAL CLASS II IN ACCORDANCE WITH EN50131)
both indoors and outdoors under cover. DIMENSIONS (mm) (LxDxW) 68x51x112
WEIGHT (g): 160
Secure *May vary according to the number of activations, use and type of system.
The detector is protected against opening and removal.
The batteries will power the detector for
MNDTAA
over 4 years, with a normal use of the device. MNDTAA COVERAGE AREA
PLAN VIEW VERTICAL VIEW
19.5°
1 2 10 4 a 2 4 b
8 0 Ø 5 mm
3X 0 2 4 6 8 10 12 14 16 18
6 MAGNET
h = 1.9 - 2.3 m
4
2
19.5° Ø 5 mm
100
3X
2 10
82 MNDTAA 0 8 A
WALLCR123A
MOUNTS AND CORNER MOUNTS 0 2 4 6 8 10 12 14 16 18
INCLUDED 3 64 6
h = 1.9 - 2.3 m
46 PLAN VIEW VERTICAL VIEW 4
19.5°
MAGNET ADHESIVE
28
10 2 2 MAGNE
10
0 0
8 0
m2 0 2 4 6 8 10 12 14 16 18 0 2 4 6 8 10 12 14 16 18
6 2
3x 3x h = 1.9 - 2.3 m
4 PLAN VIEW VERTICAL VIEW 4
4
42 MYNICE 2018 6 6
2
8 8
0MNDTPETAA
MNDTPETAA COVERAGE AREA MNPIRLRAA
MNDTLRAA / MNDTLRAA
COVERAGE AREA
PLAN VIEW VERTICAL VIEW
PLAN VIEW
10 2 6
8 0 4
0 2 4 6 8 10 12 14 16 18
6 2
h = depending of specific situation
4 0
2 2
0 90° 4
6
MNDTPETAA
2 m 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30
4 PLAN VIEW
PLAN
6 VIEW VERTICAL VIEW VERTICAL VIEW
8
10 2 2
10
8 0 0
m 0 2 4 6 8 10 12 14 16 18 0 2 4 6 8 10 12 14 16 18 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30
6
PLAN VIEW h = depending
VERTICAL VIEW of specific situation VERTICAL VIEW
4
MNDT
MNDT Rivelatori
Detector 43
2
0 90°MNPIRTVCC
Easy to install CODE DESCRIPTION
As soon as you insert the batteries into the detector, the control MNPIRTVCC INFRARED VOLUMETRIC DETECTOR, WITH 12 m, 90° RANGE, WITH ANTI-MASKING
unit will automatically recognise the device: you can easily FUNCTION AND CAMERA, BIDIRECTIONAL DUAL BAND RADIO AND WI-FI
INFRARED DETECTOR WITH configure the detector’s parameters from the control unit itself MNPIRTVCCPET INFRARED PET IMMUNITY DETECTOR, WITH 12 m, 90° RANGE (LENS WITH FAN-SHAPED
INTEGRATED CAMERA by following the guided procedure. COVERAGE), WITH ANTI-MASKING FUNCTION AND CAMERA, BIDIRECTIONAL DUAL BAND
RADIO AND WI-FI
Anti-masking function 861021 3V CR123A BATTERY
which guarantees a high level of security if the sensor
Infrared detector via bidirectional dual band radio, is obstructed.
with volumetric lens and built in Wi-Fi camera.
For installation indoors and outdoors Pet Immunity function
under cover. The detector is also available in a Pet Immunity version,
which allows small pets to move freely about the home,
even when the alarm is enabled.
Advanced
Using the built-in colour camera, the Nice PhotoPir detector will TECHNICAL DATA
Reliable CODE MNPIRTVCC - MNPIRTVCCPET
detect any movement if the alarm is triggered, take photographs
You can use the MyNice World app to check the status POWER SUPPLY 2 CR123A 3V 1.4 Ah BATTERIES, SUPPLIED
of the surrounding area and send these to the control unit over
of the device’s battery level at any time, and set up warning CURRENT DRAW AT REST (µA) < 20
the local Wi-Fi network. The control unit will then send these
notifications when it needs to be charged. CURRENT DRAW DURING OPERATION (mA) < 55
images to the user. The camera’s built-in flash can identify
In addition, the detector will warn you when the batteries need AUTONOMY* > APPROX. 4 YEARS
the subject being photographed even in the dark and at a distance
to be replaced, either locally via the LED light, or by sending SUPERVISION EVERY 18 MINUTES
of up to 8 metres.
the request via radio to the control unit. RADIO TRANSMISSION DUAL BAND GFSK
(433.54 - 433.92 MHz; 868.30 - 868.94 MHz)
Everything under control, even at a distance
Practical and convenient INSULATION Class III
Using the MyNice World app, you can set the PhotoPir detector
The wall mount and adapter for corner mounting ensure easy PROTECTION RATING (IP) 64
to take and send you images of the surrounding area at any time,
installation and seamless integration with different structures OPERATING TEMPERATURE -10°C ÷ +40°C
even remotely. (ENVIRONMENTAL CLASS II IN ACCORDANCE WITH EN50131)
both indoors and outdoors under cover.
DIMENSIONS (mm) (LxDxW) 68x51x112
Secure WEIGHT (g): 160
The detector is protected against opening and removal. *May vary according to the number of activations, use and type of system.
High operating autonomy
Batteries will power the detector for over 4 years, with a normal MNPIRTVCC
use of the device. MNPIRTVCC COVERAGE AREA
PLAN VIEW VERTICAL VIEW
19.5°
10 2
8 0
0 2 4 6 8 10 12 14 16 18
1 2 6 MNPIRTVCC 4 a 4 b MNPIRTVCCPET
h = 1.9 - 2.3 m
4 Ø 5 mm
3X
2
PLAN VIEW VERTICAL
MAGNET VIEW PLAN VIEW
19.5°
0
10 2 10
28 0 8
MNPIRTVCC 0 2 4 6 8 10 12 14 16 18 Ø 5 mm
46 3X
6
h = 1.9 - 2.3 m
64 PLAN VIEW VERTICAL VIEW 4
WALL CR123A
MOUNTS AND CORNER MOUNTS 82 19.5°
3 2
INCLUDED 10 2
10 0 0
8 0
m 20 2 4 6 8 10 12 14 16 18 0 2 4 6 8 10 12 14 16 18 2
MAGNET ADHESIVE 6 MAGN
4 h = 1.9 - 2.3 m 4
PLAN
4 VIEW VERTICAL VIEW
6 6
44 MYNICE 2018 2
3x 3x
8 8
0
10 10Leave the house with peace of mind; Nice will take care
of your home while you’re out
With the MyNice World app, you can receive images taken by
the PhotoPir detector in real time on your smartphone, when
an alarm is triggered or on request.
MNPIRTVCCPET
MNPIRTVCCPET COVERAGE AREA PHOTO
PLAN VIEW
PLAN VIEW VERTICAL VIEW
10 2 5
8 0 4
0 2 4 6 8 10 12 14 16 18
6 3
h = depending of specific situation
4 2
2 1
0 90° 0 100
2 1
MNPIRTVCCPET
4 2
6 PLAN VIEW VERTICAL VIEW 3
8 4
10 2
10 5
8 0
m 0 2 4 6 8 10 12 14 16 18 0 2 4 6 8 10 12 14 16 18 m 0 1 2 3 4 5 6 7 8 9
6
h = depending of specific situation
PLAN
4
VIEW VERTICAL VIEW PLAN VIEW
MNPIRTVCC Detector 45
2
0 90°NOME
MNGB
Easy to install CODE DESCRIPTION
As soon as you insert the batteries into the detector, the control MNGB MICROPHONE GLASS BREAKAGE DETECTOR, BIDIRECTIONAL DUAL BAND RADIO,
unit will automatically recognise the device: you can easily WITH BUILT-IN MAGNETIC CONTACT
GLASS BREAKAGE configure the detector’s parameters from the control unit itself 861021 3V CR123A BATTERY
MAGNETIC DETECTOR by following the guided procedure.
NEW NEW NEW NEW NEW NEW
Reliable
You can use the MyNice World app to check the status
Microphone glass breakage and door/window of the device’s battery level at any time, and set up warning
opening detector, via bidirectional dual band notifications when it needs to be charged.
radio, with magnetic contact. In addition, the detector will warn you when the batteries need
to be replaced, either locally via the LED light, or by sending
the request via radio to the control unit.
Maximum security
Featuring a microphone device that detects sound frequencies TECHNICAL DATA
The batteries will power the detector for over 4 years,
generated by glass breakage, MNGB is ideal for boosting CODE MNGB
with a normal use of the device.
protection of glass doors and windows. POWER SUPPLY CR123A 3V 1.4 Ah BATTERY, SUPPLIED
The detector is also protected against opening and removal. CURRENT DRAW AT REST (µA) < 20
CURRENT DRAW DURING OPERATION (mA) < 55
AUTONOMY* > APPROX. 4 YEARS
SUPERVISION EVERY 18 MINUTES
RADIO TRANSMISSION DUAL BAND GFSK
(433.54 - 433.92 MHz; 868.30-868.94 MHz)
INSULATION Class II
PROTECTION RATING (IP) 51
OPERATING TEMPERATURE -10 ÷ +40 °C
(ENVIRONMENTAL CLASS II IN ACCORDANCE WITH EN50131)
DIMENSIONS (mm) (LxDxW) 23x25x134
WEIGHT (g): 120
*May vary according to the number of activations, use and type of system.
SOUND DETECTION AREA
PLAN VIEW VERTICAL VIEW
h max
2,2 m
max 5 m
1,2 m
h min
MNGB
= =
max 8 m
PLAN VIEW VERTICAL VIEW
46 MYNICE 2018You can also read
