KLAUKE COMPETENCE:
       OPTIMISED QUALITY FOR ADDED
       CUSTOMER BENEFITS
       We take your needs seriously. For us, “Made by Klauke” means
       that all products are manufactured to the highest quality.

    CUSTOMIZED TOOLS – EXPERTISE MEETING YOUR REQUIREMENTS

                                                         We are market leaders: Our battery-powered
                                                         hydraulic tools for the plumbing, heating and
                                                         ventilation sector are at the forefront of the
                                                         pressed connections market. But we don’t just
                                                         stop there: In the Customized Tools sector, our
                                                         tool experts together with our customers are
                                                         continuously developing new prototypes, no
                                                         matter whether for the cutting, pressing or
                                                         punching segment. We support you through the
                                                         development process to the finished product
                                                         including the After Sales service. We are at your
                                                         service.

    Electrical Distribution – Strong partner worldwide

                                                         Klauke and Greenlee are your strong team –
                                                         innovative, reliable and cost-effective.
                                                         Together they form a connection that has been
                                                         established for professional service providers
                                                         worldwide in the energy supply and panel
                                                         building industries.

4
CUSTOMIZED TOOLS 2019/2020 - Premium tools for your applications - Klauke
Automotive Connector Solutions – Know-how for extraordinary solutions

                                                         Decades of experience go into the
                                                         development and manufacture of our
                                                         products for the automotive sector.
                                                         From standard to custom and non-
                                                         standard cable lugs – our solutions are
                                                         used in any vehicle electrical systems.

Assembly solutions –Special type of quality

                                                         We are at our customers’ service. Klauke
                                                         offers highly-flexible solutions for your specific
                                                         requirements for small production runs in the
                                                         industrial commodity sector. This includes
                                                         punched parts, wiring harnesses and pre-
                                                         assembled cables and connectors. For your
                                                         custom products, we rely on our in-house
                                                         development and production expertise.
                                                         Customers from sectors such as automotive,
                                                         heating, air-conditioning, white goods,
                                                         renewable energies or e-mobility rely on our
                                                         quality.

Customized tools - matched specifically to your requirements

                                                         Klauke is a specialist for top-quality, hydraulic
                                                         tools. Innovation has always taken top priority.
                                                         We continuously develop new products in
                                                         collaboration with our customers. We advise,
                                                         develop and manufacture. Product design and
                                                         fabrication are rounded out by the development
                                                         and manufacture of matching processing tools.
                                                         Perfectly adapted to the customer’s manufacturing
                                                         process and to meeting the exacting requirements
                                                         of a quality management system. The proprietary
                                                         CAD design allows customised solutions to be
                                                         developed to the highest possible level and
                                                         brought to production maturity.

                                                                                                              5
CUSTOMIZED TOOLS 2019/2020 - Premium tools for your applications - Klauke
KLAUKE TOOLS:
HIGHER QUALITY,
HIGHER RELIABILITY,
INTELLIGENT FUNCTIONS
6
CUSTOMIZED TOOLS 2019/2020 - Premium tools for your applications - Klauke
7
CUSTOMIZED TOOLS 2019/2020 - Premium tools for your applications - Klauke
YOUR FULL-SERVICE PARTNER
FOR CUSTOMIZED TOOLS:
FROM THE IDEA TO AFTER-SALES
SERVICE FROM A SINGLE SOURCE
For decades now, customers from various industrial sectors have relied on our development
expertise. Our experience and creativity support you from the outset. We offer all of our
services, from advice to development to applications engineering, to prototyping and
production, testing and after sales, from a single source. So you benefit from our knowledge
of the latest trends, innovative concepts from in-house research and our comprehensive
expertise for approval and testing procedures.

    Advice

                                                 ■    e offer you the best possible support with
                                                     W
                                                     an expert team of technical advisers, product
                                                     managers and applications engineers.
                                                 ■    hanks to Klauke’s global network, we are
                                                     T
                                                     able to guarantee there is a point of contact
                                                     near you at all times.
                                                 ■    e take on board your questions and
                                                     W
                                                     requirements and develop the best solutions
                                                     for you.

    After Sales Management

                                                 ■    e offer you a global network of more than
                                                     W
                                                     60 authorised service centres and partners.
                                                 ■    ur broad range of services, comprising
                                                     O
                                                     advice, inspection and maintenance, offers
                                                     genuine added value for you.
                                                 ■   In addition to our standard service package,
                                                      we also offer our product lifecycle
                                                      management system.

8
CUSTOMIZED TOOLS 2019/2020 - Premium tools for your applications - Klauke
Cutting edge technology for optimised quality

                                                ■    e use state-of-the-art computer-aided
                                                    W
                                                    design technology and manufacture our
                                                    products on modern systems.
                                                ■    e consistently apply the optimised vertical
                                                    W
                                                    integration principle – and even have our own
                                                    printing centre for creating and laying out the
                                                    technical documents.
                                                ■    e guarantee the best possible product
                                                    W
                                                    quality and reliability, cost-efficiency and
                                                    flexibility over the long term by investing in the
                                                    latest manufacturing and logistics equipment.

Development and design

                                                ■    ur broad-based development activities
                                                    O
                                                    include design, software development,
                                                    standardisation and certification, including
                                                    in-house prototyping and test laboratories.
                                                ■    his is how we offer you the best possible
                                                    T
                                                    flexibility, quality and innovation.
                                                ■    umerous international patents are testimony
                                                    N
                                                    to our outstanding expertise.

Tailored solutions

                                                ■    ur broad product range in various industries
                                                    O
                                                    helps us to achieve unparalleled innovative
                                                    strength.
                                                ■    e assist you with developing solutions
                                                    W
                                                    tailored to your applications. We offer support
                                                    for hardware and software solutions, and
                                                    help you with the relevant certification and
                                                    approval procedures.
                                                ■    e are your reliable full-service partner:
                                                    W
                                                    from the very first product idea through to
                                                    the market launch.

                                                                                                         9
CUSTOMIZED TOOLS 2019/2020 - Premium tools for your applications - Klauke
NEXT GENERATION
      THE NEXT GENERATION
      OF BATTERY-POWERED
      HYDRAULIC PRESSING TOOLS

             Autostop
             The automatic switch-off function tells the
             user that the pressing function has finished

Patented safety lock
With locking function to prevent
accidental opening

             350° rotating pressing jaw holder
             Optimum access to different pressing
             positions

                                   Integrated work area illumination
                                   For safe operations

                                                    Start button with
                                                    integrated motor stop
                                                    Releasing the start button
                                                    stops the device instantly

                                   Battery platform
                                   18 V Li-Ion technology
                                   from Makita or Bosch

10

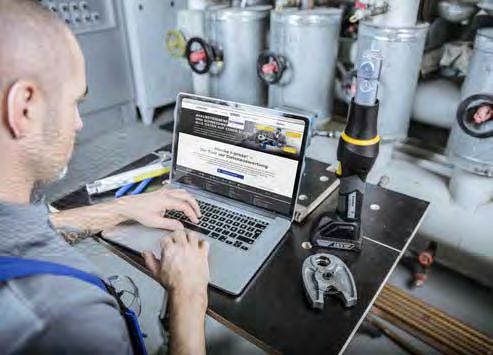

Your tool transmits all data in realtime to the i-press® software on your
desktop or to the i-press® app via the Bluetooth interface. You can
create logs at the touch of a button and export your pressing and tool
data in the usual way.

At the same time, the innovative OLED display helps you to keep track of
your tool data. You can see, at a glance, the pressure applied for the
pressing, the active user profile and the next due maintenance interval.

The tool sits very comfortably in the hand thanks to improved
ergonomics, selected materials and optimised centre of gravity.

                                           Bluetooth
                                           Tool data exported via Bluetooth to
                                           guarantee the quality of operations

                                           Hydraulic drive unit
                                           Robust, reliable and incredibly powerful –
                                           low weight thanks to compact dimensions
Pressing data memory
Records each and
every pressing

                              HPC – Hydraulic
                              Pressure check
                              Pressure sensor for
    OLED display              uniform linear thrust
    Tool data
    at a glance

                                                                                        11
THE I-PRESS® APP
AT A GLANCE
Compact and available at all times:
Your smartphone becomes the
tool’s control centre, simplifying your
daily work routine – free-of-charge,
guaranteed.

                            Made easy: Your Next Generation tool connects to the i-press® app via
                            Bluetooth – you can now use the broad range of functions.

                            Read the important tool information from the display and start new projects.
                            All the information about your pressing operations is saved from now on.
                            When the project is complete, an overview can be printed out, saved or
                            submitted in the form of a log.

                            TIP: When you register as a user, subscribe to the Klauke
                            Newsletter – so you always stay informed.

                             i-press® app
                                                                         Keep an overview of all your
                                                                         tool data even while on the go.
                                                                         And personalise your tool
                                                                         settings via the app.

                                                      For all variants

12
CREATING AND TRACKING                                                                     DOCUMENTING
                EASY TO OPERATE                                      PROJECTS                                                                            AND ARCHIVING

      The last 5 pressure values,                             Menu guidance function is easy                             When a project is closed,
    the device temperature or the                            and quick to understand thanks to                         an overview containing all the
remaining operations – all important                        the cascade function. You can start                        pressing values is generated.
 information can be easily read off.                         immediately, personalise your tool                      You can use this as documentary
                                                               and use all the other functions.                      proof and for archiving purposes.

		                                                                                                                                        PROJECT LOG
                                                                                                                                          Data captured on 22.01.2018 14:21 hrs.
                                                                                                                                          John Doe Company

                  TOOL INFORMATION                                                      PROJECT                                           Project name XYZ
                                                                                                                                          Processed by John Doe
                                                                                                                                         Start time: 12.01.2018, 08:58 hrs.                                        End time: 22.01.2018, 15:22 hrs.
 Connected tool             EK354CFM                          Connected tool                  EK354CFM                                   Overview data for complete project
 Tool profile               Single-click                      Tool profile                    Single-click                                  00000000000
                                                                                                                                         All used tools                                                            Total number of operations         23
                                                                                                                                            00000000000                                                            Pressure reached                   19
 Serial number              00000000000000000                                                                                            			                                                                       Pressure not reached               4

 Firmware                   3.66                              NAME OF THE PROJECT APPEARS HERE ONCE ENTERED          ATTACHMENT
                                                                                                                             Data captured Tool 1
                                                                                                                     Data logged on 22.01.2018 14:21 hrs.
                                                                                                                                       Used device               ES105CFB                                          Total number of operations           12
 Last service               18.01.2018                                                                               John Doe Company
                                                                                                                                         Serial number of device 080000012584687                                   Pressure reached                     12
                                                                                                                                         Last service            24.11.2017                                        Pressure not reached                 0
                                                              Name/Employee                   John Doe                                   			                                                                       Total number of operations with tool 31268

 Last 5 operations (bar)                                      Project name                                           Project name XYZ    For detailed operations, see Attachment

                                                                                                                     processedData by   John
                                                                                                                                   captured Tool 2 Doe

                                                                                                                                         Used device             ES90CFB                                           Total number of operations           4
                                                              Last active tool                000000000000000000
                                                                                                                     Operation
                                                                                                                     Total               Serial number of device 080000012567854                                   Pressure reached                     0
                                                                                                                     Tool 1:
                                                                                                                                         Last service            24.11.2017                                        Pressure not reached                 4
                                                                                                                     Serial number
                                                                                                                                         			                                                                       Total number of operations with tool 22526
                                                              Start time                      08:58 hrs              Item no.

                                                                                                                                         For detailed operations, see Attachment

                                                              End time                        09:22 hrs                                  Comment (or additional tool, if any others are in use)

                                                              Number of operations            23                                         Corem quiatia dendebit autature porerup taquame conse natquatur sinti toribus tisseque dit quam fugitatiunt voloribearum
                                                                                                                                         ium es vel mos et odi cum fuga. Periore non re lam, ommolestem que nusaes aut et ant exero tem fuga. Aligenita qui aut
                                                                                                                                         que nobis demolore namus vendent. Nem nihil ipicit et inullautempe verchicidus sum reribustiis am, sapitat quiatur alit,
                                                              Pressure not reached            4
                                                              Pressure reached                19                     Tool 2:
                                                                                                                     Serial number
                                                                                                                     Item no.
                                                                                                                                          PROJECT LOG OF 22.01.2018 14:2      Project name XYZ       Page 1 of 2

                                                              Total number of operations      31258

                                                              Comments

 Device temperature (°C)                                              LOGGED DATA                     EVALUATION

                                                                             CHECK-IN              CLOSEPROJECT
                                                                                                                     PROJECT LOG OF 22.01.2018 14:2   Project name XYZ Page 2 of 2

Use the new functions to make your operations more effective,
more ergonomic and more innovative.

■ You get an overview of all your tool data                                                ■ You can better organise your work

■ You can better plan your maintenance runs                                                 ■ You can create projects using installation and
                                                                                                  building plans
■ Downtimes are reduced to a minimum
                                                                                            ■ Each and every pressing can be documented in a log
■ Regular maintenance and inspection increases
                                                                                                  and archived
   availability and service life
                                                                                            ■ The logs act as proof of your day-to-day operations

  i-press® software
                                                            Exports all tool data, so you can check the tool status. i-press® also gives
                                                            you proof of quality in the form of a project report. i-press® is a Desktop
                                                            application which you can download free-of-charge from the Klauke
                                                            website.
                                                            The new            software can be found at www.klauke.com/en/service/
                                                            downloads/connectivity-software
                                         For all variants

                                                                                                                                                                                                                                                      13
LIGHTWEIGHT FOR
TOUGH REQUIREMENTS:
RADIAL PRESSING
TOOLS SERIES MAP

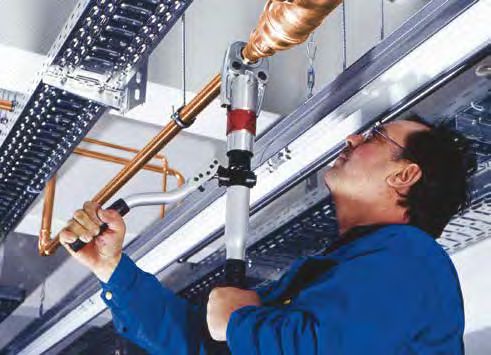

Our lightweight and slender MAP radial
pressing tools make your work easier.
They offer tangible benefits, especially
when working in tight spots and overhead.
■   Incredibly lightweight, slender and compact Klauke mini
     pressing tools
■   Linear force to suit your applications, either 15 kN or 19 kN
■   Small, flat battery shape
■   Fast, flexible operations, especially in tight spots
■   Reliable and effective thanks to the latest technology
■   Designed for use with extra-small Klauke System jaws

                                                                     15
Pressing tools
     Hydraulic - radial

     MAP215 Mini battery-powered hydraulic pressing tool 15 kN

     Technical data
     Linear force                                           15 kN
     Weight                                                 1.7 kg
     Dimensions                                             404 x 80 x 118 mm
     Ambient temperature                                    -10 °C up to 40 °C
     Battery                                                18 V, Li-Ion
     Battery charger                                        230 V (110 V on request)
     Number of pressings                                    Approx. 150 (NS 20 / 1.5 Ah battery)
     Pressing jaw holder                                    rotates 350°
     Bluetooth                                              •
     Realtime clock                                         •
     OLED display                                           •
     Hydraulic Pressure Control                             •
     Item                                                    Part No. Makita     Part No. Bosch
     Battery-powered pressing tool with Makita battery       MAP215CFM
     Battery-powered pressing tool with Bosch battery                            MAP215CFB
     Scope of supply                                                                               Page
     Makita battery 18 V / 1.5 Ah, Li-Ion                    RAL1                                   68
     Makita quick-charger 230 V for 18 V Li-Ion batteries    LGL1                                   71
     Bosch battery 18 V / 2.0 Ah Li-Ion                                          RALB1EU            70
     Bosch charger 230 V for 18 V Li-Ion battery                                 LGLB1EU            71
     Plastic case                                            KKMAP2NGS           KKMAP2NGS
     Accessories                                                                                   Page
     Makita battery 18 V / 3.0 Ah, Li-Ion                    RAL2                                  68
     Bosch battery 18 V / 5.0 Ah Li-Ion                                          RALB2EU           70

16
suitable for

SBM pressing jaw Mini 15 kN                                                               Page 30
                 ▪ Stainless steel, steel: max. NS 22 mm (NS 28 mm on request) / 3/4”
                 ▪ Copper, copper alloys: max. NS 28 / 1”
                 ▪ Multilayer pipe / PEX pipe: max. NS 32 mm / 1-1/4”
                 ▪ The stated information is system-dependent.
UWM Universal interchangeable jaw Mini 15 kN                                              Page 30
                 ▪ Stainless steel, steel: max. NS 22 mm / 3/4”
                 ▪ Copper, copper alloys: max. NS 28 mm / 1”
                 ▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1”
                 ▪ The stated information is system-dependent.

                                                                                 Possible scope of supply

                                                                                                            17
Pressing tools
     Hydraulic - radial

     MAP219 Mini battery-powered hydraulic pressing tool 19 kN

     Technical data
     Linear force                                           19 kN
     Weight                                                 1.8 kg
     Dimensions                                             395 x 80 x 118 mm
     Ambient temperature                                    -10 °C up to 40 °C
     Battery                                                18 V, Li-Ion
     Battery charger                                        230 V (110 V on request)
     Number of pressings                                    Approx. 150 (NS 20 / 1.5 Ah battery)
     Pressing jaw holder                                    rotates 350°
     Bluetooth                                              •
     Realtime clock                                         •
     OLED display                                           •
     Hydraulic Pressure Control                             •
     Item                                                    Part No. Makita     Part No. Bosch
     Battery-powered pressing tool with Makita battery       MAP219CFM
     Battery-powered pressing tool with Bosch battery                            MAP219CFB
     Scope of supply                                                                               Page
     Makita battery 18 V / 1.5 Ah Li-Ion                     RAL1                                   69
     Makita quick-charger 230 V for 18 V Li-Ion batteries    LGL1                                   71
     Bosch battery 18 V / 2.0 Ah Li-Ion                                          RALB1EU            70
     Bosch charger 230 V for 18 V Li-Ion batteries                               LGLB1EU            71
     Plastic case                                            KKMAP2NGS           KKMAP2NGS
     Accessories                                                                                   Page
     Makita battery 18 V / 3.0 Ah, Li-Ion                    RAL2                                  69
     Bosch battery 18 V / 5.0 Ah Li-Ion                                          RALB2EU           70

18
suitable for

SBMX pressing jaw Mini Extra 19 kN                                               Page 31
                 ▪ Stainless steel, steel: max. NS 35 mm / 1-1/4”
                 ▪ Copper, copper alloys: max. NS 35 mm / 1-1/4”
                 ▪ Multilayer pipe / PEX pipe: max. NS 40 mm / 1-1/2”
                 ▪ The stated information is system-dependent.
UWMX Universal interchangeable jaw Mini 19 kN                                    Page 31
                 ▪ Stainless steel, steel: max. NS 22 mm / 3/4”
                 ▪ Copper, copper alloys: max. NS 28 mm / 1”
                 ▪ Multi-layer pipe / PEX pipe: max. NS 32mm / 1”
                 ▪ The stated information is system-dependent.

                                                                        Possible scope of supply

                                                                                                   19
POWER PACKS FOR
UNIVERSAL USE:
RADIAL PRESSING TOOLS
SERIES UAP
The powerful UAP pressing tools cover a broad range of
applications. Their high material quality makes them the
ideal solution for extreme environmental conditions.
■   Powerful battery-powered tools for universal applications
■   Press extremely small dimensions up to the XL range
■   Linear force to suit your applications, either 32 kN or 120 kN
■   Short and compact drive unit with high performance output
■   Optimised weight distribution – also with pressing jaw
■    ble to meet even the toughest safety pipe connection
    A
    requirements (industry, sprinkler systems, shipbuilding, etc.)

                                                                      21
Pressing tools
     Hydraulic - radial

     UAP332 Universal battery-powered hydraulic pressing tool 32 kN

     Technical data
     Linear force                                           32 kN
     Weight                                                 3.6 kg
     Dimensions                                             359 x 76 x 325 mm
     Ambient temperature                                    -10 °C up to 40 °C
     Battery                                                18 V, Li-Ion
     Battery charger                                        230 V (110 V on request)
     Number of pressings                                    Approx. 400 (NS 20 / 4.0 Ah battery)
     Pressing jaw holder                                    rotates 350°
     Bluetooth                                              •
     Realtime clock                                         •
     OLED display                                           •
     Hydraulic Pressure Control                             •
     Item                                                    Part No. Makita     Part No. Bosch
     Battery-powered pressing tool with Makita battery       UAP332CFM
     Battery-powered pressing tool with Bosch battery                            UAP332CFB
     Scope of supply                                                                               Page
     Makita battery 18 V / 4.0 Ah Li-Ion                     RAL40                                  68
     Makita quick-charger 230 V for 18 V Li-Ion batteries    LGL1                                   71
     Bosch battery 18 V / 5.0 Ah Li-Ion                                          RALB2EU            70
     Bosch charger 230 V for 18 V Li-Ion batteries                               LGLB1EU            71
     Plastic case                                            KKUAP3NGS           KKUAP3NGS
     Accessories                                                                                   Page
     Makita battery 18 V / 5.0 Ah Li-Ion                     RAL4                                  68
     Bosch battery 18 V / 5.0 Ah Li-Ion                                          RALB2EU           70

22
suitable for

SB pressing jaw Standard 32 kN                                                                Page 32
                  ▪ Stainless steel, steel: max. NS 54 mm / 2”
                  ▪ Copper, copper alloys: max. NS 54 mm / 2”
                  ▪ Multi-layer pipe / PEX pipe: max. NS 50 mm / 2”
                  ▪ The stated information is system-dependent
UW Universal interchangeable jaw Standard 32 kN                                               Page 32
                  ▪ Stainless steel, steel: max. NS 22 mm / 3/4“
                  ▪ Copper, copper alloys: max. NS 28 mm / 1”
                  ▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1”
                  ▪ The stated information is system-dependent.

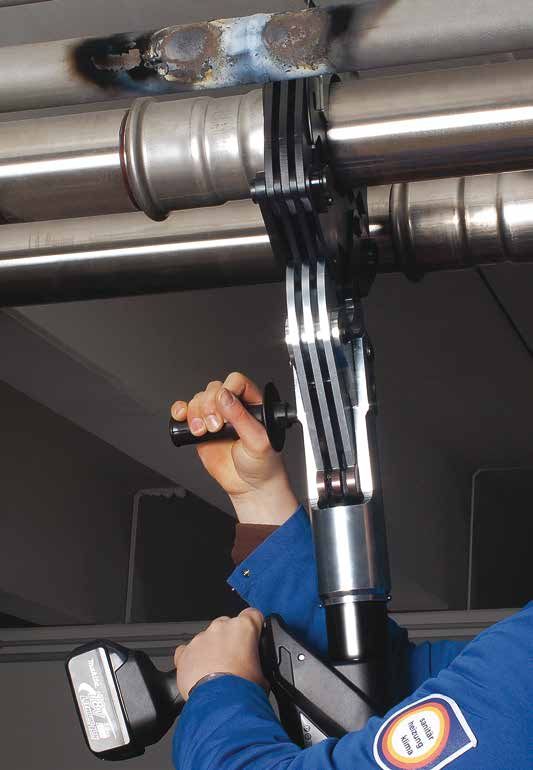

QC pressing chain Quick-Click 32 kN                                                           Page 36
                  ▪ Can be used only in connection with adapter jaw SBKQC (not included in scope of supply)
                  ▪ Stainless steel, steel: max. NS 54 mm / 108 mm / 4”
                  ▪ Copper, copper alloys: NS 54 mm / 108 mm / 4”
                  ▪ Multi-layer pipe / PEX pipe: max. NS 110 / 4”
                  ▪ The stated information is system-dependent.
SSK 4-segment pressing chain 32 kN                                                            Page 36
                  ▪ Can be used only in connection with adapter jaw SBKQC (not included in scope of supply)
                  ▪ Stainless steel, steel: max. NS 54 mm / 2”
                  ▪ Copper, copper alloys: max. NS 54 mm / 2”
                  ▪ The stated information is system-dependent.

                                                                                   Possible scope of supply

                                                                                                              23
Pressing tools
     Hydraulic - radial

     UAP432 Universal battery-powered hydraulic pressing tool 32 kN

     Technical data
     Linear force                                                   32 kN
     Weight                                                         4.4 kg
     Dimensions                                                     530 x 76 x 325 mm
     Ambient temperature                                            -10 °C up to 40 °C
     Battery                                                        18 V, Li-Ion
     Battery charger                                                230 V (110 V on request)
     Number of pressings                                            Approx. 400 (NS 20 / 4.0 Ah battery)
     Pressing jaw holder                                            rotates 350°
     Bluetooth                                                      •
     Realtime clock                                                 •
     OLED display                                                   •
     Hydraulic Pressure Control                                     •
     Item                                                                    Part No. Makita   Part No. Bosch
     Battery-powered pressing tool with Makita battery                       UAP432CFM
     Battery-powered pressing tool with Bosch battery                                          UAP432CFB
     Scope of supply                                                                                            Page
     Makita battery 18 V / 4.0 Ah, Li-Ion                                    RAL40                               69
     Makita quick-charger 230 V for 18 V Li-Ion batteries                    LGL1                                71
     Bosch battery 18 V / 5.0 Ah Li-Ion                                                       RALB2EU            70
     Bosch charger 230 V for 18 V Li-Ion battery                                              LGLB1EU            71
     Plastic case                                                            KKUAP4NGS        KKUAP4NGS
     Accessories                                                                                                Page
     Makita battery 18 V / 5.0 Ah, Li-Ion                                      RAL4                             69
     Mains adapter 18 V / 230 V (compatible only with Makita/110 V on request) NG2                              70
     Bosch battery 18 V / 5.0 Ah Li-Ion                                                       RALB2EU           70
24
suitable for

SB pressing jaw Standard 32 kN                                                                 Page 30
                  ▪ Stainless steel, steel: max. NS 54 mm / 2”
                  ▪ Copper, copper alloys: max. NS 54 mm / 2”
                  ▪ Multi-layer pipe / PEX pipe: max. NS 50 mm / 2”
                  ▪ The stated information is system-dependent
UW Universal interchangeable jaw Standard 32 kN                                                Page 32
                  ▪ Stainless steel, steel: max. NS 22 mm / 3/4”
                  ▪ Copper, copper alloys: max. NS 28 mm / 1”
                  ▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1”
                  ▪ The stated information is system-dependent.
QC pressing chain Quick-Click 32 kN                                                            Page 36
                  ▪ Can be used only in connection with adapter jaw SBKQC (not included in scope of supply)
                  ▪ Stainless steel, steel: max. NS 54 mm / 108 mm / 4”
                  ▪ Copper, copper alloys: NS 54 mm / 108 mm / 4”
                  ▪ Multi-layer pipe / PEX pipe: max. NS 110 / 4”
                  ▪ The stated information is system-dependent.
SSK 4-segment pressing chain 32 kN                                                             Page 36
                  ▪ Can be used only in connection with adapter jaw SBKQC (not included in scope of supply)
                  ▪ Stainless steel, steel: max. NS 54 mm / 3/4”
                  ▪ Copper, copper alloys: max. NS 54 mm / 2”
                  ▪ The stated information is system-dependent.
BP pressing chain LP (low pressure) 32 kN                                                      Page 37
                  ▪ Can be used only in connection with adapter jaw SBKUAP4 (not included in scope of supply)
                  ▪ Stainless steel, steel: max. NS 108 mm / 4”
                  ▪ Copper, copper alloys: NS 108 mm / 4”
                  ▪ Multi-layer pipe / PEX pipe: max. NS 110 / 4”
                  ▪ The stated information is system-dependent.

                                                                                     Possible scope of supply

                                                                                                                25
Pressing tools
     Hydraulic - radial

     UAP100120 Universal battery-powered hydraulic pressing tool 120 kN

     Technical data
     Linear force                                                    120 kN
     Weight                                                          12.9 kg
     Dimensions                                                      588 x 82 x 365 mm
     Ambient temperature                                             -10 °C up to 40 °C
     Battery                                                         18 V, Li-Ion
     Battery charger                                                 230 V (110 V on request)
     Number of pressings                                             Approx. 26 (NS 108 / 4.0 Ah battery)
     Pressing jaw holder                                             rotates 350°
     Bluetooth                                                       •
     Realtime clock                                                  •
     OLED display                                                    •
     Hydraulic Pressure Control                                      •
     Item                                                                     Part No. Makita   Part No. Bosch
     Battery-powered pressing tool with Makita battery                        UAP100120CFM
     Battery-powered pressing tool with Bosch battery                                           UAP100120CFB
     Scope of supply                                                                                             Page
     Makita battery 18 V / 4.0 Ah, Li-Ion                                    RAL40                                69
     Makita quick-charger 230 V for 18 V Li-Ion batteries                    LGL1                                 71
     Bosch battery 18 V / 5.0 Ah Li-Ion                                                       RALB2EU             70
     Bosch charger 230 V for 18 V Li-Ion battery                                              LGLB1EU             71
     Metal case                                                              MKUAP100NGB      MKUAP100NGB
     Accessories                                                                                                 Page
     Makita battery 18 V / 5.0 Ah Li-Ion                                        RAL4                             69
     Mains adapter 18 V / 230 V (compatible only with Makita /110 V on request) NG2                              70
     Bosch battery 18 V / 5.0 Ah Li-Ion                                                       RALB2EU            70
26
suitable for

BP pressing chain HP (high pressure) 120 kN                                Page 37
                  ▪ Stainless steel, steel: max. NS 108 mm / 4”
                  ▪ Copper, copper alloys: max. NS 108 mm / 4”
                  ▪ The stated information is system-dependent.

                                                                  Possible scope of supply

                                                                                             27
FOR ALL STANDARD
PRESS-FITTING SYSTEMS:
KLAUKE SYSTEM
PRESSING JAWS
With approvals from more than 150 system suppliers for
the corresponding applications in the plumbing, heating and
air-conditioning sector, and also for numerous industrial special
applications.
■    lauke system pressing jaws available with diverse profiles and
    K
    dimensions for a broad range of applications
■   More than 50 customer-specific system pressing profiles KSP
■    op quality materials and leading edge manufacturing methods
    T
    for meeting the toughest safety and quality requirements
■    xtra safety and minimal wear thanks to additional inductively
    E
    hardened zones on the pressing profile
■   Optimised force transmission for more operating cycles
■   Special surface finish for long-lasting corrosion protection

                                                                       29
Pressing tools
     Pressing jaws

     SBM pressing jaw Mini 15 kN
                                          Characteristics
                                          ▪ Patented lightweight system pressing jaw with single bolt bearing
                                          ▪ Suitable for use with Klauke series MAP1 and MAP2 Mini pressing machines
                                          suitable for
                                          ▪ Stainless steel, steel: max. NS 22 mm (NS 28 mm on request) / 3/4”
                                          ▪ Copper, copper alloys: max. NS 28 mm / 1”
                                          ▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1-1/4”
                                          ▪ The stated information is system-dependent.

                                          Technical data
                                          Force                   15 kN
                                          Compatibility           MAP215, MAP115, MAP2, MAP1, HPU32, PKMAP2
                                          Item                    Description                Part No.
                                          Press jaw Mini          M (KSP3)      12 – 22 mm SBM … M
                                          Press jaw Mini          V (KSP4)      12 – 28 mm SBM … V
                                          Press jaw Mini          U (KSP5)      12 – 32 mm SBM … U
                                          Press jaw Mini          TH (KSP11) 12 – 32 mm SBM … TH
                                          Accessories                                        Part No.   Page
     For further profiles, see Pressing   Mini battery-powered hydraulic pressing tool 15 kN MAP215      16
     profiles on Page 40 or send a
     request                              Hydraulic manual pressing tool                     HPU32       62

     UWM Universal interchangeable jaw Mini 15 kN
                                          Characteristics
                                          ▪ Patented lightweight system interchangeable jaw with single bolt bearing
                                          ▪ Standardised and anti-twist mounting for Klauke WE- interchangeable dies
                                          ▪ Interchangeable inserts fixed by stop bolts
                                          suitable for
                                          ▪ Stainless steel, steel: max. NS 22 mm / 3/4”
                                          ▪ Copper, copper alloys: max. NS 28 mm / 1”
                                          ▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1”
                                          ▪ The stated information is system-dependent.

                                          Technical data
                                          Force                   15 kN
                                          Compatibility           MAP215, MAP115, MAP2, MAP1, HPU32, PKMAP2
                                          Item                    Description                Part No.
                                          Universal interchangeable jaw Mini                 UWM32
                                          Accessories                                        Part No.
                                          Interchangeable inserts U (KSP5)      12 – 32 mm WE … U
                                          Interchangeable inserts H (KSP7)      12 – 32 mm WE … H
                                          Interchangeable inserts TH (KSP11) 12 – 32 mm WE … TH
                                          Interchangeable inserts RF (KSP20C) 12 – 32 mm WE … RFX
     For further profiles, see Pressing   Mini battery-powered hydraulic pressing tool 15 kN MAP215       16
     profiles on Page 40 or send a
     request                              Hydraulic manual pressing tool                     HPU32        62

30
SBMX pressing jaw Mini Extra 19 kN
                                     Characteristics
                                     ▪ Tried and proven Mini design for tight pressing positions
                                     ▪ Lightweight pressing jaw Mini for maximum pressing performance
                                     suitable for
                                     ▪ Stainless steel, steel: max. NS 35 mm / 1-1/4”
                                     ▪ Copper, copper alloys: max. NS 35 mm / 1-1/4”
                                     ▪ Multi-layer pipe / PEX pipe: max. NS 40mm / 1-1/2”
                                     ▪ The stated information is system-dependent.

                                     Technical data
                                     Force                       19 kN
                                     Compatibility               MAP219, MAP2L19
                                     Item                       Description                    Part No.
                                     Press jaw Mini Extra       M (KSP3)        12 – 35 mm     SBMX … M
                                     Press jaw Mini Extra       V (KSP4)        12 – 35 mm     SBMX … V
                                     Press jaw Mini Extra       U (KSP5)        12 – 40 mm     SBMX … U
                                     Press jaw Mini Extra       TH (KSP11) 12 – 40 mm          SBMX … TH
For further profiles, see Pressing   Accessories                                               Part No.  Page
profiles on Page 40 or send a
request                              Mini battery-powered hydraulic pressing tool 19 kN        MAP219     18

UWMX Universal interchangeable jaw Mini 19 kN
                                     Characteristics
                                     ▪ Tried and proven design for tight pressing positions
                                     ▪ Standardised and anti-twist mounting for Klauke WE- interchangeable dies
                                     ▪ Interchangeable inserts fixed by stop bolts
                                      suitable for
                                     ▪ Stainless steel, steel: max. NS 22mm / 3/4”
                                     ▪ Copper, copper alloys: max. NS 28mm / 1”
                                     ▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1”
                                     ▪ The stated information is system-dependent.

                                     Technical data
                                     Force                        19 kN
                                     Compatibility                MAP219, MAP2L19
                                     Item                        Description                   Part No.
                                     Universal interchangeable jaw Mini Extra                  UWMX32
                                     Accessories                                               Part No.      Page
                                     Interchangeable inserts     U (KSP5)       12 – 32 mm     WE … U
                                     Interchangeable inserts     H (KSP7)       12 – 32 mm     WE … H
                                     Interchangeable inserts     TH (KSP11)     12 – 32 mm     WE … TH
For further profiles, see Pressing   Interchangeable inserts     RF (KSP20C) 12 – 32 mm        WE … RFX
profiles on Page 40 or send a
request                              Mini battery-powered hydraulic pressing tool 19 kN        MAP219         18

                                                                                                                   31
Pressing tools
     Pressing jaws

     SB pressing jaw Standard 32 kN
                                          Characteristics
                                          ▪ Proven pressing jaw for universal applications
                                          ▪ Standard pressing jaw for maximum pressing performance
                                          suitable for
                                          ▪ Stainless steel, steel: max. NS 54 mm / 2”
                                          ▪ Copper, copper alloys: max. NS 54 mm / 2”
                                          ▪ Multi-layer pipe / PEX pipe: max. NS 50 mm / 2”
                                          ▪ The stated information is system-dependent.

                                          Technical data
                                          Force                  32 kN
                                          Compatibility          UAP332, UAP432, UAP4, UAP3, UAP2/UNP2, HPU2, PKUAP2
                                          Item                   Description                      Part No.
                                          Pressing jawStandard M (KSP3)           12 – 54 mm      SB … M
                                          Pressing jawStandard V (KSP4)           12 – 54 mm      SB … V
                                          Pressing jawStandard U (KSP5)           12 – 50 mm      SB … U
                                          Pressing jawStandard TH (KSP11)         12 – 50 mm      SB … TH
                                          Accessories                                             Part No.     Page
                                          Universal battery-powered hydraulic pressing tool 32 kN UAP332        22
     For further profiles, see Pressing   Universal battery-powered hydraulic pressing tool 32 kN   UAP432      24
     profiles on Page 40 or send a
     request                              Hydraulic manual pressing tool                            HPU2        64

     UW Universal interchangeable jaw Standard 32 kN
                                          Characteristics
                                          ▪ Tried and proven interchangeable jaw
                                          ▪ Standardised and anti-twist mounting for Klauke WE- interchangeable dies
                                          ▪ Interchangeable inserts fixed by stop bolts
                                          suitable for
                                          ▪ Stainless, steel: max. NS 22 mm / 3/4”
                                          ▪ Copper, copper alloys: max. NS 28 mm / 1”
                                          ▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1”
                                          ▪ The stated information is system-dependent.

                                          Technical data
                                          Force                   32 kN
                                          Compatibility           UAP332, UAP432, UAP4, UAP3, UAP2/UNP2, HPU2, PKUAP2
                                          Item                    Description                     Part No.
                                          Universal interchangeable jaw Standard                  UW32
                                          Accessories                                             Part No.      Page
                                          Interchangeable inserts U (KSP5)        12 – 32 mm      WE … U
                                          Interchangeable inserts H (KSP7)        12 – 32 mm      WE … H
                                          Interchangeable inserts TH (KSP11)      12 – 32 mm      WE … TH
                                          Interchangeable inserts RF (KSP20C) 12 – 32 mm          WE … RFX
                                          Universal battery-powered hydraulic pressing tool 32 kN UAP332         22
     For further profiles, see Pressing   Universal battery-powered hydraulic pressing tool 32 kN   UAP432      24
     profiles on Page 40 or send a
     request                              Hydraulic manual pressing tool                            HPU2        64

32
SBKQC Adapter jaw 32 kN
                                     Characteristics
                                     ▪ GO-NOGO colour coding for reliable adaptation to the pressing chain
                                     suitable for
                                     ▪ Can be used only in connection with pressing chains QC and SSK (not included
                                       in scope of supply)
                                     ▪ Stainless steel, steel: max. NS 54 mm (108 mm / 4” only in connection with
                                       VXL/VXLR)
                                     ▪ Copper, copper alloys: max. NS 54 mm (108 mm / 4” only in connection with
                                       VXL/VXLR)
                                     ▪ Multi-layer pipe / PEX pipe: max. NS 110 mm / 4”
                                     ▪ The stated information is system-dependent.

                                     Technical data
                                     Force             32 kN
                                     Compatibility     UAP332, UAP432, UAP4, UAP3, UAP2/UNP2, HPU2, PKUAP2
                                     Item                                            Part No.
                                     SBKQC Adapter jaw                               SBKQC
                                     Accessories          Description                Part No.       Page
                                     QC pressing chain    M, V,U,TH, VXL, VXLR       QC …            36
                                     SSK pressing chain        M, V                            SSK …          36
                                     Universal battery-powered hydraulic pressing tool 32 kN   UAP332         22
For further profiles, see Pressing   Universal battery-powered hydraulic pressing tool 32 kN   UAP432         24
profiles on Page 40 or send a
request
                                     Hydraulic manual pressing tool                            HPU2           64

SBKQC Adapter jaw LP 32 kN
                                     Characteristics
                                     ▪ GO-NOGO colour coding for reliable adaptation to the pressing chain
                                     suitable for
                                     ▪ Can be used only in connection with BP pressing chain LP (not included in
                                       scope of supply)
                                     ▪ Stainless steel, steel: max. NS 108 mm / 4”
                                     ▪ Copper, copper alloys: max. NS 108 mm / 4”
                                     ▪ Multi-layer pipe / PEX pipe: max. NS 110 mm / 4”
                                     ▪ The stated information is system-dependent.

                                     Technical data
                                     Force                  32 kN
                                     Compatibility          UAP432, UAP4, PKUAP4
                                     Item                                                      Part No.
                                     Adapter jaw LP                                            SBKUAP4
For further profiles, see Pressing   Accessories             Description                       Part No.      Page
profiles on Page 40 or send a
request                              BP pressing chain LP M (KSP3)           76,1 – 108 mm     BP...LP        37
                                     Universal battery-powered hydraulic pressing tool 32 kN   UAP432         24

                                                                                                                    33
SIMPLY RELIABLE
PRESSINGS ALSO IN XL:
KLAUKE SYSTEM PRESSING
CHAINS
Multi-segment technology guarantees synchronous pressing.
You get optimal results even with large diameters and the most
diverse materials.
■    lauke system pressing chains with various profiles and
    K
    dimensions for a broad range of applications
■   Also suitable for XL applications
■    op quality materials and leading edge manufacturing methods
    T
    for meeting the toughest safety and quality requirements
■    niform pressing with special multi-segment technology creates
    U
    a perfect material flow
■    eliable pressing with clamping function on the fitting for locking
    R
    before and after the pressing process
■    eight-optimised design coordinated with the pressing
    W
    performance

                                                                           35
Pressing chains

     QC pressing chain Quick-Click 32 kN
                                          Characteristics
                                          ■ Reliable pressing with clamping function on the fitting before and after the pressing
                                             process
                                          suitable for
                                          ▪ Can be used only in connection with adapter jaw SBKQC (not included in scope of
                                             supply)
                                          ▪ Stainless steel, steel: max. NS 54 mm / 108 mm / 4”
                                          ▪ Copper, copper alloys: NS 54 mm / 108 mm / 4”
                                          ▪ Multi-layer pipe / PEX pipe: max. NS 110 / 4”
                                          ▪ The stated information is system-dependent.
                                           Technical data
                                           Force                        32 kN
                                                                         UAP332, UAP432, UAP4, UAP3, UAP2/UNP2, HPU2,
                                           Compatibility
                                                                         PKUAP2
                                           Item                           Description                     Part No.
                                           Pressing chain Quick-Click     M (KSP3)         42 – 54 mm     QC … M
                                           Pressing chain Quick-Click     V (KSP4)         42 – 54 mm     QC … V
                                           Pressing chain Quick-Click     U (KSP5)         40-110 mm      QC … U
                                           Pressing chain Quick-Click     TH (KSP11)       40 – 63 mm     QC … TH
                                           Accessories                                                    Part No.         Page
                                           Universal battery-powered hydraulic pressing tool 32 kN        UAP332             22
     For further profiles, see Pressing    Universal battery-powered hydraulic pressing tool 32 kN        UAP432             24
     profiles on Page 40 or send a         Adapter jaw                                                                       33
                                                                                                          SBKQC
     request

     SSK 4-segment pressing chain 32 kN
                                          Characteristics
                                          ▪ 4-segment pressing technology for optimum pressing
                                          ■ Reliable pressing with clamping function on the fitting before and after the pressing
                                             process
                                          suitable for
                                          ▪ Can be used only in connection with adapter jaw SBKQC (not included in scope of
                                             supply)
                                          ▪ Stainless steel, steel: max. NS 54 mm / 2”
                                          ▪ Copper, copper alloys: NS 54 mm / 2”
                                          ▪ The stated information is system-dependent.
                                           Technical data
                                           Force                        32 kN
                                                                         UAP332, UAP432, UAP4, UAP3, UAP2/UNP2, HPU2,
                                           Compatibility
                                                                         PKUAP2
                                           Item                           Description                     Part No.
                                           Pressing chain                 M (KSP3)         42 mm          SSK42M
                                           Pressing chain                 M (KSP3)         54 mm          SSK54M
                                           Pressing chain                 V (KSP4)         42 mm          SSK42V
       Synchronized pressing               Pressing chain                 V (KSP4)         54 mm          SSK54V
       thanks to 4-segment                 Accessories                                                    Part No.         Page
       technology
                                           Universal battery-powered hydraulic pressing tool 32 kN        UAP332             22
     For further profiles, see Pressing    Universal battery-powered hydraulic pressing tool 32 kN                           24
                                                                                                          UAP432
     profiles on Page 40 or send a
     request                               Adapter jaw                                                    SBKQC              33

36
BP pressing chain LP (low pressure) 32 kN
                                     Characteristics
                                     ▪ 4-segment pressing technology for optimum pressing
                                     ▪ Building installation
                                     ▪ Reliable pressing with clamping function on the fitting before and after the
                                       pressing process
                                     ▪ Sturdy chain lock absorbs high clamping forces
                                     suitable for
                                     ▪ Can be used only in connection with adapter jaw SBKUAP4 (not included in
                                       scope of supply)
                                     ▪ Stainless steel, steel: max. NS 108 mm / 4”
                                     ▪ Copper, copper alloys: NS 108 mm / 4”
                                     ▪ Multi-layer pipe / PEX pipe: max. NS 110 / 4”
                                     ▪ The stated information is system-dependent.
                                     Technical data
                                     Force                       32 kN
                                     Compatibility               UAP432, UAP4L, UAP4, PKUAP4
                                     Item                         Description                Part No.
                                     Pressing chain               M (KSP3)       76.1 mm     BP761LP
  Synchronized pressing
                                     Pressing chain               M (KSP3)       88.9 mm     BP889LP
  thanks to 4-segment                Pressing chain               M (KSP3)       108 mm      BP108LP
  technology
                                     Accessories                                             Part No.            Page
For further profiles, see Pressing   Universal battery-powered hydraulic pressing tool 32 kN UAP432               24
profiles on Page 40 or send a
request                               Adapter jaw                                            SBKUAP4              33

BP pressing chain HP (high pressure) 120 kN
                                     Characteristics
                                     ▪ 4-segment pressing technology for optimum pressing
                                     ▪ for meeting special requirements for reliable pipe connections (industrial,
                                        sprinkler, shipbuilding applications, etc.)
                                     ▪ Reliable pressing with clamping function on the fitting before and after the
                                        pressing process
                                     ▪ Sturdy chain lock absorbs high clamping forces
                                     suitable for
                                     ▪ Can be used only in connection with pressing machine UAP100120 (not
                                        included in scope of supply)
                                     ▪ Stainless steel, steel: max. NS 108 mm / 4”
                                     ▪  Copper, copper alloys: NS 108 mm / 4”
                                     ▪ The stated information is system-dependent.

                                     Technical data
                                     Force                        120 kN
                                     Compatibility                UAP100120, UAP100L, UAP100, PK100
                                     Item                          Description                Part No.
  Synchronized pressing
                                     Pressing chain                M (KSP3)        76.1 mm    BP761M
  thanks to 4-segment                Pressing chain                M (KSP3)        88.9 mm    BP889M
  technology
                                     Pressing chain                M (KSP3)        108 mm     BP108M
For further profiles, see Pressing   Accessories                                              Part No.  Page
profiles on Page 40 or send a
request                              Universal battery-powered hydraulic pressing tool 120 kN UAP100120 26

                                                                                                                      37
Pressing chains
     Can be combined with pressing machine with pressing jaws and pressing chains

                          MAP215                          UAP332
                                                                             UAP432      UAP100120
                         MAP115ML         MAP219          UAP3L
                                                                             UAP4L        UAP100L
                          MAP2L           MAP2L19          UAP2
                                                                              UAP4        UAP100
                           MAP1                            UNP2
                            15 kN           19 kN                    32 kN                120 kN

               SBM             •

              UWM
                               •
                          in connection
                             with WE

              SBMX                            •
              UWMX                            •
                SB                                            •                •
               UW                                             •                •
                WE             •              •               •                •
             SBKQC                                            •                •
               SB-
              KUAP4                                                            •

                QC
                                                              •                •
                                                         in connection   in connection
                                                          with SBKQC      with SBKQC

               SSK
                                                              •                •
                                                         in connection   in connection
                                                          with SBKQC      with SBKQC

             BP ... LP
                                                                               •
                                                                         in connection
                                                                         with SBKUAP4

                BP                                                                          •
38
HPU2            HPU32
AHP700LS   PK100    PKUAP4              PKUAP3      PKMAP2
                                                             HPU2EX          HPU32EX

 700 bar   120 kN               32 kN                15 kN     32 kN          15 kN

   •                                                  •                        •

   •                                                  •                        •

   •                     •                •                       •

   •                     •                •                       •

   •                     •                •                       •

   •                     •                •                       •

   •                     •
                         •                •                       •
   •                in connection   in connection            in connection
                     with SBKQC      with SBKQC               with SBKQC

                         •                •                       •
   •                in connection   in connection            in connection
                     with SBKQC      with SBKQC               with SBKQC

                         •
   •                in connection
                    with SBKUAP4

   •         •
                                                                                       39
RELIABILITY –
TESTED AND APPROVED:
PRESSINGS WITH KLAUKE
PRESSING PROFILES
Our more than 50 customer-specific system pressing profiles
in various dimensions cover a broad range of uses.
■    ystem approvals from more than 150 providers for use in the
    S
    plumbing, heating and air conditioning sector for various industrial
    custom applications
■    dditional functionality tests with selected pressing profiles by the
    A
    German Material Test Institute (MPA)
■    ong service life through optimised manufacturing processes
    L
    combined with a high degree of dimensional accuracy and
    resistance to wear
■   Constant processing results thanks to consistently high
    manufacturing quality
■    lauke expertise and many years of experience ensure additional
    K
    benefits and higher levels of reliability
■ Support for system development under a partnership with Klauke

                                                                             41
Pressing profiles

The applications based on dimensions, profile and machine type are set out in the Application and
Assembly Instructions from the system supplier.

 KSP 0                            Uponor
                                  Dimension-related for
                                  Pressing jaws           
                                  Interchangeable inserts 
                                  Pressing chains         
Machine and system-related for    Uponor UNIPIPE

 KSP 1                            B
                                  Dimension-related for
                                  Pressing jaws           
                                  Interchangeable inserts 
                                  Pressing chains         
Machine and system-related for    Ivar                           Megaro

 KSP 3                            M
                                  Dimension-related for
                                  Pressing jaws           
                                  Interchangeable inserts 
                                  Pressing chains         
Machine and system-related for    Eurotubi Europa                Oteraccordi
Airbel Sertinox / Pressclim       Filtube Instalpres             Pegler Yorkshire
AMCO HI-TECH INTERNATIONAL        HEBEI GUANGDE STAINLESS        Pipelife Austria
Aschl                             Inoxpres                       Raccorderie Metalliche InoxPres
Bonfix                            Isotubi                        Sabelita
CaroScheibe GmbH                  KAN                            Seppelfricke GmbH
Chibro                            Kohler InoxPres                Simplex
Comisa                            LK Systems                     Starsin Trading Pte Ltd
Dahl Sverige AB                   Lombarda Raccordi InoxPres     Stirlings Australia
Dw Verbundrohr GmbH               Maincor                        Vimoter
Emcal PRESSO NOX                  MARINE EQUIPMENT INT.          VSH
Esta Simplesta                    M-Press Fittings               W&O Supply

42
The applications based on dimensions, profile and machine type are set out in the Application and
Assembly Instructions from the system supplier.

 KSP 4                            V
                                  Dimension-related for
                                  Pressing jaws           
                                  Interchangeable inserts 
                                  Pressing chains         
Machine and system-related for
AMCO HI-TECH INTERNATIONAL        Emmeti                         Megaro
Bun Kee (International) Limited   Frabo                          Metallwerke Möllersdorf B-Press
Comap Sudopress CU                IBP B-Press                    Nibco
Comisa                            JSL Lifestyle Ltd.             Seppelfricke GmbH
Dahl Sverige AB                   LK Systems B-Press             Tzanos B-Press

 KSP 5                            U
                                  Dimension-related for
                                  Pressing jaws           
                                  Interchangeable inserts 
                                  Pressing chains         
Machine and system-related for
Aquatecnic                        Grupo Plásticos Ferro          Nikkai KMO
BRASS FORM                        KE KELIT                       Nupi
CO.E.S Coesclima                  KISAN                          Polytherm Española
Dw Verbundrohr GmbH               Maincor                        Rifeng
FAR                               mfh systems GmbH               SPK INDUSTRIES
Fränkische Rohrwerke              MT Business Key                TWEETOP
Global Piping                     Multec                         Wavin Tigris K1 + M1

                                                                                                   43
Pressing profiles

The applications based on dimensions, profile and machine type are set out in the Application and
Assembly Instructions from the system supplier.

 KSP 7                            H
                                  Dimension-related for
                                  Pressing jaws           
                                  Interchangeable inserts 
                                  Pressing chains         
Machine and system-related for    Haka HAKAPRESS                 Simplex
BRASS FORM                        Mair M-Press /Gomafix          Tzanos
FAR                               Prandelli Multyrama

 KSP 7(A)                         HR
                                  Dimension-related for
                                  Pressing jaws           
                                  Interchangeable inserts 
                                  Pressing chains         
Machine and system-related for    Roth

 KSP 8                            BE
                                  Dimension-related for
                                  Pressing jaws           
                                  Interchangeable inserts 
                                  Pressing chains         
Machine and system-related for    HENCO      NS32-40

44
The applications based on dimensions, profile and machine type are set out in the Application and
Assembly Instructions from the system supplier.

 KSP 11                           TH
                                  Dimension-related for
                                  Pressing jaws           
                                  Interchangeable inserts 
                                  Pressing chains         
Machine and system-related for
APE                               General Fittings               ONDA MFG.
Auspex Duopex                     Giacomini                      PB Tub
Becker Plastics                   Global Piping                  Pedotherm
BRASS FORM                        Golan                          Pinto & Cruz
Canes AS                          Grupo Plásticos Ferro          Pipelife Austria
Comap SudoPress Multiskin         Henco                          Polysan
COMFORTPRO SYSTEMS                Herz IPANAPRESS                Polytherm Heating Systems
                                  Industrielle du Plastique &
Comisa                                                           Purmo
                                  Accessoires
Dahl Sverige AB                   IPA IPANAPRESS                 Rifeng
Dalpex                            ITULA                          Rofix
Diwa Rohrsysteme                  Kermi X-Press                  Schlösser EuroPressSystem
Egoplast                          KISAN                          Schütz EHT
Emcal PRESSO                      Klimit                         Seppelfricke SD Sistemi Italia
Emmeti Gerpex                     LK Systems PressPex            Seppelfricke GmbH
FAR                               MA.S.TER SYSTEM                Stelbi
Fränkische Ibérica                Megaro                         Tiba abit
Fränkische Rohrwerke              Nicoll                         Tiemme Racorderie Cobrapress
F.I.V. Fivpress                   Nikkai KMO                     VIESSMANN

 KSP 12                           HO
                                  Dimension-related for
                                  Pressing jaws           
                                  Interchangeable inserts 
                                  Pressing chains         
Machine and system-related for    Oventrop           Cofit-P     Polytherm Polyfix / Polyfix MT

                                                                                                  45
Pressing profiles

The applications based on dimensions, profile and machine type are set out in the Application and
Assembly Instructions from the system supplier.

 KSP 13                           ME
                                  Dimension-related for
                                  Pressing jaws           
                                  Interchangeable inserts 
                                  Pressing chains         
Machine and system-related for    Metzerplas

 KSP 15                           ME
                                  Dimension-related for
                                  Pressing jaws           
                                  Interchangeable inserts 
                                  Pressing chains         
Machine and system-related for    Filpres                        Jäger Systemvertrieb
FG Inox                           Filtube

 KSP 16                           RRB
                                  Dimension-related for
                                  Pressing jaws           
                                  Interchangeable inserts 
                                  Pressing chains         
Machine and system-related for    Rehau        Raubasic

 KSP 17(A)                        ME
                                  Dimension-related for
                                  Pressing jaws           
                                  Interchangeable inserts 
                                  Pressing chains         
Machine and system-related for
GALVINS PLUMBING PLUS KSP17A      Iplex                          Ken‘s Plumbing

 KSP 19                           VAL
                                  Dimension-related for
                                  Pressing jaws           
                                  Interchangeable inserts 
                                  Pressing chains         
Machine and system-related for    BENTONS PLUMBTEC               Valsir    Pexal

46
The applications based on dimensions, profile and machine type are set out in the Application and
Assembly Instructions from the system supplier.

 KSP 20                           RF
                                  Dimension-related for
                                  Pressing jaws           
                                  Interchangeable inserts 
                                  Pressing chains         
Machine and system-related for    Global Piping System   AC-FIX   PB Tub
Blansol / Barbi                   MT Business Key

 KSP 28(ABC)                      multi-layer pipe / Pex pipe
                                  Dimension-related for
                                  Pressing jaws           
                                  Interchangeable inserts 
                                  Pressing chains         
Machine and system-related for    DITRON BUTELINE KSP28C          PHILMAC KSP28C
Auspex KSP28                      Nibco KSP28B

 KSP 33                           THA
                                  Dimension-related for
                                  Pressing jaws           
                                  Interchangeable inserts 
                                  Pressing chains         
Machine and system-related for
Benkan                            Hebei Guangde Stainless/JSL     Samyong     EQJOINT

 KSP 36                           DB
                                  Dimension-related for
                                  Pressing jaws           
                                  Interchangeable inserts 
                                  Pressing chains         
Machine and system-related for    DASUNG TECH                     SEOWON TECHNOLOGY

                                                                                               47
SAFE AND EASY TO USE:
AXIAL PRESSING TOOLS
SERIES MAPAX
Use our MAPAX axial
pressing tools to create
reliable multi-layer and PEX
pipe connections. They
can also be used for metal
pipe connections.
Certain types in the series
also permit quick expansion
ahead of the pressing.
■    xial force suitable for your applications, either with 16 kN, 25 kN or
    A
    45 kN
■    imple operations by combining expansion and pushing actions into
    S
    one tool
■    ptional adapter for mounting pipe expanders for simple expansion
    O
    of the pipe ends
■   Quick and convenient operations in any assembly situation
■    ystem sliding forks for connections to allow rapid changeover
    S
    between the dimensions
■   Codes on the mounting prevents the forks being mis-connected

                                                                          49
Axial pressing tools
     MAPAX series

     MAPAX216 Mini battery-powered hydraulic pressing tool axial 16 kN

     Technical data
     Linear force                                           16 kN
     Weight                                                 2.2 kg
     Dimensions                                             309 x 80 x 174 mm
     Ambient temperature                                    -10 °C up to 40 °C
     Battery                                                18 V, Li-Ion
     Battery charger                                        230 V (110 V on request)
     Number of pressings                                    Approx. 150 (NS 20 / 1.5 Ah battery)
     Bluetooth                                              •
     Realtime clock                                         •
     OLED display                                           •
     Hydraulic Pressure Control                             •
     Item                                                    Part No. Makita     Part No. Bosch
     Battery-powered sliding tool with Makita battery        MAPAX216CFM
     Battery-powered sliding tool with Bosch battery                             MAPAX216CFB
     Scope of supply                                                                               Page
     Makita battery 18 V / 1.5 Ah, Li-Ion                    RAL1                                   68
     Makita quick-charger 230 V for 18 V Li-Ion batteries    LGL1                                   71
     Bosch battery 18 V / 2.0 Ah Li-Ion                                         RALB1EU             70
     Bosch charger 230 V for 18 V Li-Ion batteries                              LGLB1EU             71
     Plastic case                                            KKMAPAX2NGS        KKMAPAX2NGS
     Accessories                                                                                   Page
     Makita battery 18 V / 3.0 Ah, Li-Ion                    RAL2                                  68
     Bosch battery 18 V / 5.0 Ah Li-Ion                                         RALB2EU            70

50
suitable for

 SGL sliding forks 16 kN
                  ▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1”
                  ▪ The stated information is system-dependent.
                ▪ On request
AWA expansion adapter
                  ▪ For connecting to MAPAX216 pressing tool
                  ▪ For mounting AWK expansion crowns
                 ▪ On request
AWK expansion crown
                  ▪ For expanding pipe ends
                  ▪ Adaptable to AWA expansion adapter
                  ▪ On request

                                                                      Possible scope of supply

                                                                                                 51
Axial pressing tools
     MAPAX series

     MAPAX325 Mini battery-powered hydraulic pressing tool axial 25 kN

     Technical data
     Linear force                                          25 kN
     Weight                                                3 kg
     Dimensions                                            310 x 80 x 198 mm
     Ambient temperature                                   -10 °C up to 40 °C
     Battery                                               18 V, Li-Ion
     Battery charger                                       230 V (110 V on request)
     Number of pressings                                   Approx. 150 (NS 20 / 1.5 Ah battery)
     Bluetooth                                             •
     Realtime clock                                        •
     OLED display                                          •
     Hydraulic Pressure Control                            •
     Item                                                   Part No. Makita     Part No. Bosch
     Battery-powered sliding tool with Makita battery       MAPAX325CFM
     Battery-powered sliding tool with Bosch battery                            MAPAX325CFB
     Scope of supply                                                                              Page
     Makita battery 18 V / 1.5 Ah, Li-Ion                   RAL1                                   68
     Makita quick-charger for 18 V Li-Ion batteries         LGL1                                   71
     Bosch battery 18 V / 2.0 Ah Li-Ion                                        RALB1EU             70
     Bosch quick-charger 230 V for 18 V Li-Ion batteries                       LGLB1EU             71
     Plastic case                                           KKMAPAX3NGS        KKMAPAX3NGS
     Accessories                                                                                  Page
     Makita battery 18 V / 3.0 Ah, Li-Ion                   RAL2                                  68
     Bosch battery 18 V / 5.0 Ah Li-Ion                                        RALB2EU            70

52
suitable for

 SGL sliding forks 25 kN
                  ▪ Multi-layer pipe / PEX pipe: max. NS 50 mm / 2”
                  ▪ The stated information is system-dependent.
                ▪ On request
AWA expansion adapter
                  ▪ For connecting to MAPAX325 pressing tool
                  ▪ For mounting AWK expansion crowns
                 ▪ On request
AWK expansion crown
                  ▪ For expanding pipe ends
                  ▪ Adaptable to AWA expansion adapter
                  ▪ On request

                                                                      Possible scope of supply

                                                                                                 53
Axial pressing tools
     MAPAX series

     MAPAX445 Mini battery-powered hydraulic pressing tool axial
     45 kN

     Technical data
     Linear force                                          45 kN
     Weight                                                3.2 kg
     Dimensions                                            320 x 80 x 155 mm
     Ambient temperature                                   -10 °C up to 40 °C
     Battery                                               18 V, Li-Ion
     Battery charger                                       230 V (110 V on request)
     Number of pressings                                   Approx. 150 (NS 20 / 1.5 Ah battery)
     Bluetooth                                             •
     Realtime clock                                        •
     OLED display                                          •
     Hydraulic Pressure Control                            •
     Item                                                  Part No. Makita      Part No. Bosch
     Battery-powered sliding tool with Makita battery      MAPAX445CFM
     Battery-powered sliding tool with Bosch battery                            MAPAX445CFB
     Scope of supply                                                                              Page
     Makita battery 18 V / 1.5 Ah Li-Ion                   RAL1                                    68
     Makita quick-charger for 18 V Li-Ion batteries        LGL1                                    71
     Bosch battery 18 V / 2.0 Ah Li-Ion                                        RALB1EU             70
     Bosch quick-charger 230 V for 18 V Li-Ion batteries                       LGLB1EU             71
     Plastic case                                          KKMAPAX3NGS         KKMAPAX3NGS
     Accessories                                                                                  Page
     Makita battery 18 V / 3.0 Ah, Li-Ion                    RAL2                                 68
     Bosch battery 18 V / 5.0 Ah Li-Ion                                        RALB2EU            70

54
suitable for

 SGL sliding forks 45 kN
                  ▪ Multi-layer pipe / PEX pipe: max. NS 63 mm / 2.5”
                  ▪ The stated information is system-dependent.
                  ▪ On request

                                                                        Possible scope of supply

                                                                                                   55

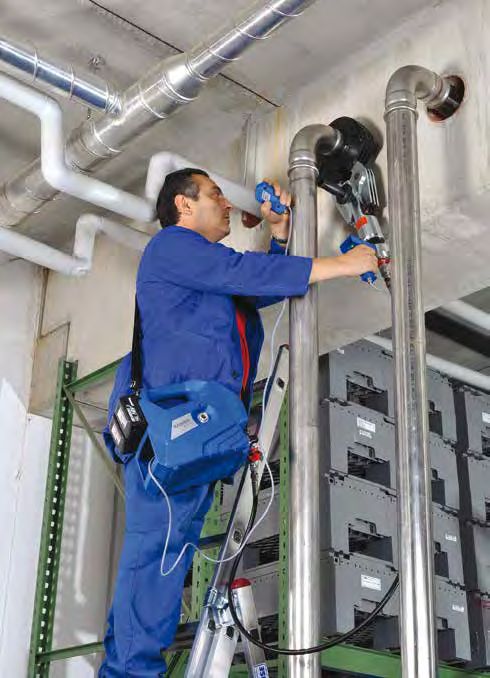

THE MATCHING DRIVE –
HYDRAULIC PUMPS
AND DRIVE UNITS
The system concept is being consistently implemented at Klauke.
Our hydraulic pumps provide every Klauke pressing, cutting and
multi head with the required force.
All pumps are matched to the various heads. They deliver 700 bar
of pressure to guarantee full performance every time.
■    ompact battery-powered hydraulic drive unit with automatic
    C
    pressure shut-off
■    attery-operation and closed hydraulic circuit for offline mobile use
    B
    in any working position
■   Can also be operated with a 230 V mains adapter
■   Socket for spare battery
■   Also available with cabled remote control
■   Broad range of adapters for the most diverse applications
■    he ideal solution for all applications in industry and the craft trades
    T
    that have to meet special mobility and safety requirements

                                                                           57
Hydraulic pumps

     AHP700LS Battery-powered drive unit 700 bar

     Technical data
     Max. operating pressure                           700 bar
     Weight                                            6.4 kg
     Dimensions                                        330 x 160 x 280 mm
     Ambient temperature                               -10 °C up to 40 °C
     Battery                                           18 V, Li-Ion
     Battery charger                                   230 V (110 V on request)
     Number of pressings                               Approx. 400 (NS 20 / 4.0 Ah battery)
     OLED display                                      •
     Hydraulic Pressure Control                        •
     Item                                                Part No. Makita
     Battery-drive drive unit with Makita battery        AHP700LS
     Scope of supply                                                                          Page
     Makita battery 18 V / 4.0 Ah, Li-Ion                RAL40                                 69
     Makita quick-charger for 18 V Li-Ion batteries      LGL1                                  71
     Carrying bag                                        TT2
     Remote control with 1.5 m cable                     HTA4
     Hydraulic hose, 2 m, oil filled                     HSOEL2
     Carrying strap with shoulder padding                TG3
     Accessories                                                                              Page
     Makita battery 18 V / 5.0 Ah, Li-Ion                RAL4                                 69
     Mains adapter 18 V / 230 V
                                                         NG2                                  70
     (compatible only with Makita /110 V on request)

58
suitable for

 PKMAP2 Pressing head 15 kN, (pressing jaws SBM, UWM)
                  ▪ Stainless steel, steel, NS 22 mm (NS 28 mm on request) / 3/4”
                  ▪ Copper, copper alloys: max. NS 28 mm / 1”
                  ▪ Multilayer pipe / PEX pipe: max. NS 32 mm / 1-1/4”
                 ▪ The stated information is system-dependent.
 PKUAP3 Pressing head 32 kN, (pressing jaws SB, UW, SBKQC and pressing chains SSK, QC)
                  ▪ Stainless steel, steel: max. NS 54 mm / 108 mm / 4”
                  ▪ Copper, copper alloys: max. NS 108 mm / 4”
                  ▪ Multi-layer pipe / PEX pipe: max. NS 110 mm / 4”
                 ▪ The stated information is system-dependent.
 PKUAP4 Pressing head 32 kN, (pressing jaws SB, UW, SBKQC, SBKUAP4 and pressing chains SSK, QC, BP…LP)
                  ▪ Stainless steel, steel: max. NS 54 mm / 108 mm / 4”
                  ▪ Copper, copper alloys: max. NS 54 mm / 108 mm / 4”
                  ▪ Multi-layer pipe / PEX pipe: max. NS 110 mm / 4”
                ▪ The stated information is system-dependent.
 PKUAP100 Pressing head 120 kN, (pressing chains BP…HP)
                  ▪ Stainless steel, steel: max. NS 108 mm / 4”
                  ▪ Copper, copper alloys: max. NS 108 mm / 4”
                ▪ The stated information is system-dependent.
 PKMAPAX pressing head axial 16 kN, (sliding forks SGL, expansion adapter AWA)
                  ▪ Multilayer pipe / PEX pipe: max. NS 32mm / 1-1/4”
                  ▪ The stated information is system-dependent.
                  ▪ On request.

                                                                                    Possible scope of supply

                                                                                                               59
MECHANICAL PRESSING TOOL
FOR SPECIAL APPLICATIONS –
ALSO WITH EX APPROVAL
In certain working environments, only mechanical tools will do.
Our hydraulic mechanical pressing tools are also available with
EX approval.
■   Hydraulic pressing tool with automatic piston retraction
■    omfortable working with 2-stage hydraulic system offering
    C
    fast feed and power stroke in one movement
■    50° rotating pressing jaw holder for optimised results even in
    3
    tight spots
■    ame pressing force as battery-powered pressing tools – with
    S
    either 15 kN or 32 kN linear thrust
■    an be combined with Klauke System pressing jaws and system
    C
    pressing chains
■    uitable for use in potentially explosive areas in accordance with
    S
    the ATEX Directive and Equipment Category II 2GD c IIB T4 T120

                                                                          61
Mechanical pressing tools
     with and without EX approval

     HPU32 Hydraulic mechanical pressing tool 15 kN

      II 2GD c IIB T4 T120
          (also available as
           non ex-version)

     Technical data
     Linear force                                    15 kN
     Weight                                          2.7 kg
     Dimensions                                      510 x 60 x 150 mm
     Ambient temperature                             -10 °C up to 40 °C
     Pressing jaw holder                             rotates 350°
     2-stage hydraulic system                        •
     Item                                              Part No. Ex      Part No. Standard
     Hydraulic mechanical pressing tool EX version     HPU32EX
     Hydraulic mechanical tool (Standard)                               HPU32
     Scope of supply
     Fabric bag                                       TT32              TT32

62
suitable for

SBM pressing jaw Mini 15 kN                                                               Page 30
                 ▪ Stainless steel, steel: max. NS 22 mm (NS 28 mm on request) / 3/4”
                 ▪ Copper, copper alloys: max. NS 28 mm / 1”
                 ▪ Multilayer pipe / PEX pipe: max. NS 32 mm / 1-1/4”
                 ▪ The stated information is system-dependent.
UWM Universal interchangeable jaw Mini 15 kN                                              Page 30
                 ▪ Stainless steel, steel: max. NS 22 mm / 3/4”
                 ▪ Copper, copper alloys: max. NS 28 mm / 1”
                 ▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1”
                 ▪ The stated information is system-dependent.

                                                                                 Possible scope of supply

                                                                                                            63
Mechanical pressing tools
     with and without EX approval

     HPU2 Hydraulic mechanical pressing tool 32 kN

      II 2GD c IIB T4 T120
          (also available as
           non ex-version)

     Technical data
     Linear force                                    32 kN
     Weight                                          2.7 kg
     Dimensions                                      510 x 60 x 150 mm
     Ambient temperature                             -10 °C up to 40 °C
     Pressing jaw holder                             rotates 350°
     2-stage hydraulic system                        •
     Item                                              Part No. Ex      Part No. Standard
     Hydraulic mechanical pressing tool EX version     HPU2EX
     Hydraulic mechanical tool (Standard)                               HPU2
     Scope of supply
     Fabric bag                                       TT32             TT32

64
suitable for

SB pressing jaw Standard 32 kN                                                               Page 32
                  ▪ Stainless steel, steel: max. NS 54 mm / 2”
                  ▪ Copper, copper alloys: max. NS 54 mm / 2”
                  ▪ Multi-layer pipe / PEX pipe: max. NS 50 mm / 2”
                  ▪ The stated information is system-dependent
UW Universal interchangeable jaw Standard 32 kN                                              Page 32
                  ▪ Stainless steel, steel: max. NS 22 mm / 3/4”
                  ▪ Copper, copper alloys: max. NS 28 mm / 1”
                  ▪ Multi-layer pipe / PEX pipe: max. NS 32 mm / 1”
                  ▪ The stated information is system-dependent.
QC pressing chain Quick-Click 32 kN                                                          Page 36
                  ▪ Can only be used in connection with adapter jaw SBKQC (not included in scope of supply)
                  ▪ Stainless steel, steel: max. NS 54mm / 108 mm / 4”
                  ▪ Copper, copper alloys: NS 54 mm / 108 mm / 4”
                  ▪ Multi-layer pipe / PEX pipe: max. NS 110 / 4”
                  ▪ The stated information is system-dependent.
SSK 4-segment pressing chain 32 kN                                                           Page 36
                  ▪ Can only be used in connection with adapter jaw SBKQC (not included in scope of supply)
                  ▪ Stainless steel, steel: max. NS 54 mm / 2”
                  ▪ Copper, copper alloys: max. NS 54 mm / 2”
                  ▪ The stated information is system-dependent.

                                                                                   Possible scope of supply

                                                                                                              65
PROFESSIONAL
BATTERY PLATFORM
FOR LEAD EDGE
TECHNOLOGY
Our battery platform lets you choose the leading battery
technology to work with: Makita or Bosch. The battery
technology system is available for all battery-powered
hydraulic tools in the Klauke series.
■    lauke battery platform for flexible and productive operations
    K
    with the least possible dependence on site conditions
■   18 V battery system with the latest Li-Ion technology
■    afer to use thanks to high battery capacity and cable-free
    S
    design
■    xtremely short charging times of less than 15 min. at 1.5 Ah
    E
    and less than 22 min at 3 Ah
■   Low weight for comfortable handling and balanced operations
■   Cost benefit from multiple use of existing batteries

                                                                      67
Battery platform
     Batteries and mains adapter

     RAL 1 Makita battery 18 V / 1.5 Ah, Li-Ion (27 Wh)
                                   Characteristics
                                   ▪ No memory effect
                                   ▪ Extremely low self-discharge
                                   ▪ Low weight
                                   suitable for
                                   ▪ Battery-powered hydraulic MAP tools with Makita batteries

                                    Technical data
                                    Battery voltage (V)      18 V
                                    Battery capacity         1.5 Ah
                                    Charging time            with LGL1: 15 min.
                                    Cell technology          Li-Ion
                                    Weight                   0.4 kg
                                    Item                                                      Part No.
                                    Makita battery 18 V / 1.5 Ah, Li-Ion                      RAL1

     RAL 2 Makita battery 18 V / 3.0 Ah, Li-Ion (54 Wh)
                                   Characteristics
                                   ▪ No memory effect
                                   ▪ Extremely low self-discharge
                                   ▪ Low weight
                                   suitable for
                                   ▪ Next Generation battery-powered hydraulic tools with Makita batteries

                                    Technical data
                                    Battery voltage (V)      18 V
                                    Battery capacity         3.0 Ah
                                    Charging time            with LGL1: 22 min.
                                    Cell technology          Li-Ion
                                    Weight                   0.6 kg
                                    Item                                                      Part No.
                                    Makita battery 18 V / 3.0 Ah, Li-Ion (54 Wh)              RAL2

                                   Other country-specific chargers and batteries on request

68
