Platinum II Nomad Series
Compact Solid Pneumatic Tire / Engine Powered Models
3,000 / 3,500 / 5,000 LB. CAPACITY MODELS
LPG, DUAL FUEL
P L A T I N U M I I N O M A D S E R I E S
For Versatility. For Value.
Nissan Forklift’s Platinum II Nomad® Series is a reflection of our
continuing commitment to designing and delivering innovative
products that offer only the highest value to our customers.

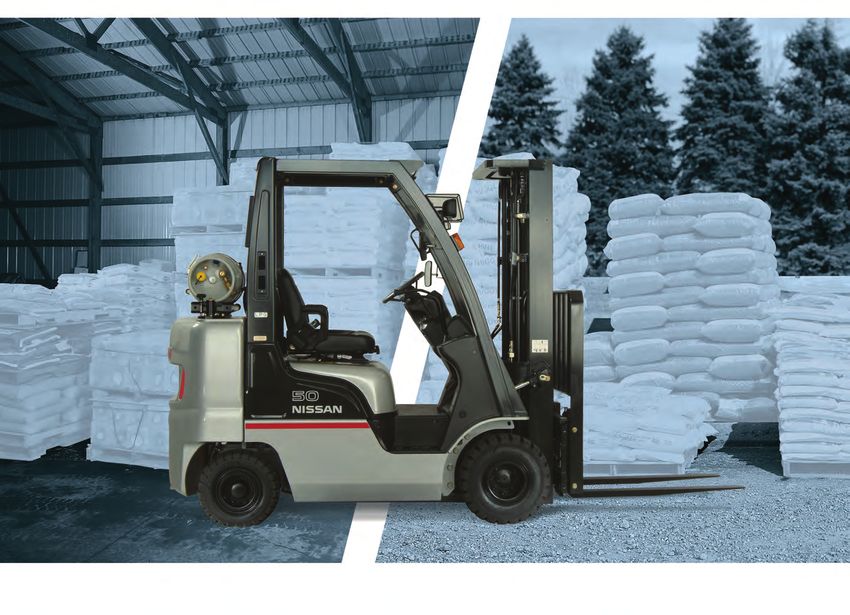

Built on a smaller frame, our exclusive Nomad Series rides on solid
pneumatic tires, offering your operation the flexibility of using this
compact indoor truck outside on improved surfaces. Thanks to the
Nomad’s unique design, you get two trucks in one – all for a great
value!
These lift trucks also incorporate the most advanced technology
in our industry and are backed by years of experience and
expertise in the successful development of ultra-low emission
engine systems. Combined with Nissan Forklift’s tradition of rugged,
reliable construction, the Nomad Series is truly in a class all its own.
Indoors or out – only the Nomad.
And only from Nissan Forklift.
Tighter Turning
The Nomad Series offers a more compact
design, making maneuverability in confined
areas easier.
2
P L A T I N U M I I N O M A D S E R I E S
Inside the warehouse or out in the work yard,
the versatility of Nissan Forklift’s Platinum II
Nomad Series makes this the right lift truck
for several reasons.

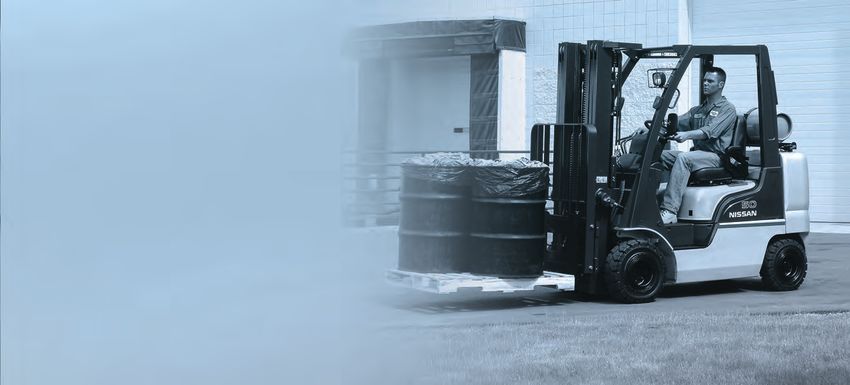

To start with, the Nomad is ready to tackle
rugged outdoor work on improved surfaces,
and offers the perfect solution for handling
materials between your inside operations
and outdoor storage facilities. And if that
weren’t enough, these lift trucks maintain
higher capacity retention than most standard
pneumatic tire models for their size. But
don’t let the outdoor handling ease of this
rugged pneumatic truck fool you.
Consider how the Nomad’s shorter wheel-
base and tighter turning radius work just
like a standard cushion tire truck, offering
precise maneuverability in even the most
confined areas of your operation. But
because it rides on solid tires, it not only
offers a smoother ride over uneven floors
or dock plates, but you’ve reduced the risk
of flat tires. And when you combine these
benefits with the Nomad’s optional dual
fuel engine, this will likely be the most
versatile lift truck in your entire fleet.
When you realize just how many ways these
unique lift trucks can benefit your operation,
you’ll discover the true value Nissan Forklift’s
Platinum II Nomad Series can offer your
organization.
The exclusive Nomad Series gives you two trucks in
one for less than a comparably equipped standard
pneumatic tire truck.
3
P L A T I N U M I I N O M A D S E R I E S
Industry-Leading Technology
Benefiting from the advantages our vast
automotive experience offers, Nissan Forklift
has applied many of these same technologies
to its line of industrial engines powering our
Platinum II Nomad Series. Thanks to Nissan’s
proven Electronic Concentrated Control
System (ECCS), more power and greater
reliability are achieved.

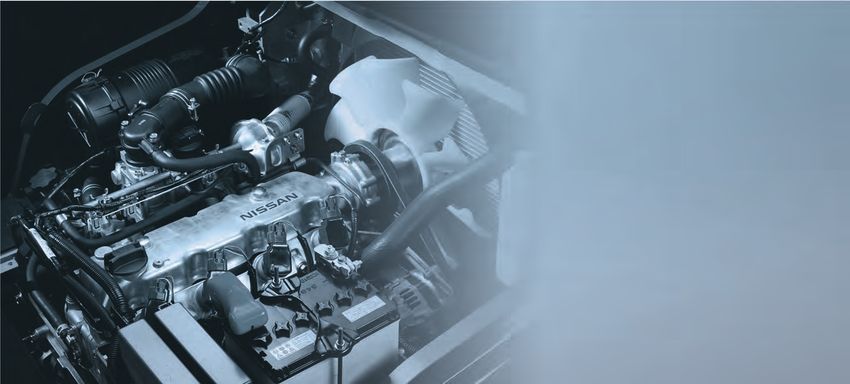

To analyze engine performance parameters,
the ECCS incorporates an Engine Control
Module (ECM) to optimize engine operation
in order to deliver high combustion efficiency,
resulting in lower fuel consumption–all while
reducing harmful emissions.
Engine
Control
Module
ECCS and Three-Way Catalytic Muffler
This design includes an automotive type closed-loop feedback system.
Once combustion occurs, a sensor measures exhaust emission quality prior
to it entering the three-way catalyst, then sends a signal to the Electronic
Control Module. Based on this signal, the ECM makes the proper air/fuel
ratio adjustments resulting in extremely low emissions levels.
PIN Access
The Platinum II Nomad’s PIN access feature promotes greater fleet
control through operator management. Up to five unique Personal
Identification Numbers can be programmed to help control
operator access to each vehicle.
4
P L A T I N U M I I N O M A D S E R I E S
At the heart of the ECCS is the Nomad’s
Engine Control Module (ECM), which
monitors a variety of sensors in order to
provide engine and transmission control.
Its Vehicle Control Module (VCM) allows
proper function of many safety enhancing
features, and supplies critical information
to the operator or service technician.
This is accomplished through an easy to
understand readout on its multi-function
LCD display.
A Multipurpose warning
B Check engine warning
C Oil pressure warning
D Charge warning
E Parking brake warning
F Seat belt warning
G Directional indicator
H Fuel & water temperature gauges
I Multifunction meter display (hour meter,
clock/calendar, speedometer,
programmable service reminder, warning
indicators, error codes)
Multi-Function LCD Display
The Platinum II Nomad’s LCD display provides a wealth of information
at a glance for fast, simple diagnosis and minimal downtime. Its
integrated design eliminates the added expense of a separate
handset tool, while programmable service reminders help ensure
scheduled maintenance is performed.
Improved Fuel Consumption
Electronic throttle control and optimal ignition
timing allow Nissan’s ECCS engines to deliver
an improvement in fuel efficiency.
5
P L A T I N U M I I N O M A D S E R I E S
Added Comfort & Confidence
in the Workplace
Protecting and sustaining the environment is important to our
customers and to us. Nissan views this responsibility with the
conviction that sound environmental policy is at the core of
sound business practice. This is evident in Nissan Forklift’s
approach to meeting EPA’s 2007 Tier II regulations for cleaner
emissions.
Firm in our commitment to deliver a cleaner and more comfort-
able environment for the operator and those in the surrounding
area, Nissan Forklift set some of the most aggressive emissions
targets in the industry for combined HC, NOx and CO levels–far
more restrictive than those required.
Not only did we attain our goals for 2007, but Nissan Forklift
was the first manufacturer to receive compliance from the EPA
for achieving such low emissions and meets the even more
stringent CARB 2010 emissions standards.
CARB 2010
Improved Exhaust Emission Performance
Nissan continues to take the leadership
position in clean air technology as the first
manufacturer to receive certification for
stricter CARB 2010 emissions regulations.
Rubber damper
provides added
stability and
easier handling
Operator Presence System
This standard seat-actuated system
automatically locks lifting and tilting
operations when the operator exits the
truck. It also includes return-to-neutral, Cushioned Stability Control (CSC)
as well as visual and audio warnings. A rubber damper between the rear axle and frame helps
provide lateral stability. Best of all, this exclusive feature is
maintenance free. (CSC cannot completely eliminate the
possibility of tipping over.)
6
P L A T I N U M I I N O M A D S E R I E S
Nissan Forklift’s passion for providing an enjoyable
work environment for the operator extends beyond its
low exhaust emissions. Keeping the driver comfort-
able and more productive throughout his shift has
been an important reason for the success of our
Platinum II Nomad Series.
From its standard full suspension seat, to a spacious
operator compartment that offers generous foot,
leg and headroom, to its smart control layout and
responsive handling, operators will be pleasantly
surprised at how easy it will be to get through their
workday in comfort.
Full Suspension Seat
Design includes an operator restraint
system with a non-cinching seat belt for
greater operator comfort.
Controlled Acceleration Mode
By restricting vehicle acceleration,
this option offers not only an ideal
opportunity to enhance fuel economy
but also increase the comfort and
confidence in your operation.
Parking Brake Warning Buzzer
A warning indicator sounds if the operator leaves
the seat without first engaging the parking brake.
7
P L A T I N U M I I N O M A D S E R I E S

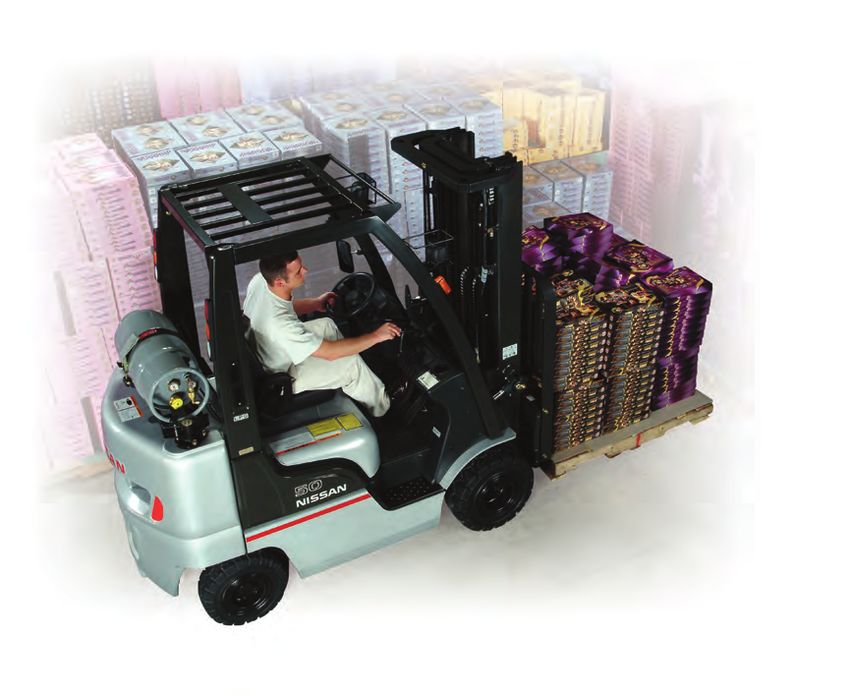

Promoting Operator Productivity
Designs that help the operator
accomplish the job faster, while
minimizing fatigue and interruptions
in workflow, are all part of creating
a more efficient and productive
operation. With Nissan’s enhanced
ECCS engines, the Platinum II
Nomad Series delivers precise
control under all working condtions–
even at idling–with less vibration
and noise as a result.
Reverse Driving Simplified
Select an optional swivel seat in combination with a rear assist grip and
horn button for enhanced operator control and greater productivity.
Optional OPTIVIEW® Mast
Available on all Nomad Series
models, this exclusive mast
design provides 50% greater
forward visibility.
8
P L A T I N U M I I N O M A D S E R I E S
Operator confidence is easily achieved
through the Nomad Series beginning with
its wider stance, helping promote additional
stability when handling loads over rough or
uneven floor surfaces. And despite the
Nomad’s overall compact design, it offers the
operator generous foot, leg and head room,
making it one of the most comfortable and
indispensable lift trucks in your fleet.
Surrounded with amenities that allow the
operator to personalize his or her drive,
a comfort zone is easily achieved for
the long day (or night) ahead.
Electronic Fingertip Hydraulic Control
Simplify operation and improve efficiency with an
optional fingertip control. Its adjustable armrest
Infinitely Adjustable Steering Wheel features single joystick or multiple lever designs.
A memory lever designed into the steering column allows Contact Factory for model availability.
operators to quickly find their ideal driving position.
Single Control Lever Ample Foot and Leg Room
Nissan Forklift’s innovative A comfortable pedal angle
single control lever allows combined with a wide area
simultaneous lifting and tilting free from obstructions below
operations for greater the seat offer more ergonomic
productivity. Separate levers operation.
are available as an option.
9
P L A T I N U M I I N O M A D S E R I E S
Value-Driven Designs
Outstanding value is what you’ll get from Nissan
Forklift’s Nomad Series.
To begin, let’s consider the daily punishment forklifts
endure while driving over uneven floors, during dock work
or under other harsh operating conditions. Thanks to the
Nomad’s distinctively rugged design – including a
heavier frame, higher ground clearance and standard
shock absorbing solid pneumatic tires – these unique
compact trucks can offer additional maintenance savings
when compared to standard cushion tire trucks.
The Nomad includes an engine/transmission protection
and warning system. In the event of excessive heat
generation or loss of oil pressure, this feature reacts
by reducing the vehicle’s speed, resulting in extended
engine and drivetrain life.
On-Board Diagnostics
The Nomad includes an LCD display with on-board
diagnostics to help simplify troubleshooting, while its Five-Piece Overhead Guard
programmable service reminders mean consistent Five-piece reinforced overhead guard allows simple, cost
periodic maintenance is more likely to occur. effective replacement of individual parts if needed.
10P L A T I N U M I I N O M A D S E R I E S
Nissan Forklift’s commitment to creating value for
its customers is well known in our industry and
the Platinum II Nomad Series offers plenty of
reasons why.
Consider our acceleration control option,
resulting in reduced tire spin and greater fuel
efficiency. Combined with the Nissan engines’
longer service intervals, less time is spent in
the shop and more out on the floor.
Greater Fuel Efficiency
Reduce overall fuel costs
and minimize tire wear
by choosing the Nomad’s
optional speed and
acceleration control
with security key switch.
A rocker switch is also
available.
Nissan K21 Engine
(LPG/Dual Fuel)
Improved cylinder design
and combustion chamber
shape, along with electronic
control effectively answer
One-Piece, No-Tool Floorboard industrial requirements
One-touch removal of the diamond tread floorboard gets you right to for both reduced exhaust
service operations fast. emissions as well as
power/torque needs.
Our K21 engine exceeds
all 2010 emission
requirements.
11P L A T I N U M I I N O M A D S E R I E S
Create a Custom Fit.
Nissan Forklift’s Nomad Series offers a range of optional equipment to customize your ride. Contact your
local authorized Nissan Forklift Dealer for additional equipment or restrictions.
Controlled Acceleration Ground Speed Control Security Key Switch Air-Filled Pneumatic Tires
Restricts acceleration rate to maximize fuel econ- Select maximum travel speed settings based on Additional measure of security against operator Available as a standard option.
omy and reduce tire spin. Gradual acceleration operator skill level or vehicle application within tampering of preselected speed and acceleration
also useful when moving fragile loads or in your operation. settings.
confined areas.
Spinner Knob Auto Tilt Leveling System Radiator Screen Diffusion Exhaust
This feature provides the operator with increased A simple press of a button on the hydraulic Minimizes debris entering radiator, resulting in A “piccolo” tube design disperses exhaust through
steering control – a great aid when driving in control lever automatically brings the forks to a more efficient engine cooling. the counterweight opening to reduce debris kick-
reverse or in tight confines. horizontal position. up and prevent possible heat damage to
surroundings.
OPTIVIEW® Mast Swing-Down LPG Bracket Swivel Seat Electronic Fingertip
Exclusive three-stage design provides a wider Ergonomical design uses a gas spring assist for Adds 15° swivel in either direction, for greater Hydraulic Control
sight line resulting in improved load handling effortless swing-down motion to minimize back operator comfort while driving in reverse. Single joystick or multiple lever designs available
capabilities and enhanced operator safety. strain during tank replacement. (Available on Includes rear assist grip with horn button. (Consult Factory for model availability).
Integral mounted design available. 5,000 lb. model.) (Available on 5,000 lb. model).
Specifications Engines
AF30LP AF35LP AF50LP Nissan K21
Short Model Codes AF30DF AF35DF AF50DF Model 2.1 Liter, LPG, Dual Fuel
Load Capacity lb 3000 3500 5000 Displacement cu in 126
Wheelbase in 50.8 50.8 59.1 Rated Output hp/rpm 55/2700
Overall Width in 40.7 40.7 46.3 Rated Torque ft-lb/rpm 111.4/2000
Overall Length (no forks) in 83.9 85.0 92.9 *Safety ratings available on select models/fuel types
Overall Height (OHG) in 83.0 83.0 82.3
Turning Radius (outside) in 72.6 73.8 80.7
Nissan Forklift, Platinum, OPTIVIEW, Nomad, and the Nissan
Forklift logo are all registered trademarks of Nissan Forklift
Corporation, North America. Nissan Forklift Corporation
reserves the right to make product changes relating to colors,
equipment, specifications or available options without notice.
SB-PLAT II NOM 03-11 For more information, contact your Nissan Forklift representa-
Printed in U.S.A. tive.
www.nissanforklift.comYou can also read
