Pricelist 2020
CONTENT
FRONT PRESSES 4
Avant 45 (2.5 - 4.0 metres, rigid frame) 4
Avant 56 (2.5 - 4.0 metres, rigid frame) 5
Simplex 56 (4.1 - 6.1 metres, hydraulic folding) 6
Interesting facts on axle loads 7
Duplex® 45 (2.5 - 4.0 metres, rigid frame) 8
Duplex® 45 (4.1 - 6.1 metres, hydraulic folding) 9
Duplex® 56 (1.5 - 4.0 metres, rigid frame) 10
Duplex® 56 (4.1 - 6.1 metres, hydraulic folding) 11
CULTIVATED LAND ROLLERS 12
WE Mediana cast iron 12
WE Mediana semi-synthetic 13
Mediana (1.8 - 3.1 metres rigid frame) 14
Mediana (4.2 - 9.0 metres pendular, hydraulic folding) 15
Matador (1.5 - 4.1 metres rigid frame) 16
Matador (4.2 - 6.1 metres hydraulic folding) 17
TRAILED ROLLERS 18
Off Set® (4.8 or 6.4 metres) 18
Mayor (6.4 or 7.7 oder 8.2 metres) 19
Master (6.4 or 7.7 oder 8.2 metres) 20
Master (9.4 or 10.4 metres) 21
Magnum (12.4 metres) 22
GRASSLAND MANAGEMENT / VITI- / POMICULTURE 23
Pneumatic seeder EPS 5 23
Green Manager® 24
HarroFlex 250–300 26

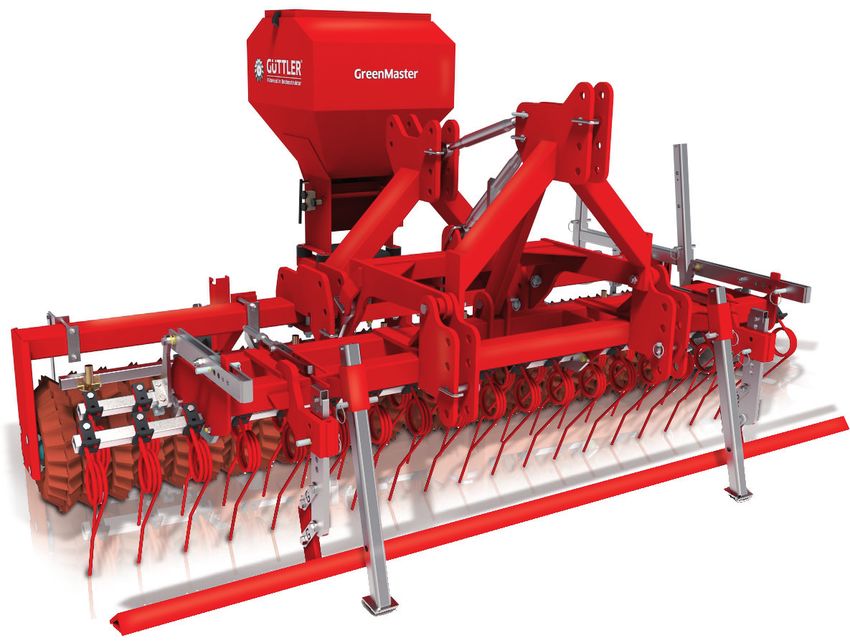

Green Master 250–300 27
HarroFlex 600–750 28
GreenSeeder 600–750 29
Green Master 600 Alpin 30
SEMI – MOUNTED SEED BED COMBINATION 31
Feldmeister® LK 3.0 or 4.0 metres rigid, 4.5 metres foldable 31
CULTIVATORS 32
Super Maxx® 30-50-60 BIO 32
Super Maxx® 30-50-60 CULTI 33
Super Maxx® 600–900 34
Super Maxx® 1000–1200 34
Points for Super Maxx® 35
ROLLER SIMPLEX FOR POWER HARROWS 36
Simplex prisma roller® for adaptation 36
Basic elements for self assembly 37
Brackets and adaptation for Simplex Ø45 38
Simplex prisma roller® Ø45 41
Brackets and adaptation for Simplex Ø50 42
Simplex prisma roller® Ø50 42
Brackets and adaptation for Simplex Ø56 43
Simplex prisma roller® Ø56 44
Spare parts 46
The rollers with the
“Golden Hooves” Sales support 50
The Original. Since 1978
General terms and conditions 52
2 P 2020 P 2020 3

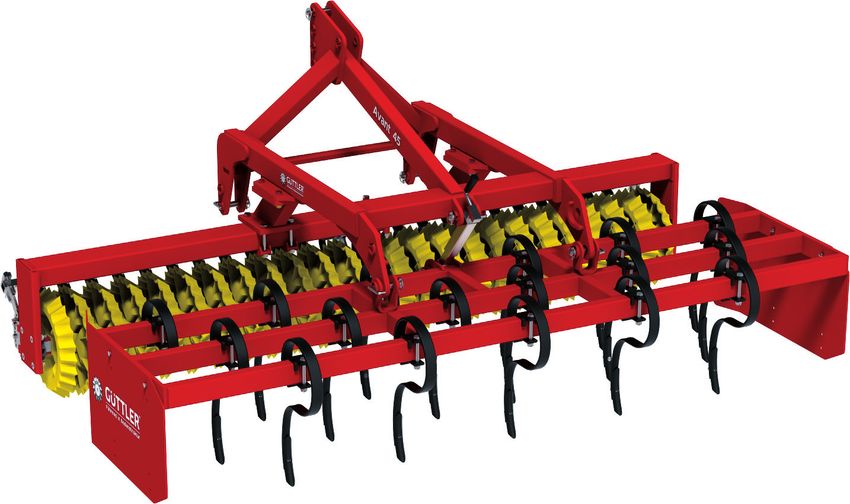

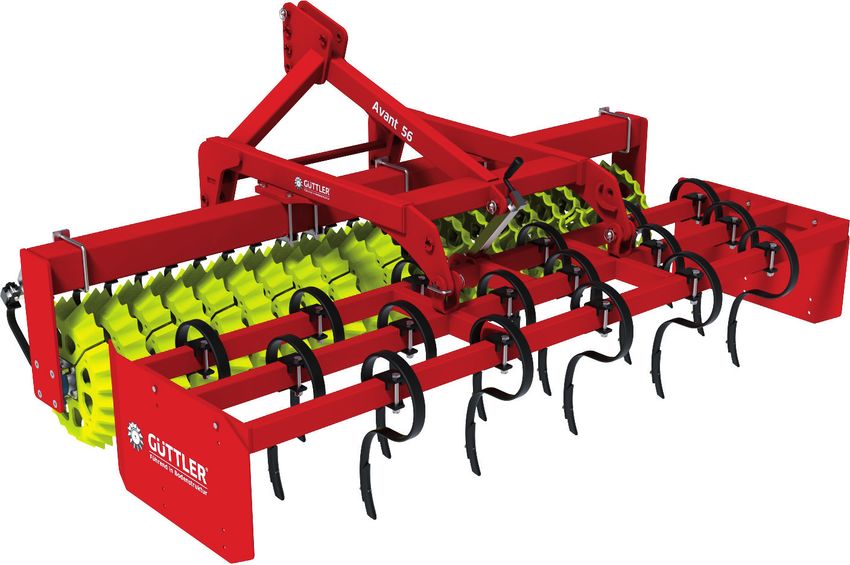

AVANT 45 AVANT 56
2.5 to 4.0 metres, rigid frame 2.5 to 4.0 metres, rigid frame
For medium to heavy, crumbly soil For powerful tractor and high speed work
For sandy soil, from light to heavy
Standard equipment:
• Front press with Güttler® Simplex roller in Standard equipment:
special cast iron ø45 cm • Front press with Güttler® Simplex roller in
• Headstock Cat. 2 for front linkage special cast iron ø56 cm
• Tined unit – space between tines 15 cm, 3 rows • Headstock Cat. 2 for front linkage
• Side plates for the tined unit • Tined unit – space between tines 15 cm, 3 rows
• Side plates for the tined unit
Type Working width Transport width Roller Num. of tines Prism rings Weight Item Num. Type Working width Transport width Roller Num. of tines Prism rings Weight Item Num.
Avant 26-45 2.50 m 2.60 m SX 26-45 SG 15 945 kg 4200 4125 Avant 26-56 2.50 m 2.60 m SX 26-56 SG 15 1,040 kg 4200 4025
Avant 30-45 2.92 m 3.00 m SX 30-45 SG 17 24 1,015 kg 4200 4130 Avant 30-56 2.92 m 3.00 m SX 30-56 SG 17 22 1,210 kg 4200 4030
Avant 35-45 3.42 m 3.50 m SX 35-45 SG 21 1,135 kg 4200 4135 Avant 35-56 3.26 m 3.50 m SX 33-56 SG 21 1,365 kg 4200 4035
Avant 41-45 4.00 m 4.10 m SX 41-45 SG 25 1,255 kg 4200 4140 Avant 41-56 4.00 m 4.10 m SX 41-56 SG 25 1,590 kg 4200 4040
Road lighting kit Weight Item Num. Road lighting kit Weight Item Num.
For front linkage Frame 80 x 50 mm for self-assembly 15 kg 1127 3100-2 For front linkage Frame 80 x 50 mm for self-assembly 15 kg 1127 3100-2
For front linkage Frame 140 x 80 mm for self-assembly 15 kg 1127 3200-2 For front linkage Frame 140 x 140 mm for self-assembly 15 kg 1127 3210-2
Options Weight Item Num. Options Weight Item Num.
Headstock for rear linkage 153 kg 8030 8400 Headstock for rear linkage 153 kg 8030 8400
Helpers for tined unit (mounted ex factory) 4200 0290 Helpers for tined unit (mounted ex factory) 4200 0290
Solo Simplex 45 prisma rollers® with three-point headstock can be found on page 41 You will fi nd the Güttler® roller Simplex 56 with 3-point headstock at page 44
Front press without headstock for rear linkage Front press with headstock for rear linkage Front press without headstock for rear linkage Front press with headstock for rear linkage
Choose the right front press:
Soil type drifting sand ploughed sandy soils morately heavy soils clay soils
without roller
Soil is falling … when ploughing … sloppingly … sloppingly … cloddy … rough cloddy
Avant SX 45 x x
Avant SX 56 x x x
Duplex® DX 45 x
Duplex® DX 45 with tined unit x x
Duplex® DX 56 x x x
Duplex® DX 56 with tined unit x
7003 0104-1 ∙ All prices in € ∙ Freight on request ∙ All prices in € excluding VAT, ex works. 7003 0104-1 ∙ All prices in € ∙ Freight on request ∙ All prices in € excluding VAT, ex works.
4 P 2020 Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! P 2020 5
Do not be afraid of front presses ...
SIMPLEX 56
4.1 to 6.1 metres with hydraulic folding
For sandy soil, from light to heavy
Tractor + attachment
Standard equipment:
Tractor:
• Front press with Güttler® Simplex roller in
4-cylinders Turbo, 100 HP
special cast iron ø56 cm
• Headstock Cat. 2 for front linkage
• U-stand Empty weight: 5,300 kg
Allowed total weight: 9,000 kg
Axle weight empty: 2,084 kg 3,216 kg
Allowed axle load: 4,000 kg 6,500 kg
Type Working width Transport width Note Weight Item Num. Attachment:
SX 420-56 U 4.10 m 3.00 m 3.00 m + 2x 0.60 m U-folding 1,790 kg 6155 3420 Power harrow 3 m + drill: 1,900 kg
SX 460-56 U 4.54 m 3.00 m 3.00 m + 2x 0.80 m U-folding 1,875 kg 6155 3460 Seeds 500 kg
SX 510-56 U 5.07 m 2.70 m 1.80 m + 2x 1.60 m U-folding 1,960 kg 6155 0510 2,400 kg
SX 610-56 U 6.15 m 2.70 m 1.80 m + 2x 2.10 m U-folding 2,100 kg 6155 0610
Tined unit, space between tines of 150 mm, 3 rows, c/w side plates
Description Working width Transport width Note Weight Item Num.
For SX 420-56 U 4.20 m 3.00 m 3.00 m + 2x 0.60 m 550 kg 6154 3420 Tractor + attachment + front weight 685 kg
For SX 460-56 U 4.60 m 3.00 m 3.00 m + 2x 0.80 m 600 kg 6154 3460
For SX 510-56 U 5.10 m 2.70 m 2x 2.25 m 580 kg 6154 1510 On the road / at the end of the field In the field / at work
For SX 610-56 U 6.10 m 2.70 m 2x 3.0 m 640 kg 6154 1610 The load of the rear shaft is greatly exceeded! The front of the tractor is overloaded!
FlatSpring
Description Working width Transport width Note Weight Item Num.
For SX 510-56 U 5.10 m 2.70 m 2nd hydraulic connection (DA) required 310 kg 6153 1510
For SX 610-56 U 6.10 m 2.70 m 2nd hydraulic connection (DA) required 365 kg 6153 1610
Switching block hydraulic for the inclination adjustment of the FlatSpring (saves a control unit DA) 9700 7581
Road lighting kit Weight Item Num.
For front linkage with tined unit, two-part 15 kg 1127 3300
Front = 1,042 kg Rear = 7,253 kg Front = 3,060 kg Rear = 2,835 kg
For front linkage with tined unit, three-part 15 kg 1127 3410
The law requires that at Allowed = 6,500 kg
least 20% of the mass of The front axle is overloaded and will
Options Weight Item Num. the tractor is supported by constantly oscillate because of the uneven
Helpers for tined unit (mounted ex factory) 4200 0290 the front axle = 1,024 kg. ground. A lot of energy is wasted!
Drawbar and depth wheels (to convert press to trailed roller) 400 kg 6150 1020
Additional Information Tractor + attachment + Güttler® Duplex® with tined unit 1,250 kg
Required hydraulic connections 1x DA (roller)
1x DW (FlatSpring)
On the road / at the end of the field In the field / at work
Front = 2,274 kg Rear = 6,586 kg Front = 2,084 kg Rear = 3,216 kg
Allowed = 6,500 kg
The tractor drives on flat and You liwith your energy costs, and work
firmed ground, and the wheels the soil surface in excellent conditions
Total = 8,860 kg mark just a little. with the power harrow! -> You don‘t
Allowed = 9,000 kg Better driving comfort for you! need more power than actually used!
7003 0104-1 ∙ 7003 0109-1 ∙ Freight on request All prices in € excluding VAT, ex works.
6 P 2020 Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! P 2020 7
DUPLEX® 45 DUPLEX® 45
2.5 to 4.0 metres, rigid frame 4.1 to 6.1 metres with hydraulic folding
For medium to very heavy soil For medium to very heavy soil
Standard equipment: Standard equipment:
• Front press with Güttler® Duplex® roller • Front press with Güttler® Duplex® roller
in special cast iron ø45 cm in special cast iron ø45 cm
• Headstock Cat. 2 for front linkage • Headstock Cat. 2 for front linkage
a Type Working width Transport width Material Prism rings Weight Item Num. a Type Working width Transport width Note Weight Item Num.
DX 27-45 2.57 m 2.70 m special cast iron 26 740 kg 6163 6000 DX 420-45 4.10 m 2.52 m 2x2.05m V-folding 1,400 kg 6167 5050
DX 30-45 2.92 m 3.00 m special cast iron 30 785 kg 6163 7000 DX 460-45 4.60 m 2.52 m 2x2.30m V-folding 1,500 kg 6167 5500
DX 34-45* 3.35 m 3.42 m special cast iron 870 kg 6163 8800 DX 510-45 5.00 m 2.52 m 2x2.50m V-folding 1,600 kg 6167 5550
DX 41-45* 4.10 m 4.20 m special cast iron 1,020 kg 6164 1000 DX 610-45 6.00 m 2.52 m 2x3.00m V-folding 1,770 kg 6167 5570
Tined unit, space between tines 150 mm, 3 rows, c/w side plates and supporting swing arm Tined unit for rollers with V-folding, space between tines of 150 mm, 3 rows, c/w side plates
B Type Working width Transport width Note Num. of tines Weight Item Num. B Type Working width Transport width Note Num. of tines Weight Item Num.
For DX 27 2.50 m 2.50 m rigid frame 15 340 kg 5014 4125 For DX 420 2x2.00 m 2.52 m Hydraulic folding 28 690 kg 5017 0050
For DX 30 3.00 m 3.00 m rigid frame 17 380 kg 5014 4130 For DX 460 2x2.25 m 2.52 m Hydraulic folding 32 740 kg 5017 1050
For DX 34* 3.50 m 3.50 m rigid frame 21 420 kg 5014 4135 For DX 510 2x2.50 m 2.52 m Hydraulic folding 36 830 kg 5017 1052
For DX 41* 4.00 m 4.00 m rigid frame 25 460 kg 5014 4140 For DX 610-45 2x3.00 m 2.52 m Hydraulic folding 40 1,000 kg 5017 1150
C Road lighting kit Weight Item Num. C Options Weight Item Num.
For front linkage (with tined unit) Frame 80 x 50 mm for self-assembly 15 kg 1127 3100-2 For Duplex® with tined unit
Headstock for rear linkage 150 kg 8030 8500
For front linkage (without tined unit) Frame 140 x 80 mm for self-assembly 15 kg 1127 3110-2 Only for rollers with V-folding
For rear linkage Frame 140 x 80 mm for self-assembly 15 kg 1127 3200-2 Helpers for tined unit (mounted ex factory) 4200 0290
d Options Weight Item Num. Additional informations
Headstock for rear linkage, for Duplex® with tined unit 153 kg 8030 8410 Required hydraulic connections 1x DW
Helpers for tined unit (mounted ex factory) 4200 0290
Adaptations for triangular linkage, compatible with front hopper DF 1 + DF 2 7813 0150
Scrapers for DUPLEX®
Rear scrapers Front scrapers
In extreme conditions - retrofittable
Type Item Num. Price excl. VAT Item Num.
Scrapers for Duplex®
Rear scrapers Front scrapers ASX DX 420-45 6179 4010 780,- 6179 4020
In extreme conditions - retrofittable
Typ Item Num. Price excl. VAT Item Num. ASX DX 460-45 6179 4019 880,- 6179 4029
ASX DX 27-45 6179 5000 460,- 6179 0000 ASX DX 510-45 6179 4015 970,- 6179 4025
ASX DX 30-45 6179 6000 490,- 6179 1000 ASX DX 610-45 6179 4035 1.030,- 6179 4045
ASX DX 34-45 6179 7200 520,- 6179 2200
ASX DX 41-45 6179 8000 670,- 6179 3000
Choose the right front press:
a Scrapers for Duplex® b Tined unit: headstock is designed to be assembled with d Headstock for rear linkage Soil type drifting sand sandy soils morately heavy soils clay soils
(option) ploughed without roller
only 3 pins.
Soil is falling ... when ploughing. … sloppingly … ... sloppingly … … cloddy … … rough cloddy …
Avant SX 45 x x
Avant SX 56 x x x
Duplex® DX 45 x
The tined Duplex® DX 45 with tined unit x x
unit can
Duplex® DX 56 x x x
be added at
any time Duplex® DX 56 with tined unit x
rear front
7003 0104-1 ∙ 7003 0109-1 ∙ Freight on request All prices in € excluding VAT, ex works. 7003 0104-1 ∙ 7003 0109-1 ∙ Freight on request All prices in € excluding VAT, ex works.
8 P 2020 Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! P 2020 9
DUPLEX® 56 DUPLEX® 56
1.5 bis 4.0 metres, rigid frame 4.1 to 6.1 metres with hydraulic folding
For medium to very heavy soil For light to very heavy soil
Standard equipment: Standard equipment:
• Front press with Güttler® Duplex® roller • Duplex® prisma roller® special cast iron ø56 cm
in special cast iron ø56 cm • Headstock Cat. 2 for front linkage
• Headstock Cat. 2 for front linkage
a Type Working width Transport width Note Weight Item Num.
a Type Working width Transport width Material Prism rings Weight Item Num.
DX 420-56 4.10 m 2.75 m hydraulic folding 1,750 kg 6175 2300
DX 15-56 1.50 m 1.64 m special cast iron 14 550 kg 6164 6500
DX 460-56 4.60 m 2.75 m hydraulic folding 1,870 kg 6175 2310
DX 26-56 2.50 m 2.64 m special cast iron 24 830 kg 6173 3000
DX 510-56 5.05 m 2.75 m hydraulic folding 2,100 kg 6175 2315
DX 30-56 2.86 m 3.00 m special cast iron 28 950 kg 6174 1600
DX 610-56 6.05 m 2.75 m hydraulic folding 2,500 kg 6175 2320
DX 34-56 3.30 m 3.42 m special cast iron 1,100 kg 6175 1750
DX 41-56 4.04 m 4.20 m special cast iron 1,250 kg 6175 1900
Tined unit, space between tines of 150 mm, 3 rows, c/w side plates
b Type Working width Transport width Note Num. of tines Weight Item Num.
Tined unit, space between tines of 150 mm, 3 rows, c/w side plates and coupling frame
For DX 420 2x 2.00 m 2.75 m hydraulic folding 28 690 kg 5017 0050
b Type Working width Transport width Note Num. of tines Weight Item Num.
For DX 460 2x 2.25 m 2.75 m hydraulic folding 32 740 kg 5017 1050
For DX 26 2.50 m 2.50 m rigid frame 15 340 kg 5014 4025
For DX 510 2x 2.50 m 2.75 m hydraulic folding 36 830 kg 5017 1052
For DX 30 3.00 m 3.00 m rigid frame 17 380 kg 5014 4030
For DX 610-56 2x 3.00 m 2.75 m hydraulic folding 40 1,000 kg 5017 1055
For DX 34 3.50 m 3.50 m rigid frame 21 420 kg 5014 4035
Adaptations for tined unit for DX 56 ø should always be ordered! 200 kg 5017 0045
For DX 41 4.00 m 4.00 m rigid frame 25 460 kg 5014 4040
C Options Weight Item Num.
C Road lighting kit Weight Item Num.
Helpers for tined unit (mounted ex factory) 4200 0290
For front linkage (with tined unit) Frame 80 x 50 mm for self-assembly 15 kg 1127 3100-2
For front linkage (without tined unit) Frame 140 x 140 mm for self-assembly 15 kg 1127 3120-2
Additional informations
For rear linkage Frame 140 x 140 mm for self-assembly 15 kg 1127 3210-2
Required hydraulic connections 1x DW
d Options Weight Item Num.
Headstock for rear linkage, for Duplex® with tined unit 153 kg 8030 8420
Helpers for tined unit (mounted ex factory) 4200 0290
Adaptations for triangular linkage, compatible with front hopper Accord DF 1 + DF 2 7813 0100
Scrapers for DUPLEX®
Rear scrapers Front scrapers
In extreme conditions -retrofittable
Typ Item Num. Price excl. VAT Item Num.
Scrapers for DUPLEX®
Rear scrapers Front scrapers ASX DX 420-56 6179 4030 780,- 6179 4040
In extreme conditions - retrofittable
Type Item Num. Price excl. VAT Item Num. ASX DX 460-56 6179 4050 880,- 6179 4060
ASX DX 15-56 6179 4510 290,- 6179 4520 ASX DX 510-56 6179 4070 970,- 6179 4080
ASX DX 26-56 6179 5011 460,- 6179 5012 ASX DX 610-56 6179 4075 1,030,- 6179 4085
ASX DX 30-56 6179 6013 490,- 6179 6014
ASX DX 34-56 6179 6021 520,- 6179 6022
ASX DX 41-56 6179 6025 670,- 6179 6026 Choose the right front press:
a Scrapers for Duplex® b Tined unit: headstock is designed to be assembled with d Headstock for rear linkage Soil type drifting sand sandy soils morately heavy soils clay soils
(option) only 3 pins. ploughed without roller
Soil is falling ... when ploughing. … sloppingly … … sloppingly … … cloddy … … rough cloddy …
Avant SX 45 x x
Avant SX 56 x x x
Duplex® DX 45 x
The tined
Duplex® DX 45 with tined unit x x
unit can
be added at Duplex® DX 56 x x x
any time Duplex® DX 56 with tined unit x
rear front
7003 0104-1 ∙ 7003 0109-1 ∙ Freight on request All prices in € excluding VAT, ex works. 7003 0104-1 ∙ 7003 0109-1 ∙ Freight on request All prices in € excluding VAT, ex works.
10 P 2020 Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! P 2020 11
MEDIANA MEDIANA
0.5 to 2.2 metres, rigid frame 0.5 to 2.2 metres, rigid frame
Rings & shaft or complete roller Rings & shaft or complete roller
Standard equipment: Standard equipment:
• Self-cleaning prisma roller® • Self-cleaning prisma roller® ø33/38 cm semi-synthetic
Güttler® roller ø33/38 cm cast iron
Shaft c/w with rings in cast iron, no bearings, no frame, shaft ends to fit 30 mm bearings, fitting dimension: shaft lenght + 4 mm Shaft c/w rings in semi-synthetic, no bearings, no frame, shaft ends to fit 30 mm bearings, fitting dimension: shaft lenght + 4 mm
Type Pair of rings Workg. width Shaft lenght Note Weight Item Num. Type Pair of rings Workg. width Shaft length Note Weight Item Num.
WE Mediana 100 11 0.98 m 1027 mm 179 kg 7033 1000 WE Mediana 100 HS 11 0.98 m 1027 mm 128 kg 7033 1005
WE Mediana 110 12 1.07 m 1116 mm 195 kg 7033 0090 WE Mediana 110 HS 12 1.07 m 1116 mm 138 kg 7033 0095
WE Mediana 120 13 1.16 m 1205 mm 211 kg 7033 0080 WE Mediana 120 HS 13 1.16 m 1205 mm 156 kg 7033 0085
WE Mediana 130 14 1.25 m 1294 mm 227 kg 7033 0060 WE Mediana 130 HS 14 1.25 m 1294 mm 166 kg 7033 0065
WE Mediana 140 15 1.34 m 1383 mm 251 kg 7033 0010 WE Mediana 140 HS 15 1.34 m 1383 mm 176 kg 7033 0015
WE Mediana 150 16 1.42 m 1472 mm 267 kg 7033 0000 WE Mediana 150 HS 16 1.42 m 1472 mm 187 kg 7033 0005
WE Mediana 160 17 1.51 m 1560 mm 283 kg 7032 9000 WE Mediana 160 HS 17 1.51 m 1560 mm 197 kg 7032 9005
WE Mediana 170 18 1.60 m 1650 mm 300 kg 7032 9010 WE Mediana 170 HS 18 1.60 m 1650 mm 208 kg 7032 9015
WE Mediana 180 19 1.69 m 1740 mm From 1.69 m working width 315 kg 7032 9020 WE Mediana 180 HS 19 1.69 m 1740 mm From 1.69 m working width 218 kg 7032 9025
WE Mediana 190 20 1.78 m 1831 mm not usable as a back-up roller! 331 kg 7032 9030 WE Mediana 190 HS 20 1.78 m 1831 mm not usable as a back-up roller! 228 kg 7032 9035
WE Mediana 200 21 1.87 m 1920 mm From 1.87 m working width 347 kg 7032 9040 WE Mediana 200 HS 21 1.87 m 1920 mm From 1.87 m working width 239 kg 7032 9045
WE Mediana 210 22 1.96 m 2011 mm roller axis is quenched and 364 kg 7032 9050 WE Mediana 210 HS 22 1.96 m 2011 mm roller axis is quenched and 249 kg 7032 9055
WE Mediana 220 23 2.05 m 2102 mm tempered! 380 kg 7032 9060 WE Mediana 220 HS 23 2.05 m 2102 mm tempered! 260 kg 7032 9065
Güttler® roller in cast iron, no centre bearing, no headstock (DPT), c/w frame 80 x 80 mm Güttler® roller in semi-synthetic, no centre bearing, no headstock (DPT), c/w frame 80 x 80 mm
Type Pair of rings Workg. width Transport width Note Weight Item Num. Type Pair of rings Workg. width Transport width Note Weight Item Num.
Mediana 10 11 0.98 m 1.05 m 205 kg 6135 7000 Mediana 10 HS 11 0.98 m 1.05 m 155 kg 6135 7100
Mediana 11 12 1.07 m 1.14 m 222 kg 6135 8000 Mediana 11 HS 12 1.07 m 1.14 m 166 kg 6135 8100
Mediana 12 13 1.16 m 1.23 m 239 kg 6135 9000 Mediana 12 HS 13 1.16 m 1.23 m 177 kg 6135 9100
Mediana 13 14 1.25 m 1.32 m 264 kg 6136 0000 Mediana 13 HS 14 1.25 m 1.32 m 196 kg 6136 0100
Mediana 14 15 1.34 m 1.41 m 280 kg 6136 1000 Mediana 14 HS 15 1.34 m 1.41 m 207 kg 6136 1100
Mediana 15 16 1.42 m 1.50 m 298 kg 6130 1000 Mediana 15 HS 16 1.42 m 1.50 m 218 kg 6130 1100
Mediana 16 17 1.51 m 1.58 m 316 kg 6130 2000 Mediana 16 HS 17 1.51 m 1.58 m 230 kg 6130 2100
Mediana 17 18 1.60 m 1.67 m 333 kg 6136 2000 Mediana 17 HS 18 1.60 m 1.67 m 241 kg 6136 2100
Mediana 18 19 1.69 m 1.76 m From 1.69 m working width 350 kg 6130 2200 Mediana 18 HS 19 1.69 m 1.76 m From 1.69 m working width 252 kg 6132 4100
Mediana 19 20 1.78 m 1.85 m not usable as a back-up roller! 367 kg 6130 2300 Mediana 19 HS 20 1.78 m 1.85 m not usable as a back-up roller! 263 kg 6132 5100
Mediana 20 21 1.87 m 1.94 m From 1.87 m working width 384 kg 6130 3000 Mediana 20 HS 21 1.87 m 1.94 m From 1.87 m working width 275 kg 6132 6100
Mediana 21 22 1.96 m 2.03 m roller axis is quenched and 400 kg 6134 0095 Mediana 21 HS 22 1.96 m 2.03 m roller axis is quenched and 286 kg 6132 7100
Mediana 22 23 2.05 m 2.12 m tempered! 417 kg 6134 1000 Mediana 22 HS 23 2.05 m 2.12 m tempered! 296 kg 6136 2211
Other widths are available on request Other widths are available on request
Options Note Weight Item Num. Options Note Weight Item Num.
Headstock A-type Cat. 1 and 2 Frame 80 x 80 mm 50 kg 8032 3501 Headstock A-type Cat. 1 and 2 Frame 80 x 80 mm 50 kg 8032 3501
Support stand A-type Required for safe standing 15 kg 8032 3510 Support stand A-type Required for safe standing 15 kg 8032 3510
Headstock Cat. 1 and 2, to mount on Fendt GT For front and rear coupling 45 kg 6031 6000 Headstock Cat. 1 and 2, to mount on Fendt GT For front and rear coupling 45 kg 6031 6000
Coulter bar 1.5 m to be mounted on Sembdner and Eckstein drill Only with DPT 6031 6000 25 kg 8252 0000 Coulter bar 1.5 m to be mounted on Sembdner and Eckstein drill Only with DPT 6031 6000 25 kg 8252 0000
Scraper 1 piece 1.5 kg 8200 2000 Scraper 1 piece 1.5 kg 8200 2000
7003 0100-1 ∙ Freight on request All prices in € excluding VAT, ex works. 7003 0100-1 ∙ Freight on request All prices in € excluding VAT, ex works.
12 P 2020 Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! P 2020 13
MEDIANA MEDIANA
1.8 to 3.1 metres, rigid frame 4.2 to 9.0 metres, pendular
On arable and grassland On arable and grassland
Standard equipment: Standard equipment:
• Self-cleaning prisma roller® ø33/38 cm Cast iron • Self-cleaning prisma roller® ø33/38 cm Cast iron
• Headstock • End scrapers
• U-stand
• End scrapers
Güttler® roller in cast iron c/w frame 140 x 80 mm, headstock DPT 33, U-stand and end scrapers For front linkage (with hydraulic folding)
Typ Pair of rings Working width Transport width Note Weight Item Num. Type Working width Transport width Note Weight Item Num.
Mediana 18 with DPT 20 1.84 m 1.90 m 478 kg 6131 0200 Mediana 820 Front 8.14 m 2.82 m 18 rows at 45 cm 2,610 kg 6036 0820
Mediana 19 with DPT 21 1.92 m 2.00 m 481 kg 6131 0300 Mediana 900 Front 8.67 m 3.00 m 18 rows at 50 cm 2,740 kg 6036 0900
Mediana 20 with DPT 22 2.01 m 2.08 m 514 kg 6131 0600
Mediana 21 with DPT 23 2.10 m 2.17 m 532 kg 6131 1000 For rear and front linkage (with front coupling frame)
Mediana 22 with DPT 24 2.19 m 2.26 m 543 kg 6131 2000 Type Working width Transport width Note Weight Item Num.
Mediana 25 with DPT 27 2.45 m 2.53 m 600 kg 6131 3000 Mediana 400 Front + Rear 4.20 m 3.00 m Manual folding 1,010 kg 6034 0050
Mediana 27 with DPT 28 2.55 m 2.62 m 1.50 m + 1.10 m 621 kg 6131 4000 Mediana 450 Front + Rear 4.50 m 3.00 m Manual folding 1,062 kg 6034 7050
Mediana 30 with DPT 32 2.92 m 3.00 m 700 kg 6131 5000 Mediana 500 Front + Rear 5.00 m 3.00 m Manual folding 1,170 kg 6035 0050
Mediana 32 with DPT 34 3.10 m 3.16 m 729 kg 6131 6000 Mediana 560 Front + Rear 5.60 m 2.80 m Manual folding 1,275 kg 6035 5050
Mediana 600 Front + Rear 6.00 m 3.00 m Manual folding 1,365 kg 6036 0050
Güttler® roller in cast iron c/w frame 140 x 80 mm end scrapers, no headstock DPT 33, no U-stand
Type Pair of rings Working width Transport width Note Weight Item Num. Road lighting kit Weight Item Num.
Mediana 18 20 1.84 m 1.90 m 396 kg 6134 0020 For front linkage factory fitted 15 kg 1127 3140-1
Mediana 19 21 1.92 m 2.00 m 414 kg 6134 0050 For rear linkage factory fitted 15 kg 1127 3230-1
Mediana 20 22 2.01 m 2.08 m 432 kg 6134 0070
Mediana 21 23 2.10 m 2.17 m 450 kg 6134 0100 Options Note Weight Item Num.
Mediana 22 24 2.19 m 2.26 m 453 kg 6134 1100 Extension VPW 400 Extension of 2 x 0.6 m 280 kg 6034 3000
Mediana 25 27 2.45 m 2.53 m 503 kg 6130 5000 Extension VPW 450 Extension of 2x 0.75 m 370 kg 6034 3500
Mediana 27 28 2.55 m 2.62 m 1,50 m + 1,10 m 564 kg 6134 2000 Extension VPW 500 Extension of 2x 1.00 m 420 kg 6035 3000
Mediana 30 32 2.92 m 3.00 m 617 kg 6134 3000 Extension VPW 600 Extension of 2x 1.50 m 600 kg 6036 3000
Mediana 32 34 3.10 m 3.16 m 652 kg 6134 4000 Double-acting, factory fitted
Hydraulic folding 150 kg 8501 1000
For Mediana 400 / 450 / 500 / 600
Güttler® roller in semi-synthetic c/w frame 140 x 80 mm end scrapers, no headstock DPT 33, no U-stand Double-acting, factory fitted
Hydraulic folding 150 kg 8501 1001
For Mediana 560
Type Pair of rings Working width Transport width Note Weight Item Num.
Mediana 18 HS 20 1.84 m 1.90 m 304 kg 6136 2106
Mediana 19 HS 21 1.92 m 2.00 m 316 kg 6136 2108
Mediana 20 HS 22 2.01 m 2.08 m 328 kg 6136 2110
Mediana 21 HS 23 2.10 m 2.17 m 341 kg 6136 2205
Mediana 22 HS 24 2.19 m 2.26 m 353 kg 6136 2210
Mediana 25 HS 27 2.45 m 2.53 m 389 kg 6136 2260
Mediana 27 HS 28 2.55 m 2.62 m 1,50 m + 1,10 m 401 kg 6136 2300
Mediana 30 HS 32 2.92 m 3.00 m 451 kg 6136 2340
Mediana 32 HS 34 3.10 m 3.16 m 475 kg 6136 2360 Mediana 400 + 450 + 500 + 560 + 600 Mediana 820 + 900
Road lighting kit Weight Item Num.
For front linkage Frame 140 x 80 mm for self-assembly 15 kg 1127 3110-2
For rear linkage Frame 140 x 80 mm for self-assembly 15 kg 1127 3200-2
Options Weight Item Num.
Headstock A-Form Cat. 1 and 2 Frame 140 x 80 mm 55 kg 8032 3500
U-stand Frame 140 x 80 mm 22 kg 8030 4001
7003 0100-1 ∙ Freight on request All prices in € excluding VAT, ex works. 7003 0100-1 ∙ Freight on request All prices in € excluding VAT, ex works.
14 P 2020 Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! P 2020 15
MATADOR MATADOR
1.5 to 4.1 metres, rigid frame 4.2 to 6.1 metres with hydraulic folding
On arable and grassland On arable and grassland
Standard equipment: Standard equipment:
• Self-cleaning prisma roller® ø45/50 cm Cast iron • Self-cleaning prisma roller® ø45/50 cm Cast iron
• Headstock Cat. 2 • Hydraulic folding
• U-stand • Headstock Cat. 2
• End scrapers • Leg supports with bracket
Güttler® roller in cast iron c/w frame 140 x 80 mm, with headstock DPT 45, U-stand and end scrapers Working Frame Transport
Type Note Weight Item Num.
Type Pair of rings Working width Transport width Note Weight Item Num. width width width
Matador 15 13 1.41 m 1.50 m without center bearing 556 kg 6142 1010 Matador 420 4.18 m 4.28 m 3.00 m 3.00 m + 2x 0.6 m 1,945 kg 6150 3420
Matador 16 14 1.53 m 1.62 m without center bearing 592 kg 6142 2010 Matador 460 4.63 m 4.72 m 3.00 m 3.00 m + 2x 0.8 m 2,105 kg 6150 3460
Matador 22 18 2.10 m 2.18 m with center bearing 807 kg 6142 6000 Matador 510 5.06 m 5.75 m 2.50 m 1.80 m + 2x 1.9 m 2,235 kg 6150 0510
Matador 25 21 2.36 m 2.45 m with center bearing 850 kg 6141 3000 Matador 610 6.18 m 6.29 m 2.50 m 1.80 m + 2x 2.1 m 2,555 kg 6150 0610
Matador 27 23 2.57 m 2.65 m with center bearing 917 kg 6141 4000 VB 420-610 Enlarging kit for Matador 420 to 610 610 kg 6150 1420
Matador 30 26 2.92 m 3.00 m with center bearing 1,030 kg 6141 5000 VB 460-610 Enlarging kit for Matador 460 to 610 450 kg 6150 1460
Matador 32 28 3.10 m 3.18 m with center bearing 1,091 kg 6141 6000
Matador 34 30 3.33 m 3.45 m with center bearing 1,238 kg 6141 7000 Tine attachment Kulti 15 cm line spacing, 3-rows complete with side plates
Matador 41 36 4.05 m 4.13 m with center bearing 1,453 kg 6141 8000 Working Transport
Description Note Weight Item Num.
width width
Other widths are available on request
For Matador 420 4.20 m 3.00 m 3.00 m + 2x 0.60 m 550 kg 6154 3420
For Matador 460 4.60 m 3.00 m 3.00 m + 2x 0.80 m 600 kg 6154 3460
Levelling bar, c/w support
For Matador 510 5.10 m 2.70 m 2x 2.25 m 580 kg 6154 1510
Type Working width Transport width Note Weight Item Num.
For Matador 610 6.10 m 2.70 m 2x 3.0 m 640 kg 6154 1610
For Matador 30 3.00 m 3.00 m rigid frame 5018 4100
Tined unit, space between tines of 150 mm, 3 rows, c/w side plates and supporting swing arm
Options Note Weight Item Num.
Type Num. of tines Working width Transport width Note Weight Item Num.
Levelling bar 420 Only for Front 3.00 m + 2x 0.6 m 390 kg 6151 3420
For Matador 27 15 2.50 m 2.50 m rigid frame 445 kg 5014 4225
Levelling bar 460 Only for Front 3.00 m + 2x 0.8 m 400 kg 6151 3460
For Matador 30 17 3.00 m 3.00 m rigid frame 485 kg 5014 4230
Levelling bar 510 Only for Front 2x 2.50 m 410 kg 6151 0510
For Matador 41 25 4.00 m 4.00 m rigid frame 565 kg 5014 4240
Levelling bar 610 Only for Front 2x 3.00 m 430 kg 6151 0610
Rear headstock For Matador 420 - 610 with levelling bar 130 kg 6150 1000
Road lighting kit Weight Item Num.
Rear headstock long For Matador or SX 56 foldable with tine unit or FlatSpring 220 kg 6150 1010
For front linkage Frame 140 x 80 mm for self-assembly 15 kg 1127 3110-2
For rear linkage Frame 140 x 80 mm for self-assembly 15 kg 1127 3200-2
FlatSpring
For front linkage with tined unit Frame 80 x 50 mm for self-assembly 15 kg 1127 3100-2
Working Transport
Description Note Weight Item Num.
width width
For Matador 510 5.10 m 2.70 m additional hydraulic connection (DA) required 310 kg 6153 1510
For Matador 610 6.10 m 2.70 m additional hydraulic connection (DA) required 365 kg 6153 1610
Switching block hydraulic for the inclination adjustment of the FlatSpring (saves one control unit DA) 9700 7581
Road lighting kit Note Weight Item Num.
For Matador 420 - 610 For front linkage without levelling bar factory fitted 20 kg 1127 3400
For Matador 420 - 610 For front linkage with levelling bar factory fitted 20 kg 1127 3410
For Matador 420 - 610 For rear linkage without rear headstock factory fitted 20 kg 1127 3420
For Matador 420 - 610 For rear linkage with rear headstock factory fitted 20 kg 1127 3430
Additional informations
Required hydraulic connections 1x DA (Roller)
1x DA (FlatSpring)
7003 0101-1 ∙ 7003 0109-1 ∙ Freight on request All prices in € excluding VAT, ex works. 7003 0104-1 ∙ Freight on request All prices in € excluding VAT, ex works.
16 P 2020 Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! P 2020 17
OFFSET® MAYOR
4.8 to 6.4 metres 6.4 or 7.7 or 8.2 metres
On arable and grassland On arable and grassland
Standard equipment: Standard equipment:
• Self-cleaning prisma roller® ø45/50 cm Cast iron • Self-cleaning prisma roller® ø45/50 cm Cast iron
• Drawbar with hitch Cat. 2 • Drawbar with hitch Cat.2
• Depth wheels with tyres 11.5/80-15 10 PR • Depth wheels with tyres 15.0/55-17 10 PR
• Hydraulic folding • Hydraulic folding incl. hydr. pressure compensation
• Road lighting kit (LED) • Automatic strap anchoring
• Quick release by cable from the tractor
• Road lighting kit (LED)
• Certificate of Compliance
Working Transport Num. of Weight on Weight on Working Transport Num. of Weight on Weight on
Type width width sections drawbar shaft wheels Weight Item Num. Type width width sections drawbar shaft wheels Weight Item Num.
OffSet® 480 4.80 m 2.40 m 5 500 kg 2,055 kg 2,555 kg 5200 6664 Mayor 640 6.40 m 2.10 m 3* 1,120 kg 1.900 kg 3,020 kg 5300 0640-3
OffSet® 640 6.30 m 2.40 m 5 440 kg 2,500 kg 2,940 kg 5200 5661 Mayor 770 7.75 m 2.10 m 3* 1,240 kg 2.250 kg 3,490 kg 5300 0770-3
Mayor 820 8.20 m 2.10 m 3* 1,310 kg 2.330 kg 3,640 kg 5300 0820-3
Working Transport Num. of Weight on Weight on
* The rollers consist of a middle section and two foldable outer sections, which can be moved vertically and are provided with hydr. pressure equalization.
Type width width sections drawbar shaft wheels Weight Item Num.
The individual roller axles are maximum of 1.80 m long, so the foldable sections are divided into two roller axles with a central bearing.
OffSet® 480 please order
4.80 m 2.40 m 5 495 kg 2,455 kg 2,950 kg
with FlatSpring seperately!
OffSet® 640 please order Options Weight Item Num.
6.30 m 2.40 m 5 460 kg 2,860 kg 3,320 kg
with FlatSpring seperately! Wheels 19.0/45-17 14 PR Surcharge on wheels 15.0/55-17 10 PR 120 kg 5300 0190
Levelling bar for Mayor 640 440 kg 5300 8640
Options Weight Item Num. Levelling bar for Mayor 770 480 kg 5300 8770
Certificate of Compliance For other countries than GER 1081 4000 Levelling bar for Mayor 820 500 kg 5300 8820
FlatSpring 480 Hydraulic connections required: 2x DA 395 kg 5200 4480 Ripperboard QUATTRO for Mayor 640 510 kg 5300 7640
FlatSpring 640 Hydraulic connections required: 2x DA 380 kg 5200 4630 Ripperboard QUATTRO for Mayor 770 550 kg 5300 7770
Drawbar extension To couple a Harro Flex or Green Seeder! 50 kg 5200 4100 Ripperboard QUATTRO for Mayor 820 570 kg 5300 7820
Additional informations
Additional informations
Final assembly on-site: approx. 1 hour
Final assembly on-site: approx. 1 hour, with implement approx. 1.5 hours
Attention: Minimum 2m long forks will be necessary to unload the roller from the lorry!
Hydraulic connections required: 2x DA
Hydraulic connections required: 1x DA (OffSet®)
1x DA (FlatSpring)
Levelling bar
Mayor 770 with Ripperboard QUATTRO
Ripperboard QUATTRO
7003 0105-1 ∙ Freight on request All prices in € excluding VAT, ex works. 7003 0105-1 ∙ Freight on request All prices in € excluding VAT, ex works.
18 P 2020 Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! P 2020 19MASTER MASTER
6.4 or 7,7 or 8,2 metres 9.4 oder 10.4 metres
On arable and grassland On arable and grassland
Standard equipment: Standard equipment:
• Self-cleaning prisma roller® ø45/50 cm Cast iron • Self-cleaning prisma roller® ø45/50 cm Cast iron
• 4 pendular sections for ‚contour hugging‘ movement • 6 pendular sections for ‚contour hugging‘ movement
• Drawbar with hitch Cat. 2 • Drawbar with hitch Cat. 2
• Depth wheels with tyres 11.5/80-15 10 PR • Depth wheels with tyres 11.5/80-15 10 PR
• Hydraulic folding • Hydraulic folding
• Road lighting kit (LED) • Road lighting kit (LED)
Working Transport Num. of Weight on Weight on Working Transport Num. Weight Weight on
Type
Type width width sections drawbar shaft wheels Weight Item Num. width width of sections on drawbar shaft wheels Weight Item Num.
Master 640 6.30 m 3.00 m 4 1,180 kg 2,170 kg 3,350 kg 5100 9020-2 Master 940 9.30 m 3.00 m 6 1,670 kg 2,750 kg 4,590 kg 5101 5000-2
Master 770 7.60 m 3.00 m 4 1,260 kg 2,440 kg 3,700 kg 5100 9040-2 Master 1040 10.40 m 3.00 m 6 1,850 kg 3,100 kg 4,950 kg 5101 6000-1
Master 820 8.10 m 3.00 m 4 1,320 kg 2,580 kg 3,900 kg 5100 9045-2
Options Weight Item Num.
Options Weight Item Num. Certificate of Compliance for other countries than GER 1081 4000
Certificate of Compliance for other countries than GER 1081 4000 Wheels 19,0/45-17 14 PR Surcharge on wheels 15,0/55-17 10 PR 120 kg 5102 1180
Wheels 19,0/45-17 14 PR Surcharge on wheels 15,0/55-17 10 PR 120 kg 5102 1180 NonStop-harrow 3-rows, 12 mm tines, space between tines 75 mm
2,100 kg 5001 2000
Switching block, mechanical for use with one single acting valve 8501 1340 For Master 940 Air brakes necessary!
NonStop-harrow 2-rows, with levelling bar
Hydraulic connections required: 4 x DA 2,100 kg 5001 2500
For Master 940 Air brakes necessary!
Final assembly on-site: approx. 2 hours
FlatSpring for Master 640 890 kg 5100 9640
Air brake necessary! NonStop-harrow 2-rows, with Ripperboard
2,200 kg 5001 2510
Recommended wheels: 15.0/55-17 or 19.0/45-17 14 PR For Master 940 Air brakes necessary!
Hydraulic connections required: 4 x DA NonStop-harrow 3-rows, 12 mm tines, space between tines 75 mm
2,200 kg 5001 2100
Final assembly on-site: approx. 2 hours For Master 1040 Air brakes necessary!
FlatSpring for Master 770 / 820 1,060 kg 5100 9660
Air brake necessary!
NonStop-harrow 2-rows, with levelling bar
Recommended wheels: 15.0/55-17 or 19.0/45-17 14 PR 2,200 kg 5001 2600
For Master 1040 Air brakes necessary!
Double circuit NonStop-harrow 2-rows, with Ripperboard
Air brakes 150 kg 8501 6100 2,300 kg 5001 2610
Necessary if weight on the axle wheels is above 3,000 kg! For Master 1040 Air brakes necessary!
Required if a roller with compressed air brake is coupled Double circuit
Bushing for air brake 7400 1011 Air brakes 150 kg 8501 6100
with HarroFlex or GreenSeeder. Necessary if weight on the axle wheels is above 3.000 kg!
Jockey wheel Only necessary with seeder and coupling to Harro Flex 100 kg 4600 1660 Incl. throttle screw, manometre, gas bubble for a constant
Hydraulic pressure compensation 5102 1500
distribution of pressure at the cantilevers
Additional information Additional information
Final assembly roller on-site: approx. 2 hours Final assembly roller on-site: approx. 3 hours
Final assembly FlatSpring on-site: approx. 2 hours Final assembly FlatSpring on-site: approx. 2 hours
2x DA (Master) Hydraulic connections required: 2x DA
Hydraulic connections required:
1x DA (FlatSpring)
NonStop-harrow 3-rows NonStop-harrow 2-rows NonStop-harrow 2-rows
Item num. 5001 2000 for Master 940 with levelling bar with Ripperboard
Item num. 5001 2100 for Master 1040 Item num. 5001 2500 for Master 940 Item num. 5001 2510 for Master 940
Item num. 5001 2600 for Master 1040 Item num. 5001 2610 for Master 1040
7003 0105-1 ∙ Freight on request All prices in € excluding VAT, ex works. 7003 0106-1 ∙ Freight on request All prices in € excluding VAT, ex works.
20 P 2020 Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! P 2020 21MAGNUM PNEUMATIC SEEDER EPS 5
12.4 metres
On arable and grassland
Standard equipment:
• Self-cleaning prisma roller® ø45/50 cm Cast iron
Pneumatic seeder for Green Master / Green Seeder
• 8 pendular sections for ‚contour hugging‘ movement
Type Description Item Num.
• Drawbar with hitch
Pneumatic seeder with hopper 200 l, electric fan SI, seed roll 8R3S, ground
• Depth wheels with tyres 15.0/55-17 10 PR EPS 5 200 l electric fan SI wheel with right angle gearbox WK4 with short support, incl. attachments 8202 2038
• Hydraulic folding
• Double circuit air brakes Pneumatic seeder with hopper 410 l turned 90°, electric fan SI, seed roll 8R3S,
8202 2040
EPS 5 410 l 90° electric fan SI ground wheel with right angle gearbox WK4 with short support, incl. attachments
• Road lighting kit (LED)
additionally with Seed-Control PLUS 8202 2064
Pneumatic seeder with hopper 410 l turned 90°, hydraulic fan, seed roll 8R3S,
ground wheel with right angle gearbox WK4 with short support, incl. attachments 8202 2043
Oil consumption: 15-20 l / minute
EPS 5 410 l 90° hydraulic
Working Transport Num. of Weight on Weight on additionally with Seed-Control PLUS 8202 2067
Type width width sections drawbar shaft wheels Weight Item Num.
additionally with Seed-Master System 8202 2120
Magnum 1240 12.30 m 3.00 m 8 2,990 kg 3,410 kg 6,400 kg 5102 1000-2
Pneumatic seeder EPS 5 with hopper 660 l, hydraulic fan, seed roll 8R3S, ground
wheel with right angle gearbox WK4 with short support, incl. attachments 8202 2041
Options Weight Item Num. Oil consumption: 15-20 l / minute
EPS 5 660 l hydraulic
Certificate of Compliance for other countries than GER 1081 4000 additionally with Seed-Control PLUS 8202 2101
Wheels 19,0/45-17 10 PR Surcharge on wheels 15,0/55-17 10 PR 60 kg 5102 1180 additionally with Seed-Master system 8202 2121
NonStop-harrow for Magnum 1240 3 rows, 12 mm tines, space between tines 75 mm 2,300 kg 5001 4000 Electronic monitoring and control unit for pneumatic seeder EPS 5:
Seed-Control PLUS
Monitoring of air volume and seed-rate, speed control, area meter “ha”
NonStop-harrow for Magnum 1240 2-rows, with levelliung bar 2,300 kg 5001 4100
Electronic monitoring and control unit for pneumatic seeder EPS 5: Monitoring of air volume and seed-rate, speed
NonStop-harrow for Magnum 1240 2-rows, with Ripperboard 2,450 kg 5001 4200 Seed-Master system (GPS)
control, driving signal , area meter “ha”, seed-rate adjustable from the tractor cabin (driving signal via GPS)
Incl. throttle screw, manometre, gas bubble for a constant
Hydraulic pressure compensation 5102 1500 A seeder mounting kit must be ordered separately according to the machine type
distribution of pressure at the cantilevers
Options for pneumatic seeder EPS 5
Additional information
Type Description Item Num.
Final assembly roller on-site: approx. 4 hours
Final assembly FlatSpring on-site: approx. 2 hours Daily and total counter with battery, retrofittable
Area meter “ha” for seeder EPS 5 7006 0601
Hydraulic connections required: 2x DA For self installation
Automatic lifting for ground For Green Master 640 + 770 for pneumatic spreader with hydraulic fan
82022 0002
drive wheel No additional control unit required!
Hydraulic lifting for ground For GreenMaster 250 + 300 c/w metering wheel with right angle gearbox!
78432 9029
wheel Necessary hydraulic connection: 1x SA
Hydraulic lifting for ground For GreenSeeder 600 + 750 c/w metering wheel with right angle gearbox!
78432 9027
wheel Necessary hydraulic connection: 1x SA
Seed rate adjustable from the tractor cabin
Electronic seed rate adjuster 8202 2072
For self installation
Can be retrofitted.
Tank / air flow monitoring TL 17 7003 0408
Loose, not assembled!
Seed rolls
Type Description Item Num.
Seed roll “extra fine”
8R1L 7053 9038
for small quantities and small working widths
Seed roll “fine”
8R1R 7053 9039
for seeds in large amounts z.B. rape, mustard, clover
NonStop-harrow 2-rows NonStop-harrow 2-rows
NonStop-harrow 3-rows with levelling bar with Ripperboard
Item num. 5001 4000 Item num. 5001 4100 Item num. 5001 4200 Seed roll “medium”
8R1S 7053 9040
for seeds in great quantities or with high speeds
Seed roll “large” - incl. as standard
8R3S 7053 9041
for grass, forage rye and catch crop mixture
Seed roll “blue”
8R2B 7053 9045
for very large quantities (hydraulic fan recommended)
7003 0107-1 ∙ Freight on request All prices in € excluding VAT, ex works. Freight on request All prices in € excluding VAT, ex works.
22 P 2020 Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! Except errors, subject to technical changes. Non-contractual photos and pictures! P 2020 23GREENMANAGER®SYSTEM Working width: 1.5 metres
Green Manager® cultivator Weight Item Num.
Cultivator - harrow - roller with seeder Cultivator 15
2 rows, 6 cutting discs, 6 tines with stubble points,
incl. coupling frame with quick couplings to mount the roller. 467 kg 7116 4515
available in 3 working widths Cut width c/w 6 tines: 137cm
Green Manager® harrow Weight Item Num.
HarroFlex 16 compact 20 tines ø12 mm, space between tines 75 mm incl. headstock 135 kg 4600 0016
Coupling frame For coupling the roller to the harrow 52 kg 4600 1512
Green Manager® prisma roller® Weight Item Num.
Self-cleaning prisma roller® Ø33/38
Mediana 15.5 402 kg 6130 1055
incl. headstock form A Cat. 1 + 2 and U-stand
Self-cleaning prisma roller® Ø33/38 semi-synthetic
Mediana 15.5 HS 290 kg 6130 1155
incl. headstock form A Cat. 1 + 2 and U-stand
Self-cleaning prisma roller® Ø33/38 Synthetic Ultra
Mediana 15.5 SU 183 kg 6130 1157
incl. headstock form A Cat. 1 + 2 and U-stand
Green Manager® pneumatic seeder EPS 5 Weight Item Num.
Pneumatic seeder 200 l, electric fan SI 12 V,
EPS 5 „4+4“, 200 l partition „4+4“ (4x small seeds and 4x legumes) 75 kg 8202 2090
Divided hopper with 2 separate adjustable rolls.
Seeder mounting kit for Güttler prisma roller® 46 kg 8202 2098
Working width: 1.2 metres
Green Manager® cultivator Weight Item Num. Combinations of Green Manager® system (example) Weight
1 row, 2 cutting discs, 2 tines with stubble points, Cultivator + prisma roller® Mediana + seeder „4+4“ 990 kg
Cultivator 12 incl. coupling frame with quick couplings to mount the roller 275 kg 7116 4512 Harrow + prisma roller® Mediana + seeder„4+4“ 710 kg
Cut width c/w 2 tines: 60cm
Cultivator + prisma roller® Mediana HS + seeder „4+4“ 878 kg
Harrow + prisma roller® Mediana HS + seeder „4+4“ 598 kg
Green Manager® harrow Weight Item Num.
Cultivator + prisma roller® Mediana SU + seeder „4+4“ 771 kg
HarroFlex 12 compact 16 tines ø12 mm, space between tines 75 mm incl. headstock 126 kg 4600 0012
Harrow + prisma roller® Mediana SU + seeder „4+4“ 491 kg
coupling frame For coupling the roller to the harrow 52 kg 4600 1512
Green Manager® prisma roller® Weight Item Num.
Self-cleaning prisma roller® Ø33/38
Mediana 12.5 343 kg 6135 9055
incl. headstock form A, Cat. 1 + 2 and U-stand
Mediana 12.5 HS
Self-cleaning prisma roller® Ø33/38 semi-synthetic
incl. headstock form A, Cat. 1 + 2 and U-stand
254 kg 6135 9155 Working width: 1.8 metres
Green Manager® cultivator Weight Item Num.
Self-cleaning prisma roller® Ø33/38 Synthetic Ultra
Mediana 12.5 SU 167 kg 6135 9157 2 rows, 8 cutting discs, 8 tines with stubble points
incl. headstock form A, Cat. 1 + 2 and U-stand
Cultivator 18 incl. coupling frame with quick couplings to mount the roller. 558 kg 7116 4518
Cut width c/w 8 tines: 182cm
Green Manager® pneumatic seeder EPS 5 Weight Item Num.
Pneumatic seeder with hopper 200 l, electric fan SI 12 V, partition „4+4“ Green Manager® harrow Weight Item Num.
EPS 5 „4+4“, 200 l (4x small seeds and 4x legumes) Divided hopper with 2 separate adjustable 75 kg 8202 2090
rolls. HarroFlex 18 compact 24 tines ø12 mm, space between tines 75 mm incl. headstock 145 kg 4600 0017
Seeder mounting kit for Güttler prisma roller® 45 kg 8202 2097 coupling frame For coupling the roller to the harrow 52 kg 4600 1512
Combinations of Green Manager® system (example) Weight Green Manager® prisma roller® Weight Item Num.
Cultivator + prisma roller® Mediana + seeder „4+4“ 738 kg Self-cleaning prisma roller® Ø33/38
Mediana 19.5 485 kg 6130 2355
incl. headstock form A Cat. 1 + 2 and U-stand
Harrow + prisma roller® Mediana + seeder„4+4“ 641 kg
Self-cleaning prisma roller® Ø33/38 semi-synthetic
Cultivator + prisma roller® Mediana HS + seeder „4+4“ 649 kg Mediana 19.5 HS 343 kg 6132 5155
incl. headstock form A Cat. 1 + 2 and U-stand
Harrow + prisma roller® Mediana HS + seeder „4+4“ 552 kg Self-cleaning prisma roller® Ø33/38 Synthetic Ultra
Mediana 19.5 SU 210 kg 6132 5157
Cultivator + prisma roller® Mediana SU + seeder „4+4“ 562 kg incl. headstock form A Cat. 1 + 2 and U-stand
Harrow + prisma roller® Mediana SU + seeder „4+4“ 465 kg
Green Manager® pneumatic seeder EPS 5 Weight Item Num.
Pneumatic seeder 200 l, electric fan SI 12 V,
EPS 5 „4+4“, 200 l partition „4+4“ (4x small seeds and 4x legumes) 75 kg 8202 2090
Divided hopper with 2 separate adjustable rolls.
Options for GreenManager® cultivator Weight Item Num.
Seeder mounting kit for Güttler prisma roller® 54 kg 8202 2099
Enlarging tine One tine - short bracket, left or right 25 kg 7116 4501
Enlarging tine One tine - long bracket, left or right 25 kg 7116 4503
Combinations of Green Manager® system (example) Weight
Enlarging disc One disc, left or right 12,5 kg 7116 4502
Cultivator + prisma roller® Mediana + seeder „4+4“ 1,172 kg
Headstock A-type Frame 80 x 80 mm 55 kg 8032 3501
Harrow + prisma roller® Mediana + seeder„4+4“ 811 kg
Support leg A-type Frame 80 x 80 mm und 140 x 140 mm 15 kg 8032 3510
Cultivator + prisma roller® Mediana SS + seeder „4+4“ 1,030 kg
Road lighting kit (LED) 1127 3500
Harrow + prisma roller® Mediana SS + seeder „4+4“ 669 kg
Cultivator + prisma roller® Mediana SU + seeder „4+4“ 897 kg
Harrow + prisma roller® Mediana SU + seeder „4+4“ 536 kg
7003 0104-1 ∙ Freight on request All prices in € excluding VAT, ex works. 7003 0104-1 ∙ Freight on request All prices in € excluding VAT, ex works.
24 P 2020 Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! P 2020 25HARROFLEX 250 + 300 GREENMASTER 250 + 300
2.5 or 3.0 metres, rigid frame 2.5 or 3.0 metres, rigid frame
For aerating and harrowing For pasture maintenance, cleaning up, reseeding and new seedings
Standard equipment: Standard equipment:
• 2 rows of NonStop tines 12 mm, • HarroFlex 250 or 300
space between tines 75 mm • Roller Mediana or Matador
• Protection against loss of tines • Pneumatic seeder EPS 5 with hopper 200 l or 410 l
• Headstock Cat. 2 • Electric or hydraulic fan
• U-stand
HarroFlex harrow Prisma roller®
Type Working width Transport width Note Weight Item Num. Type Working width Transport width Note Weight Item Num.
HarroFlex 250 2.50 m 2.55 m Tines 12 mm, space betw. tines 75 mm 330 kg 4600 0090-2 Mediana 25 2.45 m 2.53 m Self-cleaning prisma roller® Ø33/38 600 kg 6131 3000
Levelling bar 2.50 m 2.55 m Levelling of molehills 95 kg 4600 1070-2 Matador 25 2.42 m 2.55 m Self-cleaning prisma roller® Ø45/50 850 kg 6141 3000
Ripperboard UNO 2.50 m 2.55 m Reseeding of grassland 130 kg 4600 1810-1
Ripperboard QUATTRO 2.50 m 2.55 m Reseeding of grassland 120 kg 4600 1810-2 Type Working width Transport width Note Weight Item Num.
Coupling frame For coupling the roller or for front linkage 50 kg 4600 1500-1 Mediana 30 2.92 m 3.00 m Self-cleaning prisma roller® Ø33/38 700 kg 6131 5000
Subtotal HarroFlex 250 with levelling bar 475 kg Matador 30 2.92 m 3.00 m Self-cleaning prisma roller® Ø45/50 1,030 kg 6141 5000
Subtotal HarroFlex 250 with Ripperboard QUATTRO 500 kg
Pneumatic seeder
Type Working width Transport width Note Weight Item Num. Type Working width Transport width Note Weight Item Num.
HarroFlex 300 3.00 m 3.00 m Tines 12 mm, space betw. tines 75 mm 360 kg 4600 0100-2 EPS 5 200 l Description: see page 23 75 kg 8202 2038
Levelling bar 3.00 m 3.00 m Levelling of molehills 110 kg 4600 1080-2 EPS 5 410 l 90° electric Description: see page 23 90 kg 8202 2040
Ripperboard UNO 3.00 m 3.00 m Reseeding of grassland 150 kg 4600 1800-1 EPS 5 410 l 90° hydraulic Description: see page 23 100 kg 8202 2043
Ripperboard QUATTRO 3.00 m 3.00 m Reseeding of grassland 140 kg 4600 1800-2 Seeder mounting kit for Güttler® roller Mediana 25 or Matador 25 55 kg 8202 2011-2
Coupling frame For coupling the roller or for front linkage 50 kg 4600 1500-1 Seeder mounting kit for Güttler® roller Mediana 30 or Matador 30 55 kg 8202 2001-2
Subtotal HarroFlex 300 with levelling bar 520 kg
Subtotal HarroFlex 300 with Ripperboard QUATTRO 550 kg Total GreenMaster 250 (example) Weight
HarroFlex 250 + Levelling bar + Pneumatic seeder 200 l + Mediana 25 1,205 kg
Additional equipment for Green Master 250/300 Alpin (harrow in front - roller in rear) Weight Item Num. HarroFlex 250 + Levelling bar + Pneumatic seeder 200 l + Matador 25 1,455 kg
HarroFlex front mounting kit: coupling frame + headstock + depth wheels HarroFlex 250 + Ripperboard QUATTRO + Pneumatic seeder 200 l + Mediana 25 1,230 kg
Front headstock Cat.1 and Cat.2 depth wheels and coupling frame required 60 kg 4600 1678 HarroFlex 250 + Ripperboard QUATTRO + Pneumatic seeder 200 l + Matador 25 1,480 kg
depth wheels for front linkage (1 pair) 30 kg 4600 1620-2
Coupling frame for linking the roller or the front hitch see above Total GreenMaster 300 (example) Weight
For mountain tool carriers, a special hitch Cat. 1 is also available HarroFlex 300 + Levelling bar + Pneumatic seeder 200 l + Mediana 30 1,350 kg
HarroFlex 300 + Levelling bar + Pneumatic seeder 200 l + Matador 30 1,680 kg
Options Weight Item Num. HarroFlex 300 + Ripperboard QUATTRO + Pneumatic seeder 200 l + Mediana 30 1,380 kg
Road lighting kit (LED) for front linkage 10 kg 1127 3130-1 HarroFlex 300 + Ripperboard QUATTRO + Pneumatic seeder 200 l + Matador 30 1,710 kg
Options for prisma roller® Weight Item Num.
Road lighting kit (LED) (for rear linkage) 15 kg 1127 3200-2
Options for pneumatic seeder Weight Item Num.
Area meter “ha” for seeder EPS 5 battery-operated, retrofittable 1 kg 7006 0601
Further options for pneumatic seeder EPS 5: see page 23
Additional information
Hydraulic connections required: 1x SA with unpressurized backflow (for pneumatic seeder with hydr. fan)
7003 0101-1 ∙ Freight on request All prices in € excluding VAT, ex works. 7003 0104-1 ∙ Freight on request All prices in € excluding VAT, ex works.
26 P 2020 Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! P 2020 27HARROFLEX 600 + 750 GREENSEEDER 600 + 750
6.0 or 7.5 metres with hydraulic folding 6.0 or 7.5 metres with hydraulic folding
For pasture maintenance, cleaning up, reseeding and new seedings For pasture maintenance, cleaning up, reseeding and new seedings
Standard equipment: Standard equipment:
• 2 rows of NonStop tines 12 mm, • Harrow HarroFlex 600 or 750, see page 28
space between tines 75 mm • Pneumatic seeder EPS 5 with hopper 200 l or 410 l
• Protection against loss of tines • Electric or hydraulic fan
• Hydraulic folding
• Headstock Cat. 2
• Road lighting kit (LED)
HarroFlex harrow Pneumatic seeder
Type Working width Transport width Note Weight Item Num. Type Note Weight Item Num.
HarroFlex 600 6.00 m 2.40 m Incl. 4x gauge wheels 1,100 kg 4600 0160-4 EPS 5 200 l Description: see page 23 75 kg 8202 2038
Levelling bar 6.00 m Levelling of molehills 220 kg 4600 1090-3 EPS 5 410 l 90° electric Description: see page 23 90 kg 8202 2040
Ripperboard UNO 6.00 m Reseeding of grassland 300 kg 4600 1820-2 EPS 5 410 l 90° hydraulic Description: see page 23 100 kg 8202 2043
Ripperboard QUATTRO 6.00 m Reseeding of grassland 280 kg 4600 1820-3 Seeder mounting kit for HarroFlex 600 60 kg 8202 2013-3
Subtotal HarroFlex 600 with levelling bar 1,320 kg Seeder mounting kit for HarroFlex 750 65 kg 8202 2022-3
Subtotal HarroFlex 600 with Ripperboard UNO 1,400 kg
Subtotal HarroFlex 600 with Ripperboard QUATTRO 1,380 kg Total GreenSeeder 600 (example) Weight
HarroFlex 600 + Levelling bar + Pneumatic seeder EPS 5 200 l 1,455 kg
Type Working width Transport width Note Weight Item Num. HarroFlex 600 + Levelling bar + Pneumatic seeder EPS 5 410 l (electric fan) 1,470 kg
HarroFlex 750 7.50 m 2.40 m Incl. 4x jockey wheels 1,150 kg 4600 0175-4 HarroFlex 600 + Levelling bar + Pneumatic seeder EPS 5 410 l (hydraulic fan) 1,480 kg
Levelling bar 7.50 m 2.40 m Levelling of molehills 280 kg 4600 1095-3 HarroFlex 600 + Ripperboard QUATTRO + Pneumatic seeder EPS 5 200 l 1,515 kg
Ripperboard UNO 7.50 m 2.40 m Reseeding of grassland 380 kg 4600 1840-2 HarroFlex 600 + Ripperboard QUATTRO + Pneumatic seeder EPS 5 410 l (electric fan) 1,530 kg
Ripperboard QUATTRO 7.50 m 2.40 m Reseeding of grassland 360 kg 4600 1840-3 HarroFlex 600 + Ripperboard QUATTRO + Pneumatic seeder EPS 5 410 l (hydraulic fan) 1,540 kg
Subtotal HarroFlex 750 with levelling bar 1,430 kg
Subtotal HarroFlex 750 with Ripperboard UNO 1,530 kg Total GreenSeeder 750 (example) Weight
Subtotal HarroFlex 750 with Ripperboard QUATTRO 1,510 kg HarroFlex 750 + Levelling bar + Pneumatic seeder EPS 5 200 l 1,570 kg
HarroFlex 750 + Levelling bar + Pneumatic seeder EPS 5 410 l (electric fan) 1,585 kg
Options for harrow Weight Item Num. HarroFlex 750 + Levelling bar + Pneumatic seeder EPS 5 410 l (hydraulic fan) 1,595 kg
To couple a rollers with seeder HarroFlex 750 + Ripperboard QUATTRO + Pneumatic seeder EPS 5 200 l 1,650 kg
Incl. hydraulic kit (4 pipes with breakaway coupling, stop HarroFlex 750 + Ripperboard QUATTRO + Pneumatic seeder EPS 5 410 l (electric fan) 1,665 kg
Coupling frame 250 kg 4600 1565
valves, 2x hose tackle)
Jockey wheel for the roller required! HarroFlex 750 + Ripperboard QUATTRO + Pneumatic seeder EPS 5 410 l (hydraulic fan) 1,675 kg
For HarroFlex and GreenSeeder
Bushing for air brake Required if a roller with a compressed air brake system is 7400 1011 Options for pneumatic seeder Weight
attached. Area meter “ha” for seeder EPS 5 battery-operated, retrofittable 1 kg 7006 0601
Electronic seed rate adjuster Seed rate adjustable from the tractor cabin 8202 2072
Further options for pneumatic seeder EPS 5: see page 23
Options for GreenSeeder with trailed roller Weight Item Num.
To couple a trailed roller without pneumatic seeder!
Incl. coupling hooks, leg support extension, 2x double gauge
Coupling kit 150 kg 4600 1555
wheels inside, hydraulic kit (4 pipes with breakaway
coupling, stop valves, 2x hose tackle)
Double wheels inside instead of single wheels
Double gauge wheels 4600 1234
Option if a seeder 410 l is mounted without coupling kit
for HarroFlex and GreenSeeder
Bushing for air brake Required if a roller with a compressed air brake system is 7400 1001
attached.
Additional information
Hydraulic connections required: for HarroFlex / GreenSeeder: 1x SA (folding)
for GreenSeeder with trailed roller: 1x DA (folding GreenSeeder + roller), 1x DA (chassis roller)
for pneumatic seeder with hydraulic fan: 1x SA with unpressurized backflow
Levelling bar Ripperboard UNO Ripperboard QUATTRO
7003 0105-1 ∙ Freight on request All prices in € excluding VAT, ex works. 7003 0105-1 ∙ Freight on request All prices in € excluding VAT, ex works.
28 P 2020 Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! P 2020 29GREENMASTER 600 ALPIN FELDMEISTER®

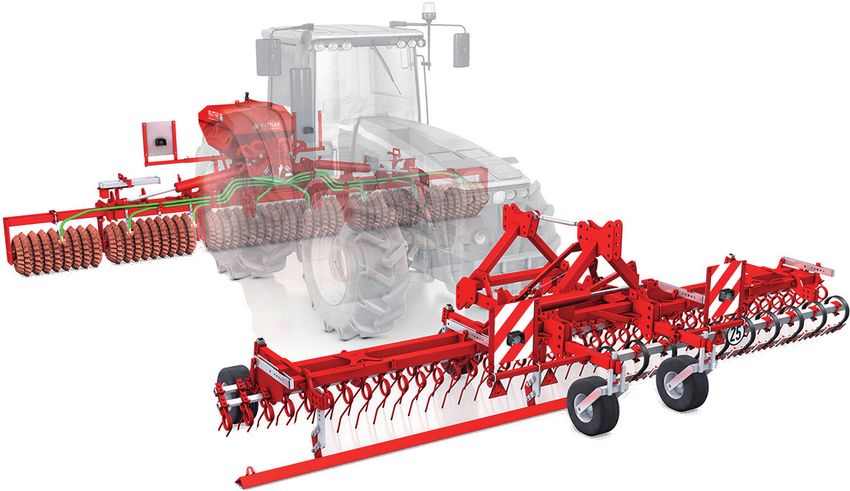

6.0 metres ALPINE 3.0 or 4.0 metres, rigid frame
For pasture maintenance, cleaning up, reseeding and new seedings 4.5 metres with hydraulic folding
from light to medium soils
Standard equipment:
• Harrow HarroFlex 600, see page 28 Standard equipment:
• Prisma roller® Matador 610 • 3 rows of tines
• Pneumatic seeder EPS 5 with hopper 410 l or 660 l • Self-cleaning prisma roller® Matador
• Hydraulic fan • Drawbar with hitch Cat. 2
• Depth wheels with tyres 11.5/80-15 10 PR
• FlatSpring
• Road lighting kit (LED)
HarroFlex harrow Feldmeister® LK 30/LK40 - rigid frame
Type Working width Transport width Note Weight Item Num. Type roller Working width Transport width width Weight Item Num.
HarroFlex 600 6.00 m 2.40 m Incl. 4x gauge wheels 1,100 kg 4600 0160-3 Feldmeister® LK 30 Matador 30 3.00 m 3.00 m 2,135 kg 4700 0300
Levelling bar 6.00 m 2.40 m Levelling of molehills 220 kg 4600 1090-3 Feldmeister® LK 40 Matador 41 4.00 m 4.13 m 2,610 kg 4700 0400
Ripperboard UNO 6.00 m 2.40 m Reseeding of grassland 300 kg 4600 1820-2
Ripperboard QUATTRO 6.00 m 2.40 m Reseeding of grassland 280 kg 4600 1820-3 Feldmeister® LK 45 - hydraulic folding
c/w headstock for front mounting, top link, swivel gauge Type roller Working width Transport width width Weight Item Num.
Front mounting kit 350 kg 4600 1683
wheels and road lighting kit Feldmeister® LK 45 Matador 450 4.50 m 2.52 m 3,690 kg 4700 1000
Subtotal HarroFlex 600 with levelling bar 1,670 kg
Subtotal HarroFlex 600 with Ripperboard QUATTRO 1,730 kg Options Note Item Num.
Stubble point 180 mm Price per unit (without screw + nut) 7212 0867
Prisma roller® Helper
Helper (incl. clamp, screw + nut) 4200 0280
Type Working width Transport width Note Weight Item Num. For self installation on-site
Matador 610-180 6.18 m 2.50 m 1.80 m + 2x2.10 m hydraulic folding 2,815 kg 6150 0610 Certificate of Compliance For other countries than GER 1081 4000
Road lighting kit For Matador 610 with pneumatic seeder 15 kg 1127 3440
Subtotal 2,830 kg Additional information
Final assembly of roller on-site: approx.1 hour
Pneumatic seeder Hydraulic connections required: Feldmeister® LK 30/LK 40: 1x DA
Type Note Weight Item Num. Feldmeister® LK 45: 2x DA
EPS 5 410 l 90° hydraulic Pneumatic seeder 410 l with hydraulic fan 100 kg 8202 2043
EPS 5 660 l hydraulic Pneumatic seeder 660 l with hydraulic fan 130 kg 8202 2041
Seeder mounting kit for Güttler® roller (final assembly on-site: approx. 3 hours) 90 kg 8202 20015
Total Weight
HarroFlex 600 + Levelling bar + Pneumatic seeder 410 l + Matador 610 4,690 kg
HarroFlex 600 + Ripperboard QUATTRO + Pneumatic seeder 660 l + Matador 610 4,780 kg
Options Pneumatic seeder Gewicht Artikel Nr.
Area meter “ha” for seeder EPS 5 battery-operated, retrofittable 1 kg 7006 0601
Further options for pneumatic seeder EPS 5: see page 23
Additional information
1x DA (folding roller Matador 610)
Hydraulic connections required:
1x SA (folding Harroflex)
1x SA with unpressurized backflow (pneumatic seeder)
7003 0105-1 ∙ 7003 0105-1 ∙ Freight on request All prices in € excluding VAT, ex works. 7003 0103-1 ∙ Freight on request All prices in € excluding VAT, ex works.
30 P 2020 Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! Except errors, subject to technical changes. ∙ Non-contractual photos and pictures! P 2020 31You can also read
