PRODUCT BROCHURE 2021
About SALUS SALUS Controls is a technology led supplier of energy control solutions focused primarily on the European professional market channel. We work closely with our customers and partners to understand the complexity of each market that we work with to develop innovative and cost-effective products that are intuitive to use, quick to install and simple to maintain. SALUS Controls is a member of The Computime Group Ltd, Hong Kong, widely regarded for its electronic control technologies, research & design capabilities and manufacturing services. It occupies a unique niche in appliance, heating, air conditioning, smart energy and building automation sectors, serving customers in commercial, industrial and consumer markets throughout Asia, North America and Europe since 1974. SALUS Controls builds solid partnerships and provides dependable solutions to enable our customers’ success. We have a performance culture which seeks to anticipate our customers’ requirements with quickness and flexibility. Most importantly, we offer our customers fast service and exceptional professional support. 02 SALUS Controls Product Brochure
Index 01

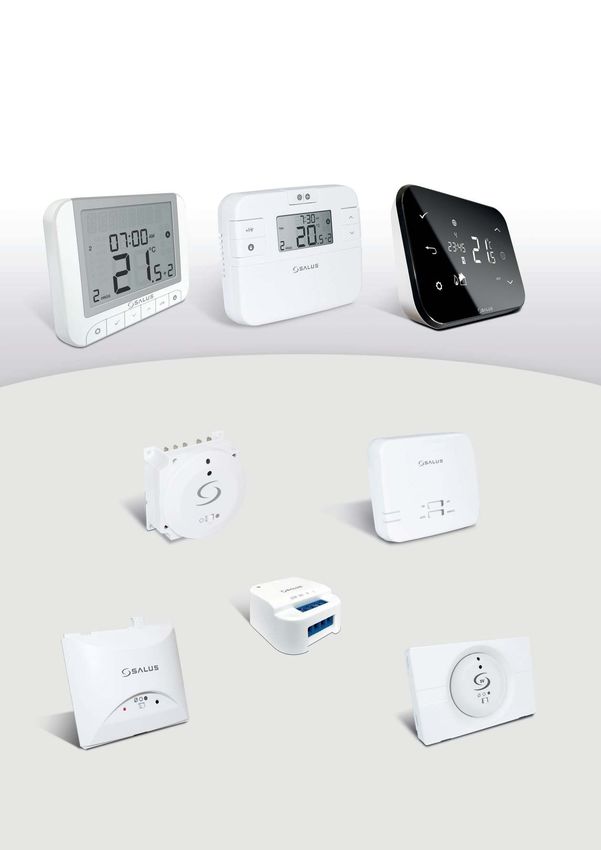

Product Page Thermostats
Thermostats 08
Internet Thermostats 15 02
Internet
Smart Home 18 Thermostats
Smart Home Packs 25
Mix and Match Range 26
03

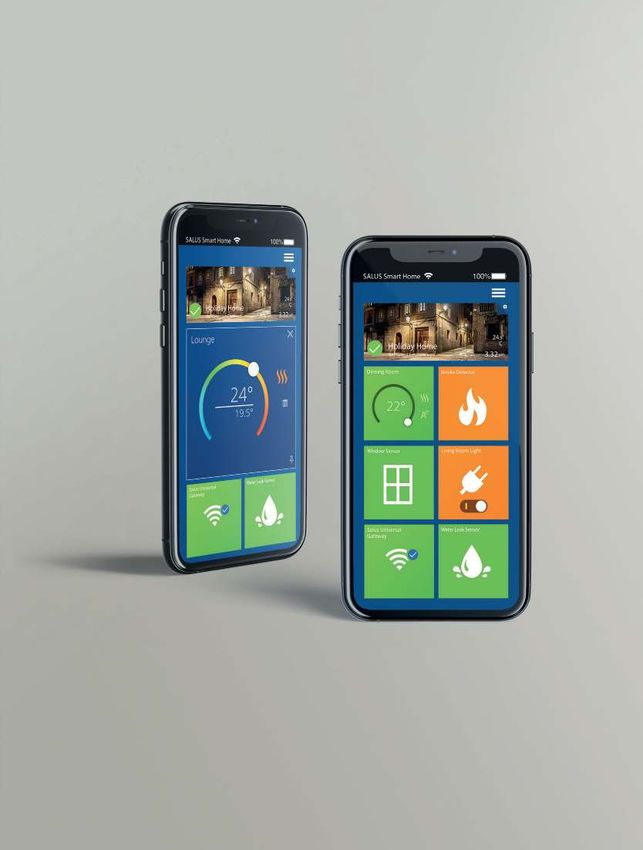

Smart Home
Programmers 31
Accessories 32 04
Mix & Match
Control Packs 35 Range

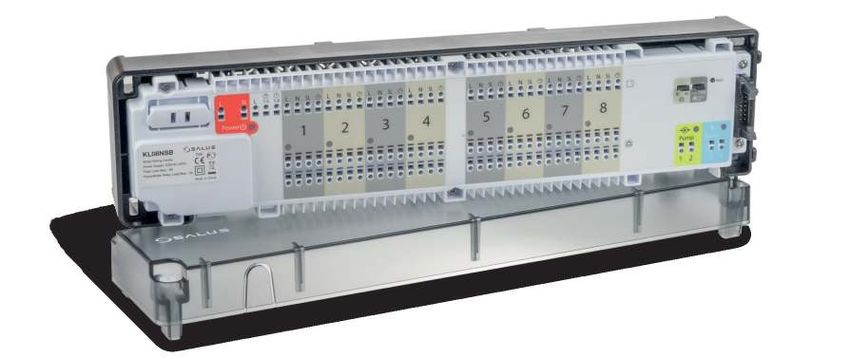

Underfloor Heating 36
05
Programmers
06
Key to Wiring Diagrams Accessories
Wireless communication
Battery powered Pump 07
L, N 230V AC power supply Underfloor
Valve actuator Heating
Fuse Temperature sensor
COM, NO, NC Voltage-free output 3-speed 230V AC fan
S, S1, S2 Input terminals Light bulb or other load
SL 230V AC voltage output T30NC Thermoelectric actuator
Contact normally open NO Time programmer
Contact normally closed NC External normally open contact
NC/COM/NO switch Transformer (voltage converter)
Boiler - Boiler connection * - Boiler’s contacts for ON/
OFF thermostat (according to the boiler’s instructions) Momentary switch, normally open NO
SALUS Controls Product Brochure 03
New Products RS600
Smart Home
For 2021 Roller Shutter
Relay
Page 22
PS600
Smart Home
Pipe Sensor
Page 24
SQ610 & SQ610RF SD600
Ultra slim Smart thermostat
Smart Home
Page 18-19
Smoke Detector
Page 23
WQ610 & WQ610RF
Ultra slim Boiler Plus thermostat
Pages 12 and 08
RT520TX
Mix and Match
Thermostat
Page 27
MS600
Smart Home
Motion Sensor
Page 23
WLS600
Smart Home Water
Leak Sensor
Page 24
The 2020 / 2021 season sees SALUS Controls launching several new products.
All with the great quality and ease of installation that you come to expect
from the SALUS range. PRODUCTS
Check them out as you browse through this catalogue.
04 SALUS Controls Product Brochure
We’re here to help
Need information? Got a question? We can help.
Whether you need to register your product, communicate with a SALUS representative, or obtain installation
instruction, finding answers and information is easy by visiting the SALUS website. Product information, Installation
and user manuals, wiring diagrams, software updates and warranty information are all just a click away.
www.salus-controls.com/uk
Technical Support.
If you need technical support on a product, visit our dedicated support page:
www.salus-tech.com
Email:
techsupport@salus-tech.com
Telephone
01226 323961
Place your order NOW!
sales@salus-tech.com
Find us on Social Media
For exclusive product support,
giveaways and updates join our
installer club.
www.salus-controls.com/uk/salus-connect
SALUS Controls Product Brochure 05
Guide to thermostats
Applications Type of Regulation Functions
Thermostat SPAN / Self ERP Internet
Heating Cooling Hysteresis Learning OpenTherm Class Controlled Zigbee / 868MHz
SQ610 ITLC V OPTIONAL Zigbee
SQ610RF ITLC V OPTIONAL Zigbee
HTR-RF(20) 0.5 ITLC IV OPTIONAL Zigbee
HTRS-RF(30) 0.25 0.5 ITLC IV OPTIONAL Zigbee
HTRP-RF(50) 0.25 0.5 ITLC IV OPTIONAL Zigbee
FC600 0.25 0.5 ITLC IV OPTIONAL Zigbee
TS600 0.25 0.5 ITLC IV YES Zigbee
RT310i 0.25 0.5 ITLC IV YES 868MHz
iT500 0.25 0.5 ITLC IV YES 868MHz
iT500BM 0.25 0.5 ITLC IV YES 868MHz
RT100 1 I
RT200 1 I
RT310 0.25 IV
RT510+ 0.25 ITLC IV
RT520 0.25 0.5 ITLC OT V
FT100
EP110
EP210
EP310
ERT20RF 0.5 I 868MHz
RT310RF 0.25 ITLC IV 868MHz
RT510RF+ 0.25 ITLC IV 868MHz
RT520RF 0.25 0.5 ITLC OT V 868MHz
WQ610 0.25 0.5 ITLC OT V
WQ610RF 0.25 0.5 ITLC OT V Zigbee
06 SALUS Controls Product Brochure
Functions
Type of programme Display Transmission Power Supply Installation
Page
All 5/2 Individual Digital Manual Wired Wireless 230 V Battery Recessed Wall Mounted
1 5/2 7 D 08
1 5/2 7 D 09
1 5/2 7 M 10
1 5/2 7 D 10
1 5/2 7 D 10
1 5/2 7 D 11
1 5/2 7 NA 11
1 5/2 7 D 18
1 5/2 7 D 19
1 5/2 7 D 20
M 22
M 22
D 22
1 5/2 D 22
1 5/2 7 D 23
M 23
D 24
D 24
D 24
M 24
D 25
1 5/2 D 25
1 5/2 7 D 25
1 5/2 7 D 19
1 5/2 7 D 22
SALUS Controls Product Brochure 07
WQ610RF FEATURES
• Powered by LI-ON
Ultra-slim, Wired, Programmable, rechargeable battery
Boiler Plus compliant thermostat • Large LCD
• Programmable
ITLC V Zigbee • OpenTherm
• Hysteresis ±0.5 / ±0.25
• 5 Year Warranty
1 5/2 7 D
RECHARGEABLE
THERMOSTAT!
Up to 2 years usage
from a full charge
Product Dimensions Wiring Diagram
Boiler
PLUST
CO
M PL I A N
SQ610RF
S1
86 mm
86 mm
S2
BOILER CONNECTION Power Source: 5 V DC via USB charger
COM NO
Wireless Protocol: ZigBee
Operating Temperature: 0 to 50 ºC
86 mm
11 mm Dimensions (mm): L-87,6 x H-55,7
RT520RF FEATURES
• Load Compensation
Programmable Wireless (OpenTherm Compatible)
• Optimisation Functions
Digital Room Thermostat • New Larger Clear easy to read LCD
with large LCD • ITLC (Internal Temperature
Load Compensation)
ITLC V OT 868MHz • ErP Rating V
• Service Mode
0.25
1 5/2 7 D 0.5 • Landlord PIN
• Battery Operated
• Frequency 868 MHz with
30 metre range
• 5 Year Warranty
Wiring Diagram Boiler
PLUST
CO
230V Setup M PL I A N
RF Receiver Wiring
N Neutral connection
BOILER CONNECTION*
A A
L Live connection RT520RX Product Dimensions
B B
COM Input L SL
L N COM NO
NO Switched output
A and B OpenTherm
95 mm
95 mm
L N
Thermostat Supply: 2 x AA Batteries
Volt Free Setup
Receiver (Rx) Supply: 230V AC 50Hz
118 mm 26 mm
Rx Rating Max: 16 (5) A SPST
BOILER CONNECTION*
A A
Rx Input/Output: 0 - 230V RT520RX
B B
Thermostat Scale: 5 to 33.5°C
96 mm
96 mm
L SL
L N COM NO
Thermostat Size(mm): W-118 H-95 D-26
Receiver Size (mm): W-96 H-96 D-27
L N 96 mm 27 mm
08 SALUS Controls Product Brochure
RT510RF+ FEATURES
• Switching volt free and 230V
Programmable Wireless • Sleep Mode
• Programmable
Digital Thermostat • Frost Protection
• Desk Stand
ITLC IV 868MHz
• Frequency 868 MHz with 30 metre range
• 16 amp relay switching
1 5/2 D 0.25 • Manual mode
• RF Test Function
• Heating Boost Mode
• Holiday Mode
• Receiver manual override switch Boiler
•
•
ITLC (Internal Temperature Load Compensation)
Boiler Plus Compatible
PLUST
CO
M PL I A N
01
• 5 Year Warranty Thermostats
Product Dimensions Wiring Diagram Thermostat Supply: 2 x AA Batteries
Receiver (RX) Supply: 230V AC 50Hz
BOILER CONNECTION*
RX Rating Max: 16 (5) A SPST
230V Setup RT510RF
RX Input/Output: 0 - 230V
96 mm
96 mm
L N COM NO Thermostat Scale: 5 to 35°C
Thermostat Size (mm): W-120 H-96 D-27
120 mm 27 mm
L N Receiver Size (mm): W-96 H-96 D-27
RF Receiver Wiring
BOILER CONNECTION*
Volt Free Setup RT510RF N Neutral connection
96 mm
96 mm
L SL L Live connection
L N COM NO
COM Input
96 mm 27 mm NO Switched output
L N
RT310RF Boiler
FEATURES
• Switching volt free and 230V
Wireless Digital PLUST
CO
• Sleep Mode
• Frost Protection
Room Thermostat M PL I A N
• Desk Stand
• 5 Year Warranty
ITLC IV 868MHz
• Frequency 868 MHz with 30 metre range
• Simple Operation
D 0.25
• 16 amp relay switching
• Pre-paired wireless communication,
so no more dip switches!
• Contemporary design
• RF Test Function
• Easy Installation
• Receiver manual override switch
• 5 Year Warranty
Product Dimensions Wiring Diagram Thermostat Supply: 2 x AA Batteries
Receiver (RX) Supply: 230V AC 50Hz
230V Setup RX Rating Max: 16 (5) A SPST
RX Input/Output: 0 - 230V
96 mm
96 mm
BOILER CONNECTION*
RT310RF Thermostat Scale: 5 to 35°C
L N COM NO
Thermostat Size (mm): W-96 H-96 D-27
96 mm 27 mm Receiver Size (mm): W-96 H-96 D-27
L N RF Receiver Wiring
N Neutral connection
Volt Free Setup
96 mm
96 mm
L Live connection
COM Input
BOILER CONNECTION*
RT310RF
NO Switched output
96 mm 27 mm L SL
L N COM NO
L N
SALUS Controls Product Brochure 09
RT510BC+ Thermostat Supply: 2 x AA Batteries FEATURES
Digital Programmable
Receiver (RX) Supply: 230V AC 50Hz
•
•
Sleep Mode
Programmable Boiler
Thermostat with RF
RX Rating Max: 5 (1) A SPST • Frost Protection PLUSCO
• Desk Stand M PL I A N T
RX Input/Output: 0 - 230V
Boiler Receiver • 5 Year Warranty
Thermostat Scale: 5 to 35°C • Simple Operation
ITLC
1 CO 7 Thermostat Size (mm): W-120 H-96 D-27 • Plug-in boiler receiver
0.25 868MHz • LED status indicator
5/2 0.5 IV Receiver Size (mm): W-58 H-58 D-30
• Frequency 868 MHz with 30 metre range
Internal Boiler Connections • Manual mode
• Pre-paired wireless communication,
1 Neutral connection no more dip switches!
2 Live connection • Heating Boost Mode
• Holiday Mode
3 Com input
• Contemporary design
4 Switched Output • RF Test Function
• Easy Installation
• ITLC (Internal Temperature Load Compensation)
• 5 Year Warranty
Product Dimensions
PLUG & PLAY
96 mm
96 mm
120 mm 27 mm
MODULE
No Wiring Needed
RT510LG+5V+ Thermostat Supply: 2 x AA Batteries FEATURES
• Sleep Mode
Boiler
Receiver Supply: 5V DC
Digital Programmable • Programmable time and
Switching Max: 3 (1) A SPST temperature scheduling
Thermostat with RF • Frost Protection PLUS
Receiver Output: 5V DC CO
Boiler Receiver M PL I A N T
• 5 Year Warranty
Scale: 5 to 35°C • Simple Operation
ITLC
1 CO 7 Thermostat Size (mm): W-120 H-96 D-27 • Manual mode on thermostat to disable schedule
0.25 • Heating Boost Mode
5/2 0.5 IV 868MHz Receiver Size (mm): W-129 H-84 D-30
• Holiday Mode
• Contemporary design
• Easy Installation
• ITLC (Internal Temperature Load Compensation)
Features of receiver
• Plug in connections
• Volt free contacts
• Manual override control
• LED status indication
• Frequency 868 MHz with 30 metre range
Product Dimensions
PLUG & PLAY
96 mm
96 mm
120 mm 27 mm
MODULE
No Wiring Needed
10 SALUS Controls Product BrochureRT510WBC+ Thermostat Supply: 2 x AA Batteries FEATURES
Digital Programmable
Receiver Supply: 24V DC
•
•
Sleep Mode
Programmable Boiler
Thermostat with RF
Switching Max: 3 (1) A SPST • Frost Protection PLUS
CO
• 5 Year Warranty M PL I A N T
Receiver Output: 24V DC
Boiler Receiver • Simple Operation
Scale: 5 to 35°C • Manual mode on thermostat to disable schedule
ITLC
1 CO 7 Thermostat Size (mm): W-120 H-96 D-27 • Heating Boost Mode
0.25 • Holiday Mode
5/2 0.5 IV 868MHz Receiver Size (mm): W-130 H-108 D-25
• Contemporary design
• Easy Installation
Compatible with Worcester Bosch boilers. • ITLC (Internal Temperature Load Compensation)
Features of receiver
• Plug in connections 01
• LED status indication Thermostats
• Manual override control
• Frequency 868 MHz with 30 metre range
Product Dimensions
PLUG & PLAY
96 mm
96 mm
120 mm 27 mm
MODULE
No Wiring Needed
Compatibility Chart
ALPHA BAXI HALSTEAD POTTERTON VOKERA MAIN IDEAL SIME BIASI
Ecofort Advance
CB Range Duo Tec HE Ace Performa HE Linea 25 Eco i-combi
HE Plus Combi
CD Range Platinum HE Ace High Promax HE Plus Linea HE 30 Eco Pro-combi
System 24
HE Range Instant 105E Finest Platinum Gold HE Mynute HE i-mini
Eco
RT510BC System 28
Intech C Maxflow WM Eden CB Suprima HE Mynute EHE Esprit
Eco
RXBC605
Heatmax Combi
Intech GS 130 HE Quatro Gold Synergy 30 HEw
HE
Eco Combi 133 HE Hydra Eco Elite
E-Tec Range EcoBlue + Combi Maxin
EcoBlue Advance
Compact HE
Combi
WORCESTER BOSCH LG+5V
Greenstar i Range Logic
RXWBC605 Greenstar CDi Clasic Combi Range Logic +
RT510WBC Greenstar CDi Compact Combi Range Logic Max
Greenstar Si Compact Range Vogue
Greenstar Highflow CDi Combi Range Vogue Max
SALUS Controls Product Brochure 11WQ610 FEATURES
• 230V AC
Ultra-slim, Wired, Programmable,
Boiler Plus compliant thermostat
•
•
Large LCD
Programmable
Boiler
• OpenTherm
PLUST
CO
M PL I A N
• ITLC (Internal Temperature
ITLC V
Load Compensation)
• Hysteresis ±0.5 / ±0.25
1 5/2 7 D
• 5 Year Warranty
Product Dimensions Wiring Diagram
WQ610
A
86 mm
86 mm
B
BOILER CONNECTION
L N COM NO
Power Source: 230V AC
AC 230V
L Operating Temperature: 0 to 50 ºC
N
86 mm 28 mm Dimensions (mm): L-87,6 x H-55,7
RT520 FEATURES
• Load Compensation
Power Source 2 x AA Batteries
Rating Max: 3 (1) A SPST
Programmable Wired • Optimisation Functions
• New Larger, clear, easy to read LCD Input/Output: 0 - 230V
Digital Room Thermostat • ITLC (Internal Temperature
with large LCD Load Compensation)
Scale: 5 to 33.5°C
• ErP Rating V Dimensions (mm): W-118 H-95 D-26
ITLC V OT • Service Mode
Wiring
1
5/2
7 D 0.25
0.5
•
•
Landlord PIN
Easy Installation Boiler A and B OpenTherm
• Simple Operation CO
PLUS NC Switched Live OFF
M PL I A N T
• Battery Operated
NO Switched Live ON
• 5 Year Warranty
COM Common Terminal
Product Dimensions Wiring Diagram
RT520 RT520
BOILER CONNECTION*
NC
95 mm
95 mm
OPENTHERM*
3V 3V A
2 x AA COM 2 x AA
B
NO
118 mm 26 mm
RT510+ FEATURES
• Switching volt free and 230V
Programmable Wired • Sleep Mode
• Programmable time and temperature scheduling
Digital Room Thermostat • Frost Protection
0.25 IV • Simple Operation
1 • Manual mode on thermostat to disable schedule
• Heating Boost Mode
D 5/2 ITLC • Holiday Mode
Wiring • Contemporary design
• Easy Installation
COM Common Terminal
• ITLC (Internal Temperature Load Compensation) Boiler
NC Switched Live OFF • Boiler Plus Compatible PLUST
CO
• 5 Year Warranty M PL I A N
NO Switched Live ON
Product Dimensions Wiring Diagram Power Source 2 x AA Batteries
AC 230V Switching Max: 3 (1) A SPST
L
Input/Output: 0 - 230V
RT510
L Scale: 5 to 35°C
BOILER CONNECTION*
96 mm
96 mm
NC
3V Dimensions (mm): W-120 H-96 D-27
2 x AA COM
NO N
N
120 mm 27 mm
12 SALUS Controls Product BrochureRT310 FEATURES
• Switching volt free and 230V
Power Source 2 x AA Batteries
Switching Max: 3 (1) A SPST
Wired Digital Room • Sleep Mode
• Frost Protection Input/Output: 0 - 230V
Thermostat • 5 Year Warranty Scale: 5 to 35°C
0.25 IV • Simple Operation
• Contemporary design Dimensions (mm): W-96 H-96 D-27
D • Easy Installation
• 5 Year Warranty
Product Dimensions Wiring Diagram
AC 230V
01
L
RT310
L Thermostats
BOILER CONNECTION*
96 mm
96 mm
NC
3V Wiring
2 x AA COM
COM Common Terminal
NO N
NC Switched Live OFF
N
96 mm 27 mm NO Switched Live ON
RT100 FEATURES
• Switching volt free and 230V
Power Source 0 - 230V
Rating Max: 1 A SPDT
Mechanical Room • Suitable for replacement
market Scale: 10 to 30°C
Thermostat • Simple control Dimensions (mm): W-73 H-73 D-38
• 2 wire installation
1 I • 5 Year Warranty Wiring
M NC Switched output
COM Live input
NO Switched output
Product Dimensions Wiring Diagram
AC 230V
L
L
BOILER CONNECTION*
80 mm
80 mm
NC
RT100
COM
NO N
N
80 mm 40 mm
RT200 FEATURES
• LED indication for
Power Source 230V AC 50Hz
Rating Max: 3 (1) A SPST
Electronic Room heating demand
• Industry standard back Output: 230V AC 50Hz
Thermostat
plate for ease of installation Scale: 5 to 35°C
1 I • Can only be used for
230V applications. Dimensions (mm): W-95 H-95 D-40
M • Stylish appearance
• Simple operation
• 5 Year Warranty
Product Dimensions Wiring Diagram
AC 230V
L
N L Wiring
BOILER CONNECTION*
95 mm
95 mm
RT200 L N Neutral connection
SL L Live connection
N
SL Switch live output
N
Earth
95 mm 40 mm
SALUS Controls Product Brochure 13FT100 FEATURES
• Can only be used for
Wiring
N Neutral connection
Frost Thermostat 230V applications.
• LED indicator for L Live connection
M heating demand SL Switch live output
• Large dial
• Simple operation Earth
• Tamper proof cover
• 5 Year Warranty
Product Dimensions Wiring Diagram
Power Source 230V AC 50Hz
Rating Max: 3 (1) A SPST
Output: 230V AC 50Hz
95 mm
L SL Scale: -10 to 20°C
Dimensions (mm): W-95 H-95 D-40
95 mm 40 mm
Join the SALUS club!
Would you like to be a member of the SALUS installer club? As a member of this elite club we will put
you in contact with other members via a closed Facebook group, you will receive exclusive offers on
selected products, you will get fast technical support and free training on SALUS products. You can
also collect points for products purchased to claim against a range of great gifts.
We want you to feel special so we will send you on a monthly basis a
special offer giving you a discount on SALUS products or a product that
is due to be launched to try before anyone else.
We want you to
feel part of the team!
Contact your local SALUS sales
representative for more details!
14 SALUS Controls Product BrochureRT310i
1
5/2
ITLC IV
7 D
CO
0.25
0.5
868MHz
Single Zone Smartphone Controlled Thermostat
FEATURES
• Switching volt free and 230V
• Optional control via Smartphone, Tablet or PC
• Easy to use App
• Pre-paired wireless communication, so no more dip switches!
• Wall or desk mounted thermostat
• Choose to use schedule or control manually
• Adjustable frost protection when the thermostat is off
• Wireless communication test function
• Suitable for heating or cooling applications
• Holiday function
•
•
16 amp relay switching
Manual override 02
• 5 Year Warranty Internet
Walk through tutorials Easy to use heating Simple to modify heating Thermostats
on how to use the App. or cooling control. schedules. Choose from ALL,
Thermostat iT500 5/2 or INDIVIDUAL days.
Power Source 2 x AA Batteries
Scale: 5 to 35 °C
Dimensions (mm): L -96 H-96 D-27 mm
Gateway Boiler
Power Source 5 V (adaptor included) PLUST
CO
Dimensions (mm): L -91 H-39 D-25 mm MPLIAN
Ethernet cable included
Receiver
Power Source 230 V AC 50 Hz
Switch Rating 16(5) amp
Output 0 – 230 V
Dimensions (mm): L -96 H-96 D-27 mm
1x
One central heating zone only.
Product Dimensions
91 mm
91 mm
96 mm
96 mm
70 mm
Wiring Diagram
230V Setup Volt Free Setup 96 mm 27 mm
39 mm 25 mm
BOILER CONNECTION*
BOILER CONNECTION*
RT310i RT310i
96 mm
96 mm
L SL
L N COM NO L N COM NO
L N L N 96 mm 27 mm
SALUS Controls Product Brochure 15iT500
1
5/2
ITLC IV
7 D
CO
0.25
0.5
868MHz
2 Zone Smartphone Controlled Thermostat
FEATURES
• Access and control your heating and
hot water via the Internet
• Compatible with your Smartphone, Tablet or PC
1 2 3
• Your Smartphone, Tablet or PC connects to the system
using your existing broadband connection
• The internal system uses 868 MHz
for robust communication
• System is secure and energy efficient
• The system is wireless so it’s easy to install
2x
• 3 possible system configurations One central heating Two central One central heating
• Switching 230V zone only. heating zones. zone plus hot water.
• 2 x Volt Free Outputs
• Internet control via Smartphone, Tablet or PC + +
• Local control
• Wall or desk mounted thermostat
• Touch controls on thermostat
• Frequency 868 MHz
• Suitable for heating or cooling applications
• 5 Year Warranty
Thermostat iT500
Power Source 2 x AA Batteries
Scale: 5 to 35 °C
Dimensions (mm): L -128 H-95 D-30 mm
Gateway iTG500
Boiler
Power Source 5 V (adaptor included)
Dimensions (mm): L -91 H-39 D-25 mm
Ethernet cable included PLUST
CO
MPLIAN
Receiver iT500RX
Power Source 230 V AC 50 Hz
Switch Rating 16(5) amp
AUX (CH2/HW) 5 (2) amp
Output 0 – 230 V
Dimensions (mm): L -145 H-100 D-35 mm
Sensor iT300 (optional) Sensor iT300*
Power Source 2 x AAA Batteries
Dimensions (mm): L -? H-? D-? mm
iT300 Sensor* for use with two zone
central heating. See example 2. Product Dimensions
Wiring Diagram iT300
AC 230V
L 3V
2 x AAA
91 mm
91 mm
95 mm
95 mm
70 mm
L
L
BOILER CONNECTION*
COM COM
iT500RX MAX
16 (5) A
N NO NO
N 128 mm 30 mm 39 mm 25 mm
N
iT500 iTG500
100 mm
100 mm
3V RJ45
INTERNET
2 x AA 5V DC
NOTE: When using two zones, volt-free control for
the boiler can only be done using additional relays. 145 mm 35 mm
16 SALUS Controls Product BrochureiT500BM
1
5/2
ITLC IV
7 D
CO
0.25
0.5
868MHz
For combination
boilers and single
heating zones only
The iT500BM can be used with
any of the receivers shown below.
Giving you more choice and
freedom to control your heating
from anywhere.
02
Boiler Internet
Thermostats
PLUST
CO
MPLIAN
Can be used with any of these receivers...
RXBC605 FEATURES Internal boiler connections Optional Boiler
• Plug in connections Plate BBP1
Plug-in • Manual override control
Power Source 5V DC 1 Neutral connection For BAXI 100, 200,
Receiver • LED status indication Rating Max: 5 (1) A SPST 2 Live connection 300 & 400 Range
• Frequency 868 MHz with
Output: 0 - 230V 3 Live in
30 metre range
• 5 Year Warranty Dimensions (mm): W-58 H-58 D-30 4 Switched output
RXBC5V FEATURES Power Source 5V DC Terminal Identifier Description
• No additional wiring
Plug-in or power supply
Output: 5V DC 1 DC+ 5V DC+
Receiver • Plug and play format Dimensions (mm): W-58 H-58 D-30 2 DC- 5V DC-
2-minute installation
3 COM Common input
• Control your boiler using a
Smartphone, Tablet or PC 4 NO Normal open
via the app (iT500) 5 NC Normal closed
• 5 Year Warranty
LG+5V FEATURES Power Source 5V DC Terminal Identifier Description
Plug-in Receiver • Plug in connections
Output: 5V DC 1 DC+ 5V DC+
with bezel and • Manual override control
• LED status indication Dimensions (mm): W-129 H-84 D-30 2 DC- 5V DC-
wiring loom • Frequency 868 MHz with
3 COM Common input
Compatible with Ideal 30 metre range
• 5 Year Warranty 4 NO Normal open
Logic Gen 2, Vogue
and Zanussi Boilers 5 NC Normal closed
RXWBC605 FEATURES Power Source 24V DC
Plug-in Receiver • Plug in connections
Output: 24V DC
• LED status indication
Compatible with • Manual override control Dimensions (mm): W-130 H-108 D-25
Worcester Bosch • Frequency 868 MHz with
boilers 30 metre range
• 5 Year Warranty
See compatibility chart page 11
SALUS Controls Product Brochure 17UG600
Universal Gateway SALUS
FEATURES
• LED Indication
Smart Home
• Connects all SALUS Smart Home
products to the Smart Home app
• Cable and WiFi connection *cable connection
is needed to set up WiFi connection
• Table or wall mounted
• Wireless ZigBee communication
• 5 Year Warranty
Power Supply: 5V DC over USB
Wireless Standard: 2.4 GHz ZigBee
Operating Temp: 0 to 50 ºC
Dimensions (mm): L-90 x W-90 x H-55.5
Product Dimensions Wiring Diagram
90 mm
90 mm
Adapter RJ45 INTERNET
UG600
5V DC
AC 230V
90 mm 55.5 mm L N
FEATURES
SQ610 • ZigBee protocol
SALUS Quantum, Ultra Slim, • Thickness outside the wall 10mm
• 230V power supply
Wired, Smart Thermostat • Large LCD screen
• Humidity sensor
ITLC V Zigbee
• Programmable - daily, weekly or 5/2
• Hysteresis ± 0.5 and 0.25
1 5/2 7 D
• Class IV ERP
• Dry contact or 230V contact outputs
• ITLC (Internal Temperature Load Compensation)
• 2 contacts for presence sensor or
external sensor / floor sensor
• Internal relay - Breaking capacity: 3 (1) A
• Control from the Smart Home app
Power Supply: 230V (CA) 50 Hz
• Heating / Cooling mode
Wireless Standard: 2.4 GHz ZigBee • Operates with UG600 Gateway or independently
Operating Temp: 0 to 50 ºC • 5 Year Warranty
Dimensions (mm): L-88 x W-88 x H-55
Product Dimensions Wiring Diagram
S
SQ610 SQ610 SQ610
S1 S1 S1
S2 S2 S2
86 mm
86 mm
BOILER CONNECTION
L N COM NO L N COM NO L N COM NO
MAX
AC 230V 3 (1) A
L
N L N SL
KL08NSB
AC 230V
L N
L
86 mm 28 mm N
AC 230V
L
N
18 SALUS Controls Product BrochureSQ610RF FEATURES
• ZigBee protocol
SALUS Quantum, Ultra Slim, • Just 11mm deep
• Re-chargeable Lithium Ion battery
Wireless, Smart Thermostat
• Large LCD screen
• Humidity sensor
ITLC V Zigbee
• Programmable - daily, weekly or 5/2
• Hysteresis ± 0.5 and 0.25
1 5/2 7 D
• Class IV ERP
• ITLC (Internal Temperature
Load Compensation)
• 2 contacts for presence sensor
or external sensor / floor sensor
Power Supply: 5 V DC interface USB
• Control from the Smart Home app
Wireless Standard: 2.4 GHz ZigBee • Heating / Cooling mode
Operating Temp: 0 to 50 ºC • Operates only with UG600 Gateway RECHARGEABLE
• 5 Year Warranty THERMOSTAT!
Dimensions (mm): L-88 x W-88 x H-55 Up to 2 years usage
from a full charge
Product Dimensions Wiring Diagram
CDUK
SQ610RF S
Quantum 03
Charging Dock Smart Home
S1
86 mm
86 mm
Li-Ion
3.7V FEATURES
S2 • Surface Stand
• Portable Charging Station
• Mains Powered via USB
86 mm 11 mm
FC600 Power Supply: 230V AC
Control outputs: - Fan speed control
Fan Coil Thermostat (I, II, III gear) - Valve actuator 230 V c.a.
(cooling/ heating)
ITLC IV CO Zigbee Wireless Standard: ZigBee 2.4 GHz
0.25 5 to 40 ºC
1 5/2 7 D 0.5 Temperature Range:
Dimensions (mm): 86 x 86 x 42
Wiring Diagram
Product Dimensions AC 230V
L S1 /
L S1 * * Only in a two-pipe system
FC600 COM
N
86 mm
86 mm
S2
V1 V2 F1 F2 F3
S2
** ** Only in a four-pipe system
1-pshase fan, 3-speed
N
86 mm 42 mm
FC600M
Fan Coil Module
Product Dimensions Wiring Diagram Power Supply: 24V DC
FC600-M
Inputs F1, F2, F3 230V AC
F3 F3 /
0V Low/Medium/High
F2 F2 +24V
0V
fan speeds:
F1 F1
FC600 +24V
V2 V2
90 mm
+24V Outputs
V1 V1 0V
N
- Fan power supply 24V DC; 6.5 A
L N +24V 0V 0...10V Four-pipe system - Fan control 0...10V
230V AC / 24V DC - Valve outputs 24V DC; 1 A
AC 230V Power supply (heating and
L cooling)
51 mm 65 mm N
Mounting DIN rail 35 m
Two-pipe system
Dimensions (mm): 51 x 90 x 6
SALUS Controls Product Brochure 19HTR-RF(20) FEATURES
• ITLC (Internal Temperature Load Compensation)
Zigbee RF dial thermostat • Traditional dial face
• Integrates with UG600
ITLC IV CO Zigbee • ErP Rating IV
• Battery operated
1 5/2 7 M 0.5 • 5 Year Warranty
Power Supply: 2 x AA Batteries
Scale: 5 °C – 32.5 °C
Dimensions (mm): L-80 x H-80 x D-35
Product Dimensions Wiring Diagram
HTR RF
80 mm
80 mm
3V
2 x AA
80 mm 35 mm
HTRS-RF(30) FEATURES
• ITLC (Internal Temperature Load Compensation)
Battery Operated Smart Thermostat • Clear easy to read LCD
• Integrates with UG600
ITLC IV CO Zigbee • Can be used as room thermostat in a system with
other programmable SALUS thermostats
0.25
1 5/2 7 D 0.5 • ErP Rating IV
• Pre-set override temperatures
Power Supply: 2 x AA Batteries • Optional floor temperature sensor
• Battery operated
Scale: 5 °C – 32.5 °C
• 5 Year Warranty
Dimensions (mm): L-85 x H-85 x D-25
Product Dimensions Wiring Diagram
S
HTRP RF // HTRS RF
S2
85 mm
85 mm
3V
2 x AA
S1
85 mm 25 mm
FEATURES
HTRP-RF(50) • ITLC (Internal Temperature Load Compensation)
• Clear easy to read LCD
Battery Operated Smart
• Integrates with UG600
Programmable Thermostat • Can be used as room thermostat in a system with other
programmable SALUS thermostats
ITLC IV CO Zigbee • ErP Rating IV
0.25 • Fully programmable
1 5/2 7 D 0.5 • Pre-set override temperatures
• Optional floor temperature sensor
Power Supply: 2 x AA Batteries • Battery operated
Scale: 5 °C – 32.5 °C • 5 Year Warranty
Dimensions (mm): L-85 x H-85 x D-25
Product Dimensions Wiring Diagram
S
HTRP RF // HTRS RF
S2
85 mm
85 mm
3V
2 x AA
S1
85 mm 25 mm
20 SALUS Controls Product BrochureTS600 FEATURES
• Stylish, compact, surface mounted solution
App controlled thermostat • ITLC (Internal Temperature
Load Compensation)
ITLC IV CO Zigbee • LED indication
• Optional external sensor
0.25
1 5/2 7 NA 0.5 • App Only Interface
• Clear and Easy to use
Power Supply: 2 x AA Batteries • Controls up to three SALUS Smart
Radiator controls (TRVs) in a zone
Wireless Standard: ZigBee 2.4 GHz
• Control only via the SALUS
Scale: 5°C to 32.5°C Smart Home App
• 5 Year Warranty
Dimensions (mm): L-51 x H-85 x D-26 Wiring Diagram
Product Dimensions
S
85 mm
TS600
S2
85 mm 3V
2 x AA
51 mm
S1
26 mm
03
TRV10RFM FEATURES
• Automatic valve adaptation
Smart Home
Smart Radiator Valve • Easy wireless pairing
• Manual on/off buttons
Power Supply: 2 x AA Batteries • LED status indication
Thread Type: M30 x 1.5mm • Buttons can be locked
Dimensions (mm): W-50 x H-90 x D-50
• Frost protection function
• Open window detection function
• Limescale protection function
• Optional mounting ring
• 5 Year Warranty
Product Dimensions Installation Accessory
Unscrew and TP28-30 Tamper proof jacket
Push on the
remove the Can be used to prevent unauthorised
new valve
old valve removal of device. Perfect for use in
and tighten
anticlockwise. schools & offices.
clockwise.
90 mm
50 mm
50 mm 50 mm
RX10RF FEATURES
• Switching volt free and 230V
Boiler Receiver (using a bridge)
• Manual Mode
• LED indicators
Power Supply: 230 V AC 50 Hz • Can be used as boiler receiver
Rating Max: 16 (5) A SPST or individual zone receiver
• 5 Year Warranty
Input/Output: 0 – 230V
Dimensions (mm): L-145 H-100 P-35
Product Dimensions Wiring Diagram
AC 230V
L
L
L
BOILER CONNECTION*
100 mm
100 mm
COM
RX10RF
NO N
N
145 mm 35 mm N
SALUS Controls Product Brochure 21RE600
ZigBee Repeater
Product Dimensions Wiring Diagram
45 mm
45 mm
L
RE600
N
AC 230V
Power Supply: 230V AC 50 Hz
Wireless Standard: ZigBee 2.4 GHz
45 mm 20 mm L N
Dimensions (mm): L-45 x H-45 x D-20
SR600
Smart Relay
Product Dimensions Wiring Diagram
Control
inputs
S1 S2
45 mm
45 mm
L
SR600 Power Supply: 230V AC 50 Hz
N
COM NO
AC 230V
Max Current: 16 A
Wireless Standard ZigBee 2.4 GHz
L N Voltage free
45 mm 20 mm outputs Dimensions (mm): L-45 x H-45 x D-20
RS600 Power Supply: 230V AC 50Hz
Max Current: 2x 5A (2)
Roler Shutter Relay
Wireless Standard: ZigBee 2.4 GHz
Dimensions (mm): L-45 H-45 D-20
Product Dimensions Wiring Diagram
45 mm
45 mm
RS600 RS600 RS600
SL1 SL2 L N S1 S2 SL1 SL2 L N S1 S2 SL1 SL2 L N S1 S2
Roller
shutter
motor
AC 230V AC 230V AC 230V
L L L
45 mm 20 mm N N N
SRS600
Surface Mount Bracket
Product Dimensions
84 mm
84 mm
84 mm 28 mm
22 SALUS Controls Product BrochureSP600 FEATURES
• Easily time program each socket
Smart Plug • Remotely disable outlet rather than
running in costly standby mode
• Monitor energy usage of outlet
Product Dimensions • Can be linked to other devices via
Smart Home rules engine
• Electric heating applications
53.9 mm • Small and discreet
• 5 Year Warranty
Power Supply: 230V AC 50 Hz
Wireless Standard ZigBee 2.4 GHz
Operating Temperature: -10°C to 50°C
53.9 mm 30 mm
59.4 mm Amp rating: 13A
Dimensions (mm): L-49 x H-60 x D-36
SW600 FEATURES
• Alert via the Smart Home app when a
Slim Window/Door Sensor window/door is opened
• Can increase efficiency of heating system when
used with SALUS Smart Home thermostats via
Smart Home rules engine
• Can be linked to other devices via 03
Product Dimensions Smart Home rules engine Smart Home
• 5 Year Warranty
Power Supply: 1 x CR2 3V Battery
70 mm
70 mm
Wireless Standard: ZigBee 2.4 GHz
41 mm
41 mm
Operating Temperature:: 0 to 40 °C
Dimensions Sensor (mm): L-20 x H-70 x D-15
22 mm 11 mm 20 mm 10 mm
Dimensions Magnet (mm): L-10 x H-40 x D-10
MS600 FEATURES
• ZigBee protocol - Smart Home compatible
Smart Motion Sensor • Battery power supply –1x CR123A (3V)
• Detection angle: 80 (not adjustable)
• Detection range: 8m
Product Dimensions • 5 Year Warranty
80,52 mm
Power Supply: 1 x 3VDC, CR123A
Wireless Standard: ZigBee 2.4 GHz
Operating Temperature: 0 °C to 40 °C
Dimensions (mm): L-60 x H-80 x D-43
60,45 mm 43,18 mm
SD600 FEATURES
• ZigBee protocol - Smart Home compatible
Smart Smoke Detector • Battery power supply –1x CR123 (3V)
• Sound alert> 80 decibels / 3 meters
Product Dimensions • 5 Year Warranty
60 mm
49 mm
Power Source: 1x CR123A Battery
Wireless Standard: Zigbee 2.4 GHz
60 mm 60 mm Battery Life 5 years
Dimensions (mm): L-60 H-60 D-49
SALUS Controls Product Brochure 23WLS600 FEATURES
• ZigBee Protocol - Smart Home compatible
Smart Water Leak Sensor • Battery power supply - 1x CR2 (3V)
• Length of the external sensor - 2 m
Product Dimensions • Waterproof
25 mm
• 5 Year Warranty
Ø55 mm
66 mm
66 mm Power Source: 1x CR2 Battery
Wireless Standard: Zigbee 2.4 GHz
Battery Life 5 years
60 mm 30 mm
Dimensions (mm): Ø-55 H-25
SB600 FEATURES
• Smart Button to activate One Touch Rule
Smart Button • 2 Button Operation for 2 commands
• Battery operated for ease of locating
Product Dimensions • Long Battery Life
• 5 Year Warranty
59 mm
59 mm
Power Source: 2 x AAA Batteries
Wireless Standard: Zigbee 2.4 GHz
59 mm 19 mm Dimensions (mm): L-59 H-59 D-18
CSB600 FEATURES
• Covered override button to activate One Touch Rule
Protective Smart Button • 1 Button Operation for single command
• Battery operated for ease of locating
Product Dimensions • Long Battery Life
• 5 Year Warranty
66 mm
66 mm
Power Source: 2 x AAA Batteries
Wireless Standard: Zigbee 2.4 GHz
59 mm 27 mm Dimensions (mm): L-59 H-68 D-23
PS600 FEATURES
• Pipe Temperature Sensor
Pipe Sensor • Smart connected sensor
• One touch rule compatible
Product Dimensions • Relay switching via OneTouch rule
• ZigBee protocol - Smart Home compatibility
• Battery power supply –1x CR2 (3V)
• External sensor length – 470mm
• 5 Year Warranty
73,5 mm
73,5 mm
Power Source: 1 x CR2 Battery
Wireless Standard: Zigbee 2.4 GHz
Measuring range: -50°C - 100°C
Cable length: 470 mm
24,7 mm 20 mm
Dimensions (mm): L-59 H-68 D-23
24 SALUS Controls Product BrochureSmart Home Heating Packs
SH-BASE
You can start building your SALUS Smart Home system by purchasing the SH-BASE heating base
pack. This will allow you to control a single zone heating system from anywhere from your smart
device. Then from there you can extend your system by adding additional thermostats and
TRV’s with the SH-TRV pack, giving you the ability to control multiple zones and even individual
rooms. We also have a full range of additional smart devices designed to make life easier which
work individually or with other devices in the range by setting up smart rules.
Pack contains:
1x UG600 Universal Gateway
1x SQ610RF Thermostat
1x RX10RF Boiler Receiver
03
Smart Home
SH-TRV
Control additional zones and even individual room control
from anywhere using your smart device and the SALUS
Smart Home app. Each SQ610RF thermostat can control up
to 6 TRV’s in a particular zone or an individual room.
Pack contains:
1x SQ610RF Thermostat
1x TRV10RFM Radiator Valve*
*Additional TRV10RFM Radiator Valves can be purchased seperately
SYSTEM EXAMPLES
Office Office Office
1 2 6
Bathroom Bathroom Bathroom
Bedroom Bedroom Bedroom
1 1 2 2 4 5
Hall Living Room Hall Living Room Hall Living Room
Kitchen Kitchen Kitchen
1 1 1 1 1 1 1 2 3
System 1: System 2: System 3:
This requires the SH-Base pack with an This requires the SH-Base pack along This requires the SH-Base pack with an additional 5
additional 5 TRV10RFM radiator valves. with an SH-TRV pack and an additional 4 SH-TRV packs. This system is acting as a multi zone
This system is acting as a single zone property. TRV10RFM radiator valves. This system is property and gives individual room control.
acting as a two zone property.
SALUS Controls Product Brochure 25Mix & Match Range
SALUS Mix and Match range allows the user to choose the thermostat
that best fits their requirements with the receiver most appropriate Boiler
for their boiler type, including the 2-minute install plug-in units. PLUST
CO
MPLIAN
RT510TX+
RT520TX Thermostat iT500BM
Thermostat Thermostat
RXBC605 RXRT510
Receiver Receiver
SR868
Receiver
RXWBC605 LG+5V
Receiver Receiver
26 SALUS Controls Product BrochureRT520TX FEATURES
• Load Compensation (OpenTherm Compatible)
Programmable Wired • Optimisation Functions
• New Larger, clear, easy to read LCD
Digital Room Thermostat • ITLC (Internal Temperature Load Compensation)
with large LCD • ErP Rating V
ITLC • Service Mode
1 CO 7 • Landlord PIN
0.25 • Easy Installation
IV 868Mhz
Boiler
5/2 0.5 • Simple Operation
• Battery Operated
• 5 Year Warranty C
PLUS
O T
M PL I A N
Power Source 2 x AA Batteries
Rating Max: 3 (1) A SPST
Product Dimensions
Input/Output: 0 - 230V
Scale: 5 to 33.5°C
Dimensions (mm): W-118 H-95 D-26
95 mm
95 mm
Wiring
A and B OpenTherm
NC Switched Live OFF
NO Switched Live ON
118 mm 26 mm
COM Common Terminal
04
Mix & Match
Range
FEATURES
RT510TX+ • Sleep Mode
Programmable Wireless Boiler • Programmable time and
temperature scheduling
Digital Room Thermostat PLUST
CO • Frost Protection
M PL I A N
• Desk Stand
ITLC
CO 7 1 • 5 Year Warranty
0.25 • Simple Operation
5/2 0.5 IV 868Mhz • Frequency 868 MHz with
30 metre range
Wiring
• Manual mode on thermostat
COM Common Terminal to disable schedule
NC Switched Live OFF
• Heating Boost Mode
• Holiday Mode
NO Switched Live ON • Manual override
• Contemporary design
Power Source 2 x AA Batteries • RF Test Function
• Easy Installation
Scale: 5 to 35°C • ITLC (Internal Temperature
Dimensions (mm): W-120 H-96 D-27 Load Compensation)
• Boiler Plus Compatible
• 5 Year Warranty
Product Dimensions
96 mm
96 mm
120 mm 27 mm
SALUS Controls Product Brochure 27iT500BM *Can only be used with RXVBC605,
RXWBC605, RXBC605, RXBC5V and LG+5V
Digital Internet FEATURES
Thermostat • Wall or surface mount thermostat
• Touch controls
• Heat/Cool
ITLC • Built-in start up programming
1 CO 7
for quick installation
0.25
5/2 0.5 IV 868Mhz • Frequency 868 MHz with 30 metre range
• 5 Year Warranty
Boiler
PLUST
CO
M PL I A N
Product Dimensions
Power Source 2 x AA Batteries
95 mm
95 mm
Scale: 5 to 35°C
Dimensions (mm): W-128 H-95 D-30
128 mm 30 mm
Standard RF boiler receiver compatible
RXRT510 with most common boilers and any
Power Source 230V AC 50Hz
Thermostat in the Mix and Match Range Rating Max: 16 (5) A SPST
Wireless Receiver (except the iT500BM). Input/ Output: 0 to 230V
Can be used for volt free and 230V
Product Dimensions applications. Dimensions (mm): W-96 H-96 D-27
FEATURES Wiring
• Manual override control
L Live connection
• LED status indication
• Frequency 868 MHz with 30 metre range N Neutral connection
96 mm
96 mm
• 5 Year Warranty COM Input
NO Switched output
96 mm 27 mm
Wiring Diagram
AC 230V AC 230V
L L
L L
L
BOILER CONNECTION*
COM COM
RXRT510 or RXRT510 MAX
16 (5) A
NO N NO
N N
N N
28 SALUS Controls Product BrochureFEATURES
RXBC605 • Plug in connections
Optional Boiler
Plate BBP1
Power Source 230V AC 50Hz
• Manual override control For BAXI 100, 200, Rating Max: 5 (1) A SPST
Plug-in Receiver 300 & 400 Range
• LED status indication Output: 0 - 230V
• Frequency 868 MHz with
30 metre range Dimensions (mm): W-58 H-58 D-30
• 5 Year Warranty
Internal boiler connections
1 Neutral connection
2 Live connection
3 Live in
4 Switched output
RXBC5V FEATURES
• No additional wiring
Power Source 5V DC Terminal Identifier Description
Output: 5V DC 1 DC+ 5V DC+
Plug-in or power supply
• Plug and play format Dimensions (mm): W-58 H-58 D-30 2 DC- 5V DC-
Receiver 2-minute installation
3 COM Common input
• Control your boiler using a
Smartphone, Tablet or PC 4 NO Normal open
via the app (iT500) 5 NC Normal closed
• 5 Year Warranty
04
LG+5V FEATURES Power Source 5V DC Mix & Match
• Plug in connections Range
Plug-in Receiver • Manual override control
Output: 5V DC
with bezel and • LED status indication Dimensions (mm): W-129 H-84 D-30
wiring loom • Frequency 868 MHz
• 30 metre range
Terminal Identifier Description
Compatible with Ideal • 5 Year Warranty
Logic Gen 2, Vogue 1 DC+ 5V DC+
and Zanussi Boilers 2 DC- 5V DC-
3 COM Common input
4 NO Normal open
5 NC Normal closed
RXWBC605 FEATURES Power Source 24V DC
• Plug in connections
Plug-in Receiver • LED status indication
Output: 24V DC
• Manual override control Dimensions (mm): W-130 H-108 D-25
Compatible with • Frequency 868 MHz with
Worcester Bosch 30 metre range
boilers • 5 Year Warranty
SR868 FEATURES
• Industry leading 16A max current
Power Source: 230 V AC 50Hz
Max Current: 16 (5) A
868MHz • Wireless communication
• Compact Size Wireless Standard: 868 MHz
Wireless
• Internet connectable (RT310iSR)
Relay • 5 Year Warranty IP Rating IP30
Dimensions (mm): W-45 H-45 D-26
SALUS Controls Product Brochure 29ERT20RF Thermostat Supply: 2 x AA Batteries FEATURES
• Switching volt free and 230V
Receiver (Rx) Supply: 230V AC 50Hz
Electronic Thermostat • Wall mount thermostat
Rx Rating Max: 16 (5) A SPST • User friendly dial
with RF • Simple to use
Rx Input/Output: 0 - 230V
• 16 amp relay switching
868MHz M Thermostat Scale: 5 to 30°C • LED Indication
Thermostat Size(mm): W-80 H-80 D-30 • 5 Year Warranty
Product Dimensions Receiver Size (mm): W-145 H-100 D-35
RF Receiver Wiring
80 mm
80 mm
N Neutral connection
L Live connection
80 mm 30 mm COM Input
NO Switched Output
100 mm
100 mm
145 mm 35 mm
Wiring Diagram
AC 230V AC 230V
L L
L L
L
BOILER CONNECTION*
COM COM
RXRT505 or RXRT505 MAX
16 (5) A
NO N NO
N N
N N
ERT20RF
3V
2 x AA
INSTALLER
Technical Support!
We want you as an installer to
feel confident when fitting SALUS
products. We have a dedicated
technical support team that
are happy to assist with any
questions relating to your SALUS
product or installation.
Please contact us on:
Website:
www.salus-tech.com
Email:
techsupport@salus-tech.com
Telephone:
01226 323961
30 SALUS Controls Product BrochurePROGRAMMERS
EP110 FEATURES
• Switching volt free and 230V
Wiring
N Neutral connection
Single Channel • Timed control for central
heating or hot water L Live connection
Programmer • 3 On/Off periods (1) NC terminal
• Large, easy to read LCD
D • Holiday function (3) Switched output NO
• Advance function (4) Common connection
• Boost function
• Simple installation
• Default program
• 5 Year Warranty
Product Dimensions Wiring Diagram Power Source 230V AC 50Hz
Rating Max: 3 (1) A SPDT
EP110
Output: 0 - 230V
COM
Dimensions (mm): W-120 H-98 D-27
NC NO
98 mm
98 mm
N L 1 2 3 4
Jumper included
MAX
3 (1) A
AC 230V
L
120 mm 27 mm N
EP210 FEATURES
• Can only be used for
Wiring
N Neutral connection
Two Channel 230V applications.
L Live connection
• Individual control of central
Programmer heating and hot water (1) Hot water OFF
• 3 On/Off periods
D • Large, easy to read LCD
(2) Central heating OFF
• Holiday function (3) Hot water ON
• Advance function
• Boost function
(4) Central heating ON
05
• Simple installation Programmers
• Default program
• 5 Year Warranty
Product Dimensions Wiring Diagram Power Source 230V AC 50Hz
Rating Max: 3 (1) A SPDT
EP210
WH CH
Output: 230V
Dimensions (mm): W-120 H-98 D-27
98 mm
98 mm
OFF OFF ON ON
N L 1 2 3 4
MAX
3 (1) A
MAX
AC 230V 3 (1) A
L
120 mm 27 mm N
EP310 FEATURES
• Can only be used for 230V applications.
Supply: 230V AC 50Hz
Rating Max: 3 (1) A SPDT
Three Channel • Time control for the two heating zones
and hot water zone Output: 230V AC 50Hz
Programmer • 3 On/Off periods Size (mm): W-120 H-98 D-27
• Large, easy to read LCD
D • Holiday function
• Advance function
• Boost function
• Simple installation
• Default program
• 5 Year Warranty
Wiring
Product Dimensions Wiring Diagram
N Neutral connection
EP310
L Live connection
WH CH1 CH2
(1) Hot water OFF
(2) Central heating zone 1 OFF
98 mm
98 mm
OFF OFF ON ON ON OFF
N L 1 2 3 4 5 6
(3) Hot water ON
MAX MAX
3 (1) A 3 (1) A (4) Central heating zone 1 ON
MAX
AC 230V 3 (1) A (5) Central heating zone 2 ON
L
N (6) Central heating zone 2 OFF
120 mm 27 mm
SALUS Controls Product Brochure 31MD22A / MD22AWO SALUS Mag Defender, is an ultra-high FEATURES
efficiency, full-flow magnetic filter that • Simple installation & servicing
cleans and protects hydronic heating • Immediate results & system protection
Magnetic Filter systems by removing the black sludge • No running costs
and particles. Additional protection • Energy saving
can be afforded with the use of SALUS’ • 500ml capacity nylon enclosure
range of inhibiting, sludge removing • Compression nylon cap with EPDM “O”
and cleaning liquids. ring for a perfect seal
• 20mm diameter removable
MD22A - With Inhibitor neodymium magnet
• Top mounted air vent
MD22AWO - Without Inhibitor • Vertical, base mounted ½” drain valve
• 22mm isolation valves supplied
• Easy removal of magnet
• 5 year warranty
RF Main Switch FEATURES Boiler
Pump Receiver
• Can be used for any BOILER
Transmitter
Located in airing
RF Boiler Pump heating or electrical Radio signal
for pump
control
cupboard: cylinder,
pump, three way valve
and wiring centre
SL N N L E E
Switch requirement up to 1000W LN
• Can be used for any LP
domestic environment N 230V
where you don’t want
to run wires
• No running costs
• Easy installation DOWNSTAIRS UPSTAIRS
S
MP100A / MP200A FEATURES Voltage 230V 50Hz
• Meets EuP legislative demands Protection Grade: IP42
Energy Saving Pump • Energy efficient pump for
MP100A: 5M Head Max
significant energy savings
• Variable and fixed speed MP200A: 6M Head Max
operation - one pump for all jobs
• Plug and Pump - no need Wiring - MP100A & MP200A
to open terminal box
L Live Connection
• Comes pre-wired
• 5 year warranty N Neutral Connection
E Earth Connection
MP100A 3-5 Metre Head
MP200A 4-6 Metre Head
CT100 Surface mounted mechanical thermostat for
controlling a domestic hot water tank.
Product Dimensions
Pipe Cylinder FEATURES
Thermostat • Compatible with foam insulated tanks
• Can be used as a pipe thermostat
105 mm
105 mm
Power Source 230 V (AC) 50 Hz
Rating Max 16 (4) A SPDT
Output 230 V (AC) 50 Hz
Scale 40 to 80 °C
Dimensions (mm): L-45 H-105 P-50 45 mm 50 mm
TC100 Can be used in all heating applications with
links for S & Y plan systems.
Max Supply 230V AC
Terminals 16 Terminals
Wiring Centre
Features Dimensions (mm): L-230 H-127 D-42
• Easy to use
• Simplifies wiring
• Large terminals
• Manufactured in flame-retardant plastic
• Suitable for all heating systems
32 SALUS Controls Product BrochurePMV22/28 Premium Motorised Valve used for domestic
central heating and hot water systems.
2 Port Motorised Valve FEATURES
available in 22 and 28mm • Industry colour coded wiring with 1m cable
• Detachable head
• Compatible with Honeywell bodies
Power Source 230V AC 50Hz
PMVRH01
Rating Max 6 (2) A
Replacement
Head
Output: 230V AC 50Hz
Dimensions (mm): L-87 H-122 D-60
Product Dimensions Wiring Diagram
PMV 21 / 24 PMV 21 / 24
BR OR BR OR
NO NO
55 mm
55 mm
BL MAX BL MAX
GR 3A GR 3A
AC 230V COM COM
L N
A B A B
FLOW NO FLOW
87 mm 60 mm
BR - brown wire BL - blue wire OR - orange wire GR - green wire
PMV32/38 Premium Motorised Valve used for domestic
central heating and hot water systems.
3 Port Motorised Valve FEATURES
available in 22 and 28mm • Industry colour coded wiring with 1m cable
• Detachable head
• Compatible with Honeywell bodies PMVRH03
Replacement
Head 06
Accessories
Power Source 230V AC 50Hz
Rating Max 6 (2) A
Output: 230V AC 50Hz
Dimensions (mm): L-87 H-122 D-60
Product Dimensions Wiring Diagram
PMV 31 / 34 PMV 31 / 34
WH OR WH OR
55 mm
55 mm
NO NO
BL MAX BL MAX
GR 3A GR 3A
COM COM
AC 230V
L N
A B A B
AB AB
FLOW AB A FLOW AB B
87 mm 60 mm
WH - white wire BL - blue wire OR - orange wire GR - green wire
SALUS Controls Product Brochure 33BPV100 Automatic bypass valve for domestic heating
system.
Automatic Bypass Valve
FEATURES
• Improves efficiency
• Cuts out system noises
• Maintains flow rates
• Perfect for low water content systems
• Available in 22mm only
Dimensions (mm): L-105 H-50 P-22
TRV31LS10 TRV pack with 5mm angled TRV,
lock shields and reducers.
Maximum working pressure 10 bar
Maximum flow temperature 120ºC
Thermostatic
Maximum differential pressure 0.6 bar
Radiator Valves Pack
Recommended differential pressure 0.2 bar
Temperature range: 6 - 29ºC
Dimensions TRV (mm): H-75 W-35
Dimensions Lock Shield (mm): H-75 W-35
TRV310A Thermostatic radiator valves
for various applications.
Maximum working pressure 10 bar
Maximum flow temperature 120ºC
15mm angled TRV with
Thermostatic reducer. Maximum differential pressure 0.6 bar
Radiator
Recommended differential pressure 0.2 bar
Valves
Temperature range: 6 - 29ºC
Dimensions (mm): H-75 W-35
Maximum working pressure 10 bar
TRV31LS5 TRV Pack with 15mm angled
TRV, lockshield & reducers Maximum flow temperature 120ºC
Thermostatic Maximum differential pressure 0.6 bar
Radiator Recommended differential pressure 0.2 bar
Valves Temperature range: 6 - 29ºC
Dimensions TRV (mm): H-75 W-35
Dimensions Lock Shield (mm): H-75 W-35
15mm lockshield with drain off.
TRLS10 Maximum working pressure 10 bar
Maximum flow temperature 120ºC
15mm Lock
Maximum differential pressure 0.6 bar
shield with
drain off Recommended differential pressure 0.2 bar
Temperature range: 6 - 29ºC
Dimensions (mm): H-75 W-35
34 SALUS Controls Product BrochureControl Packs
YEAR
WARRANTY
06
Accessories
We have various heating control packs available for a variety of applications.
We can also supply a range of others to suit your needs.
CP122 Unvented Heating Control Pack CP322 Y Plan Control Pack
EP210, PMV22, RT200, TC100 CT100, EP210, PMV32, TC100, RT200
CP222 S Plan Control Pack CP328 Y Plan Control Pack
CT100, EP210, TC100, RT200, PMV22 CT100, EP210, TC100, RT200, PMV38
CP228 S Plan Control Pack
PMV28, EP210, RT200, CT100, TC100
SALUS Controls Product Brochure 35Underfloor Heating Controls If you are looking for an underfloor heating control solution we can provide the ideal system for you. We have traditional and SmartHome solutions, making SALUS your perfect underfloor heating control supplier. 36 SALUS Controls Product Brochure
07
Underfloor
Heating
SALUS Controls Product Brochure 37FEATURES
SQ610 • ZigBee protocol
SALUS Quantum, Ultra Slim, • Thickness outside the wall 10mm
• 230V power supply
Wired, Smart Thermostat • Large LCD screen
for underfloor heating control • Humidity sensor
• Programmable - daily, weekly or 5/2
ITLC V Zigbee • Hysteresis ± 0.5 and 0.25
• Class IV ERP
1 5/2 7 D • ITLC (Internal Temperature Load Compensation)
• 2 contacts for presence sensor or
external sensor / floor sensor
• Control from the Smart Home app
• Heating / Cooling mode
• Operates with UG600 Gateway or independently
Power Supply: 230V (CA) 50 Hz
• 5 Year Warranty
Wireless Standard: 2.4 GHz ZigBee
Operating Temp: 0 to 50 ºC
Dimensions (mm): L-88 x W-88 x H-55
Product Dimensions Wiring Diagram
S
SQ610 SQ610 SQ610
S1 S1 S1
S2 S2 S2
86 mm
86 mm
BOILER CONNECTION
L N COM NO L N COM NO L N COM NO
MAX
AC 230V 3 (1) A
L
N L N SL
KL08NSB
AC 230V
L N
L
86 mm 28 mm N
AC 230V
L
N
SQ610RF FEATURES
• ZigBee protocol
SALUS Quantum, Ultra Slim, • Just 11mm deep
• Re-chargeable Lithium Ion battery
Wireless, Smart Thermostat
• Large LCD screen
for underfloor heating control • Humidity sensor
• Programmable - daily, weekly or 5/2
ITLC V Zigbee
• Hysteresis ± 0.5 and 0.25
• Class IV ERP
1 5/2 7 D
• ITLC (Internal Temperature Load Compensation)
• 2 contacts for presence sensor
or external sensor / floor sensor
• Control from the Smart Home app
• Heating / Cooling mode
• Operates with UG600 Gateway
Power Supply: 5 V DC interface USB
• 5 Year Warranty
Wireless Standard: 2.4 GHz ZigBee
Operating Temp: 0 to 50 ºC
Dimensions (mm): L-88 x W-88 x H-55
CDUK
Product Dimensions Wiring Diagram Quantum
Charging Dock
SQ610RF S
FEATURES
S1 • Surface Stand
86 mm
86 mm
Li-Ion • Portable Charging Station
3.7V
S2 • Mains Powered via USB
Power Supply: 5 V DC interface USB
Dimensions (mm): H-90 x W-80 x D-60
86 mm 11 mm
38 SALUS Controls Product BrochureFEATURES
SQ605 • Thickness outside the wall 10mm
SALUS Quantum, Ultra Slim, • 230V power supply
• Dial control
Wired, Smart Dial Thermostat • Hysteresis ± 0.5
for underfloor heating control • Class IV ERP
• ITLC (Internal Temperature
ITLC V Load Compensation)
COMING • 2 contacts for presence sensor or
1 5/2 7 D external sensor / ground
SOON
• Heating / Cooling mode
• Operates with UG600 Gateway
• 5 Year Warranty
Power Supply: 230V (CA) 50 Hz
Operating Temp: 0 to 50 ºC
Dimensions (mm): L-88 x W-88 x H-55
Product Dimensions Wiring Diagram
KL08NSB
SL
L
N
SL NSB NSB
L N
86.3 mm
AC 230V
L
N
86.3 mm 19.5 mm
OPTION 1
SQ605RF FEATURES
• ZigBee protocol
SALUS Quantum, Ultra Slim, • Just 11mm deep
• Re-chargeable Lithium Ion battery
Wireless, Smart Dial Thermostat
• Dial control
for underfloor heating control • Hysteresis ± 0.5
ITLC V Zigbee
•
•
Class IV ERP
ITLC (Internal Temperature 07
Load Compensation) Underfloor
1 5/2 7 D Heating
• 2 contacts for presence sensor
or external sensor / ground
• Control from the Smart Home app
• Heating / Cooling mode
• Operates with UG600 Gateway
• 5 Year Warranty
Power Supply: 4 x AAAA
Wireless Standard: 2.4 GHz ZigBee
COMING
SOON
Operating Temp: 0 to 50 ºC
Dimensions (mm): L-88 x W-88 x H-55
Product Dimensions Wiring Diagram
SQ605RF
86.3 mm
6V
86.3 mm 19.5 mm
SALUS Controls Product Brochure 39HTR230 FEATURES
• PWM
Dial thermostat • Traditional dial face
• ErP Rating IV
PWM IV • 230V AC
• 5 Year Warranty
1 5/2 7 D
Power Supply: 230V AC
Scale: 5 °C – 30 °C
Dimensions (mm): L-85 x H-85 x D-25
Product Dimensions Wiring Diagram
BOILER
CONNECTION
SL NSB
80 mm
80 mm
L N
HTR230
AC 230V
L
N
80 mm 35 mm
HTRS230 FEATURES
• PWM
Digital Display Thermostat • Clear easy to read LCD
• Can be used as room thermostat in a system with
PWM IV other programmable SALUS thermostats
• ErP Rating IV
• Pre-set override temperatures
1 5/2 7 D
• 230V AC
Power Supply: 230V AC • 5 Year Warranty
Scale: 5 °C – 35 °C
Dimensions (mm): L-85 x H-85 x D-25
Product Dimensions Wiring Diagram
BOILER
CONNECTION
SL NSB
85 mm
85 mm
L N
HTRS230
AC 230V
L
N
85 mm 25 mm
FEATURES
HTRP230 • PWM
• Clear easy to read LCD
Battery Operated Smart
• Can be used as room thermostat in a system with other
Programmable Thermostat programmable SALUS thermostats
• ErP Rating IV
PWM IV CO • Fully programmable
• Pre-set override temperatures
1 5/2 7 D • Optional floor temperature sensor
• 230V AC
Power Supply: 2 x AA Batteries • 5 Year Warranty
Scale: 5 °C – 35 °C
Dimensions (mm): L-85 x H-85 x D-25
Product Dimensions Wiring Diagram
S
HTRP230
S2
85 mm
85 mm
3V
2 x AA
S1
85 mm 25 mm
40 SALUS Controls Product BrochureYou can also read
