P R O D U C T C ATA LO G U E
”Our profession, by default, puts on us the responsibility and
obligation to be part of meeting the challenge of halting the
global warming and degradation of the environment. To meet
this challenge, our ultimate goal must be to enable countries,
corporations, companies, institutions, households and individuals
achieve energy independence. Simply put, enable them to own
the power. The solar, and only the solar, has that potential.”
Hamlet Tunyan, CEO
2 WWW.RECOM-SOLAR.COM
TA B L E O F C O N T E N T S
4-9 About RECOM
10-13 PUMA
Shingled Technology
14-19 LION
Heterojunction Technology
20-23 PANTHER
Half-Cut Technology
24-27 JAGUAR
Tri-Cut Technology
WWW.RECOM-SOLAR.COM 3
What Drives Us
At RECOM we think differently and we are committed to the mission before us to lessen humanity’s dependence
on fossil fuel, overcome global imbalances and halt the degradation of our environment.
Renewable sources, ubiquitous and infinitely available, can supply energy evenly to people and communities
across continents and regions, regardless of their wealth and social standing, generate growth and help avoid
economic and military conflicts around the world—and all this in a clean and sustainable environment.
At RECOM we believe in such a future and are at hard work to make solar energy available everywhere and for
everyone. Our aim is to solarize the world energy supply and make clean energy the source for all electricity,
mobility and smart infrastructure of the future.
Our Values
Doing things right is one of our most important values at RECOM. We are committed to providing
high-quality services and products to meet the interests and satisfaction of our consumers. We
provide value for money and deliver the best customer service and experience.
As we aim to achieve our dual goals of exceptional quality and fair price, we are always mindful of our
commitment to act with the highest standard of integrity in all of our business decisions and actions.
Internally, we are ethnically diverse, gender-equal one team, accountable and respectful among
ourselves and towards others. Externally, the respect for human rights, labor laws, fair competition
and environmental considerations are the guiding principles in our choices for outsourcing,
procurement and end users.
Who we are
RECOM is a France based renewable energy company with notable presence in the global solar industry.
RECOM produces modules, cells, inverters, hybrid storage systems, batteries and EV chargers.
RECOM is a leading and the only Bloomberg Tier 1 PV module manufacturer in Europe with 750 MW annual
production capacity and with sales of over 2GW solar modules in 95 countries.
Along to our own manufacturing facility in France and local R&D team, we invest in, and work with leading
global research institutions and manufacturers to innovate, develop, share and commercialize the latest
technological advances in solar module manufacturing. Our primary R&D partner in the area of solar panels is
a leading French research center, the National Institute for Solar Energy (CEA/INES). We also work with other
research centers, universities and manufacturing companies as our portfolio expands. We drive innovation in
unique energy production and storage applications. We pioneer in power and energy storage solutions, as it
comes to skid mounted panel-inverter solutions for residential applications or to utility scale energy solutions.
All our products are designed and engineered in Europe. We are always ahead of the curve and we bring to
consumers the very latest in technology.
4 WWW.RECOM-SOLAR.COM
About RECOM-Sillia

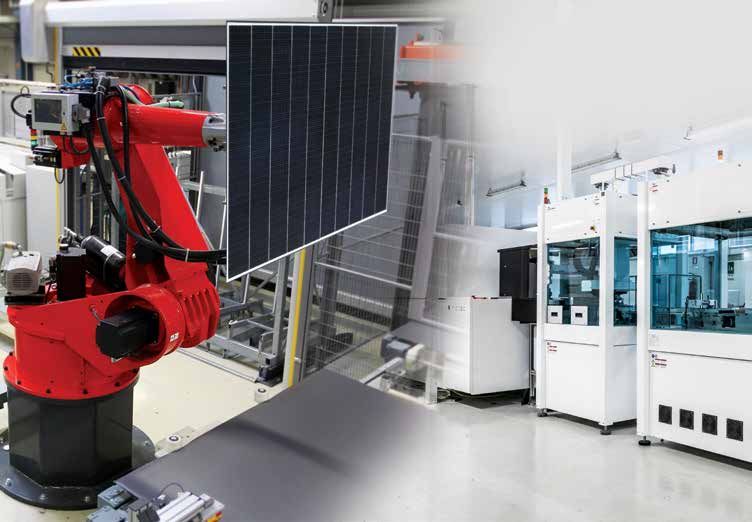

RECOM’s French facility in Lannion, France, (RECOM-SILLIA) is its main manufacturing arm where also
RECOM’s headquarters are housed.
The French facility, SILLIA VL, which was in operation since 1965 under French telecommunications giant
SAGEM–SAFRAN and since 2014 under BOSCH, was acquired by RECOM in 2017. Since then the facility
has been upgraded and upscale with fully automated, state-of-the-art production lines.
Since acquisition, RECOM has heavily invested for the upgrade and the upscale, securing facility’s cost
efficiency, higher output, and lower carbon footprint. RECOM has maintained SILLIA’s labor force, thus
benefiting from decades of long experience, production ethics and highest quality criteria standards.
RECOM-SILLIA has supplied PV modules to some of the most prominent solar projects in France,
developed by the biggest players in the market, such as ENGIE, EDF, URBASOLAR, Tenergie, Total, RES,
CNR, Rexel, Langa, and many others.
RECOM in numbers
> 1 > 2 7bn
GW GW kWh
Production Capacity RECOM modules installed Clean and affordable
globally, enough to power energy replacing 2m
1 million homes. tones of CO 2 emission.
~350 > 95 > 750m
Experienced and qualified Revenues
industry personnel across Countries RECOM PV
many continents. modules installed
WWW.RECOM-SOLAR.COM 5
Sustainability
As a renewable energy and technology company, we are committed to the mission before us to
lessen humanity’s dependence on fossil fuel, overcome global imbalances and halt the degradation
of our environment. As we bring our contribution to the achievement of these goals through our
manufacturing of PV modules, we are conscience of the fact that reckless manufacturing methods and
misuse of production materials may seriously devalue solar’s sustainability.
An important goal of our industry is the reduction of CO2 emissions. This is also the goal we pursue
for ourselves and for our customers. Indeed, sustainability is a number one priority for RECOM
and we pursue and implement the most sustainable solutions everywhere in our operations. From
manufacturing methods and technologies to choice of production materials, waste disposal and
recycling, we are in strict adherence to all EU rules and regulations.
The PV modules produced at our French manufacturing facility
RECOM-Sillia in Lannion (Cotes d’Armor)
are among the lowest carbon foot-print in the industry.
6 WWW.RECOM-SOLAR.COM
RECOM advantages
at a glance
Module Low temperature
efficiency coefficient No LID & PID
over 22% of -0.24% / C*
Gain up to 20% more
>91.25% energy yield, in low- 30 Years Product &
Output After light conditions, in the 30
Output Warranty
30 years morning and evening
hours and even with
cloudy skies.
Reduced
Risk of Micro All products are Low-carbon
Cracks tested and certified footprint Modules
Fast at a Low Cost and
Superior Timely delivery from
Wide variety our Frech Factory or
Aesthetics
European Warehouses
to Your Door
WWW.RECOM-SOLAR.COM 7
If the technology exists,
it’s available at RECOM
• Puma Series Shingled
• Lion Series HJT
• Panther Series Half-cut
• Jaguar Series Tri-cut
8 WWW.RECOM-SOLAR.COM
A Leading European
PV Module Manufacturer
TOP PV BRAND
FRANCE – USA – MENA -VIETNAM – HUNGARY
RECOM won the EuPD Research Sustainable Management
GmbH Award for TOP BRAND PV MODULES
Based on the results of a survey carried out by EuPD Research among
French – USA – MENA – Vietnam – Hungary
installers on brand awareness, customer’s choice and distribution.
RECOM TIER 1
RECOM is the only Bloomberg Tier 1
PV module manufacturer in Europe with
sales of over 2 GW solar modules
in 95 countries.
9
Shingled Technology
S UPE R IOR P E R FOR M AN C E
AN D R E L IAB IL ITY
10 WWW.RECOM-SOLAR.COMPUMA SERIES
SHINGLED TECHNOLOGY
Over 540Wp & Over 660Wp
Shingled technology eliminates traditional ribbon connection with
shingles connected in series. By removing the soldered ribbons, the
active area of the module is improved and thermal stresses are
reduced – resulting in exceptional efficiency and reliability over
standard interconnections.
Puma modules are based on the shingled technology which allow a higher cells
density than standard half-cut modules.
Cells are cut in 5 or 6 pieces, the obtained “shingles” are assembled in strings
by connecting front and rear edges of consecutive shingles with an Electrical
Conductive Adhesive (ECA).
The ECA replaces the Copper Interconnection Ribbons usually soldered on solar
cells, providing a flexible interconnection and avoiding the thermal/mechanical
stresses on the Silicon – Copper interface.
A DVA N TA G E S O F P U M A S H I N G L E D M O D U L E S
HIGHER CELLS DENSITY AND IMPROVED AESTHETICS
The inactive area is considerably reduced, no ribbons and cells gaps on strings
improving the efficiency and aesthetic in full black modules.
LOWER RESISTIVE LOSSES AND THERMAL COEFFICIENT
The resistive losses in strings are considerably decreased thanks to the lower
current of shingles (1/5 or 1/6 of the original cell) and the lack of interconnection
Reduced Risk ribbons in strings, improving at the same time the performance at high
Of Micro Cracks temperatures.
REDUCED RISK OF MICRO CRACKS
The replacement of soldered ribbons with a low temperature and flexible ECA
decreases thermal stresses during the modules production and operation,
decreasing the risk of micro cracks formation.
Mechanical stresses (e.g. snow load) are relieved by the flexible interconnection,
improving the reliability in harsh environments (as reflected in the increased
warranty provided).
0,34
WWW.RECOM-SOLAR.COM 11B LO O M B E R G N E F T I E R # 1
SH I N G L E D T E CH N O LO G Y

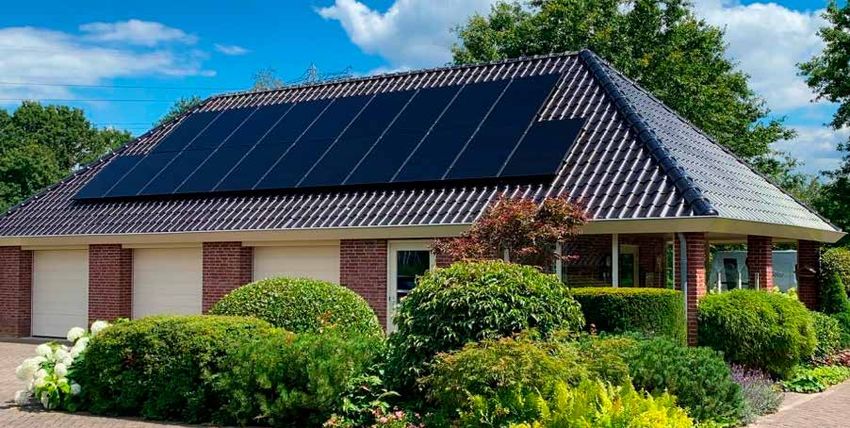

SMALL SIZE FOR ROOF TOP INSTALLATION
The PUMA module with power class over 540 Wp,
efficiency up to 21,8% and 25 years product & output
warranty is:
• Best “Value for money” choice
• Ideal for rooftop installations (in the same size of
the rooftop, more power can be installed compared
to standard modules)
• Low LCOE
FOR COMMERCIAL & UTILITY INSTALLATIONS
The PUMA module with power class over 660Wp,
efficiency up to 21,8% and 25 years product & output
warranty.
Great appearance
BLEND PERFECTLY
WITH THE ROOFTOP
12 WWW.RECOM-SOLAR.COMPUMA SERIES
25 YEARS 87,2% PERFORMANCE
KEY BENEFITS
PRODUCT OUTPUT WARRANTY
25
WARRANTY AFTER 25 YEARS
MODULE REDUCED
EFFICIENCY TRANSPORTATION
UP TO 21,8% COSTS
OVER 60WP MORE COMPARED
TO STANDARD MODULES
P E R F O R M A N C E AT HIGH TEMPERATURES
PEAK POWER MODULE TEMPERATURE
Up to 660 Wp EFFICIENCY 21,8% RATIO - 0,34 %/°C
HIGHER OUTPUT
IN HOT CLIMATE Specific yield (kWh/kWp) due to
low temperature coefficient
MORE EFFICIENT
SPACE UTILIZATION Space required for 1MWp
of PUMA modules
HIGHER GENERATION
PER UNIT AREA PV plant Yield /sq.m.
in Hot Climate
OVERALL COST EFFICIENT
Lower logistics costs Lower installation BOS costs: The total installed peak power
+16% kWp per 40’ HC -13% modules to be installed may be increased by 3,3%
container due to the higher efficiency and
power of shingled modules
WWW.RECOM-SOLAR.COM 13Heterojunction Technology
T H E N E X T G E N E R AT I O N
OF PV MODULES
14 WWW.RECOM-SOLAR.COMLION SERIES
HETEROJUNCTION TECHNOLOGY
Over 700Wp
Lion series are based on Heterojunction (HJT) technology.
HJT solar cell is composed of a mono thin crystalline silicon wafer
surrounded by ultra-thin amorphous silicon layers.
HJT technology guarantees high performance and low degradation
of the module, substantially improving its ef ficiency .
Heterojunction (HJT) photovoltaic module is a Ground breaking
Technology. HJT technology guarantees high performance and low
degradation of the PV module, substantially improving the results
and the yield in the time.
Lion series reach over 700Wp power, 7% higher compared to
standard PV modules
ADVANTAGES OF LION HETEROJUNCTION MODULES
In STC condition, due to the Tandem technology, HJT modules have higher
efficiency at least by 1% compared to other technologies. HJT is active on
both UV and Infrared wavelengths and has a higher light output.
NO LID&PID effects, thus HJT has no Power loss against 1% first year
(LID) and up to 5% after with PID syndrome in standard mono perc
module
Over 22% Module
Ef ficiency
WWW.RECOM-SOLAR.COM 15B LO O M B E R G N E F T I E R # 1
HETEROJUNCTION
TECHNOLOGY
LOW DEGRADATION
Lion series modules use HJT cell
Technology, which have lower
degradation than Mono PERC panels.
More stable and sustainable electricity
production.
Power yield ≥ 95% after 15 years, ≥ 92,5%
after 25 years and ≥ 91,25% after 30 years.
HIGHER PERFORMANCE
Gain up to 20% more energy yield, in low-ligh
conditions, in the morning an evening hours
and with cloudy skies
Great appearance
BLEND PERFECTLY
WITH THE ROOFTOP
16 WWW.RECOM-SOLAR.COMLION SERIES
KEY BENEFITS
30 Years Product &
30
Output Warranty
Low Temperature High Bifaciality
Coefficient -0,24% /oC
No LID & PI D 10 %-35 % Power
generation gain
10,% IN
MODULE
EFFICIENCY
PERFORMANCE AT HIGH TEMPERATURES
HIGHER OUTPUT
IN HOT CLIMATE
+ 1,8 %
Specific yield (kWh/kWp) due to
low temperature coefficient
MORE EFFICIENT
SPACE UTILIZATION
- 6,3 %
Space required for 1MWp
of PUMA modules
HIGHER GENERATION
PER UNIT AREA
- 5,9 %
PV plant Yield /sq.m.
in Hot Climate
HIGHER BIFACIAL
FACTOR
+ 4,0 %
Project installed with
Sand soil Aldedo
LOWER
POWER LOSS
+ 5,6 %
PV plant Yield in 30 years of using
WWW.RECOM-SOLAR.COM 17B LO O M B E R G N E F T I E R # 1
Scenario Analysis 1 1000002 (250*400m)Fixed area
GROUND POWER PLANT
BOS cost analysis
Fixed adjustable mounting system , longitudinal double row 2P,30% sand reflectivity，
Extremely low Environmental Temperature 9℃
Cell size/Layout 166mm /120pcs 210mm /132pcs
Lion Series L Brand Lion Series Η Brand
Module Perc Half-cut Perc Half-cut
HJT Half-cut HJT Half-cut
Power（W） 375 375 700 670
conversion efficiency（%） 19.98% 20.59% 22.53% 21.57%
Installed capacity（MW） 11.09 10.71 12.15 11.22
30-year power generation
589247 501568 643358 547095
Power with the same area
generation
30-year cumulative
increase rate
17.48% benchmark 17.60% benchmark
Land cost -3.53% benchmark -8.35% benchmark
Combiner box & cable
BOS cost costs -4.78% benchmark -4.54% benchmark
Variable BOS cost -0.42% benchmark -4.39% benchmark
LCOE 0.1957 0.2110 0.1872 0.1954
LCOE
LCOE calculation -7.82% benchmark -4.4% benchmark
• Improved energy yield for 30 years: +17.6%
• Land cost saving: -8.35%
• Combiner box & cable costs: -4.78%
• Variable BOS cost: -4.39%
• LCOE reduce: -7.82%
18 WWW.RECOM-SOLAR.COMLION SERIES
100002(100*100m) Fixed area
Scenario Analysis 2 Industrial and commercial roof
ROOF POWER PLANT
BOS cost analysis
Fixed adjustable roof mounting system , longitudinal double row 2P,70% sand reflectivity
Extremely low Environmental Temperature -5℃
Lion series L Brand Lion series Η Brand
Module
HJT Half-cut Perc Half-cut HJT shingled all black Perc Half-cut
Cell size/Layout 166mm/120pcs 166mm/120pcs 158.75mm/132pcs 210mm/120pcs
Power（W） 385 375 415 405
Efficiency（%） 20.51% 20.59% 21.17% 21.07%
Installed capacity（MW） 1.11 0.77 0.79 0.83
30-year power generation
43567 36791 31057 27504
with the same area
30-year cumulative
increase rate 18.42% benchmark 12.92% benchmark
Roof cost -1.48% benchmark -.89% benchmark
LCOE 0.2629 0.2880 0.3793 0.3964
LCOE calculation -9.58% benchmark -4.51% benchmark
• Improved energy yield for 30 years: +18.42%
• Land cost saving: -1.89%
• LCOE reduce: -9.52%
LOWEST TEMPERATURE COEFFICIENT
Lion series modules with HJT • Amorphous silicon (a-Si) has less power loss due to the temperature
and reduce the thermal powercoefficient of the HJT (compared to single
cell Technology, perform at high Monocrystalline composition).
environmental temperature.
• At the operating temperature of 50 ° C, Lion series has better Efficiency
than standard modules
WWW.RECOM-SOLAR.COM 19Half-Cut Technology
A DVA N C E D T E C H N O L O G Y
& S UP E R IOR QUA L ITY
20 WWW.RECOM-SOLAR.COMPA N T H E R S E R I E S
HALF-CUT TECHNOLOGY
Over 410Wp & Over 655Wp
ADVANTAGES OF PANTHER HALF-CUT MODULES
Ground breaking technology; higher power output.
improved system performance – the ideal solution
for end users who want a fast turnaround on their
investments. A fully certified premium quality and high
Low Pmax efficiency module made with A Grade materials.
WWW.RECOM-SOLAR.COM 21B LO O M B E R G N E F T I E R # 1
MONO CRYSTALLINE HALF-CUT MODULE
Recom proposes PV modules size according
to the customer requirements. Recom uses
several cell sizes like:
• G1: 158.75mm
• M6: 166mm
• M10: 182mm
• G12: 210mm
Great appearance
BLEND PERFECTLY
WITH THE ROOFTOP
22 WWW.RECOM-SOLAR.COMPA N T H E R S E R I E S
KEY BENEFITS
PERFORMANCE AT HIGH TEMPERATURES
HIGHER OUTPUT MORE EFFICIENT HIGHER GENERATION
IN HOT CLIMATE SPACE UTILIZATION PER UNIT AREA
Half-Cut Modules Technology
WWW.RECOM-SOLAR.COM 23Tri-Cut Technology
HIGHER CELLS DENSITY
& IMPROVED AESTHETICS
24 WWW.RECOM-SOLAR.COMJAG UA R S E R I E S
TRI-CUT TECHNOLOGY
Over 360Wp & Over 440Wp
Tri-Cut Technology (TCC) reduces resistive power losses.
The Extended Matrix-Interconnection Technology minimizes power
loss due to shading effect.
The 0 Gap Technology increases the active area and leads to higher
efficiency.
The Jaguar Series with efficiency up to 20,81% and power class up to 445 Wp is
an ideal solution for area constrained installations or to optimize the Balance
of System by decreasing the installation costs.
The combination of high Vmp and lower Imp improves the performances of PV
plants by decreasing the resistive losses in modules interconnections.
The internal electrical structure improves the resilience to localized shadowing
and the modules reliability. stresses on the Silicon - Copper interface.
ADVANTAGES OF JAGUAR SHINGLED MODULES
HIGHER CELLS DENSITY AND IMPROVED AESTHETICS
The inactive area is considerably reduced, no ribbons and cells gaps on strings
improving the efficiency and aesthetic in full black modules.
LOWER RESISTIVE LOSSES AND THERMAL COEFFICIENT
• 0,30% / °C Power Temperature Coefficient
• 240 cells module Output Power equivalent to an 80 full cell module
Low Pmax • Better performance with shading and reduced risk of hot spot
at - 0,30%/ OC RECOM Tri-Cut Zero - Gap Technology Jaguar Series allows the complete
removal of the inactive area between solar cells of the same string, minimizes
power loss due to shading effect, neutralizes the risk of Hot Spot, and increases
performance due to low Temperature Co-efficient -0,30%o C
WWW.RECOM-SOLAR.COM 25B LO O M B E R G N E F T I E R # 1
TRI-CUT TECHNOLOGY
0-GAP TECHNOLOGY
The module efficiency is improved by
increasing the Active area. The 0-Gap
technology allows the complete
removal of the Inactive area between
solar cells of the same string.
The Tri-Cut technology: by splitting
cells in three parts (and thus
decreasing to 1/3 the current)
pushes forward the efficiency limit
of Half-Cut modules.
Tri-Cut Cell 33% Current
P. Tri-Cut
Loss decreased to 11%
Cell 33% Current
P. Loss decreased to 11%
Great appearance
BLEND PERFECTLY
WITH THE ROOFTOP
26 WWW.RECOM-SOLAR.COMJAG UA R S E R I E S
KEY BENEFITS
PERFORMANCE AT HIGH TEMPERATURES
HIGHER OUTPUT
IN HOT CLIMATE
MORE EFFICIENT
SPACE UTILIZATION
HIGHER GENERATION
PER UNIT AREA
WWW.RECOM-SOLAR.COM 27WE WORK WITH AND FOR THE WORLD
JOIN US
WWW.RECOM-SOLAR.COM
USA GERMANY FRANCE ITALY
580 California Street, Speditionstraße 21 4 Avenue Via dell’ Artigianato, Z. I.,
12th & 16th Floors Düsseldorf, Pierre Marzin Vanzo di San Pietro
San Francisco, California 40221 22303 Lannion Viminario,
CA 94104 Germany France PD 35020
info@recom-solar.com info@recom-solar.com contact@recom-sillia.com Italy
T: +1 (415) 568 2112 T: +49 211 88231669 T: +33 0296058050 info@recom-solar.com
SINGAPORE GREECE CYPRUS U.A.E.
Level 39, Tower 2 1 Poseidonos Str. 18 Kyriakou Matsi Str. The Metropolis Tower
Marina Bay Financial Centre 17342, Ag. Dimitrios 2nd Floor, 2408 Egkomi Office
10 Marina Boulevard Athens Nicosia, Cyprus 2015
018983 Singapore Greece info@recom-solar.com Bussiness Bay, Dubai
info@recom-solar.com info@recom-solar.com T: +357 22282416 T: +971 585 8070 34
T: +65 68186030 T: +30 2182189858 T: +65 68186030 info@recom-solar.comYou can also read
