PRODUCT GUIDE
EXPERIENCE THE AUGER TORQUE DIFFERENCE
AUSTRALIA
ISSUE 14-01
Auger Torque USA Auger Torque China
CHELTENHAM
A Customer-Driven
BUFFALO
ATLANTA
Global Company NINGBO
Established in Europe in 1998, Auger Torque has created a new
standard in the Earth Drill and Trencher Attachment market by putting
you, the customer, at the centre of everything we do.
In 2005, after surveying the market carefully, we released a new range
of innovative products, designed to provide unrivalled reliability and cost
effective operation.
TAHITI
Auger Torque is proud to have become part of the Kinshofer Group of
companies in 2015. With the backing of the German attachments giant BRISBANE
Auger Torque has since enjoyed even greater growth in all areas of its
business operations. MELBOURNE
Auger Torque’s five manufacturing bases around the globe are busy
satisfying the ever-growing demand for high-quality products in over
seventy countries and on all seven continents.
Auger Torque Europe Auger Torque - A manufacturing company with Global distribution and Auger Torque Australia
dealer networks.
2 www.augertorque.com.au
INDEX
EARTH DRILLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
AUGERS & WEAR PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
HARD ROCK AUGER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

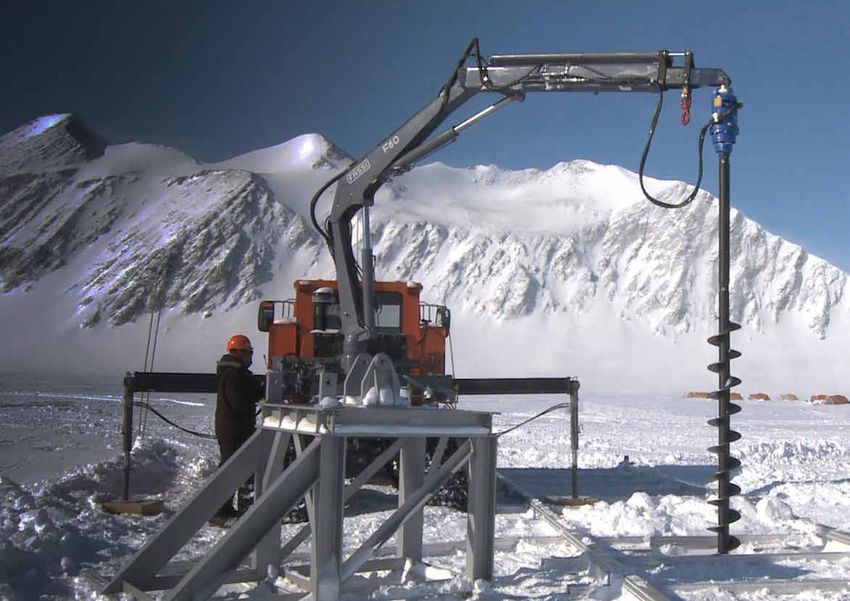

TRUCK CRANES & ROPE WIND HITCH. . . . . . . . . . . . . . . . . . . . . . . . . . 40
MAST-BASED DRILLING RIG. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
XHT SCREW PILE TORQUE HEADS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
ALIGNMENT MONITOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
TORQUE MONITOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
TRENCHERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
ALUMINIUM RAMPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
PALLET FORKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
MIXER BOWLS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
HEDGE TRIMMERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
STUMP PLANERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
MULCHERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
3
Innovation
Innovation and Special Features
Robust Construction
DURABILITY
Manufactured from high
Planetary Gearbox
POWER
Designed, manufactured and
assembled by Auger Torque
Torque amplified
Telescopic Extensions
ADAPTABILITY
Improves efficiency for deep
grade materials and precision hole drilling
High efficiency
engineered components Innovative design significantly
Extreme durability reduces swap-over time
Designed to withstand extreme
working conditions Easy adjustment to 3 heights
High grade synthetic gear oil Available for S5, S6 and
used for extra protection and
Shallow Pitch Flights
PA augers
EFFICIENCY
long service life
Piling industry technology
Holds earth on flights on removal Constant Spiral Cut
IMPROVED PRODUCTIVITY
Most efficient ratio between
quantity of earth removed and Fresh cut every revolution
speed of operation Tooth holders angled to
Non-Dislodgement Shaft
SECURITY direct spoil onto auger
flights efficiently
Unique design
Spoil broken up thoroughly
Single piece drive shaft Pilots
TOUGHNESS & ACCURACY Avoids clogging
Lifetime warranty against shaft
dislodgement Earth, Tungsten, Extra Dig and
Rock Pilots
Tough forged construction
Easy fitting
4 www.augertorque.com.au
n Sometimes it’s the simple ideas that
work best and Auger Torque has always
led the industry with creative design. In a
world where maximising profit is vital to
any business, we believe that our range
of high quality attachments will allow
you to exploit the full potential of your
existing plant.
5
Designed
Designed for Your Environment

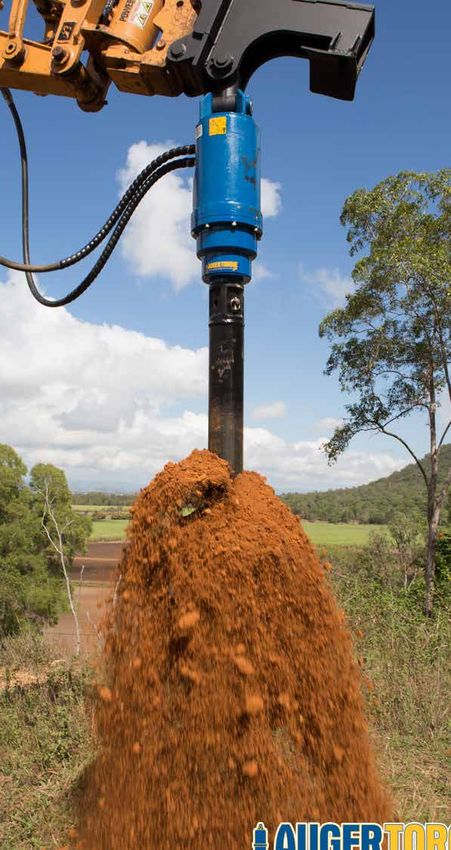

EARTH DRILLS
Applications include:
Fencing
TRENCHERS
Applications include:
Drainage
At Auger Torque we realise that one of
the best ways to continually improve our
extensive range of quality attachments
is to not only listen to customer feedback
but to put practical ideas into production.
This policy of direct customer involvement
has given us the reputation of being the
specialists in the trenching and auger drive
industry world-wide.
Landscaping Irrigation
Tree planting Ground source heat pumps
Well boring Fibre optic installations
Foundation piles Electrical cable installations
Screw pile installations Narrow strip foundations
Ground source heat pumps Gas and water piping
New products featuring the Our R&D Test Facility puts our attachments
Pole and mast installations latest technology ensure that we through rigorous test procedures that
are able to maximise your efficiency. exceed real-life demands.
Road signage
Sound barriers
Exploration and research
Our products incorporate many
development features. The trench cleaner
on our Trencher Attachments ensures a
good clean cut with no residual spoil. Quality is at the forefront of our philosophy. All of our gearboxes use precision
engineered components.
6 www.augertorque.com.au
d Tooth Locking System
Are you tired of losing your teeth down the hole?
With our patented Shock Lock™ Tooth Locking System this is
now a thing of the past. Using the Shock Lock™ pin and rubber
insert in our unique Shock Lock™ tooth holders ensures your
Auger teeth are safely locked in place and protected against
shock fractures.
Replacing worn teeth is a breeze with this system, simply knock
out the old pin with a standard hole punch and the tooth will
slide out of the pocket with ease.
Acclaimed as the best system on the market you will never need
to worry about fitting spare teeth due to loss again.
International Patents:
British Patent: 2404935
European Patent: 1507061
German Patent: 60 2004 009 250-9
Australian Patent: 2004203825
Canadian Patent: 2478443
“Don’t leave US Patent: 7383901
your teeth Patented
Design
down the hole!”
7

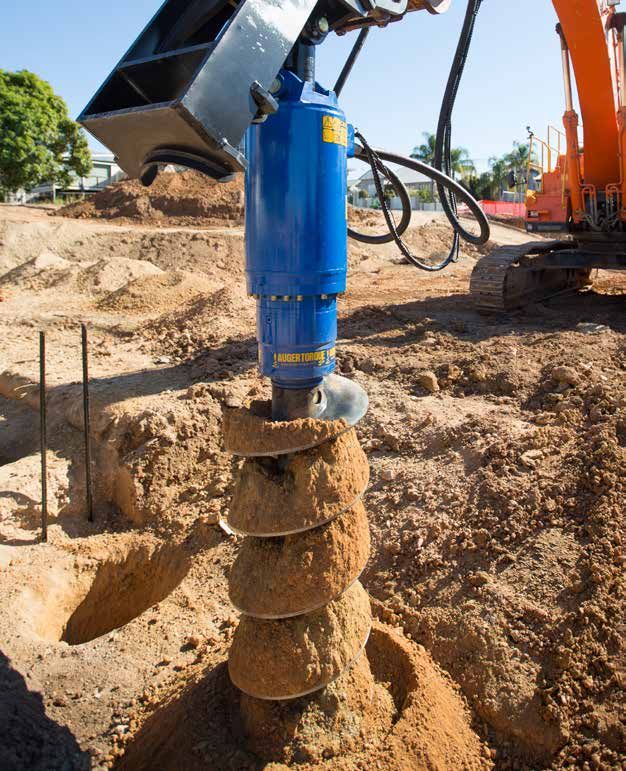

EARTH DRILLS
Features of our Earth Drills
FORGED HOOD EARS EPICYCLIC GEARBOX
Standard with all Earth Drills in areas Torque is amplified by using the unique
that we know will take a lot of strain. Auger Torque planetary gearbox. This
All hood pins are locked for extra system allows the motors output
safety making it impossible for the torque to be multiplied with extreme
hood to detach from your hitch. efficiency as well as ensuring the
durability and reliability you need.
HOSES & ADAPTORS
All Earth Drills come standard with
NON-DISLODGEMENT
high quality hoses and adaptors SHAFT
(excludes larger units. QRC’s not Unique to Auger Torque, the Non-
included). Dislodgement Shaft is a single piece
drive shaft assembled top down and
HIGH QUALITY
locked into the Earth Drill housing.
HYDRAULIC MOTORS
This design guarantees that the shaft
Auger Torque’s huge buying power will never fall out, making for a safer
means we work closely with high work environment, not only for the
quality suppliers to develop the most operator but also any surrounding
reliable attachments available on the workers, a MUST-HAVE FEATURE for
market today. any safety conscious company.
8 www.augertorque.com.au
AUGER SUMMARY
MICRO EXCAVATORS 0.75 - 1 TONNE
Full technical details of Augers, Extensions
and Wear Parts can be found in the Auger
section of this brochure.
MICRO EXCAVATORS
0.75 - 1 T S2 AUGERS
S2 AUGERS Auger Torque S2 Augers feature extra long flighted
100mm-300mm Dia sections of shallow pitch flights. The Augers are
fitted with Earth Teeth and an Earth Pilot.
Torque Range: 189-1,164 Nm Available as standard in the following diameters:
Oil Pressure Range: 30-185 Bar
100mm 200mm 250mm
Oil Flow Range: 15-32 lpm 150mm 225mm 300mm
Speed Range: 38-81 rpm
Unit Height: 450mm
Unit Diameter: 168mm
SHOWN: SHOWN:
Unit Weight: 35 kg
S2 100mm Dia, S2 300mm Dia,
Single Pin Hitch Output Shaft: 50mm Round 0.9M Length** 0.9M Length**
Stihl Shock LockTM Shock LockTM
IDEAL FOR FENCING
The Output Shaft on
The Earth Drill 1200 is Auger
the 1200 Earth Drill can
accept the Stihl coupling Torque’s entry level model
directly to the shaft. however its compact size
and robust construction
and ability to turn a 300mm
50mm Stihl Auger make it very popular
Round Coupling in the fencing industry.
GUIDE TO DRILLING PERFORMANCE*
AUGER DRILLING DEPTH METRES**
DIA
(mm) SOFT MEDIUM
100 0.9M 0.9M
150 Tooth Locking System
200 UNIQUE
DON’T LEAVE
225 0.9M 0.9M
YOUR TEETH
250 0.9M 0.9M DOWN THE
HOLE!
300 0.9M 0.9M
*These charts have been created as a guide only. Actual
performance figures may differ. ** Auger lengths stated
** The data shown has been obtained, by Auger Torque, in a include fitted wear parts.
controlled environment. Auger Torque cannot guarantee that this
environment can be replicated and as such cannot accept liability
if these figures cannot be achieved.
***Any data or specification contained within this documentation
may be subject to change without prior notification.
For further information please contact your authorised Auger
Torque distributor.
9

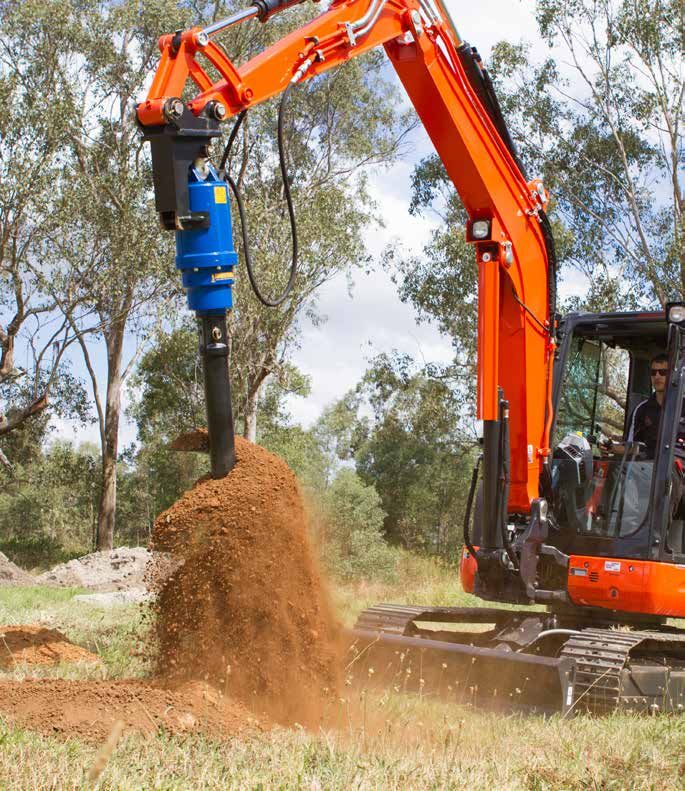

MINI EXCAVATORS MINI EXCAVATORS MINI EXCAVATORS MINI EXCAVATORS
1-2T 1 - 2.5 T 1.5 - 3 T 2-4T
S4 AUGERS S4 AUGERS S4 AUGERS S4 AUGERS
100mm-400mm Dia 100mm-450mm Dia 100mm-500mm Dia 100mm-600mm Dia
Torque Range: 511-1,496 Nm Torque Range: 639-2,190 Nm Torque Range: 830-2,847 Nm Torque Range: 959-2,877 Nm
Oil Pressure Range: 70-205 Bar Oil Pressure Range: 70-240 Bar Oil Pressure Range: 70-240 Bar Oil Pressure Range: 80-240 Bar
Oil Flow Range: 20-45 lpm Oil Flow Range: 25-57 lpm Oil Flow Range: 27-65 lpm Oil Flow Range: 27-75 lpm
Speed Range: 44-98 rpm Speed Range: 43-99 rpm Speed Range: 36-87 rpm Speed Range: 36-100 rpm
Unit Height: 585 mm Unit Height: 585 mm Unit Height: 585 mm Unit Height: 665mm
Unit Diameter: 200 mm Unit Diameter: 200 mm Unit Diameter: 200 mm Unit Diameter: 244mm
Single Pin Hitch Unit Weight: 46 kg Single Pin Hitch Unit Weight: 47 kg Single Pin Hitch Unit Weight: 48 kg Unit Weight: 71 kg
Single Pin Hitch
Hitch Options: Single Pin Hitch Hitch Options: Single Pin Hitch Hitch Options: Single Pin Hitch Hitch Options: Single Pin Hitch
Double Pin Hitch Double Pin Hitch Double Pin Hitch Double Pin Hitch
Cradle Hitch Cradle Hitch Cradle Hitch Cradle Hitch
Output Shaft: 65mm Round Output Shaft: 65mm Round Output Shaft: 65mm Round Output Shaft: 65mm Round
Double Pin Hitch (Output Shaft adaptors available) Double Pin Hitch (Output Shaft adaptors available) Double Pin Hitch (Output Shaft adaptors available) (Output Shaft adaptors available)
Double Pin Hitch
65mm 65mm 65mm 65mm
Round Round Round Round
Double Pin Double Pin Double Pin
Cradle Hitch Cradle Hitch Cradle Hitch Double Pin
Cradle Hitch
GUIDE TO DRILLING PERFORMANCE*
GUIDE TO DRILLING PERFORMANCE*
GUIDE TO DRILLING PERFORMANCE*
GUIDE TO DRILLING PERFORMANCE*
AUGER DRILLING DEPTH IN METRES** AUGER DRILLING DEPTH IN METRES** AUGER DRILLING DEPTH IN METRES** AUGER DRILLING DEPTH IN METRES**
DIA DIA DIA DIA
(mm) SOFT MEDIUM HARD (mm) SOFT MEDIUM HARD (mm) SOFT MEDIUM HARD (mm) SOFT MEDIUM HARD
100 2M 1.8M 1.6M 100 2.2M 2M 1.8M 100 2.5M 2.3M 2.1M 100 3M 2.7M 2.4M
150 2M 1.8M 1.6M 150 150 150
200 1.8M 1.6M 1.4M 200 200 200
225 1.8M 1.6M 1.4M 225 225 225
250 1.5M 1.4M 1.3M 250 250 250
300 1.5M 1.4M 1.3M 300 2.2M 2M 1.8M 300 2.5M 2.3M 2.1M 300
350 1.5M 1.4M 1.3M 350 2M 1.8M 1.6M 350 2.3M 2.1M 1.9M 350
400 1.2M 1.1M 1M 400 1.5M 1.4M 1.3M 400 1.9M 1.7M 1.5M 400 3M 2.7M 2.4M
450 1.2M 1.1M 1M 450 1.7M 1.5M 1.4M 450 2.6M 2.3M 2.1M
500 1.5M 1.4M 1.3M 500 2.3M 2.1M 1.9M
600 1.8M 1.6M 1.4M
*These charts have been created as a guide only. Actual performance figures may differ.
10 www.augertorque.com.au ** The data shown has been obtained, by Auger Torque, in a controlled environment. Auger Torque cannot guarantee
that this environment can be replicated and as such cannot accept liability if these figures cannot be achieved.
***Any data or specification contained within this documentation may be subject to change without prior notification.
For further information please contact your authorised Auger Torque distributor.AUGER SUMMARY
MINI EXCAVATORS 1 - 5 TONNES
Full technical details of Augers, Extensions and Wear Parts
can be found in the Auger section of this brochure.
MINI EXCAVATORS MINI EXCAVATORS S4 AUGERS S4 EXTENSIONS
2.5 - 4.5 T 3-5T Auger Torque S4 Augers feature extra long flighted S4 Auger Extensions
S4 AUGERS S4 AUGERS sections of shallow pitch flights. Earth, Tungsten and are available in the
100mm-750mm Dia 100mm-900mm Dia Extra Dig variations are available. following lengths:
Available as standard in the following diameters:
500mm
Torque Range: 1,205-3,614 Nm Torque Range: 1,574-4,721 Nm 100mm 300mm 600mm
Oil Pressure Range: 80-240 Bar Oil Pressure Range: 80-240 Bar 1M
150mm 375mm 750mm
Oil Flow Range: 40-85 lpm Oil Flow Range: 50-95 lpm (other lengths on request)
200mm 400mm 800mm
Speed Range: 42-90 rpm Speed Range: 40-77 rpm
225mm 450mm 900mm
Unit Height: 665mm Unit Height: 665mm
Unit Diameter: 244mm Unit Diameter: 244mm
250mm 500mm
Unit Weight: 73 kg Unit Weight: 75 kg
Single Pin Hitch Single Pin Hitch
Hitch Options: Single Pin Hitch Hitch Options: Single Pin Hitch
Double Pin Hitch Double Pin Hitch SHOWN: SHOWN: SHOWN:
Cradle Hitch Cradle Hitch S4 100mm Dia, S4 900mm Dia, S4 1M
1.2M Length** 1.2M Length** Extension
Output Shaft: 65mm Round Output Shaft: 65mm Round Shock LockTM Shock LockTM
Double Pin Hitch (Output Shaft adaptors available) Double Pin Hitch (Output Shaft adaptors available)
65mm 65mm
Round Round
Double Pin Cradle Hitch Double Pin Cradle Hitch
GUIDE TO DRILLING PERFORMANCE*
GUIDE TO DRILLING PERFORMANCE*
AUGER DRILLING DEPTH IN METRES** AUGER DRILLING DEPTH IN METRES**
DIA DIA
(mm) SOFT MEDIUM HARD (mm) SOFT MEDIUM HARD
100 3M 2.7M 2.4M 100 4M 3.6M 3.2M
150 150
200 200
225 225
250 250 UNIQUE
300 300
350 350
Tooth Locking System
400 400 DON’T LEAVE YOUR TEETH
DOWN THE HOLE!
450 450
500 500
600 2.9M 2.6M 2.3M 600 4M 3.6M 3.2M
** Auger lengths stated
750 1.8M 1.6M 1.4M 750 2.5M 2.3M 2.1M include fitted wear parts.
800 2M 1.8M 1.6M
900 1.5M 1.4M 1.3M
11EXCAVATORS 4.5 - 6 T EXCAVATORS 4.5 - 6 T EXCAVATORS 5 - 7 T EXCAVATORS 6 - 8 T
S5 AUGERS S5 AUGERS S5 AUGERS S5 AUGERS
150mm-750mm Dia 150mm-750mm Dia 150mm-900mm Dia 150mm-1.2M Dia
Torque Range: 1,685-5,056 Nm Torque Range: 1,685-5,477 Nm Torque Range: 2,133-6,931 Nm Torque Range: 2,717-8,152 Nm
Oil Pressure Range: 80-240 Bar Oil Pressure Range: 80-260 Bar Oil Pressure Range: 80-260 Bar Oil Pressure Range: 80-240 Bar
Oil Flow Range: 40-95 lpm Oil Flow Range: 40-115 lpm Oil Flow Range: 60-135 lpm Oil Flow Range: 70-150 lpm
Speed Range: 27-65 rpm Speed Range: 30-87 rpm Speed Range: 36-81 rpm Speed Range: 33-70 rpm
Unit Height: 780mm Unit Height: 780mm Unit Height: 780mm Unit Height: 780mm
Unit Diameter: 269mm Unit Diameter: 269mm Unit Diameter: 269mm Unit Diameter: 269mm
Unit Weight: 108 kg Unit Weight: 108 kg Unit Weight: 112 kg Unit Weight: 116 kg
Hitch Options: Double Pin Hitch Hitch Options: Double Pin Hitch Hitch Options: Double Pin Hitch Hitch Options: Double Pin Hitch
Cradle Hitch Cradle Hitch Cradle Hitch Cradle Hitch
Output Shaft Std: 75mm Square Output Shaft Std: 75mm Square Output Shaft Std: 75mm Square Output Shaft Std: 75mm Square
Double Pin Hitch Double Pin Hitch Double Pin Hitch Double Pin Hitch
(Output Shaft adaptors available) (Output Shaft adaptors available) (Output Shaft adaptors available) (Output Shaft adaptors available)
75mm 75mm 75mm 75mm
Cradle Hitch Square Cradle Hitch Square Cradle Hitch Square Cradle Hitch Square
GUIDE TO DRILLING PERFORMANCE*
GUIDE TO DRILLING PERFORMANCE*
GUIDE TO DRILLING PERFORMANCE*
GUIDE TO DRILLING PERFORMANCE*
AUGER DRILLING DEPTH IN METRES** AUGER DRILLING DEPTH IN METRES** AUGER DRILLING DEPTH IN METRES** AUGER DRILLING DEPTH IN METRES**
DIA DIA DIA DIA
(mm) SOFT MEDIUM HARD (mm) SOFT MEDIUM HARD (mm) SOFT MEDIUM HARD (mm) SOFT MEDIUM HARD
150 4M 3.6M 3.2M 150 4M 3.6M 3.2M 150 5M 4.5M 4.1M 150 6M 5.4M 4.9M
200 200 200 200
225 225 225 225
250 250 250 250
300 300 300 300
350 350 350 350
400 400 400 400 6M 5.4M 4.9M
450 450 450 450 5M 4.5M 4.1M
500 500 500 5M 4.5M 4.1M 500 5M 4.5M 4.1M
600 4M 3.6M 3.2M 600 4M 3.6M 3.2M 600 4M 3.6M 3.2M 600 5M 4.5M 4.1M
750 3M 2.7M 2.4M 750 3M 2.7M 2.4M 750 3.5M 3.2M 2.9M 750 4M 3.6M 3.2M
800 3M 2.7M 2.4M 800 4M 3.6M 3.2M
900 2.5M 2.3M 2.1M 900 3.5M 3.2M 2.9M
1000 3.5M 3.2M 2.9M
1200 3M 2.7M 2.4M
*These charts have been created as a guide only. Actual performance figures may differ.
12 www.augertorque.com.au ** The data shown has been obtained, by Auger Torque, in a controlled environment. Auger Torque cannot guarantee
that this environment can be replicated and as such cannot accept liability if these figures cannot be achieved.
***Any data or specification contained within this documentation may be subject to change without prior notification.
For further information please contact your authorised Auger Torque distributor.AUGER SUMMARY
EXCAVATORS 4.5 - 8 TONNES
Full technical details of Augers, Extensions and Wear Parts
can be found in the Auger section of this brochure.
S5 AUGERS S5 EXTENSIONS
Auger Torque S5 Augers feature extra long flighted Available in the
sections of shallow pitch flights. Earth, Tungsten and following lengths:
Rock variations are available. 1M 1.5M
Available as standard in the following diameters: 2M
150mm 350mm 750mm
200mm 400mm 800mm S5 TELESCOPIC
225mm 450mm 900mm Available in the
250mm 500mm 1M following lengths:
300mm 600mm 1.2M 1.5M 2M
SHOWN: SHOWN: SHOWN:
S5 150mm Dia, S5 1M Dia, S5 1.5M Extension
1.5M Length 1.5M Length S5 1.5M Telescopic
Shock LockTM Shock LockTM
Rock Augers are Rock Augers are Note:
S5 Telescopic
also available. also available. extensions only
suitable for
torques up to
16,000Nm.
S5 Telescopic
extensions not
suitable for
150 - 250mm
diameter augers.
UNIQUE
Augers shown feature
Shock LockTM Toothholders.
Tooth Locking System
Rock Teeth Augers are also
DON’T LEAVE YOUR TEETH available.
DOWN THE HOLE!
13BACKHOES EXCAVATORS 10 - 15 T
S6 AUGERS S6 AUGERS
150mm-900mm Dia 150mm-1.2M Dia
Torque Range: 3,281-10,662 Nm Torque Range: 5,024-15,071 Nm
Oil Pressure Range: 80-260 Bar Oil Pressure Range: 80-240 Bar
Oil Flow Range: 70-150 lpm Oil Flow Range: 80-170 lpm
Speed Range: 27-58 rpm Speed Range: 20-43 rpm
Unit Height: 883mm Unit Height: 930mm
Unit Diameter: 290mm Unit Diameter: 290mm
Unit Weight: 162 kg Unit Weight: 173 kg
Hitch Options: Double Pin Hitch Hitch Options: Double Pin Hitch
Cradle Hitch Cradle Hitch
Output Shaft: 75mm Square Output Shaft Std: 75mm Square
GUIDE TO DRILLING PERFORMANCE*
GUIDE TO DRILLING PERFORMANCE*
AUGER DRILLING DEPTH IN METRES** AUGER DRILLING DEPTH IN METRES**
DIA DIA
(mm) SOFT MEDIUM HARD (mm) SOFT MEDIUM HARD
150 6.5M 5.9M 5.3M 150 7.5M 6.8M 6.1M
200 200
225 Double Pin 225 Double Pin
Cradle Hitch Cradle Hitch
250 250
300 300
350 350
400 6.5M 5.9M 5.3M 400 7.5M 6.8M 6.1M
450 6M 5.4M 4.9M 450 7M 6.3M 5.7M
500 6M 5.4M 4.9M Double Pin Hitch 500 7M 6.3M 5.7M Double Pin Hitch
600 6M 5.4M 4.9M 600 7M 6.3M 5.7M
750 5M 4.5M 4.1M 750 6M 5.4M 4.9M
800 5M 4.5M 4.1M 800 6M 5.4M 4.9M
900 4M 3.6M 3.2M 900 5.5M 5M 4.5M
75mm 75mm Square
Square 1000 5M 4.5M 4.1M
1200 4.5M 4.1M 3.7M
*These charts have been created as a guide only. Actual performance figures may differ.
14 www.augertorque.com.au ** The data shown has been obtained, by Auger Torque, in a controlled environment. Auger Torque cannot guarantee
that this environment can be replicated and as such cannot accept liability if these figures cannot be achieved.
***Any data or specification contained within this documentation may be subject to change without prior notification.
For further information please contact your authorised Auger Torque distributor.AUGER SUMMARY
EXCAVATORS 8 - 15 TONNES
Full technical details of Augers, Extensions and Wear Parts
can be found in the Auger section of this brochure.
S6 AUGERS S6 EXTENSIONS
Auger Torque S6 Augers feature extra long flighted
Available in the
sections of shallow pitch flights. Earth, Tungsten and
following lengths:
Rock variations are available.
1.5M 2M 2.5M 3M
Available as standard in the following diameters:
150mm 300mm 500mm 900mm S6 TELESCOPIC
200mm 350mm 600mm 1M Available in the
225mm 400mm 750mm 1.2M following lengths:
250mm 450mm 800mm 1.5M 2M
SHOWN: SHOWN: SHOWN:
S6 150mm Dia, S6 1.2M Dia, S6 1.5M Extension
1.88M Length 1.88M Length S6 1.5M Telescopic
Shock LockTM Shock LockTM
Note:
Rock Augers are Rock Augers are
S6 Telescopic
also available. also available. extensions only
suitable for
torques up to
16,000Nm.
S6 Telescopic
extensions not
suitable for
150 - 250mm
diameter augers.
UNIQUE
Augers shown feature
Shock LockTM Toothholders.
Tooth Locking System
Rock Teeth Augers are also
DON’T LEAVE YOUR TEETH available.
DOWN THE HOLE!
*These charts have been created as a guide only. Actual performance figures may differ.
** The data shown has been obtained, by Auger Torque, in a controlled environment. Auger Torque cannot guarantee
that this environment can be replicated and as such cannot accept liability if these figures cannot be achieved.
15
***Any data or specification contained within this documentation may be subject to change without prior notification.
For further information please contact your authorised Auger Torque distributor.EXCAVATORS 13 - 20 T EXCAVATORS 15 - 22 T
S6 AUGERS S6 AUGERS
150mm-1.2M Dia 150mm-1.5M Dia
Torque Range: 13,043-19,564 Nm Torque Range: 16,503-24,755 Nm
Oil Pressure Range: 160-240 Bar Oil Pressure Range: 160-240 Bar
Oil Flow Range: 80-170 lpm Oil Flow Range: 80-170 lpm
Speed Range: 16-33 rpm Speed Range: 12-26 rpm
Unit Height: 1130mm Unit Height: 1130mm
Unit Diameter: 345mm Unit Diameter: 345mm
Unit Weight: 268 kg Unit Weight: 269 kg
Hitch Options: Double Pin Hitch Hitch Options: Double Pin Hitch
Cradle Hitch Cradle Hitch
Output Shaft: 75mm Square Output Shaft: 75mm Square
GUIDE TO DRILLING PERFORMANCE*
GUIDE TO DRILLING PERFORMANCE*
AUGER DRILLING DEPTH IN METRES** AUGER DRILLING DEPTH IN METRES**
DIA DIA
(mm) SOFT MEDIUM HARD (mm) SOFT MEDIUM HARD
Double Pin Hitch Double Pin Hitch
150 8.5M 7.7M 6.9M 150 9M 8.1M 7.3M
200 200
225 225
250 250
300 300
350 350
400 8.5M 7.7M 6.9M 400 9M 8.1M 7.3M
450 8M 7.2M 6.5M Double Pin 450 8.5M 7.7M 6.9M Double Pin
Cradle Hitch 500 8.5M 7.7M 6.9M
Cradle Hitch
500 8M 7.2M 6.5M
600 8M 7.2M 6.5M 600 8.5M 7.7M 6.9M
750 7M 6.3M 5.7M 750 7.5M 6.8M 6.1M
800 7M 6.3M 5.7M 800 7.5M 6.8M 6.1M
900 6.5M 5.9M 5.3M 900 7M 6.3M 5.7M
75mm 75mm
1000 6M 5.4M 4.9M 1000 6.5M 5.9M 5.3M
Square Square
1200 5.5M 5M 4.5M 1200 6M 5.4M 4.9M
1500 5M 4.5M 4.1M
*These charts have been created as a guide only. Actual performance figures may differ.
16 www.augertorque.com.au ** The data shown has been obtained, by Auger Torque, in a controlled environment. Auger Torque cannot guarantee
that this environment can be replicated and as such cannot accept liability if these figures cannot be achieved.
***Any data or specification contained within this documentation may be subject to change without prior notification.
For further information please contact your authorised Auger Torque distributor.AUGER SUMMARY
EXCAVATORS 12 - 22 TONNES
Full technical details of Augers, Extensions and Wear Parts
can be found in the Auger section of this brochure.
S6 AUGERS
Auger Torque S6 Augers feature extra long flighted
sections of shallow pitch flights. Earth, Tungsten and
Rock variations are available.
Available as standard in the following diameters:
150mm 300mm 500mm 900mm S6 EXTENSIONS
200mm 350mm 600mm 1M Available in the
225mm 400mm 750mm 1.2M following lengths:
250mm 450mm 800mm 1.5M 1.5M 2M 2.5M 3M
SHOWN: SHOWN: SHOWN:
S6 150mm Dia, S6 1.5M Dia, S6 1.5M Extension
1.88M Length 1.88M Length
Shock LockTM Shock LockTM
Rock Augers are Rock Augers are
also available. also available.
UNIQUE
Augers shown feature
Shock LockTM Toothholders.
Tooth Locking System
Rock Teeth Augers are also
DON’T LEAVE YOUR TEETH available.
DOWN THE HOLE!
17EXCAVATORS 20 - 45 T EXCAVATORS 20 - 45 T EXCAVATORS 21 - 45 T
PA SERIES AUGERS PA SERIES AUGERS PA SERIES AUGERS
300mm-1.5M Dia 300mm-1.8M Dia 300mm-2.4M Dia
Torque Range: 20,510-35,323 Nm Torque Range: 24,612-42,387 Nm Torque Range: 33,295-66,589 Nm
Oil Pressure Range: 180-310 Bar Oil Pressure Range: 180-310 Bar Oil Pressure Range: 160-320 Bar
Oil Flow Range: 80-225 lpm Oil Flow Range: 80-225 lpm Oil Flow Range: 100-280 lpm
Speed Range: 11-31 rpm Speed Range: 9-26 rpm Speed Range: 8-21 rpm
Unit Height: 1411mm Unit Height: 1411mm Unit Height: 1556mm
Unit Diameter: 406mm Unit Diameter: 406mm Unit Diameter: 406mm
Unit Weight: 442 kg Unit Weight: 442 kg Unit Weight: 480 kg
Output Shaft Std: 110mm Square Output Shaft Std: 110mm Square Output Shaft Std: 110mm Square
(Output Shaft adaptors available) (Output Shaft adaptors available) (Output Shaft adaptors available)
GUIDE TO DRILLING PERFORMANCE*
GUIDE TO DRILLING PERFORMANCE*
GUIDE TO DRILLING PERFORMANCE*
AUGER DRILLING DEPTH IN METRES** AUGER DRILLING DEPTH IN METRES** AUGER DRILLING DEPTH IN METRES**
DIA DIA DIA
(mm) SOFT MEDIUM HARD (mm) SOFT MEDIUM HARD (mm) SOFT MEDIUM HARD
Double Pin Double Pin Double Pin
300 10.5M 9.5M 8.6M 300 11.5M 9.5M 9.6M 300 12M 10.8M 9.7M
Cradle Hitch Cradle Hitch Cradle Hitch
350 350 350
400 10M 9M 8.1M 400 11M 10M 9.1M 400 12M 10.8M 9.7M
450 10M 9M 8.1M 450 11M 10M 9.1M 450 11.5M 10.4M 9.4M
500 9.5M 8.6M 7.7M 500 10.5M 9.6M 8.7M 500 11.5M 10.4M 9.4M
110mm 110mm 110mm
600 9M 8.1M 7.3M 600 10M 9.1M 8.3M 600 11M 9.9M 8.9M
Square Square Square
750 9M 8.1M 7.3M 750 9M 8.1M 7.3M 750 10M 9M 8.1M
800 9M 8.1M 7.3M 800 9M 8.1M 7.3M 800 10M 9M 8.1M
900 8.5M 7.7M 6.9M 900 8.5M 7.7M 6.9M 900 9.5M 8.6M 7.7M
1000 8M 7.2M 6.5M 1000 8M 7.2M 6.5M 1000 9M 8.1M 7.3M
1200 7.5M 6.8M 6.1M 1200 7.5M 6.8M 6.1M 1200 8.3M 7.5M 6.8M
1500 7M 6.3M 5.7M 1500 7M 6.3M 5.7M 1500 7.5M 6.8M 6.1M
1800 6M 5.4M 4.9M 1800 6.5M 5.9M 5.3M
2000 5.8M 5.2M 4.7M
2200 5.3M 4.8M 4.3M
2400 4.8M 4.3M 3.9M
*These charts have been created as a guide only. Actual performance figures may differ.
18 www.augertorque.com.au ** The data shown has been obtained, by Auger Torque, in a controlled environment. Auger Torque cannot guarantee
that this environment can be replicated and as such cannot accept liability if these figures cannot be achieved.
***Any data or specification contained within this documentation may be subject to change without prior notification.
For further information please contact your authorised Auger Torque distributor.AUGER SUMMARY
EXCAVATORS 20 - 45 TONNES
Full technical details of Augers, Extensions and Wear Parts
can be found in the Auger section of this brochure.
PA AUGERS
Auger Torque PA Augers feature extra long flighted sections of shallow pitch flights
and are available in 2.3M and 3.3M lengths. Earth and Rock variations are available.
Available as standard in the following diameters:
300mm 450mm 600mm 800mm 1.2M 2M For Augers over 1.5 metres
350mm 500mm 700mm 900mm 1.5M 2.2M diameter please call our sales
400mm 550mm 750mm 1M 1.8M 2.4M office for further information.
SHOWN: SHOWN: PA EXTENSIONS
PA 300mm Dia PA 1.5M Dia Both Fixed and Telescopic
2.3M Length 2.3M Length Extensions are available in
Rock Auger. Rock Auger. the following lengths:
2M 3M
SHOWN:
Right: 2M
Extension
Far Right: 2M
Telescopic
Extension
19MINI LOADERS MINI LOADERS MINI LOADERS SKIDSTEER LOADERS
S4 AUGERS S4 AUGERS S4 AUGERS LOW FLOW
100mm-400mm Dia 100mm-450mm Dia 100mm-500mm Dia UP TO 50 HP
S4 AUGERS
Torque Range: 511-1,496 Nm Torque Range: 639-2,190 Nm Torque Range: 830-2,847 Nm 100-600mm Dia
Oil Pressure Range: 70-205 Bar Oil Pressure Range: 70-240 Bar Oil Pressure Range: 70-240 Bar
Oil Flow Range: 20-45 lpm Oil Flow Range: 25-57 lpm Oil Flow Range: 27-65 lpm Torque Range: 959-2,877 Nm
Speed Range: 44-98 rpm Speed Range: 43-99 rpm Speed Range: 36-87 rpm Oil Pressure Range: 80-240 Bar
Unit Height: 406 mm Unit Height: 465 mm Unit Height: 465 mm Oil Flow Range: 27-75 lpm
4 Way Swing Frame
Unit Width: 205 mm Unit Width: 205 mm Unit Width: 205 mm Speed Range: 36-100 rpm
Unit Weight: 38 kg 4 Way Swing Frame Unit Weight: 40 kg 4 Way Swing Frame Unit Weight: 40 kg Unit Height: 665mm
Mounting Frame: 2 Way Swing Mounting Frame: 2 Way Swing Mounting Frame: 2 Way Swing Unit Diameter: 244mm
4 Way Swing 4 Way Swing 4 Way Swing Unit Weight: 71 kg
Output Shaft Std: 65mm Round Output Shaft Std: 65mm Round Output Shaft Std: 65mm Round Mounting Frame: Fixed Centre Cradle
2 Way Swing Frame
(Output Shaft adaptors available) (Output Shaft adaptors available) (Output Shaft adaptors available) Side Shift Cradle
2 Way Swing Frame 2 Way Swing Frame
Output Shaft Std: 65mm Round
(Output Shaft adaptors available)
Side Shift Frame
65mm
Round 65mm 65mm
Round Round
65mm
GUIDE TO DRILLING PERFORMANCE*
GUIDE TO DRILLING PERFORMANCE*
Round
GUIDE TO DRILLING PERFORMANCE*
AUGER DRILLING DEPTH IN METRES** AUGER DRILLING DEPTH IN METRES** AUGER DRILLING DEPTH IN METRES**
DIA DIA DIA
(mm) SOFT MEDIUM HARD (mm) SOFT MEDIUM HARD (mm) SOFT MEDIUM HARD
GUIDE TO DRILLING PERFORMANCE*
100 2.2M 2M 1.8M 100 2.5M 2.3M 2.1M AUGER DRILLING DEPTH IN METRES**
100 2M 1.8M 1.6M DIA
150 150 (mm) SOFT MEDIUM HARD
150 2M 1.8M 1.6M
200 200 100 3M 2.7M 2.4M
200 1.8M 1.6M 1.4M
225 225 150
225 1.8M 1.6M 1.4M
250 250 200
250 1.5M 1.4M 1.3M
300 2.2M 2M 1.8M 300 2.5M 2.3M 2.1M 225
300 1.5M 1.4M 1.3M
350 2M 1.8M 1.6M 350 2.3M 2.1M 1.9M 250
350 1.5M 1.4M 1.3M
400 1.5M 1.4M 1.3M 400 1.9M 1.7M 1.5M 300
400 1.2M 1.1M 1M
450 1.2M 1.1M 1M 450 1.7M 1.5M 1.4M 350
500 1.5M 1.4M 1.3M 400 3M 2.7M 2.4M
450 2.6M 2.3M 2.1M
500 2.3M 2.1M 1.9M
600 1.8M 1.6M 1.4M
*These charts have been created as a guide only. Actual performance figures may differ.
20 www.augertorque.com.au ** The data shown has been obtained, by Auger Torque, in a controlled environment. Auger Torque cannot guarantee
that this environment can be replicated and as such cannot accept liability if these figures cannot be achieved.
***Any data or specification contained within this documentation may be subject to change without prior notification.
For further information please contact your authorised Auger Torque distributor.AUGER SUMMARY
MINI LOADERS & SKIDSTEER LOADERS UP TO 80HP
Full technical details of Augers, Extensions and Wear Parts
can be found in the Auger section of this brochure.
SKIDSTEER LOADERS SKIDSTEER LOADERS S4 AUGERS S4 EXTENSIONS
LOW FLOW LOW FLOW Auger Torque S4 Augers feature extra long flighted S4 Auger Extensions
UP TO 65 HP UP TO 80 HP sections of shallow pitch flights. Earth, Tungsten and are available in the
Extra Dig variations are available. following lengths:
S4 AUGERS S4 AUGERS
100mm-750mm Dia 100mm-900mm Dia Available as standard in the following diameters:
500mm
100mm 300mm 600mm 1M
Torque Range: 1,205-3,614 Nm Torque Range: 1,574-4,721 Nm
150mm 375mm 750mm (other lengths on request)
Oil Pressure Range: 80-240 Bar Oil Pressure Range: 80-240 Bar
200mm 400mm 800mm
Oil Flow Range: 40-85 lpm Oil Flow Range: 50-95 lpm
Speed Range: 42-90 rpm Speed Range: 40-77 rpm
225mm 450mm 900mm
250mm 500mm
Unit Height: 665mm Unit Height: 665mm
Unit Diameter: 244mm Unit Diameter: 244mm
Unit Weight: 73 kg Unit Weight: 75 kg
SHOWN: SHOWN: SHOWN:
Mounting Frame: Fixed Centre Cradle Mounting Frame: Fixed Centre Cradle
S4 100mm Dia, S4 900mm Dia, S4 1M
Side Shift Cradle Side Shift Cradle
1.2M Length** 1.2M Length** Extension
Output Shaft Std: 65mm Round Output Shaft Std: 65mm Round Shock LockTM Shock LockTM
(Output Shaft adaptors available) (Output Shaft adaptors available)
Side Shift Frame Side Shift Frame
65mm 65mm
Round Round
GUIDE TO DRILLING PERFORMANCE*
GUIDE TO DRILLING PERFORMANCE*
AUGER DRILLING DEPTH IN METRES** AUGER DRILLING DEPTH IN METRES**
DIA DIA
(mm) SOFT MEDIUM HARD (mm) SOFT MEDIUM HARD
100 3M 2.7M 2.4M 100 4M 3.6M 3.2M
150 150
200 200
225 225
250 250 UNIQUE
300 300
350 375
Tooth Locking System
400 400 DON’T LEAVE YOUR TEETH
DOWN THE HOLE!
450 450
500 500
** Auger lengths stated
600 2.9M 2.6M 2.3M 600 4M 3.6M 3.2M include fitted wear parts.
750 1.8M 1.6M 1.4M 750 2.5M 2.3M 2.1M
800 2M 1.8M 1.6M
900 1.5M 1.4M 1.3M
21EXCAVATORS 4.5 - 6 T SKIDSTEER LOADERS SKIDSTEER LOADERS SKIDSTEER LOADERS
S5 AUGERS HIGH FLOW HIGH FLOW HIGH FLOW
150mm-750mm Dia UP TO 100 HP UP TO 135 LPM UP TO 150 LPM
TELEHANDLERS TELEHANDLERS S5 AUGERS
Torque Range: 1,685-5,056 Nm 150mm-1.2M Dia
Oil Pressure Range: 80-240 Bar
4.5 - 7 T 5-8T
Oil Flow Range: 40-95 lpm S5 AUGERS S5 AUGERS Torque Range: 2,717-8,152 Nm
Speed Range: 27-65 rpm 150mm-750mm Dia 150mm-900mm Dia Oil Pressure Range: 80-240 Bar
Unit Height: 780mm Oil Flow Range: 70-150 lpm
Torque Range: 1,685-5,477 Nm Torque Range: 2,133-6,931 Nm
Unit Diameter: 269mm Speed Range: 33-70 rpm
Oil Pressure Range: 80-260 Bar Oil Pressure Range: 80-260 Bar
Unit Weight: 108 kg Unit Height: 780mm
Oil Flow Range: 40-115 lpm Oil Flow Range: 60-135 lpm
Hitch Options: Double Pin Hitch Unit Diameter: 269mm
Speed Range: 30-87 rpm Speed Range: 36-81 rpm
Cradle Hitch Unit Weight: 116 kg
Unit Height: 780mm Unit Height: 780mm
Output Shaft Std: 75mm Square Mounting Frame: Fixed Centre Cradle
Double Pin Hitch Unit Diameter: 269mm Unit Diameter: 269mm
(Output Shaft adaptors available) Side Shift Cradle
Unit Weight: 108 kg Unit Weight: 112 kg
Output Shaft Std: 75mm Square
Mounting Frame: Fixed Centre Cradle Mounting Frame: Fixed Centre Cradle
Side Shift Cradle Side Shift Cradle (Output Shaft adaptors available)
Output Shaft Std: 75mm Square Output Shaft Std: 75mm Square
(Output Shaft adaptors available) (Output Shaft adaptors available)
75mm
Cradle Hitch Square
GUIDE TO DRILLING PERFORMANCE*
GUIDE TO DRILLING PERFORMANCE*
GUIDE TO DRILLING PERFORMANCE*
AUGER DRILLING DEPTH IN METRES** AUGER DRILLING DEPTH IN METRES** AUGER DRILLING DEPTH IN METRES**
GUIDE TO DRILLING PERFORMANCE*
AUGER DRILLING DEPTH IN METRES** DIA DIA DIA
DIA (mm) SOFT MEDIUM HARD (mm) SOFT MEDIUM HARD (mm) SOFT MEDIUM HARD
(mm) SOFT MEDIUM HARD
150 4M 3.6M 3.2M 150 5M 4.5M 4.1M 150 6M 5.4M 4.9M
150 4M 3.6M 3.2M 75mm 75mm 75mm
200 Square 200 Square 200 Square
200
225 225 225
225
250 250 250
250
300 300 300
300
350 350 350
350
400 400 400 6M 5.4M 4.9M
400
450 450 450 5M 4.5M 4.1M
450
500 500 5M 4.5M 4.1M 500 5M 4.5M 4.1M
500
600 4M 3.6M 3.2M 600 4M 3.6M 3.2M 600 5M 4.5M 4.1M
600 4M 3.6M 3.2M
750 3M 2.7M 2.4M 750 3.5M 3.2M 2.9M 750 4M 3.6M 3.2M
750 3M 2.7M 2.4M
800 3M 2.7M 2.4M 800 4M 3.6M 3.2M
900 2.5M 2.3M 2.1M 900 3.5M 3.2M 2.9M
1000 3.5M 3.2M 2.9M
1200 3M 2.7M 2.4M
*These charts have been created as a guide only. Actual performance figures may differ.
22 www.augertorque.com.au ** The data shown has been obtained, by Auger Torque, in a controlled environment. Auger Torque cannot guarantee
that this environment can be replicated and as such cannot accept liability if these figures cannot be achieved.
***Any data or specification contained within this documentation may be subject to change without prior notification.
For further information please contact your authorised Auger Torque distributor.AUGER SUMMARY

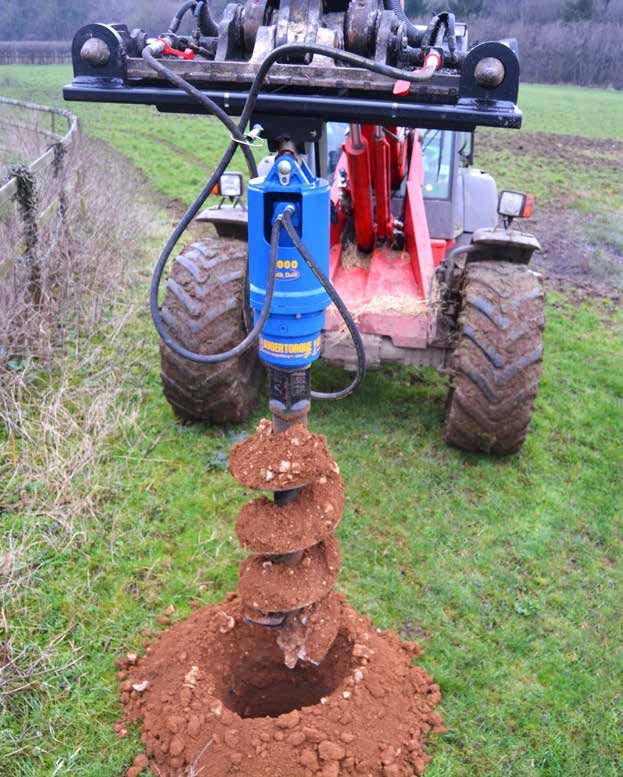

HIGH FLOW SKIDSTEER LOADERS & TELEHANDLERS
Full technical details of Augers, Extensions and Wear Parts
can be found in the Auger section of this brochure.
S5 AUGERS S5 EXTENSIONS
Auger Torque S5 Augers feature extra long flighted Available in the
sections of shallow pitch flights. Earth, Tungsten and following lengths:
Rock variations are available. 1M 1.5M
Available as standard in the following diameters: 2M
150mm 350mm 750mm
200mm 400mm 800mm S5 TELESCOPIC
225mm 450mm 900mm Available in the
250mm 500mm 1M following lengths:
300mm 600mm 1.2M 1.5M 2M
SHOWN: SHOWN: SHOWN:
S5 150mm Dia, S5 1M Dia, S5 1.5M Extension
1.5M Length 1.5M Length S5 1.5M Telescopic
Shock LockTM Shock LockTM
Rock Augers are Rock Augers are Note:
S5 Telescopic
also available. also available. extensions only
suitable for
torques up to
16,000Nm.
S5 Telescopic
extensions not
suitable for
150 - 250mm
diameter augers.
UNIQUE
Augers shown feature
Shock LockTM Toothholders.
Tooth Locking System
Rock Teeth Augers are also
DON’T LEAVE YOUR TEETH available.
DOWN THE HOLE!
23BACKHOES BACKHOES BACKHOES
S5 AUGERS S5 AUGERS S6 AUGERS
150mm-900mm Dia 150mm-1.2M Dia 150mm-900mm Dia
Torque Range: 2,133-6,931 Nm Torque Range: 2,717-8,152 Nm Torque Range: 3,281-10,662 Nm
Oil Pressure Range: 80-260 Bar Oil Pressure Range: 80-240 Bar Oil Pressure Range: 80-260 Bar
Oil Flow Range: 60-135 lpm Oil Flow Range: 70-150 lpm Oil Flow Range: 70-150 lpm
Speed Range: 36-81 rpm Speed Range: 33-70 rpm Speed Range: 27-58 rpm
Unit Height: 780mm Unit Height: 780mm Unit Height: 883mm
Unit Diameter: 269mm Unit Diameter: 269mm Unit Diameter: 290mm
Unit Weight: 112 kg Unit Weight: 116 kg Unit Weight: 162 kg
Hitch Options: Double Pin Hitch Hitch Options: Double Pin Hitch Hitch Options: Double Pin Hitch
Cradle Hitch Cradle Hitch Cradle Hitch
Output Shaft Std: 75mm Square Output Shaft Std: 75mm Square Output Shaft: 75mm Square
(Output Shaft adaptors available) (Output Shaft adaptors available)
GUIDE TO DRILLING PERFORMANCE*
GUIDE TO DRILLING PERFORMANCE*
AUGER DRILLING DEPTH IN METRES** AUGER DRILLING DEPTH IN METRES** AUGER DRILLING DEPTH IN METRES**
GUIDE TO DRILLING PERFORMANCE*
DIA DIA DIA
(mm) SOFT MEDIUM HARD (mm) SOFT MEDIUM HARD (mm) SOFT MEDIUM HARD
150 5M 4.5M 4.1M 150 6M 5.4M 4.9M 150 6.5M 5.9M 5.3M
Double Pin Hitch Double Pin Hitch Double Pin Hitch
200 200 200
225 225 225
250 250 250
300 300 300
350 350 350
400 400 6M 5.4M 4.9M 400 6.5M 5.9M 5.3M
450 450 5M 4.5M 4.1M 450 6M 5.4M 4.9M
500 5M 4.5M 4.1M
Double Pin 500 5M 4.5M 4.1M
Double Pin 500 6M 5.4M 4.9M
Double Pin
Cradle Hitch Cradle Hitch Cradle Hitch
600 4M 3.6M 3.2M 600 5M 4.5M 4.1M 600 6M 5.4M 4.9M
750 3.5M 3.2M 2.9M 750 4M 3.6M 3.2M 750 5M 4.5M 4.1M
800 3M 2.7M 2.4M 800 4M 3.6M 3.2M 800 5M 4.5M 4.1M
900 2.5M 2.3M 2.1M 900 3.5M 3.2M 2.9M 900 4M 3.6M 3.2M
75mm
Square 1000 3.5M 3.2M 2.9M 75mm 75mm
Square Square
1200 3M 2.7M 2.4M
*These charts have been created as a guide only. Actual performance figures may differ.
24 www.augertorque.com.au ** The data shown has been obtained, by Auger Torque, in a controlled environment. Auger Torque cannot guarantee
that this environment can be replicated and as such cannot accept liability if these figures cannot be achieved.
***Any data or specification contained within this documentation may be subject to change without prior notification.
For further information please contact your authorised Auger Torque distributor.AUGER SUMMARY AUGER SUMMARY
BACKHOES
Full technical details of Augers, Extensions and Wear Parts Full technical details of Augers, Extensions and Wear Parts
can be found in the Auger section of this brochure. can be found in the Auger section of this brochure.
S5 AUGERS S5 EXTENSIONS S6 AUGERS S6 EXTENSIONS
Auger Torque S5 Augers feature extra long flighted Available in the Auger Torque S6 Augers feature extra long flighted
Available in the
sections of shallow pitch flights. Earth, Tungsten and following lengths: sections of shallow pitch flights. Earth, Tungsten and
following lengths:
Rock variations are available. 1M 1.5M Rock variations are available.
1.5M 2M 2.5M 3M
Available as standard in the following diameters: 2M Available as standard in the following diameters:
150mm 350mm 750mm 150mm 300mm 500mm 900mm S6 TELESCOPIC
200mm 400mm 800mm S5 TELESCOPIC 200mm 350mm 600mm 1M Available in the
225mm 450mm 900mm Available in the 225mm 400mm 750mm 1.2M following lengths:
250mm 500mm 1M following lengths: 250mm 450mm 800mm 1.5M 2M
300mm 600mm 1.2M 1.5M 2M
SHOWN: SHOWN: SHOWN:
S6 150mm Dia, S6 1.2M Dia, S6 1.5M Extension
SHOWN: SHOWN: SHOWN: 1.88M Length 1.88M Length S6 1.5M Telescopic
S5 150mm Dia, S5 1M Dia, S5 1.5M Extension Shock LockTM Shock LockTM
Note:
1.5M Length 1.5M Length Rock Augers are Rock Augers are
S5 1.5M Telescopic S6 Telescopic
Shock LockTM Shock LockTM also available. also available. extensions only
Note: suitable for
Rock Augers are Rock Augers are
S5 Telescopic torques up to
also available. also available. extensions only 16,000Nm.
suitable for
torques up to S6 Telescopic
16,000Nm. extensions not
suitable for
S5 Telescopic 150 - 250mm
extensions not diameter augers.
suitable for
150 - 250mm
diameter augers.
UNIQUE
Augers shown feature
Shock LockTM Toothholders. UNIQUE
Augers shown feature
Tooth Locking System Shock LockTM Toothholders.
Rock Teeth Augers are also
available. Tooth Locking System
DON’T LEAVE YOUR TEETH Rock Teeth Augers are also
DOWN THE HOLE! available.
DON’T LEAVE YOUR TEETH
DOWN THE HOLE!
*These charts have been created as a guide only. Actual performance figures may differ.
** The data shown has been obtained, by Auger Torque, in a controlled environment. Auger Torque cannot guarantee
that this environment can be replicated and as such cannot accept liability if these figures cannot be achieved.
25
***Any data or specification contained within this documentation may be subject to change without prior notification.
For further information please contact your authorised Auger Torque distributor.TRUCK CRANES TO TRUCK CRANES TO TRUCK CRANES
9 T / METRE 15 T / METRE 9-18 T / METRE
S4 AUGERS S5 AUGERS S5 AUGERS
100mm-600mm Dia 150-800mm Dia 150mm-1M Dia
Torque Range: 959-3,116 Nm Torque Range: 1,685-5,477 Nm Torque Range: 2,098-6,819 Nm
Oil Pressure Range: 80-260 Bar Oil Pressure Range: 80-260 Bar Oil Pressure Range: 80-260 Bar
Oil Flow Range: 5-35 lpm Oil Flow Range: 15-50 lpm Oil Flow Range: 15-50 lpm
Speed Range: 7-46 rpm Speed Range: 11-38 rpm Speed Range: 9-30 rpm
Unit Height: 665mm Unit Height: 780 mm Unit Height: 780 mm
Unit Diameter: 244mm Unit Diameter: 269 mm Unit Diameter: 269 mm
Unit Weight: 73 kg Unit Weight: 108 kg Unit Weight: 110 kg
Hitch: Rope Wind Hitch Hitch: Rope Wind Hitch Hitch: Rope Wind Hitch
Output Shaft Std: 65mm Round Output Shaft Std: 75mm Square Output Shaft Std: 75mm Square
(Output Shaft adaptors available) (Output Shaft adaptors available) (Output Shaft adaptors available)
Rope Wind Hitch
Rope Wind Hitch
Rope Wind Hitch
65mm
75mm 75mm
GUIDE TO DRILLING PERFORMANCE*
Round AUGER DRILLING DEPTH IN METRES**
Square DIA Square
(mm) SOFT MEDIUM HARD
GUIDE TO DRILLING PERFORMANCE*
AUGER DRILLING DEPTH IN METRES** 150 5M 4.5M 4.1M
DIA
(mm) SOFT MEDIUM HARD 200
150 4M 3.6M 3.2M 225
GUIDE TO DRILLING PERFORMANCE*
AUGER DRILLING DEPTH IN METRES**
DIA 200 250
(mm) SOFT MEDIUM HARD
225 300
100 3M 2.7M 2.4M
250 350
150
300 400
200
350 450
225
400 500 5M 4.5M 4.1M
250
450 600 4M 3.6M 3.2M
300
500 750 3.5M 3.2M 2.9M
350
600 4M 3.6M 3.2M 800 3M 2.7M 2.4M
400 3M 2.7M 2.4M
750 3M 2.7M 2.4M 900 2.5M 2.3M 2.1M
450 2.5M 2.3M 2.1M
800 2.5M 2.3M 2.1M 1000 2M 1.8M 1.6M
500 2M 1.8M 1.6M
600 1.5M 1.4M 1.3M
*These charts have been created as a guide only. Actual performance figures may differ.
26 www.augertorque.com.au ** The data shown has been obtained, by Auger Torque, in a controlled environment. Auger Torque cannot guarantee
that this environment can be replicated and as such cannot accept liability if these figures cannot be achieved.
***Any data or specification contained within this documentation may be subject to change without prior notification.
For further information please contact your authorised Auger Torque distributor.AUGER SUMMARY
TRUCK CRANES
Full technical details of Augers, Extensions and Wear Parts
can be found in the Auger section of this brochure.
S4 AUGERS FOR THE 3000TC S4 EXTENSIONS S5 AUGERS FOR THE 5500TC AND 7000TC S5 EXTENSIONS
Auger Torque S4 Augers feature extra long flighted S4 Auger Extensions Auger Torque S5 Augers feature extra long flighted Available in the
sections of shallow pitch flights. Earth, Tungsten and are available in the sections of shallow pitch flights. Earth, Tungsten and following lengths:
Extra Dig variations are available. following lengths: Rock variations are available. 1M 1.5M
Available as standard in the following diameters: Available as standard in the following diameters: 2M
500mm
100mm 250mm 450mm 1M 150mm 350mm 750mm
150mm 300mm 500mm (other lengths on request) 200mm 400mm 800mm S5 TELESCOPIC
200mm 350mm 600mm 225mm 450mm 900mm Available in the
225mm 400mm 250mm 500mm 1M following lengths:
300mm 600mm 1.5M 2M
SHOWN: SHOWN: SHOWN: SHOWN: SHOWN: SHOWN:
S4 100mm Dia, S4 900mm Dia, S4 1M S5 150mm Dia, S5 1000mm Dia, S5 1.5M Extension
1.2M Length** 1.2M Length** Extension 1.5M Length 1.5M Length S5 1.5M Telescopic
Shock LockTM Shock LockTM Shock LockTM Shock LockTM
Rock Augers are Rock Augers are Note:
S5 Telescopic
also available. also available. extensions only
suitable for
torques up to
16,000Nm.
S5 Telescopic
extensions not
suitable for
150 - 250mm
diameter augers.
UNIQUE
Tooth Locking System
DON’T LEAVE YOUR TEETH
DOWN THE HOLE!
UNIQUE
Augers shown feature
Shock LockTM Toothholders.
** Auger lengths stated Tooth Locking System
include fitted wear parts. Rock Teeth Augers are also
DON’T LEAVE YOUR TEETH available.
DOWN THE HOLE!
27AUGERS
Features of our Augers
HUB OPTIONS
Augers are available with all major
Tooth Locking System
standard hubs on the market, Are you tired of losing your teeth down
including: the hole? With our patented Shock
2”, 2.5”, 3”and 4” Hex Lock™ Tooth Locking System loss is
50mm, 2” and 65mm Round now a thing of the past. The simple but
57mm, 75mm, 100mm, 110mm and effective locking pin holds teeth secure
130mm Square ...to name but a few. in both directions.

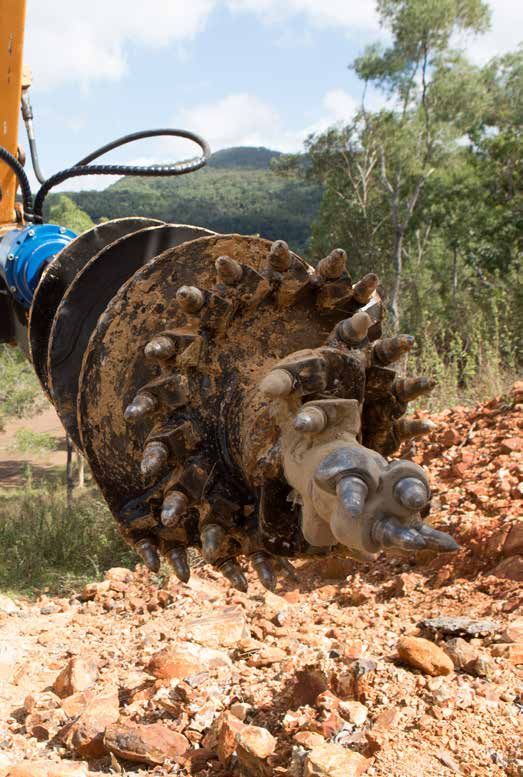

HEAVY DUTY TUBE CONSTANT SPIRAL CUT
We know that our Augers can expect Our boring heads are designed with a
a tough life so we only use the Constant Spiral Cut. Teeth are located
highest grade steel and vary our so that each makes its own fresh cut
tube size according to machine size on every revolution and are angled to
and application. Our Augers have a direct spoil towards the centre of the
reputation of being the toughest auger. The tooth cutting angle ensures
on the market. spoil is broken up thoroughly to avoid
any clogging.
SHALLOW PITCH FLIGHTS
By working with and, more importantly,
PILOT AND TOOTH OPTIONS
listening to operators feedback we Auger Torque Augers are offered with
have developed the perfect pitch for many different tooth and pilot options
our flights. It will cut at its maximum to suit your specific need. For example
efficiency and, most importantly the in the S4 range we offer up to eight
spoil will stay on your Auger when you different combinations and we have
remove it from the hole. the know-how to help you select the
optimal configuration.
28 www.augertorque.com.auS2 AUGERS
MICRO EXCAVATORS
0.75 - 1 T
With our patented Shock Lock™ Tooth Locking System tooth loss is now a thing of the past. Using the Shock
Lock™ pin and rubber in our unique Shock Lock™ tooth holders ensures your Auger teeth are safely locked in
place and protected against shock fractures.
Replacing worn teeth is a breeze with this system, simply knock out the old pin with a standard hole punch and
the tooth will slide out of the holder with ease. Acclaimed as the best system on the market you will never need
to worry about fitting spare teeth due to losing them again.
Overall Length 0.9m
All Fully Flighted
100mm 150mm 200mm 225mm 250mm 300mm
HUB OPTIONS EARTH WEAR PARTS TUNGSTEN WEAR PARTS EXTRAS
TM TM
S2/4 S2/4 Shock Lock S2/4 S2/4 Shock Lock Pin & Clip S1/2/4 Shock LockTM
50mm Earth Pilot Earth Tooth Tungsten Pilot Tungsten Tooth 50 Round Tooth Holder
Round 33-9203-KIT 33-9121-KIT 33-9204-KIT 33-9122-KIT 42-1055-KIT 33-1010
Stihl
Attachments WEAR PARTS FOR GROUND CONDITIONS
EARTH (Shock LockTM)
Best suited to soft grounds like earth and clay.
TUNGSTEN (Shock LockTM)
Best used in dry, hard or medium ground conditions where floating rocks may be
encountered. The perfect all-rounder if you are not sure about what you might encounter.
29S4 AUGERS With our patented Shock Lock™ Tooth Locking System tooth
loss is now a thing of the past. Using the Shock Lock™ pin and
rubber insert in our unique Shock Lock™ tooth holders ensures
MINI EXCAVATORS 1 - 5 T, MINI LOADERS,
SKIDSTEER LOADERS UP TO 80HP AND
Tooth Locking System your Auger teeth are safely locked in place and protected
against shock fractures.
TRUCK CRANES UP TO 9 T / METRE UNIQUE Replacing worn teeth is a breeze with this system, simply knock
STANDARD HUB OPTION
DON’T LEAVE out the old pin with a standard hole punch and the tooth will
YOUR TEETH slide out of the holder with ease. Acclaimed as the best system
on the market you will never need to worry about fitting spare
DOWN THE teeth due to loss again.
HOLE!
65mm
Round
Fully Flighted 950mm
Overall Length 1.2M
780mm
750mm
750mm
700mm
700mm
675mm
625mm
625mm
625mm
600mm
100mm 150mm 200mm 225mm 250mm 300mm 350mm 400mm 450mm 500mm 600mm
Earth Drill X1500
Earth Drill ML1500
Earth Drill X2000
Earth Drill ML2000
Earth Drill X2500
Earth Drill ML2500
Earth Drill 3000MAX
Earth Drill 3000TC
Earth Drill 3500MAX
Earth Drill 4500MAX
www.augertorque.com.au
Full technical details of the
30 Earth Drills can be found in
the Earth Drill section.EARTH WEAR PARTS TUNGSTEN WEAR PARTS EXTRAS
TM TM
S2/4 S2/4 Shock Lock S4 S4 S4 Shock Lock Pin & Clip S1/2/4 Shock LockTM S4 Pilot S4 Drive Lugs
Earth Pilot Earth Tooth Tungsten Pilot Extra Dig Pilot Tungsten Tooth 65 Round Tooth Holder Extension 33-4102
33-9203-KIT 33-9121-KIT 33-9204-KIT 33-9212-KIT 33-9122-KIT 30-0004-KIT 33-1010 33-4106-KIT 33-4105
33-4110
BORING HEADS
S4 Earth Teeth & Pilot S4 Tungsten Teeth & Pilot S4 Extra Dig Teeth & Pilot
WEAR PARTS REQUIRED
S4 EXTENSIONS
FOR GROUND CONDITIONS
EARTH (Shock LockTM)
500mm
Best suited to soft grounds like earth and clay.
TUNGSTEN (Shock LockTM)
Best used in dry, hard or medium ground conditions
where floating rocks may be encountered. The perfect
1M
525mm
525mm
525mm
all-rounder if you are not sure about what you might
encounter.
EXTRA DIG PILOT
A stronger Pilot for more demanding ground conditions.
750mm 800mm 900mm
All the Augers above are shown with
TM OTHER
Shock Lock Tooth Holders. DIAMET
E
AVAILAB RS
LE ON
REQUES
* Overall Length given includes the T
auger fitted with wear parts.
31S5 AUGERS With our patented Shock Lock™ Tooth Locking System tooth
loss is now a thing of the past. Using the Shock Lock™ pin and
rubber insert in our unique Shock Lock™ tooth holders ensures
EXCAVATORS FROM 4.5 - 8 T, TELEHANDLERS,
HIGH FLOW SKIDSTEER LOADERS, BACKHOES
Tooth Locking System your Auger teeth are safely locked in place and protected
against shock fractures.
AND TRUCK CRANES FROM 9 - 18 T / METRE UNIQUE Replacing worn teeth is a breeze with this system, simply knock
STANDARD HUB OPTION
DON’T LEAVE out the old pin with a standard hole punch and the tooth will
YOUR TEETH slide out of the holder with ease. Acclaimed as the best system
on the market you will never need to worry about fitting spare
DOWN THE teeth due to loss again.
HOLE!
75mm
Square
Overall Length 1.5M*
1080mm
977mm
975mm
965mm
900mm
900mm
875mm
750mm
750mm
750mm
150mm 200mm 225mm 250mm 300mm 350mm 400mm 450mm 500mm 600mm
Earth Drill 5500MAX
Earth Drill 5000TC
Earth Drill 7000MAX
Earth Drill 7000TC
Earth Drill 8000MAX
www.augertorque.com.au
Full technical details of the
32 Earth Drills can be found in
the Earth Drill section.EARTH WEAR PARTS TUNGSTEN WEAR PARTS ROCK WEAR PARTS EXTRAS
S5 EXTENSIONS S5 TELESCOPIC
TM TM
S5/6 S5/6 Shock Lock S5/6 S5/6 Shock Lock S5/6 S5/6 Pin & Clip S5/6 Shock LockTM S5/6 Rock S5/6 Drive Socket
Earth Pilot Earth Tooth Tungsten Pilot Tungsten Tooth Rock Pilot Rock Tooth 57/75 Square Tooth Holder Tooth Holder 1 3/4” Hex
33-9205-KIT 33-9126-KIT 33-9206-KIT 33-9127-KIT 33-9207-KIT 33-9107 30-0002-KIT 33-1011 33-1013 33-4103
BORING HEADS
1M
1.5M
1.5M
2M
2M
S5/6 Earth Teeth & Pilot S5/6 Tungsten Teeth & Pilot S5/6 Rock Teeth & Pilot
OTHER
DIAMET
E
AVAILAB RS
LE O
REQUES N
T
Note:
S5 Telescopic
extensions only
suitable for
torques up to
16,000Nm.
700mm
700mm
700mm
525mm
525mm
S5 Telescopic
extensions not
suitable for
150 - 250mm
diameter augers.
750mm 800mm 900mm 1M 1.2M
All the Augers above are
TM
shown with Shock Lock Tooth
Holders. Rock Teeth require a
Rock Tooth version of the Auger.
* Overall Length given includes
the auger fitted with wear parts.
Augers over 1m - special order up to 1.2m
For Augers over 1 metre diameter please call our sales office for further information.
WEAR PARTS FOR EARTH (Shock LockTM) TUNGSTEN (Shock LockTM) ROCK (Taper Lock)
GROUND CONDITIONS Best suited to soft grounds Best used in dry, hard or medium ground conditions where floating rocks may be For very hard ground and tarmac where extra cutting is needed and high
like earth and clay. encountered. The perfect all-rounder if you are not sure about what you might encounter. wear is expected. Most effective on machines with high down pressure.
33S6 AUGERS With our patented Shock Lock™ Tooth Locking System tooth
loss is now a thing of the past. Using the Shock Lock™ pin and
rubber insert in our unique Shock Lock™ tooth holders ensures
EXCAVATORS & BACKHOES FROM 8 - 22 T Tooth Locking System your Auger teeth are safely locked in place and protected
against shock fractures.
STANDARD HUB OPTION UNIQUE Replacing worn teeth is a breeze with this system, simply knock
DON’T LEAVE out the old pin with a standard hole punch and the tooth will
YOUR TEETH slide out of the holder with ease. Acclaimed as the best system
on the market you will never need to worry about fitting spare
DOWN THE teeth due to loss again.
HOLE!
75mm
Square
Overall Length 1.88M*
1320mm
1225mm
1203mm
1200mm
1200mm
1125mm
1000mm
1000mm
1000mm
900mm
875mm
150mm 200mm 225mm 250mm 300mm 350mm 400mm 450mm 500mm 600mm 750mm
Earth Drill 10 000
Earth Drill 12 000MAX
Earth Drill 15 000MAX
Earth Drill 20 000MAX
Earth Drill 25 000MAX
www.augertorque.com.au
Full technical details of the
34 Earth Drills can be found in
the Earth Drill section.EARTH WEAR PARTS TUNGSTEN WEAR PARTS ROCK WEAR PARTS EXTRAS
S6 EXTENSIONS S6 TELESCOPIC
TM TM
S5/6 S5/6 Shock Lock S5/6 S5/6 Shock Lock S5/6 S5/6 Pin & Clip S5/6 Shock LockTM S5/6 Rock S5/6 Drive Socket
Earth Pilot Earth Tooth Tungsten Pilot Tungsten Tooth Rock Pilot Rock Tooth 57/75 Square Tooth Holder Tooth Holder 1 3/4” Hex
33-9205-KIT 33-9126-KIT 33-9206-KIT 33-9127-KIT 33-9207-KIT 33-9107 30-0002-KIT 33-1011 33-1013 33-4103
BORING HEADS
1.5M
1.5M
2M
2M
2.5M
S5/6 Earth Teeth & Pilot S5/6 Tungsten Teeth & Pilot S5/6 Rock Teeth & Pilot
3M
Note:
S6 Telescopic
extensions only
suitable for
torques up to
16,000Nm.
S6 Telescopic
extensions not
suitable for
700mm
600mm
150 - 250mm
diameter augers.
800mm 900mm 1M 1.2M 1.5M
All the Augers above are shown Augers of a larger diameter and
TM
with Shock Lock Tooth Holders. length can be manufactured for
Rock Teeth require a Rock Tooth use with these Earth Drills, but OTHER
version of the Auger. technical advice is required. DIAMET
E
Call one of our main offices for AVAILAB RS
LE O
more details. REQUES N
* Overall Length given includes the T
auger fitted with wear parts.
WEAR PARTS FOR EARTH (Shock LockTM) TUNGSTEN (Shock LockTM) ROCK (Taper Lock)
GROUND CONDITIONS Best suited to soft grounds Best used in dry, hard or medium ground conditions where floating rocks may be For very hard ground and tarmac where extra cutting is needed and high
like earth and clay. encountered. The perfect all-rounder if you are not sure about what you might encounter. wear is expected. Most effective on machines with high down pressure.
35PA AUGERS The PA Range of Augers are the most heavy-duty
units available and are available in 2.3 metre
and 3.3 metre lengths as standard. Fully flighted
EXCAVATORS 17 - 45 T versions are available also.
PA Augers are available
Our standard PA Auger range has a maximum
STANDARD HUB OPTION in 2.3 metre or 3.3 metre diameter of 1.5m however Augers with a diameter
lengths as standard - of up to 2.4m can be manufactured on request.
Please specify when Contact our sales office for further information.
ordering
110mm
Square
Overall Length 2.3M / 3.3M*
Fully Flighted 1558mm
1527mm
1446mm
1446mm
1446mm
1433mm
1321mm
1321mm
1321mm
300mm 350mm 400mm 450mm 500mm 600mm 750mm 800mm 900mm
Earth Drill 35 000MAX
Earth Drill 42 000MAX
Earth Drill 65 000MAX
www.augertorque.com.au
Full technical details of the
36 Earth Drills can be found in
the Earth Drill section.EARTH WEAR PARTS ROCK WEAR PARTS EXTRAS
33-9209-3
PA PA PA PA Pin & Clip PA Rock PA
Earth Pilot Earth Tooth Rock Pilot 33-9209-2 Rock Tooth 110 Square Tooth Holder Drive Socket
33-9208-KIT 33-9108 33-9209-KIT 33-9109 23-3900-KIT 33-1012 33-4104
33-9209-1
The PA Rock Pilot can be purchased in
BORING HEADS separate sections or as a whole assembly
when buying replacement parts.
PA Earth Teeth & Pilot PA Rock Teeth & Pilot
PA EXTENSIONS PA TELESCOPIC
LARGER AUGERS
Augers of a larger
diameter and length can OTHER
DIAMET
E
AVAILAB RS
be manufactured for use
with these Earth Drills, but LE ON
REQUES
technical advice is required. T
Call one of our main offices
for more details.
2M
2M
971mm
908mm
750mm
3M
3M
1M 1.2M 1.5M
Augers over 1.2m - special order up to 1.8m
WEAR PARTS FOR GROUND CONDITIONS
* Overall Length given includes the auger fitted with wear parts. EARTH (Taper Lock)
Best suited to soft grounds like earth and clay.
For Augers over 1.2 metres diameter please call one of our sales offices for further information.
ROCK (Taper Lock)
For very hard ground and tarmac where extra cutting
is needed and high wear is expected. Most effective on
machines with high down pressure.
37You can also read
