For Volvo Cars Engine Skövde & Zhangjiakou
Volvo Cars Engine
                            ifm Project Manual




                        ifm Project Manual
                         for Volvo Cars Engine
                         Skövde & Zhangjiakou

                              ifm components
                                    for
  www.ifm.com




                         Projects and Maintenance




        Version 2.1
Version 2.1
   release March 2019
                                                 page 1 of 31
For Volvo Cars Engine Skövde & Zhangjiakou
Volvo Cars Engine
                         ifm Project Manual



                            Contents
    Change index                              page 3

    ifm subsidiaries in Sweden                page 4
    ifm locations worldwide                   page 5

    Information about project processing      page 6

    Inductive sensors M8x1                    page 7
    Inductive sensors M12x1                   page 8
    Inductive sensors M18x1                   page 9
    Inductive sensors M30x1,5                 page 10
    Inductive sensors rectangular             page 11
    Inductive fail-safe sensors               page 12
    Cylinder sensors                          page 13
    Photoelectric sensors cylindric M18       page 14
    Photoelectric sensor cylindric M12        page 15
    Photoelectric sensors rectangular         page 16
    Photoelectric sensors M18/rectangular     page 17
    Pressure sensors PN20                     page 18
    Level sensors and probes                  page 19
    Point Level sensors                       page 20
    Flow sensors for liquids and gases        page 21
    Flow sensors for compressed air           page 22
    Temperature sensors                       page 23
    Memory plug, IO-Link sensors              page 24

    Plugs and Sockets M12                     page 25
    Jumpers M12 without LED                   page 26
    Jumpers M12 with LED                      page 27
    T splitter                                page 28
    Sockets M8                                page 29
    Jumpers M8 / M8 and M12 / M8              page 30
    Cable plugs M12                           page 31

   Version 2.1
                                                 page 2 of 31
release March 2019
For Volvo Cars Engine Skövde & Zhangjiakou
Volvo Cars Engine
                                 ifm Project Manual



                                  Change index
        Version           Date           Description of changes
            1.0      05 December 2011    Preparation Version 1.0
            1.1      14 February 2013    removed IGS208
            1.2        15 May 2013       implemented E11533 and E11534
            1.3        26 March 2014     Implemented information about project processsing.
                                         IF5793 has been removed.
                                         IFC211 is replaced by IFC263
                                         Implemented GG711S, GG712S and PF2658




            1.4        08 April 2014     PF2658 is replaced by PI2898
            1.5      26 November 2014    O1D405 is replaced by O1D105
                                         Add O5D100 and new PN7xxx
            1.6      23 February 2016    Removed SI5000 add SA5000 and E30398, replace
                                         TR2432 by TR2439
            1.7         06 July 2016     Removed IFS208, IFS209, IFC200, IGS209, IG5953,
                                         IG5554, IG5846 and E11419.




            1.8      05 September 2016   Added GF711S
                                         Added EBC116


            1.9      22 September 2016   Updated cover according to agreement with Volvo.


            2.0       11 January 2017    Replacement of links to new webpage.


            2.1        19 March 2019     Changed name to 'Project manual', updated layout.
                                         Updated contact details ifm Sweden.
                                         Updated contact details Volvo Sweden.
                                         Corrected contact details Volvo China.
                                         Updated data/information for Inductive failsafe sensors.
                                         Added MK5314, OGD580, OGD592, LMC100, LMC110.
                                         Replaced pressure sensors PN70 series with PN20 series.
                                         Updated text for Memory plug E30398.




   Version 2.1
                                                                                      page 3 of 31
release March 2019
For Volvo Cars Engine Skövde & Zhangjiakou
Volvo Cars Engine
                       ifm Project Manual




                   Subsidiaries
            ifm electronic ab Sweden




   Version 2.1
                                            page 4 of 31
release March 2019
For Volvo Cars Engine Skövde & Zhangjiakou
Volvo Cars Engine
                                ifm Project Manual


                           ifm locations worldwide
                     Europe                           Asia




                     North America                   South America




                      Africa                            Oceania




   Version 2.1
                                                                     page 5 of 31
release March 2019
For Volvo Cars Engine Skövde & Zhangjiakou
Volvo Cars Engine
                                        ifm Project Manual



                   Information about project processing

 For questions, please contact your personal contact person at Volvo
 or the appropriate field sales engineer at ifm electronic.
 They gladly assist and support you in your Volvo related projects.


 In addition, the ifm automotive team is available.


 email for project support: projectsupport_automotive@ifm.com



 In case of special release:

 For special release you are requested to contact your main contact person
 for the relevant project at Volvo Cars Engine.
 (Please prepare information about the application with proposed solution;
 thereby you simplify the process for yourself and your contact person )



If you have specific questions, please contact the following persons:

Volvo Cars Engine Sweden:
Urban Broström                     urban.brostrom@volvocars.com                      tel. no +46 500 274151

Volvo Cars Engine China:
Yong Guo                           yong.guo@volvocars.com                            tel. no. +86 136 0316 2125


ifm electronic Sweden:
Henrik Gildéus Danielsson          henrik.gildeus.danielsson@ifm.com                 tel. no. +46 40 200841

ifm electronic China:
Pei Kai                            kai.pei@ifm.com                                   tel. no. +86 183 2151 7750




Disclaimer:
The data provided here does not purport to be complete and constant updates.
ifm electronic does not guarantee the accuracy of the information contained in this project manual.
Changes or updates at any time subject to change without prior notice.
Any changes or misuse of the provided information and data are forbidden.




    Version 2.1
                                                                                                      page 6 of 31
release March 2019
For Volvo Cars Engine Skövde & Zhangjiakou
Volvo Cars Engine
                                   ifm Project Manual




                           Inductive sensors M8x1




   Sensor photo      Article no.               Description                           Comment




                                    Sensing range 2mm
                                                                          Inductive sensor M8
                       IE5287       flush mountable; normally open;
                                                                          Increased sensing range,
                                    24V DC; PNP; 3-wire; connector M8
                                                                          length=50mm



                                    Sensing range 4mm
                                                                          Inductive sensor M8
                       IE5288       non-flush mountable; normally open;
                                                                          Increased sensing range,
                                    24V DC; PNP; 3-wire; connector M12
                                                                          length=62mm



                                    Sensing range 2mm
                                                                          Inductive sensor M8
                      IE5257        flush mountable; normally open;
                                                                          Increased sensing range,
                                    24V DC; PNP; 3-wire; connector M12
                                                                          length=62mm



                                    Sensing range 1mm
                      IE5203        flush mountable; normally open;       Inductive sensor M8,
                                    24V DC; PNP; 3-wire; connector M12    length=69mm




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                           page 7 of 31
release March 2019
For Volvo Cars Engine Skövde & Zhangjiakou
Volvo Cars Engine
                                   ifm Project Manual


                           Inductive sensors M12x1

   Sensor photo      Article no.              Description                         Comment


                                   Sensing range 4mm                    Inductive sensor M12
                       IFC237      flush mountable; normally open;      Increased sensing range,
                                   24V DC; PNP; 3-wire; connector M12   length=70mm


                                   Sensing range 3mm                    Inductive sensor M12
                       IFC259      flush mountable; normally open;      Correction factor = 1,
                                   24V DC; PNP; 3-wire; connector M12   length=65mm


                                   Sensing range 2.5mm                   Inductive sensor M12
                      IFC263       flush mountable; normally open;       Aluminium chip immune
                                   24V DC; PNP; 3-wire; connector M12    Ferrous only,
                                                                         length=60mm

                                   Sensing range 4mm                    Inductive sensor M12
                      IFC204       flush mountable; normally open;      Increased sensing range,
                                   24V DC; PNP; 3-wire; connector M12   length=45mm


                                   Sensing range 4mm                     Inductive sensor M12
                      IFC207       flush mountable; normally closed;     Increased sensing range,
                                   24V DC; PNP; 3-wire; connector M12    length=45mm

                                                                        Inductive sensor M12 Increased
                                   Sensing range 4mm                    sensing range Full metal housing
                      IFR200       flush mountable; normally open;      Electromagnetic-field immune ,
                                   24V DC; PNP; 3-wire; connector M12   length=60mm


                     E11533        MOUNTING CLIP V4A M12                to be used where applicable




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.

    Version 2.1
                                                                                           page 8 of 31
release March 2019
For Volvo Cars Engine Skövde & Zhangjiakou
Volvo Cars Engine
                                   ifm Project Manual



                         Inductive sensors M18x1

   Sensor photo      Article no.                Description                              Comment


                      IGC224        Sensing range 8mm                    Inductive sensor M18,
                                    flush mountable; normally open;      length=70mm
                                    24V DC; PNP; 3-wire; connector M12   Increased sensing range


                                   Sensing range 5mm                     Inductive sensor M18
                      IGC232       flush mountable; normally open;       Increased sensing range
                                   24V DC; PNP; 3-wire; connector M12    Electromagnetic-field immune
                                                                         Correction factor = 1, length=65mm

                                   Sensing range 5mm                     Inductive sensor M18
                      IGC211       flush mountable; normally open;       Aluminium chip immune
                                   24V DC; PNP; 3-wire; connector M12    Ferrous only, length=70mm


                                   Sensing range 8mm                      Inductive sensor M18
                      IGC204       flush mountable; normally open;        Increased sensing range.
                                   24V DC; PNP; 3-wire; connector M12     length=46mm


                                   Sensing range 8mm                     Inductive sensor M18
                     IGC207        flush mountable; normally closed;     Increased sensing range,
                                   24V DC; PNP; 3-wire; connector M12    length=46mm

                                   Sensing range 6mm                     Inductive sensor M12 Increased
                                   flush mountable; normally open;       sensing range Full metal housing
                      IGR200
                                   24V DC; PNP; 3-wire; connector M12    Electromagnetic-field immune,
                                                                         length=70mm


                     E11534        MOUNTING CLIP V4A M18
                                                                           to be used where applicable




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.

   Version 2.1
                                                                                               page 9 of 31
release March 2019
For Volvo Cars Engine Skövde & Zhangjiakou
Volvo Cars Engine
                                   ifm Project Manual




                        Inductive sensors M30x1,5




   Sensor photo      Article no.               Description                          Comment



                                    Sensing range 15mm                    Inductive sensor M30 x 1,5
                                                                          Increased sensing range
                       IIS206       flush mountable; normally open;
                                    24V DC; connector M12                 3-wire DC PNP; 2-wire DC
                                                                          PNP/NPN possible length=70mm


                                    Sensing range 22mm                    Inductive sensor M30 x 1,5
                                                                          Increased sensing range
                       IIS207       non-flush mountable; normally open;
                                    24V DC; connector M12                 3-wire DC PNP; 2-wire DC
                                                                          PNP/NPN possible length=70mm




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                         page 10 of 31
release March 2019
Volvo Cars Engine
                                   ifm Project Manual




                     Inductive sensors rectangular




   Sensor photo      Article no.             Description                           Comment



                                    Sensing range 20mm                    Inductive sensor rectangular
                                                                          Correction factor = 1;
                       IM5132       flush mountable; complementary;
                                    24V DC; PNP; 4-wire; connector M12    Sensing face in 5 positions
                                                                          selectable


                                                                          Inductive sensor rectangular
                                    Sensing range 40mm                    Correction factor = 1;
                       IM5135       non-flush mountable; complementary;   Sensing face in 5 positions
                                    24V DC; PNP; 4-wire; connector M12    selectable




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                         page 11 of 31
release March 2019
Volvo Cars Engine
                                   ifm Project Manual




                           Inductive fail-safe sensor


 Sensor photo        Article no.            Description                              Comment


                                                                          approved up to TÜV category 3,
                                    Enable zone 10…15mm (non-flush
                                                                          SIL 3 and PL e; does not require
                                    mountable); DC PNP; 2xOSSD output;
                      GM701S                                              a special counterpart but switch
                                    connector M12
                                                                          directly on the door or a stainless
                                                                          steel or mild steel target


                                                                          approved up to TÜV category 3,
                                    Enable zone 4…20mm (non-flush         SIL 3 and PL e; does not require
                      GM705S        mountable); DC PNP; 2xOSSD output;    a special counterpart but switch
                                    connector M12                         directly on the door or a stainless
                                                                          steel or mild steel target

                                                                         approved up to TÜV category 2, SIL 2
                                    Enable zone 0,5…4mm (non-flush       and PL d; does not require a special
                       GF711S       mountable); DC PNP; 2xOSSD output;   counterpart but switch directly on the
                                    connector M12                        door or a stainless steel or mild steel
                                                                         target, length=70mm

                                                                         approved up to TÜV category 2, SIL 2
                                   Enable zone 1…8mm (non-flush          and PL d; does not require a special
                       GG711S      mountable); DC PNP; 2xOSSD output;    counterpart but switch directly on the
                                   connector M12                         door or a stainless steel or mild steel
                                                                         target, length=70,5mm

                                                                         approved up to TÜV category 2, SIL 2
                                    Enable zone 1…5mm (flush             and PL d; does not require a special
                       GG712S       mountable); DC PNP; 2xOSSD output;   counterpart but switch directly on the
                                    connector M12                        door or a stainless steel or mild steel
                                                                         target, length=70,5mm




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                              page 12 of 31
release March 2019
Volvo Cars Engine
                                   ifm Project Manual




                                   Cylinder sensors



   Sensor photo      Article no.              Description                                Comment




                                     Magnetic sensitivity 2,8 mT;           for T-slot cylinders;
                       MK5100        Travel speed > 10m/s; normally open;   with GMR cell;
                                     24V DC; PNP; flush mountable           PUR cable / 2m



                                                                            for T-slot cylinders
                                     Magnetic sensitivity 2,8 mT;           with GMR cell;
                       MK5102        Travel speed > 10m/s; normally open;   PUR-cable / 0,3m;
                                     24V DC; PNP; flush mountable           connector M8
                                                                            Turnable coupling ring

                                                                            for T-slot cylinders
                                     Magnetic sensitivity 2,8 mT;           GMR cell;
                                     Travel speed > 10m/s; normally open;   PUR-cable / 1 m; cross-linked;
                       MK5116        24V DC; PNP; flush mountable           connector M12
                                                                            Turnable coupling ring

                                                                            for T-slot cylinders
                                     Magnetic sensitivity 2,8 mT;           GMR cell;
                       MK5142        Travel speed > 10m/s; normally open;   PUR-cable / 2 m;
                                     24V DC; PNP; flush mountable           connector M12
                                                                            Turnable coupling ring

                                                                             for C-slot cylinders
                                     Magnetic sensitivity 2,8 mT;            GMR cell;
                       MK5314                                                PUR-cable / 0,3 m;
                                     Travel speed > 10m/s; normally open;
                                     24V DC; PNP; flush mountable            connector M12
                                                                             Turnable coupling ring




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                              page 13 of 31
release March 2019
Volvo Cars Engine
                                     ifm Project Manual



                     Photoelectric sensors cylindric M18

   Sensor photo        Article no.              Description                                    Comment


                                      Through-beam sensor M18 x 1;
                        OGE201        receiver;                                   Light-on mode;
                                      24V DC; 3-wire; connector M12;              Red light 624nm length=60mm
                                      Sensing range 20m

                                      Through-beam sensor M18 x 1;
                        OGS200        transmitter;                                Red light 624nm length=60mm
                                      24V DC; 2-wire; connector M12;
                                      Sensing range 20m

                                      Diffuse reflection sensor M18 x 1;          Light-on/dark-on programmable
                                      red light 624nm;
                        OGH500                                                    via pushbutton;
                                      24V DC; PNP; connector M12;                 Background suppression
                                      Range 15…200mm; adjustable                  length=72mm

                                      Diffuse reflection sensor M18 x 1;
                                      red light 624nm;                            Light-on/dark-on programmable
                        OGT500        24V DC; PNP; connector M12;                 via pushbutton; length=72mm
                                      Range 2…800mm; adjustable

                                      Retro-reflective sensor with pol. filter;   Light-on/dark-on programmable;
                                      red light 624nm;
                        OGP500                                                    Sensing range referred to
                                      24V DC; PNP; connector M12;                 prismatic reflector Ø 80 (E20005)
                                      Sensing range 0,03…5m; adjustable           length=72mm

                                      Retro-reflective sensor with pol. filter;   Light-on/dark-on programmable;
                                      Visible laser light; LASER CLASS 1;         Light spot diameter 78mm (max.range)
                        OGP700                                                    Sensing range referred to prismatic
                                      24V DC; PNP; connector M12;
                                      Sensing range 0,2…15m; adjustable           reflector Ø 80 (E20005) length=72mm


                                      Through-beam sensor M18 x 1;
                                      receiver;                                   Light-on/dark-on programmable
                        OGE701        24V DC; PNP; 3-wire; connector M12;         via pushbutton; length=72mm
                                      Sensing range 2m

                                      Through-beam sensor M18 x 1;
                                      transmitter; LASER CLASS 1;                 Red light 655nm;
                        OGS701        24V DC; 2-wire; connector M12;              Smallest detectable object = Ø 0,5mm
                                      Sensing range 2m                            lengt=72mm




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                                     page 14 of 31
release March 2019
Volvo Cars Engine
                                     ifm Project Manual



                     Photoelectric sensors cylindric M12




   Sensor photo        Article no.              Description                     Comment




                                       Sensor M12 x 1;               Sensing range:
                                       24V DC; PNP; normally open;   50mm on Kodak white
                        JAC201                                       20mm on RAL9005 semi-gloss;
                                       3-wire; connector M12
                                                                     flush mountable length=63mm




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                     page 15 of 31
release March 2019
Volvo Cars Engine
                                    ifm Project Manual




                     Photoelectric sensors rectangular




   Sensor photo       Article no.                Description                                   Comment



                                      Optical distance sensor;
                                                                                 Programmable;
                                      visible laser light protection class 2;
                        O1D105        24V DC; PNP; connector M12;
                                                                                 4-digit alphanumeric display;
                                                                                 Background suppression >10…100m
                                      measuring range 0,2…10m


                                      Diffuse reflection sensor;
                                      red light 624nm;                            Light-on / dark-on programmable;
                        O5H500        24V DC; PNP; connector M12;                 Background suppression
                                      Range 50…1800mm; adjsutable


                                      Retro-reflective sensor;
                                      red light 624nm;                            Dark-on mode;
                        O5P200        24V DC; PNP; connector M12;                 Polarisation filter
                                      Range 0,1…7m (Prismatic reflector Ø
                                      80 (E20005))


                                     Retro-reflective sensor with pol. filter;    Light-on/dark-on programmable;
                                     red light 624nm;                             Sensing range referred to
                        O5P500       24V DC; PNP; connector M12;                  prismatic reflector Ø 80 (E20005)
                                     Sensing range 0,075…10m; adjustable


                                     Photoelectric distance sensor ,             Background suppression , Visible
                                     Rectangular, plastics , Range 2 m , DC      laser light, protection class 1 laser ,
                        O5D100       PNP , Operating voltage: 10...30 V DC ,     3-digit alphanumeric display [cm] ,
                                     2 switching outputs normally open /         adjustable
                                     closed complementary , Connector
                                     M12



For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                                        page 16 of 31
release March 2019
Volvo Cars Engine
                               ifm Project Manual




                     Photoelectric sensors M18/rectangular


       Sensor photo        Article no.          Description                  Comment



                                                Photoelectric distance
                                                sensor; red light; 2 x
                                  OGD580
                                                normally open, 2 x
                                                normally closed;
                                                                             Display
                                                (parameterisable); PNP; IP
                                                65; IP 67; M12 Connector
                                                Measuring range:
                                                0.025...1.5 m

                                                Photoelectric distance
                                                sensor; red light; 2 x
                                  OGD592
                                                normally open, 2 x
                                                normally closed;
                                                                             Display
                                                (parameterisable); PNP; IP
                                                65; IP 67; M12 Connector.
                                                Measuring range:
                                                0.025...0.3 m




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                       page 17 of 31
release March 2019
Volvo Cars Engine
                                   ifm Project Manual


                           Pressure sensors, PN20



   Sensor photo      Article no.               Description                               Comment


                                    Measuring range: 0…400 bar              relative pressure/liquids and gases;
                                                     0…5800 PSI             Programmable / analogue and digital
                       PN2070                        0…40 MPa               Zero and span adjustable; 2 outputs;
                                    24V DC; PNP/NPN; alphanumeric display   Process connection G¼ I

                                    Measuring range: 0…250 bar              relative pressure/liquids and gases;
                                                     0…3630 PSI             Programmable / analogue and digital
                       PN2071                        0…25 MPa               Zero and span adjustable; 2 outputs;
                                    24V DC; PNP/NPN; alphanumeric display   Process connection G¼ I

                                   Measuring range: 0…100 bar               relative pressure/liquids and gases;
                                                    0…1450 PSI              Programmable / analogue and digital
                       PN2092                       0…10 MPa                Zero and span adjustable; 2 outputs;
                                   24V DC; PNP/NPN; alphanumeric display    Process connection G¼ I

                                   Measuring range: -1…25 bar               relative pressure/liquids and gases;
                                                    -14,5…362,5 PSI         Programmable / analogue and digital
                       PN2093                       -0,1…2,5 MPa            Zero and span adjustable; 2 outputs;
                                   24V DC; PNP/NPN; alphanumeric display    Process connection G¼ I

                                    Measuring range: -1…10 bar              relative pressure/liquids and gases;
                                                     -14,5…145 PSI          Programmable / analogue and digital
                       PN2094                        -100…1000 kPa          Zero and span adjustable; 2 outputs;
                                    24V DC; PNP/NPN; alphanumeric display   Process connection G¼ I

                                    Measuring range: -0,13…2,50 bar         relative pressure/liquids and gases;
                                                     -1,45…36,25 PSI        Programmable / analogue and digital
                       PN2096                        -12,5…250 kPa          Zero and span adjustable; 2 outputs;
                                    24V DC; PNP/NPN; alphanumeric display   Process connection G¼ I




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                              page 18 of 31
release March 2019
Volvo Cars Engine
                                              ifm Project Manual



                                    Level sensors and probes


    Sensor photo               Article no.                   Description                                    Comment



                                                 Guided wave radar                          Hydrous coolants, oils, oil-based media,
                                                 Freely rotatable housing 360°              water, media similar to water
                                LR3000           24V DC; PNP; alphanumeric display          OUT1 = switching (normally open/closed)
                                                 Probe length L = 100…1600 mm               OUT2 = analogue (4..20mA;0..10V)



                                                 Guided wave radar                          Hydrous coolants, oils, oil-based media,
                                                 Freely rotatable housing 360°              water, media similar to water
                                LR7000           24V DC; PNP; alphanumeric display          2 switching outputs (normally open/
                                                 Probe length L = 100…1600 mm               closed) programmable



                                                                                             Hygienic system, viscous media and
                                                   Combined pressure sensor,                 liquids with suspended particles.
                               PI2898              -12.4..250mbar, 24V DC, PNP/NPN           2 outputs: OUT1=switching, OUT2:
                                                                                             switching or analogue




    Probe photo               Article no.                  Description                                  Comment



                                                Probe length L = 100…1600 mm
                                                 For detailed information about
                               E4320x           article, please have a look at:               Probe for level sensor LR
                                                http://www.ifm.com/ifms/web/psearch/
                                                E4320.html

                                                  Coaxial pipe length L = 100…1600 mm
                                                   For detailed information about
                               E4321x             article, please have a look at:             Coaxial pipe for level sensor LR
                                                  http://www.ifm.com/ifms/web/psearch/
                                                  E4321.html


For detailed information about the respective article no. please click on the article no. to get linked to the datasheet on the ifm
homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at the ifm homepage.


     Version 2.1
                                                                                                                  page 19 of 31
release March 2019
Volvo Cars Engine
                                   ifm Project Manual



                         Point Level sensors


   Sensor photo      Article no.               Description                            Comment



                                    Binary level sensor; PNP/NPN;
                                    switching signal; IO-Link; Probe    Factory setting: water; hydrous media
                      LMC100        length 28 mm; -25...100 °C; G 1/2
                                    external thread; Connector


                                    Binary level sensor; PNP/NPN;
                                    switching signal; IO-Link; Medium
                      LMC110        temperature -25...100 °C; G 1/2      Factory setting: oils; oil-based media
                                    external thread; Connector




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                            page 20 of 31
release March 2019
Volvo Cars Engine
                                     ifm Project Manual




                     Flow sensors for liquids and gases




   Sensor photo        Article no.               Description                                 Comment


                                     Flow sensor;
                                                                               Process connection:
                                     24V DC; PNP; connector M12;
                                                                               internal thread M18 x 1.5 for adapter;
                         SA5000      Programmable ouput;
                                                                               Pressure rating: 100 bar; OUT1: NO/ NC
                                     Measuring range: 0,05...3 m/s (liquids)
                                                                               or frequency; OUT2: NO/ NC frequency
                                     / 2...100 m/s (gases)
                                                                               or analogue (4...20 mA scaleable)

                                     Magnetic-inductive flow sensor            Process connection: G½ flat seal;
                                     for conductive liquids;                   Connection to pipe by means of an
                         SM6000      Measuring range 0,1…25l/min; -20…80°C     adapter;
                                     24V DC; PNP/NPN; connector M12;           Flow rate and temperature monitoring;
                                     2 progr. outputs (switch/analogue)        Pressure rating: 16 bar




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                                  page 21 of 31
release March 2019
Volvo Cars Engine
                                    ifm Project Manual




                     Flow sensors for compressed air




   Sensor photo       Article no.              Description                              Comment



                                    Compressed air meter; 24V DC; PNP;
                                    process connection: R½ (DN15)             Energy control management
                       SD6000       2 programm. outputs (switch./analogue);   Measurement of air consumption
                                    Measuring range 0,25…75Nm³/h              Detection of leakage
                                    Temperature indication 0…60°C

                                    Compressed air meter; 24V DC; PNP;
                                    process connection: R1 (DN25)             Energy control management
                       SD8000       2 programm. outputs (switch./analogue);   Measurement of air consumption
                                    Measuring range 0,75…225Nm³/h             Detection of leakage
                                    Temperature indication 0…60°C




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                             page 22 of 31
release March 2019
Volvo Cars Engine
                                    ifm Project Manual




                              Temperature sensors




   Sensor photo       Article no.              Description                                 Comment


                                     Evaluation unit for temperature sensors;
                                     24V DC; PNP/NPN; 2 programm. outputs;      Process connection: G½ A;
                                     4-digit alphanumeric display               Communication interface: IO-Link 1.1
                       TR2439                                                   (COM2 slave, 38.4 kBaud);
                                     Measuring range: -100…600°C /
                                     -148..1112 °F




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                                  page 23 of 31
release March 2019
Volvo Cars Engine
                                ifm Project Manual




                      Memory plug, IO-Link sensors


                                  Memory plug for IO-Link sensors ,
                                  OUT1: DC PNP / OUT2: electrically
                       E30398     connected , Operating voltage: 18...32
                                  V DC Parameter memory for IO-Link
                                  sensors , Storage capacity: 2 Kbytes




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                            page 24 of 31
release March 2019
Volvo Cars Engine
                                   ifm Project Manual




                            Plugs and sockets M12




   Cable photo       Article no.               Description                            Comment


                                                                             4-wire;
                                    Socket for sensors with M12 connector;   straight;
                      EVC002        PUR cable / 5 m; without LED             free from halogen and silicone
                                                                             gold-plated contacts

                                                                             5-wire;
                                    Socket for sensors with M12 connector;   straight;
                      EVC071        PUR cable / 5 m; without LED             free from halogen and silicone
                                                                             gold-plated contacts

                                                                             5-wire;
                                    Plug for sensors with M12 connector;     straight;
                      EVC094        PUR cable / 2 m; without LED             free from halogen and silicone
                                                                             gold-plated contacts

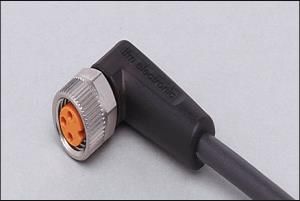

                                    Socket for sensors with M12 connector;   4-wire;
                                    PUR cable / 5 m;                         angled;
                      EVC008        green LED for function;                  free from halogen and silicone
                                    2x yellow LED for status                 gold-plated contacts

                                    Socket for sensors with M12 connector;   4-wire;
                                    PUR cable / 10 m;                        angled;
                      EVC009        green LED for function;                  free from halogen and silicone
                                    2x yellow LED for status                 gold-plated contacts




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                           page 25 of 31
release March 2019
Volvo Cars Engine
                                   ifm Project Manual




                         Jumpers M12 without LED




  Jumpers photo      Article no.               Description                    Comment


                                    Jumper with M12 connectors;      4-wire;
                                    M12 plug / M12 socket;           straight / straight;
                      EVC011                                         free from halogen and silicone
                                    PUR cable / 0,6 m; without LED
                                                                     gold-plated contacts


                                    Jumper with M12 connectors;      4-wire;
                                                                     straight / straight;
                      EVC012        M12 plug / M12 socket;
                                                                     free from halogen and silicone
                                    PUR cable / 1 m; without LED
                                                                     gold-plated contacts


                                    Jumper with M12 connectors;      4-wire;
                                    M12 plug / M12 socket;           straight / straight;
                      EVC013                                         free from halogen and silicone
                                    PUR cable / 2 m; without LED
                                                                     gold-plated contacts

                                                                     4-wire;
                                    Jumper with M12 connectors;
                                                                     straight / straight;
                      EVC014        M12 plug / M12 socket;
                                                                     free from halogen and silicone
                                    PUR cable / 5 m; without LED
                                                                     gold-plated contacts

                                                                     4-wire;
                                    Jumper with M12 connectors;
                                                                     straight / angled;
                      EVC016        M12 plug / M12 socket;
                                                                     free from halogen and silicone
                                    PUR cable / 0,6 m; without LED
                                                                     gold-plated contacts




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                   page 26 of 31
release March 2019
Volvo Cars Engine
                                   ifm Project Manual




                            Jumpers M12 with LED



  Jumpers photo      Article no.               Description                  Comment

                                   Jumper with M12 connectors;
                                                                   4-wire;
                                   M12 plug / M12 socket;
                                                                   straight / angled;
                      EVC021       PUR cable / 0,6 m; with LED
                                                                   free from halogen and silicone
                                   green LED for function;
                                                                   gold-plated contacts
                                   2x yellow LED for status
                                   Jumper with M12 connectors;
                                                                   4-wire;
                                   M12 plug / M12 socket;
                                                                   straight / angled;
                      EVC023       PUR cable / 2 m; with LED
                                                                   free from halogen and silicone
                                   green LED for function;
                                                                   gold-plated contacts
                                   2x yellow LED for status
                                    Jumper with M12 connectors;
                                                                   4-wire;
                                    M12 plug / M12 socket;
                                                                   straight / angled;
                      EVC024        PUR cable / 5 m; with LED
                                                                   free from halogen and silicone
                                    green LED for function;
                                                                   gold-plated contacts
                                    2x yellow LED for status

                                                                   5-wire;
                                    Jumper with M12 connectors;
                      EVC063                                       straight / angled;
                                    M12 plug / M12 socket;
                                                                   free from halogen and silicone
                                    PUR cable / 2 m; without LED
                                                                   gold-plated contacts

                                    Jumper with M12 connectors;
                                                                   3-wire;
                                    M12 plug / M12 socket;
                                                                   straight / angled;
                      EVC053        PUR cable / 2 m; with LED
                                                                   free from halogen and silicone
                                    green LED for function;
                                                                   gold-plated contacts
                                    2x yellow LED for status




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                 page 27 of 31
release March 2019
Volvo Cars Engine
                                   ifm Project Manual




                                           T splitter



 Splitter photo      Article no.            Description
                                                                                          Comment



                                    Y splitter , M12 plug - 2 M12 sockets ,     free from halogen and silicone
                                    M12 , 5-pole , 5-wire , AC/DC , Operating   gold-plated contacts
                     EBC114         voltage: 60 V AC / 60 V DC , M12-plug / 2   Ambient temperature -
                                    x M12-socket                                25…90°C



                                   Y splitter , M12 plug - 2 M8 sockets , M12   free from halogen and silicone
                     EBC112        , 4-pole , 4-wire , AC/DC , Operating        gold-plated contacts
                                   voltage: 50 V AC / 60 V DC , M12-plug / 2x   Ambient temperature -
                                   M8-socket                                    25…90°C


                                    Y splitter , M12 plug - 2 M12 sockets ,     free from halogen and silicone
                      EBC113        M12 , 5-pole , 4-wire , AC/DC , Operating   gold-plated contacts
                                    voltage: 250 V AC / 300 V DC , M12-plug /   Ambient temperature -25…90°C
                                    2 x M12-socket


                                   Y splitter , M12 plug - 2 M12 sockets ,      free from halogen and silicone
                                   M12 , 5-pole , 4-wire , AC/DC , Operating    gold-plated contacts
                     EBC116        voltage: 250 V AC / 300 V DC , M12-plug /    Ambient temperature -
                                   2 x M12-socket                               25…90°C




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                                  page 28 of 31
release March 2019
Volvo Cars Engine
                                   ifm Project Manual




                                       Sockets M8




   Socket photo      Article no.              Description                 Comment



                                                                  4-wire;
                                   Socket with M8 connector;      straight;
                      EVC151       PUR cable / 5 m; without LED   free from halogen and silicone
                                                                  gold-plated contacts



                                                                  3-wire;
                                   Socket with M8 connector;      straight;
                      EVC141       PUR cable / 2 m; without LED   free from halogen and silicone
                                                                  gold-plated contacts


                                                                  3-wire;
                                   Socket with M8 connector;      angled;
                      EVC147       PUR cable / 2 m; with LED      free from halogen and silicone
                                                                  gold-plated contacts


                                                                  3-wire;
                                   Socket with M8 connector;      angled;
                      EVC148       PUR cable / 5 m; with LED      free from halogen and silicone
                                                                  gold-plated contacts




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                page 29 of 31
release March 2019
Volvo Cars Engine
                                   ifm Project Manual




                     Jumpers M8 / M8 and M12 / M8



   Jumpers photo     Article no.               Description                        Comment


                                                                         3-wire;
                                    Jumper with M8 connectors;
                                                                         straight / straight;
                      EVC265        M8 plug / M8 socket;
                                                                         free from halogen and silicone
                                    PUR cable / 0,3 m; without LED
                                                                         gold-plated contacts

                                    Jumper with M8 connectors;
                                                                         3-wire;
                                    M8 plug / M8 socket;
                                                                         straight / angled;
                      EVC283        PUR cable / 2 m; with LED
                                                                         free from halogen and silicone
                                    green LED for function;
                                                                         gold-plated contacts
                                    yellow LED for status

                                                                         3-wire;
                                    Jumper with M12 and M8 connectors;
                                                                         straight / straight;
                      EVC217        M12 plug / M8 socket;
                                                                         free from halogen and silicone
                                    PUR cable / 1 m; without LED
                                                                         gold-plated contacts

                                                                         3-wire;
                                    Jumper with M12 and M8 connectors;
                      EVC218                                             straight / straight;
                                    M12 plug / M8 socket;
                                                                         free from halogen and silicone
                                    PUR cable / 2 m; without LED
                                                                         gold-plated contacts

                                                                         4-wire;
                                    Jumper with M12 and M8 connectors;
                                                                         straight / straight;
                      EVC243        M12 plug / M8 socket;
                                                                         free from halogen and silicone
                                    PUR cable / 2 m; without LED
                                                                         gold-plated contacts

                                    Jumper with M12 and M8 connectors;
                                                                         3-wire;
                                    M12 plug / M8 socket;
                                                                         straight / angled;
                      EVC226        PUR cable / 0,6 m; with LED
                                                                         free from halogen and silicone
                                    green LED for function;
                                                                         gold-plated contacts
                                    yellow LED for status




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                       page 30 of 31
release March 2019
Volvo Cars Engine
                                   ifm Project Manual




                                   Cable plugs M12



   Jumpers photo     Article no.                Description                              Comment


                                    Cable plug; 4-wire                          Free from silicone
                                    M12 connector
                      E11504        ...0.75 mm² (Ø 4...6 mm); screw terminals
                                                                                Free from halogen
                                                                                wirable
                                    Design: straight

                                    Cable plug; 4-wire                          Free from silicone
                                    M12 connector                               Free from halogen
                      E11505        ...0.75 mm² (Ø 4...6 mm); screw terminals   wirable
                                    Design: angled

                                    Cable plug; 5-wire                          Free from silicone
                                    M12 connector                               Free from halogen
                      E11506        ...0.75 mm² (Ø 4...6 mm); screw terminals   wirable
                                    Design: straight




For detailed information about the respective article no. please click on the article no.
to get linked to the datasheet on the ifm homepage.
For accessories please click „Accessories“ on the left side of the datasheet-page at
the ifm homepage.



   Version 2.1
                                                                                              page 31 of 31
release March 2019
You can also read
Next part ... Cancel
