New efficiencies for old systems
Energy-efficient and nature-conscious for major projects, but also in sharing its
energy systems are of global importance. knowledge with external engineers, de-
The concept of simultaneously minimis- signers and decision makers at seminars
ing carbon emissions, managing individ- and other forums.
ual consumption, optimising comfort and
improving the overall efficiency of energy Transforming the operational efficiency
generation, supply and usage is still a rel- of Russian DH systems also requires a
atively new one. The global community is certain amount of active responsibility
very diverse in terms of its commitment to from the end user. In Russia, like many
district heating (DH) as a sustainable so- countries around the world, DH-based
lution that can play a major role in future utilities for multi-dwelling accommoda-
energy systems. For this reason, sharing tion are measured and billed according
knowledge and experience across bor- to occupied space, not individual con-
ders is extremely important. I am happy sumption. Therefore, the consumer has
that this edition of Agenda is committed Danfoss is in a very privileged position in a very low knowledge or appreciation
to making some headway on this front, Russia today, in that the ethics and bene- of their personal energy consumption –
with case studies and contributions from fits at the core of its solutions are totally in thermostats are mainly understood only
around the globe. line with the national government’s strat- as a comfort device and used very sel-
egy to re-inject 360 degree efficiency into dom. It is no secret that potential cost
There are some great learning oppor- the country’s DH systems. Energy loss savings are a major motivator for con-
tunities available in sharing Russian DH in the distribution network is currently sumers, and making it a requirement to
trends and examples. In comparison to as high as 50% in some areas. There is measure and bill energy consumption on
the UK and the United States, Russia has also the potential of up to 30% savings to an individual basis would encourage end
a very large DH supply. Water-based DH be made within many buildings with the users to streamline their usage. Until the
has a significant share of the domestic supply and modernisation of substations, real importance of all the dimensions of
heat supply – as much as 70% – and controls, balancing valves and other com- energy efficiency is fully understood by
most Russian cities were planned and ponents. The latter is low-hanging fruit if everyone, such cost-focused legislation
developed on the understanding that DH Russian DH utilities and authorities can would make a real impact in Russia, and
would provide the most efficient energy appreciate the return-on-investment that in many other markets.
system. However, during political transi- can be achieved through energy savings
tion throughout the nineties, the lack of by such modernisation. Danfoss is com- Mikhail Shapiro
continual investment and maintenance of mitted to endorsing this proposition, not General Manager
these systems has lead to their demise. only in the supply of complete solutions Danfoss District Heating, Russia
#3, 2009. Danfoss A/S: Danfoss District Heating, 6430 Nordborg, Denmark, Tel +45 7488 2222, www.dh.danfoss.com.
#3
issued by Danfoss District Heating
Editor: Thomas Heide Jørgensen, thomas_heide@danfoss.com.
#1
Publisher: Weis & Co. ApS, Middelfartgade 17, 2100 Copenhagen Ø, Denmark, Tel +45 33 366 266, info@weis-co.dk
District heating by Danfoss
Art Director: Anna Ax. Copywriters: Jesper With, Rob Holder, Dmitriy Shkolnikov, Paul Barfoot.
Proof-reader: InterText | Mus & Pen, Malene Sejer Larsen. Paper: 100 milligram, CyclusOffset, Dalum Papir, Denmark.
agenda is distributed by Danfoss. Opinions expressed in this publication are those of the authors or persons interviewed, and do not necessarily reflect the views of Danfoss or Weis & Co.
All rights reserved. Material may not be reproduced in any form without prior written permission. Unsolicited manuscripts, photographs and illustrations are not accepted. agenda accepts no
responsibility for such material sent to its office, and is not liable for loss or damage of such material. agenda assumes no responsibility for printing errors.
4 agenda
The Danfoss
headquarter
in Nordborg
agenda 5
News Danfoss highlights
Growth of Danfoss
solutions in Lithuania
The predominance of one-pipe centralised systems and the lack
of new-build system regulations have made it difficult to mobilize
energy efficiency in Lithuania.
Danfoss works closely with local designers, installers and inves-
tors to actively encourage the uptake of more energy-efficient
solutions in this post-soviet territory, and is proud to report mea-
surable success.
In 2005, a pilot scheme in the Gandraliskes district of Klaipeda
installed Danfoss substations, type Akva Lux TDP in 88 domestic
flats. The benefit of a 44% saving in heating tariffs helped make
the advantages of a decentralised system tangible to residents
and stakeholders, and sparked a wave of similar projects across
the country.
Over the last two years, 700 Danfoss substations, type Akva Lux
TDP and Akva Lux TDP-F have been installed in the city of Klaipe-
da, as well as being implemented into all new-builds in the city of
Panevezys. The same solutions will be used for a new multi-family
house project that will provide 1,742 flats for 6,000 Gandraliskes
residents. It has also been confirmed that Danfoss substations,
Termix VMTD types, will be used for a major multi-family house
renovation initiative in the city of Kaunas later this year.
Record tender success in Poland
Danfoss LPM is proud to report a tender victory of 312 substa- tion know-how, they have helped transform the efficiency and
tions to support the modernisation of 130 km of district heat- comfort of the energy supply to many of the city’s residents and
ing network in the large Polish city of Krakow. It is part of an workforce.
ongoing €75.4 million project, for which Krakow District Heating
Company received €54.4 million in EU funding. However, the recent 312-unit substation order represents the
company’s biggest to date, and strengthens Danfoss’ presence
Danfoss LPM is not a stranger to the project. Following suc- in the region. So far, 188 units have been delivered out of the
cessful realisation of two previous tenders in 2006 and 2007, it Danfoss LPM factory in Tuchom, Poland. The remaining 124
has already delivered 127 substations, automatic controls and substations are scheduled for production, assembly and delivery
heat exchangers. Together with significant exchange of applica- in the first half of 2009.
6 agenda
Danfoss highlights News
DHC breakthrough
in the European Parliament
The joint DHC industry, including the national and European DHC
associations plus leading industry companies, have worked inten-
sively during 2008 to influence the contents of the EU Directive for
the promotion of Renewable Energy Sources (RES). It is a pleasure to
report that the collaborative efforts to ensure that district heating and
cooling (DHC), combined heat and power (CHP) and efficient heat
pump technology be featured as key RES in the EU climate agreement
have paid dividends.
A key paragraph in the approved Directive states: “Member States
shall recommend to all actors, in particular local and regional adminis-
trative bodies, to ensure equipment and systems are installed for the
use of heating, cooling and electricity from renewable sources and for
district heating and cooling when planning, designing, building and
refurbishing industrial or residential areas.”
This represents a milestone in elevating the status of DHC to that of
wind and solar energy options, and highlights it as an important ele-
ment of combined sustainable energy solutions. The endorsement is
also key to realizing the ambitious targets set for 2020, which include a
20% reduction of CO2 compared to 1990 and 20% improved energy
efficiency, of which 20% should be covered by RES.
Danfoss prepares
for COP 15
The Danish capital will host the United Nations Climate Change
Conference in December 2009, and Danfoss preparations are
underway to be an active supporter and presence.
Firstly, Danfoss is a main sponsor of the Danish Climate Consor-
tium, a joint venture between the national Ministry of Economic
and Business Affairs and leading business organisations that will
have a major voice at the event. The Danish Climate Consortium
is involved in a series of events and exhibition arrangements
around COP 15 that will provide opportunities to interact with
Danish technologies that are having a positive impact on climate
change, including solutions provided by the Danfoss Group.
ration initiated by the 2007 District Heating/Cooling White Paper,
Danfoss District Heating and White Paper partners (Grundfos, available to download from www.dh.danfoss.com/agenda.
LOGSTOR and COWI) have also entered arrangements for a
joint exhibition booth at the Bright Green EXPO in Parken, 12th- In the coming months, Danfoss will continue to explore further
13th December (www.brightgreen.dk). It is an event organised opportunities to provide support for COP 15, and looks forward
by the Confederation of Danish Industry (DI) to bridge the two to meeting industry colleagues and stakeholders at events and
weeks of COP 15. The joint booth is an extension of the collabo- forums leading to this important world event in Copenhagen.
agenda 7
News Danfoss highlights
Luxury
comfort
for Turkish
towers

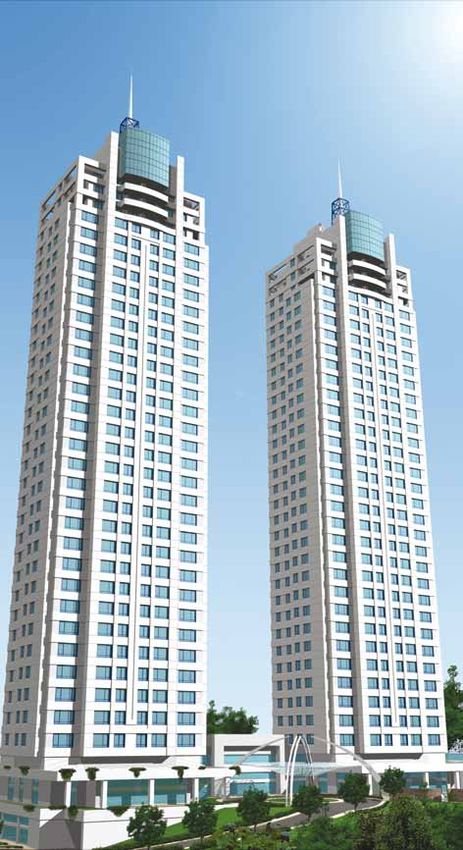

The Selenium Twins are two
