Sensor development for the ALICE ITS upgrade in LS3 Magnus Mager (CERN) on behalf of the ALICE collaboration
Outline
‣ ITS2 (LHC LS2, i.e. now)
TDR Commissioning
- Detector layout
- Sensor technology il
- Highlights from commissioning
‣ ITS3 (LHC LS3, i.e. soon)
Idea Prototypes
- Detector concept + predicted
performance
- Project overview
- Sensor development
Magnus Mager (CERN) | Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 2
ALICE
Detector and main goals
‣ Study of QGP in heavy-ion collisions at LHC
- i.e. up to O(10k) particles to be tracked in
a single event
‣ Reconstruction of charm and beauty hadrons
‣ reconstruction
Interest in low momentum (≲1 GeV/c) particle
Magnus Mager (CERN) | Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 3
ALICE today
LS2 upgrades with Monolithic Active Pixel Sensors (MAPS)
Inner Tracking System
ITS2
LS2
6 layers: 7 layers:
2 hybrid silicon pixel all MAPS
2 silicon drift
2 silicon strip
Inner-most layer: Inner-most layer:
radial distance: 39 mm radial distance: 23 mm
material: X/X0 = 1.14% material: X/X0 = 0.3%
pitch: 50 ⨉ 425 μm² pitch: O(30 ⨉ 30 μm²)
rate capability: 1 kHz rate capability: 100 kHz (Pb-Pb)
Muon Forward Tracker
MFT
new detector
5 discs, double sided:
based on same technology as ITS
Magnus Mager (CERN) | Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 4

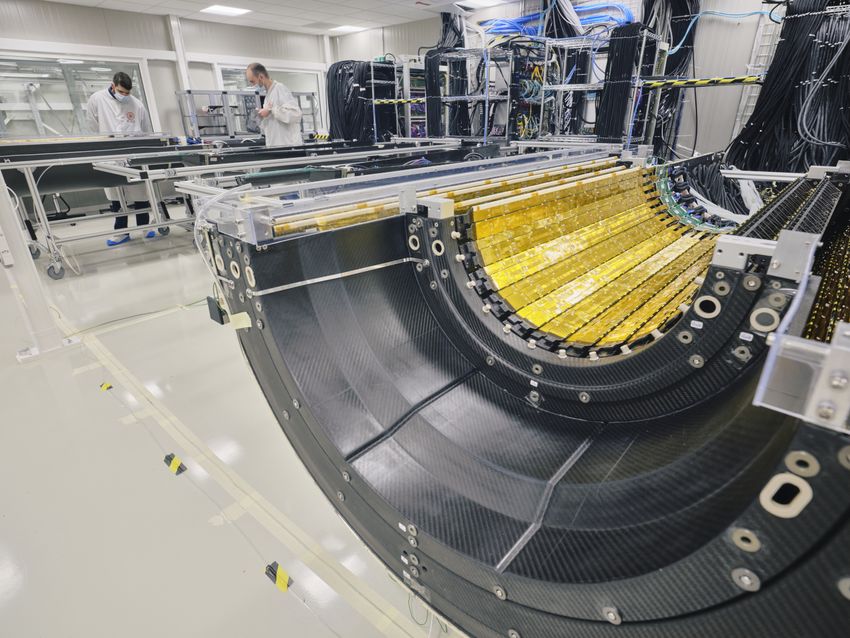

ITS2
Overview of the detector Inner Barrel (IB) Flexible PCB
3 Inner Layers: 12+16+20 Staves
9 sensors
Layout 1 Module / Stave
Cold Plate
9 sensors per Module
Space Frame
96 Modules to be produced
(2 Inner Barrels + spares)
40
27 cm
cm
Outer Barrel (OB)
2 Middle Layers: 30+24 Staves
2⨉4 Modules / Stave
2 Outer Layers: 42+48 Staves
m 2⨉7 Modules / Stave
7 c
14
2⨉7 sensors / Module
Total: (Middle and Outer Layers are
- 24k chips equipped with the same Module
- 10 m2 Type)
- 12.5 GPixel
1880 Modules to be produced
(including spares)
Good news: it was all built, assembled and tested!
Magnus Mager (CERN) | Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 5

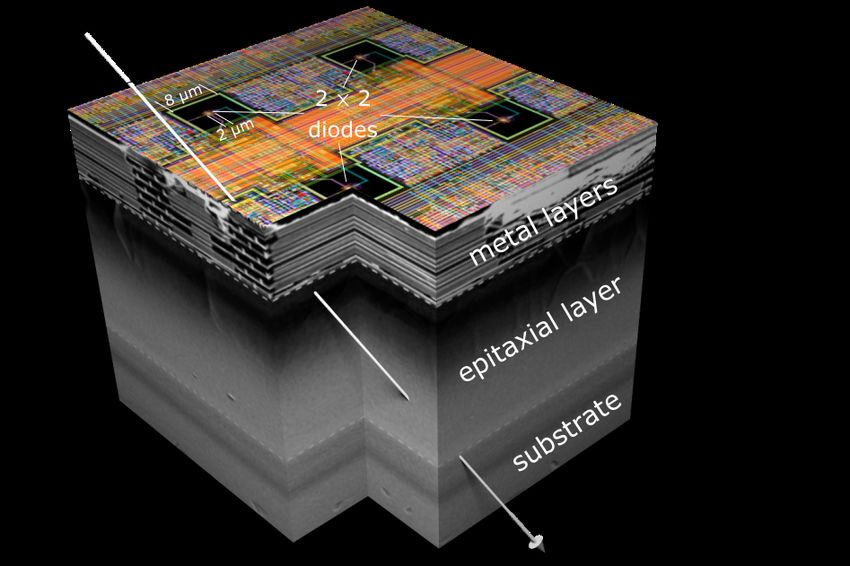

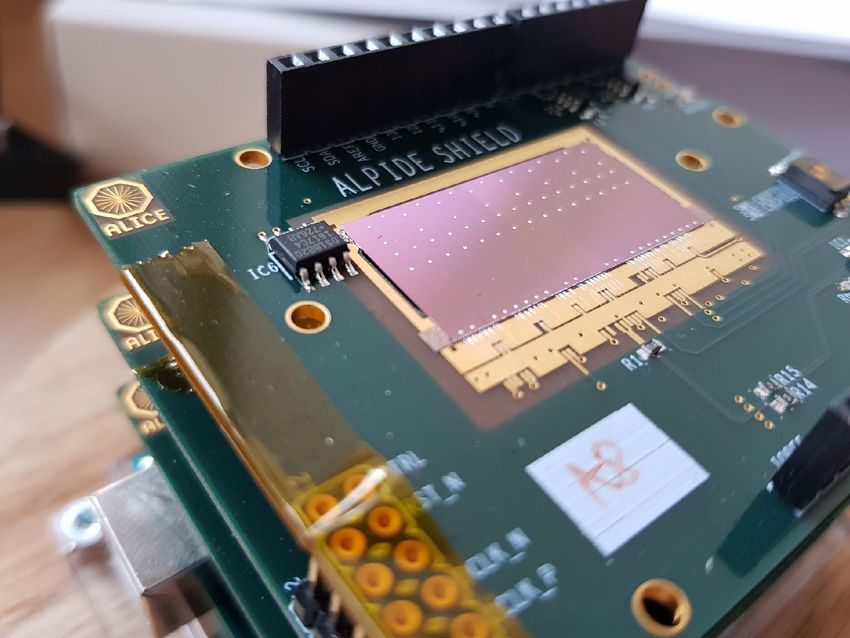

ALPIDE
MAPS technology
524 288 pixels
3 c m
1.
5c
m
‣ Process: TowerJazz 180 nm CIS
- deep p-well to allow CMOS circuitry inside matrix
- reverse-substrate bias
‣ Detection layer: 25 μm high-resistive (>1 kΩcm) epitaxial layer
‣ Thickness: 100 μm (OB) or 50 μm (IB)
More details in Maxim’s talk later! Magnus Mager (CERN) | Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 6

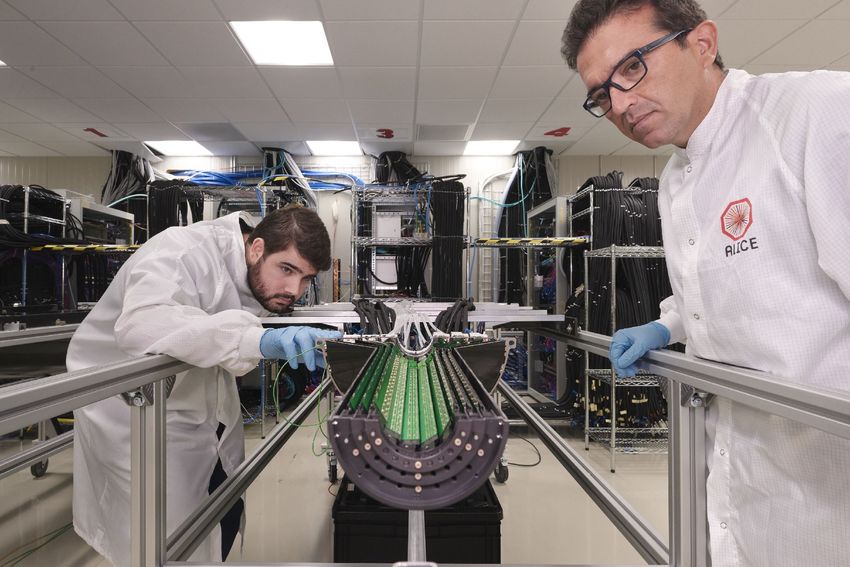

ITS2 commissioning
Magnus Mager (CERN) | Novel Ideas in Silicon Tracking Detector (ALICE) | IAS HEP2021 | 21.01.2021 | 7
ITS2 commissioning
Cosmics (2)
3 layers:
real time!
Magnus Mager (CERN) | Novel Ideas in Silicon Tracking Detector (ALICE) | IAS HEP2021 | 21.01.2021 | 8
ITS2 commissioning
(No) noise / fake-hit rate
‣ This is the real rate measured on-
detector, including final services
‣ Essentially, apart from a handfull pixels
per chip, the detector is noise-free
‣ Biggest contributor are cosmic rays
(which were not excluded here)
Excellent on-detector performance! Looking forward to recording collisions!
Magnus Mager (CERN) | Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 9
ITS3 — the golden detector
Magnus Mager (CERN) | Novel Ideas in Silicon Tracking Detector (ALICE) | IAS HEP2021 | 21.01.2021 | 10ITS2 inner barrel
40 ITS2: global layout ITS2: assembled three inner-most half-layers
27 cm
cm
c m
7
14
‣ ITS2 will already have unprecedented performance
‣ The Inner Barrel is ultra-light but rather packed → further improvements seem possible
‣ Key questions: Can we get closer to the IP? Can we reduce the material further?
Magnus Mager (CERN) | Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 11Motivation for ITS3
‣ Observations:
- Si makes only 1/7th of total material
- irregularities due to support/
cooling
‣ Removal of water cooling
- possible if power consumption
stays below 20 mW/cm2
‣ Removal of the circuit board
(power+data)
- possible if integrated on chip
‣ Removal of mechanical support
- benefit from increased stiffness by
rolling Si wafers
Magnus Mager (CERN) | Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 12ITS3

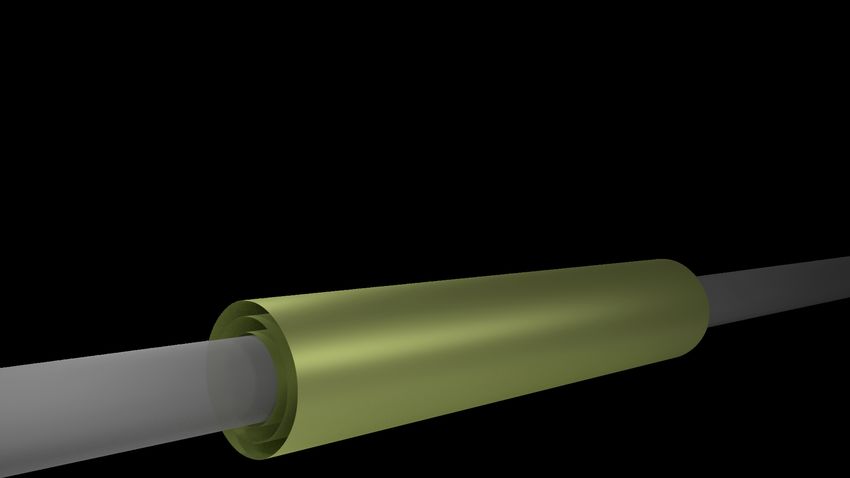

detector concept
‣
truly cylindrical
detection layers Key ingredients:
- 300 mm wafer-scale chips, fabricated
using stitching
- thinned down to 20-40 μm (0.02-0.04%
X0), making them flexible
- bent to the target radii
rb o n - mechanically held in place by carbon
a
c rs
c e
n- sp
l l
a c e foam ribs
e
op oam
f
‣ Key benefits:
- extremely low material budget:
0.02-0.04% X0
(beampipe: 500 μm Be: 0.14% X0)
- homogeneous material distribution:
negligible systematic error from material
distribution
The whole detector will comprise six (!) chips – and barely anything else
Magnus Mager (CERN) | Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 13Performance figures
pointing resolution tracking efficiency
[ALICE-PUBLIC-2018-013]
improvement of factor 2 over all momenta large improvement for low transverse momenta
Magnus Mager (CERN) | Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 14Lambda-c (Λc)
schematic view of a Λc decay
K ‣ Analysis difficult due to large
combinatorial background:
π
- O(10k) charged particles in a
central Pb-Pb collision
p
‣
)
O
(6
0µ
m
Discrimination of background via:
)=
c
t(Λ Λc
c
- Particle identification (relatively low
“d D yield of protons and Kaons wrt.
C
pions)
is
ta
n
ap ce
A(
pr of
oa c
p)
ch los
” e
- Topology: cut on DCA of single
st
tracks (before making the
combinations) and decay vertex
position (needs combinations)
Magnus Mager (CERN) | Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 15Lambda-c (Λc) (2)
[ALICE-PUBLIC-2018-013]
‣ Large improvement of S/B + significance due to better separation power of secondary decay
vertex (Λc ≈ 60 µm)
‣ Allows for precision measurements over a wide pT range
Λc yield S/B Significance
ITS3 / ITS2 10 4
Magnus Mager (CERN) | Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 16ITS3 project startup
EoI, LoI, start of R&D
Sep 2019 Dec 4th 2019
R&D!
>150 people!
gaining momentum!
[ALICE-PUBLIC-2018-013] [CERN-LHCC-2019-018 ; LHCC-I-034] [ITS3 R&D kickoff meeting]
[…] […]
The LHCC is impressed by the new concept for the ITS3 The LHCC congratulates the ITS3 groups for
[…]
the successful start of the project.
The LHCC endorses the plan of ALICE to carry out the […]
necessary R&D [LHCC minutes: CERN-LHCC-2020-008 ; LHCC-142]
[…]
[LHCC minutes: CERN-LHCC-2019-010 ; LHCC-139]
Magnus Mager (CERN) | Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 17Wafer-scale chip
Principle of photolithography 200 mm ALPIDE prototype wafer
‣ Chip size is traditionally limited by
CMOS manufacturing (“reticle size”)
- typical sizes of few cm2
- modules are tiled with chips
connected to a flexible printed
circuit board
Wafer-scale sensor
‣ New option: stitching, i.e. aligned
Stave design
o l i ng
FPC + chips
Courtesy: R. Turchetta, Rutherford Appleton Laboratory
exposures of a reticle to produce pp or t + co
su
larger circuits 14 c m
27
- actively used in industry ALPID
E chip
cm
FP s
- a 300 mm wafer can house a chip C
(p
ow
to equip a full half-layer er
+d
at
- requires dedicated chip design a)
Magnus Mager (CERN) | Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 18Sensor dimensions
65 nm process
‣ All the three foreseen (half-) layers can be
equipped with a single chip from a 300 mm
wafer
‣ This is the driving argument for ITS3 to go to
the 65 nm process
‣ At the same time, ITS3 wants to exploit the
technology at its best, potentially:
- lower power
- more logic
- smaller pixels
- faster readout
Magnus Mager (CERN) | Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 19Architecture
Ideas + Challenges
Possible architecture – many more being explored right now!
‣ Stitching requires a regular, periodic structure of the matrix
‣ Different architectures are under study
- here, the concept laid out in the LoI is mostly inspired by
ALPIDE
‣ ITS3 needs three different chip sizes
- naturally comes with stitching a variable number of
“rows”
- likely adaptable to other geometries (e.g. square-like
matrices)
‣ Electrical interface only on one side
‣ Power consumption needs to stay low in the matrix region,
but can be larger at periphery
- dictated by air cooling capabilities and acceptable
voltage drop along the sensor
Magnus Mager (CERN) | Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 20Yield
3 Summary of test results & Yield
Figures 8 and 9 show respectively the number and fraction of chips classified as gold , silver , bro
and NOK for each of the previously described testing parameters. The results are shown only fo
chips that can be powered.
ALPIDE results
‣ Producing a working wafer-scale sensor is very
challenging
‣ Dedicated effort on yield optimisation is needed
‣ Different directions are explored:
- layout optimisation
Fig. 9: Classification summary – fraction of chips in each category (respective colors, with red for NOK )
- testing
for single redundancy
parameters.
- fault tolerance
‣ ALPIDE results
Table from several
7: Final ALPIDE thousand wafers
yield summary.
provide valuable input Category
OK NOK
gold silver bronze
30.4 22.9 10.6 36.1
Yield (%)
63.9 36.1 Fig. 8: Classification summary – number of chips in each category (respective colors, with red for N
forMager
Magnus single testing
(CERN) parameters.
| Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 21The next chip
baseline specifications
ALPIDE is a great starting point, samller technology node will open further possibilities!
Magnus Mager (CERN) | Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 22Sensor prototyping
First 65nm submission “MLR1”
~12 mm
‣ ITS3 plays a leading role in the evaluation of the TowerJazz
65 nm technology for MAPS
‣ First test structures in 65 nm have been just submitted
- transistor test structures for radiation hardness studies
- various diode matrices for charge-collection studies
~16 mm
- analog building blocks
‣ Large number of dies in different processing flavours are
expected
- will provide crucial input into the next design steps
‣ Wafer-scale blocks will be diced out to study mechanical
properties expect O(500) dies per wafer
‣ First chips expected mid 2021: stay tuned!
Magnus Mager (CERN) | Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 23Mechnical porperties of thin, wafer-scale chips
Bending
Mylar foil
50 μm-thick dummy silicon,
full inner-layer size
R = 30 mm mandrell
Magnus Mager (CERN) | Novel Ideas in Silicon Tracking Detector (ALICE) | IAS HEP2021 | 21.01.2021 | 24Summary
‣ ALICE ITS2 is the first really large-scale (O(10 m2)) application of MAPS in
HEP
- the detector is fully built and ready for installation
- commissioning results verify excellent system-level performance
‣ The development of ALPIDE marks a new generation of MAPS in terms of
functionality and performance figures
‣ ALICE ITS3 will push the technology even further, approaching the massless
detector
- R&D encouraged by LHCC in Sep 2019 and progressing at full steam
- just proved the feasibility of curved silicon detectors, marking the start of a
new chapter on silicon-detector designs
- fully integrated, wafer-scale sensors will allow large-scale minimal
material budget applications
Magnus Mager (CERN) | Sensor development for the ALICE ITS upgrade in LS3 | DAQFEET-2021 | 08.02.2021 | 25!ank you!
