SYSTEM SOLUTION KITS Supplementary Price List Great Britain · Effective from 1 January 2019
System Solution Kits
With over 10,000 products combining as systems and solutions to common problems associated with tile and stone installations, we recognise that
finding the right combinations for crack-free coverings, guaranteed waterproofing and underfloor heating is not always easy.
At Schlüter-Systems Ltd, it is one of our aims to make life easier - our System Solution Kits have been introduced for this very reason, enabling all
of the necessary products to be easily selected and available in a single box. This not only saves time, but also ensures that you have all of the right
products to complete the job at hand.
The kits contain all of the required components to create perfectly prepared:
• Floors that are protected with Schlüter®-DITRA 25 matting for uncoupling and crack-bridging, with all joints sealed with the Schlüter®-KERDI
range for CE Marked waterproofing
• Walls that are waterproofed with the Schlüter®-KERDI range for CE Marked waterproofing
• Floors or walls that are heated with Schlüter®-DITRA-HEAT-E
• Drainage with the choice of point drains from Schlüter®-KERDI-DRAIN, linear drains from Schlüter®-KERDI-LINE and CE Marked waterproofing
for wetrooms and showers with the Schlüter®-KERDI range
Should these kits not fit your project requirements, then a solution can be found in our Profiles and Systems price list.
UNDERFLOOR AND UNDERWALL HEATING
Schlüter®-DITRA-HEAT-E
ELECTRIC UNDERFLOOR AND WALL HEATING FOR TILE AND STONE

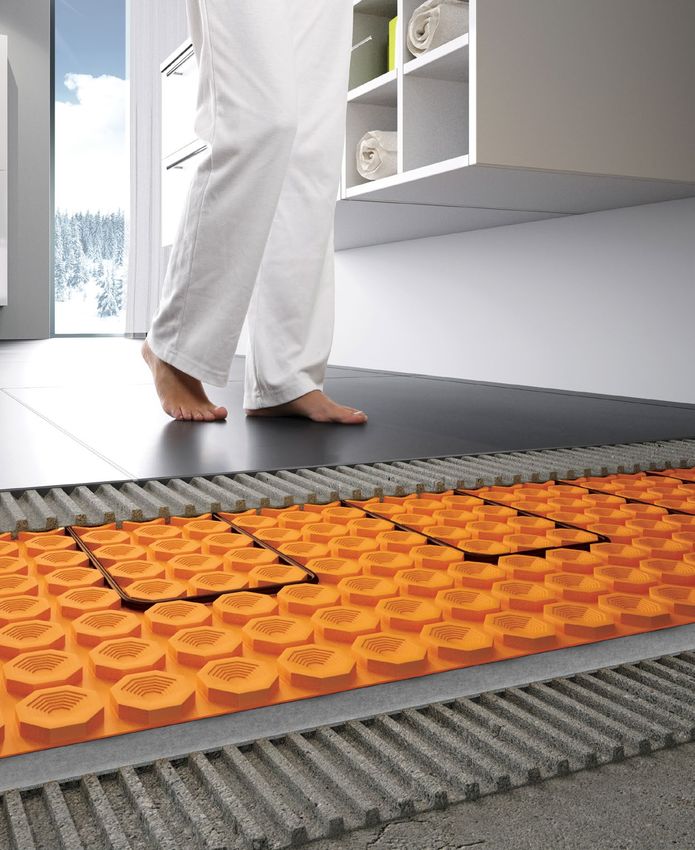

Schlüter®-DITRA-HEAT-E is a system for electric underfloor and wall heating that creates comfortably warm tile and stone coverings. The heating
cables of Schlüter®-DITRA-HEAT-E are installed in the uncoupling mat for targeted heating of tiled areas. With the flexible control of temperatures and
heating times provided by our digital and Wi-Fi thermostats, you can use Schlüter®-DITRA-HEAT-E to create warm tiles whenever and wherever you
choose.
From 5.5mm
13dB Reduction 13dB Reduction 13dB Reduction
13dB Reduction 13dB Reduction 13dB Reduction 13dB Reduction
Uncoupling Surface Impact Sound Thermal Break Load Crack-Bridging Waterproofing Vapour
Heating Reduction Distribution Management
UNDERFLOOR AND UNDERWALL HEATING
Schlüter®-DITRA-HEAT-E-DUO-S
Complete floor heating kits with
integrated thermal break and acoustic
reduction fleece
Schlüter®-DITRA-HEAT-E-DUO-S floor kits
are complete sets for electric underfloor
heating. They include the uncoupling mats
Schlüter®-DITRA-HEAT-DUO, the heating
cables Schlüter®-DITRA-HEAT-E-HK and the
WiFi thermostat set Schlüter®-DITRA-HEAT
-E-R-WIFI. If needed, the uncoupled area can be
extended with additional Schlüter®-DITRA-HEAT-
DUO uncoupling mats. The special Schlüter®-
DITRA-HEAT-DUO thermal break, in addition to
reducing impact sound by up to 13dB, enables
significantly faster response. Inclusion of a
Wi-Fi thermostat means that the system can
be controlled from any location via smartphone,
tablet etc. The Schlüter-HEAT-CONTROL app is
available for both Android and iOS.
(Product data sheet 6.4)
Schlüter®-DITRA-HEAT-E-DUO-S Floor Kits with WiFi
complete floor heating system with integrated thermal break and acoustic reduction fleece
Uncoupled Heated area (m2)
Art.-No. £ / Set PL = Set
area (m2) at 136 W/m2
1.6 1.1 DH D RT5 S1 377.20 9
2.4 1.6 DH D RT5 S2 415.84 9
5.5 mm
2 mm 3.2 2.2 DH D RT5 S3 448.04 9
4.0 2.7 DH D RT5 S4 494.96 8
4.8 3.3 DH D RT5 S5 541.88 8
5.6 3.8 DH D RT5 S6 595.24 5
6.4 4.4 DH D RT5 S7 642.16 5
7.2 5.0 DH D RT5 S8 698.28 4
8.0 5.5 DH D RT5 S9 740.60 4
Content:
Schlüter®-DITRA-HEAT-DUO Schlüter®-DITRA-HEAT-E-HK Schlüter®-DITRA-HEAT-E-R-WIFI
uncoupling mats heating cables thermostat set
4 Prices exclude VAT
UNDERFLOOR AND UNDERWALL HEATING
Schlüter®-DITRA-HEAT-E-DUO-WS
Complete wall heating kits with integrated
thermal break and acoustic reduction
fleece
Schlüter®-DITRA-HEAT-E-DUO-WS wall kits
are complete sets for electric underwall
heating. They include the uncoupling mats
Schlüter®-DITRA-HEAT-DUO, the heating
cables Schlüter®-DITRA-HEAT-E-HK and the
thermostat set Schlüter®-DITRA-HEAT-E-R. If
needed, the uncoupled area can be extended
with additional Schlüter®-DITRA-HEAT-DUO
uncoupling mats. The special Schlüter®-
DITRA-HEAT-DUO thermal break, in addition
to reducing impact sound by up to 13dB,
enables significantly faster heating response.
(Product data sheet 6.4)
Schlüter®-DITRA-HEAT-E-DUO-WS Wall Kits
complete wall heating system with integrated thermal break and acoustic reduction fleece
Uncoupled Heated area (m2)
Art.-No. £ / Set PL = Set
area (m2) at 200 W/m2
3.2 2.6 DH D RT5 S10 540.04 9
2.4 1.8 DH D RT5 S11 457.24 9
Content:
Schlüter®-DITRA-HEAT-DUO Schlüter®-DITRA-HEAT-E-HK Schlüter®-DITRA-HEAT-E-R
uncoupling mats heating cables thermostat set
Prices exclude VAT 5
WETROOMS Schlüter®-WETROOMS INTEGRATED WETROOM KITS For peace of mind when it comes to long term success, possible time and cost savings and versatile design options, we recommend an integrated single-source system. The beauty of the Schlüter®-WETROOM system is that its products have been designed and manufactured to complement each other and take care of installation issues, resulting in a reliable, water-tight finish which is CE Marked and guaranteed to last for years to come. Incorporating the very latest innovations for floor-level access showers and wetrooms, Schlüter-Systems provides a fully integrated product suite, including top of the range ready-to-tile pre-sloped shower trays, drainage systems and waterproofing membranes for walls and floors. 6 Prices exclude VAT
WETROOMS
Schlüter®-KERDI-DRAIN-WRKD
Integrated point drain wetroom kit
Schlüter®-KERDI-DRAIN-WRKD is an
integrated wetroom kit with a point drain set.
A collar made of Schlüter®-KERDI is provided
so a reliable connection of the channel body
to the bonded waterproofing assembly can
be ensured. The kit also includes a Schlüter®-
KERDI-SHOWER-SK waterproofing kit, pre-
formed shower tray and a frameless design
grate for subtle integration with your chosen
tile or stone covering.
Schlüter®-KERDI-DRAIN-H Integrated Wetroom Kit
complete wetroom kit with horizontal exit and Schlüter®-KERDI-DRAIN point drain
L x W = cm H = mm
Art.-No. £ / Set PL = Set
(Tray) (Tray)
100 x 100 22 WRK 1000 KD H50 ED4 374.17 3
Schlüter®-KERDI-DRAIN-V Integrated Wetroom Kit
complete wetroom kit with vertical exit and Schlüter®-KERDI-DRAIN point drain
L x W = cm H = mm
Art.-No. £ / Set PL = Set
(Tray) (Tray)
100 x 100 22 WRK 1000 KD V50 ED4 353.63 3
WRK 1000 KD H50 ED4 includes:
Schlüter®-KERDI-SHOWER- Schlüter®-KERDI- Schlüter®-KERDI-DRAIN Schlüter®-KERDI-DRAIN
SK (KSS5) waterproofing kit SHOWER-TB design 4 tile support grate horizontal drain and odour trap
and frame
WRK 1000 KD V50 ED4 includes:
Schlüter®-KERDI-SHOWER- Schlüter®-KERDI- Schlüter®-KERDI-DRAIN Schlüter®-KERDI-DRAIN
SK (KSS5) waterproofing kit SHOWER-TB design 4 tile support grate vertical drain and odour trap
and frame
Prices exclude VAT 7
WETROOMS
Schlüter®-KERDI-LINE-WRKL
Integrated linear drain wetroom kit

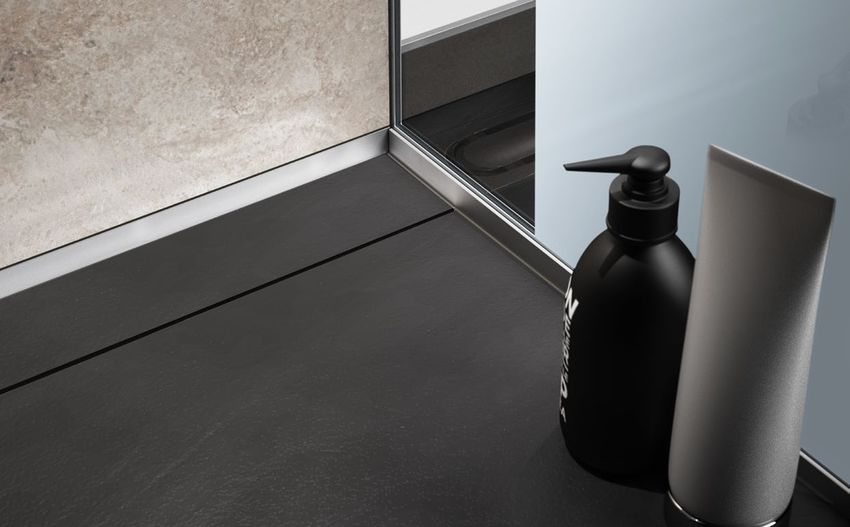

Schlüter®-KERDI-LINE-WRKL is an
integrated wetroom kit with a linear drain set.
The linear drain set can be positioned centrally,
off-set, or at the perimeter of the shower area. A
collar made of Schlüter®-KERDI is pre-adhered
to the flange on the surround of the channel
body, and ensures the reliable connection of
the channel body to the bonded waterproofing
assembly. The kit includes a waterproofing and
sealing kit, drain body and a frameless design
grate for subtle integration with your chosen
tile or stone covering. The enclosed shower
tray can be cut down to size to accommodate
drain position.
Note: Schlüter®-KERDI-LINE has a wide range
of grate options, see the current illustrated
pricelist for details.
Schlüter®-KERDI-LINE-H 50 Integrated Wetroom Kit
complete wetroom kit with horizontal exit DN50 and Schlüter®-KERDI-LINE linear drain
L x W = cm H = mm L = cm
Art.-No. £ / Set PL = Set
(Tray) (Tray) (Drain\Grate)
42 60 WRK 1000 KL H50 DE60 810.01 3
100 x 100 /
42 70 WRK 1000 KL H50 DE70 825.17 3
150 x 100
42 80 WRK 1000 KL H50 DE80 834.89 3
All kits include:
Schlüter®-KERDI-SHOWER- Schlüter®-KERDI-SHOWER-LS (KSL1000S) and
SK (KSS10) waterproofing half a Schlüter®-KERDI-SHOWER-L (KSL1000)
and sealing kit for perimeter, intermediate or off-set installation.
Schlüter®-KERDI-LINE-D tile support grate to Schlüter®-KERDI-LINE-H 50 G2
fit the drainage channel length. linear horizontal drainage channel,
and low-height channel support
8 Prices exclude VAT
UNCOUPLING AND WATERPROOFING Schlüter®-SYSTEMS UNCOUPLING AND WATERPROOFING To ensure peace of mind for a fully watertight installation, a waterproof membrane should be used on the floor and walls. For walls we provide Schlüter®-KERDI-200, a CE Marked waterproofing membrane that is easy to install and fully waterproof when sealed with Schlüter®-KERDI-KEBA sealing band and Schlüter®-KERDI-COLL-L sealing adhesive. For floors, use waterproof uncoupling layer Schlüter®-DITRA 25 to prevent stresses from the substrate being transferred to the surface covering, protect moisture sensitive substrates and neutralise vapour pressure by allowing moisture in the substrate to evaporate. The floor should be sealed at the matting joints and the floor-to-wall junctions, including internal and external corners, with Schlüter®-KERDI-KEBA sealing band and Schlüter®-KERDI-COLL-L sealing adhesive. Prices exclude VAT 9
UNCOUPLING AND WATERPROOFING
Schlüter®-DITRA Kit
Uncoupling and waterproofing kit for floors
Schlüter®-DITRA Kit is a complete uncoupling
and waterproofing kit for floors, suitable for
use in areas such as wetrooms, bathrooms
and kitchens with tile and stone coverings.
It includes Schlüter®-DITRA 25 uncoupling
matting, Schlüter®-KERDI-KEBA sealing band
and Schlüter®-KERDI-KERECK prefabricated
corner pieces for waterproofing the abutting
joints of the matting, corners and floor-to-wall
transitions. The kit also includes Schlüter®-
KERDI-COLL-L sealing adhesive for use with
the sealing band and prefabricated parts.
Schlüter®-DITRA Kit
complete uncoupling and waterproofing kit for floors
Area (m2)* Art.-No. £ / Set PL = Set
5 SSL UK 5M 143.82 15
Kit includes:
Schlüter®-DITRA 25 Schlüter®-KERDI-KEBA Schlüter®-KERDI-COLL-L Schlüter®-KERDI-KERECK
uncoupling matting sealing band sealing adhesive prefabricated corners
Size: 1 m x 5 m Size: 15 cm x 5 m Tub size: 1.85 kg Quantity: 2
*For additional waterproofing accessories, see pages 13 and 14.
10 Prices exclude VATUNCOUPLING AND WATERPROOFING
Schlüter®-KERDI Kit
Waterproofing kit for walls
Schlüter®-KERDI Kit is a complete
waterproofing kit for walls, suitable for use in
areas such as wetrooms and bathrooms with
tile and stone coverings. It includes Schlüter®-
KERDI-200 waterproofing membrane,
Schlüter®-KERDI-KEBA sealing band and
Schlüter®-KERDI-COLL-L sealing adhesive
for waterproofing the abutting joints of the
membranes and floor-to-wall transitions.
Schlüter®-KERDI Kit
complete waterproofing kit for walls
Area (m2)* Art.-No. £ / Set PL = Set
5 SSL WK 5M 144.57 15
Kit includes:
Schlüter®-KERDI-200 Schlüter®-KERDI-KEBA Schlüter®-KERDI-COLL-L Schlüter®-KERDI-KERECK
waterproofing membrane sealing band sealing adhesive prefabricated corners
Size: 1 m x 5 m Size: 12.5 cm x 5 m Tube size: 1.85 kg Quantity: 2
*For additional waterproofing accessories, see pages 13 and 14.
Schlüter®-KERDI-COLL-L
Schlüter®-KERDI-COLL-L is a two
Schlüter®-KERDI-COLL-L
component sealant adhesive based on
two component sealing adhesive
a solvent free acrylate dispersion and a
reactive cementitious powder. It is suitable for Weight PL =
Art.-No. £ / kg
adhering and sealing overlaps of Schlüter®- kg Unit
KERDI membranes. In addition, Schlüter®- 1.85 KERDI-COLL-L 185 10.06 110
KERDI-COLL-L can be used to tightly adhere 4.25 KERDI-COLL-L 8.28 75
the sealing band Schlüter®-KERDI-KEBA on
bonded waterproofing assemblies. Schlüter®-
KERDI-COLL-L has an extended curing time
to facilitate installation in environments with
higher temperatures.
(Product data sheet 8.4) Note:
Installation time at 20/30°C approx. 90/60 min.
Hardening times are significantly longer in cool
ambient temperatures.
Prices exclude VAT 11UNCOUPLING AND WATERPROOFING
Schlüter®-KERDI-KERECK-F
Schlüter®-KERDI-KERECK-F are completely
seam sealed, prefabricated parts to produce
internal and external corners.
(Product data sheet 8.1)
Schlüter®-KERDI-KERECK/FA Schlüter®-KERDI-KERECK/FI
90° external corner, prefabricated 90° internal corner, prefabricated
Set = 2 units P= Set = 2 units P=
H = mm £ / Set H = mm £ / Set
Art.-No. Set Art.-No. Set
0.1 KERECK/FA2 17.33 10 0.1 KERECK/FI2 14.80 10
Schlüter®-KERDI-KEBA
Schlüter®-KERDI-KEBA is a sealing band to
Schlüter®-KERDI-KEBA/5M
seal mat connections and wall to floor
sealing band
connections.
(Product data sheet 8.1) Roll = 5 m PL =
B = mm £/m
Art.-No. Roll
125 KEBA 100 / 125 / 5M 3.87 10
150 KEBA 100 / 150 / 5M 4.14 10
Schlüter®-KERDI-TS
Schlüter®-KERDI-TS is a set for the reliable
waterproof connection of building components
such as bathtubs and shower trays made
100 mm
of steel enamel, acrylic or mineral casting to
the Schlüter®-KERDI waterproofing system. It 3
≥ 5 mm
includes a sealing tape made of polyethylene
with double-sided fleece fabric and self-
22
adhesive sound insulation strip, Schlüter®-
KERDI-FIX installation adhesive and cleaning
cloths, as well as installation corner piece(s).
(Product data sheet 8.9)
Schlüter®-KERDI-TS
complete set for waterproof connection
PL =
L=m Art.-No. £ / Set
Unit
2 KE TS / 200 64.96 10
2.8 KE TS / 280 78.50 10
3.8 KE TS / 380 92.52 10
Note:
The sets KE TS / 280 and KE TS / 380 each
contain 2 installation corner pieces.
12 Prices exclude VATUNCOUPLING AND WATERPROOFING
Schlüter®-KERDI-TS-ZC
Schlüter®-KERDI-TS-ZC
Schlüter®-KERDI-TS-ZC is an expansion set
for the reliable waterproof connection of building
expansion set
components such as bathtubs and shower trays
for special installation situations (see drawing) PL =
Art.-No. £ / Set
in connection with the Schlüter®-KERDI-TS Unit
waterproofing set. It consists of a waterproofing KE TS ZC 9.29 10
collar and a corner installation piece.
(Product data sheet 8.9)
Sc
hl
üt
er ®
The expansion set comprises the following -K
ER
DI
-F
IX
components:
• 1 PE collar, fleece-laminated on both sides,
120x120mm
• 1 corner installation piece
installation examples
Schlüter®-KERDI-CP
Schlüter®-KERDI-CP is a cutting protection
that can be shortened to any length and
protects the connection seal when the silicone
joint is renovated at a later time. The versatile
≥ 5 mm
15 mm
folding profile can be installed directly in the
adhesive bed or into freshly applied Schlüter®-
KERDI-FIX.
0,8
(Product data sheet 8.9) 5 mm
Schlüter®-KERDI-CP
polypropylene cutting protection
PL =
L=m Art.-No. £ / U.
Unit
2 KE CP / 200 7.43 10
2.8 KE CP / 280 10.28 10
3.8 KE CP / 380 13.56 10
10 KE CP / 1000 29.91 10
Schlüter®-DILEX-AS
Schlüter®-DILEX-AS is a joining profile for 9
29 mm
creating flexible joints to fixtures such as
shower trays, baths, and door and window
frames. 20 mm
(Product data sheet 4.10)
Schlüter®-DILEX-AS Schlüter®-DILEX-AS/I Schlüter®-DILEX-AS/EK
PVC 90° internal corner end cap
L = 2.50 m KV = P= Set = 1 x left, 1 x right KV =
£/m Art.-No. £ / U. £ / Set
Art.-No. Unit Unit Art.-No. Unit
AS 20 BW 7.24 90 I / AS 20 BW 1.10 10 EK / AS 20 BW 2.20 10
Prices exclude VAT 13WETROOM ACCESSORIES Schlüter®-KERDI-BOARD-N PREFABRICATED NICHES There are a variety of ways to enhance the look and functionality of a wetroom, bathroom or en-suite and one of the easiest ways is to create integrated tiled shelving. Schlüter®-KERDI-BOARD-N is a range of prefabricated niches that are fully sealed, quick to install, and integrated with the rest of the Schlüter®-KERDI-BOARD range. The larger niche sizes include a shelf insert that can be installed at any height to create separate compartments within the niche. The main benefit of using a prefabricated niche is that it is waterproof, vapour-tight and features sealed corners for effective waterproofing, saving valuable time during installation. 14 Prices exclude VAT
WETROOM ACCESSORIES
Schlüter®-KERDI-BOARD-N
Prefabricated niches
Schlüter®-KERDI-BOARD-N is a range of
prefabricated niches for integrated shelving.
They are made of Schlüter®-KERDI-BOARD
and can be installed in both Schlüter®-KERDI
and Schlüter®-KERDI-BOARD wall assemblies.
Four size variants are available, all of which
come with a pre-cut collar to make sealing
simple.
Schlüter®-KERDI-BOARD-N
prefabricated niche
L x H x D = mm Shelf Art.-No. £/U PL = Set
305 x 152 x 89 - KB 12 N 305 152 A 48.79 56
305 x 305 x 89 - KB 12 N 305 305 A 61.06 34
305 x 508 x 89 1 KB 12 N 305 508 A1 90.25 25
305 x 711 x 89 1 KB 12 N 305 711 A1 122.12 16
Product range:
KB 12 N 305 152 A KB 12 N 305 305 A KB 12 N 305 508 A1 KB 12 N 305 711 A1
Prices exclude VAT 15WETROOM ACCESSORIES Schlüter®-KERDI-DRAIN and Schlüter®-SHOWERPROFILE DESIGNER GRATES AND SLOPED PROFILES Design elegance is about the finer details and subtle finishes that blend in with surroundings, or alternatively create emphasis with contrast. Whether you are selecting near-invisible drain grates, or statement designer options, you can find your perfect style with Schlüter-Systems. A sleek range of specialist shower profiles is also at your disposal. 16 Prices exclude VAT 16
WETROOM ACCESSORIES
Schlüter®-KERDI-DRAIN
Shower grates
Schlüter®-KERDI-DRAIN grates are a range
of designer metal grates and frames, available
as alternatives to the support grate included in
the Schlüter®-KERDI-DRAIN-WRKD wetroom
kits.
Schlüter®-KERDI-DRAIN Grate
design 1, grate and frame set
H = mm Art.-No. £ / U.
10 x 10 KD R10 ED1 S 47.53
Schlüter®-KERDI-DRAIN Grate
design 2, grate and frame set
H = mm Art.-No. £ / U.
10 x 10 KD R10 ED2 86.41
Schlüter®-KERDI-DRAIN Grate
design 3, grate and frame set
H = mm Art.-No. £ / U.
10 x 10 KD R10 ED3 86.41
Schlüter®-KERDI-DRAIN-STYLE
FLORAL design, grate and frame set
H = mm Art.-No. £ / U.
10 x 10 KD IF 10EB D5 83.65
Schlüter®-KERDI-DRAIN-STYLE
CURVE design, grate and frame set
H = mm Art.-No. £ / U.
10 x 10 KD IF 10EB D6 83.65
Schlüter®-KERDI-DRAIN-STYLE
PURE design, grate and frame set
H = mm Art.-No. £ / U.
10 x 10 KD IF 10EB D7 85.52
Prices exclude VAT 17WETROOM ACCESSORIES
Schlüter®-SHOWERPROFILE-S
Schlüter®-SHOWERPROFILE-S is a
triangular profile made of a brushed stainless
steel flat profile with a 2% slope for covering
the sloped edges of floor-level showers. A
fleece fabric is laminated on the reverse of the
profile for bonding with the tile adhesive. A
matching hard PVC support profile is available
in different heights and features a U-shaped
installation channel. The triangular profile
can be shortened as necessary on the short
and/or long side to accommodate height
adjustment. The triangular profile can be used
on the left or right side of the floor transition or
below the tiles of a lateral wall.
(Product data sheet 14.1)
Schlüter®-SHOWERPROFILE-SPS 50 Schlüter®-SHOWERPROFILE-SPS 100 Schlüter®-SHOWERPROFILE-SPS 125
PVC tapered support profile, PVC tapered support profile, PVC tapered support profile,
brushed stainless steel V4A, H1 = 6 mm brushed stainless steel V4A, H1 = 10 mm brushed stainless steel V4A, H1 = 10 mm
L = 1.20 m L = 1.20 m L = 1.20 m
H = mm £ / U. KV = Unit H = mm £ / U. KV = Unit H = mm £ / U. KV = Unit
Art.-No. Art.-No. Art.-No.
5 SPSA 50 EB/120 44.60 40 10 SPSB 100 EB/120 43.53 40 12.5 SPSB 125 EB/120 43.53 40
SPS 50 SPS 100 SPS 125
H = 5 mm
H = height of support profile H = height of support profile H = height of support profile
SPS 50 is suitable for tile thickness of 6-9 mm SPS 100 is suitable for tile thickness of 10-18 mm SPS 125 is suitable for tile thickness of 12.5-20 mm
L = 1.20 m: H2 = 30 mm, H1 = 6 mm L = 1.20 m: H2 = 34 mm, H1 = 10 mm L = 1.20 m: H2 = 34 mm, H1 = 10 mm
Schlüter®-SHOWERPROFILE-R
chlüter®-SHOWERPROFILE-R is a two part
S
wall transition profile for covering the wall area
exposed due to the use of a wedge with a
linear drainage channel. The visible surface of
the profile consists of brushed stainless steel.
A fleece fabric is laminated the reverse for
bonding with the tile adhesive. Due to the two
part design, Schlüter®-SHOWERPROFILE-R
can be seamlessly adjusted to any height
between 23 and 45 mm (available in two
versions). Schlüter®-SHOWERPROFILE-RA
20 mm
(Product data sheet 14.1) two part wall transition profile,
brushed stainless steel V4A =H
L = 1.00 m KV =
H = mm £ / U.
Art.-No. Unit
22 / 32 mm
23-35 SPRA 23 EB/100 49.75 40
H = variable
33-45 SPRA 33 EB/100 54.49 40
18 Prices exclude VATWETROOM ACCESSORIES
Schlüter®-SHOWERPROFILE-WS
Schlüter®-SHOWERPROFILE-WS is a two
piece profile of anodised aluminium that serves
as a splashguard in floor level showers. The
support profile is embedded in the tile adhesive
during tile installation. It can be fitted with
a semi-circular or upright straight lip to protect
against splashing. Both variations are suitable
for wheelchair use.
(Product data sheet 14.2)
Schlüter®-SHOWERPROFILE-WS Schlüter®-SHOWERPROFILE-WSC Schlüter®-SHOWERPROFILE-WSL
support profile anodised aluminium, semi-circular lip straight lip
natural satin
L = 1.00 m P= L = 1.00 m P= L = 1.00 m P=
£/m £/m £/m
Art.-No. Unit Art.-No. Unit Art.-No. Unit
SPWS 19 AE / 100 18.80 40 SPWSC 16 GS / 100 29 mm
8 9.30 40 SPWSL 30 T / 100 11.21 40
8
19 mm 19 mm
SHOWERPROFILE-WS + WSC SHOWERPROFILE-WS + WSL
Schlüter®-SHOWERPROFILE-WSK
chlüter®-SHOWERPROFILE-WSK is a two
S
piece profile of anodised aluminium that serves
as a splashguard in floor level showers. The
support profile is adhered to existing coverings.
It can be fitted with a semi-circular or upright
straight lip to protect against splashing. Both
variations are suitable for wheelchair use.
(Product data sheet 14.2)
Schlüter®-SHOWERPROFILE-WSK Schlüter®-SHOWERPROFILE-WSC Schlüter®-SHOWERPROFILE-WSL
support profile anodised aluminium, semi-circular lip straight lip
natural satin
L = 1.00 m P= L = 1.00 m P= L = 1.00 m P=
£/m £/m £/m
Art.-No. Unit Art.-No. Unit Art.-No. Unit
SPWSK 52 AE / 100 21.88 40 SPWSC 16 GS / 100 9.30 40 SPWSL 30 T / 100 11.21 40
Schlüter®-SHOWERPROFILE-WSK/EK
37 mm
2.5
end cap
8
8
P= 52 mm 52 mm
Art.-No. £ / U. SHOWERPROFILE-WSK + WSLS LSHOWERPROFILE-WSK + WSC
Unit
EK / SPWSK 52 AE 2.95 50
SHOWERPROFILE-WSK/EK
Prices exclude VAT 19EDGE PROFILES FOR FLOOR AND WALL COVERINGS
Schlüter®-PROFILES
FLOOR AND WALL PROFILES
The difference between something good and something great is attention to detail. When careful consideration has been made to the sanitary-ware,
taps, shower, tile or stone covering then why leave profiles to chance. Schlüter®-PROFILES offer a palette of designs, finishes and materials, allowing
you to select details that blend with, or act as elegant accents to your design. Discover the many ways of perfecting and protecting your tile or stone
installation, with hundreds of options for finishes, textures, materials and colours.
©AtlasConcorde
20 Prices exclude VATEDGE PROFILES FOR FLOOR COVERINGS
©Villeroy & Boch
Schlüter®-PROFILES for floors
Schlüter®-SCHIENE - finishes tiled surfaces and protects the outer edges of ceramic and natural stone floor coverings from mechanical impact.
Schlüter®-RENO - creates a smooth transition between adjoining floor coverings of different heights, protecting the exposed tile edge.
Schlüter®-SCHIENE Schlüter®-SCHIENE-ES Schlüter®-SCHIENE-BASIC Schlüter®-SCHIENE-V
Schlüter®-RENO-V Schlüter®-RENO-U Schlüter®-RENO-RAMP Schlüter®-RENO-T
Refer to the current Illustrated Pricelist for Profiles and Systems for the complete range of sizes, materials and finishes available.
Prices exclude VAT 21WALL CORNERS AND EDGE PROFILES
©AtlasConcorde
Schlüter®-PROFILES for walls
Schlüter-Systems provides profile solutions that create a highly durable and decorative finishing for wall coverings and skirtings made of tile and
natural stone. Thanks to a wide palette of materials and colours, there are no limits to creativity. Options include the ever-popular Schlüter®-JOLLY,
Schlüter®-RONDEC and Schlüter®-QUADEC ranges, plus many more besides.
Schlüter®-RONDEC Schlüter®-QUADEC Schlüter®-JOLLY Schlüter®-DECO Schlüter®-DECO-SG Schlüter®-INDEC
Schlüter®-DIADEC Schlüter®-DESIGNLINE Schlüter®-QUADEC-FS Schlüter®-DESIGNBASE Schlüter®-FINEC Schlüter®-DILEX-AHK
Refer to the current Illustrated Pricelist for Profiles and Systems for the complete range of sizes, materials and finishes available.
22 Prices exclude VATWALL CORNERS AND EDGE PROFILES
Profile finishes
A ABGB AC ACG ACGB AE AEEB AEX AGRB
Aluminium Brushed antique Colour coated Polished chrome Brushed chrome Anodised aluminium Brushed stainless Cross brushed Brushed graphite
anodised aluminium aluminium anodised aluminium anodised aluminium steel anodised anodised aluminium anodised aluminium
aluminium
AGSB AGSG AK AKG AKGB AM AMG AMGB AMX
Brushed graphite Bright black anodised Satin copper /bronze Polished copper / Polished nickel Satin brass anodised Polished brass Brushed brass Cross brushed brass
black aluminium aluminium anodised aluminium bronze anodised anodised aluminium aluminium anodised aluminium anodised aluminium anodised aluminium
aluminium
AQGX AT ATG ATGB ATX E EB EP ES1
Cross brushed Satin nickel anodised Polished nickel Brushed nickel Cross brushed Stainless steel Brushed stainless Polished stainless Square chequered
quartz grey anodised aluminium anodised aluminium anodised aluminium titanium anodised steel steel stainless steel
aluminium aluminium
ES2 M MBW MC MGS TSB TSBG TSC TSDA
Leather effect Solid brass Matte brilliant white Chrome-plated solid Matte graphite Beige colour coated Beige grey colour Cream colour Dark graphite
stainless steel colour coated brass black colour coated aluminium coated aluminium coated aluminium anthracite colour
aluminium aluminium coated aluminium
S
P LE E OR96
M O 3
R
SAK IN-S 530 81PLES
T 3
TSG TSI TSLA TSOB TSR TSSG 1
Grey colour coated Ivory colour coated Light graphite Bronze colour Rustic brown colour Stone grey colour AS L 0 SAM
L
aluminium aluminium anthracite colour coated aluminium coated aluminium coated aluminium CA FOR
coated aluminium
Finish reference table
AMGB
ACGB
ABGB
AGRB
AGSG
AQGX
AKGB
AGSB
Finish
TSBG
TSOB
TSSG
AEEB
ATGB
TSDA
MBW
TSLA
AMG
MGS
AMX
ACG
AKG
TSG
TSC
AEX
TSB
TSR
ATG
ES1
ES2
ATX
MC
AM
TSI
AC
AK
EB
AE
EP
AT
M
A
E
Profile
EDGE PROTECTION AND TRANSITION PROFILES FOR FLOORS
SCHIENE
SCHIENE-BASIC
RENO-T
RENO-U
RENO-TK
RENO-V
FINISHING AND EDGE PROTECTION FOR WALLS
RONDEC
QUADEC
JOLLY
DECO
DECO-SG
INDEC
DIADEC
DESIGNLINE
QUADEC-FS
DESIGNBASE
FINEC
DILEX-AHK
Note: Print does not allow exact reproductions of the finishes.
Prices exclude VAT 23Subject to the Standard Terms and Conditions of Sale of Schlüter-Systems Ltd.
All previous price lists lose their validity on the publication of this price list. Errors, changes, and printing mistakes as
well as changes necessary in the interest of product innovation or shipping reserved. For reasons of printing, colours
shown in this price list may differ from actual product colours.
Art.-No. SSL\IPL\KITS19 – edition 01/19
Schlüter-Systems KG · Schmölestraße 7 · D-58640 Iserlohn · Tel.: +49 2371 971-261 · Fax: +49 2371 971-112
info@schlueter.de · www.schlueter-systems.com
Schlüter-Systems Ltd · Units 3-5 Bardon 22 · Beveridge Lane · Coalville · Leicestershire · LE67 1TE
Tel.: +44 1530 813396 · Fax: +44 1530 813376 · technical@schluter.co.uk · sales@schluter.co.uk · www.schluter.co.ukYou can also read
