BMW Motorrad THE NEW BMW G 310 R. PRODUCT INFORMATION.
OVERVIEW. Agile, dynamic, intuitive – the new BMW G 310 R embodies the essence of riding pleasure. It’s in its element in the beating heart of the big city, and riders of all statures will feel at home the moment they climb on. A 313-cc single-cylinder four-stroke engine makes this roadster a lightweight dynamo – and with a relaxed seating position and ergonomic arrangement of the handlebars, foot pegs and controls, you'll breeze through the thickest traffic the urban jungle has to offer. This is BMW Motorrad’s answer to the maelstrom of the metropolis. In any city, down every street – while everything else changes, the enjoyment remains the same. MODEL COLOURS 4–5 STANDARD EQUIPMENT 6 –7 EQUIPMENT FOR THE BMW G 310 R 8 –17 RIDER EQUIPMENT 18 –19 BMW MOTORRAD SERVICE 20 – 21

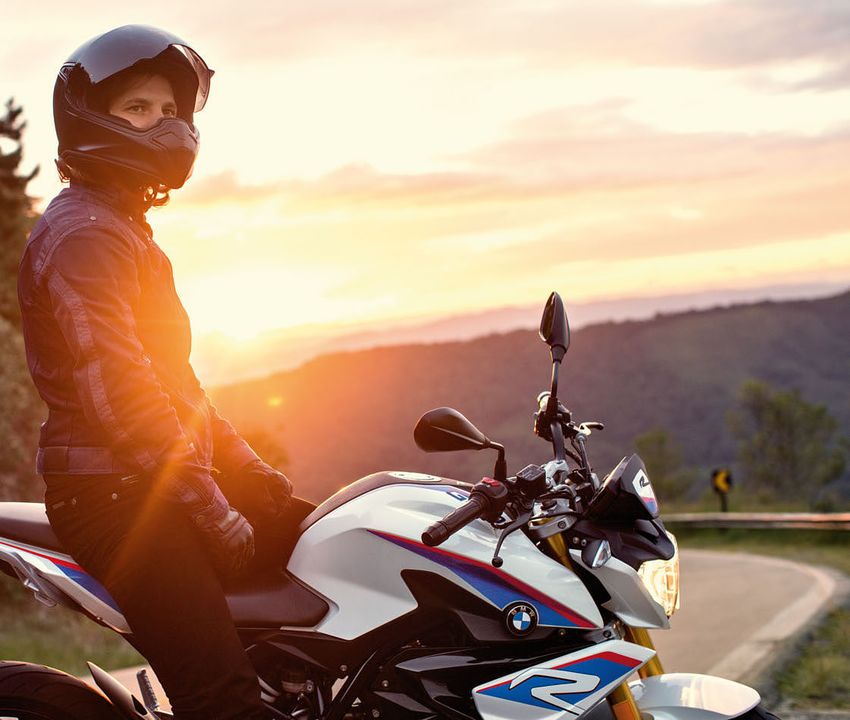

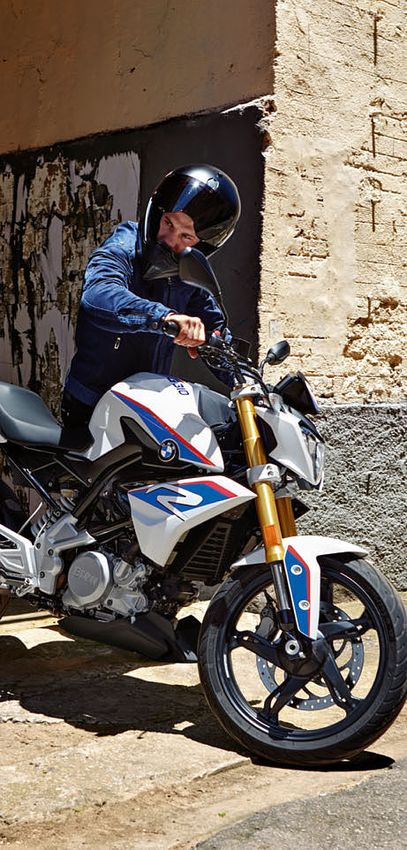

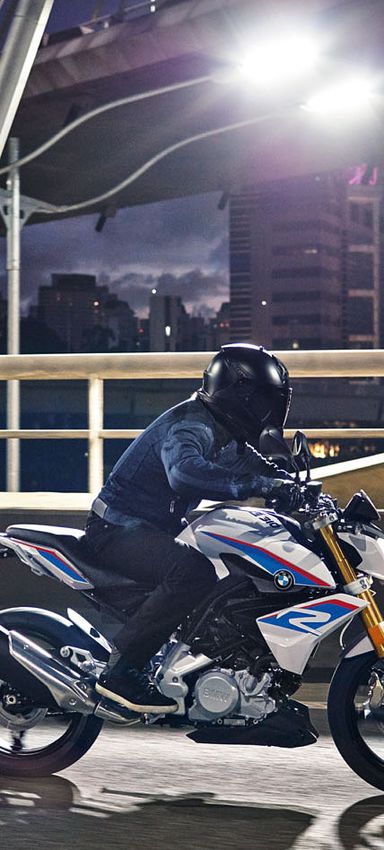

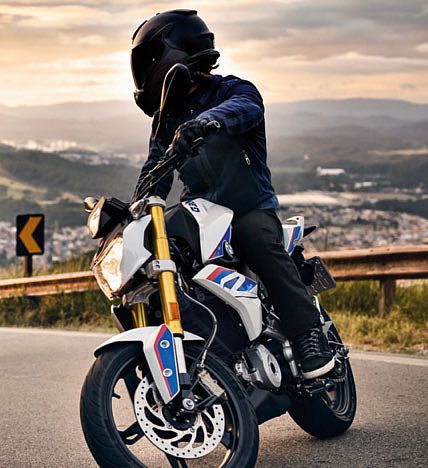

N1D Paintwork in Pearl White Metallic (motorsport styling)/Seat & frame in N1C Paintwork in Strato Blue Metallic/Seat & frame in Black/Spring on N0Z Paintwork in Cosmic Black/Seat & frame in Black/Spring on
Black/Spring on spring strut in White spring strut in White spring strut in White
MODEL COLOURS
04 | 05
STANDARD EQUIPMENT. BMW G 310 R Electrics
Model code: 0G01 · Multifunction display (digital clock, speedometer, rev counter, gear display, twin trip
meter, coolant temperature indicator, fuel gauge, range indicator, avg. speed and
Engine/drive fuel consumption, side stand warning, low-battery warning light, malfunction
indicator lamp and more)
· Water-cooled in-line four-stroke engine, double overhead camshaft,
· 330-W three-phase generator
oil sump lubrication
· Diagnostic interface
· Four valves, activated via rocker arms
· Smoke Grey indicators and LED rear light
· Capacity: 313 cm3
· Max. output: 34 hp (25 kW) at 9,500 rpm Equipment
· Max. torque: 28 Nm at 7,500 rpm
· One-piece seat (seat height: 785 mm; step length: 1,760 mm)
· BMS-E2 electronic fuel injection
· Pillion passenger foot pegs and grab handle
· Regulated three-way catalytic converter
· One key system for ignition, steering, fuel filler cap and seat locks
· Stainless steel exhaust system
· Reflectors on the front fork
· Wet multidisc clutch, mechanically operated
· On-board literature and tools
· Six-speed synchromesh gearbox built into crankcase
· Secondary drive via endless O-ring chain with cush damper at rear wheel hub Special features
· Compliant with EU4 emission standard
· Active carbon filter
Dimensions/weight
Colours
· Length: 2,005 mm
· N1D Paintwork in Pearl White Metallic (motorsport styling)/Seat & frame in
· Height excluding mirrors/width (including mirrors): 1,080 mm / (820/849 mm) Black/Spring on spring strut in White
Metallic paint finish available at an extra charge.
· Wheelbase: 1,374 mm

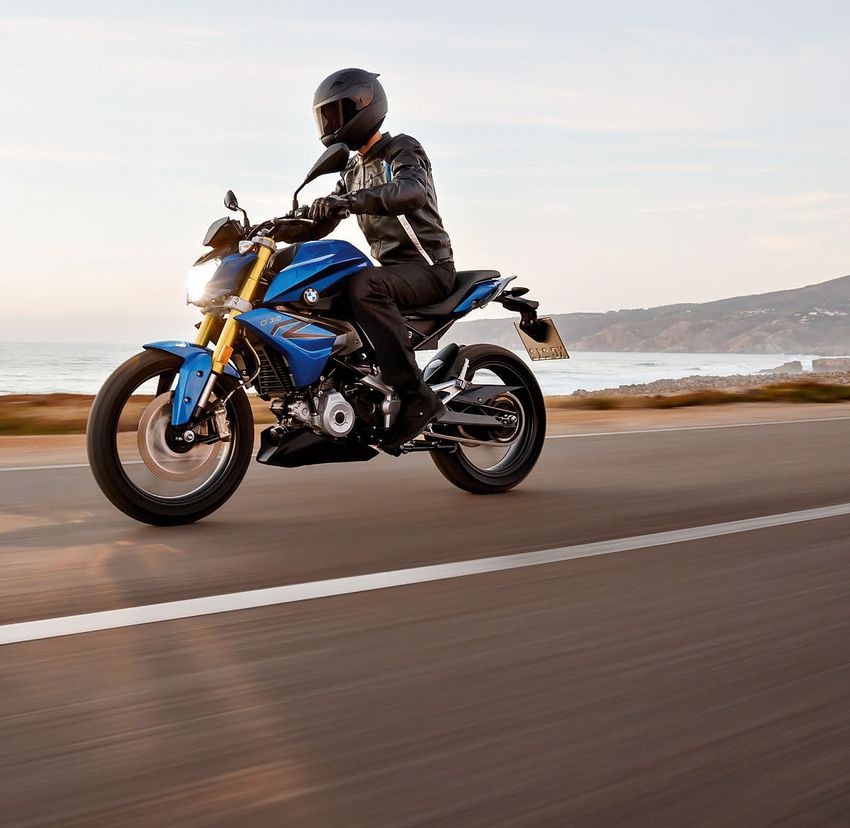

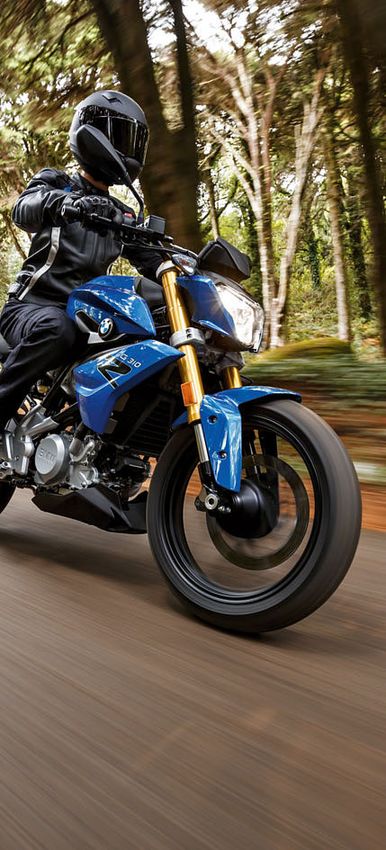

OPTIONAL EQUIPMENT . · N1C Paintwork in Strato Blue Metallic/Seat & frame in Black/Spring on spring strut
· Unladen weight, fully fuelled/road-ready: 158.5 kg
As defined in EU directive 93/93/EEC, filled with all operating fluids, fuelled to at least 90% of in White
usable capacity.
· N0Z Paintwork in Cosmic Black/Seat & frame in Black/Spring on spring strut
· Max. permitted weight: 345 kg in White
· Max. load (standard equipment): 186.5 kg
· Usable tank capacity (of which reserve): 11 l (1 l)
Performance/fuel consumption
· Max. speed: 145 km/h
· Fuel consumption per 100 km according to WMTC: 3.3 l
· Fuel type: premium unleaded, minimum 95 octane (RON)
Suspension
· BMW Motorrad ABS
· Upside-down fork (diameter 41 mm)
· Cast aluminium swing arm with directly hinged central spring strut at the
rear, suspension height adjustable
· Single disc brake, front (diameter 300 mm), four-piston fixed caliper, radially
mounted
· Single disc brake, rear (diameter 240 mm), single-piston floating caliper
· Five-spoke cast aluminium wheels (tyres: 110/70 R17 front, 150/60 R17 rear)
· Side stands with cut-out switch
06 | 07
[1] [2] [5] STORAGE
[1] Light top box, 29 l [4] Luggage grid
A 29-l top box with ample space for items for day trips and Silver, powder-coated cast aluminium luggage grid.
short tours. Also fits one helmet. Ideal for securing top boxes or other large items of luggage.
Only available in conjunction with luggage grid. To be fitted and/or enabled in a specialist workshop, and ideally at your
Includes locking cylinder and adaptor plate for luggage grid. BMW Motorrad dealership.
Instructions for fitting and use available from your BMW Motorrad dealership.
For information on speed and load limitations, please refer to instruction booklet. • Luggage grid
• Light top box, 29 l
Order number: 77 43 8 566 126* ERGONOMICS AND COMFORT
(+) Badge
Order number: 51 14 2 328 447* [5] High and low seats
The high seat offers taller riders a raised seating position with
comfortable padding. The low version reduces the seat height by
[3] [5] [2] Top box, 30 l
15 mm, which makes climbing on and handling even easier.
The waterproof top box has a capacity of 30 l and a maximum load
of 5 kg – perfect for a helmet, for example. The lid is painted in • Low seat
Granite Grey Metallic and has a soft-close mechanism. (seat height: 770 mm/step length: 1,730 mm)
Model shown: BMW R 1200 R. Order number: 52 53 8 562 135*
Only available in conjunction with luggage grid.
For information on speed and load limitations, please refer to instruction booklet.
• High seat
(seat height: 800 mm/step length: 1,790 mm)
• Top box, 30 l Order number: 77 34 8 562 491*
EQUIPMENT FOR THE BMW G 310 R.
Order number: 77 43 8 543 246*
(+) Top box lid outer shell in Granite Grey Matt Metallic
Order number: 77 43 8 553 127* [X] Heated grips (not shown)
Warm hands feel good. Which is why these heated handlebar
(+) Badge
grips have two settings designed to keep hands and fingers
Order number: 31 42 7 708 518*
pleasantly warm.
[4]
(+) Raised head screw (six required) For detailed information, please contact your BMW Motorrad dealer
Order number: 07 14 7 698 893* or visit www.bmw-motorrad.com
To be fitted and/or enabled in a specialist workshop, and ideally at your
(+) Locking cylinder for top box (with two keys) BMW Motorrad dealership.
Order number: 51 25 7 688 957* • Heated grips and switches
(o) Repair kit for locking cylinder
Order number: 51 25 7 698 204*
[X] Centre stand (not shown)
The sturdy centre stand ensures that the bike remains stable
[3] Inner bag for light top box (29 l) and top box (30 l) even on loose surfaces. Useful when refuelling or parking safely
Makes loading and unloading a top box even easier. The inner bag without taking up space.
comes with a practical carry handle and can be folded flat when For detailed information, please contact your BMW Motorrad dealer
or visit www.bmw-motorrad.com
not in use. To be fitted and/or enabled in a specialist workshop, and ideally at your
• Inner bag for top box BMW Motorrad dealership.
Order number: 77 43 8 549 130* • Centre stand
Order number: 46 53 8 560 650
(+) Mounting kit for centre stand
Order number: 77 25 8 566 523
* Original BMW motorcycle equipment is available from your BMW Motorrad dealer.
(+) = “and” – this item must also be ordered at the same time
(o) = "or" – this item may be ordered as an alternative option
08 | 09
[1] [5] NAVIGATION AND COMMUNICATIONS
BMW Motorrad navigation systems [3] BMW Motorrad smartphone cradle
Where am I? Where do I want to go, and what’s the most scenic way to Now you can charge your phone out on the road with BMW Motorrad’s
get there? BMW Motorrad navigation devices show you where to go. waterproof smartphone cradle. Charging takes place wirelessly or via a
They’re easy to fit and use – even with gloves on – and come with lifetime plug-in connection. The display and navigation functions are perfectly
map updates. positioned in your field of vision and can be easily operated from the
The BMW Motorrad Navigator V navigation system features a 5" screen, cradle. For smartphones with 5“ displays or smaller. Max. dimensions:
8 GB flash storage, Bluetooth® technology and optional smartphone link 13.8 cm x 7.3 cm x 1.1 cm.
for real-time traffic updates. For detailed information, please contact your BMW Motorrad dealer
or visit www.bmw-motorrad.com
The BMW Motorrad Navigator Street has an easy-to-read 4.3" display Only in combination with bracket for BMW Motorrad navigation devices.
and comes with a host of clever features. Thanks to Bluetooth®
• BMW Motorrad smartphone cradle
technology, it’s also compatible with the optional BMW Motorrad
Order number: 77 52 8 563 125*
communications system.
[2] [6] [7] For detailed information, please contact your BMW Motorrad dealer
or visit www.bmw-motorrad.com
Only in combination with bracket for BMW Motorrad navigation devices. SAFETY
[1] • BMW Motorrad Navigator V
Order number: 77 52 8 536 089* [4] LED indicators
(o) BMW Motorrad Navigator V (without map data) Streets ahead in form and function. The LED indicators complement
Order number: 77 52 8 536 779* the design of the BMW G 310 R perfectly – and with reduced energy
consumption and significantly longer bulb life, they’re also a shining
[2] (o) BMW Motorrad Navigator Street
example of efficiency.
EQUIPMENT FOR THE BMW G 310 R.
Order number: 77 52 8 557 855* To be fitted and/or enabled in a specialist workshop, and ideally at your
BMW Motorrad dealership.
[X] Bracket for BMW Motorrad navigation systems (not shown) • LED indicators (four required)
Order number: 63 13 8 522 499*
Mounting bracket and power supply for BMW Motorrad navigation
systems or smartphone cradle.
For detailed information, please contact your BMW Motorrad dealer [5] BMW Motorrad warning triangle
[3] or visit www.bmw-motorrad.com
The BMW Motorrad warning triangle packs down to a very small size
• Bracket for BMW Motorrad navigation systems (H x W x D: 22.5 x 8.5 x 3.5 cm) so there’s never any problem finding
Order number: 77 52 8 388 827* space for it on your motorcycle. It also complies with ECE standard R 27.
Scheduled availability from the fourth quarter of 2016. Comes in a sturdy plastic container with assembly instructions.
(+) SZ adapter cable • BMW Motorrad warning triangle
Only required if heated grips are not fitted.
Order number: 77 02 8 543 476*
Scheduled availability from the second quarter of 2017.
First-aid kit
[X] Car kit for BMW Motorrad Navigator V (not shown)
Compact waterproof case containing bandages and dressings.
In conjunction with the optional Car kit, the BMW Motorrad Navigator V The large first-aid kit also complies with the DIN standard for motorcycle
can also be used in a car as a hands-free device. first-aid kits.
• Car kit for BMW Motorrad Navigator V [6] • First-aid kit, large
Order number: 77 52 8 544 460* Order number: 72 60 2 449 657*
[4]
[7] • First-aid kit, small
Order number: 72 60 2 449 656*
* Original BMW motorcycle equipment is available from your BMW Motorrad dealer.
(o) = „or“ – this item may be ordered as an alternative option
10 | 11
[1] MAINTENANCE AND TECHNOLOGY
[1] BMW Motorrad battery charger Indoor cover
Microprocessor-controlled charger and float charger for maintenance- Protects motorcycle against dust and scratching and prevents the
free, wet 12 V batteries. Connects to the auxiliary power socket. build-up of condensation.
An adapter cable for charging via the battery terminals is included. Model shown: R 1200 GS, model year 2015.
For detailed information, please contact your BMW Motorrad dealer For detailed information, please contact your BMW Motorrad dealer
or visit www.bmw-motorrad.com or visit www.bmw-motorrad.com
• BMW Motorrad 230-volt battery charger [4] • Indoor vehicle cover, large (suitable for use with panniers)
Order number: 77 02 8 551 896* Order number: 77 02 8 551 270*
• BMW Motorrad 110-volt battery charger [5] • Indoor vehicle cover
Order number: 77 02 8 551 897* Order number: 77 02 8 555 890*
• BMW Motorrad battery charger for UK
Order number: 77 02 8 551 898* [6] Motorcycle cover
[2] [3]
A tough motorcycle cover for outdoor use. With display window
[X] Additional power socket (not shown) showing the number plate.
12-volt socket above the left rider foot peg. Can be used to connect • Motorcycle cover
electronic devices or battery chargers. Order number: 71 60 7 689 674*
To be fitted and/or enabled in a specialist workshop, and ideally at your
BMW Motorrad dealership.
[X] LED torch (not shown)
• Additional power socket
Versatile and powerful LED torch. Its battery can be charged via a
EQUIPMENT FOR THE BMW G 310 R.
Order number: 61 34 7 714 741*
standard plug socket or a cigarette lighter socket.
For detailed information, please contact your BMW Motorrad dealer
[2] Mini foot pump or visit www.bmw-motorrad.com
Scheduled availability from the fourth quarter of 2016.
Versatile air pump with digital manometer. Packs down to a small size.
• LED torch
Suitable for checking tyre pressure while out on tour.
Order number: 71 60 2 414 853*
• Mini foot pump
[4] [5]
Order number: 71 60 7 715 824*
Tyre repair kits
Absolutely essential on a long-distance tour – the complete puncture
repair kit.
For detailed information, please contact your BMW Motorrad dealer
or visit www.bmw-motorrad.com
[3] • Tubeless-tyre repair kit
Order number: 71 11 2 332 083*
[X] • Motorcycle tyre repair kit (not shown)
Order number: 71 11 2 414 854
Scheduled availability from the second quarter of 2017.
[6]
* Original BMW motorcycle equipment is available from your BMW Motorrad dealer.
12 | 13
[1] MAINTENANCE AND TECHNOLOGY TYRES
[1] Multi-purpose toolkit [X] Tyres (not shown)
Handy at home or out on tour, this is a must-have for every bike owner. To guarantee the best possible ride, you need to think about where the
Small, practical and easy to use, the BMW Motorrad multi-purpose toolkit vehicle meets the road: the tyres. Tyres tested by BMW Motorrad ensure
is ideal for making simple tweaks or repairs. only the best options are available for your bike. If you have questions
• Multi-purpose toolkit about your tyres or are thinking about buying a new set, contact your
Order number: 71 60 2 414 858* nearest BMW Motorrad dealer for detailed advice.
[2] Brake disc lock with anti-theft alarm system
Sturdy brake disc lock with an audible alarm that sounds when
unauthorized access is attempted. A multi-colour LED display shows
the battery and vehicle status.
[2]
• Brake disc lock with anti-theft alarm system
Order number: 77 25 2 414 845*
[3] Repair manual
A clear and accessible guide to maintaining and repairing your
motorcycle.
For detailed information, please contact your BMW Motorrad dealer
EQUIPMENT FOR THE BMW G 310 R.
or visit www.bmw-motorrad.com
• Repair manual, DVD
[4] Chain spray, 300 ml
BMW Motorrad chain spray forms a thick lubricating film that has good
[3] [4]
adhesive properties and penetrates even the tiniest gaps. It can withstand
temperatures of up to 200°C and is suitable for standard, O-ring and
X-ring chains.
• Chain spray, 300 ml
Order number: 83 19 2 408 163*
[5] Original BMW ADVANTEC Pro engine oil
Original BMW Motorrad engine oil in a 1-l refill can.
For detailed information, please contact your BMW Motorrad dealer
or visit www.bmw-motorrad.com
• Original BMW ADVANTEC Pro engine oil 15W-50, 1 l
Order number: 83 12 2 405 891*
[5]
* Original BMW motorcycle equipment is available from your BMW Motorrad dealer.
14 | 15
[1] Motorcycle cleaner [X] Wheel rim cleaner, 500 ml (not shown)
500 ml motorcycle cleaner – for a gentle, easy clean. Acid-free, intensive cleaning agent for steel, aluminium and oxidized
• Motorcycle cleaner, 500 ml wheel rims.
Order number: 83 19 2 408 157* • Wheel rim cleaner, 500 ml
Order number: 83 19 2 420 024*
ORIGINAL BMW CARE PRODUCTS [2] Chain cleaner, 300 ml
Quickly and easily removes anything that might cause unnecessary [X] Cleaning cloth for helmet and visor (not shown)
It’s important to look after the things you love. That’s why we developed BMW Care products: so you can keep your
bike looking as good as it did on the day you first laid eyes on it. They meet strict BMW Motorrad quality standards, wear and tear to the chain. Acid-free and suitable for all standard, Handy for maintaining a clear field of vision while on the move.
counteract signs of ageing and help maintain the value and safety of the vehicle. O-ring and X-ring chains. • Cleaning cloth for helmet and visor
Chain cleaner, 300 ml Order number: 83 19 2 420 022*
Order number: 83 19 2 420 027*
[1] [2] [3] [3] Insect remover, 500 ml
Tackles stubborn insect residue with a minimum of fuss. Contains
greasing agents and is therefore not suitable for matt finishes.
• Insect remover, 500 ml
Order number: 83 19 2 420 028*
[4] Seat cleaner (for high-gloss faux leather), 50 ml
Cleans the pores, protects against the onset of brittleness, revitalizes
the colour of the material and provides UV protection.
• Seat cleaner (for high-gloss faux leather), 50 ml
Order number: 83 19 2 420 026*
[4] [5] [5] Gloss polish, 250 ml
Non-abrasive deep-cleaning agent that uses natural ingredients to leave
a high-gloss finish. Cleans, polishes and protects all painted, chrome
and plastic parts.
• Gloss polish, 250 ml
Order number: 83 19 2 420 023*
[6] Metal polish, 75 ml
Non-abrasive high-gloss polish for aluminium, chrome, brass, nickel,
stainless steel and other unpainted metals. Comes with microfibre cloth.
• Metal polish, 75 ml
Order number: 83 19 2 420 025*
[6] [7]
[7] Body + Bike shower gel, 250 ml
Because you’ve always wanted to shower with your bike.
Dermatologically tested, it gently cleanses and cares for your skin and
has a bold, refreshing fragrance. If your bike’s looking spick and span,
so should you.
• Body + Bike shower gel, 250 ml
Order number: 83 19 2 420 029*
* Original BMW motorcycle equipment is available from your BMW Motorrad dealer.
16 | 17
[1] [3]
[1] Race jacket
The Race jacket gives road riding a competition-style edge. Stretch
inserts and the double front zip with mesh-material air vents ensure
effective ventilation and a comfortable fit. White areas, saddle-stitched
seams and the dynamic Race logo highlight the jacket’s sporting
pedigree.
[2] FivePocket trousers
[2]
Combining the classic look of jeans with the performance of motorcycling
trousers, the FivePocket trousers are as stylish off the bike as they are
effective on it. New, thinner protectors at the knees combine excellent
shock absorption with a high level of comfort.
[3] Dry sneakers
Style and safety in equal measure. This motorcycling shoe is waterproof,
windproof and breathable, and offers both stability and comfort for the
wearer. So good you‘ll be wearing it even when you aren‘t on the bike.
Find out about these items and other rider equipment at your
BMW dealer or bmw-motorrad.com
RIDER EQUIPMENT
18 | 19BMW Motorrad Service BMW Financial Services
BMW’s extensive service network ensures your bike gets the care it deserves. Freedom on two wheels. BMW Motorrad Financial Services helps you get the
There are over 150 BMW service centres in Germany alone, and if you’re off on most out of your riding experience. Financial services are like bikes: the closer
your travels, you’ll find them in over 100 countries around the world. Their quality they’re tailored to your needs, the better.
of service has earned them exceptional ratings from many leading bike
magazines. Finance
BMW Financial Services provides convenient solutions tailored to your
BMW online requirements.
bmw-motorrad.com
Explore the BMW Motorrad VirtualCenter, our online showroom. It lets you BMW basic finance
configure your own personal bike with a few clicks of the mouse, then get a Choose a term of between 12 and 72 months, with a downpayment and
no-strings quote, book a test ride or order a brochure. instalments to suit your budget. Get your personal quote from your
BMW Motorrad dealer.
Globetrotting bikers will find a wealth of information at the Travel Point:
bmw-motorrad.com BMW final instalment finance
Final instalment finance gives you added flexibility. You make a downpayment,
And you’ll find full details of the BMW Motorrad rider equipment range at and then pay low monthly instalments for 12 to 54 months, with the balance
bmw-motorrad.com due as a final instalment at the end of the term.
BMW Motorrad mobility services BMW Select
We pride ourselves on the quality of aftersales care we provide. Like All the freedom you need, with BMW Select. This highly flexible finance concept
BMW Motorrad mobility services, we offer free, round-the-clock breakdown offers terms of between 12 and 47 months, with low monthly repayments based
assistance whether you bought your bike new or pre-owned. on your mileage. At the end of the contract, you have three options: keep your
bike, trade it in for another, or return it to your BMW dealer.
If you have a breakdown in this country or elsewhere in Europe, our experts will
do everything they can to get you back on the road. If they can’t fix the problem BMW Leasing
immediately, they’ll get you to your destination by other means.Ask your This can be the most financially advantageous way of owning a BMW Motorrad
BMW Motorrad dealer for more information, or visit bike. Instead of paying the whole cost of the bike, you pay monthly leasecharges
bmw-motorrad.com based on the term of the lease and your mileage. If you wish, you can make an
upfront payment that reduces your monthly charges.
BMW MOTORRAD SERVICE.
20 | 21NOTES NOTES 22 | 23
MAKE YOUR
DREAM A REALITY
WITH 3ASY RIDE.
BMW Financial Services. BMW Financial Services
offers tailored solutions to help you experience the
freedom and excitement of riding. For more information,
contact your BMW Financial Services representative
via bmw-motorrad.com/3asyride
Subject to change in design and equipment. Subject to error. Vehicle illustrations may feature unspecified optional equipment. © BMW Motorrad, UX-VB-1, Munich,
Germany. Not to be reproduced, wholly or in part, without the written permission of BMW AG, Munich. Printed on 100% chlorine-free bleached paper.You can also read
