Tong Garden Centre Privacy | Cairngorm Cubicle Centre www.washroomcubicles.co.uk - Location Cubicle System Manufacturer Website

Location   Tong Garden Centre
Cubicle System   Privacy | Cairngorm
  Manufacturer   Cubicle Centre
      Website    www.washroomcubicles.co.uk

Tong Garden Centre, at the edge of                For the Grasshopper play area toilets and
Bradford has recently expanded and built a        changing rooms, Cairngorm was chosen for it’s
magnificent new Mezzanine restaurant to           durabilty and waterproof qualities in a row of six
add to its already impressive facilities.         family changing cubicles and two vanity units of
                                                  three inset wash basins presented in Rural Oak
Following a successful project, 18 months         (wood effect) and Dusty Jade for a smart finish.
previously, to supply cubicles for the
Grasshoppers Childrens’ Play Area, Cubicle        Cubicle Centre is a leading manufacturer of
Centre was again chosen to liaise with the Tong   washroom panel products in the UK.
Garden Centre Project Manager to provide          An extensive range of toilet cubicles and
the washroom solution for this exciting new       washroom systems are available on a
venture.                                          manufacture and supply basis - all designed to
                                                  allow for simple installation by any competent
Privacy cubicles were selected for the            tradesperson.
Mezzanine, with wood effect partitions and
surrounds and solid colour for the door panels
- Dark Blue for the Mens toilets and Aubergine    Tel:     01924 457600
for the Ladies. These were complemented by        Email: sales@washroomcubicles.co.uk
matching wall panel systems and Corian vanity     Twitter: @CubicleCentre
unit kits, with additional matching Compact
Grade Laminate splash panels.

            See all our case studies at www.washroomcubicles.co.uk/case-studies

Main Image: Corian Vanity units in the Mezzanine Ladies’ toilets
with CGL decorative panels

This Page
Top Left: Pilaster panel in wood effect finish

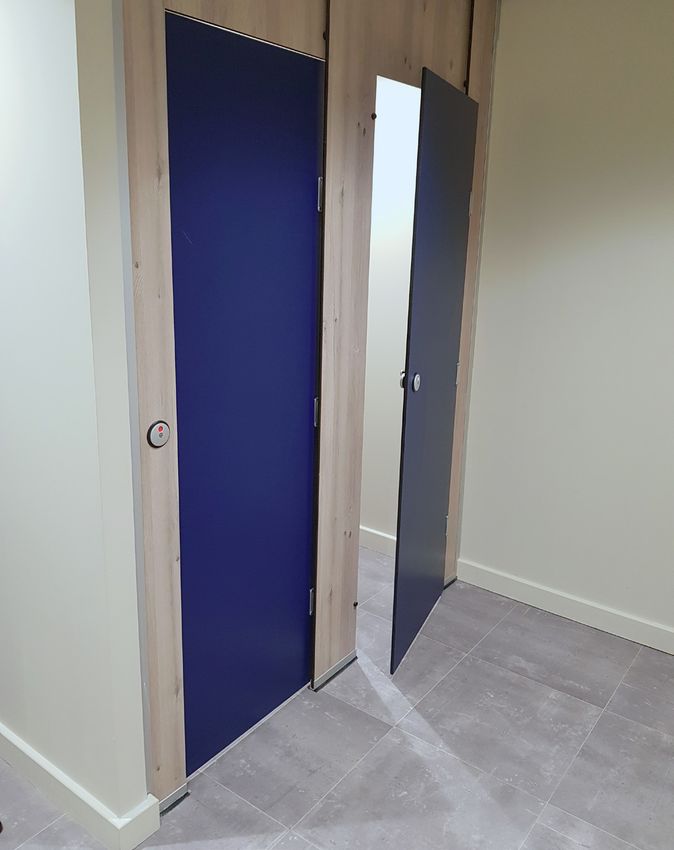

Top Right: Wider accessible end cubicle with
outward-opening door.

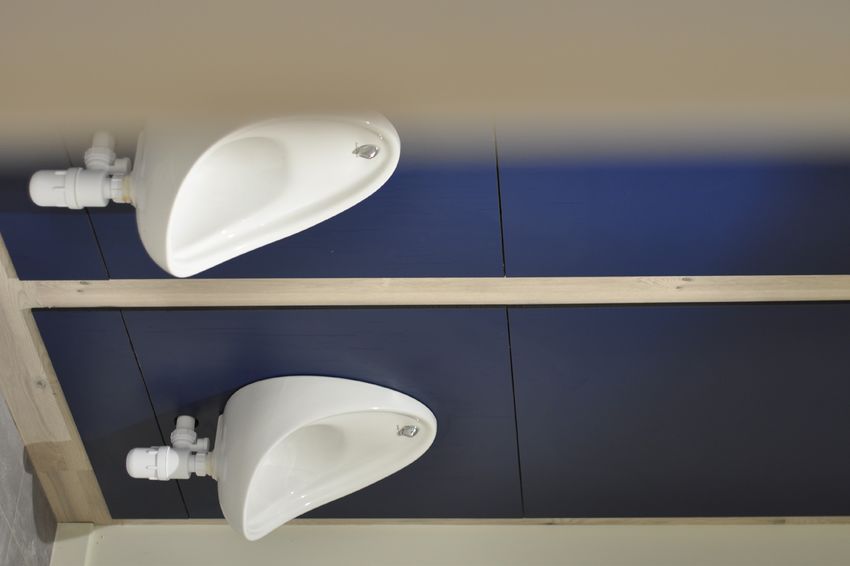

Left: Urinal panel system in the Mens’ washroom
Above: Hand dryer mounted onto water-resistant splash
panel to provide wall protection and complete the look.

Top: Occupancy indicator face
Above: Row of 4 cubicles with ambulant accessible
end cubicle
Right: Hand dryer splash panel to protect wall

Bottom Left: Wall panel detailing inside the toilet cubicles.
Bottom Right: Row of 3 CGL inset vanity units in the changing
room, matching the cubicle panels.
Below: Row of changing/toilet cubicles with solid legs and
indicators set into doors.

We have worked with the team at Cubicle
         Centre on a number of projects now and
         have always found them to be really helpful.
         They deliver on their promises and we’ve
         always been really pleased with the quality
         of the finish.

                                       Mark Farnsworth
                        Director at Tong Garden Centre

Top Left: Cairngorm cubicles in staff room toilets.
Left: Urinal panels in Mens toilets with matching
privacy divider.

Privacy

Manufacturer

Cubicle Centre, Caldervale Business Park,
Ravensthorpe,
West Yorkshire, WF13 3JL
Tel: (01924) 457600 Twitter: @CubicleCentre
Email: design@washroomcubicles.co.uk

Specification

Overall cubicle height: 2600mm (max)

Doors: 13mm Compact Grade Laminate (CGL) with black
phenolic core (Water Proof)

Partitions: 13mm Compact Grade Laminate (CGL) with
black phenolic core (Water Proof) - maximum depth varies
depending on colour choice

Edging: Black - machine rounded profile

Fittings: Heavy duty SAA fittings - wall and pilaster
channels, cubicle base channels, hidden safety hinges and
robust ‘single action’ latches

Finish:   Satin Anodised Aluminium (SAA)

Colour options

Privacy is also available in a wide range of colours, visit
www.washroomcubicles.co.uk for full details

Standard Size Guide

Overall height:		          2600mm (max)
Partition height:		        2600mm (max)
Partition depth:		         2000mm (max)
Door width:		              650mm
Door opening:		            600mm
Start / End Fascia:        150mm
Middle Fascia:		           300mm
Floor clearance:		         15mm

Cairngorm

Manufacturer

Cubicle Centre, Caldervale Business Park, Ravensthorpe,
West Yorkshire, WF13 3JL
Tel: 01924 457600 Twitter: @CubicleCentre
Email: sales@washroomcubicles.co.uk

Specification

Overall cubicle height: 1955mm including a 155mm floor
clearance

Doors: 13mm Compact Grade Laminate (CGL) with black
phenolic core (Water Proof)

Partitions: 13mm Compact Grade Laminate (CGL) with
black phenolic core (Water Proof) - maximum depth varies
depending on colour choice

Edging: Panel material core machined rounded and
polished (Black)

Fittings: Head-rail, brackets, adjustable cubicle legs,
heavy-duty hinges and cubicle latches

Finish:   Satin Anodised Aluminium (SAA)

Colour options

Cairngorm is available in a wide range of colours, visit
www.washroomcubicles.co.uk for full details

Standard Size Guide

Overall height:		         1955mm
Partition height:		       1800mm
Partition depth:		        1500mm (standard)
Door width:		             600mm
Door opening:		           550mm
Start / End Fascia:       150mm
Middle Fascia:		          300mm
Floor clearance:		        155mm                            Case Study - Issue 25
