WE PROVIDE INNOVATIVE AND SMART ACTUATOR
SOLUTIONS THAT BRING BENEFITS TO PEOPLE 2021
digital
100%
EN
The best IDEAS
for you...
At the beginning of the 80‘s Mr. Eckhard twin-motor drive system for slatted frames in With an increasing market trend towards the
Dewert began development of the first drive 2003, the era of new drive technologies of the boxspringbed, Eckhard Dewert recognized
systems for treatment couches. future began. the need to develop a drive concept specially
In 1987 appeared his first double drive for the for this market segment, as the conventional
At the same time, Eckhard Dewert and Johannes
furniture industry (slat base). double drive has reached its limits in this market
Schneider intensified the development activities
segment.
With a great passion for details and the courage in other individual projects. For example, a new
to get into new things he introduced in the double drive concept was developed and sold to As a result, OCTO Actuators will be presenting
following years further innovations and a large the company Linak, which forms the basis of all at the Interzum 2017 with the OB05 One Part
number of double and single drives in the Linak double drives. Concept a drive system specially developed
market. for boxspring and upholstery beds, which will
These developments were intensified in the
revolutionize the market through its efficiency,
All developments, especially the basic functio- following years and led to the launch of the
adjustable load (up to 300 kg) and robustness.
nal principle of the well-known double drive Move drive series on the market in 2011. At the
from 1987, were patented. The double drives same time, this was also the cornerstone for the With a passion for innovation and new deve-
developed at that time are still the basis for the bundling of all activities of the group of compa- lopment ideas, Eckhard Dewert and the team
entire industry. nies at today‘s modern location in Grünsfeld in of OCTO Actuators will be providing the market
Baden Württemberg. with new product ideas “made in Germany“.
After the sale of the very successful company
to the Phoenix Group in 1992, Eckhard Dewert Another milestone in the development history
followed his new vision and started with the is the OCTO drive system was introduced to the
first development ideas for today‘s world-wide public in 2015. This innovative drive system has
ultra flat drive concept.
His companions, Dr. Rolf Farmont, Johannes
been awarded as “THE” world‘s most ground-
breaking drive technology in the furniture
E. Dewert
industry.
Schneider and Jörg Henle, have been closely
involved in the development of ultra-flat drive This unique ultra-flat drive technology has enjo-
technology. With the presentation of the first yed increasing popularity in Europe and overseas
adjustable four-motor mattress and another for years.
www.octo-actuators.de
2
we provide MOVE Page 4
INNOVATIVE AND
FLEX
SMART ACTUATOR SOLUTIONS
Page 12
that bring benefits to people BOX Page 15
“Made in Germany“ - our mission
Due to the worldwide CORONA (COVID-19) pandemic, the INTERZUM exhibition 2021 (Cologne) eMOTION Page 21
will take place this year exclusively in digital form.
The new catalog 2021 therefore appears exclusively „digital“ and contains a variety of modifications
and of course the innovations that we would have liked to present to you at our booth.
With our OCTO team we will continue to focus on innovation, quality and functionality at our ToGo
Page 29
location in Grünsfeld with a focus on customer requirements and market developments.
Management of OCTO Actuators GmbH
Jan Wywiol & Johannes Schneider CONTROL Page 31
TOUCHBAR Page 41
NATURAL Page 76
digital
interzum award: intelligent
2021
intelligent material
material & design and design
100% 2009 2005
3
Areas of use Options
Adjustable springs (flat) with spring bars Remote and cable remote control
or dissolved surface (disk) 3 Motor variant (head or foot)
MOVE PRI
Adjustable Continental bed systems 5 System lengths available
Adjustable beds with bed base function Without lumbar support can be ordered
and with lateral bed base opening Maxi set for extra widths up to 140 cm
Product description Move 4M
The four-engined alternative combines all ex- The back and foot part contains altogether 7
cellences of the PriMove-production and offers ranges, which can be adjusted almost sound-
the user a maximum of individual possibilities lessly and stagelessly via two high-performance
BRUST/LUMBAR
of adjustment, unique comfort and elegant motors. Furthermore an integrated support of
design. the lordosis leads to a noticeable relief of the
Lumbar support in the lumbar section of the
spine.
We abstain completely from metal fittings. A back result in marked stress relief to the spinal
very low system height and the continuous 64 The foot area is levitating and equipped with column and provide extra comfort and well-
mm bolt grid leave enough scope for an indivi- an integrated buffer, which also serves as a being.
dual arrangement of applications. Furthermore protection of overcharge.
it allows the acceptance of all current spring
elements.
2021
digital
100%
Memory
RY
LIGHT 2x Plug
ARM SENSOR ON/OFF
Antriebstechnik PriCon RF M4
4
2021
digital
100%
The best MOTORPOWER
POWER
10000 N
DESIGN
x4
Max
200KG
SURFACE LOAD**
PriCon RF M4
for you... (Verteilung-Allocation)
The system power of OCTO drive
technology is outstanding. Large and
thick mattresses (loads) can be easily,
whispering and stageless adjusted. Bed
EASY TO GRIP KEYS
widths with spring systems (slatted
The buttons on the radio transmitter are arranged for frames) up to 140 cm can be designed
immediate intuitive operation. At the top for neck upon request.
and back adjustment, at the bottom for the knee and
foot zones. A clever solution is the parallel pressure
of both buttons, which allows both zones to be
7,5cm
adjusted simultaneously.
ULTRA FLAT
The OCTO Move drive systems are
unique due to their flat design. OCTO
MEMORY POSITIONS
systems offer maximum design and
Two memory positions can be stored directly via the construction scope for your ideas.
„SET“ key as often as desired. A soft tone confirms
successful storage. Pressing and holding the respecti-
Seat
ve key the stored position is moved to. SMART MAX
SEAT-MAX
SYNCHROMODE BASE STATION WITH RESET BUTTON
A useful function is the „Real“ synchronous mode. With just one press on the surface, the STORAGE BOX
Two PriMaster motor frames can be synchronized invisibly integrated reset button is activated,
almost 100% and load-independently by means of allowing the motor frame to be moved 100 - 140
cm
a cable connection (optional) and Memory Techno- completely into the horizontal position at
MAXI SET*
logy. The LED integrated in the handheld transmitter any time (even without the radio hand-held
signals the operating states. This function can be transmitter).
switched on or off electronically at any time from the
handheld radio transmitter. EASY ASSEMBLY
S QUICK
SYNCHRO TOUCH
S-Synchro-Cable-6P-Pri-Cable-6356
* Optional 5
MOTORPOWER
MOVE PRI SURFACE LOAD**
Max
200KG
(Verteilung-Allocation)
7,5cm
ULTRA FLAT
Product description PriMove 2M
Our starter model into the premium sector A very low system height and the continuous The advantage of the 7-zone division as well
is offering a high degree of comfort and an 64 mm bolt grid leave enough scope for an as an integrated lumbar support for a notice-
elegant design with an attractive colour. We individual arrangement of applications. Further- able relief of the spine are components of this
abstain completely from metal fittings. more it allows the acceptance of all current design. The elegant free-floating foot lends the
spring elements. system a special elegance.
Product variants PriMove 2M
PriMove “S“ offers you the possibility to com- PriMove “M“ offers you the possibility to PriMove “E“ offers you the possibility to
bine the PriMove drive technology with the combine the PriMove drive technology with the combine the PriMove drive technology with
PriCon RF Memory 2 high-end radio control. Sono2 high-end radio control. the control components of all Eco, Easy and OF
series.
2021
digital
100%
Receiver II
LIGHT
Memory Memory
PriMove „S“ / PriCon RF M2 PriMove „M“ / Sono2 PriMove „E“ / Star2 Drive technology
6 * Optional
Areas of use Options
Adjustable springs (flat) with spring bars Radio and cable remote control
or dissolved surface (disk) Memory control / APP Control
MOVE ECO
Adjustable Continental bed systems Mains disconnection function
Adjustable beds with bed base function Maxi-set for oversizes up to 140 cm
and with lateral bed base opening Foot mogul
Product description EcoMove
In our EcoMove-production you are able to The system does not need any metal fittings
adjust, the back as well as the foot part, with and offers with a system height of 65 mm a lot
the extremely quiet and separately controllable of scope for the field of modern slat base.
motor. Altogether 4 / 5 ranges offer a comfor-
The constantly partitioned 64 mm bolt grid
tableadjustment of the lying position.
Sono2* enables the acceptance of all current spring
This ultra flat drive system satisfies with an elements, for a client specific arrangement.
extraordinary high variability.
A mechanically emergency lowering is stan-
The body-end enables an elegant acceptance dard.
of the wooden extension. Thereby, it is possible
to actualize almost every variation of length
The foot part is levitating.
2021
digital
100%
POWER
7500 N
MOTORPOWER x2
Max
150KG
SURFACE LOAD**
(Verteilung-Allocation)
6,5cm
ULTRA FLAT
Memorymotor* 8P E-Power 24SF 100 - 140
Memory cm
Eco + Easy Move / Sono2 Eco 2 Natural
MAXI SET*
* Optional 7
MOVE ECO
Star2 RF*
Eco Classic Eco V6 Eco V5
2021
digital
100%
OCTO radio remote controls are equipped with
a night light function. The night light is located
in the receiver and can be conveniently swit-
ched on and off by the radio hand transmitter.
LIGHT
Drive technology Drive technology Drive technology Receiver II
8 * Optional
Special features
Radio and cable remote control
Memory control STORAGE BOX
Continuous 64 mm bolt pitch
Freewheel function
Mechanical emergency lowering (NAS)
EASY ASSEMBLY
MEMORY* Memory
Eco V4 Eco V3 Eco V2 Eco V1
Drive technology Drive technology Drive technology Drive technology
* Optional 9
Special features
Radio and cable remote control
Memory control
MOVE EASY
Continuous 64 mm bolt pitch
Freewheel function
Mechanical emergency lowering (NAS)
Product description EasyMove
In our EasyMove-production you are able to Thereby, it is possible to actualize almost every
adjust the back as well as the foot part with variation of length.
the extremely quiet and separately controllable
The foot part is levitating. The system does
motor.
not need any metal fittings and offers with a
Altogether 4 resp. 5 ranges offer you a comfor- system height of 65 mm a lot of scope for the
table adjustment of the lying position. field of modern slat base.
This ultra flat drive system satisfies with an The constantly partitioned 64 mm bolt grid
extraordinary high variability. The body-end enables the acceptance of all current spring
enables an elegant acceptance of the wooden elements, for a client specific arrangement.
extension.
Easy V5 Easy V4
2021
digital
100%
5 cm
E-Power 24SF
Push 2 Natural Drive technology Drive technology
10POWER
7500 N
MOTORPOWER x2
Max
150KG
SURFACE LOAD**
(Verteilung-Allocation)
6,5cm
ULTRA FLAT
Easy V3 Easy V2 Easy V1
2021
digital
100%
APP OCTO offers the possibility to
install an SMART APP on the
smartphone. With the correspon-
ding receiver with SMART APP
function, the bed system can also
be controlled with your own
smartphone (iOS / Android).
The night light function is also
included in the SMART APP
control.
* Receiver II Drive technology Drive technology Drive technology
SMART APP
* Optional 11Areas of use Options
Adjustable springs (flat) with spring bars Radio and cable remote control
or dissolved surface (disk) Memory control / SMART APP Control
FLEX OF 12
Adjustable Continental bed systems Neck fitting (Synchro-Drive)
Adjustable beds with bed base function Mains disconnection function
and with lateral bed base opening Maxi-set for oversizes up to 140 cm
Foot mogul
Product description OF12
OCTO Flex OF12 convinces by its enormous Quick installation and highest flexibility in co-
system power, two whispering motors and the lour design of all frame components characte-
ultra-flat build. rise this system.
The Flex Connect system replaces any fittings A globally unique and newly patented drive
and reduces your storage costs “one size fits concept also reduces weight by more than
all“. 50 % at concurrent higher force design and
system stability.
Flex Connect names it possible to install bed
widths from 70 to 100 cm with a single basic
set.
2021
digital
100%
Memorymotor* 8P OF12 / OB20 E-Power 24SF
Memory
OF12 / Sono2 Fly 2 Natural Drive technology
12 * OptionalSpecial features
Radio and cable remote control
Memory control
Continuous 64 mm bolt pitch
Freewheel function
Mechanical emergency lowering (NAS)
POWER
7500 N
MOTORPOWER x2
Max
150KG
SURFACE LOAD**
(Verteilung-Allocation)
7,5cm
Seat Ergo
ULTRA FLAT
SyncD
Flex Flex The OCTO Flex drive systems are
SEAT-FLEX ERGO-FLEX SYNCHRO-DRIVE* unique due to their flat design. OCTO
systems offer maximum design and
OCTO Seat-Flex is the unique possibility to ad- OCTO Ergo-Flex makes possible to adjust the When adjusting the back and neck section, the construction scope for your ideas.
just the seat part in the bed system to minimize zones of a bed construction in length upon back area rises first, without the neck first pres-
the compression in the mattress and to impro- request. sing on the head area. Slightly elevated lying,
ve the ergonomic balance. The mattress is no whether for the night‘s rest or with reflux, is
longer strongly squeezed, but takes unbent the now possible without neck pressure.
body shape of the user. This is also an advan- FLEX CONNECT
The neck develops completely into the sitting
tage for the consumer, since the body can be Another unique feature of OCTO
position up to the point of travel, so that a
stretched (zero gravity) and relaxed until the technology is Flex Connect. Maximum
comfortable sitting or reading posture can be
sitting position. At any time and stagelessly! flexibility with award-winning tech-
adopted.
nology. Ergo-Flex and Seat-Flex are
also outstanding advantages of OCTO
technology. Design according to your
wishes!
~ SitVital
~ RelaxVital MEMORY* Memory
~ JoinVital
STORAGE BOX
~ RefluxVital SyncD
SYNCHRO-DRIVE*
~ SleepVital
* Optional 13TECHN. DATA MOVE/FLEX
OF12 (toGo) Basic (toGo) Easy Eco Pri OF12 (toGo) Basic (toGo) Easy Eco Pri
System height 7.5 cm 6.5 cm 6.5 cm 6.5 cm 7.0 cm TECHN. DATA
Width basic set 70-140 cm 70-120 cm 70-140 cm 70-140 cm 70-140 cm Torque Nm 464 530 541 541 731
Length basic set up to 220 cm up to 220 cm up to 220 cm up to 220 cm up to 220 cm Complete adjustmnet “up“ in sec. without load 19 sec / 29 V 18 sec / 24 V 18 sec / 24 V 18 sec / 24 V 18 sec / 24V
System weight 6.1 kg 3.8 kg from 6.1 kg from 8.8 kg from 14.1 kg Setup angle back 60 ° 52 ° max. 89 ° max. 89 ° max. 90 °
Motors 2M 1M 2M 2M 2 M, 3 M, 4 M 64 mm grid yes yes yes yes yes
Maximum load** 150 kg 150 kg 150 kg 150 kg 200 kg Activation time `2/10 `2/10 `2/10 `2/10 `2/10
Hand switch yes yes yes yes yes Motor voltage 24 V AC 24 V AC 24 V AC 24 V AC 24 V AC
Radio remote control optional no optional optional yes End deactivation via Microswitch Microswitch Microswitch Microswitch Microswitch
Stageless adjustment yes yes yes yes yes Housing colour RAL 7016 7044 7044 7016 8019
Öko Design Standby consumption < 0,30 W yes yes yes yes yes Mains unit type SMPS SMPS SMPS SMPS SMPS
Power supply with mains isolation function optional no optional optional yes Supply line standard EURO EURO EURO EURO EURO
Neck zone adjustment optional no optional optional yes Supply line optional US,UK,CH,JP US,UK,CH,JP US,UK,CH,JP US,UK,CH,JP US,UK,CH,JP
Back zone adjustment yes yes yes yes yes Mains connection 100-240 V AC 100-240 V AC 100-240 V AC 100-240 V AC 100-240 V AC
Knee/foot zone adjustment yes no yes yes yes Eco Design EC1275/2008 Standby < 0,30 Watt yes yes yes yes yes
Foot zone adjustment no no no no yes, 4 M, 3 MF Protection type IP20 IP20 IP20 IP20 IP20
Protection class II II II II II
SPECIAL ADVANTAGES Free wheel function Mechanical emergency lowering (NAS)
Force N / Motor 7500 N 7500 N 7500 N 7500 N 10000 N
Freewheel function yes yes yes yes yes
Flex Connect yes no no no no
Seat-Flex / Ergo-Flex yes yes no no no
StorageBox yes yes yes yes yes
Back zone Foot zone
Neck fittings (Synchro-Drive) yes no no no no
Emergency lowering (mechanical) yes yes yes yes yes
One fits all yes no no no no
Lordosis Support no no no no yes
CONTROL OPTIONS
Radio remote control 2,4GHz STD with lighting optional no optional optional no
Radio remote control 2,4GHz NFS with lighting optional no optional optional yes, 4M
Radio remote control 2,4GHz APP with lighting optional no optional optional no
All our drive systems come with an idling
APP receiver STD / APP receiver NFS optional no optional optional no
Memory control Sono2 / Memorymotor optional no optional optional no function.
Memory optional no optional optional yes
DualSynchro cable 6P Memory optional no optional optional no While lowering the dorsal or head sections,
DualSynchro cable 6P optional no optional optional no these are returned to zero position not by mo-
DualSynchro cable 4P no optional no no no tor power but merely by their own weight.
Extension cord for power cable optional optional optional optional no
Extension cable with hand switch 6P optional no optional optional no Thus if a body part is accidentally jammed, it is
Hand switch MaxiPlus 100 cm optional no optional optional no
at most the weight of the corresponding supi-
ne section that is applied. Injuries and contusi-
ons are practically excluded.
In the case of a power cut or unexpected
MECHANICAL OPTIONS A sensible safety feature. breakdown, the mechanical emergency level-
Neck fittings (Synchro-Drive) / Foot fittings yes no no no no
Maxi-set for extra wide versions 100-140 cm 100-120 cm 100-140 cm 100-140 cm 100-140 cm
ling function makes it possible to lower both
“toGo“ yes yes no no no the dorsal and foot sections manually.
MoveBack no no optional optional optional
** evenly distributed over the lying surface
14BOX OB 05
The best POWER
The basic idea in this concept is a combination These double engines, which were develo-
for you...
The result of this OCTO Box 05 drive system is
of drive system and fittings, which has enor- ped exclusively for slatted frames almost 30 impressive. Loads of up to 300 kg emplaced on
mous forces, has variable width and radically years ago, now suffer from a lack of power the bed surface and bed width up to 155 cm
reduces the assembly time in boxspringbeds. and manufacturers of modern boxspring and are easily moved with the OCTO Box 05 drive
upholstery beds are struggling with very high system.
As a so-called “One Part Concept“, the design
cost complaints.
idea of OCTO Box 05 combines all the wishes
of the boxspring and upholstery furniture This is where the OCTO Box 05 “Platform Drive
industry, primarily the design, the necessary Concept“ is used.
power (system force for the adjustment of the
It unites technically in a unique way the optimal
lying surface with heavy and thick mattresses)
power during the adjustment with a modern
and a fast assembly.
engine concept and the low construction
Many years of development work have resulted height of only 10.5 cm.
in a modern and future-oriented concept with
With this drive concept, the stock management
many advantages for the manufacturer and
of fittings and drive motors is drastically redu-
end users.
ced for industrial customers. There is only one
OCTO Box 05 replaces the complex metal fit- drive system for a wide variety of bed widths.
tings as well as the unsuitable twin engines.
ONE PART CONCEPT
The OCTO One Part Concept wins by a quick
assembly and disassembly. The One Part
Concept has been specially developed for box-
springbeds and can be used up to a bed width
of 155 cm.
Drive technology
15Areas of use Options
Adjustable Continental boxspringbed Radio and cable remote control
systems Memory control / SMART APP Control
BOX OB 05
Adjustable Continental bed systems Neck fitting (Synchro-Drive)
Adjustable beds with bed base function Mains disconnection function
and with lateral bed base opening Maxi-Set for oversizes up to 155 cm
Product description OB05
OCTO Box OB05 convinces by a unique system The OB05 drive system guarantees a quick
power of 200-300 kg, the flat and compact mounting of less than 2 minutes and can be Classic POWER
design of only 10.5 cm and two whisper quiet installed efficiently with all standard wood and
motors. metal boxspringbeds between 70 and 100 cm 8000 N
BOX x2
wide as well as from 1.80 m to 2.20 m length.
The OB05 system has been developed es-
pecially for very demanding boxspringbed On request, the system can be used in the
systems. maximum version for bedding from 100 up to
155 cm (queen).
The “One Part Concept“ replaces any fittings
and also allows the use of the storage space In addition, a mechanical synchro neck adjust-
under the bed (storage and canapé function). ment is optionally available. OB O5 CLASSIC
Drive technology
2021
digital
100%
SURFACE LOAD**
(Verteilung-Allocation)
470 / 670 mm
Max Max Max
200KG 240KG 300KG
Max Max Max
330lbs 440lbs 660lbs
E-Power 24SF Memorymotor* 8P Memory
MaxiPlus 670 mm / Maxi 470 mm*
Fly 2 E-Power 24B (Red) OB05 Classic, Black, Red / Sono2 OB05 Classic, Black, Red
16 * Optional10,5cm
ULTRA FLAT
ONE PART CONCEPT
EASY ASSEMBLY
OCTO Box stands for enormous
system power. Specially designed for
boxspringbeds. Quick assembly and
Product variants OB05 superior flexibility.
Seat
OCTO Box systems are available in three per- MAX
Black formance levels:
POWER SEAT-MAX
10000 N Classic with a system power of 200 kg, Black
BOX x2 with a system power of 240 kg and Red with ONE
the highest power level of 300 kg.
ALL
WOODEN FRAME
The system power of OCTO drive technology is
outstanding. Large and thick mattresses (loads) ONE
can be easily, whispering and stageless adjus-
ted. Bed widths with spring systems (slatted STEEL FRAME ALL
frames) up to 140 cm and boxspringbeds up
OB O5 BLACK to 155 cm (Queen US) can be designed upon
request.
Drive technology The supporting force is constant at all times. STORAGE BOX
Almost all comfort, sleeping and lying posi-
tions can be achieved by the intelligent control
systems.
Red
EASY SERVICE
POWER
12000 N With 300 kg systempower OB05 represents the
BOX x2 top of the possibilities on the market. Modern
design and innovative materials are always the
first choice for OCTO products.
OB O5 RED
Drive technology
17BOX OB 05
Ergo Seat SyncD
Flex MAX
ERGO-FLEX SEAT-MAX SYNCHRO-DRIVE*
OCTO Ergo-Flex makes possible to adjust the Seat-Max is especially important when it comes When adjusting the back and neck section, the
zones of a bed construction in length upon to boxspringbeds. back area rises first, without the neck first pres-
request. sing on the head area. Slightly elevated lying,
The seat part (in contrast to conventional
whether for the night‘s rest or with reflux, is
double drives, which are limited by the center
now possible without neck pressure.
distance) can be longer and therefore more
gently designed for the mattress. The neck develops completely into the sitting
position up to the point of travel, so that a
The mattress is no longer strongly squeezed,
comfortable sitting or reading posture can be
but takes unbent the body shape of the user.
adopted.
This is also an advantage for the consumer,
since the body can be stretched (zero gravity)
and relaxed until the sitting position. At any
time and stagelessly!
2021
digital
100%
18 * OptionalAreas of use Options
Adjustable Continental boxspringbed Radio and cable remote control
systems Memory control / APP Control
BOX OB 20
Adjustable Continental bed systems Neck fitting (Synchro-Drive)
Adjustable beds with bed base function Mains disconnection function
and with lateral bed base opening Maxi-Set for oversizes up to 155 cm
Product description OB20 Sono2*
OCTO Box OB20 convinces with its enormous Maximum flexibility, system power (200 kg)
system power, two whispering motors, an and Seat-Max characterise this this system. POWER
installation height of only 9.0 cm and a flexible
build.
A globally unique and newly patented drive 13000 N
concept also reduces weight by more than MOTORPOWER x2
This system has been specifically developed 60 % at a higher power design and better
for boxspringbed systems. The Flex Connect system stability. Max
system replaces any fittings and reduces your 200KG
storage costs. “One fits all“. SURFACE LOAD**
Flex Connect permits bed widths between (Verteilung-Allocation)
70 and 100 cm in the OB20 with only a single 9,0cm
basic set. (Optional in the Maxi Version for ULTRA FLAT
bedding from 100 up to 120 cm).
2021
digital
100% MEMORY* Memory
FLEX CONNECT

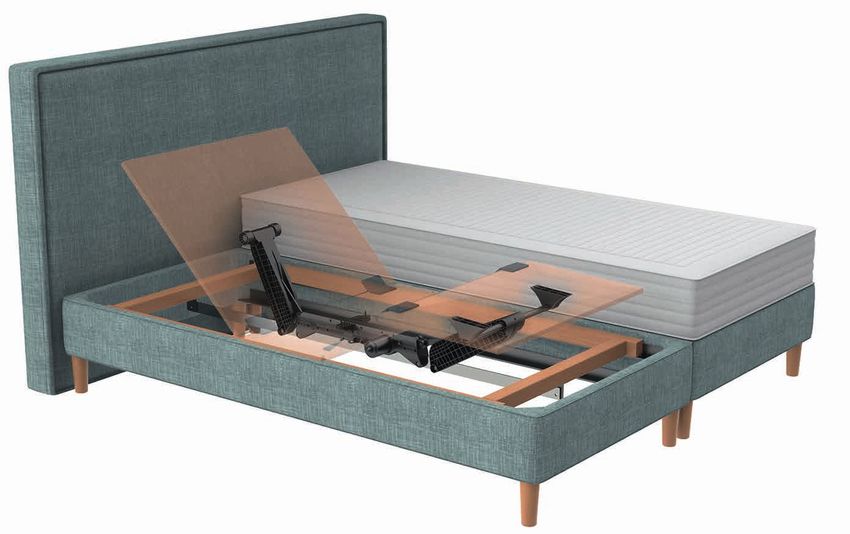

STORAGE BOX
OCTO drive technology is
unique in the world and is
especially characterized by
the flatness. Any storage
space under the bed (bed box, canapé)
Memorymotor* 8P can be designed and used meaningful.
Memory
Drive technology OB20 / Sono2 Sono2 - Brick 1 USB, 6P, 8P
* Optional 19TECHN. DATA BOX
OB20 OB05 Classic OB05 Black OB05 Red OB20 OB05 Classic OB05 Black OB05 Red
System height 9 cm 10.5 cm 10.5 cm 10.5 cm TECHN. DATA
Width basic set 70-120 cm 70-120 cm 70-140 cm 70-155 cm Torque Nm 962 565 706 847
Length basic set from 220 cm from 220 cm from 220 cm from 220 cm Complete adjustmnet “up“ in sec. without load 24 sec / 24 V 24 sec / 24 V 24 sec / 24 V 24 sec / 24 V
System weight 7.4 kg 8.2 kg 8.2 kg 8.2 kg Setup angle back 56 ° 55 ° 55 ° 55 °
Motors 2M 2M 2M 2M 64 mm grid yes yes yes yes
Maximum load** 200 kg 200 kg 240 kg 300 kg Activation time `2/10 `2/10 `2/10 `2/10
Hand switch yes yes yes yes Motor voltage 24 V AC 24 V AC 24 V AC 24 V AC
Radio remote control optional optional optional optional End deactivation via Microswitch Microswitch Microswitch Microswitch
Stageless adjustment yes yes yes yes Housing colour RAL 7016 7016 7016 7016
Öko Design Standby consumption < 0,30 W yes yes yes yes Mains unit type SMPS SMPS SMPS SMPS
Power supply with mains isolation function optional optional optional optional Supply line standard EURO EURO EURO EURO
Neck zone adjustment optional optional optional optional Supply line optional US,UK,CH,JP US,UK,CH,JP US,UK,CH,JP US,UK,CH,JP
Back zone adjustment yes yes yes yes Mains connection 100-240 V AC 100-240 V AC 100-240 V AC 100-240 V AC
Knee/foot zone adjustment yes yes yes yes Eco Design EC1275/2008 Standby < 0,30 Watt yes yes yes yes
Foot zone adjustment no no no no Protection type IP20 IP20 IP20 IP20
Protection class II II II II
SPECIAL ADVANTAGES Free wheel function Mechanical emergency lowering (NAS)
Force N / Motor 13000 N 8000 N 10000 N 12000 N
Freewheel function yes yes yes yes
Flex Connect yes no no no
Seat-Flex / Ergo-Flex yes yes yes yes Back zone Foot zone
StorageBox yes yes yes yes
Neck fittings (Synchro-Drive) yes yes yes yes
Emergency lowering (mechanical) yes yes yes yes
One fits all yes yes yes yes
Lordosis Support no no no no
CONTROL OPTIONS
Radio remote control 2,4GHz STD with lighting optional optional optional optional
Radio remote control 2,4GHz NFS with lighting optional optional optional optional
Radio remote control 2,4GHz APP with lighting optional optional optional optional All our drive systems come with an idling
APP receiver STD / APP receiver NFS optional optional optional optional
function.
Memory control Sono2 / Memorymotor optional optional optional optional
Memory no no no no
While lowering the dorsal or head sections,
DualSynchro cable 6P Memory optional optional optional optional
DualSynchro cable 6P optional optional optional optional these are returned to zero position not by mo-
DualSynchro cable 4P optional optional optional optional tor power but merely by their own weight.
Extension cord for power cable optional optional optional optional
Extension cable with hand switch 6P optional optional optional optional Thus if a body part is accidentally jammed, it is
Hand switch MaxiPlus 100 cm optional optional optional optional at most the weight of the corresponding supi-
ne section that is applied. Injuries and contusi-
ons are practically excluded. In the case of a power cut or unexpected
MECHANICAL OPTIONS
A sensible safety feature. breakdown, the mechanical emergency level-
Neck fittings (Synchro-Drive) / Foot fittings yes/no yes/no yes/no yes/no
Maxi-set for extra wide versions 100-120 cm 100-120 cm 100-140 cm 100-155 cm
ling function makes it possible to lower both
“toGo“ yes yes yes yes the dorsal and foot sections manually.
MoveBack no no no no
** evenly distributed over the lying surface
20 * OptionaleMOTION
The best
e Motions for you...
21eMOTION 2M
Product description eMotion 2M
The eMotion 2M drive technology is based on As a further variant, OCTO offers a single- Micro2 RF Control
a twin-motor OCTO drive system for adjusting motor drive technology that can also be fully
the back and foot areas and can be fully integ- integrated into the mattress.
rated into a mattress.
In all 4 zones allow hassle-free adjustment of
each comfortable reclining, sitting and relaxing
position.
The system components within the structure
offer appropriate locking options of moulded
and comfort foam so that an elegant external
shape is ensured during the operation of back
zone.
All popular foam types (PU, Visco) and pocket
spring mattress technologies can be used.
The system does not require any metal fittings
and offers more design freedom with a system
height of just 65 mm for completely invisible
integration within the mattress.
The eMotion 2M can be completely folded for
dispatch in carton. This “toGo” OCTO propulsi-
on technology is unique worldwide.

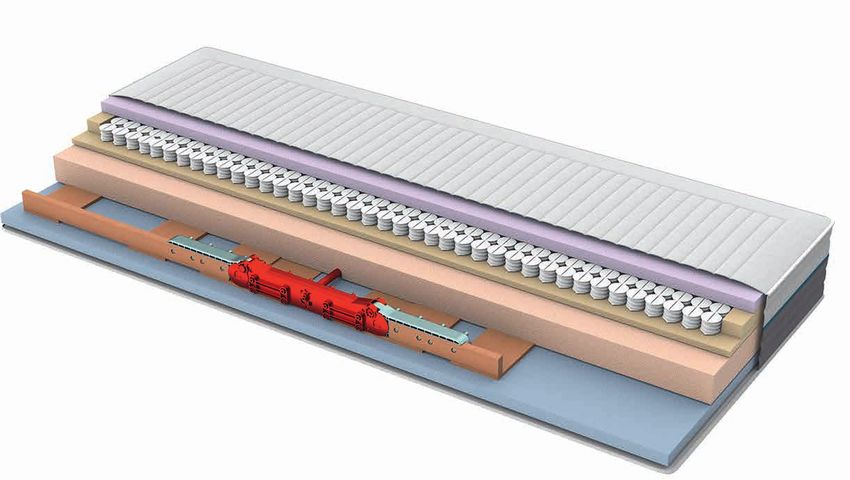

eMotion 2M - Mattress Application
2021
digital
100%
22Special features POWER
Radio and cable remote control 7500 N
Memory control MOTORPOWER x2
Foldable “toGo“
Freewheel function Max
Mechanical emergency lowering (NAS) 150KG
SURFACE LOAD**
(Verteilung-Allocation)
6,5cm
ULTRA FLAT
toGo!
READY TOGO!*
toGo!
E-Power 24SF
Memory
eMotion 3.0 2M - Version TDS Natural Sono2*
* Optional 23eMOTION 1M
2021
digital
100%
* SMART APP Control
eMotion 2M - Sun Lounger SMART Application
24„Cookie“
Cookie Platform Concept
eMotion 1M or 2M
ultra flat
Suitable for all mattresses
(PU, Visco, pocket spring core)
eMotion 1M/2M - Cookie Platform Concept
25eMOTION 1M
Product description eMotion 1M
The eMotion 1M propulsion technology is As a further variant, OCTO offers a two-engine
based on a single-engine OCTO propulsion propulsion technology, which can also be
system for adjusting the back area and can be completely integrated into the mattress and
completely integrated into a mattress. offers additional adjustment comfort for knee
and foot area.
In all 2 zones allow hassle-free adjustment of
each comfortable reclining, sitting and relaxing
position.
The system components within the structure Micro1 RF Control
offer appropriate locking options of moulded
and comfort foam so that an elegant external
shape is ensured during the operation of back
zone.
All popular foam types (PU, Visco) and pocket
spring mattress technologies can be used.
The system does not require any metal fittings
and offers more design freedom with a system
height of just 65 mm for completely invisible
integration within the mattress.
The eMotion 1M can be completely folded for
dispatch in carton. This “toGo” OCTO propulsi-
on technology is unique worldwide.
2021
digital
100%

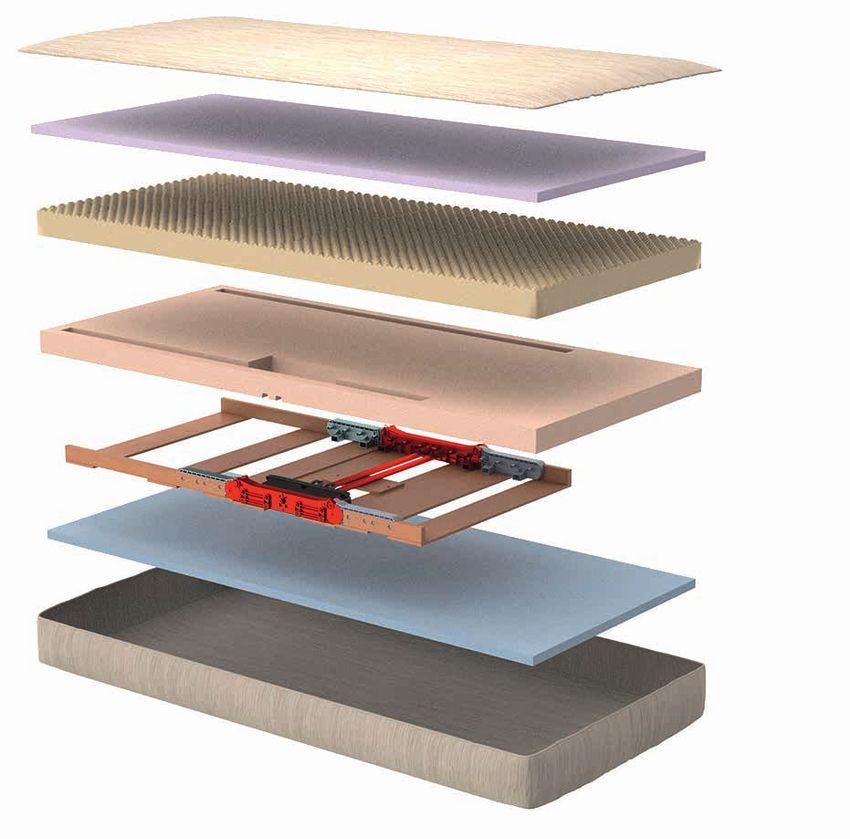

eMotion 1M - Mattress Application
26Special features
Radio and cable remote control
Memory control STORAGE BOX
Foldable “toGo“ OCTO drive technology is unique in the
Freewheel function world and is especially characterized by
Mechanical emergency lowering (NAS) the flatness. Any storage space under
the bed (bed box, canapé) can be desi-
gned and used meaningful.
toGo!
E-Power 24SF
eMotion 3.0 2M - Version TDS Micro1 RF Control Natural
* Optional 27Product variants eMotion 2M
eMotion 2M 3.0 DS eMotion 2M 3.0 TDS eMotion 2M 3.0 TDS+
Drive technology Drive technology Drive technology
Product variants eMotion 1M
SMART APP*
2021
digital
100%
eMotion 1M 3.0 DS eMotion 1M 3.0 TDS eMotion 1M 3.0 TDS+
Drive technology Drive technology Drive technology
1M or 2M Comfort
Climatic Drive System Suspension
Room System
Invisible Technology Ultra Flat
28 * OptionalSpecial features
Ultra-flat drive technology
Foldable “toGo“
ToGo BASIC
Freewheel function
Mechanical emergency lowering (NAS)
Product description BasicMove toGo
The BasicMove is a combination of practical The “toGo!“ option is another unique applica-
single-engined drive systems for the backs area tion worldwide.
and a variable wooden extension.
This makes it possible to practically fold a twin-
The length of the backs area as well as the engine springwood frame.
lying area can be defined by your wishes.
This facilitates transport in the mail order busi-
The system does not need any metal fittings ness and also offers the end consumer a simple
and offers with a system height of merely way of taking them with him.
65 mm enormous scope for the field of modern
slat base. The constantly partitioned 64 mm
bolt grid enables the acceptance of all current
spring elements for a client specific arrange-
ment.
2021
digital
100%
5 cm
toGo!
E-Power 24SF
Push 1 Natural Drive technology BasicMove / toGo
29Special features Options
Ultra-flat drive technology Radio and cable remote control
Foldable “toGo“ Memory control / SMART APP control
ToGo OF1/OF12
Freewheel function Neck fitting (Synchro-Drive)
Mechanical emergency lowering (NAS) Mains disconnection function
Maxi-set for oversizes up to 140 cm
Foot mogul
Product description OF1/OF12 toGo
OCTO Flex OF1 / OF12 convince with their The “toGo!“ option is another unique appli-
enormous system power, whisper-quiet motors cation worldwide. This makes it possible to
and ultra-flat design. The Flex Connect system practically fold a motor-adjustable springwood
replaces any fittings and reduces your storage frame.
costs “One size fits all“.
This facilitates transport in the mail order busi-
FlexConnect names it possible to install bed ness and also offers the end consumer a simple
widths from 70 to 100 cm with a single basic way of taking them with him.
set. Quick installation and highest flexibility in
colour design of all frame components charac-
terise this system.
A globally unique and newly patented drive
concept also reduces weight by more than
50 % at concurrent higher force design and
system stability.
2021
digital
100%
toGo! toGo!
Micro1 RF Control Micro2 RF Control OF1 toGo OF12 toGo
30Special features
3 free memory locations
Memory motor 8P (2M) compatible MEMORY Memory
USB 2.0 charging socket
2,4 GHz
Optional mounting hooks
Optional APP function
RADIO CONTROL
APP
SMART APP CONTROL
S
SMART APP* S-SYNCHRO DUAL SYNCHRO
Sono2
USB CHARGE
Brick 1
BRIDGE BRIDGE
2021
digital
100% CROSSFIX CrossFix
MAGNETHOOK Magnet
FLEXHOOK HOOK
CrossFix FlexHook* MagnetHook* Wireless socket Sono2 Advanced*
* Optional 31IDEAS
2021
digital
100%
Ready for upcoming features
SMART APP Advanced (Customized APP)
SMART APP Advanced (Bi-Directional
Communication)
Voice Control
Software Firm Updates
WiFi Connection
SMART APP Sleep Tracking
SMART APP Auto Service Desk
Auto Reverse Function
SMART MOVE* - 8P
SMART BOX* - 8P SMART OF/OB* - 8P
32MEMORY Memory
APP
SMART APP Advanced**
SMART APP CONTROL
Customized
Bi-Directional Communication
S
S-SYNCHRO DUAL SYNCHRO
LIGHT
NIGHTLIGHT
Sono2 - Memory 2,4 GHz
RADIO CONTROL
Your Logo USB CHARGE
Sono2 - Brick 1 USB, 6P, 8P
SMART APP*
Receiver II SMART APP* SMART APP* (Advanced**)
(Advanced**)
33Special features 2,4 GHz
Softtouch surface black
LED buttons RADIO CONTROL
Night light function in the receiver
APP
Optional mounting hook
Receiver with optional
SMART APP function SMART APP CONTROL
D
D-SYNCHRO DUAL SYNCHRO
LIGHT
NIGHTLIGHT
FLEXHOOK HOOK
Star 2 RF (LED)
2021
digital
100%
LIGH
LIGHT
Eco 2 RF Push 2 RF Star 2 RF Receiver II Nightlight
342021
digital
100%
SMART APP*
Your advantages and compatibility
Clean and logical interface
Logical operation
Sono2
Eco2 APP*, Star2 APP*, Push2 APP*
(Receiver II APP*)
Micro1APP*, Micro2 APP
Eco 2 RF
SMART APP Advanced**
Personalization for our customers
Your Logo
Radio set with SMART APP function
APP LIGH
LIGHT
Eco 2 RF Push 2 RF Star 2 RF Receiver II SMART
SMART APP* SMART APP* SMART APP* APP Nightlight*
** Optional + SMART Motor * Optional 35ELEGANCE AND TIMELESS DESIGN
The radio remote control is characterized by clear and
design-oriented form language and with the focus on
function and benefit. You can control your slat base
with just a few buttons.
2021
digital
100%
PRI
QUICK
SYNCHRO
TOUCH
BASE STATION WITH RESET BUTTON
With just one press on the surface, the invisibly inte-
grated reset button is activated, allowing the motor
frame to be moved completely into the horizontal
position at any time (even without the radio hand-
held transmitter). PriCon RF M4
RY CONTROLBOX WITH LED NIGHT LIGHT SOCKETS
LIGHT 2x Plug
The Smart Box also includes important functions. This Additional lamps can be connected to
includes the night light with the motion sensor. At two sockets.
ARM SENSOR ON/OFF
night, when the handheld transmitter is not used in
the base station, the motion sensor turns on the LED
light.
CONTROLBOX 4M - 100% OFF
When the handheld transmitter is placed in the base
station, the Smart Box switches off the mains supply
completely and reactivates it when the handheld
transmitter is pressed. Two batteries in the box
provide the pulse. As soon as the batteries reach a
minimum charge level, a „beep“ signal sounds.
36Special features of the 4M control
IQM
LED display, date display
Language selection, alarm clock
2 free memory positions
Sockets in the control box switchable
Mains disconnection 100
SMART
PRI
SYNCHRO
PriCon RF M2
MEMORY Memory
2,4 GHz
RADIO CONTROL
S
S-SYNCHRO DUAL SYNCHRO
QUICK
LIGHT
TOUCH ARM
NIGHTLIGHT
FLEXHOOK HOOK
37Special features
Softtouch surface black
LED buttons
FlexHook
Maxi Cord version optional
Suitable for all 2M systems
Star 2 Cable
2021
digital
100%
All cable handsets can
be ordered as MAXI E-Power 24SF
Cord (2.70 m cable). (0,1 Watt Standby)
100-240 V AC
006331 Push2 Maxi
6,5 cm 006332 Fly2 Maxi
006333 Eco2 Maxi
006362 Star2 Maxi
6,5 cm
Star 2 Cable Eco 2 Cable Fly 2 Cable Push 2 Cable
38 * OptionalSpecial features
Suitable for all 2M systems
Screw-on connection socket
Clear cable routing
Proven quality
More comfort
2021
digital
100%
D
SYNCHRO D-SYNCHRO
The “D“ DualSynchro connection represents
Adapter-6P-to-4P-5998
a special feature of the control options.
Two bedding systems are connected and
operated together (parallel). The elegant
connection offers the possibility with two
connection sockets on either side of the
bed to connect on both sides of a manual
switch. A clear comfort gain.
D-Synchro-Cable-6P-6354 D-Synchro-Cable-4P-6353
(60 - 140 - 60 cm) (60 - 140 - 60 cm) Y-Adapter-6P-to-2x-6P-5209
The comfort extension cable is a special fea-
ture of the control options.
The control cable 6P, which can be plugged
into the motor, and the mains cable (24V) lead
through the strain relief into a common cable
with a length of 200 cm, 60 cm of which is
designed as a spiral cable, up to the screwable
connection socket.
Comfort Extension-Control-6P- Both a power supply unit and a 6P control
Extension-Power-2M-6350 Extension-Control-6P-2M-6357 Power-6358 cable can be connected to the connection
(40 - Spiral cable - 60 cm) (40 - Spiral cable - 60 cm) (60 - Spiral cable - 120 cm) socket.
392021
digital
100%
S
SYNCHRO S-SYNCHRO
The “S“ Dual-Synchro connection is a
special feature of the control options. Two
bed systems are connected and moved
together (synchronously). Position sensing
allows both systems to adjust almost always
synchronously. The elegant connection also
offers the possibility of connecting on both
sides of a hand control with two connection
sockets on each side of the bed. A clear
S-Synchro-Cable-6P-Sono2-6316 S-Synchro-Cable-6P-Pri-RF-6355 S-Synchro-Cable-6P-Pri-Cable-6356 gain in comfort.
(60 - 140 - 60 cm) (150 - 180 - 150 cm) (150 - 180 - 150 cm)
Sono2-Brick-Connection-6P-6314 Sono2-Motor-Brick-Connection-8P-6315 Adapter-8P-to-6P-6359 Comfort Extension-Control-4P-Power-6360
(10 cm) (40 cm) (Memorymotor 8P) (60 - Spiral cable - 120 cm)
40TOUCHBAR
Go directly to our contact details Straight to our media library Directly to our catalogues Directly to our product videos and pictures
Directly to our assembly instructions Directly to our product certificates Directly to our operating instructions Go straight to our instructional videos
41Special features Options
Ultra-flat drive technology Radio and cable remote control
Foldable “toGo“ Memory control / SMART APP control
TOUCHBAR
Freewheel function Neck fitting (Synchro-Drive)
Mechanical emergency lowering (NAS) Mains disconnection function
Maxi-set for oversizes up to 140 cm
Foot mogul
“The ultra flat IntelliDrive“
OCTO Flex is the first central drive unit in The ultra-flat build also creates considerable
the world with flexible power transmission benefits for the customer. The storage space 150KG
elements (Flex Connect) that can transmit the below the lattice grid can become unlimited.
SYSTEMPOWER OF12
adjustment forces to many different positions
Generally, the usage options of the OCTO Flex
in an adjustable piece of furniture.
can be transferred to other product areas with
The extraordinarily strong OCTO Flex concept small construction space that require maximum
puts the force precisely where it is needed with flexibility at extreme force ratings.
differently adjustable levers and converts it
into an adjustment movement of the furniture
efficiently and with low noise.
Until now, the customer is bound to fixed
widths of unpleasantly heavy and welded me-
tal fittings (e.g. in the area of motor-adjustable
lattice grids) and has to stock up on the cor-
responding metal fittings for all the different
widths.
OCTO Flex gives the customer a drive concept
that is globally unique in its build that can be
used mostly width-independently for all lattice
grid and boxspringbed widths currently availa-
ble on the market, according to the principle of
“one size fits all“.
FLEX CONNECT
This new concept opens up new design options
for the customer and the freedom to develop Another unique feature of OCTO technology is
his product independently of the specified Flex Connect. Maximum flexibility with award-
fitting widths of the manufacturers. winning technology. ErgoFlex and SeatFlex are
also outstanding advantages of OCTO techno-
logy. Design according to your wishes!
42Ergo
Flex
ERGO-FLEX
200KG OCTO Ergo-Flex makes possible to
adjust the zones of a bed construction
SYSTEMPOWER in length upon request.
The OCTO Box drive systems are especially PULL
powerful. The adjustment force can be felt SYSTEM
permanently without a power loss. PULL SYSTEM
OCTO drive technology is unique in the world
and is especially characterized by the flatness.
Any storage space under the bed (bed box,
canapé) can be designed and used meaning-
ful.
43Max
300KG
SURFACE LOAD**
TOUCHBAR (Verteilung-Allocation)
The supporting force is constant at all
times. Almost all comfort, sleeping and
lying positions can be achieved by the
intelligent control systems. With 300 kg
systempower OB05 represents the
top of the possibilities on the market.
Modern design and innovative materi-
als are always the first choice for OCTO
products.
70 - 155 cm
EASY ASSEMBLY
OCTOBox stands for enormous system
power. Specially designed for box-
springbeds. Quick assembly and superi-
OB05 Red or flexibility.
ONE
ALL
WOODEN FRAME
ONE
ALL
STEEL FRAME
Seat
MAX
SEAT-MAX
OCTO Seat-Max is the unique possibility to ad-
just the seat part in the boxspringbed system
to minimize the compression in the mattress
and to improve the ergonomic balance (zero
gravity).
44 * OptionalAreas of use Options
Adjustable Continental boxspringbed Radio and cable remote control
systems Memory control / SMART APP control
Adjustable Continental bed systems Neck fitting (Synchro-Drive)
Adjustable beds with bed base function Mains disconnection function
and with lateral bed base opening Maxi-Set for oversizes up to 155cm
OB05 Jumbo
ONE PART CONCEPT
The OCTO One Part Concept wins by a quick
assembly and disassembly. The One Part
Concept has been specially developed for box-
springbeds and can be used up to a bed width
of 155 cm.
45TOUCHBAR
2021
digital
100%
The best
IDEAS for you

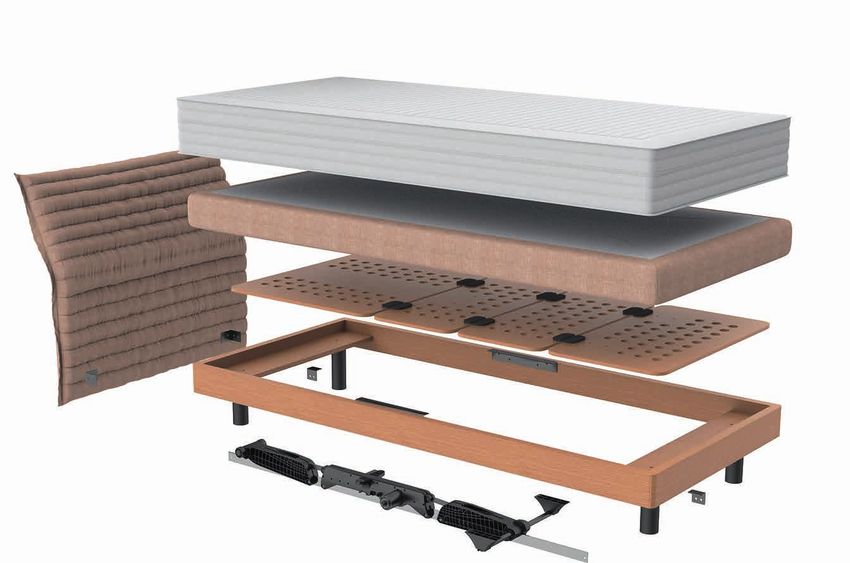

46Applications / Illustrations
Wood Frame Platform Concept
OB 05 Drive System
Drop In Solution
Classic POWER
8000 N
BOX x2
OB O5 CLASSIC
47TOUCHBAR
2021
digital
100%

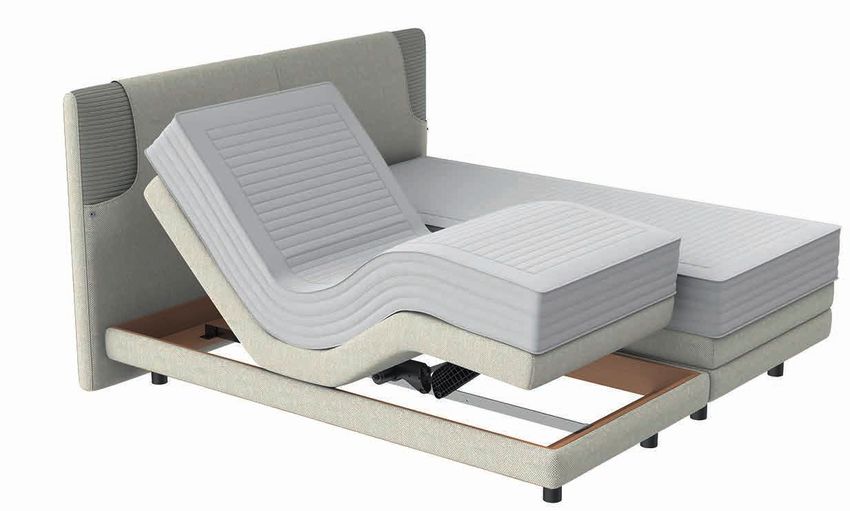

48Applications / Illustrations
OB 05 Drive System 10,5cm
Packaging Concept ULTRA FLAT
Wood Frame Platform
EASY ASSEMBLY
OCTO Box stands for enormous
system power. Specially designed for
boxspringbeds. Quick assembly and
superior flexibility.
ONE
ALL
WOODEN FRAME
49TOUCHBAR
The best
2021
digital
100%
MOTOTRPOWER
for you
50Applications / Illustrations
Steel Frame Platform Concept
OB 05 Drive System
Stand Alone Solution
Classic POWER
8000 N
BOX x2
OB O5 CLASSIC
51The best
TOUCHBAR FLEXIBILITY for you
2021
digital
100%
52Applications / Illustrations
Steel Frame Platform Concept
OB 05 Drive System
Stand Alone Solution
Classic POWER
8000 N
BOX x2
OB O5 CLASSIC
53TOUCHBAR
2021
digital
100%
The best
DESIGN for you
54Applications / Illustrations
Wood Frame Type „S“
OB 05 Drive System
Flat Bed Design
Classic POWER
8000 N
BOX x2
OB O5 CLASSIC
55TOUCHBAR The best
2021
digital
TECHNOLOGY
for you
100%

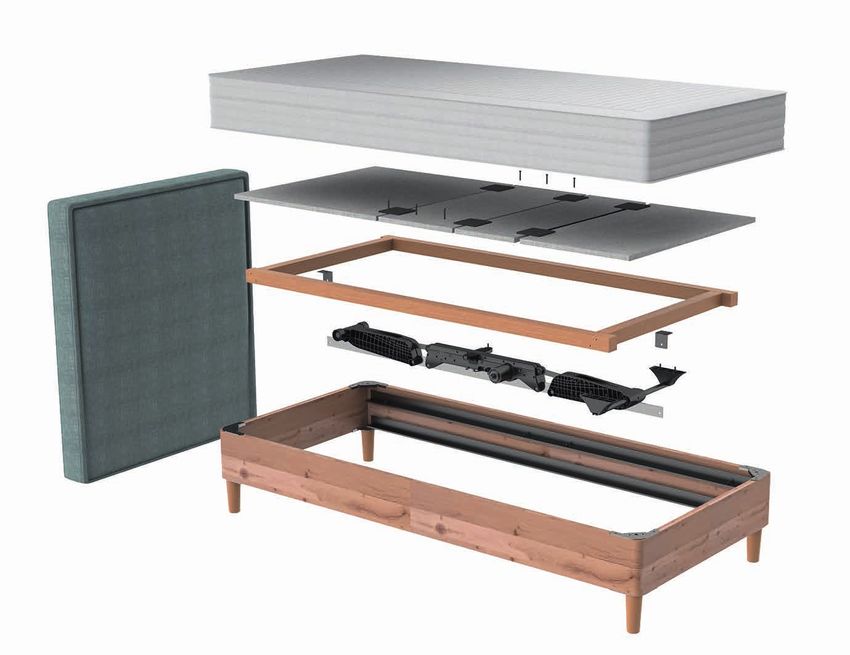

56Applications / Illustrations
Wood Frame Type „O“
OB 05 Drive System
Flat Bed Design
Classic POWER
8000 N
BOX x2
OB O5 CLASSIC
57TOUCHBAR The best
MOTORPOWER
digital
for you
2021
100%
58Applications / Illustrations
„Jumbo“ Slatted Frame
OB 05 Drive System
Dropin Solution 200KG Power
Classic POWER
8000 N
BOX x2
OB O5 CLASSIC
59The best
TOUCHBAR FLEXIBILITY for you
2021
digital
100%
6010,5cm
ULTRA FLAT
ONE PART CONCEPT
Seat
MAX
SEAT-MAX
STORAGE BOX
EASY SERVICE
Classic POWER
8000 N
BOX x2
OB O5 CLASSIC
61The best
TOUCHBAR eMOTIONS for you
2021
digital
100%
62Applications / Illustrations
eMotion 1M Drive System
Fits all mattresses
Sofa applications
Sun bed
Lounger
eMOTION 1M
63The best
TOUCHBAR INNOVATIONS for you
2021
digital
100%
eMOTION 2M
64„Cookie“
Cookie Platform Concept
eMotion 1M or 2M
ultra flat
Suitable for all mattresses
(PU, Visco, pocket spring core)
eMotion 1M/2M - Cookie Platorm Concept
652021
digital
100%
66Applications / Illustrations
eMotion 1M / 2M Drive System
Outdoor Concept
Sun bed
Lounger
The best
INNOVATIONS for you
67TOUCHBAR The best
2021
digital
100%
DESIGN for you
eMOTION 2M
68„Cookie“
Cookie Platform Concept
eMotion 1M or 2M
ultra flat
Suitable for all mattresses
(PU, Visco, pocket spring core)
eMotion 1M/2M - Cookie Platform Concept
69The best
TOUCHBAR FLEXIBILITY for you
2021
digital
100%
eMOTION 2M
70Applications / Illustrations
eMotion 1M / 2M Drive System
SofaConcept
Lounger
STORAGE BOX
EASY SERVICE
71The best
TOUCHBAR QUALITY for you
2021
digital
100%
72„Cookie“
Cookie Platform Concept
eMotion 1M or 2M
ultra flat
Suitable for all mattresses
(PU, Visco, pocket spring core)
eMotion 1M/2M - Cookie Plaform Concept
73The best
TOUCHBAR DESIGN for you
2021
digital
100%
RELIEF OF YOUR SPINE AND BREAST BASKET
OPENING
The lumbar support in the lumbar region of the back
provides noticeable relief for the spine and thus
creates a plus in comfort and well-being. At the same
time the chest is gently opened and allows deep and
relaxed inhalation and exhalation. Relax while reading
or Breakfast coffee.
ULTRA-FLAT DRIVE TECHNOLOGY
With an overall height of only 7.5 cm, the drive tech-
nology is integrated practically invisibly. Therefore,
this motor frame fits into every bed. You can use
the storage space (bed base) in your bed without
any restrictions. Cleaning work under the bed is also
possible without obstacles (such as metal fittings).
Pri Move 4M
74Premium at its best
DESIGN AND FUNCTION Memory motor technology, whisper-quiet, 4x 10000 N / 200 kg surface load
All adjustment functions are fully integrated invisibly integrated and continuously High quality spring slats
RADIO REMOTE CONTROL
in the design concept. Without any metal or adjustable Lumbar support and shoulder zone
MEMORY additional fittings, all frame elements move Radio remote control with memory control Suitable for all mattresses
You can adjust each zone indi- as quiet as a whisper and as if controlled by
vidually with the radio remote magic to the desired position. This techno-
Powerful drive technology, 2 years Storage space 100% possible (ultra-flat)
control to your exact requi- logy is unique worldwide and protected by warranty
rements. With the MEMORY a large number of patents.
function you can save two
favourites and recall them at
any time with the touch of a
button. YOUR PERSONALIZATION
We offer the possibility to have your per-
sonal designation (brand) engraved on the
headline. This underlines your competence
of the expert sleep consultant on site.
BED DRAWER ACCESS /
CARDIOVASCULAR POSITION
Both in the back area and in the foot area NECK ZONE CAN BE MOVED
the zones can be raised so far that you
INDIVIDUALLY
have good access to the bed base (storage
The neck zone is separately and continuous-
space). This is also a very useful feature for tho-
ly adjustable and provides a comfortable er-
rough cleaning under the bed. gonomic position for every pillow you use.
By simultaneously raising the foot and back
area, which is only possible with our
technology, you move the system into COMFORT AND QUALITY
the cardiovascular position. The motorized springwood frame is desi-
gned to meet the highest demands and is
equipped with first-class materials. Beech
crossbars and slats / caps that overlap the
slats as well as a shoulder zone with lowe-
ring are only a few highlights ... the lying
comfort is excellent and can be combined
with all types of mattresses.
HIGHEST RESILIENCE BUILT-IN SAFETY
The free-floating foot element - with built- The freewheel function prevents unwanted
in gas pressure springs - for additional bed crushing. During downward movement, the
drawer access is extremely resilient. Without motor acts neutrally and the technology,
additional supports it easily absorbs the MOTORPOWER MADE IN GERMANY which is invisibly encapsulated in the strand
weight of a person of up to 90 kg. State-of-the-art drive technology offers without sharp edges, prevents - in contrast
enormous power reserves of up to 200 kg to older technologies with metal fittings -
area load. With four individual motors and possible unwanted crushing.
RELAX - POSITION
10,000 N motor power each, this first-class
For maximum relaxation, the foot area can slat base is the world‘s no. 1.
be steplessly moved to the relax position.
This position keeps the blood circulation in
the lower leg and foot area constant.
75Special features
Ecological material
Applicable for all series
NATURAL
Made in Germany
Proven quality
2021
digital
100%
Natural
The drive technologies of the OCTO Actuators In addition, however, we take ecological res-
are already characterized today by a multitude ponsibility into account.
of advantages over conventional twin motors
On request, this material can be used for all
with an additional metal fitting.
drive series.
The flat and space-saving design and the
We‘ve made up our minds!
materials used already contribute to a good
ecological balance. Natural is our answer to our responsibility to-
wards the environment today and in the future.
Natural goes one step further and greatly im-
proves the reuse of the raw materials used. Make your choice now!
Thus, all plastic parts of the drive train can be We look forward to hearing from you and are
100 % reused in other applications of this ma- happy to answer any questions you may have.
terial class, since we completely dispense with
color pigments. OB05-Natural* OF12-Natural*
The technical characteristics of this material are
similar to those of the materials used today, so
that all product properties are retained.
76 * OptionalE-Power 24SF E-Power 24SF
PriMove 4M-Natural* Natural EcoMove (EasyMove) Natural* Natural
* Optional 77OCTO Actuators GmbH
de Werth Str. 1
D-97947 Grünsfeld
Tel. +49 (0) 9346 92 76 - 0
Fax +49 (0) 9346 92 76 - 399
info@octo-actuators.de
www.octo-actuators.deYou can also read
