2     About Onboard Systems

                                              Find Us Where YOU Are

                                                 Like us on Facebook

                                                 Follow us on Instagram

                                                 Join our LinkedIn network

                                                 Subscribe to our RSS feed

                                                 Follow us on Twitter
                                                 Sign up for our newsletter,
                                                 The Hook, at our website
                                                 Watch our videos on YouTube                            Lift with Confidence!
                                                 Follow our pin boards                                  Since 1975, Onboard Systems has been focused on making bet-
                                                                                                        ter helicopter cargo hook equipment. By emphasizing safety
                                                                                                        and ease of use, we have developed a host of cutting-edge
                                                                                                        technologies for helicopter external loadwork, including keep-
                                                                                                        erless and hydraulic cargo hooks, pin load cells, Spider® Smart
                                                                                                        Carousels, and our Surefire® cargo hook release option. Our
                                                                                                        product development is customer-driven, and whether we are
                                                                                                        working with helicopter manufacturers, operators, or service
                                                                                                        professionals, our goal is to design, ­manufacture, and deliver
                                                                                                        the safest, most durable cargo hook equipment possible—at an
                                                                                                        affordable price.
                                                                                                        In fact, when you consider the initial purchase price, lower
                                                                                                        maintenance costs, and higher product quality, it is very clear
                                                                                                        that Onboard Systems offers you the safest, most cost-effective
                                                                                                        cargo hook solutions available. And because we maintain a
                                                                                                        large inventory of products, spare parts, and complete systems
                                                                                                        on site, we usually ship out orders very quickly.
                                                                                                        Onboard Systems is dedicated to the helicopter lift industry,
                                                                                                        and we prove it with our emphasis on superior engineering,
                                                                                                        increased cost-effectiveness and comprehensive customer sup-
                                                                                                        port. Our willingness to listen to our customers and innovate
                                                                                                        solutions that improve safety and productivity has made us
                                                                                                        the acknowledged experts in external cargo hook equipment
                                                                                                        design and development.
Photo: Jarrett Lunn — Talon Helicopters

                                                                                                        We thank you for the opportunity to serve you!

                                                                                                                        ISO 9001:2008
                                                                                                                        AS9100 REV C

                                                                                                                         REGISTERED:

       www.onboardsystems.com                              |   +1.360.546.3072 (Worldwide)   |   +1.800.275.0883 (Toll Free US & Canada)   |   info@onboardsystems.com
ONBOARD SYSTEMS 2018 CATALOG VOL 42
Contents             3
Cargo Hook Kits
     Airbus Helicopters .................................................4-5
     Bell Helicopters ..................................................... 6-7
     Leonardo Helicopters ............................................... 8
     MD Helicopters ........................................................ 9
     Robinson Helicopters ............................................. 10

Cargo Hook Specifications.. ...................... 11

Upgrade Kits........................................ 12-13

Replacement Cargo Hook Kits............. 14-15

Onboard Weighing Systems................. 16-18

Remote Equipment
     Electric Swivel Kits.................................................. 19
     Remote Hooks................................................... 20-21
     SPIDER Smart Carousel........................................ 22
     TALON 2K Carousel Hook...................................... 23
     Auto-Loc Cargo Hook System................................ 24

Maintenance......................................... 25-26

Ordering Information . . ............................... 27

Secondary Hardpoint Kits......................... 28

     Surefire Release
     Onboard’s Surefire® cargo hook
     release technology is a useful safety
     option for external load operators.
     An integrated electronic circuit
     is added inside the cargo hook,
     which requires a purposeful, half-
     second press against the hook release
     button to open the hook. This guards against
     inadvertent releases caused by accidentally
     brushing against the button during flight. Pilots
     can still use the manual release in an emergency
     where the hook must be opened immediately.

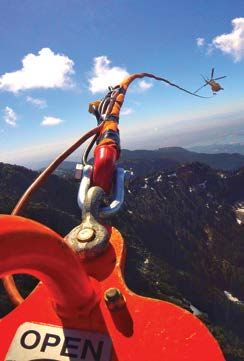

                                                                                                                                                      Photo: Andri Senn — Heli Linth AG

Copyright © 1976-2018 Onboard Systems International, Inc. All rights reserved.
Onboard Systems®, the Onboard Systems logo, Lift with Confidence®,
TALON®, Crew-Loc®, Surefire®, and SPIDER® are registered trademarks of
Onboard Systems International, Inc. All other trademarks are the property of
their respective owners.

Cover photo: Kristine Olavsdotter Holen — Nord Helikopter

  www.onboardsystems.com            |   +1.360.546.3072 (Worldwide)         |     +1.800.275.0883 (Toll Free US & Canada)    |   info@onboardsystems.com
ONBOARD SYSTEMS 2018 CATALOG VOL 42
4   Cargo Hook Kits                       Airbus Helicopters
                                                                                                                                               Airbus Helicopters AS350 Swing
                                                                                                                                               Suspension System with TALON®
                                                                                                                                               LC Hydraulic cargo hook option
                                                                                                                                               (P/N 200-280-02)

                                                                                                     Airbus Helicopters factory-installs Onboard’s cargo hook
                                                                                                     equipment on many of their new models, including the
                                                                                                     H-125 (AS350), H-130, H-135, and the H-145 (EC145-T2). If
                                                                                                     you’re looking for an after-market solution for your aircraft,
                                                                                                     our certified cargo hook kits include many of the safety
                                                                                                     enhancements and user-friendly features that you’re looking
                                                                                                     for. For example, our suspension systems include long-life
                                                                                                     bushings at each wearing joint to extend the service life.
                                                                                                     Built-in travel limits and/or bumper rings minimize damage
                                                                                                     to the cargo hook and control cables—reducing the risk of an
                                                                                                     inadvertent release.
                                                                                                     Onboard’s cargo hook kits are built around our TALON®
                                                                                                     brand of keeperless and hydraulic cargo hooks. There are
                                                                                                     options to add an Onboard Weighing System for most of our
                                                                                                     cargo hook kits, and many of these kits also include options
                                                                                                     for our Surefire® release technology. For more information,
                                                                                                     please visit our website.

                                                                                                                         Certification Guide

                                                                                                                  USA Federal Aviation Administration (FAA)

                                                                                                                  European Aviation Safety Agency (EASA)

                                                                                                                  Transport Canada Civil Aviation (TCCA)

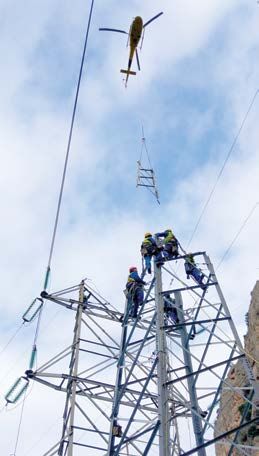

Photo: Kristian Hoglund — Storm Heliworks AB

                                                                                                                  Brazil Agência Nacional de Aviação Civil (ANAC)

                                                                                                                  Hong Kong Civil Aviation Department (HKCAD)

                                                                                                                  India Directorate of Civil Aviation (DGCA)

                                                                                                                  Japan Civil Aviation Bureau (JCAB)

                                                                                                                  Malaysia Department of Civil Aviation (DCA)

                                                                                                                  Mexico Dirección General de Aeronáutica Civil (DGAC)

www.onboardsystems.com                                   | +1.360.546.3072 (Worldwide)   | +1.800.275.0883 (Toll Free US & Canada)        | info@onboardsystems.com
ONBOARD SYSTEMS 2018 CATALOG VOL 42
Airbus Helicopters                                                    Cargo Hook Kits                          5

                                                                                                       EC130 B4 Sling System
                                                                                                       (P/N 200-322-00)

Our H120 Cargo Hook Kit (P/N 200-308-00) has built-in travel limits and a bumper ring to
protect the cables.

                                                                                            STANDARD          SUREFIRE                   DESIGN        UNIT
   AIRCRAFT MODEL                                  DESCRIPTION                               KIT P/N           KIT P/N         PRICE      LOAD        WEIGHT
                                                                                                                               $46,270    3,086 lb.    35.5 lb.
                              Cargo Hook Swing Kit with TALON LC Hydraulic Hook              200-280-02       200-280-05
                                                                                                                                USD      (1,400 kg)   (16.1 kg)
                                                                                                                               $27,955    1,660 lb.     12 lb.
                              Cargo Hook Sling Kit with TALON LC Hydraulic Hook              200-282-01           N/A
    AS350 B2 &                                                                                                                  USD       (750 kg)    (5.44 kg)
      Previous                Cargo Hook Swing Retrofit Kit with TALON LC
                                                                                             200-286-02           N/A
                                                                                                                               $37,395    3,086 lb.    34.5 lb.
                              Keeperless Hook                                                                                   USD      (1,400 kg)   (15.6 kg)
                              Cargo Hook Sling Retrofit Kit with Talon LC Keeperless                                           $20,735    1,660 lb.    7.2 lb.
                                                                                             200-287-01           N/A
                              Hook                                                                                              USD       (750 kg)    (3.3 kg)
                                                                                                                               $46,270    3,086 lb.    35.5 lb.
                              Cargo Hook Swing Kit with TALON LC Hydraulic Hook              200-280-03       200-280-06
                                                                                                                                USD      (1,400 kg)   (16.1 kg)
                              Cargo Hook Swing Kit with TALON LC Keeperless Hook &                                             $44,830    3,086 lb.     35 lb.
                                                                                             200-280-04           N/A
                              Fuel Drain Guard                                                                                  USD      (1,400 kg)   (15.9 kg)
    AS350 B3,                                                                                                                  $27,955    1,660 lb.     12 lb.
                              Cargo Hook Sling Kit with TALON LC Hydraulic Hook              200-282-02           N/A
   B3e, & H125                                                                                                                  USD       (750 kg)    (5.44 kg)
                              Cargo Hook Swing Retrofit Kit with TALON LC                                                      $37,395    3,086 lb.    34.5 lb.
                                                                                             200-286-02           N/A
                              Keeperless Hook                                                                                   USD      (1,400 kg)   (15.6 kg)
                              Cargo Hook Sling Retrofit Kit with Talon LC Keeperless                                           $20,735    1,660 lb.    7.2 lb.
                                                                                             200-287-01           N/A
                              Hook                                                                                              USD       (750 kg)    (3.3 kg)
                              Cargo Hook Swing Kit with TALON LC Keeperless Cargo                                              $40,655   11,625 lb.     35 lb.
        AS355                 Hook
                                                                                             200-292-02           N/A
                                                                                                                                USD      (5,272 kg)   (15.9 kg)
                                                                                                                               $29,160    1,543 lb.   22 lb. (10
    H120/EC120                Cargo Hook Kit with TALON LC Hydraulic Hook                    200-308-00           N/A
                                                                                                                                USD       (700 kg)       kg)
                                                                                                                               $37,410    2,557 lb.     35 lb.
                              Cargo Hook Swing Kit with TALON LC Hydraulic Hook              200-321-00           N/A
                                                                                                                                USD      (1,160 kg)   (15.9 kg)
      EC130 B4
                                                                                                                               $25,105    1,660 lb.     12 lb.
                              Cargo Hook Sling Kit with TALON LC Hydraulic Hook              200-322-00           N/A
                                                                                                                                USD       (750 kg)    (5.44 kg)
                                                                                                                           Available exclusively through Airbus
         H130                 Cargo Hook Kit with TALON LC Hydraulic Hook                        N/A              N/A
                                                                                                                                       Helicopters
                                                                                                                           Available exclusively through Airbus
         H135                 Cargo Hook Kit with TALON LC Hydraulic Hook                        N/A              N/A
                                                                                                                                       Helicopters
        H145                                                                                                               Available exclusively through Airbus
                              Cargo Hook Kit with TALON LC Hydraulic Hook                        N/A              N/A
     (EC145 T2)                                                                                                                        Helicopters

 For kit-specific requirements, please visit our website
                                                                       Certifications
                                                                       Verify specific P/N certifications at our website

 www.onboardsystems.com            | +1.360.546.3072 (Worldwide)           | +1.800.275.0883 (Toll Free US & Canada)               | info@onboardsystems.com
ONBOARD SYSTEMS 2018 CATALOG VOL 42
6               Cargo Hook Kits                                   Bell Helicopters

                                                                                       STANDARD        SUREFIRE                  DESIGN        UNIT
    AIRCRAFT MODEL                                     DESCRIPTION                      KIT P/N         KIT P/N     PRICE         LOAD        WEIGHT
                               Rotating Cargo Hook Kit with TALON MC Keeperless                                     $23,245       5,000 lb.     29 lb.
                                                                                        200-088-10        N/A
                               Hook                                                                                  USD         (2,268 kg)   (13.2 kg)
                               Rotating Cargo Hook Kit with TALON MC Keeperless
                                                                                                                    $28,085       5,000 lb.     32 lb.
      204, 205,                Hook & Onboard Weighing System w/5VDC backlit            200-089-23        N/A
                                                                                                                      USD        (2,268 kg)   (14.5 kg)
     212, & 412                Indicator
                               Rotating Cargo Hook Kit with TALON MC Keeperless
                                                                                                                    $28,085       5,000 lb.     32 lb.
                               Hook & Onboard Weighing System w/28VDC backlit           200-089-22        N/A
                                                                                                                      USD        (2,268 kg)   (14.5 kg)
                               indicator
                                                                                                                    $11,925      1,500 lb.     17.5 lb.
                               Cargo Hook Kit with TALON LC Keeperless Hook             200-268-01        N/A
                                                                                                                      USD        (680 kg)      (7.9 kg)
       206 A&B
                               Cargo Hook Kit with TALON LC Keeperless Hook &                                       $16,645      1,500 lb.     18.6 lb.
                                                                                        200-269-03        N/A
                               Onboard Weighing System                                                                USD        (680 kg)      (8.4 kg)
                                                                                                                    $19,660       3,000 lb.     12 lb.
                               Cargo Hook Kit with TALON LC Keeperless Cargo Hook       200-258-01        N/A
                                                                                                                     USD         (1,361 kg)   (5.44 kg)
                               Cargo Hook Kit with TALON LC Keeperless Cargo Hook &                                 $24,975       3,000 lb.     13 lb.
           206L                Onboard Weighing System
                                                                                        200-259-02        N/A
                                                                                                                     USD         (1,361 kg)    (5.9 kg)
                                                                                                                    $14,500       650 lb.        9 lb.
                               Secondary Hardpoint Kit                                 200-440-00         N/A
                                                                                                                      USD        (295 kg)      (4.1 kg)
                               Cargo Hook Kit with TALON LC Keeperless Hook, Fixed                                  $33,075       2,650 lb.    10.5 lb.
                                                                                       200-403-00         N/A
                               Provisions & Onboard Weighing System                                                  USD         (1,202 kg)   (4.76 kg)
                                                                                                                    $20,985       2,650 lb.    10.5 lb.
                               Cargo Hook Kit with TALON LC Keeperless Hook            200-329-00      200-329-10
                                                                                                                     USD         (1,202 kg)   (4.76 kg)
                               Cargo Hook Kit with TALON LC Hydraulic Hook & Fixed                                  $26,775       2,650 lb.    10.5 lb.
           407                 Provisions
                                                                                        200-412-00     200-412-10
                                                                                                                     USD         (1,202 kg)   (4.76 kg)
                               Cargo Hook Kit with TALON LC Hydraulic Hook, Fixed                                   $33,550       2,650 lb.    10.5 lb.
                                                                                       200-413-00      200-413-10
                               Provisions & Onboard Weighing System                                                   USD        (1,202 kg)   (4.76 kg)
                                                                                                                    $14,500       650 lb.        9 lb.
                               Secondary Hardpoint Kit                                  200-441-00        N/A
                                                                                                                      USD        (295 kg)      (4.1 kg)
                                                                                                                    Available exclusively through Bell
            427                Cargo Hook Kit with TALON LC Hook                           N/A            N/A
                                                                                                                               Helicopters
                                                                                                                    Available exclusively through Bell
           429                 Cargo Hook Kit with TALON LC Hydraulic Hook                 N/A            N/A
                                                                                                                               Helicopters

                               Cargo Hook Kit with TALON LC Hydraulic Hook             200-430-00         N/A                      Call
        505 Jet
       Ranger X                Cargo Hook Kit with TALON LC Hydraulic Hook &
                                                                                        200-431-00        N/A                      Call
                               Onboard Weighing System
    For kit-specific requirements, please visit our website

   Certifications

   Verify specific P/N certifications at our website

                                                                      Bell 407 Fixed Beam Cargo Hook Kit with
                                                                      TALON LC Hydraulic Cargo Hook and Pin
                                                                      Load Cell (P/N 200-413-00 shown)

www.onboardsystems.com            | +1.360.546.3072 (Worldwide)      | +1.800.275.0883 (Toll Free US & Canada)         | info@onboardsystems.com
ONBOARD SYSTEMS 2018 CATALOG VOL 42
Bell Helicopters                                                              Cargo Hook Kits            7

                                             This system includes
                                             an easily accessible
                                             release lever. Upgrade
                                             your existing hook to
                                             include this lever with our
                                             Release Lever Upgrade
                                             Kit (P/N 232-613-00;
                                             see page 13 for more
                                             information).

Cargo Hook Kit for the Bell
204, 205, 212 & 412 aircraft
(P/N 200-089-11 shown)

Bell Helicopters factory-installs Onboard’s cargo hook
equipment on many of their new models, including the Bell
407, 412, and the 429. If you’re looking for an after-market
solution for your aircraft, our certified cargo hook kits include
all of the safety enhancements and user-friendly features
that you’re looking for. For example, our suspension systems
include long-life bushings at each wearing joint to extend
the service life. Built-in travel limits and/or bumper rings
minimize damage to the cargo hook and control cables—
reducing the risk of an inadvertent release.
For medium Bell aircraft, we also offer a Cargo Hook
                                                                             Photo: Julie Fisk — Maritime Helicopters

Retention System upgrade kit (see page 13) that allows
you to quickly switch between rotating and non-rotating,
depending on your mission needs.
All kits use our TALON® brand of keeperless and hydraulic
cargo hooks. There are options for Onboard Weighing
Systems, and many upgrade kits and components are also
available (see page 13). Most of these kits also include
options for our Surefire® release technology. For more
information, please visit our website.

 www.onboardsystems.com        | +1.360.546.3072 (Worldwide)        | +1.800.275.0883 (Toll Free US & Canada)                  | info@onboardsystems.com
ONBOARD SYSTEMS 2018 CATALOG VOL 42
8              Cargo Hook Kits                                      Leonardo Helicopters

Contains built-in stowage
bracket that allows you to
                                                                                             Cargo Hook Kit for
securely store the hook flat
                                                                                             the AW109 or AW119
against the kit frame when
                                                                                             (P/N 200-356-00)
not in use.

    Leonardo Helicopters factory-installs Onboard’s cargo hook                        bracket allows you to store the hook flat against the frame
    equipment on several of their aircraft models. If you’re looking                  when not in use. And built-in travel limits keep the hook from
    for an after-market solution for your aircraft, our certified                     striking the airframe and releive strain on the hook control
    cargo hook kits include all of the safety enhancements and                        cables—reducing the risk of an inadvertent release.
    user-friendly features that you’re looking for. For example,                      Onboard’s cargo hook kits are built around our TALON®
    our suspension systems include protective anodizing and                           brand of keeperless and hydraulic cargo hooks. There are
    long-life bushings at each wearing joint help protect against                     options to add an Onboard Weighing System for most of our
    salt corrosion in marine environments. Built-in travel limits                     cargo hook kits, and many of these kits also include options
    and/or bumper rings minimize damage to the cargo hook and                         for our Surefire® release technology. For more information,
    control cables—reducing the risk of an inadvertent release.                       please visit our website.
    Our low-profile design offers additional clearance from the
    lowest hanging point of the cargo hook. The built-in stowage

                                                                                                PART                                DESIGN                UNIT
      AIRCRAFT MODEL                                        DESCRIPTION                        NUMBER             PRICE              LOAD                WEIGHT
       Leonardo                                                                                                          Available exclusively through
                                     Cargo Hook Kit with TALON LC Hydraulic Hook                  N/A
     AW009 (SW-4)                                                                                                           Leonardo Helicopters

                                                                                                                         Available exclusively through
  Leonardo AW101                     Cargo Hook Kit with TALON Hook                               N/A
                                                                                                                            Leonardo Helicopters
                                                                                                                                    3,086 lb.
                                     AW109 Cargo Hook Kit with TALON LC Hydraulic Hook         200-356-00      $15,635 USD                          31 lb. (14.1 kg)
                                                                                                                                   (1,400 kg)

                                     Fixed Provisions Kit                                      200-355-00      $13,565 USD             N/A          8.5 lb. (3.9 kg)
  Leonardo AW109
                                                                                                                                    3,086 lb.
                                     Model E-88 Pin-Style Onboard Weighing System              200-357-00      $5,630 USD                           2.1 lb. (.95 kg)
                                                                                                                                   (1,400 kg)
                                                                                                                                    3,086 lb.           31.1 lb. (14.1
                                     AW119 Cargo Hook Kit with TALON LC Hydraulic Hook         200-356-00      $15,635 USD
                                                                                                                                   (1,400 kg)                kg)

                                     Fixed Provisions Kit                                      200-369-00      $13,565 USD             N/A          8.5 lb. (3.9 kg)
  Leonardo AW119
                                                                                                                                    3,086 lb.
                                     Model E-88 Pin-Style Onboard Weighing System              200-357-00      $5,630 USD                           2.1 lb. (.95 kg)
                                                                                                                                   (1,400 kg)
                                     Backup Human External Cargo (HEC) TALON Cargo                                       Available exclusively through
  Leonardo AW139                     Hook System
                                                                                                  N/A
                                                                                                                            Leonardo Helicopters
                                     Backup Human External Cargo (HEC) TALON Cargo                                       Available exclusively through
  Leonardo AW169                     Hook System
                                                                                                  N/A
                                                                                                                            Leonardo Helicopters
For kit-specific requirements, please visit our website
                                                                                                    Certifications
                                                                                                    Verify specific P/N certifications at our website

www.onboardsystems.com             | +1.360.546.3072 (Worldwide)          | +1.800.275.0883 (Toll Free US & Canada)          | info@onboardsystems.com
ONBOARD SYSTEMS 2018 CATALOG VOL 42
MD Helicopters                                            Cargo Hook Kits                             9
                                                                                                                      Our Cargo Hook Attach Point Kit
                                                                                                                      for the MD500 & 600 includes
                                                                                                                      travel limits to protect the skin
                                                                                                                      of the aircraft from side-to-side
                                                                                                                      impact due to motion of the load
                                                                                                                      during flight (P/N 200-231-02)
Photo: Patrik Toerdal — Bering Air

                                                                                                                         MD500 Cargo Hook Kit
                                                                                                                         with TALON® LC Hydraulic
                                                                                                                         Hook, Attach Point, and
                                                                                                                         Onboard Weighing System
                                                                                                                         with Pin Load Cell
                                                                                                                         (P/N 200-379-00)

                                     Reduce ongoing maintenance costs with Onboard’s reliable                          point is also available for purchase, as well as an optional
                                     cargo hook kits for your MD Helicopters aircraft. Our                             Onboard Weighing System.
                                     cargo hook kits can be installed on new aircraft or used to                       Most of these kits also include options for our Surefire®
                                     upgrade older equipment with all the latest safety and design                     release technology. For more information on our products for
                                     innovations. Onboard’s cargo hook kits are OEM approved                           helicopters from MD Helicopters, please visit our website.
                                     and are also a factory option for new aircraft. If your helicopter
                                     has not been previously equipped with a hook, a hook attach

                                           AIRCRAFT                                                                              STANDARD         SUREFIRE                      DESIGN       UNIT
                                            MODEL                                       DESCRIPTION                               KIT P/N          KIT P/N         PRICE         LOAD       WEIGHT
                                                                                                                                                                   $6,390       2,000 lb.    4.8 lb.
                                                               TALON LC Keeperless Cargo Hook Kit                                 200-264-01
                                                                                                                                                                    USD         (907 kg)    (2.18 kg)
                                                                                                                                                                   $9,695       2,000 lb.    5.9 lb.
                                                               TALON LC Hydraulic Cargo Hook Kit with Attach Point                200-378-00      200-378-10
                                                                                                                                                                    USD         (907 kg)    (2.68 kg)
                                                                                                                                                                   $8,400       2,000 lb.    5.3 lb.
                                                               TALON LC Hydraulic Cargo Hook Kit                                  200-300-00
                                                                                                                                                                    USD         (907 kg)    (2.4 kg)
                                          MD500                TALON LC Hydraulic Hook Cargo Hook Kit with Attach Point &                                         $14,125       2,000 lb.    7.2 lb.
                                                                                                                                  200-379-00      200-379-10
                                          series               Onboard Weighing System                                                                              USD         (907 kg)    (3.3 kg)
                                                               TALON LC Hydraulic Hook Cargo Hook Kit with Attach Point &
                                                                                                                                                                  $14,100       2,000 lb.    7.2 lb.
                                                               Onboard Weighing System with 28V NVG backlighting system           200-379-01      200-379-11
                                                                                                                                                                   USD          (907 kg)    (3.3 kg)
                                                               for C-39 indicator
                                                                                                                                                                   $1,805       2,500 lb.   1.23 lb.
                                                               Cargo Hook Attach Point                                            200-231-02
                                                                                                                                                                    USD        (1,134 kg)   (.56 kg)
                                                                                                                                                                   $6,390       2,200 lb.    4.8 lb.
                                                               TALON LC Keeperless Cargo Hook Kit                                 200-264-02
                                                                                                                                                                    USD         (998 kg)    (2.18 kg)
                                          MD600
                                                                                                                                                                   $1,805       2,500 lb.   1.23 lb.
                                                               MD600 Cargo Hook Attach Point                                      200-231-03
                                                                                                                                                                    USD        (1,134 kg)   (.56 kg)
                                                                                                                                                                  Available exclusively through MD
                                      MD Explorer              Cargo Hook Kit with TALON LC Hydraulic Hook                            N/A
                                                                                                                                                                             Helicopters
                                      For kit-specific requirements, please visit our website
                                                                                                                                        Certifications

                                                                                                                                        Verify specific P/N certifications at our website

                                       www.onboardsystems.com            |    +1.360.546.3072 (Worldwide)    |       +1.800.275.0883 (Toll Free US & Canada)          |     info@onboardsystems.com
ONBOARD SYSTEMS 2018 CATALOG VOL 42
10               Cargo Hook Kits                                             Robinson Helicopters

        R66 Cargo Hook Kit with
        TALON LC Keeperless Hook
        and Onboard Weighing
        System with Pin Load Cell
        (P/N 200-381-00)

    Operators know that Robinson helicopters are ideal light                             Onboard Weighing Systems, Surefire® release technology,
    utility aircraft for external load work or training. You can                         Remote Hook Electrical Release Kits, and even a Co-Pilot
    leverage that capability and enjoy even greater profit potential                     Release Kit.
    by installing an Onboard Systems cargo hook kit. With all                            And when it’s time to service or overhaul your cargo hook, you
    the latest generation innovations and improvements, our                              can send it back to Onboard Systems for factory service, send
    Robinson cargo hook kits are a must-have accessory for your                          it to a qualified repair facility, or service it yourself. The choice
    aircraft.                                                                            is yours!
    Built around our third generation TALON® LC Keeperless                               For more information on our products for helicopters from
    Cargo Hook, our Robinson cargo hook kits have more options                           Robinson Helicopters, please visit our website.
    and upgrades than any other kits on the market, including

                                                                                                 STANDARD       SUREFIRE                     DESIGN        UNIT
      AIRCRAFT MODEL                                       DESCRIPTION                            KIT P/N        KIT P/N          PRICE       LOAD        WEIGHT
                                                                                                                                  $7,720       400 lb.       5 lb.
     Robinson R22                       Cargo Hook Kit with TALON LC Keeperless Hook             200-262-01
                                                                                                                                   USD        (181 kg)     (2.26 kg)
                                                                                                                                  $8,600       800 lb.      5.3 lb.
     Robinson R44                       Cargo Hook Kit with TALON LC Keeperless 12v Hook         200-326-00
                                                                                                                                   USD        (363 kg)     (2.4 kg)
                                                                                                                                  $8,600       800 lb.      5.3 lb.
                                        Cargo Hook Kit with TALON LC Keeperless 28v Hook         200-327-00     200-327-10
                                                                                                                                   USD        (363 kg)     (2.4 kg)
     Robinson R44                       Cargo Hook Kit with TALON LC Keeperless Hook &                                            $12,595      800 lb.      6.8 lb.
                                                                                                 200-327-01     200-327-11
       Raven II                         Onboard Weighing System                                                                     USD       (363 kg)     (3.1 kg)
                                                                                                                                  $1,680                    1.2 lb.
                                        Remote Hook Electrical Release Kit                       200-396-00                                     N/A
                                                                                                                                   USD                     (.54 kg)
                                                                                                                                  $9,215      1,015 lb.     6.7 lb.
                                        R66 Cargo Hook Kit with TALON LC Keeperless Hook         200-380-00     200-380-10
                                                                                                                                   USD       (460.4 kg)    (3.0 kg)
                                        R66 Cargo Hook Kit with TALON LC Keeperless Hook                                          $13,145     1,015 lb.     7.9 lb.
     Robinson R66                       and Onboard Weighing System
                                                                                                 200-381-00     200-381-10
                                                                                                                                   USD       (460.4 kg)    (3.6 kg)
                                                                                                                                  $1,575                    1.2 lb.
                                        R66 Remote Hook Electrical Release Kit                   200-392-00                                     N/A
                                                                                                                                   USD                     (.54 kg)
For kit-specific requirements and certifications, please visit our website

                                                                                                                     Certifications

                                                                                                                     Verify specific P/N certifications at our website

www.onboardsystems.com              |     +1.360.546.3072 (Worldwide)        |    +1.800.275.0883 (Toll Free US & Canada)     |     info@onboardsystems.com
TALON Cargo Hooks                                 11

         Left to Right: TALON LC Hydraulic Cargo Hook, TALON MC Keeperless Cargo Hook, TALON LC Keeperless Cargo Hook, TALON 10k Cargo Hook

Onboard’s TALON® brand of cargo hooks provide the ultimate                          imprecise rigging. Snagging or damage to the hydraulic line
in safety, reliability, and ease of use for operators around the                    will not lead to an inadvertent release.
world. As part of our continuous improvement initiative,                         ww Keeperless Designs— Our signature keeperless design
we update and refine our cargo hooks on a regular basis                             safely handles a wide variety of load ring sizes and styles. To
to incorporate the latest safety-oriented and user-friendly                         eliminate the risk that a load ring could escape by slipping
innovations. We have pioneered the development of multiple                          past the keeper during operation, we simply removed the
safety enhancements, such as:                                                       keeper and replaced it with a unique load beam system.
ww Release Safety — Onboard cargo hooks are designed to                         ww Surefire Release Technology— An integrated electronic
   release 2.5 times rated load. In an emergency situation, such                    circuit is added inside the cargo hook to provide about a
   as a longline snag, Onboard hooks give pilots a significant                      half-second delay from when the electrical release button
   margin of safety in which to release the cargo load.                             is pressed until the hook opens. This helps guard against
ww Hydraulic Designs —   Greatly increases load security by                        inadvertent releases by requiring a firm, half-second press
   using a hydraulically activated release mechanism instead                        of the hook release button.
   of a traditional manual release cable. Unlike existing cable                  ww Easy Maintenance & Overhaul —       Onboard cargo hooks
   systems, the hydraulic line can be routed with the electrical                    can be overhauled in the field, at our factory, or by a
   release cable and is unaffected by movement of the cargo                         qualified repair facility using simple hand tools. Quick
   hook. It does not require special rigging — significantly                        parts availability minimizes downtime!
   decreasing the chance of an inadvertent load loss due to

                                                                     PART           DESIGN       UNIT           THROAT SIZE              ELECTRICAL
       HOOK TYPE                        DESCRIPTION                 NUMBER           LOAD       WEIGHT        (HEIGHT X DEPTH)          REQUIREMENTS
                                                                                    3,600 lb.      3 lb.          1.25 x 1.75 in.       28 VDC (9 amps) or
                              TALON LC Keeperless Cargo Hook        528-029-XX
    Light Class                                                                    (1,633 kg)   (1.35 kg)       (31.8 x 44.5 mm)         14 VDC (10 amps)
   Cargo Hooks                TALON LC Hydraulic Cargo Hook         528-028-XX
                                                                                    3,500 lb.   3 lb. (1.36       1.25 x 1.75 in.
                                                                                                                                         28 VDC (9 amps)
                                                                                   (1,587 kg)       kg)         (31.8 x 44.5 mm)
                                                                                    6,000 lb.   11.75 lb.          2.0 x 2.5 in.
                              TALON MC Keeperless Cargo Hook        528-020-XX                                                          28 VDC (15 amps)
   Medium Class                                                                    (2,727 kg)   (5.33 kg)       (50.8 x 63.5 mm)
   Cargo Hooks                TALON MC Cargo Hook                  528-030-00
                                                                                    6,614 lb.    13.5 lb.          1.8 x 2.4 in.
                                                                                                                                        28 VDC (15 amps)
                                                                                   (3,000 kg)   (6.12 kg)       (45.7 x 60.9 mm)
                                                                                   10,000 lb.    13.7 lb.     1.75 x 3.75 in. (44.4 x
                              TALON 10,000 LB Cargo Hook            528-016-XX                                                          28 VDC (15 amps)
                                                                                   (4,536 kg)   (6.21 kg)           95.2 mm)
   Heavy Class                                                                     12,000 lb.   20.25 lb.      2.5 x 3.25 in. (65.5 x
                              TALON 12,000 LB Cargo Hook            528-012-XX                                                          28 VDC (15 amps)
   Cargo Hooks                                                                     (5,443 kg)   (9.2 kg)             82.6 mm)
                                                                                   16,000 lb.     29 lb.      2.13 x 3.00 in. (54.1 x
                              TALON 16,000 LB Cargo Hook            528-032-XX                                                          28 VDC (15 amps)
                                                                                   (9,072 kg)   (13.2 kg)           76.2 mm)
 For pricing and other information, please refer to the cargo hook kits available for your aircraft on our website.

 www.onboardsystems.com          | +1.360.546.3072 (Worldwide)        | +1.800.275.0883 (Toll Free US & Canada)                | info@onboardsystems.com
12             Upgrade Kits

                                          TALON MC Cargo Hook
                                          Release Lever Upgrade Kit
                                          for Bell 204, 205, 212 & 412
                                          aircraft (P/N 232-613-00)                                         Robinson R66
                                                                                                            Remote Hook
                                                                                                            Electrical
                                                                                                            Release Kit (P/N
                                                                                                            200-392-00)

                                        Continuous improvement is the way we do business at                       Weighing System by converting to a hydraulic release hook,
                                        Onboard Systems. Since our founding in 1975, Onboard has                  adding a bumper ring, and more. We offer a number of
                                        focused its efforts on making better cargo hooks and external             trade-in and upgrade programs for both Onboard Systems
                                        load equipment—and then, fine-tuning the process to make                  and competitor products. Not only will you save money with
                                        a great product even better. As we innovate solutions that                a trade-in or upgrade, you will be able to enjoy the safety and
                                        improve safety and productivity, we also strive to make it easy           operational advantages these latest generation products offer.
                                        and cost-effective for our existing customers to upgrade their            For more information about our upgrade kits, trade-in
                                        equipment.                                                                program, or upgrade discounts, please visit our website. While
                                        For example, you can improve the safety and performance                   you’re there, you can also download document 115-124-00:
                                        of your existing Onboard Systems cargo hook or Onboard                    Trade-in Program Price Sheet, or give us a call.
Photo: Chris Cornwell — Ultimate Heli

www.onboardsystems.com                                               | +1.360.546.3072 (Worldwide)   | +1.800.275.0883 (Toll Free US & Canada)     | info@onboardsystems.com
Upgrade Kits                        13
                                                                                    PART
      AIRCRAFT MODEL                                DESCRIPTION                    NUMBER       PRICE                          NOTES
                                                                                                $1,395    Designed for aircraft with B2 style dual fuel
                                     Fuel Drain Guard Kit                          200-299-00
                                                                                                 USD      pump type tank
 Airbus Helicopters                                                                             $9,025
                                     Swing Hydraulic Cargo Hook Upgrade Kit        200-306-00
    AS350 B2 &                                                                                   USD
      previous                                                                                            For aircraft with Onboard Systems cargo hook
                                                                                                $1,835
                                     Bumper Upgrade Kit                            200-362-00             528-029-00 or 528-023-01 on OEM B2 Swing or
                                                                                                 USD
                                                                                                          Sling configuration.
                                                                                                $9,200
                                     Swing Hydraulic Cargo Hook Upgrade Kit        200-306-01
 Airbus Helicopters                                                                              USD
     AS350 B3,                                                                                            For aircraft with Onboard Systems cargo
                                                                                                $1,835
    B3e, & H125                      Bumper Upgrade Kit                            200-362-00
                                                                                                 USD
                                                                                                          hook 528-029-00 or 528-023-01 on OEM Sling
                                                                                                          configuration.
                                                                                                $1,395    Designed for aircraft with B2 style dual fuel
                                     Fuel Drain Guard Kit                          200-299-00
                                                                                                 USD      pump type tank
 Airbus Helicopters
                                                                                                          For aircraft with Onboard Systems cargo
     EC130 B4                        Bumper Upgrade Kit                            200-362-00
                                                                                                $1,835
                                                                                                          hook 528-029-00 or 528-023-01 on OEM Sling
                                                                                                 USD
                                                                                                          configuration.
                                                                                                $3,110    For installation on Bell Helicopter two-channel
                                     Multi-Channel Slip-Ring Kit                   200-095-00
                                                                                                 USD      rotating cargo hook system
                                                                                                 $910     For installation on Breeze-Eastern hook or
                                     Cargo Hook Bumper Ring Kit                    210-092-00
     Bell 204, 205,                                                                              USD      Onboard Systems keepered hook 528-002-XX
      212, & 412                     TALON MC Cargo Hook Release Lever
                                                                                   232-613-00
                                                                                                 $950     For TALON MC Cargo Hook P/N 528-020-04 &
                                     Upgrade Kit                                                 USD      528-020-06
                                                                                                $3,495    Certified for use on only the Bell 205, 212, and
                                     Cargo Hook Retention System                    V205-110
                                                                                                 USD      412 models
                                                                                                $3,375    Compatible with Onboard Systems cargo hook
     Bell 206 A&B                    Pin Load Cell Upgrade Kit                     200-389-00
                                                                                                 USD      P/N’s 528-029-00 and 528-023-01
                                                                                                $14,500
        Bell 206L                    Secondary Hardpoint Kit                       200-440-00
                                                                                                  USD
                                                                                                $14,500
                                     Secondary Hardpoint Kit                       200-441-00
                                                                                                  USD
         Bell 407
                                                                                                $8,155
                                     Hydraulic Hook Upgrade Kit                    200-414-00
                                                                                                 USD
                                                                                                 $720
                                     SPIDER Spoke Kit                              212-033-00             Each kit adds capability for two (2) hooks
                                                                                                 USD
                                     Serial Plate Conversion Kit for TALON 3K                    $25      For P/Ns 528-018-02, 528-018-03, 528-018-05,
 Remote Equipment                    Remote Cargo Hooks
                                                                                   200-444-00
                                                                                                 USD      528-018-06
                                                                                                 $513     For use with carousel hook P/N 528-044-01 &
                                     2K Remote Hook Cage Kit (Gen 2)               235-272-00
                                                                                                 USD      528-044-11
     Robinson R44                                                                               $1,680
                                     Remote Hook Electrical Release Kit            200-396-00             28VDC
       Raven II                                                                                  USD

                                                                                                $1,575    EASA and Transport Canada certification
                                     Remote Hook Electrical Release Kit            200-392-00
                                                                                                 USD      pending
     Robinson R66
                                                                                                 $475     For use exclusively with Onboard System’s
                                     Co-Pilot Switch Housing Assembly              200-417-00
                                                                                                 USD      cargo hook kits for the Robinson R66 aircraft.
                                                                                                 $550
                                     TALON MC Cargo Hook Surefire Upgrade Kit         Call                For P/N series 528-020-XX
                                                                                                 USD
      Surefire®                                                                                  $430
                                     TALON LC Hydraulic Surefire Upgrade Kit          Call                For P/N 528-028-XX series
     Upgrade Kits                                                                                USD
                                     TALON LC Keeperless Cargo Hook Surefire                     $430
                                                                                      Call                For P/N 528-029-00 series
                                     Upgrade Kit                                                 USD
For kit-specific requirements, please visit our website

www.onboardsystems.com             | +1.360.546.3072 (Worldwide)          | +1.800.275.0883 (Toll Free US & Canada)          | info@onboardsystems.com
14           Replacement Hook Kits

                                                        Our new low-weight TALON MC
                                                     Keeperless Cargo Hook Replacement Kits
                                                   for the Sikorsky UH-60 Blawkhawk feature a
                                                  dual solenoid design to eliminate the need for
                                                 high-cost Cartridge Activated Devices (CADs) for
                                                back-up release functionality and can be upgraded with
                                             an Onboard Weighing System. Please refer to our website for
                                             more information (P/N 200-437-00 shown)

   Maintaining or overhauling old hooks can be a challenge. Even             ww Bumper Rings & Travel Limits— Many of our
   if you can get replacement parts, the lead times are extremely               replacement hook kits are designed with built-in travel
   long and the parts can be very expensive. Why wait to pay                    limits and/or polymer bumper rings to keep the hook from
   more when you can have a better quality hook for much less                   striking the airframe and to relieve strain on the control
   right now? Our replacement hook kits allow you to change                     cables that could lead to an inadvertent release.
   out legacy hooks for one of our TALON® brand hooks. Kits                  ww Release Safety— Onboard cargo hooks are designed to
   typically contain the replacement cargo hook and the fittings                release 2.5 times the rated load to give pilots a significant
   or links that are needed to change out the legacy hook,                      margin of safety in which to release their load in an
   including an optional Onboard Weighing System, if applicable.                emergency situation.
   Best of all, they include Onboard’s safety inno­­­va­tions and
   design improvements, such as:                                             ww Onboard Weighing Systems— Many of our replacement
                                                                                hook kits have options for an integrated Onboard
   ww Low Maintenance Costs— Teflon-lined, self-lubricating                    Weighing System to reduce the risk of overload stress and
      bushings at many wearing joints provide long life and                     aid pilots with loading decisions.
      greatly reduce maintenance requirements. Standard time
      between overhauls is five years or 1,000 operating hours for           ww Prompt Shipping— We maintain a large inventory of
      TALON LC hooks, and six years or 1,500 operating hours                    cargo hook products and spare parts, so we can usually ship
      for TALON MC hooks.                                                       your order out quickly.

                                                                                 STANDARD        SUREFIRE
          AIRCRAFT                            HOOK KIT                            KIT P/N         KIT P/N     PRICE             COMMENTS
                                                                                                                        For aircraft with B2 OEM
                                                                                                              $6,980
                             TALON LC Keeperless Cargo Hook Replacement Kit       200-353-00     200-353-01             swing system, and all sling
                                                                                                               USD
                                                                                                                        installations
                                                                                                              $8,400    For aircraft with B3 style OEM
                             TALON LC Hydraulic Cargo Hook Replacement Kit        200-281-01
                                                                                                               USD      swing frame
    Airbus Helicopters
       AS350 B2 &                                                                                             $7,615    For aircraft with B3 style OEM
                             TALON LC Keeperless Cargo Hook Replacement Kit       200-281-03
                                                                                                               USD      swing frame
         previous
                                                                                                              $8,400    For aircraft with B2 style OEM
                             TALON LC Hydraulic Cargo Hook Replacement Kit        200-297-00     200-297-10
                                                                                                               USD      swing frame

                             TALON LC Hydraulic Cargo Hook Replacement Kit                                    $13,100   For aircraft with B2 style OEM
                                                                                  200-298-00     200-298-10
                             with Onboard Weighing System                                                      USD      swing frame

                                                                                                              $6,980    For aircraft with sling
    Airbus Helicopters       TALON LC Keeperless Cargo Hook Replacement Kit       200-353-00     200-353-01
                                                                                                               USD      installations
     AS350 B3, B3e,
        and H125                                                                                              $8,860    For aircraft with OEM B3
                             TALON LC Hydraulic Cargo Hook Replacement Kit        200-281-02
                                                                                                               USD      swing system

www.onboardsystems.com     | +1.360.546.3072 (Worldwide)       | +1.800.275.0883 (Toll Free US & Canada)          | info@onboardsystems.com
Replacement Hook Kits                               15
                                                                                                   STANDARD      SUREFIRE
            AIRCRAFT                                                         HOOK KIT               KIT P/N       KIT P/N     PRICE            COMMENTS
Airbus Helicopters                                                                                                            $6,980
                                                TALON LC Keeperless Cargo Hook Replacement Kit      200-352-00
      AS355                                                                                                                    USD

                                                                                                                              $9,940
                                                TALON LC Hydraulic Cargo Hook Replacement Kit       200-302-00   200-302-10             Replaces Breeze ERC hook
                                                                                                                               USD

                                                                                                                              $9,940
                                                TALON LC Hydraulic Cargo Hook Replacement Kit       200-387-00   200-387-10             Replaces Siren hook
Airbus Helicopters                                                                                                             USD
      BO105                                     TALON LC Hydraulic Cargo Hook Replacement Kit                                 $14,680
                                                                                                    200-303-00   200-303-10             Replaces Breeze ERC hook
                                                with Onboard Weighing System                                                    USD

                                                TALON LC Hydraulic Cargo Hook Replacement Kit                                 $14,680
                                                                                                    200-388-00   200-388-10             Replaces Siren Hook
                                                with Onboard Weighing System                                                    USD

Airbus Helicopters                                                                                                            $5,815
                                                TALON LC Keeperless Cargo Hook Replacement Kit      200-351-00
      EC120                                                                                                                    USD

Airbus Helicopters                                                                                                            $6,980
                                                TALON LC Keeperless Cargo Hook Replacement Kit      200-353-00   200-353-01
    EC130 B4                                                                                                                   USD

                                                                                                                                        Approved for installation
Airbus Helicopters                                                                                                            $7,845
                                                TALON LC Keeperless Cargo Hook Replacement Kit      200-375-00                          on single cargo hook
      EC135                                                                                                                    USD
                                                                                                                                        configuration only
                                                                                                                              $6,385
                                                TALON LC Keeperless Cargo Hook Replacement Kit      200-270-01                          For H-Frame installation
Airbus Helicopters                                                                                                             USD
     SA315B                                                                                                                   $6,385
                                                TALON LC Keeperless Cargo Hook Replacement Kit      200-271-02                          For swing frame installation
                                                                                                                               USD
                                                TALON MC Keeperless Cargo Hook Replacement                                    $8,455
                                                                                                    200-246-00                          Includes bumper
                                                Kit                                                                            USD
     Bell 204, 205,
      212, & 412                                                                                                                        For installation on OEM non-
                                                TALON MC Keeperless Cargo Hook Replacement                                    $8,455
                                                                                                    200-246-01                          rotating system with 4,500
                                                Kit                                                                            USD
                                                                                                                                        lb. hook
                                                                                                                              $6,235    Replaces existing Bell
                                                TALON LC Keeperless Cargo Hook Replacement Kit      200-267-02
                                                                                                                               USD      suspension link
     Bell 206 A&B
                                                TALON LC Keeperless Cargo Hook Replacement Kit                                $10,830
                                                                                                    200-390-00
                                                with Onboard Weighing System                                                    USD
                                                                                                                              $5,895
    Bell 206L/407                               TALON LC Keeperless Cargo Hook Replacement Kit      200-260-01
                                                                                                                               USD
                                                                                                                              $8,400
                                                TALON LC Hydraulic Cargo Hook Replacement Kit       200-300-00
                                                                                                                               USD
                                                TALON LC Hydraulic Cargo Hook Replacement Kit                                 $9,695
                                                                                                    200-378-00   200-378-10
                                                with Attach Point                                                              USD
     MD500 Series                               TALON LC Hydraulic Cargo Hook Replacement Kit                                 $14,125
                                                                                                    200-379-00   200-379-10
                                                with Attach Point and Onboard Weighing System                                   USD
                                                TALON LC Hydraulic Cargo Hook Replacement Kit
                                                                                                                              $14,100
                                                with Attach Point, Onboard Weighing System, and     200-379-01   200-379-11
                                                                                                                               USD
                                                28V NVG Backlighting
                                                                                                                              $6,390
     MD600 Series                               TALON LC Keeperless Cargo Hook Replacement Kit      200-264-02
                                                                                                                               USD
                                                                                                                              $5,755
   Schweizer 269C                               TALON LC Cargo Hook Replacement Kit                 200-244-00
                                                                                                                               USD

                                                TALON MC Cargo Hook Replacement Kit                 200-437-00                  Call
   Sikorsky UH-60
      Blackhawk                                 TALON MC Cargo Hook Replacement Kit with
                                                                                                    200-438-00                  Call
                                                Onboard Weighing System
For kit-specific requirements and certifications, please visit our website

www.onboardsystems.com                               | +1.360.546.3072 (Worldwide)      | +1.800.275.0883 (Toll Free US & Canada)       | info@onboardsystems.com
Onboard Weighing
   16            Systems
                                  PART                               DESIGN
           AIRCRAFT              NUMBER        PRICE     MODEL        LOAD         CERTIFICATIONS                              COMMENTS
    Airbus Helicopters                         $5,555                 3,000 lb.
                                 200-062-01                   E-74                FAA, Transport Canada      For use with Siren hook only
          BK117                                 USD                  (1,361 kg)

                                               $5,555                 3,000 lb.
                                 200-036-01                   E-48                FAA, Transport Canada      For Onboard Systems or ERC hook (H-Frame)
    Airbus Helicopters                          USD                  (1,361 kg)
         SA315B                                $5,555                 3,000 lb.
                                 200-038-01
                                                USD
                                                              E-48
                                                                     (1,361 kg)
                                                                                  FAA, Transport Canada      For Onboard Systems or Siren Hook (Swing Frame)

    Airbus Helicopters                        $10,300                10,000 lb.
                                 200-010-00                   E-53                          FAA
          SA330                                 USD                  (4,536 kg)

    Airbus Helicopters                                               10,000 lb.
                                 200-012-00     Call          E-54                     FAA Pending           AS332C, AS332C1, AS332L, and AS332L1 models
          SA332                                                      (4,536 kg)

                                                                                                             For any Airbus AS350 sling system, as well as
                                               $5,785                 3,000 lb.   FAA, Transport Canada,
                                 200-295-00                   E-69                                           AS350 B2 or earlier Airbus-manufactured swing
    Airbus Helicopters                          USD                  (1,361 kg)            EASA
                                                                                                             systems
       H125 (AS350)
                                               $6,725                 3,086 lb.   FAA, Transport Canada,     For AS350 B3, B3e, and H125 swing with Airbus-
                                 200-310-00                   E-86
                                                USD                  (1,400 kg)            EASA              manufactured suspension system
                                               $6,460                 6,000 lb.   FAA, Transport Canada,     For Bell-manufactured two-channel rotating
                                 200-044-01               E-47B
      Bell 204, 205,                            USD                  (2,722 kg)            Brazil            suspension system
       212 & 412                               $5,555                 6,000 lb.
                                 200-151-01
                                                USD
                                                              E-77
                                                                     (2,722 kg)
                                                                                            FAA              For Onboard Systems suspension system

                                               $5,555                 3,000 lb.         FAA, EASA,
       Bell 206 A&B              200-042-01
                                                USD
                                                              E-45
                                                                     (1,361 kg)      Transport Canada
                                                                                                             For Bell-manufactured suspension system

                                               $6,260                 3,000 lb.   FAA, Transport Canada,     For use on aircraft with Bell Open Beam
                                 200-040-04                   E-72
        Bell 206L &                             USD                  (1,361 kg)            EASA              suspension system
         Bell 407                              $5,830                 3,000 lb.                              For Onboard Systems Enclosed Trolley Beam
                                 200-245-00                   E-85                          FAA
                                                USD                  (1,361 kg)                              System
                                               $5,815                 2,650 lb.         FAA, EASA,           For Onboard Systems Fixed Beam suspension
                                 200-331-00                   E-87
                                                USD                  (1,202 kg)   Transport Canada, Brazil   system with mechanical hook
          Bell 407
                                               $5,815                 2,650 lb.                              For Onboard Systems Fixed Beam suspension
                                 200-400-00                   E-90                FAA, Transport Canada
                                                USD                  (1,202 kg)                              system with hydraulic hook
                                               $6,460                 8,500 lb.
          Bell 214               200-152-00
                                                USD
                                                              E-62
                                                                     (3,856 kg)
                                                                                  FAA, Transport Canada

                                               $5,555                 3,000 lb.
          Bell 222               200-014-00
                                                USD
                                                              E-73
                                                                     (1,361 kg)
                                                                                  FAA, Transport Canada

        Leonardo
                                               $5,630                 3,086 lb.
       Helicopters               200-357-00
                                                USD
                                                              E-88
                                                                     (1,400 kg)
                                                                                  FAA, Transport Canada      For Onboard Systems suspension system
      AW109/AW119
                                               $5,555                 3,000 lb.         FAA, EASA,           For use with Onboard Systems or OEM hardpoint
                                 200-034-01                   E-51
                                                USD                  (1,361 kg)      Transport Canada        with mechanical hook
      MD500 Series
                                               $5,630                2,000 lb.    FAA, Transport Canada,     For use with Onboard hard point 200-231-02 and
                                 200-383-00                   E-89
                                                USD                  (907 kg)              Brazil            hydraulic hook
                                               $5,555                 3,600 lb.      FAA, Transport
           MD600                 200-034-02
                                                USD
                                                              E-51
                                                                     (1,633 kg)      Canada, EASA
      Robinson R44                             $5,460                 800 lb.     FAA, Transport Canada,     For Robinson R44 and Raven II helicopters with
                                 200-340-00                   E-83
        Raven II                                USD                  (363 kg)           EASA, Brazil         28V systems
                                               $5,155                 1,015 lb.   FAA, Transport Canada,     Certified for use only with Onboard Systems R66
      Robinson R66               200-382-00
                                                USD
                                                              E-91
                                                                     (460.4 kg)    EASA, Brazil, Mexico      Cargo Hook Kits
          Sikorsky                             $6,875                 6,000 lb.
                                 200-080-00                   E-46                FAA, Transport Canada
         S-55/S-58                              USD                  (2,722 kg)

                                               $8,205                11,000 lb.
      Sikorsky S-61              200-243-01
                                                USD
                                                              E-84
                                                                     (4,990 kg)
                                                                                  FAA, Transport Canada

     Sikorsky UH-60                                                   9,000 lb.
                                200-439-00      Call          E-92                       Pending             For Onboard Systems Cargo Hooks
        Blackhawk                                                    (4,082 kg)
    For kit-specific requirements, please visit our website

www.onboardsystems.com         | +1.360.546.3072 (Worldwide)         | +1.800.275.0883 (Toll Free US & Canada)              | info@onboardsystems.com
Onboard Weighing
                                                                                                                      Systems                 17
Minimize stress to your aircraft while maximizing load
economy and hauling efficiency with an Onboard Weighing
System. Every aircraft has an optimum balance point between
load size and flight speed that results in the ability to take on
more work without increasing downtime for maintenance.
When pilots know the load weight, they don’t have to err
on the side of caution and can immediately report accurate
weight statistics to customers. Onboard Weighing Systems
integrate seamlessly with many of our cargo hook kits and
are consistently accurate. It’s just another way that Onboard
Systems helps you Lift with Confidence®!
                                                                                                                         Onboard’s pin load cell
How it Works                                                                                                             technology offers a host
Weight on the cargo hook is measured by an electronic load                                                               of benefits including
cell using state-of-the-art strain-gauge technology. The                                                                 reduced weight, a
                                                                                                                         streamlined profile, and
load cell is temperature-compensated and requires little                                                                 reduced gimbal points.
maintenance. A quick glance at the cockpit-mounted indicator                                                             Rather than mounting
tells the pilot the weight of the cargo on the hook within 10                                                            as a separate link above
lb./kg. The cockpit indicator displays weight on a large LCD                                                             the hook, the pin load
display with backlit digits, and operation is very simple. The                                                           cell simply replaces the
                                                                                                                         attach bolt.
pilot uses two buttons to select the desired load damping,
readout units (lb./kg), and zero load settings.

Link-Style Load Cells
An Onboard standard for more than 40 years, our link-style
Onboard Weighing Systems mount on top of the cargo
hook lug and are then attached to the aircraft. As with all of
our products, we are continuously improving our load cell
assembly designs to take advantage of new technologies and
safety enhancements. When it’s time to send your older-style
load cell in for overhaul, ask about our Load Cell Upgrade
Program so you can take advantage of these improvements at a
discounted price.

Pin Load Cells
Onboard Systems is always looking for ways to improve
our products and services by harnessing new advances in
­technologies and processes. We originally launched our
 revolutionary pin load cell technology on the Bell 407 Fixed
 Beam Suspension System. Since then, it has become the new
 standard for Onboard Weighing Systems and is now in use on
 a wide variety of cargo hook kits.
Pin load cells are designed to mount on one side of the hook
by replacing the main attach bolt, rather than attaching as a
separate link above the hook. This allows for increased ground
                                                                          Photo: Paulo Rocha — Helisuporte

clearance, easier cable routing and lower weight, while still
allowing the pilot to know the exact weight of the load on
the cargo hook to maximize load efficiency while reducing
airframe stress.

Electronic Cockpit Indicators
The cockpit indicator is a key component of the Onboard
Weighing System and provides precision load readouts at a
glance. Environmentally sealed against moisture damage,

www.onboardsystems.com       | +1.360.546.3072 (Worldwide)     | +1.800.275.0883 (Toll Free US & Canada)              | info@onboardsystems.com
Onboard Weighing
                                                    18   Systems

                                                                               Our new C-40 Electronic Cockpit Indicator
                                                                               (P/N 210-293-00) has been designed from
                                                                               the ground up to incorporate several
                                                                               new, operator-requested features using
                                                                               advanced microcontroller technology,
                                                                               including an integrated “Hours of External
                                                                               Load” meter to help track hook TBO. An
                                                                               analog bar display provides an at-a-glance
                                                                               feedback that changes color as maximum
                                                                               load is approached. An update to log time,
                                                                               load weight, and GPS coordinates for pick
                                                                               up and drop off locations is also planned.
                                                                                                                                           C-39 Electronic Cockpit Indicator
                                                                                                                                           (P/N 210-095-00 shown)

                                                                                                               Onboard’s indicators use advanced microcontroller technology
                                                                                                               to measure and display the cargo hook load to the pilot.
                                                                                                               The C-39 model has been our cockpit indicator standard for
                                                                                                               many years, and thousands of units are in daily operation in
                                                                                                               a variety of helicopters. Our new C-40 model builds on the
                                                                                                               legacy of its predecessor and has been designed from the
                                                                                                               ground up to incorporate operator-requested features using
                                                                                                               advanced microcontroller technology to measure and display
                                                                                                               the cargo weight. Please visit our website for more information
                                                                                                               about our cockpit indicators.

                                                                                                               Analog Slave Meter Increases Productivity
                                                                                                               Sometimes the intuitive, “at-a-glance” visual feedback of an
                                                                                                               analog meter is preferred over a digital readout. Onboard’s
                                                                                                               optional Analog Slave Meter provides a highly accurate
                                                                                                               secondary display without needle bounce. The large dial and
                                                                                                               steady needle offers quick and accurate load reading and is
                                                                                                               compatible with all Onboard Weighing Systems.

                                                                                                                                     ANALOG SLAVE METERS
                                                                                                                   DIAL                                     DIAL
                                                                                                                  SCALE          P/N        PRICE          SCALE           P/N      PRICE
                                                                                                                                            $2,230                                  $2,230
                                                                                                                 2,000 lb.    210-180-21                  1,000 kg     210-180-32
                                                                                                                                             USD                                     USD
Photo: Lee Mitchell — Helicopter Lifting Services

                                                                                                                                            $2,230                                  $2,230
                                                                                                                 3,500 lb.    210-180-23                  1,600 kg     210-180-34
                                                                                                                                             USD                                     USD
                                                                                                                                            $2,230                                  $2,230
                                                                                                                 6,000 lb.    210-180-24                  3,000 kg     210-180-35
                                                                                                                                             USD                                     USD
                                                                                                                                            $2,230                                  $2,230
                                                                                                                 12,000 lb.   210-180-26                  6,000 kg     210-180-36
                                                                                                                                             USD                                     USD
                                                                                                                                            $2,230                                  $2,230
                                                                                                                 16,000 lb.   210-180-27                 10,000 kg     210-180-37
                                                                                                                                             USD                                     USD
                                                                                                                                            $2,230                                  $2,230
                                                                                                                 20,000 lb.   210-180-28                 16,000 kg     210-180-38
                                                                                                                                             USD                                     USD
                                                                                                                                            $2,230                                  $2,230
                                                                                                                 35,000 lb.   210-180-30                 30,000 kg     210-180-39
                                                                                                                                             USD                                     USD
                                                                                                                 * Call for other dial scales

www.onboardsystems.com                                        | +1.360.546.3072 (Worldwide)      | +1.800.275.0883 (Toll Free US & Canada)              | info@onboardsystems.com
Electric Swivels                                             Remote Equipment                           19
In keeping with our commitment to continuous improvement,
we redesigned our line of electric swivels to better meet
the rigorous demands of external load transport. Our next-
generation swivels have been reimagined using lightweight
aluminum bodies that provide corrosion resistance in a wide
variety of environments while making it easier for the ground
                                                                                                                                        Attaches
crew to handle. The electrical cables are sheathed in a flexible                                                                        directly to
rubber casing with built-in tensile strain relief for long life.                                                                        hook and long
Best of all, the new design requires lower torque to spin the                                                                           line
line under load, even when using synthetic longlines.
Swivels provide important safety functionality for external
load missions by preventing damage to electrical cables while                Swivel body is made
transporting spinning loads. In 2013, the FAA issued a safety                of 100% aluminum
                                                                             for years of trouble-
alert for operators (SAFO 13010) to outline current guidance
                                                                             free use in a wide
and best practices for Part 133 external load operators. The                 variety of
SAFO discusses the importance of using a swivel so that                      environments
                                                                                                                                       Built-in travel
spinning loads do not affect flight safety. The precautions                                                                            limits protect
are especially important when rigging loads (or load                                                                                   electrical cables
configurations) that are new to the operator—particularly
those known to rotate.
Onboard’s swivels interface directly with our TALON® Remote
Cargo Hooks, eliminating the need for additional shackles
to attach your long line and remote hook to the swivel. But                  Electrical cables
you can also use our swivels with other brands of helicopter                 are sheathed in
external load equipment with shackles or other linkage to                    a flexible rubber
attach our electric swivel assembly to your hook and longline.               casing with built-
                                                                             in tensile strain
For more information about Onboard’s electric swivels, or to                 relief for long life
place an order, please visit our website.

                                                                                                 UNIT
                 DESCRIPTION               P/N          PRICE         DESIGN LOAD               WEIGHT            ELECTRICAL RATING

           2K Electric Swivel Kit       200-386-00    $1,550 USD      2,000 lb. (907 kg)       4 lb. (1.8 kg)   2-channel, 30 amp, 0-250 VDC

           3.3K Electric Swivel Kit     200-434-00    $1,575 USD     3,300 lb. (1,500 kg)     5.6 lb (2.6 kg)   3-channel, 30 amp, 0-250 VDC

           6K Electric Swivel Kit       200-435-00    $1,635 USD     6,000 lb. (2,722 kg)    5.5 lb. (2.5 kg)   3-channel, 30 amp, 0-250 VDC

           Electric Swivel Assembly*    210-305-30    $1,605 USD     6,000 lb. (2,722 kg)      4 lb. (1.8 kg)   3-channel, 30 amp, 0-250 VDC

           * For loads up to 6,000 lb. (2,722 kg) with non-TALON Remote Cargo Hooks. Swivel only, no hardware included.

www.onboardsystems.com          | +1.360.546.3072 (Worldwide)      | +1.800.275.0883 (Toll Free US & Canada)               | info@onboardsystems.com
20            Remote Equipment                                      Remote Hooks
                                                                                                                               TALON 3.3K Full-Cage
                                      We’ve increased the size of the load                                                     Remote Cargo Hook (P/N
                                      beam saddle pocket on our 3.3K & 6K                                                      528-018-06) offers even
                                      Remote Hooks to help keep the load                                                       greater protection for your
                                      ring from riding on the keeper (P/N                                                      hook, while still providing a
                                      528-019-01 is pictured).                                                                 large access area in the front
                                                                                                                               for loading. Ask us about
                                                                                                                               upgrading your half-cage
                                                                                                                               remote hook to a full-cage at
                                                                                                                               your next overhaul!

  TALON 2K Remote Hook                                                           TALON 3.3K & 6K Remote Hooks
  Designed specifically for use with lighter helicopters, our                    Onboard’s TALON® Remote Cargo Hooks are designed
  TALON 2K Remote Hook safely transports loads up to 2,000                       for maximum utility and simplicity for your external cargo
  lb. (907 kg). This versatile design is built around our latest                 missions. The cargo hook is integrated with your choice of
  generation TALON 2K Carousel Hook. Using simple hand                           a half-cage or full-cage enclosure and a rugged brush guard
  tools, you can separate the hook from the cage and use it on                   to increase protection for the entire unit. With large throats,
  your favorite carousel system.                                                 added safety features, and simplified design, these hooks have
                                                                                 proven to be as popular with ground crews as they are with
                                                                                 pilots.
                                                                                 ww Load Rating Increase— We recently increased the rated
                                                                                    load of the TALON 3K Remote Cargo Hook series from
                                                                                    3,000 lb. to 3,300 lb. / 1,500 kg through a re-qualification
                                                                                    effort. Please refer to Service Bulletin 159-042-00.
                                                                                 ww Lock Indicator Window— For added safety, a lock
                                                                                    indicator window on the side of the hook gives the ground
                                                                                    crew an easy visual signal that the hook is locked.
                                                                                 ww Large Throat for Easy Loading —  Large throat makes
                                                                                    loading quick and easy for ground crew.
                                For greater safety, we’ve added a                ww Durable, High-Visibility Finish— Stands up to years of
                                brush guard and hook lock indicator                 duty in the field.
                                to all of our remote hooks.

                                                                                                                                         MINIMUM
                  DESCRIPTION                     PART NUMBER                  PRICE        DESIGN LOAD           UNIT WEIGHT          RELEASE LOAD
      TALON 2K Full-Cage Keeperless Remote
                                                     210-303-00              $2,425 USD     2,000 lb. (907 kg)    15.2 lb. (6.9 kg)        0 lb. (0 kg)
      Cargo Hook, Gen 2

      TALON 3.3K Half-Cage Remote Cargo Hook         528-018-03              $2,775 USD    3,300 lb. (1,500 kg)   27 lb. (12.2 kg)         0 lb. (0 kg)

      TALON 3.3K Full-Cage Remote Cargo Hook         528-018-06              $2,885 USD    3,300 lb. (1,500 kg)   27 lb. (12.2 kg)         0 lb. (0 kg)

      TALON 6K Half-Cage Remote Cargo Hook           528-019-01              $3,870 USD    6,000 lb. (2,722 kg)   37 lb. (16.8 kg)         2 lb. (.9 kg)

      TALON 6K Full-Cage Remote Cargo Hook           528-019-05              $3,970 USD    6,000 lb. (2,722 kg)   38 lb. (17.3 kg)         2 lb. (.9 kg)

      Crew-Loc Full Cage Hook                        210-302-00              $1,610 USD    6,000 lb. (2,722 kg)    15 lb. (6.8 kg)             N/A

www.onboardsystems.com      |   +1.360.546.3072 (Worldwide)       |    +1.800.275.0883 (Toll Free US & Canada)       |     info@onboardsystems.com
Remote Hooks                                    Remote Equipment                         21
                                                            We’ve improved our
                                                            popular TALON 2K Remote
                                                            Hook (P/N 210-303-00)
                                                            by redesigning the frame
                                                            for greater stability and
                                                            including our newly updated                                       Crew-Loc Hook
                                                            TALON 2K Carousel Hook.                                           (P/N 210-302-00)

ww Rugged Hook Guard— Your choice of a half-cage or                              Crew-Loc Hook
   full-cage hook guard enclosure to increase the protection
                                                                                  Onboard’s Crew-Loc® hook offers the ultimate in load security for
   of the entire unit.
                                                                                  transporting high-value loads. This next-generation design uses a
ww Easy Maintenance & Overhaul— Onboard cargo hooks                              ball-thrust bearing to enable smooth rotation of loads up to 6,000
   can be overhauled in the field, at our factory, or by a                        lb. (2,722 kg). Our Crew-Loc hook is particularly well-suited to non-
   qualified repair facility using simple hand tools. Quick                       repetitive longline lifts where security of the load is paramount and
   parts availability minimizes downtime!                                         detachment of the load can be accomplished by ground crew.
  Photo: Martin Engen — Heli-Team AS

 www.onboardsystems.com                |   +1.360.546.3072 (Worldwide)   |     +1.800.275.0883 (Toll Free US & Canada)   |   info@onboardsystems.com
22          Remote Equipment                            SPIDER Smart Carousels

                                                                       The SPIDER® Smart Carousel is Onboard’s latest generation
                                                                       in carousel equipment. Designed to work with our lighted
                                                                       TALON® 2K Remote Hooks and our new controller, the
                                                                       SPIDER Smart Carousel gives you all the features you’ve been
                                                                       asking for in a multiple-drop delivery system. For maximum
                                                                       versality, it can be configured in the field with your choice
                                                                       of four, six, or eight independent load points by adding or
                                                                       removing spokes and hooks.
                                                                       ww Illuminated Feedback— Carousel provides illuminated
                                                                          feedback showing which hook is staged for release.
                                                                       ww Automatic Hook Advancement—
                                                                          Controller keeps track of which hooks have been released
                                                                          and automatically advances to arm the next hook.
                                                                       ww Controller Override— Pilots can bypass the auto
                                                                          advance settings and drop loads out of sequence if needed,
                                                                          including drop-all functionality.
                                                                       ww Easy to Configure— A DIP switch lets you enable
                                                                          or disable various custom features (such as drop-all
                                                                          functionality, select hook, etc.) without the need to flash
                                                                          new software.
                                                                       ww Automatic Hook Detection— Controller senses the
                                                                          number of cargo hooks connected, ignoring any empty
                                                                          slots.
                                                                       ww Designed for Harsh Environments— Controller is
                                                                          positively O-ring sealed with minimal potential leak points.
                                                                          A GORE-TEX® vent allows the system to breathe.
                                                                       ww Dual Hoop Weldment—
                                                                          Carousel frame has been upgraded to a dual hoop
                                                                          weldment to provide greater hook protection.

                 SPIDER Smart Carousel
                 Controller (P/N 210-275-00) lets
                 the pilot advance the armed
                 hook via a preset program or
                 manually on-the-fly.

                                                                       Bright LED lights show the pilot the number of the hook that is currently
                                                                       selected for release. In this picture, Hook 6 is armed for release. View gallery of
                                                                       light patterns at http://onbsys.com/carousel-light-gallery

www.onboardsystems.com     | +1.360.546.3072 (Worldwide)   | +1.800.275.0883 (Toll Free US & Canada)              | info@onboardsystems.com
Carousel Hooks                                               Remote Equipment                                23
                                              The dual actuation release lever allows for quick and
                                              easy release by ground crews, even with gloves!

TALON 2K Carousel Hook                                                     Armored plates help protect the
(P/N 528-044-01)                                                           throat area from rigging damage.

The TALON® 2K Carousel Hook was designed for optimal
                                                                                           TALON CAROUSEL CARGO HOOKS
performance when operating in a multi-hook carousel
system. Based on extensive customer feedback, we built the                                                                            DESIGN         UNIT
TALON 2K Carousel Hook from the ground up to ensure it                              DESCRIPTION                  P/N        PRICE      LOAD         WEIGHT
would include your most requested features, such as a dual-                     TALON 2K Carousel
                                                                                                            528-044-01
                                                                                                                            $2,350    2,000 lb.          3.9 lb.
actuation release lever to help eliminate accidental releases                   Hook                                         USD      (907 kg)          (1.8 kg)
caused by contact with branches. The design also allows easy                    TALON 2K Carousel
                                                                                                            528-044-11
                                                                                                                            $2,595    2,000 lb.          4.1 lb.
field replacement of the power cord, as well as improved                        Hook (with Light)                            USD      (907 kg)          (1.9 kg)
performance in icy conditions. We moved the release lever to
the outer edge of the hook to provide better access for ground
crews, and added a lock indicator window to help them
confirm that the load is secure. Available with or without an
LED light.
ww Easily Drop Light Loads— Keep light loads from hanging                     ww Lighted Hook Option— Readily visible in direct sunlight
   up with a hook whose load beam opens to almost 90°, even                       at distances over 200 ft. (for use with the SPIDER Smart
   with the lightest of loads.                                                    Carousel System).
ww Dual-Actuation Release Lever— Helps eliminate                              ww Improved Release Lever Location— Release lever has
   accidental releases caused by contact with foreign objects.                    been moved to the outer edge of the hook for improved
   The lever must be pinched together to open the hook. But                       access when installed in carousel systems.
   it’s easy for the ground crew to open, even with gloves!                    ww Field Replaceable Power Cord— Power cord can be easily
ww Lock Indicator Window— For added safety, a lock                               replaced via an access cover and terminal block.
   indicator window on the side of the hook gives the ground                   ww Increased Side Plate Protection— Armor plates protect
   crew an easy visual signal that the hook is locked.                            throat area from rigging damage.

                                               SPIDER SMART CAROUSEL SYSTEMS
                                                                                                  UNIT              MAX LOAD            MAXIMUM
                       DESCRIPTION                               P/N             PRICE           WEIGHT          (SINGLE HOOK)        COMBINED LOAD

 SPIDER Smart 4-Hook Carousel System (with lighted hooks)     200-422-00      $15,635 USD      53 lb. (24 kg)      650 lb. (295 kg)     1,600 lb. (726 kg)

 SPIDER Smart 6-Hook Carousel System (with lighted hooks)     200-421-00      $20,450 USD      65 lb. (29 kg)      650 lb. (295 kg)    2,400 lb. (1,087 kg)

 SPIDER Smart 8-Hook Carousel System (with lighted hooks)     200-420-00      $25,365 USD      76 lb. (35 kg)      650 lb. (295 kg)    3,200 lb. (1,452 kg)

 Carousel Fixed Provisions Kit                                200-423-00      $1,040 USD       5 lb. (2.26 kg)           N/A                      N/A

www.onboardsystems.com           | +1.360.546.3072 (Worldwide)       | +1.800.275.0883 (Toll Free US & Canada)                 | info@onboardsystems.com
24              Remote Equipment                        Auto-Loc Cargo Hook System

                                                                      This specialized remote cargo hook system allows pilots
                                                                      to pick up and drop off pre-rigged loads from unmanned
                                                                      locations. The system is made up of two components: an
                                                                      Auto-Loc cargo hook (which is suspended from the belly of
                                                                      the helicopter on a longline) and a Target (which is attached to
                                                                      the load in advance and left unattended). The pilot slings the
                                                                      hook onto the target to automatically lock the pair together,
                                                                      then lifts the load for transport. The pilot can release the load
                                                                      by either setting it down on the ground or releasing it in air.
                                                                      A ground crew doesn’t need to be present during the loading/
                                                                      unloading operations.
                                                                      ww Simple, Low-Weight System— Consists of two
                                                                         components: the hook and the target. The target weighs
                                                                         just 15 lb. (6.4 kg) and folds up for easy storage and
                                                                         transport. Attach the target hardpoint to your load using a
                                                                         shackle or other rigging, and place the target upright on the
                                                                         ground for unattended pickup by a helicopter.
                                                                      ww Increases Safety— Ground crew don’t have to attach
                                                                         loads to the hook under a hovering helicopter, reducing
                                                                         hazardous conditions.
                                                                      ww Increased Efficiency — Loads can be rigged in advance
                                                                         for pickup at a later time; ground crew don’t need to be
                                                                         present to attach loads to the hook during active lifting.
                                                                      ww Maximum Load Safety— The hook and target
                                                                         components are perfectly matched to ensure the highest
                                                                         load safety.
                                                                      ww Cost-Effective System — Inexpensive targets can be
                                                                         purchased separately as needed to support operations.
                                                                      ww Stable Target Design— The large width-to-height ratio
                                                                         and innovative leg design of the target help keep it from
   TALON Auto-Loc                                                        tipping over during pick up.
   Cargo Hook with                                                    ww Dual-Actuation Release Lever— Helps eliminate
   Electric Swivel and
   Barry Longline
                                                                         accidental releases caused by contact with foreign objects.
                                                                         The lever must be pinched together to open the hook. But
                                                                         it’s easy for the ground crew to open, even with gloves!
                                                                      ww Surefire® Cargo Release Technology— An integrated
                                           TALON Auto-Loc Target         electronic circuit is added inside the cargo hook, which
                                           (P/N 232-739-00) sold
                                           separately
                                                                         provides about a half-second release delay from when the
                                                                         electrical release button is pressed until the hook opens to
                                                                         help guard against inadvertent releases.
                                                                      ww Support for Unmanned Cargo Transport— Unmanned
                                                                         aircraft or drones can pick up and release loads using this
                                                                         system.

                                                                                 TALON AUTO-LOC HOOK SYSTEM
                                                                                                                        DESIGN        UNIT
                                                                            DESCRIPTION               P/N      PRICE     LOAD        WEIGHT
                                                                       TALON Auto-Loc Cargo                    $8,090    6,000 lb.   46 lb. (21
                                                                                                 210-300-00
                                                                       Hook                                     USD     (2,722 kg)      kg)
                                                                       TALON Auto-Loc Folding                   $690     6,000 lb.   15 lb. (7
                                                                                                 232-739-00
                                                                       Target                                   USD     (2,722 kg)     kg)

www.onboardsystems.com   | +1.360.546.3072 (Worldwide)    | +1.800.275.0883 (Toll Free US & Canada)         | info@onboardsystems.com
You can also read
NEXT SLIDES ... Cancel
