CATALOG 2020
Design your
RFID Solution
We provide
the technology
Company Profile Our History
CAEN RFID is a leading company in Automatic CAEN RFID was founded in 2006 as a private-owned
Identification (AutoID) and it has focused its activities in Italian company, but its activities started in 2003 as the
the RAIN RFID technology (passive UHF RFID conforming RFID division of CAEN SpA. It has been the first European
to GS1 EPC Class1 Gen2 or ISO 18000-63 standards). company to design, produce and market an UHF RFID
reader. It is a partner of the most important associations,
RAIN RFID is a wireless technology that connects billions
including EPCglobal and ETSI, participating to the
of everyday items to the internet, enabling businesses and
definition of the standards.
consumers to identify, locate, authenticate, and engage
each item. Read/write operations on tagged items can The Management, Technical and Commercial teams are
occur without line-of-sight, at longer distance and faster young, dynamic and greatly experienced with everyday
speed compared to other passive technologies, thus RFID applications. All our staff has been previously
allowing a cheaper and more efficient process involved in the experience within CAEN SpA, world leader
automation. in electronic instrumentation for Nuclear and Particle
Physics. CAEN SpA electronics is always at the forefront
CAEN RFID has developed its products according to the
of technology and has become a “de facto” standard in the
RAIN RFID standards. Our team of engineers designs
We are proud of the high quality of our products. most important Physics labs around the world.
state-of-the-art devices and provides continuous support
ISO 9001 and feedback to customers. This provides our customers In 2012 CAEN RFID obtained the ISO9001:2008 Quality
ISO 9001:2015 approved quality system ensures all our internal
with a better understanding of RAIN RFID technology Certification. This award has driven the company to
processes.
and our products, enabling their use in a more efficient supply products and services of great quality to our
From R&D to the registration of the incoming purchase orders,
through: and performing way. customers, who we consider our greatest asset.
• Resource Planning The quality of our products, the consultancy service at the In 2015 DATALOGIC became a shareholder of CAEN RFID
• Scheduling
time of purchase and the after-sales support are among through the acquisition of the 20% of the company with
• Production
our top priority objectives. the purpose of company development and growth.
Our quality system is responsible for the proper functioning of all
ISO9001:2015
our internal processes and is subject to regularly unannounced The most promising fields in which RFID can provide a
Certified Company audits,carried out by the National Standards Authority. quick Return on Investment (ROI) span from Retail, to
From the initial product design and its development stages, to the
Pharma and Food, Waste Management, Security and
delivery of the production batches, we follow documented
procedures that cover every aspect of our business. The auditing of Access Control, Industrial Manufacturing and Logistics.
our procedures by an independent third party guarantees that our CAEN RFID provide the technology and the technical
business runs smoothly and efficiently. support to enable the development of best in class RAIN
RFID solutions.
Thequality of CAENRFIDsrlproducts is constantly monitored by the application of the
UNI ENISO9001:2015 standard. CAENRFIDsrl is ISO 9001certified since2012.
Mobile Readers
Mobile
Reading RAIN RFID labels and tags in mobility is a need
for a number of markets: retail, transport and
Readers logistics, healthcare, maintenance, manufacturing,
event management just to mention a few.
Mobile workers normally use devices like tablets and
smartphones and prefer to use them in their everyday
activities.
CAEN RFID mobile readers connect easily to
smartphones, tablets and PCs using the Bluetooth
technology, providing mobile RAIN RFID technology to
everyone.
® ®
Technical Specification Table
qIDmini - R1170I - 865.600÷867.600 MHz (ETSI EN 302 208 v. 3.1.1) - Mod. R1170IEHIDP, R1170IEAPLP and R1170IENFHD
- 902÷928 MHz (FCC part 15.247) - Mod. R1170IUHIDP, R1170IUAPLP and R1170IUNFHD
- 920.625÷924.375 MHz (SRRC RFID national standards) - Mod. R1170IUNFHD with WPE1170NFACN
Keyfob Bluetooth Frequency Range - 920.4÷923.4 MHz (ARIB T107 RFID national standards) - Mod. R1170IJHIDP and R1170IJAPLP
- 18 levels: 5dBm ERP (3mW ERP) to 22dBm ERP (150mW ERP) - Mod. R1170IEHIDP and R1170IEAPLP
RAIN RFID Reader -
-
13 levels: 5dBm ERP (3mW ERP) to 18dBm ERP (60mW ERP) - Mod. R1170IUHIDP and R1170IUAPLP
18 levels: -8dBm ERP (0,16mW ERP) to 9dBm ERP (8mW ERP) - Mod. R1170IENFHD and R1170IUNFHD
RF Power - 14 levels: 5dBm ERP (3mW e.r.p.) to 19dBm ERP (80mW e.r.p.) - Mod. R1170IJHIDP and R1170IJAPLP
- Integrated linear (horizontal) (Mod. R1170IEHIDP, R1170IEAPLP, R1170IUHIDP, R1170IUAPLP, R1170IJHIDP
and R1170IJAPLP)
Antenna - Integrated UHF Near Field Antenna (Mod. R1170IENFHD and R1170IUNFHD)
- 4 channels (ETSI EN 302 208 v. 3.1.1) - Mod. R1170IEHIDP, R1170IEAPLP and R1170IENFHD
- 50 hopping channels (FCC part 15.247) - Mod. R1170IUHIDP, R1170IUAPLP and R1170IUNFHD
- 16 hopping channels (SRRC RFID national standards) - Mod. R1170IUNFHD with WPE1170NFACN
Features Overview Number of Channels - 16 hopping channels, LBT (ARIB T107 RFID national standards) - Mod. R1170IJHIDP and R1170IJAPLP
- RAIN RFID (UHF EPC Class1 Gen2, The qIDmini (Model R1170I) is a RAIN RFID handheld reader of the easy2read© Standard Compliance EPC Class 1 Gen 2 - ISO18000-63
ISO 18000-63) compliant product line, compliant with ISO 18000-63/EPC C1G2 standards.
Up to 90 cm. (Typical) - Mod. R1170IEHIDP, R1170IEAPLP, R1170IUHIDP,R1170IUAPLP, R1170IJHIDP and
- USB and Bluetooth communication
The qIDmini has an integrated antenna suited for short to medium range Read Range R1170IJAPLP
- SPP and HID Bluetooth profiles
applications and, thanks to the Bluetooth® communication interface, it is a
- Integrated linear polarized antenna - USB Interface: USB 2.0 Full Speed (12 Mbit/s) device port
perfect RAIN RFID add-on for any Bluetooth® enabled host such as a PC, a - Bluetooth: Interface: Class 2 with output power 4dBm EIRP
- Small, lightweight and ergonomic form
smartphone, a PDA or a tablet. The reader is compatible with Windows 8/10, - Virtual COM port parameters: Baudrate up to 230.400kbps, 8 Databits, 1 Stopbit, no parity, no flow control
factor
Windows CE/Mobile, Android, iPhone and iPad. - HID profile versions: Mod. R1170IEHIDP, R1170IUHIDP, R1170IJHIDP
- Battery powered
Connectivity - Apple iOS iAP protocol versions: Mod. R1170IEAPLP, R1170IUAPLP, R1170IJAPLP
- LCD Display The HID version supports native keyboard emulation allowing to interact
- Vibration feedback directly with legacy applications, office automation SW or any other generic - Power and Trigger buttons
- iPhone/iPad compatibility solution requiring manual input. - Power and Battery Level LED (Green: High, Red: Low)
- Also available with Near Field antenna, - Communication Activity LED (Blue: Bluetooth, Orange: USB)
The qIDminiNF version is specifically designed to optimize the reading - Bi-tonal buzzer and Vibration element for events signaling
optimized for Murata MAGICSTRAP® and
performances with near field miniaturized tags like the Murata Magicstrap and User Interface - Alphanumeric LCD Display (8 columns x 2 lines)
HITACHI USPT miniaturized
Hitachi USPT. The near field antenna of the qIDminiNF reader permits to read
Internal Buffer Size 48 kBytes (enough to store 4096 EPC codes@96bit)
those small tags even when embedded in small parts like watches, jewels or
Applications mechanic parts. For this reason, the combination of the miniaturized near field Battery Type Li-Ion 3.7V, 570mAh
tags and the qIDminiNF reader is a great tool to retrieve the serial numbers in
- UHF add-on to Bluetooth devices Battery Life Operating: > 12H with 40,000 tag readings - Standby: > 15 days
small objects and check the originality of parts.
- Point of Sales
Battery Charging Time 2H Typical
- Field Sales Mobility The reader can also operate in “Batch Mode”, allowing to store EPC codes into
- People Access Control the internal memory when the communication links (USB or Bluetooth®) are - IP 32 (Mod. R1170IEHIDP, R1170IEAPLP, R1170IUHIDP, R1170IUAPLP, R1170IJHIDP and R1170IJAPLP)
- Inventory Management not available. IP Rating - IP 30 (Mod. R1170IENFHD and R1170IUNFHD)
- Service and Maintenance Dimensions (W)99 x (L)54 x (H)20 mm3 max. (3.9 x 2.1 x 0.8 inches3)
When paired to a smartphone or a tablet, the qIDmini is a cost effective
alternative to more expensive handheld devices. USB Cable Length 1.5 mt.
Operating Temperature -10°C to +55°C
- 57 g (Mod. R1170IEHIDP, R1170IEAPLP, R1170IUHIDP, R1170IUAPLP, R1170IJHIDP and R1170IJAPLP)
Weight - 58 g (Mod. R1170IENFHD and R1170IUNFHD)
Ordering Options
WR1170IEAPLP qIDmini - ETSI with Apple profile WR1170IUNFHP qIDmini - FCC NF with HD profile
WR1170IEHIDP qIDmini - ETSI with HID profile WPE1170NFACN R1170IUNHHP - China customization
CAEN RFID srl WR1170IUAPLP qIDmini - FCC with Apple profile WR1170IJHIDP qIDmini - ARIB with HID profile
Copyright © CAEN RFID srl. All right reserved. Information in this via Vetraia, 11 - 55049 Viareggio (LU) - Italy
WR1170IUHIDP qIDmini - FCC with HID profile WR1170IJAPLP qIDmini - ARIB with Apple profile
publication supersedes all earlier versions. Specifications subject Tel. +39 0584 388398 - Fax. +39 0584 388959
to change without notice.
www.caenrfid.com - info@caenrfid.com WR1170IENFHP qIDmini - ETSI NF with HID profile
6 7
® ®
Technical Specification Table
qID - R1240IE/IU - 865.600÷867.600 MHz (ETSI EN 302 208 v. 3.1.1) (Mod. R1240IE - R1240IEB)
Frequency Range - 902÷928 MHz (FCC part 15.247) (Mod. R1240IU - R1240IUB)
Wearable Bluetooth RF Power
- Configurable in 18 levels from 8 dBm ERP to 25 dBm ERP (Mod. R1240IE - R1240IEB)
- Configurable in 18 levels from 8.5 dBm ERP to 25,5 dBm ERP (Mod. R1240IU - R1240IUB)
- 4 channels (compliant to ETSI EN 302 208 v. 3.1.1) (Mod. R1240IE - R1240IEB)
RAIN RFID/Barcode Reader Number of Channels - 50 hopping channels (compliant to FCC part 15.247) (Mod. R1240IU - R1240IUB)
Standard Compliance EPC Class 1 Gen 2 - ISO18000-63
- 0.2 dBi (typical) (Mod. R1240IE - R1240IEB)
Antenna Gain - 0.7 dBi (typical) (Mod. R1240IU - R1240IUB)
Antenna Polarization Integrated Circular Polarized Antenna
Read Range Up to 1.5m. (Typical)
Features Overview USB Interface USB 2.0 Full Speed (12 Mbit/s) device port
- RAIN RFID (UHF EPC Class1 Gen2, The qID (Model R1240IE, R1240IU) is a wearable RAIN RFID reader of the - Class 1 with 5dBm EIRP output power
- Virtual COM Port parameters:
ISO 18000-63) compliant easy2read© product line with integrated antenna for medium to long range
- Baudrate up to 921.600kbps
- Multiregional support applications.
- Databits: 8
- USB and Bluetooth communication - Stopbit: 1
The reader hosts an internal rechargeable battery and can operate both in
- Integrated circular polarized antenna - Parity: none
wired mode, using a USB cable, or in wireless mode through the Bluetooth®
- Ergonomic form factor Bluetooth Interface - Flow control: none
interface.
- Battery powered
- ON/OFF button
- iPhone/iPad compatibility Thanks to the Bluetooth® communication interface, the qID is a perfect add-on
- Trigger button
- Internal scripting engine for any Bluetooth® enabled host such as a PC, a smartphone, a PDA or a tablet - Power indication and battery status LED
for RAIN RFID readings. The reader is compatible with Windows 8/10, Windows - Communication activity LED
CE/Mobile, Android and iOS operating systems. The qID reader can also operate - Operation result LED
Applications
in Batch Mode, allowing to store up to 500,000 EPC codes into the internal User Interface - Bitonal buzzer for event signalling
- UHF add-on to Bluetooth devices memory when the communication links (USB or Bluetooth®) are not available.
Internal Buffer Size 5MBytes (equivalent to 400,000 EPC codes @ 96bit)
- Industrial automation reading points
The qID can work autonomously thanks to its internal scripting engine: the user
- Points of sale Barcode Reader 1D and 2D imager (only for Mod. R1240IEB and R1240IUB)
can upload a script to be executed when the trigger button is pressed. The
- Field Sales Mobility
scripting language permits to access to all the Gen2 commands and to drive the Battery Type Li-Ion 3.7V, 2100mAh
- People Access Control
optional barcode scanner, the LEDs and the internal memory.
- Inventory Management - Operating: > 8h (2,000 acquisition of a single tag, trigger mode)
An optional 1D/2D barcode imager enables the qID to read most barcode Battery Life - Standby: > 7 days (powered off, no LED blinking)
standards. This enables the qID to be the perfect identification device in mixed - 7h connected to a PC USB port
barcode/RFID labels environment. When paired to a smartphone or a tablet, the Battery Charging Time - 3h with the provided AC/DC power supply
qID is a cost effective alternative to more expensive handheld devices.
IP Rating IP30
Designed for mobile operators, the qID is ideal for inventory management, field
- 140 x 90 x 35 mm3
sales mobility, service and maintenance applications.
Dimensions - 5.5 x 3.6 x 1.4 inches3
Operating Temperature -10°C to +55°C
- 230g. max. (Mod. R1240IE - Mod. R1240IU)
Weight - 250g. max. (Mod. R1240IEB - Mod. R1240IUB)
USB Cable Length 1.5 m.
Ordering Options
WR1240IXEAAA qID - RAIN RFID BT Reader (ETSI)
WR1240IXEBAA qID - with Barcode (ETSI)
CAEN RFID srl WR1240IXUAAA qID - RAIN RFID BT Reader (FCC)
Copyright © CAEN RFID srl. All right reserved. Information in this via Vetraia, 11 - 55049 Viareggio (LU) - Italy
WR1240IXUBAA qID - with Barcode (FCC)
publication supersedes all earlier versions. Specifications subject Tel. +39 0584 388398 - Fax. +39 0584 388959
to change without notice.
www.caenrfid.com - info@caenrfid.com EACCESCDRF06 qID Silicone Cover
8 9
Integrated Readers
Integrated
Integrated readers are RAIN RFID readers with an
integrated antenna so they are ready-to-use and do
Readers not require so much effort for the installation.
They are typically used for simple reading points,
points of sales, encoding stations, document tracking
and many other applications where you do not need
very long reading distances.
CAEN RFID offering of integrated readers includes
very simple USB readers as well as advanced
integrated readers with multiple communication
interfaces and scripting capabilities.
® ®
Technical Specification Table
Hex - R1290I - 865.600÷867.600 MHz (ETSI EN 302 208 v. 3.1.1) (Mod. R1290IE)
Frequency Range - 902÷928 MHz (FCC part 15.247) (Mod. R1290IU)
Multipurpose RF Power
- Configurable in 18 levels from 8 dBm ERP to 25 dBm ERP (Mod. R1290IE)
- Configurable in 18 levels from 8.5 dBm ERP to 25,5 dBm ERP (Mod. R1290IU)
- 4 channels (compliant to ETSI EN 302 208 v. 3.1.1) (Mod. R1290IE)
RAIN RFID Reader with PoE Number of Channels - 50 hopping channels (compliant to FCC part 15.247) (Mod. R1290IU)
Standard Compliance EPC Class 1 Gen 2 - ISO18000-63
- 0.2 dBi (typical) (Mod. R1290IE)
Internal Antenna Gain - 0.7 dBi (typical) (Mod. R1290IU)
Antenna Polarization Integrated Circular Polarized Antenna
- USB 2.0 Hi-Speed (480 Mbit/s) device port
- Virtual COM Port parameters:
Features Overview - Baudrate up to 921.600kbps
- Databits: 8
- RAIN RFID (UHF EPC Class1 Gen2, The Hex (Model R1290IE, R1290IU), multipurpose reader of the easy2read©
- Stopbit: 1
ISO 18000-63) compliant product line, is a RAIN RFID reader with integrated circular polarized antenna - Parity: none
- USB and Ethernet communication for short to medium range applications. USB device Interface - Flow control: none
- HID profile on USB available
Thanks to its versatile form factor, the Hex is well suited for both - USB 2.0 High Speed Host Port
- Integrated circular polarized antenna
desktop/counter top applications and for fixed reading point installations. It USB Host Interface - Max 500mA output current
and external antenna connector
offers the Ethernet (PoE) and USB communication interface in order to simplify
- Versatile form factor - Ethernet 10/100/1000 Base-T (RJ45)
the installation both on large and single installations. The PoE capability
- PoE or external power supply Ethernet Interface - PoE standard IEEE 802.3af
permits to provide power and to communicate with the reader with a single
- USB host port - Button √: Confirm/Trigger or other functions controlled by firmware
cable when the PoE infrastructure is available.
- OLED display and keypad - Up arrow: scroll up or other functions controlled by firmware
- Internal scripting engine In addition to the internal circular polarized antenna, the Hex provides a - Down arrow: scroll down or other functions controlled by firmware
connector for an external antenna in order to extend the reading area of the - Power indication LED
reader and a set of GPIO lines that permits to control external devices like lights - Radiofrequency activity LED
Applications - Tag identification LED
or alarms or to get triggers via external sensors (buttons, light barriers).
- Points of sale - Tag identification lights
The USB host port, combined with the internal computing architecture, permits - Bitonal buzzer for event signalling
- Encoding stations
to connect USB peripherals like barcode scanners, keyboards, printers and many - Proximity sensor trigger
- Access control
other devices transforming the Hex reader in a powerful and versatile User Interface - OLED display 2.42” monochromatic (white on black)
- Document tracking
identification platform. - Push in PCB terminals
- Inventory Management
The reader has an easy to use display and keypad interface for local - 1 digital input
I/O interface - 1 solid state photorelay output (500mA max)
configuration; the behaviour of the keypad and display can be customized under
customer specifications. - 5V ± 5% - DC power supply (10W)
Power Supply - PoE standard IEEE 802.3af (12.95W)
The Hex is available both for ETSI and FCC regions allowing installations in
various countries worldwide as needed by retailers, forwarders, warehouses IP Rating IP30
and other global organizations. - (W)220 x (L)170 x (H)25 mm3
Dimensions - 8.66 x 6.69 x 0.98 inches3
Operating Temperature -10°C to +55°C
Weight 475g.
Ordering Options
WR1290IEXAAA Hex - ETSI version
WR1290IUXAAA Hex - FCC version
CAEN RFID srl
Copyright © CAEN RFID srl. All right reserved. Information in this via Vetraia, 11 - 55049 Viareggio (LU) - Italy
publication supersedes all earlier versions. Specifications subject Tel. +39 0584 388398 - Fax. +39 0584 388959
to change without notice.
www.caenrfid.com - info@caenrfid.com
12 13
® ®
Technical Specification Table
Tile - R1250I - 865.600÷867.600 MHz (ETSI EN 302 208 v. 3.1.1) (Mod. R1250IE, R1251IENF)
Frequency Range - 902÷928 MHz (FCC part 15.247) (Mod. R1250IU, R1251IUNF)
Compact Desktop Frequency Tolerance ±10 ppm over the entire temperature range
- Configurable in 18 levels from 8 dBm ERP to 25 dBm ERP (Mod. R1250IE)
- Configurable in 18 levels from 8.5 dBm ERP to 25,5 dBm ERP (Mod. R1250IU)
RAIN RFID Reader RF Power - Configurable in 18 levels from 0 dBm ERP to 17 dBm ERP (Mod. R1250IENF, R1251IUNF)
Output Power Accuracy ± 1dB
- 4 channels (compliant to ETSI EN 302 208 v. 3.1.1) (Mod. R1250IE)
Number of Channels - 50 hopping channels (compliant to FCC part 15.247) (Mod. R1250IU)
Standard Compliance EPC Class 1 Gen 2 - ISO18000-63
- 0.2 dBi (typical) (Mod. R1250IE)
Internal Antenna Gain - 0.7 dBi (typical) (Mod. R1250IU)
Features Overview
- Integrated Circular Polarized Antenna (Mod. R1250IE, R1250IU)
- RAIN RFID (UHF EPC Class1 Gen2, The Tile (model R1250I), desktop reader of the easy2read© product line, is a Antenna - Integrated UHF Near Field Antenna (Mod. R1251IENF, R1251IUNF)
ISO 18000-63) compliant RAIN RFID reader with integrated antenna for short to medium range
- Mini USB type B plug connector
- USB power and communication applications.
- USB 2.0 Full Speed (12 Mbit/s) device port
- HID profile on USB available - Must be connected to two High-Power USB Type A ports (500 mA @ VBUS)
The reader is powered and controlled directly by an USB cable, thus allowing to
- Integrated circular polarized antenna - HID profile available
read RAIN RFID tags in an easy desktop environment.
- Compact form factor - Virtual COM Port parameters:
Thanks to its compact size, the Tile reader is the perfect choice for various - Baudrate up to 115.200kbps
applications such as points-of-sale, document tracking, tag programming - Databits: 8
Applications - Stopbit: 1
stations, access control and so on. It can also be used as a building block for
- Points of sale - Parity: none
smart shelves and smart displays.
Connectivity - Flow control: none
- Access control
The Tile reader supports the HID profile (native keyboard emulation) allowing
- Tag Programming Stations - Red LED: Power
to interact directly with legacy applications, office automation SW or any other
- Document tracking User Interface - Blinking Green LED: Tag Detection
generic solution requiring manual input.
- Inventory Management
- 1 m. (Mod. R1250IE, R1250IU)
Being compliant with both European and US regulatory environments, the Tile USB Cable Length - 1.8 m. (Mod. R1251IENF, R1251IUNF)
reader allows installations in various countries worldwide as needed by
retailers, forwarders, warehouses and other global organizations. - 5V ± 5% - DC bus powered (USB)
Power Supply - Max 650 mA
The core components of the Tile reader are the CAEN RFID QuarkUp module, a
- (W)125 x (L)125 x (H)25 mm3
top performing ultra-compact RAIN RFID module, and the Quad, a compact
Dimensions - 4.92 x 4.92 x 0.98 inches3
circular polarized antenna designed by CAEN RFID.
Operating Temperature -10°C to +55°C
- 220 g. max. (Mod. R1250IE, R1250IU)
Weight - 200 g. max. (Mod. R1251IENF, R1251IUNF)
Ordering Options
WR1250IEXBAA Tile - ETSI version - Black WR1251IENFBA Tile - ETSI version - Black - Near Field
WR1250IEXBFL Tile - ETSI version - Grey - Flanged WR1251IUNFBA Tile - FCC version - Black - Near Field
CAEN RFID srl WR1250IUXBAA Tile - FCC version - Black
Copyright © CAEN RFID srl. All right reserved. Information in this via Vetraia, 11 - 55049 Viareggio (LU) - Italy
WR1250IUXBFL Tile - FCC version - Grey - Flanged
publication supersedes all earlier versions. Specifications subject Tel. +39 0584 388398 - Fax. +39 0584 388959
to change without notice.
www.caenrfid.com - info@caenrfid.com
14 15
® ®
Technical Specification Table
Slate - R1260E/U - 865.600÷867.600 MHz (ETSI EN 302 208 v. 3.1.1) (Mod. R1260E)
- 902÷928 MHz (FCC part 15.247) (Mod. R1260U)
Frequency Range - 920.625÷924.375 MHz (SRRC RFID national standards) (with WPE1260UYBCN)
USB Desktop Frequency Tolerance ±10 ppm over the entire temperature range
RF Power Configurable in 15 levels from 4 dBm ERP to 18 dBm ERP (from 2.5 mW ERP to 67 mW ERP)
RAIN RFID Reader - 4 channels (compliant to ETSI EN 302 208 v. 3.1.1) (Mod. R1260E)
- 50 hopping channels (compliant to FCC part 15.247) (Mod. R1260U)
Number of Channels - 16 hopping channels (compliant to SRRC RFID national standards) (with WPE1260UYBCN)
Standard Compliance EPC Class 1 Gen 2 - ISO18000-63
Antenna Integrated Circular Polarized Antenna
- USB type A plug connector
- BUS powered USB 2.0 device
Features Overview - Must be connected to High-Power USB Type A port (500 mA @ VBUS)
- Virtual COM Port parameters:
- RAIN RFID (UHF EPC Class1 Gen2, The Slate (model R1260E, R1260EB, R1260U, R1260UB), desktop reader of the
- Baudrate up to 115.200kbps
ISO 18000-63) compliant easy2read© product line, is a RAIN RFID reader with integrated antenna for - Databits: 8
- USB power and communication short to medium range applications. - Stopbit: 1
- Integrated circular polarized antenna - Parity: none
The reader is powered and controlled directly by an USB cable, thus allowing to
- Low-profile form factor Connectivity - Flow control: none
read RAIN RFID tags in an easy desktop environment.
- Green LED: Power
Thanks to its low profile (15 mm) and its size (approximately an A4 page), the
Applications - Blinking Red LED: Tag Detection
Slate reader is the perfect choice for various applications such as - Blinking Yellow LED: USB communication activity
- Points of sale points-of-sale, document tracking, tag programming stations, access control User Interface - Buzzer: user programmable event signalling
- Access control and so on. It can also be used as a building block for smart shelves and smart
USB Cable Length 1.5 m.
- Tag Programming Stations displays.
- Document tracking - 5V ± 5% - DC bus powered (USB)
Being compliant with European (model R1260E, R1260EB) and US (model
- Inventory Management Power Supply - Max 400 mA
R1260U, R1260UB) regulatory environments, the Slate reader allows
installations in various countries worldwide as needed by retailers, forwarders, - (W)297 x (L)205 x (H)15 mm3
warehouses and other global organizations. Dimensions - 11.7 x 8.0 x 0.6 inches3
The core component of the Slate reader is the CAEN RFID Quark module, the Operating Temperature -10°C to +55°C
lowest power consuming module available on the market. Weight 525 g.
Ordering Options
WR1260EZBAAA Slate - ETSI version - Black
WR1260UYBAAA Slate - FCC version - Black
CAEN RFID srl WPE1260UYBCN Slate - China customization
Copyright © CAEN RFID srl. All right reserved. Information in this via Vetraia, 11 - 55049 Viareggio (LU) - Italy
publication supersedes all earlier versions. Specifications subject Tel. +39 0584 388398 - Fax. +39 0584 388959
to change without notice.
www.caenrfid.com - info@caenrfid.com
16 17
Fixed Readers
Fixed
The typical and most frequent installation of RAIN
RFID technology is the so-called portal or gate. It
Readers consists of a fixed reader (interrogator) placed around
an area of entrance/exit from a distribution center or
a manufacturing plant. Sometimes fixed readers are
used outdoors for vehicles or for people identification,
at the entrance of parking lots or any other entry point
in buildings and boundaries of enterprise premises.
RAIN RFID technology is also used during sport events,
especially on check points to verify timings and
performances in amateur and professional races.
Other applications include RFID tunnels used for the
identification of tags inside boxes in manufacturing
processes and on-vehicle installation (forklifts, trucks)
for asset management and inventory.® ®
Technical Specification Table
Ion - R4301P - 865.600÷867.600 MHz (ETSI EN 302 208 v. 3.1.1)
Frequency Range - 902÷928 MHz (FCC part 15.247)
RAIN RFID Long Range RF Power
- Up to 32 dBm (1.6W) conducted (ETSI)
- Up to 30 dBm (1W) conducted (FCC)
Reader with GPRS/WiFi Number of Channels
- 4 channels (compliant to ETSI EN 302 208 v. 3.1.1)
- 50 hopping channels (compliant to FCC part 15.247)
Standard Compliance EPC Class 1 Gen 2 - ISO18000-63
CPU Intel Atom E3815 CPU @ 1.46GHz
Memory 2Gbytes RAM, 8 Gbytes MicroSD
Operating System Linux (Debian)
Scripting Java Virtual Machine
Features Overview Host Interface - EPCGlobal LRP RFID host-to-reader protocol
- RAIN RFID (UHF EPC Class1 Gen2, The Ion (Model R4301P) is the top-of-the-range portal reader of the easy2read© Protocols - CAEN RFID host-to-reader protocol
ISO 18000-63) compliant product line. CAEN RFID has carefully designed the device taking into account - Gen 2 Dense Reader Mode Management
- Multiregional support customer requests and on-field experience on RFID installations. The result is Receiving Capability - Data rate up to 400kb/s
- Embedded intelligence not only a RAIN RFID reader, it’s a unique combination of outstanding RFID
- RS232 Serial Communication (DB9 connector)
- Ethernet port reading performances, computing power and communication capabilities.
- Baudrate up to 115.200kbps
- USB 2.0 High Speed host port - Databits: 8
Based on an embedded HW architecture (x86) and standard operating system
- Internal MicroSD slot - Stopbit: 1
(Linux), the Ion eases the development of custom software and solutions. The
- Integrated GPRS or WiFi interface - Parity: none
on-board computing power and connectivity remove the need for an external
module (optional) - Flow control: none
PC and related cabling. This results in deployment and operation cost savings,
- Easily deployable and scalable - Ethernet 10/100/1000Base-T (RJ45 connector)
thus reducing the total cost of ownership of installed devices. Connectivity - USB 2.0 High Speed Host Port
The Ion is best suited for complex AutoID scenarios, where the information can
Applications Wireless - GSM/GPRS internal module(optional)
be collected and fed directly to the reader from multiple sources such as Smart Communication - WiFi internal module(optional)
- RAIN RFID portals for logistc Card readers, Barcode readers, GPS and other in-field sensors. All data can be
- Industrial automation reading points I/O Interface 13 configurable GPIO pins, TTL levels
handled locally through data buffering, filtering and aggregation, in order to
- RAIN RFID tunnels directly provide decision-making data to higher level Business Intelligence Antenna Connectors 4 TNC Reverse Polarity
- Access control reading points processes. The same data can also trigger local actuators and screen displays
Power Supply 9÷36V DC power supply (30W)
- On-vehicle installations for in-field real-time processes in a standalone mode.
- Point of Sales Devices (smart shelves, - MicroSD slot
The presence on board of an optional integrated GPRS modem or WiFi interface
smart displays) Internal Interfaces - SIM card holder (optional)
module, together with its compact and versatile form factor, allow to use it in
any worldwide installation requiring RFID usage in remote areas. IP Rating IP 42
As a result of all the above, the Ion allows solution providers to customize the MTBF 135000 hours
reader to each application, thus creating their own specialized devices - (W)275 x (L)155 x (H)39 mm3
accordingly. Dimensions - 10.8 x 6.1 x 1.5 inches3
Operating Temperature -20°C to +55°C
Development Kit
Weight 1.3 kg.
Ordering Options
WR4301PXAAAA Ion - RAIN RFID Reader WR4301PDKGPU Ion - FCC Developer Kit with GPRS
WR4301PXGPRS Ion - RAIN RFID Reader with GPRS WR4301PDKWFE Ion - ETSI Developer Kit with WiFi
CAEN RFID srl WR4301PXDKEU Ion - ETSI Developer Kit WR4301PDKWFU Ion - FCC Developer Kit with WiFi
Copyright © CAEN RFID srl. All right reserved. Information in this via Vetraia, 11 - 55049 Viareggio (LU) - Italy
WR4301PXDKUS Ion - FCC Developer Kit WALIM0000003 ION Power Supply
publication supersedes all earlier versions. Specifications subject Tel. +39 0584 388398 - Fax. +39 0584 388959
to change without notice.
www.caenrfid.com - info@caenrfid.com WR4301PDKGPE Ion - ETSI Developer Kit with GPRS
20 21® ®
Technical Specification Table
Proton - R4320P - 865.600÷867.600 MHz (ETSI EN 302 208 v. 3.1.1)
Frequency Range - 902÷928 MHz (FCC part 15.247)
Industrial 4-port RAIN RFID RF Power
- Up to 31.5 dBm (1.4W) conducted (ETSI)
- Up to 30 dBm (1W) conducted (FCC)
Long Range Reader Number of Channels
- 4 channels (compliant to ETSI EN 302 208 v. 3.1.1)
- 50 hopping channels (compliant to FCC part 15.247)
Standard Compliance EPC Class 1 Gen 2 - ISO18000-63
CPU ARM9 @ 400MHz on Atmel AT91SAM9G25
Operating System Linux
- Gen 2 Dense Reader Mode Management
Receiving Capability - Data rate up to 400kb/s
Features Overview - RS232 Serial Communication (M12 connector)
- Baudrate up to 115.200kbps

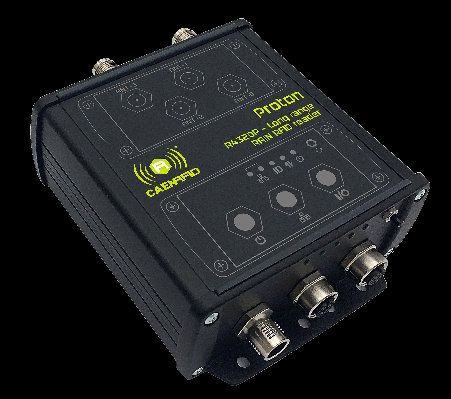

- RAIN RFID (UHF EPC Class1 Gen2, The Proton (Model R4320P) is a rugged long range RAIN RFID reader of the - Databits: 8
ISO 18000-63) compliant easy2read© product line, well suited for industrial environment installations. - Stopbit: 1
- Multiregional support - Parity: none
The Proton reader has 4 antenna ports capable of a 31.5 dBm maximum power - Flow control: none
- Four 50 Ohm TNC-RP antenna
enabling to build RAIN RFID portals for logistic. Its compact form factor makes - Ethernet 10/100/1000Base-T (M12 connector)
connectors
it easy to install and the IP65 protection permits outdoor or harsh environment Connectivity - PoE standard IEEE 802.3af
- Power over Ethernet interface
installations. Featuring Power Over Ethernet, RS232 and GPIOs via industry
- Up to 31.5 dBm (1.4W) output power - M12 connector
standard M12 connectors the Proton is an ideal choice for industrial
- Internal scripting engine - 2 digital inputs optically isolated
automation and Industry 4.0 solutions. I/O Interface - 2 solid state photorelay outputs optically isolated (500mA max)
- IP65 in compact form factor
- PoE or external power supply The Proton is based upon an embedded Linux platform and it’s easily Antenna Connectors 4 TNC Reverse Polarity
- M12 industrial connectors configurable using an internal web interface. System integrators can customize
- Development Kit available the behavior of the reader installing Java code that, having access to all the - 9÷36V DC power supply (12W)
Power Supply - PoE standard IEEE 802.3af (12.95W)
RFID features and interfaces, permits a full customization.
Status Indicators Multicolour LEDs: Power, Activity, Status and Applications
Applications The Proton reader complies with and can operate in both European and US
regulatory environments and, due to its multiregional capabilities, it’s ideal for IP Rating IP 65
- RAIN RFID portals for logistc
integration in solutions requiring compliance to different geographical regions.
- Industrial automation reading points - (W)131 x (L)106 x (H)50 mm3
- RAIN RFID tunnels Dimensions - 5.15 x 4.17 x 1.96 inches3
- Access control reading points
Operating Temperature -10°C to +55°C
Weight 530 g.
Development Kit
Ordering Options
WR4320PXAAAA Proton - Industrial Long Range Reader
WR4320PXDKEU Proton - ETSI Dev. Kit
CAEN RFID srl WR4320PXDKUS Proton - FCC Dev. Kit
Copyright © CAEN RFID srl. All right reserved. Information in this via Vetraia, 11 - 55049 Viareggio (LU) - Italy
WALIM0000006 Proton power supply - EU
publication supersedes all earlier versions. Specifications subject Tel. +39 0584 388398 - Fax. +39 0584 388959
to change without notice.
www.caenrfid.com - info@caenrfid.com WALIM0000007 Proton power supply - US
22 23® ®
Technical Specification Table
Quattro - R4321P - 865.600÷867.600 MHz (ETSI EN 302 208 v. 3.1.1)
Frequency Range - 902÷928 MHz (FCC part 15.247)
Smart 4-port RAIN RFID RF Power
- Up to 31.5 dBm (1.4W) conducted (ETSI)
- Up to 30 dBm (1W) conducted (FCC)
Long Range Reader Number of Channels
- 4 channels (compliant to ETSI EN 302 208 v. 3.1.1)
- 50 hopping channels (compliant to FCC part 15.247)
Standard Compliance EPC Class 1 Gen 2 - ISO18000-63
CPU ARM9 @ 400MHz on Atmel AT91SAM9G25
Operating System Linux
- Gen 2 Dense Reader Mode Management
Receiving Capability - Data rate up to 400kb/s
Features Overview - USB Interface: USB 2.0 High Speed (480 Mbit/s) device port (USB mini connector)
- Virtual COM port parameters:
- RAIN RFID (UHF EPC Class1 Gen2, The Quattro (Model R4321P) is a compact long range RAIN RFID reader of the - Baudrate up to 115.200kbps
ISO 18000-63) compliant easy2read© product line, well suited for retail and warehousing installations. - Databits: 8
- Multiregional support - Stopbit: 1
The Quattro reader has 4 antenna ports capable of a 31.5 dBm maximum power - Parity: none
- Four 50 Ohm TNC-RP antenna
enabling to build RAIN RFID portals for long range reading. Its slim form factor - Flow control: none
connectors
makes it easy to install even when limited space is available. It offers the - Ethernet 10/100/1000Base-T (RJ45)
- Power over Ethernet interface
Ethernet (PoE) and USB communication interface in order to simplify the Connectivity - PoE standard IEEE 802.3af
- Up to 31.5 dBm (1.4W) output power
installation both on large and single read point solutions. The Power over
- Internal scripting engine - 10 Poles Terminal Block with screw connector
Ethernet capability permits to provide power and to communicate with the - 2 digital inputs optically isolated
- USB host port
reader with a single cable. I/O Interface - 2 solid state photorelay outputs optically isolated (500mA max)
- PoE or external power supply
The USB host port, combined with the internal computing architecture, permits Antenna Connectors 4 TNC Reverse Polarity
to connect USB peripherals like barcode scanners, keyboards, printers and many
Applications - 5V DC power supply (12W)
others transforming the Quattro reader in a powerful and versatile
Power Supply - PoE standard IEEE 802.3af (12.95W)
- RAIN RFID portals for logistc identification platform.
- Industrial automation reading points Status Indicators Multicolour LEDs: Power, Activity, Status and Applications
The Quattro is based upon an embedded Linux platform and it’s easily
- RAIN RFID tunnels
configurable using an internal web interface. System integrators can customize IP Rating IP 30
- Access control reading points
the behavior of the reader installing Java code that, having access to all the
- Smart shelves and smart displays - (W)210 x (L)140 x (H)27 mm3
RFID features and interfaces, permits a full customization. Dimensions - 8.27 x 5.51 x 1.06 inches3
The Quattro reader complies with and can operate in both European and US Operating Temperature -10°C to +55°C
regulatory environments and, due to its multiregional capabilities, it’s ideal for
Weight 740 g.
integration in solutions requiring compliance to different geographical regions.
Ordering Options
WR4321PXAAAA Quattro - Smart Long Range Reader
WR4321PXDKEU Quattro - ETSI Dev. Kit
CAEN RFID srl WR4321PXDKUS Quattro - FCC Dev. Kit
Copyright © CAEN RFID srl. All right reserved. Information in this via Vetraia, 11 - 55049 Viareggio (LU) - Italy
WALIM0000005 Quattro power supply
publication supersedes all earlier versions. Specifications subject Tel. +39 0584 388398 - Fax. +39 0584 388959
to change without notice.
www.caenrfid.com - info@caenrfid.com
24 25Embedded Readers
Embedded
RAIN RFID technology is widely used in devices like
mobile computers, PDAs, handhelds, label printers and
Readers applicators, desktop readers, informative kiosks,
industrial readers and smart shelves.
CAEN RFID embedded readers are the best choice for
those companies wishing to integrate the RAIN RFID
technology in their existing or new products.
Our embedded readers product line includes modules
in different size, power consumption and read
distance.® ®
Technical Specification Table
Hadron - R4320C - 865.600÷867.600 MHz (ETSI EN 302 208 v. 3.1.1)
Frequency Range - 902÷928 MHz (FCC part 15.247)
High Performance 4-port RF Power
- Up to 31.5 dBm (1.4W) conducted (ETSI)
- Up to 30 dBm (1W) conducted (FCC)
Embedded Reader Output Power Accuracy
Antenna VSWR Requir.
± 1 dB
< 2:1 for optimal performance
Antenna Connectors 4 MMCX jacks
Frequency Tolerance ± 10 ppm over the entire temperature range
- 4 channels (compliant to ETSI EN 302 208 v. 3.1.1)
Number of Channels - 50 hopping channels (compliant to FCC part 15.247)
Standard Compliance EPC Class 1 Gen 2 - ISO18000-63
Features Overview - Gen 2 Dense Reader Mode Management
- RAIN RFID (UHF EPC Class1 Gen2, The Hadron (Model R4320C), embedded module of the easy2read© product Receiving Capability - Data rate up to 400kb/s
ISO 18000-63) compliant line, is a RAIN RFID multiregional compact reader for high performance - PR-ASK 40 kbit/s
- Multiregional support applications. With programmable output power from 10dBm to 31.5dBm, the Forward Link Charact. - DSB-ASK 160 kbit/s (FCC only)
- Four 50 Ohm MMCX antenna connectors reader reaches top reading performances being able to detect RAIN tags from
- Miller encoding: M=4 - LF=250 kHz
- Up to 31.5 dBm (1.4W) output power a distance of 9 m. (30 feet) depending on the antenna and the tag used.
- Miller encoding: M=4 - LF=300 kHz
- USB Full Speed interface Return Link Charact. - FM0 400 kbit/s (FCC only)
The radio frequency core of the module allows to achieve fast reading/writing
- Serial interface (TTL Levels)
operations and to work in dense reader and dense tag environments for - USB Interface: USB 2.0 Full Speed (12 Mbit/s) device port
top-class rated performances. - UART Serial Port:
Applications - Baudrate up to 115.200kbps
Due to its compact form factor, the Hadron module is specifically designed to
- Databits: 8
- High performance handheld and sleds be easily embedded in battery powered devices such as high performance
- Stopbit: 1
- Points of sale readers handhelds and sleds. Thanks to the 4-antenna ports and the high power - Parity: none
- Self-service kiosk capability, the Hadron module is the perfect RAIN RFID core component to - Flow control: none
- Industrial automation readers design full size readers for portals, industrial automation readers or any RFID Connectivity - 3.3 V I/O voltage level
- Full portal readers device requiring long reading distances.
- 4 I/O lines 3.3 V out @ 3 mA
- Long range reading points
The Hadron reader complies with and can operate in both European and US I/O Interface - 5 V tolerant
regulatory environments and, thanks to its multiregional capabilities, it’s ideal - 5 V DC ÷ 5.5 V DC
for integration in devices requiring compliance to different geographical Power Supply - 8.5 W peak power consumption (TX/RX active)
regions.
- (W)60 x (L)42 x (H)7.5 mm3
Dimensions - 2.36 x 1.65 x 0.29 inches3
Operating Temperature -20°C to +60°C
Weight 35 g.
Development Kit
Ordering Options
WR4320CXAAAA Hadron - Hi-Perf. Embedded Reader
WR4320CXDKEU Hadron - ETSI Dev. Kit
CAEN RFID srl WR4320CXDKUS Hadron - FCC Dev. Kit
Copyright © CAEN RFID srl. All right reserved. Information in this via Vetraia, 11 - 55049 Viareggio (LU) - Italy
publication supersedes all earlier versions. Specifications subject Tel. +39 0584 388398 - Fax. +39 0584 388959
to change without notice.
www.caenrfid.com - info@caenrfid.com
28 29® ®
Technical Specification Table
QuarkUp - R1270C - 865.600÷867.600 MHz (ETSI EN 302 208 v. 3.1.1)
Frequency Range - 902÷928 MHz (FCC part 15.247)
500mW RAIN RFID RF Power Configurable in 18 levels from 10 dBm to 27 dBm (from 10 mW to 500 mW) conducted power
Output Power Accuracy ± 1 dB
Ultra Compact Module Antenna VSWR Requir. < 2:1 for optimal performance
Antenna Connectors 1 U.FL type
Frequency Tolerance ± 10 ppm over the entire temperature range
- 4 channels (compliant to ETSI EN 302 208 v. 3.1.1)
Number of Channels - 50 hopping channels (compliant to FCC part 15.247)
Standard Compliance EPC Class 1 Gen 2 - ISO18000-63
- USB Interface: USB 2.0 Full Speed (12 Mbit/s) device port
Features Overview - UART Serial Port:
- RAIN RFID (UHF EPC Class1 Gen2, The Quark-Up (Model R1270C), an embedded reader of the easy2read© - Baudrate up to 115.200kbps
- Databits: 8
ISO 18000-63) compliant product line, is a multiregional ultra compact reader for low power, high
- Stopbit: 1
- Multiregional support performance RAIN RFID applications.
- Parity: none
- Ultra compact size - Flow control: none
With programmable output power in 18 steps from 10dBm to 27dBm, the
- Up to 27 dBm (500mW) output power Connectivity - 3.3 V I/O voltage level
reader can detect tags at more than 3 mt of distance (depending on antenna
- USB Full Speed interface
and tag dimensions). - 4 I/O lines 3.3 V level
- Serial interface (TTL Levels)
I/O Interface - Iout = 3 mA max.
- Low power consumption Due to its low power consumption, the module is specifically designed to be
easily integrated in battery powered devices. Power Supply 5 V DC ± 5%
Applications The radio frequency core of the module permits to achieve fast reading and to - 2.7 W @ RF out = 27 dBm
be used in dense reader and dense tag environments for top-class rated - 1.6 W @ RF out = 23 dBm
- Handheld devices Power Consumption - 0.15 W in idle mode
performances.
- Multiregional label printers and
applicators The compactness of the device and the board-to-board connector allow to - (W)25 x (L)25 x (H)6 mm3
- Points of sale readers Dimensions - 1.0 x 1.0 x 0.20 inches3
embed the QuarkUp inside the new small form factor industrial handhelds,
- Voice operated gloves smartphone accessories and other compact form factor devices. Operating Temperature -10°C to +55°C
The QuarkUp complies with and can operate in both European and US Weight 5 g.
regulatory environments and due to its multiregional capabilities, it’s ideal for
integration in devices requiring compliance to different geographical regions.
Development Kit
Ordering Options
WR1270CXAAAA QuarkUp - Compact Embedded Reader
WR1270CXDKEU QuarkUp - ETSI Dev. Kit
CAEN RFID srl WR1270CXDKUS QuarkUp - FCC Dev. Kit
Copyright © CAEN RFID srl. All right reserved. Information in this via Vetraia, 11 - 55049 Viareggio (LU) - Italy
publication supersedes all earlier versions. Specifications subject Tel. +39 0584 388398 - Fax. +39 0584 388959
to change without notice.
www.caenrfid.com - info@caenrfid.com
30 31® ®
Technical Specification Table
Quark - R1230CB - 865.600÷867.600 MHz (ETSI EN 302 208 v. 3.1.1)
Frequency Range - 902÷928 MHz (FCC part 15.247)
Embedded Ultra Compact RF Power Configurable in 18 levels from 10 dBm to 27 dBm (from 10 mW to 500 mW) conducted power
Output Power Accuracy ± 1 dB
RAIN RFID Reader Antenna VSWR Requir. < 2:1 for optimal performance
Antenna Connectors 1 U.FL type
Frequency Tolerance ± 10 ppm over the entire temperature range
- 4 channels (compliant to ETSI EN 302 208 v. 3.1.1)
Number of Channels - 50 hopping channels (compliant to FCC part 15.247)
Standard Compliance EPC Class 1 Gen 2 - ISO18000-63
- USB Interface: USB 2.0 Full Speed (12 Mbit/s) device port
Features Overview - UART Serial Port:
- RAIN RFID (UHF EPC Class1 Gen2, The Quark (Model R1230CB), an embedded reader of the easy2read© product - Baudrate up to 115.200kbps
- Databits: 8
ISO 18000-63) compliant line, is a multiregional ultra-compact reader for low-power, high performance
- Stopbit: 1
- Multiregional support RAIN RFID applications.
- Parity: none
- Ultra compact size - Flow control: none
With programmable output power in 15 steps from 9dBm to 23dBm, the reader
- Up to 23 dBm (200mW) output power Connectivity - 3.3 V I/O voltage level
can detect tags at more than 1 mt of distance (depending on antenna and tag
- Serial interface (TTL Levels)
dimensions). - 4 I/O lines 3.3 V level
- Low power consumption
I/O Interface - Iout = 3 mA max.
Due to its low power consumption, the module is specifically designed to be
easily integrated in battery powered devices as well as powered directly by a Power Supply 5 V DC ± 5%
Applications
standard USB port.
- 2.7 W @ RF out = 27 dBm
- Handheld devices
The radio frequency core of the module permits to achieve fast reading and to - 1.6 W @ RF out = 23 dBm
- Multiregional label printers and Power Consumption - 0.15 W in idle mode
be used in dense reader and dense tag environments for top-class rated
applicators
performances. - (W)25 x (L)25 x (H)6 mm3
- Points of sale readers
- Voice operated gloves Dimensions - 1.0 x 1.0 x 0.20 inches3
The compactness of the device and the board-to-board connector allow to
embed the Quark inside the new small form factor industrial handhelds, Operating Temperature -10°C to +55°C
smartphone accessories, small USB dongles and other compact form factor
Weight 5 g.
devices.
The Quark complies with and can operate in both European and US regulatory
environments and due to its multiregional capabilities, it is ideal for integration
in devices requiring compliance to different geographical regions.
Development Kit
Ordering Options
WR1270CXAAAA QuarkUp - Compact Embedded Reader
WR1270CXDKEU QuarkUp - ETSI Dev. Kit
CAEN RFID srl WR1270CXDKUS QuarkUp - FCC Dev. Kit
Copyright © CAEN RFID srl. All right reserved. Information in this via Vetraia, 11 - 55049 Viareggio (LU) - Italy
publication supersedes all earlier versions. Specifications subject Tel. +39 0584 388398 - Fax. +39 0584 388959
to change without notice.
www.caenrfid.com - info@caenrfid.com
32 33Temperature Loggers
Temperature
Vaccines, drugs and clinical trial products need to be
shipped within a prescribed temperature range to
Loggers maintain their efficacy as well as food to maintain
freshness.
The benefits of applying RFID and sensors to
perishable goods include improved food and drugs
safety, longer vaccines and drugs efficacy, more
efficient product recalls, reduced costs due to less
spoilage, lower inventories, more efficient logistics,
and improved customer service.
easy2log© products allow to have a complete history
of the temperature exposure of your perishable goods
thus allowing a complete control of the Cold Chain
and to predict the remaining shelf life.® ®
Technical Specification Table
qLog - RT0012 - NFC/HF: 13.56 MHz
TEMPERATURE Frequency Range - RAIN/UHF: 860÷930 MHz
Dual Frequency RAIN/NFC RFID Protocols
- NFC/RFID ISO 14443 Type A Interface
- RAIN : EPC Class 1 Gen 2 - ISO18000-63
Data Logger Tag Tag Type
Data Points
Semipassive
Up to 4096 samples
Temperature Operating
Range -30 °C to +70 °C
Temperature Accuracy ±0.5 °C
Monitoring Time Span Up to 5 years
Time Accuracy® ®
Technical Specification Table
RT0005 Frequency Range 860÷928 MHz
Tag Type Semipassive
RAIN RFID Temperature RFID Interface EPC Class 1 Gen 2 - ISO18000-63
Data Points Up to 3,958 samples
Logger Tag Temperature Operating
Range -20 °C to +70 °C
Temperature Accuracy ±0.5 °C typical
Monitoring Time Span Up to 5 years
Time Accuracy® ®
Technical Specification Table
RT0005ET Frequency Range 860÷928 MHz
Tag Type Semipassive
RAIN RFID Temperature RFID Interface EPC Class 1 Gen 2 - ISO18000-63
Data Points Up to 3,958 samples
Logger Tag with Ext. Probe Temperature Operating
Range -20 °C to +70 °C
Temperature Accuracy ±0.5 °C typical
Monitoring Time Span Up to 5 years
Time Accuracy® ®
Technical Specification Table
A927Z Frequency Range 860÷928 MHz
Tag Type Semipassive
Rugged RAIN RFID RFID Interface EPC Class 1 Gen 2 - ISO18000-63
Data Points Up to 8,000 samples
Temperature Logger Tag Temperature Operating
Range -20 °C to +70 °C
Temperature Accuracy ±0.5 °C typical
Monitoring Time Span Up to 5 years
Time Accuracy® ®
Technical Specification Table
A927ZET Frequency Range 860÷928 MHz
Tag Type Semipassive
Rugged RAIN RFID RFID Interface EPC Class 1 Gen 2 - ISO18000-63
Data Points Up to 4,096 samples per sensor
Temperature Logger Tag Temperature Operating
Range -20 °C to +70 °C
with External Probe Temperature Accuracy ±0.5 °C typical
Monitoring Time Span Up to 5 years
Time AccuracyReader Accessories
Reader
CAEN RFID offers a set off accessories to enrich the
features and performance of RAIN RFID readers.
Accessories
Available accessories include RFID antennas,
I/O interfaces, antenna multiplexer, development
boards, antenna cables and power supplies.® ®
WANTENNAX019

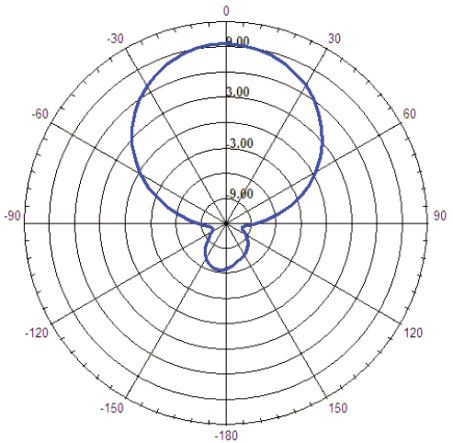

Total Gain - Azimuth Total Gain - Elevation
Circular Polarized
Antenna 8.5dBc - ETSI
Overview Technical Specification Table
This antenna is designed for RAIN RFID long Frequency Range 865÷868 MHz (ETSI EN 302 208 v. 3.1.1)
range application like portals, vehicles
Polarization Right Hand Circularly Polarized (RHCP)
identification, access control or waste
management. Gain 8.5 dBc
Thanks to the circular polarization, the tag Half-Power Beamwidth (3dB) 65° Elevation - 65° Azimuth (3dB)
read range is independent from the relative
Front-to-Back Ratio 17 dB
tag – antenna orientation.
Axial Ratio at Boresight 2 dB
The enclosure is IP65 rated for outdoor
installation. VSWR 1.1:1
Nominal Impedance 50 Ohm
Power 2 W e.r.p. (ETSI EN 302 208 v3.1.1) - Max. 5W
VSWR vs Frequency
Lightning Protection Capacitor feed system
- (L) 270 x (W) 270 x (D) 75 mm3
Dimensions - 10.63 x 10.63 x 2.95 inch3
Weight 1.2 kg.
Connector N-m with 30 cm. RG58 cable
Radome Polystyrene plastic (UV rating)
Mounting Kit Aluminium (for pole)
Features
IP Rating IP65
- Designed for RAIN RFID long range
applications Operating Temperature -30 °C to +60 °C
- Frequency Range 865÷868 MHz Storage Temperature -30 °C to +60 °C
- Gain 8.5 dBc
- Right Hand Circularly Polarized (RHCP) Wind Surface 0.066 m2
Ordering Options
WANTENNAX019 ETSI Circular Polarized Antenna 8.5 dBc
CAEN RFID srl
Copyright © CAEN RFID srl. All right reserved. Information in this via Vetraia, 11 - 55049 Viareggio (LU) - Italy
publication supersedes all earlier versions. Specifications subject Tel. +39 0584 388398 - Fax. +39 0584 388959
to change without notice.
www.caenrfid.com - info@caenrfid.com
48 49® ®
WANTENNAX020
Total Gain - Azimuth Total Gain - Elevation
Circular Polarized
Antenna 8.5dBc - FCC
Overview Technical Specification Table
This antenna is designed for RAIN RFID long Frequency Range 902÷928 MHz (FCC part 15.247)
range application like portals, vehicles
Polarization Right Hand Circularly Polarized (RHCP)
identification, access control or waste
management. Gain 8.5 dBc
Thanks to the circular polarization, the tag Half-Power Beamwidth (3dB) 65° Elevation - 65° Azimuth (3dB)
read range is independent from the relative
Front-to-Back Ratio 15 dB
tag – antenna orientation.
Axial Ratio at Boresight 2.5 dB
The enclosure is IP65 rated for outdoor
installation. VSWR 1.3:1
Nominal Impedance 50 Ohm
Power 2 W EIRP (FCC part 15.247) - Max. 5W
VSWR vs Frequency
Lightning Protection Capacitor feed system
- (L) 270 x (W) 270 x (D) 75 mm3
Dimensions - 10.63 x 10.63 x 2.95 inch3
Weight 1.2 kg.
Connector N-m with 30 cm. RG58 cable
Radome Polystyrene plastic (UV rating)
Mounting Kit Aluminium (for pole)
Features
IP Rating IP65
- Designed for RAIN RFID long range
applications Operating Temperature -30 °C to +60 °C
- Frequency Range 902÷928 MHz Storage Temperature -30 °C to +60 °C
- Gain 8.5 dBc
- Right Hand Circularly Polarized (RHCP) Wind Surface 0.066 m2
Ordering Options
WANTENNAX020 FCC Circular Polarized Antenna 8.5 dBc
CAEN RFID srl
Copyright © CAEN RFID srl. All right reserved. Information in this via Vetraia, 11 - 55049 Viareggio (LU) - Italy
publication supersedes all earlier versions. Specifications subject Tel. +39 0584 388398 - Fax. +39 0584 388959
to change without notice.
www.caenrfid.com - info@caenrfid.com
50 51® ®
QuadIP - WANT020IP
Circular Polarized Antenna Gain Axial Ratio
Compact Antenna
ETSI
Overview Technical Specification Table
The QuadIP is a medium-short range RAIN Frequency
RFID antenna in a compact and robust form Range 865.6÷867.6 MHz (ETSI EN 302 208 v. 3.1.1)
factor.
Polarization Right Hand Circularly Polarized (RHCP)
The QuadIP antenna is well suited for
Gain 0.2 dBi typical
building small RFID gates, read point for
access control or to be installed on Axial Ratio 1 dB typical
conveyors in industrial environments. VSWR® ®
QuadIP - WANT021IP
Circular Polarized Antenna Gain Axial Ratio
Compact Antenna
FCC
Overview Technical Specification Table
The QuadIP is a medium-short range RAIN Frequency
RFID antenna in a compact and robust form Range 902÷928 MHz (FCC part 15.247)
factor.
Polarization Right Hand Circularly Polarized (RHCP)
The QuadIP antenna is well suited for
Gain 0.7 dBi typical
building small RFID gates, read point for
access control or to be installed on Axial Ratio 1 dB typical
conveyors in industrial environments. VSWR® ®
Antenna Gain Axial Ratio
Quad - WANT020
Circular Polarized
Quadrifilar Antenna
ETSI
Overview Technical Specification Table
High performing quadrifilar, circular
Radiation Patterns
Frequency
polarized RAIN RFID antenna in compact Range 865.6÷867.6 MHz (ETSI EN 302 208 v. 3.1.1)
size. The Quad antenna is well suited to be
integrated in long reading range portable
Polarization Right Hand Circularly Polarized (RHCP) phi = 0 phi = 90
devices. Gain 0.2 dBi typical
The Quad antenna can be also used to Axial Ratio 1 dB typical
implement compact fixed reading point VSWR® ®
Antenna Gain Axial Ratio
Quad - WANT021
Circular Polarized
Quadrifilar Antenna
FCC
Overview Technical Specification Table
This antenna is designed for RAIN RFID long
Radiation Patterns
Frequency
range application like portals, vehicles Range 902÷928 MHz (FCC part 15.247)
identification, access control or waste
Polarization Right Hand Circularly Polarized (RHCP)
management.
Gain 0.7 dBi typical
Thanks to the circular polarization, the tag
read range is independent from the relative Axial Ratio 1 dB typical
tag – antenna orientation. VSWRYou can also read
