Counter Line 2021
Content
The EcoDesign regulation 3
Counters
Counters 4
Semi-vertical Range 5
Straight Line
Danaos® A/B 9
Danaos Fish 10
Danaos Lift Up 12
Danaos Invite 14
Danaos TT & TT rounded corner 16
Danaos Easy Opening 18
Danaos Convertible Counter 20
Curved Line
Hera 26
Apollo 28
Cabrio 30
Semi-vertical
Medea 34
Counter – Special Solutions
Marché Fresh 38
Tower Meat & Tower Pastry 40
Glycos 42
Servimax / Servimax XL 44
External Aesthetics
Accessories
Technical pages
Excellence in tests and qualification of cabinets 48
Application
Dairy products Cheese Meat Minced meat Cold cuts Fish Delicatessen Hot meals
Prepacked Prepacked Prepacked Prepacked Prepacked Prepacked
cheese meat minced meat cold cuts fish delicatessen
2 | Counter Line 2021
The EcoDesign regulation
The implementation of the EcoDesign directive for “refrigerated display cabinets with a direct sales
Counters
function” was adopted by the European Union Commission in October 2019. The application date
for the requirements is the 1st of March 2021. The directive applies to newly produced refrigerated
cabinets only – the systems, racks and condensing units are covered by other regulations. The
compliance is declared by the manufacturer with the declaration of conformity and with providing
technical data to a European database called EPREL and the CE-mark. A verification procedure will
applied by the member states.
All Carrier products presented in this catalogue are EcoDesign compliant.
Energy Labelling
The objective of Energy
Labelling is to give clear, ENERGY EFFICIENCY CLASS ENERGY EFFICIENCY INDEX
easy-to-understand label
information on the product A EEI < 10
energy efficiency, and classify
products according to their B 10 ≤ EEI < 20
level of efficiency (from G to C 20 ≤ EEI < 35
A), with an overall effect of
pulling the market towards D 35 ≤ EEI < 50
more energy efficient
E 50 ≤ EEI < 65
products. Products marketed
prior to March 2021 are not F 65 ≤ EEI < 80
affected.
G 100 > EEI ≥ 80
The Label
Each new refrigerating appliance will be supplied with a printed label gathering energy related information:
Supplier’s name Supplier’s model identifier
A
B B Determined energy efficiency class
C
D
E
F
G
Annual energy
consumption in kWh
The highest / lowest temperature of
the warmest / coldest M-package
of the compartment(s) with chilled
operating temperatures
Sum of the display areas with chilled
operating temperatures in m2
The highest / lowest temperature of
the warmest / coldest M-package
of the compartment(s) with frozen
Sum of the display areas with frozen
operating temperatures
operating temperatures in m2
Counter Line 2021 | 3
Counters General introduction / models
Counters
Timeless beauties: Counter range with unlimited combination & design options
The Counter Line boasts numerous Whether serve- over or self- service Different color possibilities and cladding
combination and design options. The variants, corner elements, crown variants give an individual look.
cabinet base remains the same and with ends or special application cabinets – A bunch of options and accessories
diverse glass superstructures: straight, counters from the same line can easily complete the range of individualization
curved or semi-vertical. be combined – the variations are infinite. of the application and can be found at
With several pedestal solutions, the end of the overview.
different cabinet heights or applications,
we give you the freedom to choose the
solution that best suits your taste and
requirements.
Straight Line
Danaos (A) Danaos (B) Danaos Lift-up Danaos TT
(transparent Design)
Danaos EO Danaos Convertible Counter
Special counter variants
Danaos Invite Danaos Fish Danaos “HOT“
4 | Counter Line 2021
Counters
Curved Line
Hera Apollo Cabrio
Semi-vertical Range
Semi-vertical cabinets are the perfect choice for self-service presentation.
Benefits at a glance
Products presented in a vertical manner to perfectly catch the eye of the shopper.
High merchandise density, ergonomic heights, easy access to the products automatically guides to higher turnover.
If 1 , 2 or 3 presentation areas, flat or even inclined bottom shelves.
Carrier commercial refrigeration provides a wide range of cabinet variants and types.
Different colors possibilities and cladding variants gives an individual look. A bunch of options and accessories
complete the range of individualization of the application and can be found at the end of the overview.
Medea SD Medea ST Medea SQ
Counter Line 2021 | 5
Straight Line
6 | Counter Line 2021

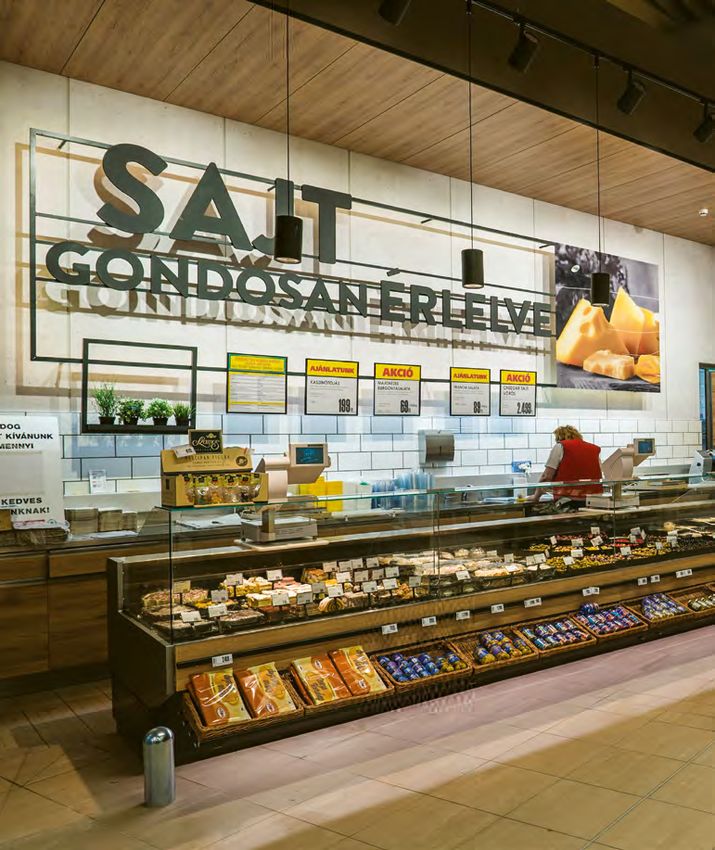

Straight Line
Straight Line
Counter Line 2021 | 7
Danaos® A/B
Straight Line
Danaos A & B are based on the straight line Danaos
Benefits at a glance Danaos A Danaos B
Attractive flat glass design
Flexibility with secondary product placement
Remote and plug-in versions for maximum adaptability
High-quality, easy-to-clean materials Bottom hinged Top hinged
tilt down front glass lift-up front glass
Standard configuration Options
Fan-assisted air circulation Product dividers
3 display decks (mm): 750, 850, 900 Pricing rail
2 base heights (mm): 600, 700 Cutting board, knife sheath, scale / slicer platform
Superstructure A version: top canopy 270 mm, Cabinet with pedestals
bottom-hinged tilt-down front glass Terminal rail for third party controller
Superstructure B version: top canopy 400 mm, LED lighting
top-hinged lift-up front glass Variety of RAL colors available
Horizontal or inclined display deck
Evaporators protected with cataphoresis
Application
Dairy products Cheese Meat Minced meat Cold cuts Fish Delicatessen Hot meals
Prepacked Prepacked Prepacked Prepacked Prepacked Prepacked
cheese meat minced meat cold cuts fish delicatessen
8 | Counter Line 2021
Straight Line
Basic Models
Danaos S 250 90H A
Cabinet name
Name suffix (if indicated)
Module length /type
Display deck depth
Display deck height
Revision index
Danaos. 90H A Danaos. 90H B
Models available
Remote / Plug-In
Serve-Over / Self-Service
Internal & external corners
An overview all avialable models / cross sections
can be found on page 22
Customization
Customization
F/M07 DECOR FRONT PANEL
F/M11 PLINTH PANEL
F/M07
F/M37 F/M37 AIR BAFFLE PLATE
F/M39 F/M39 BOTTOM DECK
F/M40 F/M 40 RETURN AIR GRILLE
F/M11 For more information on design, consult our COUNTER
AESTHETICS CATALOGUE for an overview of materials,
colors and decorative versions available.
Technical data
Modules Corners
Danaos 63 94 125 156 188 250 312 375 EC45 EC90 IC45 IC90 Energy
Standard cabinets in all following tables label
Total display area (m2)
Danaos. 85H A/B 0.53 0.80 1.06 1.30 1.59 2.13 2.66 3.19 0.98 1.60 1.09 2.18
A
G E
Danaos. 90H A/B 0.57 0.84 1.13 1.41 1.69 2.25 2.81 3.38 1.04 1.70 1.16 2.32
A
G F
Temperature range* (°C) 3M1 (-1 /+1) 3M2 (0 /+2) +2 /+4 +4 /+6
A
G E
Special Application
Danaos. 00H GC A/B - - 1.00 - 1.50 2.00 - 3.00 - - - -
Danaos. 85H BW A/B - - 0.71 - - - - - - - - -
Danaos. 85H GW A/B - - 0.78 - - - - - - - - -
Temperature range* (°C) 3M1 (-1 /+1) 3M2 (0 /+2) +2 /+4 +4 /+6
Hot counter, bain-marie Hot counter, heated
OO Natural cooling GC Gravity coil, for fish BW with hot lamp GW plate with hot lamp
Plug-in versions not available for GC models. Versions: A: 270 mm, B: 400 mm top canopy
* T hese temperature ranges are shown in general for the refrigerated cabinets. Loading height limitation for -1 /+1 °C: 100 mm.
Please refer to the technical manual to match the right temperature to the different versions.
Counter Line 2021 | 9
Danaos® Fish
Straight Line – specials
Fish display solutions – an always tasty presentation
Danaos Ventilated Fish Danaos Static Fish
Benefits at a glance Benefits at a glance
Straight Lines Excellent display of fish on crushed ice bed
Excellent display of fish on crushed ice bed Good overview of the products thanks to the inclined
Better temperature performance display
High quality, easy-to-clean materials High quality, easy-to-clean materials
Danaos B based, worktop 400 mm
Standard configuration Standard configuration
Refrigerated serve-over and self-service counter Refrigerated serve-over and self-service counter
Fan-assisted air circulation Coiled display deck
Stainless steel internal parts, fish trays, air return grid and Stainless steel internal parts, fish trays, air return grid
back panel and back panel
Evaporator with cataphoresis protection Solar digital thermometer
Compact fans with IP 54 protection
Water-proof terminal box
Solar digital thermometer
Customization Customization
Pricing rail Without working plate and evaporator / With working plate
Cutting board and evaporator / With working plate
Cabinet with pedestals Pricing rail
Terminal rail for third party controller Cutting board
LED lighting Cabinet with pedestals
Variety of RAL colours available Terminal rail for third party controller
LED lighting
Variety of RAL colours available
Application
Fish
10 | Counter Line 2021Straight Line – specials
Basic Models
1165 Danaos X 188 OOH C
770 400 Cabinet name
Name suffix (if indicated)
840 992
Module length /type
100
Display deck depth
1190
1190
Display deck height
880
876
Revision index
535
535
360
1173
Danaos. 00H VF B Danaos. 00H SF B
Models available
Remote
An overview all avialable models / cross sections
can be found on page 22
Customization
Customization
F/M07 F/M07 DECOR FRONT PANEL
F/M37
F/M11 PLINTH PANEL
F/M40
F/M39 F/M37 AIR BAFFLE PLATE
F/M39 BOTTOM DECK
F/M11 F/M 40 RETURN AIR GRILLE
For more information on design, consult our COUNTER
AESTHETICS CATALOGUE for an overview of materials,
colors and decorative versions available.
Technical data
Modules Corners
Danaos 63 94 125 156 188 250 312 375 EC45 EC90 IC45 IC90
Total display area (m2)
Danaos. 00H SF B - - 0.94 - - - - - - - - -
Danaos. 00H VF B - - 1.06 - 1.59 2.13 - 3.19 - - - -
Temperature range* (°C) 3M2 (0 /+2)
OO Natural cooling VF Ventilated Fish SF Static Fish
Counter Line 2021 | 11Danaos® Lift Up
Straight Line
Attractive presention in straight line Danaos with modern columns serving lift-up glasses
Benefits at a glance
Flat, high transparency
Attractive flat glass design
Flexibility with secondary product placement Top hinged
Remote and plug-in version for maximum adaptability lift-up front glass (B)
with modern, slim columns
High quality, easy-to-clean materials
Standard configuration Options
Fan-assisted air circulation Product dividers
3 display decks (mm): 750, 850, 900 Pricing rail
2 base heights (mm): 600, 700 Cutting board, knife sheath, scale / slicer platform
Top canopy (mm): 400 Cabinet with pedestals
Top hinged, lilt-up front glass Terminal rail for third party controller
Horizontal or inclined display deck LED lighting
Evaporators protected with cataphoresis Variety of RAL colors available
Application
Dairy products Cheese Meat Minced meat Cold cuts Fish Pastry Delicatessen
Hot meals Prepacked Prepacked Prepacked Prepacked Prepacked Prepacked Prepacked
cheese meat minced meat cold cuts fish pastry delicatessen
12 | Counter Line 2021Straight Line
Basic Models
Danaos X 250 90H LU A
270 400
400 Module name
170 Name suffix (if indicated)
195
190
150
170
Module length /type
190
750 Display deck depth
1165
1190
850
1190
900
Display deck height
880
880
880
Total Transparency (Rounded Corner)
525
503
525
Revision index
1180
1040 1180
Danaos. 75H LU A Danaos. 85H LU A/B Danaos. 90H LU A/B
Models available
Remote / Plug-In
Serve-Over / Self-Service
Internal & external corners
An overview all avialable models / cross sections
can be found on page 22
Customization
Customization
F/M07 DECOR FRONT PANEL
F/M07 F/M11 PLINTH PANEL
F/M37
F/M37 AIR BAFFLE PLATE
F/M40
F/M39 BOTTOM DECK
F/M39
F/M 40 RETURN AIR GRILLE
F/M11 For more information on design, consult our COUNTER
AESTHETICS CATALOGUE for an overview of materials,
colors and decorative versions available.
Technical data
Modules Corners
Danaos 63 94 125 156 188 250 312 375 EC45 EC90 IC45 IC90
Standard cabinets in all following tables
Total display area (m2)
Danaos. 75H LU A - - 0.94 - 1.41 1.88 - 2,81 - - - -
Danaos. 85H LU A/B 0.53 0.80 1.06 1.30 1.59 2.13 2.66 3.19 0.98 1.60 1.09 2.18
Danaos. 90H LU A/B 0.57 0.84 1.13 1.41 1.69 2.25 2.81 3.38 1.04 1.70 1.16 2.32
Temperature range* (°C) 3M1 (-1 /+1) 3M2 (0 /+2) +2 /+4 +4 /+6
Special application
Danaos. 00H GC LU A/B - - 1.00 - 1.40 2.00 - 3.00 - - - -
Danaos. 85H BW LU B - - 0.71 - - - - - - - - -
Danaos. 85H GW LU B - - 0.78 - - - - - - - - -
Temperature range* (°C) 3M1 (-1 /+1) 3M2 (0 /+2) +2 /+4 +4 /+6
Hot counter, bain-marie Hot counter, heated
OO Natural cooling GC Gravity coil, for fish BW with hot lamp GW plate with hot lamp

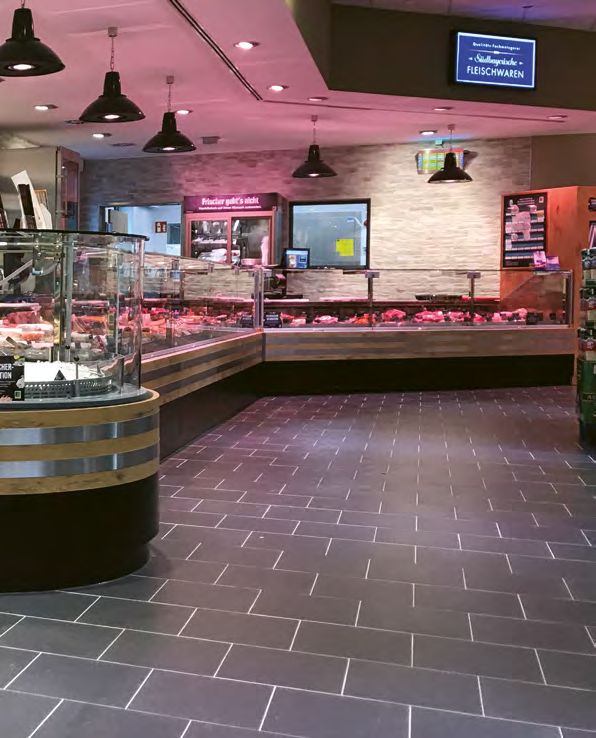

Counter Line 2021 | 13Danaos® Invite

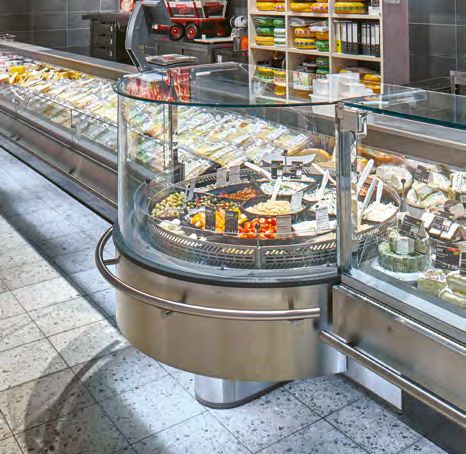

Straight Line specials
The eye-catcher in your straight line counter range
Benefits at a glance
Straight Lines
Window opening at the front
Eye-catching food presentation with swivel plate functionality
Creates a stand-out highlight in your counter line
Variability of use for all product groups
Easily combinable with Danaos straight units
Modern look with large glass surfaces and stainless steel front
Easy cleaning thanks to the tiltable top canopy glass and removable swivel plate
Standard configuration Options
Semicircular design presentation Display shelves
Swivel plate manually rotatable Swivel plate in different materials and colors
Fan-assisted air circulation Fish tray
One length (mm): 1250 Tray set for swivel plate (17 pieces)
Tiltable top canopy Additional tray set for lateral positioning (8 pieces)
Stainless steel bumper Cutting board, knife sheath, scale/slicer platform
Front pedestal in stainless steel External cladding options in wood or similar material
Internal equipment in stainless steel Variety of RAL colors available
Application
Cheese Sandwiches Cold cuts Meat Fish
14 | Counter Line 2021Straight Line specials
Basic Models
Invite 125 A
Cabinet name
Module length /type
index / suffix
Danaos Invite Danaos Invite V A
Models available Customization
Remote Danaos Invite can be multiplexed with
Serve-Over cabinet version of:
An overview all avialable models / cross sections Danaos A
can be found on page 22 Danaos B
Danaos Invite V A can be multiplexed with
cabinet version of:
Danaos Invite – Top view Danaos Lift Up
Danaos Easy Opening
For more information on design, consult our COUNTER
AESTHETICS CATALOGUE for an overview of materials,
colors and decorative versions available.
Technical data
Modules
Danaos 63 94 125 156 188 250 312 375
Total display area (m2)
Danaos Invite - - 1.31 - - - - -
Danaos Invite V A - - 1.31 - - - - -
Temperature range* (°C) 3M1 (-1 /+1)
Counter Line 2021 | 15Danaos® TT & TT rounded corner
Straight Line
Transparency is the key, thanks to seemless pillars
Benefits at a glance Benefits at a glance
Attractive full-glass design Exclusive product appearance with an eye-catching
Full transparency effect
Excellent product visibility with an eye-catching effect Trendy, stylish design
Remote and plug-in version for maximum adaptability Perfectly rounded shapes
High quality, easy-to-clean materials Easily multiplexible with Danaos Total Transparency
straight units
Standard configuration Customization
Fan-assisted air circulation* Different aesthetics (Standard / Total Inox / Flat / Wood)*
2 display decks (mm): 850, 900* Product dividers*
1 base height (mm): 600* Pricing rail
4 lengths (mm): 1250, 1875, 2500, 3750 Cutting board, knife sheath, scale / slicer platform*
Full-glass straight superstructure with bottom-hinged tilt- Cabinet with pedestals*
down glass*, top canopy 270 mm Terminal rail for third party controller*
Horizontal or inclined display deck Variety of RAL colors available*
Evaporators protected with cataphoresis*
Bottom hinged
tilt down front glass
Application
Dairy products Cheese Meat Minced meat Cold cuts Fish Delicatessen
Prepacked Prepacked Prepacked Prepacked Prepacked Prepacked
cheese meat minced meat cold cuts fish delicatessen
16 | Counter Line 2021 *Rounded corner ** External corners 45/90°Straight Line
Basic Models
Danaos S 250 90H TT A
275 275 Module name
Name suffix (if indicated)
170 195
150
Module length /type
Display deck depth
190
750 850
1190
1164
Display deck height
880
880
Total Transparency (Rounded Corner)
525
503
Revision index
1040 1180
Danaos. 75H TT Danaos. 85H TT
275
170
Models available
190
900
1190
Remote / Plug-In
880
Serve-Over / Self-Service
525
Internal & external corners
1180 An overview all avialable models / cross sections
can be found on page 22
Danaos. 90H TT / 90H TT RC Danaos. TT self-service
Customization
Customization
F/M07 DECOR FRONT PANEL
F/M07 F/M11 PLINTH PANEL
F/M37
F/M37 AIR BAFFLE PLATE
F/M40
F/M39 F/M39 BOTTOM DECK
F/M 40 RETURN AIR GRILLE
F/M11 For more information on design, consult our COUNTER
AESTHETICS CATALOGUE for an overview of materials,
colors and decorative versions available.
Technical data
Modules
Energy
Danaos 63 94 125 156 188 250 312 375 EC45 EC90
label
Total display area (m2)
Danaos. 75H TT - - 0.94 - 1.41 1.88 - 2.81 - -
A
G F
Danaos. 85H TT - - 1.16 - 1.69 2.23 - 3.29 - -
A
G E
Danaos. 90H TT - - 1.23 - 1.79 2.35 - 3.48 - -
A
G E
Danaos. 85H TT RC - - - - - - - - 1.08 2.16
Danaos. 90H TT RC - - - - - - - - 1.14 2.28
Temperature range* (°C) 3M1 (-1 /+1) 3M2 (0 /+2) +2 /+4 +4 /+6
Special Application
Danaos.00H GC TT A - - 1.00 - 1.50 2.00 - 3.00 - -
Danaos. 85H TT RC - - - - - - - - - -
Danaos. 90H TT RC - - - - - - - - - -
Temperature range* (°C) 3M1 (-1 /+1) 3M2 (0 /+2) +2 /+4 +4 /+6
OO Natural cooling GC Gravity coil, for fish
Counter Line 2021 | 17Danaos® Easy Opening
Straight Line
Danaos straight line with easy cleaning & refill options thanks
to window opening glasses
Benefits at a glance
Straight Lines
Window opening at the front
Easy cleaning of the glass superstructure
Fast loading of food items
Ergonomic design for easy operation
Attractive and modern flat glass design
Remote and plug-in version
High quality, easy-to-clean materials
Standard configuration Customization
Front glasses open to the sides with push-to-open mechanism LED lighting
Lift-up top canopy glass Product dividers
Fan-assisted air circulation Pricing rail
3 display decks (mm): 750, 850, 900 Cutting board, knife sheath, scale/slicer platform
2 base heights (mm): 600, 700 Cabinet with pedestals
Horizontal or inclined display deck Terminal rail for third party controller
Evaporators protected with cataphoresis Variety of RAL colors available
Application
Cheese Meat Minced meat Cold cuts Fish Pastry Delicatessen
18 | Counter Line 2021Straight Line
Basic Models
275
Danaos S 250 90H EO A
400
Cabinet name
195 195 Name suffix (if indicated)
150
150
Module length /type
850 850
1190
1190
Display deck depth
880
880
Display deck height
525
525
Revision index, suffix
1180 1180
Models available
Danaos. 85H EO A V Danaos.85H EO B V
Remote
275 400 Serve-Over / Self service
Internal & external corners
170 170
190
190
An overview all avialable models / cross sections
900 900 can be found on page 22
1190
1190
880
880
525
525
1180 1180
Danaos. 90H EO A V Danaos. 90H EO B V
Customization
Customization
F/M40 F/M07 DECOR FRONT PANEL
F/M37 F/M11 PLINTH PANEL
F/M07
F/M37 AIR BAFFLE PLATE
F/M39 BOTTOM DECK
F/M39 F/M11 F/M 40 RETURN AIR GRILLE
For more information on design, consult our COUNTER
AESTHETICS CATALOGUE for an overview of materials,
colors and decorative versions available.
Technical data
Modules
Danaos 63 94 125 156 188 250 312 375 Energy
label
Total display area (m2)
Danaos 85H EO A/B - - 1.06 - 1.59 2.13 - 3.19
A
G E
Danaos 90H EO A/B - - 1.13 - 1.69 2.25 - 3.38
A
G F
Temperature range* (°C) 3M1 (-1 /+1) 3M2 (0 /+2) +2 /+4 +4 /+6
Special Application
Danaos.00H GC EO A/B - - 1.00 - 1.50 2.00 - -
OO Natural cooling GC Gravity coil, for fish
Counter Line 2021 | 19Danaos® Convertible Counter
Straight Line specials
Stylish & straight design for flexible and multifunctional use
Benefits at a glance
Easily convertible from serve-over to self serve counter
Highly transparent w/o columns / hinges
Flexibility to meet a variety of store applications
Easily convertible from self-service to serve-over
Exclusive appearance with modern and trendy flat glass design
Remote and plug-in version for maximum adaptibility
High quality, easy-to-clean materials
Standard configuration Option
Fan-assisted air circulation Different aesthetics
1 display deck (mm): 780 (E5 / CB / Total Inox / Flat / Wood)
1 base height (mm): 600 Product dividers
4 lengths (mm): 1250, 1880, 2500, 3750 Cutting board, knife sheath, scale/slicer platform
Convertible glass superstructure Cabinet with pedestals
Horizontal or inclined display deck Terminal rail for third party controller
Evaporators protected with cataphoresis Variety of RAL colors available
Application
Dairy products Cheese Meat Minced meat Cold cuts
Prepacked Prepacked Prepacked Prepacked
cheese meat minced meat cold cuts
20 | Counter Line 2021Straight Line specials
Basic Models
Danaos CC X 188 OOH C
Cabinet name
Name suffix (if indicated)
Module length /type
Display deck depth
Display deck height
Revision index
Models available
Danaos. CC 00H C
Remote
Serve-Over / Self-Service
An overview all avialable models / cross sections
can be found on page 22
Customization
Customization
F/M07 DECOR FRONT PANEL
F/M37
F/M11 PLINTH PANEL
F/M40 F/M07 F/M37 AIR BAFFLE PLATE
F/M39 BOTTOM DECK
F/M11
F/M 40 RETURN AIR GRILLE
F/M39
For more information on design, consult our COUNTER
AESTHETICS CATALOGUE for an overview of materials,
colors and decorative versions available.
Technical data
Modules
Danaos 63 94 125 156 188 250 312 375 Energy
label
Total display area (m ) 2
Danaos. CC 00H - - 1.14 - 1.54 2.03 - 3.01
A
G G
Temperature range* (°C) 3M2 (0 /+2) +2 /+4 +4 /+6
OO Natural cooling
Counter Line 2021 | 21Danaos A / Danaos B
Straight Line
Self service Self service
Danaos. 75H B
A
G F Danaos. 85H B
A
G E Danaos. S 85H B
A
G F Danaos. 90H B
A
G F Danaos. S 90H A
A
G G
Special application*
Self service
400 400 400
260 260
992
841 841
1190
1190
1190
950
950
876
535
535
535
1173 1200 1200
Danaos. 00H GC B Danaos. S 00H GC B Danaos. 00H SF B Danaos. 00H SF B +WP Danaos. 00H SF B +WP + EV
Danaos Lift Up Special application*
400 400 270 400
170
190
195 170 195
150
130
190
810
1190
1190
1190
850 900 750
1165
880
880
880
880
525
525
503
525
1180
1180 1040
1180
Danaos. 85H LU A/B Danaos. 90H LU A/B Danaos. 75H LU A Danaos. 75 E LU A/B Danaos. 00H GC LU A/B
Danaos Total Transparency
Self service
275 275 275
170 195 170
190
150
190
750 850 900
1190
1190
1164
880
880
880
525
525
503
1040 1180
1180
Danaos. 75H TT
A
G F Danaos. 85H TT
A
G E Danaos. 90H TT
A
G F Danaos. TT self-service
22 | Counter Line 2021Danaos Convertible Counter Special application*
Straight Line
400 585
400 305
195 170
190
170
150
780
180
850 900
1190
1190
1190
880
880
880
831
535
535
535
1160 1160 1160
Danaos. X 85H B
A
G G Danaos. X 90H B
A
G G Danaos. CC 00H C
A
G G
Danaos X 375 90H _ A
Module name
According to the
superstructure type
Name suffix
1165
770 S Self-service single display deck
X Plug-in cabinet
840
Module length
100
Length in cm For straight cabinets
1190
EC45, EC90 For external corners
880
IC45, IC90 For internal corners
535
360
CE For crown end case
Display deck depth
75 Extra small 750 mm 00 Display deck depth
85 Medium 850 mm is not a differentiating
Danaos. 00H VF B Danaos. 85H GW B Danaos. 85H BW B
90 Large 900 mm factor for the cabinet
95 Extra large 950 mm definition
Display deck height
E Extra 700 mm M Medium 540 mm
Special cabinets H High 600 mm L Low 400 mm
Temperature range: 8 (-18/-20 °C ... -22/-24 °C)
Supplementary details
Self service
GC Gravity coil for fish
BW Hot with bain-marie and warming lamp
400 400 GW Hot plate with warming lamp
NR Not refrigerated
No suffix for ventilated NT cabinet
195 195
690 695
Supplementary index
1190
1190
100
Identifies major revisions: A, B, C ...
880
880
525
525
1180 1180
* T hese cabinets are not within the scope of „Commision
Delegated Regulation (EU) 2019/2018 supplementing
Regulation (EU) 2017/1369 with regard to energy labelling of
refrigerating appliances with a direct sales function.
Danaos. 85H BW LU B Danaos. 85H GW LU B Danaos Invite Danaos Invite V A
Danaos Easy Opening Special application*
DANAOS GC EO A DANAOS GC EO B
400
275 400 275 400 275
195 195 170 170 195 195
190
130
130
190
150
150
810 810
850 850 900 900
1190
1190
1190
1190
1190
1190
880
880
880
880
880
880
525
525
525
525
525
525
1180 1180 1180
1180
Danaos. 85H EO A V Danaos. 85H EO B V Danaos. 90H EO A V Danaos. 90H EO B V Danaos. 00H GC EO A Danaos. 00H GC EO B
*All energy labels presented for best energy configuration.
Counter Line 2021 | 23Curved Line
24 | Counter Line 2021Curved Line
Curved Line
Counter Line 2021 | 25Hera
Curved Line
Curved lines for high merchandise vislibilty
Benefits at a glance
Curved lines & glasses
High transparency
Bottom hinged tilt down glass
Panoramic full-glass view of products on display
Various display depths for optimized merchandise placement
Optimized temperature performance
High-quality, easy-to-clean materials
Standard configuration Options
Fan-assisted air circulation Product dividers
4 display decks (mm): 750, 850, 900, 950 Pricing rail
2 base heights (mm): 540, 600 Cutting board, knife sheath, scale / slicer platform
Tilt-down front glass Cabinet with pedestals
Horizontal or inclined display deck Wide range of cladding options
Terminal rail for third party controller
Application
Dairy products Cheese Meat Minced meat Cold cuts Fish Sandwiches
Prepacked Prepacked Prepacked Prepacked Prepacked Prepacked
cheese meat minced meat cold cuts fish sandwiches
26 | Counter Line 2021Curved Line
Basic Models
Hera S 250 90H A
Cabinet name
Name suffix (if indicated)
Module length /type
Display deck depth
Display deck height
Revision index
Hera. 75H A Hera. 85H A
Models available
Remote / Plug-In
Hera. S 75H A Hera. S 85H A Serve-Over / Self-Service
Internal, external corners & crown end
An overview all avialable models / cross sections
can be found on page 32
Customization
Customization
F/M07 DECOR FRONT PANEL
F/M40
F/M11 PLINTH PANEL
F/M37 F/M07 F/M37 AIR BAFFLE PLATE
F/M39 BOTTOM DECK
F/M11
F/M39 F/M 40 RETURN AIR GRILLE
For more information on design, consult our COUNTER
AESTHETICS CATALOGUE for an overview of materials,
colors and decorative versions available.
Technical data
Modules Corners
Hera 63 94 125 156 188 250 312 375 EC45 EC90 IC45 IC90 CE* Energy
Standard cabinets in all following tables label
Total display area (m2)
Hera. 75H A - - 0.94 - 1.41 1.88 - 2.81 - - - - 1.41
A
G F
Hera. 85H A 0.53 0.80 1.06 1.30 1.59 2.13 2.66 3.19 0.98 1.60 1.09 2.18 -
A
G E
Hera. 90H A 0.57 0.84 1.13 1.41 1.69 2.25 2.81 3.38 1.04 1.70 1.16 2.32 1.98
A
G E
Temperature range* (°C) 3M1 (-1 /+1) 3M2 (0 /+2) +2 /+4 +4 /+6
SpecialApplication
Hera. 00H GC A - - 1.00 - 1.50 2.00 - 3.00 - - - - -
Temperature range* (°C) 3M1 (-1 /+1) 3M2 (0 /+2) +2 /+4 +4 /+6
OO Natural cooling GC Gravity coil, for fish
* Crown end available for self-service version.
** T hese temperature ranges are shown in general for the refrigerated cabinets. Loading height limitation for -1 /+1 °C: 100 mm.
*** Please refer to the technical manual to match the right temperature range to the different versions.
Counter Line 2021 | 27Apollo
Curved Line
Curved, flexible design for optimal versatility
Benefits at a glance
Curved lines & glasses
High transparency
Top hinged tilt down glass
Various display depths for optimized merchandise placement
Secondary product placement
Easy access to the products from the front and from the back
Enhanced visibility with integrated lighting
Optimized temperature performance
High-quality, easy-to-clean materials
Standard configuration Options
Fan-assisted air circulation Product dividers
3 display decks (mm): 850, 900, 950 Pricing rail
2 base heights (mm): 600, 540 Cutting board, knife sheath, scale / slicer platform
Top-hinged lift-up front glass Cabinet with pedestals
Horizontal or inclined display deck Wide range of cladding options
Terminal rail for third party controller
LED lighting
Application
Dairy products Cheese Meat Minced meat Cold cuts Delicatessen Fish Pastry Hot meals
28 | Counter Line 2021Curved Line
Basic models Schnittbild, Sectional View, Coupe de Meuble, Sezione
Apollo S 250 90H A
APOLLO. 90H A closed base Cabinet name
Name suffix (if indicated)
575 Module length /type
445
Display deck depth
Display deck height
170
190
Revision index
900
1220
880
535
465
CON RISERVA DI MODIFICA SENZA PREAVVISO
130 640 395
SUBJECT TO CHANGE WITHOUT NOTICE
SOUS RÉSERVE DE MODIFICATION
ÄNDERUNGEN VORBEHALTEN
65 795 305
1160
1 : 10
04.2008
Apollo. 85H A Apollo. 90H A
Models available
Remote / Plug-In
Serve-Over / Self-Service
Internal, external corners & crown end
An overview all avialable models / cross sections
can be found on page 32
Customization
Customization
F/M07 DECOR FRONT PANEL
F/M40 F/M11 PLINTH PANEL
F/M37 F/M07
F/M37 AIR BAFFLE PLATE
F/M39 BOTTOM DECK
F/M11 F/M 40 RETURN AIR GRILLE
F/M39
For more information on design, consult our COUNTER
AESTHETICS CATALOGUE for an overview of materials,
colors and decorative versions available.
Technical data
Modules Corners
Apollo 63 94 125 156 188 250 312 375 EC45 EC90 IC45 IC90 CE* Energy
Standard cabinets in all following tables label
Total display area (m2)
Apollo. 85H A 0.53 0.80 1.06 1.30 1.59 2.13 2.66 3.19 0.98 1.60 1.09 2.18 -
A
G E
Apollo. 90H A 0.57 0.84 1.13 1.41 1.69 2.25 2.81 3.38 1.04 1.70 1.16 2.32 1.98
A
G F
Temperature range* (°C) 3M1 (-1 /+1) 3M2 (0 /+2) +2 /+4 +4 /+6
SpecialApplication
Apollo. 00H GC A - - 1.00 - 1.50 2.00 - 3.00 - - - - -
Apollo. 85H/90H BW A - 0.50 0.71 - - - - - - - - - -
Apollo. 85H/90H GW A - 0.54 0.78 - - - - - - - - - -
Temperature range* (°C) 3M1 (-1 /+1) 3M2 (0 /+2) +2 /+4 +4 /+6
Hot counter, bain-marie Hot counter, heated
OO Natural cooling GC Gravity coil, for fish BW with hot lamp GW plate with hot lamp
* Crown end available for self-service version.
** These temperature ranges are shown in general for the refrigerated cabinets. Loading height limitation for -1 /+1 °C: 100 mm.
Please refer to the technical manual to match the right temperature range to the different versions.
Counter Line 2021 | 29Cabrio
Curved Line
Curved shape with flexible merchandise for every market situation
Benefits at a glance
Multi-functional design
Easily convertible from self-service to serve-over
Flexibility to meet the requirements of various store applications
Plug-in version for easy relocation
Ergonomic design for staff comfort and accessibility
Standard configuration Options
Fan-assisted air circulation Pricing rail
1 display deck (mm): 850 Cutting board, knife sheath, scale/slicer platform
Fixed top canopy, back supports, equipped with serve-over Cabinet with pedestals
and self-service front glasses Wide range of cladding options
Horizontal or inclined display deck Terminal rail for third party controller
LED lighting
Application
Dairy products Cheese Meat Minced meat Cold cuts Delicatessen
30 | Counter Line 2021Curved Line
Basic models Cabrio X 250 90H A
Cabinet name
Name suffix (if indicated)
Module length /type
Display deck depth
Display deck height
Revision index
Cabrio. 85H A
Models available
Remote
Serve-Over / Self-Service
An overview all avialable models / cross sections
can be found on page 32
Customization
Customization
F/M07 DECOR FRONT PANEL
F/M40 F/M11 PLINTH PANEL
F/M37 AIR BAFFLE PLATE
F/M37 F/M07 F/M39 BOTTOM DECK
F/M 40 RETURN AIR GRILLE
F/M11 For more information on design, consult our COUNTER
AESTHETICS CATALOGUE for an overview of materials,
F/M39 colors and decorative versions available.
Technical data
Modules
Energy
Cabrio 125 188 250 375
label
Total display area (m2)
Cabrio 85H A / X 85H A 1.06 1.59 2.13 -
A
G F
Temperature range* (°C) 3M1 (-1 /+1) 3M2 (0 /+2) +2 /+4 +4 /+6
* T hese temperature ranges are shown in general for the refrigerated cabinets. Loading height limitation for -1 /+1 °C: 100 mm.
Please refer to the technical manual to match the right temperature range to the different versions.
Counter Line 2021 | 31Hera
Curved Line
Self service Self service
Hera. 75H A
A
G F Hera. S 75H A
A
G G Hera. 85H A
A
G E Hera. S 85H A
A
G F Hera. 90H A
A
G E
Apollo
Self service
Apollo. 85H A
A
G E Apollo. S 85H A
A
G F Apollo. 90H A Apollo. S 90H A
Cabrio
Cabrio. 85H A
A
G F Cabrio. X85H A
A
G F
32 | Counter Line 2021Special application*
Curved Line
Schnittbild, Sectional View, Coupe de Meuble, Sezione
HERA X. 90H A
Self service Self service Self service
580
170
190
900
1165
880
535
465
130 640 395
CON RISERVA DI MODIFICA SENZA PREAVVISO
SUBJECT TO CHANGE WITHOUT NOTICE
SOUS RÉSERVE DE MODIFICATION
ÄNDERUNGEN VORBEHALTEN
65 795 305
1160
G
A 1 : 10
Hera. S 90H A G Hera. X 90H A
04.2008
Hera. 00H GC A Hera. S 00H GC A
Special application*
Self service
Apollo. 00H GC A Apollo. S 00H GC A Apollo. 85H BW A Apollo. 85H GW A
Hera X 375 90H _ A
Module name
According to the
superstructure type
Name suffix
S Self-service single display deck
X Plug-in cabinet
Module length
Length in cm For straight cabinets
EC45, EC90 For external corners
IC45, IC90 For internal corners
CE For crown end case
Display deck depth
75 Extra small 750 mm
00 Display deck depth is
85 Medium 850 mm
not a differentiating factor
90 Large 900 mm
for the cabinet definition
95 Extra large 950 mm
Display deck height
E Extra 700 mm M Medium 540 mm
H High 600 mm L Low 400 mm
Temperature range: 8 (-18/-20 °C ... -22/-24 °C)
Supplementary details
GC Gravity coil for fish
BW Hot with bain-marie and warming lamp
GW Hot plate with warming lamp
NR Not refrigerated
No suffix for ventilated NT cabinet
Supplementary index
Identifies major revisions: A, B, C ...
* T hese cabinets are not within the scope of „Commision Delegated
Regulation (EU) 2019/2018 supplementing Regulation (EU) 2017/1369
with regard to energy labelling of refrigerating appliances with a direct
sales function.
All energy labels presented for best energy configuration.
Counter Line 2021 | 33Medea® GEN 2
Semi-vertical
Semi-vertical cabinets are the perfect choice for self-service presentation.
Products are presented in a vertical manner to perfectly catch the eye of the shopper
Benefits at a glance
Stylish self-service counter for easy to grab food Flexible in-store planning due to different modular
presentation lengths and heights
Improved temperature performance and efficiency Different designs tailored to every store‘s needs
Enhanced loading capacity and high footprint
utilization by up to four display levels
Standard configuration Customization
Ventilated cabinet with powder coated finish Canopy and shelf LED-lighting
4 different lengths, 2 depths, 3 front heights and 3 cabinet Manual night blind
heights, crown end and corners (depth 90) Rear panel in stainless steel
Refrigerated shelves with decline possibility (0° / -8° / -18°) Cabinet inside, internal parts and display shelves in
Remote or Plug-in versions stainless steel
Plastic front as integrated bumper Different color options
Closed base with painted panels Plastic coated back cover panel
Solar thermometer Pedestals
Glass demisting system (with fans) Cladding options
Evaporator with aluminum fins and cataphoresis
protection
R448/449a thermostatic valve
Application
Soft Dairy Prepacked fruits Prepacked Prepacked Sandwiches Prepacked
drinks products & vegetables cheese cold cuts delicatessen
34 | Counter Line 2021Semi-vertical
Basic models MEDEA GEN2 75H SQ
505
MEDEA GEN2 75H ST
MEDEA GEN2 75H SD
100
505
310
Medea SD 375 90H M2 1
100
100
300 260
505
410 410 Cabinet name
1020
100
100
100
300
820
500 500 500 Name suffix
1740
520
100
100
100
1540
290
290
295
755 750 750 Module length /type
1235
Display deck depth
770
770
770
515
510
510
360
360
360
Display deck height
160 160 160
550 550 250 550
250
Temperature class
250 640 640
640
1000 1000
1000
Carrier Kältetechnik Deutschland GmbH
Revision index
14.12.20
4207614
Medea Gen2 75H SD Medea Gen2 75H ST MedeaMEDEA
Gen2 75H SQ
4199987 1:10
1:10 Carrier Kältetechnik Deutschland GmbH
14.12.20
Carrier Kältetechnik Deutschland GmbH
14.12.20
GEN2 90H SQ
505
MEDEA GEN2 90H ST
100
MEDEA GEN2 90H SD
505
Models available
310
100
300 260
505
410 410
1010
100
100
100
100
300
820
500
1740
500 500
Remote / Plug-In
100
520
100
100
1540
290
290
290
895 895 895
1235
Self-Service
795
795
795
Crown end
540
540
540
360
360
360
310 310 310
695 695
695 640 390
640 390 640 390
1140
1140 1140
Carrier Kältetechnik Deutschland GmbH
14.12.20
Medea Gen2 90H SD 4199999
Medea Gen2 90H ST 1:10
Medea Gen2 90H SQ
1:10 Carrier Kältetechnik Deutschland GmbH
14.12.20
Carrier Kältetechnik Deutschland GmbH
14.12.20
Customization
Customization
F/M02
F/M02 CANOPY PANEL
F/M58 F/M07 DECOR FRONT PANEL
F/M37
F/M11 PLINTH PANEL
F/M38
F/M37 AIR BAFFLE PLATE
F/M39
F/M40 F/M38 DISPLAY SHELVES
F/M11 F/M39 BOTTOM DECK
F/M07 F/M40 RETURN AIR GRILLE
F/M58 PRICE RAIL F DISPLAY SHELF
For more information on design, consult our COUNTER
AESTHETICS CATALOGUE for an overview of materials, colors
Technical data and decorative versions available.
Modules Energy
Medea 125 188 250 375 CE label
Total Display Area
Remote
Medea SD.75 H (m²) 1,13 1,69 2,25 3,38 1,69
A
G E
Medea ST.75 H (m²) 1,5 2,25 3 4,5 2,25
A
G E
Medea SQ.75 H (m²) 1,75 2,63 3,5 5,25 2,63
A
G F
Medea SD.90 H (m²) 1,28 1,92 2,56 3,84 2,27
A
G E
Medea ST.90 H (m²) 1,66 2,48 3,31 4,97 2,93
A
G E
Medea SQ.90 H (m²) 1,91 2,86 3,81 5,72 3,37
A
G F
Temperature range (°C) 3M2 (0…+2)
Plug-in
Medea SD X .75 H (m²) 1,13 1,69
A
G G
Medea ST X.75 H (m²) 1,5 2,25
A
G G
Medea SQX .75 H (m²)
Medea SD X.90 H (m²) 1,28 1,92
A
G G
Medea ST X. 90 H (m²) 1,66 2,48
A
G G
Medea SQ X.90 H (m²)
Temperature range (°C) 3M2 (0…+2)
Counter Line 2021 | 35Counter - Special Solutions 36 | Counter Line 2021
Counter - Special Solutions
Counter – Special Solutions
Counter Line 2021 | 37Counter - Special Solutions
Marché Fresh
The ideal self-service counter for impulse sales
Marché Fresh counters offer a great look. Stainless steel materials and modern lines easily integrate into the interior design of
contemporary stores. Marché Fresh creates a highlight area that draws the shoppers‘ attention to the products on display.
Benefits at a glance
Flexibility with different modular lengths and heights High-quality, easy-to-clean materials
Stylish appearance with stainless steel design Easy access to internal components for cleaning and
Optimized energy efficiency and performance with EC service
fans
Standard configuration Options
Fan-assisted air circulation Glass shelves
Different display decks and heights Up to three stainless steel display levels
Stainless steel construction Integrated night blind
Inclined display area Additional intermediate shelves
Application
Soft drinks Dairy products Prepacked Prepacked fruits Sandwiches
cheese & vegetables
38 | Counter Line 2021Counter - Special Solutions
Basic models
Marché Fresh L2H 125 A4
175 Cabinet name
175
Name suffix
Module length /type
Temperature class
Marché L2H.T Marché N9H.T Models available
Remote
Self-Service
Customization
Customization
F/M01 EXTERIOR
F/M35 F/M03 ENDWALL; EXTERNAL
F/M35 INTERIOR EQUIPMENT
For more information on design, consult our COUNTER
F/M03 F/M01
AESTHETICS CATALOGUE for an overview of materials,
colors and decorative versions available.
Technical data
Marché Fresh 125 188 192 250 375 Energy
label
Total display area (m²)
L2H 1.59 2.38 – 3.18 4,76
A
G D
N9H 1.33 1.99 2.04 2.66 3.98
A
G E
* For prepacked food only.
Counter Line 2021 | 39Counter - Special Solutions
Tower Meat & Tower Pastry
Premium products perfectly presented
Tower solutions: Tower Meat & Tower Pastry – are the perfect choice for extraordinary presentation of premium products such as
meat, delicatessen or pastry. At the same time, it is a trendy solution with an eye-catching effect, allowing food items to be displayed
at the optimum vertical levels. Whether meat or pastry, you will be able to stage your specialty foods with the maximum level of style
using the Tower solution.
Flat design Enhanced design
Benefits at a glance
Enhanced product visibility Eye-catching product presentation
Maximum use of vertical space with high loading LED lighting to improve product visibility
capacity
Enhancement of the product’s emotional value
Standard configuration Options
Features CO₂ evaporator with cataphoresis coating protection
Ventilated cabinet with brushed stainless steel uprights Controllers
Evaporator R134 with cataphoresis coating protection Electronic valves
Front, straight-hinged glass with window opening system Plug-in version (R290)
Working plate embossed stainless steel 300 mm LED lighting
(Meat version) Internal color in black RAL 9005
Working plate embossed stainless steel 170 mm Endwall in INOX or RAL included side glass
(Pastry version) Squared bumper
LED lighting Tubular bumper
2 refrigerated glass shelves, 300 mm Granite “black absolute” working plate
Cladding available on request
Application
Cheese Meat Cold cuts Cold cuts Pastry
40 | Counter Line 2021Counter - Special Solutions
Basic models
Tower Meat X 125 M1 1
Cabinet name
1135 1005
Name suffix
820 820
Module length /type
Temperature class
250
250
300 300
Revision index
240
240
300 300
1500
1500
610 610
870
870
Models available
360
360
Remote / Plug-in
Tower Meat Tower Pastry Serve-Over
Customization
Customization
F/M37
F/M03 ENDWALL; EXTERNAL
F/M20 F/M07 DECOR FRONT PANEL
F/M39
F/M20 WORKTOP
F/M40 F/M37 AIR BAFFLE PLATE
F/M39 BOTTOM DECK
F/M40 RETURN AIR GRILLE
F/M03 F/M07 For more information on design, consult our team.
Technical data
Modules
940 1.250 1.880 2.500 Energy
Tower solutions
label
Total Display Area (m2)
Tower Meat (remote / plug-in) 1.30 1.70 2.50 3.40
A
G C
Tower Pastry (remote / plug-in) 1.30 1.70 2.50 3.40
A
G C
Temperature range 3M1 (-1 /+1)
Counter Line 2021 | 41Counter - Special Solutions
Glycos
Pastry products to highlight your day
With this modern and stylish serve-over cabinet, your pastry goods can be presented in a tasty and appealing way. Whether on the
chilled bottom deck or on the non-refrigerated glass shelves the goods are always perfectly presented and the illumination from the
top brings additional brightness. Flexibility is given by a remote or plug-in version to suit the shop owner’s preference.
Its compact depth brings advantages where every centimeter counts and the refrigerated compartment allows storage of goods for
easy and quick refill of the presentation area .
Benefits at a glance
Stylish serve-over cabinet to highlight your pastry
presentation
Modern, straight glass design with unobstructed
views of the goods
Compact depth for places were every centimeter
counts
Easy-to-fill presentation area with refrigerated
base shelf and 2 glass shelves
Refrigerated compartment as additional storage
room
Flexibility in operation and positioning with remote
or plug-in version
Standard configuration Customization
Ventilated cabinet with stainless steel interior Controllers
Remote (CO₂) or Plug-in (R452A) version Electronic valves
Straight front glass Display deck stainless steel or Corian®
Compact depth (bottom deck: 615 mm) Front & side bumper squared 20×20
Refrigerated bottom shelf and 2 non-refrigerated glass Castors (swiveling)
shelves Different internal and external colors
Refrigerated storage room with hinged window opening Cladding available on request
doors Rear sliding plexi doors
LED lighting at the top
Thermostatic exp. valve
Application
Soft Dairy Fruits Prepacked fruits Delicatessen Prepacked Pastry Prepacked Sandwiches
drinks products & vegetables & vegetables delicatessen pastry
42 | Counter Line 2021Counter - Special Solutions
Basic models
Glycos X 125 M2 1
900 Cabinet name
350
Name suffix
Module length /type
150 150
200
Temperature class
Revision index
100
20
1300
615
860
610
Models available
Remote / Plug-In
Serve-Over
Glycos
Customization
F/M37 Customization
F/M07 DECOR FRONT PANEL
F/M07 F/M12 KICKPLATE
F/M37 AIR BAFFLE PLATE
For more information on design, consult our team.
F/M12
Technical data
Modules
Tower solutions 1.250 1.6250 2.050 2.500
Total Display Area (m ) 2
Glycos (remote) 1.18 1.52 1.85 2.22
Glycos (plug-in R452A, R290) 1.18 1.52 1.85 2.22
Temperature range 3M2 (base shelf)
* T hese cabinets are not within the scope of „Commision Delegated Regulation (EU) 2019/2018 supplementing Regulation (EU) 2017/1369 with regard to energy labelling of refrigerating
appliances with a direct sales function.
Counter Line 2021 | 43Counter - Special Solutions
ServiMax / ServiMax XL
Efficiently designed counter combination to boost your sales
Benefits at a glance
Island solution with outstanding counter design
High footprint utilization
Additional space for promotional items
Excellent display of pre-packed fresh food
Ideal product visibility
Standard configuration Customization
Island set-up combination Straight glass
Refrigerated counter island with fan-assisted air Front bumper rail 30 mm ø, rounded
circulation Endwall bumper rail 20 mm or 30 mm ø, rounded
Different loading heights (225mm or 355mm) Adjustable internal bottom grids, black or stainless steel
Different widths (1800mm and 2020mm) Price holder
Different lengths (mm): 1250, 1875, 2500, 3750 Internal equipment in stainless steel
Endwall with full-glazing design Different external and internal RAL colors
Internal color RAL 9005, External color RAL 9007 CO₂ evaporator
Front bumper rail 20mm ø, rounded Electrical defrost
Digital thermometer Controller and sensors
Crown-end with metal-sheet effect mirror on the back wall
Application
Dairy products Prepacked Prepacked Prepacked Prepacked Prepacked
cheese meat minced meat cold cuts fish
44 | Counter Line 2021Counter - Special Solutions
Basic models
Änderungen vorbehalten Änderungen vorbehalten Änderungen vorbehalten
Servimax XL - GL . 375 A4
Subject to change without notice Subject to change without notice Subject to change without notice
Sous réserve de modification Sous réserve de modification Sous réserve de modification
2020
Carrier Kältetechnik Deutschland GmbH
Carrier Kältetechnik Deutschland GmbH
Carrier Kältetechnik Deutschland GmbH
2020 1800
700 310 590 310
700 310
Cabinet name
390
Name suffix
390
390
225
225
355
ServiMax XL
810 810 700 700
ServiMax S
ServiMax
810 810
950
890
890
Module length /type
570
510
510
310
310
240
25 25 25 175
Temperature class
175 175
45 45 45
1585 1585 1365
4183404
4183409
4183408
29.11.2017
29.11.2017
29.11.2017
1270 200
1:10
1:10
1:10
1270 200 1050 200
ServiMax ServiMax XL
Änderungen vorbehalten
Subject to change without notice
Änderungen vorbehalten
ServiMax S
Subject to change without notice
Sous réserve de modification Sous réserve de modification
Carrier Kältetechnik Deutschland GmbH
Carrier Kältetechnik Deutschland GmbH
Änderungen vorbehalten
Subject to change without notice
Sous réserve de modification
2020 1800
Carrier Kältetechnik Deutschland GmbH
Models available
1800
805 310 695 310
590 310
ServiMax S GL
ServiMax GL
390
350
350
ServiMax XL S
225
225
350
810 810 700 700
235
700 700
950
890
890
Remote
570
510
510
310
310
25 175 25 175
45
25 175
45
Self-Service
45
4184111
4184113
1585 1365
Crown end
27.12.17
29.12.17
1:10
1:10
1365
1270 200 1050 200
4183407
29.11.2017
1:10
1050 200
ServiMax XL S
Änderungen vorbehalten
ServiMax GL
Änderungen vorbehalten
ServiMax S GL
Subject to change without notice Subject to change without notice
Sous réserve de modification Sous réserve de modification
Glycos
Carrier Kältetechnik Deutschland GmbH
Carrier Kältetechnik Deutschland GmbH
2020 2020
805 310 805 310
ServiMax XL GL
ServiMax XL GL
350
350
355
355
810 810 810 810
950
950
570
570
240
240
25 25
175 175
4184115
4184115
45 45
03.01.18
03.01.18
1:10
1:10
1585 1585
1270 200 1270 200
ServiMax XL GL ServiMax XL S GL
Customization
Customization
F/40 F/M07 DECOR FRONT PANEL
F/M07
F/M11 PLINTH PANEL
F/37
F/M11 F/M37 AIR BAFFLE PLATE
F/M39 BOTTOM DECK
F/M40 RETURN AIR GRILLE
F/39
For more information on design, consult our team.
Technical data
Modules
Energy
ServiMax 125 188 250 375 CE*
label
Total display area [m2]
ServiMax / ServiMax XL 2.18 3.27 4.36 6.54 1.66
Loading volume [m³]**
Servimax *** 0.19 0.29 0.38 0.57 0.13
Servimax XL **** 0.44 0.66 0.87 1.31 0.30 A
G D
Servimax S *** 0.16 0.24 0.33 0.49 0.11
Servimax XL S **** 0.37 0.56 0.75 1.12 0.26
Temperature range [°C] -1 /+1
* Crown-end available for self-service version. helyett: Crown-end available
** Volume calculated considering the display surface in the lowest position.
Volume calculated with products displayed on steps.
*** Calculated with 100 mm load limit (see technical data sheet)
**** Calculated with 230 mm load limit (see technical data sheet)
Counter Line 2021 | 45External Aesthetics
Options – external
Front design, multiplexing kits & sidewalls
Front aesthetic: Carrier offers a wide range of possibilities
when it comes to the design of the counters. Front aesthetic,
endwalls and pedestals are available in many designs, material Standard
finishings and colours.
Basement: Closed basement models can have different front
panel heights. Standard design has the thinnest front below
the glass superstructure. Enhanced design features a higher
front panel. Flat design aligns the full front in one pane with the
superstructure. Enhanced Flat
Cladding: Whether painted metal sheet, total Inox design
or wood cladding, any solutions can be chosen for your
refrigerated counters.
Multiplexing kits: for a harmonic connection of different
cabinets.
Sidewalls: selectable depending on preferences: Flat,
mirrored, thermopane, tempered for a line up of cabinets
Pedestals
Pedestals are not just a supporting element of the cabinet but
a fundamental part of the aesthetics becoming an integral part
of the counter’s design.
Therefore a good design of the pedestal will enhance the
overall look of the counter line.
Available materials include painted metal sheet, stainless steel,
or even a unique solution, such as a wood laminate cover.
In addition, the size and shape of the pedestal can vary from
rounded to rectangular, to adapt to every store’s need.
Bumpers
Bumpers serve a very technical need: they protect the
appliance from damages potentially caused by shopping carts.
However, they are also part of the front design.
They can be square shaped or rounded, thin or thick. For
stainless steel finishings, polished or brushed can be chosen.
Claddings
Laminate claddings offer a wide range of possibilities from
simulating wood to stone and concrete - as you will see on the
following pages.
Carrier recommends to use 18 mm waterproof MDF as inner
material, with 0,8 mm or 1 mm lamination on both sides. This
will ensure the right level of strength and durability, easy
cleaning, and protection from humidity.
An aesthetical and long-lasting alternative is the use of ceramic
tiles, applied to a flat surface. With an individual and creative
combination, you may mix and match tiles to come up with your
own unique design.
46 | Counter Line 2021Accessories
Options – external
In addition to your choice of Carrier counters, a wide range of accessories can make the sales
process faster and the shopping experience more enjoyable. The shop operator should be able to
carry out operations efficiently. The less strain placed on the store’s staff, the more attention they
can devote to customers.
Sliding accessories Integrated scales Integrated cutting board
Ergonomic use and flexibility in the Scales integrated into the service counter
placement of the accessories are combining space-saving with ergonomics
and knife sheath
combined in this solution. Cutting boards with a laterally integrated
knife sheath allow space-saving and
deliver an ergonomic solution.
Cutting board Paper tray Stepped display
Polyethylene cutting boards are Stylish paper tray for excellent storage of Enhance your products in the counters
commonly used in a service counter and paper on your service counter. with the use of a stepped display with
are available in different colors: white 2 or 3 levels. Available in stainless steel
for dairy, blue for seafood, red for meat, or painted version.
yellow for cheese or poultry.
Night cover Night blind
Night covers provide an economical way Commonly used for open refrigerated
to shield refrigeration cases and protect cases the night blind is an ideal solution to
perishable food inside from ambient store save energy.
heat and light.
* For more information on available accessories, please refer to our accessories catalogue.
Counter Line 2021 | 47Excellence in tests
Technical pages
and qualification of cabinets
Outstanding technology based on 60 years development experience
With around twenty testing rooms, Carrier is one of the best-equipped manufacturers in Europe. Most testing rooms are equipped
according to the ISO 23953 standard (refrigerated display cabinets classification, requirement and test conditions) to ensure comparable
and good product performance. Besides fulfilling ISO 23953 requirements, Carrier has its own, internal tests, standards and requirements
that each cabinet has to pass before going to market. This ensures the right quality and is reflected in robust, reliable products to
maximize the lifetime of each refrigerated display cabinets.
Measuring temperature performance
Carrier declares the temperature performance of the cabinet
according to the ISO 23953 standard, which defines the Example: “climate class 3”
refrigerated cabinet requirements and test conditions. Temperature: 25 °C
Rel. humidity: 60 %
ISO 23953 - Refrigerated display cabinets classification,
requirement and test conditions
Temperature class – describes the temperature
The refrigerated display cabinets are classified according to the
performance inside the cabinet
standard ISO 23953. This standard defines the classification,
The temperature performance is tested in a cabinet with product-
requirement and test conditions for representative refrigerated
simulation models which are called M-package. The M-package
display cabinets including the minimum size of the test room, side
simulates thermal characteristic of meat products.
air-flow, light intensity, temperature and humidification control,
calibrated measurements etc. Cabinet temperature performance means:
Thanks to ISO 23953 customers can compare temperature � H
ow well can the cabinet hold the temperature of a chilled or
classification according to the same testing procedure for all frozen product – simulation models at lab climate conditions
manufacturers in Europe who strictly follow the standard. � How small is the cabinet storage temperature deviation of
product – simulation models at lab climate conditions
Climate room requirements and setup � T
emperature performance is tested by simulating different
ISO 23953 defines exactly the requirements and tolerances of a operation use cases: shop closed (light off, night curtain down,
climate room including: no door opening) shop open and commissioning of cabinet
� Size of the room (doors / lids long open) shop open consumer take products
� Side airflow speed and direction relative to the cabinet (regular door / lid opening)
� Calibration of the measurement equipment There are three main temperature class groups: Low, Medium
and High temperature. These main groups are split in different
� Where to place the cabinet in the climate room
temperature classes indicated by a number following the group
� Color of room and light intensity letter: Example M2. The higher the number the higher the
difference between the lowest M-package temperature and
Muffler Humidifier Fan Electric Air Muffler highest M-package temperature.
Heater Cooler Dehumidifier
Inlet
Dehumidifier
Example: “Temperature Class M2”
(Medium temperature class 2)
Warmest M-package: max. +7°C
Coldest M-package: min. -1 °C
Air Return
Link between climate class and temperature class
Air Discharge
Because the temperature inside a cabinet is strongly influenced
by the environment’s temperature and humidity, the temperature
class is only a meaningful declaration if it is linked to a climate
class. For this reason, a full cabinet declaration always consists
Example of Carrier testing room. The above picture illustrates how a
climate room for testing the refrigeration equipment looks like. out of climate class and temperature class.
Climate class – describes the environment outside of the
cabinet Example “3M2” (At climate class 3, the cabinet reaches
The climate class defines the certain ambient test condition temperature performance M2)
(temperature and relative humidity) during the testing period. 3= climate class (certain ambient test condition during testing)
The standard describes several climate classes out of which M2= Temperature class (specified highest and lowest
for commercial refrigeration usually climate class 3 is used to M-package temperature)
measure and declare the temperature performance.
48 | Counter Line 2021You can also read
