ELECTRIC BICYCLES 2018 MODELS
The electric
bicycle Company
13 years of innovation,
13 years of manufacturing,
MORE THAN
13 years of service to cyclists everywhere.
20 000 SATISFIED
CUSTOMERS
2 - velecebike.com - VELEC.CA
TESTIMONIALS
Celine C.
« Best gift I ever bought myself, I can finally do long distances. Thank-you Velec! »
MARTIN G.
« Love my Velec, dispite health issues I am still riding. 80 years old and still
going strong. »
SergIO G.
« Velec professional service and support are unparalleled. We can all be proud of our
local business and its products. Congratulations to Velec and its team! »
GLoria L.
« My Velec feels like a Cadillac. It’s easy to pedal, I am comfortably seated and more
importantly I have no pain in my back or legs. »
4 - velecebike.com - VELEC.CA velecebike.com - VELEC.CA - 5
WITH VELEC, THE
CHOICE IS YOURS
You can ride like a normal speed bike. You WILL no longer Whether you find yourself in a
have to WORRY hilly area, facing winds, going a
You can use the pedal assistance from the ABOUT STEEP HILLS long distance, if your short or
electric motor. tall, you are a man or a woman,
You WILL no longer Velec has the model you need
Or be propelled entirely by the wheel motor without have to DREAD to go farther with less effort
any pedalling at all. HEADWINDS and more fun!
You WILL no longer
have to FEAR BECOMING
TIRED AS YOU HEAD BACK
6 - velecebike.com velecebike.com - VELEC.CA - 7
THE TECHNICAL MODELS
STUFF
PEDAL ASSIST THE ELITE THE WARRIOR
R48M FB48
P.10 P.18
Torque Sensor Speed Sensor
Model R48M Models R48P, R48, BC48, FB48, THE BEACH CRUISER
THE CAVALIER BC48
A2 and RX36 R48P
Ideal for those who enjoy pedalling. P.20
This type of Assistance Sytem was designed P.12
A new Torque Sensor Assistance based on the for a very smooth start and without jerkiness.
weight applied on both pedals. Power will be Depending on prevailing conditions (slopes,
provided depending on the thrust. So more winds, gravel, pavement, etc.).
pressure on the pedals means more power.
You can pedal the bike without assistance THE MARATHON THE GLOBETROTTER
This action will be useful when going up a hill or RX36
or choose the desired level of assistance (1 R48
dealing with strong winds.
through 5) that will automatically engage at P.14 P.22
In general, this type of assistance is more the predetermined speed/effort.
powerful and it will give you a better range.
THE CLASSIC
A2
P.16
8 - velecebike.com - VELEC.CA velecebike.com - VELEC.CA - 9

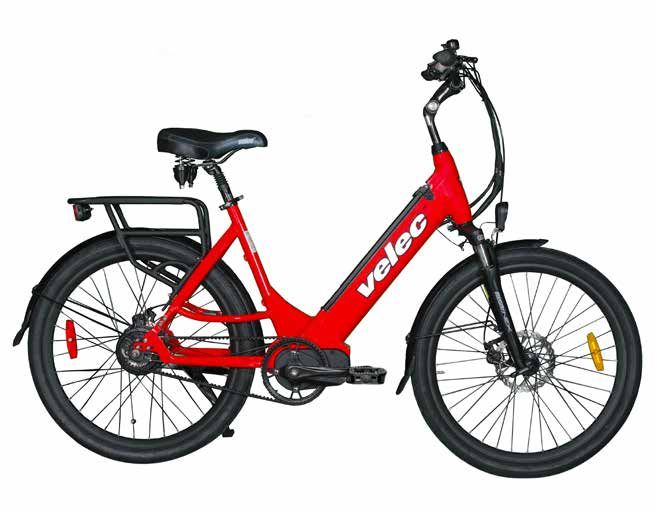

Velec R48M / 48v Frame Height and Style
17” or 20” step-through frame
Available colors
Red Titanium Black Carbon fiber belt 48V/500W SHT Mid-Drive Motor NuVinci N380 Hub
Password Protect System
THE ELITE
Now included on R Series models
VeLeC’s most powerfUL eLeCtriC biCyCLe
The Velec Elite (R48M) is equipped with a 48V/350W High Torque with 80Nm
of torque. This makes it the most powerful bicycle on the market.
Nothing has been left out on this high quality model;
• 48V Mid-Drive Motor • Shimano disc brakes
• Gates Fiber Carbon belt • Schwalbe Marathon Plus tires
• NuVinci E380 HUB superior technology • A choice of Lithium batteries
Torque Assistance Sensor (48V/11Ah or 48V/14Ah)
• Throttle with Cruise Control• Freins Shimano
Battery range (48V) *4,4Ah /48V
Distances (km) / Distances (mi) Second rear battery
11Ah 85 / 51
40 / 24
110 / 66
14Ah 55 / 33 No Pedalling
30 / 18
4,4Ah* 15 / 9 With Pedal assist
These apply for an 85 kg. or 187 lbs. person riding on paved and level roads, without headwinds and with tires
inflated to manufacture’s specications with Level 2 assistance at 20 km/h or 13 mp/h.
10 - velecebike.com - VELEC.CA The picture may slightly differ from the product

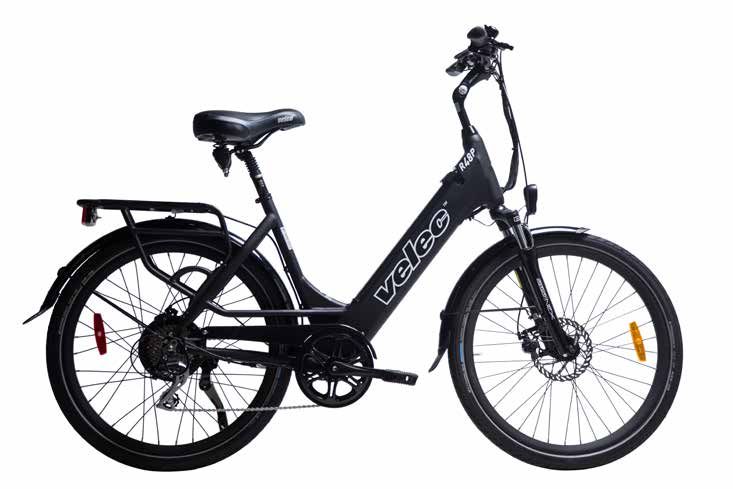

Velec R48P / 48v Frame Height and Style
15” or 17” or 20” step-through frame
Available colors
Red Titanium Black LCD Panel with PW Protect 48V/500W SHT Motor Choice of 3 Lithium Batteries
Password Protect System
Now included on R Series models
THE CAVALIER
powerfUL, range AND Comfort
The Velec R48P is equipped with a 48V/500W Super High Torque Motor, in order to
confront headwinds and steep slopes. A choice of Lithium batteries is offered ((48V/11Ah,
48V/14Ah and R48V/7Ah). You may also add a 48V/4,4Ah backup battery in your
backback or in the saddlebag to go even further!
Battery range (48V) *4,4Ah /48V
Distances (km) / Distances (mi) Second rear battery
11Ah 85 / 52
40 / 24
110 / 68
14Ah 50 / 31 No Pedalling
30 / 18
4,4Ah* 15 /9 With Pedal assist
These apply for an 85 kg. or 187 lbs. person riding on paved and level roads, without headwinds and with tires
inflated to manufacture’s specications with Level 2 assistance at 20 km/h or 13 mp/h.
12 - velecebike.com - VELEC.CA The picture may slightly differ from the product

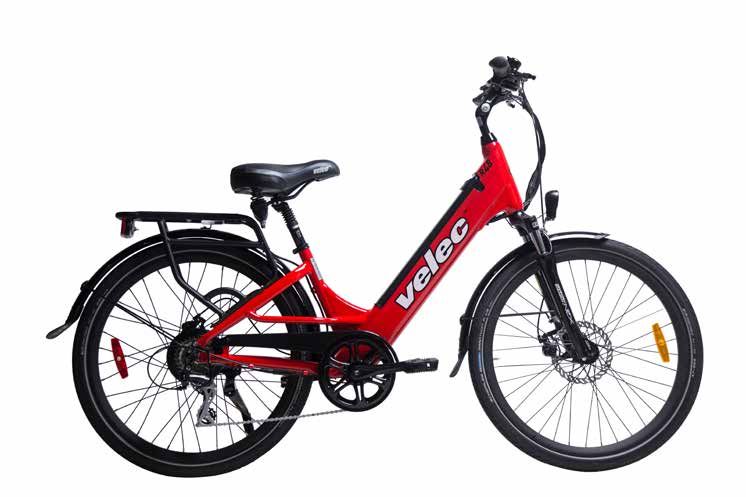

Velec R48 / 48v Frame Height and Style
15” or 17” or 20” step-through frame
Available colors
Red Titanium Black LCD Panel with PW Protect 48V/500W HT /Motor Lithium 48V battery
Password Protect System
Now included on R Series models
The Marathon
SMooTH, RANGE AND CoMFoRT
The Velec R48 was designed for maximum distance. Powerful enough for most people with
it’s 48V/500W motor, this bike is just as smooth as the R48P but built for longer range. A
choice of Lithium batteries is offered (48V/11Ah, 48V/14Ah and R48V/7Ah). You could
also add a 48V/4,4Ah backup battery in your backback or in the saddlebag to go even
further!
Battery range (48V) *4,4Ah /48V
Distances (km) / Distances (mi) Second rear battery
11Ah 90 / 54
45 / 27
120 / 72
14Ah 60 / 36 No Pedalling
50 / 30
R7 25 / 15 With Pedal assist
4,4Ah* 30 / 18
15 / 9
These apply for an 85 kg. or 187 lbs. person riding on paved and level roads, without headwinds and with tires
inflated to manufacture’s specications with Level 2 assistance at 20 km/h or 13 mp/h.
14 - velecebike.com - VELEC.CA The picture may slightly differ from the product

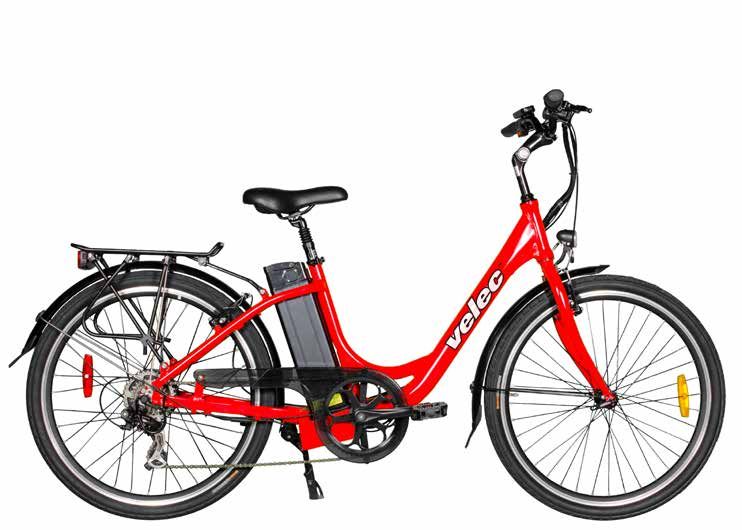

Velec a2 / 48v Frame Height and Style
16,5” step-through frame
Available colors
Red Titanium Standard panel or optional LCD panel 36V/350W motor Choice of 3 Lithium batteries
The CLASSIC
AFFoRdABLE, ANd ACCESSiBLE
New for 2018, more power and mor distance, but its main difference is the battery located
directly under the seat for even easier access. A choice of Lithium batteries is offered
(48V/10Ah, 48V/13Ah or 48V/17Ah). You may also add a 48V/4,4Ah backup battery in
your backback or in the saddlebag to go even further!
Battery range (48V) *4,4Ah /48V
Distances (km) / Distances (mi) Second rear battery
10Ah 80 / 48
40 / 24
105 / 63
13Ah 50 / 30 No Pedalling
140 / 84
17Ah 65 / 39
With Pedal assist
30 / 18
4,4Ah* 15 / 9
These apply for an 85 kg. or 187 lbs. person riding on paved and level roads, without headwinds and with tires
inflated to manufacture’s specications with Level 2 assistance at 20 km/h or 13 mp/h.
16 - velecebike.com - VELEC.CA The picture may slightly differ from the product

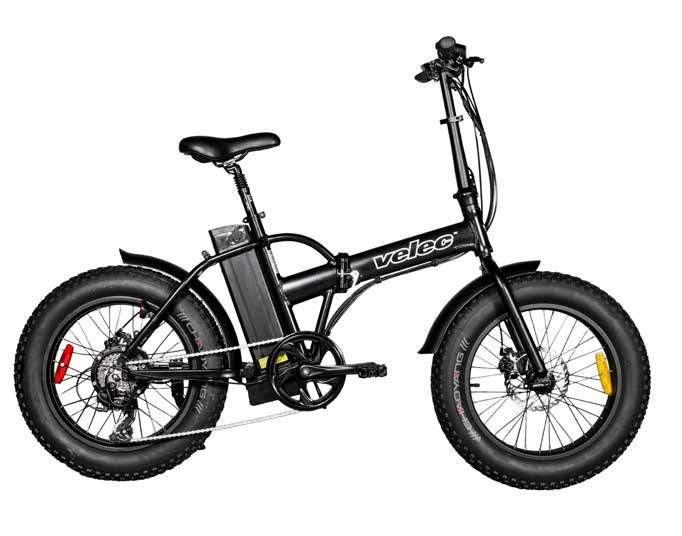

Velec fb48 / 48v
Frame Height and Style
Foldable, 16”
step-through frame
Available colors
Black
LCD Panel 48V/500W HT Motor 20 x 4.00 inches tires
Optional fenders
The warrior
This Velec foldable FB48 model is equipped with a 48V/500W High Torque motor.
This rugged electric bicycle can go anywhere and a choice of Lithium batteries
is offered (48V/10Ah, 48V/13Ah or 48V/17Ah). The perfect bike for travelling,
camping, boating... you could bring this bad boy anywhere!
Battery range (48V)
Distances (km) / Distances (mi)
10Ah 70 / 42
35 / 21
85 / 54 No Pedalling
13Ah 40 / 25
100 / 72 With Pedal assist
17Ah 50 / 30
These apply for an 85 kg. or 187 lbs. person riding on paved and level roads, without headwinds and with tires
inflated to manufacture’s specications with Level 2 assistance at 20 km/h or 13 mp/h.
18 - velecebike.com - VELEC.CA The picture may slightly differ from the productVelec BC48 / 48v Frame Height and Style
16,5” step-through frame
Available colors
Black Blue Lime Green LCD Panel 48V/350W Motor Larger seat for maximum comfort
The BEACH CRUISER
This Velec BC48 model is equipped with a 48V/350W High Torque Motor. It’s the
perfect cruiser with it’s large white wall tires, oversize seat, front basket and with
high handlebar. A choice of lithium batteries is offered (48V/10Ah, 13Ah or 17Ah).
See you at the beach...
Battery range (48V)
Distances (km) / Distances (mi)
10Ah 70 / 42
35 / 21
85 / 54 No Pedalling
13Ah 40 / 25
100 / 72 With Pedal assist
17Ah 50 / 30
These apply for an 85 kg. or 187 lbs. person riding on paved and level roads, without headwinds and with tires
inflated to manufacture’s specications with Level 2 assistance at 20 km/h or 13 mp/h.
20 - velecebike.com - VELEC.CA The picture may slightly differ from the productVelec rx36 / 36v
Available colors
Titanium Red Standard Panel or 36V/350W Motor Rear Shimano Disc Brake and front
Optional LCD Panel V-Brakes
pLiABLe
The GLOBETROTTER
The Velec RX36 is a light and easy to carry foldable electric bicycle. Equipped with
a 36V/350W motor and a 36V/10Ah battery placed inside the main tube for better
manoeuvrability. If you have limited space or need to carry your bicycle in your car,
in your boat, trailer… This is simply the best foldable on the market! You may also
add a 36V/4,4Ah backup battery in your backback or in the saddlebag to go even
further!
Double your distance by adding an additional battery 36V/10Ah on your rear carrier.
Battery range (48V) *4,4Ah /48V
Distances (km) / Distances (mi) Second rear battery
10Ah 60 / 38
30 / 19
No Pedalling
60 / 38
R10 30 / 19
With Pedal assist
20 / 13
4,4Ah* 10 / 6
These apply for an 85 kg. or 187 lbs. person riding on paved and level roads, without headwinds and with tires
22 - velecebike.com - VELEC.CA The picture may slightly differ from the product inflated to manufacture’s specications with Level 2 assistance at 20 km/h or 13 mp/h.THE 24
Months
3Hours
to 8 3 Years
to 5 MOTOR WHEEL
BEST LITHIUM WARRANTY PER OF LIFE R48M R48P R48-FB48
BATTERY CHARGE CYCLE 48V/350W Mid-Drive
High Torque
48V/500W
Super High Torque
48V/500W High Torque
Little less powerful then the
For the best This is our most powerful motor. Little less powerful then is big R48P but powerful enough for
electric bicycles Velec makes it a priority to use the best technology on the It is ideal for heavier users (up to brother R48M. It is perfect for most rider.
market from recognized suppliers such as LG, Panasonic and 125 kg or 275 lbs) and is designed users of average weight that ride
Samsung. Depending on the bike you choose and your needs we to help them tackle steep hills and long distances and face significant
have a possibility of 5 different battery ranges to choose from. strong headwinds with less efforts. hills and headwinds with less
This means you don’t need to a adapt to a bike, it adapts to you. efforts.
The many advantages of our batteries include :
A fast charging rate, long range, high charge-discharge cycles,
minimum maintenance, ecological and safe.
Battery backup : Velec has a 36V/4,4Ah or 48V/4,4Ah backup
battery to keep in your backpack or a saddlebag to go even
further. This 3lbs battery also includes 2 handy USB ports to
charge your cell phone, tablet, GPS...
New Rear battery for R48 and R48P : For those who want BC48 a2
additional range, Velec has now redesigned the R series to have 48V/350W High Torque 48V/350W
a secondary rear battery. This 48V/7Ah battery weighs less then
6lbs (2.5kg) and its sleek design fits neatly on the rear carrier. Very similar to the R48, its great Perfect for bikers of average weight
for large tires, well balanced that ride every day on trails.
between power vs range and
perfect for cruising.
Models and specifications
may differ
36V 48V
4,4Ah 10Ah 4,4Ah 7Ah 11Ah 14Ah 17Ah
velecebike.com - 25
158Wh 360Wh 211Wh 336Wh 528Wh 653Wh 816WhKits
To Electrify your regular bicycle
P SERIEs 48V S SERIES 36V
(incluant une batterie 48V / R10AH / 480 Wh) (incluant une batterie 36V / R10AH / 360 Wh)
P SERIEs
LCD Panel for
P Series / 48V S SERIEs Standard Panel for
S Series / 36V
The S/36V kit can be set up on the front wheel (20, 24 and 26 inches
Velec’s kits allow you to convert your
or 700C).
regular bicycle or tricycle into an
electrically-assisted one. Get assistance
The P/48V kit can be set up on the rear wheel (700C) or on the front
while pedaling or simply using the throttle
to accelerate without pedaling.
wheel (20 or 24 inches) for tricycles.
Live an electrifying experience!
Battery range (48V)
Distances (km) / Distances (mi)
P 70 / 44
35 / 22
80 / 50 No Pedalling
S 40 /25
With Pedal assist
These apply for an 85 kg. or 187 lbs. person riding on paved and level roads, without
headwinds and with tires inflated to manufacture’s specications with Level 2 assistance at
26 - velecebike.com - VELEC.CA 20 km/h or 13 mp/h.Specifications
FatBike 48V
R48M/48v R48P/48V R48/48V 2 versions : Foldable and non-foldable
Color Red, Titanium or Black Red, Titanium or Black Red, Titanium or Black Black
Frame height 17” or 20” 15”, 17” or 20” 15”, 17” or 20” 16”
Motor 48V / 350W SHT Mid-Drive Motor 48V / 500W SHT Motor 48V / 500W HT Motor 48V / 500W HT Motor
Controller Torque Sensor Speed Sensor Speed Sensor Speed Sensor
Battery A 48V/11Ah or 48V/14Ah 48V/11Ah or 48V/14A 48V/11Ah or 48V/14Ah 48V/10Ah or 48V/14Ah or 48V/17Ah
Rim wheel 26” black alloy 26” black alloy 26” black alloy 20” black alloy
Spokes Black Stanless Steel Black Stanless Steel Black Stanless Steel Black Stanless Steel
Motor connection - Direct connect Direct connect Direct connect
Brakes Mechanical Shimano disc brake front and rear Mechanical Shimano disc brake front and rear Mechanical Shimano disc brake front and rear Mechanical Shimano disc brake front and rear
Brake lever With cut-off Motor With cut-off Motor With cut-off Motor With cut-off Motor
Throttle Yes with Cruise Control and O/- Yes with Cruise Control and O/- Yes with Cruise Control and O/- Yes with Cruise Control
Grips Comfort Plus Comfort Plus Comfort Plus Comfort Plus
LCD Panel Central Panel with password protect Central Panel with password protect Central Panel with password protect LCD Panel
Assistance Levels 1 to 5 Levels 1 to 5 Levels 1 to 5 Levels 1 to 5 Levels
Handlebar 60mm 60mm 60mm Straight
Stem 110mm 110mm 110mm 110mm
Headset Sealed Sealed Sealed Sealed
Fenders Black Thermo plastic Black Thermo plastic Black Thermo plastic Steel
Front hub Black Alloy Black Alloy Black Alloy Black Alloy
Suspension Seatpost and front SunTour NEX Seatpost and front SunTour NEX Seatpost and front SunTour NEX Seatpost
Tires Schwalbe Marathon Plus - 26 x 2.00 Schwalbe Marathon Plus - 26 x 2.00 Schwalbe Marathon Plus - 26 x 2.00 Kenda - 20 x 4.00
Rear carrier Yes Yes Yes Yes
Derailer - ACERA 8 speed ACERA 8 speed Shimano Tourney 7 speed
Speed NuVinci N380 hub - 8 speed microSHIFT 8 speed microSHIFT 8 speed microSHIFT 7 speed
Seat Oversize seat Oversize seat Oversize seat Standard
Seat post 30,4mm x 350mm 30,4mm x 350mm 30,4mm x 350mm 30,4mm x 350mm
Rear motor cable protector Yes Yes Yes Yes
Crank 55T 48T 48T 52T
Freewheel or cassette - 8 speed Freewheel . 11 x 32T 8 speed Freewheel . 11 x 32T 7 speed Freewheel . 14 x 34T
Chain Gates Carbon Fiber belt KMC KMC KMC
Lights Front LED and rear light with AA batteries Front LED light and rear light with AA batteries Front LED light and rear light with AA batteries Front LED light and rear light with AA batteries
Options Battery 48V/14Ah . 653Wh Battery 48V/14Ah . 653Wh Battery 48V/14Ah . 653Wh Battery 48V/13Ah - 624Wh
Back-up Battery 48V/4,4Ah . 211Wh Rear Battery 48V/7Ah . 327Wh Rear Battery 48V/7Ah . 327Wh Battery 48V/17Ah - 816Wh
Back-up Battery 48V/4,4Ah . 211Wh Back-up Battery 48V/4,4Ah . 211Wh Back-up Battery 48V/4,4Ah . 211Wh
Rear wheel Locking device with 1,5M cable (10mm) Rear wheel Locking device with 1,5M cable (10mm) Rear wheel Locking device with 1,5M cable (10mm)
28 - velecebike.com - VELEC.CA Specifications can be change without notice velecebike.com - VELEC.CA - 29Specifications
Beach Cruiser 48V RX36/36V (Foldable) A2/48V
Color Yellow, Blue, Green or Black Titanium Red or Titanium
Frame height 16” 15” 16,5”
Motor 48V/350W HT Motor 36V / 350W Motor 48V / 350W Motor
Controller Speed Sensor Speed Sensor Speed Sensor
Battery A 48V/10Ah or 48V/14Ah or 48V/17Ah 36V/10Ah 36V/10Ah, 13Ah, or 17Ah
Rim wheel 26” black alloy 20” black alloy 26” alloy
Spokes Black Stanless Steel Black Stanless Steel Black Stanless Steel
Motor connection Direct connect Direct connect Direct connect
Brakes Mechanical Shimano disc brake front and rear Mechanical Shimano disc brake in rear and V-Brake in front V-Brakes
Brake lever With cut-off Motor With cut-off Motor With cut-off Motor
Throttle Yes with Cruise Control Yes with Cruise Control Yes with Cruise Control
Grips Comfort Plus Standard Standard
LCD Panel LCD Panel Analog Panel (LCD Optional) Analog Panel (LCD Optional)
Assistance Levels 1 to 5 Levels 1 to 5 Levels 1 to 5 Levels
Handlebar Beach style 30mm 60mm
Stem 110mm Adjustable (foldable) 110mm
Headset Sealed Sealed Sealed
Fenders BlackAlloy Steal Black Alloy
Front hub Black Alloy Black Alloy Black Alloy
Suspension Seatpost Seatpost and front fork Seatpost
Tires Kenda - 26 x 2.35 Kenda with K-Shield protection - 20 x 1,95 Kenda with K-Shield protection - 26 x 1,95
Rear carrier Yes Yes Yes
Derailer Shimano Tourney 7 speed Shimano Tourney 7 speed Shimano Tourney 7 speed
Speed microSHIFT 7 speed microSHIFT 7 speed microSHIFT 7 speed
Seat Standard Standard Standard
Seat post 30,4mm x 350mm 42mm x 500mm 30,4mm x 275mm
Rear motor cable protector Yes Yes Yes
Crank 52T 52T 52T
Freewheel or cassette Freewheel 7 speed . 14 x 34T Freewheel 7 speed . 14 x 34T Freewheel 7 speed . 14 x 32T
Chain KMC KMC KMC
Lights Front LED light and rear light with AA batteries Front LED light and rear light with AA batteries Front LED light and rear light with AA batteries
Options Battery 48V/13Ah - 624Wh 48V/13Ah Battery . 624Wh
Battery 48V/17Ah - 816Wh Rear 36V/10Ah battery - 360Wh 48V/17Ah Battery . 816Wh
Back-up Battery 48V/4,4Ah . 211Wh Back-up Battery 36V/4,4Ah . 158Wh Back-up Battery 36V/4,4Ah . 211Wh
30 - velecebike.com - VELEC.CA Specifications can be change without noticeA FEW WORDS FROM
THE PRESIDENT
- Michel Leblanc, president
I started Velec in 2005, my mission was to design the best electric bicycle on the market. I
Over 150 truly believe Velec bikes are easy to use, have clean lines and most of all are fun to ride. It’s
been a long journey to what I think is now the most perfect electric bike. Thank you to all our
dealers loyal customers who have given their input along the way and have helped us improve all our
models.
in Canada 2018 marks Velec’s 13th year of growth and success, with almost 150 certified dealers in
and in USA North America, we are excited to see what innovations we will be bringing to our customers in
the future.
Go to our website and find a I hope to see you on the trails soon and as always can’t wait to hear your
dealer near you. comments and suggestions!
WARRANTY :
Worldwide
velecbike.com For all specific details
Canada
12 months 24 months 36 Months regarding the Warranty,
please refer to our
User Guide.
velec.ca ON THE BICYCLE BATTERY and ON THE FRAME
motor
32 - velecebike.com - VELEC.CA velecebike.com - VELEC.CA - 33Worldwide velecbike.com Canada velec.ca © 2018 Velec. inc
You can also read
