Facade - Architecture of light - SEMCOGLAS | FACADE DESIGN
SEMCOGLAS | FACADE DESIGN

                            Facade

Architecture of light
Facade - Architecture of light - SEMCOGLAS | FACADE DESIGN
02 CONTENTS

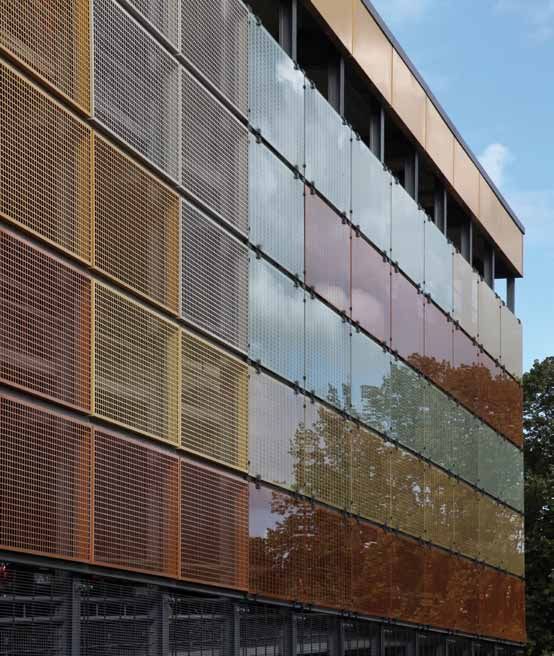

                                                                                                   SEMCO COLOR VANCEVA _ Multi-family house, Gießen

SEMCO ENERGY _ Villa Libeskind, Datteln                                                            SEMCO KLIMA 700 _ Private home, Oldenburg

                            SEMCO KLIMA / SEMCO KLIMASTAR _ Much more than just solar protection                     Page 04

                            SEMCO STAR / SEMCO ENERGY _ Thermal insulation equivalent to a wall                      Page 08

                            SEMCO SUN / SEMCO SUN REFLECT _ Creative reflections                                     Page 10

                            SEMCO PHONE _ No chance for noise                                                        Page 12

                            SEMCO SAFE _ Safe is safe                                                                Page 14

                            SEMCO DUR ALARM _ Securely monitored                                                     Page 16

                            SEMCO KLIMA LIGHT DIFFUSION _ Not for dazzlers                                           Page 17

                            SEMCO STRUCTURAL GLAZING _ Facelifts for facades                                         Page 18

                            SEMCO POINT _ Perfect and to the point                                                   Page 19

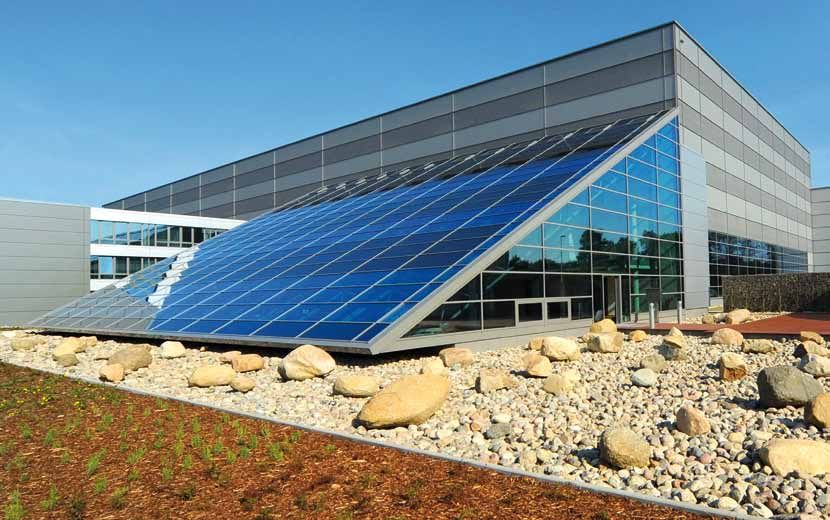

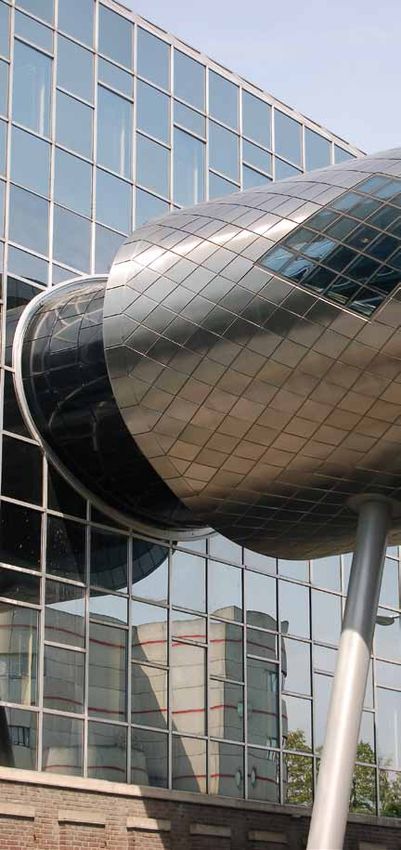

Title motif: SEMCO KLIMA 400 _ CFK Research Center, Stade
Facade - Architecture of light - SEMCOGLAS | FACADE DESIGN
03

SEMCO KLIMA 700 _ Schinkelbad swimming baths, Osnabrück

                   SEMCO DESIGN _ Fantasy glass design                       Page 20

                   SEMCO COLOR _ Colorful interactions on facades            Page 22

                   SEMCO COLOR VANCEVA _ Colorful aspects and perspectives   Page 24

                   SEMCO PICTURE _ Gigantic images                           Page 25

                   FINI CURVE _ Glass with verve                             Page 26

                   QUALITY FROM SEMCOGLAS                                    Page 28

                   QUALITY AND APPROVAL MARKS                                Page 30

                   TECHNICAL DATA                                            Page 32

                   GLOSSARY                                                  Page 35
Facade - Architecture of light - SEMCOGLAS | FACADE DESIGN
KLIMA CLIMATE GLAZING

   04 SEMCO KLIMA / SEMCO KLIMASTAR

              More than just solar protection
              The requirements set by modern architecture for large glass surfaces that are fully transparent
              and neutrally coated are met by Semcoglas with their premium glazings SEMCO KLIMA and
              SEMCO KLIMASTAR. These Klima climate glazing products were originally developed for use in
              facades with a glass coverage of more than 50 percent in order to optimally meet the applicable
              requirements for summer thermal insulation.

                                                                                                                SEMCO KLIMA 500 _ Office building, Münster

                                                                                                                     MATCHING SEMCO COLOR FACADE
                                                                                                                     PANELS AVAILABLE [ s. P. 22 ]
SEMCO KLIMA 600 _ Central Canteen, Bersenbrück
Facade - Architecture of light - SEMCOGLAS | FACADE DESIGN
05

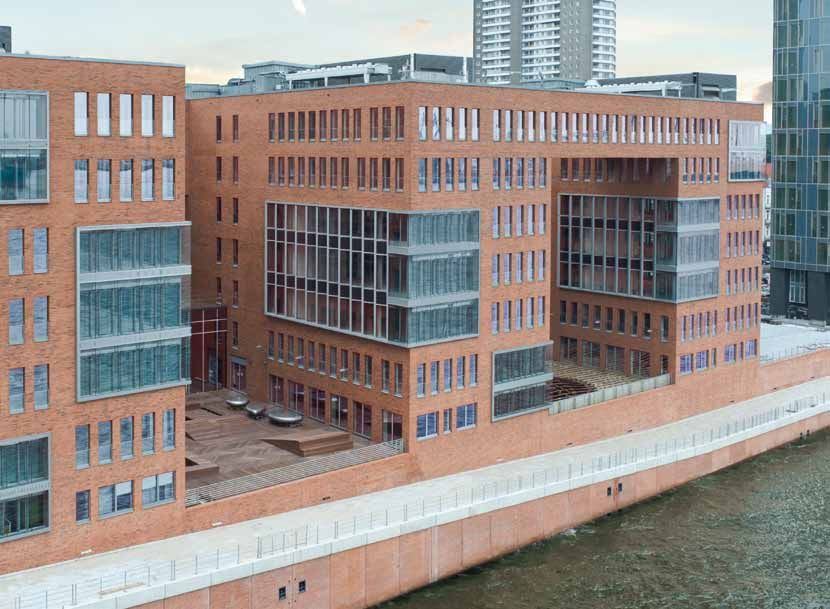

  SEMCO KLIMA 500 _ Timber Harbor West, Hamburg

Optimal summer                                                 Klima climate glazing                          Coating position

                                                                                                                                       SEMCO KLIMA permits significantly less

thermal insulation
                                                                Sola
                                                                    r en                                                               solar energy transmittance than con-
                                                                        erg
                                                                               y                                                       ventional thermal insulation glazing.

                                                                                                                                       A considerable proportion of the solar
                                                                                               n
                                                                                       ectio                                           energy falling on the glazing is already
                                                                                   Refl
Summer thermal insulation is optimally ensured with                                        ectio
                                                                                                   n
                                                                                                                                       reflected away by the outer pane.
                                                                                    Refl
the particularly low g values of Semco Klima glazing -                                       tion
                                                                                                                       Total energy    The rest of the pane construction reflects
                                                                                          ec                           transmittance
                                                                                    Refl                                               so much of the remaining energy that
the light comes in, but solar energy and the corresponding                                                             (g value)
                                                                                                                                       just 19 to 37 percent is allowed to pass
heat remains outside. Energy-intensive operation of air                                                                                through the panes.
conditioners during hot summer months is a thing of
the past. Our Klima climate glazing is therefore particular-
ly suitable for facades with a glass proportion of more                                    Secondary heat output through absorption

than 50 percent.

In the colder seasons, the low Ug value of SEMCO
KLIMA and SEMCO KLIMASTAR provides a comfortable
room climate. Long-wave heat radiation is reflected
back into the room.                                                        SEMCO KLIMA 700, 600, 500 / OPTIMALLY SUITABLE FOR:
                                                                           •
                                                                            Private, commercial and public buildings such as schools,
                                                                            office buildings, hotels, etc.
                                                                           •
                                                                            Buildings with a glazing proportion of over 50 percent

                                                                                                                                                        Technical data on Page 32
Facade - Architecture of light - SEMCOGLAS | FACADE DESIGN
KLIMA CLIMATE GLAZING

  06 SEMCO KLIMA / SEMCO KLIMASTAR
                                                                                                                      BE CONVINCED BY
                                                                                                                      THE COLOR NEUTRAL
                                                                                                                      TRANSPARENCY
                                                                                                                      In comparison to conventional solar
                                                                                                                      protection glazing, SEMCO KLIMA gives
                                                                                                                      you a completely clear and faultless view
                                                                                                                      of objects.

                                                                                                                        SEMCO KLIMA 400

                                                                                                                        SEMCO KLIMA 500

                                                                                                                        SEMCO KLIMA 600

                                                                                                                        SEMCO KLIMA 700

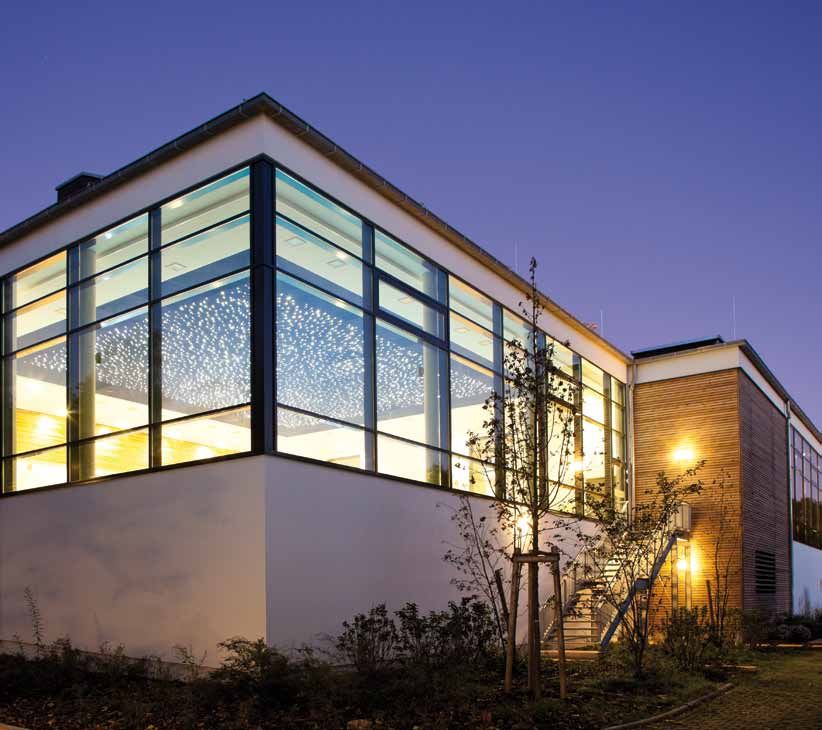

SEMCO KLIMA 700 _ Community Center Schloss Ueckermünde

      SEMCO KLIMA GLAZING SCORES HERE

      FOR MORE TRANSPARENCY                     Large glass surfaces, color neutrality and glazing uniformity, low color fluctuation,
      AND LIVING COMFORT                        bright rooms and optimal living and working climate

      FOR THE ENVIRONMENT                       Reduced energy costs with no air conditioning, reduction in artificial lighting and reduced CO2 emissions

      FOR UV PROTECTION                         Greater UV protection for furniture, plants and wood surfaces

      FOR LESS COSTS                            Lower heating costs through low Ug value of 1.0 and below
Facade - Architecture of light - SEMCOGLAS | FACADE DESIGN
FOCAL POINT GLASS STRUCTURES                                                                                                                                                                07
         Light-flooded glass structures should provide a comfortable place to stay both in commercial and private buildings.
         However, temperatures can develop in transitional and summer months that can make a longer presence in such places unbearable.
         In addition, textiles and wood surfaces are pitilessly exposed to solar UV radiation and even plants are unprotected from burning
         lens effects.
         Living under glass becomes a relaxing event, even in high summer, with the climate glazing SEMCO KLIMA and SEMCO KLIMASTAR.
         Our Klima climate glazing is also equipped with high UV protection so that the plants and interior decorations remain unaffected.

         Interior temperature curve in a glass structure without the influence of thermal conditions (Ø monthly values)
                                                                                            Thermal insulation glazing
                         40                                                                 SEMCO STAR

                         35
                                                                                            SEMCO KLIMA 400 (roof)
                         30                                                                 SEMCO KLIMA 700 (facade)

                         25                                                                 Germany average
     Temperature in °C

                                                                                            external temperature
                         20
                         15
                         10

                                                                                                                                                                                  Span of external
                          5

                                                                                                                                                                                    temperature
                          0
                         -5

                              Thermal insulation glazing SEMCO STAR            SEMCO KLIMA 400 (roof)                       Germany average external temperature
                                                                               SEMCO KLIMA 700 (facade)
               Source: Calculation results Krämer-Evers Bauphysik, Osnabrück   Conservatory with penthouse roof, south-west alignment without thermal conditions; high air exchange rate
                                                                               Glass types: SEMCO STAR (Ug=1.1; g= 62 %), SEMCO KLIMA 400 (Ug=1.0; g= 21 %) + SEMCO KLIMA 700 (Ug=1.0; g= 37 %)

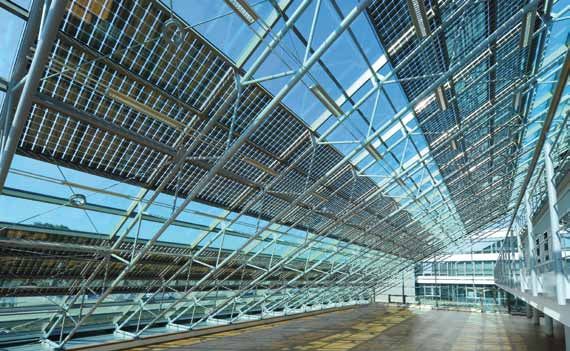

SEMCO KLIMA 400 _ CFK Research Center, Stade

                                                                                                     SEMCO KLIMA 400 / OPTIMALLY SUITABLE FOR:
                                                                                                     •
                                                                                                      Commercial and private buildings with glass structures,
                                                                                                      conservatories, overhead glazing, atriums, etc.

                                                                                                                                                                               Technical data on Page 32
Facade - Architecture of light - SEMCOGLAS | FACADE DESIGN
THERMAL INSULATION GLAZING

08 SEMCO STAR / SEMCO ENERGY

   Thermal insulation equivalent
   to a wall
   Wherever summer thermal insulation does not play a role in facades with a relatively low glass
   percentage of under 50 percent, the thermal insulation glazing SEMCO STAR and SEMCO ENERGY
   provide an excellent and comfortable room climate.
   Both product groups meet the requirements of the Energy Savings Act. They can be used in low-
   energy and passive houses as they permit a lot of energy into the building but not back out again.

   Are you planning a facade with a glass percentage over 50 percent? Then SEMCO KLIMA or SEMCO
   KLIMASTAR are the perfect products for you [cf. P. 04].

                                                                                                           Ug VALUE:
                                                                                                           THE SMALLER, THE BETTER

                                                                                                        Heat transfer
                                                                                                        (Ug value)
                                                                                                                                                    Reflection

                                                                                                                                                Long-wave
                                                                                                                                                heat radiation

                                                                                                          outside                                    inside

                                                                                                           The Ug value indicates how much heat in a room
                                                                                                           is transmitted to the outside through glass with
                                                                                                           a surface of 1 square meter and a temperature
                                                                                                           difference of 1 Kelvin.

                                                                                                           The EnEV 2009 requires Ug values of 1.1 W/m²K for
                                                                                                           glass (new building reference value).
                                                                                                           This value is undershot by SEMCO KLIMASTAR with
                                                                                                           Ug values of up to 0.4 W/m²K, setting new yardsticks
                                                                                                           in climate protection and energy savings.

  SEMCO STAR _ Felix Nussbaum Museum, Osnabrück

  This keeps the cold out                                                                                ALL THERMAL INSULATION GLAZING
                                                                                                         ALSO AVAILABLE WITH THERMALLY
                                                                                                         INSULATED PLASTIC MULLIONS!
  The thermal energy of solar radiation is optimally utilized and, thanks to a low Ug value, the
  warmth remains in the building. Results are achieved that are comparable to the use of solid wall
  building materials. Unpleasant drafts are a thing of the past as the pane surface does not radiate
  the cold. So, high comfort is guaranteed, even directly next to a window.

  Our triple glazing SEMCO ENERGY is also available with g values of over 60 percent.
  Ask your consultant.
Facade - Architecture of light - SEMCOGLAS | FACADE DESIGN
09

SEMCO STAR _ H10 Hotel, Berlin

                                                                                                                          Coating position

                                                                                                                          Noble gas filling

                                                                                                                          Thermally separated
                                                                                                                          spacers

                                                                   Outside                                      Inside

                                                                             Pane structure SEMCO STAR (double) and SEMCO ENERGY (triple)

                                                               OPTIMALLY SUITABLE FOR:
                                                               •
                                                                Private and commercial buildings with punctuated
                                                                facades and low glass percentage
                                                               •
                                                                Buildings with a glazing proportion of less than 50 percent
                                                               •
                                                                Low-energy or passive building designs
                                                                                                                           Technical data on Page 32
SEMCO STAR and SEMCO COLOR _ Administration offices, Hamburg
Facade - Architecture of light - SEMCOGLAS | FACADE DESIGN
SOLAR PROTECTION GLASS

  10 SEMCO SUN / SEMCO SUN REFLECT

            Creative reflections
            Buildings get an unmistakably animated profile with the solar protection glazing SEMCO SUN and SEMCO SUN REFLECT. Depending on the
            architectural visual requirements, the choice lies between neutral, blue, bronze, green, silver or gray reflective glass. An individually elegant,
            aesthetically colored and reflective facade can be achieved through different color gradations of the tinted glazing and different reflection
            strengths.

            Brilliant and modern surfaces are shown by SEMCO SUN and SEMCO SUN REFLECT, for example, when used in STRUCTURAL GLAZING facades
            where they can meet the requirements of modern architecture for almost completely seamless glass facades [cf. P. 19].

                                                                                                       The facade is not just visually brilliant: The excellent
                                                                                                       thermal insulation with a Ug value of 1.0 W/m²K also
                                                                                                       meets the highest of requirements.

                                                                                                       Incidentally: If you are planning a facade with a glazing
                                                                                                       proportion exceeding 50 percent and you also want a
                                                                                                       fully neutral view through the glass, then SEMCO KLIMA
                                                                                                       or SEMCO KLIMASTAR are the ideal products [cf. P. 04].

SEMCO SUN 550/1 and SEMCO COLOR _ Berlin Hyp Bank, Berlin                                          SEMCO SUN 340/1 und SEMCO COLOR _ Mercedes-Benz Car Dealership, Oldenburg
11

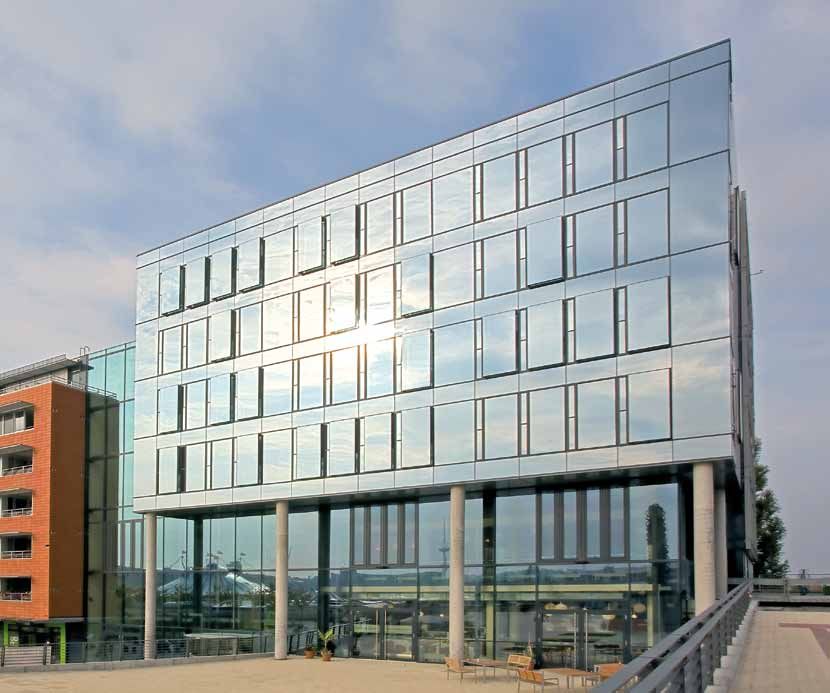

SEMCO SUN 340/1 and SEMCO COLOR _ Germaniahafen, Kiel

                                                        MATCHING SEMCO COLOR
                                                        FACADE PANELS AVAILABLE [ s. P. 22 ]

                                                        OPTIMALLY SUITABLE FOR:
                                                        •
                                                         Mainly commercial properties
                                                        •
                                                         Reflective or color-reflective facades
                                                        •
                                                         For use in STRUCTURAL GLAZING facades

                                                                                               Technical data on Page 33
SOUND INSULATION GLAZING

12 SEMCO PHONE

  No chance for noise
  Street noise, loud operating noise or the noise from aircraft: Noise pollution through our environment has
  increased greatly in the past.

  Semcoglas provides silence. The noise stays on the outside with tested sound insulation glazing. SEMCO PHONE
  offers the appropriate glazing for various noise sources – whether for buildings on heavy traffic routes or in the
  neighborhood of discos and airports. Semcoglas can resolve small and large noise problems with a wide range of
  sound insulation glazing. Securely and effectively.

  SEMCO PHONE can, of course, also be combined with the appropriate climate, thermal insulation, solar protection
  and safety glass. For complete protection at all times inside a building.
13

            Against the racket
            While the sound insulation index Rw does not sufficiently take into account the various noise spectra in buildings caused by different sound sources,
            the definition of noise insulation using the spectrum weighting values C and Ctr provides more meaningful statements. During the evaluation, data
            can also be determined on how the component behaves with regards to various types of sound.

            Noise situations: C                                    Operational noise, emitted mainly in the medium and high-frequency range (e.g. motorways, trains at
            		                                                     medium and high speed, low-flying jet airplanes)

              Ctr                                                  Operational noise, emitted mainly in the medium and low-frequency range (e.g. urban traffic, trains at low
            		                                                     speed, high-flying jet airplanes, disco music)

            A selection of our sound protection glazing
            and their evaluated sound insulation index
            Rw (C; Ctr) can be found on Page 34.
                                                                                                                Evaluated sound insulation    Required evaluated sound
                                                                                                                index R‘w of the functional   insulation index R‘w,p of the
                                                                                           Sound insulation
                                                                                                                window installed in the       functional window installed in
                                                                                           class
                                                                                                                building; measured as per     the laboratory; measured as per
                                                                                                                DIN EN 10140                  DIN EN 10140

             Noise impact in dB     > 75 dB   > 70 dB            > 60 dB                   1                    25 to 29 dB                   ≥ 27 dB

                                                                                           2                    30 to 34 dB                   ≥ 32 dB

                                                                                           3                    35 to 39 dB                   ≥ 37 dB

                                                                                           4                    40 to 44 dB                   ≥ 42 dB

                                                                                           5                    45 to 49 dB                   ≥ 47 dB
                                               Living and working areas < 30 dB
                                                                                           6                    ≥ 50 dB                       ≥ 52 dB

Recommended sound insulation
    class for living area glazing    4-6       3-4                 2-4
                                                                                               OPTIMALLY SUITABLE FOR:
                                                                                               •
                                                                                                Commercial or private buildings in noise-intensive
                                                                                                areas, such as roads with heavy traffic, near rail lines
                                                                                                or under flight paths

                                                                                                                                                        Technical data on Page 34
SAFETY GLASS

14 SEMCO SAFE

      Safe is safe
      The composite safety glass SEMCO SAFE provides secure protection against forms of violence thanks to the varying thicknesses of the
      float or single-glazing safety glasses (SGS) and composite films which are bonded together under pressure and high temperatures.

      Depending on the pane structure, the performance range of our safety glazing ranges from private protection against forced entry to
      protection of persons and property with various resistance classes. Special requirements for an application, for instance in banking or
      public locations with particular protection needs, can be transparently met by SEMCO SAFE.
      SEMCO SAFE can also be combined with the appropriate climate, thermal insulation, solar protection and sound protection glass.

                                    Resistance class of glazing as per                                                                 Resistance class of component   Resistance class of component
 Characteristic                     DIN EN 356 / DIN EN 1063                             Application recommendations
                                                                                                                                       as per DIN EN 1627:2011-08      as per DIN EN 1627:1999-04

                                    P2A

                                    P3A
                                                                                         Single and multi-family houses
 Manual attack                      P4A or no requirementa)                                                                            RC 1 N                          ---- b)
 resistance                         P4A or no requirementa)                                                                            RC 2 N                          RC 2 c)

                                    P4A                                                  Upscale residential buildings                 RC 2                            RC 2

                                    P5A                                                  Upscale buildings                             RC 3                            RC 3

                                    P6B                                                  Video, photo retailers                        RC 4                            RC 4

 Penetration protection             P7B                                                  Chemists, department stores                   RC 5                            RC 5

                                    P8B                                                  Prisons, jewelers, psychiatry                 RC 6                            RC 6 d)

                                    BR2 - S

                                    BR2 - NS

                                    BR3 - S
 Bullet resistance                                                                       Personal safety
                                    BR3 - NS

                                    BR4 - S

                                    BR4 - NS

 Penetration/                       BR3 - S/P6B
                                                                                         Banking
 bullet resistance                  BR3 - S/P7B

 a) National requirements can be taken into account in these resistance classes.
 b) No classification possible as test requirements have been increased.
 c) The resistance class RC 2 is basically suitable for the correlation of the resistance class RC 2 N; the glazing can however be freely determined.
 d) Supplementary test with the splitting hammer as per DIN EN 1630:2011-08.
15

Fall protection glazing
SEMCO SAFE offers integrated protection against cuts with the shard-binding property of the composite film and also provides
remaining structural capacity in the case of glass breakage. It is also suitable for fall protection in the correct glass applications
according to TRAV (technical rules for the use of safety glazing). These rules are issued by the German Institute for Construction
Engineering (DIBt) and taken into consideration in all Federal states by the supervising building authorities.

Semcoglas has a „General building inspection test certificate“ (AbP) for safety insulation glazing (double and triple) in the TRAV
categories A, C2 and C3.
The minimum configuration is CSG8-0.76 / PIS10 / CSG6-0.38. This can be expanded by a middle pane for triple glazing configurations.
It can be produced with safety glass or even float glass. If glazing is produced according to the AbP, then the impact resistance is
proven according to TRAV. This avoids the necessity of experimental tests or approvals in individual cases!

Numerous easy options
The individual glass panes in the composite safety glass SEMCO SAFE SENTRYGLAS® are bonded together with SentryGlas® intermediate
film layers. A wide-ranging field of applications is made possible by the resulting high stiffness.
Larger dimensions and less weight are just two of the advantages that this product offers in comparison to composite safety glass
using PVB film as an intermediate layer. SEMCO SAFE SENTRYGLAS® opens up new architectural possibilities for architects and
construction engineers.

                                                                               OPTIMALLY SUITABLE FOR:
                                                                               •
                                                                                Protection of valuable objects
                                                                               •
                                                                                Fall protection safety glazing
                                                                                (e.g. balcony balustrades, railings)
                                                                               •
                                                                                Protection of and against persons
                                                                                                                                         Technical data on Page 34
ALARM GLAZING

  16 SEMCO DUR ALARM

            Securely monitored
            According to crime statistics, half of all break-ins are carried out via unsecured glazing areas.
            Semcoglas sounds the alarm: Excellent protection for buildings with SEMCO DUR ALARM, whether in the private, commercial
            or public sector.
            Burglars simply stand no chance when buildings are equipped with safety glass and integrated alarm function. The alarm
            strip is either positioned invisibly or discreetly visible - as a preventative deterrent. As soon as the glass is damaged, the alarm
            is triggered. SEMCO DUR ALARM reacts within seconds – driving the burglars away.

                                                                                                                     SEMCO DUR ALARM with discreetly positioned
                                                                                                                     alarm strip (top) and completely hidden alarm
                                                                                                                     strip (bottom)

SEMCO DUR ALARM and SEMCO KLIMA 700 _ C & A premises, Osnabrück

         Semcoglas offers safety with quality, which pays in emergency situations: SEMCO DUR ALARM meets all legal VdS and
         DIN specifications for burglar alarm systems Class C. You are also on the safe side with SEMCO DUR ALARM with regards
         to damage regulation in insurance cases.

         The system can be combined with all commercial alarm systems and other functions such as thermal insulation, solar
         protection, sound protection and climate glazing.

                                                                                        OPTIMALLY SUITABLE FOR:
                                                                                        •
                                                                                         Protecting commercial and private properties from
                                                                                         break-in
                                                                                        •
                                                                                         Shop windows
PRIVACY PROTECTION GLASS

                                                        SEMCO KLIMA LIGHT DIFFUSION                                                                            17

                Not for dazzlers
                SEMCO KLIMA LIGHT DIFFUSION (LD) brings light into industrial buildings and sports halls: The light diffusing characteristic of the glass
                prevents direct dazzling and also guarantees visual protection. It also meets the requirements for listed buildings and has been tested as
                ball-impact resistant for use in sports halls.

                In comparison to conventional hall glazing systems, the thermal insulation is significantly higher with Ug values of up to 1.0 W/m²K (double
                glazing) and 0.5 W/m²K (triple glazing). SEMCO KLIMA LD also keeps the heat out in summer, thus providing comfortable temperatures.
                A glass full of good properties.

SEMCO KLIMA LD _ Sports hall, Wesenberg

                                                                                       OPTIMALLY SUITABLE FOR:
                                                                                       •
                                                                                        Halls for commercial or public use and visual
                                                                                        protection requirements
                                                                                       •
                                                                                        Sports halls
                                                                                       •
                                                                                        Listed buildings
FULLY GLAZED FACADES

 18 SEMCO STRUCTURAL GLAZING

SEMCO STRUCTURAL GLAZING and FINI CURVE _ Abford House, London

                                                                             Glazing options with STRUCTURAL GLAZING

      Facelifts for facades
      Crystal clear aesthetics across the board offered by SEMCO
      STRUCTURAL GLAZING. Is it new or old? The viewer can only
      guess where windows are placed with functional glazing and
      where wall elements are used with SEMCO COLOR.
                                                                             Flush-mounted dry glazing in    Flush-mounted dry glazing
      ‚STRUCTURAL GLAZING‘ was developed over 25 years ago in the
                                                                             horizontal section              in vertical section
      USA. With its filigree, flush-mounted appearance, this structural
      configuration is preferentially used in representative entrances,
      stairwells and facades of office buildings. In addition, the lack of
      transverse and longitudinal profiles means that such facades are
      extremely easy to clean.

      All Semcoglas functional glazing can be combined with a
      matching facade panel so that we, as a certified STRUCTURAL
      GLAZING partner, can guarantee a facelift that can show its face
      anywhere.
                                                                             Wet sealing in horizontal       U-shaped dry glazing in
                                                                             section                         vertical section

                                                                                   OPTIMALLY SUITABLE FOR:
                                                                                   •
                                                                                    Visually frameless glass facades
                                                                                   •
                                                                                    Facade cladding

            MATCHING SEMCO COLOR
            FACADE PANELS AVAILABLE [ s. P. 22 ]
POINT-FIXED GLAZING

                                                        SEMCO POINT                                                                              19

                                                                    Perfect and to the point
                                                                    Floating facades and transparent lightness of design:
                                                                    The advantages of clear glass facades are clearly pointed out with SEMCO
                                                                    POINT. Thanks to this excellent system, large surface areas can be realized
                                                                    without frames. The fittings are flush-integrated in the panes with countersunk
                                                                    holes or combined with disc holders through cylindrical glass bores. The
                                                                    main point here is that: The point-fixed system is equipped with an articulated
                                                                    holder whose rotation point lies within the glass plane.

                                                                    SEMCO POINT is so simply relaxed: Forces that occur are directly diverted
                                                                    into the sub-structure. The intrinsic weight of the glass pane does not
                                                                    therefore cause any additional stresses in the holding area. The thickness
                                                                    of the glass can be reduced to a minimum. SEMCO POINT makes brilliant
                                                                    facade design possible through perfect technology.

                                                                    We also even offer a system with optimal grip for canopy systems and full
                                                                    glazing systems such as glazed passages, waiting rooms or public transport
                                                                    stops.

SEMCO POINT _ Cruise Center, Warnemünde (top/bottom)

                                                                  SEMCO POINT _ Municipal museum, Demmin

                                                                       OPTIMALLY SUITABLE FOR:
                                                                       •
                                                                        Large area glazing, overhead glazing
                                                                       •
                                                                        Canopy systems
                                                                       •
                                                                        Fully glazed systems such as e.g. glazed passages,
       Disc holder                         Countersunk holder           waiting rooms and public transport stops
SCREEN PRINTING

   20 SEMCO DESIGN

              Fantasy glass design
              Glass surfaces take on clearly unique appearances with SEMCO DESIGN.
              Graphic patterns, company logos or text - we ensure that your individual taste is reflected on
              the surface of the glass.
              SEMCO DESIGN is just as suitable for the design of facades, balustrades, canopies and roofing
              as it is for public transport stops, porches or signs.

              The process is perfectly easy: The design is applied with ceramic colors to the glass using
              screen printing and burnt on during the tempering process. The product is water and scratch-
              resistant, ensuring long durability. There are no limits to the choice of color. The entire color
              spectrum is available, based on the RAL, RAL Design, NCS, Pantone and Sikkens systems. The
              tempered SEMCO DESIGN is always subject to a Heat-Soak test (SGS-H), if used in facades, to
              minimize the risk of spontaneous breakage due to nickel-sulfide inclusions.

SEMCO DESIGN _ Car park, Rostock (top/right)
21

                                                                        SEMCO DESIGN and SEMCO KLIMA 600 _ Cruise Center Altona, Hamburg (top/bottom)

SEMCO DESIGN _ Logo design on office building

     YOU CAN FIND NUMEROUS POPULAR DESIGN
     TEMPLATES IN OUR PATTERN BOOK

Custom patterns are displayed perfectly on clear or colored float
glass and white glass.

SEMCO DESIGN can be combined as a mono or insulation glass
with our climate, thermal insulation and sound insulation glazing
and with safety functions. Fantastic glazing with extra functionality
- for extra safety and comfort.

                                                                           OPTIMALLY SUITABLE FOR:
                                                                           •
                                                                            Color designs with transparency
                                                                           •
                                                                            Depiction of Corporate Design elements such as e.g.
                                                                            company logos
                                                                           •
                                                                            Signs, orientation systems
                                                                           •
                                                                            Visual protection
FACADE PANELS

   22 SEMCO COLOR

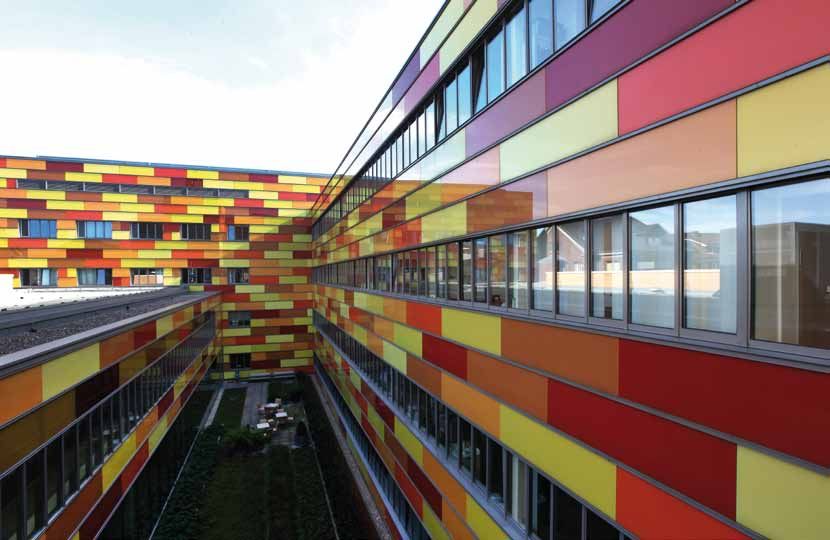

SEMCO COLOR _ Marienkrankenhaus hospital, Hamburg
SEMCO COLOR _ River police headquarters, Rostock

                                                    Colorful interactions on
                                                    facades
                                                    Fantastic effects can be achieved with colors. Facades shine in unique animated
                                                    appearances with SEMCO COLOR. A broad color range can be selected for the
                                                    facade panels, depending on the architectural requirements, colors that are of
                                                    course available for all our glass types. The colors can also be optimally matched
                                                    to other materials using the RAL, RAL Design, NCS, Pantone and Sikkens systems.

                                                    The advantages of SEMCO COLOR can be seen: The facades are eye-catching
                                                    with permanently burnt-in special colors on the outside, but opaque to the
                                                    interior. SEMCO COLOR on white glass has a particular brilliance.

                                                    The mixture does it with SEMCO COLOR. The use of special glass types results in
                                                    both unusual mixed color effects and homogenous glass facades in combination
                                                    with SEMCO SUN or SEMCO SUN REFLECT [cf. P. 10].

                                                    The tempered Semcoglas single glazing safety glass meets all relevant construction
                                                    approval requirements. We only use enamel colors free from heavy metals in
                                                    our standard color range, in accordance with our concept of ecologically-
                                                    compatible construction materials.

                                                    SEMCO COLOR is always subject to a Heat-Soak test (SGS-H), if used in facades,
                                                    to minimize the risk of spontaneous breakage due to nickel-sulfide inclusions.
outside
          Application examples for connecting panels
                    inside                    outside              inside                outside              inside                 outside            inside
                                                                                                                                                                                    23
                                                                                                              AL plate
                                                                    AL plate                                  Color as required                         PIS filled with noble gas
                                                                    Color as required
                     Mineral insulation material                                                                                                        SGS facade panel, RAL or
                     Rock wool WLG 035                                                                                                                  NCS with HS test
                                                                                                              Vacuum insulation
                                                                    PUR rigid foam
                     AL plate with Z-edging
                                                                    WLG 035
                     Color as required

              SGS facade panel, RAL                           SGS facade panel, RAL                      SGS facade panel, RAL                      SGS with thermal insulation
              or NCS with HS test                             or NCS with HS test                        or NCS with HS test

          Glass-aluminum composite panel                Glass sandwich panel is a thermal          Vacuum insulation panel with low         Glass-glass panel with insulation glazing
          with Z-edging for wall and balustrade         insulation panel with low mounting         mounting depth for use in facade sectors appearance and excellent depth effect for
          cladding with good thermal and sound          depth for use in the facade sector         that do not permit use of conventional post-beam construction in an all-glass look
          insulation properties                                                                    canted panels

                 THE COMPREHENSIVE COLOR
                 RANGE CAN BE FOUND IN OUR
                 COLOR CATALOGS

SEMCO COLOR and SEMCO COLOR VANCEVA _ Employment Agency, Berlin

                                                                                             SEMCO COLOR _ UTA Headquarters, Aschaffenburg

                                                                                                     OPTIMALLY SUITABLE FOR:
                                                                                                     •
                                                                                                      Creative color solutions
                                                                                                     •
                                                                                                      Homogeneous glass facades in combination with other
                                                                                                      functional glazing in our product range
COLOR FILMS

   24 SEMCO COLOR VANCEVA

                                                                                                                                    Over a thousand color nuances
                                                                                                                                    available at the click of a button

                                                    Colorful aspects and perspectives
                                                    SEMCO COLOR VANCEVA brings color into our lives: Blue glass roofs make the viewer think of a permanently
                                                    blue sky, green tinted windows turn the vision of a green paradise behind glass into reality. SEMCO COLOR
                                                    VANCEVA creates harmony in color and design.

                                                    Wonderful perspectives are possible thanks to the novel color film generation. Over a thousand design variants
                                                    can thus be realized on high-quality composite safety glass (CSG), up to 2440 x 4500mm. The palette ranges
                                                    from standard colors to personally created tones. Various levels of light permeability can also be achieved with
                                                    three different white films.

                                                    SEMCO COLOR VANCEVA makes exciting architecture worth looking at – also with regards to facade designs
                                                    using company colors. If your clients love extravagant glass design, then this is the product for them.
SEMCO COLOR VANCEVA _
Wandsbek Market, Hamburg

                                                              SEMCO COLOR VANCEVA _ Shopping Center, Greifswald         SEMCO COLOR VANCEVA _ Campus, Marburg

                                                                    OPTIMALLY SUITABLE FOR:
                                                                    •
                                                                     Partially transparent glazing with color effects, e.g.
                                                                     balconies, railings, etc.
                                                                    •
                                                                     Transparent building design in company colors
SEMCO COLOR VANCEVA _ Einkaufszentrum, Greifswald
MOTIF FACADES

                                  SEMCO PICTURE                                                                        25

                                                  Gigantic images
                                                  Facades are displayed in an entirely new light with customized images.
                                                  Creativeness without limit. With the free selection of images, SEMCO
                                                  PICTURE is extremely versatile and fascinating in topic-based architecture
                                                  with individually designed glass surfaces.

                                                  The glass surfaces can be displayed transparently or opaque with the
                                                  selected image according to the application area. SEMCO PICTURE is also
                                                  exemplary when it comes to production: The absolutely UV-resistant PVB
                                                  film holding the image is protected by being laminated within the pane
                                                  structure of the composite safety glazing.

SEMCO PICTURE _ Office building            SEMCO PICTURE _ Office building

                                                 OPTIMALLY SUITABLE FOR:
                                                 •
                                                  Creative decorative elements on glass
                                                 •
                                                  Company photos / Illustrations within the framework
                                                  of Corporate Design
CURVED FACADE GLAZING

 26 FINI CURVE

            Glass with verve
            Glazing goes round the bend with FINI CURVE: Curves shapes set
            new trends in facade design. Cylindrical, spherical or conical curves -
            the object in question will have an unusual and amazing aspect.

            Through the innovative engineering of FINI CURVE, special shapes
            can be realized with verve. The facade will become an aesthetic
            eye-catcher in interaction with colored glazing.
            We can, of course, also shape solar protection and thermal insulation
            glazing.

                                                                                      FINI CURVE _ Lehrter Railway Station, Berlin

                                                                                          Flexible glazing
                                                                                                                                                 Insulating
                                                                                          Bending capacity                           SGS   CSG
                                                                                                                                                   glazing

                                                                                          Clear float glass                          ü     ü         ü

                                                                                          Extra-white glass                          ü     ü         ü

                                                                                          Satin-finished glass                       ü     ü         ü

                                                                                          Colored glass                              ü     ü         ü

                                                                                          Anti-reflective glass                      ü     ü         ü

                                                                                          Screen-printed glass                       ü     ü         ü

                                                                                          Ornamental glass                            -    ü         ü

                                                                                          Solar protection glass                     ü     ü         ü

                                                                                          Thermal insulation glazing                 ü     ü         ü
FINI CURVE _ Ramada Hotel, Berlin
FINI CURVE FLOAT AND FINI CURVE CSG HAVE
      THE FIRST GENERAL CONSTRUCTION APPROVAL
                                                                                                                                                                                27
      FOR CURVED GLASS (Z-70.4-146)

FINI CURVE _ Abford House, London

      Principles of dimension terminology

                                                      Outer chord S
                                                        Inner chord

                                                     Be n d i n g a n g l e
                                                                                                                            Pane height H

                                   ess
                            hi  ckn
                   s     st
      Gla
                                              us

                                                                 Bending axis
                                                 i
                                             rad
                                         ter
       Pane height outside Sh

                                                                                                                      )
                                         Ou

                                                                                                                   ide
                                                                                                             v   es
                                                                                                          ca
                                                                                                     on
                                                                                              e (c
                                                                                        c ur v                         e)
                                                                                Inner                              si d
                                                                                                          ex
                                                                                                 (c   onv                                   FINI CURVE _ Rabobank, Utrecht
                                                                                           e
                                                                                       curv
                                                                                 Outer

                                                        Outer girth L
                                                                                                                                                  OPTIMALLY SUITABLE FOR:
                                                                                                                                                  •
                                                                                                                                                   Curved facades
      Further information on curved glazing can be found
      under www.finiglas.de
                                                                                                                                                  •
                                                                                                                                                   Balustrades
                                                                                                                                                  •
                                                                                                                                                   Circular structure glazing
28 QUALITY FROM SEMCOGLAS
                                                                                                         FLOAT GLASS
                                                                   The production of float glass in our float glass plant in
                                                                   Osterweddingen is a long, constant, never-ending flow.

                                                                   Only the highest of precision throughout the entire production
                                                                   line can guarantee the high quality of our float glass. Our
                                                                   plant can be rightly said to be one of the most modern glass-
                                                                   works in the world.

    COATING
  Coatings, e.g. with silver and metal dioxide, can specifically
  influence the properties of glass. These materials have a high
  transmissivity in the visible spectral range and a high
  reflectivity in the infrared range. In addition, metal oxides
  with a high refractive index are applied for antireflection.
29
                                                                                                                       BLANK
                                                                    The material glass requires a lot of know-how, secure handling
                                                                    and state of the art technology. Our experienced specialists
                                                                    ensure perfect results are achieved for blanks, rounded and
                                                                    canted edges, cut-outs and model panes with the use of state
                                                                    of the art CNC technology. A comprehensive stock of float and
                                                                    cast glass, together with design and special glazing, ensures
                                                                    rapid processing of orders.

                                                                    We can meet diverse requirements with precisely dimensioned
                                                                    blanks and process these into high-quality glass products.

 SPACER
Hollow profiles made of aluminum, stainless steel, plastic or TPS
(Thermo Plastic Spacer) are used as spacers.
The two panes in insulation glazing can be held at the required
distance in this manner.

                                                                    Desiccant is stored in the metal spacers. TPS in contrast does not
                                                                    need additional desiccant; such a warm edge system enables a
                                                                    more uniform temperature distribution over the glass surface and
                                                                    ensures that energy losses are minimized along the edge areas of
                                                                    insulation glazing.

 SEALING
In the last step, the individual glass panes joined by a spacer
are initially sealed circumferentially with Butyl (primary seal).
The term Butyl stands for a specific butyl rubber recipe that is
produced through the polymerization of polyisobutyls (PIB).
Following this butyling, the insulation glazing panes are sealed
(secondary sealing) with a sealant, generally based on poly-
urethane or polysulfide. Some of the main properties of Butyl
are the very high gas and water vapor impermeability, while
the sealing material is primarily used to secure the stability of
the insulation glazing pane and hold the Butyl cord in place, in
addition to its sealing function. The standard edge connector
height is approx. 11 mm.
30 QUALITY AND APPROVAL MARKS
   The careful selection of high quality preliminary products, the use of environmentally-friendly materials and modern technology, the
   constant qualification of the employees and systematic in-house and third-party monitoring from production to delivery all ensure
   uniform quality of Semcoglas functional glazing for windows and facades.

   High quality standards are a prerequisite for high customer satisfaction! The following quality and approval marks are evidence of
   Semcoglas quality:

               CE certification

               Semcoglas verifies conformity of its produced multi-pane insulation glazing and safety glazing with the requirements of
               the European product standards. The respective initial type tests required for this purpose and the compulsory factory
               production control (FPC) are implemented in all production factories. In order to guarantee our customers a high quality
               standard over and above this, the FPC and the relevant standard product tests in the individual insulating and safety
               glazing works are subject to voluntary third-party monitoring by an independent test authority approved at European
               level, for example:

               Information about the CE marking of our standard products can be found on the Internet under www.semcoglas.com/ce.
               All relevant performance features are listed there in tabular form, sorted according to the respective product. We can
               draw up a CE declaration of conformity for you on request for special insulation glazing and safety glass configurations.

               Ü mark (German mark of conformity) - legal requirement

               Semcoglas declares with this mark that its products also conform to the legal national requirements for insulation and
               safety glazing, in addition to the CE mark.
31
DIN EN ISO 9001 – Systematic quality

This mark documents that Semcoglas is monitored according to the guidelines of the quality management system set out in ISO
9001:2008. A continuous improvement process (CIP) is implemented on this basis, with the aim of optimizing working sequences
in all operational divisions and maintaining uniformly high quality of products.

RAL - a valued quality mark

The RAL quality mark identifies those products and services that are produced according to high specified quality criteria. The
quality and approval specifications of the Gütegemeinschaft Mehrscheiben-Isolierglas (GMI - Association for thermal insulation
glass producers) are met by Semcoglas. These include primarily a tolerance for the Ug value ≤ 0.1 W/m²K and the emissivity of the
coatings of ≤ 0.01. In addition, independent third-party monitoring of production is implemented.
„No RAL-tested window without RAL-tested insulation glazing!“

KOMO – certified quality on site

The KOMO mark is a guarantee for an above-average insulation glazing standard in the Netherlands. The latest quality requirements
of the Dutch foundation „Building quality“ and legal specifications are thereby met. They include regular product testing and
third-party monitoring by the KIWA Product Cert GmbH.

DS - Certificeret

Semcoglas is certified and monitored in compliance with the Danish Standard (DS) with this approval mark. Product tests are
implemented and ongoing production monitored by an external body.

SP - Sveriges Provnings- och Forskningsinstitut

The P mark signals Scandinavian customers that Semcoglas is also subject to constant monitoring within the framework of the
SP certification. This includes strict product tests and third-party monitoring by the Swedish testing and research institute (SP).

Benor - Certificat

Semcoglas is certified with this approval mark in compliance with the Belgian standard requirements by the BCCA (Belgian
Construction Certification Association). Product tests and two third-party monitoring production inspections per year are
implemented.

VdS - certificate

Glazing with alarm systems and the relevant production factories are certified and monitored by the VdS Schadenverhütung GmbH. The
corresponding requirements regarding production of the alarmed glazing - whether insulation or safety glazing - are met here by Semcoglas.
32 SPECIFICATIONS

   Glass product                                               Glass structure                             Ug-value      g value

                                                                                                                                                                                              (shading coefficient)
                                                                                                                                     Light transmissi-

                                                                                                                                                                            Color reproduc-
                                                                                                                                                         Light reflection
                                         Glass thickness

                                                                                                                                                         outside (D65) rv
                                                              outside/PIS/inside

                                                                                                                                                                            tion index Ra
                                                                                                                                     vity (D65) tv
                                                           (outside/PIS/center/PIS/                        DIN EN 673   DIN EN 410

                                                                                      Gas type
                                                                    inside)

                                                                                                                                                                                              b factor
                                                                                                            (ΔT=15K)

                                                                                                  Weight
                                          mm                         mm                          kg/m2      W/m²K           %             %                  %                  %

   Klima climate glazing
   Semco Klima 400                            26                   6*/16/4             Ar         25          1,0           21           40                  25                 91                0,26
   Semco Klima 400                            28                   8*/16/4             Ar         30          1,0           21           40                  25                 90                0,26
   Semco Klima 400                            30                   8*/16/6             Ar         35          1,0           21           39                  25                 90                0,26
   Semco Klimastar 400                        38                 6*/12/4/12/*4         Ar         35          0,7           19           35                  26                 90                0,24
   Semco Klimastar 400                        42                 6*/14/4/14/*4         Ar         35          0,6           19           35                  26                 90                0,24
   Semco Klimastar 400 Kr                     38                 6*/12/4/12/*4         Kr         35          0,5           19           35                  26                 90                0,24
   Standard recommendation color-matched Semco COLOR facade panel: Type SC 8372 E
   Semco Klima 500                            26                   6*/16/4             Ar         25          1,0           26           51                  19                 91                0,33
   Semco Klima 500                            28                   8*/16/4             Ar         30          1,0           26           50                  19                 90                0,33
   Semco Klima 500                            30                   8*/16/6             Ar         35          1,0           26           50                  19                 90                0,33
   Semco Klimastar 500                        38                 6*/12/4/12/*4         Ar         35          0,7           24           45                  20                 90                0,30
   Semco Klimastar 500                        42                 6*/14/4/14/*4         Ar         35          0,6           24           45                  20                 90                0,30
   Semco Klimastar 500 Kr                     38                 6*/12/4/12/*4         Kr         35          0,5           24           45                  20                 90                0,30
   Standard recommendation color-matched Semco COLOR facade panel: Type SC 8372 E
   Semco Klima 600                            26                   6*/16/4             Ar         25          1,0           32           64                  18                 93                0,40
   Semco Klima 600                            28                   8*/16/4             Ar         30          1,0           32           63                  18                 92                0,40
   Semco Klima 600                            30                   8*/16/6             Ar         35          1,0           32           63                  18                 92                0,40
   Semco Klimastar 600                        38                 6*/12/4/12/*4         Ar         35          0,7           29           56                  20                 92                0,36
   Semco Klimastar 600                        42                 6*/14/4/14/*4         Ar         35          0,6           29           56                  20                 92                0,36
   Semco Klimastar 600 Kr                     38                 6*/12/4/12/*4         Kr         35          0,5           29           56                  20                 92                0,36
   Standard recommendation color-matched Semco COLOR facade panel: Type SC 8687 E
   Semco Klima 700                            26                   6*/16/4             Ar         25          1,0           37           68                  13                 96                0,46
   Semco Klima 700                            28                   8*/16/4             Ar         30          1,0           37           67                  13                 96                0,46
   Semco Klima 700                            30                   8*/16/6             Ar         35          1,0           37           67                  13                 95                0,46
   Semco Klimastar 700                        38                 6*/12/4/12/*4         Ar         35          0,7           34           60                  16                 95                0,43
   Semco Klimastar 700                        42                 6*/14/4/14/*4         Ar         35          0,6           34           60                  16                 95                0,43
   Semco Klimastar 700 Kr                     38                 6*/12/4/12/*4         Kr         35          0,5           34           60                  16                 95                0,43
   Standard recommendation color-matched Semco COLOR facade panel: Type SC 9207 E

   Thermal insulation glazing
   Semco Star                                 24                   4/16/*4             Ar         20          1,1           63           79                  13                 98                0,79
   Semco Star Kr                              16                    4/8/*4             Kr         20          1,2           63           79                  13                 98                0,79
   Semco Star Kr                              18                   4/10/*4             Kr         20          1,0           63           79                  13                 98                0,79
   Semco Star Kr                              20                   4/12/*4             Kr         20          1,1           63           79                  13                 98                0,79
   Semco Energy                               28                  4*/8/4/8/*4          Ar         30          1,0           50           70                  17                 97                0,63
   Semco Energy                               32                 4*/10/4/10/*4         Ar         30          0,8           50           70                  17                 97                0,63
   Semco Energy                               36                 4*/12/4/12/*4         Ar         30          0,7           50           70                  17                 97                0,63
   Semco Energy                               36                 4/12/*4/12/*4         Ar         30          0,7           53           70                  16                 97                0,66
   Semco Energy                               40                 4*/14/4/14/*4         Ar         30          0,6           50           70                  17                 97                0,63
   Semco Energy                               44                 4*/16/4/16/*4         Ar         30          0,6           50           70                  17                 97                0,63
   Semco Energy Kr                            24                  4*/6/4/6/*4          Kr         30          0,8           50           70                  17                 97                0,63
   Semco Energy Kr                            28                  4*/8/4/8/*4          Kr         30          0,7           50           70                  17                 97                0,63
   Semco Energy Kr                            32                 4*/10/4/10/*4         Kr         30          0,6           50           70                  17                 97                0,63
   Semco Energy Kr                            36                 4*/12/4/12/*4         Kr         30          0,5           50           70                  17                 97                0,63
   Semco Energy Kr                            36                 4/12/*4/12/*4         Kr         30          0,5           53           70                  16                 97                0,66
   Semco Star+                                24                   4/16/*4             Ar         20          1,0           53           70                  19                 97                0,66
   Semco Star+                                16                    4/8/*4             Kr         20          1,1           53           70                  19                 97                0,66
   Semco Star+/A Kr                           18                   4/10/*4             Kr         20          0,9           53           70                  19                 97                0,66
   Semco Star+/A Kr                           20                   4/12/*4             Kr         20          0,9           53           70                  19                 97                0,66
   Semco Energy+                              28                  4*/8/4/8/*4          Ar         30          0,9           37           56                  26                 95                0,46
   Semco Energy+                              32                 4*/10/4/10/*4         Ar         30          0,8           37           56                  26                 95                0,46
33

Glass product                                               Glass structure                             Ug-value      g value

                                                                                                                                                                                           (shading coefficient)
                                                                                                                                  Light transmissi-

                                                                                                                                                                         Color reproduc-
                                                                                                                                                      Light reflection
                                      Glass thickness

                                                                                                                                                      outside (D65) rv
                                                           outside/PIS/inside

                                                                                                                                                                         tion index Ra
                                                                                                                                  vity (D65) tv
                                                        (outside/PIS/center/PIS/                        DIN EN 673   DIN EN 410

                                                                                   Gas type
                                                                 inside)

                                                                                                                                                                                           b factor
                                                                                                         (ΔT=15K)

                                                                                               Weight
                                       mm                         mm                          kg/m2      W/m²K           %             %                  %                  %

Semco Energy+                            36                  4*/12/4/12/*4         Ar          30          0,7          37            56                 26                 95                0,46
Semco Energy+                            36                  4/12/*4/12/*4         Ar          30          0,7          41            56                 26                 94                0,51
Semco Energy+                            40                  4*/14/4/14/*4         Ar          30          0,6          37           56                  26                 95                0,46
Semco Energy+                            44                  4*/16/4/16/*4         Ar          30          0,5          37           56                  26                 95                0,46
Semco Energy+ Kr                         24                   4*/6/4/6/*4          Kr          30          0,8          37           56                  26                 95                0,46
Semco Energy+ Kr                         28                   4*/8/4/8/*4          Kr          30          0,6          37           56                  26                 95                0,46
Semco Energy+ Kr                         32                  4*/10/4/10/*4         Kr          30          0,5          37           56                  26                 95                0,46
Semco Energy+ Kr                         36                  4*/12/4/12/*4         Kr          30          0,4          37           56                  26                 95                0,46
Semco Energy+ Kr                         36                  4/12/*4/12/*4         Kr          30          0,4          41           56                  26                 94                0,51
Semco Energy 73/62                       36                  4*/12/4/12/*4         Ar          30          0,8          62           73                  18                 97                0,78
Semco Energy 73/62                       40                  4*/14/4/14/*4         Ar          30          0,7          62           73                  18                 97                0,78
Semco Energy 73/62                       44                  4*/16/4/16/*4         Ar          30          0,7          62           73                  18                 97                0,78
Semco Energy 73/62 Kr                    36                  4*/12/4/12/*4         Kr          30          0,6          62           73                  18                 97                0,78

Solar protection glass
Semco Sun+ 270/1 silver-gray             26                     *6/16/*4           Ar          25          1,0          22            23                 35                 93                0,28
Standard recommendation color-matched Semco COLOR facade panel: Type SC 8393 E or SC 8247 E
Semco Sun+ 270/2 steel-gray              26                  ESG-H6*/16/*4         Ar          25          1,0          23            24                 13                 94                0,29
Standard recommendation color-matched Semco COLOR facade panel: Type SC 8417 E
Semco Sun+ 340/1 silver-blue             26                     *6/16/*4           Ar          25          1,0          23            31                 38                 85                0,29
Standard recommendation color-matched Semco COLOR facade panel: Type SC 8392 E
Semco Sun+ 340/2 steel-blue              26                  ESG-H6*/16/*4         Ar          25          1,0          24            32                 20                 85                0,30
Standard recommendation color-matched Semco COLOR facade panel: Type SC 8375 E
Semco Sun+ 350/1 silver-amber            26                     *6/16/*4           Ar          25          1,0          28            31                 36                 91                0,35
Standard recommendation color-matched Semco COLOR facade panel: Type SC 8374 E
Semco Sun+ 350/2 steel-amber             26                     6*/16/*4           Ar          25          1,0          29            32                 31                 91                0,36
Standard recommendation color-matched Semco COLOR facade panel: Type SC 9532 E
Semco Sun+ 450/1 silver-green            26                     *6/16/*4           Ar          25          1,0          24            40                 39                 91                0,30
Standard recommendation color-matched Semco COLOR facade panel: Type SC 8376 E
Semco Sun+ 450/2 steel-green             26                  ESG-H6*/16/*4         Ar          25          1,0          25            40                 28                 91                0,31
Standard recommendation color-matched Semco COLOR facade panel: Type SC 8389 E
Semco Sun+ 550/1 silver-light            26                     *6/16/*4           Ar          25          1,0          40            50                 42                 95                0,50
Standard recommendation color-matched Semco COLOR facade panel: Type SC 8373 E
Semco Sun+ 550/2 steel-silver            26                     6*/16/*4           Ar          25          1,0          40            50                 41                 95                0,50
Standard recommendation color-matched Semco COLOR facade panel: Type SC 8372 E
Semco Sun+ 330 gray                      26                   ESG6/16/*4           Ar          25          1,0          29            34                  8                 95                0,36
Standard recommendation color-matched Semco COLOR facade panel: Type SC 8642 E
Semco Sun+ 400 bronze                    26                   ESG6/16/*4           Ar          25          1,0          32            39                  9                 92                0,40
Standard recommendation color-matched Semco COLOR facade panel: Type SC 8643 E
Semco Sun+ 600 green                     26                   ESG6/16/*4           Ar          25          1,0          37           60                  16                 90                0,46
Standard recommendation color-matched Semco COLOR facade panel: Type SC 8644 E
with cleaning-supported effect:
Semco Dur Clean Star+                    26                   *ESG6/16/*4          Ar          25          1,0          43           56                  35                 97                0,54
Semco Dur Clean Star+                    30               *ESG6/16/*VSG8-0,76      Ar          35          1,0          43           55                  36                 97                0,54
Semco Dur Clean Star+                    32               *ESG8/16/*VSG8-0,76      Ar          40          1,0          42           54                  36                 96                0,53
Standard recommendation color-matched Semco COLOR facade panel: Type SC 8508 E
Semco Clean Classico Star+               26                   *ESG6/16/*4          Ar          25          1,0          30           48                  33                 92                0,38
Semco Clean Classico Star+               30               *ESG6/16/*VSG8-0,76      Ar          35          1,0          30           47                  33                 91                0,38
Semco Clean Classico Star+               32               *ESG8/16/*VSG8-0,76      Ar          40          1,0          26           44                  33                 88                0,33
Standard recommendation color-matched Semco COLOR facade panel: Type SC 8363 E
34 SPECIFICATIONS

        Glass product                                                     Glass structure                                Ug-value     g value                                                                                    Evaluated sound

                                                                                                                                                                                                         (shading coefficient)
                                                                                                                                                Light transmissi-

                                                                                                                                                                                       Color reproduc-
                                                                                                                                                                    Light reflection
                                                  Glass thickness

                                                                                                                                                                    outside (D65) rv
                                                                         outside/PIS/inside                                                                                                                                      insulation value

                                                                                                                                                                                       tion index Ra
                                                                                                                                                vity (D65) tv
                                                                      (outside/PIS/center/PIS/                           DIN EN 673   DIN EN                                                                                        Rw (C;Ctr)

                                                                                                    Gas type
                                                                               inside)

                                                                                                                                                                                                         b factor
                                                                                                                         (ΔT=15K)

                                                                                                                Weight
                                                                                                                                       410

                                                   mm                            mm                            kg/m2      W/m²K         %            %                  %                  %                                           dB

        Sound protection and thermal insulation glazing
        Semco Phone 37/8 S (monolithic)                  8                  VSG8-0,76SC               -         21           -           -            -                   -                  -                    -                 37 (-1;-4)
        Semco Phone 39/10 S (monolithic)              10                     VSG10-0,5SI              -         26           -           -            -                   -                  -                    -                 39 (-1;-3)
        Semco Phone 40/12 S (monolithic)              12                     VSG12-0,5SI              -         31           -           -            -                   -                  -                    -                 40 (-1;-2)
        Semco Phone 42/16 S (monolithic)              16                     VSG16-0,5SI              -         40           -           -            -                   -                  -                    -                 42 (-1;-2)
        Semco Phone 32/24 Star                        24                       4/16/*4               Ar         20          1,1         63          79                  13                 98                0,79                       32
        Semco Phone 36/26 Star                        26                       6/16/*4               Ar         25          1,1         61          79                  13                 98                0,76                   36 (-1;-5)
        Semco Phone 37/28 Star                        28                       8/16/*4               Ar         30          1,1         60          78                  12                 97                0,75                   37 (-2;-6)
        Semco Phone 38/28 Star                        28                   VSG8-0,76/16/*4           Ar         30          1,1         57          77                  13                 97                0,71                   38 (-2;-6)
        Semco Phone 38/30 Star                        30                       8/16/*6               Ar         35          1,1         60          78                  12                 97                0,75                   38 (-2;-6)
        Semco Phone 39/32 Star                        32                       10/16/*6              Ar         40          1,1         59          77                  12                 96                0,74                   39 (-2;-4)
        Semco Phone 39/32 Star                        32              VSG8-0,38/16/*VSG8-0,38        Ar         40          1,1         57          77                  13                 96                0,71                       39
        Semco Phone 39/28 Star                        28                  VSG6-0,5SI/16/*6           Ar         31          1,1         57          78                  12                 97                0,71                   39 (-1;-5)
        Semco Phone 40/30 Star                        30                   VSG8-0,76/16/*6           Ar         35          1,1         57          77                  13                 97                0,71                       40
        Semco Phone 40/34 Star                        34                       10/20/*4              Ar         35          1,2         59          78                  12                 97                0,74                   40 (-2;-6)
        Semco Phone 41/36 Star                        36                       10/20/*6              Ar         40          1,2         59          77                  12                 96                0,74                   41 (-2;-5)
        Semco Phone 41/30 Star                        30                  VSG6-0,5SI/16/*8           Ar         35          1,1         57          77                  12                 97                0,71                   41 (-2;-6)
        Semco Phone 41/30 Star                        30                  VSG8-0,5SI/16/*6           Ar         36          1,1         56          77                  12                 97                0,70                   41 (-2;-7)
        Semco Phone 42/32 Star                        32                  VSG8-0,5SI/16/*8           Ar         41          1,1         56          77                  12                 96                0,70                   42 (-2;-6)
        Semco Phone 43/34 Star                        34                  VSG10-0,5SI/16/*8          Ar         46          1,1         55          76                  12                 96                0,69                   43 (-2;-6)
        Semco Phone 45/34 Star                        34                  VSG8-0,5SI/16/*10          Ar         46          1,1         56          76                  12                 96                0,70                   45 (-2;-6)
        Semco Phone 47/32 Star                        32             VSG12-0,5SI/12/*VSG8-0,5SI      Ar         51          1,3         54          75                  12                 95                0,68                   47 (-2;-6)
        Semco Phone 49/36 Star                        36             VSG12-0,5SI/16/*VSG8-0,5SI      Ar         51          1,1         54          75                  12                 95                0,68                   49 (-3;-8)
        Semco Phone 50/40 Star                        40             VSG12-0,5SI/20/*VSG8-0,5SI      Ar         51          1,2         54          75                  12                 95                0,68                   50 (-3;-8)
        Semco Phone 32/36 Energy                      36                    4*/12/4/12/*4            Ar         30          0,7         50          70                  17                 97                0,63                   32 (-1;-5)
        Semco Phone 37/38 Energy                      38                    6*/12/4/12/*4            Ar         35          0,7         49          69                  16                 96                0,61                   37 (-2;-6)
        Semco Phone 39/42 Energy                      42                    8*/12/4/12/*6            Ar         45          0,7         48          68                  16                 96                0,60                   39 (-2;-5)
        Semco Phone 41/44 Energy                      44                    10*/12/4/12/*6           Ar         50          0,7         47          68                  16                 95                0,59                   41 (-2;-4)
        Semco Phone 43/42 Energy                      42               VSG8-0,5SI*/12/4/12/*6        Ar         45          0,7         45          68                  16                 96                0,56                   43 (-2;-6)
        Semco Phone 45/44 Energy                      44               VSG8-0,5SI*/12/4/12/*8        Ar         50          0,7         45          67                  16                 95                0,56                   45 (-2;-6)
        Semco Phone 46/48 Energy                      48            VSG10-0,5SI*/12/6/12/*VSG8-0,5SI Ar         60          0,7         44          66                  16                 94                0,55                   46 (-1;-7)
        Manual attack resistant thermal insulation glazing
        Impact-resistant glazing
        Semco Safe P2A Star (RC1)1                    28                   VSG8-0,76/16/*4           Ar         31          1,1         57          77                  13                 97                0,71                       -
        Semco Safe P4A Star (RC2)1                    29                   VSG8-1,52/16/*4           Ar         32          1,1         57          78                  13                 97                0,71                       -
        Semco Safe P5A Star (RC3)1                    33                     VSG10/16/*6             Ar         38          1,1         56          78                  13                 97                0,70                       -
        Semco Safe P4A Star (RC2)1                    23                   VSG8-1,52/10/*4           Kr         30          1,0         57          78                  13                 97                0,71                       -
        Penetration-resistant glazing
        Semco Safe P6B Star (RC4)1                    40                     VSG18/16/*6             Ar         57          1,1         51          73                  15                 94                0,64                       -
        Semco Safe P7B Star (RC5)1                    49                     VSG27/16/*6             Ar         64          1,1         46          70                  16                 92                0,58                       -
        Semco Safe P8B Star (RC6)1                    54                     VSG32/16/*6             Ar         75          1,1         44          68                  16                 91                0,55                       -
        Data in brackets: Corresponding resistance class as per DIN EN 1627, Issue August 2011
        Bullet-resistant glazing (monolithic)
        Semco Safe BR3-S P6B/28 (bank glazing)²                                 VSG28                 -         68           -           -            -                   -                  -                    -                     -
        Semco Safe BR3-S P7B/38 (bank glazing)²                                 VSG38                 -         90           -           -            -                   -                  -                    -                     -

   1)   Resistance class as per DIN EN 356, data in brackets: Minimum resistance class for glazing as per DIN EN 1627, Issue Sept. 2011, Table 1
   2)   Resistance class as per DIN EN 1063 and DIN EN 356
GLOSSARY                                                                                              35

Ug value
                  Unit of measurement for heat loss of glazing. The smaller the Ug value, the better the thermal insulation.
                  Ug values determined for vertical installation as per DIN EN 673. For physical reasons, the Ug value of insulation glazing
                  increases dependent on inclination angle when installed at an angle.

g value
                  Unit of measurement for total energy transmittance through glazing.
                  High g value: Additional and free thermal use of sunshine.
                  Low g value: Reduction of summer heating of rooms due to sunshine.

Light transmission
                  Degree of light transmittance in percent. Indicates the percentage of visible light (for the radiation band between 380 nm
                  and 780 nm) that can pass through the glass and is therefore dependent on the glass thickness and coatings.
                  The higher the light transmission, the greater the daylight utilization.

Degree of light reflection
                  The percentage of visible light (for the radiation range from 380 nm to 780 nm) that is mirrored or reflected on the glass
                  pane surface. A high degree of light reflection means a reduction of glare inside the room.

Ra value
                  The general color reproduction index Ra describes the color impression that the human eye has when viewing an object
                  illuminated by daylight coming through glazing. With clear glass, Ra is 99%.

Shading coefficient (b-factor)
                  Average transparency factor of solar energy, based on the total energy transmittance of a double glazing insulation glass,
                  used to calculate the cooling load of glazed rooms.
                  Shading coefficient (b factor) = g value / 0.80 (VDI 2078)

Rw value
                  Value for the sound insulation. The higher the sound insulation value, the better the sound insulation.
                  In addition to the sound insulation value, the frequency of the sound source is taken into account with correction factors
                  (C; C (C; Ctr) for good noise insulation.

Facade panels
                  Facade panels made of enamelled glass matched in color to the glazing. As color impressions are subjectively evaluated,
                  sampling is recommended before specifying the glazing. The facade panels are mainly used to cover blank sections on
                  buildings, e.g. ceilings.

Glass thickness measurement
                  The person ordering our products is responsible for ensuring the correct measurement of glass thickness, depending on the
                  application, according to the applicable technical regulations and standards.

                  •          Combinations with different glass thicknesses are possible.

                  •          Dimensional tolerances, see DIN EN 572-8

                  •          Tolerance for the emissivity of the coatings: + 0.01 (as per RAL quality criteria)

                  •          Tolerance for the Ug value: + 0.1 W/m²K (as per RAL quality criteria)

                  •          Tolerance for the g value: ± 0.02 (as per RAL quality criteria)

  •                          The functional values given here for the glass products were determined with calculation software validated and
		                           certified by ift Rosenheim (Test Report No. 41041462). The data for the software was based on functional values on
		                           standard structures determined according to the relevant and currently valid test standards by correspondingly
		                           accredited test institutes. Formats and combinations deviating from this can lead to a change in individual functional
		                           values.

  •                          The light and radiation-related physical data are calculated or measured values that may fluctuate by ± 2 or 3%
		                           depending on the glass manufacturer and the glass thickness, as well as unavoidable production tolerances. The
		                           data shown here are therefore subject to change.
With more than 20 sites in three regions across the nation, Semcoglas is one of the leading complete suppliers for architectural glass.

The Service centers in the individual regions are closely networked with our application engineering and product development sites.
So we can achieve the optimum solution for every challenge together with you. That‘s a promise.

  Your SEMCOGLAS Partner
                                                                                                                                                1/2012

                                                                                                                            www.semcoglas.com
You can also read
