FB Series Bellows Valve Catalog 4145 June 2013
Instrumentation Products Division Catalog 4145
Huntsville, Alabama, USA
Jacksonville, Alabama, USA
WARNING – USER RESPONSIBILITY
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND
PROPERTY DAMAGE.
This document and other information from Parker-Hannifin Corporation, its subsidiaries and authorized distributors provide product or system options for further investigation by users
having technical expertise.
The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance,
maintenance, safety and warning requirements of the application are met. The user must analyze all aspects of the application, follow applicable industry standards, and follow the
information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors.
To the extent that Parker or its subsidiaries or authorized distributors provide component or system options based upon data or specifications provided by the user, the user is responsible
for determining that such data and specifications are suitable and sufficient for all applications and reasonably foreseeable uses of the components or systems.
Offer of Sale
The items described in this document are hereby offered for sale by Parker-Hannifin Corporation, its subsidiaries or its authorized distributors. This offer and its acceptance are governed by
the provisions stated in the detailed “Offer of Sale” elsewhere in this document or available at www.parker.com/ipdus.
© Copyright 2013 Parker Hannifin Corporation. All Rights Reserved.
Parker Hannifin Corporation
Instrumentation Products Division
Jacksonville, AL USA
http://www.parker.com/ipdus
Catalog 4145

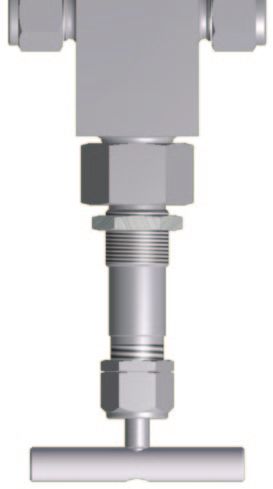

FB Series Bellows Valve
Introduction
Parker FB Series Bellows Valves are designed to provide high integrity atmospheric sealing for severe
service instrumentation applications. It includes a secondary packing that acts as a backup to the pri-
mary bellows seal.
Features Specifications
• Externally pressurized bellows stem seal Pressure Rating 2500 psig (414 bar) CWP
• Choice of Grafoil or PTFE packing
®
Temperature Rating
• Packing acts as a secondary/backup seal PTFE packing – -65°F to 450°F
above the primary bellows seal. (-54°C to 232°C)
• Non-rotating stem tip Grafoil® packing – -65°F to 1000°F
(-54°C to 649°C)
• Stem swivel and power threads above the
primary seal 0.172" to 0.312"
Orifice
(4.4mm to 7.9mm)
• Choice of blunt or regulating stem
configurations Cv 0.40 to 1.03
• 316SS construction Pressure Rating and Tubing Selection
• 316L stainless steel bellows and welded For working pressures of A-LOK® and CPI™ tube
components connections, please see the Instrumentation Tubing
Selection Guide (Bulletin 4200-TS), found in the
• Wide variery of US Customary and SI ports Technical Section of the Parker Instrumentation
• Panel mountable Products Master Binder, or the Parker Instrument
Tube Fitting Installation Manual (Bulletin 4200-B4).
• 100% factory tested
For working pressures of valves with external or
internal pipe threads, please see Catalog 4260,
Grafoil® is a registered trademark of GrafTech International
Holdings, Inc.
Instrumentation Pipe Fittings.
Pressure vs. Temperature Curve
1 Parker Hannifin Corporation
Instrumentation Products Division
Jacksonville, AL USA
http://www.parker.com/ipdus
FB Series Bellows Valve Catalog 4145

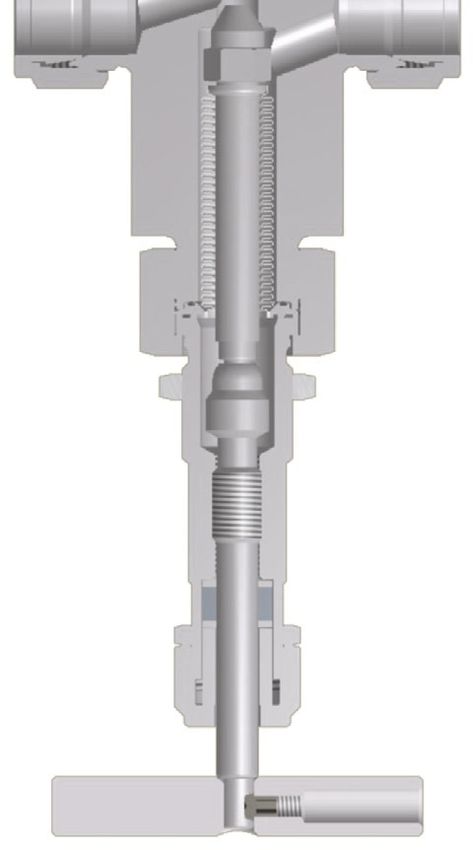

Materials of Construction
Item Description Material
1 Valve Body * ASTM A 479, type 316
2 Bonnet Nut ASTM A 479, type 316
3 Bonnet ASTM A 479, type 316
4 Bellows * ASME SA 240, type 316L
5 Lower Stem * ASTM A 479, type 316L
6 Weld Ring * ASTM A 479, type 316L
7 Stem Tip * ASTM A 479, type 316
8 Upper Stem ASTM A 564, type 630
9 Ball 440-C Stainless Steel
Metal O-ring –
10 Alloy X-718 (Inconel®)
upper
Metal O-ring –
11 Alloy X-718 (Inconel®)
lower*
12 Packing Nut ASTM A 479, type 316
13 Panel Nut Stainless Steel
14 Lock Nut 316 Stainless Steel
15 Packing ** Grafoil®
16 Packing Washer 316 Stainless Steel
17 Spacer ASTM A 479, type 316
18 Handle *** 316 Stainless Steel
19 Set Screw 316 Stainless Steel
* Wetted parts
** Optional PTFE packing is available
*** Handle material is aluminum in PTFE packed
valves
Lubrication: Molybdenum disulfide with soft metallic
fillers
Grafoil® is a registered trademark of GrafTech International
Holdings, Inc.
Inconel® is a registered trademark of Special Metals Corp.
2 Parker Hannifin Corporation
Instrumentation Products Division
Jacksonville, AL USA
http://www.parker.com/ipdus
Catalog 4145
FB Series Bellows Valve
Basic End Connections Flow Data Dimensions
Part Number Inlet outlet Stem Orifice A ** B **
Inline (port 1) (port 2) Type inch mm CV inch mm inch mm
4A-FB8LR 1/4" compression regulating 0.40
0.172 4.4 1.50 38.1 1.50 38.1
4A-FB8LB A-LOK® blunt 0.46
4Z-FB8LR 1/4" compression regulating 0.40
0.172 4.4 1.50 38.1 1.50 38.1
4Z-FB8LB CPI™ blunt 0.46
4F-FB8LR regulating 0.48
1/4" Female NPT 0.250 6.4 1.13 28.7 1.13 28.7
4F-FB8LB blunt 0.79
6A-FB8LR 3/8" compression regulating 0.48
0.250 6.4 1.60 40.6 1.60 40.6
6A-FB8LB A-LOK® blunt 0.79
6Z-FB8LR 3/8" compression regulating 0.48
0.250 6.4 1.60 40.6 1.60 40.6
6Z-FB8LB CPI™ blunt 0.79
6F-FB8LR regulating 0.71
3/8" Female NPT 0.312 7.9 1.50 38.1 1.50 38.1
6F-FB8LB blunt 1.03
8A-FB8LR 1/2" compression regulating 0.71
0.312 7.9 1.65 41.9 1.65 41.9
8A-FB8LB A-LOK® blunt 1.03
8Z-FB8LR 1/2" compression regulating 0.71
0.312 7.9 1.65 41.9 1.65 41.9
8Z-FB8LB CPI™ blunt 1.03
8F-FB8LR regulating 0.71
1/2" Female NPT 0.312 7.9 1.50 38.1 1.50 38.1
8F-FB8LB blunt 1.03
8W-FB8LR regulating 0.71
1/2" Tube socket weld 0.312 7.9 1.14 29.0 1.14 29.0
8W-FB8LB blunt 1.03
3 Parker Hannifin Corporation
Instrumentation Products Division
Jacksonville, AL USA
http://www.parker.com/ipdus
FB Series Bellows Valve Catalog 4145
How to Order
The correct part number is easily derived from the following example and ordering chart. The six
product characteristics required are coded as shown in the chart.
Inlet Outlet Valve Stem Body
— Orientation — Packing —
Port* Port* Series Type Material*
Example: 8Z – FB8 L R – G – SS
Describes an inline pattern FB Series Bellows Valve equipped with 1/2" CPI™ compression
inlet and outlet ports, a regulating stem type, Grafoil® packing, stainless steel construction.
Inlet Outlet Valve Stem Body
Orientation Packing
Port* Port* Series Type Material
4A 6A 8A FB8 L Inline Pattern R Regulating T PTFE SS Stainless Steel
4Z 6Z 8Z B Blunt G Grafoil®
4F 6F 8F
8W
*If the inlet and outlet ports are the same, eliminate the outlet port designator.
How to Order Additional Options
Oxygen Cleaning – Add the suffix -C3 to the end of the part number for receive valves cleaned and
assembled for oxygen service in accordance with ASTM G 93 Level C.
How to Order Maintenance Kits
Stem Seal Kits: Consists of one bellows stem tip and maintenance instructions. Specify blunt or
regulating stem tip.
Example: KIT-FB8-TIP-R (regulating stem tip)
KIT-FB8-TIP-B (blunt stem tip)
Bellows Kits: Consists of a welded bellows stem sub assembly, stem tip and maintenance instructions.
Example: KIT-FB8-WSA-R (regulating stem tip)
KIT-FB8-WSA-B (blunt stem tip)
Gasket Kits: Consists of one upper and lower metal o-ring and maintenance instructions.
Example: KIT-FB8-GASKET
