1 INTRODUCTION
PURPOSE OF THIS DOCUMENT
The purpose of this guide is to promote good This guide includes detailed technical information
practice for the management of noise sensitive relating to noise and vibration, and planners will
land use near to state highways. This guide require specialist support when implementing
provides information that can be applied to some aspects. For queries relating to the state
avoid or manage adverse effects, such as sleep highway network, please contact
disturbance, for people in buildings located near to environment@nzta.govt.nz.
state highways. This guide is consistent with the For the general public, particularly private house
levels of service (noise criteria) outlined in builders or those undertaking alterations, this guide
NZS 6806:2010 Acoustics – road traffic noise – explains the noise and vibration effects that should
01 Building a house near a state new and altered roads. be considered. Further information on the process
highway The good practice this guide promotes recognises required for building works near to state highways
www.acoustics.nzta.govt.nz
the social, economic and health benefits of can be found at the Transport Agency website01
managing interior working and living environments and in an information brochure02.
02 NZ Transport Agency state located near to state highways and other land For the Transport Agency, this guide presents a
highways – development and
transport networks. Relieving stress related illness consistent approach and performance criteria to
access
www.nzta.govt.nz and other sleep deprivation related health effects, implement when:
reduces both individual and collective expenditure
1. determining the appropriate footprint of new
on health care. Careful and considered planning
state highway designations
also balances the aspirations and wellbeing of
landowners with New Zealanders’ desire to have 2. submitting on council plan reviews/changes
access to a safe and efficient road transport under the Resource Management Act 1991
network. (RMA)
Contained within this document is information 3. submitting or giving affected party approval to
about: plan changes and resource consent applications
under the RMA.
03 NZ Transport Agency (2011) • the nature of reverse sensitivity issues
Guide to assessing road-traffic • the roles and responsibilities of the Transport The Transport Agency has prepared various other
noise using NZS 6806 for state Agency, local councils and landowners guides, which are also relevant, including:
highway asset improvement • Guide to assessing road-traffic noise using
projects. www.nzta.govt.nz • information on regional and district plans; and
resource consents and plan changes NZS 6806 for state highway asset improvement
• performance standards projects03
• noise mitigation options • State highway noise barrier design guide04
• model plan provisions and consent conditions. • State highway guide to acoustic treatment of
buildings05
Transport Agency and council planners are the
primary audience for this guide, but the information This guide replaces the information previously
is also relevant to other staff in the Transport contained in Appendix 5D to the NZ Transport
Agency; local councils; developers; acoustics Agency Planning policy manual06.
specialists and the general public.
04 NZ Transport Agency (2010)
State highway noise barrier
guide. www.nzta.govt.nz
05 NZ Transport Agency (2015)
State highway guide to
acoustic treatment of buildings.
www.nzta.govt.nz
06 T
ransit NZ (2007) Planning
policy manual, SP/M/001,
Appendix 5D reverse
sensitivity.
v1.0 Effects on noise sensitive land use September 2015 NZ Transport Agency | 2
WHAT IS REVERSE SENSITIVITY?
Reverse sensitivity is the legal vulnerability of an Vehicles on state highways can produce adverse
established activity to complaint from a new land effects that extend beyond the state highway
use07. This can occur in situations where different boundary, such as: 07 N
Z Journal of Environmental
land uses/activities are located in close proximity to • noise and vibration Law (1999) Volume 3, Pardy,
each other, resulting in conflict between the activities. B. and Kerr, J. Reverse
• vehicle generated emissions, especially to air sensitivity – the common law
The term ‘reverse sensitivity’ generally relates to the
effects of the development of a sensitive activity in an • lighting/glare giveth, and the RMA taketh
away. www.nzcel.auckland.
area that is already affected by established activities08. • dust ac.nz/uoa
For land transport network operators, including the • non-point source pollution e.g. stormwater
run-off, spray-drift and litter. 08 J udge Sheppard
Transport Agency, there is a risk that new activities (RMA 10/97) confirmed:
(such as houses and schools) that choose to locate Sensitive receivers, which are susceptible to the effects ‘the term reverse sensitivity is
near to established roads or railways may object to the of roads, can include houses, schools and childcare used to refer to the effects of
the existence of sensitive
effects of the land transport network (such as noise facilities, hospitals, offices and hotels/motels. While
activities on other activities in
and vibration) and take action against the operator. there are a range of issues, the most widespread their vicinity, particularly by
The same issues arise around ports, airports and other effects generally relate to noise. Methods in this guide leading to restraints in the
infrastructure. The focus of this guide is on managing have been devised initially for the management of carrying on of those other
reverse sensitivity effects on the state highway noise. Other effects are generally addressed indirectly activities.’
network, but the information may also be relevant by the buffer areas required for noise.
when managing effects on railways and regionally This guide addresses effects from existing state
significant local roads. highways, and also from confirmed designations
for future state highways. The Transport Agency
also develops new state highways, and section 2
summarises how noise effects are addressed in those
cases.
FIGURE 1: NOISE MODELLING
WHY IS REVERSE SENSITIVITY AN ISSUE?
Tension can arise between the Transport Agency’s highway network, as recorded in its Customer
requirement to operate and maintain the state Relationship Management System (2014). Complaints
highway network and the desire of neighbouring predominantly relate to noise experienced by residents
landowners to develop their land as they wish, or living near to a state highway.
to enjoy their property free from unreasonable Modelling undertaken by the Transport Agency (2011)
interference or nuisance. While the Transport Agency showed that noise levels adjacent to the state highway
aims to manage interference or nuisance through network throughout the Auckland region could
careful planning, complaints from sensitive receivers cause disturbance for new sensitive activities, if they
still arise. locate close to state highways. Similar patterns occur
For the 10-year period between 2002 and 2012, the adjacent to state highways throughout New Zealand.
Transport Agency received over 250 complaints This guide sets out a nationally consistent approach
about noise from the operation and maintenance that the Transport Agency applies to encourage
of the Auckland state highway network. Nationally, appropriate planning for and treatment of sensitive
the Transport Agency receives in the order of ten environments near state highways.
complaints each month about noise from the state
3 | NZ Transport Agency Effects on noise sensitive land use September 2015 v1.0
ENVIRONMENTAL AND SOCIAL TRANSPORT AGENCY’S APPROACH TO
RESPONSIBILITY POLICY PLANNING PROCESSES
The NZ Transport Agency has a strong regard for The Transport Agency is committed to influencing
the natural, built and social environment, which is regional and local planning processes to ensure:
demonstrated through its Environmental and Social • the long-term needs of state highways are
09 N
Z Transport Agency (2014) Responsibility Policy09. The Transport Agency aims to recognised and provided for
Environmental and Social continuously improve performance in the management • the delivery of an effective, efficient, safe, and
Responsibility Policy.
of environmental and social impacts; improve the affordable transport system that supports
www.nzta.govt.nz
knowledge and understanding of the extent and prosperity and economic growth, vibrant
10 M
inistry of Transport conditions of New Zealand’s environment; and identify communities and a healthy environment
Government policy statement and comply with all relevant environmental legislation
on land transport (updated • recognition of the economic and social function
and regulation.
every 3 years). of state highways and the diverse range of
www.transport.govt.nz This policy, together with the Government Policy transport functions performed by high volume,
Statement10 are consistent with the Land Transport regional arterial, collector and access roads
11 NZ Transport Agency
Management Act 2003 and the RMA. • new developments near state highways address
HNO Environmental and Social
Responsibility Manual. To implement the Environmental and Social potential adverse effects for future occupants and
www.nzta.govt.nz Responsibility Policy, the Environmental and Social also the consequent reverse sensitivity effects on
Responsibility Manual11 contains standards, guidelines, the transport network.
tools and references applicable to all capital works and
maintenance operations. This guide forms part of that
manual.
FIGURE 2: RELATIONSHIP OF THIS GUIDE TO KEY POLICY AND STRATEGY DOCUMENTS
Government
Policy Statement
03
20
Re
t
s
Ac
ou
NZ Transport Environmental
t
rce
en
Agency and Social
em
M
Strategy Set Responsibility Policy
an
ag
ag
an
em
M
rt
en
po
Act
s
an
t
State Highway Environmental and Social Responsibility Manual
Tr
19
91
nd
La
Specialist guides (including this one)
Other statutes
v1.0 Effects on noise sensitive land use September 2015 NZ Transport Agency | 4
Ruby Bay Bypass
CASE STUDY –
EXAMPLE OF POOR OUTCOMES WHEN REVERSE SENSITIVITY NOISE EFFECTS ARE
NOT FULLY ADDRESSED
This case study provides an route, and to provide discretion for road in it at the time); the owners
example of the outcomes that can the application of building noise were then affected by road-traffic
eventuate if reverse sensitivity control measures for locations noise and complained about the
noise effects are not fully exposed to traffic noise from the operation of the state highway,
addressed on the state highway Ruby Bay Bypass. requesting significant expenditure
network. In this example the The project enjoyed positive on new road surfacing.
residents remain unhappy with the community support during the While the designation itself
noise effects they are experiencing. construction phase and once could be found in the district
The State Highway 60 Ruby Bay opened no complaints were raised plan, the plan does not include
Bypass (completed 2010) links due to road-traffic noise. However, reverse sensitivity noise buffer
Richmond and Motueka in the following the application of a and effects areas. In addition,
Tasman District. The 10.7 km road second coat seal in 2012, a number the district plan did not identify
consists of single lane carriageways of noise complaints were received. noise mitigation performance
in both directions with a number These complaints were primarily standards for new construction
of passing lanes and connections from residents whose houses were or alterations. Including these
to local roads. The road carries consented after the approval of the provisions in district plans helps
approximately 5,000 vehicles per bypass designation. alert future residents of the traffic
day and bypasses the townships of To assess these complaints the noise environment and encourages
Mapua and Ruby Bay. Transport Agency commissioned acoustic treatment of dwellings.
The investigation phase for the an independent consultant to This outcome highlights the
bypass was completed in 1999 conduct noise monitoring of both importance of land use planning
and a Notice of Requirement noise levels at houses and also of provisions to control the location
was lodged with Tasman District the road surface. The investigation and design of new houses near
Council (TDC) and approved in concluded that the second coat existing and designated state
2000. Designation conditions seal had slightly changed the highways. It also highlights the
required the Transport Agency to road-traffic noise but that the noise need to make information widely
mitigate noise from the bypass levels remained as expected and in available to councils and the
at houses that had already been compliance with the designation general public to inform them of
built at the time of the designation conditions. Some residents did potential current and future noise
(2000), resulting in noise barriers not agree with these findings and effects when developing properties
being constructed as part of the remain dissatisfied with the noise adjacent to existing or designated
project to protect those houses. effects they experience. state highways. With appropriate
In 2005 TDC adopted controls This situation is an example of a controls, houses could be built
within the district plan to assess reverse sensitivity effect whereby to achieve acceptable indoor
the location of subdivisions relative new houses were built adjacent to environments.
to the proposed State Highway 60 an existing designation (without a
5 | NZ Transport Agency Effects on noise sensitive land use September 2015 v1.0
2 A SHARED RESPONSIBILITY
There is a shared responsibility for managing vibration management plans to determine the controls
reverse sensitivity noise effects because it is neither necessary to minimise any adverse effects.
practical nor reasonable for any one party to Existing state highways were designed and
assume sole responsibility. The Transport Agency, constructed to the relevant standards of their time,
councils and landowners/developers must all and there are often limited practicable opportunities
assume responsibilities. For new and altered state to further mitigate adverse road-traffic noise and
highways the onus falls on the Transport Agency to vibration effects.
address noise effects, whereas for new and altered
Separation is often the most effective method of
noise sensitive activities near state highways the
mitigating adverse effects such as noise, vibration,
responsibility lies with councils to include appropriate
vehicle emissions, lighting/glare and dust on adjoining
land-use controls in district plans and on landowners/
land uses. New state highway designations are wider
developers to implement them. Careful and considered
than the vehicle carriageways and can incorporate
planning is pivotal to protect the environment and
buffer areas between the road and existing or
enhance the quality of life for New Zealanders.
anticipated adjoining land uses. However, there
is a tension between separating/isolating state
TRANSPORT AGENCY’S ROLE highways for control of health and amenity effects,
The Transport Agency recognises that constructing, and maintaining connectivity and compact urban
operating and maintaining state highways can impose form, as well as a safe environment for all modes of
adverse effects on communities and the environment, transport. This can be partly addressed through other
and takes reasonable steps to manage noise and non-sensitive land uses providing a buffer in some
vibration emissions, and other adverse effects. areas. Alternative approaches may be required as a
For new or altered state highways, a good opportunity compromise in some constrained urban areas.
exists to integrate the highway with existing or Section 3 provides an appropriate buffer area
anticipated adjacent land uses. The Transport Agency to control the most significant noise effects. For
12 S
tandards New Zealand adopts NZS 680612 as best practice guidance for motorways and expressways this typically results in
(2010) NZS 6806:2010 mitigating road-traffic noise during the planning, a 40m buffer area due to their relatively high traffic
Acoustics – road-traffic noise – design and construction phases of new or altered state volumes and vehicle speeds (figure 4). This buffer
new and altered roads.
highway projects03. may be achieved either through encumbrances on the
www.standards.co.nz
On new and altered state highways the Transport
Agency routinely uses low-noise road surfaces and FIGURE 3: BUFFER AREA WIDTH
noise barriers to reduce noise levels. In cases where
there is unavoidable high noise exposure the Transport 50
Width of Buffer Area (m)
Agency acoustically treats individual buildings.
On existing state highways the Transport Agency 40
adopts good practice measures to manage road
13 NZ Transport Agency (2014) surface noise and vibration13. It also investigates noise 30
Guide to state highway road and vibration complaints and addresses issues where
surface noise. practicable, such as following up with truck operators 20
www.nzta.govt.nz
using noisy engine brakes.
Surface = Grade 3/5
For maintenance works on existing state highways, the 10 Speed = 100 km/h
%HV = 8
Transport Agency adopts good practice environmental
management processes. This includes using noise and 0
1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000
AADT (vpd)
FIGURE 4: TYPICAL BUFFER AREA FOR A NEW MOTORWAY OR EXPRESSWAY
Edge of nearest lane
Other
uses Highway features
New expressway
No controls Effects area Buffer area or motorway
v1.0 Effects on noise sensitive land use September 2015 NZ Transport Agency | 6
land preventing future noise sensitive development, corridors, cycle and foot paths and other non noise
or by including the land within the designation. sensitive activities. In many cases, the outer Buffer
Encumbrances may be put in place when surplus Area may be available for other activities, such as
land owned by the Crown is disposed of or through grazing, that do not compromise highway operations.
separate agreements made with the landowner. In Vibration and air quality effects also reduce with
urban areas noise sensitive activities are generally distance from a road, so a buffer from state highways
accepted in the buffer area subject to additional and expressways would provide some protection from
controls. those potential adverse effects.
The buffer area is created to promote separation
between sensitive land use activities and the state COUNCILS’ ROLE
highway, and is measured from the edge of the nearest
traffic lane. The buffer typically incorporates shoulder The Transport Agency and local authorities have a
areas, stormwater drains, stormwater treatment, utility collective duty to balance the operation of an effective,
efficient and safe land transport system with the
desire of landowners to develop their land as they
FIGURE 5: EXAMPLE VIBRATION LEVELS14 wish, or to enjoy their property free from unreasonable
14 NZ Transport Agency (2011)
Acoustics Assessment,
interference and nuisance. Transmission Gully Project.
0.6
Velocity vw,95 (mm/s)
As the effects of a state highway usually extend Technical report 12.
Measured vibration from a road www.nzta.govt.nz
0.5 surface in very good condition. beyond the road designation, it is appropriate to
Vibration levels are generally control the establishment of new activities close
0.4 higher due to surface condition
and may also differ according to to state highways to reduce potential conflicts and
0.3
ground conditions. manage reverse sensitivity effects.
Land in rural areas can be zoned so that new sensitive
0.2 activities are not permitted near to existing and/or
designated state highways, or rules can be imposed
0.1
requiring sensitive activities near state highways to
0.0 manage effects from the highway.
0 10 20 30 40 50
Distance from road (m)
LANDOWNERS’ ROLE
Reverse sensitivity is an adverse environmental
FIGURE 6: EXAMPLE AIR QUALITY LEVELS15 15 NZ Transport Agency
effect16. Landowners, therefore, have a duty to mitigate Air quality screening model
12 the effects of their activities on the state highway v2.0. www.air.nzta.govt.nz
network. This is particularly relevant for parts of the
Pollutant concentration (μg/m3)
NO2
16 Judge Thompson
PM10 existing state highway network, which were designed
(W055/04) stated:
9
Speed = 100 km/h
and constructed to the relevant standards of the time, ‘In a number of previous
HV = 8% where opportunities for further mitigation of effects decisions this Court has held
AADT = 25,000 vpd
6
are limited. that reverse sensitivity is itself
an adverse effect in terms of s3
Buildings for new sensitive activities can be set back RMA [e.g. A049/02 and
or orientated with sensitive spaces located away from A103/03]. That has a
3
the state highways. Screening or acoustic treatment of significant consequence. If
new and altered buildings can also be used to reduce reverse sensitivity is an adverse
effect, then there is a duty,
0 internal noise levels. subject to other statutory
0 10 20 30 40 50
directions to avoid, remedy or
Distance from road (m)
mitigate it, so as to achieve the
Act’s purpose of sustainable
FIGURE 7: AREAS OF RESPONSIBILTY management.’
nearest lane
Designation
boundary
Edge of
State highway
Landowner/council responsibility Transport Agency responsibility
7 | NZ Transport Agency Effects on noise sensitive land use September 2015 v1.0
3 PERFORMANCE STANDARDS
BUFFER AND EFFECTS AREAS
The Transport Agency has developed a stepped The Transport Agency will seek to have the buffer and
approach to protect sensitive activities as shown effects areas overlaid on individual district plan maps.
below. The approach is based around buffer and While the district planning review process is on a 10-
effects areas, which are determined in the same year cycle the Transport Agency will update the buffer
way for both rural and urban state highways, but the and effect areas every two years in order to reflect
17 NZ Transport Agency applicable reverse sensitivity controls within each any changes to the state highway network17. However,
Buffer and effects areas maps. area vary depending on the environment. To achieve a the versions of the overlays in each district plan must
www.acoustics.nzta.govt.nz reasonable level of acoustic amenity, all noise sensitive be used when applying the controls in the district
activities in rural areas should be located outside of a plan. The Transport Agency will generally not seek for
buffer area, providing a setback from state highways. updated overlays to be included in the district plan
The buffer area will be partly or sometimes fully within until the next plan review. In some cases, especially for
the state highway designation, particularly for more significant changes in the state highway network, the
recent designations. However, in other cases where Transport Agency may seek a specific plan change to
an existing state highway has a narrow designation, include updates to the revised buffer and effect maps.
the buffer will need to be accommodated outside the For example, this may occur in parallel with a Notice of
designation, and for example might take the form of Requirement for a new state highway.
local roading, stormwater treatment or reserve land The buffer and effects areas discussed here are
within a new residential development, or may be those proposed by the Transport Agency. However,
accommodated by building setbacks within larger the appropriate district plan should be consulted to
sections. Beyond the buffer area buildings containing determine the actual areas that apply as district plan
new noise sensitive activities within a wider ‘effects provisions may differ.
area’ may be allowed but need to be designed and
constructed to achieve reasonable indoor acoustic
amenity. In urban areas noise sensitive activities may
be allowed in the buffer area, subject to additional
vibration controls.
FIGURE 8: BUFFER AND EFFECTS AREAS
nearest lane
Designation
boundary
Edge of
No controls Effects area Buffer area State highway
(up to 100 meters from traffic lane) (up to 40 meters)v1.0 Effects on noise sensitive land use September 2015 NZ Transport Agency | 8

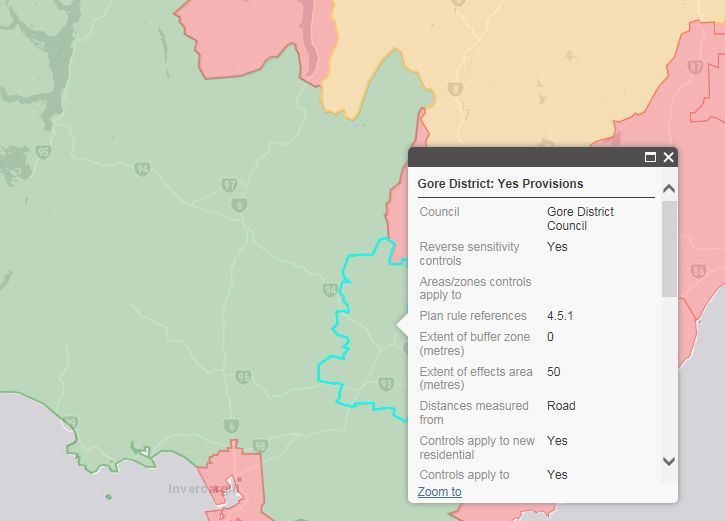

FIGURE 9: WEB BASED MAP SHOWING BUFFER AND EFFECTS AREAS
Buffer area
Effects area
Buffer Area
Effects Area
EXISTING ROAD
EXISTING ROAD
DESIGNATION FOR FUTURE ROAD9 | NZ Transport Agency Effects on noise sensitive land use September 2015 v1.0
CALCULATION OF DISTANCES
The buffer area and effects area for the entire state below is a simplified version of the CRTN calculation
highway network have been determined and are that can be used to determine the approximate
shown on a web based map17. extent of the buffer area and effects area, based on
The Transport Agency will provide digital exports from achieving the NZS 6806 new road noise criteria
these maps if required to be inserted into district plan of 64 dB LAeq,24h (buffer) and 57 dB (effects). The
maps (contact environment@nzta.govt.nz). simplified equation does not consider potential noise
mitigation provided by existing topography or existing
The maps will be updated nationwide biennially.
solid and continuous barriers (eg, a wall or another
Additional updates will be made for localised areas if
building). Where there is no line of sight between the
required to reflect altered designations or significant
road and the location of the proposed development
changes to traffic volumes, road surfaces or speed
(noise sensitive activity) then mitigation may not be
limits.
required. The rules proposed in section 8 address such
The extent of the buffer area and the effects area situations.
depend on the noise level from the highway, with
Recognising the limitations of the simplified
the dominant factors being the traffic flow, vehicle
calculation, the distances for the Buffer area and
speed and percentage of heavy vehicles. Noise levels
effects area have been grouped into categories and
can be calculated using a road traffic noise model,
capped as described below.
18 Department of Transport, such as the calculation of road-traffic noise18 (CRTN,
Welsh Office (1988) Calculation the most commonly used road noise model in New For completeness this equation has been presented
of road traffic noise, published by Zealand). However, detailed modelling for the entire in this guide but in most situations the maps provided
HMSO, London. by the Transport Agency can be used to determine the
http://products.ihs.com
state highway network is not practicable. The equation
buffer and effects areas19.
19 NZ Transport Agency
State highway traffic volumes.
www.nzta.govt.nz EQUATION 1: CALCULATION OF EXTENT OF BUFFER AND EFFECTS AREAS
( ) [( ) ( )+
( ) ( )
]
Rc Rt
500 3.3
p p 5p
d = K x AADT x V + 40 + x 1- x 10 10
+ x 10 10
V 100 100 V
Traffic speed Road surface (and traffic speed and composition)
Where:
d Distance (m)
K Constant factor related to noise level (1.82 x 10-10 for buffer area, 9.13 x 10-10
for effects area)
20 Auckland Motorway AADT Annual average daily traffic (vpd)19, 20
Alliance Mobile Road.
www.mobileroad.org V Traffic speed (km/h)
p Percentage of heavy vehicles (percentage points, eg for 12 %HV, p = 12)19, 20
Rc Surface correction13 for cars (dB)
Rt Surface correction13 for trucks (dB)
Buffer area distances DB 10, 20, 30 or 40 m
Effects area distances DE 40, 50, 60, 70, 80, 90 or 100 m
The distances (d) calculated using the equation opposite are rounded and capped as follows:
Buffer area Effects area
d < 15 then DB = 10 m d < 45 then DE = 40 m
15v1.0 Effects on noise sensitive land use September 2015 NZ Transport Agency | 10
NOISE AND VIBRATION DESIGN LEVELS
New or altered buildings containing noise sensitive
NZS 6806 defines protected premises and
activities within the effects area should be designed,
facilities (PPFs) as spaces in buildings used for
constructed and maintained to meet the internal noise
residential activities; marae; overnight medical
levels set out in table 1.
care; teaching and sleeping in educational
These noise limits are based on NZS 6806 and facilities; and playgrounds that are part of
AS/NZ 2107:200021. In AS/NZS 2107 there is a educational facilities that are within 20m of
21 Standards Australia/
satisfactory and maximum value given for each type Standards New Zealand (2000)
buildings used for teaching purposes. Other AS/NZ 2107:2000 Recommended
of space. In the table below, the maximum values have noise standards define ‘noise sensitive activities/ design sound levels and
generally been selected in recognition of reasonable locations’ and although there is some variability in reverberation times for building
expectations for the environment in close proximity the definitions, these are essentially PPFs. All PPFs interiors.
to a state highway. The noise levels relate to the www.infostore.saiglobal.com
in NZS 6806 are included in table 1. In this guide
sensitivity of each activity, for example activities the term noise sensitive activity will be used.
requiring active listening are more sensitive to noise
than sleeping.
TABLE 1: INTERNAL NOISE LEVELS FOR BUILDINGS IN BUFFER AND EFFECTS AREAS
building type occupancy/activity maximumindoordesign
noise level lAeq(24h)
Living spaces, sleeping spaces (including visitor accommodation and
Residential retirement accommodation)
40 dB
Assembly halls 35 dB
Conference rooms, drama studios 40 dB
Lecture rooms and theatres, music studios 35 dB
Education
Libraries 45 dB
Sleeping areas in educational facilities 40 dB
Teaching areas 40 dB
Overnight medical care, wards 40 dB
Health
Clinics, consulting rooms, theatres, nurses’ stations 45 dB
Cultural Buildings Places of worship, marae 35 dB
In urban areas, and on occasion in other situations, it
Road-traffic noise levels fluctuate over time: there
can be impractical to restrict noise sensitive activities
are short-term changes over seconds as individual
from a buffer area around state highways. Should
vehicles pass; variations over minutes due to
sensitive activities be required to locate within the
the changing mixture of cars and trucks; and
buffer area, additional controls need to be applied.
daily oscillations due to peak and off-peak traffic
As well as the internal noise level controls set out in
flows. A number of different noise measurement
table 1, controls are required to manage the adverse
parameters are available. For road-traffic noise in
effects of vibration and to manage noise in the main
New Zealand, the LAeq(24h) is used, with the units
outdoor living space for residential activities in rural
of decibels (dB). This is an A-weighted, time-
areas. Where development occurs within the buffer
averaged noise level over 24 hours.
area, the criteria in table 2 should be applied, in
addition to the criteria in table 1. No differentiation has been made between living
and sleeping spaces as the 40 dB design noise
Internal noise levels have been specified rather than
level is measured over a 24 hour period and is
a façade reduction in order to obtain an effects based
broadly equivalent to 35 dB during the night period
approach, which takes into account the actual road-
combined with 40 dB during the day.
traffic noise level outside a building. This approach is
consistent with NZS 6806 for noise.11 | NZ Transport Agency Effects on noise sensitive land use September 2015 v1.0
22 Norwegian Standard (2005) NS 817622 has been used as the basis for the
NS 8176:2005 Vibration and shock For vibration, NS 8176 uses the statistical
recommended vibration level, with class C
- Measurement of vibration in maximum weighted velocity vw,95 (units of mm/s),
buildings from landbased transport
corresponding to the ‘value for vibration in new
which is the maximum weighted velocity that can
and guidance to evaluation of its residential buildings’. A statistical maximum value for
be expected with 95% probability. The ‘combined
effects on human beings. weighted vibration is used to quantify the vibration
www.infostore.saiglobal.com frequency weighting’ Wmv from ISO 8041:2005 is
and class C has an upper limit of 0.3 mm/s vw,95.
used to reduce to vibration influence outside the
frequency range to which humans are sensitive.
TABLE 2: NOISE AND VIBRATION LEVELS FOR BUILDINGS IN BUFFER AREA
building type maximumexternaldesignnoiselevel Internal design vibration level
(rural areas) (urban and rural areas)
Residential 57 dB LAeq(24h) NS 8176 Class C
ASSESSMENT METHODOLOGIES
When there is a requirement to assess noise and/or The vibration levels will correspond to the road
vibration as set out in the model plan rules/conditions surface condition at the time of the measurements
(sections 8 and 9), an acoustics expert is typically and should be used to assess vibration effects on
required. the proposed development. However, if there is a
For noise, the assessment determines the existing temporary defect in the road surface at the time of
road-traffic noise by measurement, prediction or a the measurements causing elevated vibration levels
combination of both. To take into account the future then an adjustment should be made to the measured
permitted use of state highway 3 dB should be added values. No adjustment should be made if elevated
to existing measured or predicted noise levels. The levels are caused by permanent features of the surface
noise levels inside and outside the new sensitive land such as seal joins, completed repairs such as patches,
use are then predicted and any mitigation specified or issues with the underlying pavement.
for the building design, barriers or bunds in order to Where adopted, the draft plan rules and consent
achieve compliance with the required levels in table 1 conditions in sections 8 and 9 make landowners/
or table 2. The Transport Agency provides a number of developers responsible for providing design solutions
tools and data sources for this assessment: that achieve the specified performance standards. As
• a guide to road surface noise13 specified in these rules/conditions, landowners have
• a road-traffic noise calculator www.acoustics. to supply an assessment from a suitably qualified
nzta.govt.nz acoustics specialist stating that each building in the
effects area will achieve the prescribed design noise
• traffic flow and percentage heavy vehicle data19, 20
levels (and vibration level if a building is within the
• a guide to the acoustic treatment of buildings05 buffer area).
For some parts of the state highway network (such
Noise and vibration assessments are estimated to
as in Auckland) the Transport Agency may also have
cost $1,000 (2015) with additional costs for any
noise contours available on request (environment@
measurements. Advice on both of these assessment
nzta.govt.nz).
methodologies can be sought from the Environment
Due to the influence of local ground conditions and Urban Design Team (environment@nzta.govt.nz).
and the condition of the road surface, site-specific
measurements are recommended for a vibration
assessment. These measurements should be carried
out in accordance with NS 8176 on the ground surface,
(‘free-field’) using a statistical maximum velocity
or acceleration from a characteristic sample of road
23 NZ Transport Agency (2013) traffic. Empirical relationships can then be used23 to
State highway construction and determine the vibration inside a building.
maintenance noise and vibration
guide.
www.nzta.govt.nzv1.0 Effects on noise sensitive land use September 2015 NZ Transport Agency | 12
VENTILATION PROVISIONS
Where compliance with specified internal noise levels Where mechanical ventilation or cooling is provided
is required and building relocation/reorientation or as an alternative to opening windows it should be
noise barriers are not practicable, acoustic treatment a genuine alternative such that occupants are not
of the building will be necessary. The overall acoustic forced to choose between excess noise or hot/stuffy
performance of a building envelope is determined conditions. Prior to 2014, to achieve this outcome the
mainly by its weakest elements. In most cases, the Transport Agency generally sought either a high air
weakest elements are ventilation openings such as flow rate or cooling, when ventilation systems were
windows through which natural ventilation is provided. required as part of reverse sensitivity controls. On the
Mechanical ventilation/cooling can allow windows to basis of this review, the following specifications are
be kept closed, which can significantly reduce road- now recommended.
traffic noise and, in the majority of cases, is the only
measure required. SPECIFICATION FOR VENTILATION AND
Ventilation and cooling systems are often specified COOLING SYSTEMS
in district plans as part of reverse sensitivity controls • Ventilation must be provided to meet clause
for houses near airports, ports, roads and railways. G4 of the New Zealand Building Code. At
However, there is substantial variation between the same time as meeting this minimum
specifications, despite the systems all serving the provision, the sound of the system shall not
same basic purpose in each case. The range of exceed 30 dB LAeq(30s) when measured 1 m
different specifications commonly found in district away from any grille or diffuser.
plans was reflected in the proposed Auckland Unitary • The occupant must be able to control the
Plan in 2013, where houses near airports, ports, road ventilation rate in increments up to a high
and rail had varying ventilation provisions. A review24 air flow setting that provides at least 6 air 24 Beca Ltd (2014)
Ventilation systems installed for
of these found that: changes per hour (more than is specified in road-traffic noise mitigation.
• Clause G4 of the Building Code (Schedule 1 of clause G4). At the same time the sound of www.acoustics.nzta.govt.nz
the Building Regulations 1992) is not designed the system shall not exceed 35 dB LAeq(30s)
to provide thermal comfort. District plans that when measured 1 m away from any grille or
specify compliance with Clause G4 for ventilation diffuser.
systems as part of reverse sensitivity controls • The system must provide cooling that
are unlikely to achieve the intended outcome. is controllable by the occupant and can
Occupants would be likely to experience hot/ maintain the temperature at no greater than
stuffy conditions at least in summer, and would 25°C. At the same time, the sound of the
probably open the windows, which should remain system must not exceed 35 dB LAeq(30s) when
closed to achieve appropriate indoor noise levels. measured 1 m away from any grille or diffuser.
• Systems that seek to simulate cooling through (The last item can be omitted for cooler regions
provision of high air flow rates (up to 15 air such as the lower North Island and coastal and
changes per hour), have a number of drawbacks southern parts of the South Island.)
and will not always achieve the desired cooling
effect. Issues with a high air flow rate ventilation To achieve this specification it is likely that the most
only system include relatively high capital and common solution would be an in-ceiling ducted
maintenance costs, larger components, and system with a reverse-cycle heat pump providing
higher levels of system noise to control. cooling (figure 13).
• Provision of a ventilation system including Note that in addition to the specification detailed
cooling, such as from a reverse cycle heat pump, above, any ventilation and cooling system must
is likely to be the most effective way of achieving comply with district plan provisions for noise
reasonable thermal comfort, commensurate with emissions to neighbouring property. This may
the effect that would be obtained by opening constrain the location of external equipment and air
windows. However, in cooler regions such as grilles, and/or require screening and attenuation.
the lower North Island and coastal and southern The specification is considered a minimum for
parts of the South Island, mechanical ventilation ventilation and cooling systems implemented to
alone would be sufficient. address reverse sensitivity noise effects. Heating and
additional cooling may be an overall design objective
for these systems.
The noise limits for ventilation systems are lower
than the 40 dB road-traffic noise limit, to avoid a
cumulative effect. Ideally the ventilation systems
would be 10 dB below the road-traffic noise but this
is not practicable at higher duties so the ventilation
specification is only 5 dB below the road-traffic noise
limit in those instances.13 | NZ Transport Agency Effects on noise sensitive land use September 2015 v1.0
4 NOISE BARRIERS
In some instances the noise criteria in section 3 can be that will be transferred to the local council for ongoing
achieved by screening the land use from the road by a maintenance.
barrier. Effective barriers can be formed with walls or For most types of barrier, access is required to both
bunds and advice can be found in the barrier guide04 sides for maintenance, and therefore locating a
25 NZ Transport Agency (2013) and urban design guidelines25. The natural terrain and barrier on a cadastral boundary can be problematic.
Bridging the gap: NZTA urban other buildings can also act as noise barriers. Consideration is also needed to avoid gaps between
design guidelines.
www.nzta.govt.nz Noise barriers erected close to the road often provide barriers and boundary fences, which can become litter
the best acoustic performance. However, in addition traps and unsafe places.

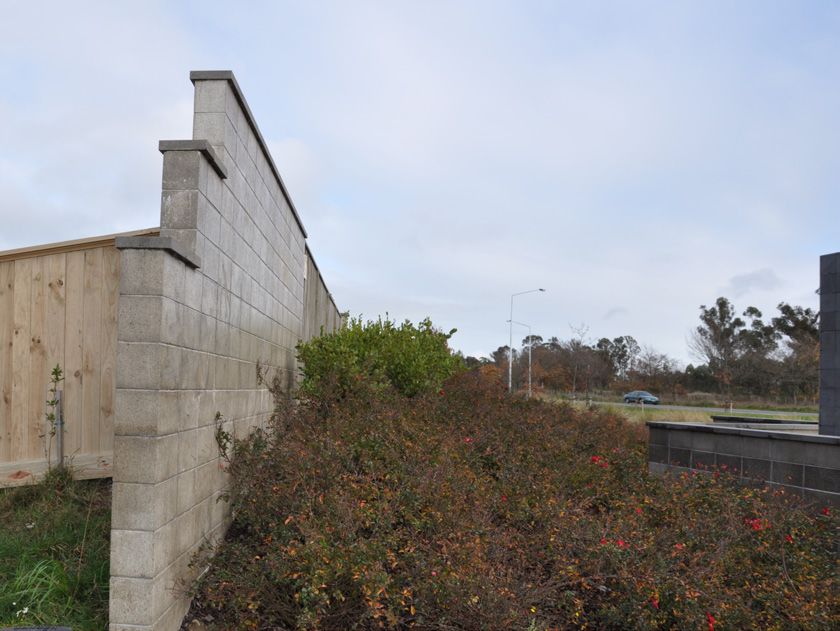

to potential urban design issues, structures within If a noise barrier for an individual development does
the state highway road reserve must be maintained not join up with other noise barriers, or otherwise
by the Transport Agency. Therefore, noise barriers extend wider than the area to be protected, then it
provided by developers for reverse sensitivity may be necessary to include return sections at each
control should be located either where they will be end of the barrier perpendicular to the state highway04
maintained by the landowner, or preferably on land (figure 10).
FIGURE 10: NOISE BARRIER RETURN
barrier barrier
returns returns
FIGURE 11: PLANTED BUNDS BESIDE SH1 IN ROLLESTON INSTALLED BY COUNCIL/DEVELOPERv1.0 Effects on noise sensitive land use September 2015 NZ Transport Agency | 14
Noise barriers on individual
sections and council land in
NZ Transport Agency land Christchurch
Council land
Noise barrier
Cadastral boundary
STAGE 1: BARRIER ON INDIVIDUAL SECTIONS
STATE HIGHWAY 1
STAGE 2: BARRIER ON COUNCIL LAND
CASE STUDY - MAINTENANCE IMPLICATIONS FROM BARRIER LOCATION
This case study highlights is located wholly within individual result in an unsightly barrier viewed
difficulties that can arise with the private sections of land. However, from the state highway. Fortunately,
ongoing maintenance of noise for the second stage (shown on the at this particular location the
barriers depending on who owns the bottom half of the figure) the barrier planting of appropriate vegetation
land on which they are located. is located wholly within a specific by the developer has meant minimal
The figure above is an aerial council reserve. maintenance is required; although
photograph showing two stages The council is responsible for both issues may arise in future. This is
of a subdivision adjacent to State sides of the barrier within the a good example of the importance
Highway 1 in Christchurch. For both council reserve. However, where the of landscape design for noise
stages a continuous noise barrier barrier is located within individual bunds. However, in general it is
has been constructed adjacent to private sections of land (first stage), recommended that noise barriers
the state highway. The noise barrier it is not obvious who will maintain for reverse sensitivity control
comprises an earth bund with a the state highway side of the adjacent to state highways should
timber fence on top. In the first barrier. While it is the landowners’ not be within individual sections,
stage of the subdivision (shown on responsibility, the lack of direct but should be within a council
the top half of the figure) the barrier access and varying ownership could reserve.15 | NZ Transport Agency Effects on noise sensitive land use September 2015 v1.0
5 BUILDING DESIGN
Section 3 describes how installing mechanical effective seals is usually more important than the
ventilation/cooling is a common treatment to reduce glazing configuration. Thin thermal double-glazing
road-traffic noise in buildings by allowing windows to has relatively poor acoustic performance due to
be kept closed. Example systems and specific advice resonance. More efficient means of noise reduction
on the acoustic treatment of buildings is provided in across windows can be achieved by using thicker
the Transport Agency guide03. glazing, secondary glazing or laminated glass. Typically
For higher noise exposures (closer to a road) it only those rooms facing the state highway will require
may be necessary to upgrade windows as well as treatment, so the measures do not need to extend to
providing mechanical ventilation/cooling. A common the whole house. Additionally, within a certain room,
misconception is that ‘double-glazing’ is the primary the treatment might not be required for all elevations.
means of noise control. However, if a significant noise For alterations to existing buildings, acoustic treatment
reduction across a window is required, achieving should only be required for those parts of the building
that are being altered.
FIGURE 12: GLAZING TYPES
Standard glazing Laminated glazing Double glazing Secondary glazing
Interlayer
FIGURE 13: DUCTED AIR CONDITIONING SYSTEM
Fan Cooling coils
Air intake
Refrigeration supply
and return pipes Return Supply Supply Supply
air air air air
Outdoor
condenser unit
Condenser fanv1.0 Effects on noise sensitive land use September 2015 NZ Transport Agency | 16
A study has been undertaken to assess the typical would be similar to a location next to a road with
costs of treating buildings to achieve the criteria in a chip seal surface and 9,000 vehicles per day, or
section 326. Figure 16 shows the additional acoustic next to a road with a porous asphalt surface and 26 Beca Ltd (2013) New Zealand
treatment costs calculated for a typical new build 30,000 vehicles per day. There would also be design, Transport Agency building acoustic
mitigation case study.
single storey home (three bedroom, 175 m2) and consenting and operation and maintenance costs
www.acoustics.nzta.govt.nz
double storey home (four bedroom, 225 m2), with associated with the acoustic treatments. Many new
base prices of $235,000 and $332,000, respectively houses include these acoustic treatments.
(2013). This study considers traffic noise levels that
FIGURE 14: TYPICAL SINGLE STOREY HOME FIGURE 15: TYPICAL DOUBLE STOREY HOME
Image from A1 Homes Image from A1 Homes

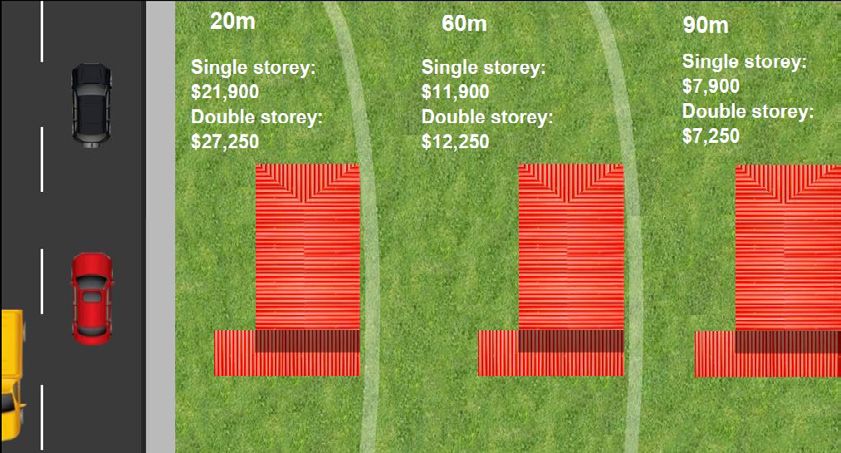

FIGURE 16: ACOUSTIC TREATMENT COSTS (EXCLUDING GST) - 20132617 | NZ Transport Agency Effects on noise sensitive land use September 2015 v1.0
6 REGIONAL AND DISTRICT PLANS
The Transport Agency advocates for statutory The Transport Agency participates in review processes
planning documents to recognise the effects of nearby of statutory planning documents to advocate for
development on transport infrastructure, including the reverse sensitivity provisions that are consistent with
national state highway network. the good practice set out in this guide. Using the
Specifically, the Transport Agency will seek that formal review processes is favoured over initiating
reverse sensitivity is efficiently managed by local private plan change processes. This approach has
authorities through: been adopted because of the significant resource
and expense required to prepare and lodge plan
• imposing separation and setback distances
changes on numerous statutory planning documents
between sensitive activities and the road edge
throughout New Zealand. Model plan provisions are
(see section 3)
provided in section 8 of this guide.
• encouraging non-sensitive land use to separate
residential or other sensitive activities from major The Transport Agency has collated information about
transport corridors existing reverse sensitivity rules within district plans
27 NZ Transport Agency and displays this material on a web based map27. For
District plan provisions. • adopting effective urban design principles (see
current information and provisions it is recommended
www.acoustics.nzta.govt.nz page 13) and acoustic treatment performance
that the individual district plans are referenced.
standards within district plans
• requiring design and construction standards to Reverse sensitivity controls have the potential to
achieve appropriate internal noise and vibration encourage poor urban design outcomes. For example,
levels within effects areas. if solid and tall fences were built to reduce noise in all
houses adjacent to an urban arterial, then the vibrancy
of the environment could be compromised, potentially
affecting the local economy and creating safety issues
for pedestrians and cyclists in the road corridor. It
is therefore recommended that when implementing
reverse sensitivity controls within a district plan,
consideration should also be given towards applying
good urban design practices.
FIGURE 17: WEB BASED MAP OF DISTRICT PLAN REVERSE SENSITIVITY PROVISIONSv1.0 Effects on noise sensitive land use September 2015 NZ Transport Agency | 18
7 RESOURCE CONSENTS AND PLAN CHANGES
The Transport Agency seeks to proactively manage Overall the Transport Agency considers the district
reverse sensitivity effects through adoption of plan process as a proactive mechanism to encourage
appropriate district-wide controls and standards developers to locate and/or treat their sensitive
within district plans. Where these controls have not activity to mitigate reverse sensitivity effects. By
yet been included in district plans, the Transport including both appropriate permitted and restricted
Agency also manages reverse sensitivity through discretionary activity pathways and encouraging buffer
participating in the consenting process, primarily and effects areas within district plans, ambiguity in
through providing submissions on subdivision or the consenting process is reduced and developers are
land use resource consent applications, and less informed of the potential reverse sensitivity effects.
frequently on discharge consent applications. The When an applicant approaches the Transport Agency
Transport Agency can also be a submitter on district prior to lodging an application, a review of the location
plan changes for specific areas. For complicated of the development along with the sensitivity of the
or significant projects in particular, the Transport activity and the proposed controls is undertaken.
Agency seeks to be consulted by applicants prior to Based on the outcome of this review, the following
lodging a consent application or plan change request. mechanisms may typically be sought to address the
The district planning and consenting process can potential effects of reverse sensitivity:
be used to effectively protect sensitive activities,
• modifications to the location of the sensitive
such as residential development, from undesirable
activity, and
environmental effects of the state highway by
identifying and imposing performance standards as • the building standards as set out in section 9 of
conditions on resource consents. this guide.
The Transport Agency has developed an effects If a proposal satisfies the Transport Agency’s
area, in which it seeks the management of reverse mechanisms for managing reverse sensitivity and
sensitivity effects through the district planning other effects, the Transport Agency will provide its
process, and in which it considers proposed affected party approval for consent applications. The
developments may cause an effect on the Transport Transport Agency may however decline to provide
Agency. As described in section 3, the effects area affected party approval where changes sought to
may be up to 100 metres from a state highway, and is a consent application do not satisfy the Transport
not dependent on whether the development directly Agency’s concerns.
accesses the state highway. For notified consent applications, the Transport
While the Transport Agency prefers that new noise Agency may lodge a submission if the reverse
and vibration sensitive activities are not developed sensitivity effects on the state highway network have
within the buffer area (section 3), in urban areas this not been addressed. Lodging a submission secures the
may not be a practical outcome, and urban design Transport Agency’s ability to participate in the consent
considerations may lead to development within the process, including appeal if necessary.
buffer area. In these cases the Transport Agency will The Transport Agency generally will not seek ‘no
seek to have appropriate noise and vibration controls complaints’ covenants as a method to manage reverse
included in the district plan or consent conditions. sensitivity effects. While such covenants can forewarn
prospective tenants of road-traffic noise exposure, it
does not mitigate the potential effects.
URBAN DESIGN
There are a wide range of factors that should be
considered, with respect to a state highway corridor
and surrounding land uses, to achieve good urban
design outcomes. The use of buffers and noise
barriers for managing reverse sensitivity effects both
require careful integration in urban areas to avoid
causing other adverse effects.
The Transport Agency urban design guidelines
Bridging the gap, provide examples of compatible land
uses adjacent to urban arterials such as local roads/
public transport, cycleways, commercial buildings and
public spaces. These land uses form the necessary
buffer to manage reverse sensitivity effects.You can also read
