PRODUCTHIGHLIGHTS 2021

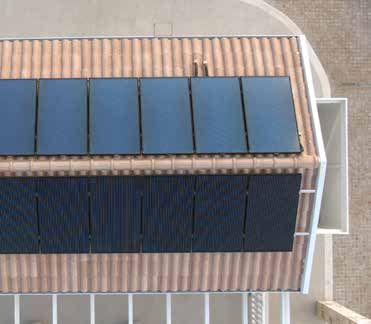

Solar Electricity - sets
SONNENKRAFT Power-sets supply
electricity free of charge.
Perfectly matched components guarantee reliable long
term solar power gain. New Solar-Electricity solutions
are compatible with COMPACT hot water sets as well as
                                                               NEW
                                                              from page8
heating support COMFORT PLUS sets. By this innovative
new solutions we are a step forward towards Energy
independence.

Power Module ALPIN

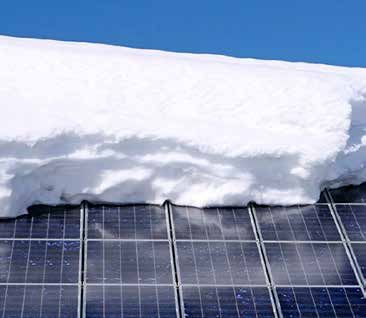

Photovoltaic Module capable of lasting
more than 8.000Pa snow loads.
At the unique, inhomogeneous load test (according to
SPF test basis in Rapperswill, Switzerland) reached the
ALPINE Module, in combination with the rafter anchor SAS
                                                               NEW
                                                               page 17
up to 8.000Pa, and it is well tested for slope downforces.
SONNENKRAFT Alpine Module is distinguished by high
stability frame concept. Optionally two backrails on the
back of the module are amplifying the frame stability up to
highest possible loads, depends on Mounting concept.
                                                                           See SPF Test
                                                                            certificate

Storage tank SONNENTANK
High efficient energy storage with fresh
water module FreshHYDRO40 and
SONNENBOOSTER.
Energy storage system SONNENTANK with tank mounted             NEW
fresh water module and SONNENBOOSTER is the most               page 22
efficient way to storage solar energy. Special designed
internal structures in SONNENTANK enable perfect
temperature stratification. SONNENBOOSTER is heating as priority
the upper zone due to chimney effect.
Online App enables comfortable system control, temperature
supervision as well as supervision of energy gain.
HEAT WATER ELECTRICITY - 2021 PRODUCTS AND PRICES - Sonnenkraft
SONNENKRAFT
Products and Prices 2021
   SOLAR SYSTEMS / SETS                                   COMPACT                                                       Hot water sets                                     5
                                                          COMFORT PLUS                                                  Hot water / heating sets                           6
                                                          COMFORT PRO CLEAN                                             Hot water / heating sets                           7
                                                          SONNENKRAFTWERK                                               Solar electricity sets                             8
                                                          SONNENKRAFT POWER                                             Solar electricity sets                             9

   SOLAR COLLECTORS                                       SKR 500                                                       Design flat plate collector                       10
                                                          PFM                                                           Plug & Flow module collector                      12
                                                          Mounting accessories                                          for solar collector and photovoltaic modules      15

   PHOTOVOLTAIC MODULES                                   SONNENKRAFTWERK                                               Plug-In photovoltaic modules                      16
                                                          KIOTO POWER / ALPIN                                           Photovoltaic modules                              17
                                                          PHOTOVOLTAIC ACCESSORIES                                      System optimisation, inverter                     19

   TANKS + HYDRAULICS                                     COMPACT                                                       Hot water tanks, pumping units                    20
                                                          COMFORT                                                       Buffer tanks, fresh water modules                 21
                                                          COMFORT PLUS                                                  Sonnentank system storage                         22
                                                          COMFORT PRO CLEAN                                             Sonnentank with corrugated stainless steel pipe   24
                                                          FRESH XL                                                      Fresh water - cascade (TOWER, WALL)               26

   ACCESSORIES                                            Heat exchangers                                                                                                 28
                                                          Piping                                                                                                          29
                                                          Antifreeze / expansion vessels                                                                                  30
                                                          Components                                                                                                      31

SONNENKRAFT prices 2021- all prices in EURO excl. VAT, valid until revoked, Subject to set and printing errors as well as technical changes and price changes.
HEAT WATER ELECTRICITY - 2021 PRODUCTS AND PRICES - Sonnenkraft
Solar systems / Sets
for sustainable use
of solar energy

                 HEAT                                                 WATER              ELECTRICITY
        production and storage                                    fresh hot water   production and storage of
             of solar heat                                          preparation         solar electricity

SONNENKRAFT -
system provider of solar solutions
"Made in Europe"
•   Production made in Austria
•   Perfectly syncronized and matched components
•   modern design from basement up to the roof
•   warranty for maximal solar gain
•   individual solutions for each application
•   simple assembly and mounting
•   high control comfort
•   fast and on time delivery
•   solutions and consulting on hand

                SONNENKRAFT
                CONFIGURATOR

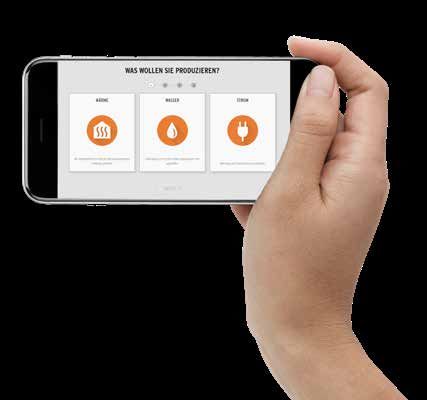

                Non-binding offer in just 5 steps ! HEAT, WATER, ELEC-
                TRICITY, simple and fast system configuration
                config.sonnenkraft.com
HEAT WATER ELECTRICITY - 2021 PRODUCTS AND PRICES - Sonnenkraft
Hot water sets                                                                                                                                                                                                                               5

COMPACT
• Covers up to 70% of hot water requirements
• Universal hot water storage tank with 300 to 500 l tank capacity
• Maximum hot water comfort with rapid heating through a large internal register

                                                                                                                                                                        300 L                    400 L                       500 L
Persons                                                                                                            Pers.                                                 2-4                      3-6                         5-7
Number of collectors                                                                                                  pcs.                                                    2                      3                            3
Total collector area (rounded)                                                                                         m   2
                                                                                                                                                                              5                     7,5                         7,5

SKR500 Set                                                                                                             €                                            3.582,-                   4.491,-                     4.671,-
without mounting material,                                                                                     Matchcode                                         COMP302SKR                 COMP403SKR                 COMP503SKR
incl. connection set
                                                                                                                   Art. N°                                                3448                     3451                         3617

PFM Set                                                                                                                €                                            3.386,-                    4.189,-                   4.369,-
without mounting material,                                                                                     Matchcode                                       COMP302PFMS                 COMP403PFMS               COMP503PFMS
incl. connection set DN 16
                                                                                                                   Art. N°                                                 3708                    3710                        3735

Set components
COMPACT hot water tank                                                                                                Type                                         DHW300PR2                 DHW400PR2                  DHW500PR2
Solar pump group and flow valve with gravity brake                                                                    Type                                               RLGHE                   RLGHE                       RLGHE
2-circuit control unit, including 3 sensors                                                                           Type                                               STRGO                   STRGO                       STRGO
Service water mixer                                                                                                   Type                                               TBM20                   TBM20                       TBM20
Expansion tank incl. AGVS with cap valve                                                                              Type                                                AG25                     AG25                            -
Expansion tank with base incl. cap valve KVAG50                                                                       Type                                                     -                      -                        AG35
Antifreeze                                                                                                             l                                                     10                      10                          20

Corrugated pipe & connection set
insulated stainless steel double corrugated hose, DN16, 15 m length, incl. metallically sealed connector fittings for solar pumping unit and collector
for SKR500                                                                                                             €                                                426,-                   426,-                       407,-
                                                                                                               Matchcode                                      EWRS16SKRRLG                 EWRS16SKRRLG              EWRS16SKRRLG
                                                                                                                   Art. N°                                                3500                     3500                        3500
for PFM                                                                                                                €                                                394,-                   394,-                       376,-
                                                                                                               Matchcode                                      EWRS16PFMRLG                 EWRS16PFMRLG              EWRS16PFMRLG
                                                                                                                   Art. N°                                                 3782                    3782                        3782
optional accessories
Measuring section with Grundfos sensor STRGVM (1450) for heat quantity calculation - page 20

                                                                                                                                    Functional diagram COMPACT
Hot water tank DHW
                                                                                                                   r                                                          Hot water
                                                                                                                cto
                                                                                                             lle
                                                                                                          Co

                                                                                                                                                                        Hot water tank
                                                                                                                                          Backup heating

                                                                                                                                           Solar pump
                                                                                                                                             group
                                                                                                                                                                              Cold water

                  prices 2021 - all prices in EURO excl. VAT, valid until revoked, Subject to set and printing errors as well as technical changes and price changes.
                                                                                                                                                                                                      from June 18, 2021: surcharge + 6,2%
                  Discount structure:              HEATING              PHOTOVOLTAICS                                                                                                                        on all indicated prices
