Laboratory animal infusion
product catalogue
TETHER INFUSION SYSTEMS
Small Animals / Single channel
Our infusion sets allow the animal freedom of movement during long-term infusion. The complete
assembly may be removed to facilitate the conduct of in-life investigations.
Completely integrated rodent infusion systems providing maximum procedural flexibility and
precision. Infusion sets may be purchased complete or as individual components and are also
available pre-sterilised.
All rat/mouse equipment is standardly available in a range of sizes. However should your size not
be mentioned above, you may always call us for information on custom made products.
Rodent swivel retainer; Constructed in stainless steel and plastic; used to mount the
swivel to the outside of the cage; preventing the rodent form accidentally gnawing
the swivel and the top of the catheter; allows for easy removal of swivel and entire
assembly; available for all types of cages design.
Rodent Swivel ; Available in both high-impact plastic and stainless steel; the needle
gauge of the swivel is selected according to the inside diameter of the catheter.
Rodent Swivel - tether connector; Joins the rotating end of the swivel to the top of
the tether; high impact plastic construction eliminates sharp edges, thus reducing
risk of damage to the catheter; facilitates 360º rotation of the system.

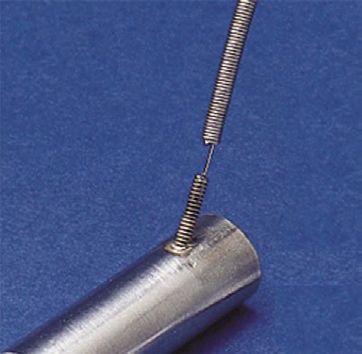

Rodent Tether; Manufactured of stainless steel for durability; the tether end is
molded onto the unit for use with the rodent jacket. A plain tether is designed for use
with the tail cuff and attaches directly to the tail cuff. Select appropriate tether length
according to the dimensions of the animal’s cage.
Rodent jackets; Manufactured of Lycra®/spandex; suitable for a wide range of
contineous intraveneous infusion applications; closes by means of velcrow fasten-
ers, supplemented by hooks for additional security and fit; a wide selection of sizes,
designs and materials are available for use in a range of procedures and protocols.
Rodent tail cuff; Used as an alternative to the rodent jacket; constructed of
stainless steel; compatible with all other items in the rodent infusion set.
UNO Roestvaststaal BV
- Tel: +31 316 524451 - Fax: +31 316 523785 - Email: info@unobv.com
TETHER INFUSION SYSTEMS
Small Animals / Single channel
Description Animal Size / Length Code
Rodent Jacket Rat Extra Small 100 - 150 gram RJ00
All rodent jackets are Small 151 - 250 gram RJ01
supplied with an insert Medium 251 - 350 gram RJ02
which allows you to
Large 351 - 500 gram RJ03
close the jackets without
attaching the tether. Extra Large + 500 gram RJ04
Mouse Small - 25 gram MJ01
Medium 26 - 30 gram MJ02
Large 31 - 40 gram MJ03
Tail cuff Rat RTT1
Rat Single channel CIH95
Mouse Single channel CIH62
Harnass
Rodent Tether Rat 30 cm RT12S
for the use with jackets 45 cm RT18S
60 cm RT24S
Mouse 30 cm MT12S
45 cm MT18S
for the use with tail cuff Rat 30 cm RT12T
45 cm RT18T
60 cm RT24T
for the use with harnass Rat 30 cm PS95
45 cm PS95S
Mouse 30 cm PS62
Rodent tether/swivel
Rat and Mouse RST1
connector for single channel tether * swivel
UNO Roestvaststaal BV
- Tel: +31 316 524451 - Fax: +31 316 523785 - Email: info@unobv.com
TETHER INFUSION SYSTEMS
Small Animals / Single channel
Description Animal Size / Length Code
Rodent Swivels
High Impact Swivel Rat 23 gauge RSP4
22 gauge RSP1
21 gauge RSP3
20 gauge RSP2
Mouse 26 gauge MSP5
27 gauge MSP6
Plastic Rat 20 gauge 375/20P
22 gauge 375/22P
Mouse 25 gauge 375/25P
Stainless Steel Rat 22 gauge RSS1
21 gauge RSS2
20 gauge RSS3
20 gauge 375/20
22 gauge 375/22
Mouse 25 gauge 375/25
Swivel needle sizes.
gauge 22 20 18 17 16
O.D. 0.028” 0.0355” 0.050” 0.058” 0.065”
I.D. 0.016” 0.0230” 0.033” 0.042” 0.047”
UNO Roestvaststaal BV
- Tel: +31 316 524451 - Fax: +31 316 523785 - Email: info@unobv.com

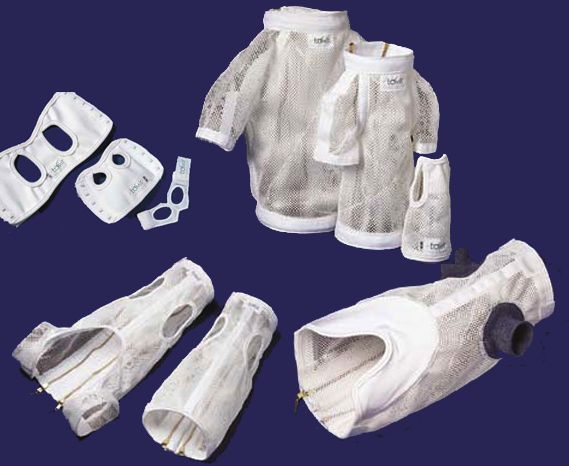

JACKETS and VESTS
Innovative design and down to the smallest detail our Large Animal Jackets fulfill all the demands placed on today’s
investigators. A single jacket will typically incorporate many materials, special features and fabrication methods which
combine to increase comfort for the subject, as well as ease of use for the handler. The models shown here a just a small
selection from an extensive range which includes jackets for many other species.
Features Accessories
* Extensive ranges of standard designs are always available. * Pockets for portable equipment in a range of sizes and materials
* Innovative materials ensure comfortable fit and adjustment * Anchoring patches to connect to tethering systems.
for individual animals * Custom accessories such as for dermal applications.
* Custom designed jackets are undertaken.
JACKETS DOGS PRIMATES RABBITS SWINE
Code Bodyweight in KG Code Bodyweight in KG Code Bodyweight in KG Code Bodyweight in KG
Standard Sizes DJ01 2,5 - 5 PJ00 + 5,4
PJ05 8 - 10
PJ06 10KG +
CUSTOM MADE PLEASE, FILL IN THE MEASUREMENT FORM!
For 3/4 length jacket, add “Q” to the code
Additional panels are available for all jackets
Addition of domes are available
Pockets in several sizes, materials, pre-attached or removable are available
Jacket for other species also available!
Features of the above mentioned jackets:
- made of double layered, 100% polyester mesh, which permits air circulation;
- fastened by means of two zippers attached to an interchangeable spandex extention panel, allowing for a more
comfortable fit;
- double stitched for added strength;
- leg openings bound with cotton jersey for added comfort;
- wide range of standard sizes and designs;
- choise of accessories such as pockets, tether end attachments etc.
- custom adjustments possible.
UNO Roestvaststaal BV
- Tel: +31 316 524451 - Fax: +31 316 523785 - Email: info@unobv.com
JACKETS and VESTS
Primate Jackets;
We offer the most comprehensive range of primate jackets on the
market.
Features:
* available in seven sizes for Rhesus, and five sizes for Cynomolgus,
juvenile baboons and species such as squirrel and owl monkeys;
* jackets can be custom-designed for other species;
* light padding at the neck opening and waist closed by velcrow
ensures comfortable fit;
* available with a range of accessories such as anchoring patches
for tether systems and pockets for ambulatory experiments.
Dog Jackets;
Designed primarily for beagles and hound-type dogs;
sizes available for larger dogs.
Velcro fasteners at neck and/or base of jacket provide added security
and adjustment;
available with a complete set of accessories.
Also in 3/4 or full length with or without rear-leg enclosures.
Swine Jackets;
We offer a vast selection of custom -made swine jackets for all swine
breeds, including micro, mini, Yucatan, as well as specific farm or
marketweight swine.
All jackets may feature expandable panels made of spandex, de-
signed to accommodate growth of the abdominal area and ensure
both comfort and fit.
For information on ordering swine jackets, please contact us.
Rabbit Jackets;
Designed to be used with New Zealand White rabbits;
available with a complete set of accessories,
available in 3/4 or full length with or without rear-leg enclosures.
Jackets and vests for farm and other animals; We design and manufacture custom-made jackets and
vests for any type of animal used in biomedical research. Please contact us for information regarding jacket
specifications and features, ordering and prices.
Accessories: We offer several accessories, including anchoring plates for tether end-plates, and pockets
in a range of sizes and fabrics. Other options are available on request.
UNO Roestvaststaal BV
- Tel: +31 316 524451 - Fax: +31 316 523785 - Email: info@unobv.com
JACKETS and VESTS
Dermal inserts (for dermal / topical applications);
For the conduct of studies where test articles are dermally applied, we supply an insert for rodent
jackets. The insert provides a non-occlusive covering for the application site, reducing the possi-
bility of oral ingestion, while allowing in-life investigations to be carried out with ease. Jackets are
also available for the conduct of dermal studies in other animals species. Different options are
available depending on your specific requirements.
COLLARS
The collars are designed and manufactured to reduce or eliminate many of the factors which can
compromise investigations. In protecting sensitive equipment and reducing discomfort and stress
levels for the subjects, this comprehensive range helps to protect the integrity of a wide variety of
procedures on all laboratory animal species. A large range of standard sizes are available with
other sizes, for special needs, made to order.

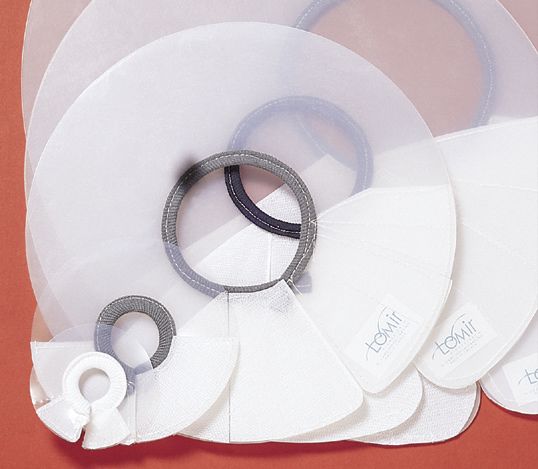

ELISABETHAN COLLAR
Prevent animals from self grooming, and protect surgical or treatment
sites. All collars are manufactured from a low density polyethylene
and close with ample Velcro fasteners, providing adjustable and
secure fit for individual animals. Neck openings are bound with cotton
jersey for comfort.
CERVICAL COLLAR
Offer and alternative to Elizabethan collars, allowing
the animal unrestricted vision.
PILLOW COLLAR
Are designed for use in a wide range of applications:
• May be used in combination with an infusion jacket.
• For protection of devices such as infusion pumps.
• For protection in post surgical or treatment situations.
Made from durable, washable canvas and available with
optional fasteners for jacket or harness attachment.
A special feature is the removable foam pillow insert.
Available in white or black in a comprehensive range of sizes with custom models made to order.
UNO Roestvaststaal BV
- Tel: +31 316 524451 - Fax: +31 316 523785 - Email: info@unobv.com
TETHER INFUSION SYSTEMS
Large Animals / Single channel
A comprehesive range of infusion sets is available that enable researchers to meet the
criteria set out in individual procedures and experimental requirements. The equipment
is suitable for all laboratory animals, including rabbits, dogs, primates, swine and large
farm animals.
Large Animal Infusion Set
* swivel
* tether
* tether end plate
* jacket
Tethers Dogs Primates Rabbits other species.
Code Length Code Length Code Length depends on species
LAT3 3” BT01 2” BT01 2”
LAT4 4” LAT3 3” BT02 3”
LAT4 4”
Tether End ATE1 One included with each tether!
SWIVELS for Dogs, Primates, Rabbits and other species.
High Impact Plastic Code Size Stainless Steel Code Size
- single channel ASP1 20g - single channel ASS1 20g
ASP2 18g ASS2 18g
ASP3 17g ASS3 17g
ASP4 16g ASS4 16g
Large Animal swivels; Available in stainless steel and high impact plastic; may be
cleaned and serviced for repeated use. Standard needles sizes (gauge 16 to 20), as well
as non-standard needle sizes. (For non-standard and custom-designed models, please
contact us.) Supplied with C-clamp and bolts for mounting onto the animals cage (unless
otherwise requested).
Large Animal tethers; Designed to protect the catheter from damage and interference;
constructed from flexible, interlocking stainless-steel coil; variety of lengths available;
aluminum end pieces have set screws which fit into the corresponding slot on both the
swivel and the tether end-plate.

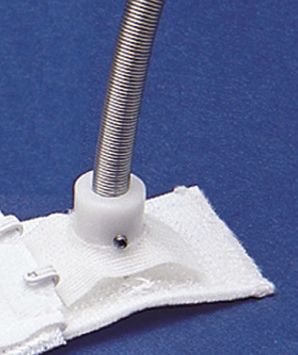

Tether end-plate; Connects the tether to the animal jacket; affixed to a reinforced an-
choring point mounted on the jacket; manufactured from a single piece of stainless steel
for durability and a reliable connection.
UNO Roestvaststaal BV
- Tel: +31 316 524451 - Fax: +31 316 523785 - Email: info@unobv.com
TETHER INFUSION SYSTEMS
Small and Large Animals / Multiple channel
A comprehensive range of multi channel infusion sets is available for small and large laboratory animals.
Rodent swivel - dual fluid channels
For use long-term intravenous infusions and related applications; constructed of high-impact plastic;
reusable; may be used in such investigations as collection of physiological data and bile-duct
cannulation, among others; large- diameter tether accommodates dual infusion lines. The system is
compatible with standard rodent jackets, available in a range of standard needle gauges.
Large Animal swivel - multi - fluid channel
Available in both double and triple fluid channel models; for use in a number of simultaneous
applications, such as intravenous infusion, the collection of physiological data and bile-duct cannulation,
standard needles sizes (gauges 17 to 20).
Large Animal - electronic / fluid channel combinations
A range of made-to-order swivels combining both electronic and fluid channel is available; variety of
options, including: all electric, no fluid channels; single fluid, choise of electrical channels; double fluid,
choice of electrical channels; triple fluid, choice of electric channels. For complete details, please contact
us.
Description Animal Size /Length Code
Jackets All all jackets are suitable for use with multi channel infusion
Harnass Rat with 12” tether CIH105AB
Tether Rat 30cm RT12D
to be used with 45cm RT18D
jacket 60cm RT24D
DOG, Primate rab- The tethers menioned with the single channel sets can also be
bit or other used for multple channel infusion
Tether/Swivel Rat for 2channel tether RST1D
connector
Swivels
High Impact Plastic Rat 23gauge RSPF2
2 channel 22 gauge RSPF3
Dog, Primate, 17gauge ASPF1
Rabbit other 20gauge ASPF2
Stainless Steel Rat 22gauge 375/D/22
2 channel 20 gauge 375/D/20
Dog, Primate, 17 gauge ASSF1
Rabbit,other 20 gauge ASSF2
18 gauge ASSF3
Dog, Primate, 17 gauge ASSF5
3 channel Rabbit, other 20 gauge ASSF6
Swivel retainer Rat shoebox RS07
other sizes on request!
UNO Roestvaststaal BV
- Tel: +31 316 524451 - Fax: +31 316 523785 - Email: info@unobv.com
TETHER INFUSION SYSTEMS
Other rodent and small animal species
We provide a wide range of products and services to customers conducting research on alternate
animals species, including hamsters, guinea pigs and ferrets. We manufacture equipment such
as swivels, tethers of various dimensions and weights and jackets. We also design and develop
specialized equipment to meet the specific needs of species and experimental procedures.
Guinea-pig jacket;
For use in intravenous infusion and other applications
(such as dermal applications), or to accommodate
portable equipment; made of nylon canvas, with edges
and leg openings bound with cotton jersey for comfort;
Velcro fasteners adjust garment to size of animal and
hooks provide added security.
Ferret jacket;
Made of a double layer of nylon canvas, length design; front-leg openings and edges
bound with cotton jersey for comfort; Velcro fasteners adjust garment to size of animal, help-
ing to compensate for any change in seasonal body weight, and provide added security.
Jackets Animal Code Size Swivels Code Size
Hamster HJ01 Small BSP1 Small animal swivel - 20 gauge
HJ02 Medium BSP2 Small animal swivel - 18 gauge
HJ03 Large
Guinea-pig GPJ1 Small Tether Code Size
GPJ2 Medium BT03 Lightweight tether (3’) with integral
GPJ3 Large tether end-plate to fix to jacket
Ferret FFJ1 Small
FFJ2 Medium
FFJ3 Large
UNO Roestvaststaal BV
- Tel: +31 316 524451 - Fax: +31 316 523785 - Email: info@unobv.comLARGE ANIMAL JACKETS
MEASUREMENT FORM
CUSTOM MADE PRODUCTS
Date:
Institution:
Name:
Animal Species:
Strain:
Weight:
Quantity:
Head Tail
Circumference of neck:
Circumference at shoulders:
Circumference ar rear:
Circumference chest:
Infusion patch:
Dermal panel:
Pocket: Number: Position:
* Please return this form - completely filled in - with ordering form.
UNO Roestvaststaal BV
- Tel: +31 316 524451 - Fax: +31 316 523785 - Email: info@unobv.comCOLLARS
CERVICAL COLLARS
A complete range of cervical collars suit-
able for both laboratory and veterinary use
is available. An alternative to the Elizabethan
collar, cervical collars allow the animal un-
restricted vision and full access to food and
water.
Features: made of low-density polyethylene
which forms to the animal’s contours; bound
with cotton jersey fabric for softness and com-
fort; Velcro fasteners ensure full adjustement
and fit for individual animals.
ELIZABETHAN COLLARS
Designed for smaller animals; made of low-density, light-weight
polyethylene; collar neck is bound with cotton jersey padding for
added comfort; Velcro fasteners ensure full adjustment and fit for
individual animals.
PILLOW COLLARS
designed for a wide range of applications in dogs.
* combined with an infusion jacket to protect
surgical sites and equipment.
* On it’s own to support and protect small devices
such as infusion pumps.
* To protect the animal in a post surgical treatment
situation
Manufactured from an extremely durable “ballistic” canvas fabric with a foam pillow inside the
casing. Available in either black or white, all collars have the option of fasteners to attach to a
jacket or harnass - please specify when ordering. Collars are fully washable.
UNO Roestvaststaal BV
- Tel: +31 316 524451 - Fax: +31 316 523785 - Email: info@unobv.comANIMAL HANDLING EQUIPMENT
Animal Handling Equipment
To safeguard personnel while handling animals, we carry a complete range of handling equipment
designed and fabricated for flexibility, comfort and safety during long periods of wear. No other company
offers such a range of sizes: medium, large and extra large. Available as pairs or singles.
Level 1 Kevlar Gloves
100% fine-knit Kevlar gloves with internal seams throughout. May
be worn on their own for handling small animals, or under han-
dling gloves for species such as primates
Level 2 Kevlar Arm Protectors
Arm protectors made from 100% fine-knit Kevlar with sewn-in rein-
forcement. Designed to be worn either on their own or beneath a
pair of animal handling gloves.
Level 3 Leather Gauntlets
Full fingered, full length gauntlet. Glove section made from 100%
cowhide; elbow length cuffs made from split grain cowhide. Rug-
gedly constructed with internal seams throughout for optimum
protection and durability.
.
Level 4 Leather Doublers
For the highest level of protection, a 100% cowhide doubler is avail-
able with heavy duty snaps for attachments over the handling gaunt-
lets. Full thumb and index finger enclosure. Available in the same
three sizes as the gauntlets.
UNO Roestvaststaal BV
- Tel: +31 316 524451 - Fax: +31 316 523785 - Email: info@unobv.comRESTRAINERS
Large Animals
Large-Animal Slings
Slings to restrain large animals used in a variety of experimental procedures.
All sling frames are manufactured of stainless steel;
standard frames are mounted on castors; sling covers are made of coated canvas
fabric; leg openings are bound with a variety of soft fabrics for added comfort.
Custom-designed frames and covers may be ordered to suit specific research re-
quirements.
For detailed information regarding specifications, prices and ordering, please contact
us.
Animal Sling Available for several animal species.
Hammock and flat top.
Custom made only.
UNO Roestvaststaal BV
- Tel: +31 316 524451 - Fax: +31 316 523785 - Email: info@unobv.comRESTRAINERS
Snuggle Family
Small animals are prone to stress and require extra care in handling. Mechanical restraints frequently
require the involvement of two personnel: one to restrain and one to perform. The resulting stress and
discomfort for the subject can often jeopardize the efficiency of the procedure.
The “SNUGGLE FAMILY” uses the principle of a cocoon rather than a rigid structure for immobilization. The
multiple flaps perform two functions: They are adjustable around the subject for effective yet comfortable
restraint, and positioned, or left open for access depending on the procedure. Both restraint and proce-
dure can be carried out by one handler.
The “Snuggle Family” is manufactured from flexible yet extremely durable canvas fabric. The fabric is
coated with nylon to facilitate laundering for reuse. Wide flaps with velcro fasteners allow for maximum
flexibility, ease of use and adjustment for fit between individual subjects. The “Snuggle Family” is available
in different sizes for a complete range of animals including pregnant females.
RESTRAINING THE ANIMAL FOR: Sizing Available:
* BLOOD COLLECTION Rabbit - Small, Medium, Large, X-Large
* VAGINAL SAMPLES Guinea Pig - Small, Medium, Large, X-Large
* BOLUS INJECTION Rodent - X-S, Small, Medium, Large, X-Large
* VETERINARY EXAMS
* GAVAGE
* TRANSPORT
* AND MORE.
UNO Roestvaststaal BV
- Tel: +31 316 524451 - Fax: +31 316 523785 - Email: info@unobv.comUNO Roestvaststaal BV P.O. Box 15 6900 AA ZEVENAAR The Netherlands Phone: +31 316 524451 Fax: +31 316 523785 Email: info@unobv.com European distributor for several leading companies in the laboratory animal market.
You can also read
