Dipl.-Ing.(FH) Dieter Herz Herz & Lang GmbH
NY15 Passive House
House of the Future
Passivhaus 2.0
1
Passive = Sustainability: Energy Efficiency, Comfort, Building Quality, Usability
Passive = Sustainability:
Integrated Design and Execution
Quality Management System
PH – Consulting
Efficiency-Control
Herz&Lang GmbH
3
Building affordable, responsible, sustainable Overall design, old/new build Architecture + Technical planning Building measurement + expert advice PH-Consulting + Certification Training + Development www.herz-lang.com Locations: Germany Austria Italy
Passive House Consulting, international
PH Consulting since 2006:
500 Million € building costs
1500 living quarters
120,000 m² treated floor area
Different clients, teams, pilot projects requirements
5
Source: nht, dina4 architekten
Passive House Certification, international
Austria
British Columbia
Scotland
Latvia

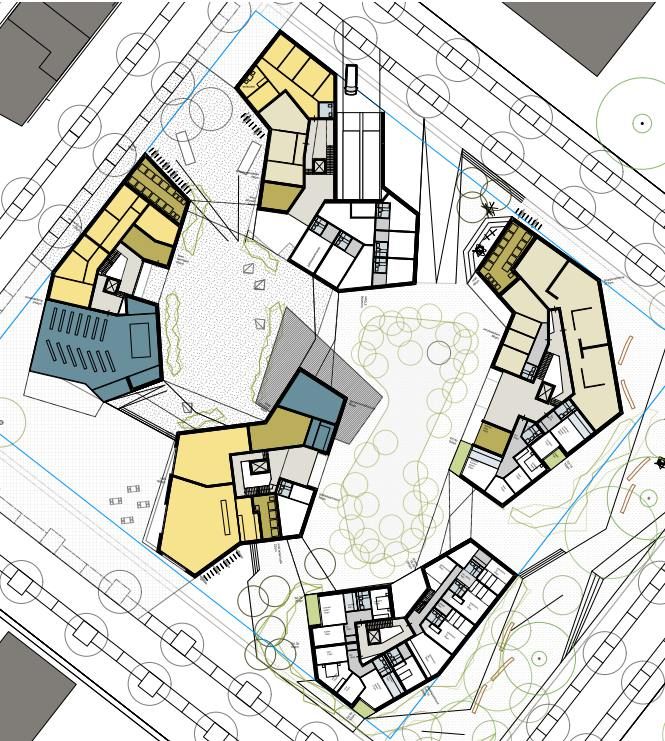

Germany - Wagnisart
Quality Management - Certification 4 steps
1. Quality Planning
- Team building, integrated Design
- Specialized planning, detailing
- Workshops, Training Consulting
-
- 2. Quality Control Communication
- Tendering, contracting
- Workshops, project supervision
3. Quality assurance: Building measurement
- Airtightness, Thermography
- Regulated ventilation system, CO² measurement
4. Quality control, quality improvement
- Certification
- Monitoring, Optimising
Passive House Consulting with Certification
Project Control System for Energy Efficiency
Definition Consulting:
To give special knowhow in existing teams of designers and builders, often winners of
an architectural competition, to ensure the certification standard very early and in an
economic way !
PH-Consulters usually are charged by the investor, as one of the main team members,
not in charge with architecture or standard engineering.
PHPP,
Wärmebrücken
Baubegleitende
Qualitätssicherung,
Baumessung Detailentwicklung,
Beratung
Passivhaus
Schulung Consulting
Planungsteam,
Handwerker Bauteile
Bauelemente
Haustechnik
Leistungsbeschreibung,
Leistungsverzeichnis
You don`t have to invent the wheel, it`s there !“
Checklist Quality Management Building Shell/ Details Natural laws do not change, because of Passive House !! 14
Checklist Quality Management Building Technology
Concept to clear (Checklists)
Clients requirements
Users requirements
User profile standard, high, low
Ventilation
Ventilation and heating separate
Central, semi central, decentral
Humidity recovery
Pre heating system air, brine, elect.
Shading: yes, no, possible systems
Heating: systems
Cooling: necessary /demand by client
Domestic Hot Water usage / DHW safe
systems (shower, bath,…)
And so on,……..
You can not calculate PHPP without an concrete idea of design !!
15Passive House Consulting
Project Control System for Energy Efficiency
17Medical Center in Passive House Standard
Metzstrasse Friedrichshafen
Facade
• 6 storeys
• 9 med. practices - 1600 m²
• 480 m² organic food shop
• 170 m² pharmacy
• 350 m² office areas
• Qheating= 38 800 kWh/a
• Qcooling= 14 650 kWh/a
18
Source: Architektin Adelheid Maier-KirmaierShading Analysis : Results
Improving heating demand by 1.2 kWh / (m² a)
compared to the usual method of the PHPP
19
Source: Herz & Lang GmbHMedical Center - multi-zone calculation
10 zones 1 master-file 10 PHPP
less input and more quality
20
Source: Herz & Lang GmbHMulti-Zone Analysis: Why?
21
Source: Herz & Lang GmbHMulti-Zone Consideration:
How to divide the building into Zones?
• Ventilation planning
• Usage
• Target temperatures
• Orientation to the sun
• Shading effects / glass area
• Spatial distribution in the building
• Components / thermal bridges
22Museum of Modern Art Ravensburg
Facade
• 1. PH Museum worldwide
• 1. PH Award 2014
• 1. German Architecture
• Finisher European Prize
for Integrated Design and
Mies van der Rohe , Arch.…
8.300 m³ Building Volume
1.550 m² Heated Area
23
Quelle:
Source: architekten professor arno lederer, Herz
jorunn & Lang GmbH
ragnarsdóttir, marc oeiMuseum of Bavarian History
Facade
• 76196 m³ enclosed volume
• 7680 m² treated floor area
• PHPP and simulation
• Semi central ventilation
• Ground source heat pump Source: woernerund partner/frankfurt
24
Quelle: Herz & Lang GmbHMdbG – PHPP Different Zones
25MdbG Architectur Sections

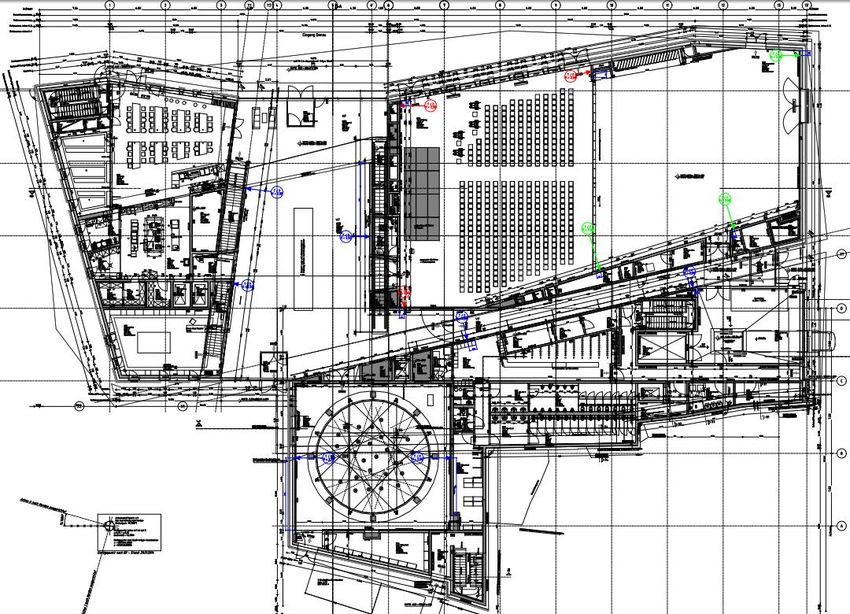

26MdbG Architectur Floor Plan, 1st Floor
EG

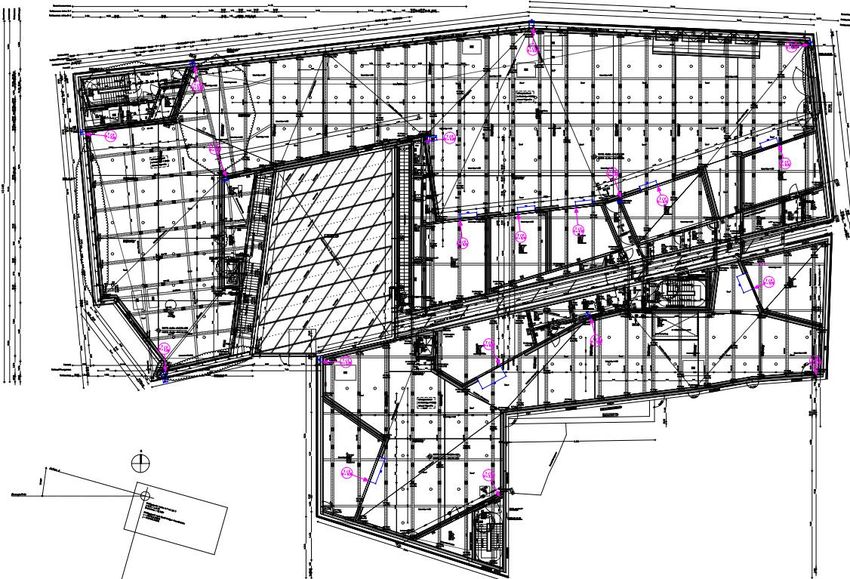

27MdbG Architectur Floor Plan, 2nd Floor
DG
28MdbG PHPP Optimisation Building Shell
29MdbG PHPP
Endenergy Demand in kWh/a
Nicht enthalten sind:
Strombedarf für Lüftung, Be- und Entfeuchtung, Pumpen
Verteilverluste, Erzeugungsverluste
Nutzung laut Angabe HdBG
Elektrische Leistungen und Beleuchtung laut Angabe
IB Duschl + IB Ottitsch + HG Merz

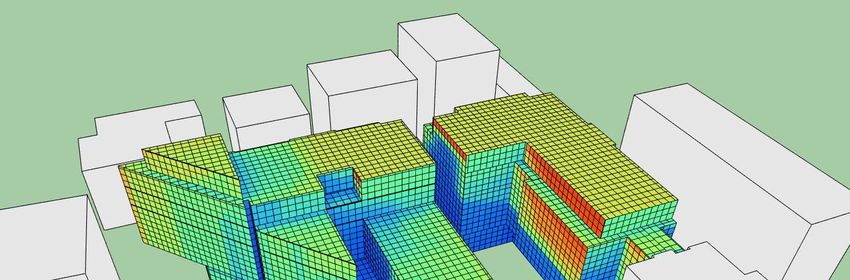

30MdbG Thermo Dynamic Simulation 3D-Modell
Nordost
Museum
Bavariathek
Südwest
32MdbG Thermo Dynamic Simulation 3D-Modell
Nordost
Südwest 33Clients tough Museums Requirements
Foyer
• Lufttemperatur: Arbeitsstättenverordnung
• Luftqualität: IDA 1
Dauerausstellung
• Lufttemperatur: Winter 19 °C +/- 1 K, Sommer: 24 °C +/- 1 K
• relative Luftfeuchtigkeit: 50% +/- 5%
• Luftqualität: IDA 2
Sonderausstellung
• Lufttemperatur: Winter 19 °C +/- 1 K, Sommer: 21 °C +/- 1 K
• relative Luftfeuchtigkeit: 48 – 57 % +/- 3%
• Luftqualität: IDA 2
Veranstaltung
• Luftqualität: IDA 1
34MdbG Thermo Dynamic Simulation
Air Humidity Constant Exhibition
37House of Energy – Passive House 2.0
PH Apartment – Office – KnowHow - BauSchau
38
Source: AiroptimaHouse of Energy - Passive House 2.0
The only additional heating needed
• Heating demand 4,9 kWh/(m²a)
• 10 kW ground source heat pump
(heating and cooling)
• 2 + 2 drills, depth 100 m each
• 909 m² treated floor area
• 900 € /year for heating, hot water
• 40 000 kWh/a PV production 39
Quelle: FakirHouse of Energy - Passive House 2.0
Heating loads over the year
40
Source: Herz & Lang GmbHHouse of Energy - Passive House 2.0
Ventilation concept
• Decentral ventilation concept (8 MVHR-units)
42
Source: AiroptimaBaaderstraße 7, Munich
EnerPHit pilot project
44
Source: PETER FINK ARCHITEKTEN GMBHBaaderstraße 7, Munich
EnerPHit pilot project
Rückhaus
Photografie Georg Szabo Photogaphy, MünchenBuilding Shell: Heat Bridges Concept + Calc.
Quelle: Architekturbüro Fink, Herz & Lang GmbHBuuilding Technology: Comfort Vent. System
4 Central Units with Heat Recovery
Quelle: Airoptima, Herz & Lang GmbHMarienheim Kempten
Refurbishment with PH Components Modellvorhaben
Nursing Home Kempten
2011-2013
CO2 Einsparung: Faktor 10
Verbrauchsreduktion: Faktor 3
Quelle: Jakob Architekten, Herz & Lang GmbHMarienheim Kempten
Refurbishment with PH Components Modellvorhaben
Fassadensystem: Kreuzlattung
Quelle: Jakob Architekten, Herz & Lang GmbHPassive School Buchloe/Bavaria 2013 PPP
• 51.300 m³ enclosed volume
• 8.100 m² treated floor area
• Heating and DHW through
..a ground water heat pump
• central ventilation: 84%
..heat recovery
50
Source: Reisch; Lederer-Ragnasdotir-Oei, Herz & Lang GmbHJohann-Pachelbel-Realschule / FOS
Passivhaus Concept for Shell+MWHR
Town of Nürnberg / Bavaria PPP-Project
Passive House is Standard for Municipal Buildings
Source: Reisch; Lederer-Ragnasdotir-Oei, Herz & Lang GmbH 51Passivhaus Concept
Ventilation
Zentrale Lüftungsanlagen für
Allgemeinbereiche Dezentrale Lüftungsanlagen
z.B. Aula, Sporthalle, Umkleiden für die Klassenzimmer,
Lehrerzimmer
Source: Reisch; Lederer-Ragnasdotir-Oei, Herz & Lang GmbH
52Multi Zone PHPP
Berechnung nach
PHPP Version 8.5
Unterteilung des
Gebäudes in 8
Nutzungszonen
= 8 PHPP
Berechnungen
Nachweis der
Kennwerte als
Mittelwert für das
Gesamtgebäude
53Investigation of internal shading via
Thermo Dynamic Building Simulation
Eigenverschattungen des Gebäudes durch die Innenhofsituation, oder durch Vor- und
Rücksprünge wurden mittels thermodynamischer Gebäudesimulation berechnet, da
hierfür das Berechnungsverfahren der PHPP Berechnung zu groben und ungenauen
Ergebnissen führt.
54Results Heat Demand
Passivhaus 1,4 l Öl/m²a
Standard BRD Schulen >= 10 l Öl/m²a
55Explorer Hotels Group
1st PH Hotels worldwide in certified PHI Standard
1st Passiv Hotel Explorer Hotel Oberstdorf, Bavaria, Germany South
2nd Passive Hotel Montafon 2011 3rd Passive Hotel Neuschwanstein 2013
59
Source: Sieber-Renn Architektur, Herz & Lang GmbHPassivhaushotels a story of success
Built with quality assurance, , certified to PHI-Criterias
Hotels der Superlative
1.Passivhotel Oberstdorf 2010
2.Passivhotel Montafon 2011
3.Passivhotel Neuschwanstein 2013
4.Passivhotel Berchtesgaden 2015
5.Passivhotel Stubaital/Tirol 2015
6.Passivhotel Kitzbühl/Tirol 2016
7.-10.Passivhotel in BRD/A bis 2018
11.-20. Passivhotel bis 2020
Quelle: Sieber-Renn Architektur, Herz & Lang GmbHExplorerhotel Neuschwanstein
Klimabilanz, CO2-Ausstoß – Annahme Biomasse+Solarthermie
[kg/CO2]
250.000
Gutschrift Einspeisung
-6 to
200.000
Gutschrift Strombezug
aus Wasserkraft ohne
Emission
150.000
Emission
Stromverbrauchs-
äquivalent Strommix
Bundesdurchschnitt
100.000
Emission Warmwasser
50.000
Emission Heizung
0
Emission Gutschrift
Quelle: Herz & Lang GmbHExplorerhotel Neuschwanstein - Pellet
Klimabilanz, CO2-Ausstoß – Vergleich Baustandards
1.200.000
1.000.000 Gutschrift Einspeisung
-101%
800.000
Emission
Stromverbrauch
600.000
Emission Warmwasser
-103%
400.000
Emission Heizung
200.000
0
Explorerhotel EnEV2009 Bestandhotels 3-4
Neuschwanstein - Neubaustandard Sterne
Pellet+Solar
-200.000
Quelle: Herz & Lang GmbHApartments Hotel Schwarz*****, Mieming, Tirol
• 73 Apartments für 104 Hotelangestellte
• 2750 m² beheizte Nutzfläche
• Freischwimmbecken auf dem Dach
65
• Gasbrennwerttherme, KomfortlüftungApartments Hotel Schwarz*****, Mieming, Tirol Quelle: Tiroler Passivhaus Magazin, Agentur Zweiraum 66
Passivhotel Frankfurt - comming soon ! Quelle: Hilton by Hampton Architekt Lepper, Frankfurt 67
Passive Apartments NHT Lodenareal, Innsbruck
Largest certified "Passive House" complex in the world, 2009
• Pilot project in Tirol, 354 apt.
• Construction cost 54 Mil euro
• 250 Excursions since 2009
Neue Heimat Tirol has built over
1000 apt. with PH Consulting since
2007
“The Lodenareal is the
key project for the
future of housing in
Europe”
Wolfgang Feist 2009
Monitoring 2009-2012: Best PH in Austria
68
Source: nht, din a4, team k2Passive Apartments Olympic Village, Innsbruck 2011
1st Passive Olympic Village 2012 / Neue Heimat Tirol
• 440 apartments
• approx 30.000 m² Floorspace
• 13 Buildings (6x Hybrid
…Timber/RC)
• construction cost 65 Mil. Euro
• district heating, central ventilation
Bild: Christof Lackner
70
Quelle: Herz & LangSource:

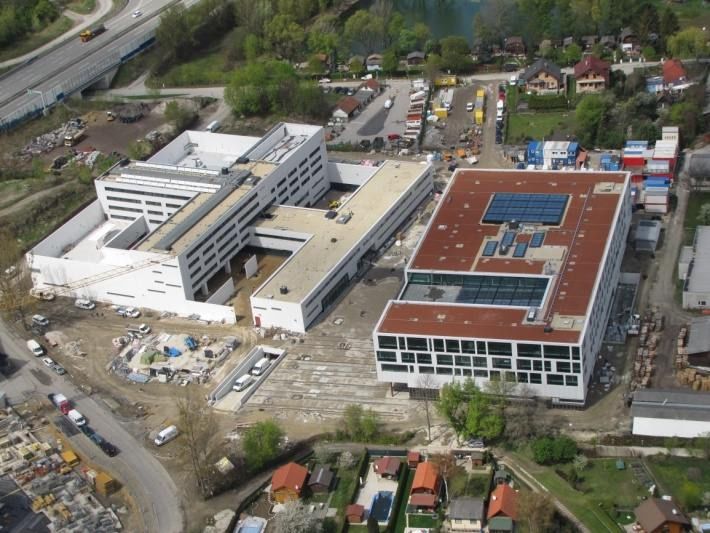

GmbH nhtPassiv Justizzentrum Korneuburg 2013
1. Prison and Court House Passive House certified
68.000 m³ heated vol. (Concrete+Hybrid)
27.000 m² heated space
Building Invest 65 Mio. Euro
Passivhaus Consulting
Quelle: Quelle:
Arge DieterHerz
Mathoi&Architekten
Lang GmbH & dina4Passiv Justizzentrum Korneuburg 2013
1. Prison and Court House Passive House certified
Energy demand in usage is
very close to passive design !
Important to optimise efficient systems
and to keep quality: MONITORING
Quelle:
Quelle: Arge Dieter Mathoi Herz && Lang
Architekten DIN A4 GmbH
ArchitekturPassivhaus Wohnbau Ulm 2016
Ausführungsplanung
Passivhaus Consulting
Quelle: UWS / Quelle: Herz
Ulm, Projekt GmbH& Lang GmbHMunich Support Center
Center for persons with disabilities
• 35 barrier-free apartments
• therapeutic pool (32°C)
• District heating, decentral (Blue.M)
• Combined heat and power (pool) Source: Batzer+Hartmann, Herz & Lang GmbH
74Passive Nursing Home Olympic Village Innsbruck 2013 Largest PHI-certified nursing home in Austria Facade Passivhaus Consulting H&L Quelle: ARTEC Architekten Wien
Passive Residential Home O-Dorf Innsbruck 2013
Largest PHI-certified nursing home in Austria
• 120 single apartments
• 7400 m² treated floor area • District heating, central ventilation
77
Source: ARTEC Architekten Wien, nhtPassivhausProjektierung – Zonenmodell
Helmholtzzentrum Reisch GmbH 2. Platz
Facade
Architekten Sauerbruch&Huton Berlin
79Federal Office for Health and Food Security Erlangen Investor: The Free State of Bavaria Architekten H4a Gessert&Randecker GmbH 80
Haus der Musik – Innsbruck
First Philarmony in Passive House Standard worldwide
Quelle: IIG, Strolz Architekten Innsbruck
81Passive House Focus:
Architecture and Variety of Facades
To reach Passivhaus Standard is a lot easier with large and compact
buildings than with smaler ones !
Freiheiten in der Architektur, Gestaltung sind grundsätzlich möglich und gefährden die Wirtschaft-
lichkeit langfristig gesehen nicht, das zeigte zuletzt der Passivhaus Award 2014. Im Maße wie die
Freiheiten genutzt werden, gehen die Anforderungen an die vorhandenen Grenzen.
Fassaden treten bei großen Gebäuden immer mehr in der Focus der Effizienz- und langfristigen
Wirtschaftlichkeitsbetrachtung, besonders dann wenn es um die Sommertauglichkeit und damit den
Komfort mit notwendigem Kühlbedarf und der Nutzung natürlichen Lichts geht !
Quelle:
Quelle: Atelier Bow-Wow, AB Herz & Lang
Huber+Rössler GmbHHighlight: Social Passive Housing London
ARGE Freisinger, Optiwin
Passivhaus Consulting 12 Appartements, 2 Terraced Houses
First Social Housing Project in London
Quelle: KKM Architects, Freisinger; Herz & Lang GmbHPHPP
Five zones / phpp model
3D net sqaure footagePassive House Bergmana Riga
Rough nordic climate and Indoor Pool
Specials:
Indoor Swimming Pool
First Certified Passive House in Latvia
Quelle: Krauklis Grende Architects, RigaPassive House in Crested Butte, Colorado
Optiwin, Paul/Zehnder
1x 14 WE
Highest Passive House in USA ?
Highest Private PH worldwide ?
Passivhaus Consulting 8.900 ft = 2.712 m
Quelle: Manifold Architects DenverPHPP 9.0 Practical Application
PassivhausPlus Kempten 2011
Sole Wärmepumpe, Komfortlüftung, Holzrahmenbau
Perfekt aus einer Hand
Zitat Bauherren
Consumption - 6.500 KWh/a
Production + 7.500 KWh/a
------------------------------------
Difference + 1.000 KWh/aPH-Einfamilienhaus – Kempten
Variante 1
Konzept: Biomasse
88PH-Einfamilienhaus - Kempten
Variante 2
Konzept: Wasser/Sole-Wärmepumpe
89PH-Einfamilienhaus – Kempten
Variante 3: Stand Ausführung
Konzept: Wasser/Sole-Wärmepumpe + PV 55 m² (7 KWp)
90Explorer Hotel IV Berchtesgaden 2015 Certified Passivhotel Größe: 100 Zimmer Energiebezugsfläche: 3.568 m² Heizwärmebedarf: 14,2 kWh/(m²a)
Explorerhotel - Schönau
Variante 1
Konzept: Nahwärme Biomasse (KWK), ohne PV
92Explorerhotel - Schönau
Variante 2: Ausführung
Konzept: Nahwärme Biomasse (KWK) + PV 970 m² (120 KWp)
93Explorerhotel - Schönau
Variante 4
Konzept: Wasser/Sole-Wärmepumpe + PV 970 m² ( 120 KWp)
94Explorerhotel - Schönau
Variante 4
Konzept: Wasser/Sole-Wärmepumpe + PV 970 m² + DHW-Rec. + Optimising Electr.
95PHPP 9 - IHG in Residential Buildings
96PHPP 9 - what is new ?
New in PHPP 9 Hinweise
new PH-classes: • old certification system always
• PH-classic, PH-Plus, PH-Premium available/valid
• new PER-factors: renewable primary energy • PHs with old criteria are not
• consideration of renewable energy production automatically PHs according to the
new ones
internal gains in residential buildings now huge influence on Qh
depend on the TFA per dwelling unit positive for small dwelling units
more accurate calculation of DHW more accurate results for non-
residential buildings
better integration of the different climate zones more accurate results for cooling
(cold, warm, humid, etc.) and dehumidifying
sheets for variants - comparison - control risks of mistakes - confusing ? -
needs getting used to
97Passive House: Results and Guidelines
Passivhaus needs
straight ways to calculate energy efficiency ((PHPP)
integrated experience in practice, after training (CEPH,….)
sustainable architecture, integrated design, quality management
convinced designers, craftsmen and better products,
straight promotion in a jungle of diverse arguments (LEED,…)
certification to become passive house the standard, not somehow
Passivhaus is not cost neutral in the investment, as long as the
regular standards and quality management for energy efficiency
are lower, but it is economic from the first day using it, because of
more comfort, more and long lasting building quality, lowest
energy costs, now and in the future, in summary more value at
all !!
99‚‚We cannot solve our problems with the same thinking
we used when we created them. ‘‘ Albert Einstein
100You can also read
